1. Hive – SQL on top of Hadoop

2. Content
Background
Concepts
Hive Architecture
Examples

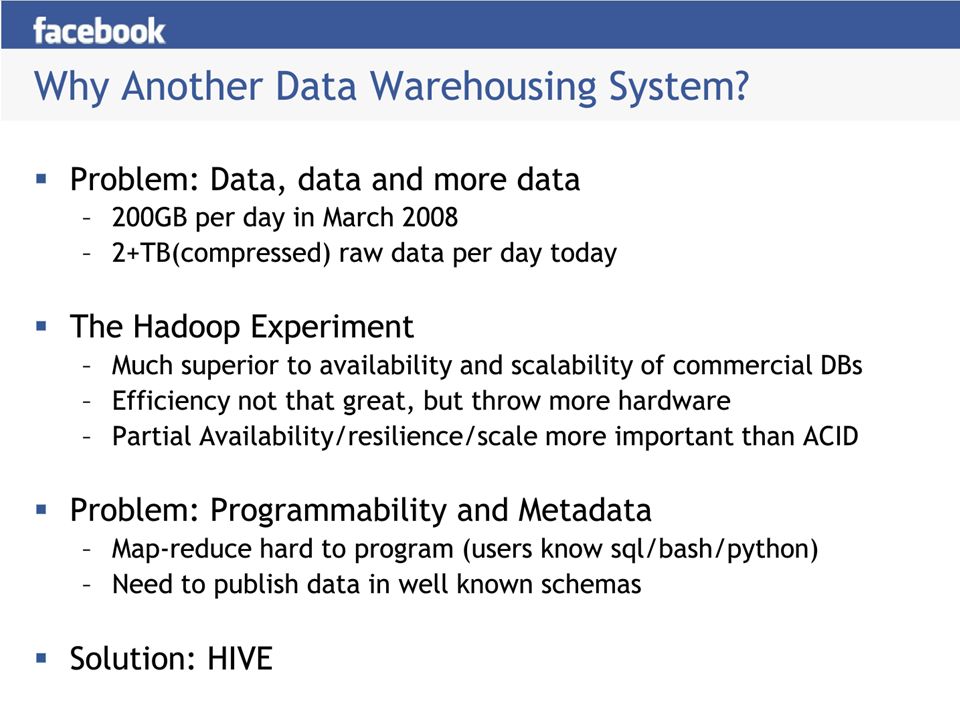

3. Background

8. Version
2008
Apache Hive
2009/4/29
Stable version 0.3.0
2013/1/11
0.10.0
2014/11/12
0.14.0
2015/2/4
1.0.0(0.14.1)
2015/3/18
1.2.0

9. Concepts

10. Map-Reduce and SQL Map-Reduce SQL Solution: Combine SQL and Map-Reduce
Map-Reduce is scalable
SQL
SQL has a huge user base
SQL is easy to code
Solution: Combine SQL and Map-Reduce
Hive on top of Hadoop (open source)
Aster Data (proprietary)
Green Plum (proprietary)

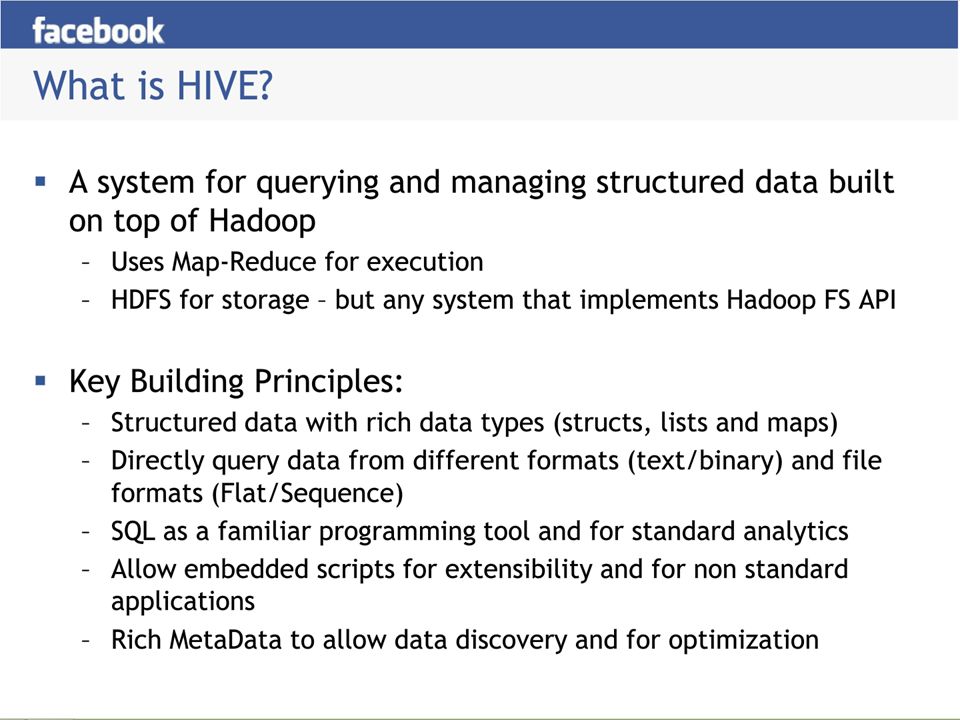

11. What is Hive A database/data warehouse on top of Hadoop
Rich data types
Efficient implementations of SQL on top of map reduce
Allows users to access Hive data without using Hive
Support Analysis of large datasets stored in Hadoop's HDFS and compatible file systems such as Amazon S3 filesystem.
Provides an SQL-like language called HiveQL with schema.
Converts queries to Map-Reduce, Apache Tez and Spark jobs.

12. What Hive Is NOT
Hive aims to provide acceptable (but not optimal) latency for interactive data browsing.
Hive is not designed for online transaction processing and does not offer real-time queries and row level updates. It is best used for batch jobs over large sets of immutable data (like web logs).

13. Data Units Databases Tables
Namespaces that separate tables and other data units from naming confliction.
Tables
Homogeneous units of data which have the same schema. An example of a table could be page_views table, where each row could comprise of the following columns (schema):
timestamp - which is of INT type that corresponds to a unix timestamp of when the page was viewed.
userid - which is of BIGINT type that identifies the user who viewed the page.
page_url - which is of STRING type that captures the location of the page.
referrer_url - which is of STRING that captures the location of the page from where the user arrived at the current page.
IP - which is of STRING type that captures the IP address from where the page request was made.

14. Data Units
Partitions
Each Table can have one or more partition Keys which determines how the data is stored.
Apart from being storage units, partitions also allow the user to efficiently identify the rows that satisfy a certain criteria.
A date_partition of type STRING and country_partition of type STRING. Each unique value of the partition keys defines a partition of the Table.
create table partition_test (userid int, page_url string, refer_url string, IP string) partitioned by (timestamp int, country string) ROW FORMAT DELIMITED FIELDS TERMINATED BY ',';
alter table partition_test add partition (timestamp=' ', country='US');
HDFS: /user/hive/warehouse/partition_test/date= /country=US

15. Data Units
Buckets
Data in each partition may in turn be divided into Buckets based on the value of a hash function of some column of the Table.
For example, the page_views table may be bucketed by userid, which is one of the columns, other than the partitions columns, of the page_view table. These can be used to efficiently sample the data.
HDFS: /user/hive/warehouse/partition_test/date= /country=US/part_00001

17. Type System Primitive Types Complex Types Integers Boolean
TINYINT, SMALLINT, INT, BIGINT
Boolean
BOOLEAN
Point numbers
FLOAT, DOUBLE
String type
STRING
Complex Types
Structs, Maps, Array

18. Build In Operators and Functions
Built in Operators
Relational Operators
=, !=, <, <=, >, >=, IS NULL, IS NOT NULL, LIKE, RLIKE/REGEXP
Arithmetic Operators
+, -, *, /, %, |, ^, ~
Logical Operators
AND/&&, OR/||, NOT/!
Operators on Complex Types
A[n], M[key], S.x

19. Build In Operators and Functions
Built In Functions
Basic
round, floor, ceil
Rand
concat, substr, upper/ucase, lower/lcase, trim/ltrim/rtrim, regexp_replace
Size
cast, from_unixtime, to_date, year, month, day, get_json_object
Aggregation
count, sum, avg, min, max

20. Usage and Examples Creating Tables Browsing Tables and Partitions
CREATE TABLE page_view(viewTime INT, userid BIGINT, page_url STRING, referrer_url STRING, friends ARRAY<BIGINT>, properties MAP<STRING, STRING>, ip STRING COMMENT 'IP Address of the User')
COMMENT 'This is the page view table'
PARTITIONED BY(date STRING, country STRING)
CLUSTERED BY(userid) SORTED BY(viewTime) INTO 32 BUCKETS
ROW FORMAT DELIMITED FIELDS TERMINATED BY '1'
STORED AS SEQUENCEFILE;
Browsing Tables and Partitions
SHOW TABLES;
SHOW TABLES 'page.*';
SHOW PARTITIONS page_view;
DESCRIBE (EXTENDED) page_view;

21. Usage and Examples Altering Tables Dropping Tables and Partitions
ALTER TABLE old RENAME TO new;
ALTER TABLE old REPLACE COLUMNS (c1 TYPE, …);
ALTER TABLE old ADD COLUMNS (c1 INT COMMENT 'a new int column', c2 STRING COMMENT DEFAULT 'def val');
Dropping Tables and Partitions
DROP TABLE pv_users;
ALTER TABLE pv_users DROP PARTITION (ds=' ')

22. Loading Data
Method1
CREATE EXTERNAL TABLE page_view_stg(viewTime INT, userid BIGINT, page_url STRING, referrer_url STRING, ip STRIN, country STRING)
COMMENT 'This is the staging page view table'
ROW FORMAT DELIMITED FIELDS TERMINATED BY '44' LINES TERMINATED BY '12'
STORED AS TEXTFILE
LOCATION '/user/data/staging/page_view';
hadoop dfs -put /tmp/pv_ txt /user/data/staging/page_view
FROM page_view_stg pvs
INSERT OVERWRITE TABLE page_view PARTITION(dt=' ', country='US')
SELECT pvs.viewTime, pvs.userid, pvs.page_url, pvs.referrer_url, null, null, pvs.ip WHERE pvs.country = 'US';

23. Loading Data Method2 Method3
LOAD DATA LOCAL INPATH /tmp/pv_ _us.txt INTO TABLE page_view PARTITION (date=' ', country='US')
Method3
LOAD DATA INPATH '/user/data/pv_ _us.txt' INTO TABLE page_view PARTITION (date=' ', country='US')

24. Querying and Inserting Data
Simple Query
Insert
INSERT OVERWRITE TABLE user_active
SELECT user.*
FROM user
WHERE user.active = 1;
Select

25. Querying and Inserting Data
Partition Based Query
INSERT OVERWRITE TABLE xyz_com_page_views
SELECT page_views.*
FROM page_views
WHERE page_views.date >= ' ' AND page_views.date <= ' ' AND page_views.referrer_url like '%xyz.com';
Joins
INSERT OVERWRITE TABLE pv_friends
SELECT pv.*, u.gender, u.age, f.friends
FROM page_view pv JOIN user u ON (pv.userid = u.id) JOIN friend_list f ON (u.id = f.uid)
WHERE pv.date = ' ';

26. Querying and Inserting Data
Aggregations
Allowed
INSERT OVERWRITE TABLE pv_gender_agg
SELECT pv_users.gender, count(DISTINCT pv_users.userid), count(*), sum(DISTINCT pv_users.userid)
FROM pv_users
GROUP BY pv_users.gender;
Not allowed
SELECT pv_users.gender, count(DISTINCT pv_users.userid), count(DISTINCT pv_users.ip)

27. Querying and Inserting Data
Multi Table/File Inserts
FROM pv_users
INSERT OVERWRITE TABLE pv_gender_sum
SELECT pv_users.gender, count_distinct(pv_users.userid)
GROUP BY pv_users.gender
INSERT OVERWRITE DIRECTORY '/user/data/tmp/pv_age_sum'
SELECT pv_users.age, count_distinct(pv_users.userid)
GROUP BY pv_users.age;
Dynamic-Partition Insert
FROM page_view_stg pvs
INSERT OVERWRITE TABLE page_view PARTITION(dt=' ', country)
SELECT pvs.viewTime, pvs.userid, pvs.page_url, pvs.referrer_url, null, null, pvs.ip, pvs.country

28. Querying and Inserting Data
Sampling
Choose 3rd bucket out of 32 buckets
INSERT OVERWRITE TABLE pv_gender_sum_sample
SELECT pv_gender_sum.*
FROM pv_gender_sum TABLESAMPLE(BUCKET 3 OUT OF 32);
Choose 3rd and 19th bucket out of 32 buckets
TABLESAMPLE(BUCKET 3 OUT OF 16)
Choose half of the 3rd buckets
TABLESAMPLE(BUCKET 3 OUT OF 64 ON userid)
The buckets are numbered starting from 0

29. Hive Architecture

30. Hive Architecture 1. User issues SQL Query
2. Hive parses and plans query
3. Query converted to Map-Reduce
4. Map-Reduce run by Hadoop
Compiler
Optimizer
Executor

31. Services CLI HiveServer HWI Command Line Interface
Allows a remote client to submit requests to Hive
Exports Thrift
For scalable cross-language services development, combines a software stack with a code generation engine to build services that work efficiently among different languages
HiveServer cannot handle concurrent requests from more than one client, removed starting in Hive (1.0.0)
HiveServer2 is a rewrite of HiveServer that addresses these problems, starting with Hive
HWI
Hive Web Interface

32. Driver Compiler Optimizer Executor Parser Semantic Analyzer
Logic Plan Generator
Local Optimizer
Physical Plan Generator
Physical Optimizer
Optimizer
Executor

33. Hive Architecture

34. SerDe Built-in SerDes Third-party SerDes Avro ORC RegEx Thrift Parquet
CSV
Third-party SerDes
jsonserde.jar

35. Examples – SQL to Map-Reduce

36. Join SQL: INSERT INTO TABLE pv_users SELECT pv.pageid, u.age
FROM page_view pv JOIN user u ON (pv.userid = u.userid);
page_view
user
pv_users
pageid
userid
time 1
111
09:08:01 2
09:08:13
222
09:08:14
userid
age
gender
111 25
female
222 32
male
pageid
age 1 25 2 32 X =

37. Join – in Map Reduce page_view pv_users pageid userid time 1 111
09:08:01 2
09:08:13
222
09:08:14
key
value
111
<1, 1>
<1, 2>
222
key
value
111
<1, 1>
<1, 2>
<2, 25>
pageid
age 1 25 2
Shuffle Sort
Map
Reduce
user
userid
age
gender
111 25
female
222 32
male
key
value
111
<2, 25>
222
<2, 32>
key
value
222
<1, 1>
<2, 32>
pageid
age 1 32

38. Group By SQL: INSERT INTO TABLE pageid_age_sum
SELECT pageid, age, count(1)
FROM pv_users
GROUP BY pageid, age;
pv_users
pageid_age_sum
pageid
age 1 25 2 32
pageid
age
count 1 25 2 32

39. Group By – in Map Reduce pv_users pageid_age_sum pageid age 1 25 2 key
value
<1, 25> 1
<2, 25>
key
value
<1, 25> 1
<1, 32>
pageid
age
count 1 25 32
Shuffle Sort
Map
Reduce
pageid
age 1 32 2 25
key
value
<1, 32> 1
<2, 25>
key
value
<2, 25> 1
pageid
age
count 2 25

40. Group By with Distinct SQL: SELECT pageid, COUNT(DISTINCT userid)
FROM page_view GROUP BY pageid
page_view
result
pageid
userid
time 1
111
09:08:01 2
09:08:13
222
09:08:14
09:08:20
pageid
count_distinct_userid 1 2

41. Group By with Distinct – in Map Reduce
page_view
result
pageid
userid
time 1
111
09:08:01 2
09:08:13
key
value
<1, 111>
<1, 222>
pageid
count_distinct_userid 1 2
Shuffle Sort
Reduce
pageid
userid
time 1
222
09:08:14 2
111
09:08:20
key
value
<2, 111>
pageid
count_distinct_userid 2 1

42. Order By SQL: SELECT * FROM page_view ORDER BY time; page_view
pageid
userid
time 2
111
09:08:13 1
09:08:01
09:08:20
222
09:08:14
pageid
userid
time 1
111
09:08:01 2
09:08:13
222
09:08:14
09:08:20

43. Order by – in Map Reduce page_view pageid userid time 2 111 09:08:13 1
09:08:01
key
value
<1, 111>
09:08:01
<2, 222>
09:08:13
page_view
pageid
userid
time 1
111
09:08:01 2
09:08:13
222
09:08:14
09:08:20
Shuffle Sort
Reduce
pageid
userid
time 2
111
09:08:20 1
222
09:08:14
key
value
<1, 222>
09:08:14
<2, 111>
09:08:20

44. Sort by – in Map Reduce page_view page_view pageid userid time 2 111
09:08:13 1
09:08:01
key
value
<1, 111>
09:08:01
<1, 222>
09:08:14
pageid
userid
time 1
111
09:08:01
222
09:08:14
Shuffle Sort
Reduce
pageid
userid
time 2
111
09:08:20 1
222
09:08:14
key
value
<2, 111>
09:08:13
09:08:20
pageid
userid
time 2
111
09:08:13
09:08:20

45. Merge Sequential Map Reduce Jobs
SQL:
SELECT ……
FROM (a join b on a.key = b.jey) join c on a.key = c.key
key av 1
111
Map Reduce
key av bv 1
111
222
Map Reduce
key bv 1
222
key av bv cv 1
111
222
333
key cv 1
333

46. Share Common Read Operations
Extended SQL:
FROM pv_users
INSERT INTO TABLE pv_pageid_sum
SELECT pageid, count(1)
GROUP BY pageid
INSERT INTO TABLE pv_age_sum
SELECT age, count(1)
GROUP BY age;
pageid
count 1 2
pageid
age 1 25 2 32
Map Reduce
age
count 25 1 32
