Vasculature, csf, and meninges

Similar presentations


Presentation on theme: "Vasculature, csf, and meninges"— Presentation transcript:

1 Vasculature, csf, and meninges

2 objectives Explain how oxygen is delivered to brain tissue, how the brain is suspended in liquid, and how fluid flows between the systems Identify disorders of vascular supply, formation and pressure imbalances from descriptions of the problem

3 meninges Dura – thick fascia, 2 layers
Outer layer attached to skull Inner layer attached to arachnoid, continuous with spinal dura Sinuses formed by spaces between dural layers Arachnoid – Thin, flexible connective tissue Attached to pia with arachnoid trabeculae Pia – thinnest layer Fused to surface of brain Follows gyri and sulci meninges Veins and arteries run in subarachnoid space – subarachnoid hemorrhages Meningeal arteries run in epidural – epidural hematomas Veins cross the subdural space to connect veins with sinuses – subdural hematomas

4 Sinuses vs cisterns Sinuses – within dura (between layers)
Cisterns – subarachnoid space Suprasellar Quadrigeminal Infrapontine Cisterna magna

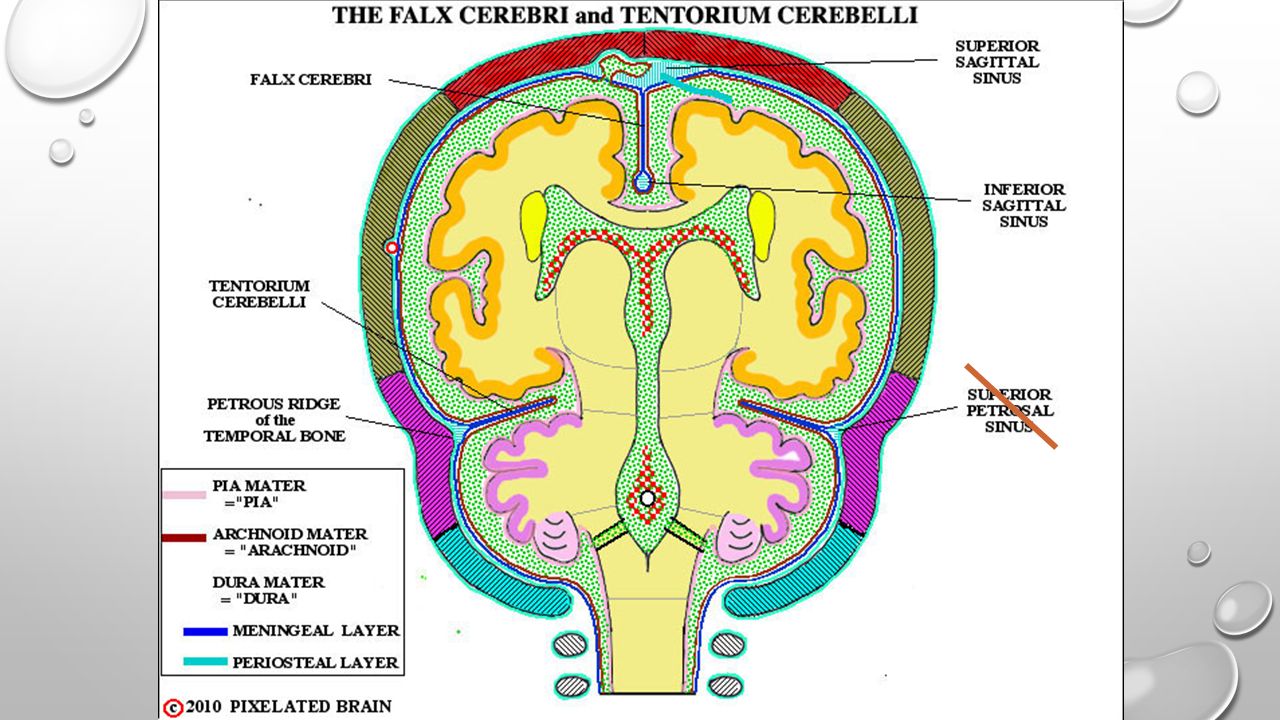

5 Falx cerebri and tentorium cerebelli
Folds of the inner layer of dura mater separating the cerebral hemispheres and the cerebrum from the cerebellum Outer layer of dura Inner layer of dura Left hemisphere Right hemisphere FALX CEREBRI

6

7

8 Video for visuals only https://www.youtube.com/watch?v=J2oVjn2ALLE
Craniosacral movement is BS, but this video is useful for the visuals

9 Veins and sinuses SSS ISS Straight Confluence Transverse Sup petrosal
Inf petrosal Sigmoid Internal jugular vein

10 CSF Drainage Csf drains from subarachnoid space directly to the sinuses Arachnoid villi/granulations

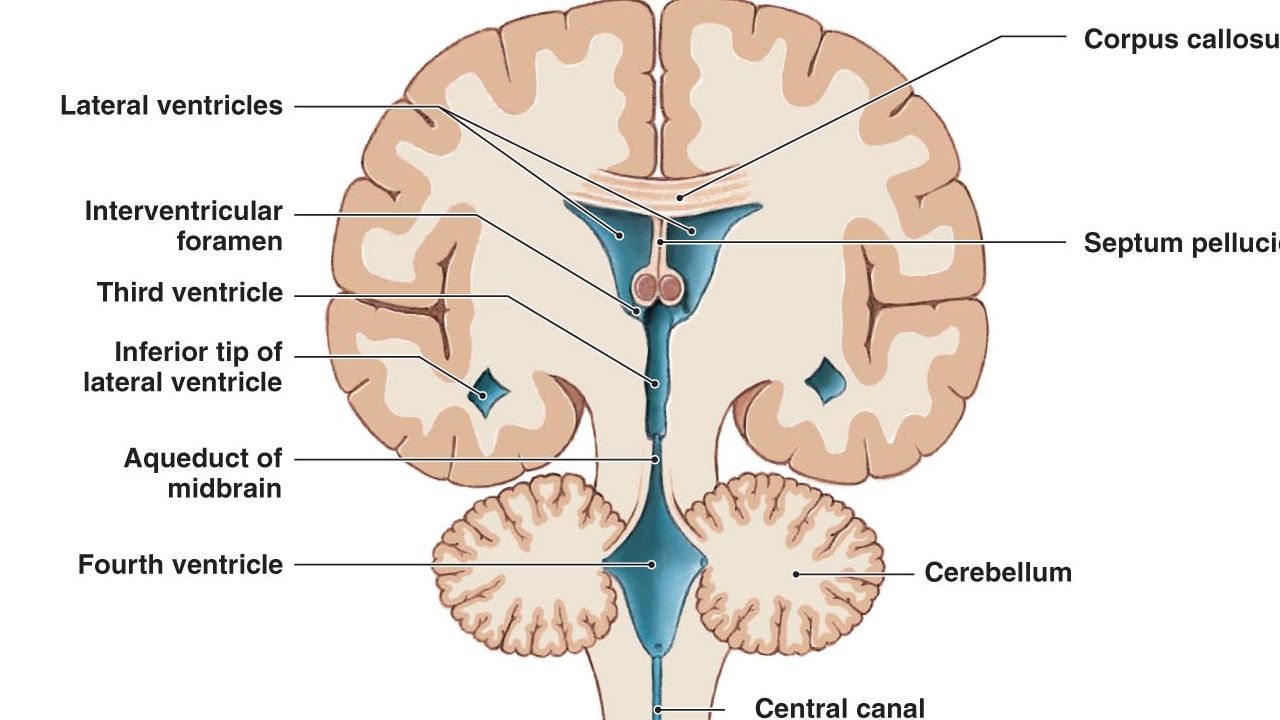

11 ventricles 1&2 – aka lateral ventricles, in hemispheres
Interventricular foramen (of Monroe) 3 – in diencephalon Cerebral aqueduct 4 – in pons/medulla/cerebellum 2 lateral & 1 medial foramen to subarachnoid space

12 Lateral ventricles Anterior horn Body (splenium) Atrium Posterior horn
Inferior horn

13

14

15

16 Circle of willis Entering circle: basilar artery, internal carotid arteries Within circle only: posterior communicating, anterior communicating Exiting circle: Posterior cerebral, middle cerebral, anterior cerebral

17 Videos for your reference

18 Cerebral arteries Each cerebral artery is broken into segments to understand locations of strokes more easily Aca has 5 segments Mca has 4 segments Pca has 4 segments

19 Aca (pg 29 of haines) A1 – portion of aca within the circle of willis
No major branches A2 – portion of aca between anterior communicating and bifurcation of pericallosal and callosomarginal.* Orbital and frontopolar branches A3 – pericallosal artery A4 and a5 – small terminal branches of aca *callosomarginal artery exists in about 60% of the population

20 Mca (pg 39 of haines) M1 – portion of mca before bifurcation
Supplies basal ganglia, choroid plexus of lateral ventricles M2 – portions of mca coursing over insula M3 – portions of mca coursing along undersides (deep surfaces) of parietal and temporal lobes M4 – branches of mca supplying lateral surface of cortex: Orbitofrontal, prerolandic, rolandic, anterior and posterior parietal branches, angular, anterior and posterior temporal branches.

21 Pca (pg 21 of haines) P1 – portion of pca within circle of willis
Supplies midbrain, thalamus, choroid plexus of lateral and 3rd ventricles P2 – portion of pca outside of circle, before major branches P3 – anterior temporal, posterior temporal, and continuation of pca P4 – parieto-occipital, calcarine

22

23 Vertebrobasilar system
Blood supply to the brainstem and cerebellum! Inferior to superior: Vertebral A Posterior inferior cerebellar A Anterior spinal A Basilar A (only one not paired) Anterior inferior cerebellar A Pontine A Superior cerebellar pca

24 Disorders Hematomas (subdural and epidural) Hydrocephalus
Intracranial pressure Herniations Uncal Central Tonsillar Strokes (cerebrovascular accidents) Infarction vs hemorrhage Transient ischemic attack (TIA) Completed stroke Progressive stroke Aneurysms Arteriovenous malformations

25 Disorder identification
Blood from a vein pools in the subdural space Blood from an artery pools in the subarachnoid space Blood from an artery pools in the epidural space An embolus occludes the Mca with symptoms lasting less than 24 hours An embolus occludes the aca with symptoms lasting longer than 24 hours
