1. Vizioncore Tools for Optimizing VMware Larry Loucks Senior Sales Engineer Lloucks@vizioncore.com

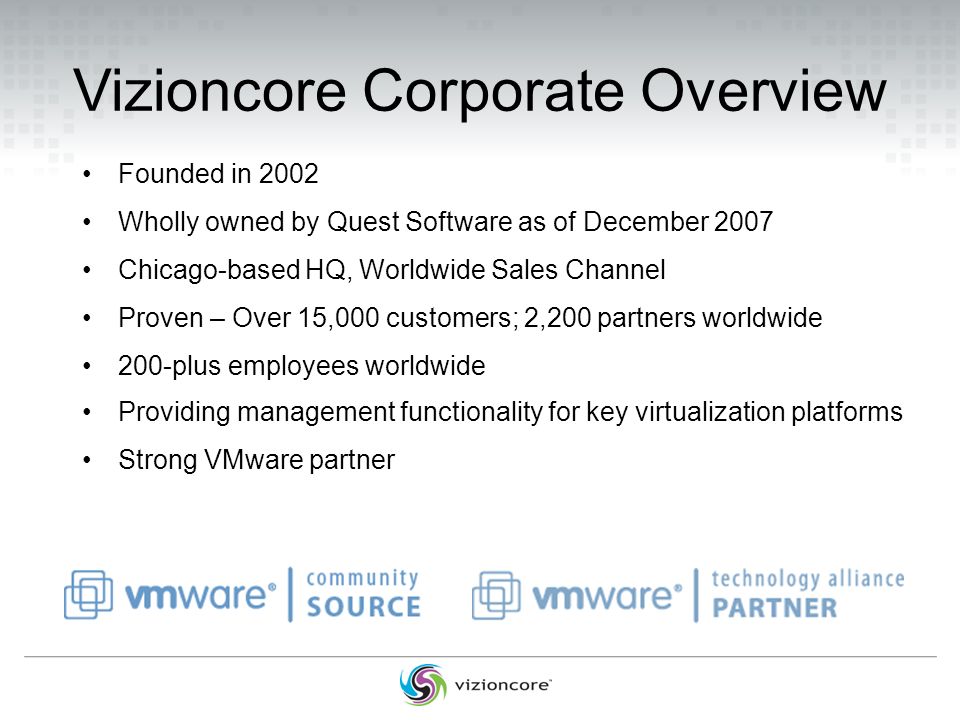

2. Vizioncore Corporate Overview Founded in 2002 Wholly owned by Quest Software as of December 2007 Chicago-based HQ, Worldwide Sales Channel Proven – Over 15,000 customers; 2,200 partners worldwide 200-plus employees worldwide Providing management functionality for key virtualization platforms Strong VMware partner

3. Enterprise Clients

4. Product Strategy: High Level View We have solutions in all of the recognized virtualization segments and continue to address customer needs. 2002 Market leading point solution vendor for Backup/Recovery/DR 2009 Virtualization industry leader offering an end-to-end set of solutions for every facet of a customer’s virtualization management needs We are expanding and enhancing our product portfolio to be able to position ourselves as: THE virtualization management vendor of choice. “Choose a hypervisor or 2, then choose us”

6. Performance Monitoring - vFoglight vFoglight (formerly vCharter Pro) Single web-based “pane-of-glass” view monitors VirtualCenter, datacenter, resource pools, clusters, ESX Server, VM and Datastore levels Intelligent solution “understands” the performance of all the components of VMware platform and can “roll-up” problems at lower levels into higher level alarms. Drill thru virtual layers into application layers for performance and availability monitoring for SQL Server, Active Directory and Exchange Comprehensive Chargeback late 2008

7. Detailed Architectural Representations Unique visual paradigm: Clear, high-level visual representations which include color coding and movements Focuses attention on problem areas to quickly identify problems/speed diagnosis

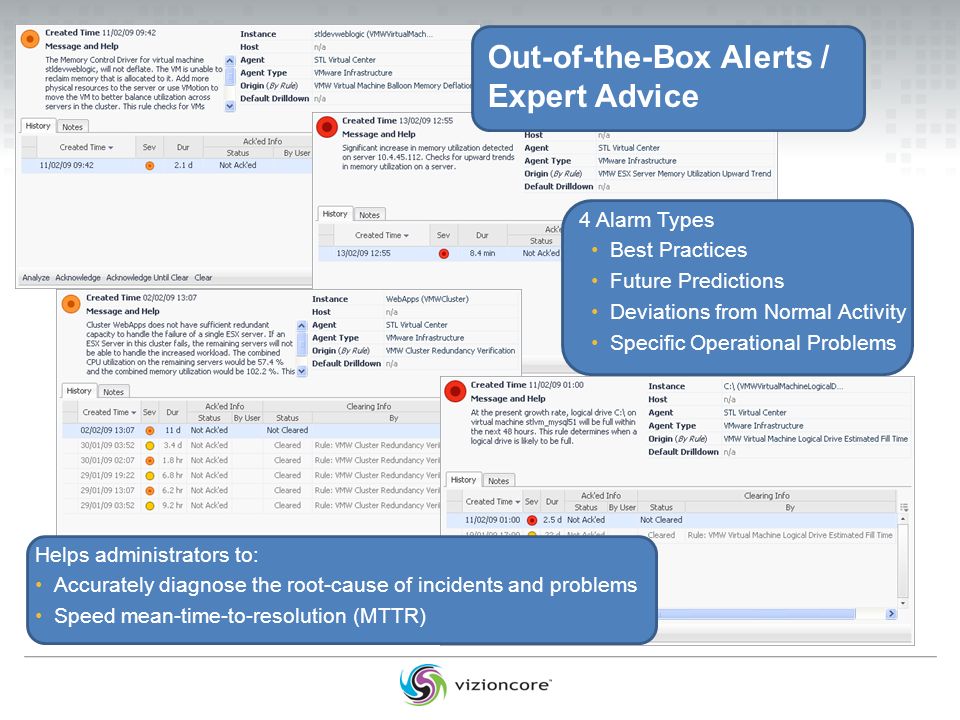

8. Out-of-the-Box Alerts / Expert Advice 4 Alarm Types Best Practices Future Predictions Deviations from Normal Activity Specific Operational Problems Helps administrators to: Accurately diagnose the root-cause of incidents and problems Speed mean-time-to-resolution (MTTR)

9. Identify Starved VMs See which VMs are waiting most for CPU Drill down in context to find out why.

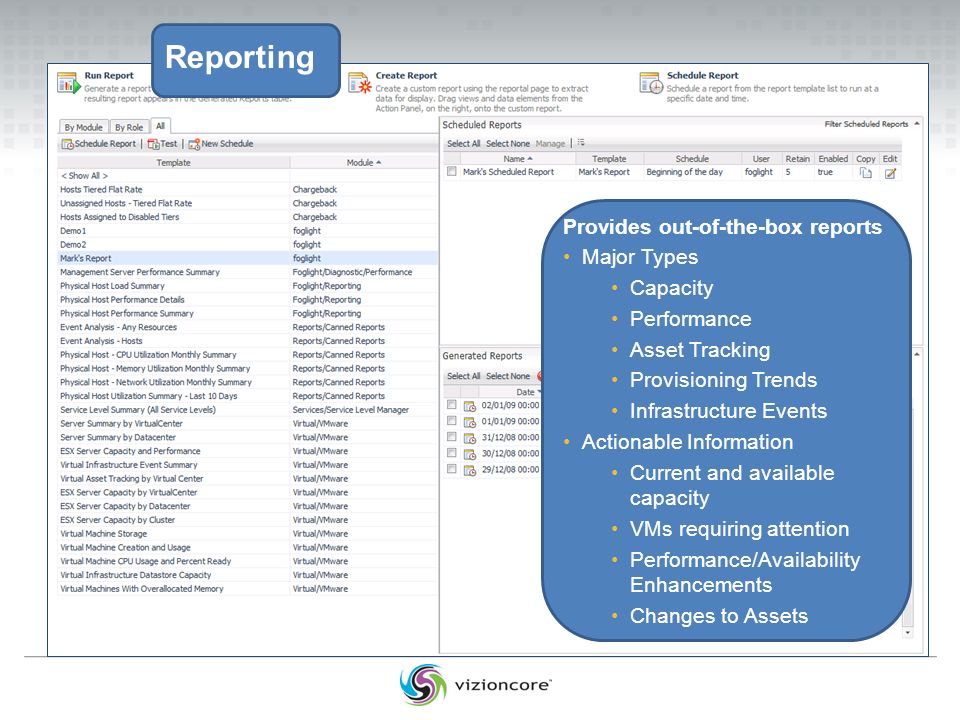

10. Reporting Provides out-of-the-box reports Major Types Capacity Performance Asset Tracking Provisioning Trends Infrastructure Events Actionable Information Current and available capacity VMs requiring attention Performance/Availability Enhancements Changes to Assets

11. Chargeback Allocate costs for the use of infrastructure Capture resource allocation for hosts and groups of hosts Allocate costs to the applications or services who use them Supports both virtual and physical hosts using industry- standard Chargeback models Provides costs transparency to IT and business stakeholders

12. Guest Process Investigation Drill-down into the processes running within VMs Understand internal performance Identify which processes are impacting VM performance Determine which processes are utilizing resources ineffectively or to the detriment of other work

13. ROI for vFoglight Improved view into the “health” of your virtualized environments Provides for better performance of the environment if the information is acted upon Baselining as a security tool Can assist in identifying security breeches and misuse of your virtualized environment Identify and resolve issues more quickly View into physical network communications useful in identifying hard-to-troubleshoot physical connectivity issues * Cost to your business may vary depending on ELA’s and discount programs

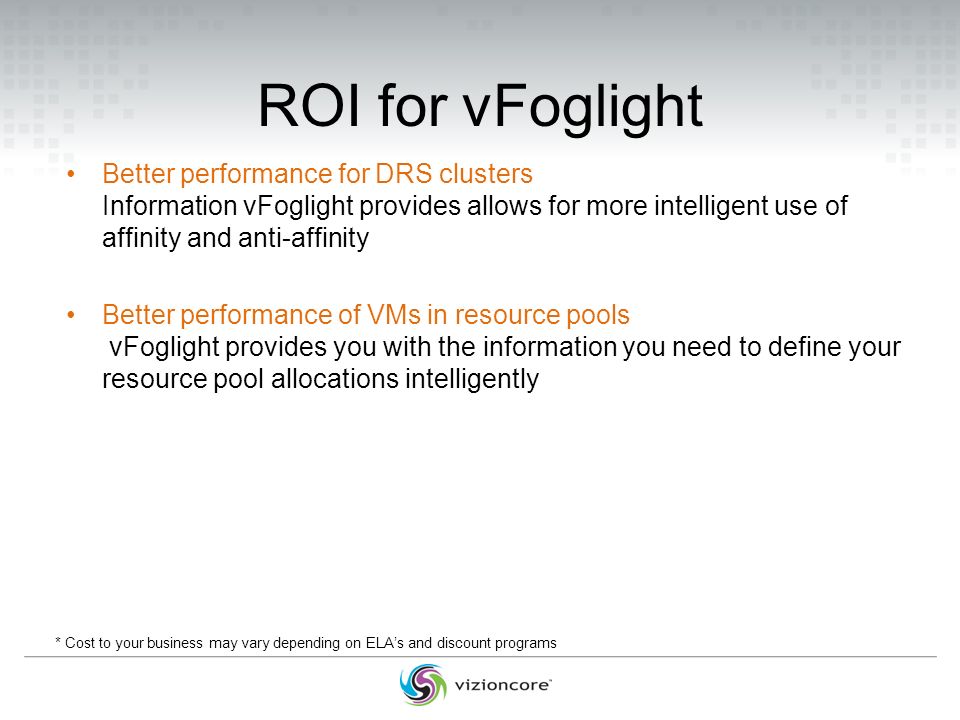

14. ROI for vFoglight Better performance for DRS clusters Information vFoglight provides allows for more intelligent use of affinity and anti-affinity Better performance of VMs in resource pools vFoglight provides you with the information you need to define your resource pool allocations intelligently * Cost to your business may vary depending on ELA’s and discount programs

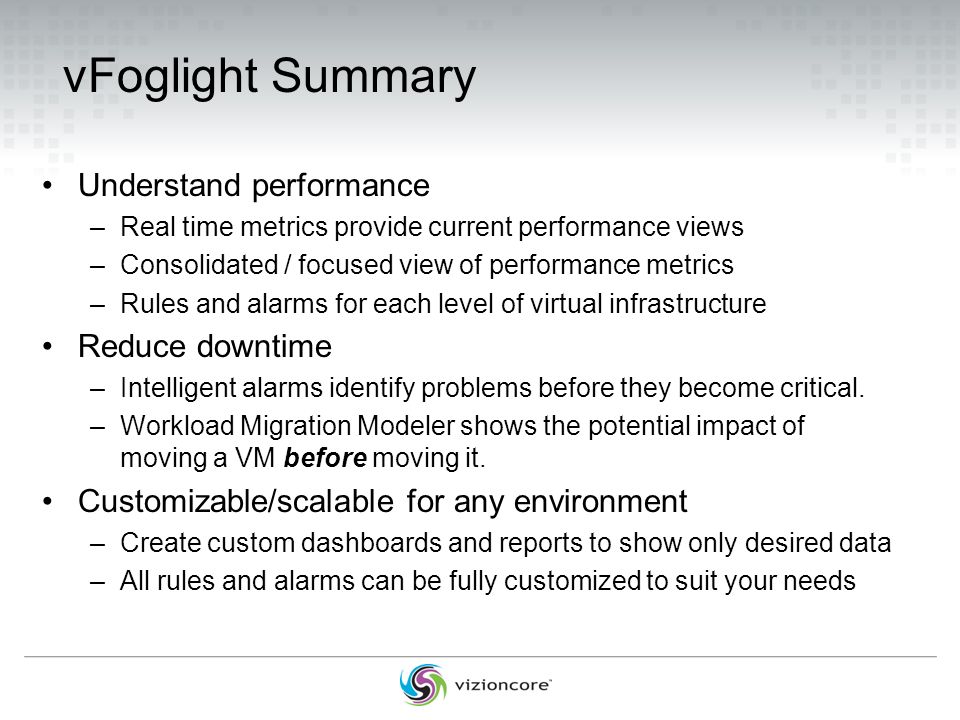

15. vFoglight Summary Understand performance –Real time metrics provide current performance views –Consolidated / focused view of performance metrics –Rules and alarms for each level of virtual infrastructure Reduce downtime –Intelligent alarms identify problems before they become critical. –Workload Migration Modeler shows the potential impact of moving a VM before moving it. Customizable/scalable for any environment –Create custom dashboards and reports to show only desired data –All rules and alarms can be fully customized to suit your needs

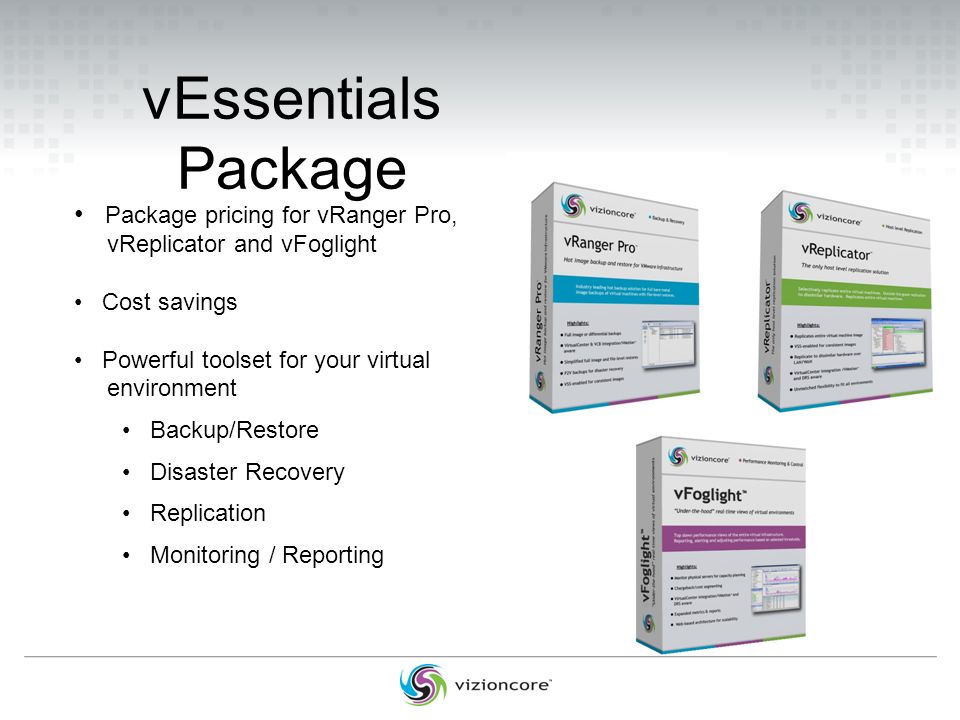

16. vEssentials Package Package pricing for vRanger Pro, vReplicator and vFoglight Cost savings Powerful toolset for your virtual environment Backup/Restore Disaster Recovery Replication Monitoring / Reporting

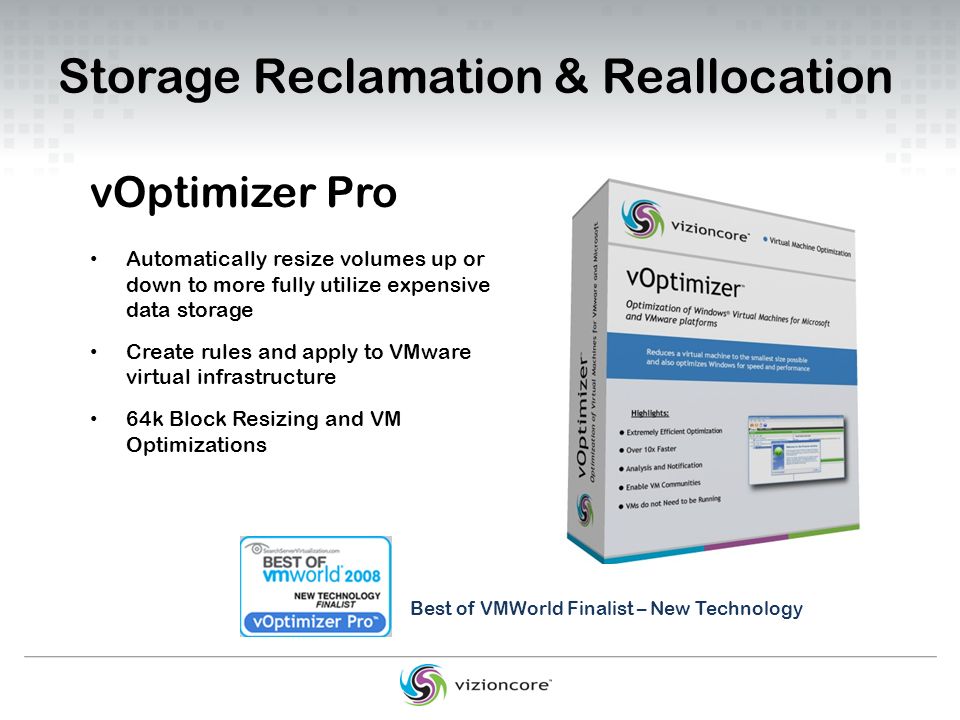

17. Storage Reclamation & Reallocation vOptimizer Pro Best of VMWorld Finalist – New Technology Automatically resize volumes up or down to more fully utilize expensive data storage Create rules and apply to VMware virtual infrastructure 64k Block Resizing and VM Optimizations

18. For more information, visit www.vizioncore.com or Email sales@vizioncore.com www.vizioncore.com Thank You.
