1. ©2000 Timothy G. Standish Structure and Analysis of DNA.

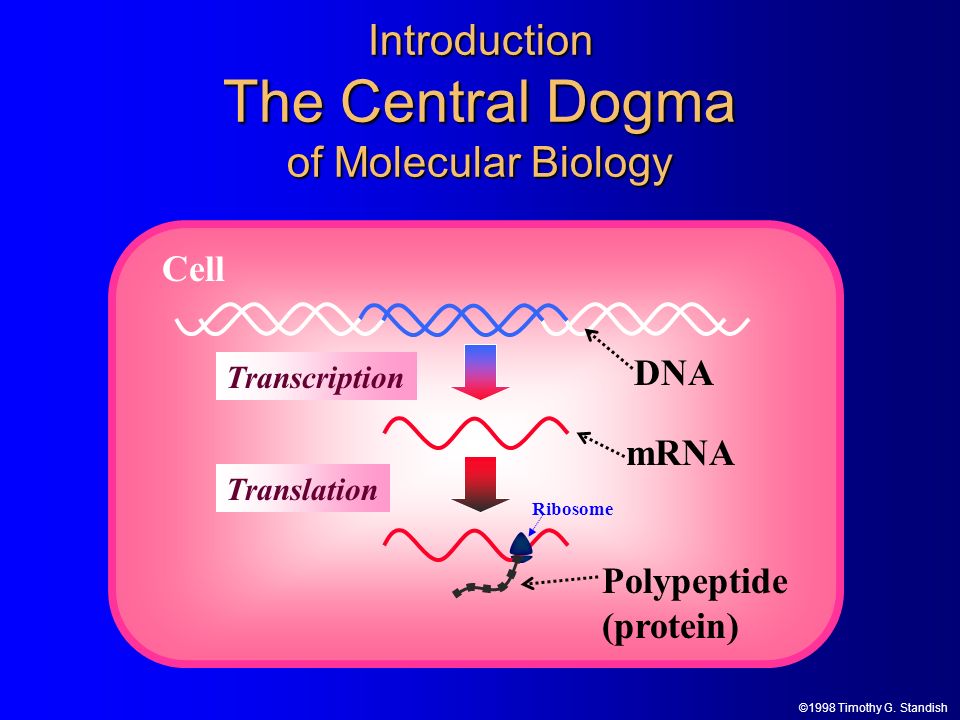

2. DNA mRNA Transcription Introduction The Central Dogma of Molecular Biology Cell Polypeptide (protein) Translation Ribosome ©1998 Timothy G. Standish

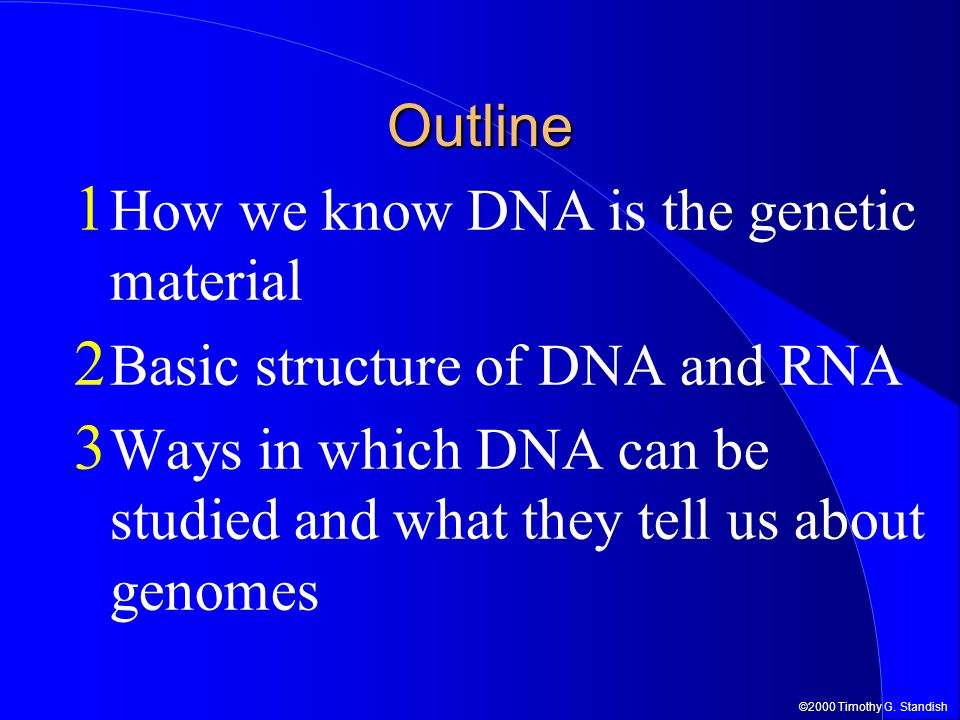

3. ©2000 Timothy G. Standish Outline 1 How we know DNA is the genetic material 2 Basic structure of DNA and RNA 3 Ways in which DNA can be studied and what they tell us about genomes

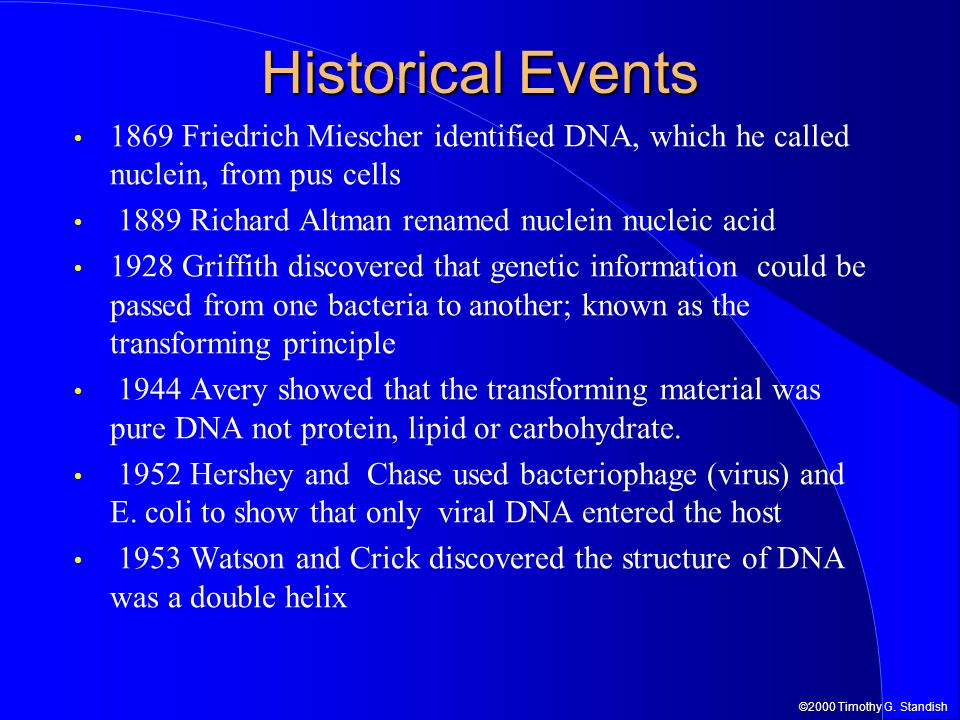

4. ©2000 Timothy G. Standish Historical Events 1869 Friedrich Miescher identified DNA, which he called nuclein, from pus cells 1889 Richard Altman renamed nuclein nucleic acid 1928 Griffith discovered that genetic information could be passed from one bacteria to another; known as the transforming principle 1944 Avery showed that the transforming material was pure DNA not protein, lipid or carbohydrate. 1952 Hershey and Chase used bacteriophage (virus) and E. coli to show that only viral DNA entered the host 1953 Watson and Crick discovered the structure of DNA was a double helix

5. ©2000 Timothy G. Standish Transformation Of Bacteria Two Strains Of Streptococcus Capsules Smooth Strain (Virulent) Rough Strain (Harmless)

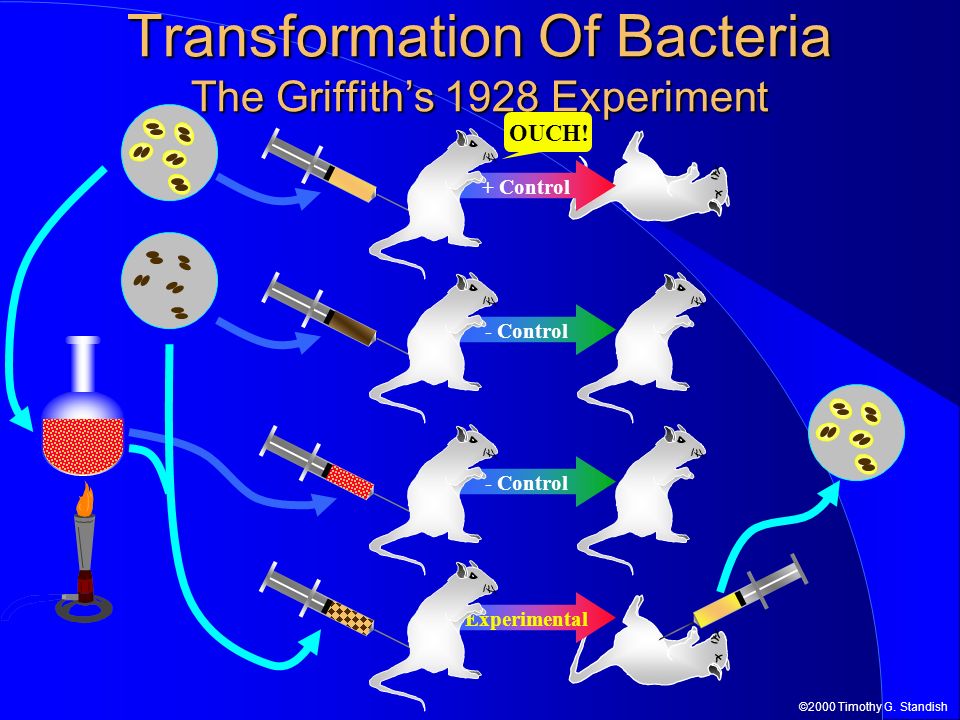

6. ©2000 Timothy G. Standish Experimental Transformation Of Bacteria The Griffith’s 1928 Experiment - Control + Control - Control OUCH!

7. ©2000 Timothy G. Standish Avery, MacLeod and McCarty 1944 Avery, MacLeod and McCarty repeated Griffith’s 1928 experiment with modifications designed to discover the “transforming factor” After extraction with organic solvents to eliminate lipids, remaining extract from heat killed cells was digested with hydrolytic enzymes specific for different classes of macro molecules: NoNuclease YesProtease Transformation?Enzyme YesSaccharase

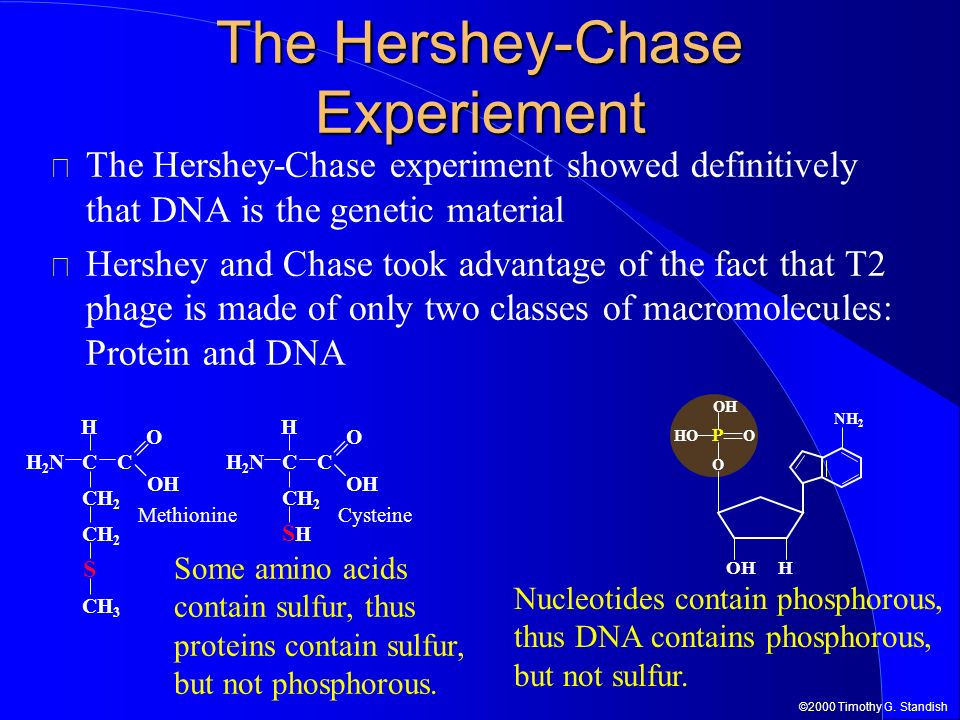

8. ©2000 Timothy G. Standish The Hershey-Chase Experiement The Hershey-Chase experiment showed definitively that DNA is the genetic material Hershey and Chase took advantage of the fact that T2 phage is made of only two classes of macromolecules: Protein and DNA H OH P O HO O NH 2 Nucleotides contain phosphorous, thus DNA contains phosphorous, but not sulfur. H OH O H2NH2NCC CH 2 SHSH H OH O H2NH2NC CH 3 C CH 2 S Some amino acids contain sulfur, thus proteins contain sulfur, but not phosphorous. CysteineMethionine

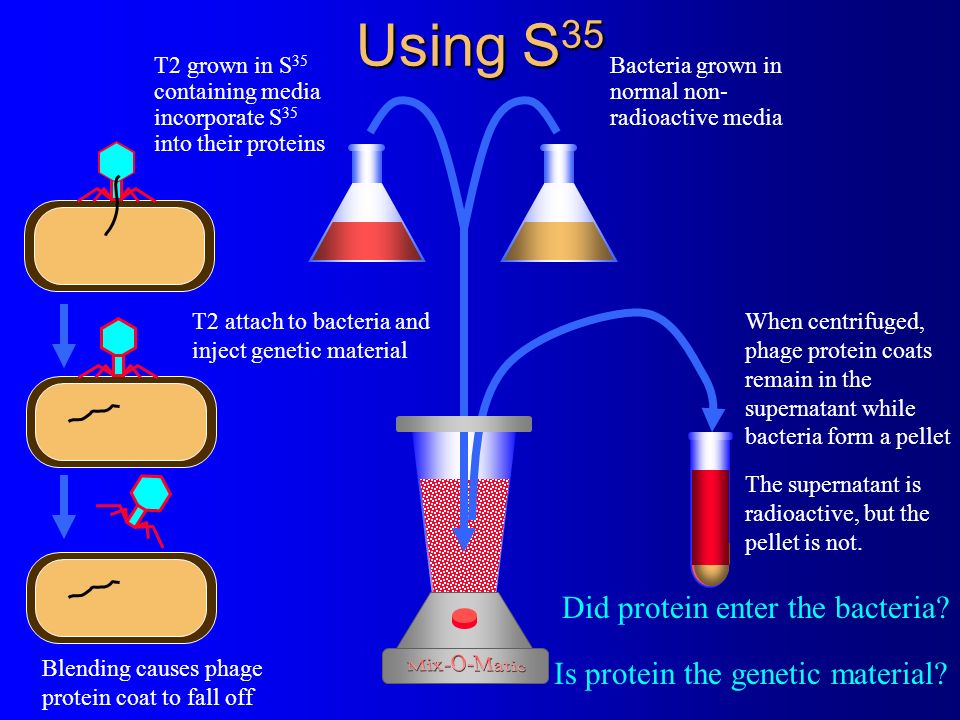

9. Using S 35 Bacteria grown in normal non- radioactive media T2 grown in S 35 containing media incorporate S 35 into their proteins Blending causes phage protein coat to fall off T2 attach to bacteria and inject genetic material Is protein the genetic material? When centrifuged, phage protein coats remain in the supernatant while bacteria form a pellet The supernatant is radioactive, but the pellet is not. Did protein enter the bacteria?

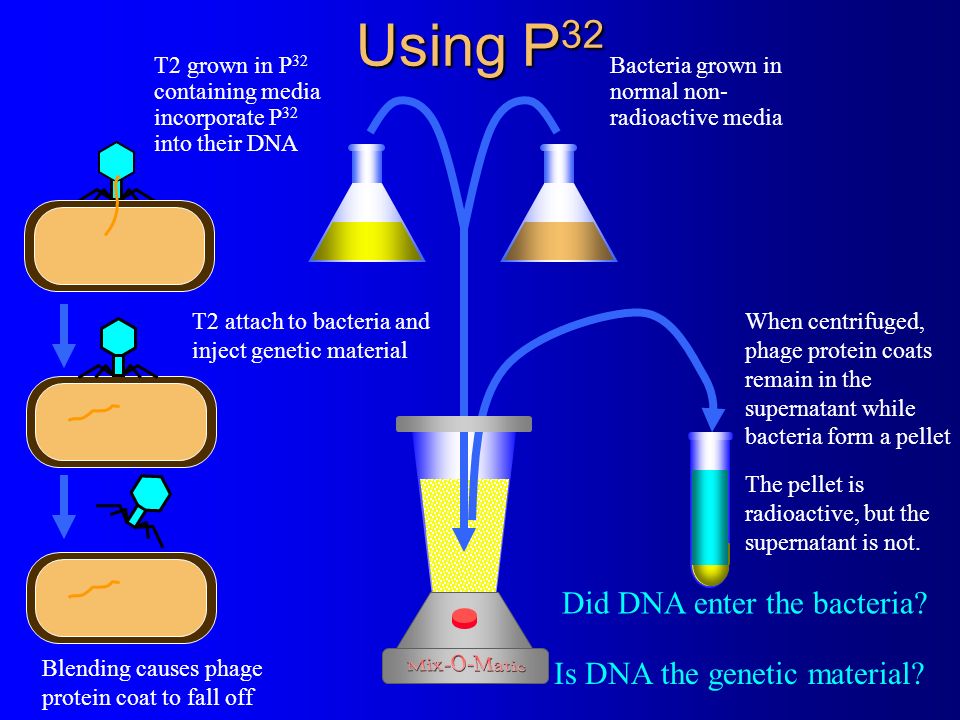

10. Using P 32 Bacteria grown in normal non- radioactive media T2 grown in P 32 containing media incorporate P 32 into their DNA Blending causes phage protein coat to fall off T2 attach to bacteria and inject genetic material Is DNA the genetic material? When centrifuged, phage protein coats remain in the supernatant while bacteria form a pellet The pellet is radioactive, but the supernatant is not. Did DNA enter the bacteria?

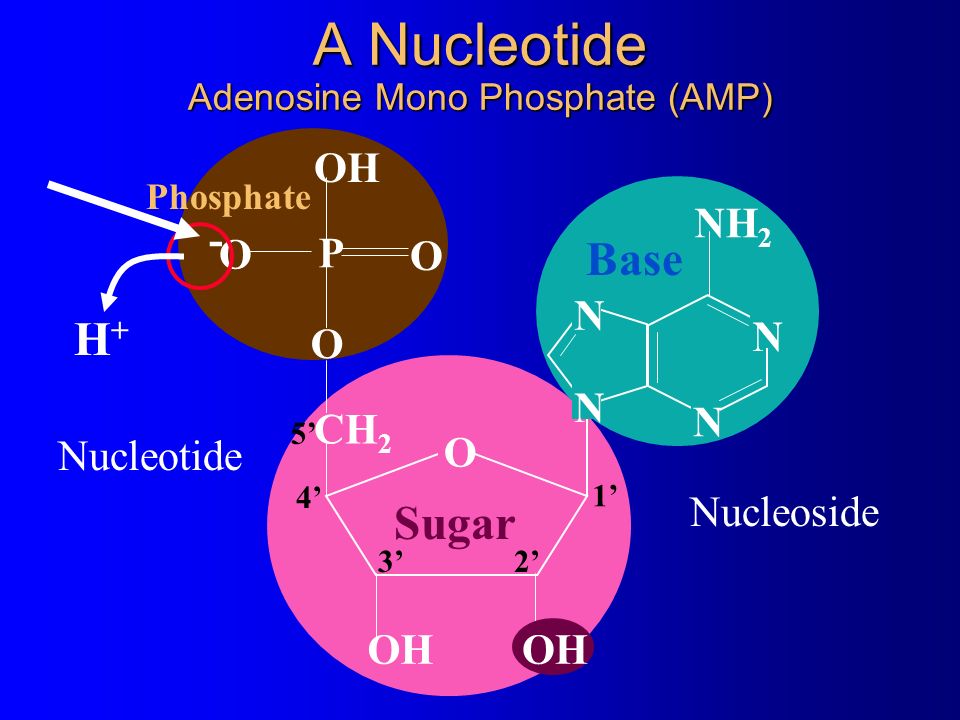

11. OH O CH 2 Sugar H H H A Nucleotide Adenosine Mono Phosphate (AMP) OH NH 2 N N N N Base P O OH HO O Phosphate 2’3’ 4’ 5’ 1’ Nucleotide Nucleoside H+H+ -

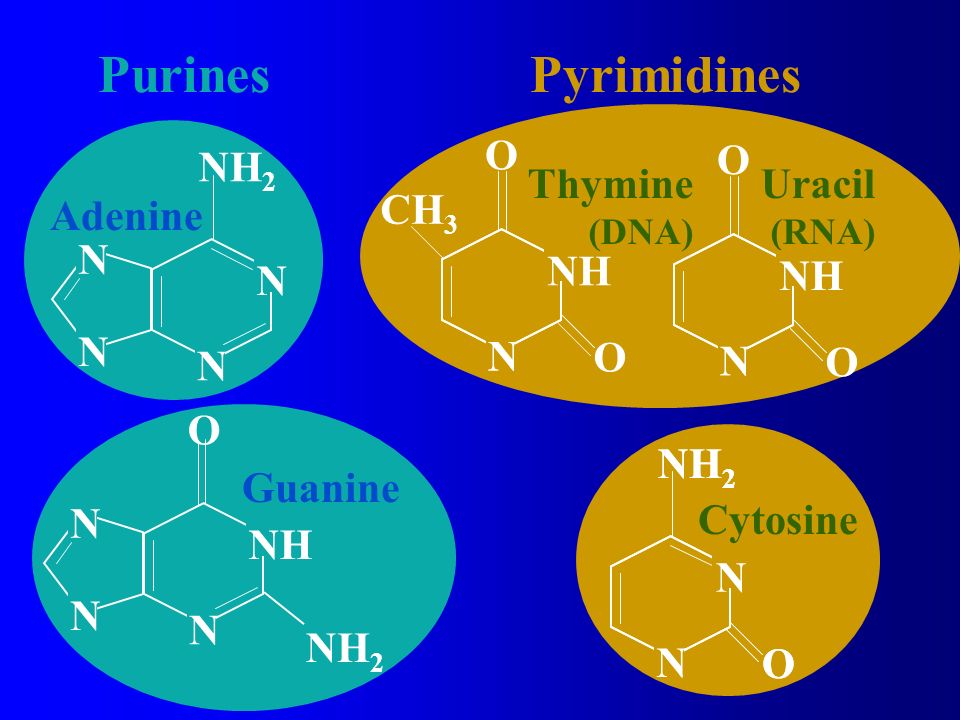

12. Pyrimidines NH 2 O N N NH N Guanine N N Adenine N N NH 2 N O N O N Cytosine Purines Uracil (RNA) CH 3 N O N O NH N O N O Thymine (DNA)

13. N O H N O N N H Cytosine H O N N N N N H H Guanine - + + + - - Base Pairing Guanine And Cytosine

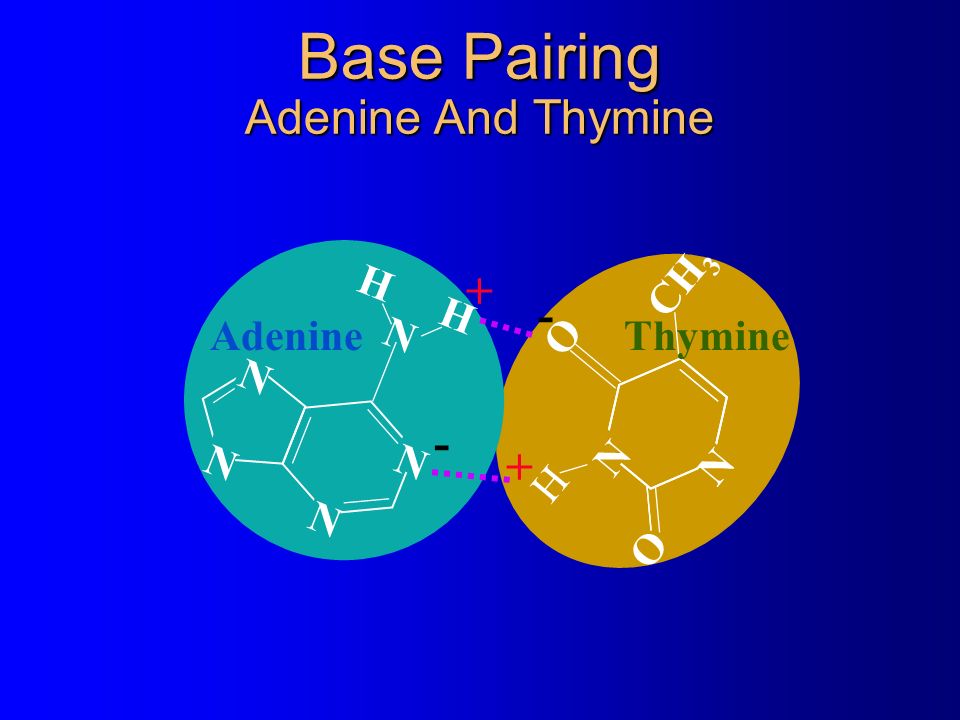

14. CH 3 N O N O N H + - Thymine N N N N H N H - + Adenine Base Pairing Adenine And Thymine

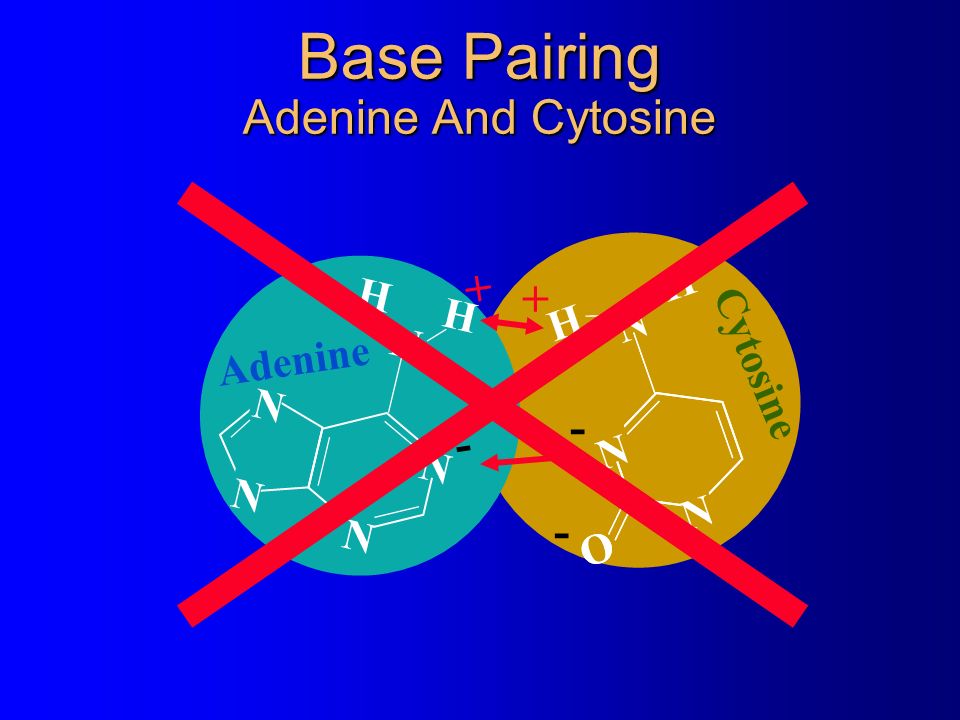

15. Base Pairing Adenine And Cytosine N O H N O N N H Cytosine - + - N N N N H N H - + Adenine

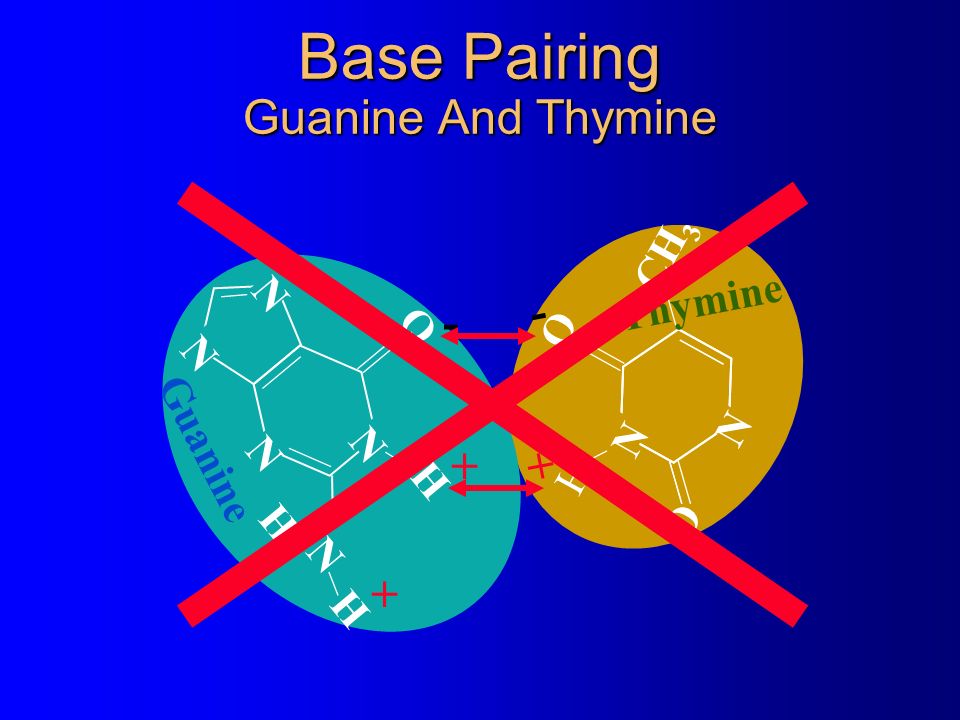

16. Base Pairing Guanine And Thymine CH 3 N O N O N H + - Thymine H O N N N N N H H Guanine + + -

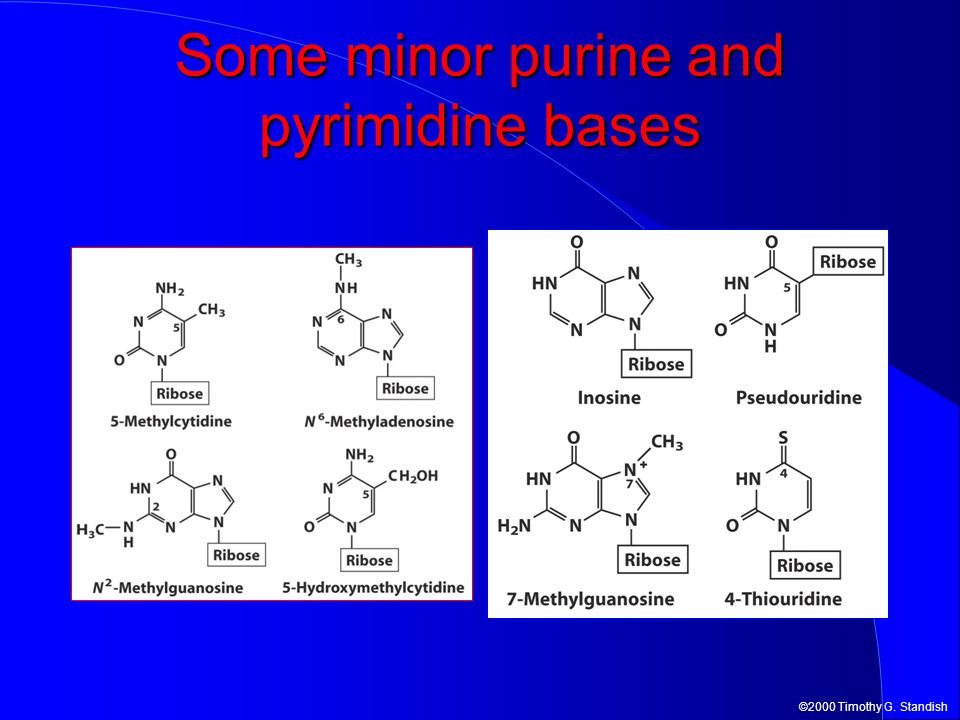

17. ©2000 Timothy G. Standish Some minor purine and pyrimidine bases

18. SUGAR-PHOSPHATE BACKBONE H P O HO O O CH 2 HOH P O O HO O O CH 2 H P O OH HO O O CH 2 NH 2 N N N N O O N NH N N N O NH 2 N B A S E S DNADNADNADNA O H P O HO O O CH 2 HO O H2NH2N N HN N N H H P HO O O CH 2 O O N O H2NH2N N H H2OH2O HOH P O HO O O CH 2 CH 3 O O HN N H2OH2O 5’Phosphate group 3’Hydroxyl group 5’Phosphate group 3’Hydroxyl group

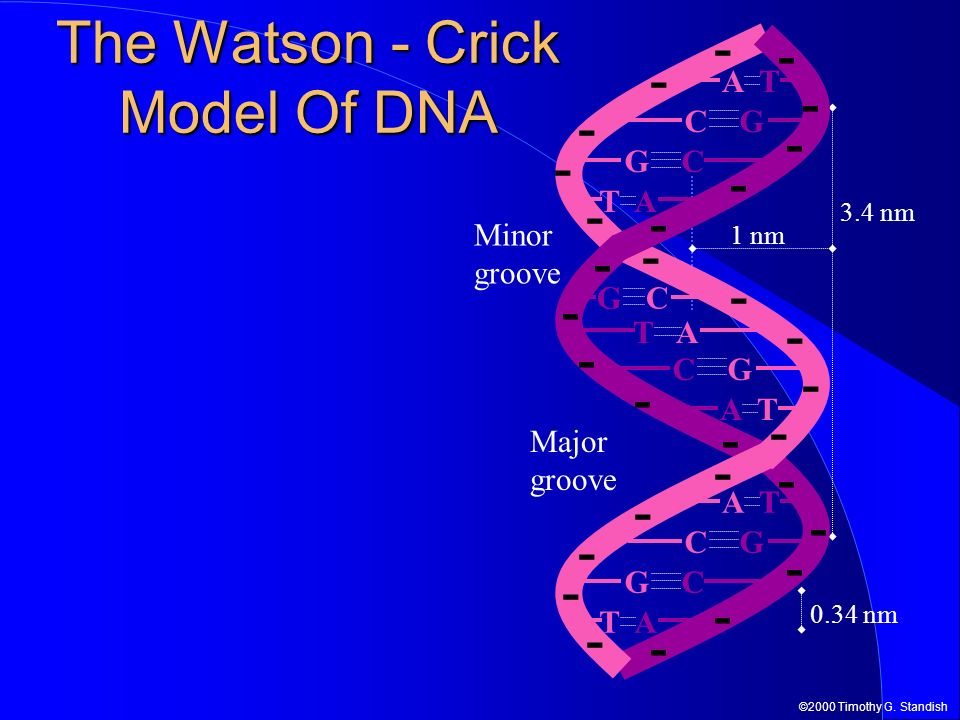

19. ©2000 Timothy G. Standish The Watson - Crick Model Of DNA 3.4 nm 1 nm 0.34 nm Major groove Minor groove A T T A G C C G G C T A A T G C T A A T C G - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

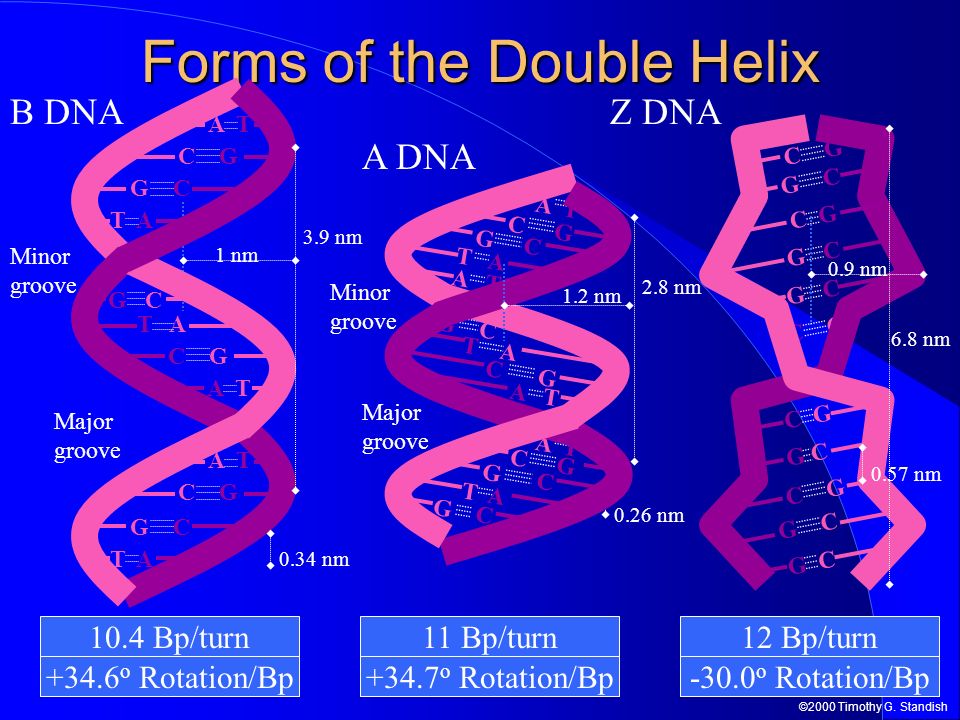

20. ©2000 Timothy G. Standish Forms of the Double Helix 0.26 nm 2.8 nm Minor groove Major groove C G A T T A G C C G G C T A A T G C T A A T C G A T G C 1.2 nm A DNA 1 nm Major groove Minor groove A T T A G C C G G C T A A T G C T A A T C G 0.34 nm 3.9 nm B DNA +34.7 o Rotation/Bp 11 Bp/turn -30.0 o Rotation/Bp 12 Bp/turn +34.6 o Rotation/Bp 10.4 Bp/turn C G G C C G G C G CG C C G G C C G 0.57 nm 6.8 nm 0.9 nm Z DNA

21. ©2000 Timothy G. Standish.

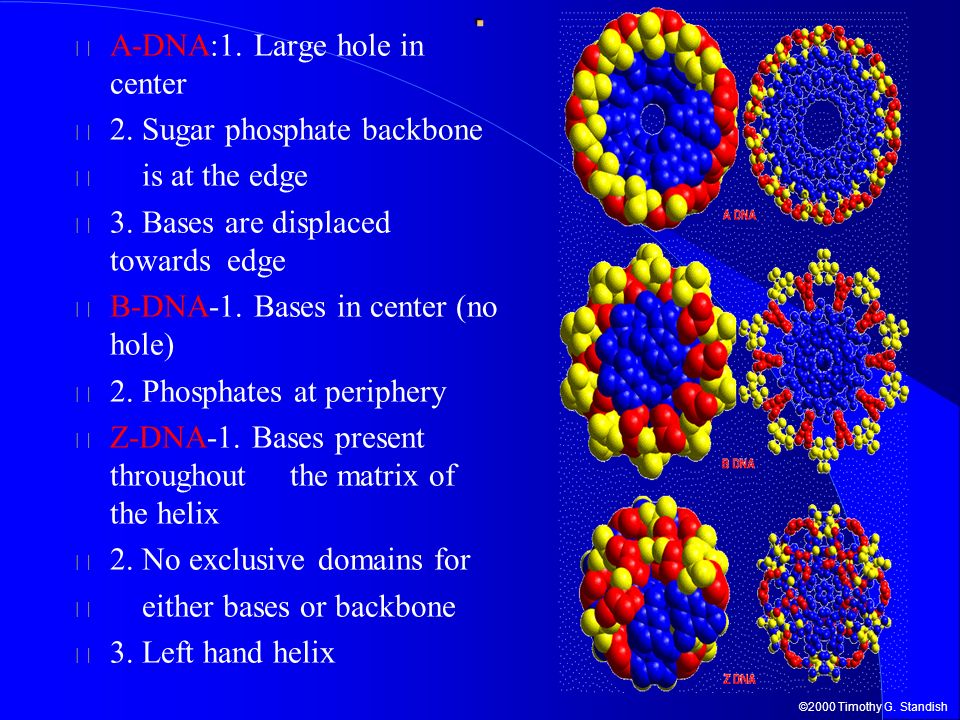

22. . A-DNA:1. Large hole in center 2. Sugar phosphate backbone is at the edge 3. Bases are displaced towards edge B-DNA-1. Bases in center (no hole) 2. Phosphates at periphery Z-DNA-1. Bases present throughout the matrix of the helix 2. No exclusive domains for either bases or backbone 3. Left hand helix

23. ©2000 Timothy G. Standish Biological Significance A-DNA-occurs only in dehydrated samples of DNA, such as those used in crystallographic experiments, and possibly is also assumed by DNA-RNA hybrid helices and by regions of double-stranded RNA. Z-DNA has been found, it is commonly believed to provide torsional strain relief (supercoiling) while DNA transcription occurs. The potential to form a Z-DNA structure also correlates with regions of active transcriptionsupercoilingtranscription

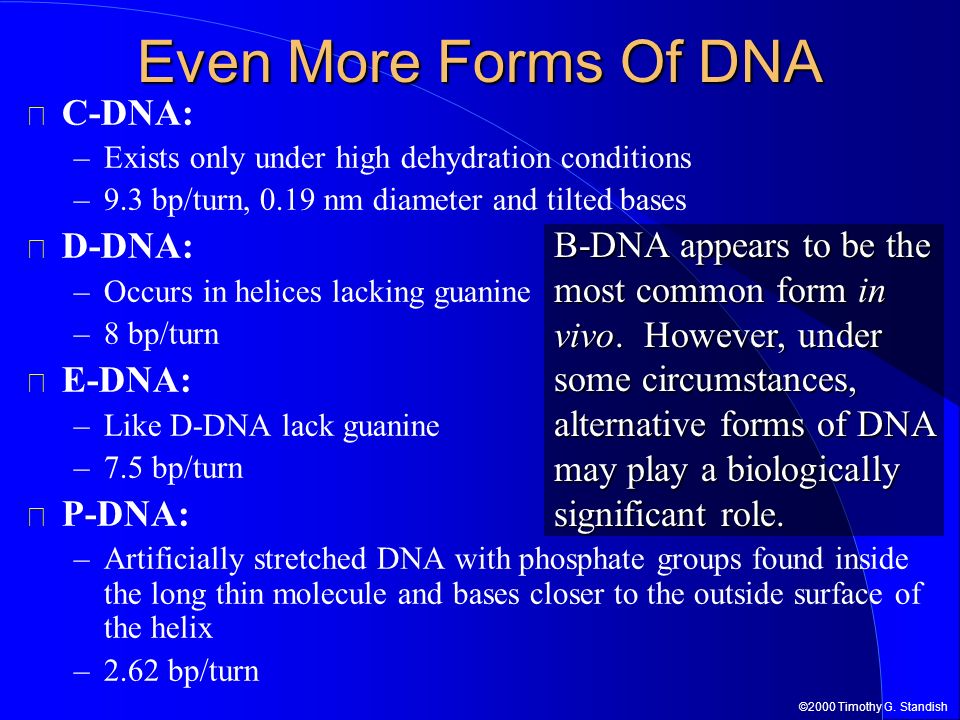

24. ©2000 Timothy G. Standish C-DNA: –Exists only under high dehydration conditions –9.3 bp/turn, 0.19 nm diameter and tilted bases D-DNA: –Occurs in helices lacking guanine –8 bp/turn E-DNA: –Like D-DNA lack guanine –7.5 bp/turn P-DNA: –Artificially stretched DNA with phosphate groups found inside the long thin molecule and bases closer to the outside surface of the helix –2.62 bp/turn Even More Forms Of DNA B-DNA appears to be the most common form in vivo. However, under some circumstances, alternative forms of DNA may play a biologically significant role.

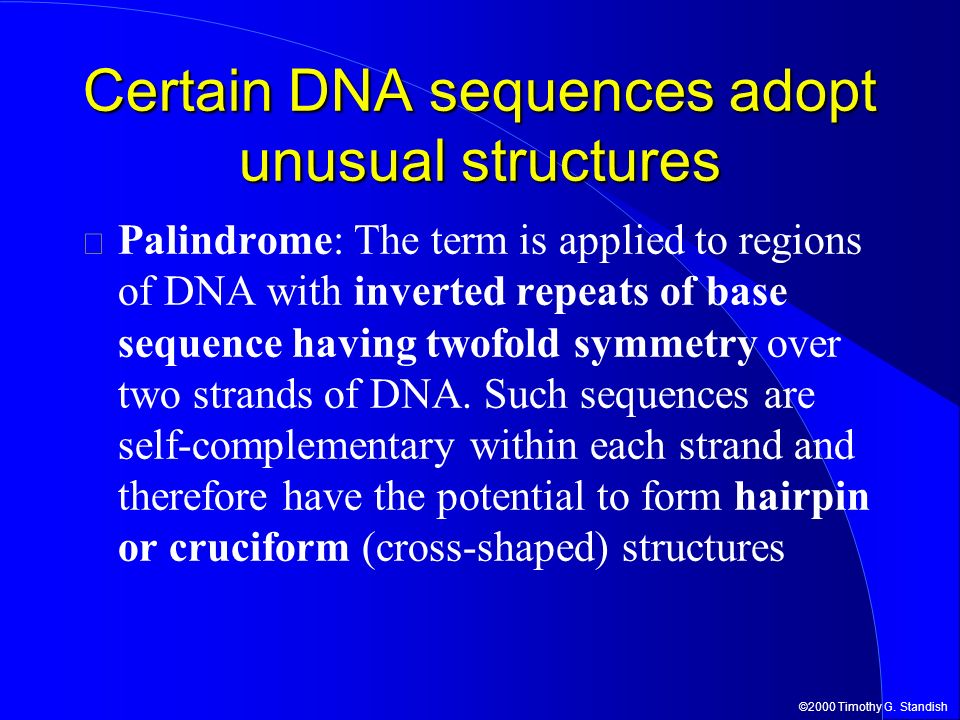

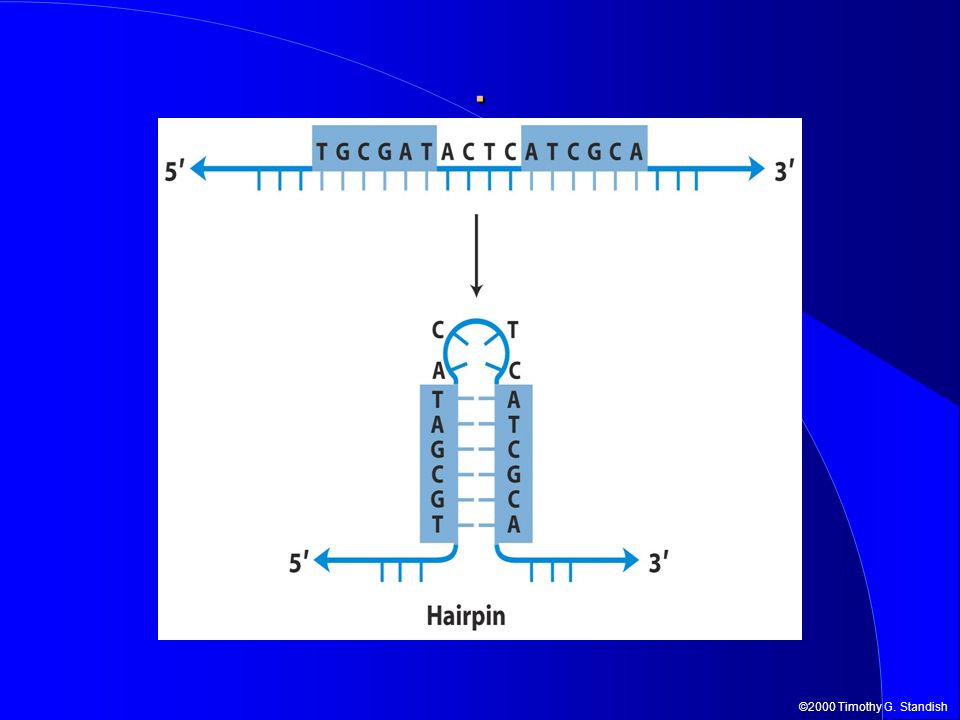

25. ©2000 Timothy G. Standish Certain DNA sequences adopt unusual structures Palindrome: The term is applied to regions of DNA with inverted repeats of base sequence having twofold symmetry over two strands of DNA. Such sequences are self-complementary within each strand and therefore have the potential to form hairpin or cruciform (cross-shaped) structures

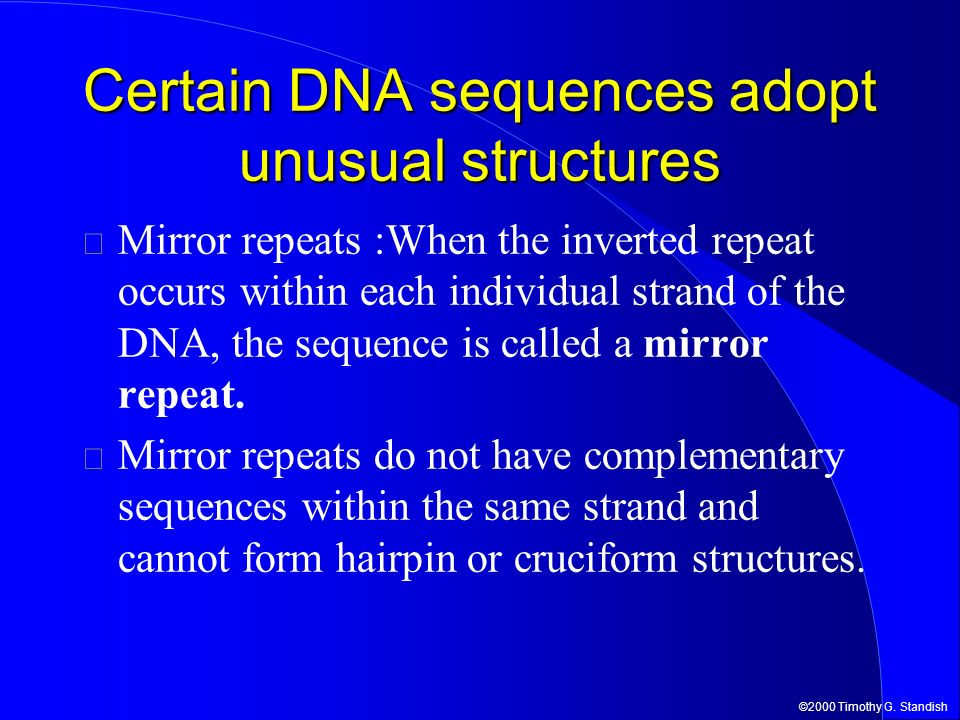

26. ©2000 Timothy G. Standish Certain DNA sequences adopt unusual structures Mirror repeats :When the inverted repeat occurs within each individual strand of the DNA, the sequence is called a mirror repeat. Mirror repeats do not have complementary sequences within the same strand and cannot form hairpin or cruciform structures.

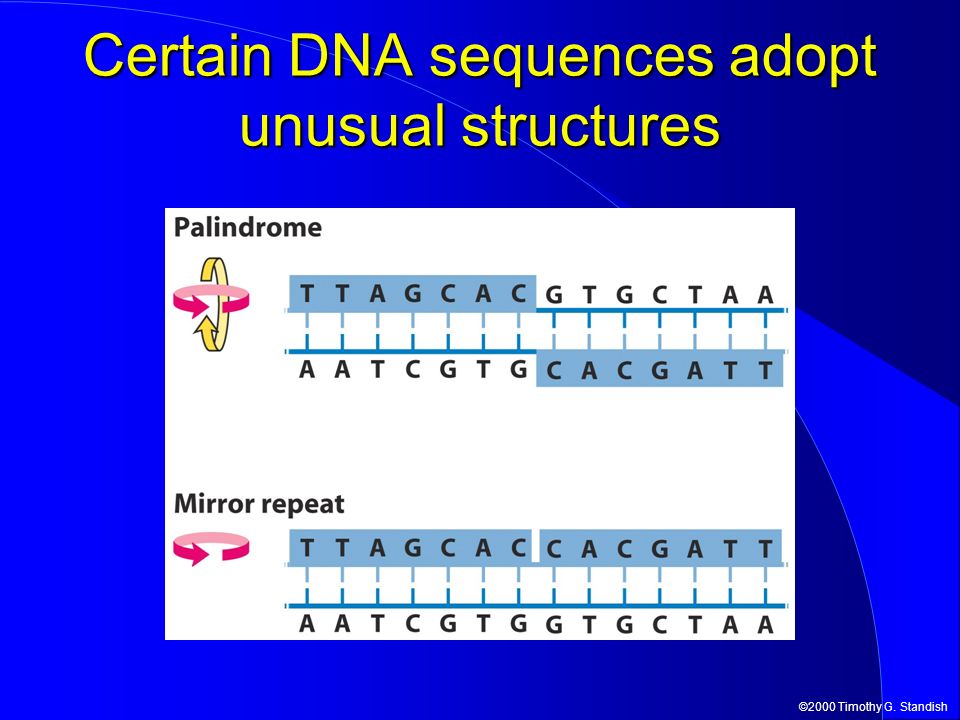

27. ©2000 Timothy G. Standish Certain DNA sequences adopt unusual structures

28. ©2000 Timothy G. Standish.

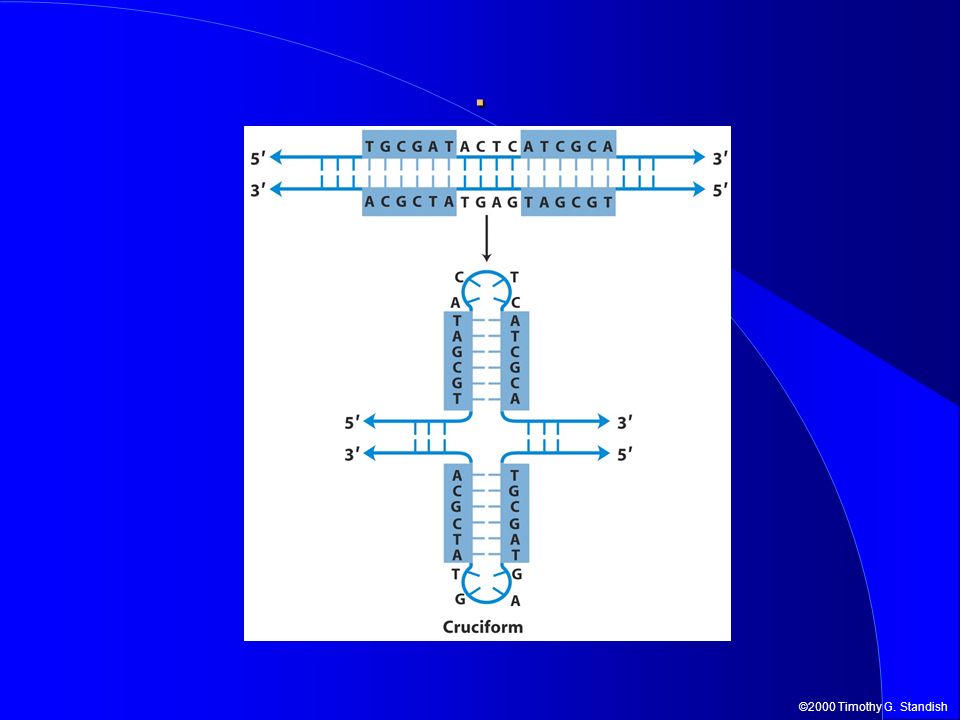

29. .

30. keto-enol tautomerism tautomerism keto-enol tautomerism refers to a chemical equlibrium between a keto form (a ketone or an aldehyde) and an enol (An alcohol) In DNA, the nucleotide bases are in keto form. Rare enol tautomers of the bases G and T can lead to mutation because of their altered base-pairing properties.

31. ©2000 Timothy G. Standish Triplex DNA Nucleotides participating in a Watson- Crick base pair can form a number of additional hydrogen bonds, particularly with functional groups arrayed in the major groove. For example, a cytidine residue (if protonated) can pair with the guanosine residue of a G-C nucleotide pair.

32. ©2000 Timothy G. Standish Triplex DNA The N-7, O6, and N6 of purines, the atoms that participate in the hydrogen bonding of triplex DNA, are often referred to as Hoogsteen positions, and the non-Watson-Crick pairing is called Hoogsteen pairing. The triplexes form most readily within long sequences containing only pyrimidines or only purines in a given strand Four DNA strands can also pair to form a tetraplex

33. ©2000 Timothy G. Standish.

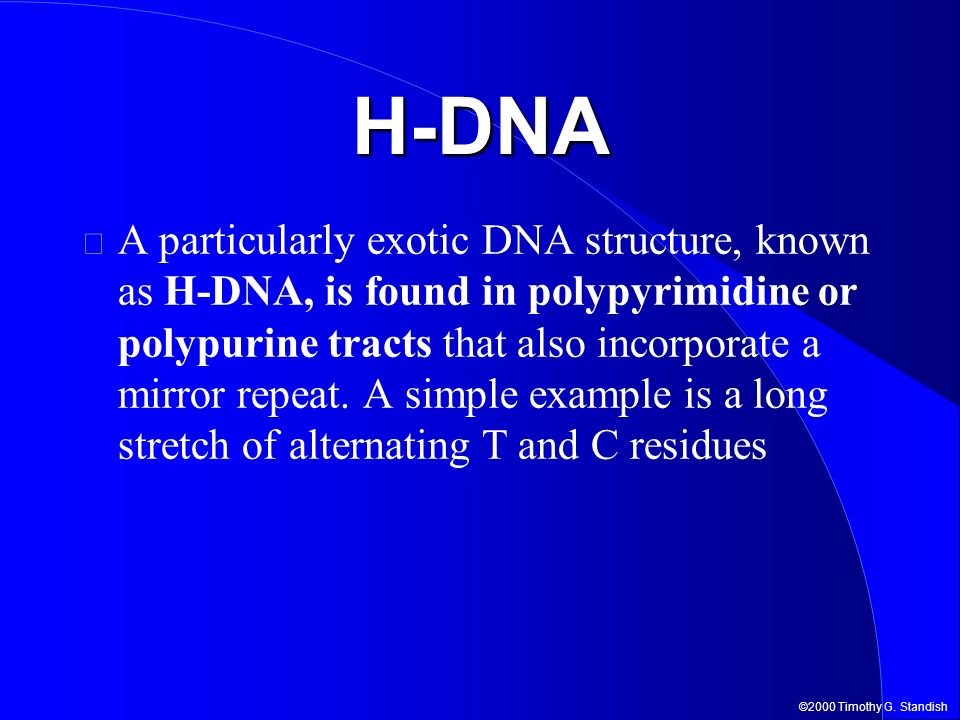

34. H-DNA A particularly exotic DNA structure, known as H-DNA, is found in polypyrimidine or polypurine tracts that also incorporate a mirror repeat. A simple example is a long stretch of alternating T and C residues

35. ©2000 Timothy G. Standish H-DNA

36. Structure of RNA The single strand of RNA tends to assume a right-handed helical conformation dominated by base stacking Interactions,which are strongest between two purines The purine-purine interaction is so strong that a pyrimidine separating two purines is often displaced from the stacking pattern so that the purines can interact

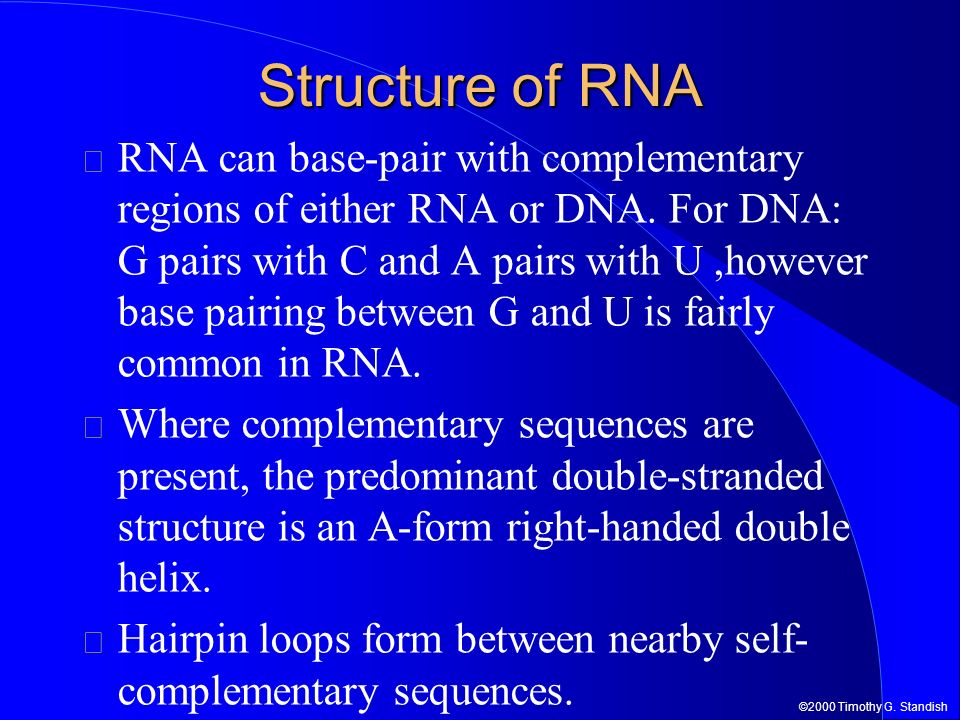

37. ©2000 Timothy G. Standish Structure of RNA RNA can base-pair with complementary regions of either RNA or DNA. For DNA: G pairs with C and A pairs with U,however base pairing between G and U is fairly common in RNA. Where complementary sequences are present, the predominant double-stranded structure is an A-form right-handed double helix. Hairpin loops form between nearby self- complementary sequences.

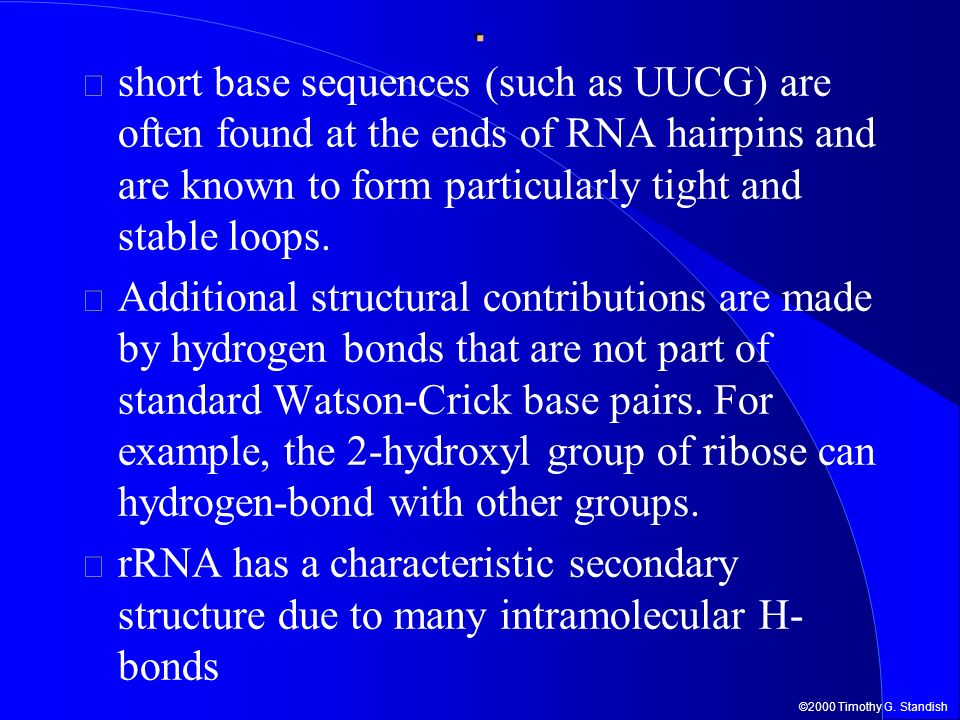

38. ©2000 Timothy G. Standish. short base sequences (such as UUCG) are often found at the ends of RNA hairpins and are known to form particularly tight and stable loops. Additional structural contributions are made by hydrogen bonds that are not part of standard Watson-Crick base pairs. For example, the 2-hydroxyl group of ribose can hydrogen-bond with other groups. rRNA has a characteristic secondary structure due to many intramolecular H- bonds

39. ©2000 Timothy G. Standish Structure Of t-RNA

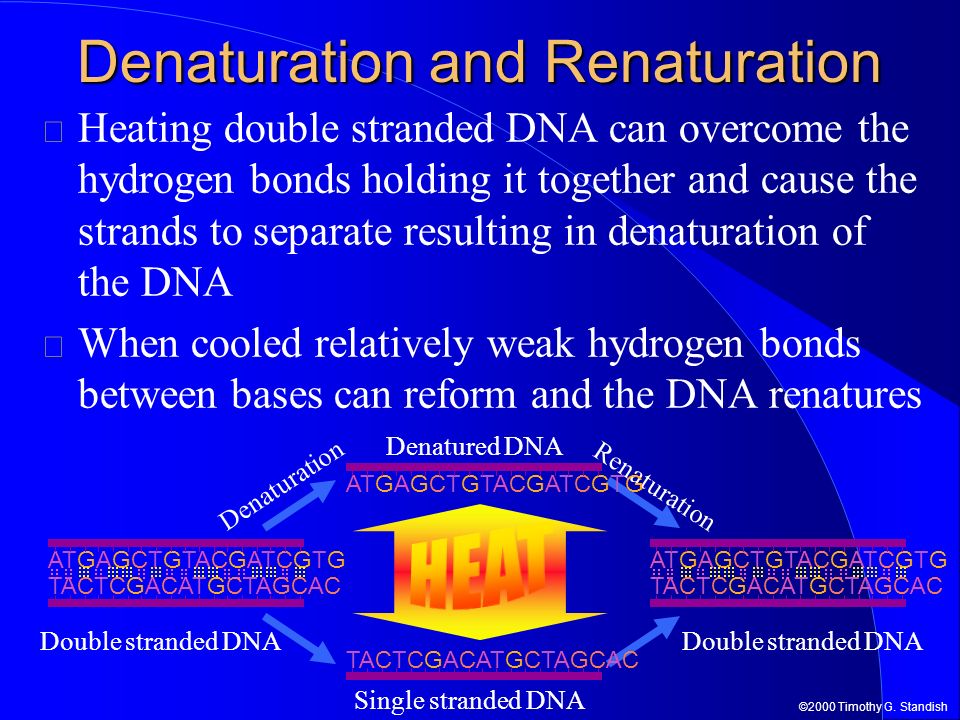

40. ©2000 Timothy G. Standish Denaturation and Renaturation Heating double stranded DNA can overcome the hydrogen bonds holding it together and cause the strands to separate resulting in denaturation of the DNA When cooled relatively weak hydrogen bonds between bases can reform and the DNA renatures TACTCGACATGCTAGCAC ATGAGCTGTACGATCGTGATGAGCTGTACGATCGTG Double stranded DNA TACTCGACATGCTAGCAC ATGAGCTGTACGATCGTGATGAGCTGTACGATCGTG Double stranded DNA Renaturation TACTCGACATGCTAGCAC ATGAGCTGTACGATCGTGATGAGCTGTACGATCGTG Denatured DNA Denaturation Single stranded DNA

41. ©2000 Timothy G. Standish Denaturation and Renaturation DNA with a high guanine and cytosine content has relatively more hydrogen bonds between strands This is because for every GC base pair 3 hydrogen bonds are made while for AT base pairs only 2 bonds are made Thus higher GC content is reflected in higher melting or denaturation temperature Intermediate melting temperature Low melting temperature High melting temperature 67 % GC content - TGCTCGACGTGCTCGTGCTCGACGTGCTCG ACGAGCTGCACGAGCACGAGCTGCACGAGC 33 % GC content - TACTAGACATTCTAG ATGATCTGTAAGATC TACTCGACAGGCTAG ATGAGCTGTCCGATC 50 % GC content -

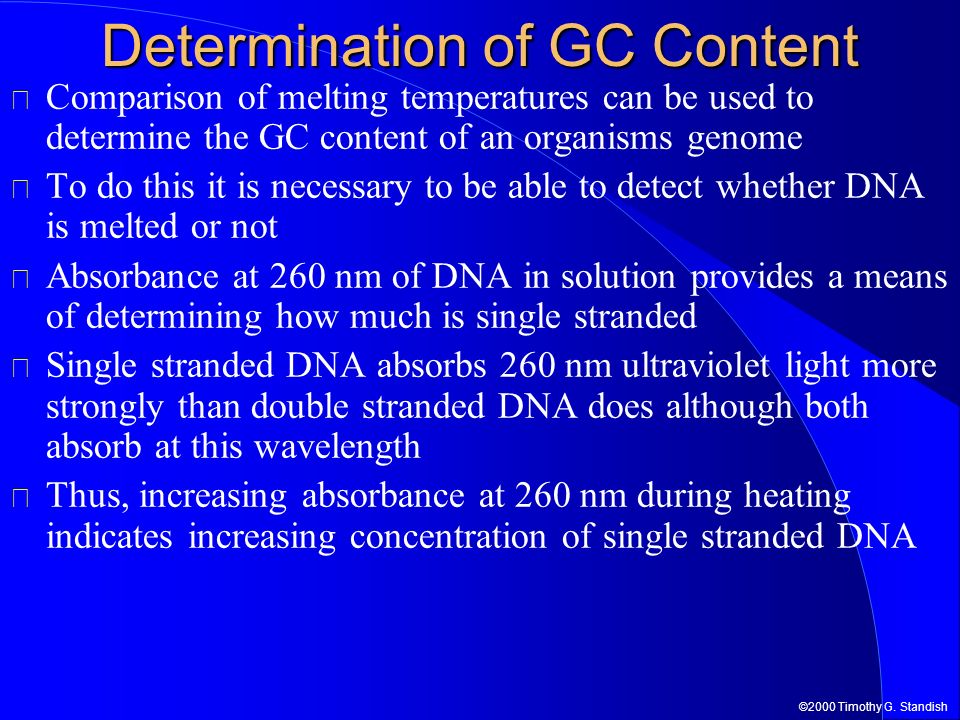

42. ©2000 Timothy G. Standish Determination of GC Content Comparison of melting temperatures can be used to determine the GC content of an organisms genome To do this it is necessary to be able to detect whether DNA is melted or not Absorbance at 260 nm of DNA in solution provides a means of determining how much is single stranded Single stranded DNA absorbs 260 nm ultraviolet light more strongly than double stranded DNA does although both absorb at this wavelength Thus, increasing absorbance at 260 nm during heating indicates increasing concentration of single stranded DNA

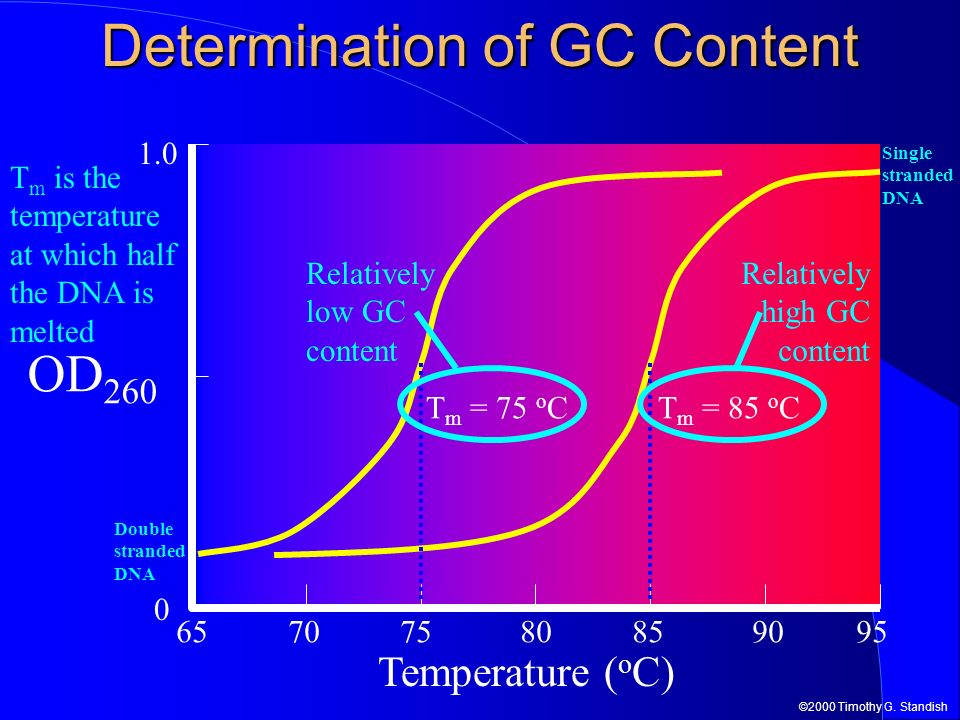

43. ©2000 Timothy G. Standish Determination of GC Content OD 260 0 1.0 65 70 75 80 85 90 95 Temperature ( o C) T m = 85 o C T m = 75 o C Double stranded DNA Single stranded DNA Relatively low GC content Relatively high GC content T m is the temperature at which half the DNA is melted

44. ©2000 Timothy G. Standish GC Content Of Some Genomes Phage T748.0 % Organism% GC Homo sapiens39.7 % Sheep42.4 % Hen42.0 % Turtle43.3 % Salmon41.2 % Sea urchin35.0 % E. coli51.7 % Staphylococcus aureus50.0 % Phage 55.8 %

45. ©2000 Timothy G. Standish Hybridization The bases in DNA will only pair in very specific ways, G with C and A with T In short DNA sequences, imprecise base pairing will not be tolerated Long sequences can tolerate some mispairing only if -  G of the majority of bases in a sequence exceeds the energy required to keep mispaired bases together Because the source of any single strand of DNA is irrelevant, merely the sequence is important, DNA from different sources can form double helix as long as their sequences are compatible Thus, this phenomenon of base pairing of single stranded DNA strands to form a double helix is called hybridization as it may be used to make hybrid DNA composed of strands which came from different sources

46. ©2000 Timothy G. Standish Hybridization DNA from source “Y” TACTCGACAGGCTAG CTGATGGTCATGAGCTGTCCGATCGATCAT DNA from source “X” TACTCGACAGGCTAG Hybridization

47. ©2000 Timothy G. Standish Hybridization Because DNA sequences will seek out and hybridize with other sequences with which they base pair in a specific way much information can be gained about unknown DNA using single stranded DNA of known sequence Short sequences of single stranded DNA can be used as “probes” to detect the presence of their complimentary sequence in any number of applications including: –Southern blots –Northern blots (in which RNA is probed) –In situ hybridization –Dot blots... In addition, the renaturation or hybridization of DNA in solution can tell much about the nature of organism’s genomes

48. ©2000 Timothy G. Standish Reassociation Kinetics An organism’s DNA can be heated in solution until it melts, then cooled to allow DNA strands to reassociate forming double stranded DNA This is typically done after shearing the DNA to form many fragments a few hundred bases in length. The larger and more complex an organisms genome is, the longer it will take for complimentary strands to bum into one another and hybridize Rate of reassociation is proportional to concentration of the two homologus dissociated strands. Reassociation follows second order kinetics: dt/dc = -kc 2, now integrate this equation

49. ©2000 Timothy G. Standish Reassociation Kinetics The following equation describes the second order rate kinetics of DNA reassociation: 1 1 + kC o t = CCoCCo Concentration of single stranded DNA after time t Initial concentration of single stranded DNA Second order rate constant (the important thing is that it is a constant) C o (measured in moles/liter) x t (seconds). Generally graphed on a log 10 scale. C o t 1/2 is the point at which half the initial concentration of single stranded DNA has annealed to form double-stranded DNA

50. ©2000 Timothy G. Standish C o t 0.5 value Cot 0.5 value is proportional to complexity of the genome. A plot of C/Co against Cot is called Cot curve and it provides information about complexity of a genome.

51. ©2000 Timothy G. Standish Genome complexity Complexity is the minimum length of DNA that contains a single copy of all the single reiterated sequences that are represented within the genome. Complexity of a genome is equal to its molecular mass only if a genome has unique nucleotide sequences (repetitive sequences absent).

52. ©2000 Timothy G. Standish example # For a hypothetical DNA-1 having three nucleotide sequences, N1, N2, N3. Molecular mass=N1+N2+N3 Complixity=N1+N2+N3 # For a hypothetical DNA-2 having 10 3 copies of N1,10 5 copies of N2 & 1 copy of N3. Molecular mass= 10 3 N1+ 10 5 N2 + N3 Complixity=N1+N2+N3

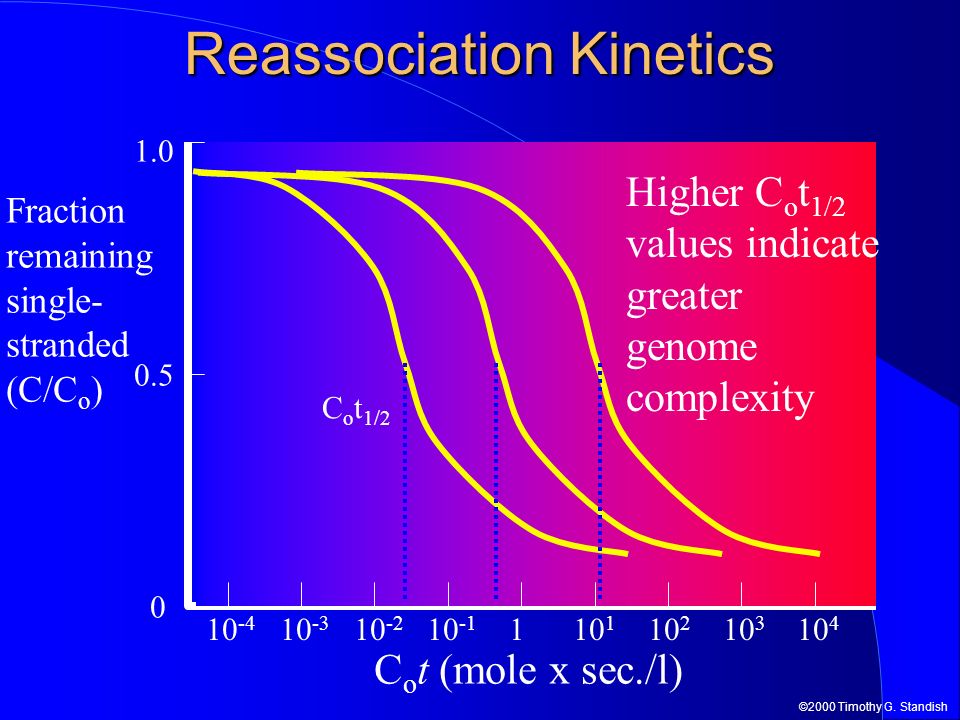

53. ©2000 Timothy G. Standish Reassociation Kinetics Fraction remaining single- stranded (C/C o ) 0 0.5 10 -4 10 -3 10 -2 10 -1 1 10 1 10 2 10 3 10 4 C o t (mole x sec./l) 1.0 Higher C o t 1/2 values indicate greater genome complexity C o t 1/2

54. ©2000 Timothy G. Standish Reassociation Kinetics 0.5 Fraction remaining single- stranded (C/C o ) 0 10 -4 10 -3 10 -2 10 -1 1 10 1 10 2 10 3 10 4 C o t (mole x sec./l) 1.0 Eukaryotic DNA Prokaryotic DNA Repetitive DNA Unique sequence complex DNA

55. ©2000 Timothy G. Standish Repetitive DNA Organism% Repetitive DNA Homo sapiens21 % Mouse35 % Calf42 % Drosophila70 % Wheat42 % Pea52 % Maize60 % Saccharomycetes cerevisiae 5 % E. coli 0.3 %

56. ©2000 Timothy G. Standish
