1. ANSYS Workbench: Mechanical Examples

2. Step 1. Opening ansys workbench Overview: – Start > ANSYS Workbench – Create Static Structural analysis system

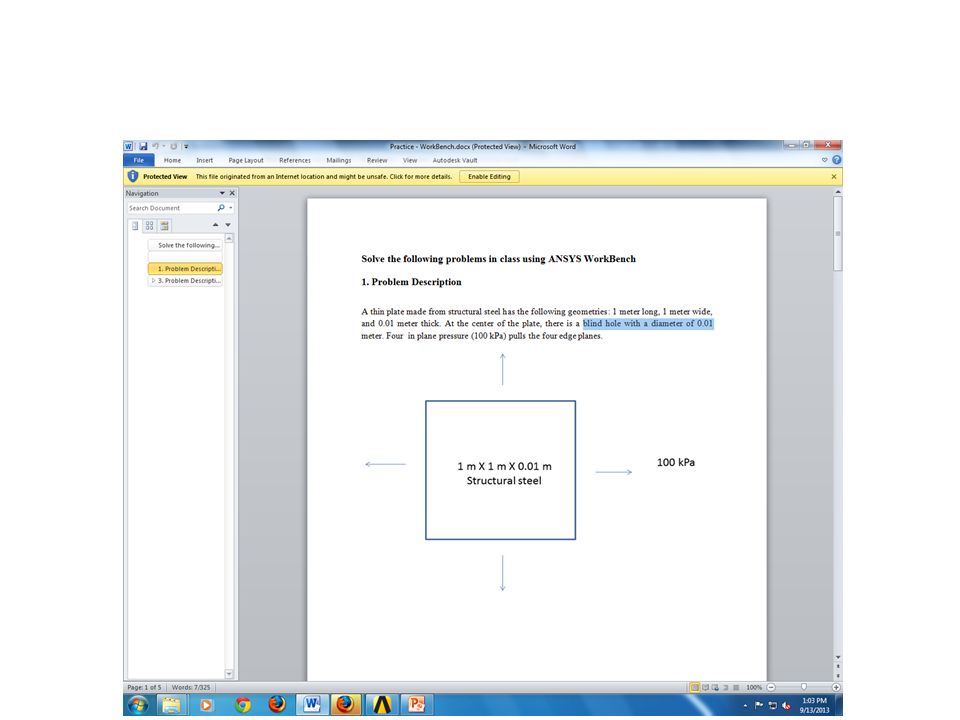

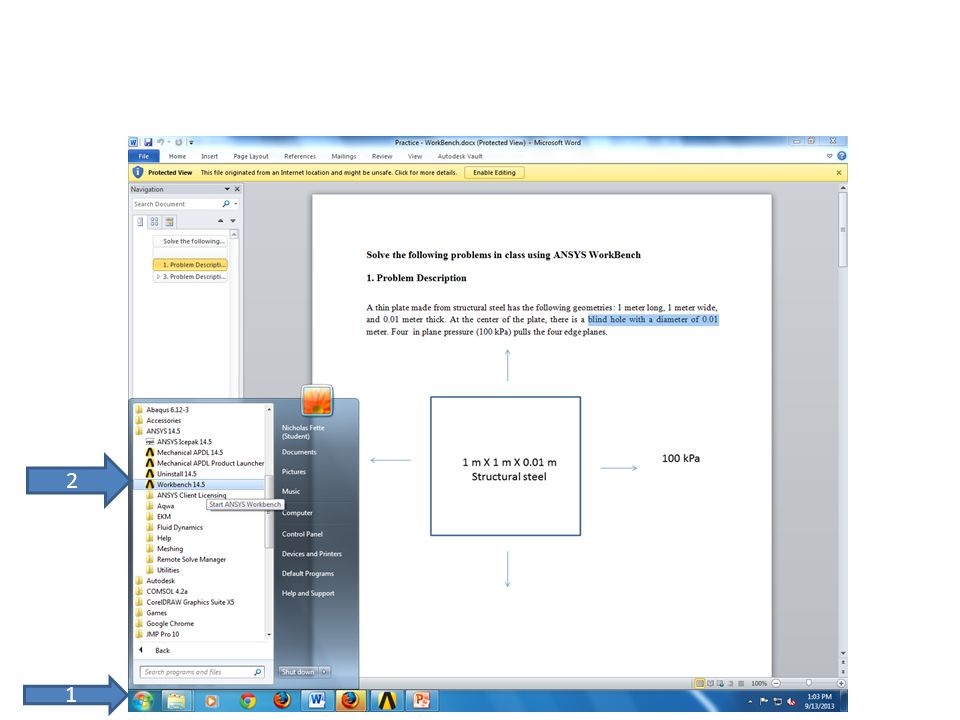

4. 2 1

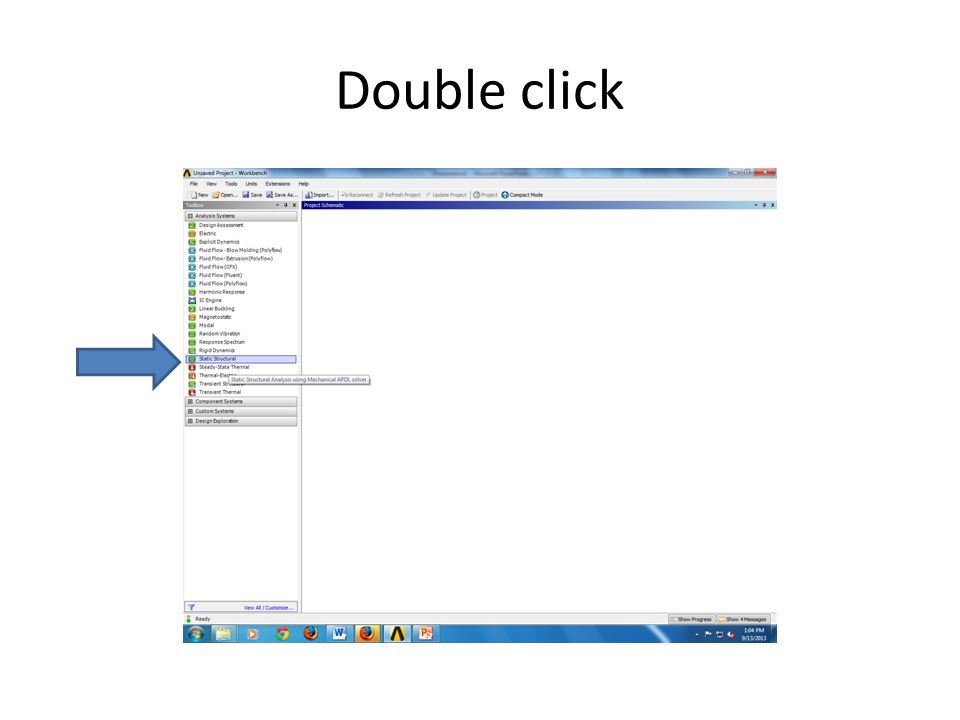

5. Double click

7. [Optional] Note on save as … Do not save to a network drive location – //server/share/folder/file.wbpj Instead used a local drive or mapped network drive: browse computer, for example – U:/folder/file.wbpj Reason: when solver tries to start, it will fail if a file it needs is in a network drive location (even if there is an equivalent mapped location). Can save and re-open from the mapped location. To view where your files are, – Workbench menu > View > Files

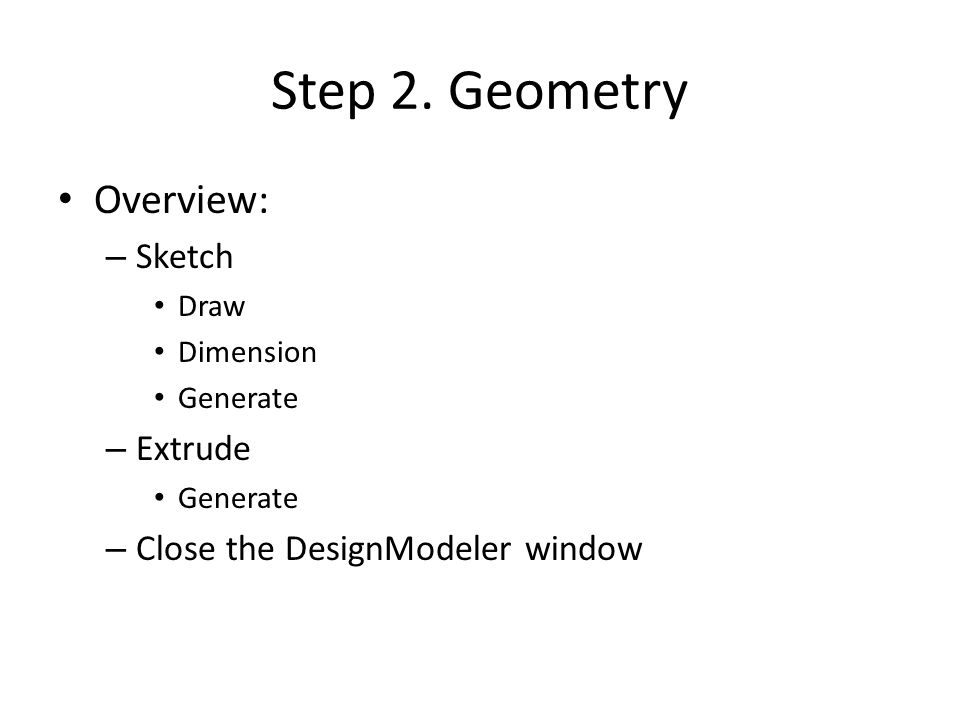

8. Step 2. Geometry Overview: – Sketch Draw Dimension Generate – Extrude Generate – Close the DesignModeler window

9. Double click, wait, then click 1 2

10. Click XYPlane

11. Click new sketch

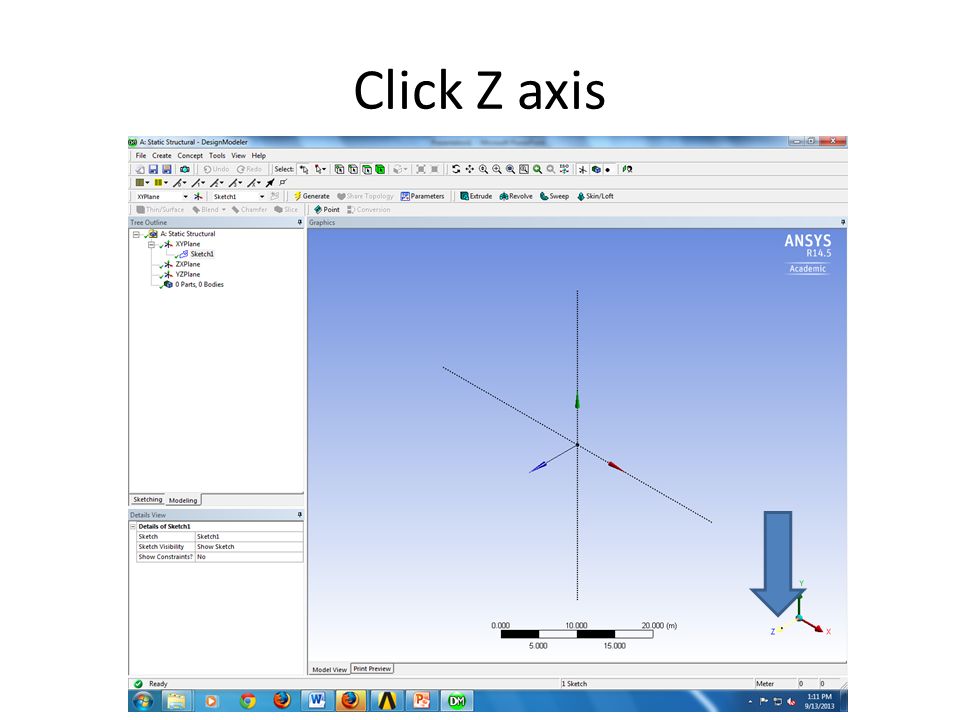

12. Click Z axis

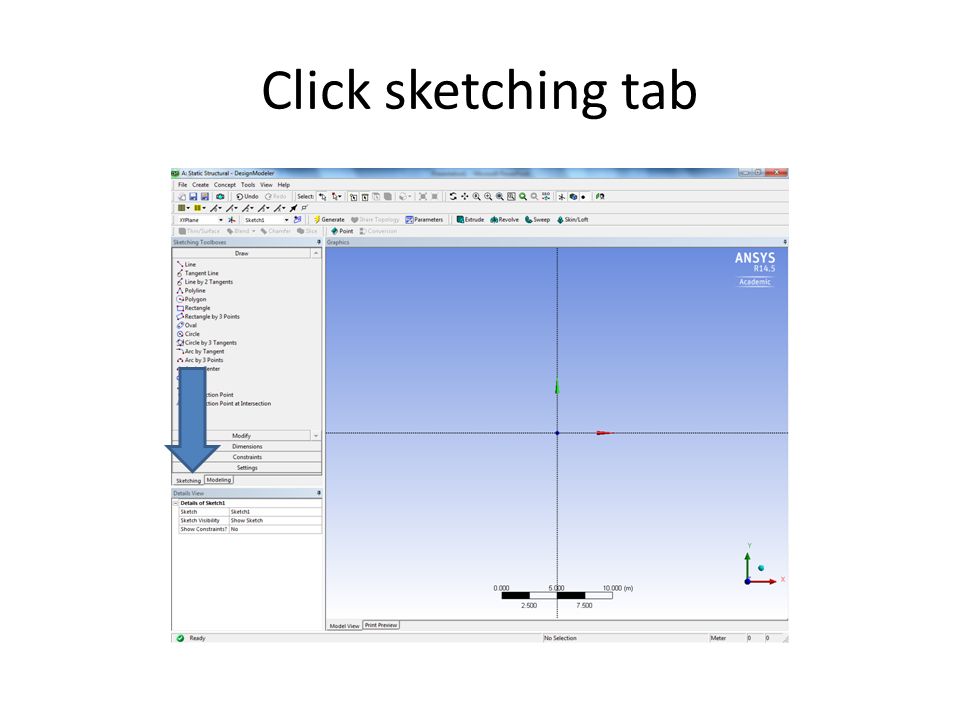

13. Click sketching tab

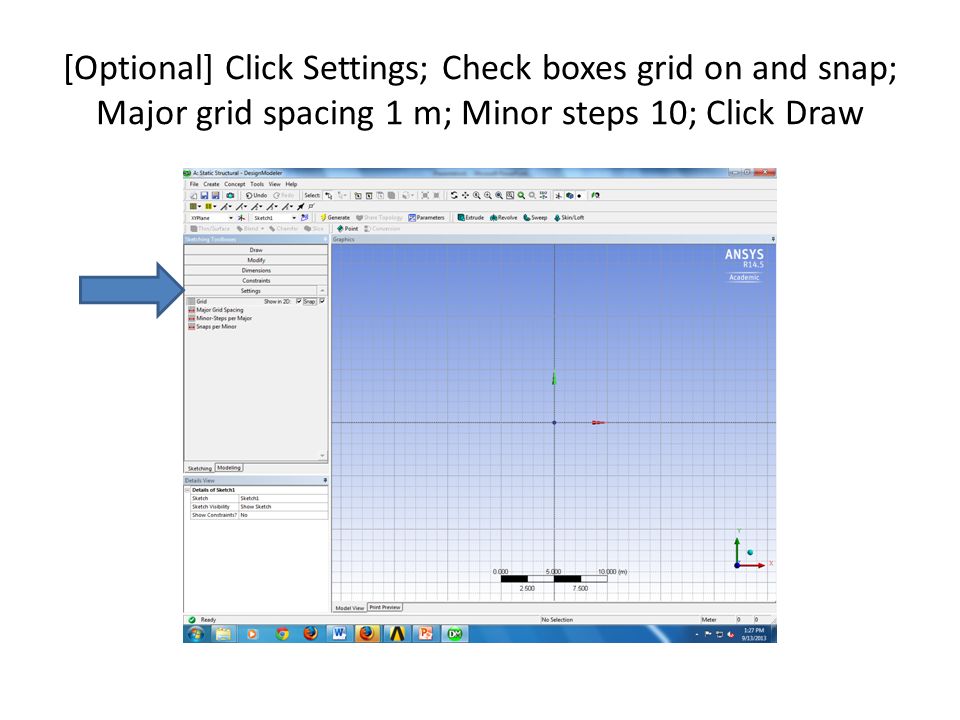

14. [Optional] Click Settings; Check boxes grid on and snap; Major grid spacing 1 m; Minor steps 10; Click Draw

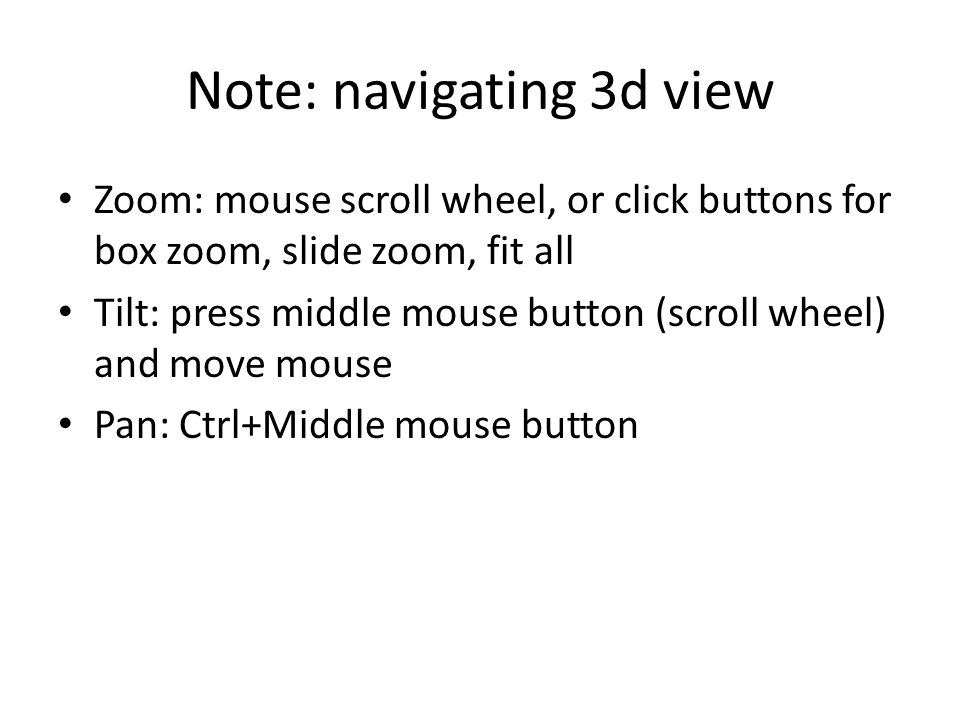

15. Note: navigating 3d view Zoom: mouse scroll wheel, or click buttons for box zoom, slide zoom, fit all Tilt: press middle mouse button (scroll wheel) and move mouse Pan: Ctrl+Middle mouse button

16. Note: making mistakes Use Undo/redo on toolbar Sketching > Modify > Trim to remove mistakes Zoom in close to make sure lines are closed. Fix with trim and corner.

17. Click Draw Rectangle

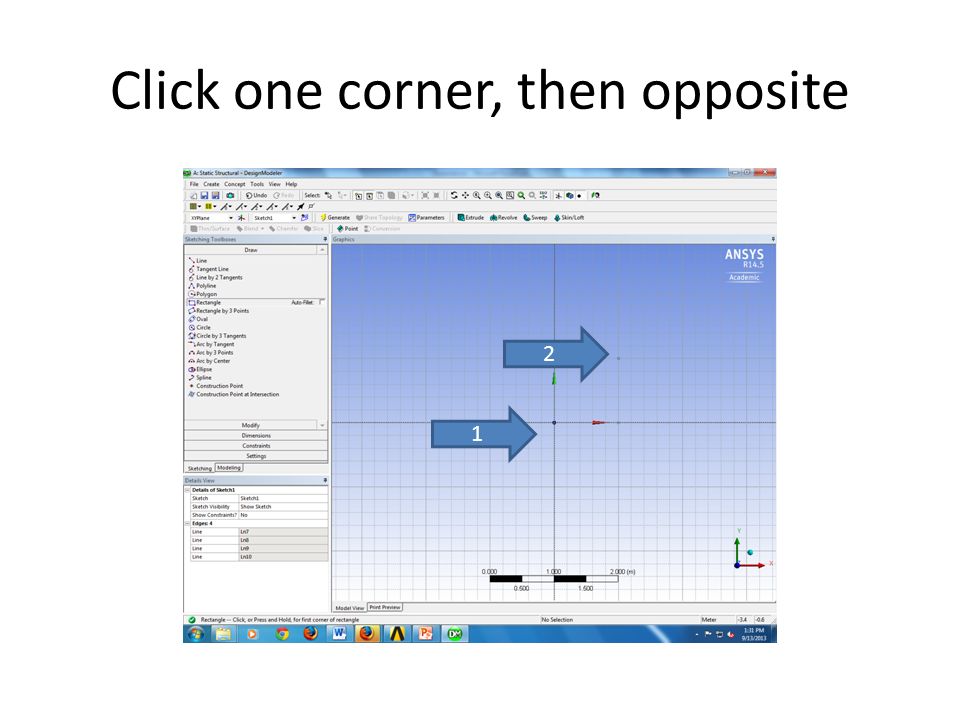

18. Click one corner, then opposite 1 2

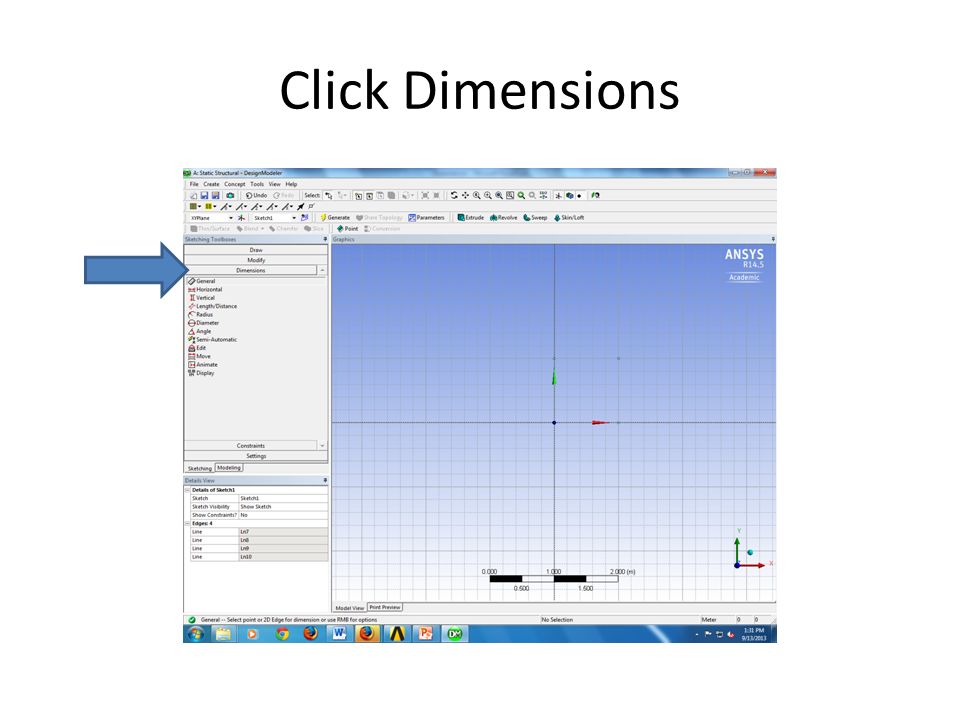

19. Click Dimensions

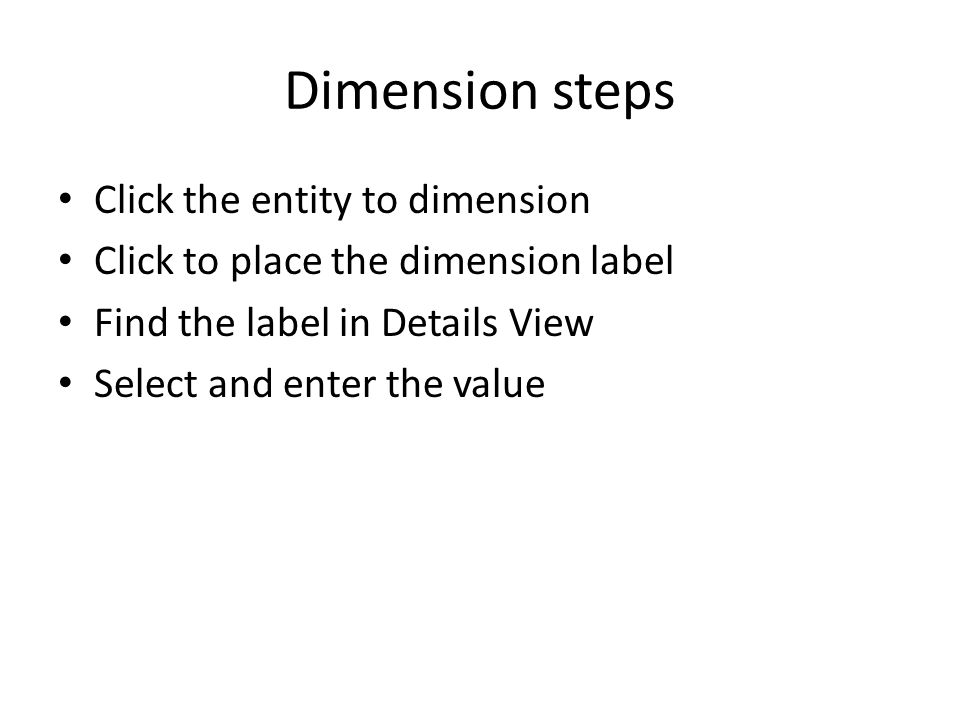

20. Dimension steps Click the entity to dimension Click to place the dimension label Find the label in Details View Select and enter the value

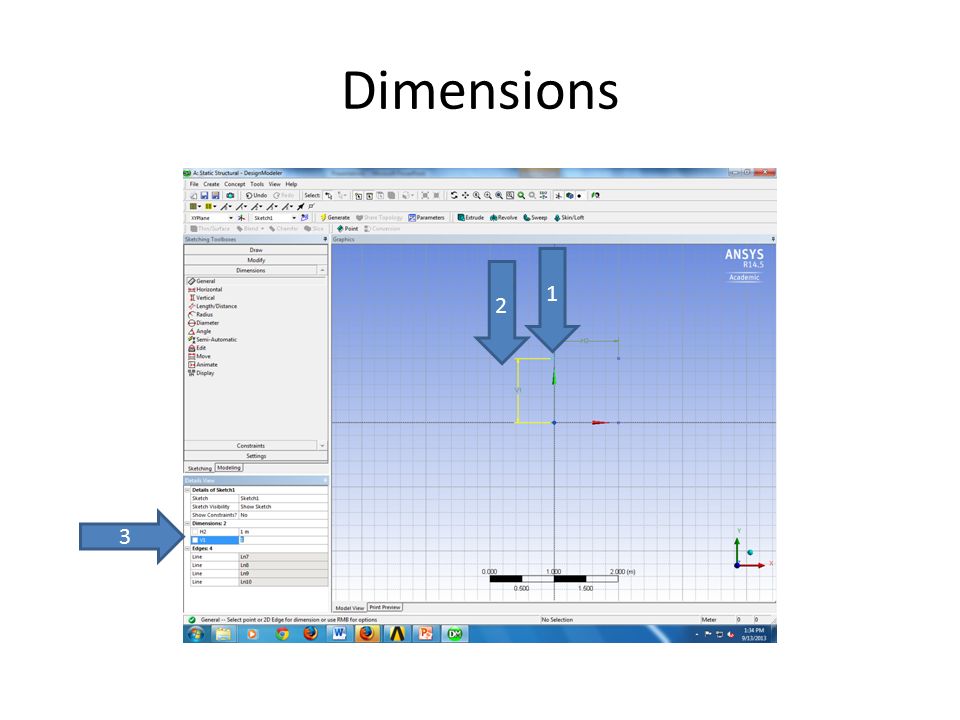

21. Dimensions 1 2 3

22. Draw and dimension circle

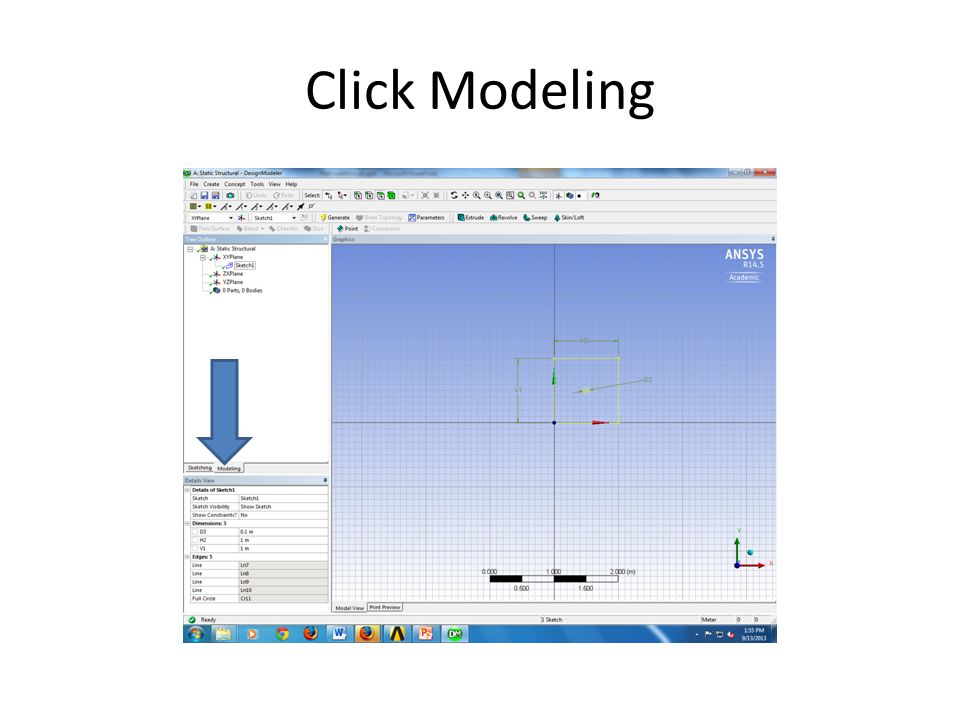

23. Click Modeling

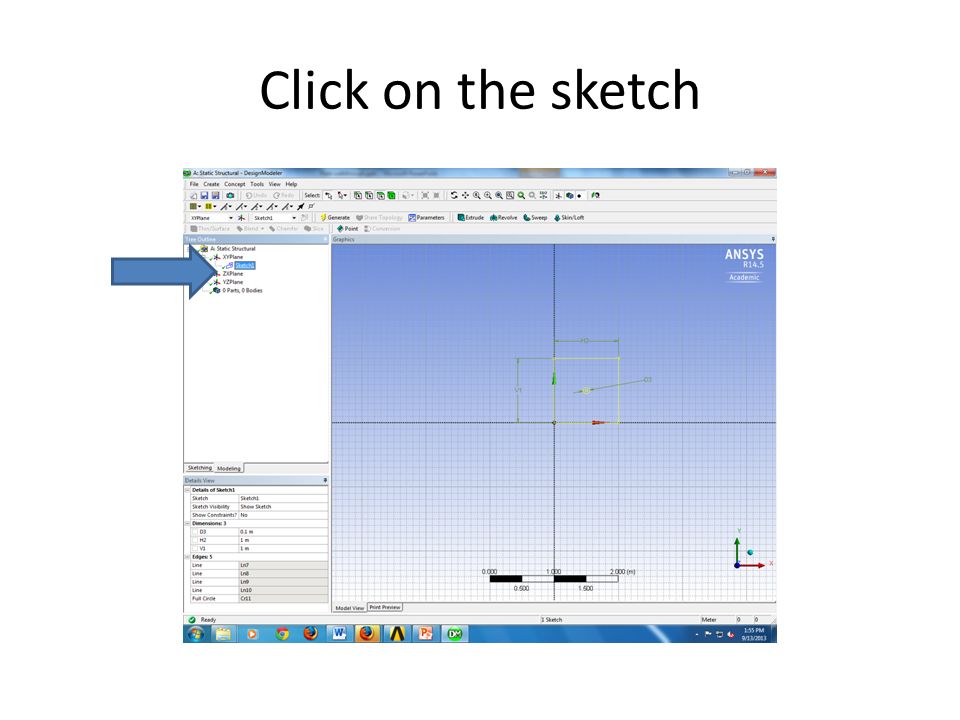

24. Click on the sketch

25. Click extrude

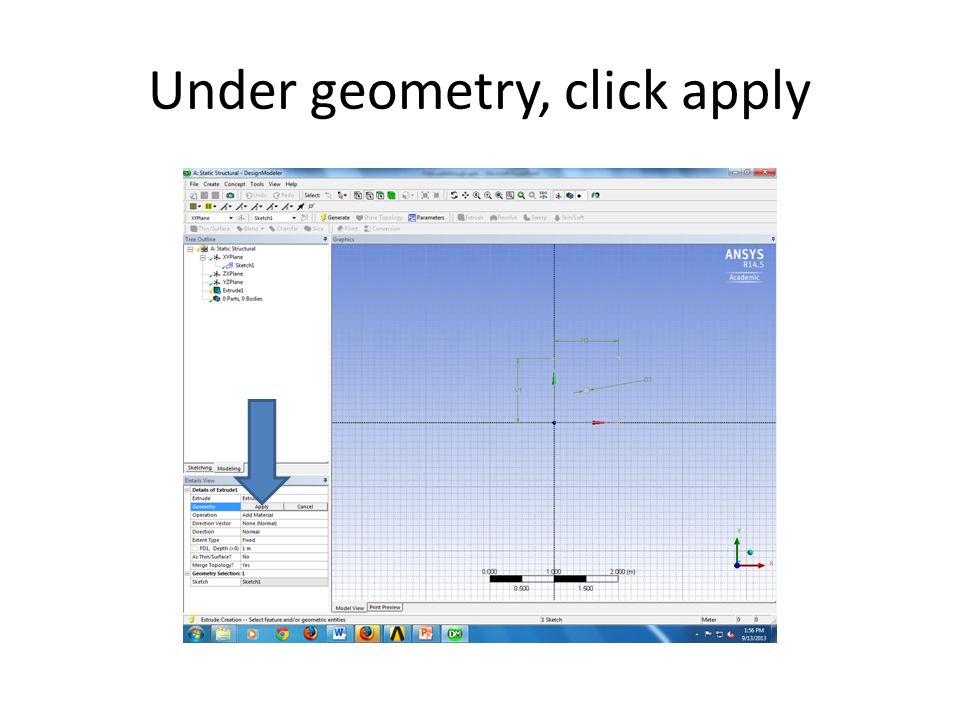

26. Under geometry, click apply

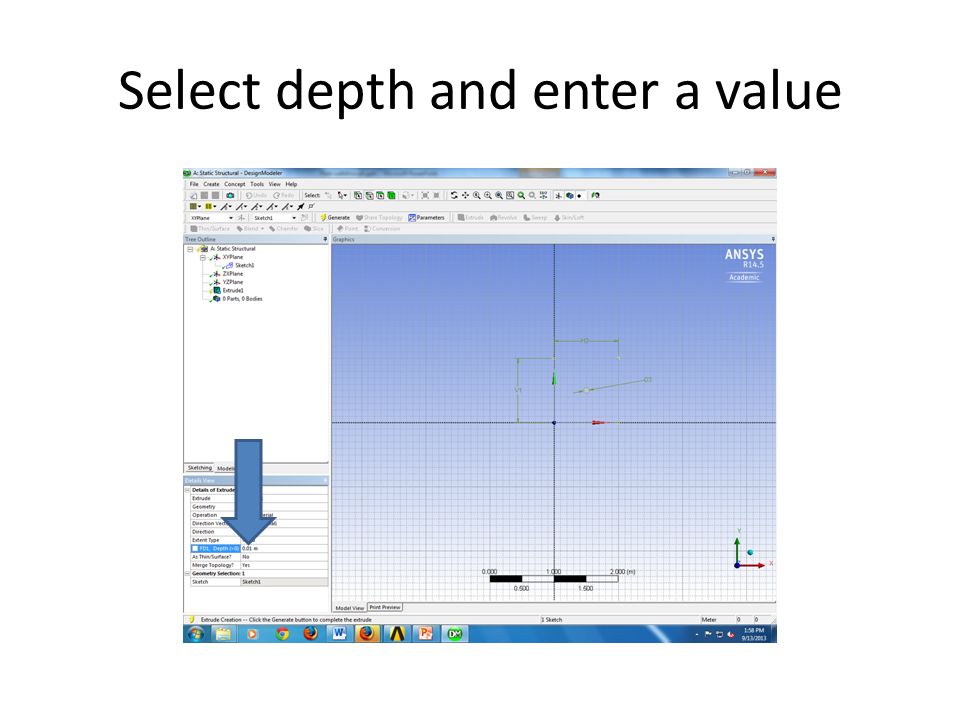

27. Select depth and enter a value

28. Generate

29. Close the window

30. Step 3: Model and setup Overview: – Mesh Create sizing rules Update mesh – Loads Insert pressures

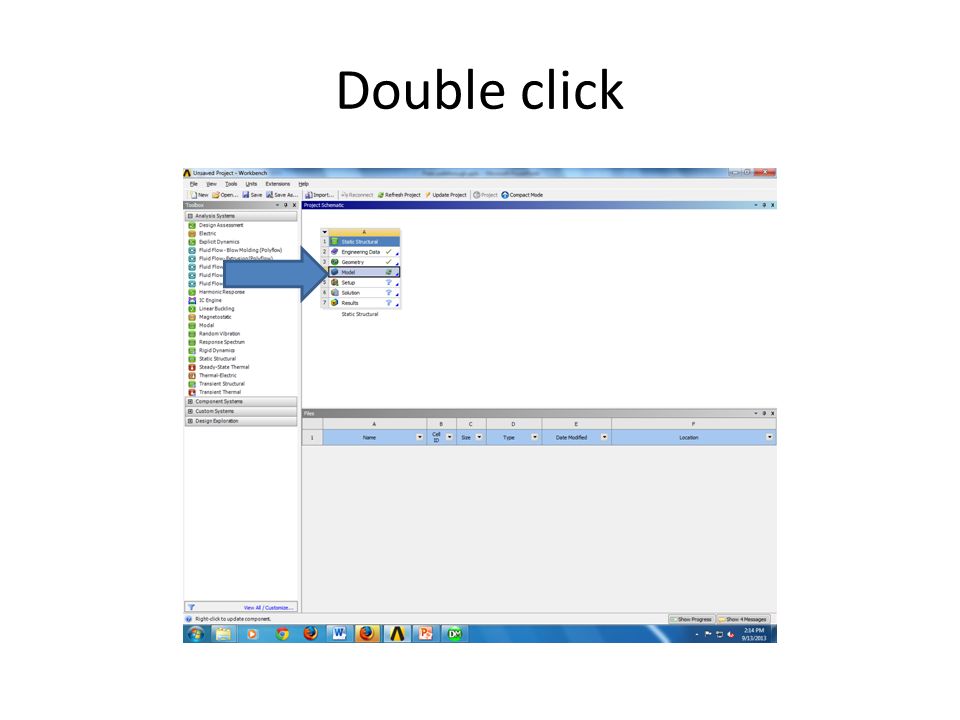

31. Double click

32. Wait till you see …

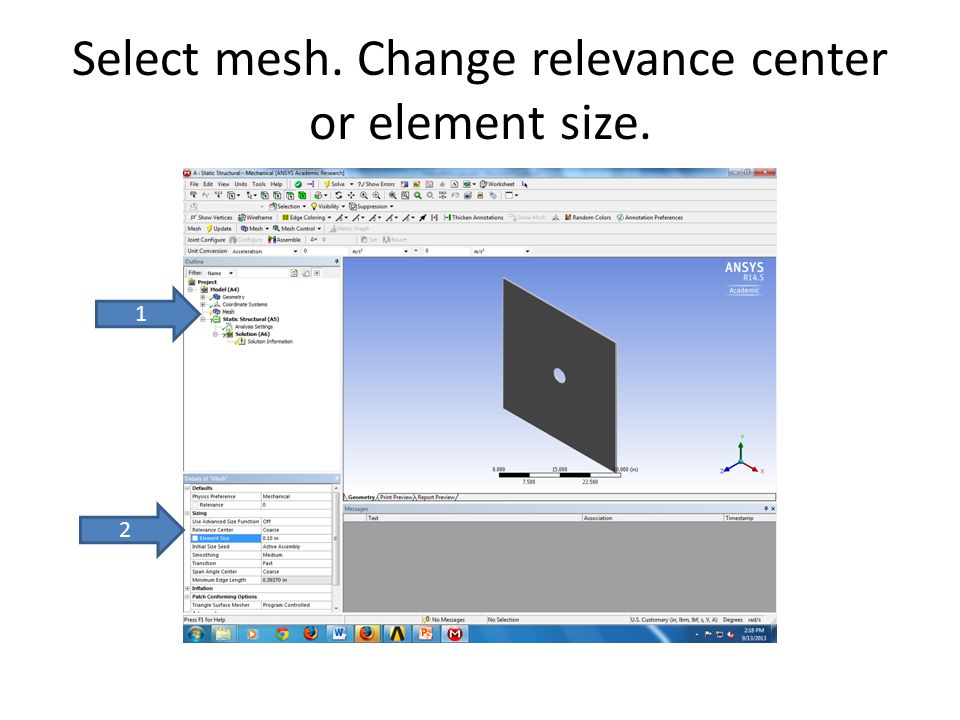

33. Select mesh. Change relevance center or element size. 2 1

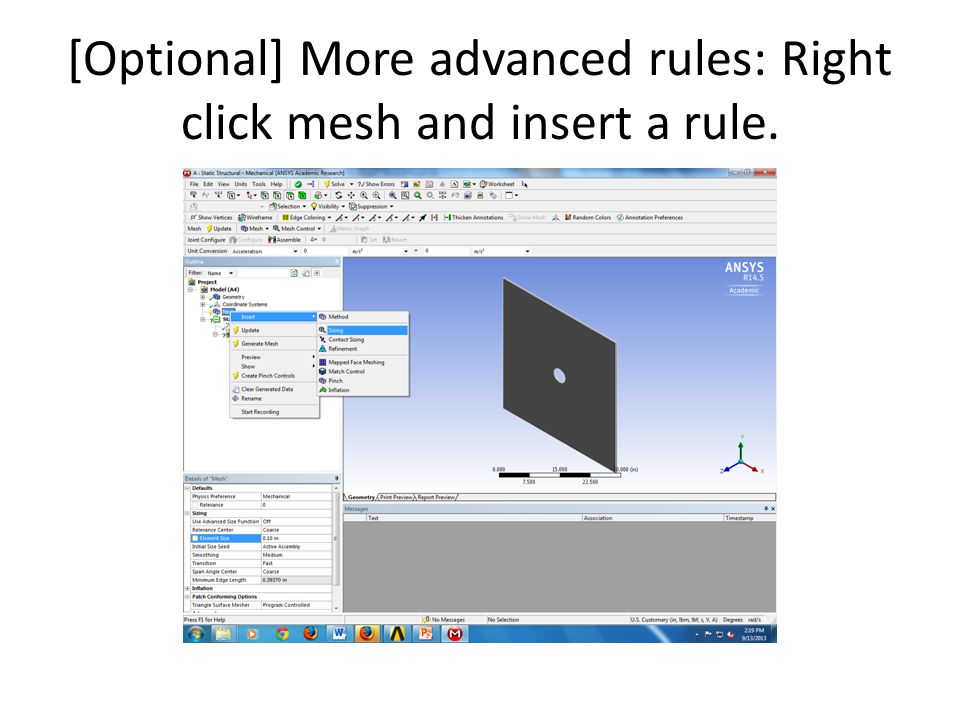

34. [Optional] More advanced rules: Right click mesh and insert a rule.

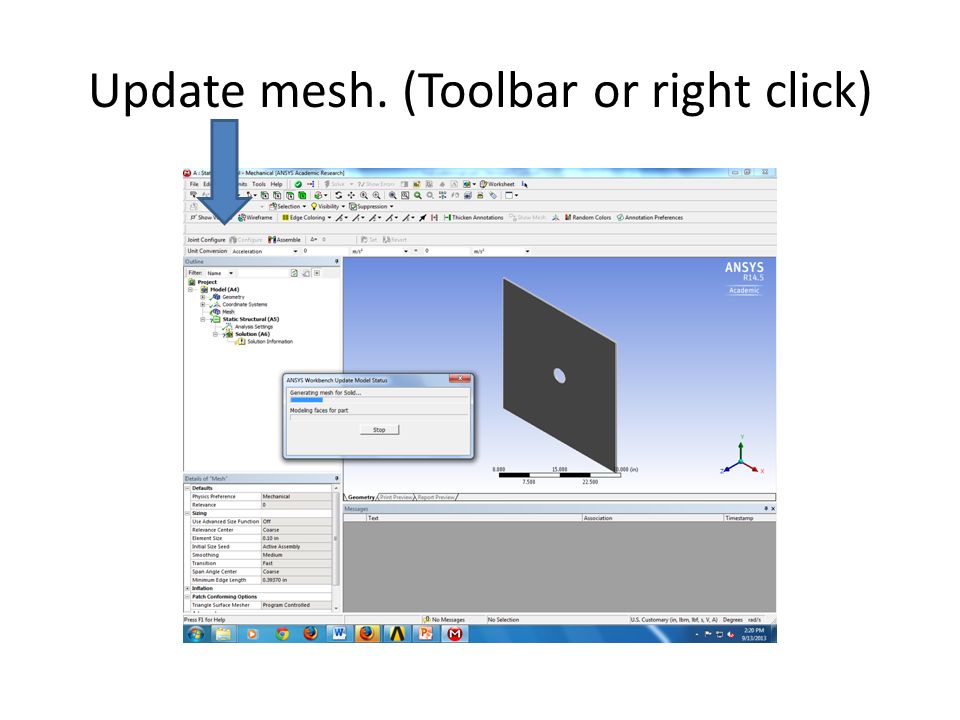

35. Update mesh. (Toolbar or right click)

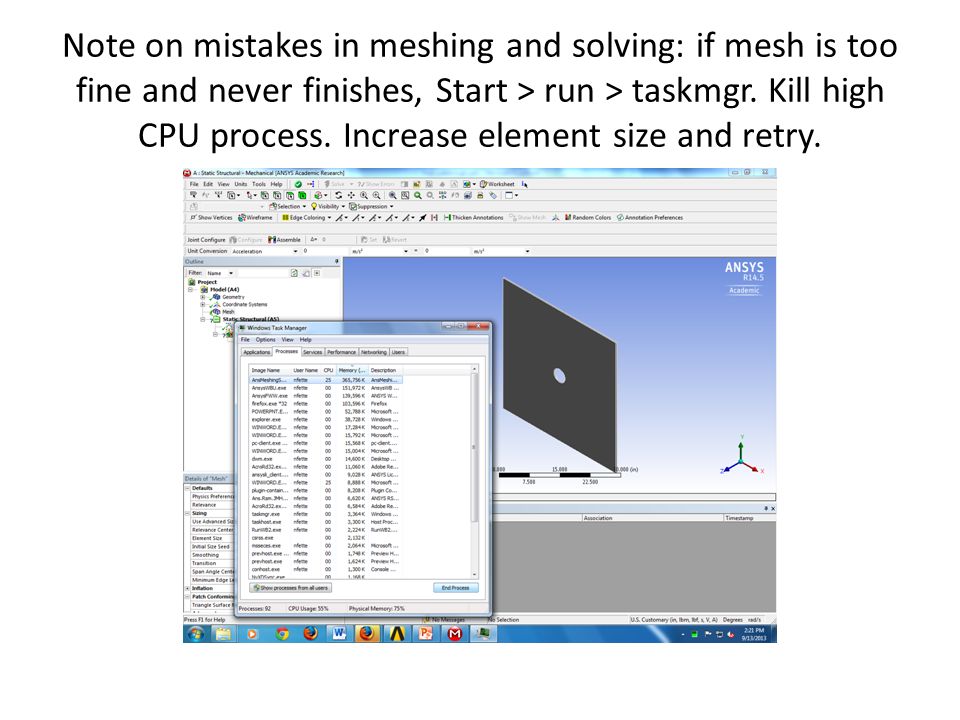

36. Note on mistakes in meshing and solving: if mesh is too fine and never finishes, Start > run > taskmgr. Kill high CPU process. Increase element size and retry.

37. Example medium relevance mesh.

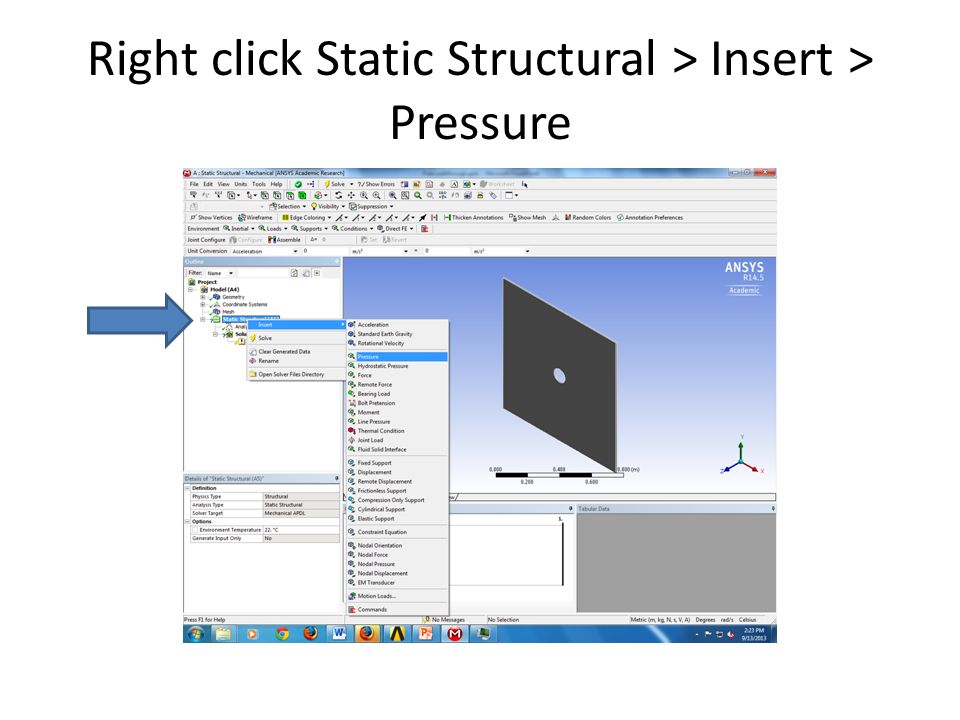

38. Right click Static Structural > Insert > Pressure

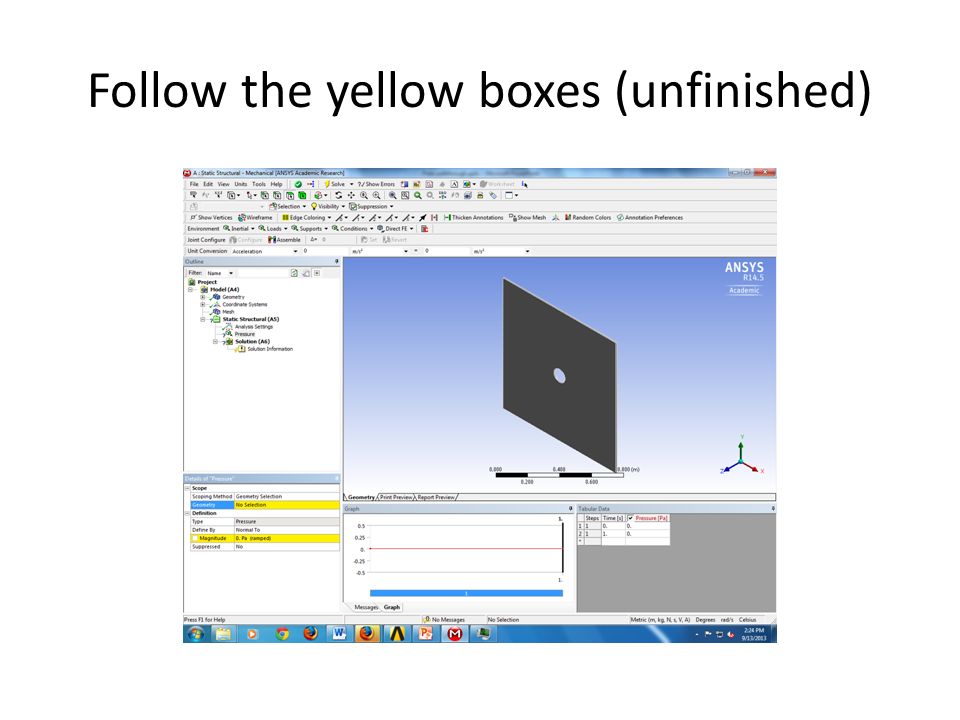

39. Follow the yellow boxes (unfinished)

40. Click geometry value, click a face, then click apply 1 2 3

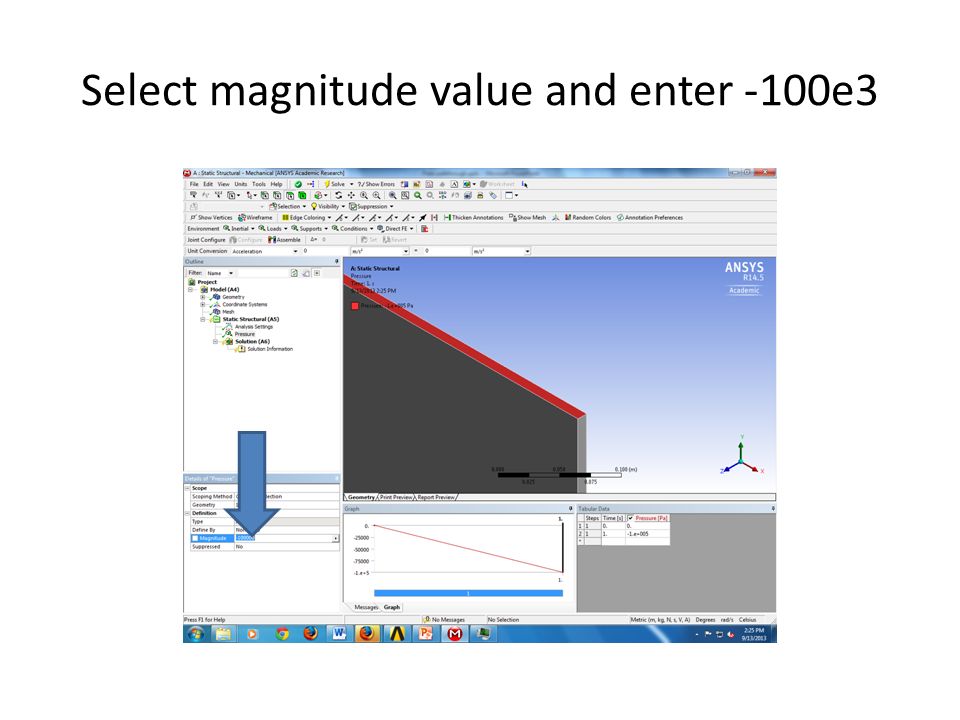

41. Select magnitude value and enter -100e3

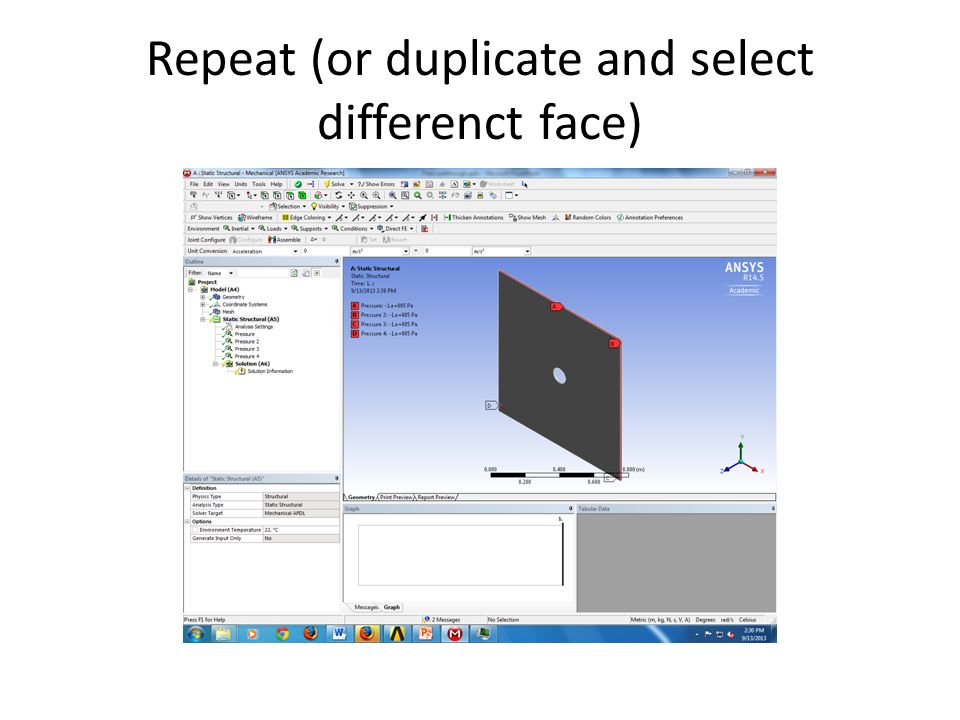

42. Repeat (or duplicate and select differenct face)

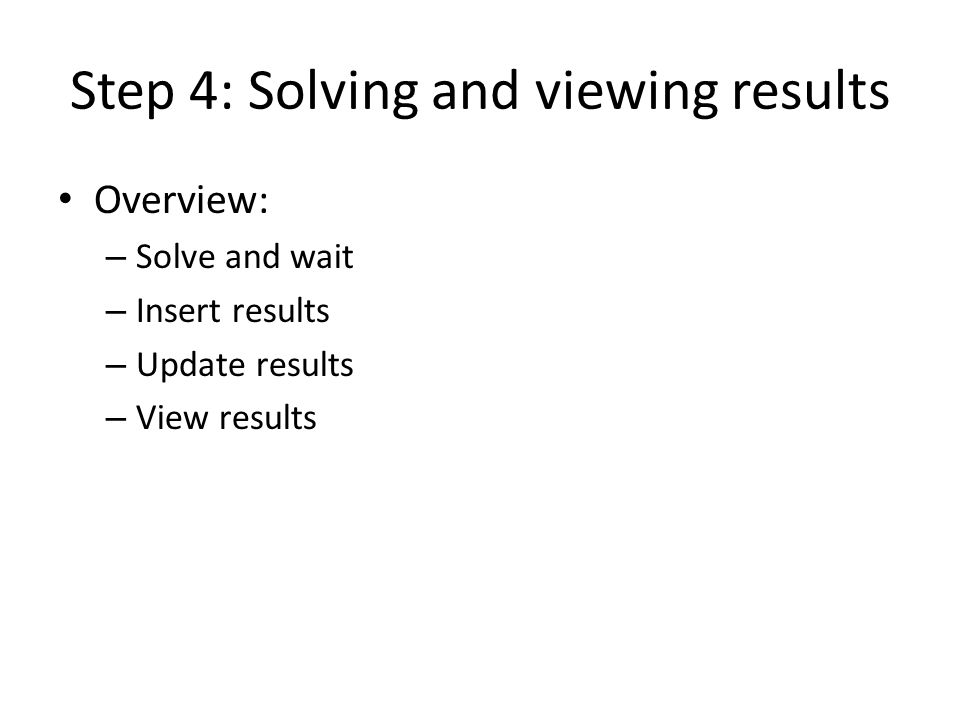

43. Step 4: Solving and viewing results Overview: – Solve and wait – Insert results – Update results – View results

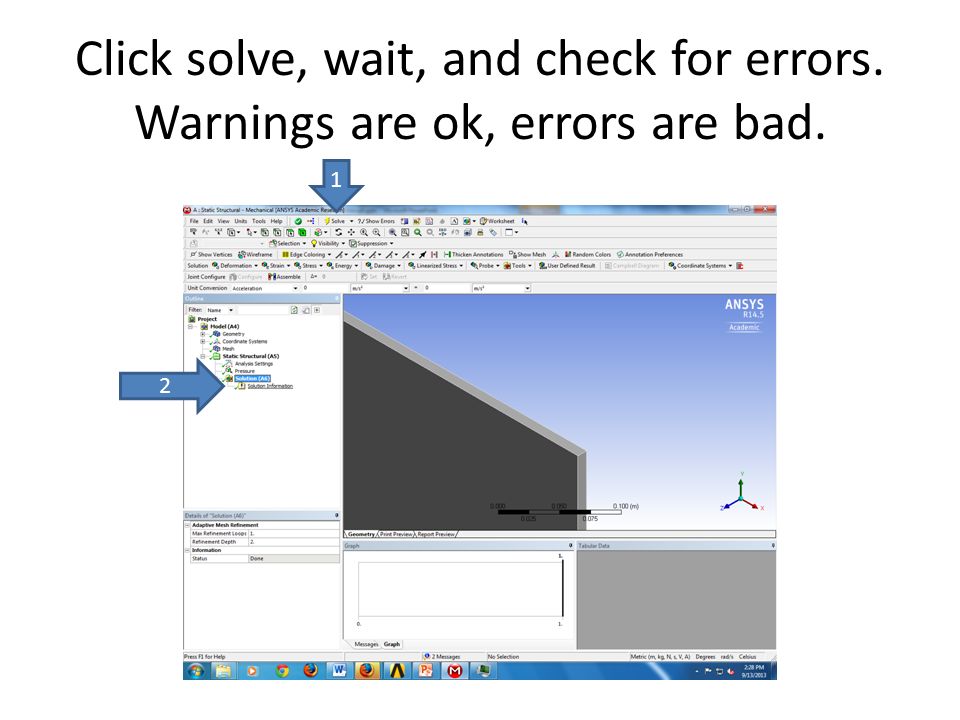

44. Click solve, wait, and check for errors. Warnings are ok, errors are bad. 1 2

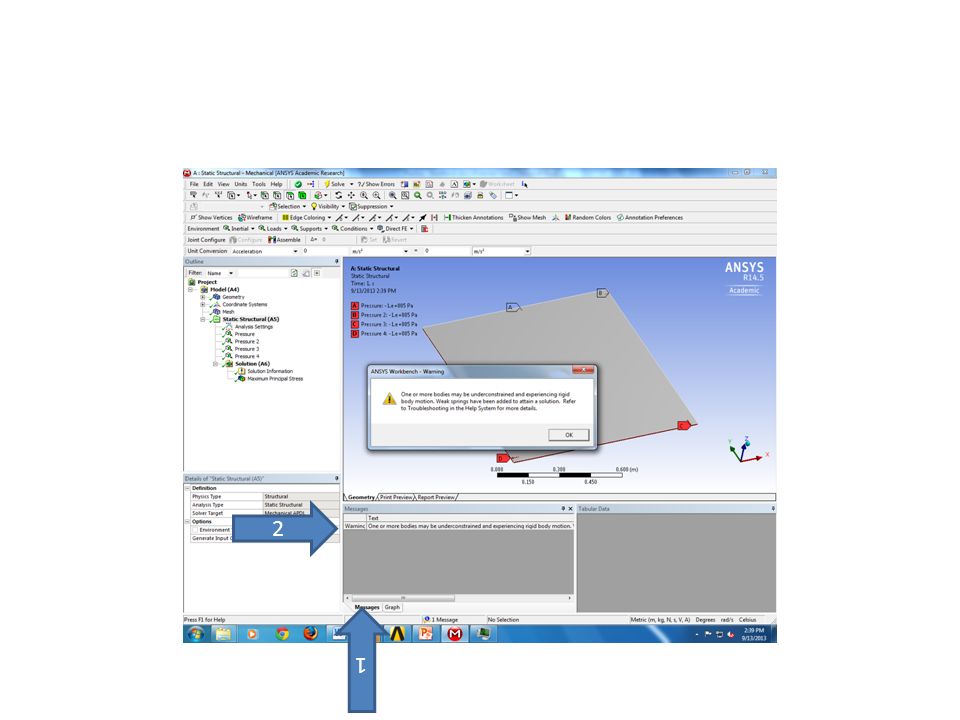

45. 1 2

46. Insert a result field: right click solution > stress > maximum principal

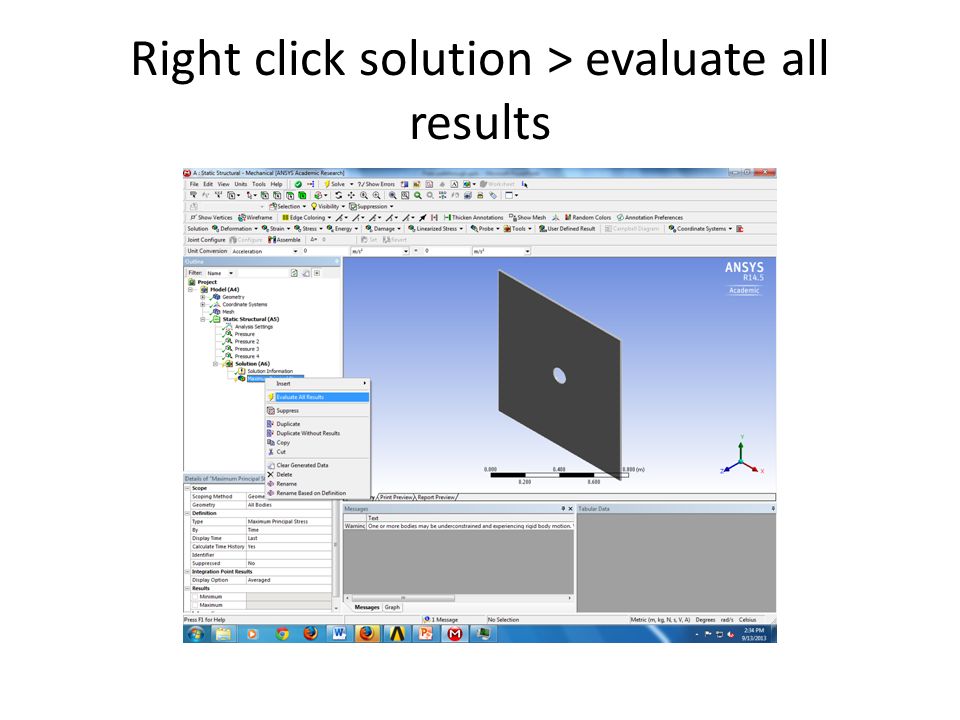

47. Right click solution > evaluate all results

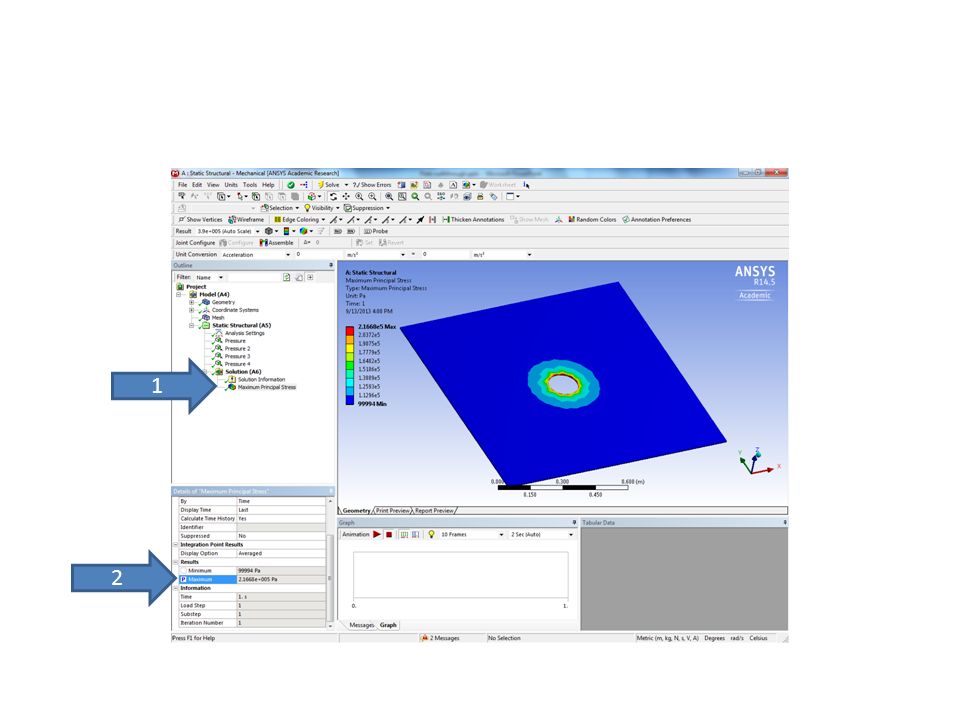

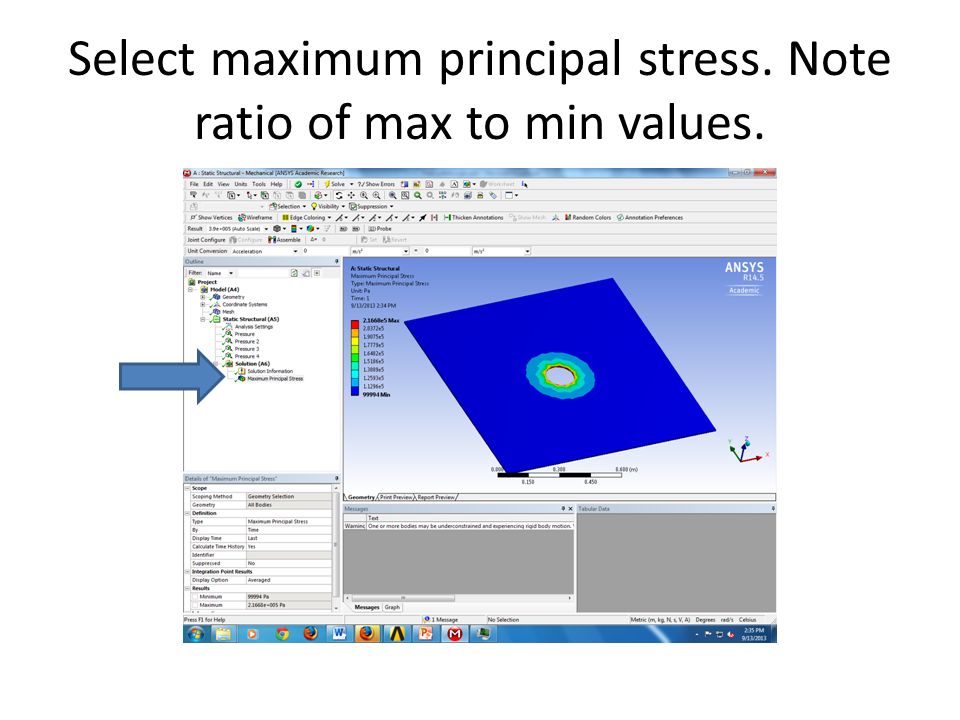

48. Select maximum principal stress. Note ratio of max to min values.

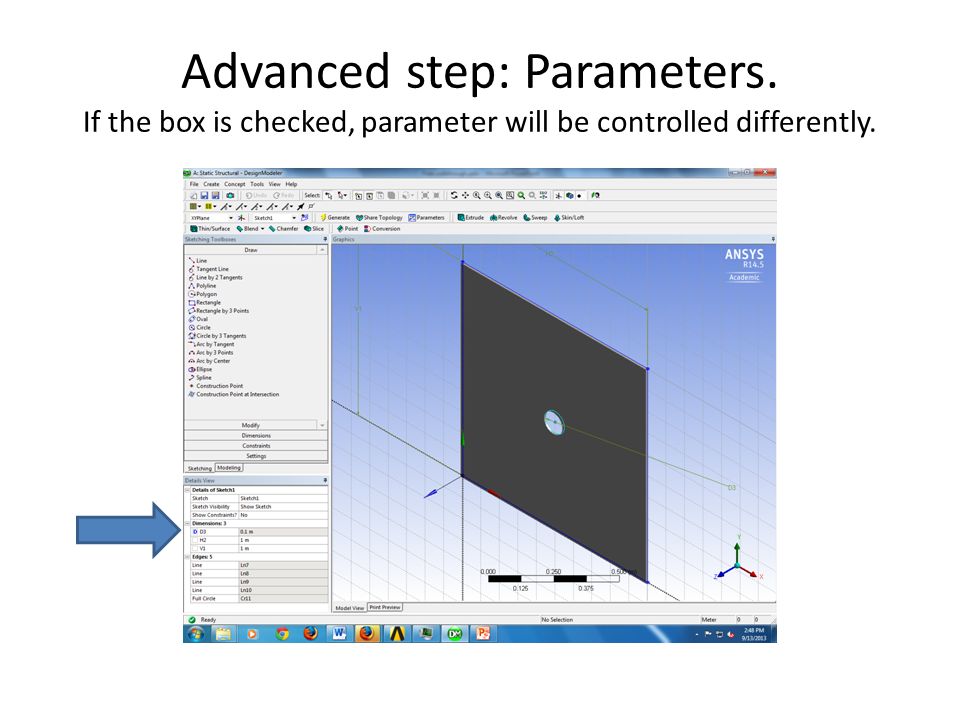

49. Advanced step: Parameters. If the box is checked, parameter will be controlled differently.

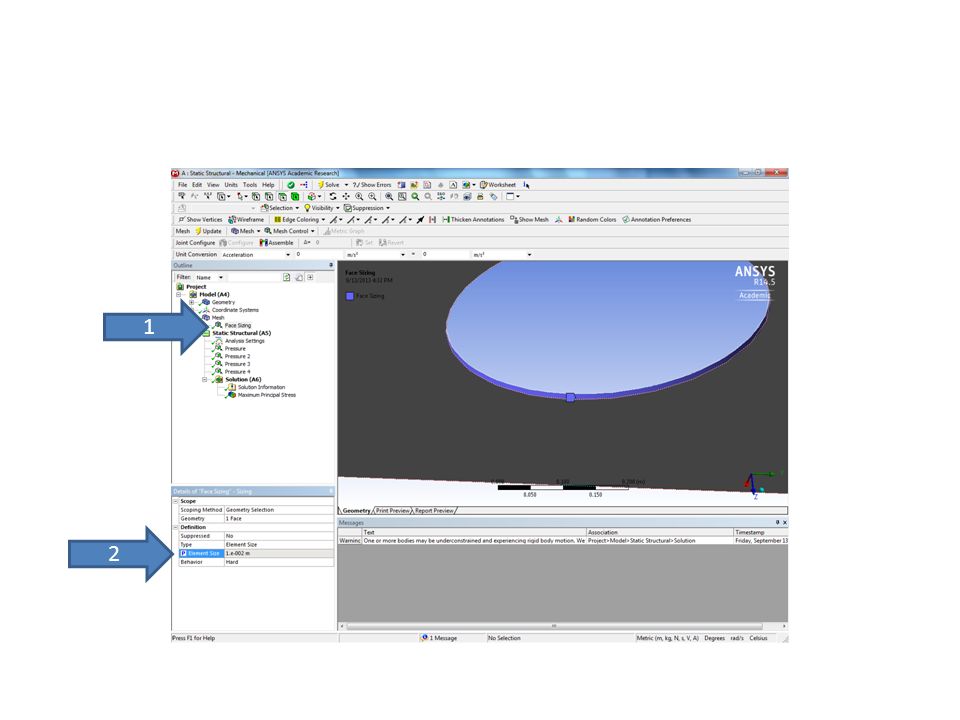

50. 2 1

51. 1 2

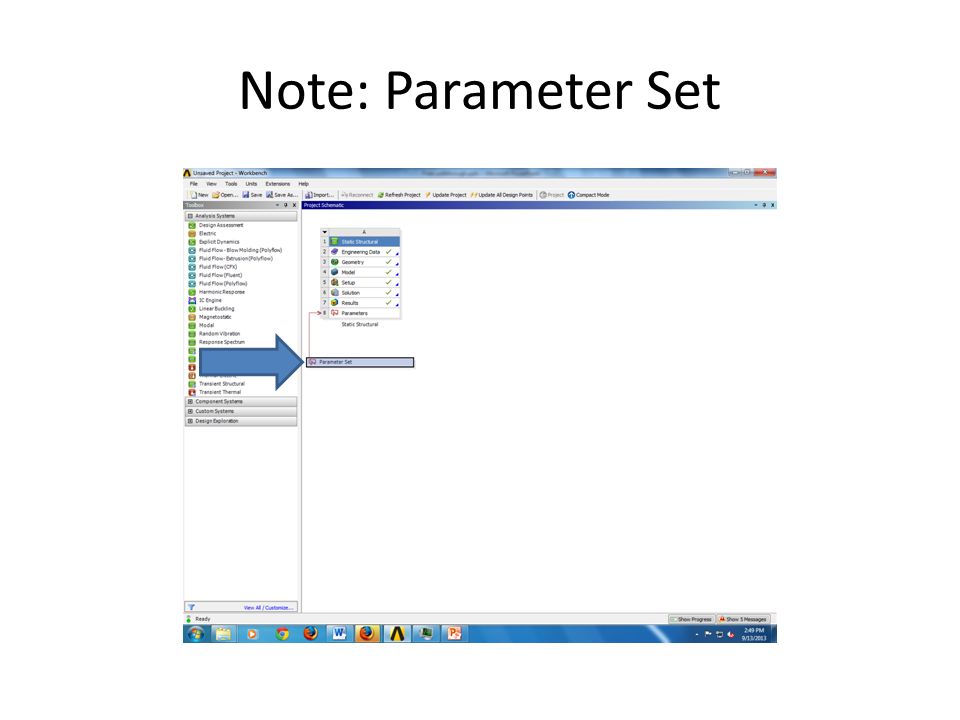

52. Note: Parameter Set

53. Can use to make parametric studies. 3 1 2

54. As hole diameter goes to zero, max of maximum principal stress goes to 2x boundary pressure.
