1. Electrical Safety

2. Definitions v Exposed part v Live or energized part v De-energized part 1a

3. Definitions v De-energized exposed parts that are not locked/tagged are considered to be energized exposed parts 1b

4. Working on or near exposed electrical parts v Don’t work on or near exposed electrical parts unless: the part is de-energized; andthe part is de-energized; and the part is locked/tagged outthe part is locked/tagged out 2a

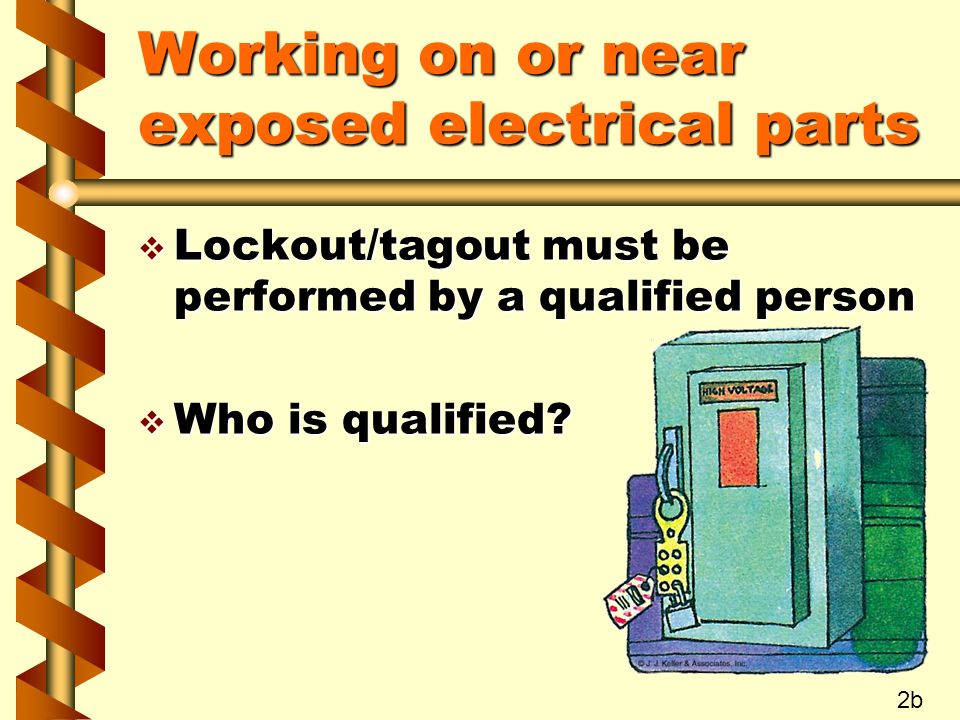

5. Working on or near exposed electrical parts v Lockout/tagout must be performed by a qualified person v Who is qualified? 2b

6. Clearance for unguarded, overhead energized lines v For elevated surfaces and voltages 50kv or less to ground: the distance is 10 feetthe distance is 10 feet 3a

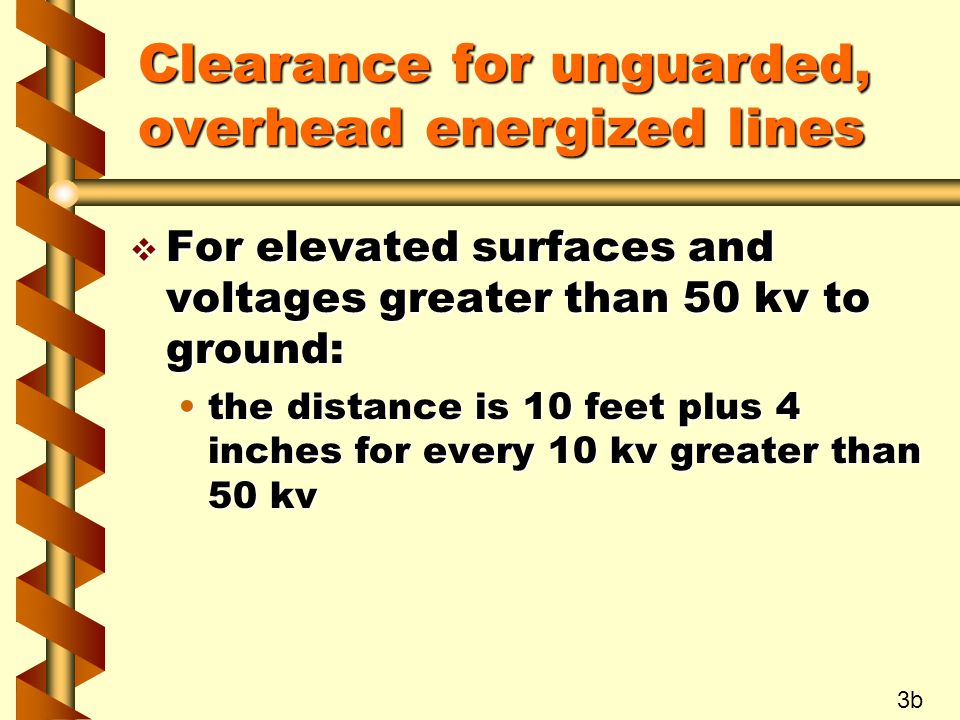

7. Clearance for unguarded, overhead energized lines v For elevated surfaces and voltages greater than 50 kv to ground: the distance is 10 feet plus 4 inches for every 10 kv greater than 50 kvthe distance is 10 feet plus 4 inches for every 10 kv greater than 50 kv 3b

8. Clearance for unguarded, overhead energized lines v When working on the ground in the vicinity of unguarded, energized overhead lines 50 kv or less to ground: keep conductive objects at least 10 feet awaykeep conductive objects at least 10 feet away 3c

9. Clearance for unguarded, overhead energized lines v When working on the ground in the vicinity of unguarded, energized overhead lines greater than 50 kv to ground: keep conductive objects at least 10 feet away, plus 4 inches for every 10 kv over 50 kvkeep conductive objects at least 10 feet away, plus 4 inches for every 10 kv over 50 kv 3d

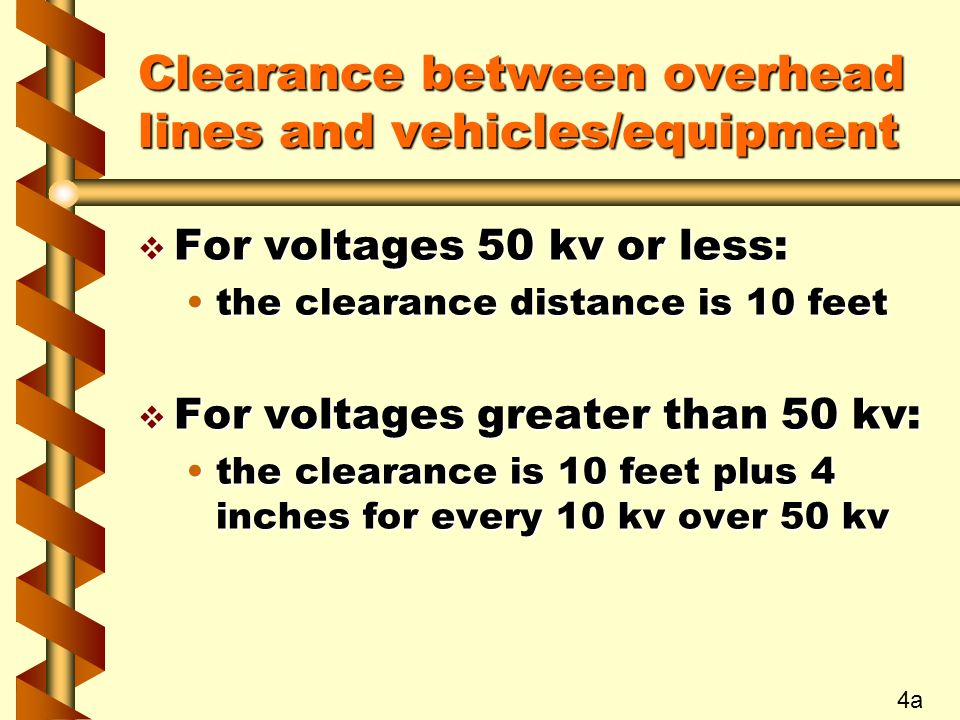

10. Clearance between overhead lines and vehicles/equipment v For voltages 50 kv or less: the clearance distance is 10 feetthe clearance distance is 10 feet v For voltages greater than 50 kv: the clearance is 10 feet plus 4 inches for every 10 kv over 50 kvthe clearance is 10 feet plus 4 inches for every 10 kv over 50 kv 4a

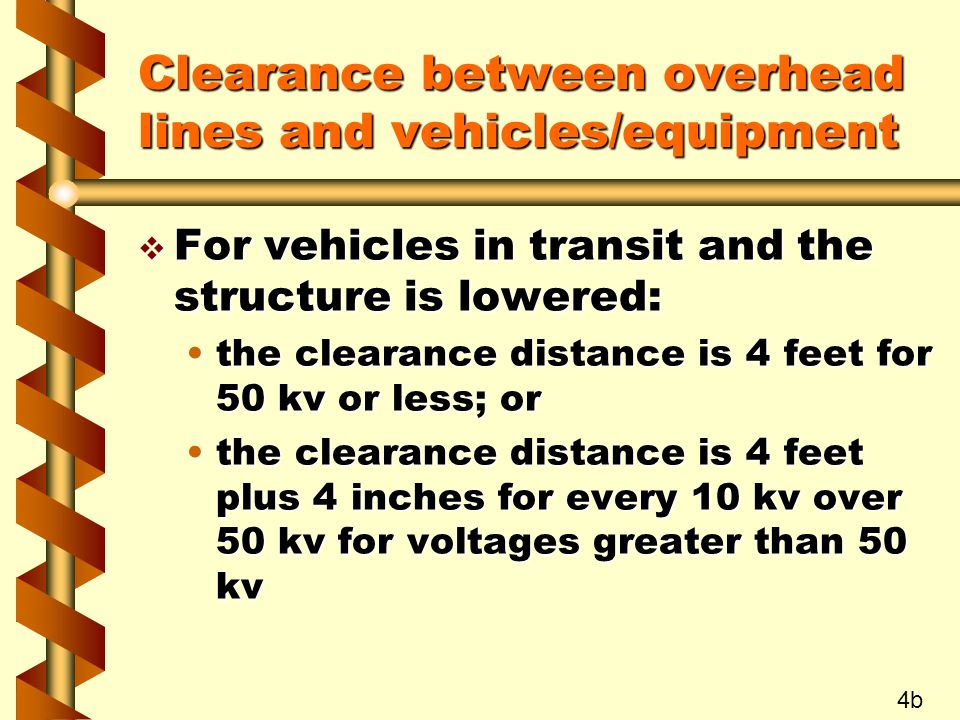

11. Clearance between overhead lines and vehicles/equipment v For vehicles in transit and the structure is lowered: the clearance distance is 4 feet for 50 kv or less; orthe clearance distance is 4 feet for 50 kv or less; or the clearance distance is 4 feet plus 4 inches for every 10 kv over 50 kv for voltages greater than 50 kvthe clearance distance is 4 feet plus 4 inches for every 10 kv over 50 kv for voltages greater than 50 kv 4b

12. Clearance between overhead lines and vehicles/equipment v When insulating barriers designed for line voltage are installed, and not attached to, or part of, the vehicle or mechanical equipment: the clearance is the designed working dimensions of the barrierthe clearance is the designed working dimensions of the barrier 4c

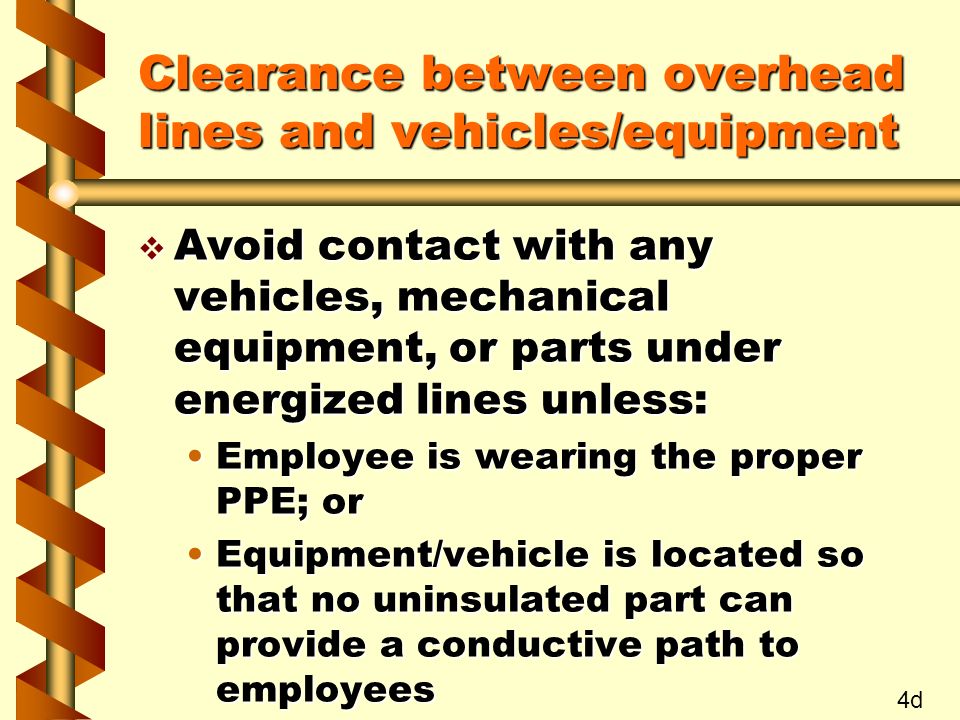

13. Clearance between overhead lines and vehicles/equipment v Avoid contact with any vehicles, mechanical equipment, or parts under energized lines unless: Employee is wearing the proper PPE; orEmployee is wearing the proper PPE; or Equipment/vehicle is located so that no uninsulated part can provide a conductive path to employeesEquipment/vehicle is located so that no uninsulated part can provide a conductive path to employees 4d

14. Clearance between overhead lines and vehicles/equipment v Do not stand near the grounding location for intentionally grounded equipment or vehicles when contact with overhead wires is possible v Use insulation and barriers to protect employees from the grounding area 4e

15. Use of nonconductive ladders v Portable ladders must have nonconductive siderails when used near energized parts v Metal ladders can conduct electricity and cause arcing and shocks 5a

16. Hazards of conductive apparel v Conductive jewelry and clothing can cause arcing when exposed to energized parts v If conductive jewelry and clothing are not removed, they must be covered so they are no longer conductive 6a

17. Procedures for using portable electrical equipment v Proper handling of cords Don’t raise or lower equipment by its cordDon’t raise or lower equipment by its cord Don’t unplug the equipment by pulling on its cordDon’t unplug the equipment by pulling on its cord Don’t staple or fasten the cord so as to damage outer jacketDon’t staple or fasten the cord so as to damage outer jacket 7a

18. Procedures for using portable electrical equipment v Equipment inspection Visually check for:Visually check for: –loose parts –deformed or missing parts –damaged jackets or insulation 7b

19. Procedures for using portable electrical equipment v Equipment inspection Inspect for internal defects, as indicated by pinched or crushed outer jacketsInspect for internal defects, as indicated by pinched or crushed outer jackets Perform inspections prior to beginning each shiftPerform inspections prior to beginning each shift 7c

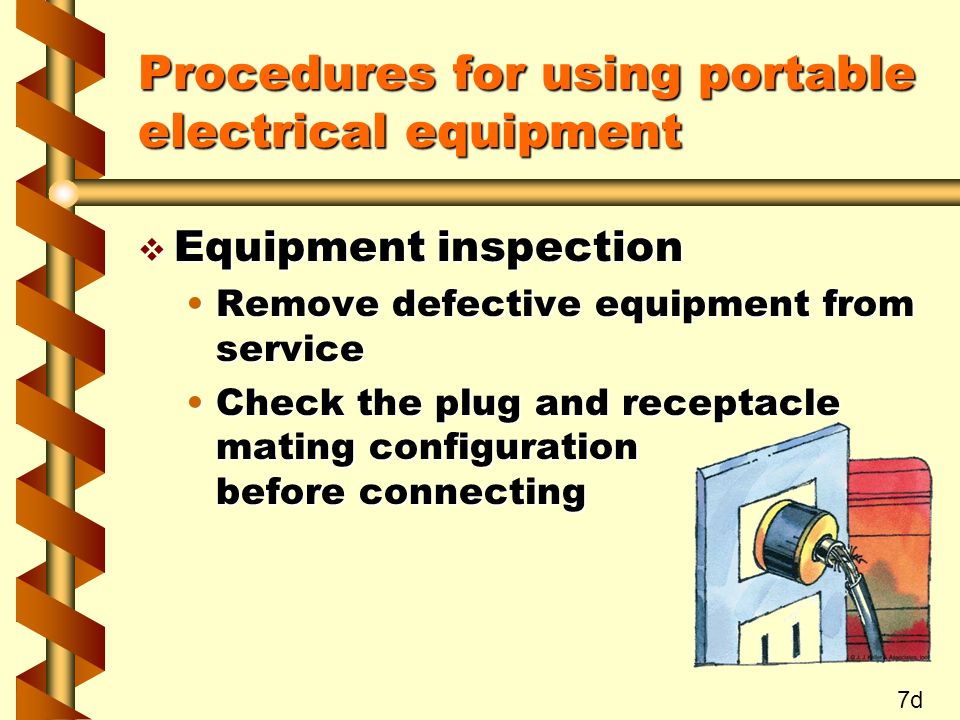

20. Procedures for using portable electrical equipment v Equipment inspection Remove defective equipment from serviceRemove defective equipment from service Check the plug and receptacle mating configuration before connectingCheck the plug and receptacle mating configuration before connecting 7d

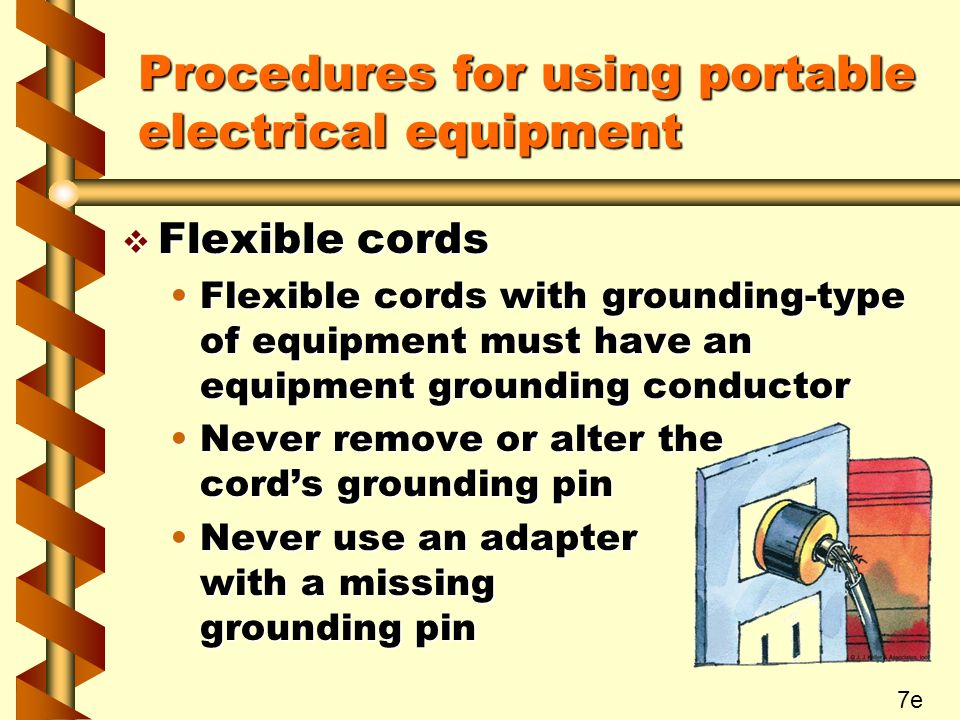

21. Procedures for using portable electrical equipment v Flexible cords Flexible cords with grounding-type of equipment must have an equipment grounding conductorFlexible cords with grounding-type of equipment must have an equipment grounding conductor Never remove or alter the cord’s grounding pinNever remove or alter the cord’s grounding pin Never use an adapter with a missing grounding pinNever use an adapter with a missing grounding pin 7e

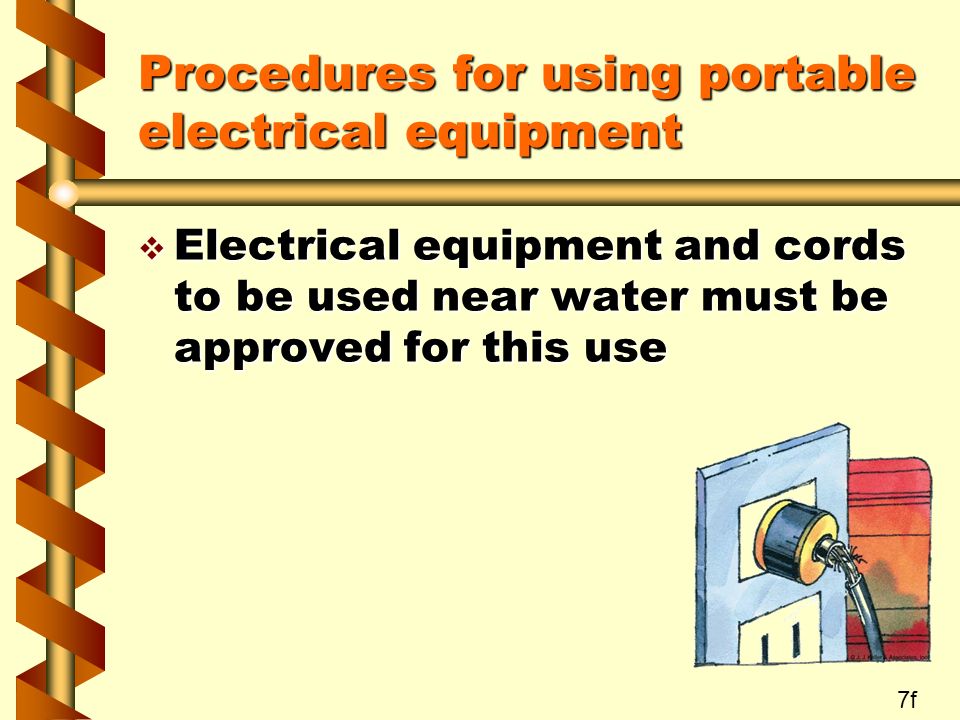

22. Procedures for using portable electrical equipment v Electrical equipment and cords to be used near water must be approved for this use 7f

23. Procedures for using portable electrical equipment v Plugging/unplugging cord and cord-connected equipment and flexible cords Ensure hands are dryEnsure hands are dry Never pull the plug out by the cordNever pull the plug out by the cord 7g

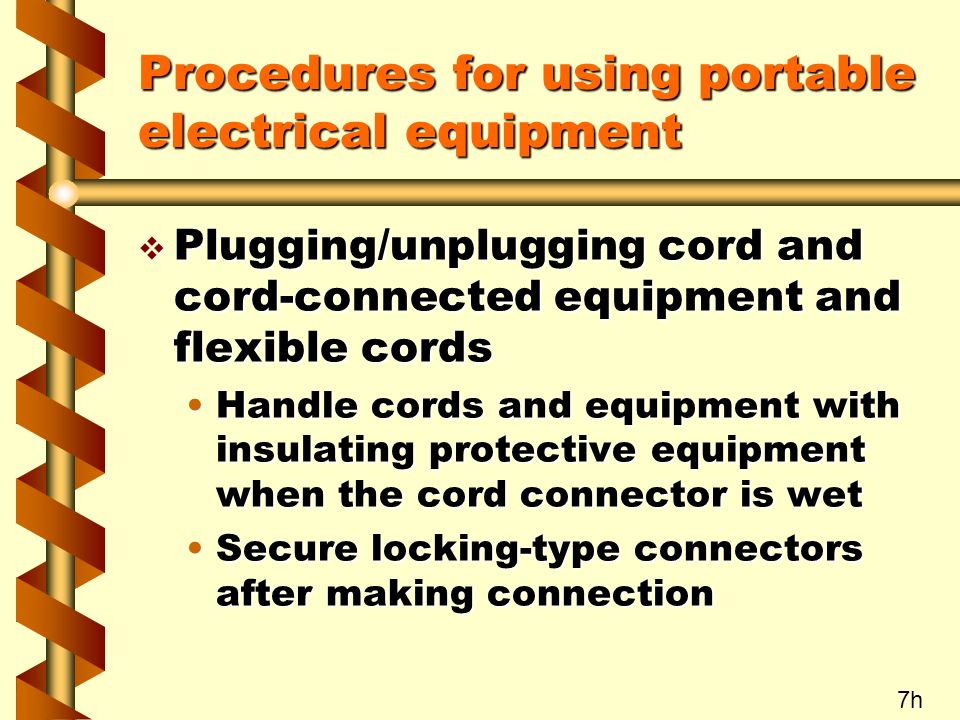

24. Procedures for using portable electrical equipment v Plugging/unplugging cord and cord-connected equipment and flexible cords Handle cords and equipment with insulating protective equipment when the cord connector is wetHandle cords and equipment with insulating protective equipment when the cord connector is wet Secure locking-type connectors after making connectionSecure locking-type connectors after making connection 7h

25. Procedures for using portable electrical equipment v Circuit breakers and circuits Never use the following to open and close electrical circuitsNever use the following to open and close electrical circuits –Fuses –Terminal lugs –Cable connectors –Cable splice connections 7i

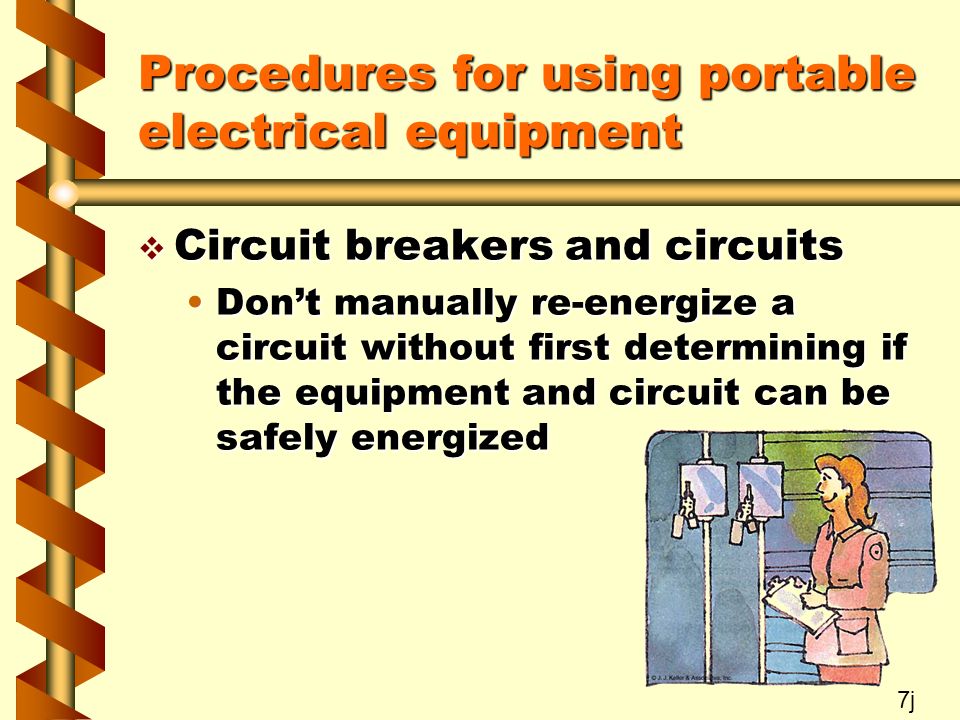

26. Procedures for using portable electrical equipment v Circuit breakers and circuits Don’t manually re-energize a circuit without first determining if the equipment and circuit can be safely energizedDon’t manually re-energize a circuit without first determining if the equipment and circuit can be safely energized 7j

27. Procedures for using portable electrical equipment v Circuit breakers and circuits Repeatedly closing a circuit breaker or replacing a fuse is not allowedRepeatedly closing a circuit breaker or replacing a fuse is not allowed Keep flammables and combustibles away from electrical equipmentKeep flammables and combustibles away from electrical equipment 7k

28. Protective equipment v Use appropriate protective equipment in damp or wet environments v Inspect protective equipment to ensure reliability v Guard normally enclosed live parts during maintenance 8a

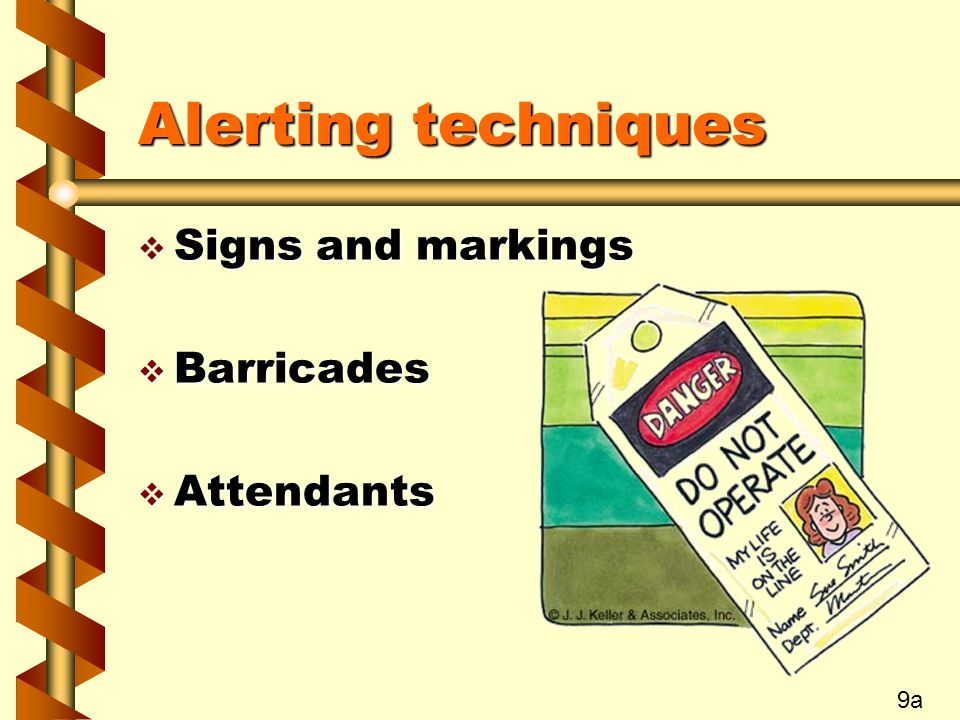

29. Alerting techniques v Signs and markings v Barricades v Attendants 9a

30. Summary of key points v Definitions v De-energized means locked/tagged out v Safe distances for clearances between workers and energized lines 10a

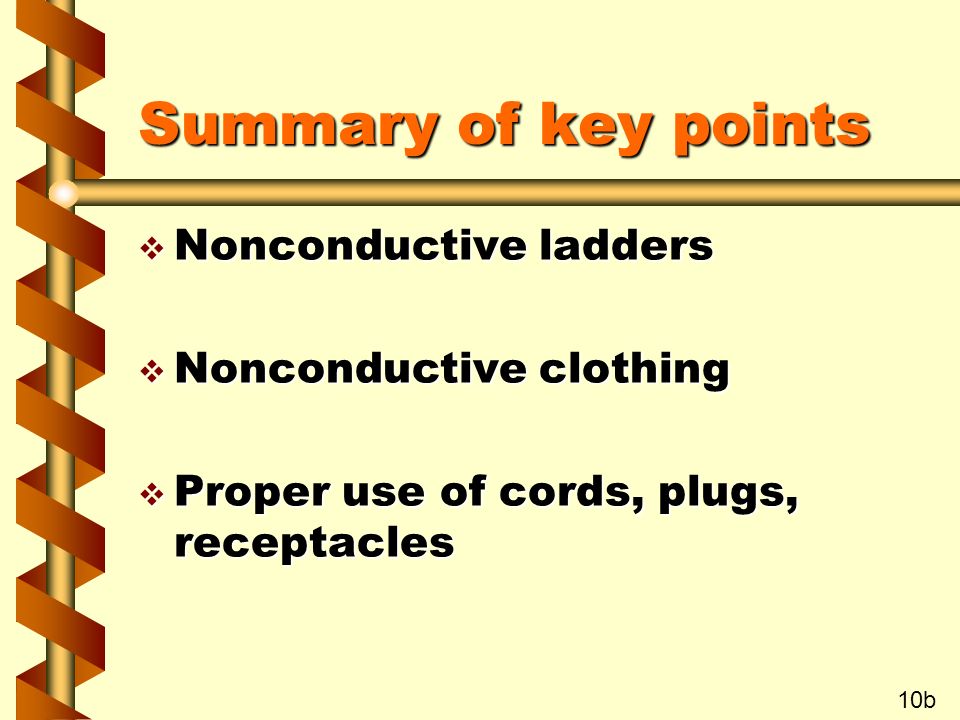

31. Summary of key points v Nonconductive ladders v Nonconductive clothing v Proper use of cords, plugs, receptacles 10b

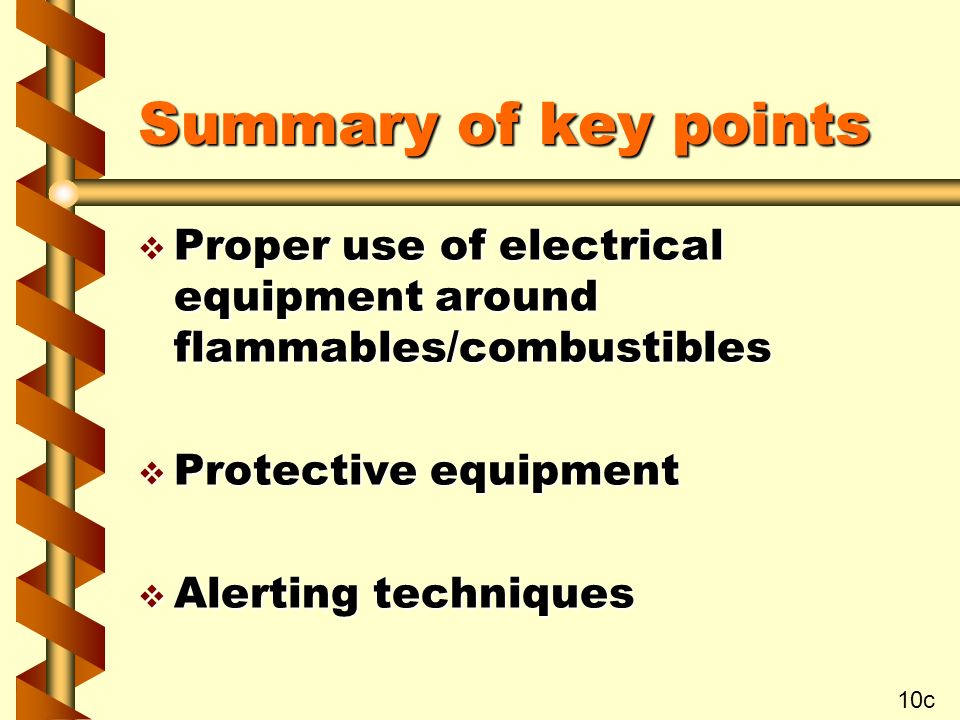

32. Summary of key points v Proper use of electrical equipment around flammables/combustibles v Protective equipment v Alerting techniques 10c
