1. INSPIRE-compliant and easy-to-use GeoModel Editor Jan Schulze Althoff Dr. Christine Giger Prof. Dr. Lorenz Hurni

2. Overview About Modelling HUMBOLDT GeoModel Editor INSPIRE GeoModel Editor Linking Enterprise Architect INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger2

3. About Modelling Why do we generate data models using a CSL (conceptual schema language), e.g. UML? 1.Support of users/thematic experts: Specify structure and content of the data independent from a specific implementation 2.Facilitate implementation: CSL elements to be used in all interfaces and subsequent processing software, e.g. for data harmonisation INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger3

4. HUMBOLDT Project: Problems in the Modelling Methodology INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger INSPIRE /ISO set of Modelling Elements HUMBOLDT set of Modelling Elements Interfaces support all the elements Theory Reality Software A supports subset A Software B supports subset B Software C supports subset C Mandatory for all interfaces One possible solution 4

5. Small Snippet of UML Metamodel INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger5

6. Why it‘s so huge! Current Modelling Environment for INSPIRE: Includes ALL ISO-19xxx packages – More than 40 Standards – More than 600 Packages – More than 2000 Classes/Types INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger6

7. The HUMBOLDT Metamodel Based on concepts of the INTERLIS conceptual schema language (Swiss Standard CSL: experiences from over 20 years of use for >>100 geodata models)

8. HUMBOLDT GeoModel Editor Process Optimisation for Spatial Modelling (for the HUMBOLDT Project) – Integration of Spatial Types – Differentiation of Data Types and Feature Types – Precise, yet flexible Type System – Limitation of Language Elements Tool Optimisation for Spatial Modelling – Specific Tool for HUMBOLDT Project – Integrated Validation – Open Processing Capabilities INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger8

9. 9

10. HUMBOLDT GeoModel Editor Drawbacks & Problems – Not 100% interoperable to ISO/TC-211 flavored UML Different Concepts for Data Types Slight differences in Geometry Types INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger10

11. Idea: INSPIRE GeoModel Editor Use technique of HUMBOLDT GeoModel Editor Adjust to INSPIRE needs Check interoperability Look at Annex I data specs: – Which elements were really used? INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger11

12. Simplified UML – GFM Only simplified UML Class Diagrams – No Interfaces – No Functions – Only single Inheritance – No Association Classes – No „Realize“ Association – Limited Package Nesting Including the Stereotypes of ISO/TC-211 – FeatureType / DataType – Enumeration /Codelist /… Including Stereotypes of INSPIRE – voidable – lifeCycleInfo INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger12

13. Metamodel of INSPIRE GeoModel Editor based on used Elements in Annex I data specifications INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger13

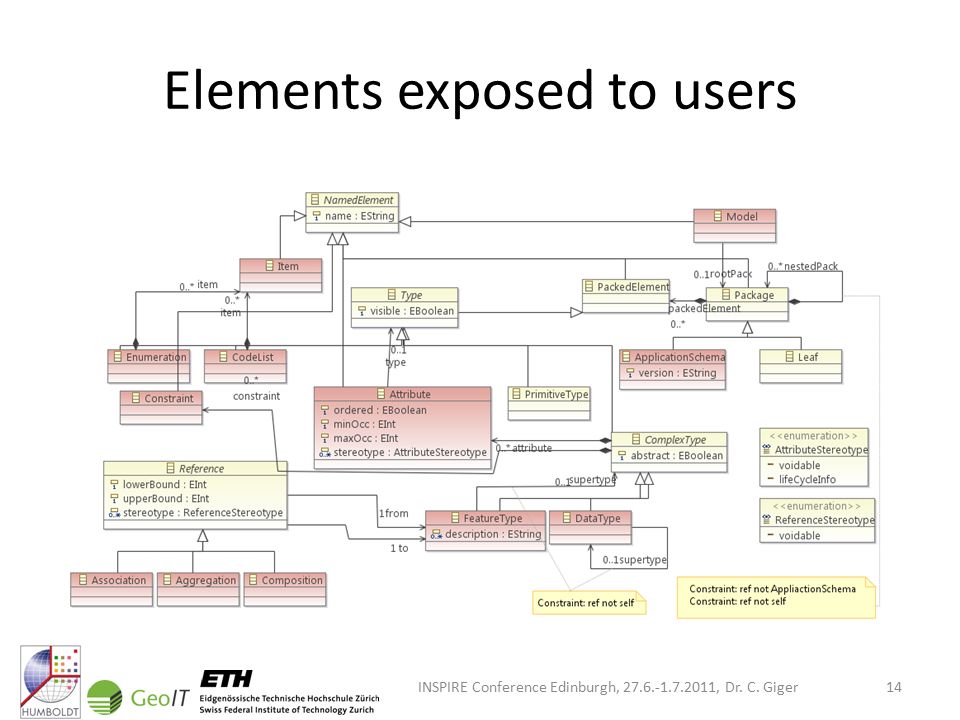

14. Elements exposed to users INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger14

15. Stereotypes for Attributes/Associations INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger15

16. Hidden Primitive Type for Imports INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger16

17. Simplified Imports Used Imports / External Types (Annex I) – Standards ISO-19103, 19107, 19108, 19111, 19115, 19133, 19139 – Only around 25 Types used – „Exotic“ TM_OrdinalEra (ISO-19108), LR_PositionExpression (ISO-19133) INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger17

18. Simplified Imports Suggested List of External Types – ISO-19103 „Schema Languge“ 26 elements of „Basic Types – Primitives“ (Decimal, Integer, DateTime, CharacterString, …) 29 elements of „BasicTypes – Derived“ (Units of Measure – Angle, Area, Distance, …) 9 elements of „BasicTypes – Implementation“ (Names – GenericName, LocalName, …) INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger18

19. Simplified Imports – ISO-19107 „Spatial Schema“ GM-Object, Direct Position GM_Primitive, GM_Point, GM_Curve, GM_Surface, GM_Solid GM_Aggregate, GM_MultiPoint, GM_MultiCurve, GM_MultiSurface, GM_MultiSolid GM_Complex, GM_Composite – ISO-19108 Temporal Schema TM_Primitive, TM_Period, TM_Duration, TM_PeriodDuration INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger19

20. Simplified Imports – ISO-19115 „Metadata“ MD_Metadata Extent Information: EX_GeographicExtent, EX_TemporalExtent, EX_VerticalExtent Citation: CI_Citation, CI_ResponsibleParty, CI_ Contact, CI_Address, URL – ISO-19133 „Tracking & Navigation“ Linear Referencing: LR_PositionExpression – ISO-19139 „Metadata XML Implementation“ LocalisedCharacterString, PT_FreeText, URI INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger20

21. Snapshot INSPIRE GeoModel Editor - INSPIRE Addresses Model

22. Detail: Snapshot INSPIRE GeoModel Editor – Palette – Context Sensitive Menu only allows to add valid elements in the concrete context in a package only „DataType“, „FeatureType“, „Enumeration“, „CodeList“ and „ApplicationSchema“ in fact we should also disallow „ApplicationSchema“ as nesting is hard to implement for subsequent processes

23. Detail - Snapshot INSPIRE Editor - Context Menu is also working for associations (inheritance, associations, aggregations, compositions or simple text attachments)

24. Detail - Snapshot INSPIRE Editor - The predefined simple types from the ISO models can be accessed easily in dropdown menues)

25. Detail - Snapshot INSPIRE Editor - The predefined stereotypes for attributes and associations

26. Detail - Snapshot INSPIRE Editor - Reuse existing models by importing them into the model (here the AdministrativeUnits model is loaded)

27. Problem: Process Chain Import Enterprise Architect UML for Processing with Eclipse Tools 1.Models are simply too large to be handled 2.No real UML Profile is defined 3.Enterprise Architect XMI is not directly compatible with XMI for Eclipse based tools INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger27

28. Problem: The Integration Models are simply too large to be handled Reducing the „Foundation Schemas“ to a minimum INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger28

29. Problem: The Integration No real UML Profile is defined Defining a profile Applying each stereotype manually INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger29

30. Problem: The Integration Enterprise Architect XMI is not directly compatible with XMI for Eclipse based tools Using Eclipse Modelling Project (Model Transformation) Utilising UML2EA Tools (http://uml2ea.blogspot.c om/)http://uml2ea.blogspot.c om/ -> works, but complex to configure INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger30

31. The Integration – Step 1 From Enterprise Architect to Eclipse INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger31

32. The Integration – Step 2 From Eclipse UML to Inspire Editor Model-to-Model Transformation using Eclipse – UML::Package -> INSPIRE::Package >->INSPIRE::ApplicationSchema – UML::Class >->INSPIRE::FeatureType >->INSPIRE::DataType >->INSPIRE::Enumeration >->INSPIRE::CodeList INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger32

33. Other open Issues INSPIRE GeoModel Editor – Work on Model Validation – Include the basic Imports – Enhance Graphics INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger33

34. Open Issues Transformations – Simple Enterprise Architect – Eclipse Process – Enhance Eclipse UML – INSPIRE Model Editor – Reverse Transformation INSPIRE Model Editor – Eclipse UML – Methods to synchronise Model Elements INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger34

35. Open Issues Usability – Tool Integration – Create Help – Create Documentation – Create «Cheat Sheets» – Model Versioning INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger35

36. Conclusions Was the effort of creating an “INSPIRE GeoModel Editor” worthwhile? Answer: yes, because 1.Support of users/thematic experts: 1.Enterprise Architect with full ISO stereotyping: ? 2.HUMBOLDT/INSPIRE GeoModel Editor: easier to use! 2.Facilitate implementation: 1.HUMBOLDT/INSPIRE GeoModel Editor: YES! – Interfaces can easily be generated – Subsequent processing can be supported without any information loss 2.Enterprise Architect with full ISO stereotyping: all interfaces to be generated or direct links encounter the same or even more complexity as we did, when trying to link the two editors ➡ Consequence: nobody uses the UML definition! ➡ Instead: the GML definition is used! This is a fundamental information loss! All the original advantages of the (ISO-based AND IT mainstream) model- driven approach are lost INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger36

37. Some last aspects: The work on the HUMBOLDT and INSPIRE GeoModel Editors was carried out in the HUMBOLDT project (6 th Framework Programme, www.esdi-humboldt.eu)www.esdi-humboldt.eu HUMBOLDT and INSPIRE GeoModel Editors are specified on the ECLIPSE Framework The PDF Version contains more slides/additional details INSPIRE Conference Edinburgh, 27.6.-1.7.2011, Dr. C. Giger37
