1 doc.: IEEE 802.11-10/0xxxr0 Submission Sep. 2010 Tuncer Baykas, NICTSlide 1 11af Channel Numbering Authors: Abstract Graphical Explanation of “11af Channel Numbering Comment Resolutions 10/1033r03”

2 doc.: IEEE 802.11-10/0xxxr0 Submission Sep 2010 Tuncer Baykas, NICTSlide 2 Abstract Graphical Explanation of “11af Channel Numbering Comment Resolutions 10/1033r03”

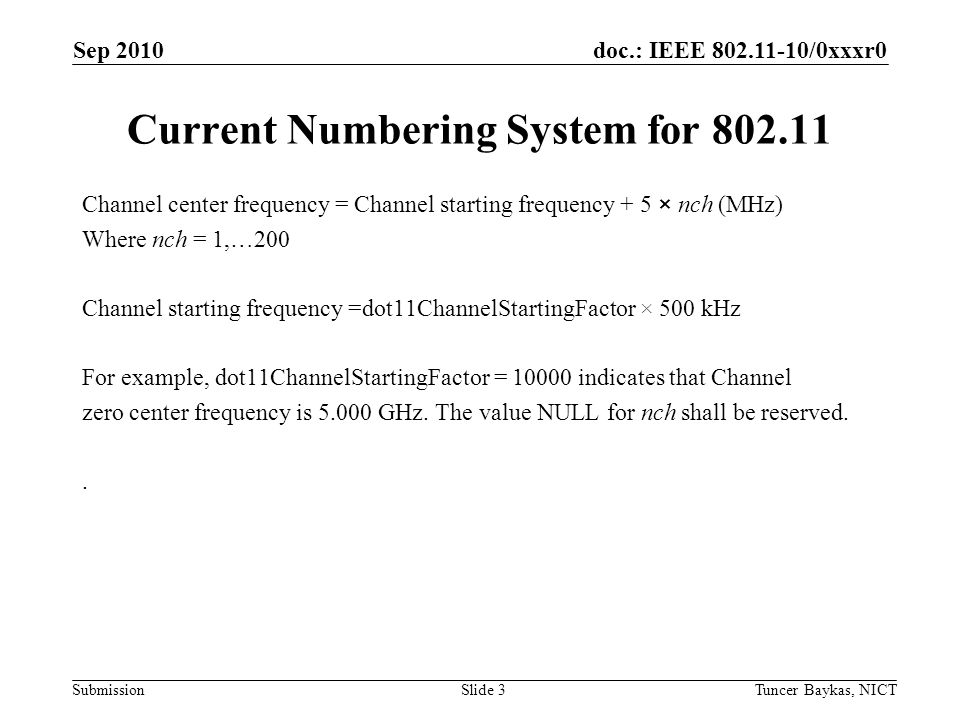

3 doc.: IEEE 802.11-10/0xxxr0 Submission Current Numbering System for 802.11 Channel center frequency = Channel starting frequency + 5 × nch (MHz) Where nch = 1,…200 Channel starting frequency =dot11ChannelStartingFactor × 500 kHz For example, dot11ChannelStartingFactor = 10000 indicates that Channel zero center frequency is 5.000 GHz. The value NULL for nch shall be reserved.. Sep 2010 Tuncer Baykas, NICTSlide 3

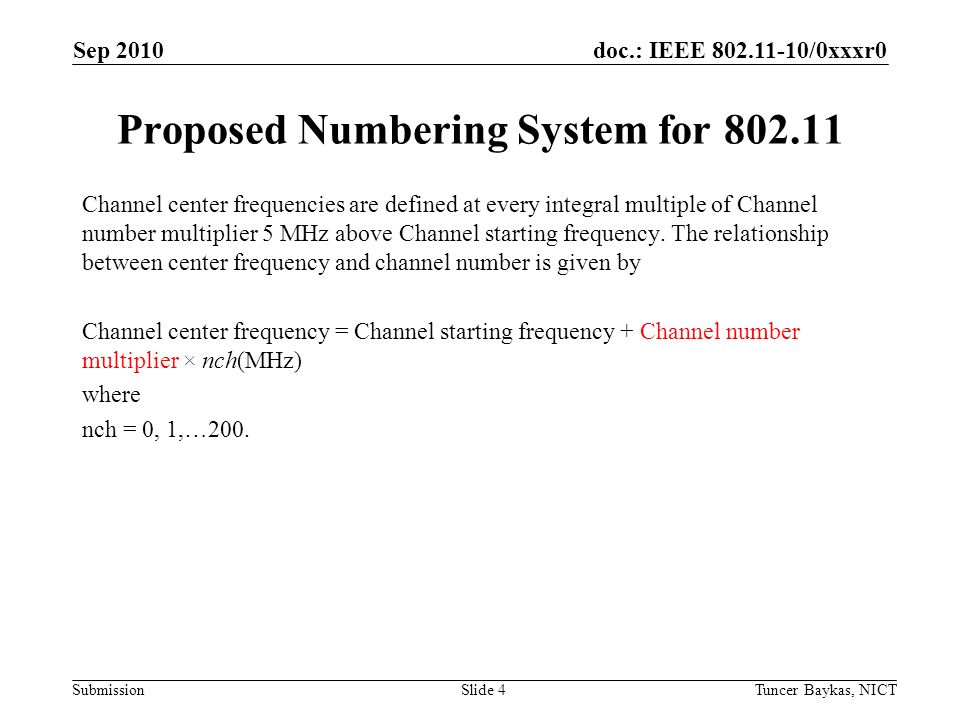

4 doc.: IEEE 802.11-10/0xxxr0 Submission Proposed Numbering System for 802.11 Channel center frequencies are defined at every integral multiple of Channel number multiplier 5 MHz above Channel starting frequency. The relationship between center frequency and channel number is given by Channel center frequency = Channel starting frequency + Channel number multiplier × nch(MHz) where nch = 0, 1,…200. Sep 2010 Tuncer Baykas, NICTSlide 4

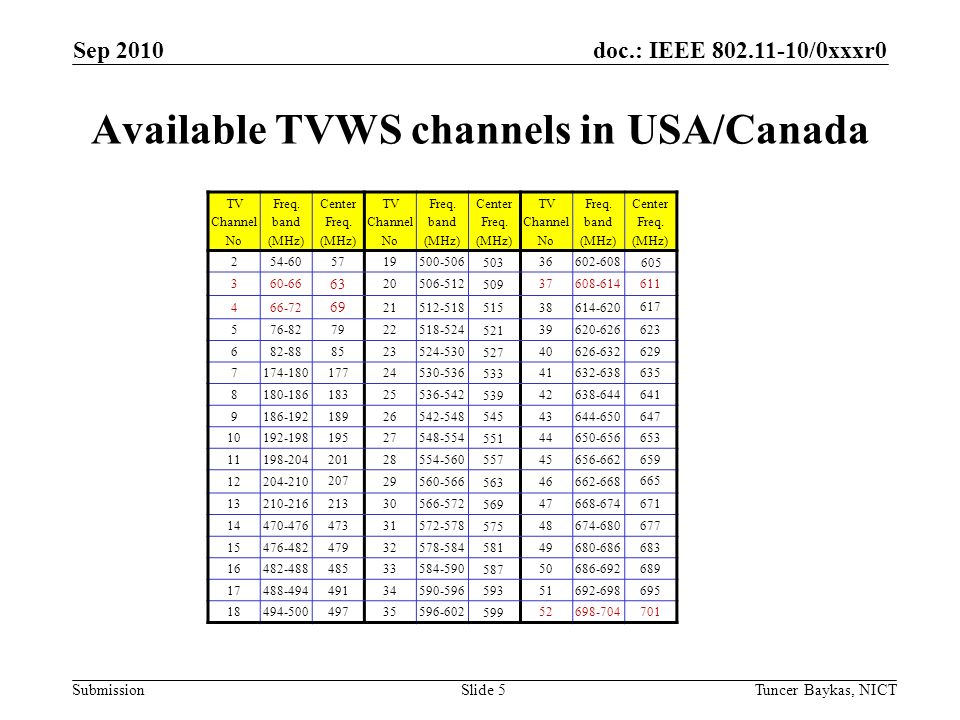

5 doc.: IEEE 802.11-10/0xxxr0 Submission Available TVWS channels in USA/Canada Sep 2010 Tuncer Baykas, NICTSlide 5 TV Channel No Freq. band (MHz) Center Freq. (MHz) TV Channel No Freq. band (MHz) Center Freq. (MHz) TV Channel No Freq. band (MHz) Center Freq. (MHz) 254-60 57 19500-506 503 36602-608 605 360-66 63 20506-512 509 37608-614 611 466-72 69 21512-518 515 38614-620 617 576-82 79 22518-524 521 39620-626 623 682-88 85 23524-530 527 40626-632 629 7174-180 177 24530-536 533 41632-638 635 8180-186 183 25536-542 539 42638-644 641 9186-192 189 26542-548 545 43644-650 647 10192-198 195 27548-554 551 44650-656 653 11198-204 201 28554-560 557 45656-662 659 12204-210 207 29560-566 563 46662-668 665 13210-216 213 30566-572 569 47668-674 671 14470-476 473 31572-578 575 48674-680 677 15476-482 479 32578-584 581 49680-686 683 16482-488 485 33584-590 587 50686-692 689 17488-494 491 34590-596 593 51692-698 695 18494-500 497 35596-602 599 52698-704 701

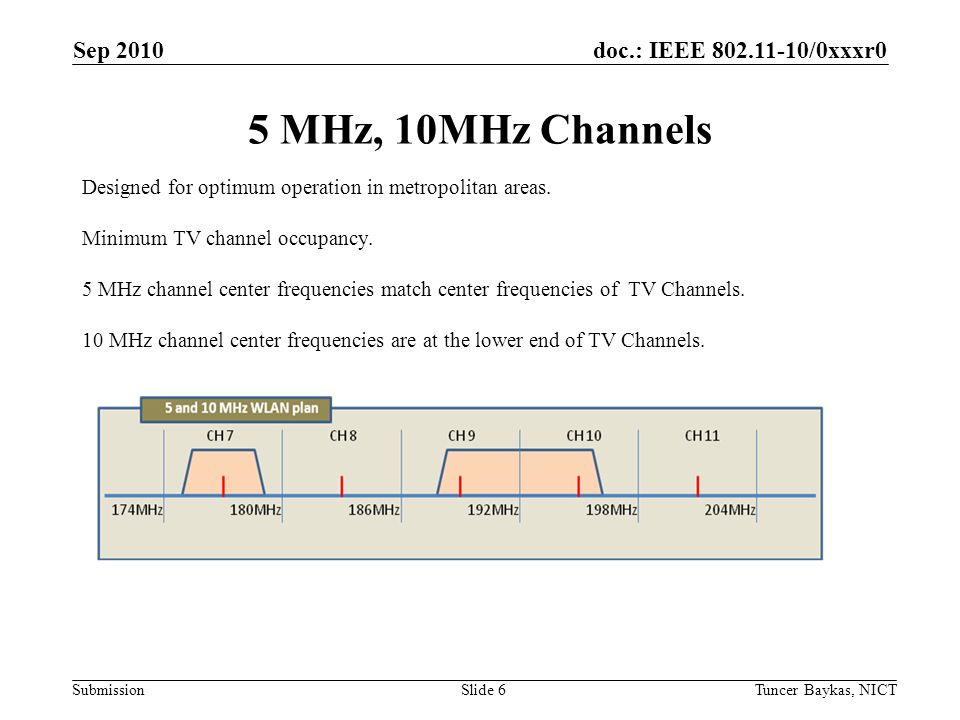

6 doc.: IEEE 802.11-10/0xxxr0 Submission Sep 2010 Tuncer Baykas, NICTSlide 6 5 MHz, 10MHz Channels Designed for optimum operation in metropolitan areas. Minimum TV channel occupancy. 5 MHz channel center frequencies match center frequencies of TV Channels. 10 MHz channel center frequencies are at the lower end of TV Channels.

7 doc.: IEEE 802.11-10/0xxxr0 Submission Sep 2010 Tuncer Baykas, NICTSlide 7 40 MHz, 20 MHz, 10MHz Channels Designed for optimum operation in rural areas, keeping 802.11n in mind. 40 MHz channels cannot overlap. 40 MHz channels should occupy a continuous spectrum. 40 MHz channel which occupies Ch. 35-37 is skipped. Each 40 MHz channel has an upper and lower 20 MHz channels. Each 20 MHz channel has an upper and lower 10 MHz channels. 520 MHz600 MHz640MHz 560 MHz680MHz480 MHz 470 MHz698MHz Ch. 36-38
