1. CENS Seminar, Dec 2007 (1) Alberto Cerpa © UCM Human in the loop: From Search and Rescue to Smart Buildings Alberto Cerpa Assistant Professor Computer Science School of Engineering, UC Merced CENS Seminar, UCLA December, 7 2007

2. CENS Seminar, Dec 2007 (2) Alberto Cerpa © UCM Outline SenSearch –GPS and witness assisted tracking for DTNs –How does it work? –Performance evaluation SCOPES

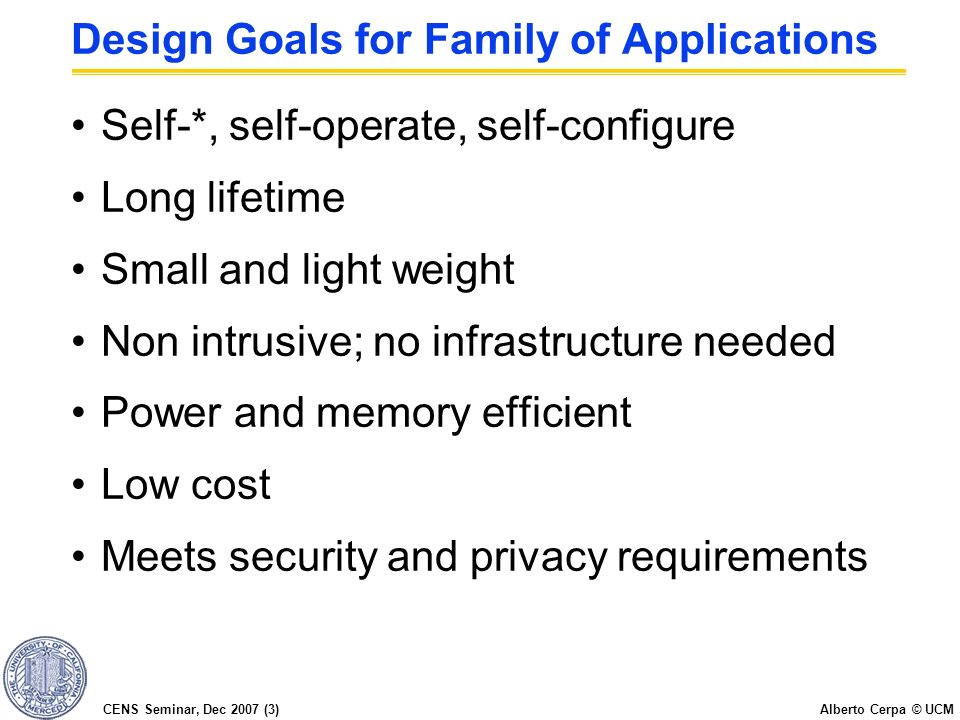

3. CENS Seminar, Dec 2007 (3) Alberto Cerpa © UCM Design Goals for Family of Applications Self-*, self-operate, self-configure Long lifetime Small and light weight Non intrusive; no infrastructure needed Power and memory efficient Low cost Meets security and privacy requirements

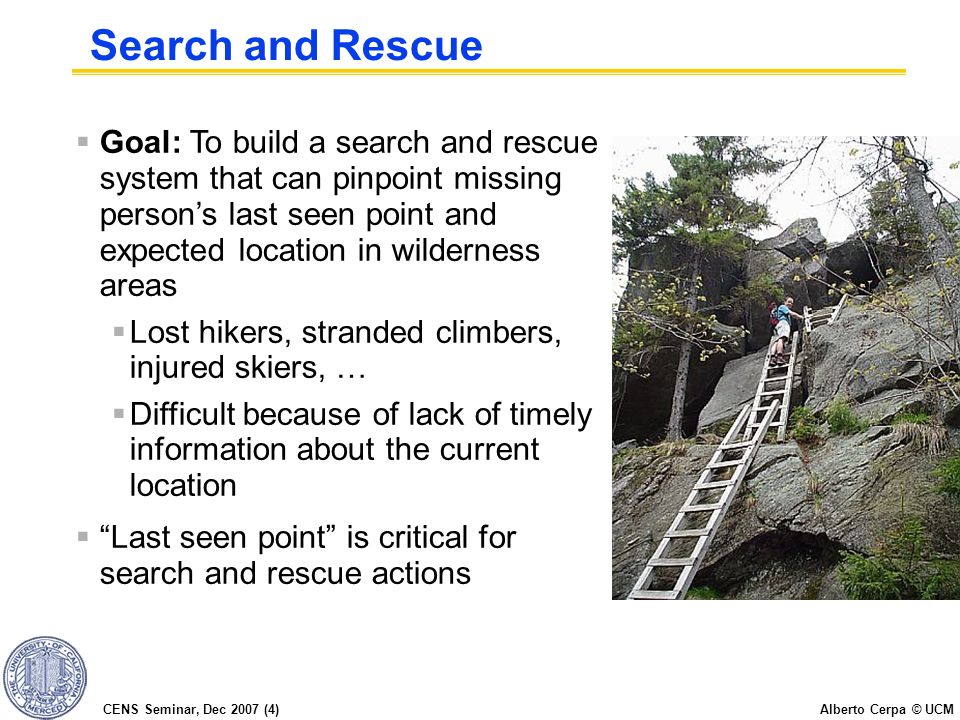

4. CENS Seminar, Dec 2007 (4) Alberto Cerpa © UCM Search and Rescue  Goal: To build a search and rescue system that can pinpoint missing person’s last seen point and expected location in wilderness areas  Lost hikers, stranded climbers, injured skiers, …  Difficult because of lack of timely information about the current location  “Last seen point” is critical for search and rescue actions

5. CENS Seminar, Dec 2007 (5) Alberto Cerpa © UCM A real case of a last seen point

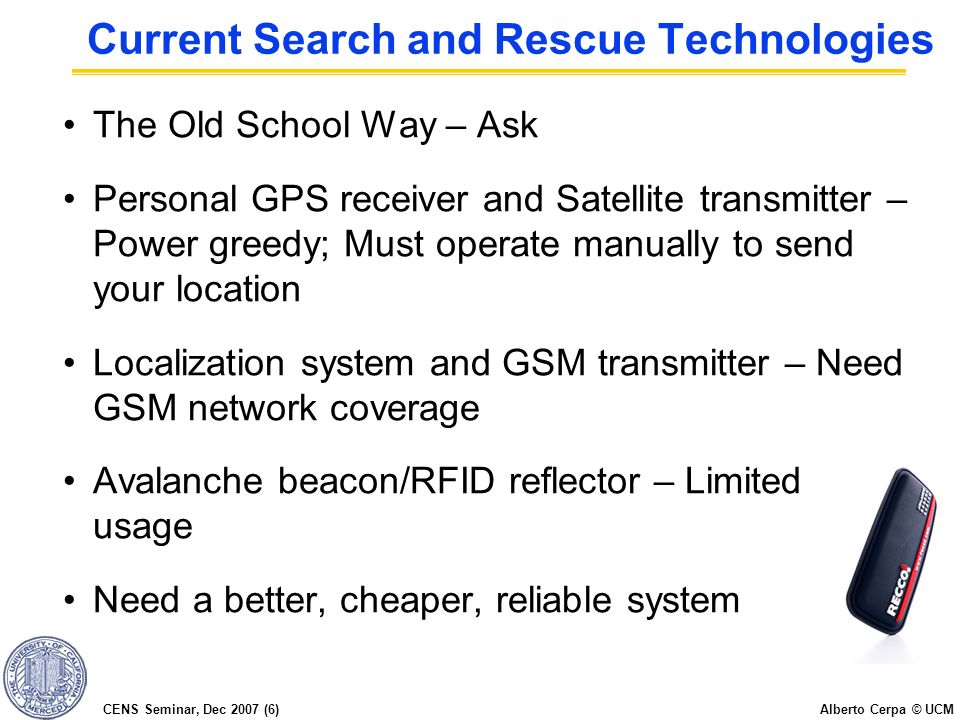

6. CENS Seminar, Dec 2007 (6) Alberto Cerpa © UCM Current Search and Rescue Technologies The Old School Way – Ask Personal GPS receiver and Satellite transmitter – Power greedy; Must operate manually to send your location Localization system and GSM transmitter – Need GSM network coverage Avalanche beacon/RFID reflector – Limited usage Need a better, cheaper, reliable system

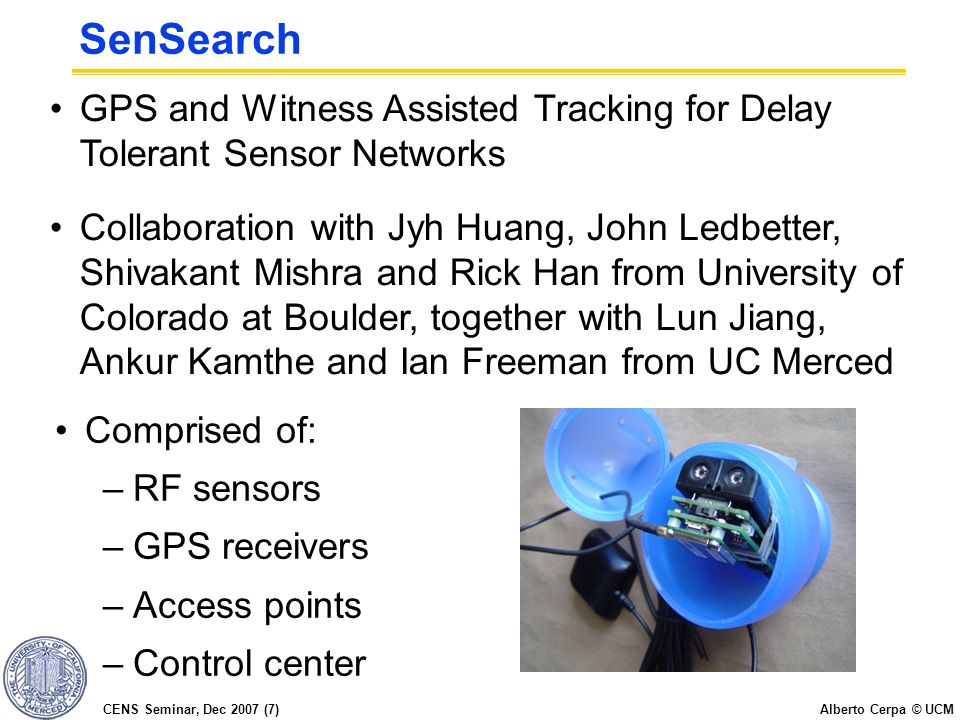

7. CENS Seminar, Dec 2007 (7) Alberto Cerpa © UCM SenSearch Comprised of: –RF sensors –GPS receivers –Access points –Control center GPS and Witness Assisted Tracking for Delay Tolerant Sensor Networks Collaboration with Jyh Huang, John Ledbetter, Shivakant Mishra and Rick Han from University of Colorado at Boulder, together with Lun Jiang, Ankur Kamthe and Ian Freeman from UC Merced

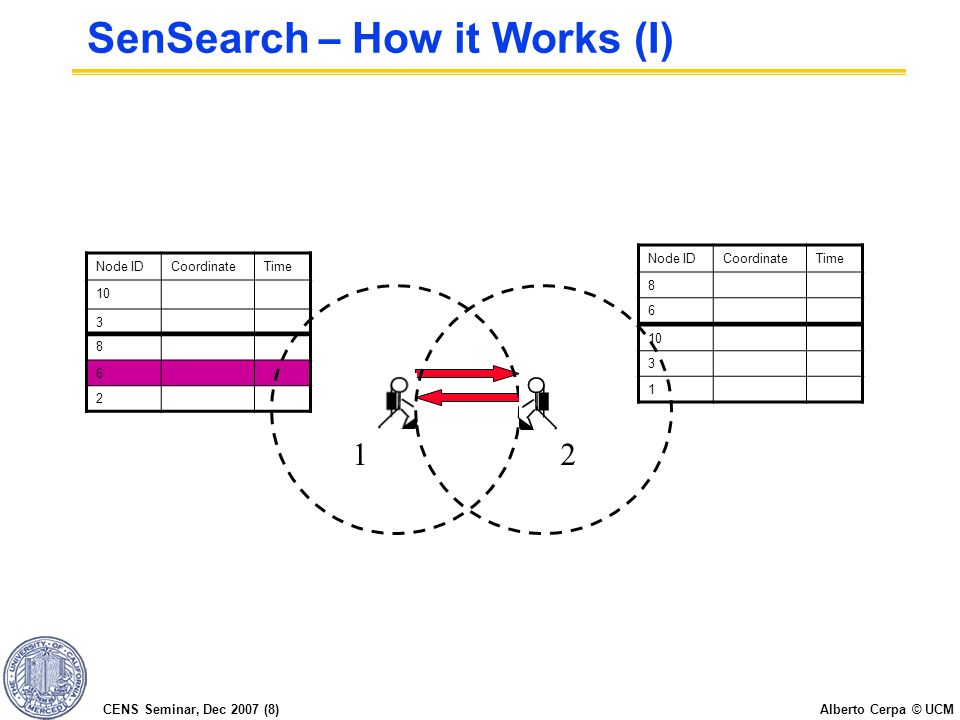

8. CENS Seminar, Dec 2007 (8) Alberto Cerpa © UCM SenSearch – How it Works (I) Node IDCoordinateTime 10 3 Node IDCoordinateTime 8 6 8 6 2 10 3 1 12

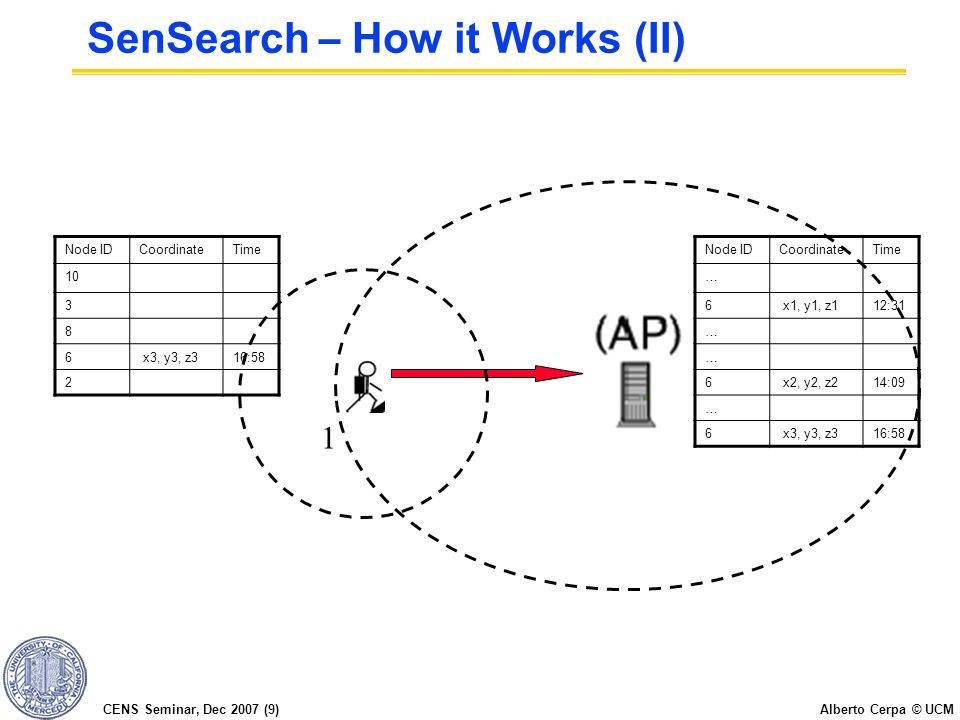

9. CENS Seminar, Dec 2007 (9) Alberto Cerpa © UCM SenSearch – How it Works (II) Node IDCoordinateTime 10 3 8 6 x3, y3, z316:58 2 1 Node IDCoordinateTime … 6 x1, y1, z112:31 … … 6 x2, y2, z214:09 … 6 x3, y3, z316:58

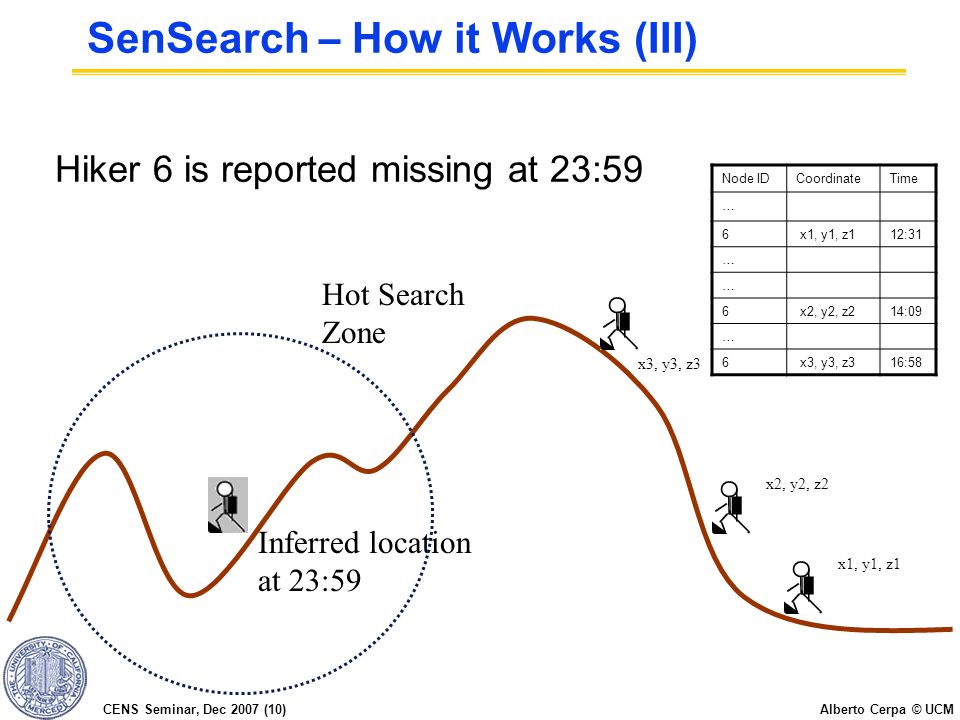

10. CENS Seminar, Dec 2007 (10) Alberto Cerpa © UCM SenSearch – How it Works (III) Hiker 6 is reported missing at 23:59 Node IDCoordinateTime … 6 x1, y1, z112:31 … … 6 x2, y2, z214:09 … 6 x3, y3, z316:58 x1, y1, z1 x2, y2, z2 x3, y3, z3 Inferred location at 23:59 Hot Search Zone

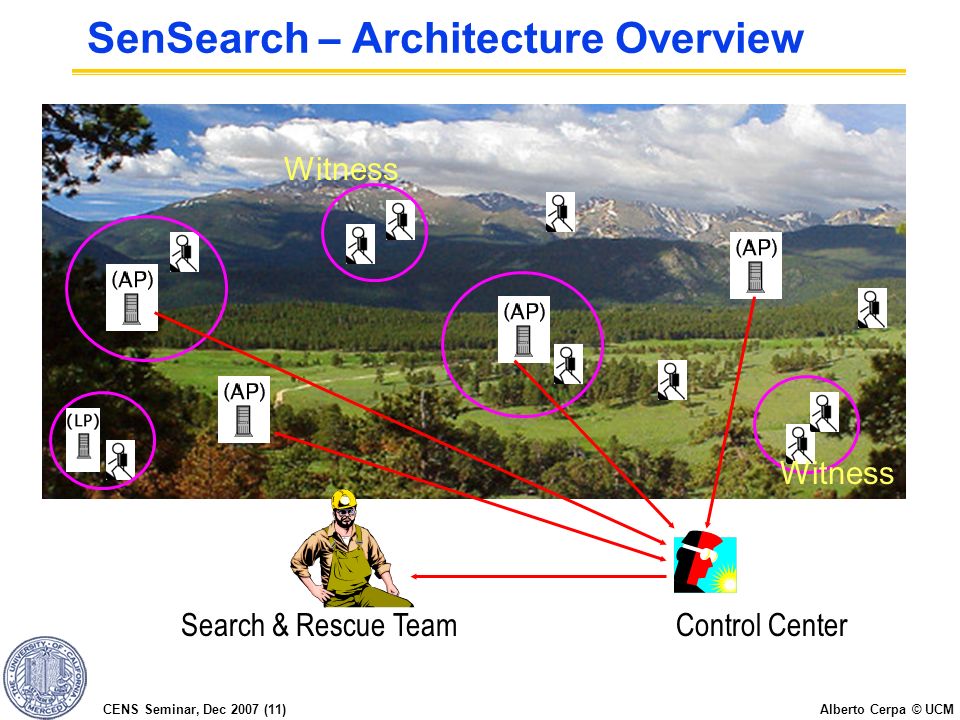

11. CENS Seminar, Dec 2007 (11) Alberto Cerpa © UCM Witness Search & Rescue TeamControl Center SenSearch – Architecture Overview

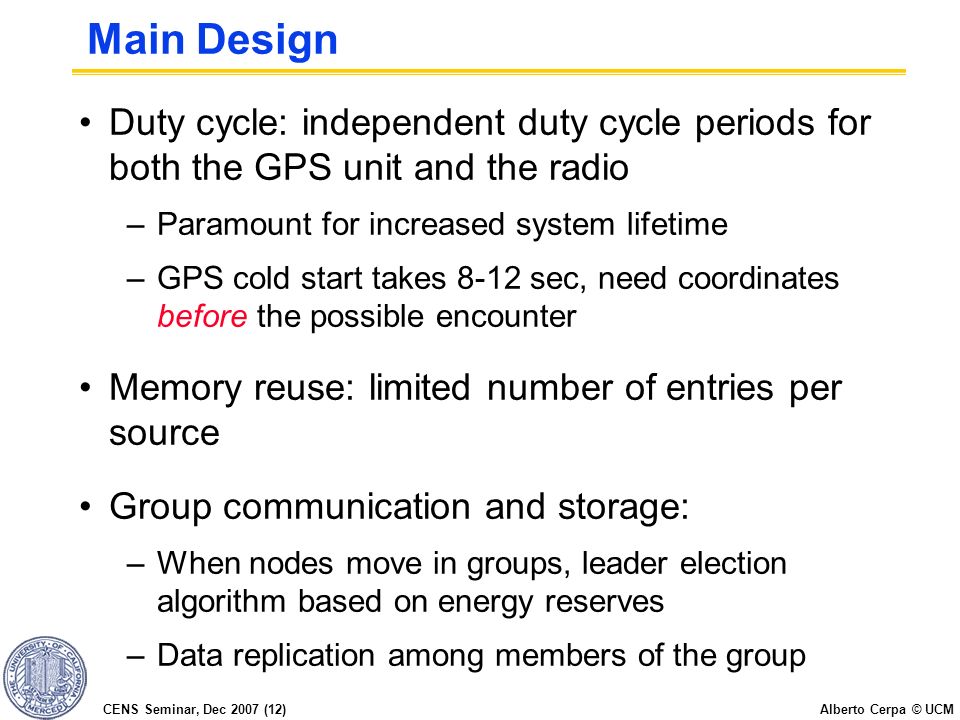

12. CENS Seminar, Dec 2007 (12) Alberto Cerpa © UCM Main Design Duty cycle: independent duty cycle periods for both the GPS unit and the radio –Paramount for increased system lifetime –GPS cold start takes 8-12 sec, need coordinates before the possible encounter Memory reuse: limited number of entries per source Group communication and storage: –When nodes move in groups, leader election algorithm based on energy reserves –Data replication among members of the group

13. CENS Seminar, Dec 2007 (13) Alberto Cerpa © UCM SenSearch Implementation Full implementation and testing ongoing at UCM (June-July ‘06, Nov-Dec ‘07) and Boulder (Oct- Nov ’06, Sep-Nov ‘07) Some preliminary results: –Bounded localization error (70 meters average) –Increase system lifetime with the use of duty cycling techniques for both the GPS and radio units –Bounded memory usage without degradation in localization error

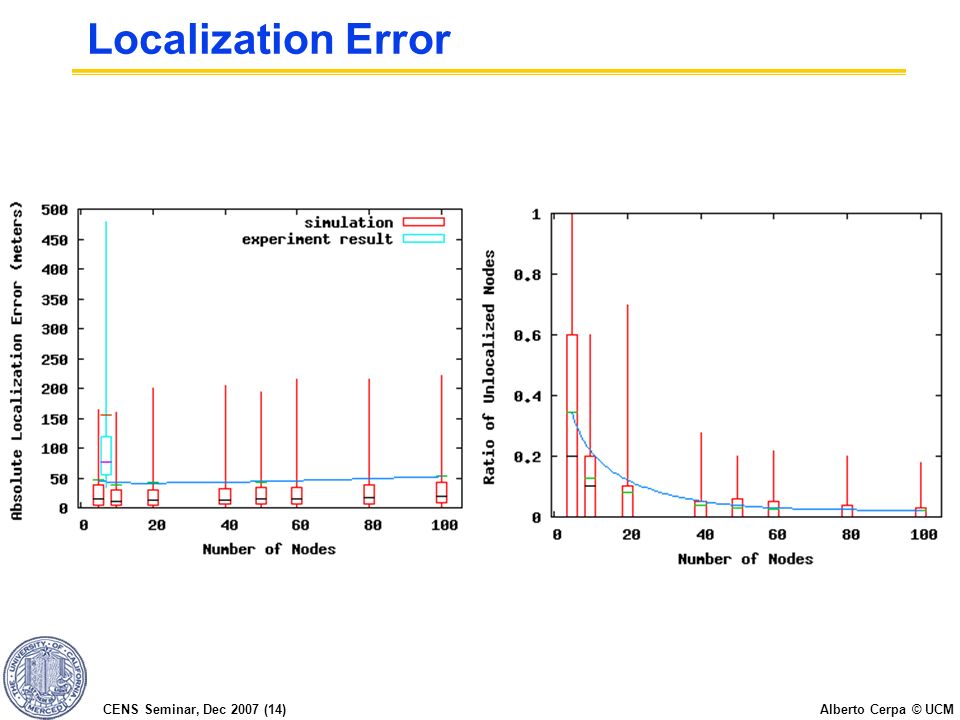

14. CENS Seminar, Dec 2007 (14) Alberto Cerpa © UCM Localization Error

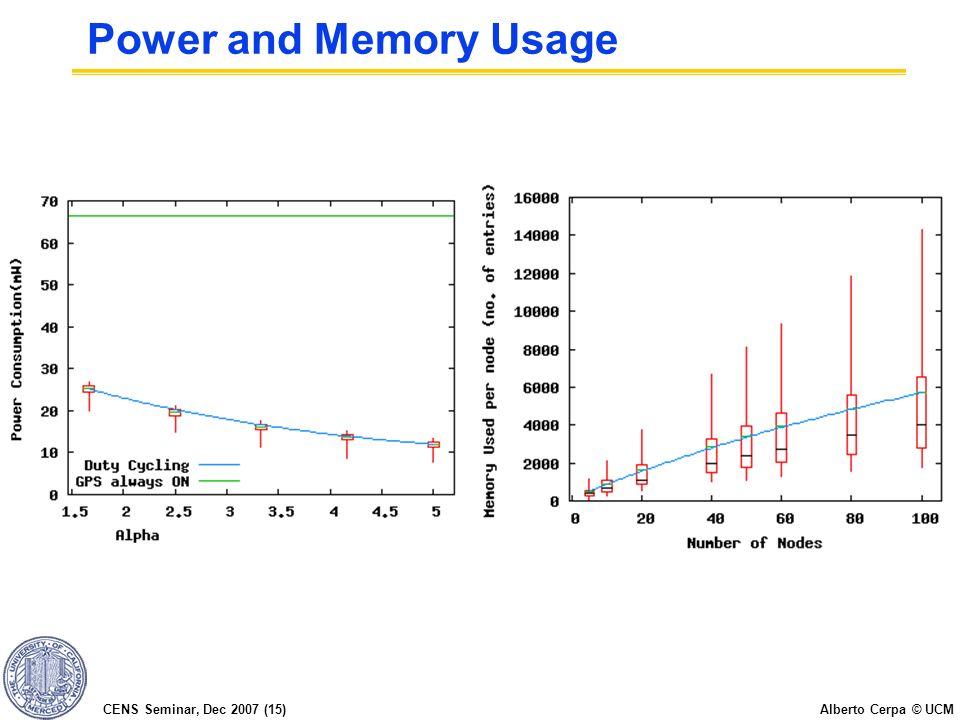

15. CENS Seminar, Dec 2007 (15) Alberto Cerpa © UCM Power and Memory Usage

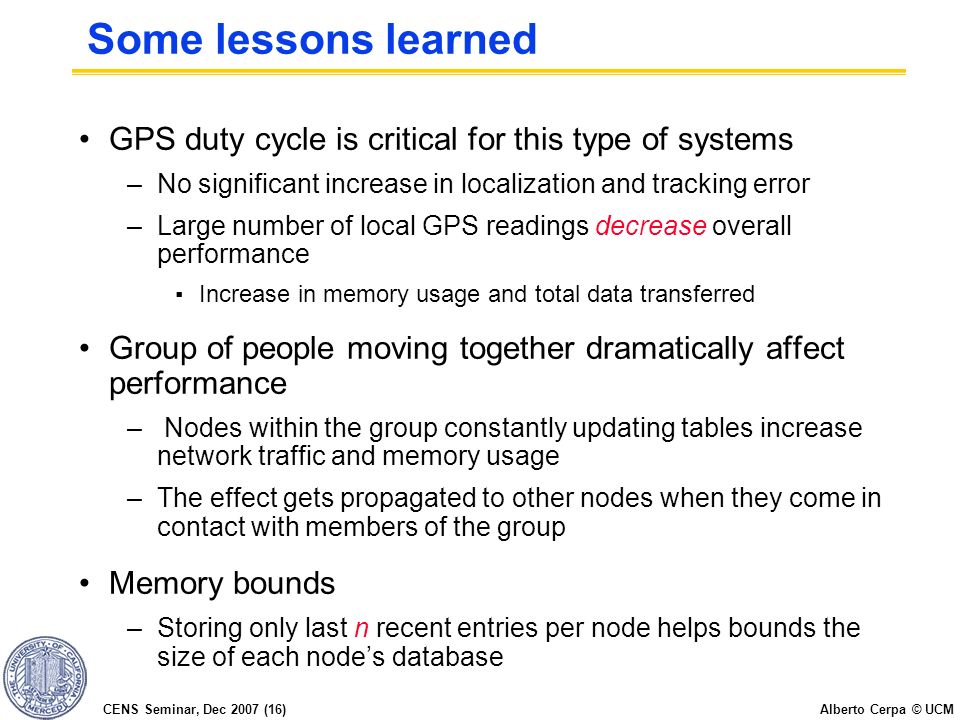

16. CENS Seminar, Dec 2007 (16) Alberto Cerpa © UCM Some lessons learned GPS duty cycle is critical for this type of systems –No significant increase in localization and tracking error –Large number of local GPS readings decrease overall performance ▪ Increase in memory usage and total data transferred Group of people moving together dramatically affect performance – Nodes within the group constantly updating tables increase network traffic and memory usage –The effect gets propagated to other nodes when they come in contact with members of the group Memory bounds –Storing only last n recent entries per node helps bounds the size of each node’s database

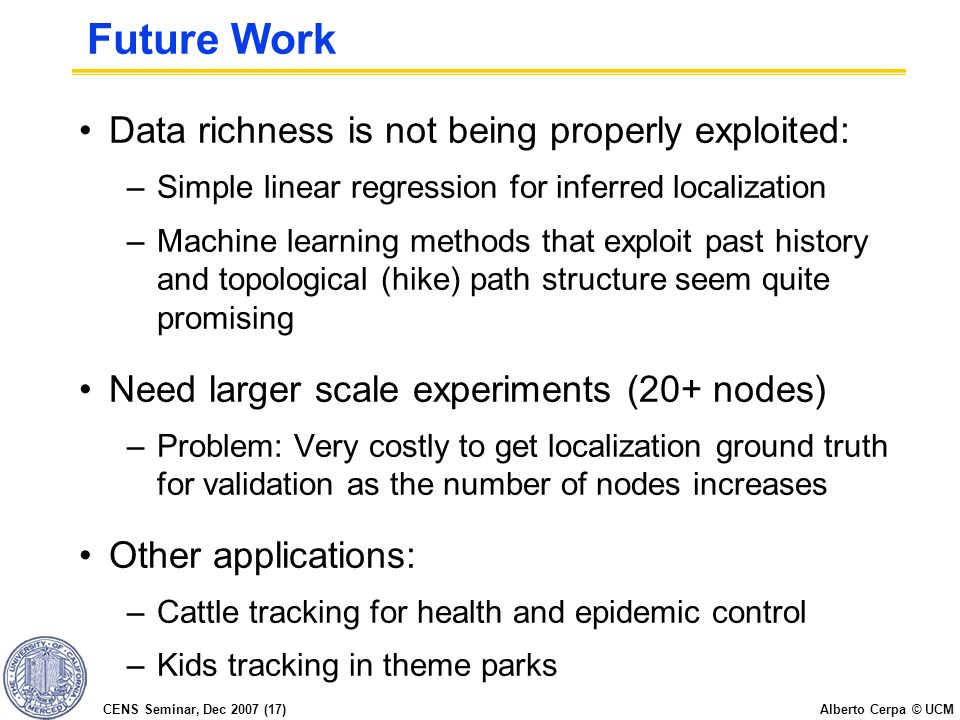

17. CENS Seminar, Dec 2007 (17) Alberto Cerpa © UCM Future Work Data richness is not being properly exploited: –Simple linear regression for inferred localization –Machine learning methods that exploit past history and topological (hike) path structure seem quite promising Need larger scale experiments (20+ nodes) –Problem: Very costly to get localization ground truth for validation as the number of nodes increases Other applications: –Cattle tracking for health and epidemic control –Kids tracking in theme parks

18. CENS Seminar, Dec 2007 (18) Alberto Cerpa © UCM Outline SenSearch SCOPES: Smart Cameras Object Position Estimation System –System design overview –Local processing algorithms –Performance evaluation Other projects Summary

19. CENS Seminar, Dec 2007 (19) Alberto Cerpa © UCM SCOPES: Distributed Smart Cameras Goal: build a distributed vision based tracking system for human density estimation inside buildings –Automatic distributed control of HVAC systems –Efficient lighting use and control –Building usage and design Part of the “Living Laboratory” concept Synergy with other disciplines: –designing and constructing green buildings that produce net-zero energy use and carbon emissions –being the first comprehensive research university that is energy independent and carbon neutral!

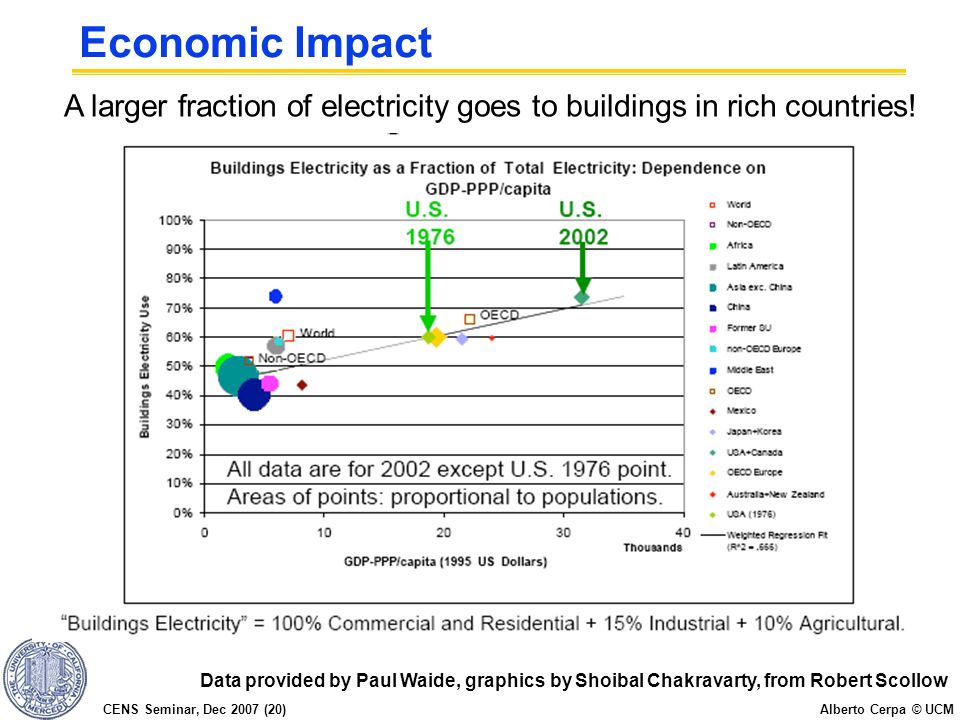

20. CENS Seminar, Dec 2007 (20) Alberto Cerpa © UCM Economic Impact A larger fraction of electricity goes to buildings in rich countries! Data provided by Paul Waide, graphics by Shoibal Chakravarty, from Robert Scollow

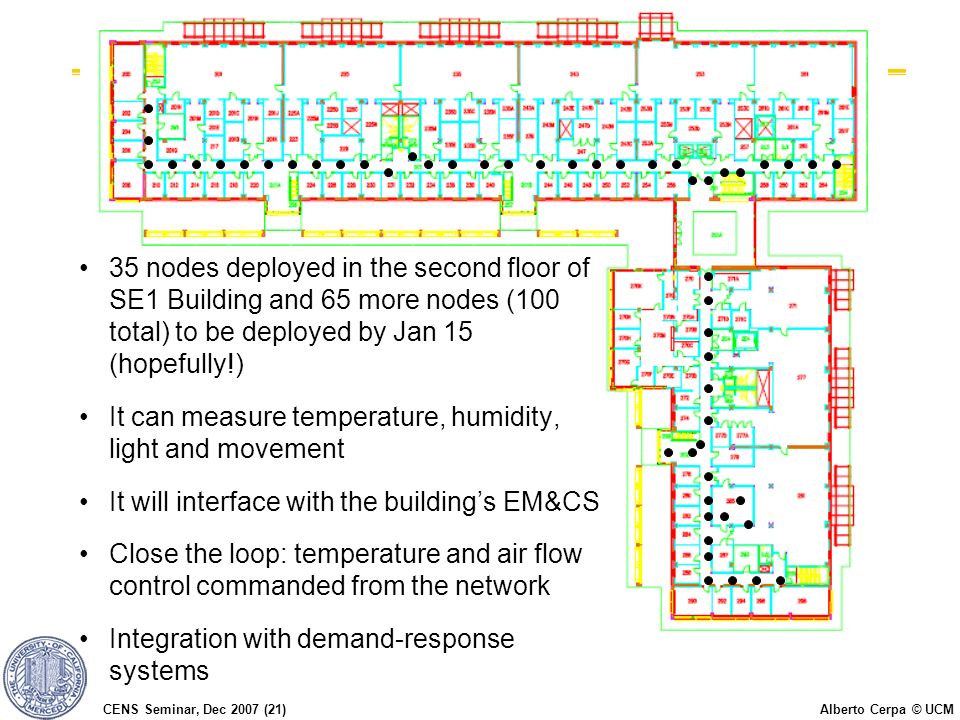

21. CENS Seminar, Dec 2007 (21) Alberto Cerpa © UCM 35 nodes deployed in the second floor of SE1 Building and 65 more nodes (100 total) to be deployed by Jan 15 (hopefully!) It can measure temperature, humidity, light and movement It will interface with the building’s EM&CS Close the loop: temperature and air flow control commanded from the network Integration with demand-response systems

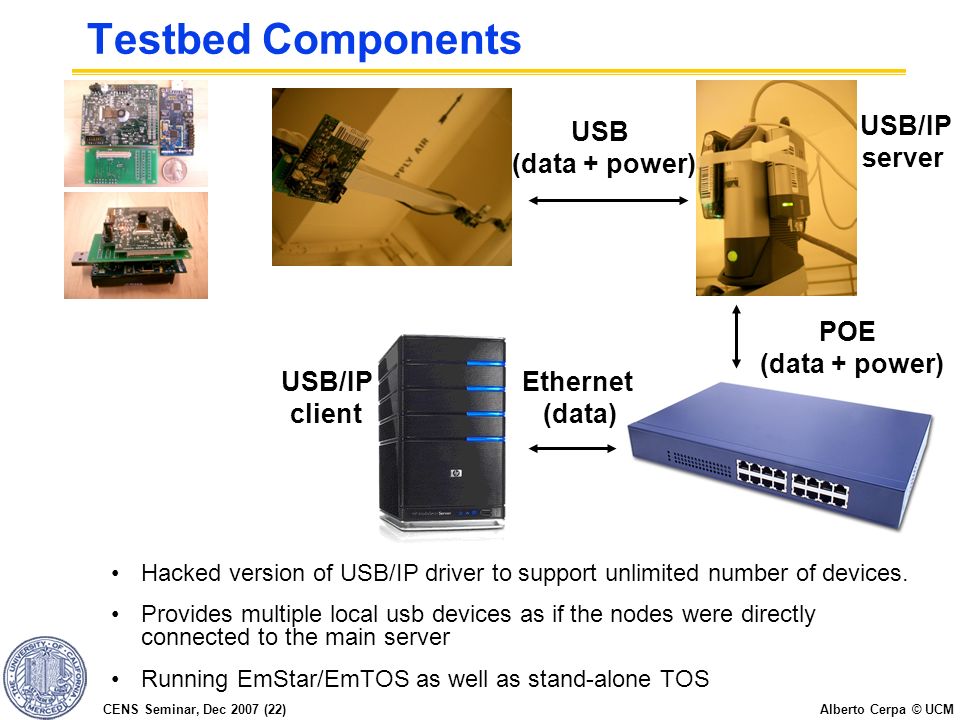

22. CENS Seminar, Dec 2007 (22) Alberto Cerpa © UCM Testbed Components Hacked version of USB/IP driver to support unlimited number of devices. Provides multiple local usb devices as if the nodes were directly connected to the main server Running EmStar/EmTOS as well as stand-alone TOS USB (data + power) POE (data + power) USB/IP server Ethernet (data) USB/IP client

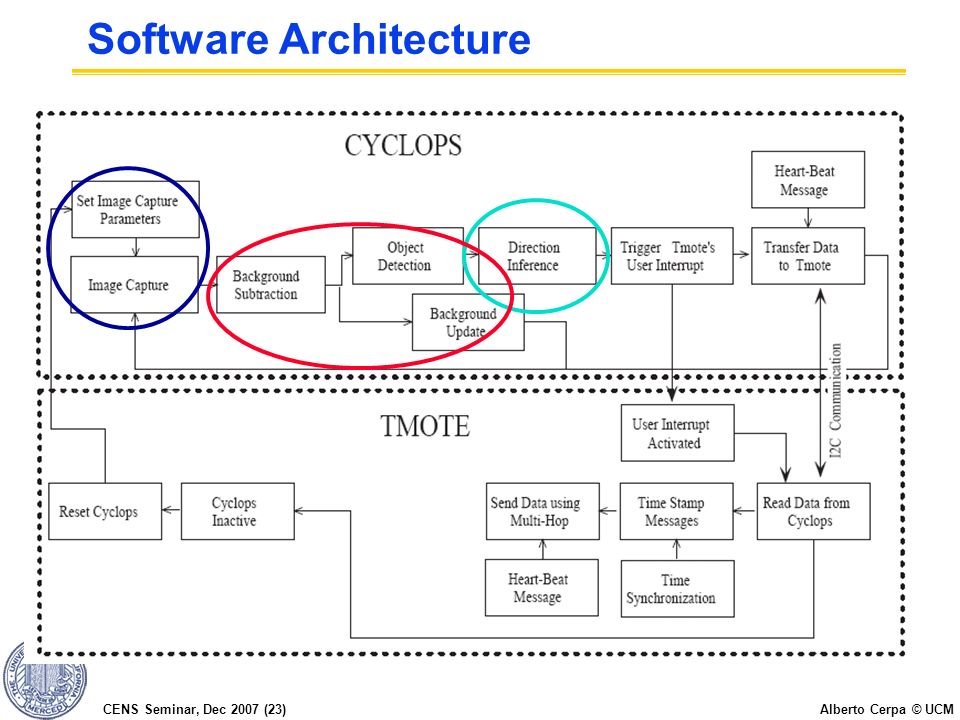

23. CENS Seminar, Dec 2007 (23) Alberto Cerpa © UCM Software Architecture

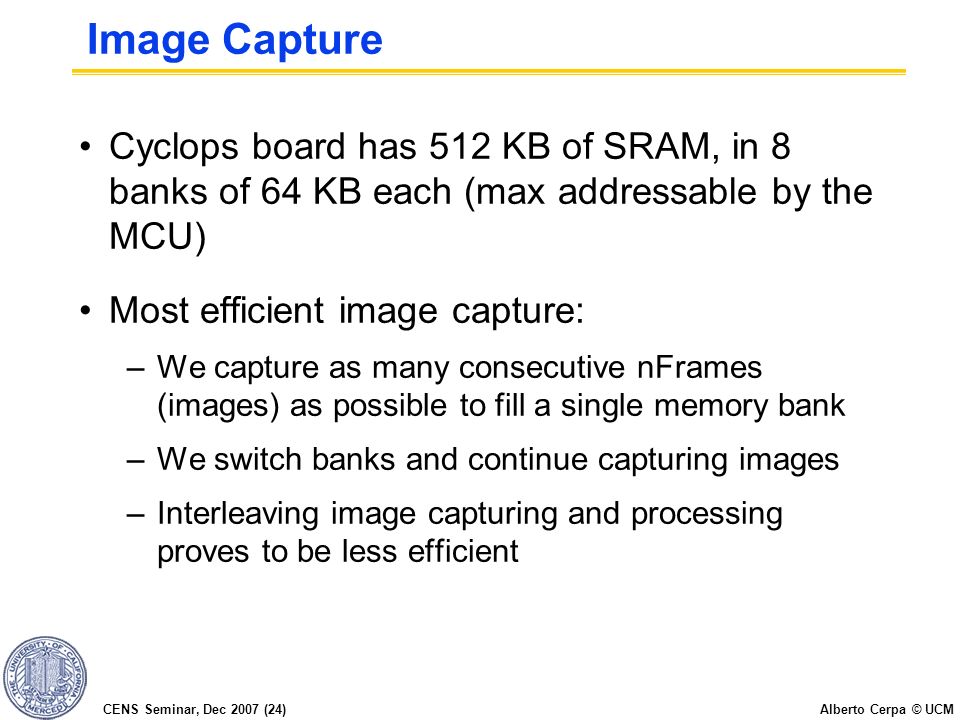

24. CENS Seminar, Dec 2007 (24) Alberto Cerpa © UCM Image Capture Cyclops board has 512 KB of SRAM, in 8 banks of 64 KB each (max addressable by the MCU) Most efficient image capture: –We capture as many consecutive nFrames (images) as possible to fill a single memory bank –We switch banks and continue capturing images –Interleaving image capturing and processing proves to be less efficient

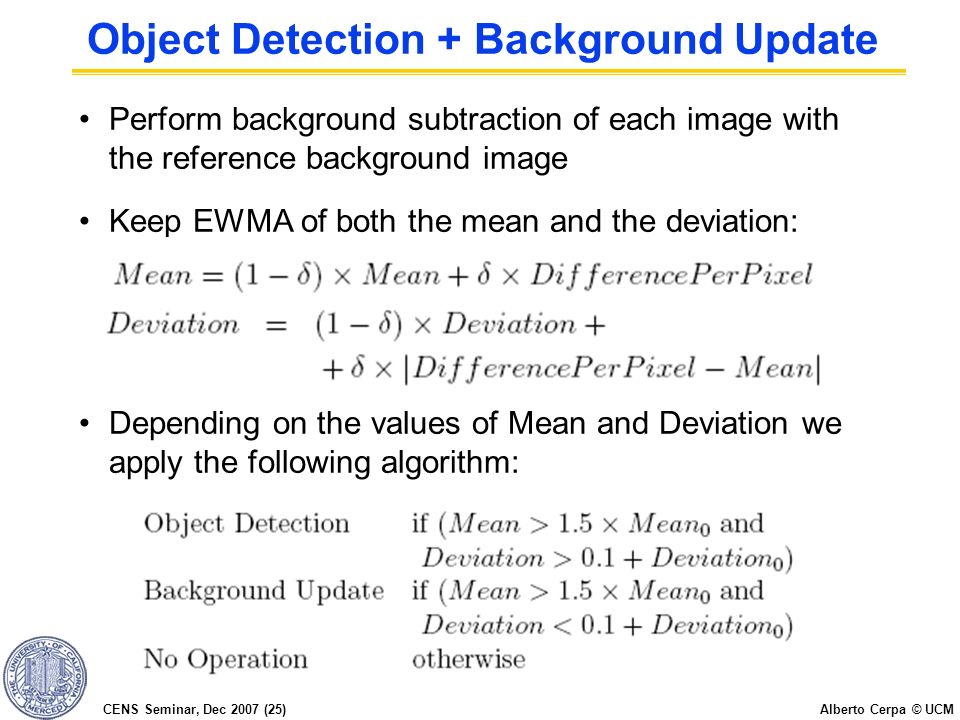

25. CENS Seminar, Dec 2007 (25) Alberto Cerpa © UCM Object Detection + Background Update Perform background subtraction of each image with the reference background image Keep EWMA of both the mean and the deviation: Depending on the values of Mean and Deviation we apply the following algorithm:

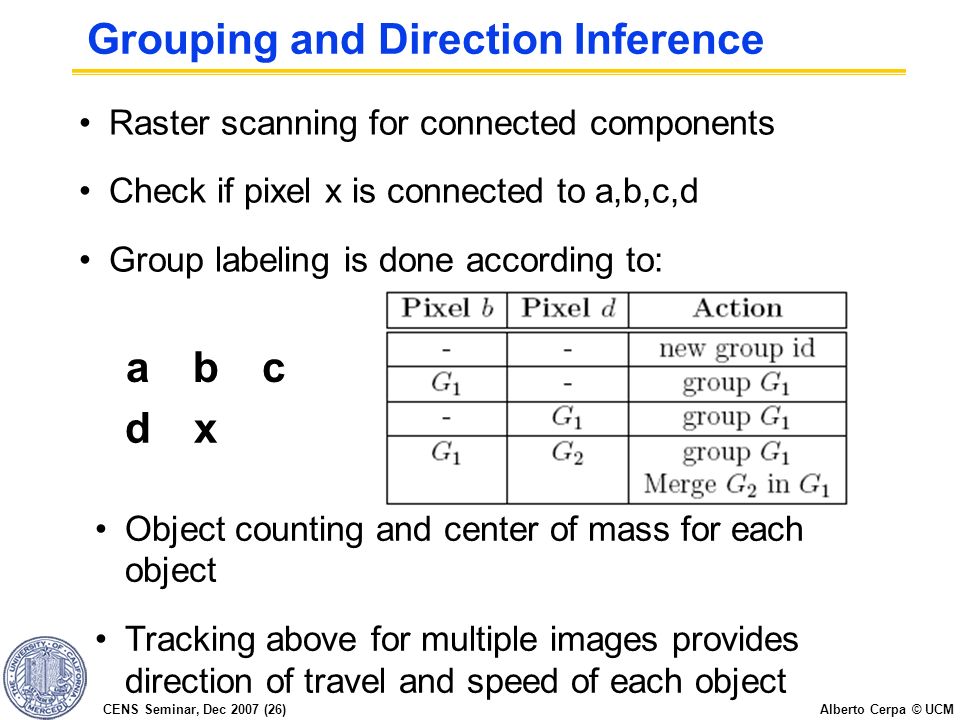

26. CENS Seminar, Dec 2007 (26) Alberto Cerpa © UCM Grouping and Direction Inference Raster scanning for connected components Check if pixel x is connected to a,b,c,d Group labeling is done according to: abc dx Object counting and center of mass for each object Tracking above for multiple images provides direction of travel and speed of each object

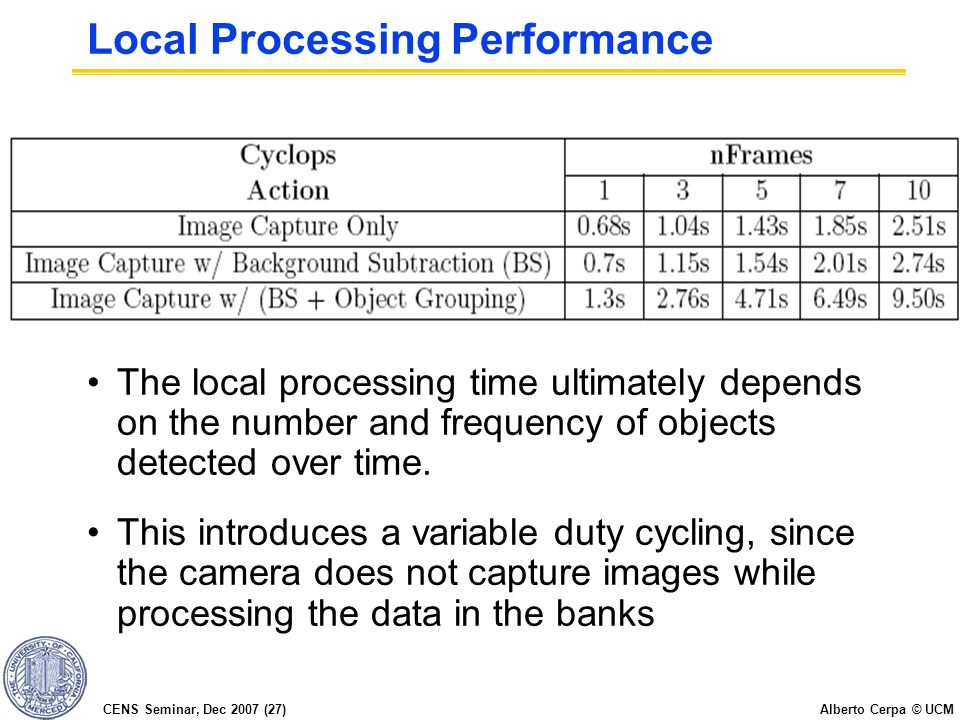

27. CENS Seminar, Dec 2007 (27) Alberto Cerpa © UCM Local Processing Performance The local processing time ultimately depends on the number and frequency of objects detected over time. This introduces a variable duty cycling, since the camera does not capture images while processing the data in the banks

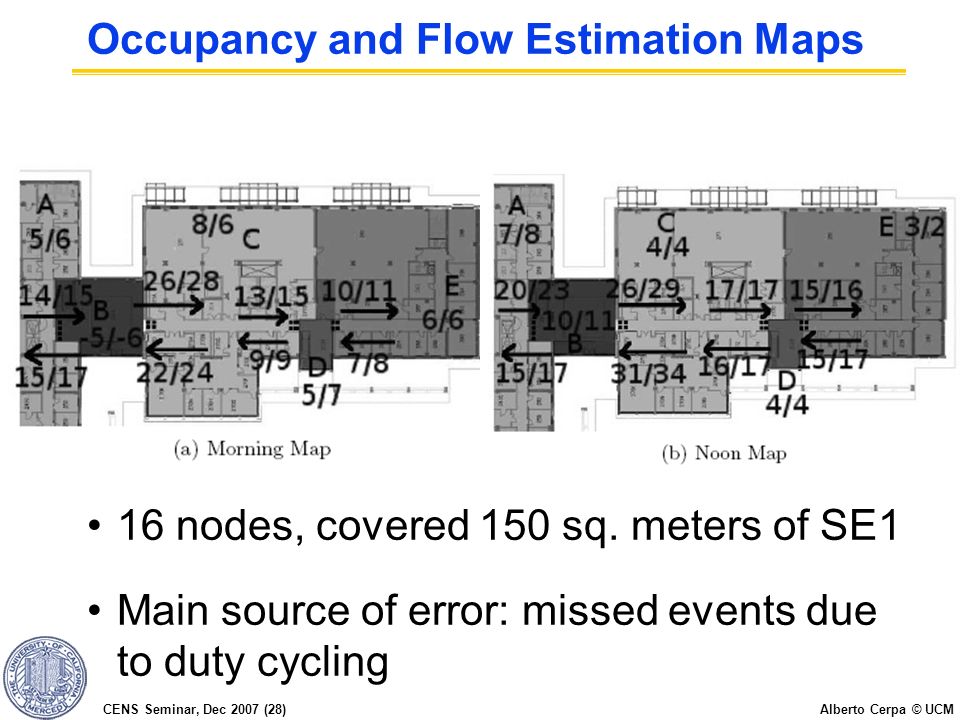

28. CENS Seminar, Dec 2007 (28) Alberto Cerpa © UCM Occupancy and Flow Estimation Maps 16 nodes, covered 150 sq. meters of SE1 Main source of error: missed events due to duty cycling

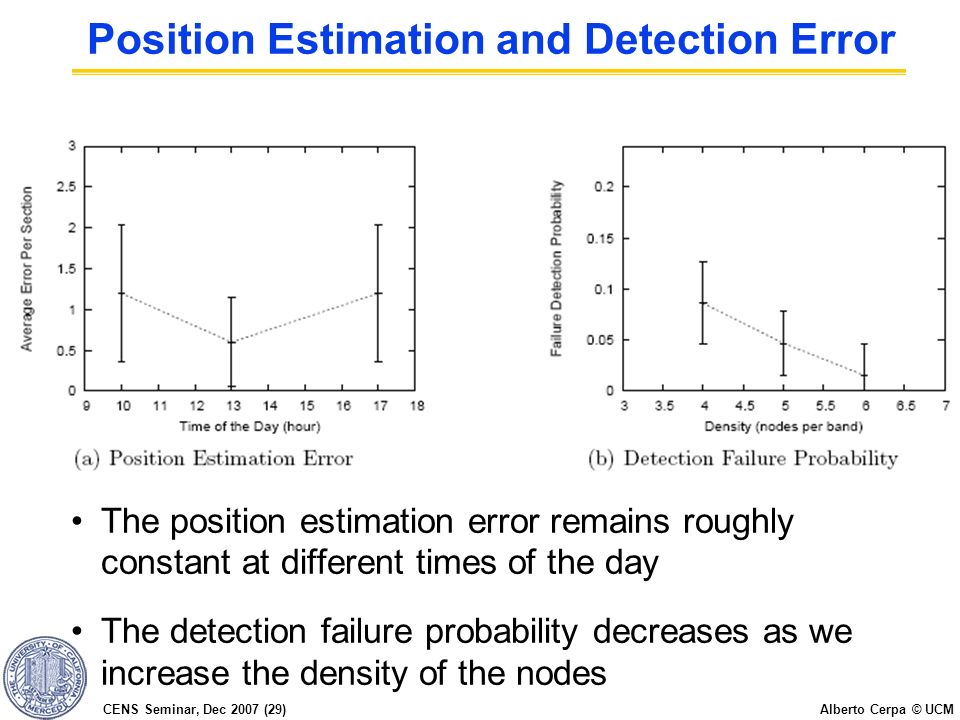

29. CENS Seminar, Dec 2007 (29) Alberto Cerpa © UCM Position Estimation and Detection Error The position estimation error remains roughly constant at different times of the day The detection failure probability decreases as we increase the density of the nodes

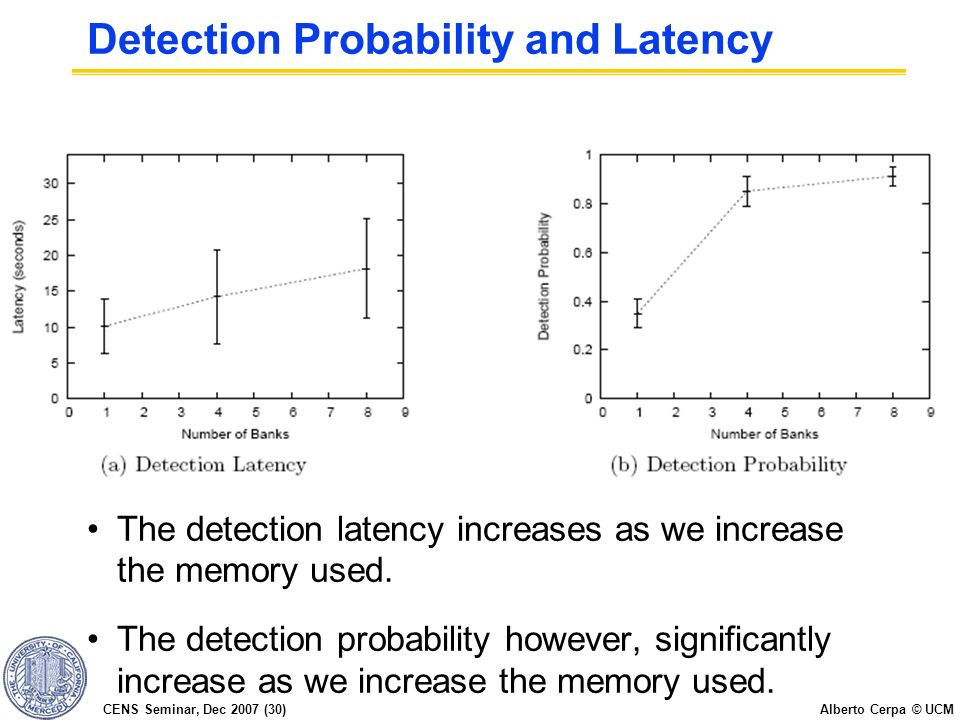

30. CENS Seminar, Dec 2007 (30) Alberto Cerpa © UCM Detection Probability and Latency The detection latency increases as we increase the memory used. The detection probability however, significantly increase as we increase the memory used.

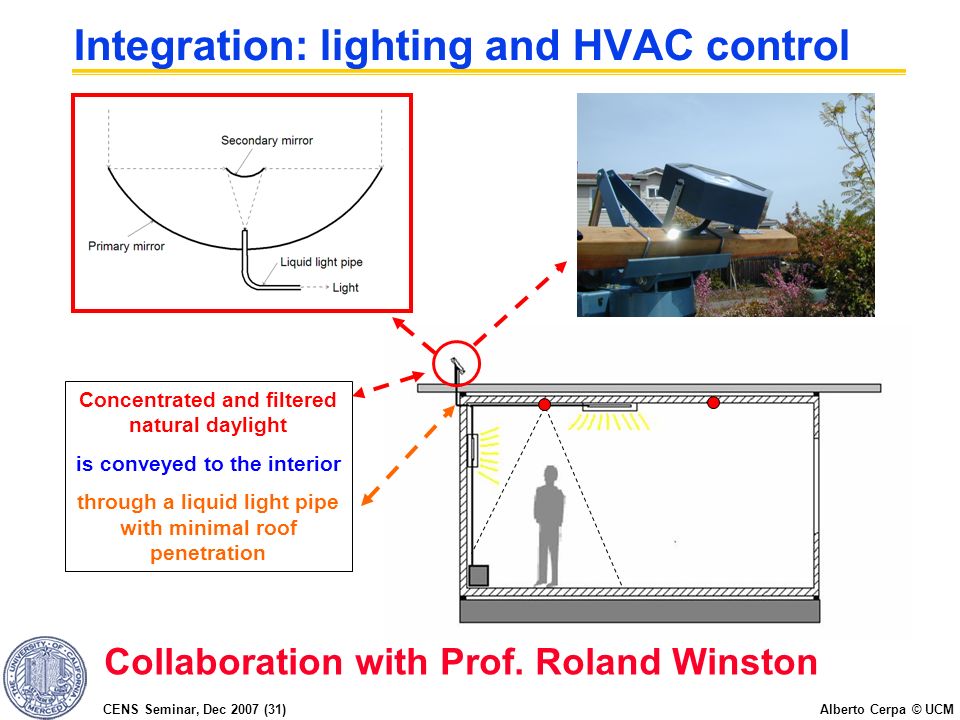

31. CENS Seminar, Dec 2007 (31) Alberto Cerpa © UCM Integration: lighting and HVAC control Concentrated and filtered natural daylight is conveyed to the interior through a liquid light pipe with minimal roof penetration Collaboration with Prof. Roland Winston

32. CENS Seminar, Dec 2007 (32) Alberto Cerpa © UCM Thank You!

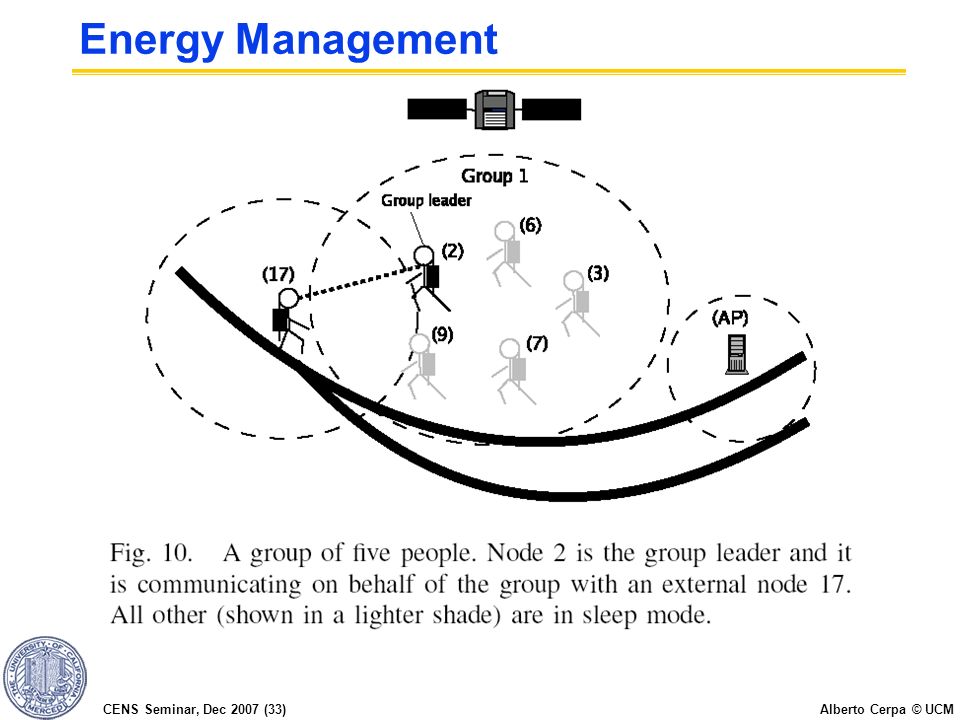

33. CENS Seminar, Dec 2007 (33) Alberto Cerpa © UCM Energy Management

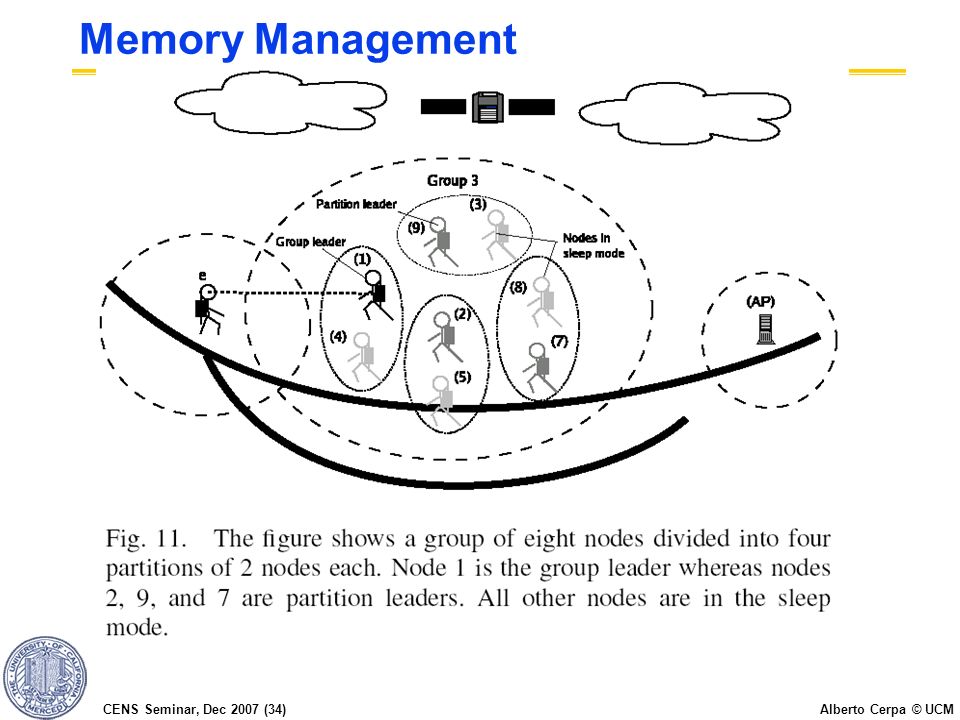

34. CENS Seminar, Dec 2007 (34) Alberto Cerpa © UCM Memory Management
