1. Programming and Programming Methods

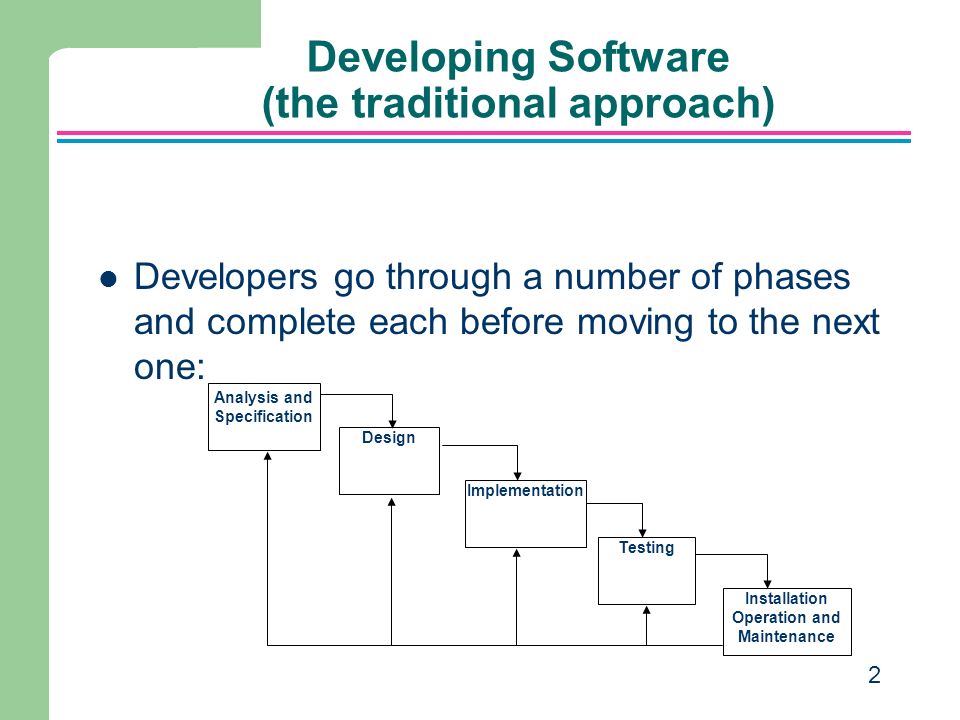

2. 2 Developing Software (the traditional approach) Developers go through a number of phases and complete each before moving to the next one: Design Installation Operation and Maintenance Analysis and Specification Implementation Testing

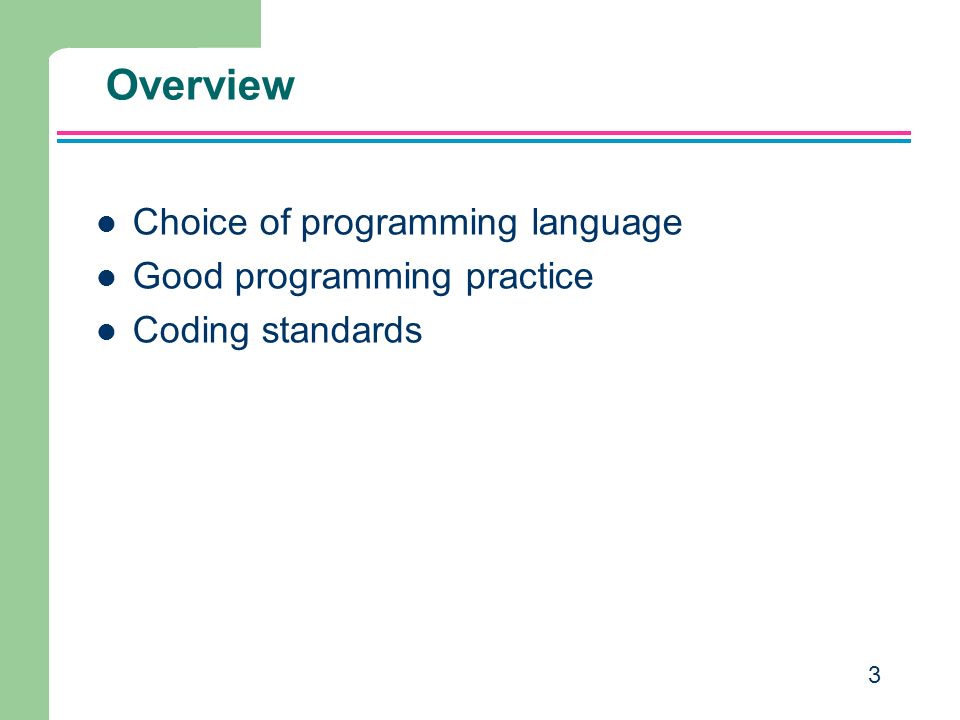

3. 3 Choice of programming language Good programming practice Coding standards Overview

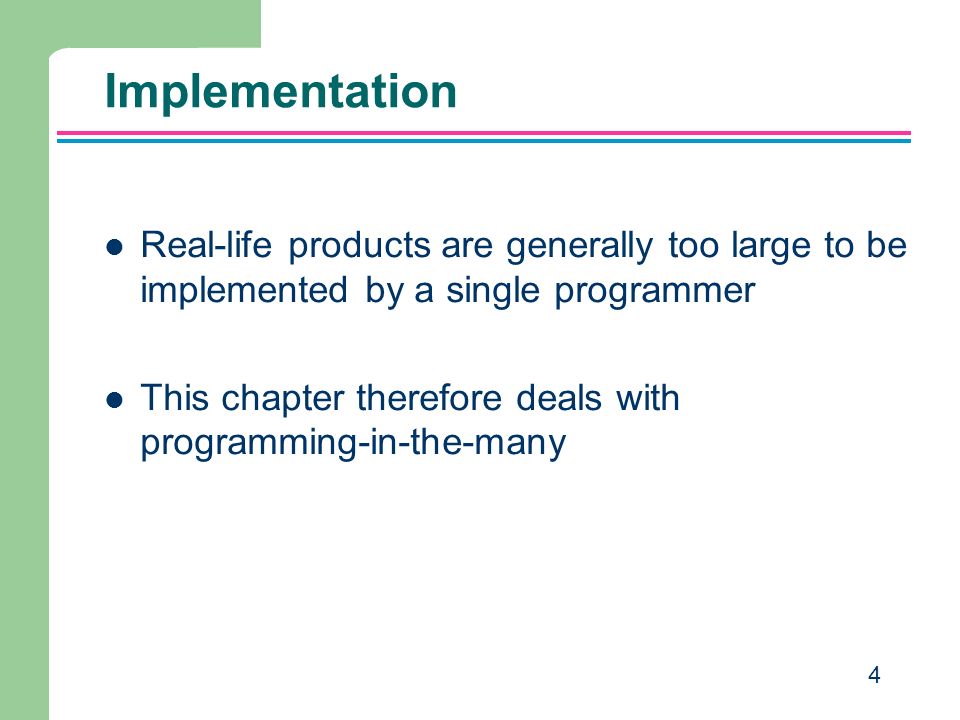

4. 4 Implementation Real-life products are generally too large to be implemented by a single programmer This chapter therefore deals with programming-in-the-many

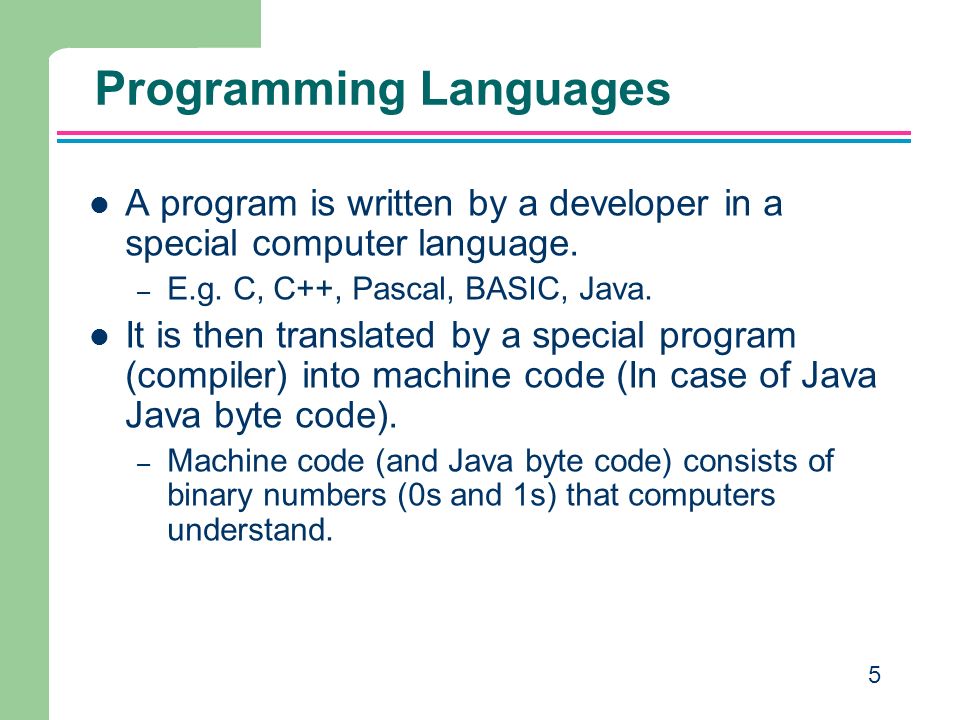

5. 5 Programming Languages A program is written by a developer in a special computer language. – E.g. C, C++, Pascal, BASIC, Java. It is then translated by a special program (compiler) into machine code (In case of Java Java byte code). – Machine code (and Java byte code) consists of binary numbers (0s and 1s) that computers understand.

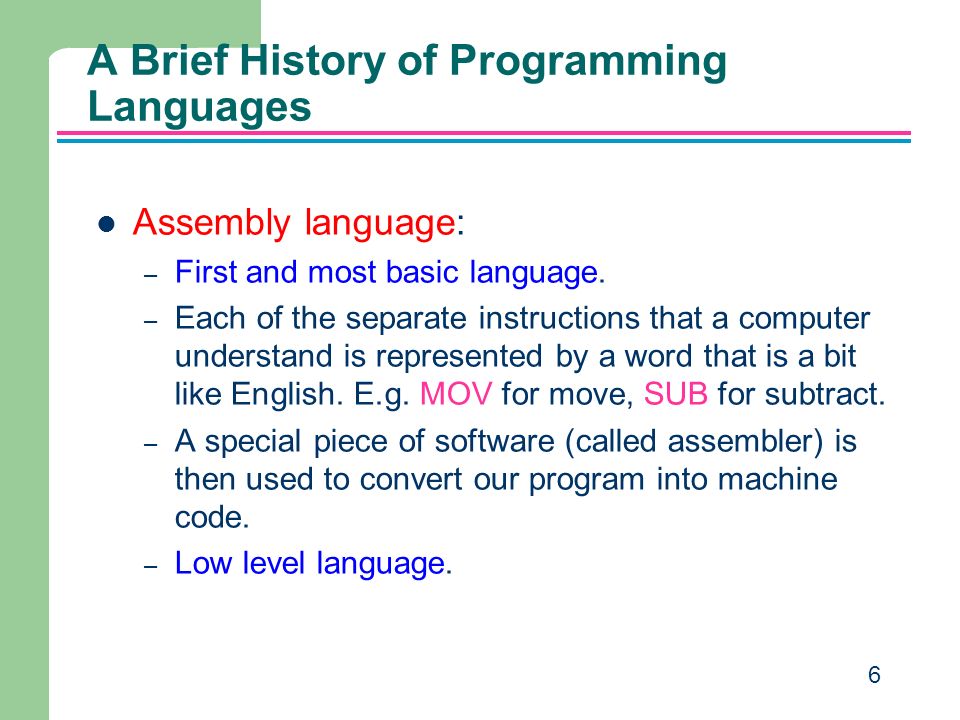

6. 6 A Brief History of Programming Languages Assembly language: – First and most basic language. – Each of the separate instructions that a computer understand is represented by a word that is a bit like English. E.g. MOV for move, SUB for subtract. – A special piece of software (called assembler) is then used to convert our program into machine code. – Low level language.

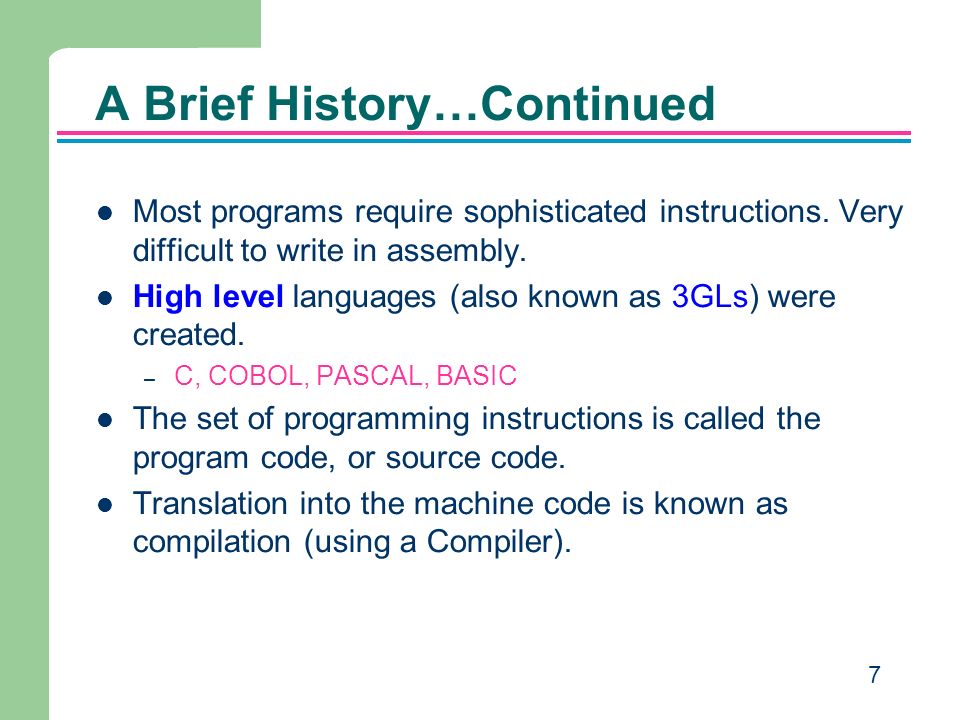

7. 7 A Brief History…Continued Most programs require sophisticated instructions. Very difficult to write in assembly. High level languages (also known as 3GLs) were created. – C, COBOL, PASCAL, BASIC The set of programming instructions is called the program code, or source code. Translation into the machine code is known as compilation (using a Compiler).

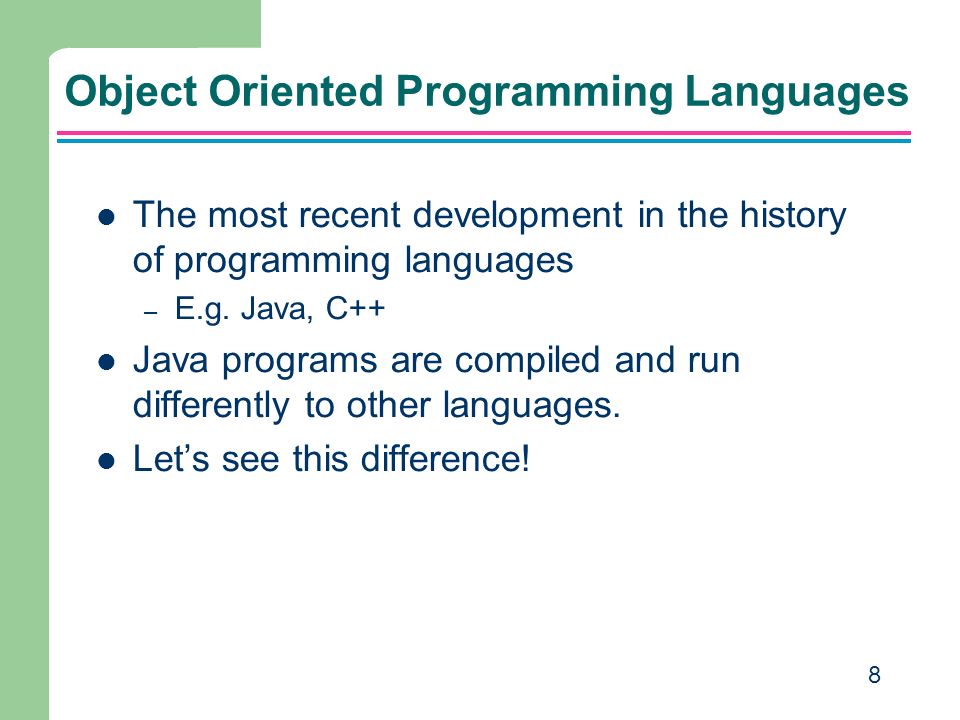

8. 8 Object Oriented Programming Languages The most recent development in the history of programming languages – E.g. Java, C++ Java programs are compiled and run differently to other languages. Let’s see this difference!

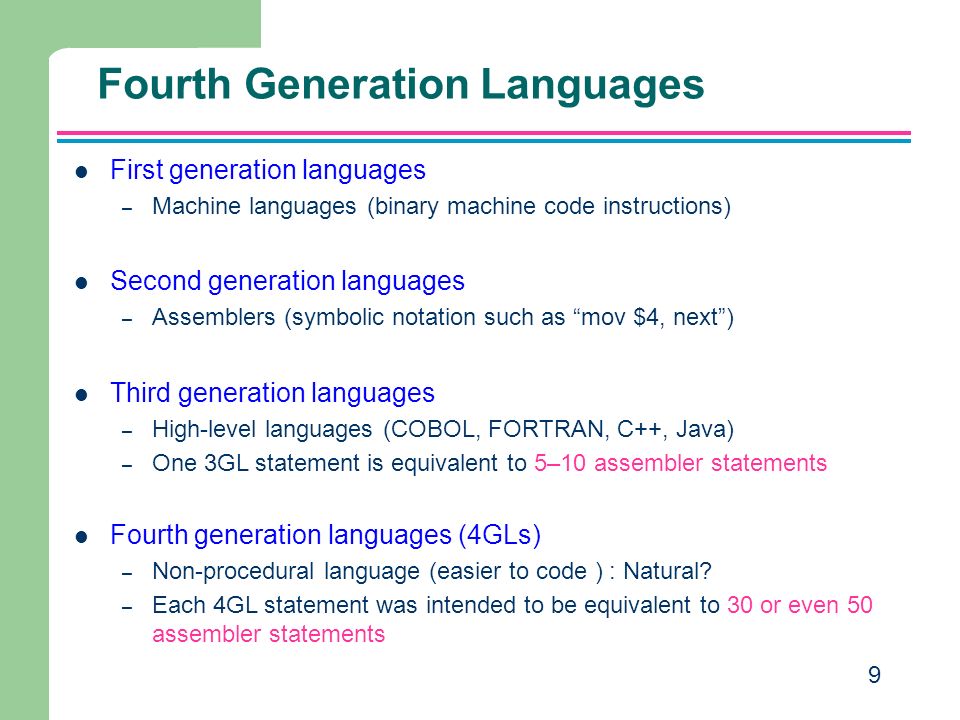

9. 9 Fourth Generation Languages First generation languages – Machine languages (binary machine code instructions) Second generation languages – Assemblers (symbolic notation such as “mov $4, next”) Third generation languages – High-level languages (COBOL, FORTRAN, C++, Java) – One 3GL statement is equivalent to 5–10 assembler statements Fourth generation languages (4GLs) – Non-procedural language (easier to code ) : Natural? – Each 4GL statement was intended to be equivalent to 30 or even 50 assembler statements

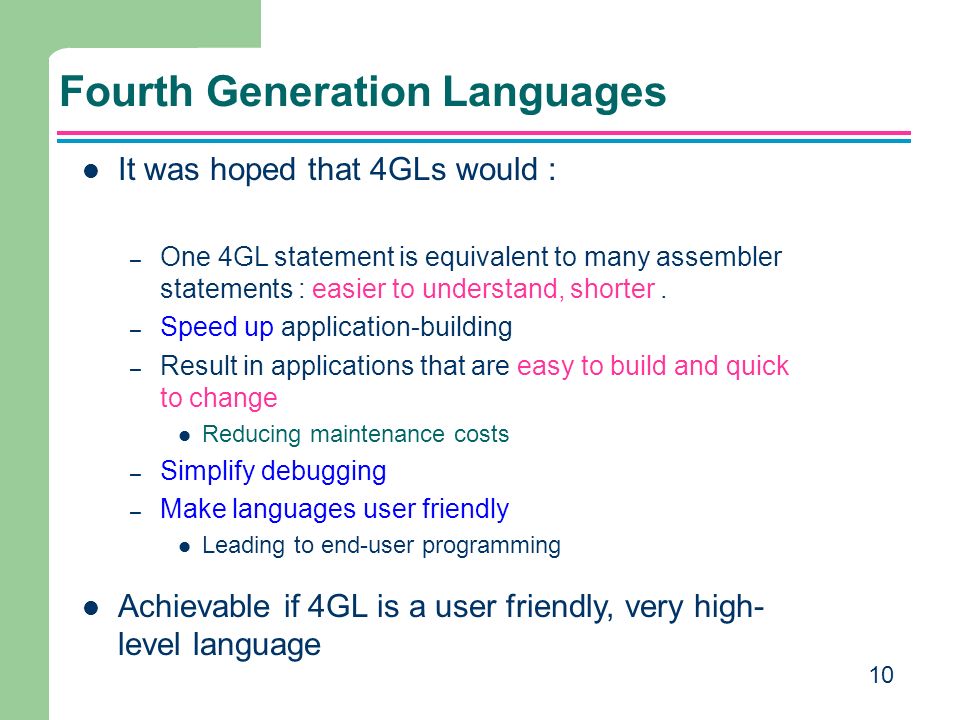

10. 10 Fourth Generation Languages It was hoped that 4GLs would : – One 4GL statement is equivalent to many assembler statements : easier to understand, shorter. – Speed up application-building – Result in applications that are easy to build and quick to change Reducing maintenance costs – Simplify debugging – Make languages user friendly Leading to end-user programming Achievable if 4GL is a user friendly, very high- level language

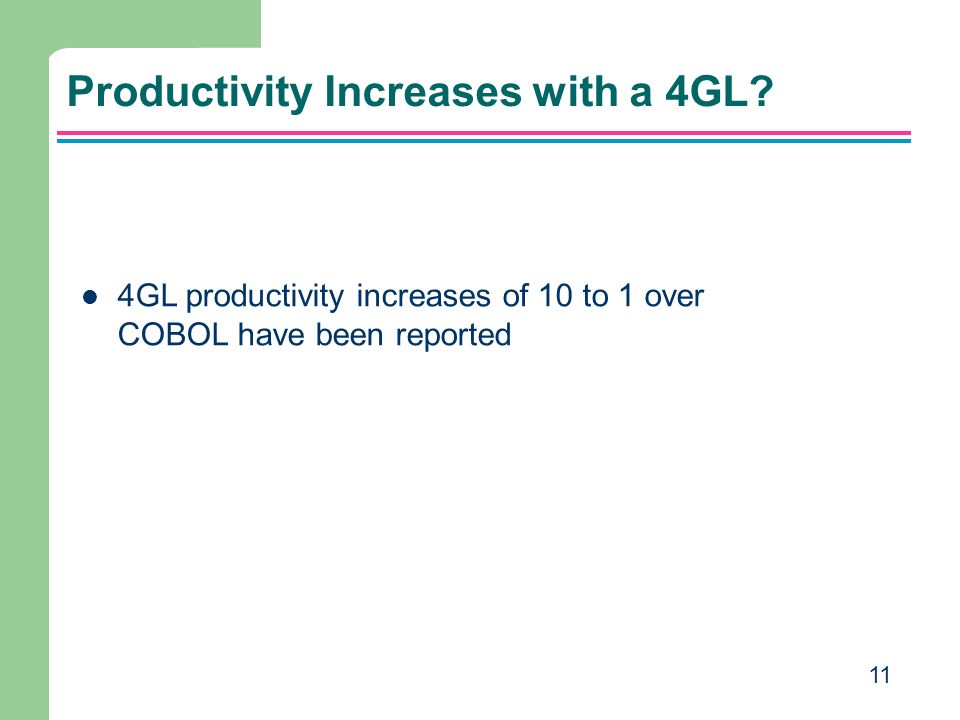

11. 11 Productivity Increases with a 4GL? 4GL productivity increases of 10 to 1 over COBOL have been reported

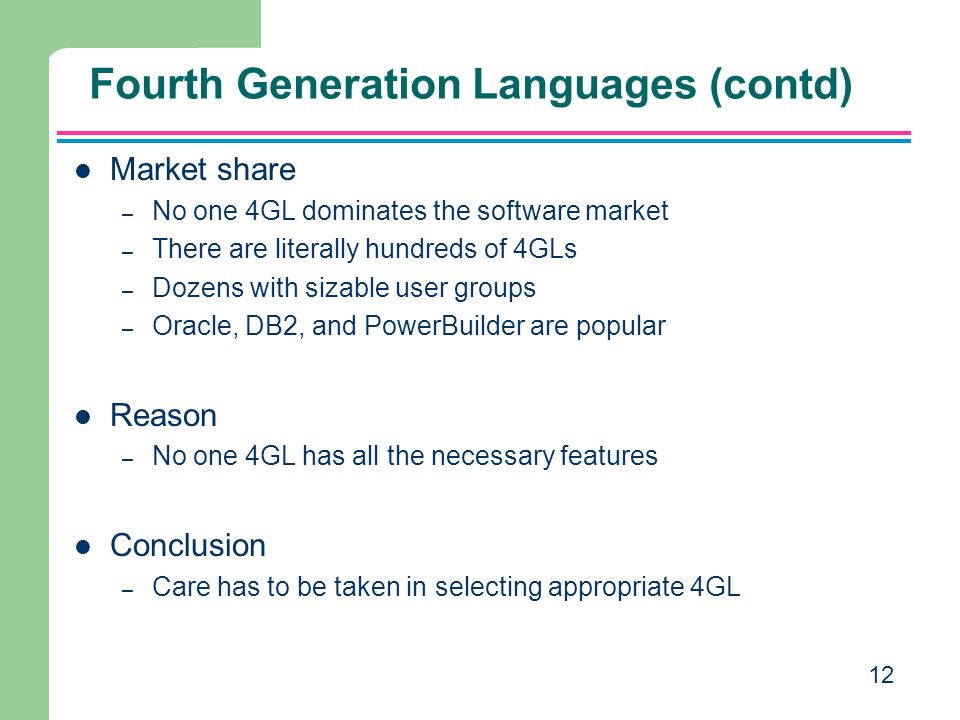

12. 12 Fourth Generation Languages (contd) Market share – No one 4GL dominates the software market – There are literally hundreds of 4GLs – Dozens with sizable user groups – Oracle, DB2, and PowerBuilder are popular Reason – No one 4GL has all the necessary features Conclusion – Care has to be taken in selecting appropriate 4GL

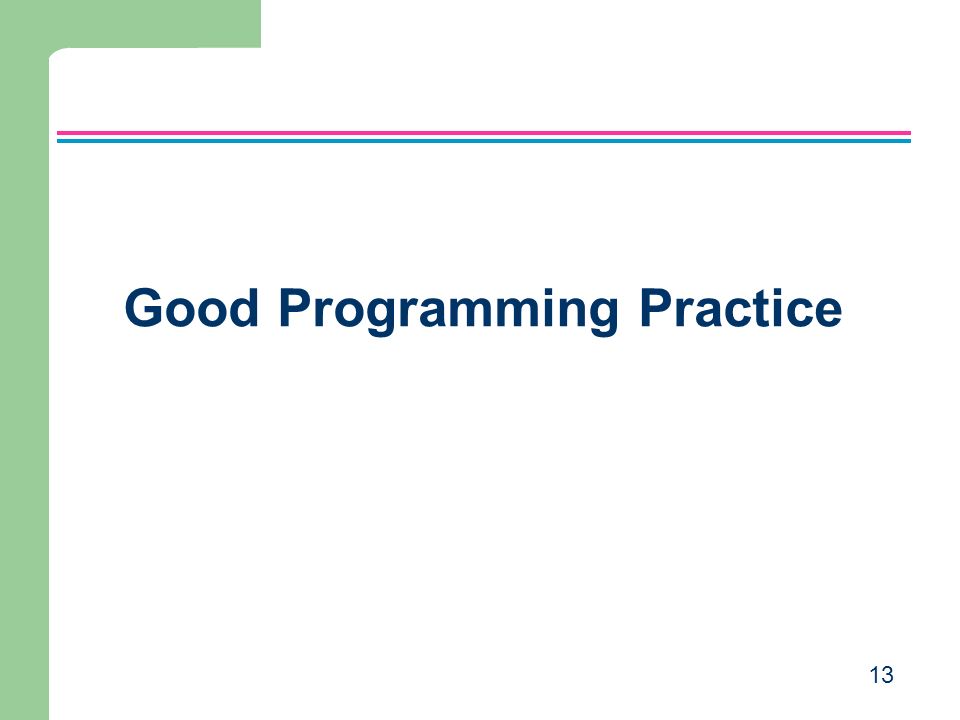

13. 13 Good Programming Practice

14. 14 Good Programming Practice Use of consistent and meaningful variable names – “Meaningful” to future maintenance programmers – “Consistent” to aid future maintenance programmers

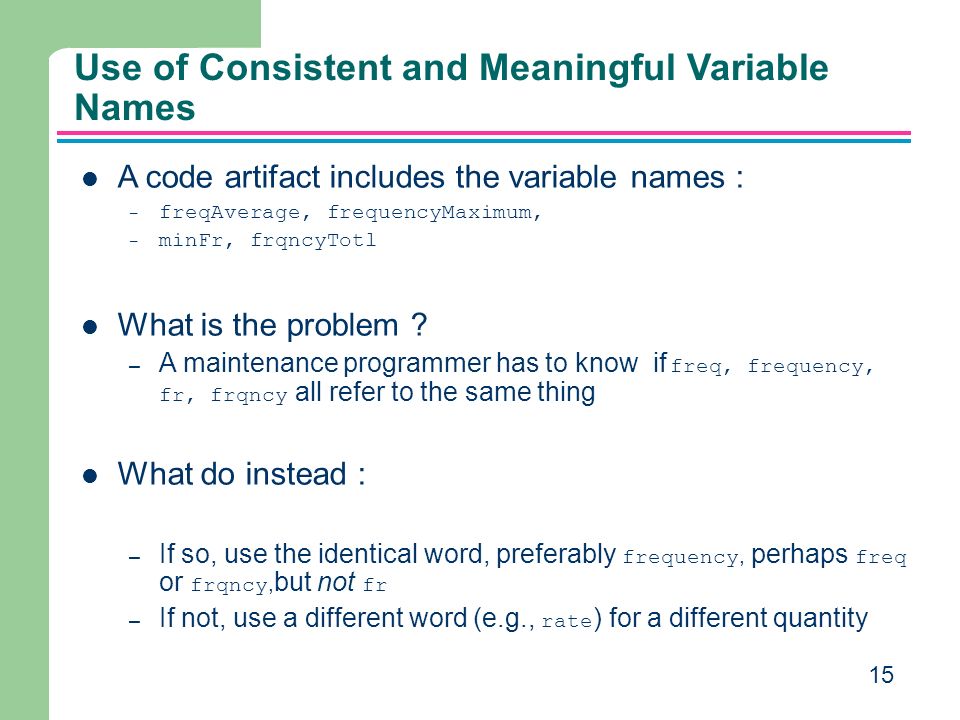

15. 15 Use of Consistent and Meaningful Variable Names A code artifact includes the variable names : – freqAverage, frequencyMaximum, – minFr, frqncyTotl What is the problem ? – A maintenance programmer has to know if freq, frequency, fr, frqncy all refer to the same thing What do instead : – If so, use the identical word, preferably frequency, perhaps freq or frqncy, but not fr – If not, use a different word (e.g., rate ) for a different quantity

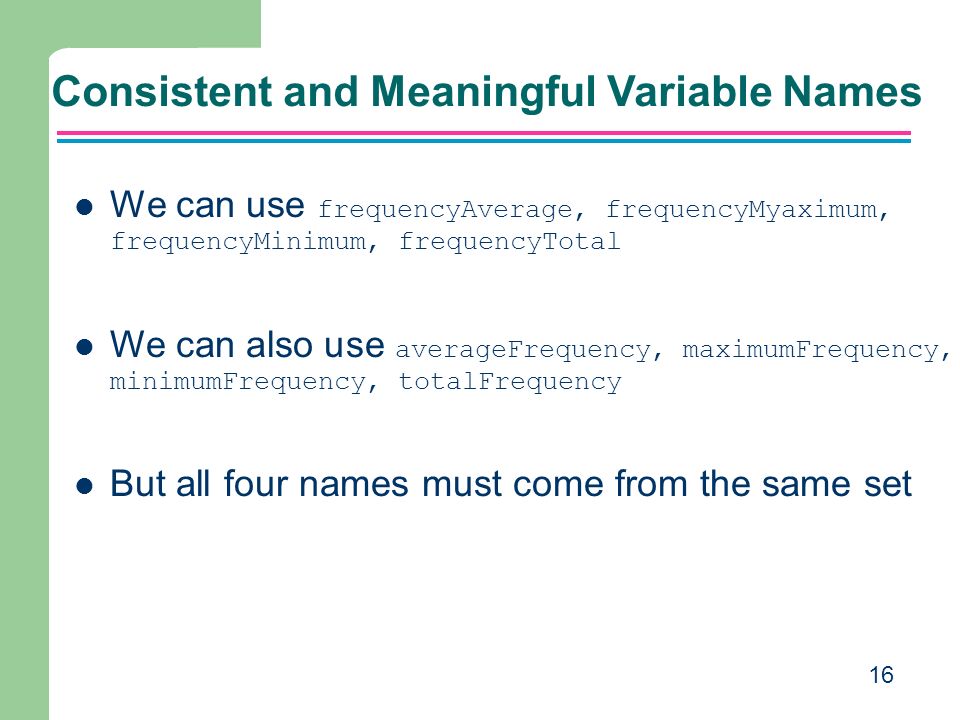

16. 16 Consistent and Meaningful Variable Names We can use frequencyAverage, frequencyMyaximum, frequencyMinimum, frequencyTotal We can also use averageFrequency, maximumFrequency, minimumFrequency, totalFrequency But all four names must come from the same set

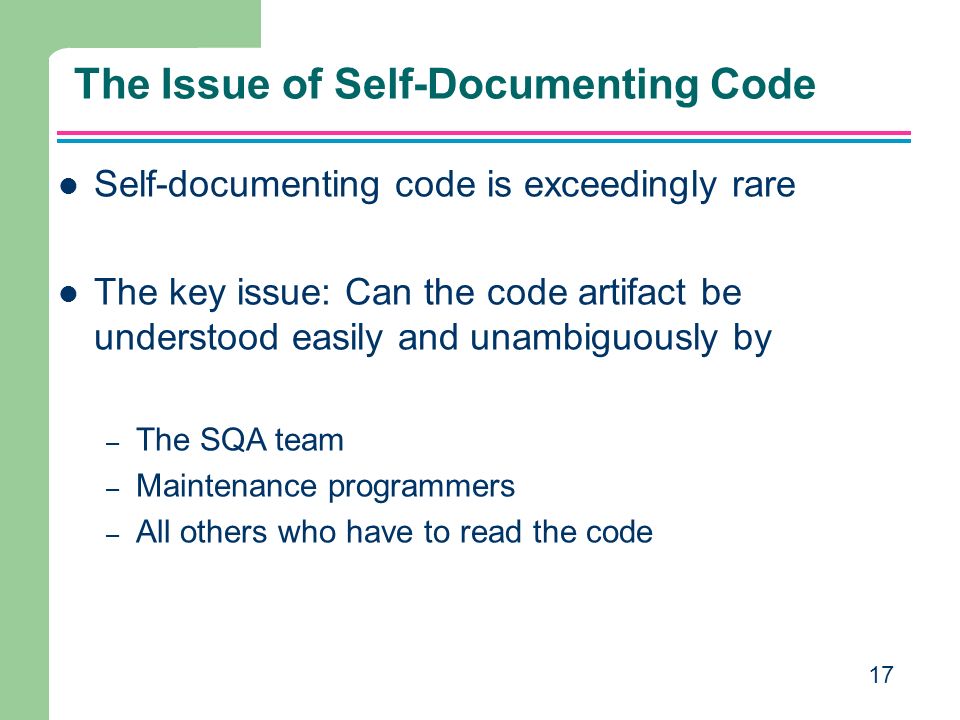

17. 17 The Issue of Self-Documenting Code Self-documenting code is exceedingly rare The key issue: Can the code artifact be understood easily and unambiguously by – The SQA team – Maintenance programmers – All others who have to read the code

18. 18 Self-Documenting Code Example Example: – Code artifact contains the variable : xCoordinateOfPositionOfRobotArm – This is abbreviated to xCoord Is that fine to abbreviate? – This is fine, because the entire module deals with the movement of the robot arm What about for other users of the code ? – But does the maintenance programmer know this?

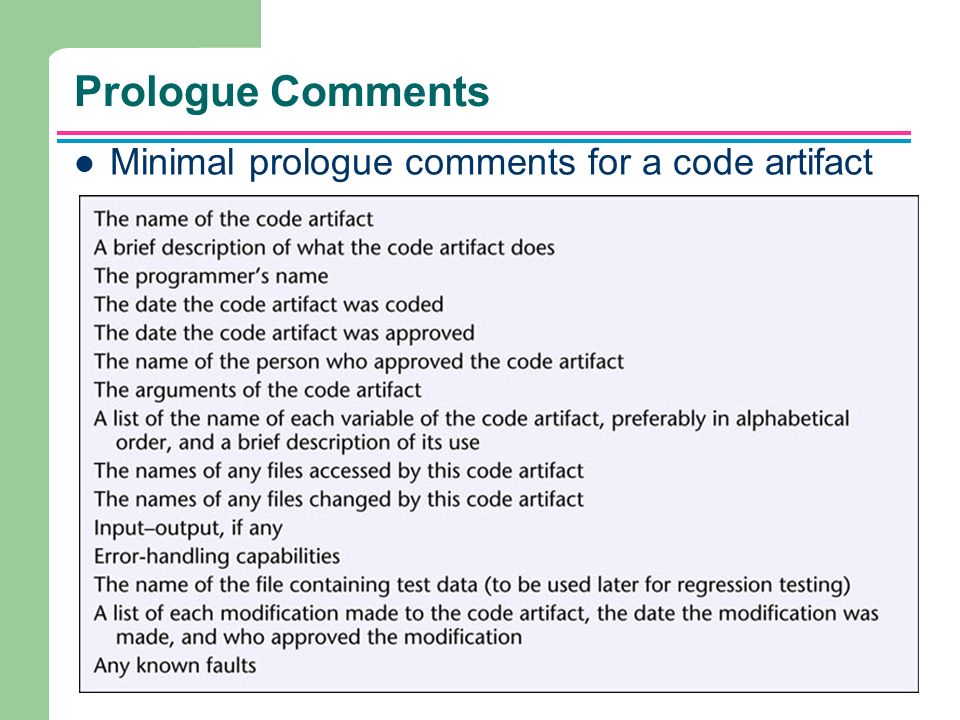

19. 19 Prologue Comments Minimal prologue comments for a code artifact

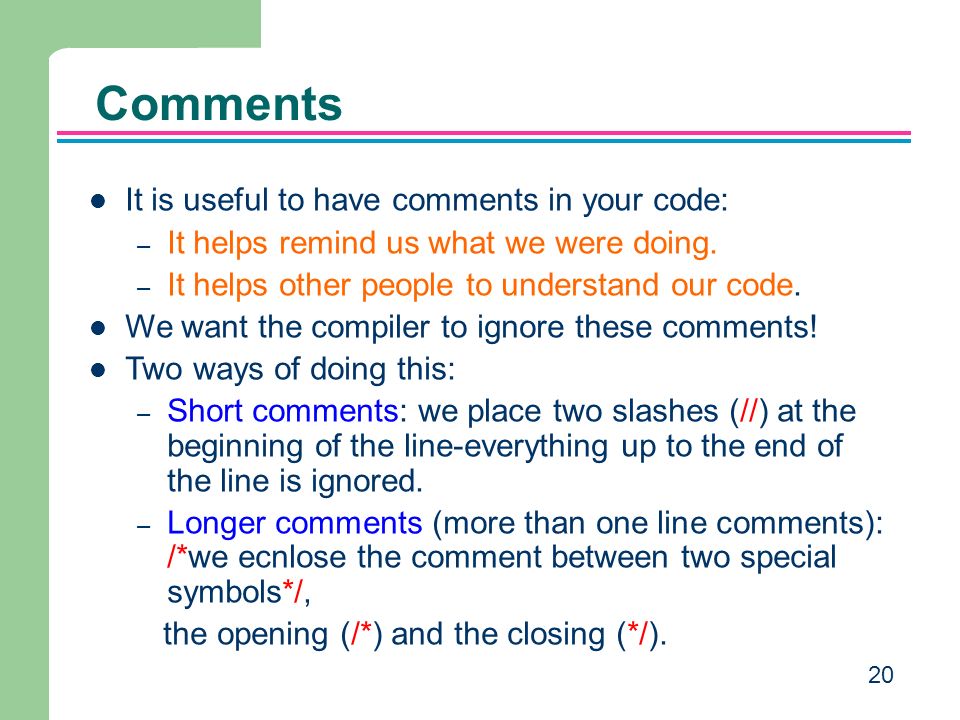

20. 20 Comments It is useful to have comments in your code: – It helps remind us what we were doing. – It helps other people to understand our code. We want the compiler to ignore these comments! Two ways of doing this: – Short comments: we place two slashes (//) at the beginning of the line-everything up to the end of the line is ignored. – Longer comments (more than one line comments): /*we ecnlose the comment between two special symbols*/, the opening (/*) and the closing (*/).

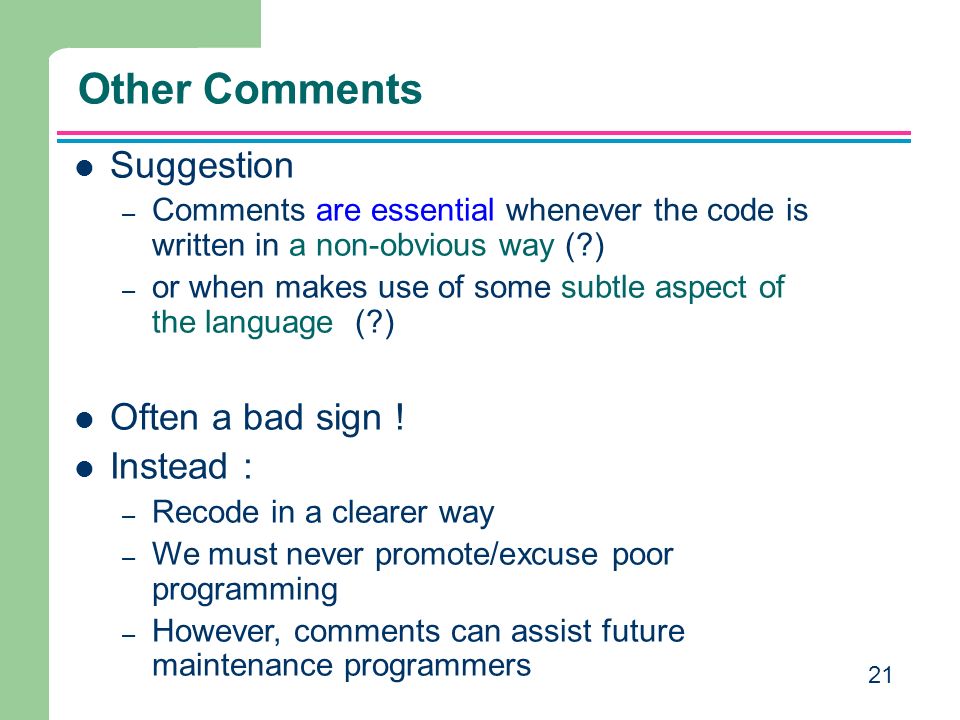

21. 21 Other Comments Suggestion – Comments are essential whenever the code is written in a non-obvious way (?) – or when makes use of some subtle aspect of the language (?) Often a bad sign ! Instead : – Recode in a clearer way – We must never promote/excuse poor programming – However, comments can assist future maintenance programmers

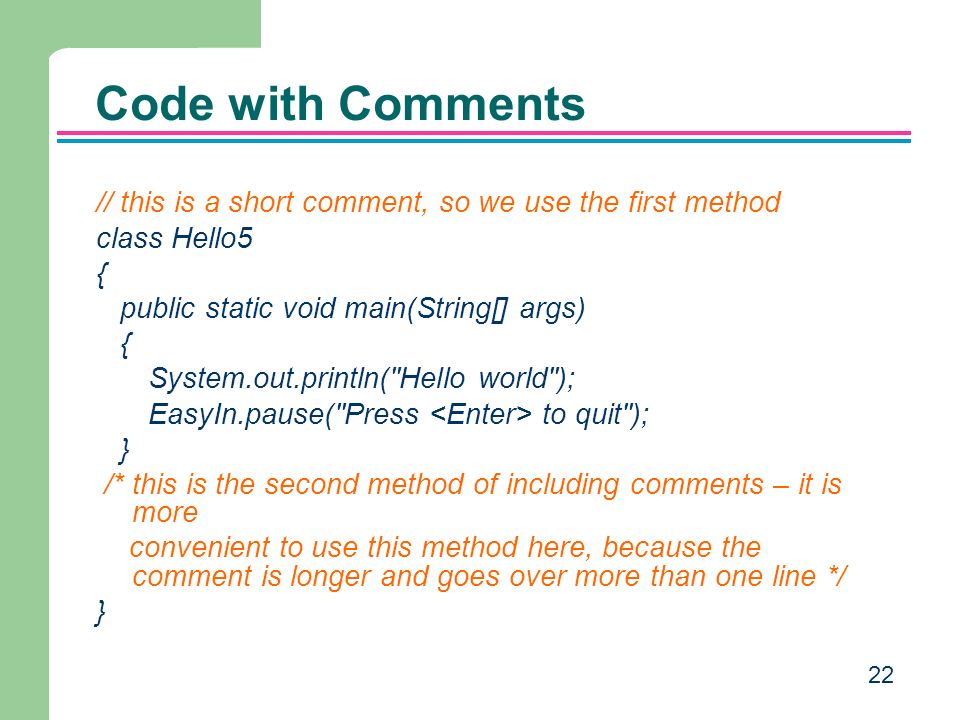

22. 22 Code with Comments // this is a short comment, so we use the first method class Hello5 { public static void main(String[] args) { System.out.println("Hello world"); EasyIn.pause("Press to quit"); } /* this is the second method of including comments – it is more convenient to use this method here, because the comment is longer and goes over more than one line */ }

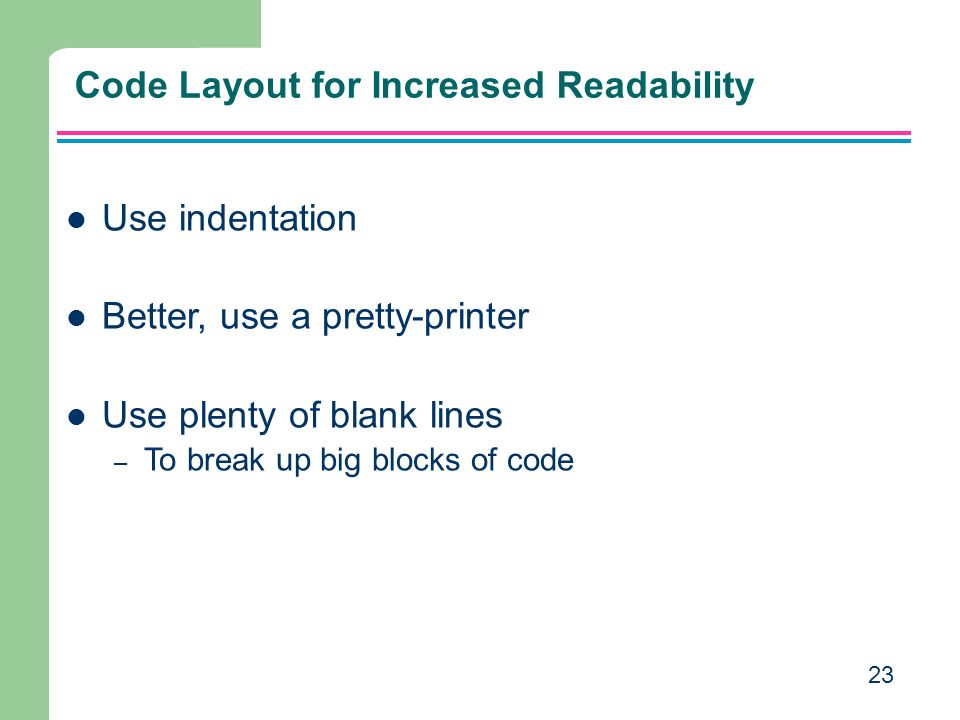

23. 23 Code Layout for Increased Readability Use indentation Better, use a pretty-printer Use plenty of blank lines – To break up big blocks of code

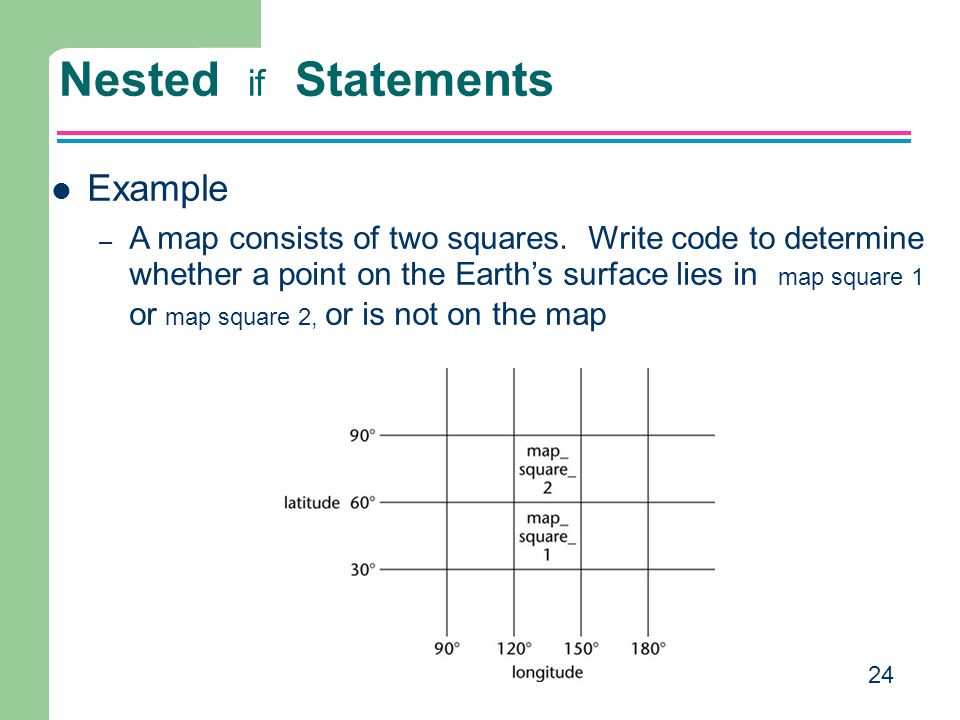

24. 24 Nested if Statements Example – A map consists of two squares. Write code to determine whether a point on the Earth’s surface lies in map square 1 or map square 2, or is not on the map

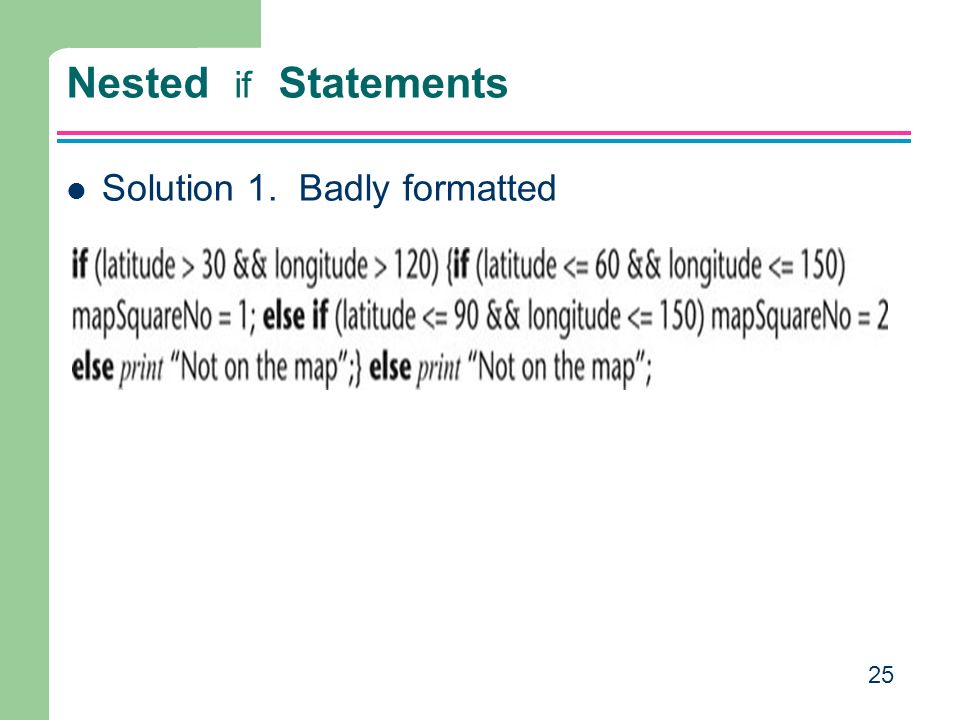

25. 25 Nested if Statements Solution 1. Badly formatted

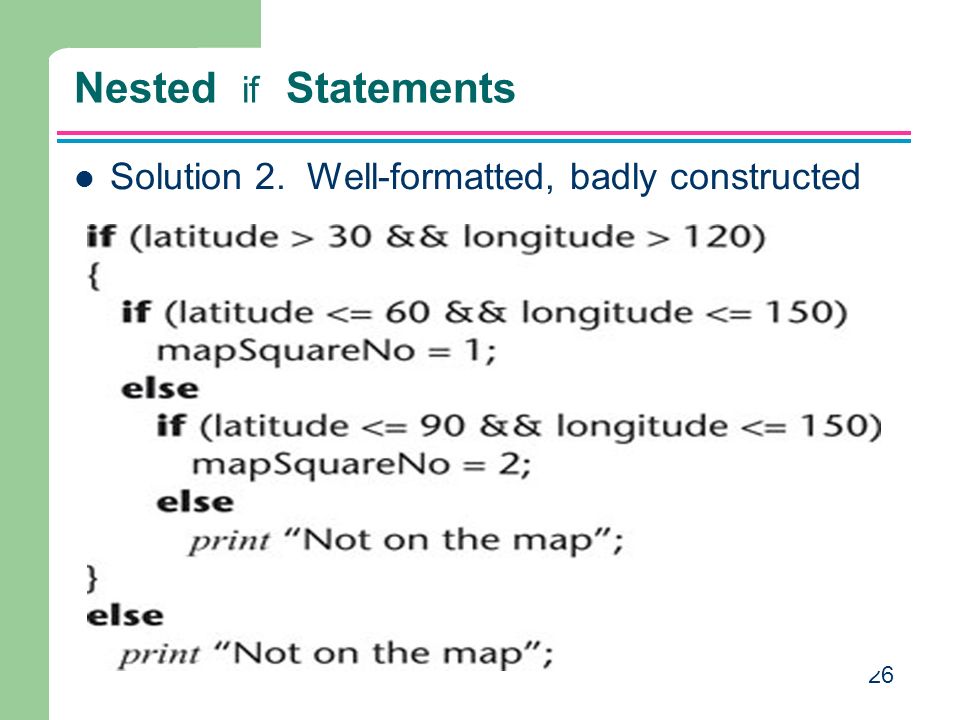

26. 26 Nested if Statements Solution 2. Well-formatted, badly constructed

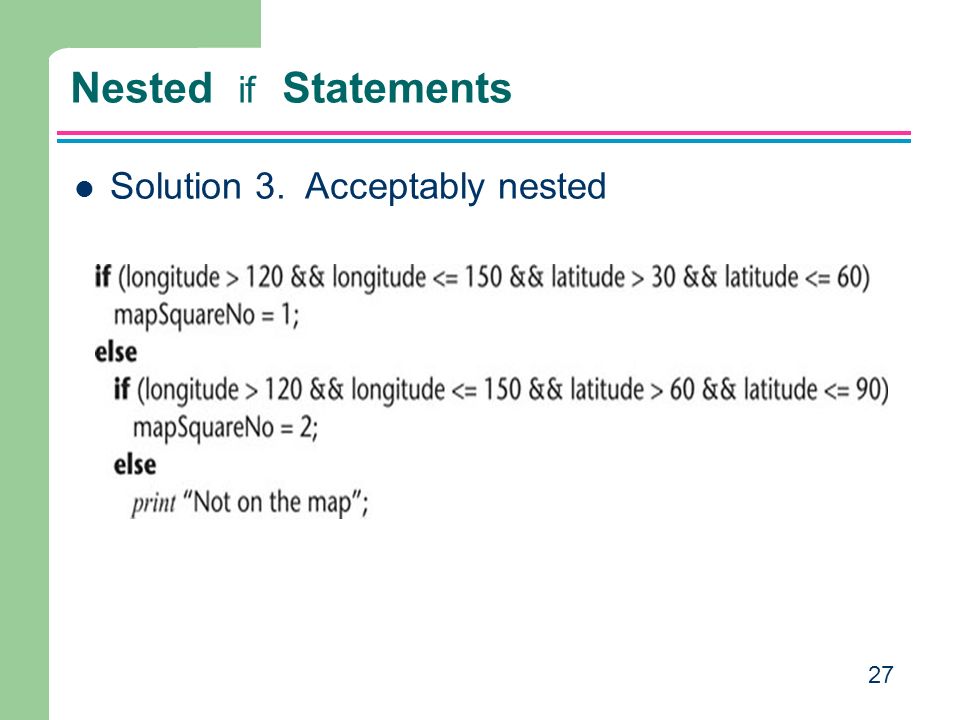

27. 27 Nested if Statements Solution 3. Acceptably nested

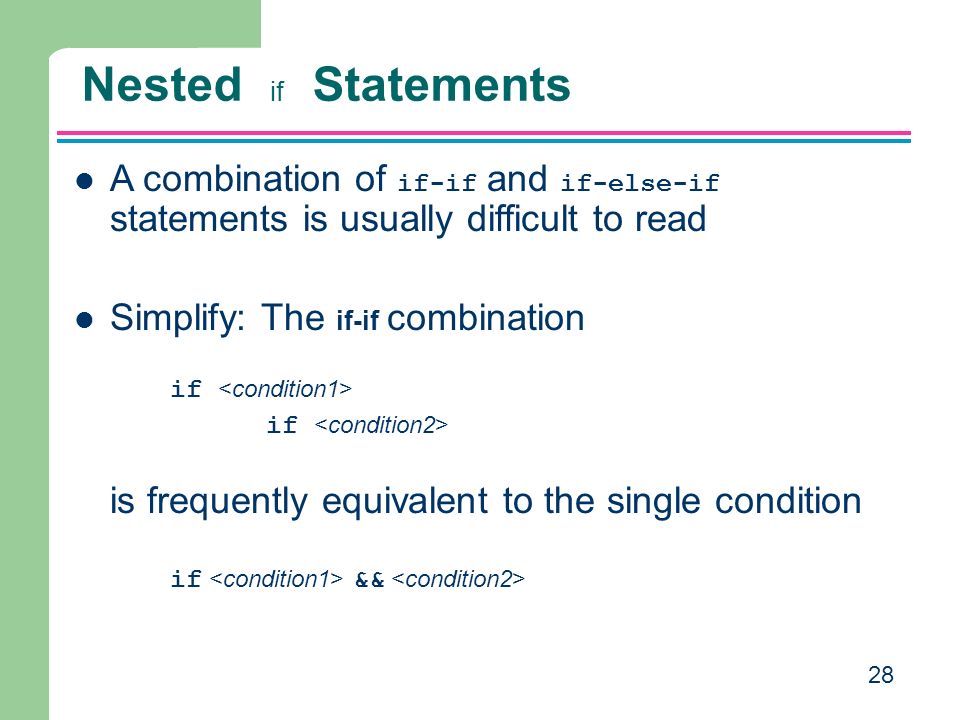

28. 28 Nested if Statements A combination of if-if and if-else-if statements is usually difficult to read Simplify: The if-if combination if is frequently equivalent to the single condition if &&

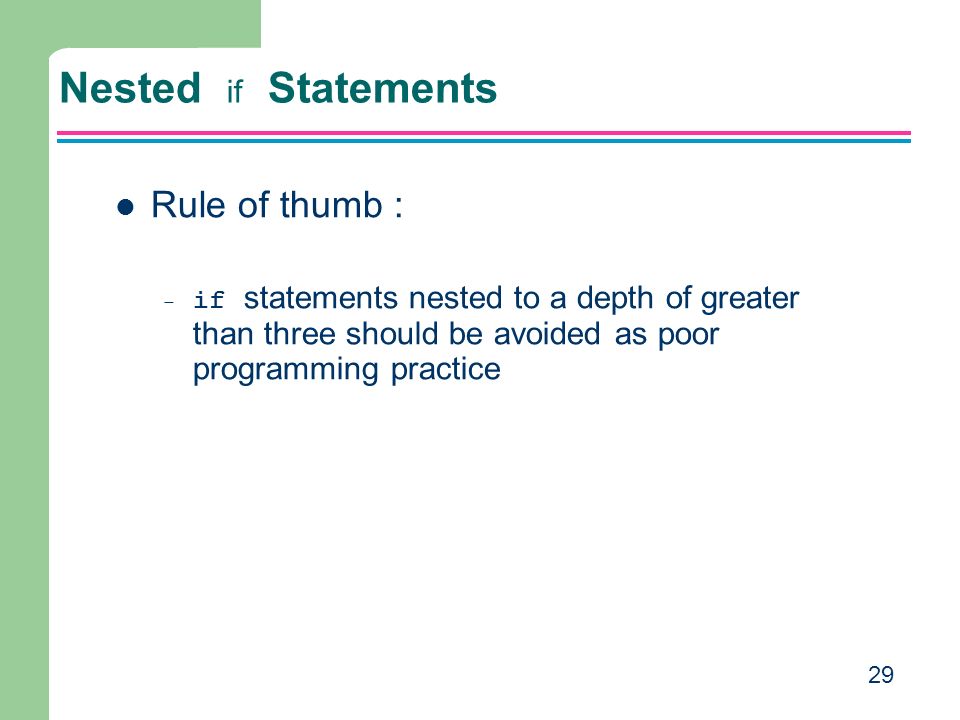

29. 29 Nested if Statements Rule of thumb : – if statements nested to a depth of greater than three should be avoided as poor programming practice

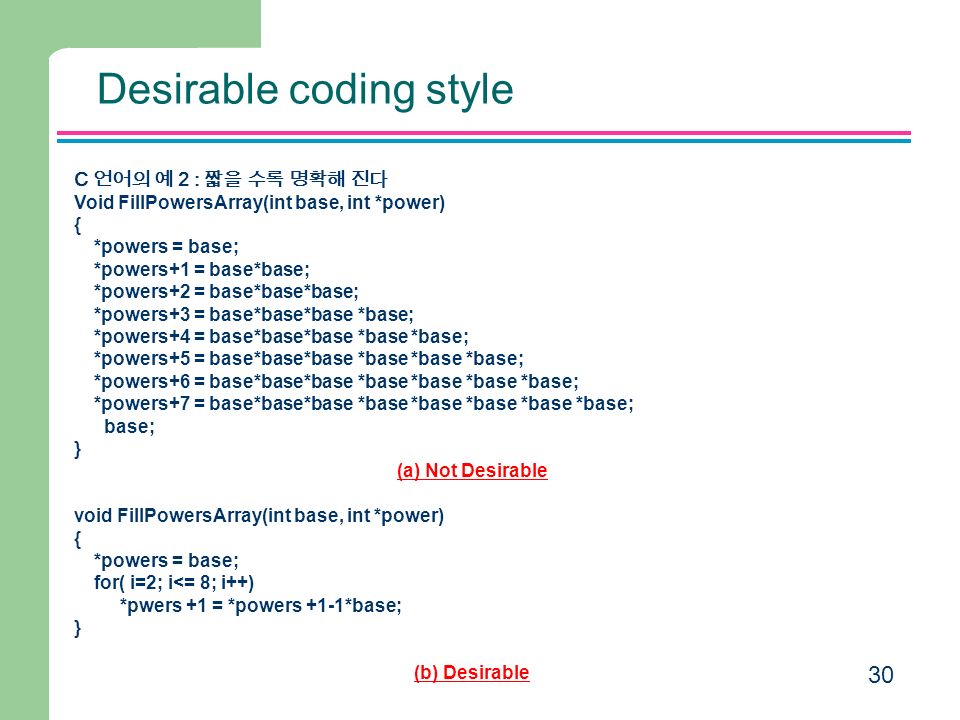

30. 30 C 언어의 예 2 : 짧을 수록 명확해 진다 Void FillPowersArray(int base, int *power) { *powers = base; *powers+1 = base*base; *powers+2 = base*base*base; *powers+3 = base*base*base *base; *powers+4 = base*base*base *base *base; *powers+5 = base*base*base *base *base *base; *powers+6 = base*base*base *base *base *base *base; *powers+7 = base*base*base *base *base *base *base *base; base; } (a) Not Desirable void FillPowersArray(int base, int *power) { *powers = base; for( i=2; i<= 8; i++) *pwers +1 = *powers +1-1*base; } (b) Desirable Desirable coding style

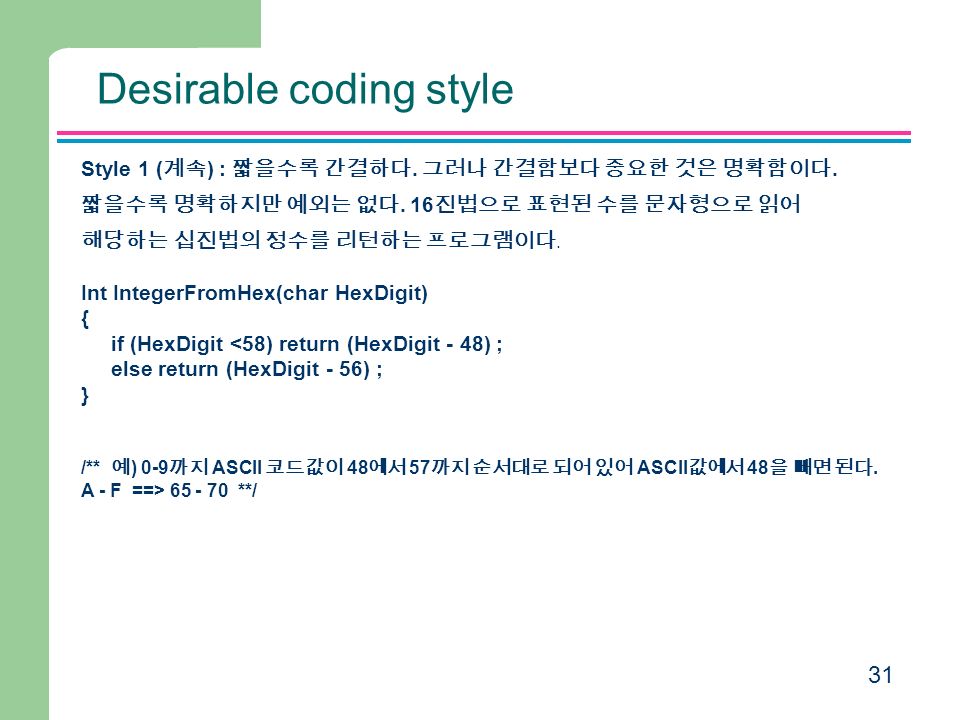

31. 31 Style 1 ( 계속 ) : 짧을수록 간결하다. 그러나 간결함보다 중요한 것은 명확함이다. 짧을수록 명확하지만 예외는 없다. 16 진법으로 표현된 수를 문자형으로 읽어 해당하는 십진법의 정수를 리턴하는 프로그램이다. Int IntegerFromHex(char HexDigit) { if (HexDigit <58) return (HexDigit - 48) ; else return (HexDigit - 56) ; } /** 예 ) 0-9 까지 ASCII 코드값이 48 에서 57 까지 순서대로 되어 있어 ASCII 값에서 48 을 빼면 된다. A - F ==> 65 - 70 **/ Desirable coding style

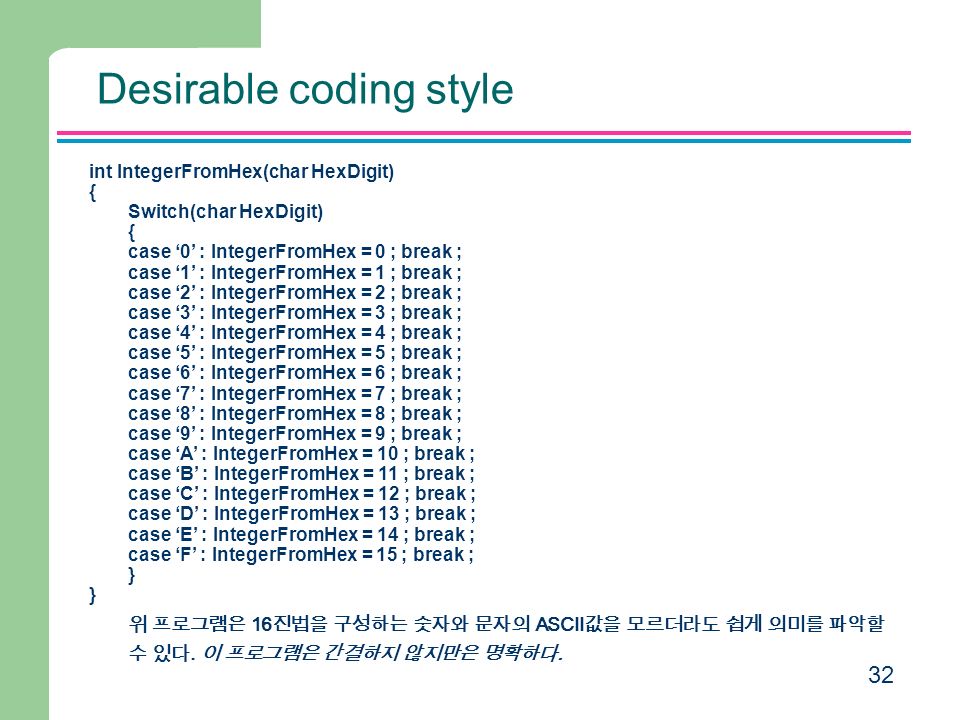

32. 32 int IntegerFromHex(char HexDigit) { Switch(char HexDigit) { case ‘0’ : IntegerFromHex = 0 ; break ; case ‘1’ : IntegerFromHex = 1 ; break ; case ‘2’ : IntegerFromHex = 2 ; break ; case ‘3’ : IntegerFromHex = 3 ; break ; case ‘4’ : IntegerFromHex = 4 ; break ; case ‘5’ : IntegerFromHex = 5 ; break ; case ‘6’ : IntegerFromHex = 6 ; break ; case ‘7’ : IntegerFromHex = 7 ; break ; case ‘8’ : IntegerFromHex = 8 ; break ; case ‘9’ : IntegerFromHex = 9 ; break ; case ‘A’ : IntegerFromHex = 10 ; break ; case ‘B’ : IntegerFromHex = 11 ; break ; case ‘C’ : IntegerFromHex = 12 ; break ; case ‘D’ : IntegerFromHex = 13 ; break ; case ‘E’ : IntegerFromHex = 14 ; break ; case ‘F’ : IntegerFromHex = 15 ; break ; } 위 프로그램은 16 진법을 구성하는 숫자와 문자의 ASCII 값을 모르더라도 쉽게 의미를 파악할 수 있다. 이 프로그램은 간결하지 않지만은 명확하다. Desirable coding style

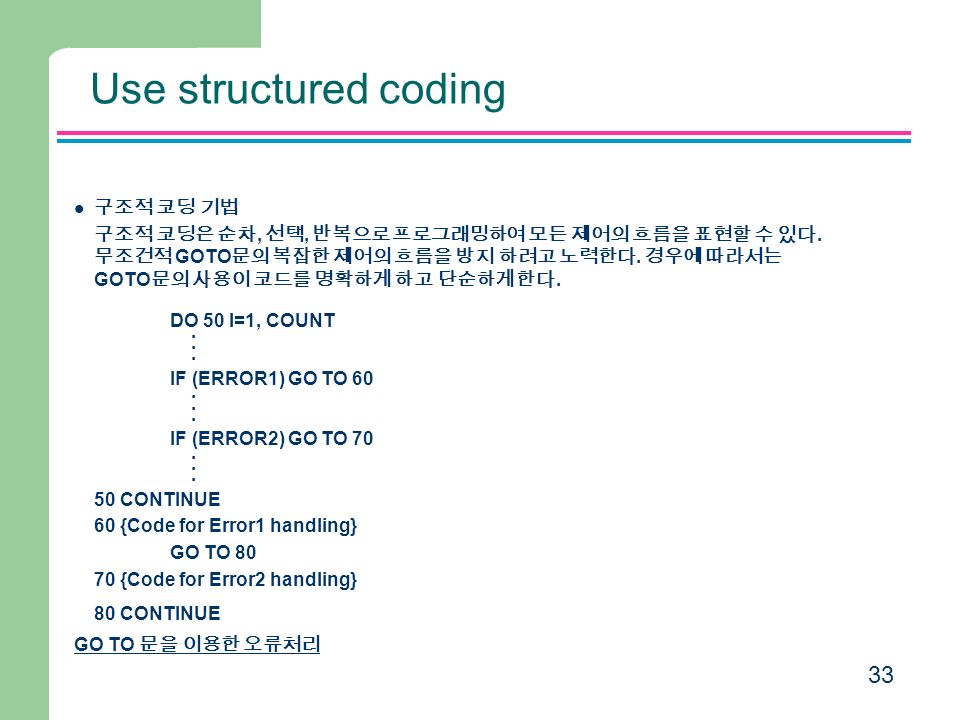

33. 33 구조적 코딩 기법 구조적 코딩은 순차, 선택, 반복으로 프로그래밍하여 모든 제어의 흐름을 표현할 수 있다. 무조건적 GOTO 문의 복잡한 제어의 흐름을 방지 하려고 노력한다. 경우에 따라서는 GOTO 문의 사용이 코드를 명확하게 하고 단순하게 한다. DO 50 I=1, COUNT. IF (ERROR1) GO TO 60. IF (ERROR2) GO TO 70. 50 CONTINUE 60 {Code for Error1 handling} GO TO 80 70 {Code for Error2 handling} 80 CONTINUE GO TO 문을 이용한 오류처리 Use structured coding

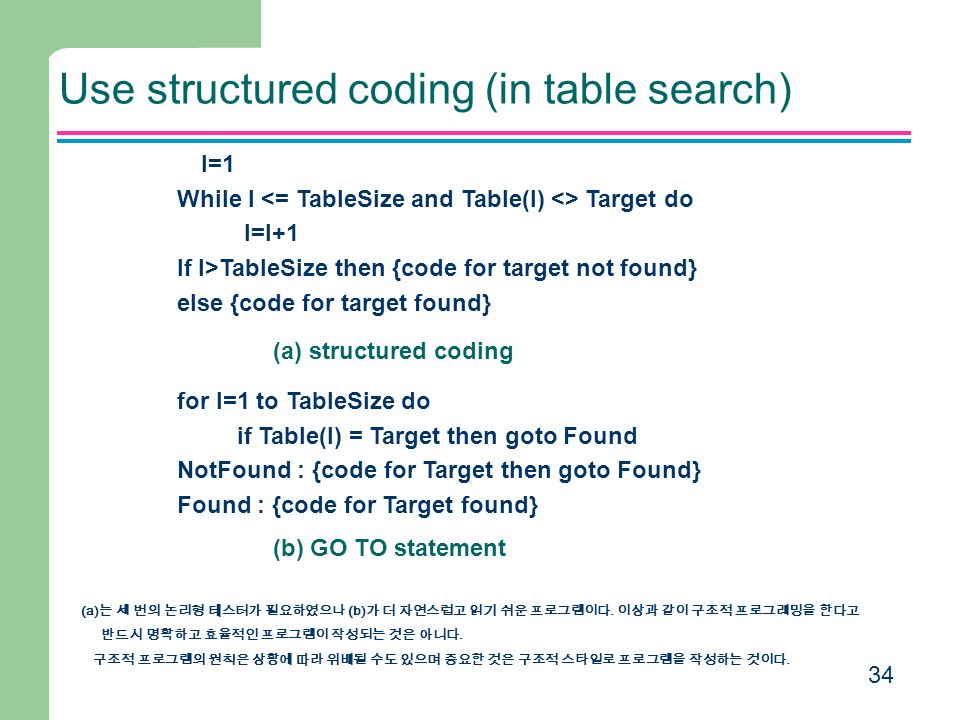

34. 34 I=1 While I Target do I=I+1 If I>TableSize then {code for target not found} else {code for target found} (a) structured coding for I=1 to TableSize do if Table(I) = Target then goto Found NotFound : {code for Target then goto Found} Found : {code for Target found} (b) GO TO statement (a) 는 세 번의 논리형 테스터가 필요하였으나 (b) 가 더 자연스럽고 읽기 쉬운 프로그램이다. 이상과 같이 구조적 프로그래밍을 한다고 반드시 명확하고 효율적인 프로그램이 작성되는 것은 아니다. 구조적 프로그램의 원칙은 상황에 따라 위배될 수도 있으며 중요한 것은 구조적 스타일로 프로그램을 작성하는 것이다. Use structured coding (in table search)

35. 35 Desirable coding style 스타일이란 어떤 작업의 선택에 있어서 일관된 유형을 말한다. *** 좋은 스타일의 대표적 판별기준 *** - 복잡하지 않고 명확하여 이해하기 쉬운 것이다. - 프로그램을 이해하는데 노력이 필요치 않으며 수정이 용이하다. Style 1 : Write clearly. C 언어의 예 1) int i, j : float v{N}{N} ;... For( i=1; i<= N ; i++) for (j=1; j<= N; j++) v[i-1][j-1] = (i/j)*(j/i) ; For( i=0; i<= N ; i++) { for ( j=0; j<= N; j++) { v[i-1][j-1] = (i/j)*(j/i) ; } Not DesirableDesirable

36. 36 Style 2 : Write directly what you intend to. if ( x < y ) { if ( x < z ) small = x ; if ( x > z ) small = x ; } if ( x < y ) { if ( y < z ) small = y ; if ( y > z ) small = z ; } x, y, z 세개의 값 중에 가장 가장 작은 것을 small 이라는 변수에 기억시키려는 과정으로 변수의 이름을 암시 받을 수 있다. 그러나 x, y, z 중에 같은 값을 가진 경우 small 값은 올바른 값을 갖지 못한다. Small = x ; if ( y < small ) small = y ; if ( z < small ) small = z ; 위의 프로그램에서는 세개 이상의 값에 대해서도 같은 방법으로 쉽게 확장 가능. Desirable coding style Desirable !! Not desirable !!

37. 37 If... Else 선택구조에서는 짧은 구문을 먼저 쓰는 것이 이해하기 좋다. 즉 else 구문은 if 조건과 가깝게 위치 시킨다. if (in_user_code) { in_user_code = FALSE ; r2 = r; reset_phariap() ; send_sig_segv() ; } else revert() ; if not (in_user_code) revert() ; else { in_user_code = FALSE ; r2 = r reset_pharlap() ; send_sig_segv() ; } Desirable !! Not desirable !! Desirable coding style

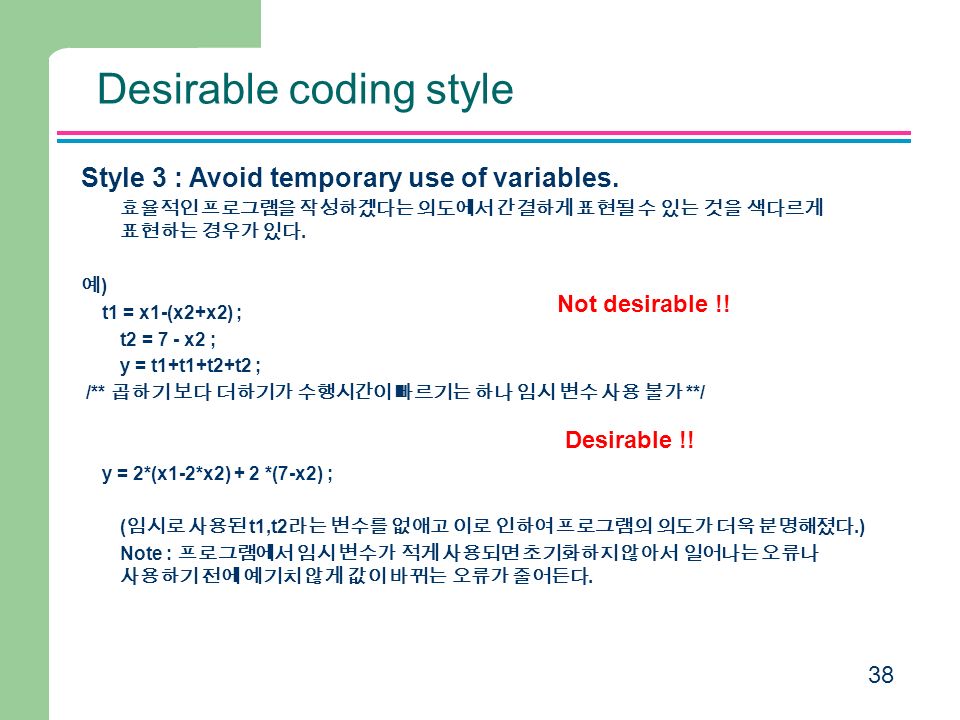

38. 38 Style 3 : Avoid temporary use of variables. 효율적인 프로그램을 작성하겠다는 의도에서 간결하게 표현될 수 있는 것을 색다르게 표현하는 경우가 있다. 예 ) t1 = x1-(x2+x2) ; t2 = 7 - x2 ; y = t1+t1+t2+t2 ; /** 곱하기 보다 더하기가 수행시간이 빠르기는 하나 임시 변수 사용 불가 **/ y = 2*(x1-2*x2) + 2 *(7-x2) ; ( 임시로 사용된 t1,t2 라는 변수를 없애고 이로 인하여 프로그램의 의도가 더욱 분명해졌다.) Note : 프로그램에서 임시 변수가 적게 사용되면 초기화하지 않아서 일어나는 오류나 사용하기 전에 예기치 않게 값이 바뀌는 오류가 줄어든다. Desirable !! Not desirable !! Desirable coding style

39. 39 Style 4 : Use variable name not confusing. - 오류를 유발할 수 있는 문자 - 비슷한 문자열을 같이 사용하거나 끝에 한 글자만 다른 변수명을 사용하는 것은 혼돈을 일으키기 쉽다. 즉, PositionX 와 PositionY 는 XPos, YPos 와 같이 첫 글자부터 다른 이름을 붙이는 것이 좋다. - 축약된 이름을 붙인다. 발음이 가능한 이름으로 한다. 예 ) XPstn 보다는 XPos 숫자문자 예 1 과 I a1 Ai 0 과 O term0 termO 5 과 S TEXT5 TEXTS I 과 l Iist list m 과 n 의 연속사용 mnnm mnmn u 와 v 의 연속사용 vuvu uuvu Desirable coding style

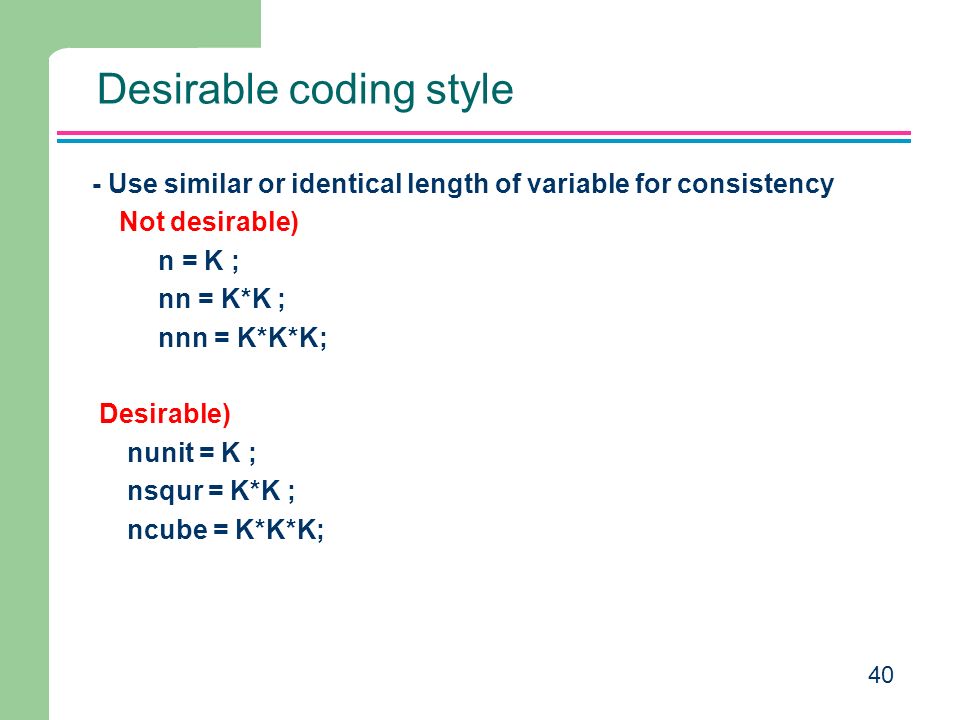

40. 40 - Use similar or identical length of variable for consistency Not desirable) n = K ; nn = K*K ; nnn = K*K*K; Desirable) nunit = K ; nsqur = K*K ; ncube = K*K*K; Desirable coding style

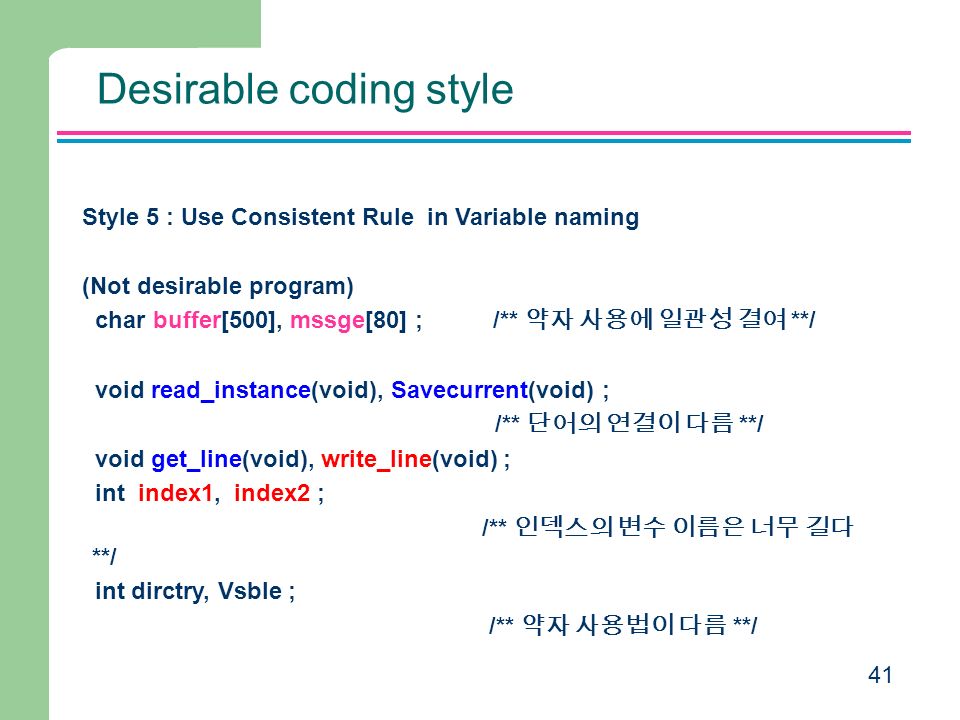

41. 41 Style 5 : Use Consistent Rule in Variable naming (Not desirable program) char buffer[500], mssge[80] ; /** 약자 사용에 일관성 결여 **/ void read_instance(void), Savecurrent(void) ; /** 단어의 연결이 다름 **/ void get_line(void), write_line(void) ; int index1, index2 ; /** 인덱스의 변수 이름은 너무 길다 **/ int dirctry, Vsble ; /** 약자 사용법이 다름 **/ Desirable coding style

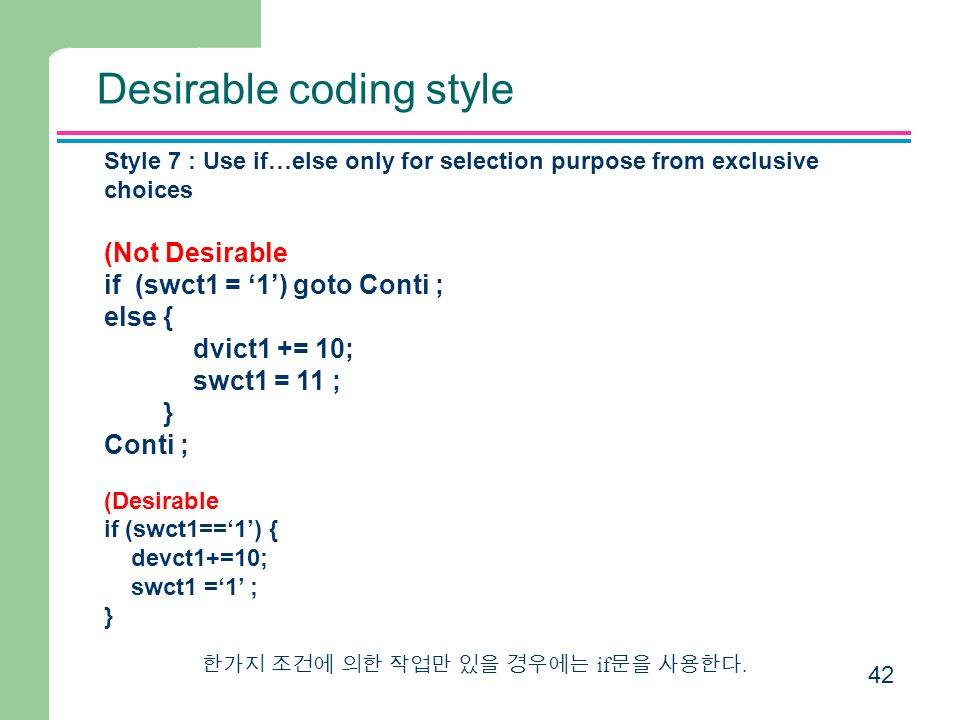

42. 42 Style 7 : Use if…else only for selection purpose from exclusive choices (Not Desirable if (swct1 = ‘1’) goto Conti ; else { dvict1 += 10; swct1 = 11 ; } Conti ; (Desirable if (swct1==‘1’) { devct1+=10; swct1 =‘1’ ; } 한가지 조건에 의한 작업만 있을 경우에는 if 문을 사용한다. Desirable coding style

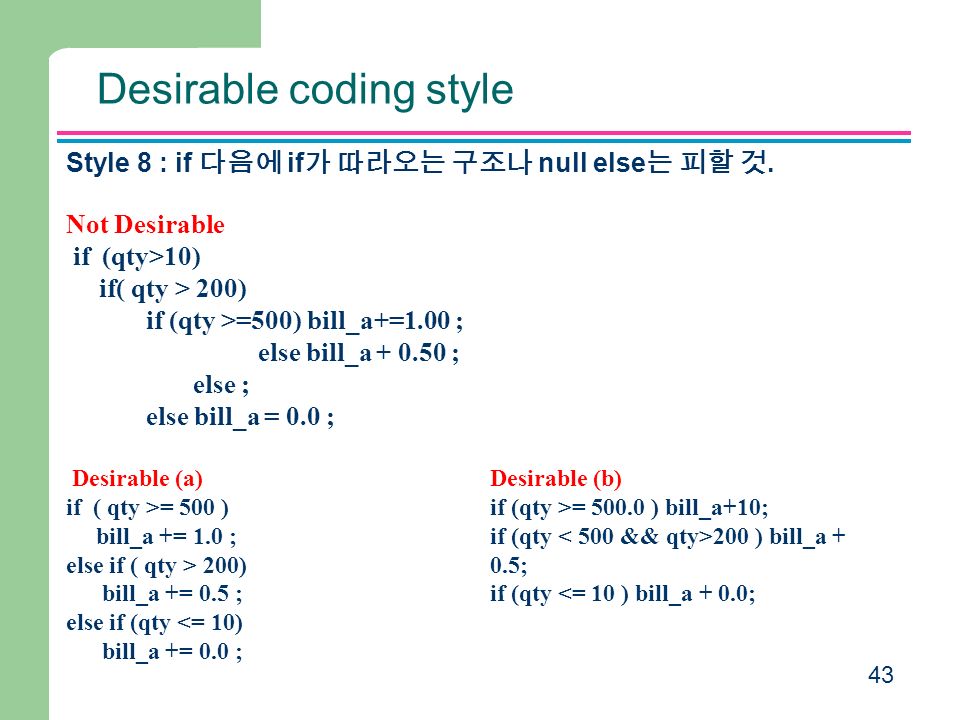

43. 43 Style 8 : if 다음에 if 가 따라오는 구조나 null else 는 피할 것. Not Desirable if (qty>10) if( qty > 200) if (qty >=500) bill_a+=1.00 ; else bill_a + 0.50 ; else ; else bill_a = 0.0 ; Desirable coding style Desirable (a) if ( qty >= 500 ) bill_a += 1.0 ; else if ( qty > 200) bill_a += 0.5 ; else if (qty <= 10) bill_a += 0.0 ; Desirable (b) if (qty >= 500.0 ) bill_a+10; if (qty 200 ) bill_a + 0.5; if (qty <= 10 ) bill_a + 0.0;

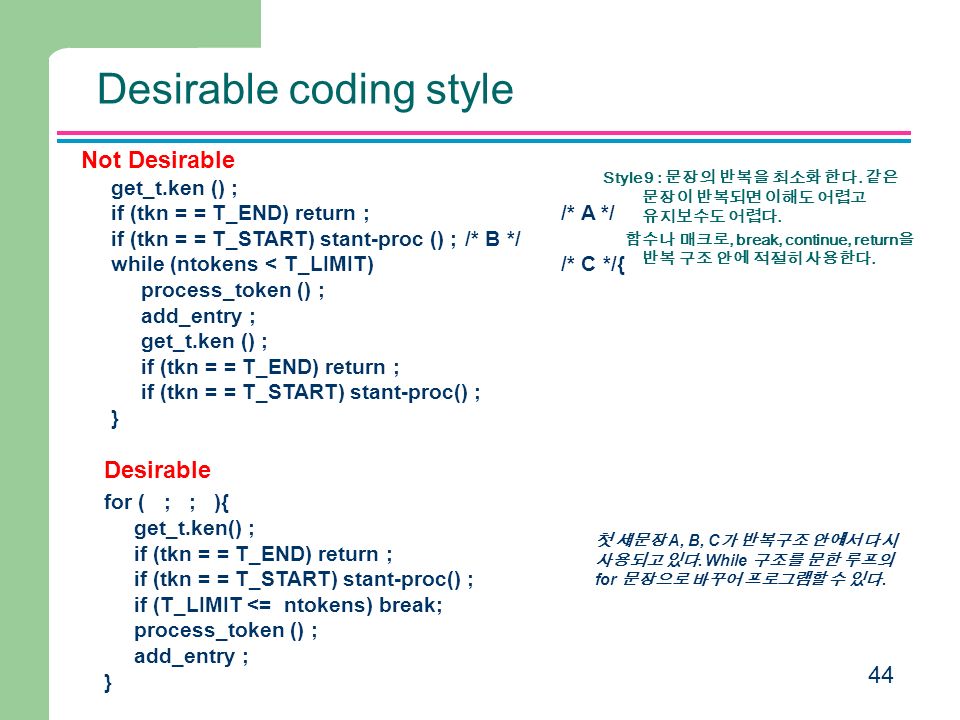

44. 44 Style 9 : 문장의 반복을 최소화 한다. 같은 문장이 반복되면 이해도 어렵고 유지보수도 어렵다. 함수나 매크로, break, continue, return 을 반복 구조 안에 적절히 사용한다. Not Desirable get_t.ken () ; if (tkn = = T_END) return ;/* A */ if (tkn = = T_START) stant-proc () ;/* B */ while (ntokens < T_LIMIT)/* C */{ process_token () ; add_entry ; get_t.ken () ; if (tkn = = T_END) return ; if (tkn = = T_START) stant-proc() ; } Desirable coding style for ( ; ; ){ get_t.ken() ; if (tkn = = T_END) return ; if (tkn = = T_START) stant-proc() ; if (T_LIMIT <= ntokens) break; process_token () ; add_entry ; } 첫 세문장 A, B, C 가 반복구조 안에서 다시 사용되고 있다. While 구조를 문한 루프의 for 문장으로 바꾸어 프로그램할 수 있다. Desirable

45. 45 Programming Standards Standards can be both a blessing and a curse Modules of coincidental cohesion arise from rules like – “Every module will consist of between 35 and 50 executable statements” Better – “Programmers should consult their managers before constructing a module with fewer than 35 or more than 50 executable statements”

46. 46 Remarks on Programming Standards No standard can ever be universally applicable Standards imposed from above will be ignored Standard must be checkable by machine

47. 47 Examples of Good Programming Standards “Nesting of if statements should not exceed a depth of 3, except with prior approval from the team leader” “Modules should consist of between 35 and 50 statements, except with prior approval from the team leader” “Use of goto s should be avoided. However, with prior approval from the team leader, a forward goto may be used for error handling”

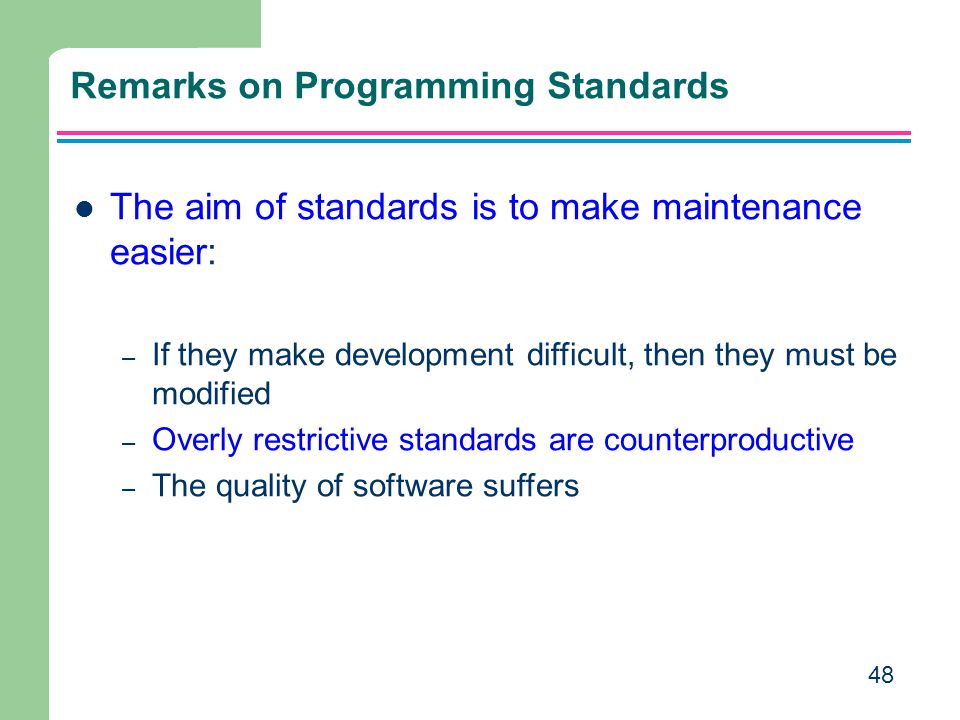

48. 48 Remarks on Programming Standards The aim of standards is to make maintenance easier: – If they make development difficult, then they must be modified – Overly restrictive standards are counterproductive – The quality of software suffers

49. 49 Code Reuse Code reuse is the most common form of reuse However, artifacts from all workflows can be reused :

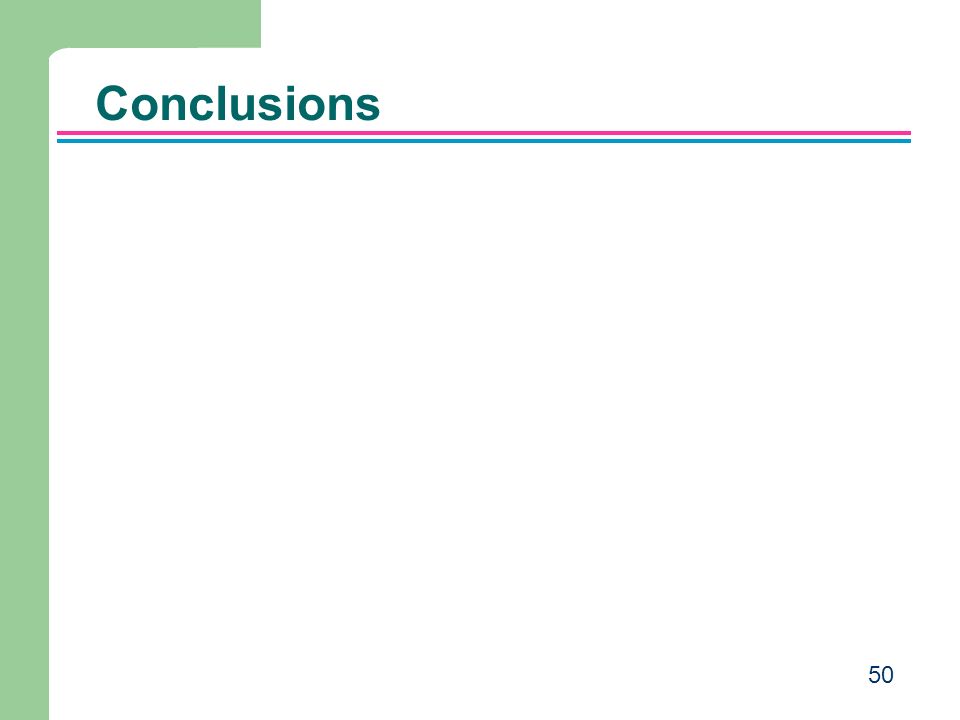

50. 50 Conclusions
