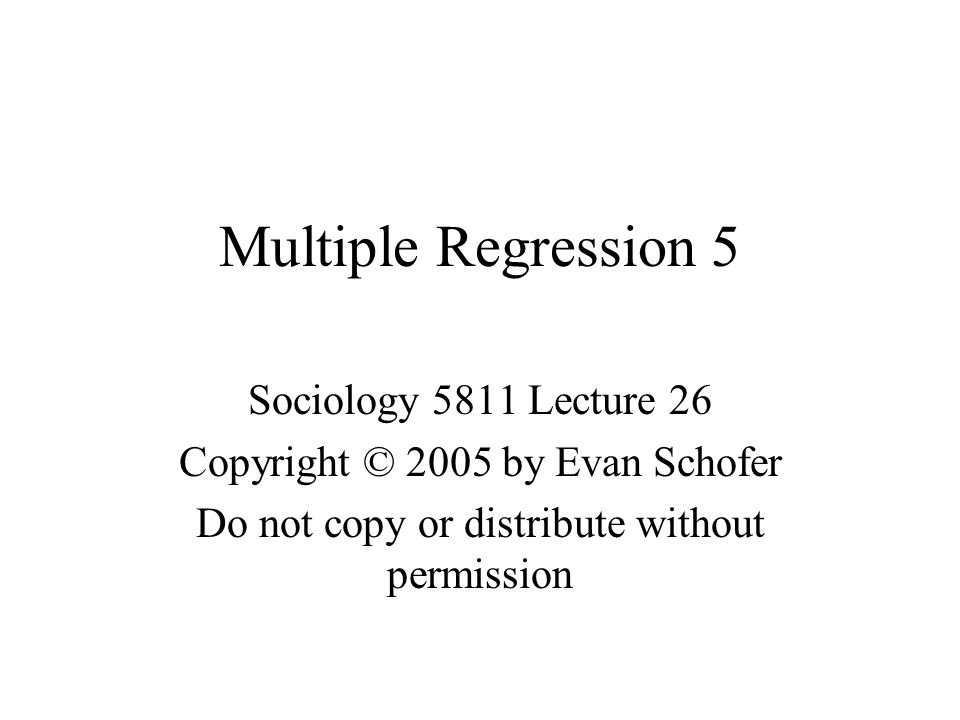

1. Multiple Regression 5 Sociology 5811 Lecture 26 Copyright © 2005 by Evan Schofer Do not copy or distribute without permission

2. Announcements Schedule: –Today: Multiple regression hypothesis tests, assumptions, and problems Reminder: Paper due on Thursday Questions about the paper?

3. Multiple Regression Assumptions As discussed in Knoke, p. 256 Note: Allison refers to error (e) as disturbance (U); And uses slightly different language… but ideas are the same! 1. a. Linearity: The relationship between dependent and independent variables is linear Just like bivariate regression Points don’t all have to fall exactly on the line; but error (disturbance) must not have a pattern –Check scatterplots of X’s and error (residual) Watch out for non-linear trends: error is systematically negative (or positive) for certain ranges of X There are strategies to cope with non-linearity, such as including X and X-squared to model curved relationship.

4. Multiple Regression Assumptions 1. b. And, the model is properly specified: –No extra variables are included in the model, and no important variables are omitted. This is HARD! Correct model specification is critical If an important variable is left out of the model, results are biased (“omitted variable bias”) –Example: If we model job prestige as a function of family wealth, but do not include education Coefficient estimate for wealth would be biased –Use theory and previous research to decide what critical variables must be included in your model.

5. Multiple Regression Assumptions Correct model specification is critical –If an important variable is left out of the model, results are biased This is called “omitted variable bias” –Example: If we model job prestige as a function of family wealth, but do not include education Coefficient estimate for wealth would be biased –Use theory and previous research to help you identify critical variables For final paper, it is OK if model isn’t perfect.

6. Multiple Regression Assumptions 2. All variables are measured without error Unfortunately, error is common in measures –Survey questions can be biased –People give erroneous responses (or lie) –Aggregate statistics (e.g., GDP) can be inaccurate This assumption is often violated to some extent –We do the best we can: –Design surveys well, use best available data –And, there are advanced methods for dealing with measurement error.

7. Multiple Regression Assumptions 3. The error term (e i ) has certain properties Recall: error is a cases deviation from the regression line Not the same as measurement error! After you run a regression, SPSS can tell you the error value for any or all cases (called the “residual”) 3. a. Error is conditionally normal –For bivariate, we looked to see if Y was conditionally normal… Here, we look to see if error is normal –Examine “residuals” (e i ) for normality at different values of X variables.

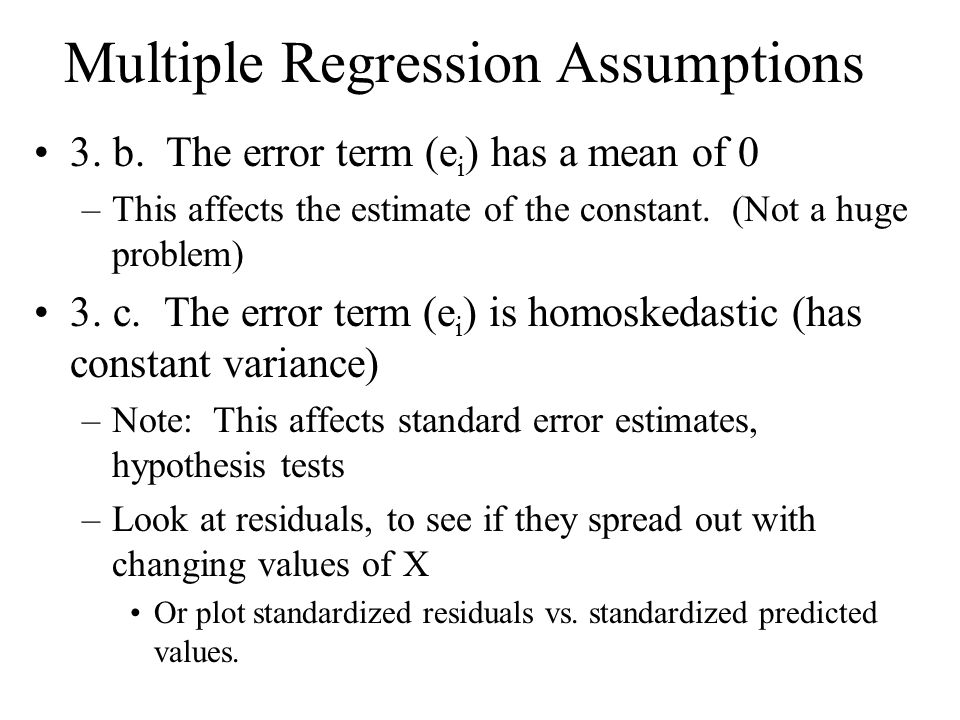

8. Multiple Regression Assumptions 3. b. The error term (e i ) has a mean of 0 –This affects the estimate of the constant. (Not a huge problem) 3. c. The error term (e i ) is homoskedastic (has constant variance) –Note: This affects standard error estimates, hypothesis tests –Look at residuals, to see if they spread out with changing values of X Or plot standardized residuals vs. standardized predicted values.

9. Multiple Regression Assumptions 3. d. Predictors (X i s) are uncorrelated with error –This most often happens when we leave out an important variable that is correlated with another X i –Example: Predicting job prestige with family wealth, but not including education –Omission of education will affect error term. Those with lots of education will have large positive errors. Since wealth is correlated with education, it will be correlated with that error! –Result: coefficient for family wealth will be biased.

10. Multiple Regression Assumptions 4. In systems of equations, error terms of equations are uncorrelated Knoke, p. 256 –This is not a concern for us in this class Worry about that later!

11. Multiple Regression Assumptions 5. Sample is independent, errors are random Technically, part of 3.c. –Not only should errors not increase with X (heteroskedasticity), there should be no pattern at all! Things that cause patterns in error (autocorrelation): –Measuring data over long periods of time (e.g., every year). Error from nearby years may be correlated. Called: “Serial correlation”.

12. Multiple Regression Assumptions More things that cause patterns in error (autocorrelation): –Measuring data in families. All members are similar, will have correlated error –Measuring data in geographic space. Example: data on 50 US states. States in a similar region have correlated error Called “spatial autocorrelation” There are variations of regression models to address each kind of correlated error.

13. Multiple Regression Assumptions Regression assumptions and final projects: At a minimum, check all bivariate regression assumptions –Also, you should check for outliers To be discussed soon! –If you are capable of doing multiple regression assumptions, go ahead and do them It will show mastery… which can’t hurt your grade!

14. Regression: Outliers Note: Even if regression assumptions are met, slope estimates can have problems Example: Outliers -- cases with extreme values that differ greatly from the rest of your sample More formally: “influential cases” Outliers can result from: Errors in coding or data entry Highly unusual cases Or, sometimes they reflect important “real” variation Even a few outliers can dramatically change estimates of the slope, especially if N is small.

15. Regression: Outliers Outlier Example: -4 -2 0 2 4 4 2 -2 -4 Extreme case that pulls regression line up Regression line with extreme case removed from sample

16. Regression: Outliers Strategy for identifying outliers: 1. Look at scatterplots or regression partial plots for extreme values Easiest. A minimum for final projects 2. Ask SPSS to compute outlier diagnostic statistics –Examples: “Leverage”, Cook’s D, DFBETA, residuals, standardized residuals.

17. Regression: Outliers SPSS Outlier strategy: Go to Regression – Save –Choose “influence” and “distance” statistics such as Cook’s Distance, DFFIT, standardized residual –Result: SPSS will create new variables with values of Cook’s D, DFFIT for each case –High values signal potential outliers –Note: This is less useful if you have a VERY large dataset, because you have to look at each case value.

18. Scatterplots Example: Study time and student achievement. –X variable: Average # hours spent studying per day –Y variable: Score on reading test CaseXY 12.628 21.413 3.6517 44.131 5.258 61.916 73.56 Y axis X axis 0 1 2 3 4 30 20 10 0

19. Outliers Results with outlier:

20. Outlier Diagnostics Residuals: The numerical value of the error Error = distance that points falls from the line Cases with unusually large error may be outliers Standardized residuals Z-score of residuals… converts to a neutral unit Often, standardized residuals larger than 3 are considered worthy of scrutiny But, it isn’t the best outlier diagnostic.

21. Outlier Diagnostics Cook’s D: Identifies cases that are strongly influencing the regression line –SPSS calculates a value for each case Go to “Save” menu, click on Cook’s D How large of a Cook’s D is a problem? –Rule of thumb: Values greater than: 4 / (n – k – 1) –Example: N=7, K = 1: Cut-off = 4/5 =.80 –Cases with higher values should be examined.

22. Outlier Diagnostics Example: Outlier/Influential Case Statistics HoursScoreResidStd ResidCook’s D 2.60289.321.01.124 1.4013-1.97-.215.006.65174.33.473.070 4.10317.70.841.640.258-3.43-.374.082 1.9016-.515-.056.0003 3.506-15.4-1.68.941

23. Outliers Results with outlier removed:

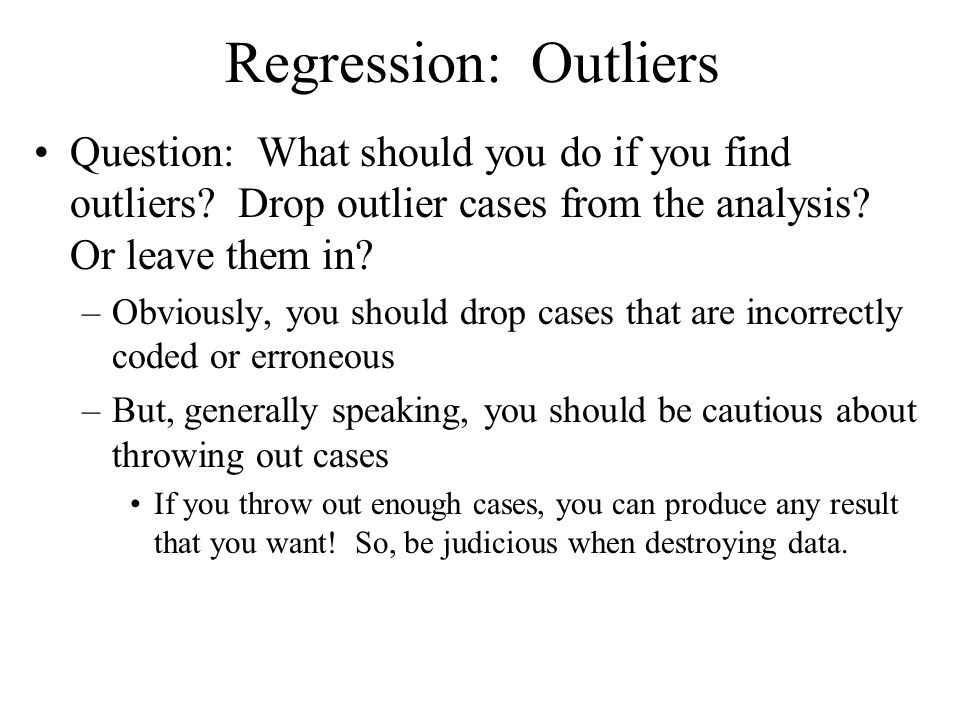

24. Regression: Outliers Question: What should you do if you find outliers? Drop outlier cases from the analysis? Or leave them in? –Obviously, you should drop cases that are incorrectly coded or erroneous –But, generally speaking, you should be cautious about throwing out cases If you throw out enough cases, you can produce any result that you want! So, be judicious when destroying data.

25. Regression: Outliers Circumstances where it can be good to drop outlier cases: 1. Coding errors 2. Single extreme outliers that radically change results Your results should reflect the dataset, not one case! 3. If there is a theoretical reason to drop cases Example: In analysis of economic activity, communist countries may be outliers If the study is about “capitalism”, they should be dropped.

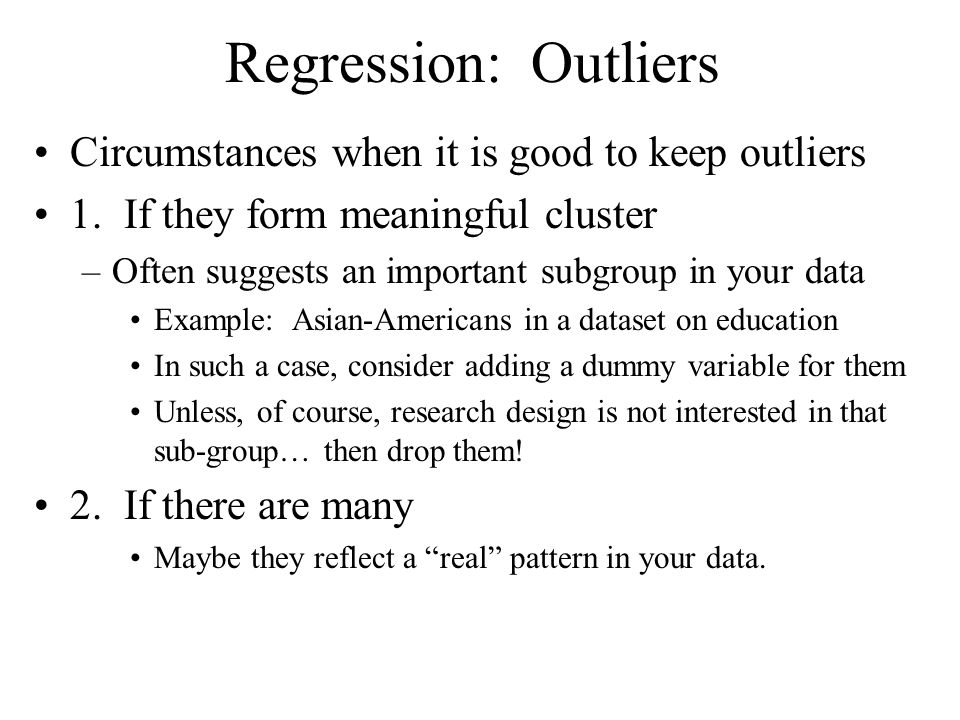

26. Regression: Outliers Circumstances when it is good to keep outliers 1. If they form meaningful cluster –Often suggests an important subgroup in your data Example: Asian-Americans in a dataset on education In such a case, consider adding a dummy variable for them Unless, of course, research design is not interested in that sub-group… then drop them! 2. If there are many Maybe they reflect a “real” pattern in your data.

27. Regression: Outliers When in doubt: Present results both with and without outliers Or present one set of results, but mention how results differ depending on how outliers were handled For final projects: Check for outliers! At least with scatterplots But, a better strategy is to use partialplots and Cooks D (or similar statistics) –In the text: Mention if there were outliers, how you handled them, and the effect it had on results.

28. Multiple Regression Problems Another common regression problem: Multicollinearity Definition: collinear = highly correlated Multicollinearity = inclusion of highly correlated independent variables in a single regression model Recall: High correlation of X variables causes problems for estimation of slopes (b’s) Recall: variable denominators approach zero, coefficients may wrong/too large.

29. Multiple Regression Problems Multicollinearity symptoms: –Addition of a new variable to the model causes other variables to change wildly Note: occasionally a major change is expected (e.g., if a key variable is added, or for interaction terms) –If a variable typically has a small effect BUT, when paired with another highly correlated variable, BOTH have big effects in opposite directions.

30. Multicollinearity Diagnosing multicollinearity: 1. Look at correlations of all independent vars –Correlation of.7 is a concern,.8> is often a problem –But, sometimes problems aren’t always bivariate… and don’t show up in bivariate correlations Ex: If you forget to omit a dummy variable 2. Watch out for the “symptoms” 3. Compute diagnostic statistics Tolerances, VIF (Variance Inflation Factor).

31. Multicollinearity Multicollinearity diagnostic statistics: “Tolerance”: Easily computed in SPSS –Low values indicate possible multicollinearity Start to pay attention at.4; Below.2 is very likely to be a problem –Tolerance is computed for each independent variable by regressing it on other independent variables.

32. Multicollinearity If you have 3 independent variables: X 1, X 2, X 3 … –Tolerance is based on doing a regression: X 1 is dependent; X 2 and X 3 are independent. Tolerance for X 1 is simply 1 minus regression R-square. If a variable (X 1 ) is highly correlated with all the others (X 2, X 3 ) then they will do a good job of predicting it in a regression Result: Regression r-square will be high… 1 minus r- square will be low… indicating a problem.

33. Multicollinearity Variance Inflation Factor (VIF) is the reciprocal of tolerance: 1/tolerance High VIF indicates multicollinearity –Gives an indication of how much the Standard Error of a variable grows due to presence of other variables.

34. Multicollinearity Solutions to multcollinearity –It can be difficult if a fully specified model requires several collinear variables 1. Drop unnecessary variables 2. If two collinear variables are really measuring the same thing, drop one or make an index –Example: Attitudes toward recycling; attitude toward pollution. Perhaps they reflect “environmental views” 3. Advanced techniques: e.g., Ridge regression Uses a more efficient estimator (but not BLUE – may introduce bias).
