1. 1 NYSERNet Updates and the Next Generation Network Joint Techs Meeting Salt Lake City, Feb 2005 Bill Owens

2. 2 NYSERNet is... the research and education network in New York State the Internet2 gigaPoP in NY a 501(c)3 not-for-profit a membership organization financially self-supporting long-lived (since 1985) dedicated to the R&E community (no commercial customers) A little bit about NYSERNet NYSERNet is not... large (staff of 16) a state agency an ISP (we resell commercial ISP service) a carrier or CLEC

3. Manhattan Dark Fiber 22 sites — 1,528 miles of fiber...

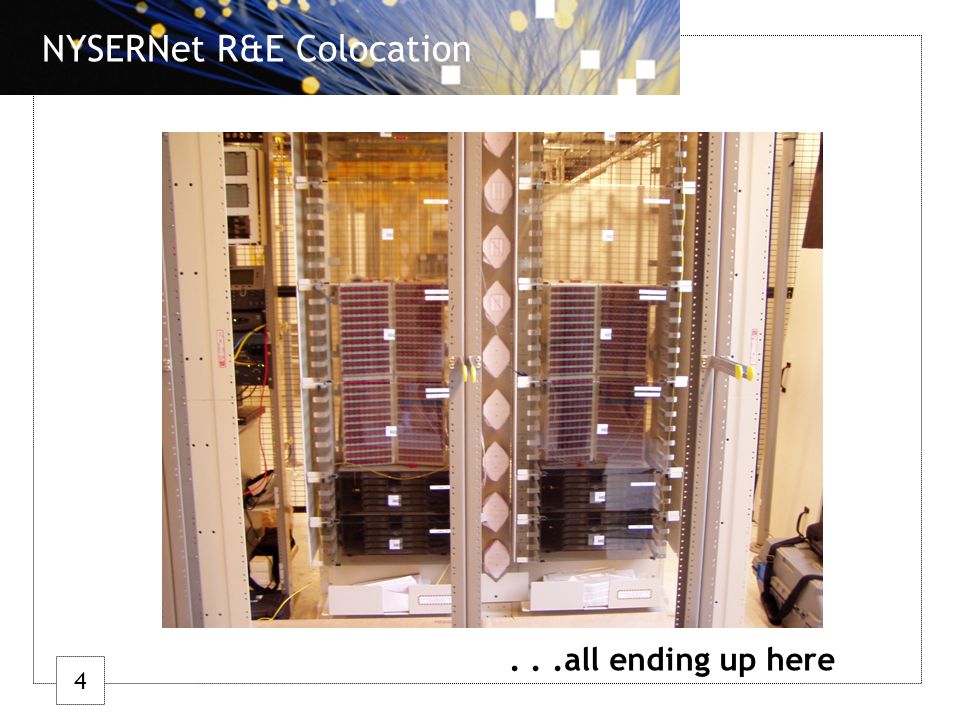

4. 4 NYSERNet R&E Colocation...all ending up here

5. 5 16,896 pounds of batteries NYSERNet R&E Colocation

6. 6 97,000 watts of DC power (with room for more)

7. Ocean cables connected through New York City

8. 8 Colocated networks at 32 AofA American Museum of Natural History City University of New York Columbia University Fordham University Mount Sinai School of Medicine New York Presbyterian Hospital New York University NYSERNet Weill Medical College CA*net MAN LAN GÉANT HEAnet HOPI (2Q05) National Lambda Rail (2Q05) NYSERNet R&E Colocation

9. 9 R&E Bandwidth into 32 AofA 10 Gbps (OC-192 or 10GE) CANARIE - Toronto (x2) and Montreal Abilene - NYCM (x2) SURFNet (x2) ESnet SINET Other Circuits GÉANT - London and Paris (OC-48 x2) HEAnet - Dublin (OC-12) NYSERNet - (GigE x3) Qatar Foundation (GigE) NYSERNet R&E Colocation 99 Gbps and counting...

10. 10 NYSERNet R&E Colocation

11. 11 NYSERNet R&E Colocation

12. 12 NYSERNet R&E Colocation 41 racks and cabinets - 28 in use or planned

13. 13 Albert Einstein College of Medicine American Museum of Natural History Binghamton University Brookhaven National Laboratory * City University of New York * Clarkson University Columbia University Cornell University Fordham University * Hofstra University * IBM Watson Research Laboratory Marist College Mt. Sinai School of Medicine New School University New York Public Library * NYSERNet Member Institutions New York University Pace University Rensselaer Polytechnic Institute Rochester Institute of Technology Rockefeller University Stony Brook University SUNY Geneseo SUNY Potsdam Syracuse University University at Albany University at Buffalo University of Rochester Upstate Medical University Weill Medical College The NYSERNet Network Today * In progress

14. Abilene MAN LAN Buffalo Rochester Syracuse Albany 32 AofA Abilene NYSERNet’s Current Statewide R&E Network — 1999-2004 HEAnet CA*net 60 Hudson OC-12 GigE legend NYSERNet PoP 10 GigE R&E Network DWDM

15. Abilene MAN LAN Buffalo Rochester Albany 32 AofA Abilene NYSERNet DWDM and R&E Networks — 2005 HEAnet CA*net Syracuse OC-12 GigE legend NYSERNet PoP 10 GigE R&E Network DWDM NLR ESnet

16. 16 New Transport 516 route miles of dark fiber 4 new PoPs (plus 32 AofA) and 8 new line amplifier sites New Equipment Cisco routers (7609/Sup720 upstate, 12410 in NYC) Cisco DWDM (15454 with ROADM) Gigabit Ethernet as the primary transport New Capabilities Backbone bandwidth increase (OC-12 to multiple GigE) Partial mesh to reduce the impact of a single failure Optical transport between any of the PoPs, 32 lambdas at up to 10 Gbps New Network Design

17. 17 R&E IP connections: GigE over ‘bare’ fiber Colocated switch or router Metro CWDM or DWDM CLEC lit services (Ethernet or SONET) Combined R&E and commercial over a single Ethernet local loop New Connection Options Lambda connections: Switch or Router through a transponder Switch or Router with DWDM pluggable optics Metro CWDM or DWDM through a transponder Metro WDM with pluggable optics (someday!) SAN switch through a transponder

18. New Connection Options

19. NYSERNet, Inc. 100 Elwood Davis Rd. Syracuse, New York 13212 315-413-0345 www.nysernet.org nextgen.nysernet.org
