1. Managing the Windows Vista* Transition on Intel ® Professional Business Platforms Justin Van Buren Digital Office Platform Marketing Business Client Group, Digital Enterprise Group Intel Corporation | May 25, 2006

2. Meet Technology Experts: Visit the Intel Energy Efficient Performance Lounge in room 603 Energy Efficient Performance drives the Digital Future: Great Performance Expanded Capabilities Energy Efficiency New Possibilities Learn more about the nine Intel Developer Forum Flagship events worldwide visit: http://www.intel.com/idf Thursday, May 25th 9:30-10:30am Managing the Windows Vista Transition and Preparing for the Future with the Intel ® vPro TM technology and Intel ® Centrino ® Duo Mobile Technology 10:30-11:30am Driving Energy-Efficient Performance Using New Intel Server Platforms 1:00-2:00pm Energy-Efficient threading for Intel ® Core™ Microarchitecture

3. Agenda Windows Vista* and Intel ® Professional Business Platforms Windows Vista Experience - Past, Current and Future Intel Professional Business Platforms Deployment of Windows Vista into Installed PC Base Recommendations

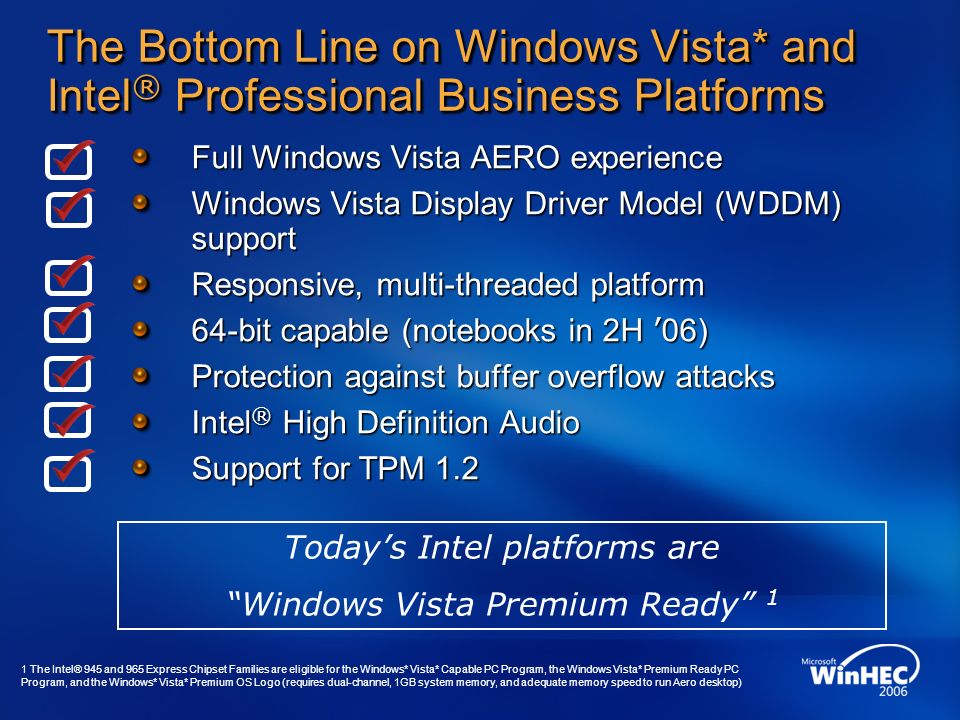

4. The Bottom Line on Windows Vista* and Intel ® Professional Business Platforms Full Windows Vista AERO experience Windows Vista Display Driver Model (WDDM) support Responsive, multi-threaded platform 64-bit capable (notebooks in 2H ’ 06) Protection against buffer overflow attacks Intel ® High Definition Audio Support for TPM 1.2 Today’s Intel platforms are “Windows Vista Premium Ready” 1 1 The Intel® 945 and 965 Express Chipset Families are eligible for the Windows* Vista* Capable PC Program, the Windows Vista* Premium Ready PC Program, and the Windows* Vista* Premium OS Logo (requires dual-channel, 1GB system memory, and adequate memory speed to run Aero desktop)

5. Full AERO professional experience supported on current Intel integrated graphics chipsets Desktop – Intel ® 945G Express chipset Mobile – Intel ® 945GM Express chipset No discrete graphics card required WDDM drivers available today Desktop drivers bundled with latest Windows Vista CTP build Mobile drivers are available through mobile PC vendors Support for all Windows Vista SKUs, including Ultimate Edition Intel Production WDDM drivers will be available via support.intel.com and through Windows Update Intel Graphics Support for AERO

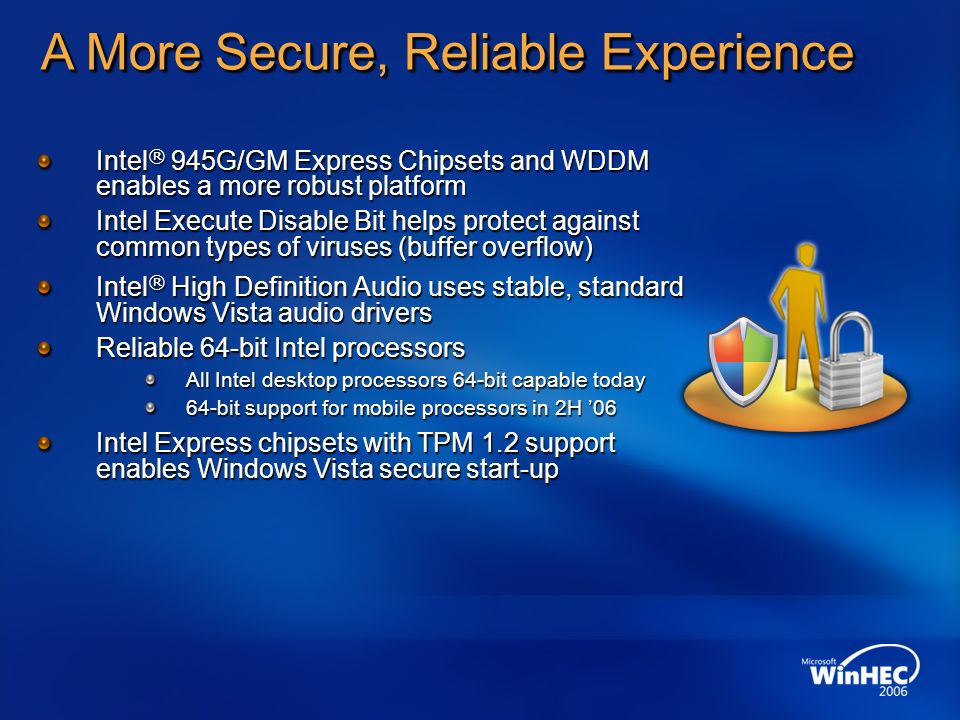

6. Intel ® 945G/GM Express Chipsets and WDDM enables a more robust platform Intel Execute Disable Bit helps protect against common types of viruses (buffer overflow) Intel ® High Definition Audio uses stable, standard Windows Vista audio drivers Reliable 64-bit Intel processors All Intel desktop processors 64-bit capable today 64-bit support for mobile processors in 2H ’06 Intel Express chipsets with TPM 1.2 support enables Windows Vista secure start-up A More Secure, Reliable Experience

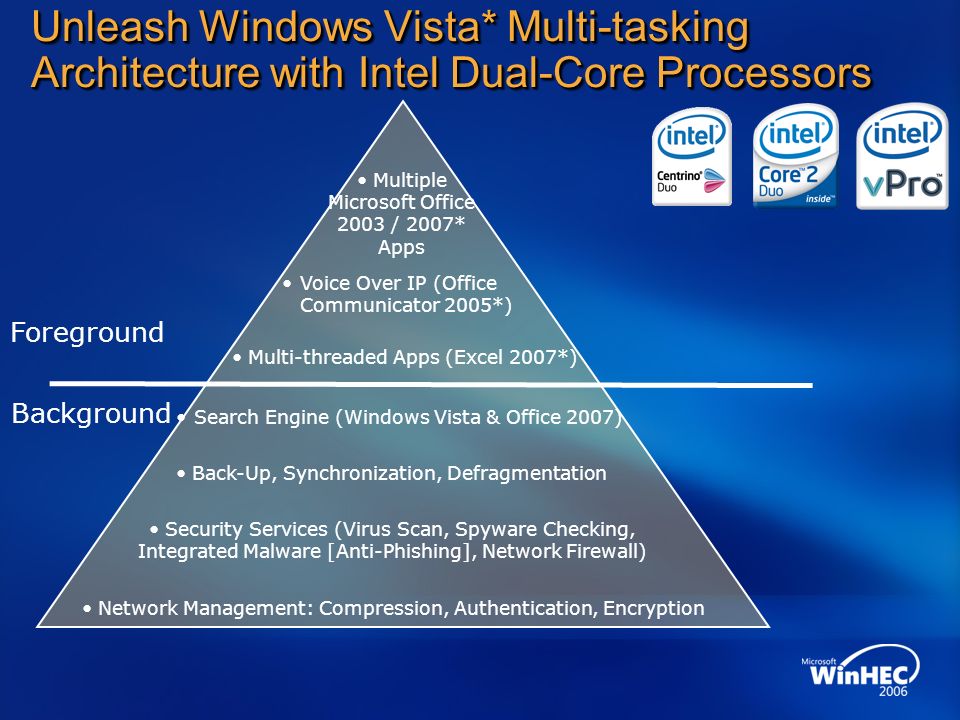

7. Unleash Windows Vista* Multi-tasking Architecture with Intel Dual-Core Processors Foreground Background Voice Over IP (Office Communicator 2005*) Search Engine (Windows Vista & Office 2007) Multiple Microsoft Office 2003 / 2007* Apps Multi-threaded Apps (Excel 2007*) Security Services (Virus Scan, Spyware Checking, Integrated Malware [Anti-Phishing], Network Firewall) Back-Up, Synchronization, Defragmentation Network Management: Compression, Authentication, Encryption

8. Agenda Windows Vista* and Intel Professional Business Platforms Windows Vista Experience - Past, Current and Future Intel Professional Business Platforms Deployment of Windows Vista into Installed PC Base Recommendations

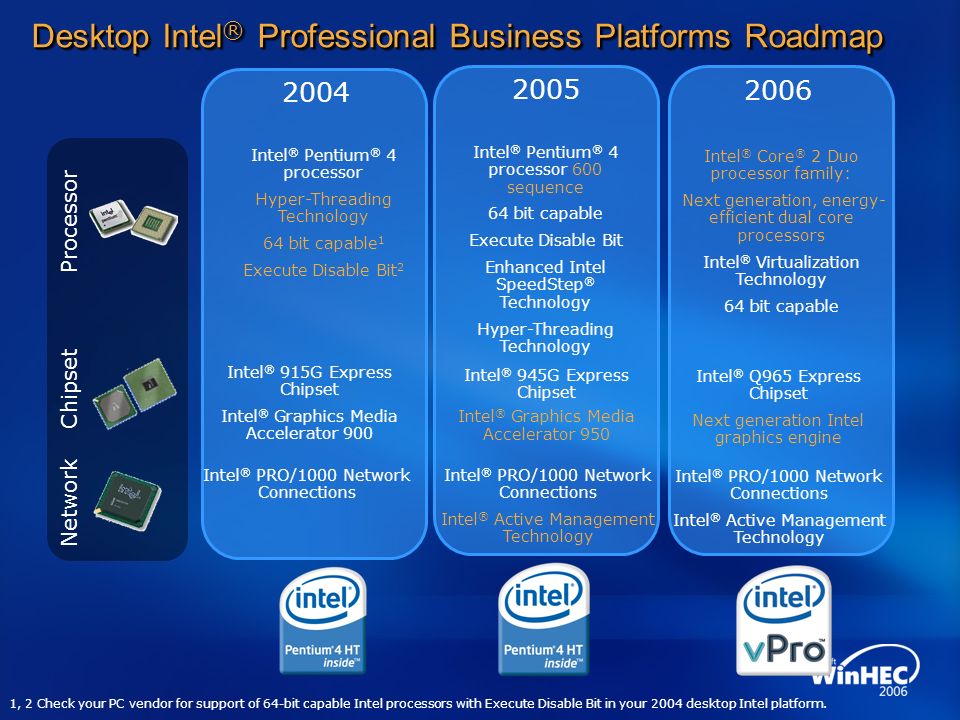

9. Desktop Intel ® Professional Business Platforms Roadmap Network Chipset Processor 2006 Intel ® Core ® 2 Duo processor family: Next generation, energy- efficient dual core processors Intel ® Virtualization Technology 64 bit capable Intel ® Q965 Express Chipset Next generation Intel graphics engine 2005 Intel ® 945G Express Chipset Intel ® Graphics Media Accelerator 950 Intel ® Pentium ® 4 processor 600 sequence 64 bit capable Execute Disable Bit Enhanced Intel SpeedStep ® Technology Hyper-Threading Technology 2004 Intel ® 915G Express Chipset Intel ® Graphics Media Accelerator 900 Intel ® PRO/1000 Network Connections Intel ® Pentium ® 4 processor Hyper-Threading Technology 64 bit capable 1 Execute Disable Bit 2 Intel ® PRO/1000 Network Connections Intel ® Active Management Technology Intel ® PRO/1000 Network Connections Intel ® Active Management Technology 1, 2 Check your PC vendor for support of 64-bit capable Intel processors with Execute Disable Bit in your 2004 desktop Intel platform.

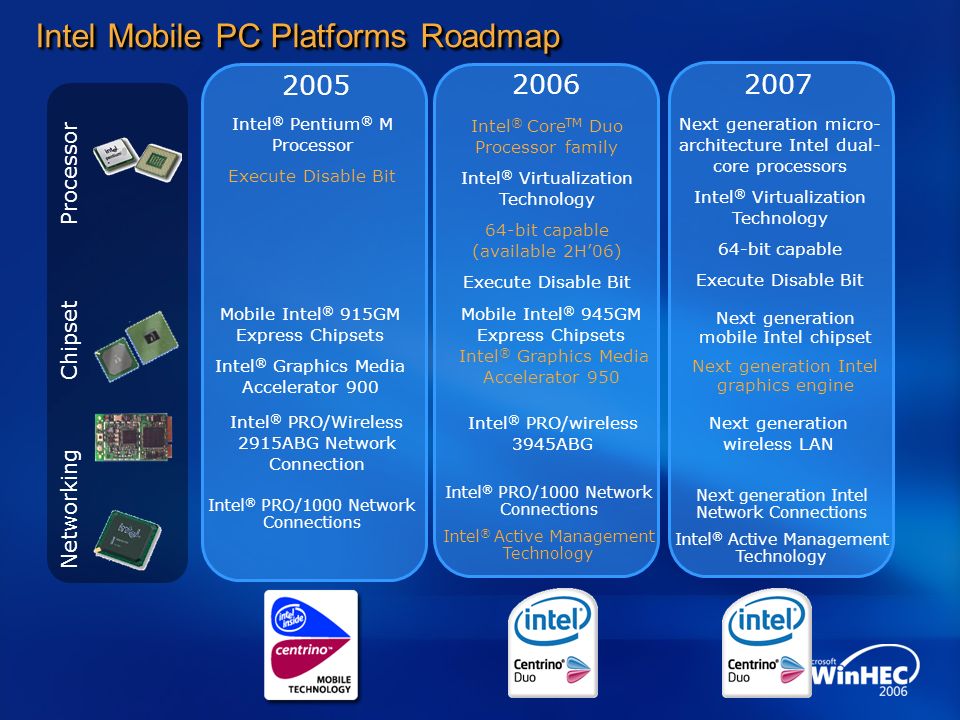

10. Networking Chipset Processor 2007 2006 2005 Intel Mobile PC Platforms Roadmap Next generation micro- architecture Intel dual- core processors Intel ® Virtualization Technology 64-bit capable Execute Disable Bit Next generation wireless LAN Intel ® Core TM Duo Processor family Intel ® Virtualization Technology 64-bit capable (available 2H’06) Execute Disable Bit Mobile Intel ® 945GM Express Chipsets Intel ® Graphics Media Accelerator 950 Intel ® PRO/wireless 3945ABG Intel ® Pentium ® M Processor Execute Disable Bit Mobile Intel ® 915GM Express Chipsets Intel ® Graphics Media Accelerator 900 Intel ® PRO/Wireless 2915ABG Network Connection Intel ® PRO/1000 Network Connections Intel ® Active Management Technology Next generation Intel Network Connections Intel ® Active Management Technology Next generation mobile Intel chipset Next generation Intel graphics engine

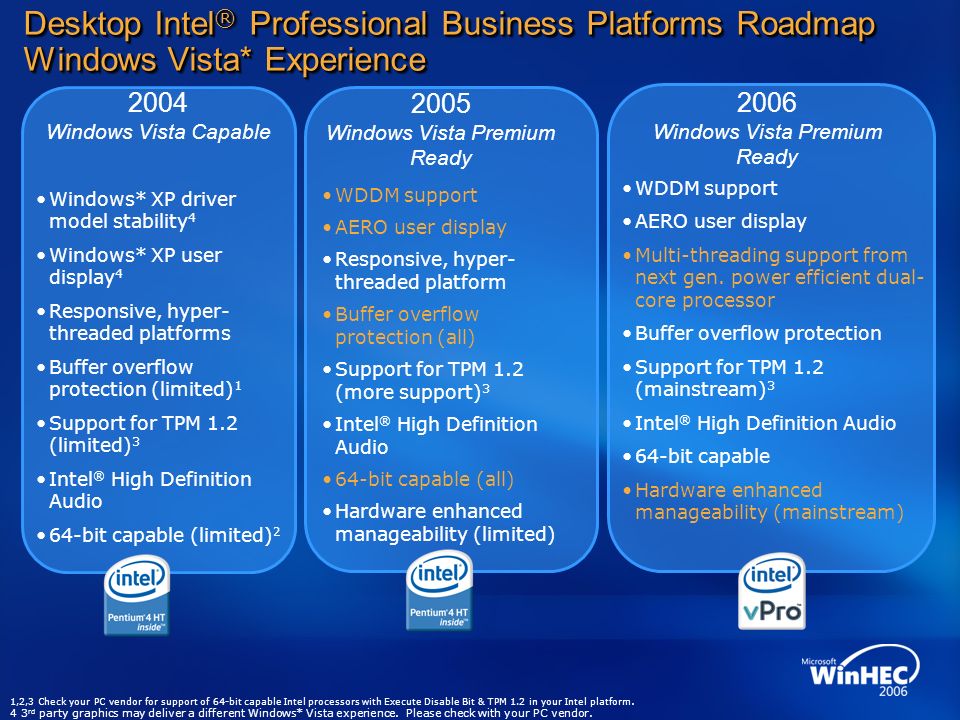

11. Desktop Intel ® Professional Business Platforms Roadmap Windows Vista* Experience 2006 Windows Vista Premium Ready 2005 Windows Vista Premium Ready 2004 Windows Vista Capable Windows* XP driver model stability 4 Windows* XP user display 4 Responsive, hyper- threaded platforms Buffer overflow protection (limited) 1 Support for TPM 1.2 (limited) 3 Intel ® High Definition Audio 64-bit capable (limited) 2 WDDM support AERO user display Responsive, hyper- threaded platform Buffer overflow protection (all) Support for TPM 1.2 (more support) 3 Intel ® High Definition Audio 64-bit capable (all) Hardware enhanced manageability (limited) WDDM support AERO user display Multi-threading support from next gen. power efficient dual- core processor Buffer overflow protection Support for TPM 1.2 (mainstream) 3 Intel ® High Definition Audio 64-bit capable Hardware enhanced manageability (mainstream) 1,2,3 Check your PC vendor for support of 64-bit capable Intel processors with Execute Disable Bit & TPM 1.2 in your Intel platform. 4 3 rd party graphics may deliver a different Windows* Vista experience. Please check with your PC vendor.

12. 2007 Windows Vista Premium Ready 2006 Windows Vista Premium Ready 2005 Windows Vista Capable Windows* XP driver model stability 4 Windows* XP user display Good single-threaded performance Buffer overflow protection (mainstream) 1 Support for TPM 1.2 (limited) 3 Intel ® High Definition Audio Designed for wireless & mobile WDDM support AERO user display Multi-threading support from dual-core processing Buffer overflow protection Support for TPM 1.2 (more support) 3 Intel ® High Definition Audio Designed for wireless & mobile 64-bit capable (2H’06) 2 Hardware enhanced manageability (limited) Intel Mobile PC Platforms Roadmap Windows* Vista Experience WDDM support AERO user display Multi-threading support from next-gen power efficient dual- core processor 64-bit capable (mainstream) 2 Buffer overflow protection Support for TPM 1.2 (mainstream) 3 Intel ® High Definition Audio Designed for wireless & mobile Hardware enhanced manageability (mainstream) 1,2,3 Check your PC vendor for support of 64-bit capable Intel processors with Execute Disable Bit & TPM 1.2 in your Intel platform. 4 3 rd party graphics may deliver a different Windows* Vista experience. Please check with your PC vendor.

13. Agenda Windows* Vista and Intel Professional Business Platforms Windows Vista Experience - Past, Current and Future Intel Business Platforms Deployment of Windows Vista into Installed PC Base Recommendations

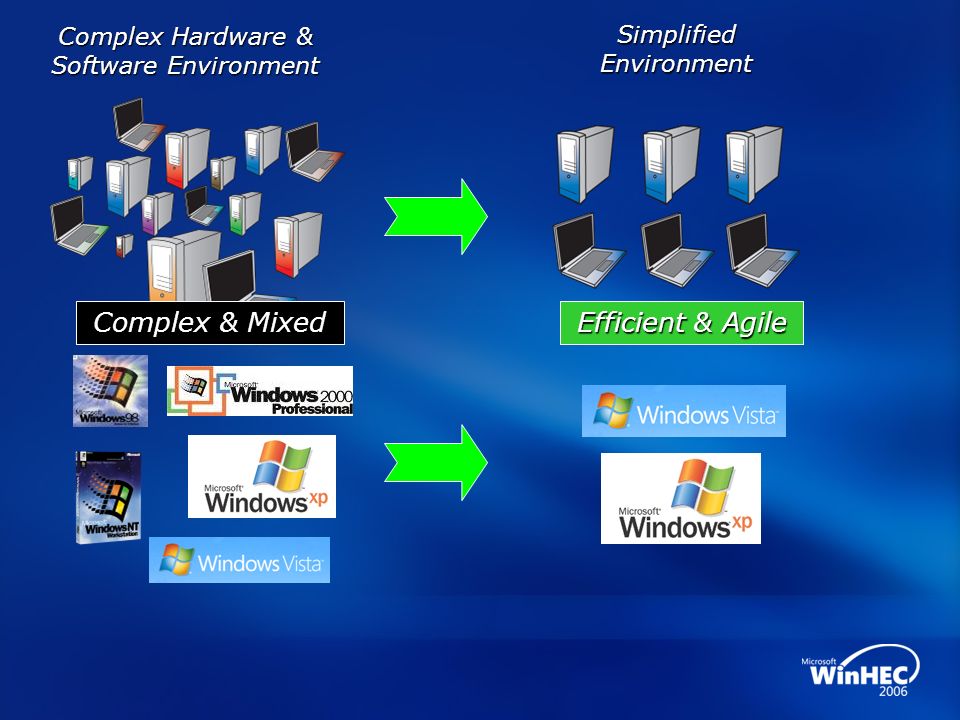

14. Complex Hardware & Software Environment Simplified Environment Complex & Mixed Efficient & Agile

15. “We need to stamp out complexity, and the Intel Stable Image Platform goes a long way toward doing that.” Ken Zinnato, Technology Architect at DuPont Intel ® Stable Image Platform Program

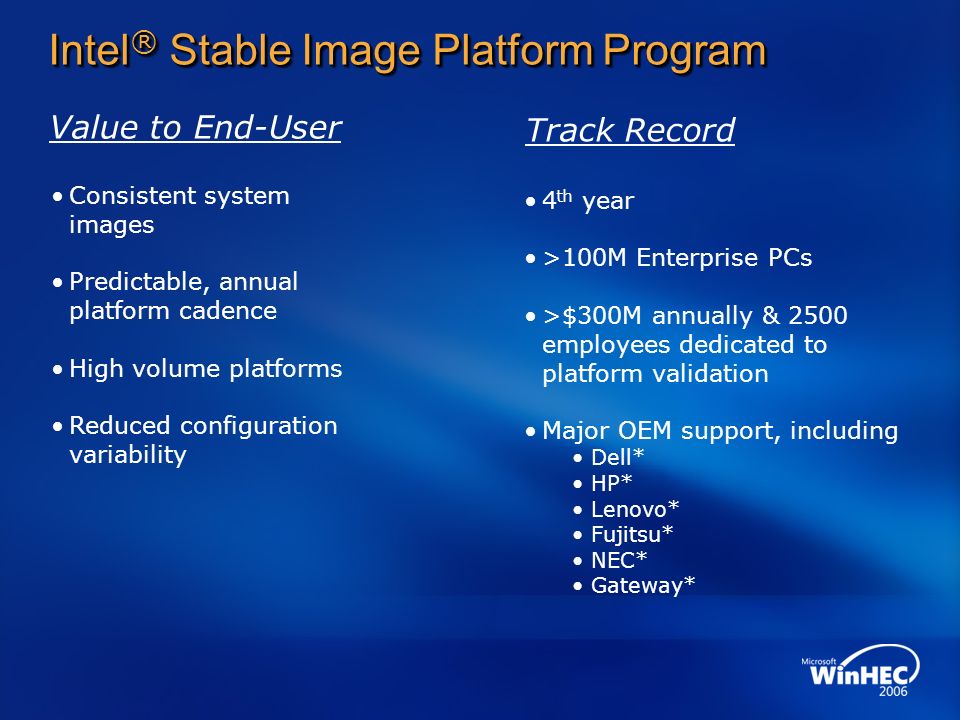

16. Consistent system images Predictable, annual platform cadence High volume platforms Reduced configuration variability Value to End-User Track Record 4 th year >100M Enterprise PCs >$300M annually & 2500 employees dedicated to platform validation Major OEM support, including Dell* HP* Lenovo* Fujitsu* NEC* Gateway*

17. Elements of an Intel ® SIPP Platform Designated Intel processor Designated Intel chipset Designated Intel networking Software: Integrated platform developed, validated and supported by Intel Hardware: Intel chipset drivers Intel integrated graphics drivers Intel audio drivers Intel storage drivers Intel wired LAN drivers Intel wireless LAN drivers

18. Intel ® Stable Image Platform Program components Processor Intel ® Pentium ® 4 Processor Supporting Hyper-Threading Technology 1 Intel ® Core TM Duo Processor Intel ® Core TM Solo Processor Chipset Intel ® 945G Express Chipset Mobile Intel ® 945GM Express Chipset Mobile Intel ® 945PM Express Chipset Networking Intel ® PRO/1000 PM Network Connection Intel ® PRO/Wireless 3945ABG Network Connection Intel ® PRO/1000 PM or PL Network Connection 1 Look for systems with the Intel® Pentium® 4 Processor with HT Technology logo which your system vendor has verified utilize Hyper- Threading Technology. Performance will vary depending on the specific hardware and software you use. See http://www.intel.com/info/hyperthreading/ for information. http://www.intel.com/info/hyperthreading/ Complete list of Intel SIPP components and associated drivers at www.intel.com/go/stableplatform

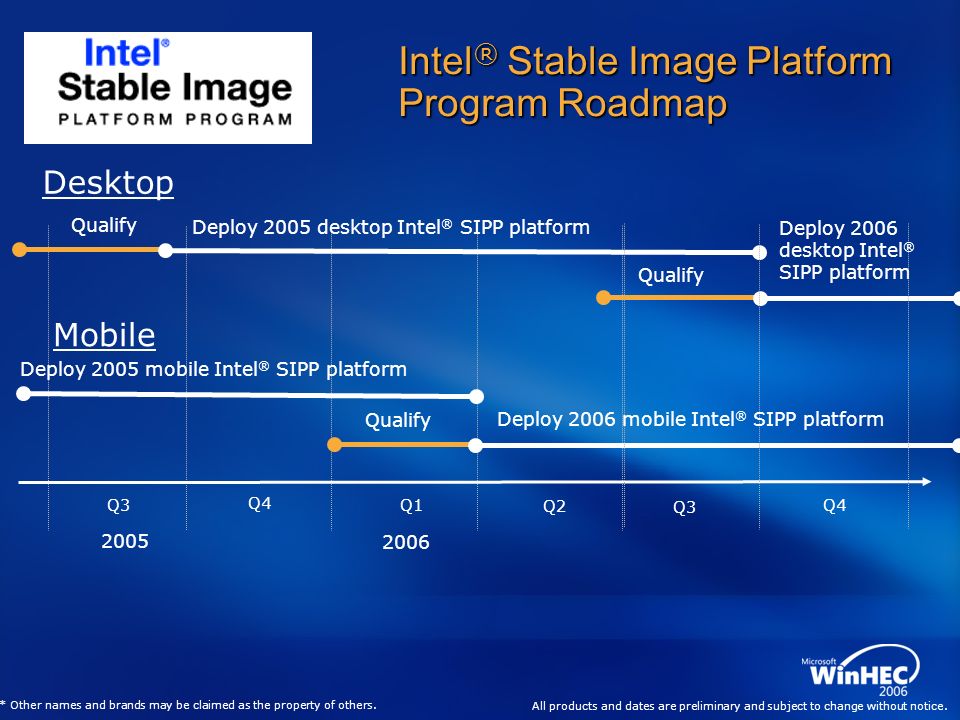

19. Intel ® Stable Image Platform Program Roadmap * Other names and brands may be claimed as the property of others. All products and dates are preliminary and subject to change without notice. Q3 2005 Q1 2006 Q4 Q2 Desktop Mobile Qualify Deploy 2005 desktop Intel ® SIPP platform Qualify Deploy 2005 mobile Intel ® SIPP platform Q3 Qualify Deploy 2006 desktop Intel ® SIPP platform Deploy 2006 mobile Intel ® SIPP platform Q4

20. Strategic Management of the PC Installed Base Download at: http://download.microsoft.com/download/b/7/e/b7eaa1d4-e67e-4b7c-92be- 294bc42fc36f/MS_WP_303149-001USrv2.pdf Hardware & software diversity … Significantly increases TCO Increases security risks Slows new software deployments Consumes IT time & resources Implication for Windows* Vista deployment Use Windows Vista migration as opportunity to simplify fleet complexity Diffuse Windows Vista through your installed base via PC refresh Implement in-the-field upgrades judiciously

21. PC Support Costs 46% 54% Source: Zenith Infotech PC Support Incidents 13% 87% Desk-Side Visit Remote Fix Powered Off Unbootable Operating System Infected System Disabled Agents

23. Proactive Security Energy Efficient Performance Built-in Management

24. Intel ® Active Management Technology Core ™ 2 Duo

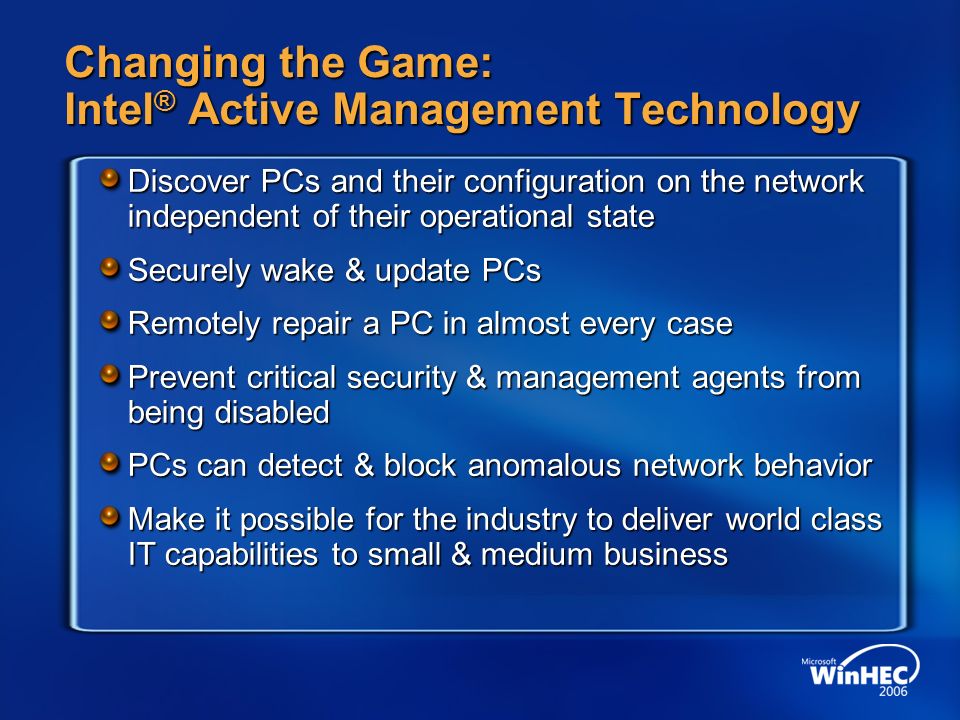

25. Changing the Game: Intel ® Active Management Technology Discover PCs and their configuration on the network independent of their operational state Securely wake & update PCs Remotely repair a PC in almost every case Prevent critical security & management agents from being disabled PCs can detect & block anomalous network behavior Make it possible for the industry to deliver world class IT capabilities to small & medium business

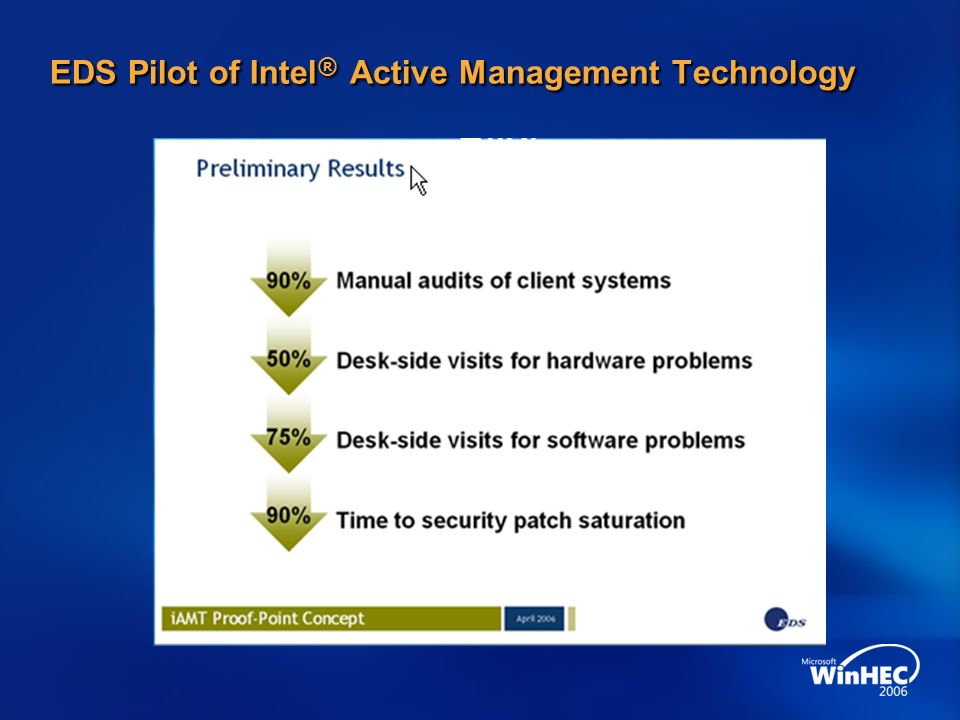

26. EDS Pilot of Intel ® Active Management Technology

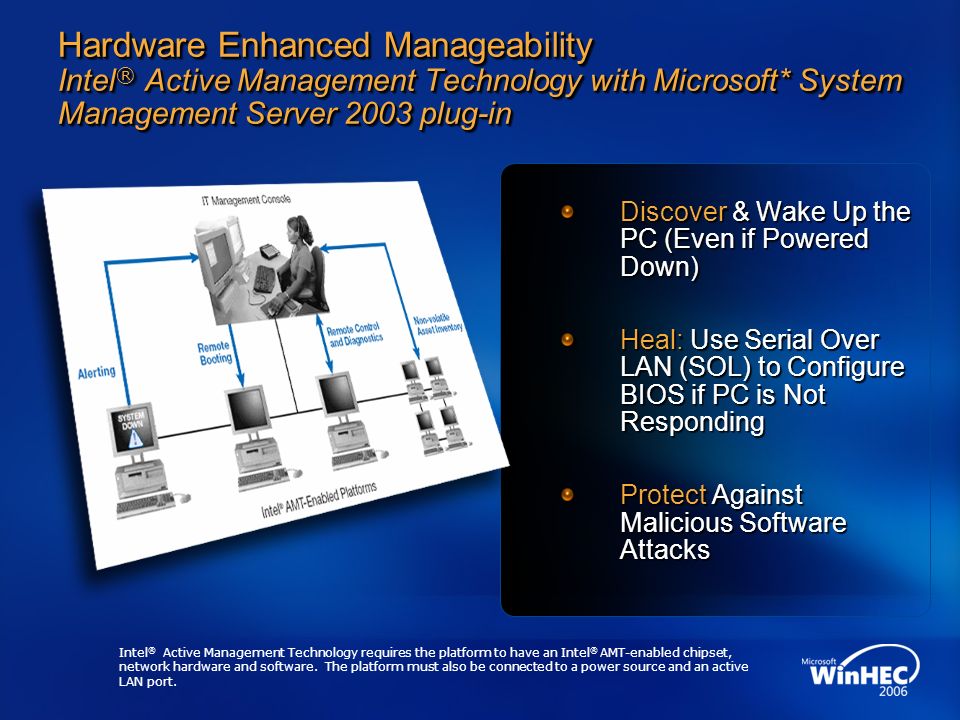

27. Hardware Enhanced Manageability Intel ® Active Management Technology with Microsoft* System Management Server 2003 plug-in Discover & Wake Up the PC (Even if Powered Down) Heal: Use Serial Over LAN (SOL) to Configure BIOS if PC is Not Responding Protect Against Malicious Software Attacks Intel ® Active Management Technology requires the platform to have an Intel ® AMT-enabled chipset, network hardware and software. The platform must also be connected to a power source and an active LAN port.

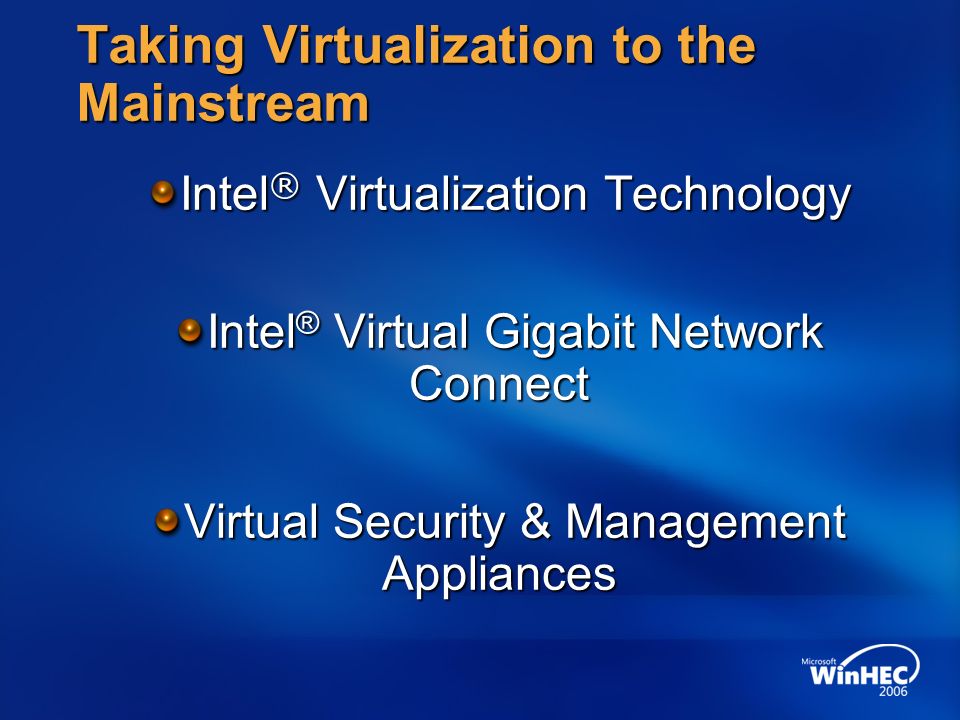

28. Intel ® Virtualization Technology Intel ® Virtual Gigabit Network Connect Virtual Security & Management Appliances Taking Virtualization to the Mainstream

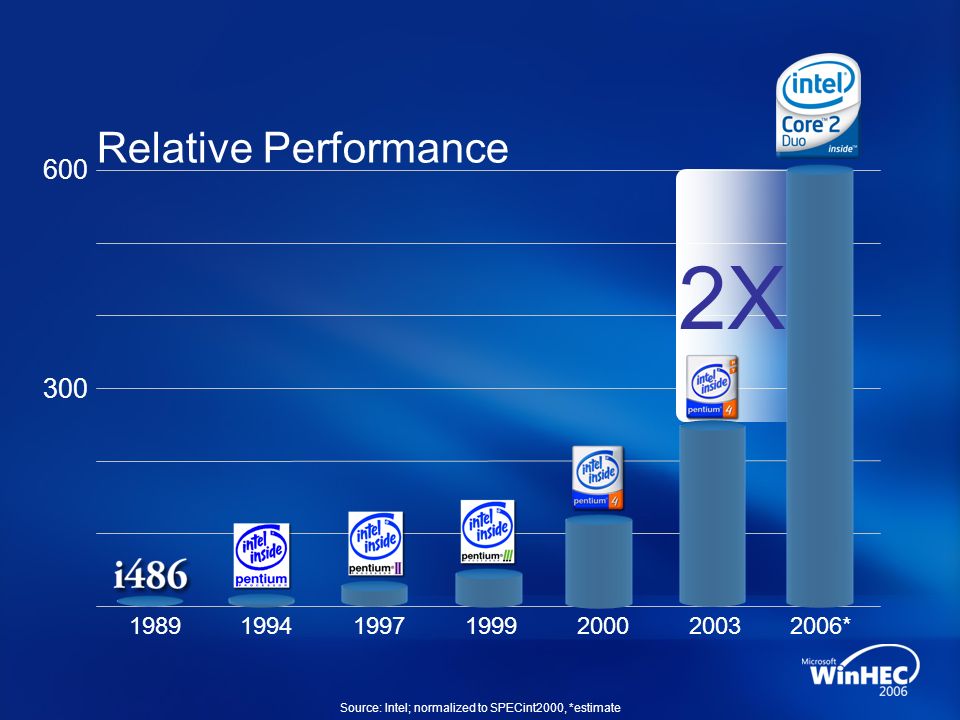

29. 19891994199719992000 Source: Intel; normalized to SPECint2000, *estimate 300 600 Relative Performance 2X 20032006*

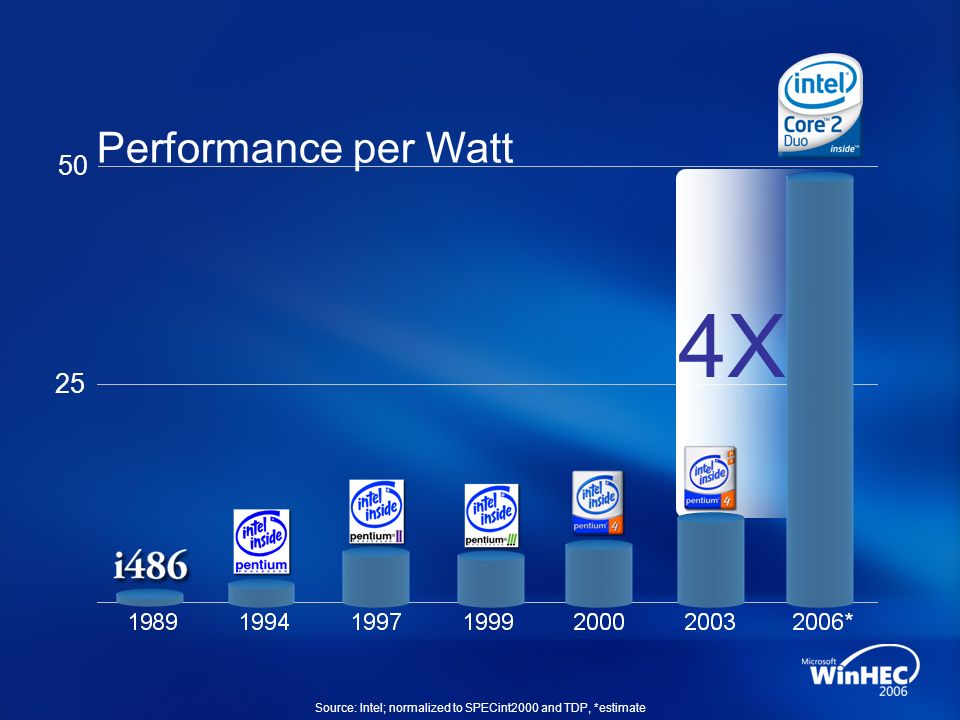

30. Performance per Watt Source: Intel; normalized to SPECint2000 and TDP, *estimate 50 25 4X

31. OEM Support

32. ISV and IT Outsourcer Support

33. Go Mobile More Cores Virtualize Entire Platform Extend Management & Security Looking Ahead

34. Agenda Windows* Vista and Intel Professional Business Platforms Windows Vista Experience - Past, Current and Future Intel Business Platforms Deployment of Windows Vista into Installed PC Base Recommendations

35. RecommendationsRecommendations Test, Qualify and Deploy Windows Vista* on new PCs aligned to Intel ® SIPP Desktop PCs: 2005 desktop Intel ® SIPP platform (Intel ® Pentium ® 4 Processor 600 sequence and Intel ® 945G Express Chipset) Mobile PCs: 2006 mobile Intel ® SIPP platform (Intel ® Centrino ® Duo mobile technology) Implement in-the-field Windows Vista upgrades judiciously Balance cost of graphics, RAM upgrades and support costs vs. cost of new PCs In general, diffuse Windows Vista through PC refresh aligned to Intel ® SIPP program Windows Vista Beta Testing Desktop graphics & networking drivers bundled with latest Windows Vista CTP build Mobile graphics & networking drivers are available through mobile PC vendors Pilot and deploy Intel ® vPro TM technology based PCs as part of managing the Windows*-based environment in July-September 2006 timeframe
