1. 1

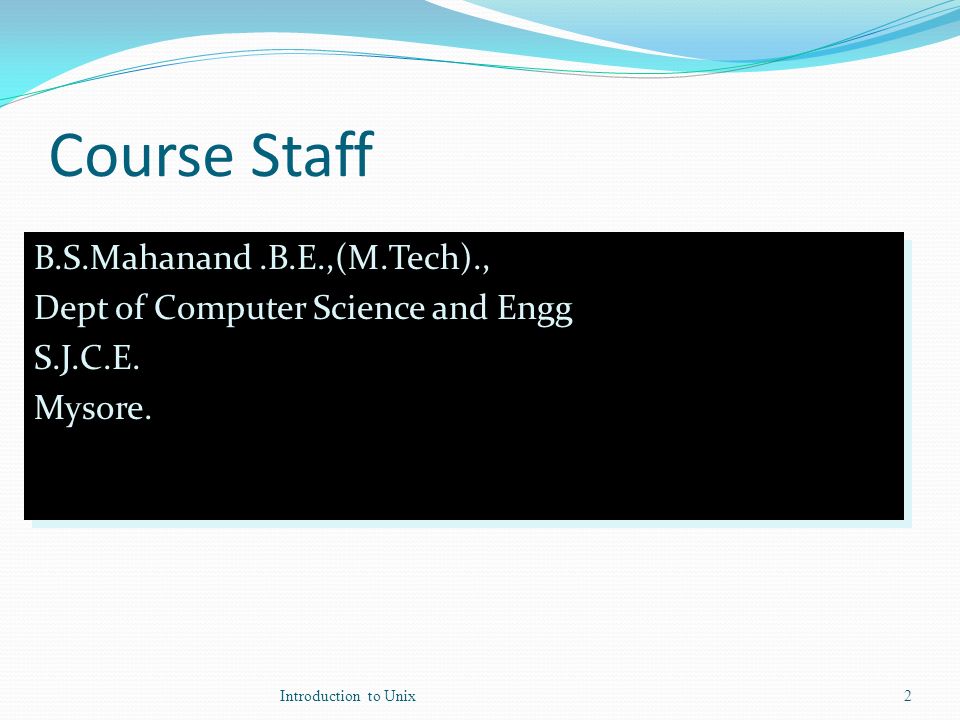

2. Course Staff B.S.Mahanand.B.E.,(M.Tech)., Dept of Computer Science and Engg S.J.C.E. Mysore. B.S.Mahanand.B.E.,(M.Tech)., Dept of Computer Science and Engg S.J.C.E. Mysore. Introduction to Unix2

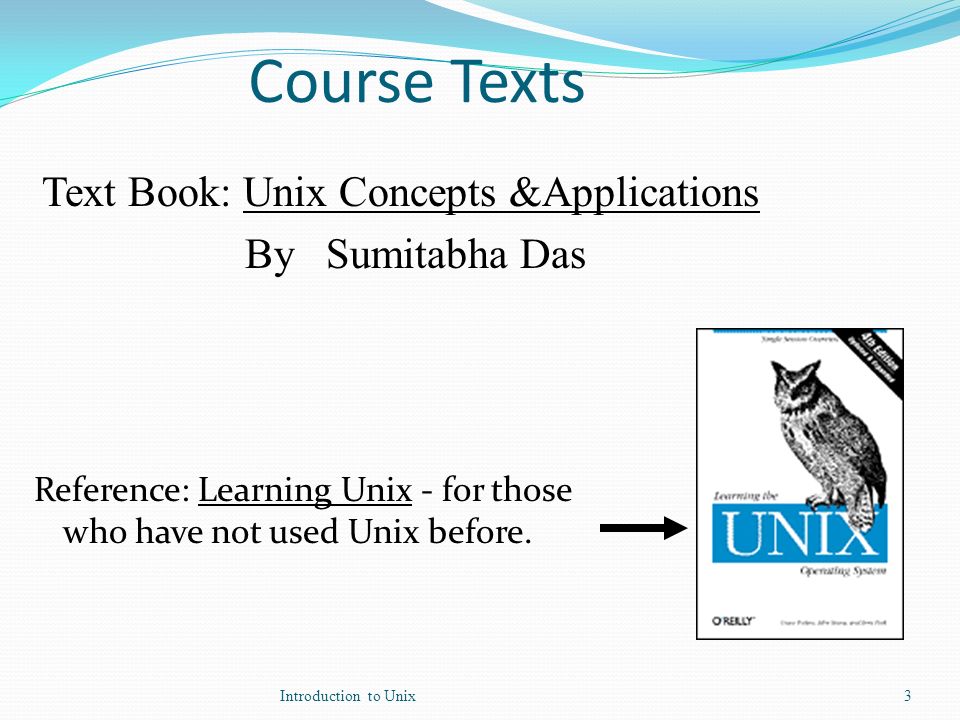

3. Course Texts Reference: Learning Unix - for those who have not used Unix before. Introduction to Unix3 Text Book: Unix Concepts &Applications By Sumitabha Das

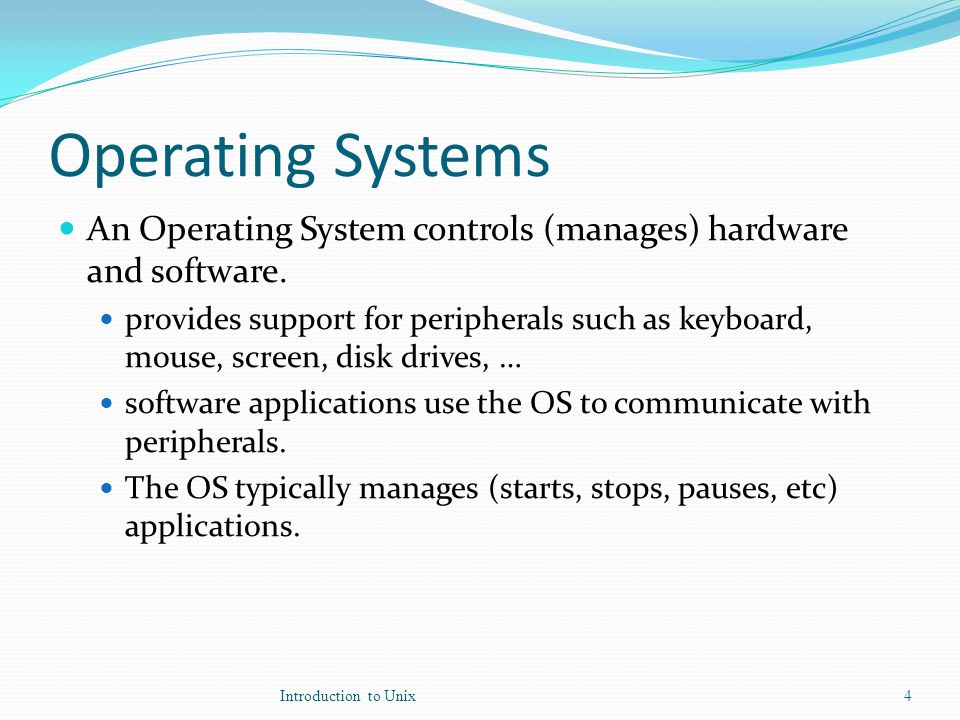

4. Operating Systems An Operating System controls (manages) hardware and software. provides support for peripherals such as keyboard, mouse, screen, disk drives, … software applications use the OS to communicate with peripherals. The OS typically manages (starts, stops, pauses, etc) applications. Introduction to Unix4

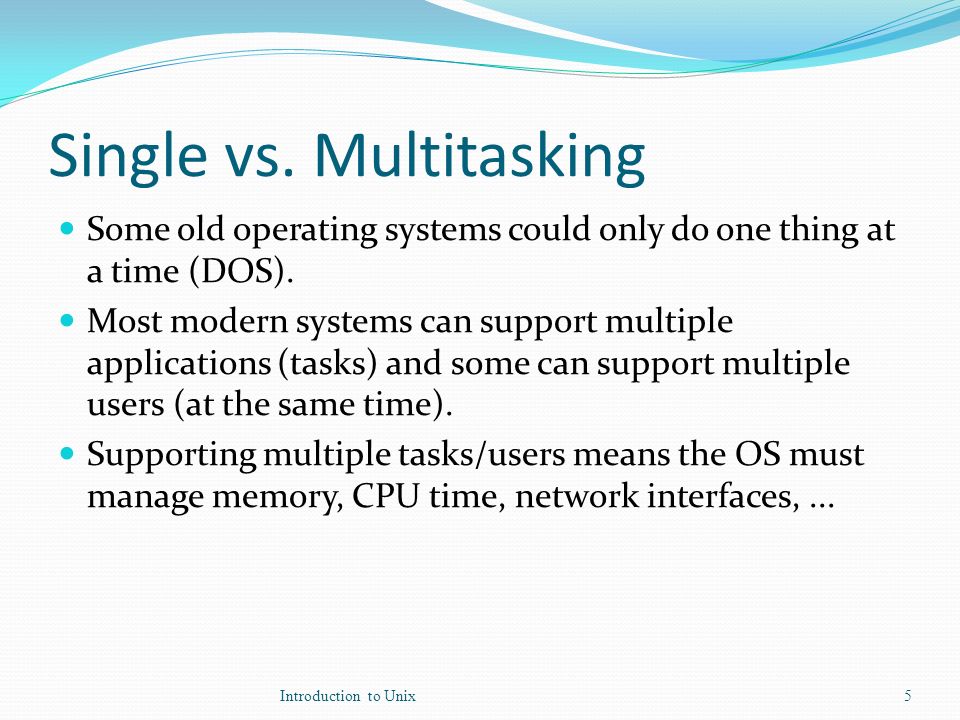

5. Single vs. Multitasking Some old operating systems could only do one thing at a time (DOS). Most modern systems can support multiple applications (tasks) and some can support multiple users (at the same time). Supporting multiple tasks/users means the OS must manage memory, CPU time, network interfaces,... Introduction to Unix5

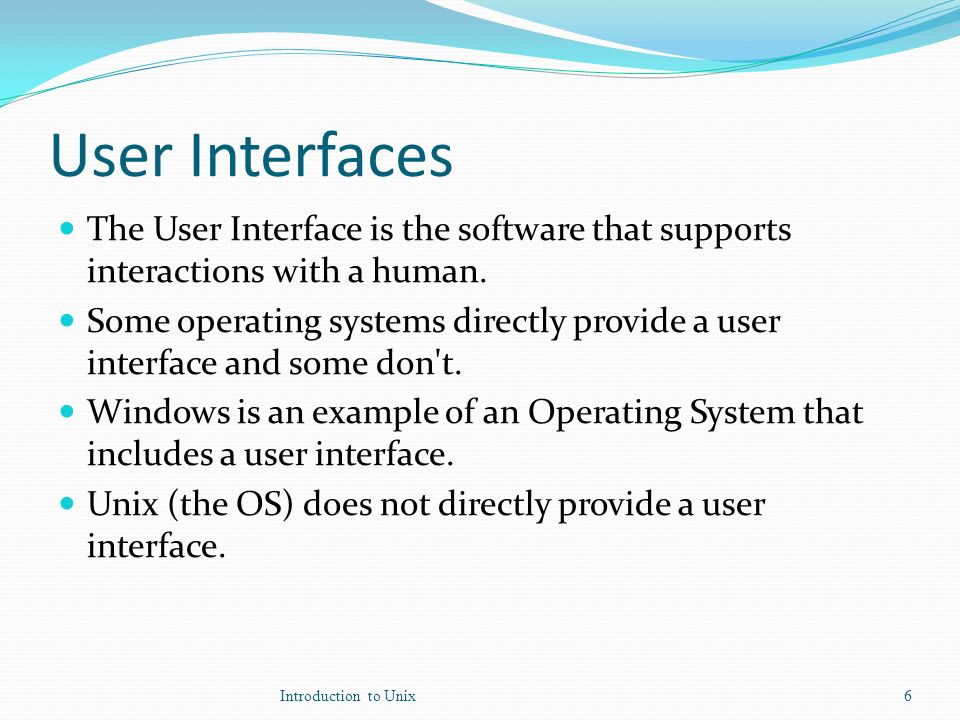

6. User Interfaces The User Interface is the software that supports interactions with a human. Some operating systems directly provide a user interface and some don't. Windows is an example of an Operating System that includes a user interface. Unix (the OS) does not directly provide a user interface. Introduction to Unix6

7. What is UNIX? UNIX is a popular operating system (OS) in both engineering and business world OS is a “super program” that controls sharing of resources and communication between machines E.g., Windows, OS/2, VMS, MacOS, UNIX UNIX is available for all platforms Introduction to Unix7

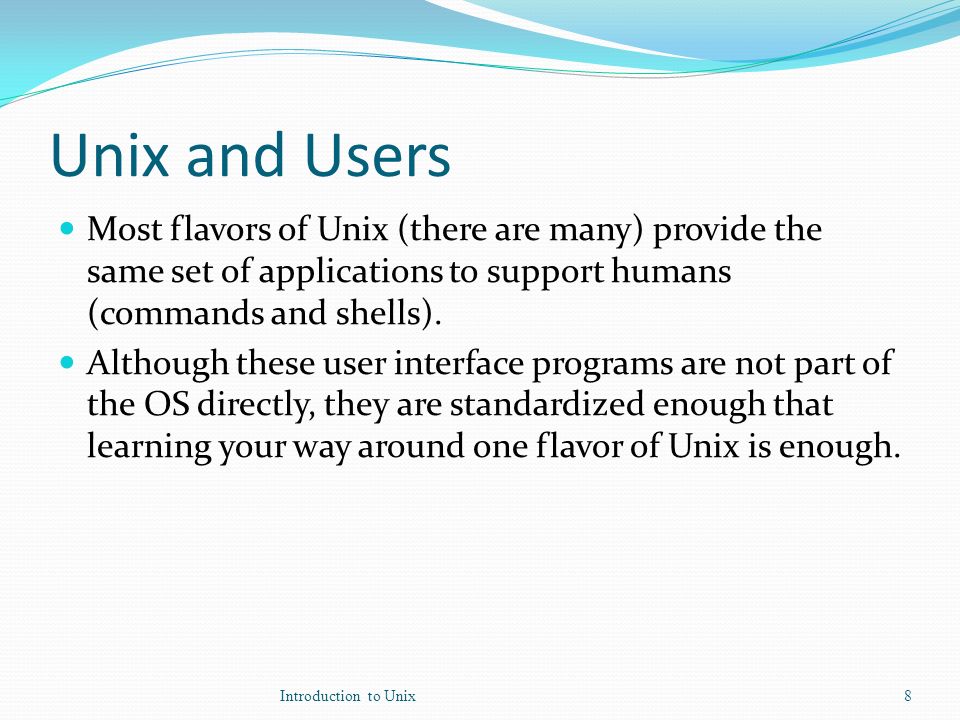

8. Unix and Users Most flavors of Unix (there are many) provide the same set of applications to support humans (commands and shells). Although these user interface programs are not part of the OS directly, they are standardized enough that learning your way around one flavor of Unix is enough. Introduction to Unix8

9. Flavors of Unix There are many versions of Unix that are used by lots of people: SysV (from AT&T) BSD (from Berkeley) Solaris (Sun) IRIX (SGI) AIX (IBM) LINUX (free software) Introduction to Unix9

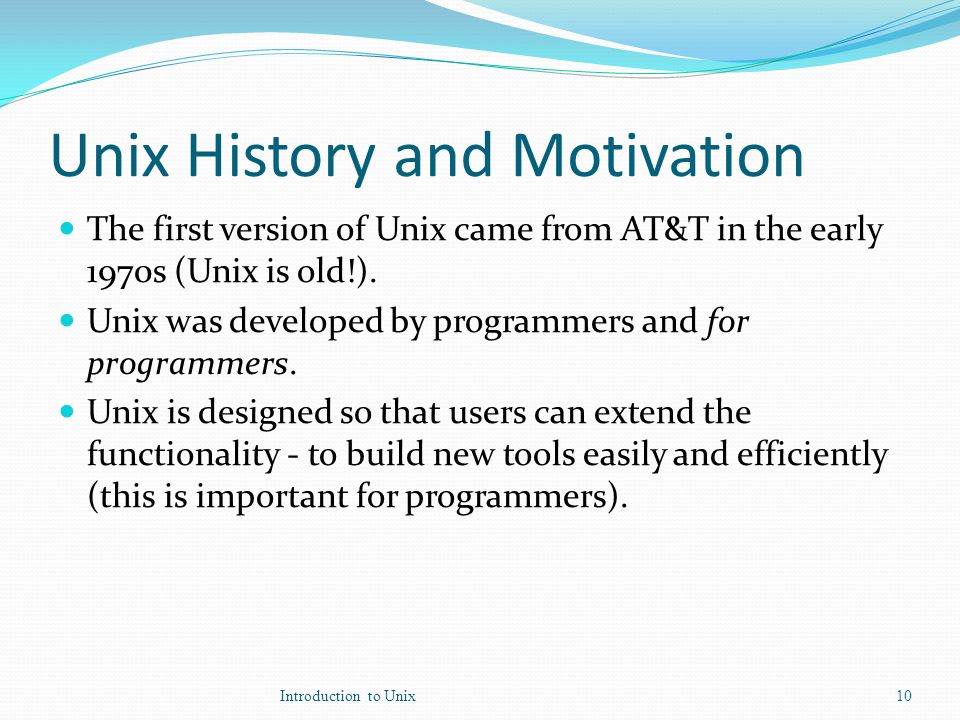

10. Unix History and Motivation The first version of Unix came from AT&T in the early 1970s (Unix is old!). Unix was developed by programmers and for programmers. Unix is designed so that users can extend the functionality - to build new tools easily and efficiently (this is important for programmers). Introduction to Unix10

11. Unix History and Motivation K Thomson and D Ritchie at Bell Labs Wrote first version in assembly then the next version in C; the first “understandable” OS! UC Berkeley graduate students Enhanced with memory management and networking capabilities (BDS UNIX) UNIX Today: contain both features Commercial UNIX Linux Introduction to Unix11

12. Some Basic Concepts Unix provides a simple interface to peripherals (it's pretty easy to add support for a new peripheral). Unix includes a basic set of commands that allow the user to view/change the system resources (filesystem, processes, peripherals, etc.). Introduction to Unix12

13. What we will look at In this course we will learn about: Unix user accounts the core set of Unix commands the Unix filesystem A couple of special programs called "shells". A number of commonly used applications: Window system, text editors, programming tools. Introduction to Unix13

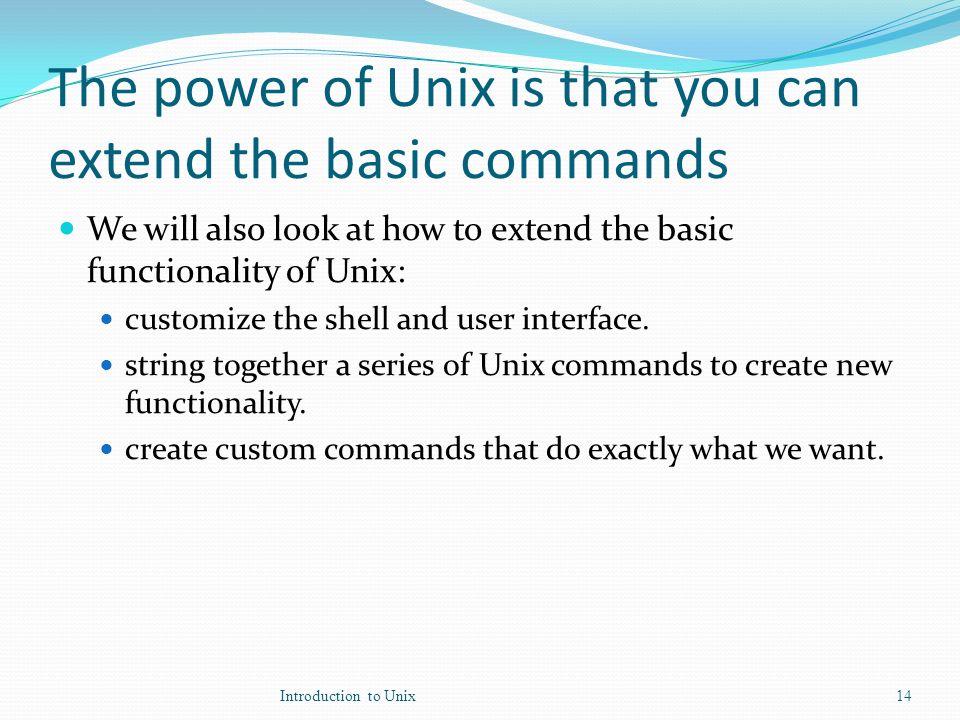

14. The power of Unix is that you can extend the basic commands We will also look at how to extend the basic functionality of Unix: customize the shell and user interface. string together a series of Unix commands to create new functionality. create custom commands that do exactly what we want. Introduction to Unix14

15. UNIX Services UNIX facts about programs and files A file is a collection of data stored on disk A program is a collection of bytes representing code and data that is stored in a file When a program is started, it is loaded from disk into RAM. A “running” program is called a process Processes and files have an owner and a group, and they protected from unauthorized access UNIX supports a hierarchical directory structure Files have a location within the directory hierarchy Introduction to Unix15

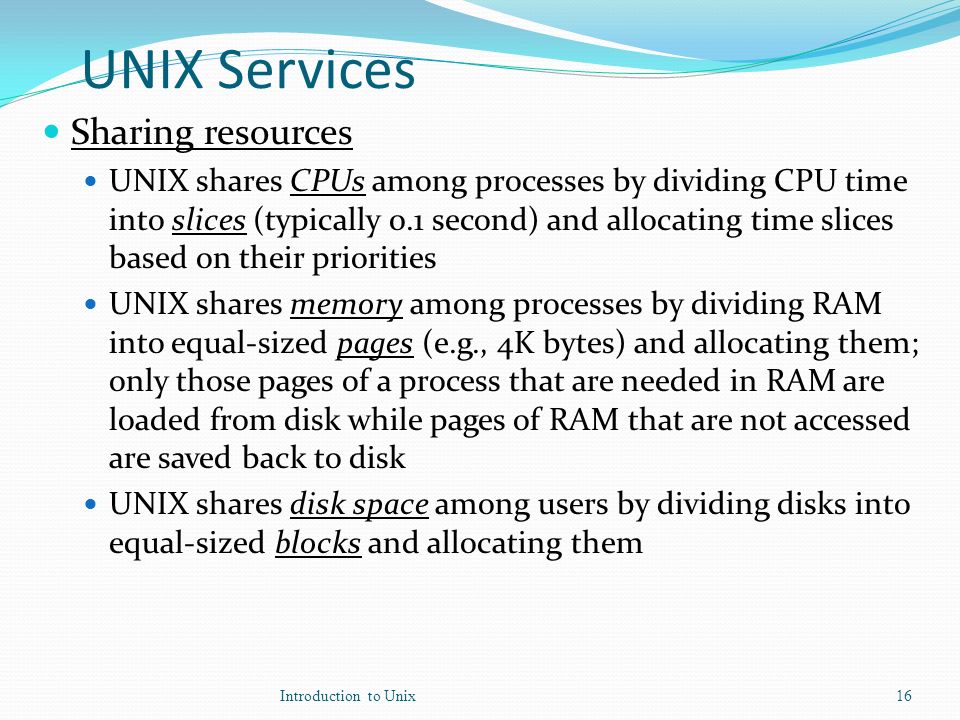

16. UNIX Services Sharing resources UNIX shares CPUs among processes by dividing CPU time into slices (typically 0.1 second) and allocating time slices based on their priorities UNIX shares memory among processes by dividing RAM into equal-sized pages (e.g., 4K bytes) and allocating them; only those pages of a process that are needed in RAM are loaded from disk while pages of RAM that are not accessed are saved back to disk UNIX shares disk space among users by dividing disks into equal-sized blocks and allocating them Introduction to Unix16

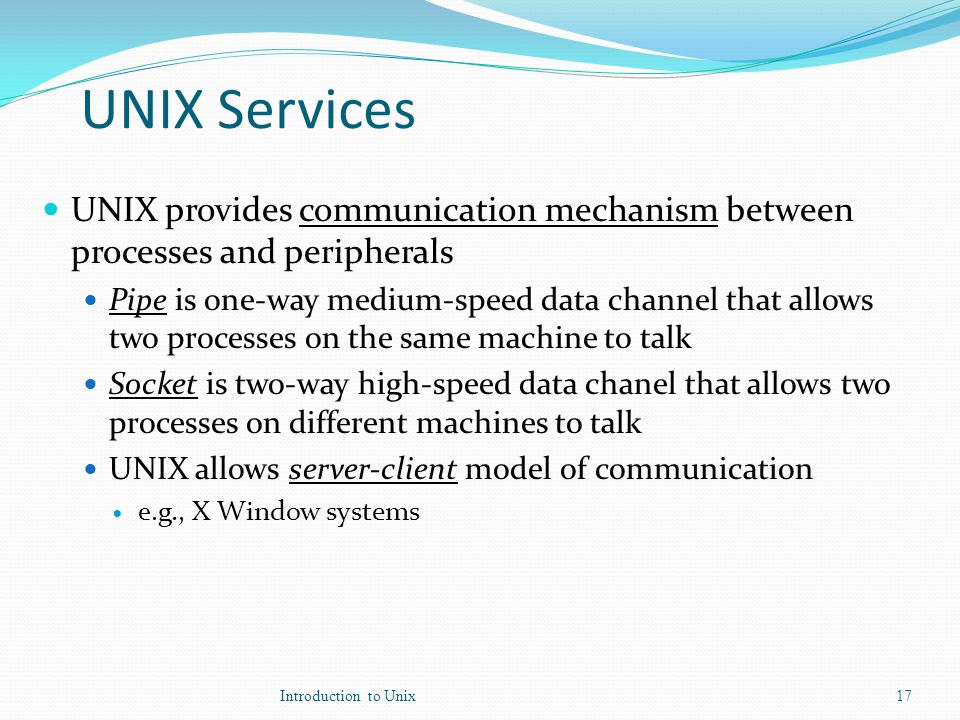

17. UNIX Services UNIX provides communication mechanism between processes and peripherals Pipe is one-way medium-speed data channel that allows two processes on the same machine to talk Socket is two-way high-speed data chanel that allows two processes on different machines to talk UNIX allows server-client model of communication e.g., X Window systems Introduction to Unix17

18. UNIX for Users Basic commands man, ls, cat, more, page, head, tail, less mv,cp,rm,ln pwd,cd,mkdir,rmdir,file chmod, groups, chgrp Editing utilities and terminal type vi, emacs Introduction to Unix18

19. Getting Started in UNIX Obtain an account and logging-in passwd: utility for changing password Shells A middleman program between you and UNIX OS that executes your commands Shell commands vs. utilities vs. system calls Three popular shells: Bourne, Korn, C Shell has a programming language that are tailored to manipulate processes and files; such program is called shell script Introduction to Unix19

20. Utilities for Manipulating File mv, cp, rm, ln move,copy,remove,make links to files mv [-fi] soutce targetFile.. rename source filename mv [-fi] soutceList targetDirectory.. move source files into target directory cp [-fip] soutceFile targetFile.. make copy of sourceFile named targetFile cp [-fip] soutceFileList targetDirectory.. copy source files into target directory cp -rR [-fip] soutceDirList targetDirectory.. copy source files into target directory, and copy the directory structure. rm [-fi] fileList rm -rR [-fi] directoryList ln [-fns] source [target] ln [-fns] sourceList targetDirectory.. make links to sour files into target directory file - determine file type $ file hello.c hello.c:c program text Introduction to Unix20

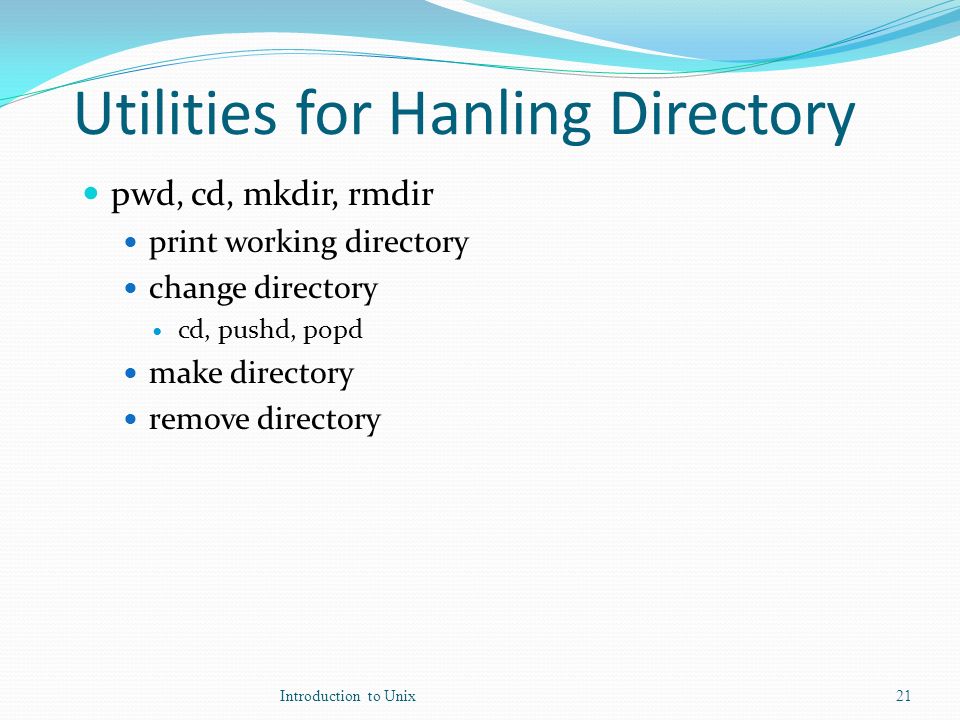

21. Utilities for Hanling Directory pwd, cd, mkdir, rmdir print working directory change directory cd, pushd, popd make directory remove directory Introduction to Unix21

22. Vi - Editor vi is a visual text editor. Most of you are too young to understand what a non- visual editor might be! check out the ed editor! vi shows you part of your file and allows you to enter commands that change something (add new stuff, delete a char or line, etc). Introduction to Unix22

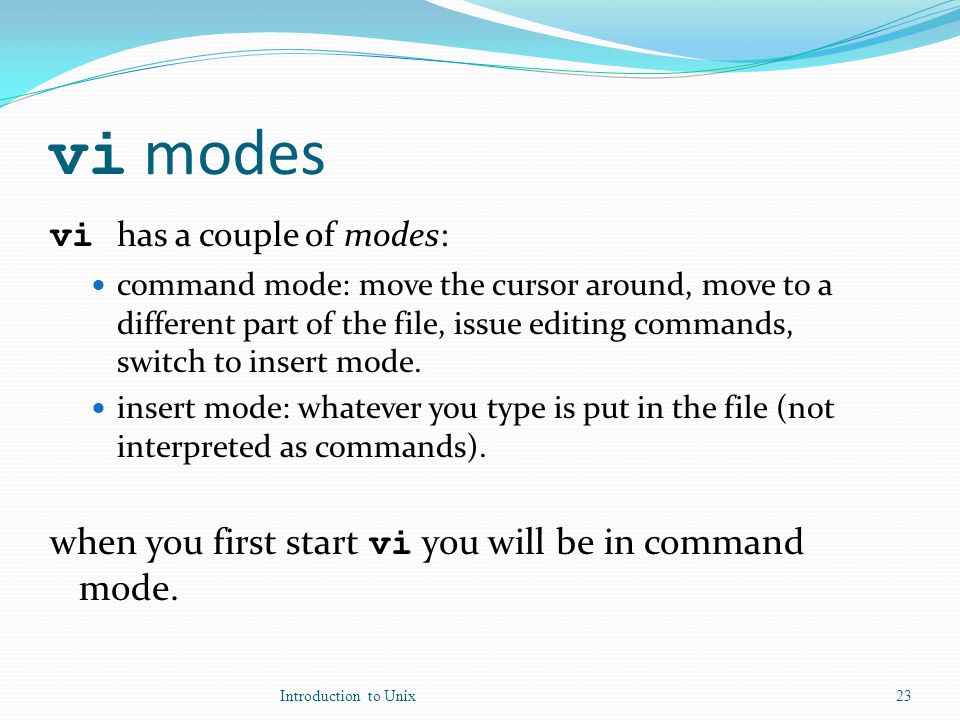

23. vi modes vi has a couple of modes: command mode: move the cursor around, move to a different part of the file, issue editing commands, switch to insert mode. insert mode: whatever you type is put in the file (not interpreted as commands). when you first start vi you will be in command mode. Introduction to Unix23

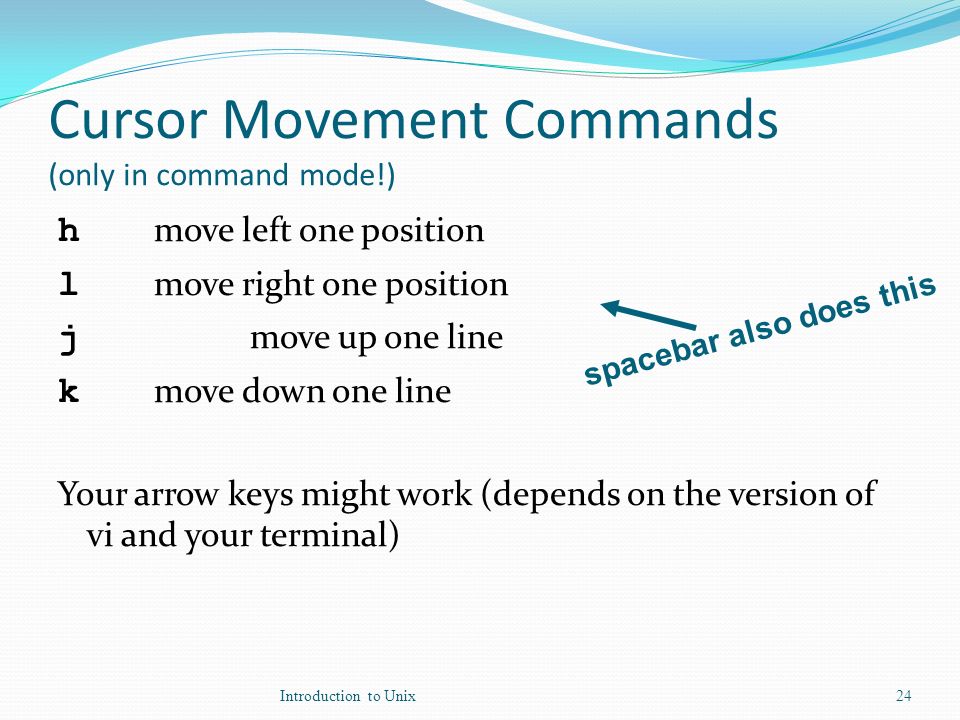

24. Cursor Movement Commands (only in command mode!) h move left one position l move right one position j move up one line k move down one line Your arrow keys might work (depends on the version of vi and your terminal) Introduction to Unix24 spacebar also does this

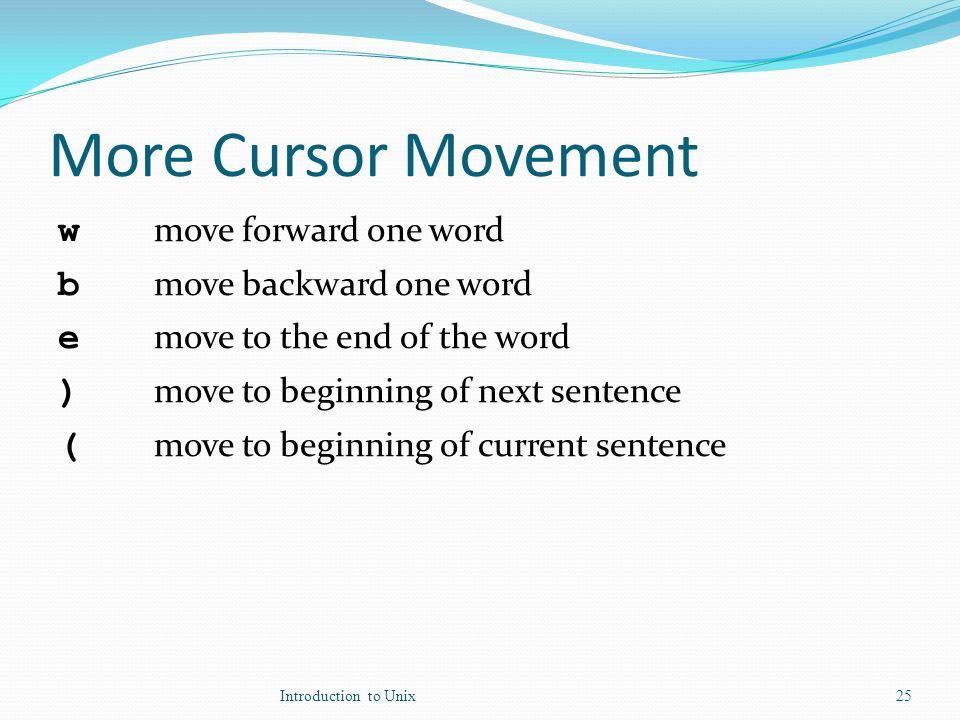

25. More Cursor Movement w move forward one word b move backward one word e move to the end of the word ) move to beginning of next sentence ( move to beginning of current sentence Introduction to Unix25

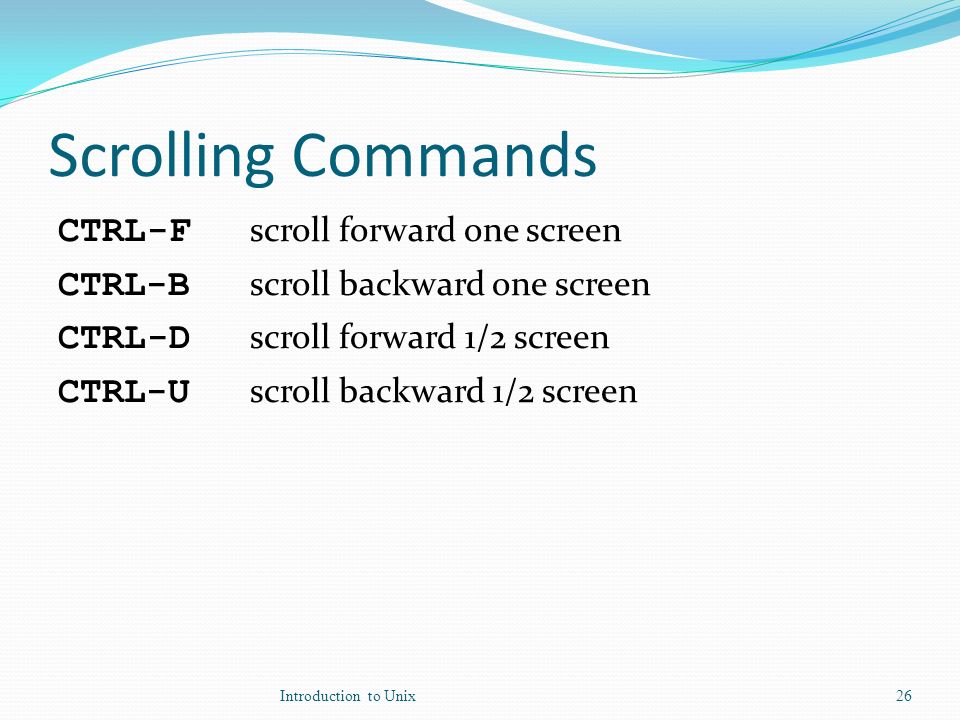

26. Scrolling Commands CTRL-F scroll forward one screen CTRL-B scroll backward one screen CTRL-D scroll forward 1/2 screen CTRL-U scroll backward 1/2 screen Introduction to Unix26

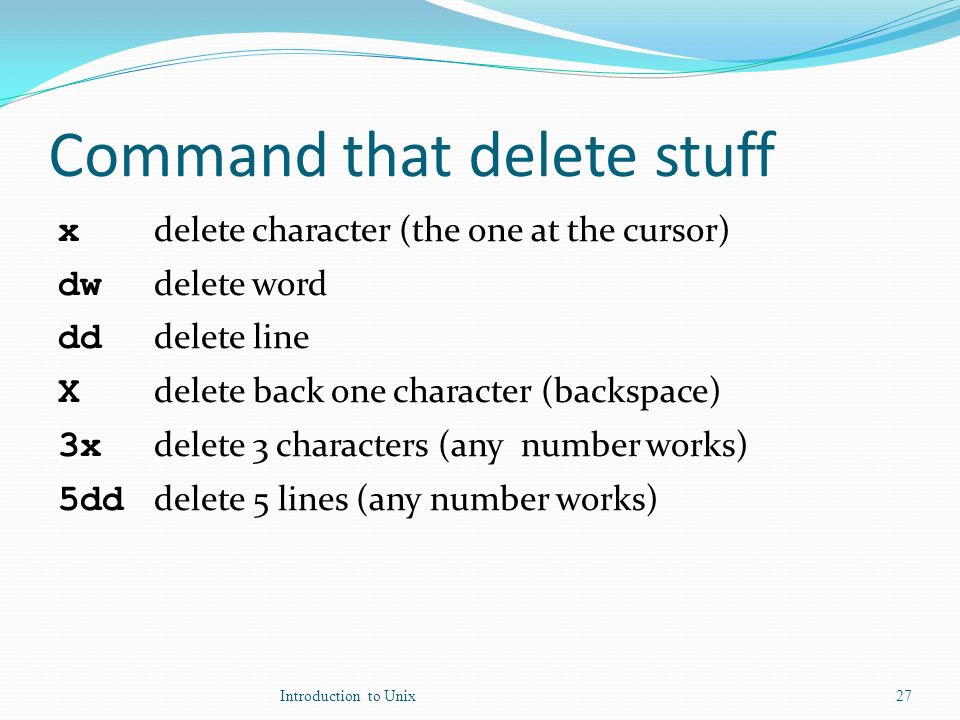

27. Command that delete stuff x delete character (the one at the cursor) dw delete word dd delete line X delete back one character (backspace) 3x delete 3 characters (any number works) 5dd delete 5 lines (any number works) Introduction to Unix27

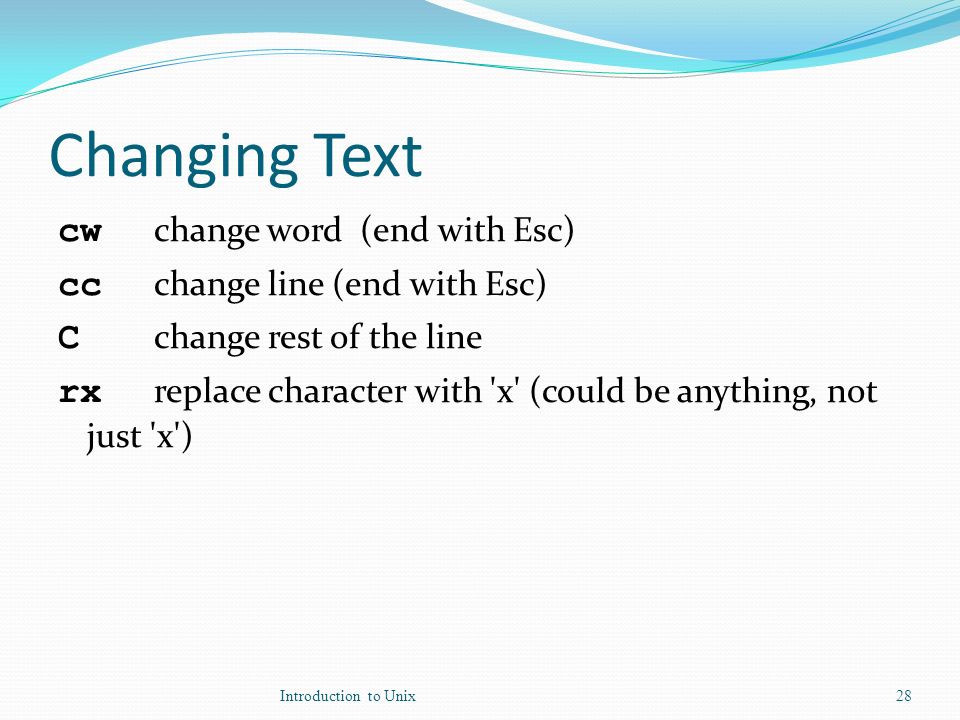

28. Changing Text cw change word (end with Esc) cc change line (end with Esc) C change rest of the line rx replace character with 'x' (could be anything, not just 'x') Introduction to Unix28

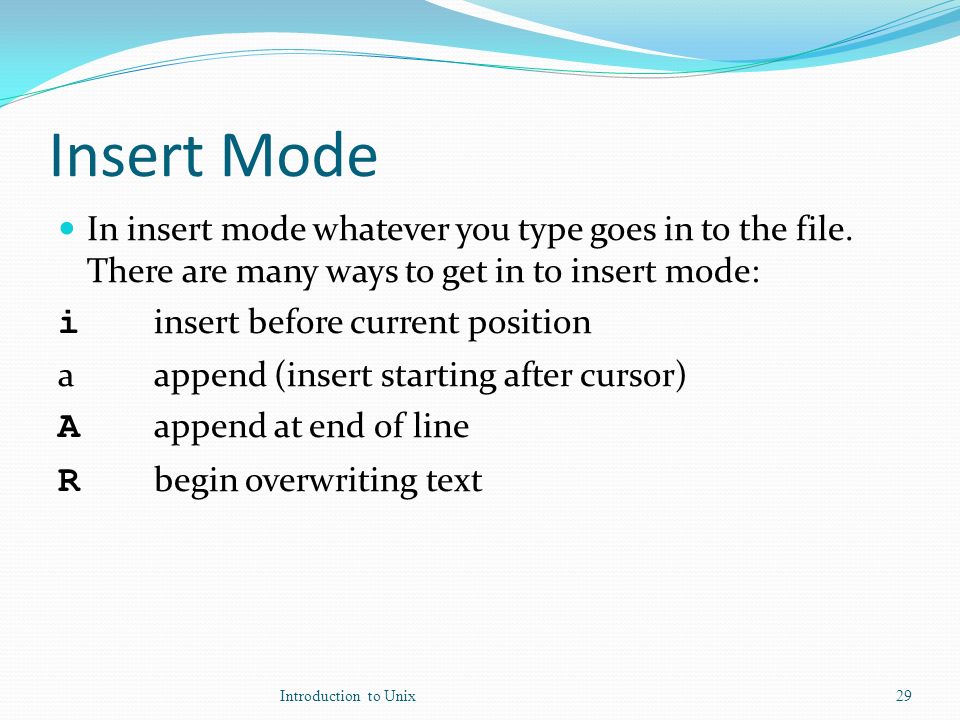

29. Insert Mode In insert mode whatever you type goes in to the file. There are many ways to get in to insert mode: i insert before current position aappend (insert starting after cursor) A append at end of line R begin overwriting text Introduction to Unix29

30. Ending Insert Mode To get out of insert mode (back to command mode) you press "Esc" (the escape key). There is a status line (bottom of screen) that tells you what mode/command you are in. Introduction to Unix30

31. Saving and Exiting ZZ save if changes were made, and quit. :wq Write file and quit :w Write file :w file Write to file named file :q Quit :q! Really quit (discard edits) Introduction to Unix31

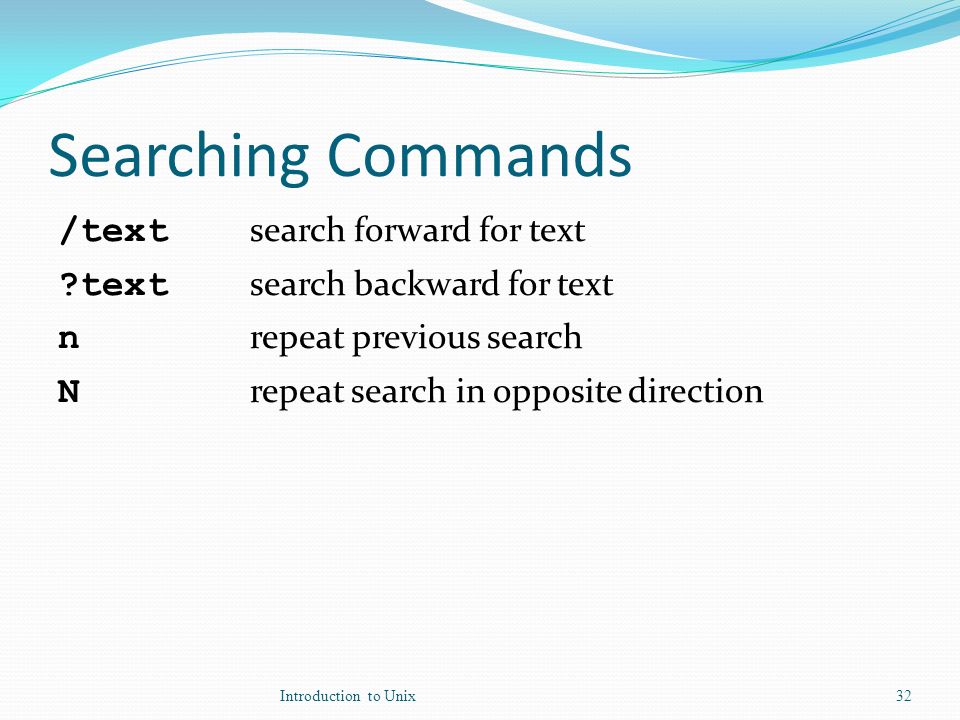

32. Searching Commands /text search forward for text ?text search backward for text n repeat previous search N repeat search in opposite direction Introduction to Unix32

33. Other Stuff Copying and Yanking (Paste) Remembering positions Switching files Repeating commands Display line numbers Run Unix commands (for example: emacs) Introduction to Unix33

34. Emacs -Editor emacs is every bit as cryptic as vi! emacs allows you to customize it with new commands and keyboard shortcuts. The emacs commands are written in elisp (a dialect of Lisp), so you need to understand elisp to do serious customization. Introduction to Unix34

35. Emacs meta key Many emacs commands are invoked with sequence of keystrokes. Emacs doesn't have modes like vi – you can always enter text (at the current cursor position) or commands. Many commands start with a special keystroke called the metakey. (others use the control key). The ESC key is (usually) the meta key. Introduction to Unix35

36. Command List Syntax The book shows a list of tons of emacs commands. The syntax used to show this list looks like this: C-a C-b (means Ctrl-a, Ctrl-b) M-a M-b (means Esc, a, Esc, b) Introduction to Unix36

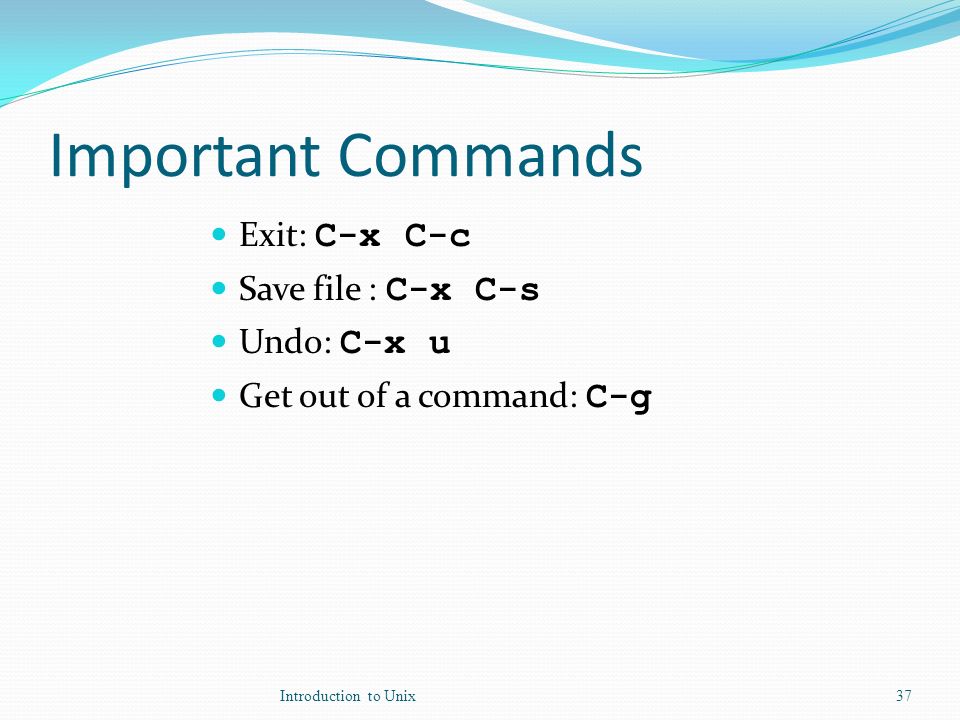

37. Important Commands Exit: C-x C-c Save file : C-x C-s Undo: C-x u Get out of a command: C-g Introduction to Unix37

38. Cursor movement Cursor keys usually work (it depends on how your terminal is set up and how emacs is configured). C-f : forward (right arrow) C-b : backward (left arrow) C-p : previous line (up arrow) C-n : next line (down arrow) Introduction to Unix38

39. Other stuff in emacs Move by words, sentences, paragraphs File handling – save/load file, etc. Delete char, word, sentence, region Buffer manipulation (multiple buffers) Searching, replacing Automatic indentation (major mode) Lots more (try the tutorial, read the book!) Introduction to Unix39

40. The Environment The Unix system environment can be set by user System variables: Unix system is controlled by number of shell variables set by system called system variables which can be seen by executing $set command Ex- HOME,PATH,IFS,MAIL,PS1,PS2,SHELL,TERM,LOGN AME Introduction to Unix40

41. .profile : It is the shell script executed during login time. stty : To set the terminal characteristics history :It displays previously executed commands. Introduction to Unix41

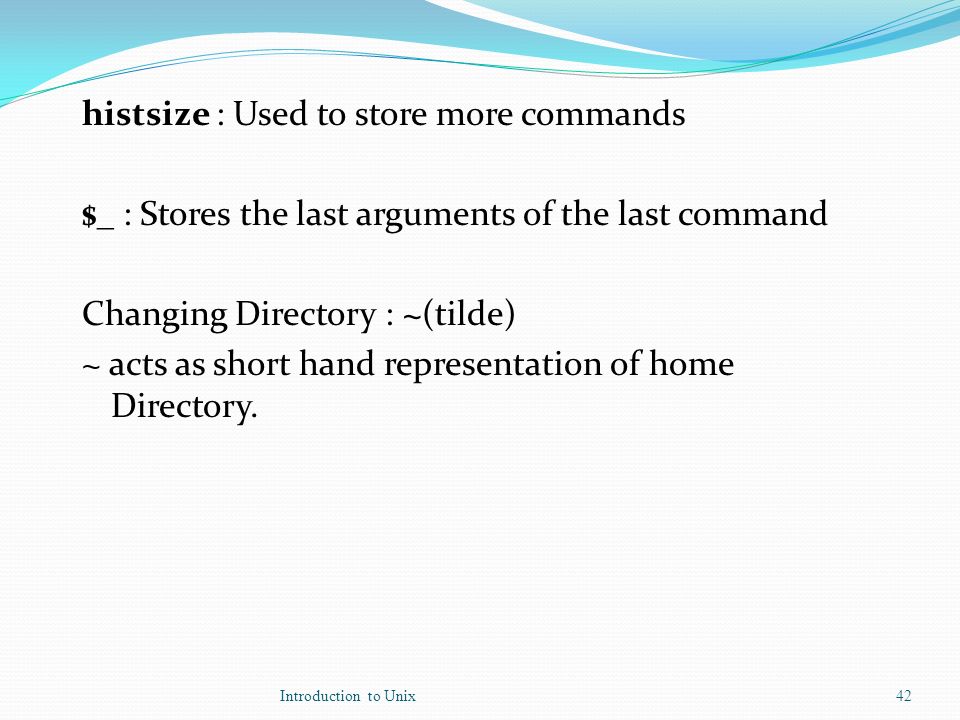

42. histsize : Used to store more commands $_ : Stores the last arguments of the last command Changing Directory : ~(tilde) ~ acts as short hand representation of home Directory. Introduction to Unix42

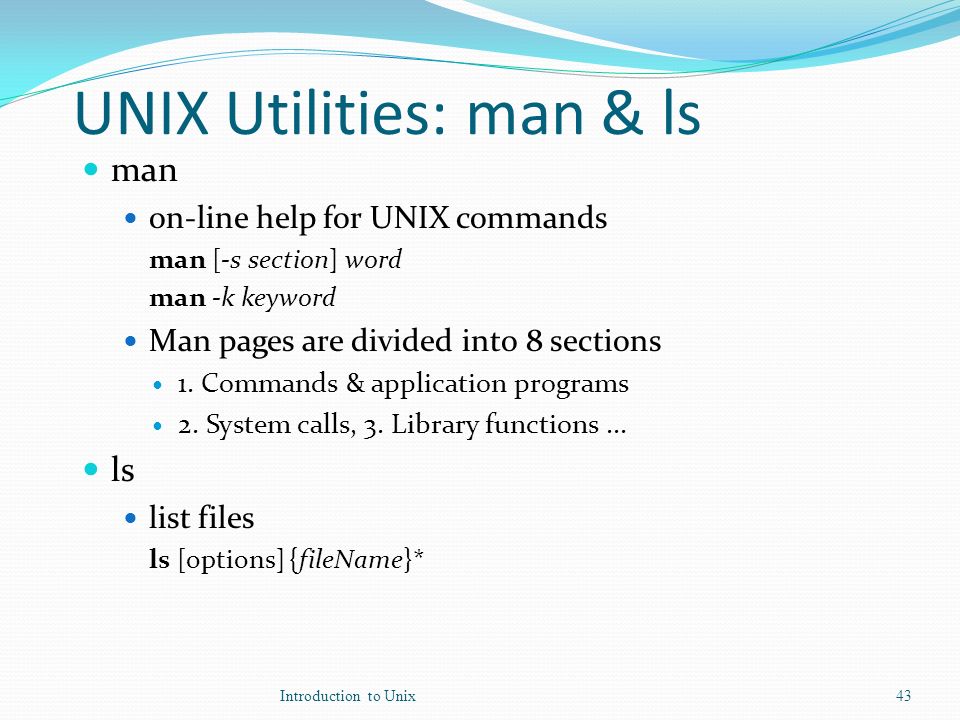

43. UNIX Utilities: man & ls man on-line help for UNIX commands man [-s section] word man -k keyword Man pages are divided into 8 sections 1. Commands & application programs 2. System calls, 3. Library functions... ls list files ls [options] {fileName}* Introduction to Unix43

44. UNIX Utilities ls example $ ls -alFs total 15 1 drwxr-xr-x 2 jaemok mass 512 Mar 2 01:04./ 3 drwxr-xr-x 46 jaemok mass 3072 Mar 2 01:04../ 5 -rwxr-xr-x 1 jaemok mass 5091 Mar 2 01:04 a.out* 5 -rwxr-xr-x 1 jaemok mass 5091 Mar 2 01:04 hello* 1 -rw-r--r-- 1 jaemok mass 36 Mar 2 01:04 hello.c 5size in block drwxr-xr-xtype and file permission 1hard-link count jaemokowner massgroup 5091size in bytes Mar 2 01:04modified time a.outfilename Miscellaneous: date, clear Introduction to Unix44

45. Utilities to List File Contents cat,more,page,head,tail,less cat displays contents of files given on command line (or from standard input) to standard output $ cat > heart blah blah blah ^D $ _ more and page displays contents of files(or input) fitted to rows of terminal, and allows you to scroll. head and tail only displays given number of lines in the first part or the last part of files(or input). less is similar to more, but has more functions Introduction to Unix45

46. File Owner and Group Every UNIX process has a owner which is typically the user name who started it My login shell’s owner is my user name When a process creates a file, its owner is set to the process’ owner UNIX represents the user name as user ID Every UNIX user is a member of a group and an UNIX process belongs to a group My login shell’s group is my group name (ID) Introduction to Unix46

47. File Permissions File Permissions (ex: rw-r--r--) owner: rw-, group: r--, others: r-- r: read, w: write, x: execute When a process executes, it has four values related to file permission a real user ID, an effective user ID a real group ID, an effective group ID When you login, your login shell process’ values are your user ID and group ID Introduction to Unix47

48. File Permission Application When a process runs, file permission applies If process’ effective user ID = file owner Owner permission applies If process’ effective group ID=file group ID Group permission applies Otherwise, others permission applies Super user’s process automatically has all access rights When creating a file, umask affect permission Introduction to Unix48

49. Effective User and Group ID A process’ effective user ID depends on who executes the process, not who owns the executable E.g., if you run passwd (owned by root), the effective user ID is your ID, not root; then how can it update /etc/passwd file owned by root ? Two special file permissions set user ID and set group ID When an executable with set user ID permission is executed, the process’ effective user ID becomes that of executable; the real user ID is unaffected File permission of /bin/passwd is r-sr-sr-x Introduction to Unix49

50. Changing File Permissions chmod change the permission mode of files chmod [-fR] fileList Introduction to Unix50

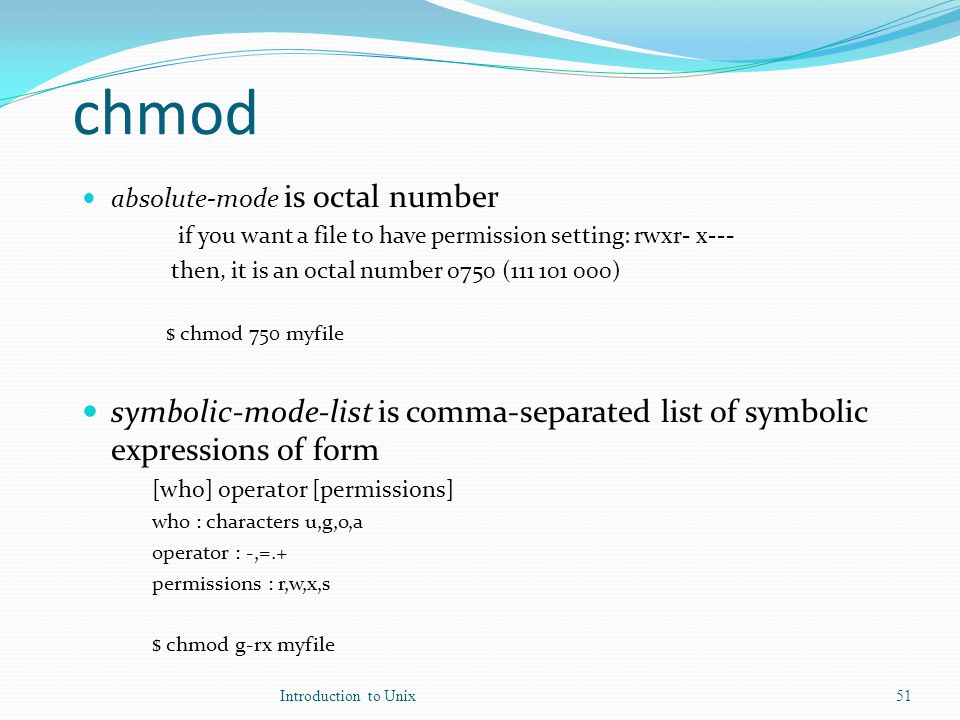

51. chmod absolute-mode is octal number if you want a file to have permission setting: rwxr- x--- then, it is an octal number o750 (111 101 000) $ chmod 750 myfile symbolic-mode-list is comma-separated list of symbolic expressions of form [who] operator [permissions] who : characters u,g,o,a operator : -,=.+ permissions : r,w,x,s $ chmod g-rx myfile Introduction to Unix51

52. Text Handling Commands There are many Unix commands that handle textual data: operate on text files operate on an input stream Functions: Searching Processing (manipulations) Introduction to Unix52

53. Searching Commands grep, egrep, fgrep : search files for text patterns strings : search binary files for text strings find : search for files whose name matches a pattern Introduction to Unix53

54. grep - Get Regular Expression grep [options] regexp [files] regexp is a "regular expression" that describes some pattern. files can be one or more files (if none, grep reads from standard input). Introduction to Unix54

55. grep Examples The following command will search the files a,b and c for the string "foo". grep will print out any lines of text it finds (that contain "foo") grep foo a b c Without any files specified, grep will read from standard input: grep I Introduction to Unix55

56. Regular Expressions The string "foo" is a simple pattern. grep actually understands more complex patterns that are described using regular expressions. We will look at regular expressions used by grep and other programs later. In case you can't wait - here is a sample: grep "[A-Z]0{2,3}" somefile Introduction to Unix56

57. grep options -c print only a count of matched lines. -h don't print filenames -l print filename but not matching line -n print line numbers -v print all lines that don't match! Introduction to Unix57

58. grep, egrep and fgrep All three search files (or stdin) for a text pattern. grep supports regular expressions egrep supports extended regular expressions fgrep supports only fixed strings (nothing fancy) All have similar forms and options. Introduction to Unix58

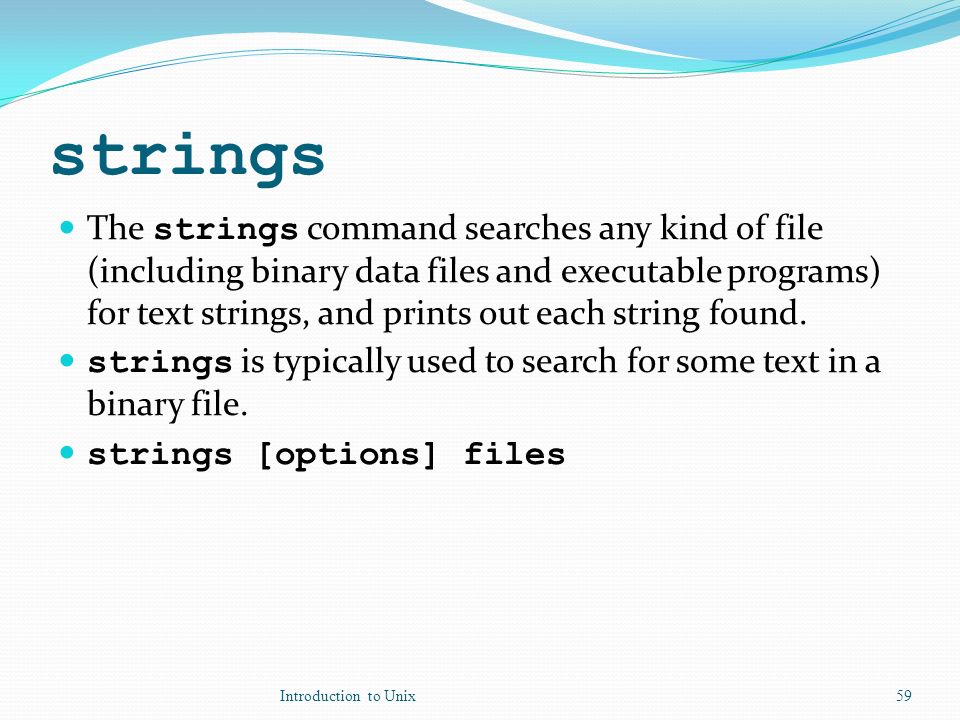

59. strings The strings command searches any kind of file (including binary data files and executable programs) for text strings, and prints out each string found. strings is typically used to search for some text in a binary file. strings [options] files Introduction to Unix59

60. The find command Find searches the filesystem for files whose name matches a pattern*. Here is a simple example: find. -name unixtest -print * Actually find can do lots more! Introduction to Unix60

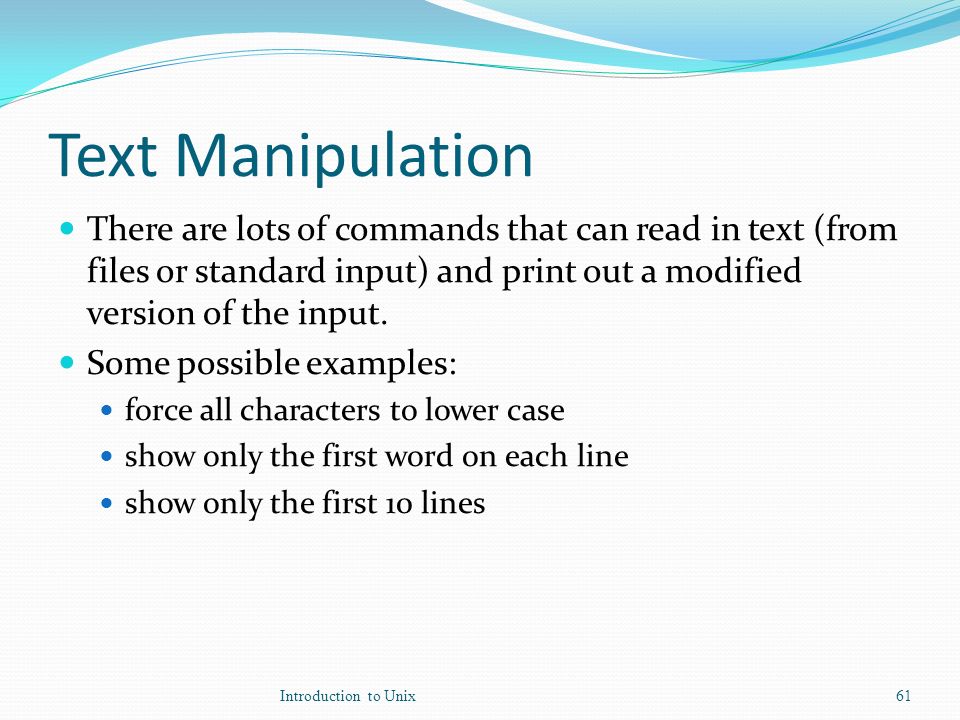

61. Text Manipulation There are lots of commands that can read in text (from files or standard input) and print out a modified version of the input. Some possible examples: force all characters to lower case show only the first word on each line show only the first 10 lines Introduction to Unix61

62. Common Concepts These commands are often used as filters, they read from standard input and send output to standard output. Different commands for different specific functions another way is to build one huge complex command that can do anything. This is not the Unix way! Introduction to Unix62

63. Simple Filters head tail - show just part of a file cut paste join - deal with columns in a text file. sort - reorders the lines in a file tr - translate characters uniq - find repeated or unique lines in a file. Introduction to Unix63

64. head or tails ? head shows just the "head" (beginning) of a file. tail shows just the "tail" (end) of a file. Both commands assume the file is a text file. Introduction to Unix64

65. The head command head [options] [files] By default head shows the first 10 lines. Options: -n print the first n lines. Example: head -20 /etc/passwd Introduction to Unix65

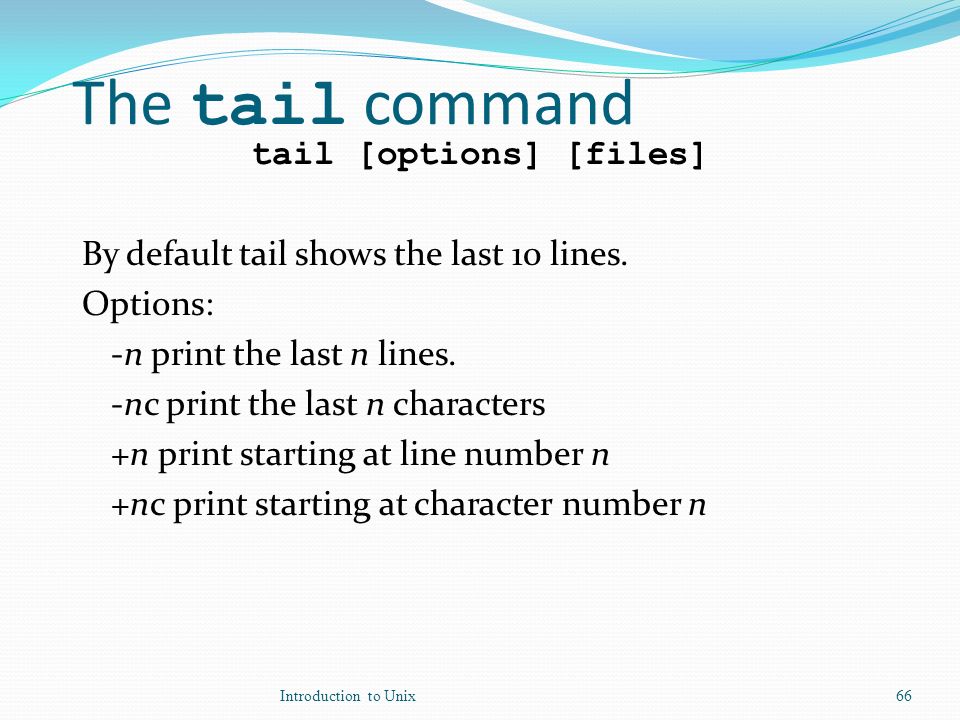

66. The tail command tail [options] [files] By default tail shows the last 10 lines. Options: -n print the last n lines. -nc print the last n characters +n print starting at line number n +nc print starting at character number n Introduction to Unix66

67. The tail command (cont.) More Options: -r show lines in reverse order -f don't quit at end of file. Examples: tail -100 somefile tail +100 somefile tail -r -c somefile Introduction to Unix67 Not all versions support this option!

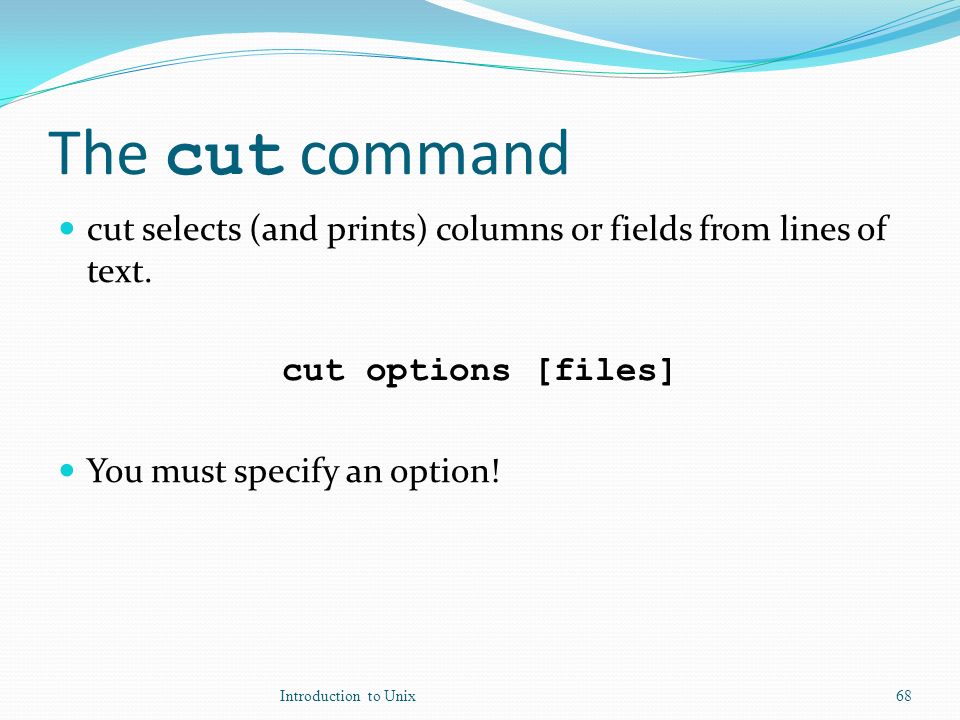

68. The cut command cut selects (and prints) columns or fields from lines of text. cut options [files] You must specify an option! Introduction to Unix68

69. cut options -clist cut character positions defined in list. list can be: number (specifies a single character position) range (specifies a sequence of positions) comma separated list (specifies multiple positions or ranges) Introduction to Unix69

70. cut -c examples cut -c1 prints first char. (on each line). cut -c1-10 prints first 10 char cut -c1,10 prints first and 10th char. cut -c5-10,15,20- prints 5,6,7,8,9,10,15,20,21,… char on each line. Introduction to Unix70

71. more cut options -flist cut fields identified in list. a field is a sequence of text that ends at some separator character (delimiter). You can specify the separator with the -d option. -dc where c is the delimiter. The default delimiter is a tab. Introduction to Unix71

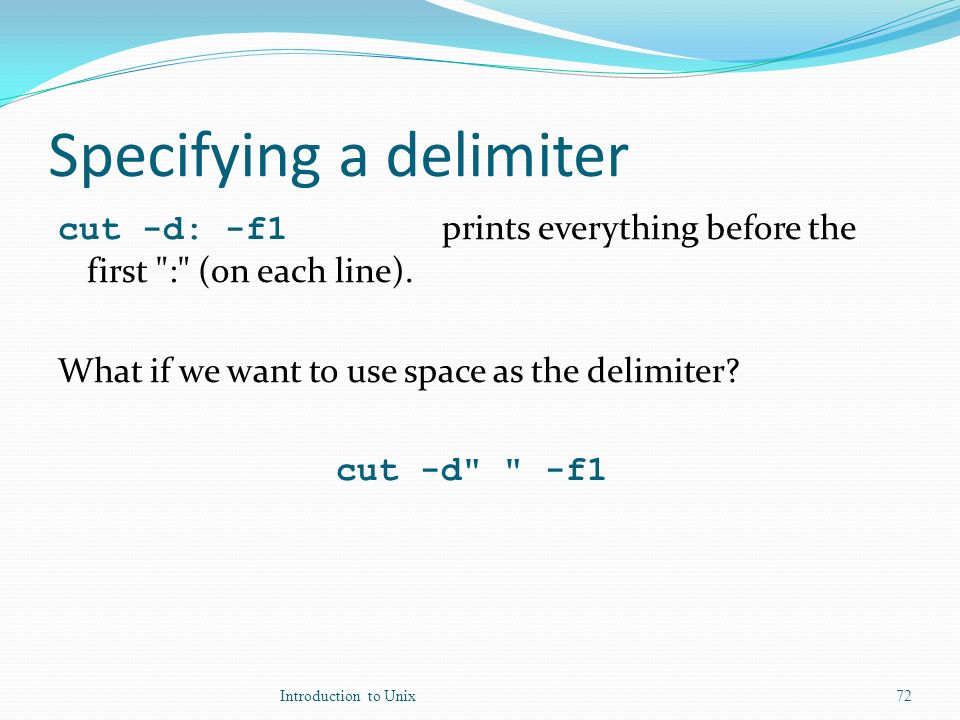

72. Specifying a delimiter cut -d: -f1 prints everything before the first ":" (on each line). What if we want to use space as the delimiter? cut -d" " -f1 Introduction to Unix72

73. cut -f examples cut -f1 prints everything before the first tab. cut -d: -f2,3 prints 2nd and 3rd : delimited columns. cut -d" " -f2 prints 2nd column using space as the delimiter. Introduction to Unix73

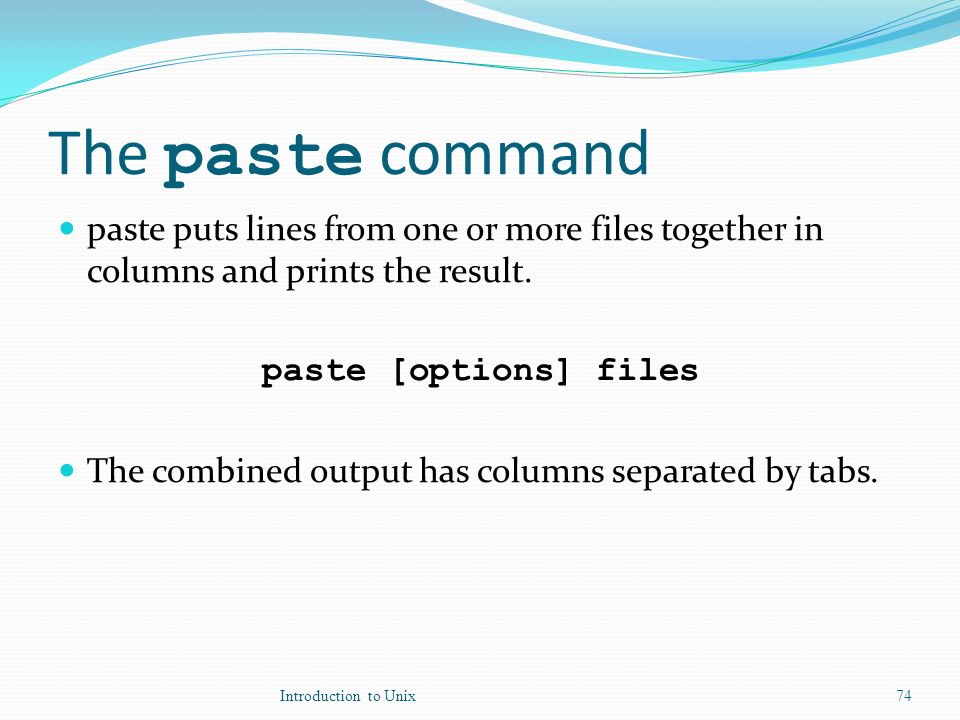

74. The paste command paste puts lines from one or more files together in columns and prints the result. paste [options] files The combined output has columns separated by tabs. Introduction to Unix74

75. paste cands votes Introduction to Unix75 Gore Bradley Bush McCain Trump Letterman Gore Bradley Bush McCain Trump Letterman 10 100 10 100 Gore10 Bradley10 Bush10 McCain10 Trump10 Letterman100 Gore10 Bradley10 Bush10 McCain10 Trump10 Letterman100 candsvotes

76. paste options -dc separate columns of output with character c. you can use different c between each column. -s merge subsequent lines from a single file. Introduction to Unix76

77. Introduction to Unix77 Gore 10 Bradley 10 Bush 10 Letterman 100 Gore 10 Bradley 10 Bush 10 Letterman 100 Gore10 Bradley10 Bush10 Letterman100 Gore10 Bradley10 Bush10 Letterman100 records paste -s -c"\t\n" records Gore10 Bradley 10Bush 10 McCain 10 Letterman 100 Gore10 Bradley 10Bush 10 McCain 10 Letterman 100 paste -s -c"\t\t\n" records

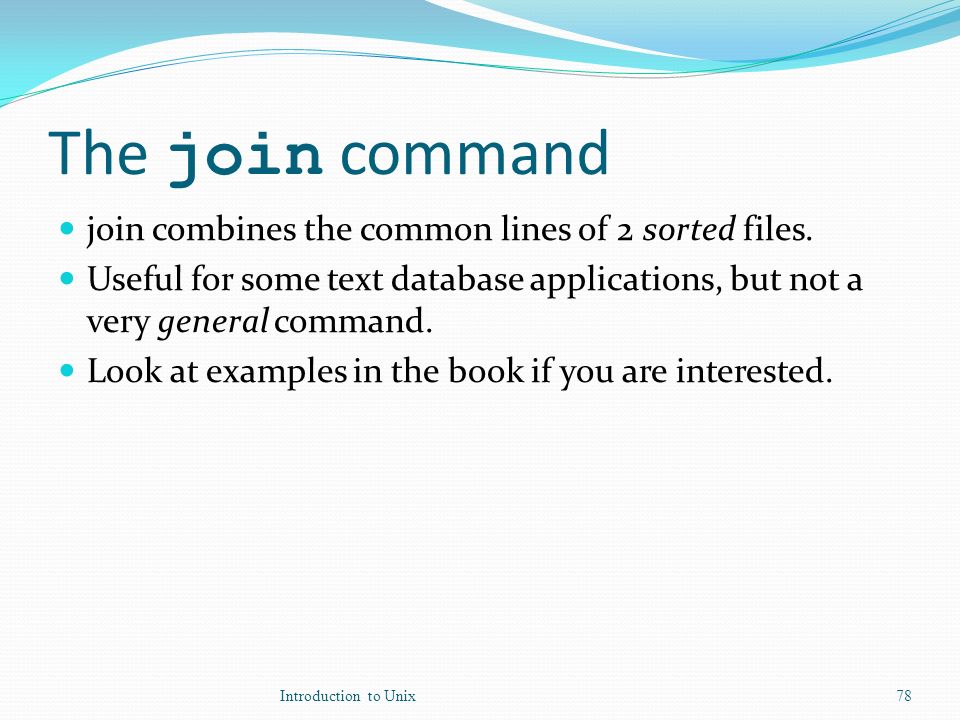

78. The join command join combines the common lines of 2 sorted files. Useful for some text database applications, but not a very general command. Look at examples in the book if you are interested. Introduction to Unix78

79. The sort command sort reorders the lines in a file (or files) and prints out the result. sort [options] [files] Introduction to Unix79

80. sort options -b ignore leading spaces and tabs -d sort in dictionary order (ignore punctuation) -n sort in numerical order -r reverse the order of the sort tons more options! Introduction to Unix80

81. Numeric vs. Alphabetic By default, sort uses an alphabetical ordering. Introduction to Unix81 38 18 27 1256875 66 875 38 18 27 1256875 66 875 18 27 38 66 875 1256875 18 27 38 66 875 1256875 18 27 38 66 875 1256875 18 27 38 66 875 sort sort -n

82. Alphabetic Ordering (uses ASCII) Introduction to Unix82 bbbb BBBB aaaa AAAA 0000 #### $$$$ bbbb BBBB aaaa AAAA 0000 #### $$$$ #### $$$$ 0000 AAAA BBBB aaaa bbbb #### $$$$ 0000 AAAA BBBB aaaa bbbb sort '0' < '9' <'A' < 'Z'< 'a' < 'z' <

83. ASCII codes 32: 33:! 34:" 35:# 36:$ 37:% 38:& 39:' 40:( 41:) 42:* 43:+ 44:, 45:- 46:. 47:/ 48:0 49:1 50:2 51:3 52:4 53:5 54:6 55:7 56:8 57:9 58:: 59:; 60: 63:? 64:@ 65:A 66:B 67:C 68:D 69:E 70:F 71:G 72:H 73:I 74:J 75:K 76:L 77:M 78:N 79:O 80:P 81:Q 82:R 83:S 84:T 85:U 86:V 87:W 88:X 89:Y 90:Z 91:[ 92:\ 93:] 94:^ 95:_ 96:` 97:a 98:b 99:c 100:d 101:e 102:f 103:g 104:h 105:i 106:j 107:k 108:l 109:m 110:n 111:o 112:p 113:q 114:r 115:s 116:t 117:u 118:v 119:w 120:x 121:y 122:z 123:{ 124:| 125:} 126:~ 32: 33:! 34:" 35:# 36:$ 37:% 38:& 39:' 40:( 41:) 42:* 43:+ 44:, 45:- 46:. 47:/ 48:0 49:1 50:2 51:3 52:4 53:5 54:6 55:7 56:8 57:9 58:: 59:; 60: 63:? 64:@ 65:A 66:B 67:C 68:D 69:E 70:F 71:G 72:H 73:I 74:J 75:K 76:L 77:M 78:N 79:O 80:P 81:Q 82:R 83:S 84:T 85:U 86:V 87:W 88:X 89:Y 90:Z 91:[ 92:\ 93:] 94:^ 95:_ 96:` 97:a 98:b 99:c 100:d 101:e 102:f 103:g 104:h 105:i 106:j 107:k 108:l 109:m 110:n 111:o 112:p 113:q 114:r 115:s 116:t 117:u 118:v 119:w 120:x 121:y 122:z 123:{ 124:| 125:} 126:~ Introduction to Unix83

84. The tr command tr is short for translate. tr translates between two sets of characters. replace all occurrences of the first character in set 1 with the first character in set 2, the second char in set 1 with the second char in set 2, … tr [options] [string1 [string2]] Introduction to Unix84 No files! Always standard input!

85. tr Example Introduction to Unix85 Gore Bradley Bush McCain Trump Letterman Gore Bradley Bush McCain Trump Letterman tr A-Z a-z gore bradley bush mccain trump letterman gore bradley bush mccain trump letterman Replace 'A' with 'a', 'B' with 'b', … 'Z' with 'z'

86. tr can delete -d option means "delete characters that are found in string1". Introduction to Unix86 Gore Bradley Bush McCain Trump Letterman Gore Bradley Bush McCain Trump Letterman tr -d aeiou Gr Brdly Bsh McCn Lttrmn Gr Brdly Bsh McCn Lttrmn

87. Another tr example - remove newlines Introduction to Unix87 Gore Bradley Bush McCain Trump Letterman Gore Bradley Bush McCain Trump Letterman tr -d '\n' GoreBradleyBushMcCainTrumpLetterman

88. The uniq Command uniq removes duplicate adjacent lines from a file. uniq is typically used on a sorted file (which forces duplicate lines to be adjacent). uniq can also reduce multiple blank lines to a single blank line. Introduction to Unix88

89. uniq examples Introduction to Unix89 Gore Bradley Bush McCain Trump Letterman Gore Bradley Bush McCain Trump Letterman uniq Gore Bradley Bush McCain Trump Letterman Gore Bradley Bush McCain Trump Letterman 10 100 10 100 10 100 10 100 uniq

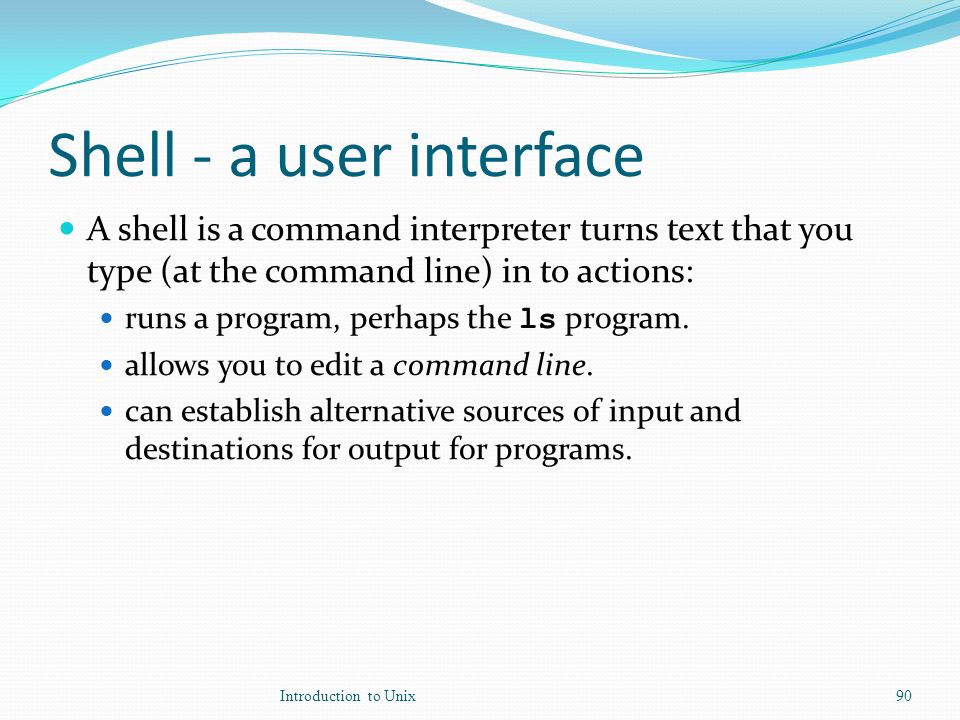

90. Shell - a user interface A shell is a command interpreter turns text that you type (at the command line) in to actions: runs a program, perhaps the ls program. allows you to edit a command line. can establish alternative sources of input and destinations for output for programs. Introduction to Unix90

91. Running a Program You type in the name of a program and some command line options: The shell reads this line, finds the program and runs it, feeding it the options you specified. The shell establishes 3 I/O channels: Standard Input Standard Output Standard Error Introduction to Unix91

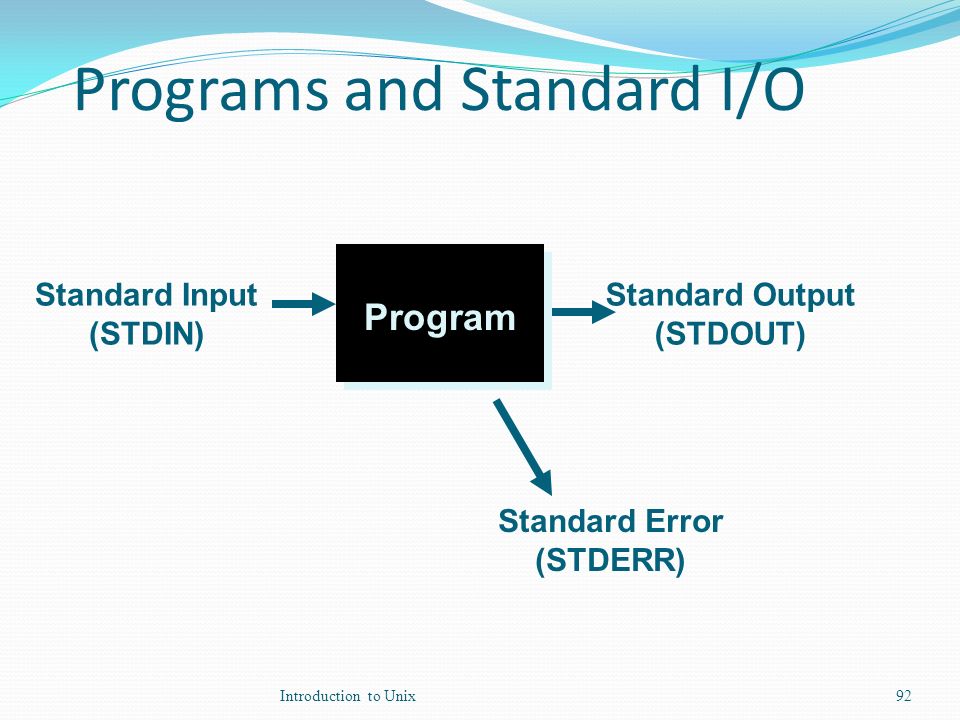

92. Programs and Standard I/O Introduction to Unix92 Program Standard Input (STDIN) Standard Output (STDOUT) Standard Error (STDERR)

93. Unix Commands Most Unix commands (programs): read something from standard input. send something to standard output (typically depends on what the input is!). send error messages to standard error. Introduction to Unix93

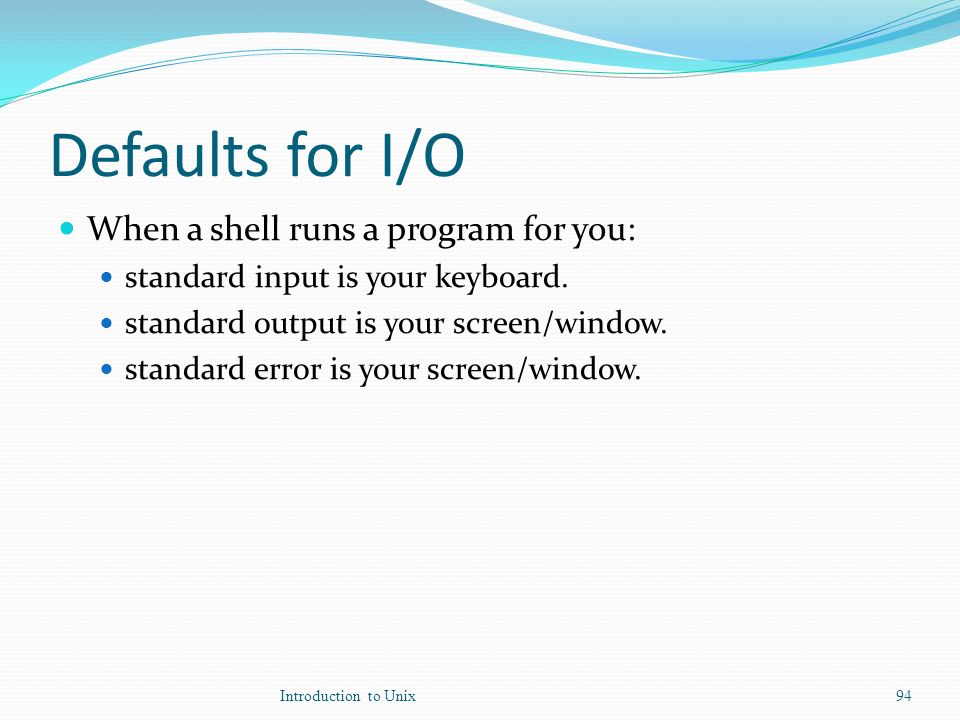

94. Defaults for I/O When a shell runs a program for you: standard input is your keyboard. standard output is your screen/window. standard error is your screen/window. Introduction to Unix94

95. Terminating Standard Input If standard input is your keyboard, you can type stuff in that goes to a program. To end the input you press Ctrl-D (^D) on a line by itself, this ends the input stream. The shell is a program that reads from standard input. What happens when you give the shell ^D? Introduction to Unix95

96. Popular Shells sh Bourne Shell ksh Korn Shell csh C Shell bash Bourne-Again Shell Introduction to Unix96

97. Customization Each shell supports some customization. User prompt Where to find mail Shortcuts The customization takes place in startup files – files that are read by the shell when it starts up Introduction to Unix97

98. Startup files sh,ksh: /etc/profile (system defaults) ~/.profile bash: ~/.bash_profile ~/.bashrc ~/.bash_logout csh: ~/.cshrc ~/.login ~/.logout Introduction to Unix98

99. Wildcards (metacharacters) for filename abbreviation When you type in a command line the shell treats some characters as special. These special characters make it easy to specify filenames. The shell processes what you give it, using the special characters to replace your command line with one that includes a bunch of file names. Introduction to Unix99

100. The special character * * matches anything. If you give the shell * by itself (as a command line argument) the shell will remove the * and replace it with all the filenames in the current directory. “a*b” matches all files in the current directory that start with a and end with b. Introduction to Unix100

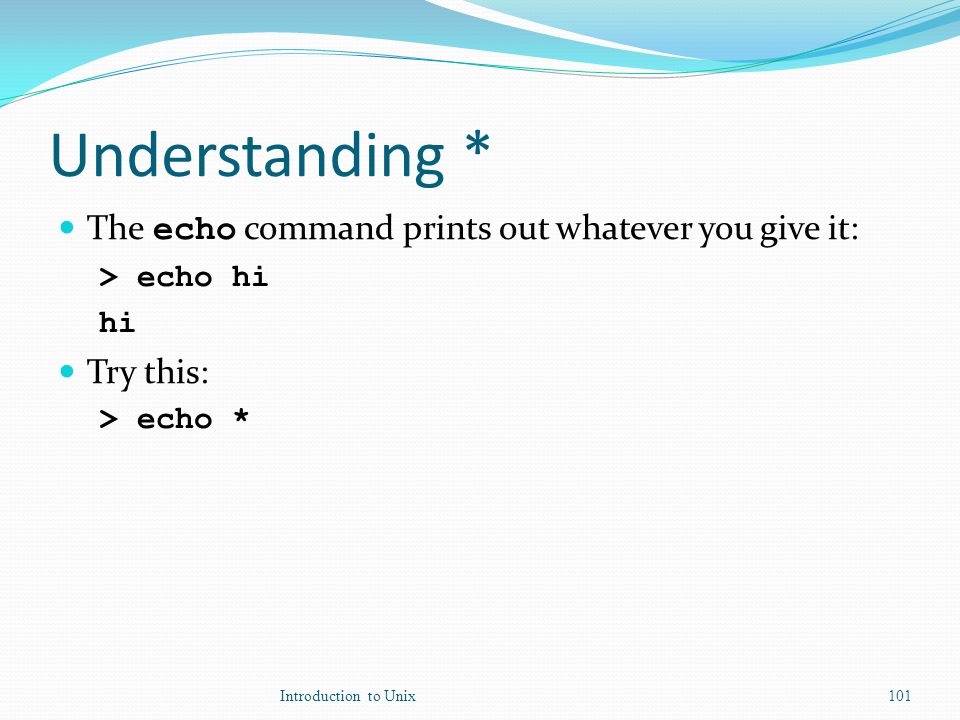

101. Understanding * The echo command prints out whatever you give it: > echo hi hi Try this: > echo * Introduction to Unix101

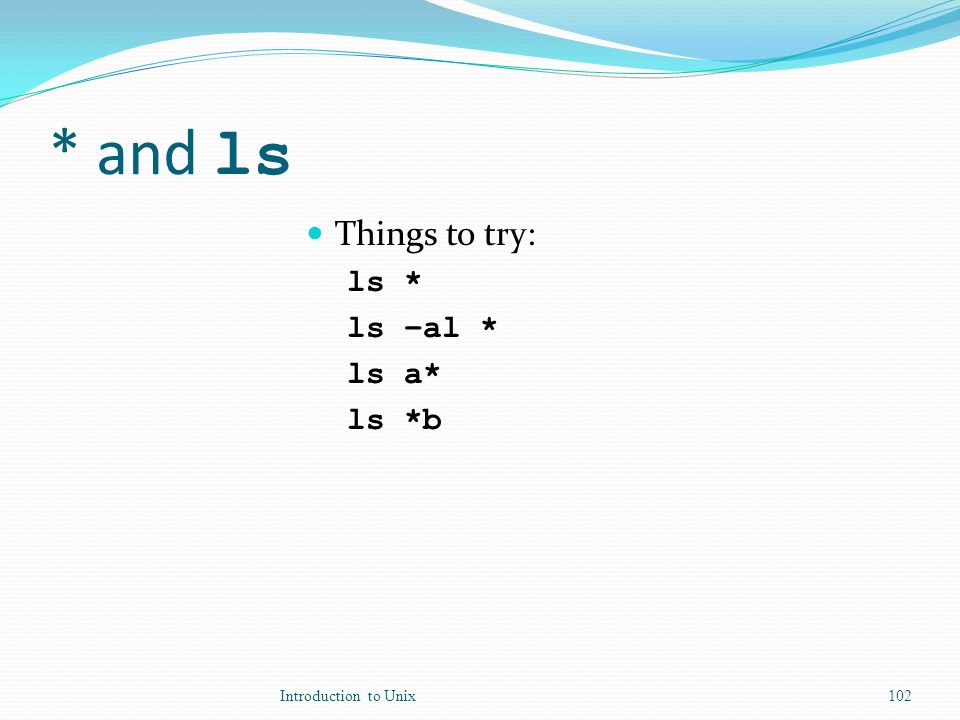

102. * and ls Things to try: ls * ls –al * ls a* ls *b Introduction to Unix102

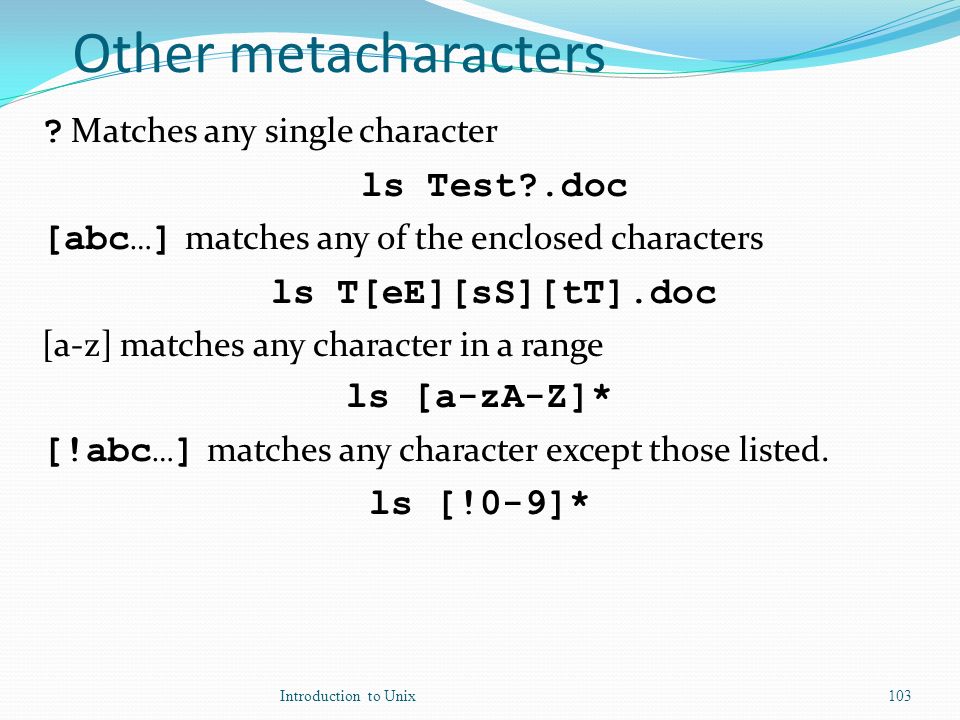

103. Other metacharacters ? Matches any single character ls Test?.doc [abc…] matches any of the enclosed characters ls T[eE][sS][tT].doc [a-z] matches any character in a range ls [a-zA-Z]* [!abc…] matches any character except those listed. ls [!0-9]* Introduction to Unix103

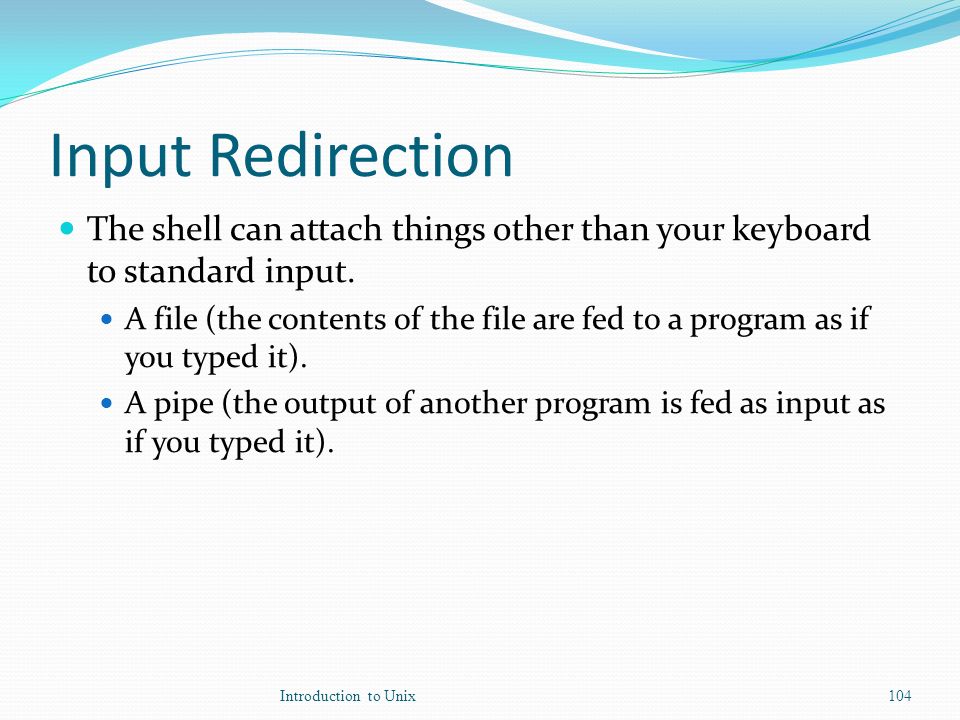

104. Input Redirection The shell can attach things other than your keyboard to standard input. A file (the contents of the file are fed to a program as if you typed it). A pipe (the output of another program is fed as input as if you typed it). Introduction to Unix104

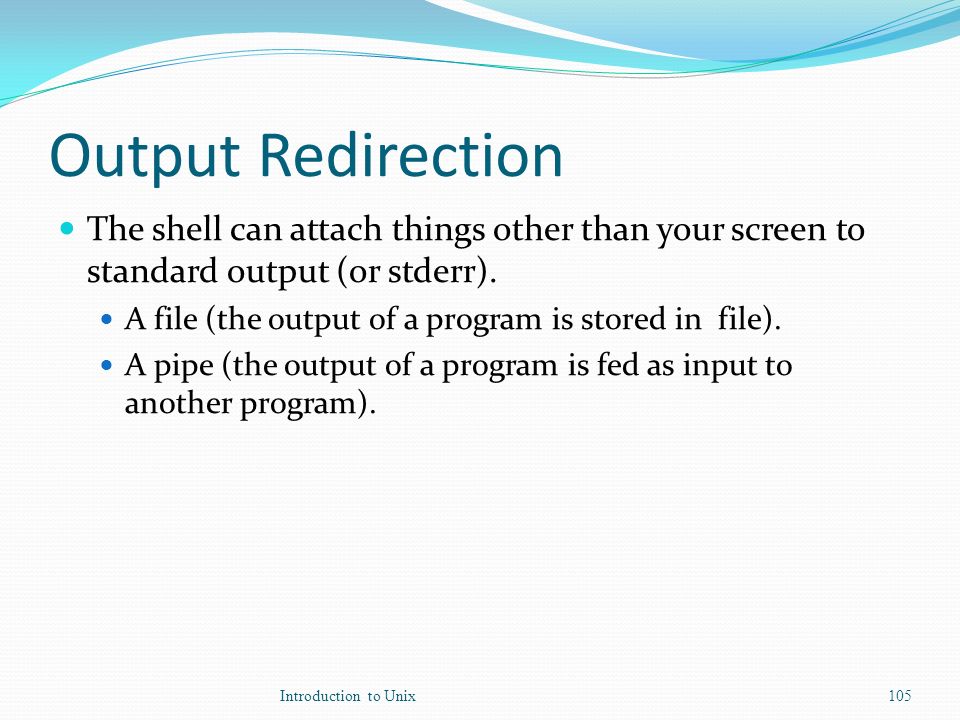

105. Output Redirection The shell can attach things other than your screen to standard output (or stderr). A file (the output of a program is stored in file). A pipe (the output of a program is fed as input to another program). Introduction to Unix105

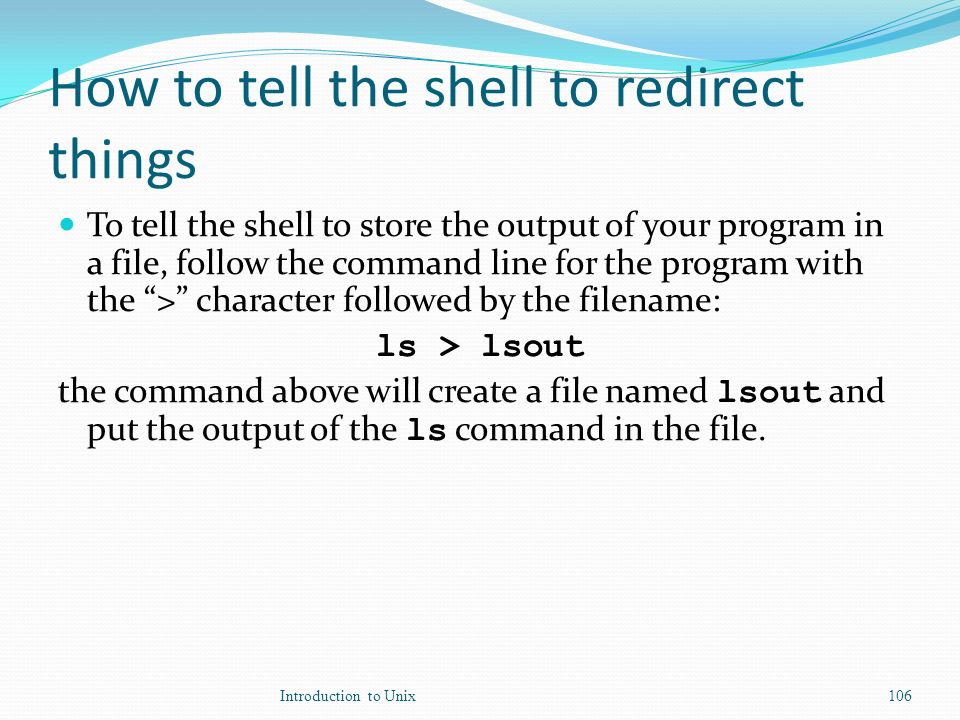

106. How to tell the shell to redirect things To tell the shell to store the output of your program in a file, follow the command line for the program with the “>” character followed by the filename: ls > lsout the command above will create a file named lsout and put the output of the ls command in the file. Introduction to Unix106

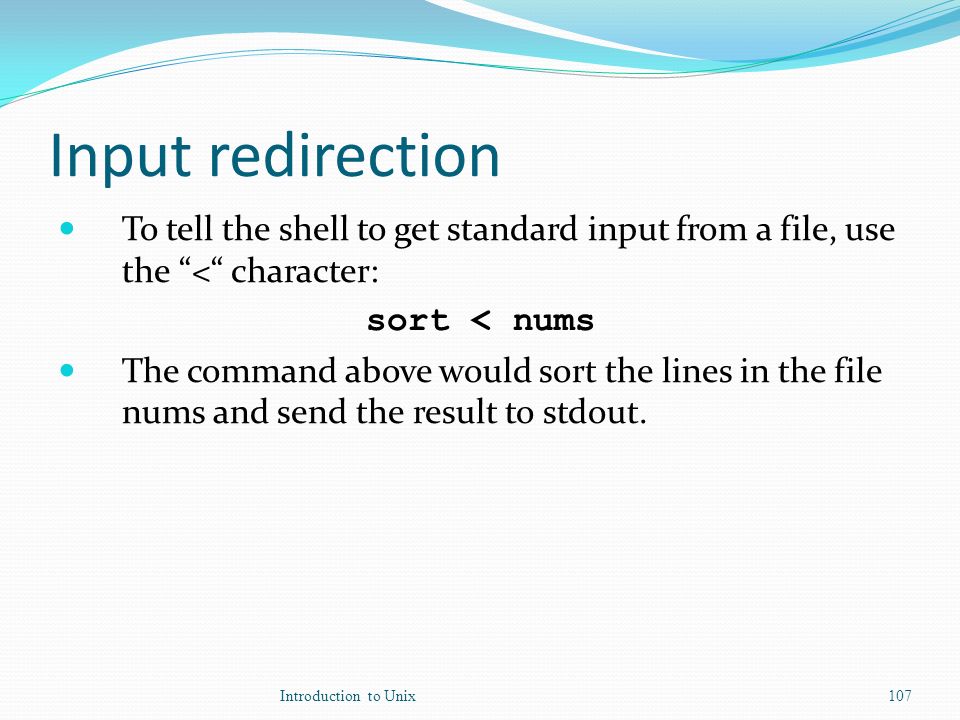

107. Input redirection To tell the shell to get standard input from a file, use the “<“ character: sort < nums The command above would sort the lines in the file nums and send the result to stdout. Introduction to Unix107

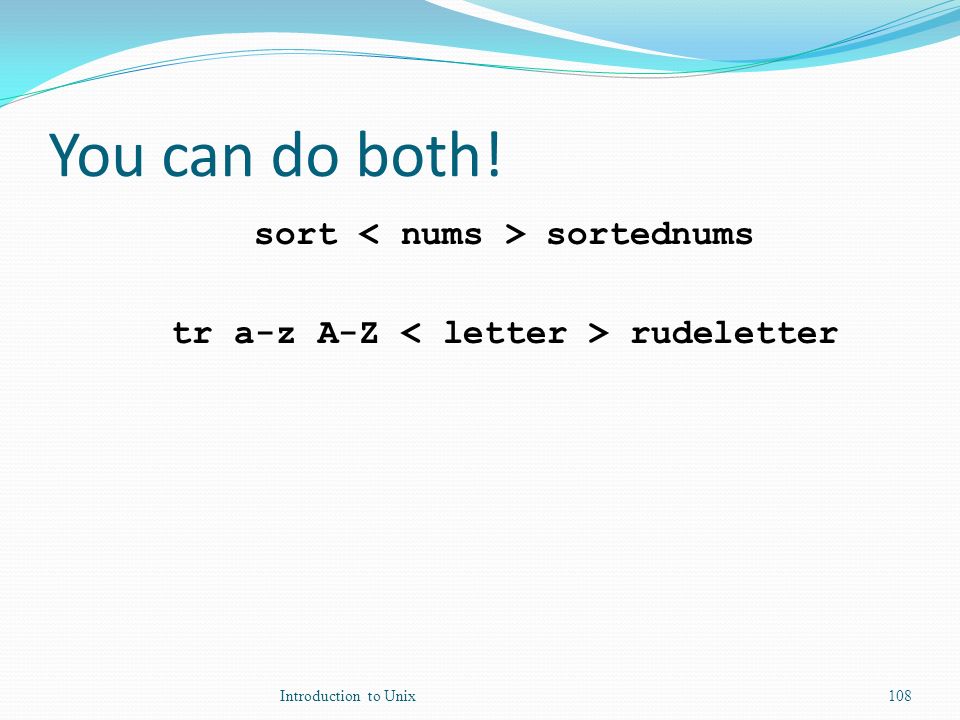

108. You can do both! sort sortednums tr a-z A-Z rudeletter Introduction to Unix108

109. Output and Output Append The command ls > foo will create a new file named foo (deleting any existing file named foo). If you use >> the output will be appended to foo: ls /etc >> foo ls /usr >> foo Introduction to Unix109

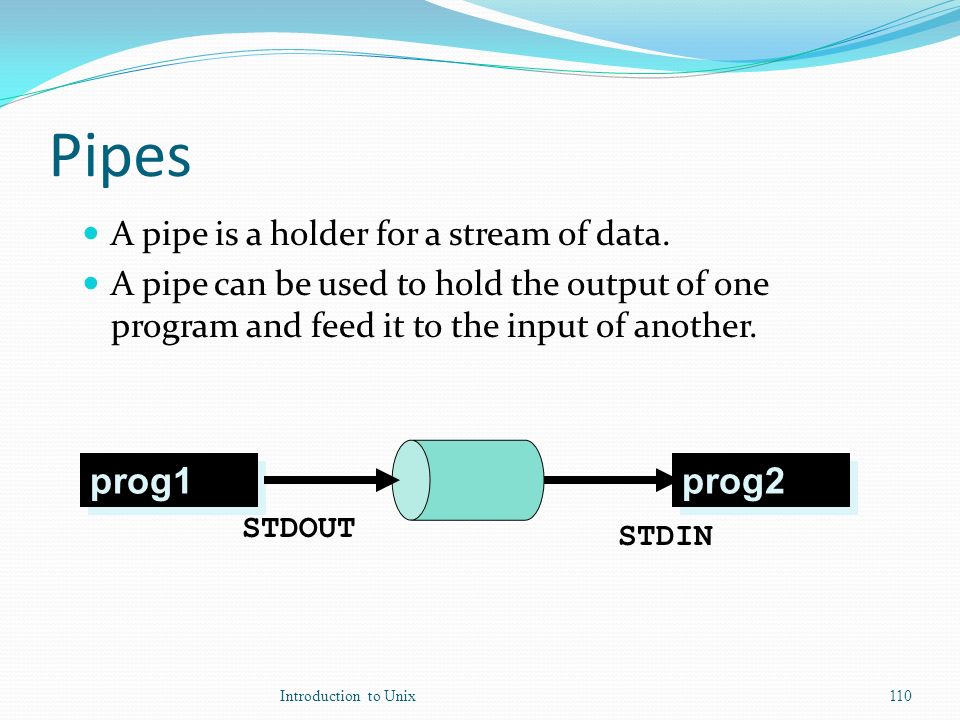

110. Pipes A pipe is a holder for a stream of data. A pipe can be used to hold the output of one program and feed it to the input of another. Introduction to Unix110 prog1 prog2 STDOUT STDIN

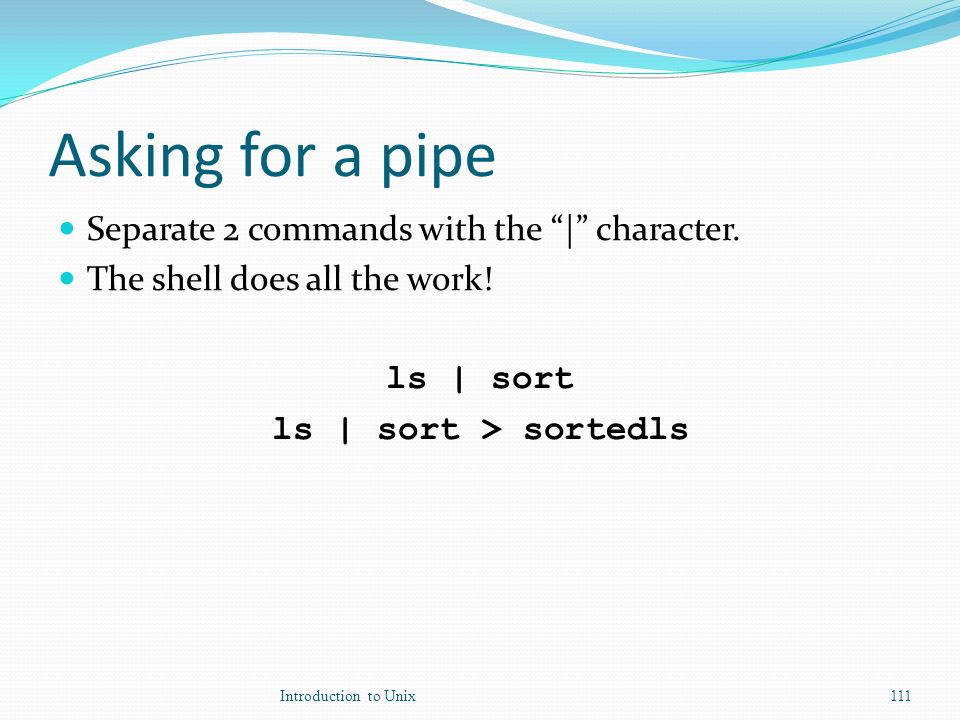

111. Asking for a pipe Separate 2 commands with the “|” character. The shell does all the work! ls | sort ls | sort > sortedls Introduction to Unix111

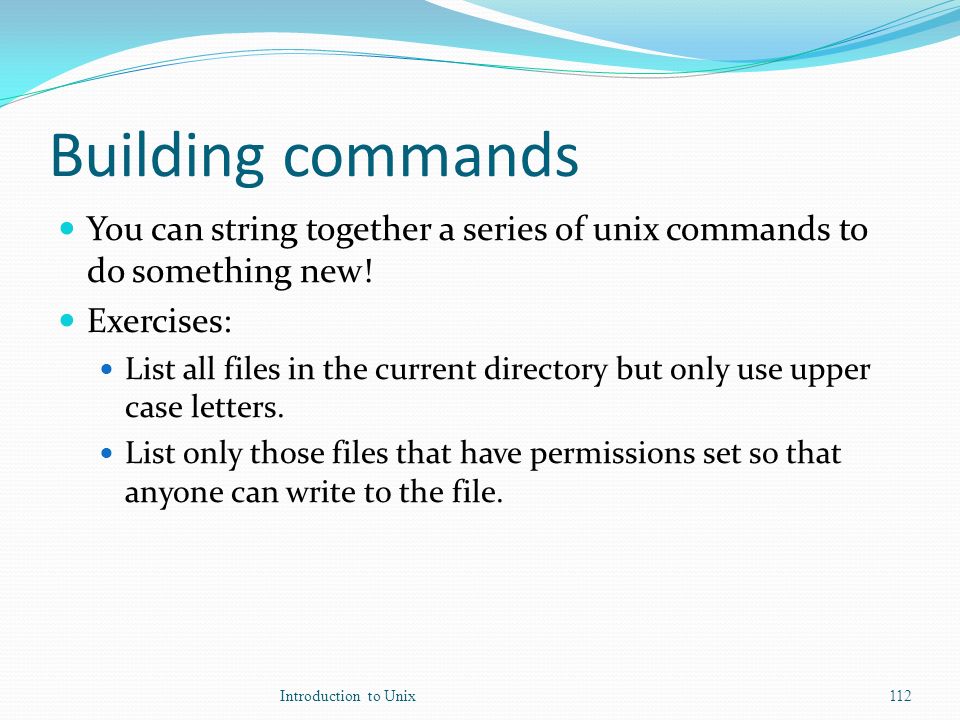

112. Building commands You can string together a series of unix commands to do something new! Exercises: List all files in the current directory but only use upper case letters. List only those files that have permissions set so that anyone can write to the file. Introduction to Unix112

113. Stderr Many commands send error messages to standard error. This is a different stream than stdout. The “>” output redirection only applies to Stdout (not to Stderr ). Try this: ls foo blah gork > savedls (I’m assuming there are no files named foo, blah or gork!). Introduction to Unix113

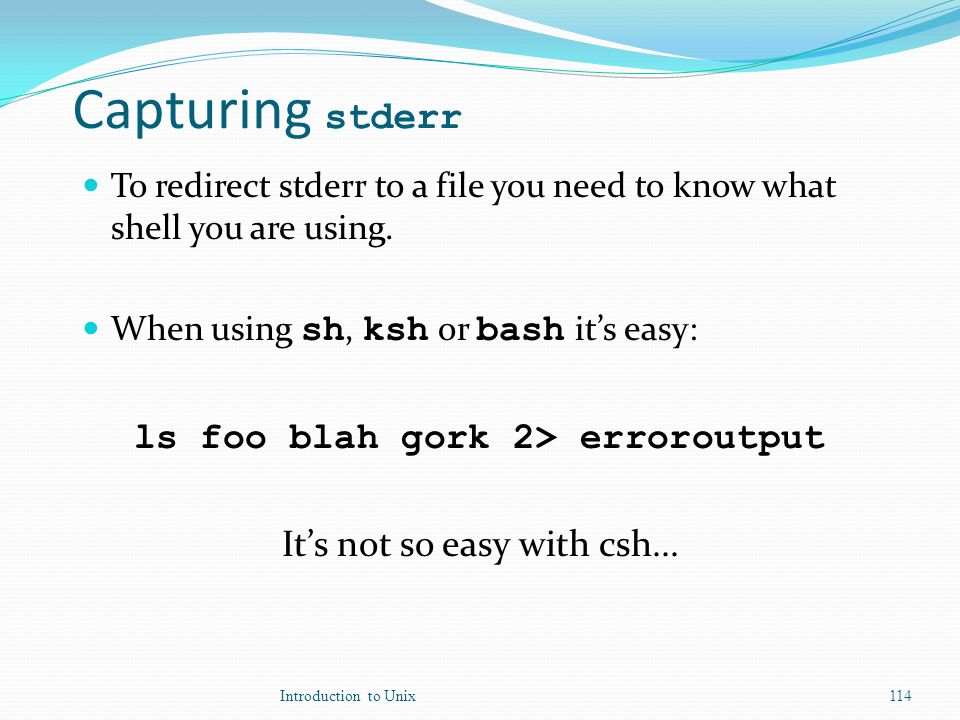

114. Capturing stderr To redirect stderr to a file you need to know what shell you are using. When using sh, ksh or bash it’s easy: ls foo blah gork 2> erroroutput It’s not so easy with csh... Introduction to Unix114

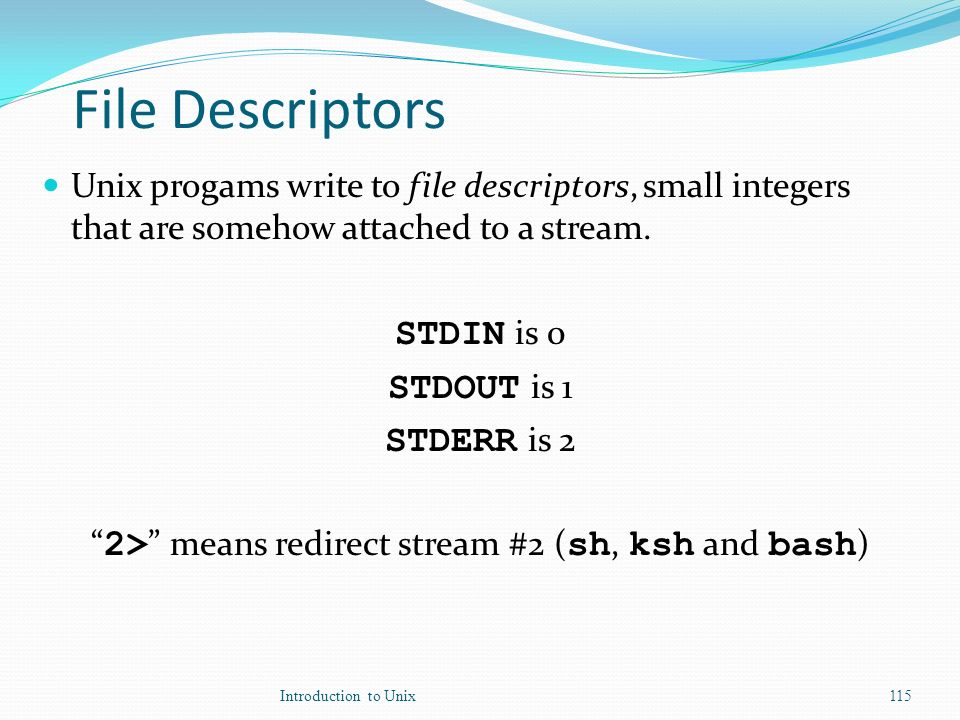

115. File Descriptors Unix progams write to file descriptors, small integers that are somehow attached to a stream. STDIN is 0 STDOUT is 1 STDERR is 2 “ 2> ” means redirect stream #2 ( sh, ksh and bash ) Introduction to Unix115

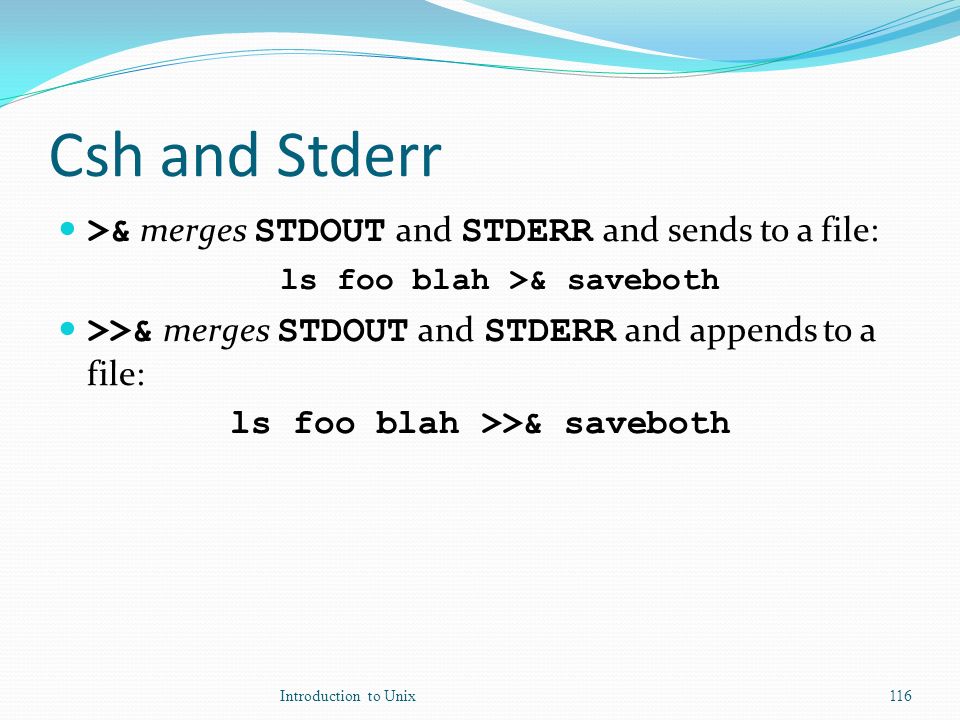

116. Csh and Stderr >& merges STDOUT and STDERR and sends to a file: ls foo blah >& saveboth >>& merges STDOUT and STDERR and appends to a file: ls foo blah >>& saveboth Introduction to Unix116

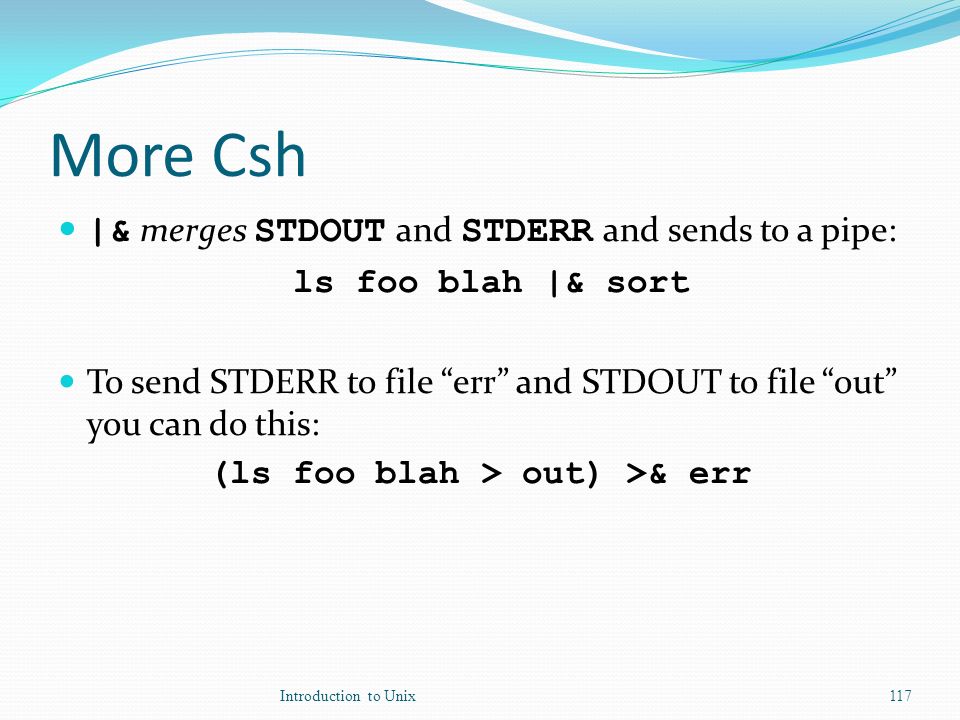

117. More Csh |& merges STDOUT and STDERR and sends to a pipe: ls foo blah |& sort To send STDERR to file “err” and STDOUT to file “out” you can do this: (ls foo blah > out) >& err Introduction to Unix117

118. Shell Variables* The shell keeps track of a set of parameter names and values. Some of these parameters determine the behavior of the shell. We can access these variables: set new values for some to customize the shell. find out the value of some to help accomplish a task. * From now on I'll focus on sh and ignore csh Introduction to Unix118

119. Example Shell Variables sh / ksh / bash PWD current working directory PATH list of places to look for commands HOME home directory of user MAIL where your email is stored TERM what kind of terminal you have HISTFILE where your command history is saved Introduction to Unix119

120. Displaying Shell Variables Prefix the name of a shell variable with "$". The echo command will do: echo $HOME echo $PATH You can use these variables on any command line: ls -al $HOME Introduction to Unix120

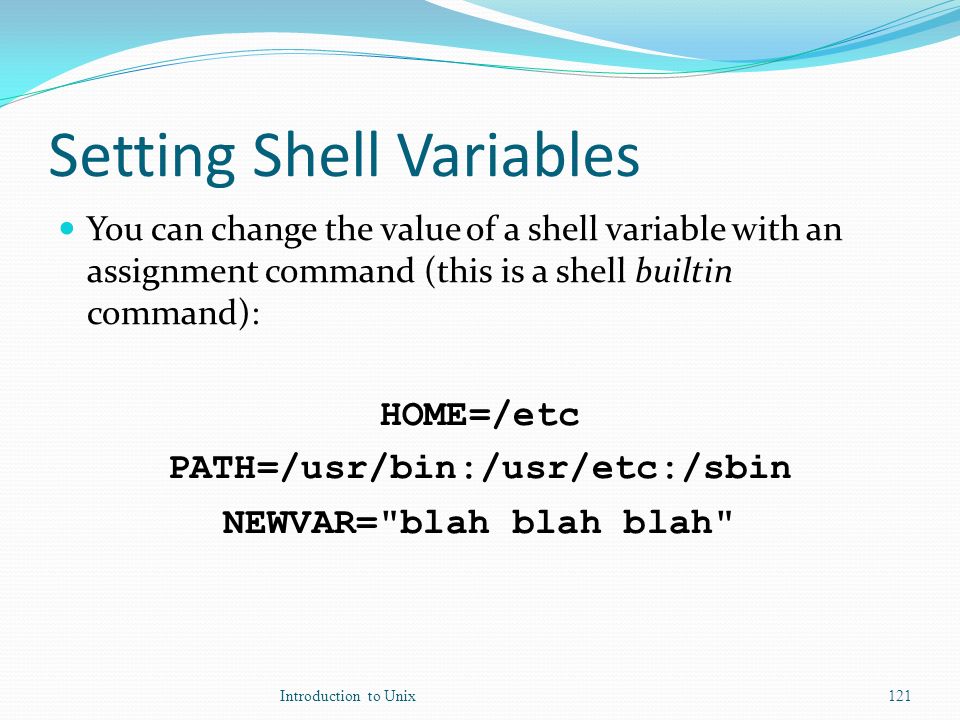

121. Setting Shell Variables You can change the value of a shell variable with an assignment command (this is a shell builtin command): HOME=/etc PATH=/usr/bin:/usr/etc:/sbin NEWVAR="blah blah blah" Introduction to Unix121

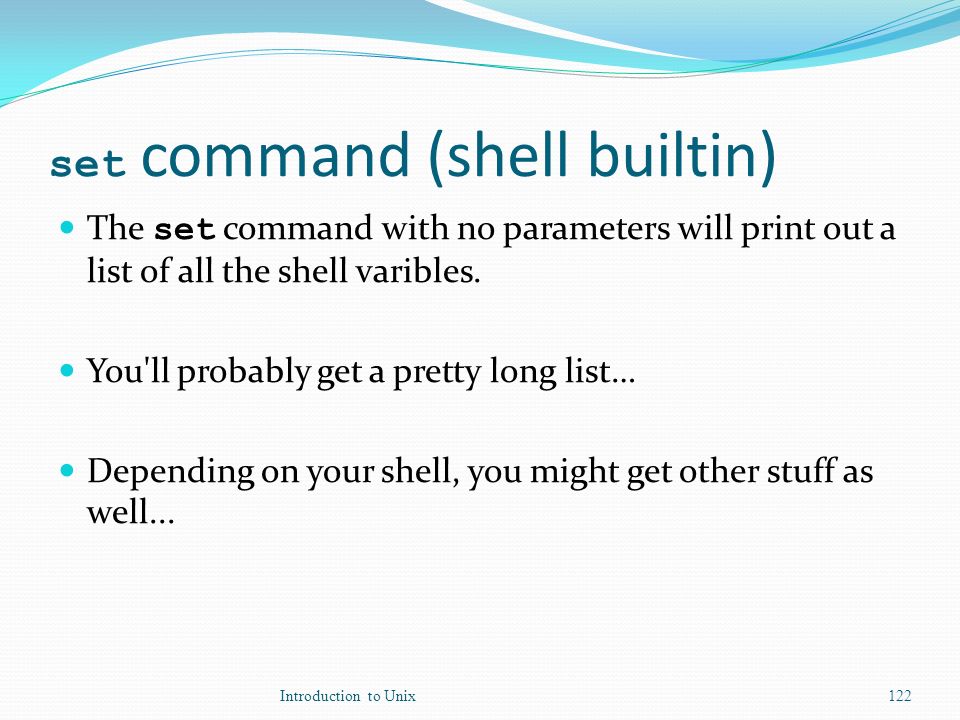

122. set command (shell builtin) The set command with no parameters will print out a list of all the shell varibles. You'll probably get a pretty long list… Depending on your shell, you might get other stuff as well... Introduction to Unix122

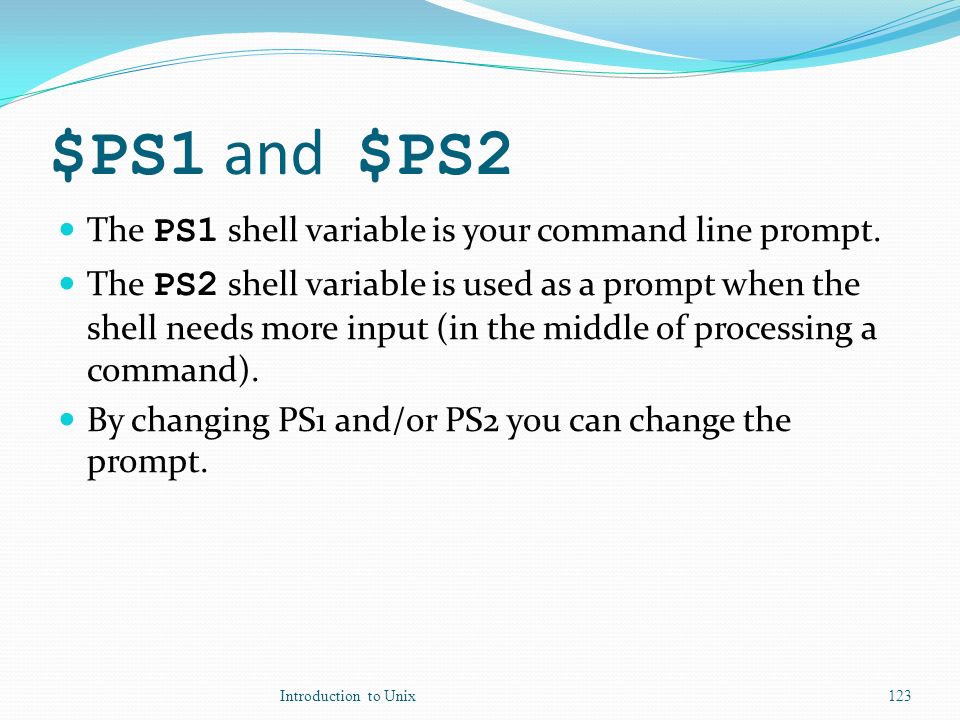

123. $PS1 and $PS2 The PS1 shell variable is your command line prompt. The PS2 shell variable is used as a prompt when the shell needs more input (in the middle of processing a command). By changing PS1 and/or PS2 you can change the prompt. Introduction to Unix123

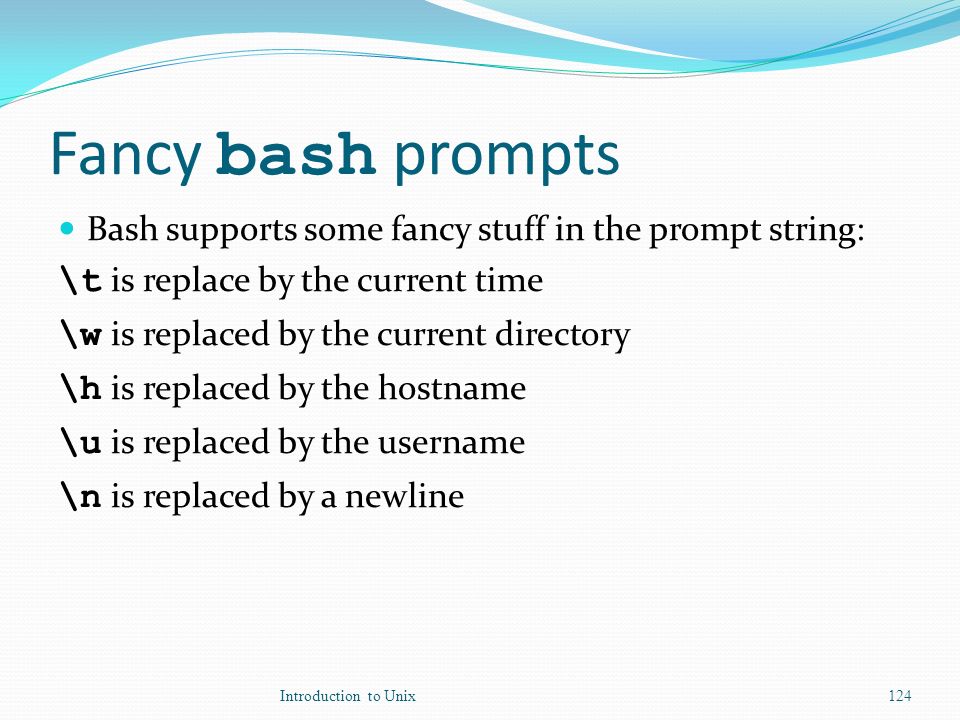

124. Fancy bash prompts Bash supports some fancy stuff in the prompt string: \t is replace by the current time \w is replaced by the current directory \h is replaced by the hostname \u is replaced by the username \n is replaced by a newline Introduction to Unix124

125. Example bash prompt ======= [foo.cs.rpi.edu] - 22:43:17 ======= /cs/hollingd/introunix echo $PS1 ======= [\h] - \t =======\n\w You can change your prompt by changing PS1: PS1="Yes Master? " Introduction to Unix125

126. Making Changes Stick If you want to tell the shell ( bash ) to always use the prompt " Yes Master ? ", you need to store the change in a shell startup file. For bash - change the file ~/.bashrc. Wait a few minutes and we will talk about text editors - you need to use one to do this! Introduction to Unix126

127. The PATH Each time you give the shell a command line it does the following: Checks to see if the command is a shell built-in. If not - tries to find a program whose name (the filename) is the same as the command. The PATH variable tells the shell where to look for programs (non built-in commands). Introduction to Unix127

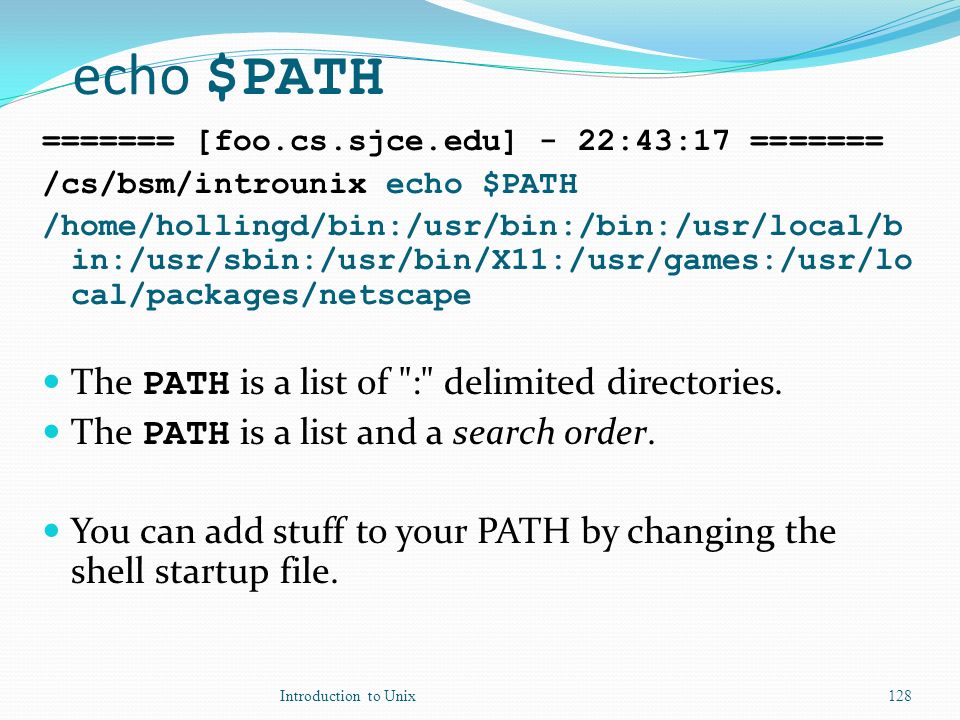

128. echo $PATH ======= [foo.cs.sjce.edu] - 22:43:17 ======= /cs/bsm/introunix echo $PATH /home/hollingd/bin:/usr/bin:/bin:/usr/local/b in:/usr/sbin:/usr/bin/X11:/usr/games:/usr/lo cal/packages/netscape The PATH is a list of ":" delimited directories. The PATH is a list and a search order. You can add stuff to your PATH by changing the shell startup file. Introduction to Unix128

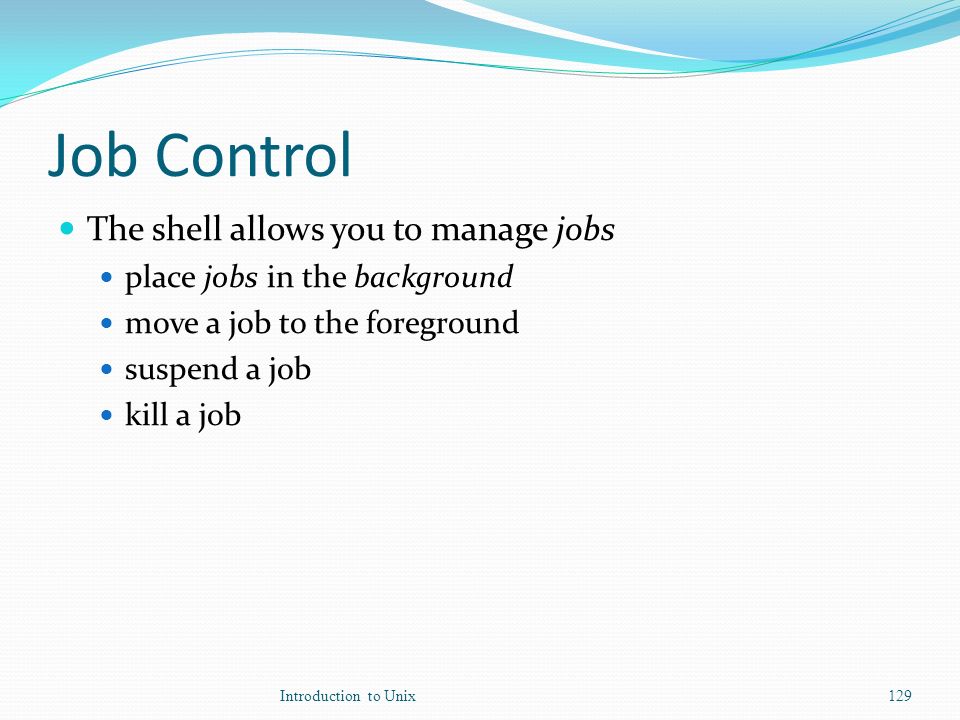

129. Job Control The shell allows you to manage jobs place jobs in the background move a job to the foreground suspend a job kill a job Introduction to Unix129

130. Background jobs If you follow a command line with "&", the shell will run the job in the background. you don't need to wait for the job to complete, you can type in a new command right away. you can have a bunch of jobs running at once. you can do all this with a single terminal (window). ls -lR > saved_ls & Introduction to Unix130

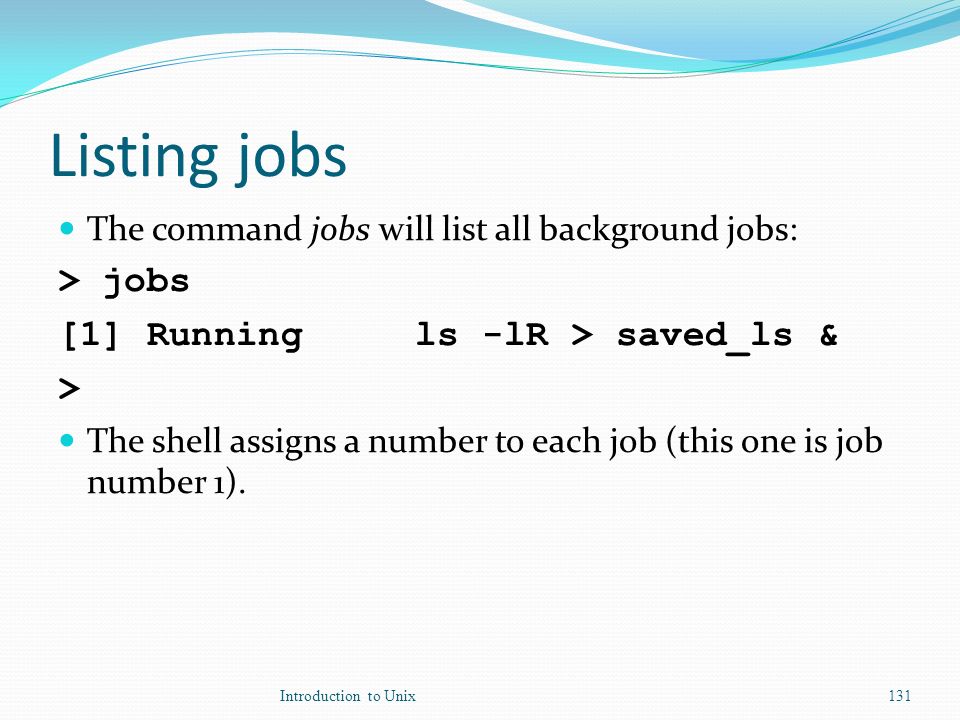

131. Listing jobs The command jobs will list all background jobs: > jobs [1] Running ls -lR > saved_ls & > The shell assigns a number to each job (this one is job number 1). Introduction to Unix131

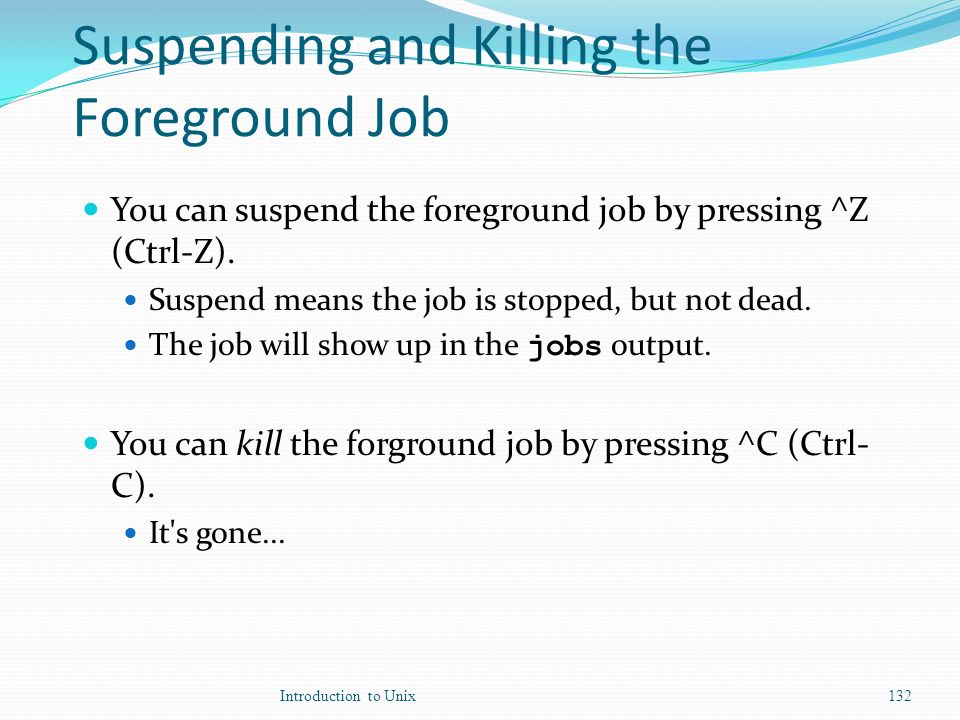

132. Suspending and Killing the Foreground Job You can suspend the foreground job by pressing ^Z (Ctrl-Z). Suspend means the job is stopped, but not dead. The job will show up in the jobs output. You can kill the forground job by pressing ^C (Ctrl- C). It's gone... Introduction to Unix132

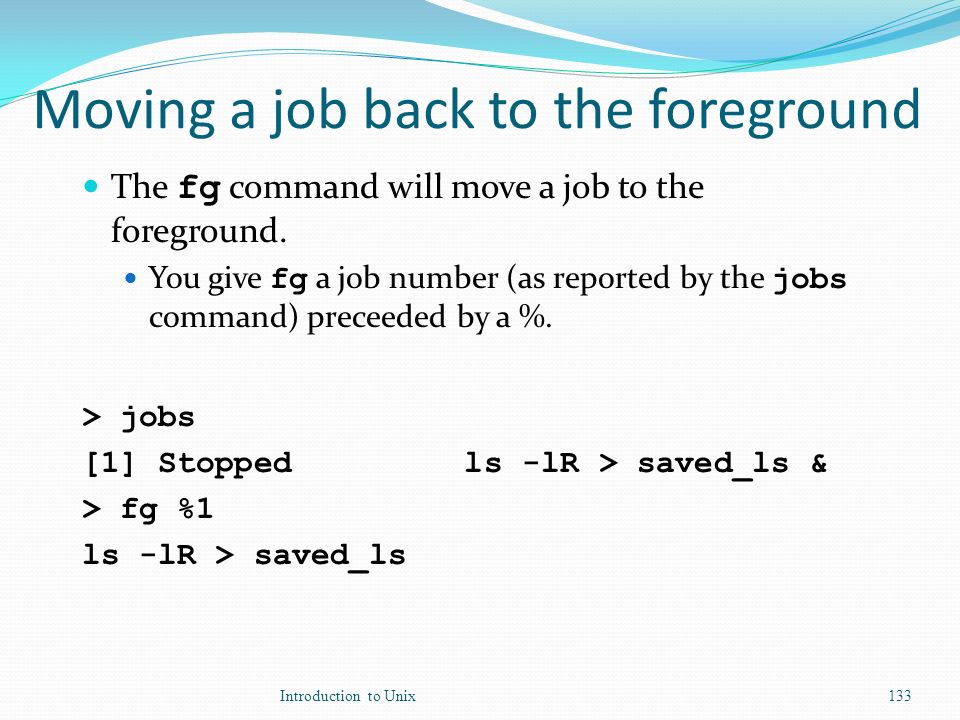

133. Moving a job back to the foreground The fg command will move a job to the foreground. You give fg a job number (as reported by the jobs command) preceeded by a %. > jobs [1] Stopped ls -lR > saved_ls & > fg %1 ls -lR > saved_ls Introduction to Unix133

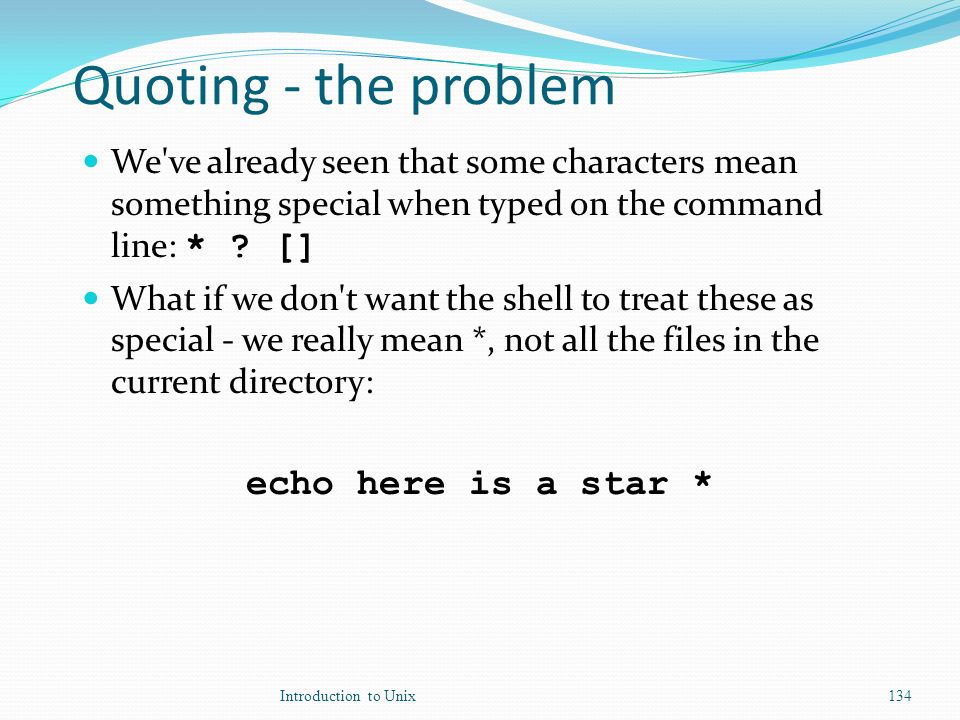

134. Quoting - the problem We've already seen that some characters mean something special when typed on the command line: * ? [] What if we don't want the shell to treat these as special - we really mean *, not all the files in the current directory: echo here is a star * Introduction to Unix134

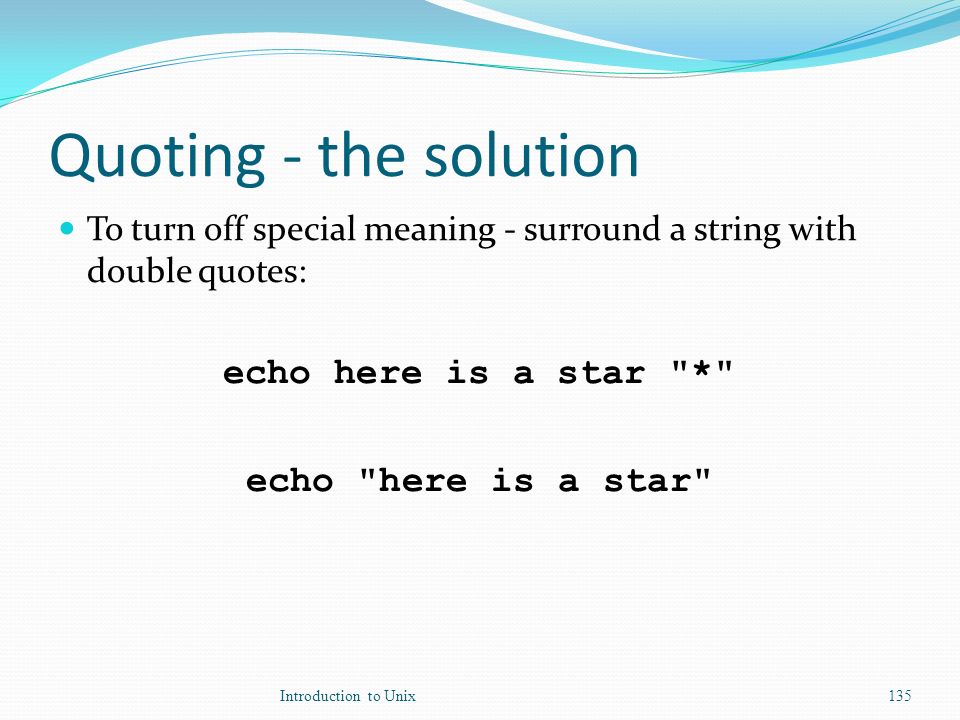

135. Quoting - the solution To turn off special meaning - surround a string with double quotes: echo here is a star "*" echo "here is a star" Introduction to Unix135

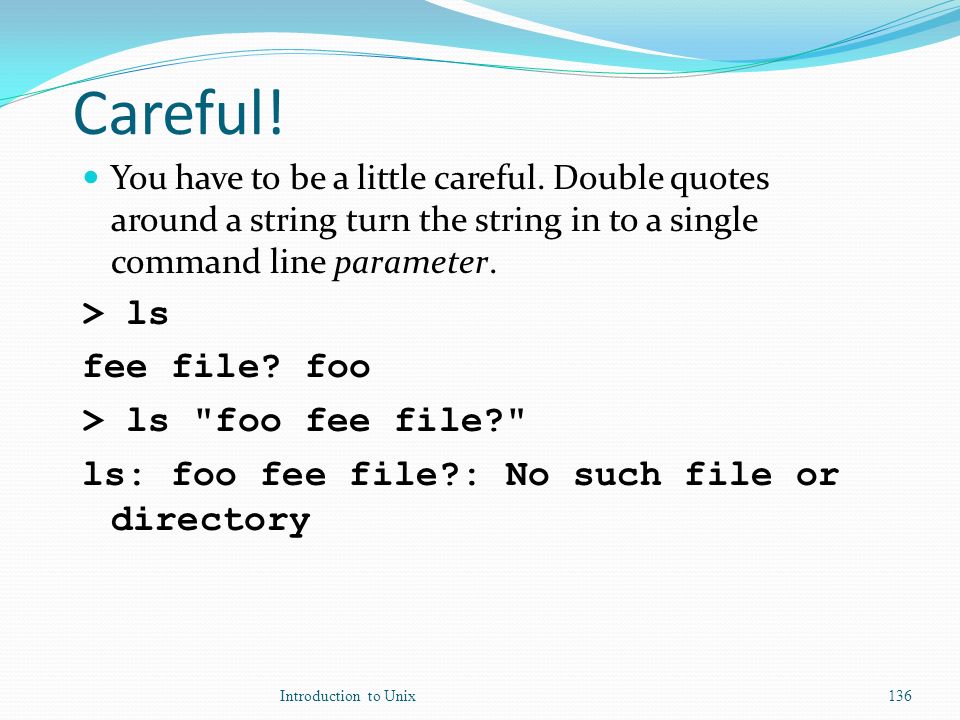

136. Careful! You have to be a little careful. Double quotes around a string turn the string in to a single command line parameter. > ls fee file? foo > ls "foo fee file?" ls: foo fee file?: No such file or directory Introduction to Unix136

137. Quoting Exceptions Some special characters are not ignored even if inside double quotes: $ (prefix for variable names) " the quote character itself \ slash is always something special (\n) you can use \$ to mean $ or \" to mean " echo "This is a quote \" " Introduction to Unix137

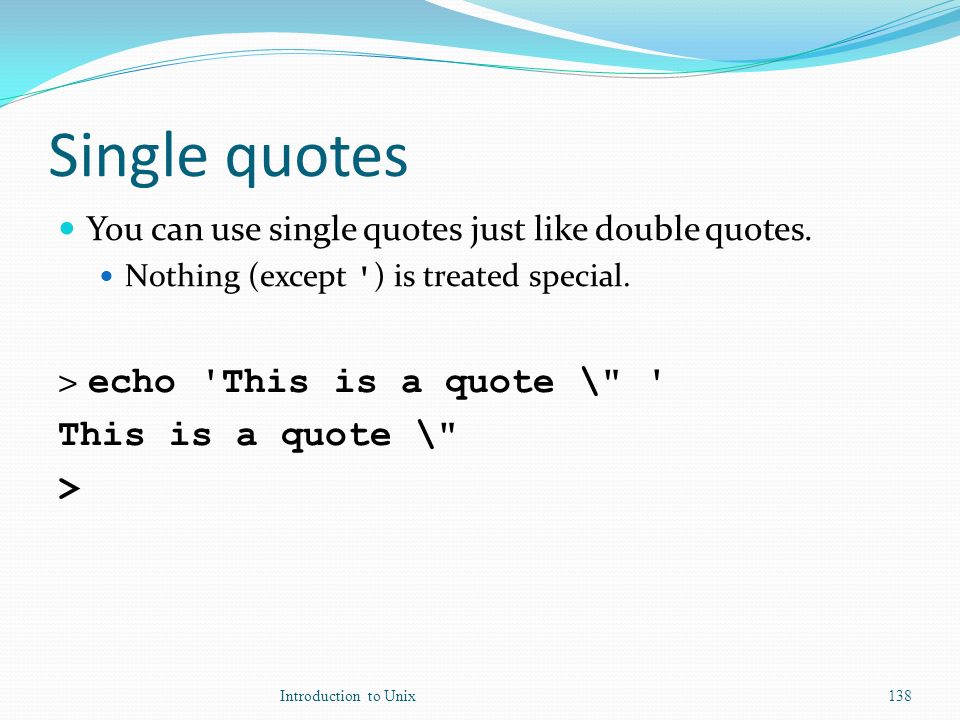

138. Single quotes You can use single quotes just like double quotes. Nothing (except ' ) is treated special. > echo 'This is a quote \" ' This is a quote \" > Introduction to Unix138

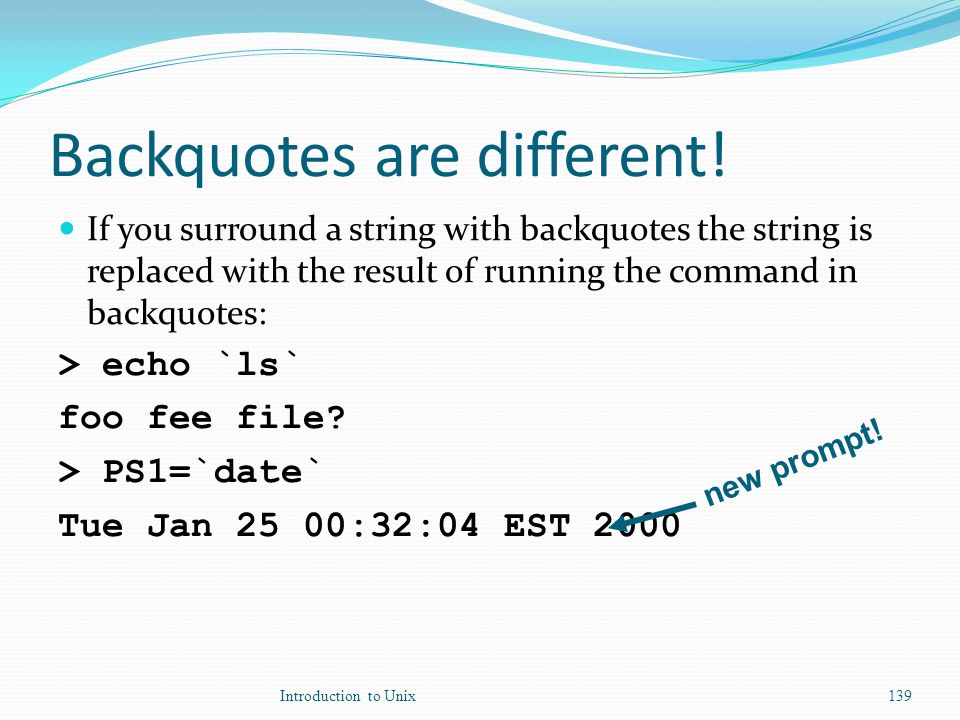

139. Backquotes are different! If you surround a string with backquotes the string is replaced with the result of running the command in backquotes: > echo `ls` foo fee file? > PS1=`date` Tue Jan 25 00:32:04 EST 2000 Introduction to Unix139 new prompt!

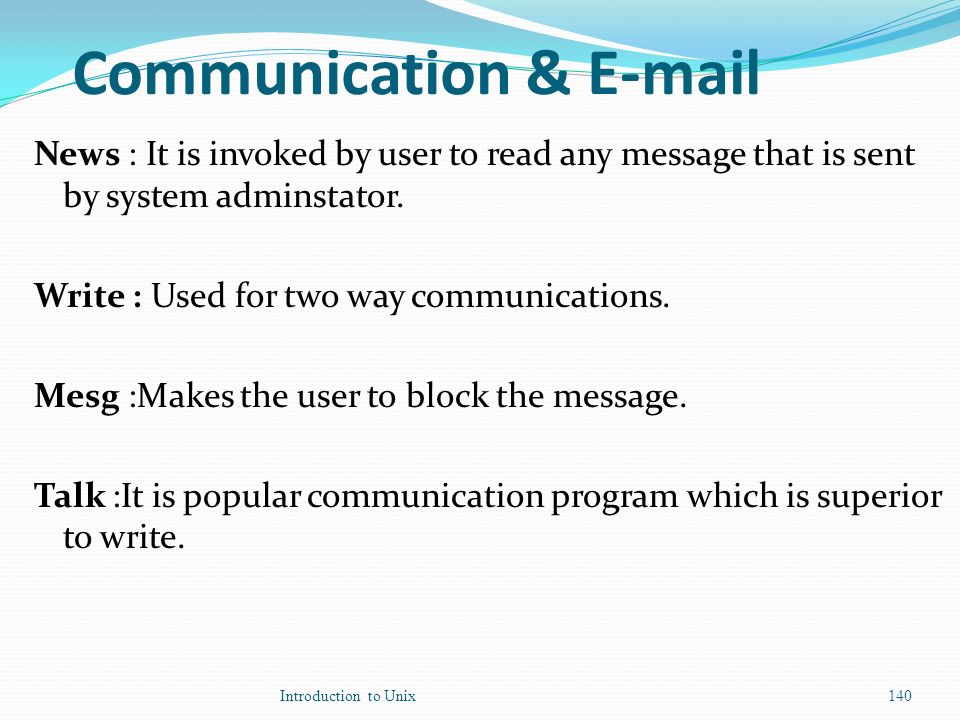

140. Communication & E-mail News : It is invoked by user to read any message that is sent by system adminstator. Write : Used for two way communications. Mesg :Makes the user to block the message. Talk :It is popular communication program which is superior to write. Introduction to Unix140

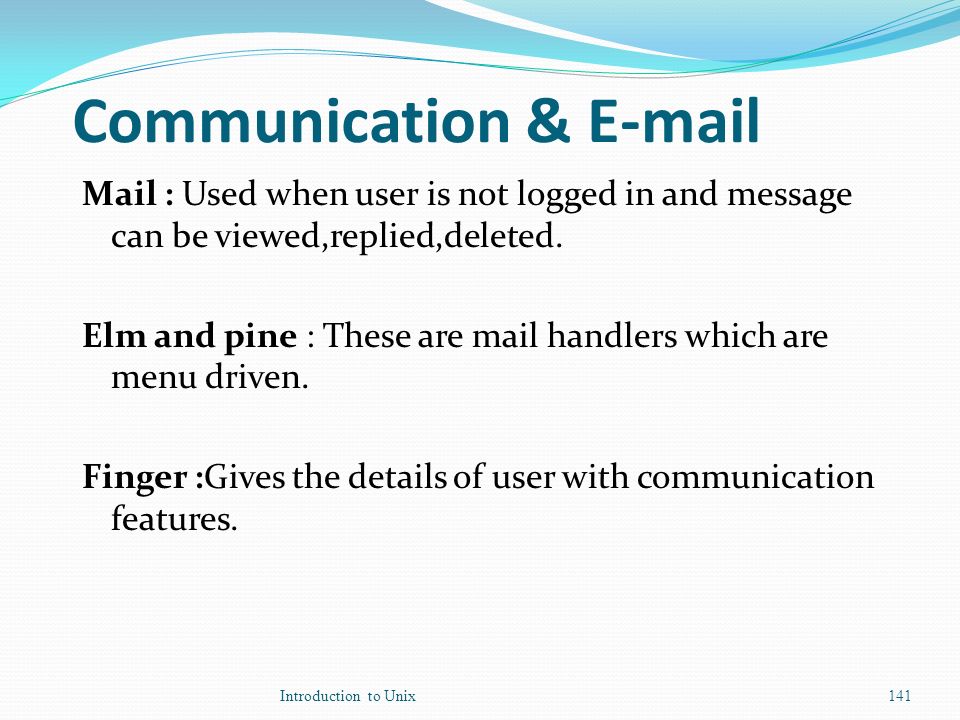

141. Communication & E-mail Mail : Used when user is not logged in and message can be viewed,replied,deleted. Elm and pine : These are mail handlers which are menu driven. Finger :Gives the details of user with communication features. Introduction to Unix141

142. Shell Programming Shell script – Group of commands has to be executed & stored in file with extension.sh Exit – Shell Script termination. Expr – Used for computation of basic four operation Set – Assigning values to positional parameters. Introduction to Unix142

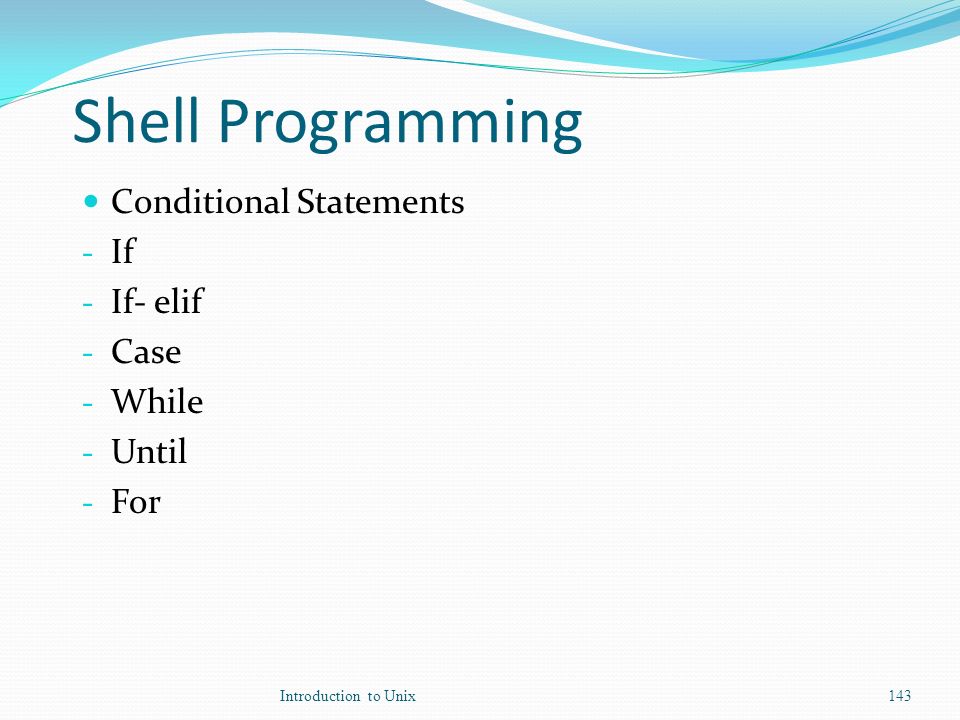

143. Shell Programming Conditional Statements - If - If- elif - Case - While - Until - For Introduction to Unix143

144. Introduction to Unix144

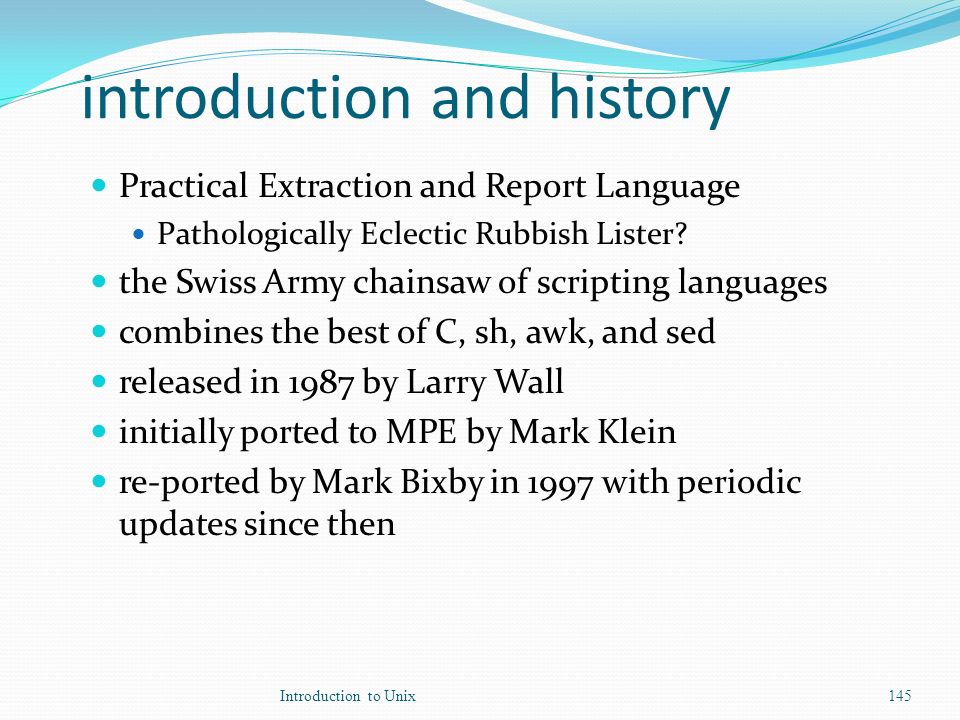

145. introduction and history Practical Extraction and Report Language Pathologically Eclectic Rubbish Lister? the Swiss Army chainsaw of scripting languages combines the best of C, sh, awk, and sed released in 1987 by Larry Wall initially ported to MPE by Mark Klein re-ported by Mark Bixby in 1997 with periodic updates since then Introduction to Unix145

146. current status latest & greatest Perl release v5.6.0 available for MPE from bixby.org Perl is not supported by HP, but if your use of Perl uncovers any underlying MPE or POSIX bugs, then we certainly want to hear from you! the best way to get assistance with Perl on MPE is to post your questions to HP3000-L Introduction to Unix146

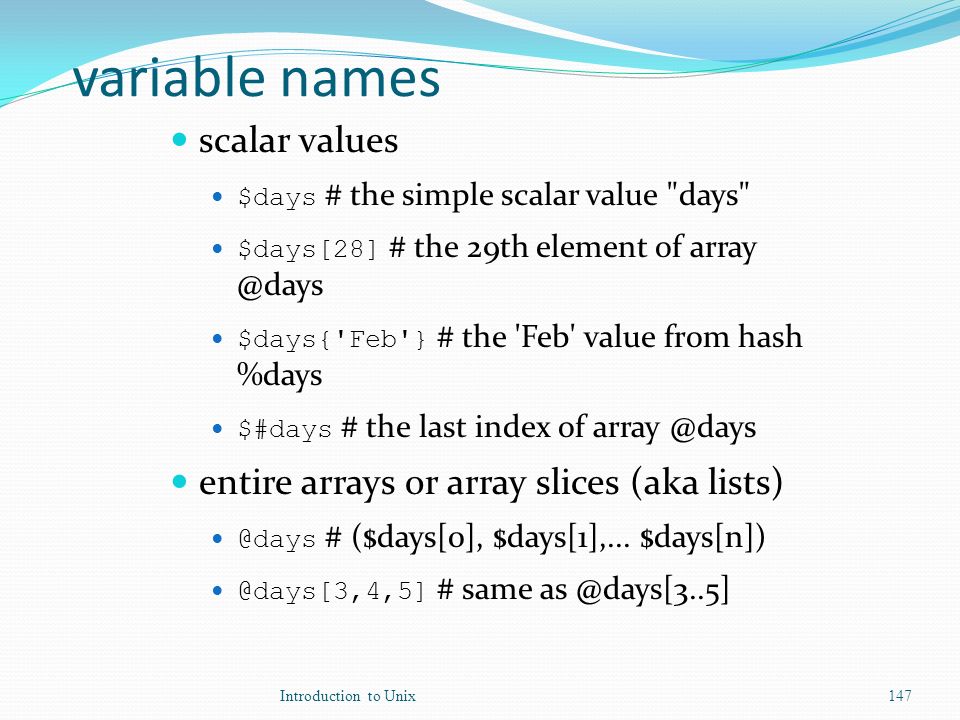

147. variable names scalar values $days # the simple scalar value "days" $days[28] # the 29th element of array @days $days{'Feb'} # the 'Feb' value from hash %days $#days # the last index of array @days entire arrays or array slices (aka lists) @days # ($days[0], $days[1],... $days[n]) @days[3,4,5] # same as @days[3..5] Introduction to Unix147

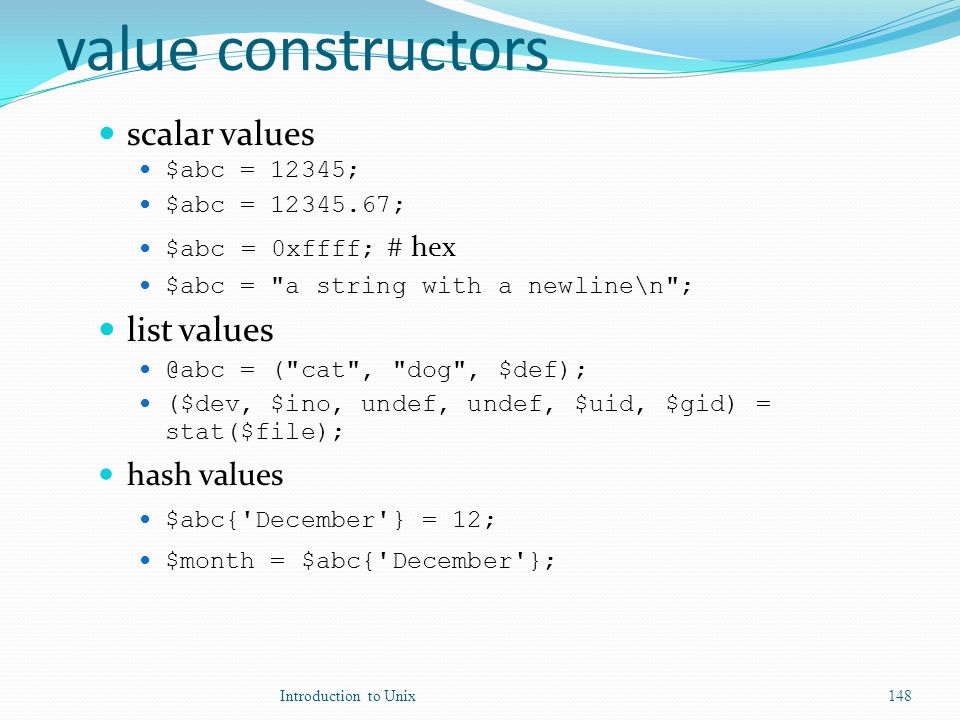

148. value constructors scalar values $abc = 12345; $abc = 12345.67; $abc = 0xffff; # hex $abc = "a string with a newline\n"; list values @abc = ("cat", "dog", $def); ($dev, $ino, undef, undef, $uid, $gid) = stat($file); hash values $abc{'December'} = 12; $month = $abc{'December'}; Introduction to Unix148

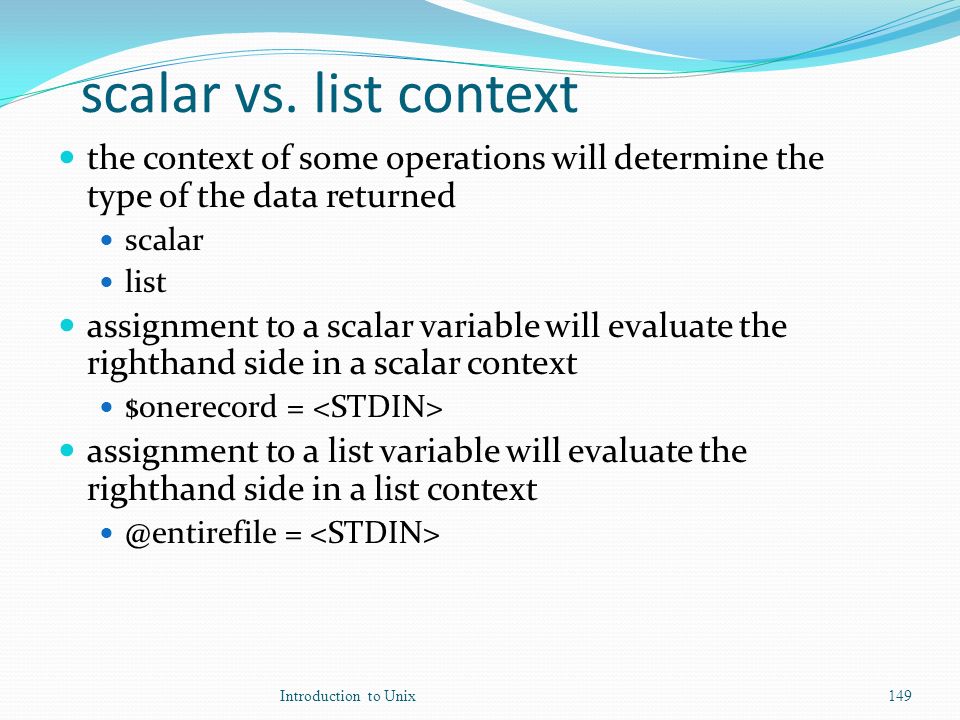

149. scalar vs. list context the context of some operations will determine the type of the data returned scalar list assignment to a scalar variable will evaluate the righthand side in a scalar context $onerecord = assignment to a list variable will evaluate the righthand side in a list context @entirefile = Introduction to Unix149

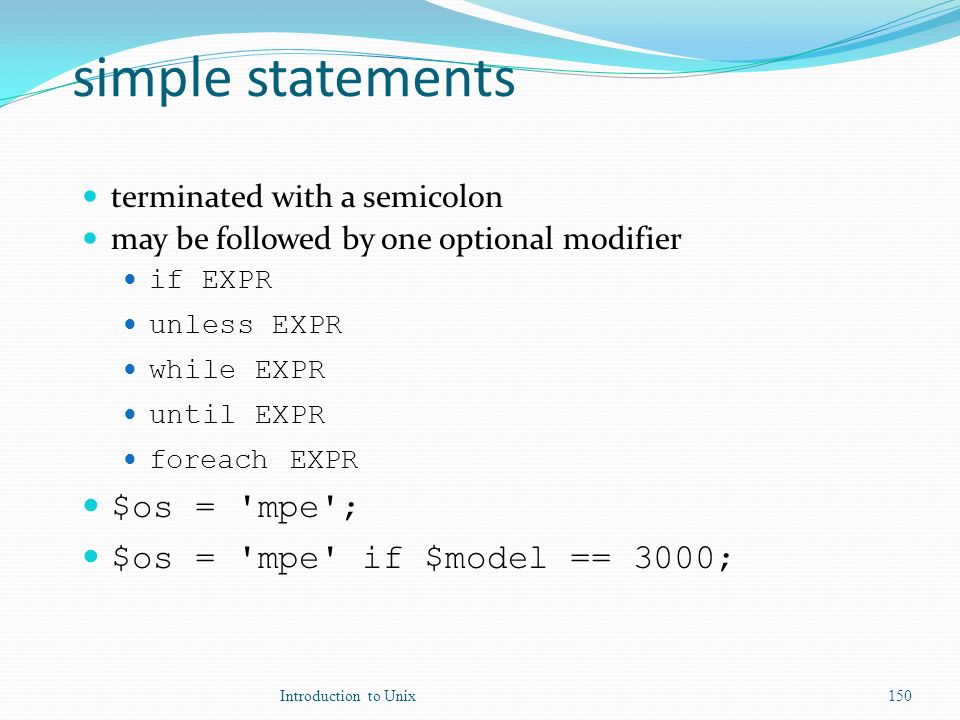

150. simple statements terminated with a semicolon may be followed by one optional modifier if EXPR unless EXPR while EXPR until EXPR foreach EXPR $os = 'mpe'; $os = 'mpe' if $model == 3000; Introduction to Unix150

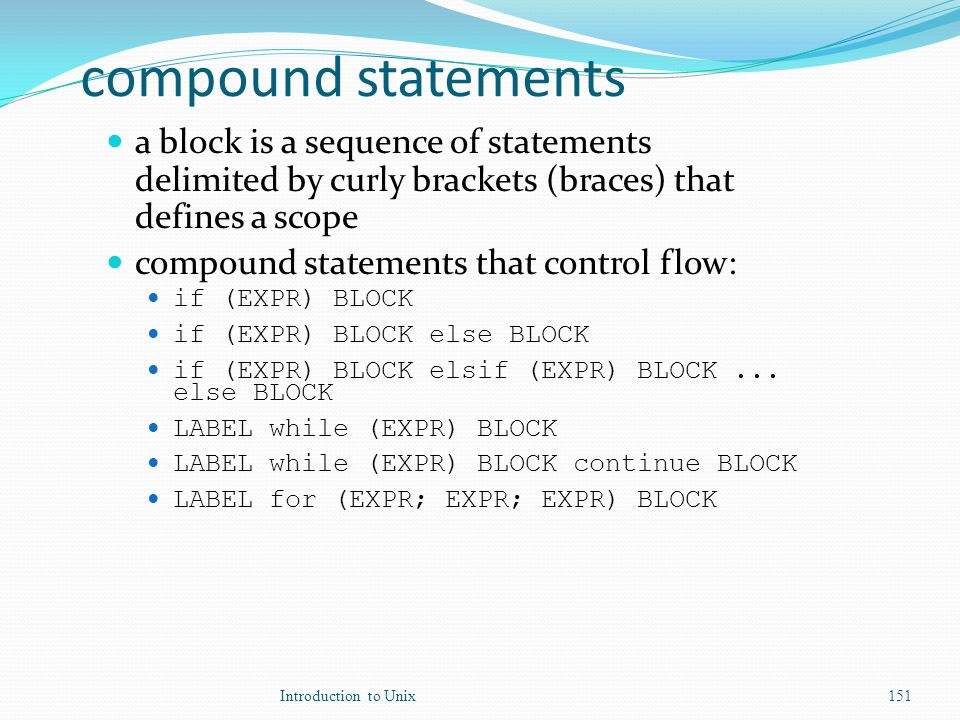

151. compound statements a block is a sequence of statements delimited by curly brackets (braces) that defines a scope compound statements that control flow: if (EXPR) BLOCK if (EXPR) BLOCK else BLOCK if (EXPR) BLOCK elsif (EXPR) BLOCK... else BLOCK LABEL while (EXPR) BLOCK LABEL while (EXPR) BLOCK continue BLOCK LABEL for (EXPR; EXPR; EXPR) BLOCK Introduction to Unix151

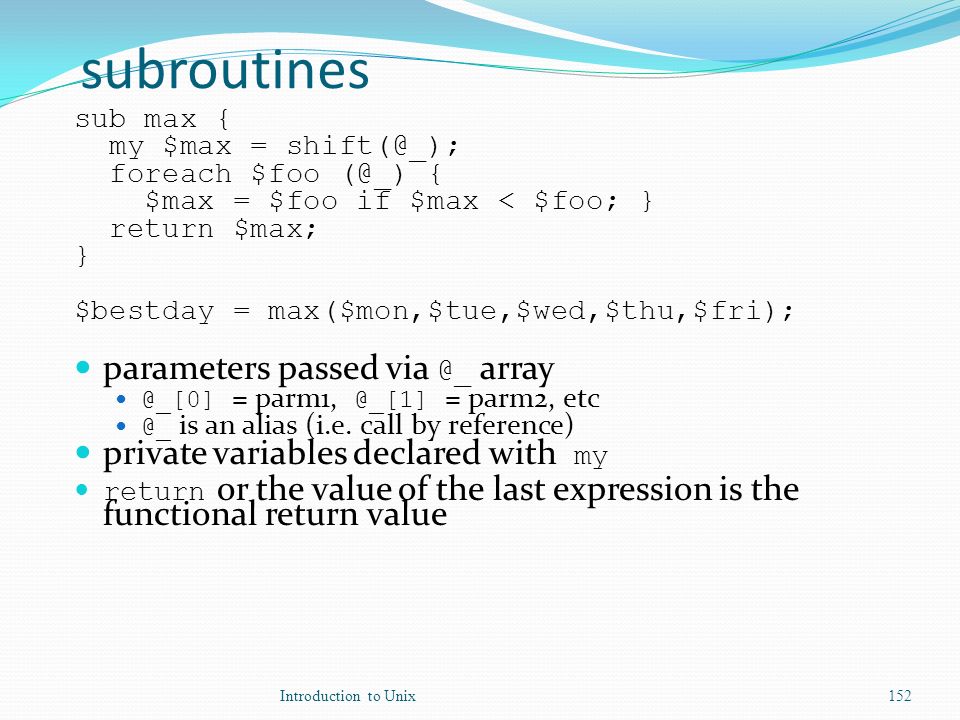

152. subroutines sub max { my $max = shift(@_); foreach $foo (@_) { $max = $foo if $max < $foo; } return $max; } $bestday = max($mon,$tue,$wed,$thu,$fri); parameters passed via @_ array @_[0] = parm1, @_[1] = parm2, etc @_ is an alias (i.e. call by reference) private variables declared with my return or the value of the last expression is the functional return value Introduction to Unix152

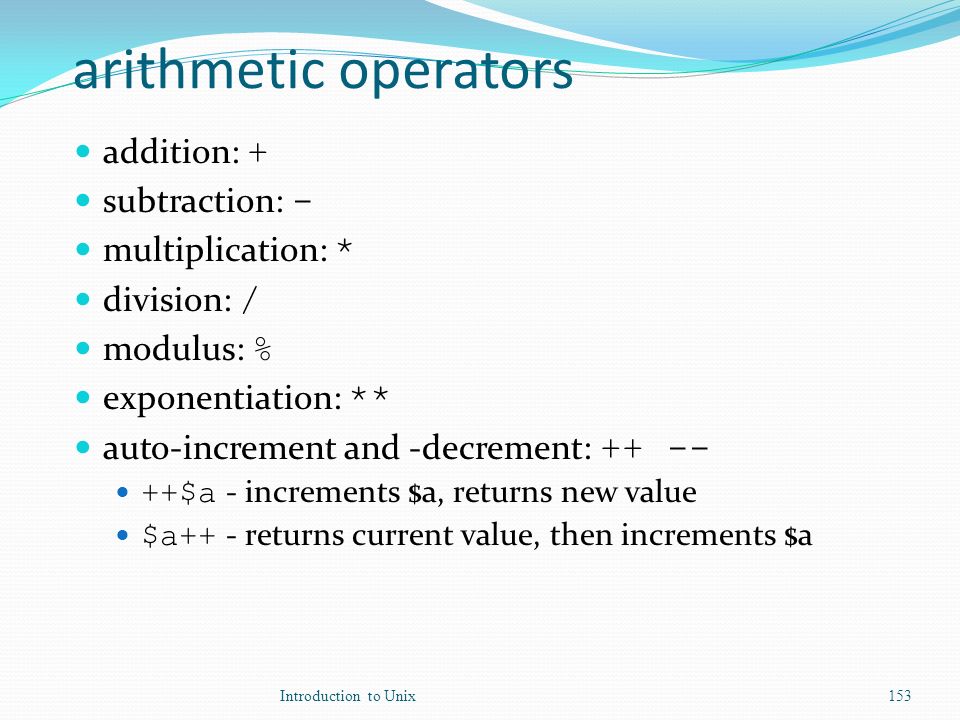

153. arithmetic operators addition: + subtraction: - multiplication: * division: / modulus: % exponentiation: ** auto-increment and -decrement: ++ -- ++$a - increments $a, returns new value $a++ - returns current value, then increments $a Introduction to Unix153

154. assignment operators works like C $a += 2; is equivalent to $a = $a + 2; **= += *= &= <<= &&= -= /= |= >>= ||=.= %= ^= x= Introduction to Unix154

155. relational operators numeric comparisons: = == != returns -1, 0, or 1 depending on whether the left argument is numerically less than, equal to, or greater than the right argument string comparsions: lt gt le ge eq ne cmp cmp returns -1, 0, or 1 depending on whether the left argument is stringwise less than, equal to, or greater than the right argument Introduction to Unix155

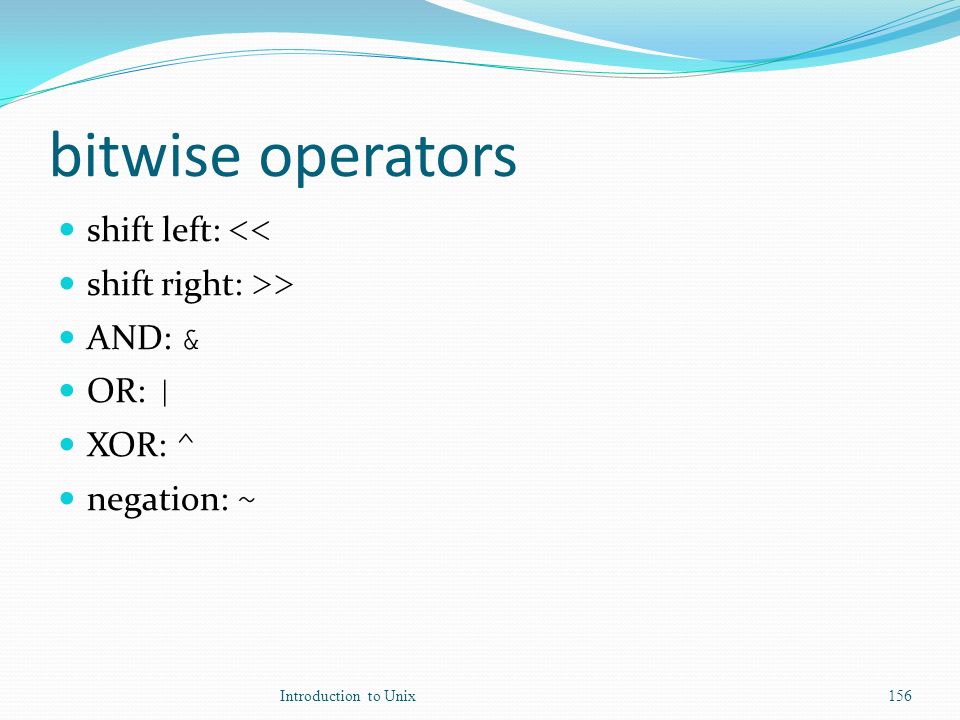

156. bitwise operators shift left: << shift right: >> AND: & OR: | XOR: ^ negation: ~ Introduction to Unix156

157. i/o and file handles open files are identified via file handles uppercase handle names by convention predefined file handles: STDIN, STDOUT, STDERR in a scalar context reads the next record from the file in a list context reads ALL of the remaining records from the file Introduction to Unix157

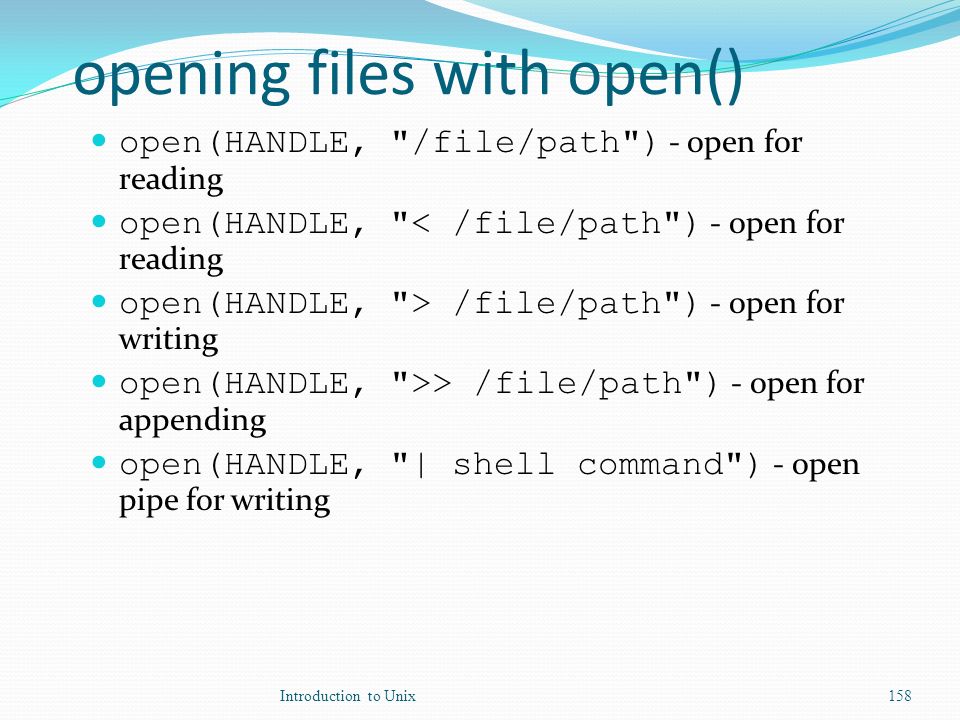

158. opening files with open() open(HANDLE, "/file/path") - open for reading open(HANDLE, "< /file/path") - open for reading open(HANDLE, "> /file/path") - open for writing open(HANDLE, ">> /file/path") - open for appending open(HANDLE, "| shell command") - open pipe for writing Introduction to Unix158

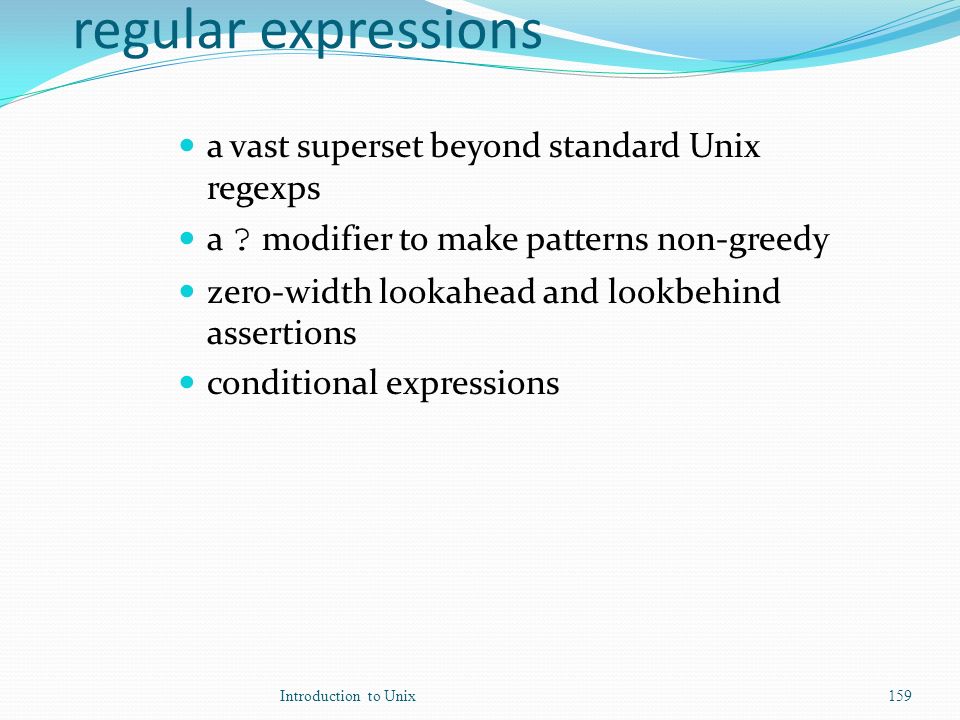

159. regular expressions a vast superset beyond standard Unix regexps a ? modifier to make patterns non-greedy zero-width lookahead and lookbehind assertions conditional expressions Introduction to Unix159

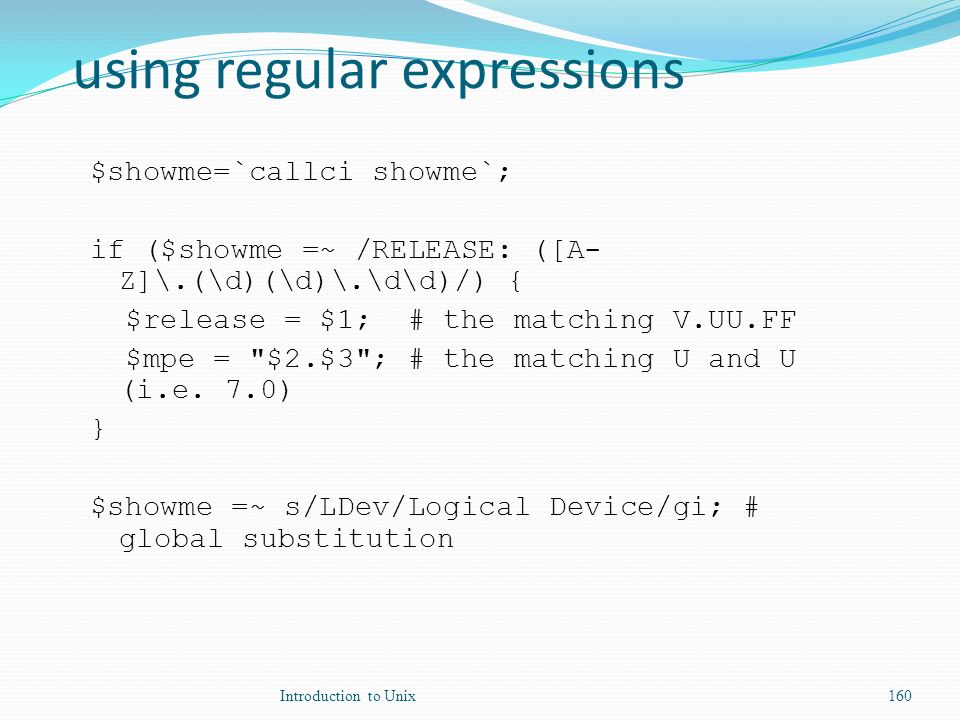

160. using regular expressions $showme=`callci showme`; if ($showme =~ /RELEASE: ([A- Z]\.(\d)(\d)\.\d\d)/) { $release = $1; # the matching V.UU.FF $mpe = "$2.$3"; # the matching U and U (i.e. 7.0) } $showme =~ s/LDev/Logical Device/gi; # global substitution Introduction to Unix160

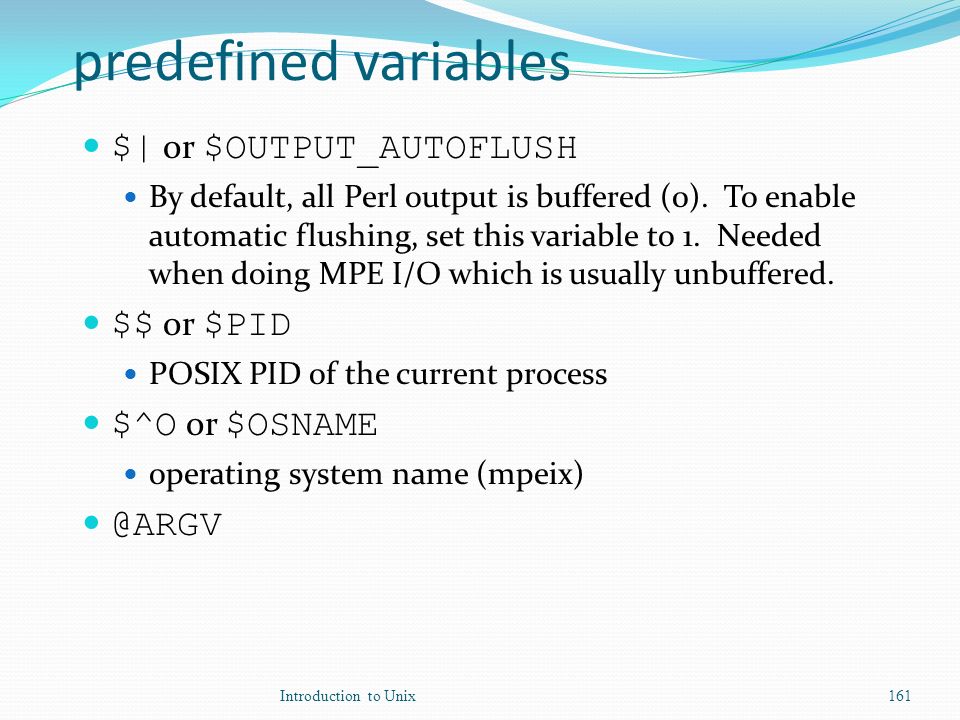

161. predefined variables $| or $OUTPUT_AUTOFLUSH By default, all Perl output is buffered (0). To enable automatic flushing, set this variable to 1. Needed when doing MPE I/O which is usually unbuffered. $$ or $PID POSIX PID of the current process $^O or $OSNAME operating system name (mpeix) @ARGV Introduction to Unix161

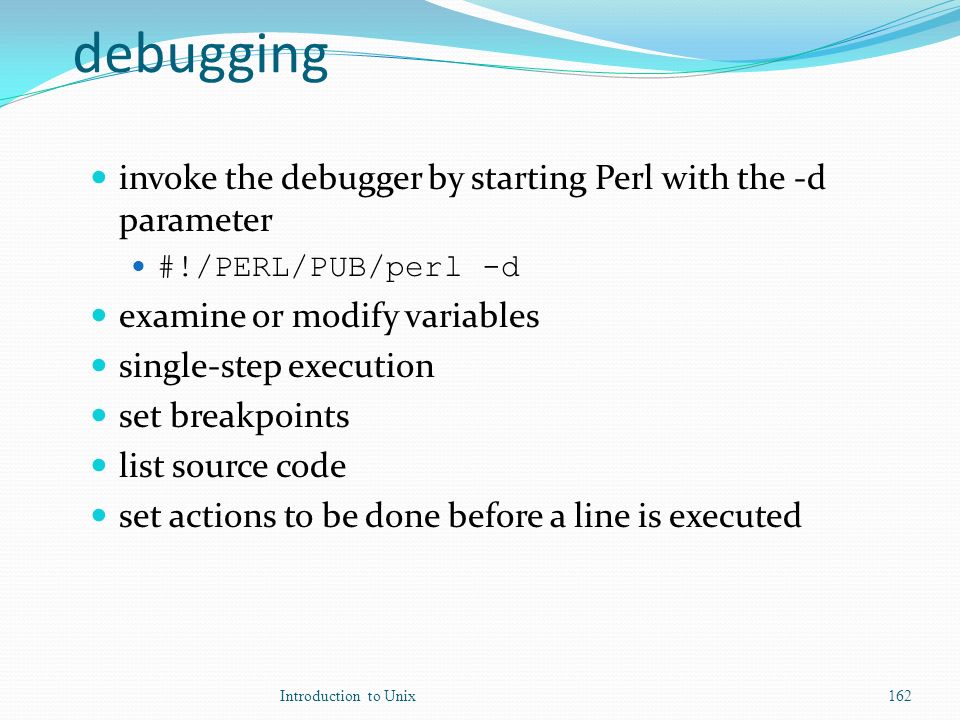

162. debugging invoke the debugger by starting Perl with the -d parameter #!/PERL/PUB/perl -d examine or modify variables single-step execution set breakpoints list source code set actions to be done before a line is executed Introduction to Unix162

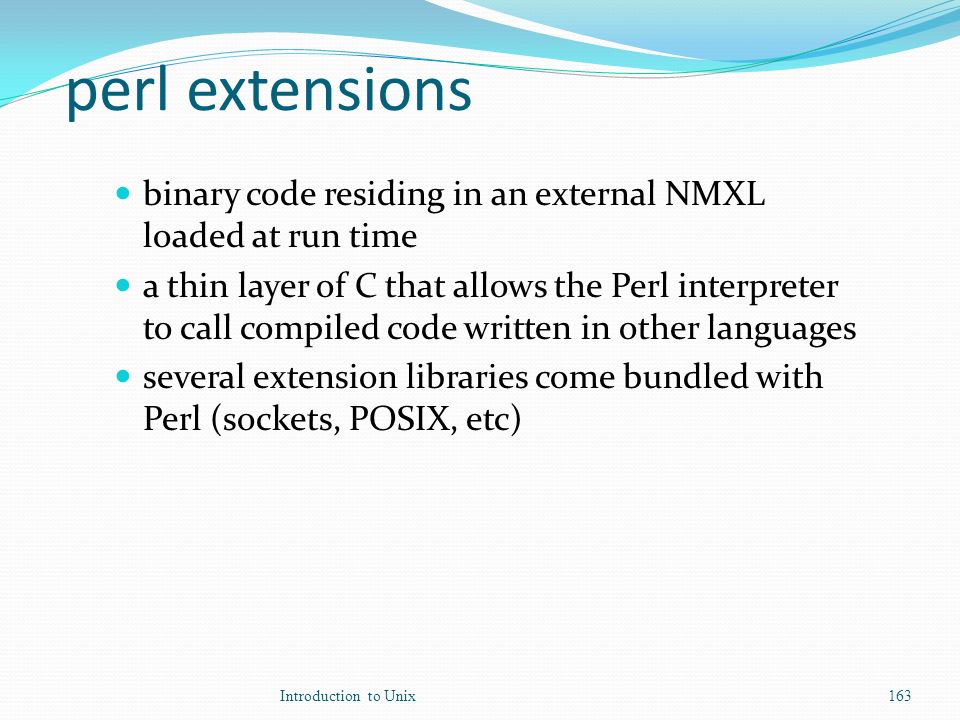

163. perl extensions binary code residing in an external NMXL loaded at run time a thin layer of C that allows the Perl interpreter to call compiled code written in other languages several extension libraries come bundled with Perl (sockets, POSIX, etc) Introduction to Unix163

164. System Administration fdisk – Dividing a disk into partitions Useradd – Adding users Usermod and userdel – Modifying and removing users Umask – To make default file permissions Fsck – File system checking Mkfs – Creating file systems Introduction to Unix164

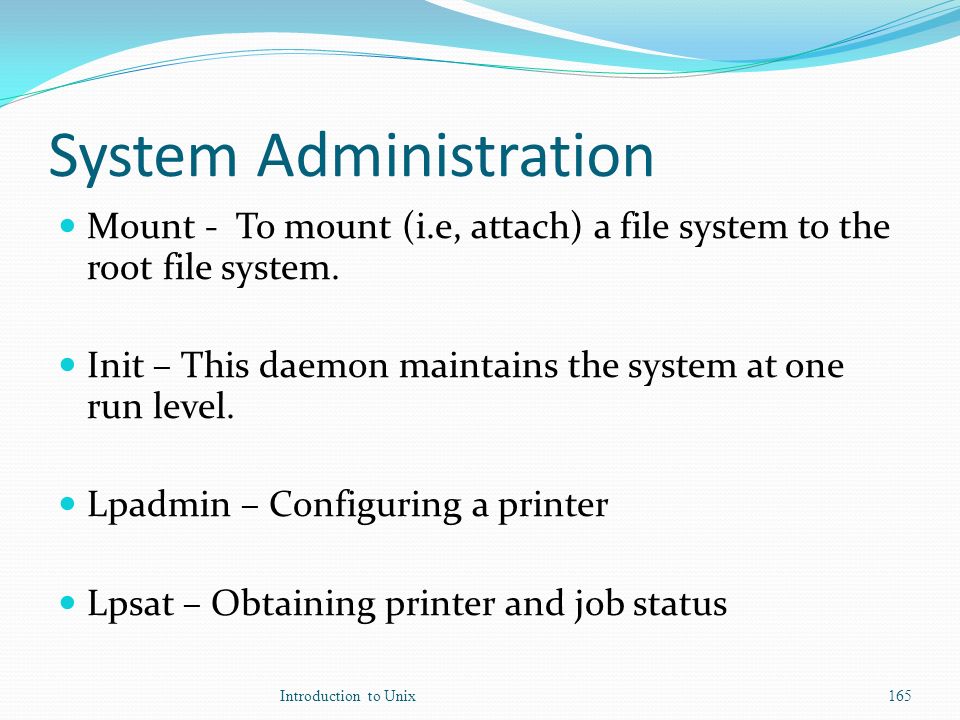

165. System Administration Mount - To mount (i.e, attach) a file system to the root file system. Init – This daemon maintains the system at one run level. Lpadmin – Configuring a printer Lpsat – Obtaining printer and job status Introduction to Unix165

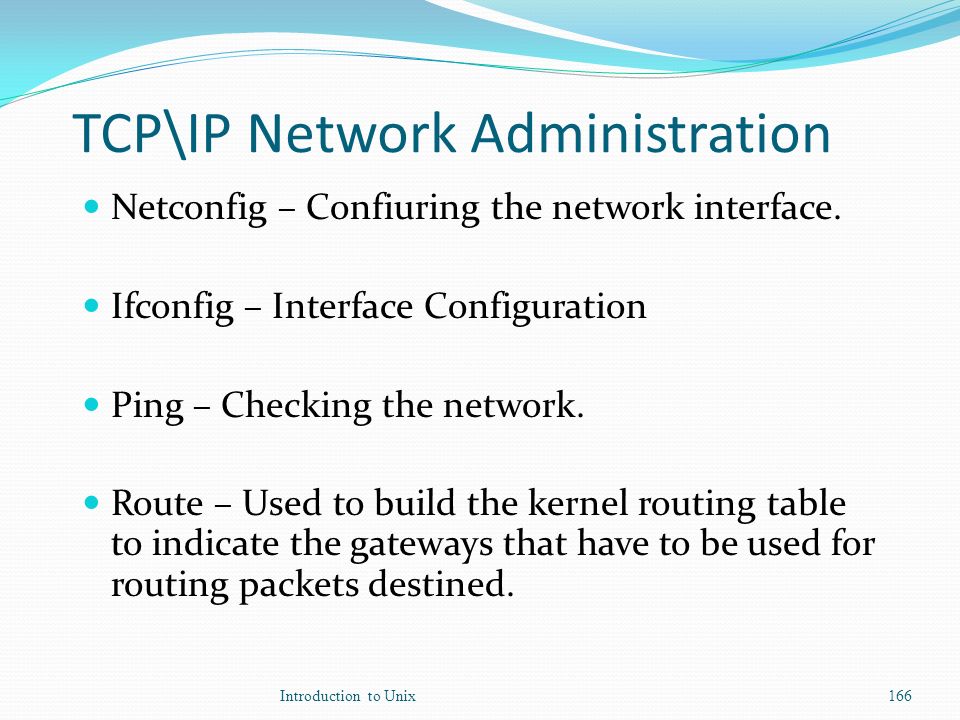

166. TCP\IP Network Administration Netconfig – Confiuring the network interface. Ifconfig – Interface Configuration Ping – Checking the network. Route – Used to build the kernel routing table to indicate the gateways that have to be used for routing packets destined. Introduction to Unix166
