2. Discovery 2 Internetworking Module 1 JEOPARDY D.C. Gooch

3. RouterModesWANEncapsulationWANServicesRouterBasicsRouterCommands 100 200 300 400 500RouterModesWANEncapsulationWANServicesRouterBasicsRouterCommands 100 200 300 400 500 Acronyms Teams Ping and/or tracert Speed Hierarchy Grab Bag Grab Bag 100 200 300 400 500 100 200 300 400 500 ► ► ► F i n a l J e o p a r d y ◄ ◄ ◄

4. Question POP Acronyms 100 A: What is Point Of Presence? 100 200 300 400 500

5. Question A: What is Internet Service Provider? ISP Acronyms 200 100 200 300 400 500

6. Question 100 200 300 400 500 A: What is a Network Access Point? NAP Acronyms 300

7. Question 100 200 300 400 500 A: What is Internet Exchange Point? IXP Acronyms 400

8. Question 100 200 300 400 500 A: What is a Network Operations Center? NOC Acronyms 500

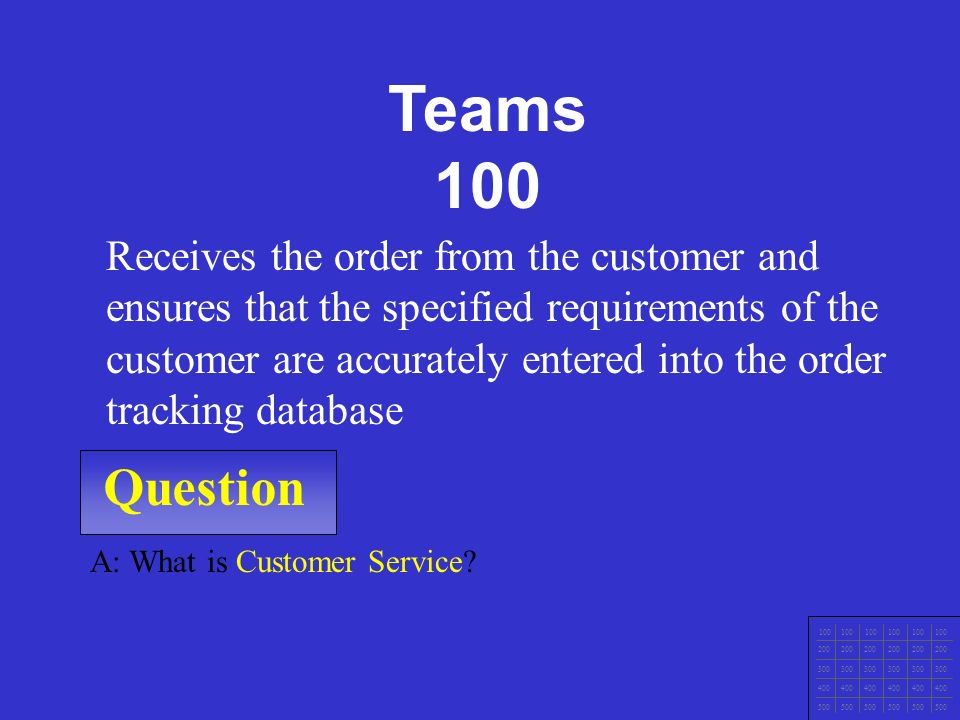

9. Question 100 200 300 400 500 A: What is Customer Service? Receives the order from the customer and ensures that the specified requirements of the customer are accurately entered into the order tracking database Teams 100 200 300 400 500

10. Question 100 200 300 400 500 A: What is Help Desk? Notified by the NOC when the circuit is ready for operation. Teams 200

11. Question 100 200 300 400 500 A: What is Network Operations Center (NOC)? Monitors and tests the new connection and ensures that it is performing properly. Teams 300

12. Question 100 200 300 400 500 A: What is On-site Installation ? Advised of which circuits and equipment to use and then installs them at the customer site Teams 400

13. Question 100 200 300 400 500 A: What is a Planning and Provisioning? Determines whether the new customer has existing network hardware and circuits and if new circuits need to be installed. Teams 500

14. Question 100 200 300 400 500 A: What is ping? Verifies end to end connectivity Ping and/or tracert 100

15. Question 100 200 300 400 500 A: What is tracert? Displays the path that a packet takes from the source to the destination host Ping and/or tracert 200

16. Question 100 200 300 400 500 A: What is tracert? Tests all layers of the OSI model Ping and/or tracert 300

17. Question 100 200 300 400 500 A: What is an ping and tracert? Can be entered from the CLI Ping and/or tracert 400

18. Question 100 200 300 400 500 A: What is ping and tracert? Sends a ICMP echo request. Ping and/or tracert 500

19. Question 100 200 300 400 500 A: What is a bps ? Basic unit of bandwidth. Speed 100

20. Question 100 200 300 400 500 A: What is a 1.544 Mbs ? Maximum speed of a T1 connection. Speed 200

21. Question 100 200 300 400 500 A: What is 2.048 Mbs ? Maximum speed of a E1 connection. Speed 300

22. Question 100 200 300 400 500 A: What is 45 Mbps ? Maximum speed of a T3 connection. Speed 400

23. Question 100 200 300 400 500 A: What is a 34.368 Mbps ? Maximum speed of a E3 connection. Speed 500

24. Question 100 200 300 400 500 A: What is Tier 1? Undersea cables that connect the continents. Hierarchy 100

25. Question 100 200 300 400 500 A: What is Tier 1? Huge organizations that connect directly with each other through private peering. Hierarchy 200

26. Question 100 200 300 400 500 A: What is a Tier 3? Farthest away from the backbone. Hierarchy 300

27. Question 100 200 300 400 500 A: What is a Tier 2? Pay Tier 1 ISPs to carry their traffic Hierarchy 400

28. Question 100 200 300 400 500 A: What is Tier 2? Provides backbone access. Hierarchy 500

29. Question 100 200 300 400 500 A: What is a ping ? Format of ping command. Grab Bag 100

30. Question 100 200 300 400 500 A: What is Cable Modem? Connection option offered by cable television service providers Grab Bag 200

31. Question 100 200 300 400 500 A: What is a dialup? Slowest Access to Internet Grab Bag 300

32. Question 100 200 300 400 500 A: What is POPs? Located at the edge of the ISP network Grab Bag 400

33. Question 100 200 300 400 500 A: What is Internet backbone? Consists of groups of networks owned by various organizations and interconnected through IXPs Grab Bag 500

34. Question A: What is Equipment co-location, Web hosting, FTP, Applications and media hosting, Voice over IP, Technical support, Point of Presence (POP) ? In addition to offering connection to the Internet, an ISP can offer other services to subscribers (Name 4) Final Jeopardy 100 200 300 400 500

35. Discovery 2 Internetworking End of Game JEOPARDY D.C. Gooch
