1. Building a model step by step

2. MIKE 11 requires information on : Catchment data (Surface- root- and groundwater zones). River Network i.e. Branches; Nodes; Loops; Connections Topographical Data i.e. Cross-sections and Flood plain data Structures (weirs, culverts, bridges, operational gates) Boundary conditions (location and Type) Model specific parameters (Bed resistance, Wave approx.) Building a model step by step

3. Data Editors Simulation Editor Cross Section EditorParameter EditorsNetwork Editor Time Series Editor Boundary Editor MIKE 11

4. Simulation Editor Two main features: Define simulation specifications - Simulation-type, -period, -time-step - Input- and Result-filenames Integrate Editor information - Enables insert, edit and/or modify data from all Editors via the Network editor’s Graphical View. Simulation-model (HD/AD/WQ/ST/RR)? Unsteady or Quasi? Which Input-files? Result-filename? Period and time-step? Initial conditions? Editor-file: *.sim11 MIKE 11

5. Simulation Editor Simulation-model (HD/AD/WQ/ST/RR)? Unsteady or Quasi? Which Input-files? Result-filename? Period and time-step? Initial conditions? Editor-file: *.sim11 MIKE 11

6. Simulation Editor Simulation-model (HD/AD/WQ/ST/RR)? Unsteady or Quasi? Input-files? Period and Time step Initial Conditions Result-filename? Editor-file: *.sim11 MIKE 11

7. Simulation Editor Simulation-model (HD/AD/WQ/ST/RR)? Unsteady or Quasi? Input-files? Period and Time step Initial Conditions Result-filename? Storing Frequency Editor-file: *.sim11 MIKE 11

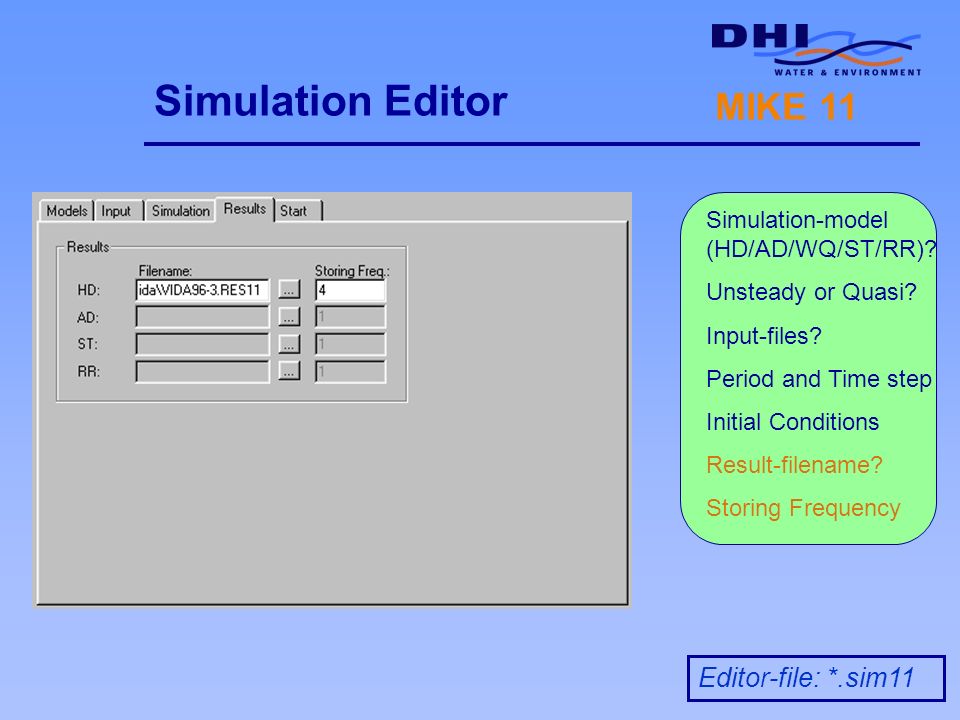

8. Simulation Editor Simulation-model (HD/AD/WQ/ST/RR)? Unsteady or Quasi? Input-files? Period and Time step Initial Conditions Result-filename? Storing Frequency Editor-file: *.sim11 MIKE 11

9. Simulation Editor Validation of Run parameters HD Parameters MIKE 11

10. Simulation Editor Cross Section EditorParameter EditorsNetwork Editor Time Series Editor Boundary Editor Network Editor

11. Editor-file: *.nwk11 Editing of data describing the River Network. Definition of River Setup : Digitized River Network River Branches Hydraulic Structures - Weirs, - Culverts, - Regulating, - Controllable Weir/Gate - Dambreak Hydrological Catchments Indsæt dump fra nwk-editor med signatur forklaring (h, Q, digi-points) MIKE 11

12. Network Editor Graphical View MIKE 11

13. Network Editor Definition of River Branches: Topo ID River Name Upstream Chainage [m] Downstream Chainage [m] Branch type (Regular or Link channel) Upstream connection to other Branches Downstream connection to other Branches Maximum  x MIKE 11

14. Network Editor Tabular View MIKE 11

15. Network Editor Setup of Channel Network 0.000 10.400 15.000 25.000 15.000 3.000 River A 0.000 - 10.400 River C 15.000 - 25.000 River B 3.000 - 15.000 NameUpstreamDownstream Upstream Downstream End End Connection Connection River A 0.000 10.400 - River C 15.000 River B 3.000 15.000 - River C 15.000 River C 15.000 25.000 River B 15.000 - MIKE 11

16. MIKE 11, Slide no :16 Network Editor Grid-point spacing in River Branch Chainage [m] : 20.000 28.000 32.000 40.000 Maximum dx = 5.000 m Maximum dx = 3.000 m Maximum dx > 8.000 m MIKE 11 H-point with cross section from Database H-point with interpolated Cross Section Q-point

17. MIKE 11 Simulation Editor Cross Section EditorParameter EditorsNetwork Editor Time Series Editor Boundary Editor Cross Section Editor

18. Editor-file:*.xns11 Editing of Topographical data. Editor file / Database includes two data-set: Raw data - Cross Section survey data - Set of (x,z) data. Processed data - Table of hydraulic parameters, f(h), for each Section - Calculated from Raw Data or entered manually - Tables used in simulation => Processed Data required in all sections MIKE 11

19. Raw Data: Each Entry Defined by: River Name Topo ID Chainage [m] Raw Data editor includes: Tree View listing all sections Tabular View of x,z data Graphical View presenting actual section MIKE 11 Cross Section Editor

20. MIKE 11 Cross Section Editor Raw data

21. Raw Data Parameters Raw Data: Section Type:Open / Closed Radius Type:Resistance Radius Hydraulic Radius, Effective area Hydraulic Radius, Total area Datum:Reference level Divide Section:Divide in River and Flood Plain channel / Active and passive section for Morphological update Level of Divide:Level of divide for River and Flood Plain Channel Resistance:‘Relative Resistance’. Transverse adjustment of bed resistance. Flood Plain River channel M = 10M = 30 Datum MIKE 11

22. Raw Data Parameters MIKE 11 Hydraulic Radius versus Resistance Radius Different assumptions on the distribution of bottom shear stress Resistance Radius Hydraulic Radius

23. Raw Data Editor MIKE 11 Resistance Radius vs. Hydraulic Radius Resistance Radius: Hydraulic Radius: Smooth transition from deep to shallow Includes more accurate side wall effects in deep narrow channels y A B P

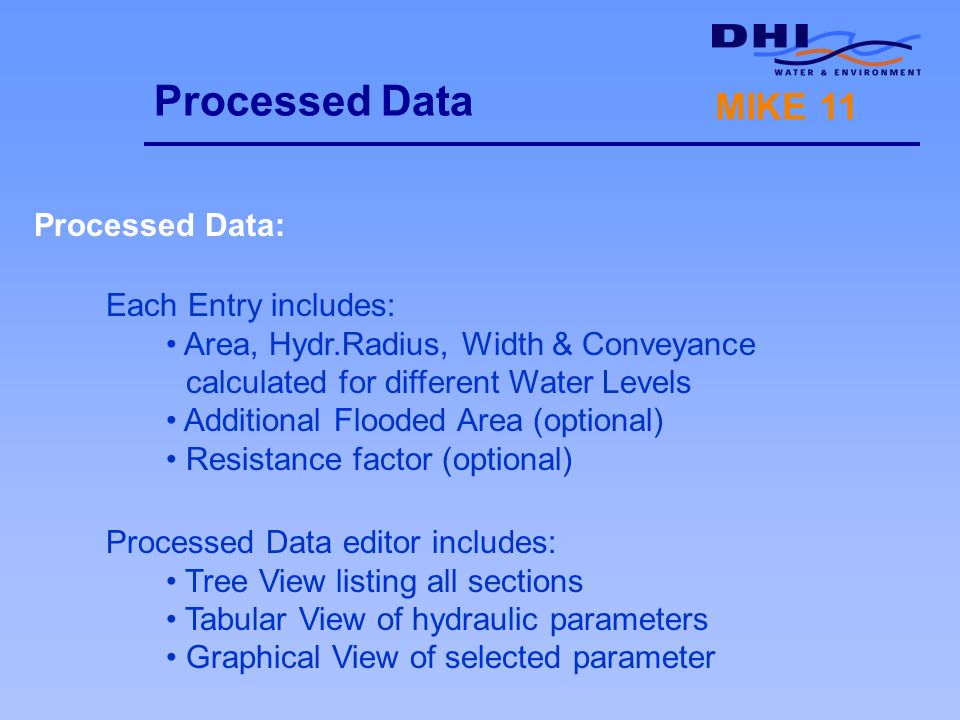

24. Processed Data Processed Data: Each Entry includes: Area, Hydr.Radius, Width & Conveyance calculated for different Water Levels Additional Flooded Area (optional) Resistance factor (optional) Processed Data editor includes: Tree View listing all sections Tabular View of hydraulic parameters Graphical View of selected parameter MIKE 11

25. Editing Processed Data MIKE 11

26. Boundary Editor Simulation Editor Cross Section EditorParameter EditorsNetwork Editor Time Series Editor Boundary Editor MIKE 11

27. Boundary Editor Editor-file: *.bnd11 Editing of Boundary conditions: Boundary condition defined by: River Name Chainage Boundary type Time series file-name Time series Item Q t t t Q Wl MIKE 11

28. Boundary Editor HD MIKE 11

29. Simulation Editor Cross Section EditorParameter EditorsNetwork Editor Time Series Editor Boundary Editor Time Series Editor

30. Editor-file: *.dfs0 Edit and Storing of Time Series Events data: Time Series editor includes: Tabular View of event(s) Graphical View of event(s) Time Series Events identified by: Name, Type (water level, discharge etc.) and Unit Time series axis type (equidistant / non-equidistant) (calender / relative) Start-time, Time-step, no of Time-steps MIKE 11

31. Time Series Editor MIKE 11

32. HD Parameter Editor Simulation Editor Cross Section EditorParameter EditorsNetwork Editor Time Series Editor Boundary Editor MIKE 11

33. HD Parameter Editor Editor-file: *.hd11 Editing of HD specific parameters: Initial values of H and Q Bed resistance Values Wave approximation ‘Engine-specific’ variables. MIKE 11

34. HD Parameter Editor Indsæt cut af Bed resistance dialog MIKE 11

35. HD Parameter Editor Global and Local Variables: Global Value: Local Values: M = 30 M = 25 M = 20 0.0 5000 10000 15000 20000 Distance [m] Manning’s M MIKE 11

36. HD Parameter Editor Indsæt cut af Default Values dialog MIKE 11

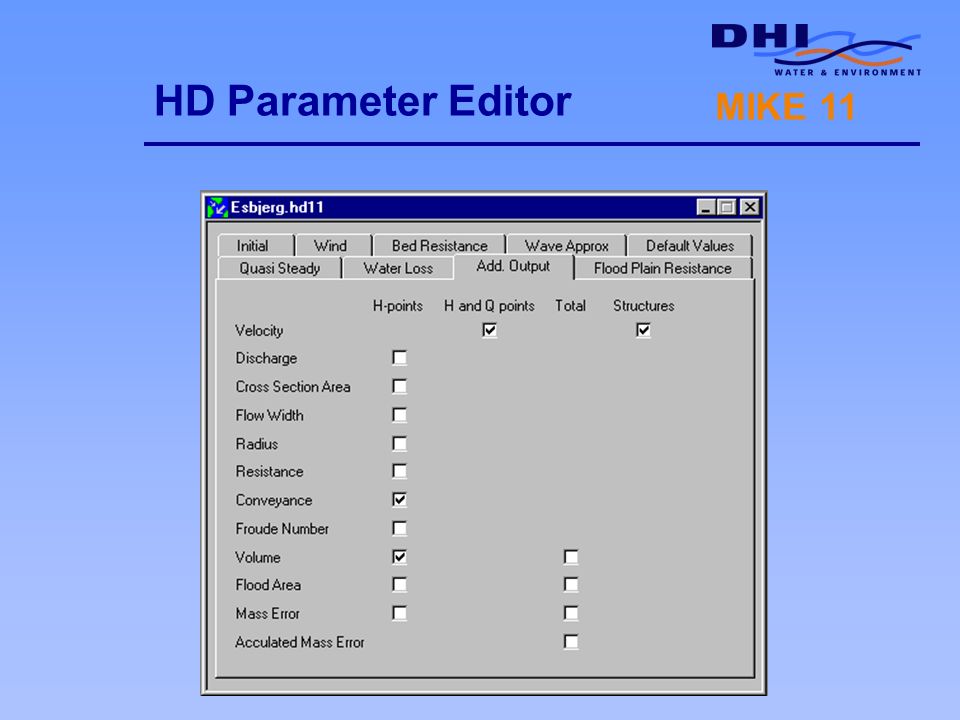

37. HD Parameter Editor Indsæt cut af Additional output dialog MIKE 11

38. Setting up a River System Setting up a River System in MIKE 11 requires: Topographical Data (.xns11) Digitization of River Network(.nwk11) Physical description (.nwk11) (branch-connections, structures etc.) Boundary conditions (.bnd11) (measured hydro-metric data, time series)(.dfs0) Model specific parameters (Parameter Editor-files) e.g.: Bed resistance, Wave approximation(.hd11) Dispersion, Decay(.ad11) Surface, Root zone, Groundwater descr.(.rr11) MIKE 11

39. Setting up boundary Conditions MIKE 11 Boundary conditions applied at external boundaries Discharge, Q :Upstream of River Lateral Inflow Closed End (Q=0) Discharge Control Pump Water Level, h : Downstream River boundary Outlet in Sea (tide, wind) Water level control Q/h Boundary : Downstream Boundary (Never upstr.) Critical Outflow from Model Q Q Q h or Q/h In general, Boundaries should be located where key investigation area is not directly affected by boundary condition.

40. Data Reliable Data required: ‘GARBAGE IN = GARBAGE OUT’ MIKE 11 Modeling Rule No. 1 : Model results are not more accurate than the accuracy of the underlying data
