1. Respiratory System Chapter 22

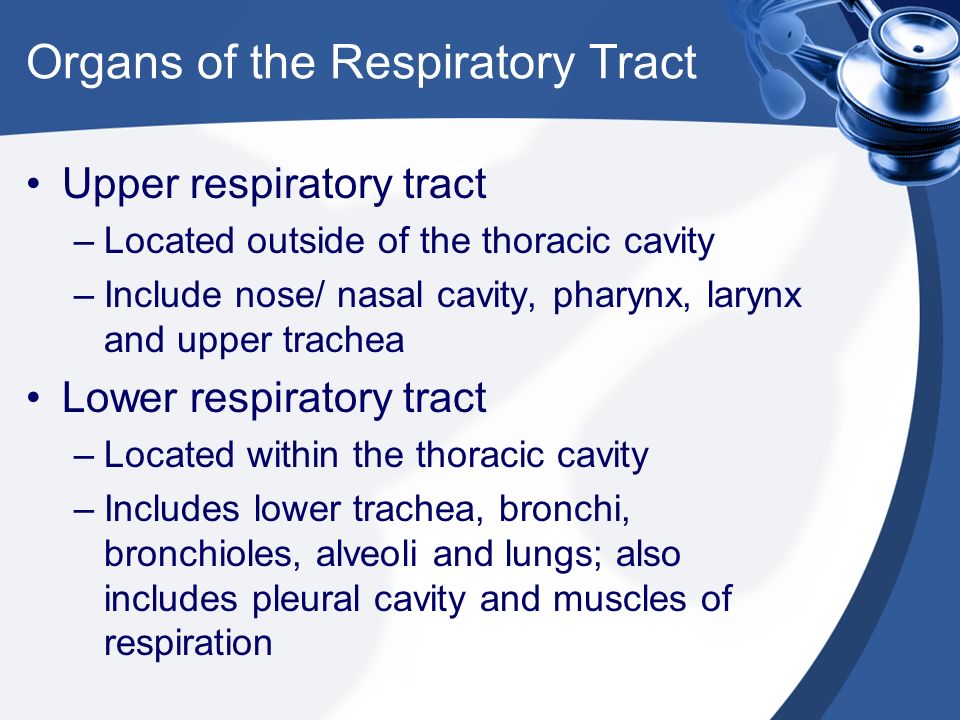

2. Organs of the Respiratory Tract Upper respiratory tract –Located outside of the thoracic cavity –Include nose/ nasal cavity, pharynx, larynx and upper trachea Lower respiratory tract –Located within the thoracic cavity –Includes lower trachea, bronchi, bronchioles, alveoli and lungs; also includes pleural cavity and muscles of respiration

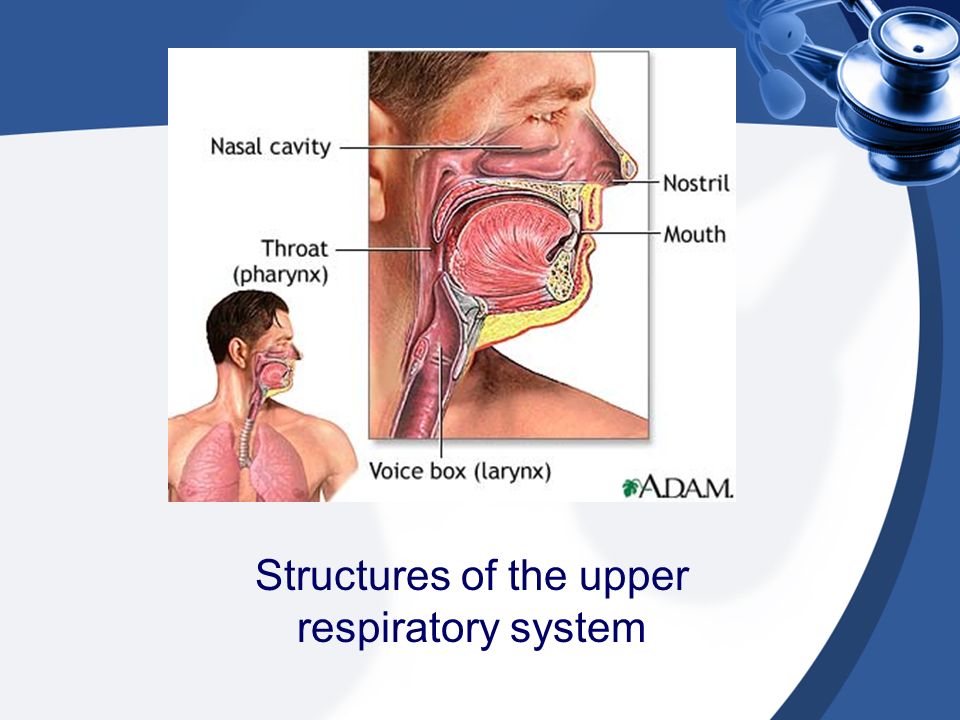

3. Structures of the upper respiratory system

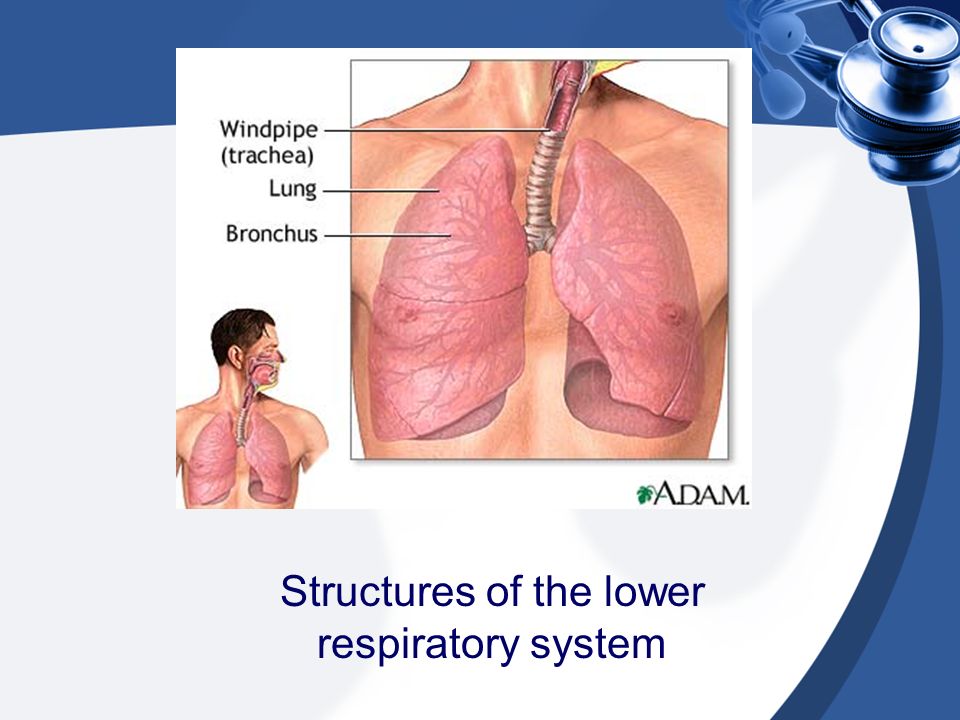

4. Structures of the lower respiratory system

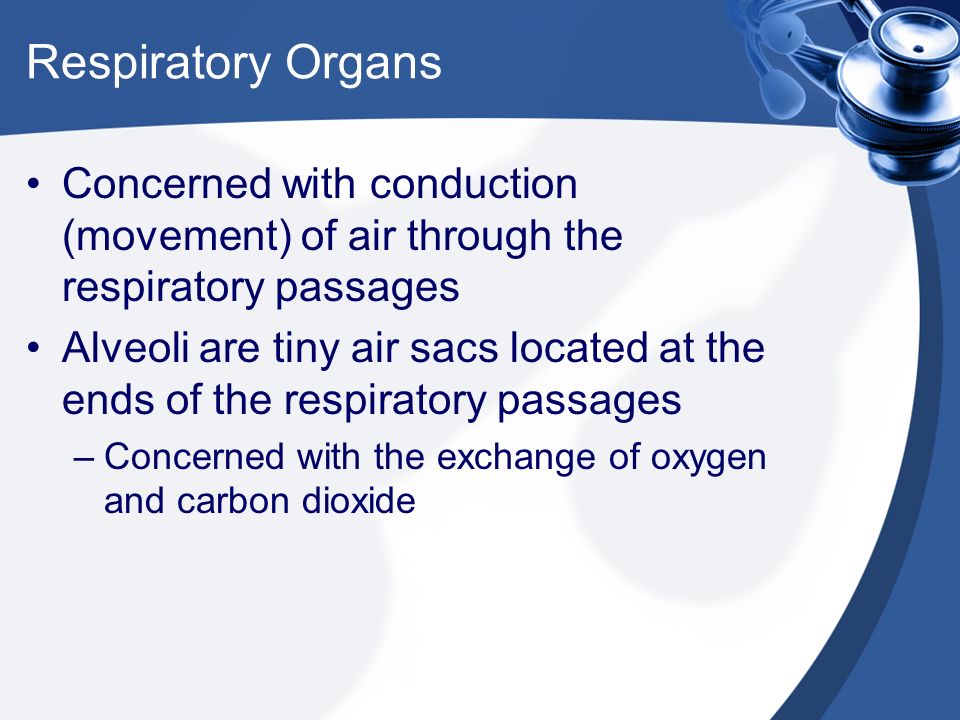

5. Respiratory Organs Concerned with conduction (movement) of air through the respiratory passages Alveoli are tiny air sacs located at the ends of the respiratory passages –Concerned with the exchange of oxygen and carbon dioxide

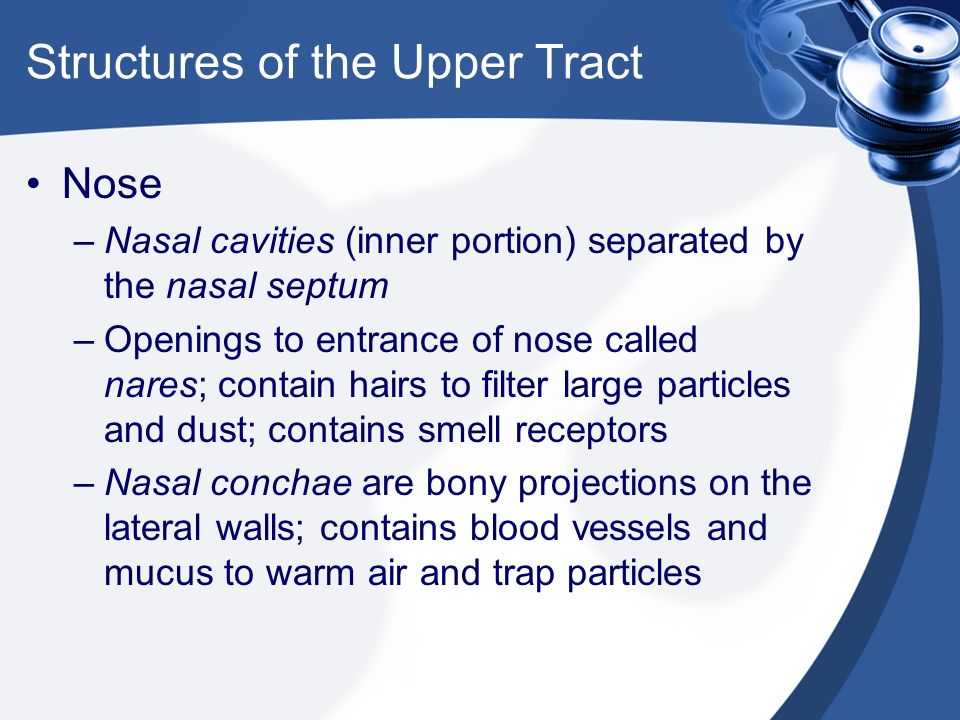

6. Structures of the Upper Tract Nose –Nasal cavities (inner portion) separated by the nasal septum –Openings to entrance of nose called nares; contain hairs to filter large particles and dust; contains smell receptors –Nasal conchae are bony projections on the lateral walls; contains blood vessels and mucus to warm air and trap particles

7. Figure 22-2 A, Organs of the upper respiratory tract. B, Larynx showing the thyroid cartilage (Adam's apple). C, Vocal cords and glottis (closed). D, Vocal cords and glottis (open). Elsevier items and derived items © 2007, 2003, 2000 by Saunders, an imprint of Elsevier Inc.

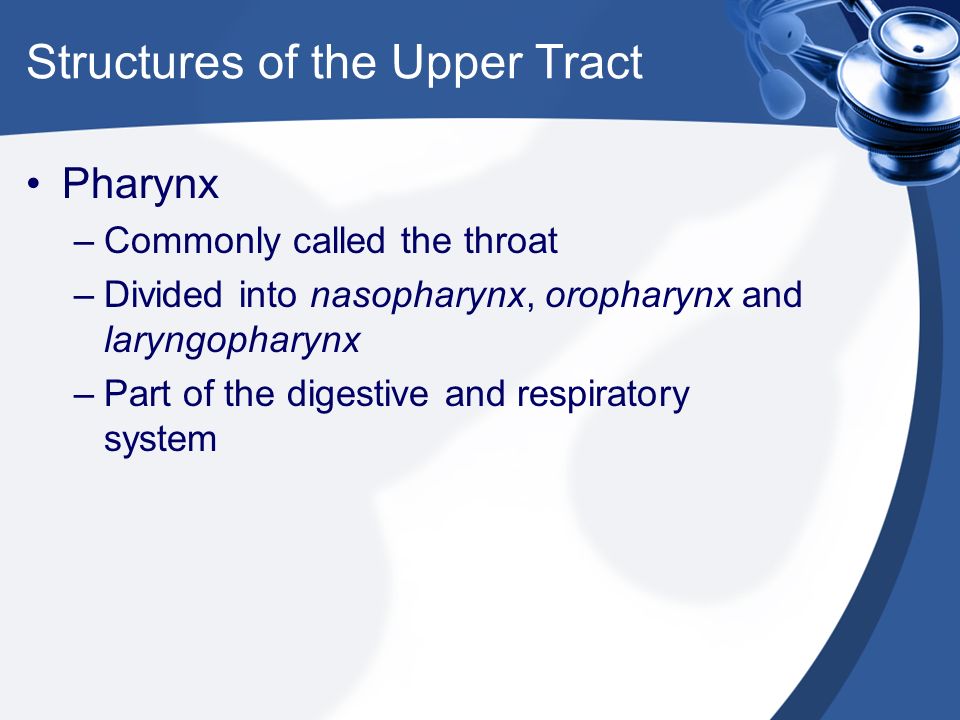

8. Structures of the Upper Tract Pharynx –Commonly called the throat –Divided into nasopharynx, oropharynx and laryngopharynx –Part of the digestive and respiratory system

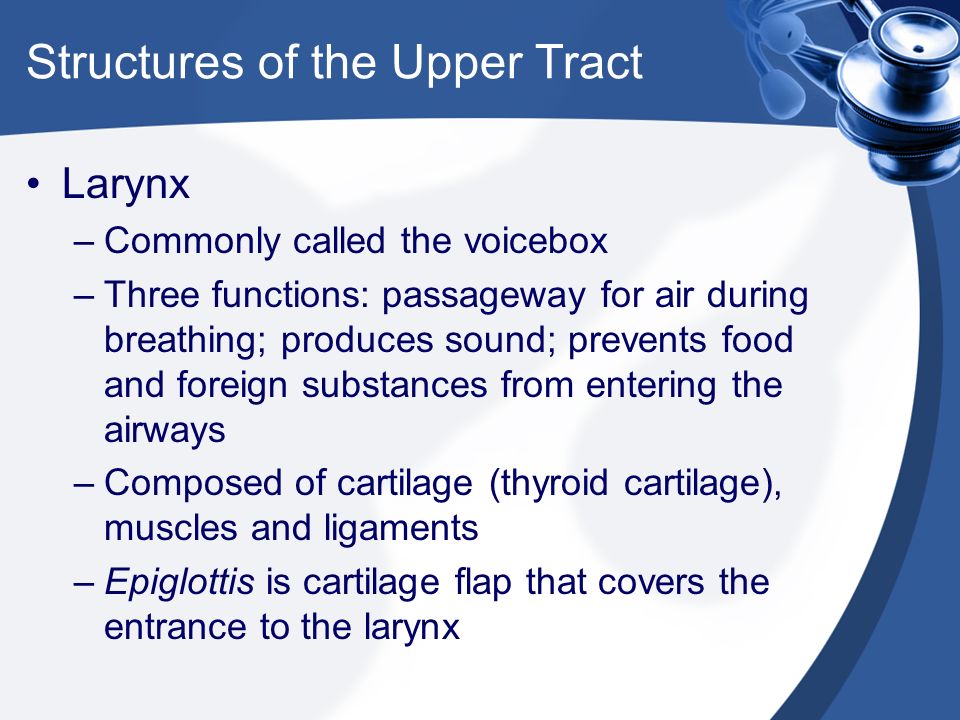

9. Structures of the Upper Tract Larynx –Commonly called the voicebox –Three functions: passageway for air during breathing; produces sound; prevents food and foreign substances from entering the airways –Composed of cartilage (thyroid cartilage), muscles and ligaments –Epiglottis is cartilage flap that covers the entrance to the larynx

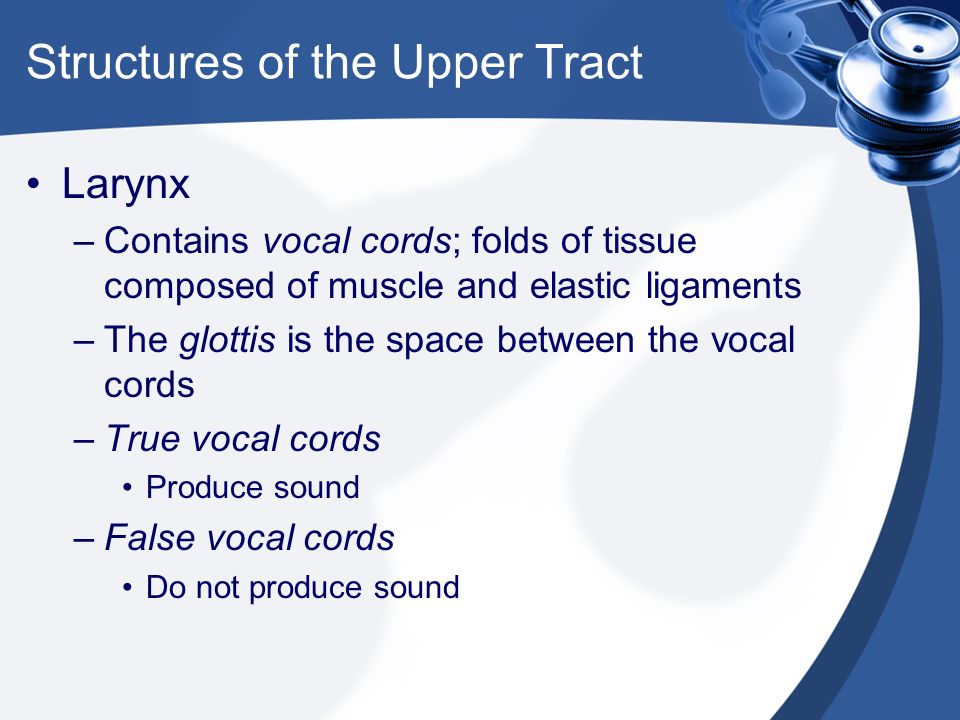

10. Structures of the Upper Tract Larynx –Contains vocal cords; folds of tissue composed of muscle and elastic ligaments –The glottis is the space between the vocal cords –True vocal cords Produce sound –False vocal cords Do not produce sound

11. Normal larynx showing true and false cords and cartilage rings of trachea

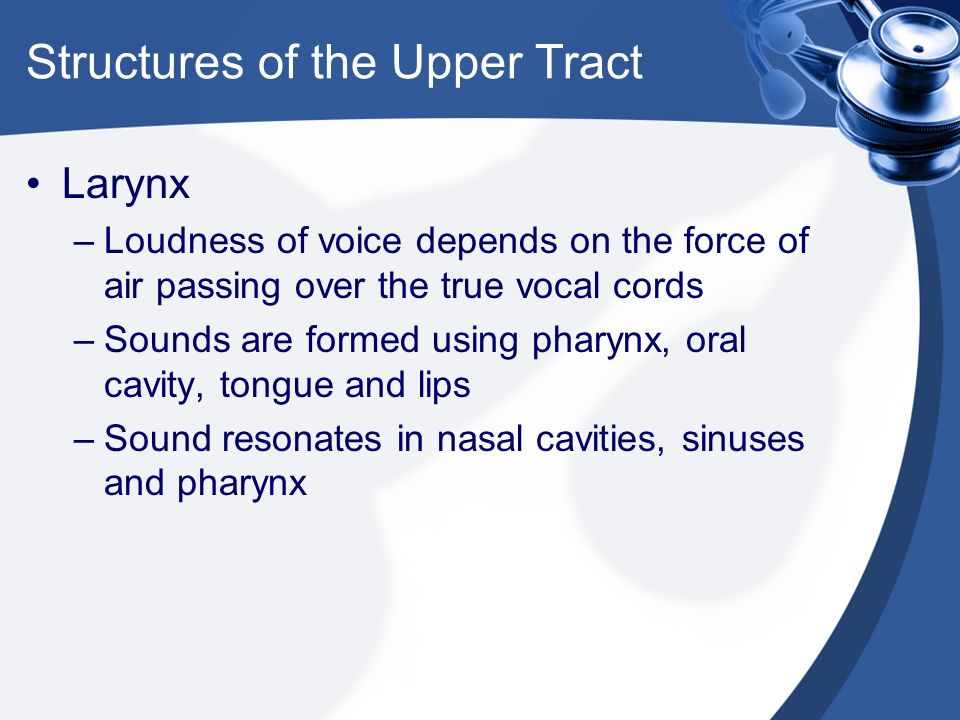

12. Structures of the Upper Tract Larynx –Loudness of voice depends on the force of air passing over the true vocal cords –Sounds are formed using pharynx, oral cavity, tongue and lips –Sound resonates in nasal cavities, sinuses and pharynx

13. Structures of the Upper Tract Larynx –Food or other foreign material (emesis) is normally kept out of the larynx by closure of the epiglottis –During swallowing, the larynx moves upward and forward and the epiglottis moves downward –Patients who have difficulty swallowing are at high risk for aspiration

14. Structures of the Upper Tract Trachea –Commonly called the windpipe –Extends from the lower larynx, into the thoracic cavity and splits into the main bronchi at the carina –Each bronchi enters the lung at the hilus

15. Structures of the Upper Tract Trachea –Lies anterior to the esophagus –Supported by C-shaped rings of cartilage; important to keep trachea open

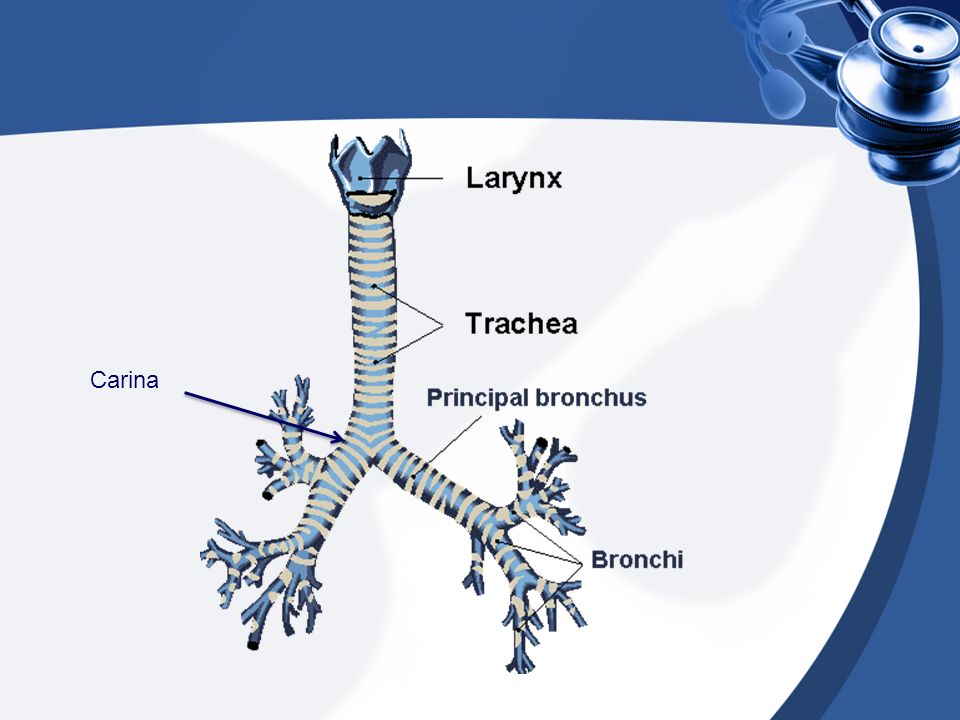

16. Carina

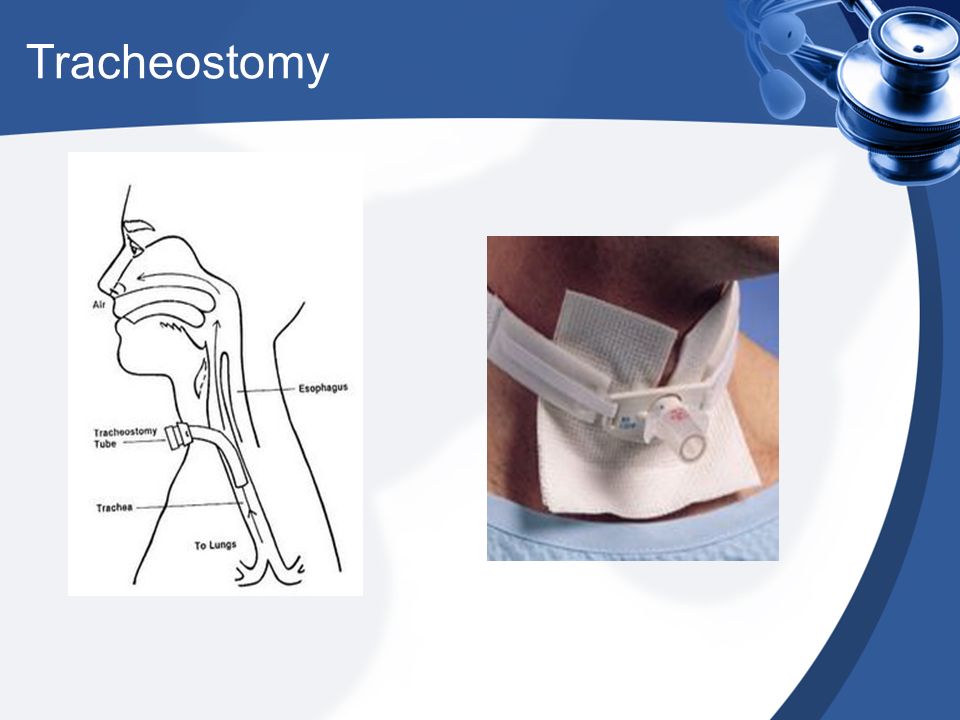

17. Tracheostomy

18. Structures of the Lower Tract Bronchi –Trachea splits into right and left mainstem, or primary, bronchi (singular bronchus) –Each primary bronchus branches into secondary bronchi; these in turn branch into smaller tertiary bronchi; upper bronchi contain cartilage which eventually disappears in lower branches –The right bronchus is shorter, wider and more vertical; most aspirations and pneumonias occur here

20. Structures of the Lower Tract Bronchioles –Bronchi divide into smaller and smaller branches called bronchioles –Contain smooth muscle, no cartilage; constriction causes reduced air flow –Asthma: involves constriction of bronchioles; patient will complain of tightness in chest, difficulty breathing, cough; wheezing is the sound of air moving through narrow passageways

21. Structures of the Lower Tract Bronchioles –Asthma: patient needs to be treated with bronchodilators to increase airflow –Bronchioles contain beta 2 - adrenergic receptors; stimulation causes relaxation of the smooth muscle and therefore bronchodilation Albuterol is a beta 2 -adrenergic agonist

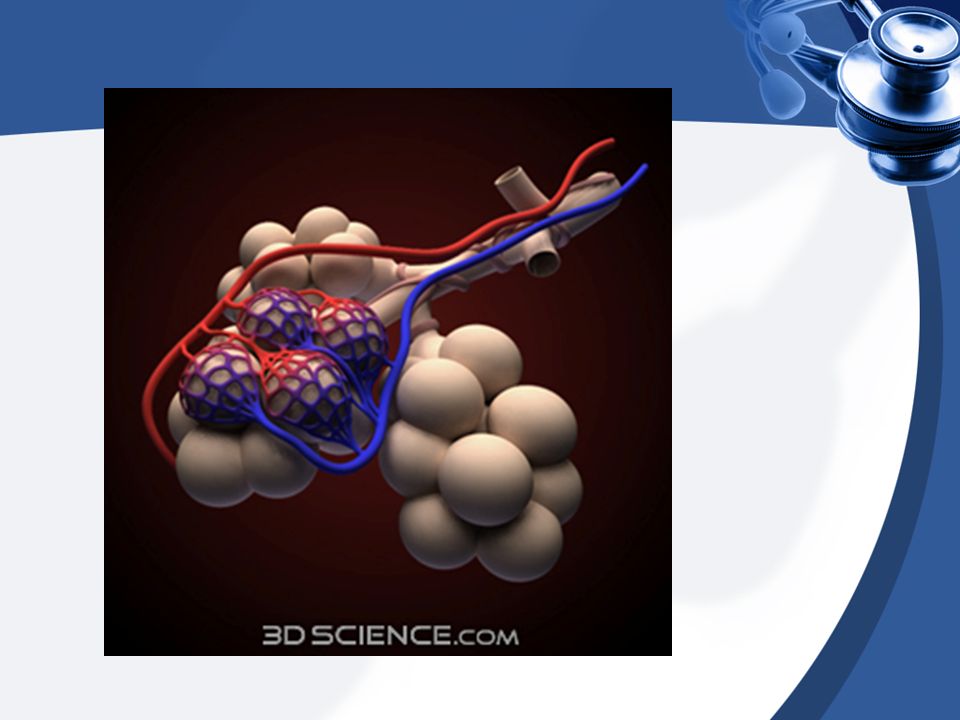

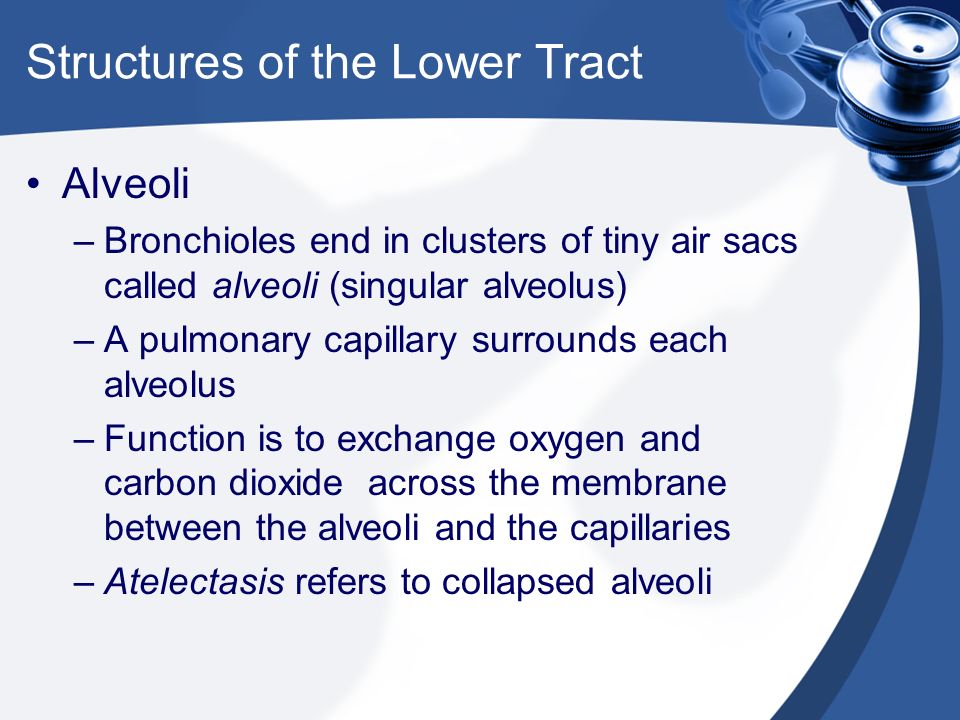

23. Structures of the Lower Tract Alveoli –Bronchioles end in clusters of tiny air sacs called alveoli (singular alveolus) –A pulmonary capillary surrounds each alveolus –Function is to exchange oxygen and carbon dioxide across the membrane between the alveoli and the capillaries –Atelectasis refers to collapsed alveoli

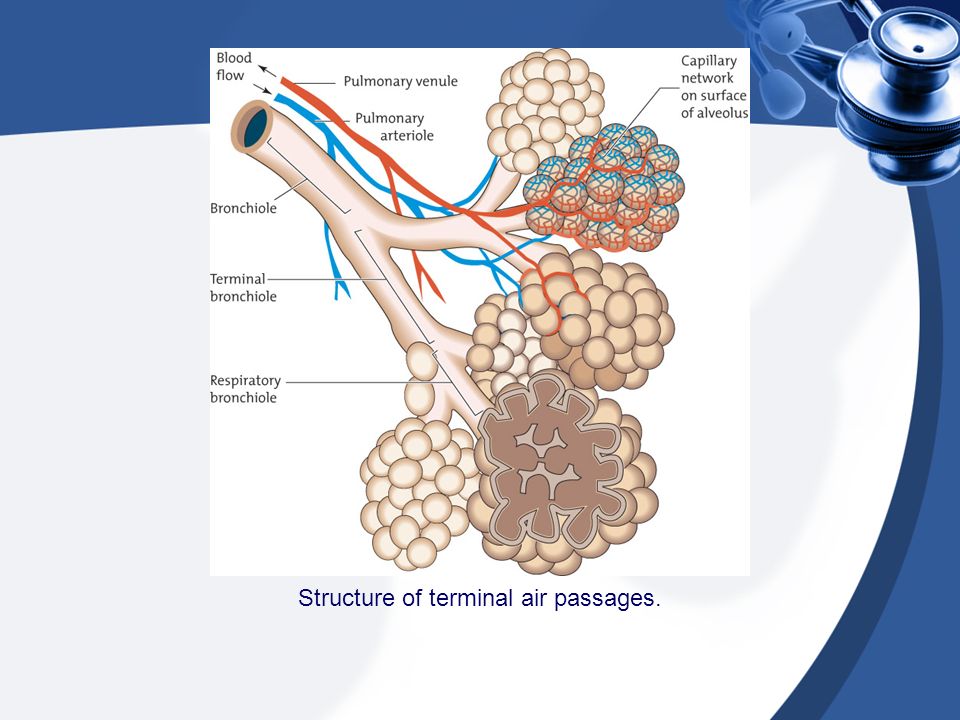

24. Structure of terminal air passages.

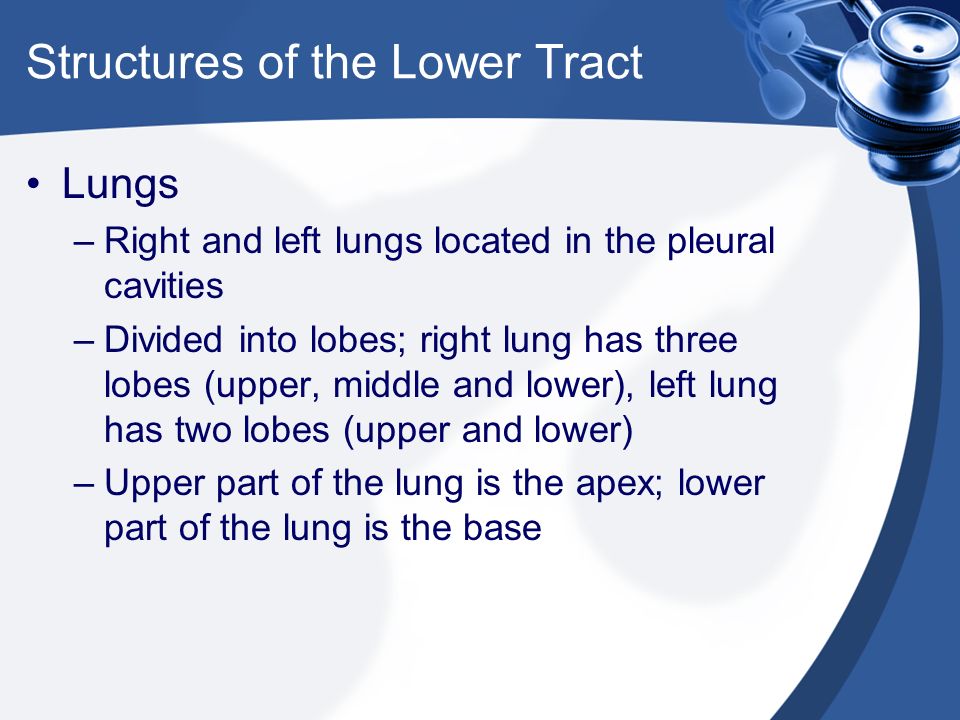

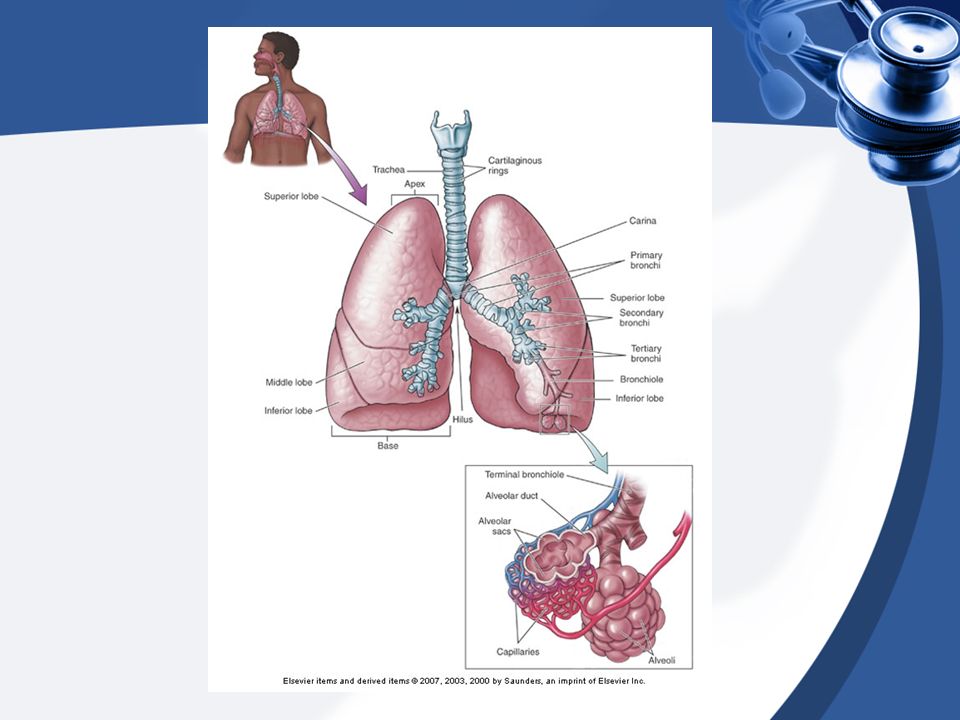

26. Structures of the Lower Tract Lungs –Right and left lungs located in the pleural cavities –Divided into lobes; right lung has three lobes (upper, middle and lower), left lung has two lobes (upper and lower) –Upper part of the lung is the apex; lower part of the lung is the base

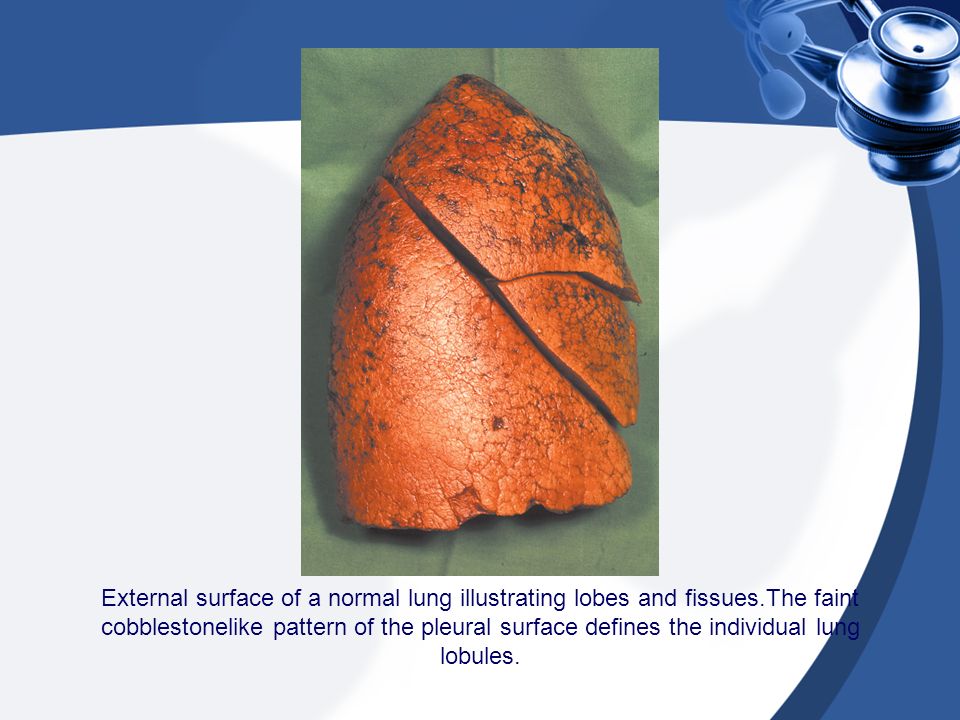

28. External surface of a normal lung illustrating lobes and fissues.The faint cobblestonelike pattern of the pleural surface defines the individual lung lobules.

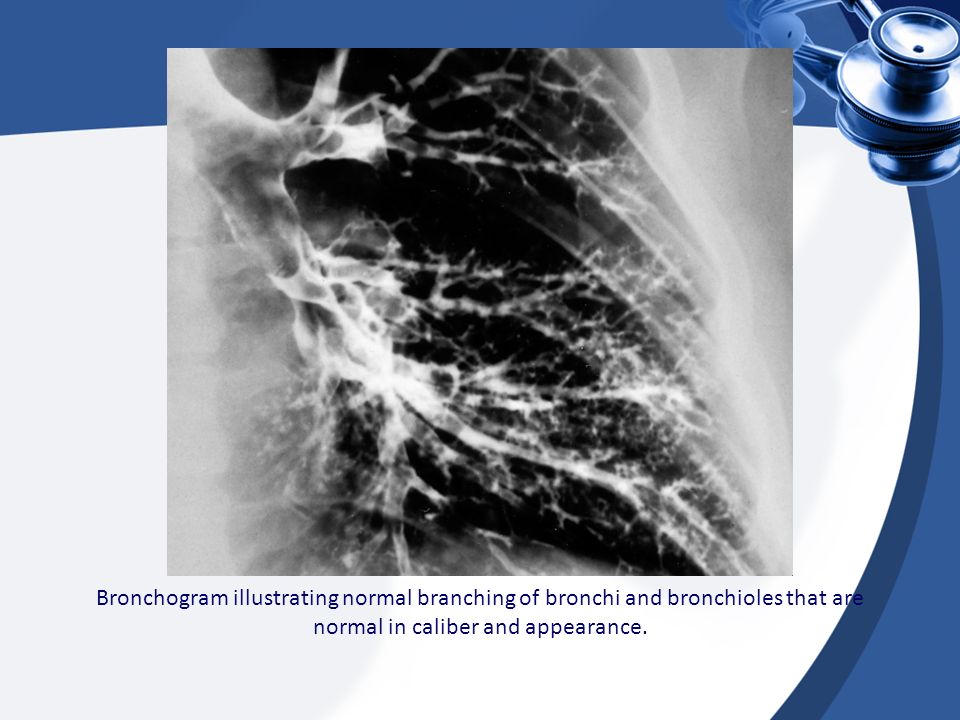

29. Bronchogram illustrating normal branching of bronchi and bronchioles that are normal in caliber and appearance.

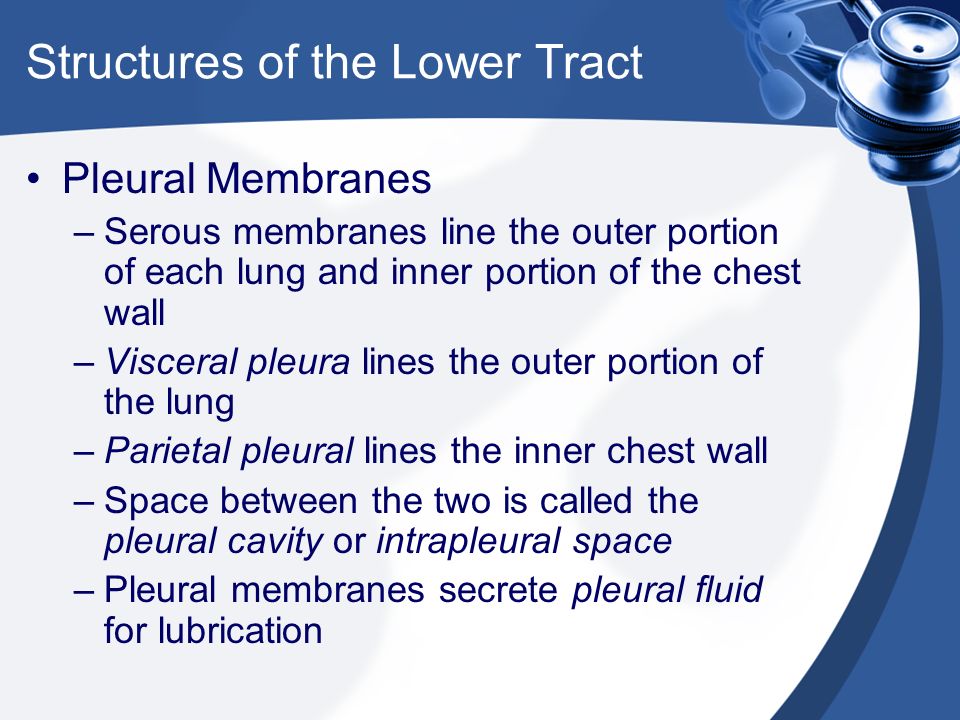

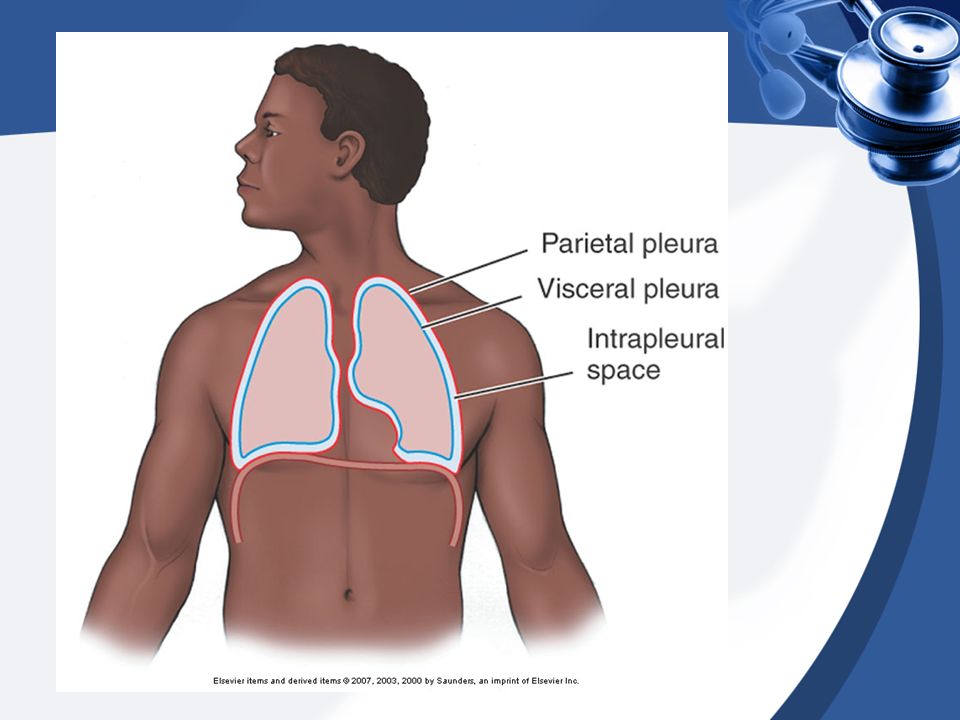

30. Structures of the Lower Tract Pleural Membranes –Serous membranes line the outer portion of each lung and inner portion of the chest wall –Visceral pleura lines the outer portion of the lung –Parietal pleural lines the inner chest wall –Space between the two is called the pleural cavity or intrapleural space –Pleural membranes secrete pleural fluid for lubrication

31. Structures of the Lower Tract Pleural Membrane –Under normal circumstances, pleural fluid provides lubrication and reduces friction –Certain diseases and conditions cause blood, air or excess fluid to enter the pleural cavity –Pleural effusion –Empyema –Pneumothorax/ hemothorax

33. Collapsed & Expanded Lungs Lungs can collapse because of the principles of elastic recoil and surface tension If the thoracic cavity is entered (trauma, surgery etc.) the lungs will collapse

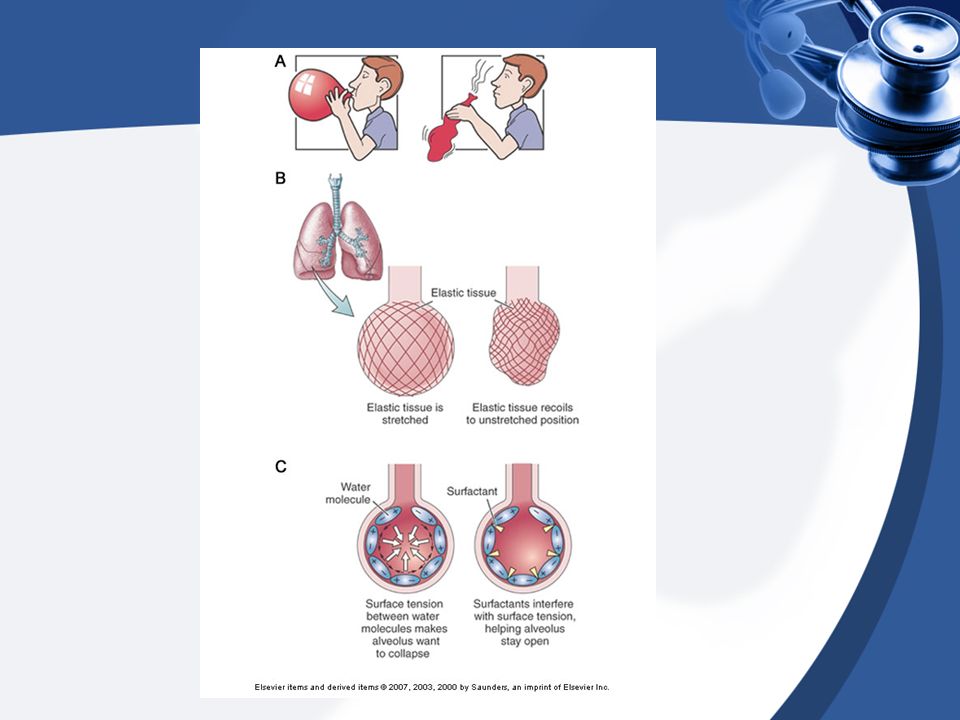

34. Collapsed & Expanded Lungs Elastic Recoil –Stretchy fibers in the lungs stretch in response to a volume of air –Theses fibers will remain stretched as long as air is present in the lungs –When the air is allowed to escape, the lung fibers will collapse (recoil) into their unstretched position

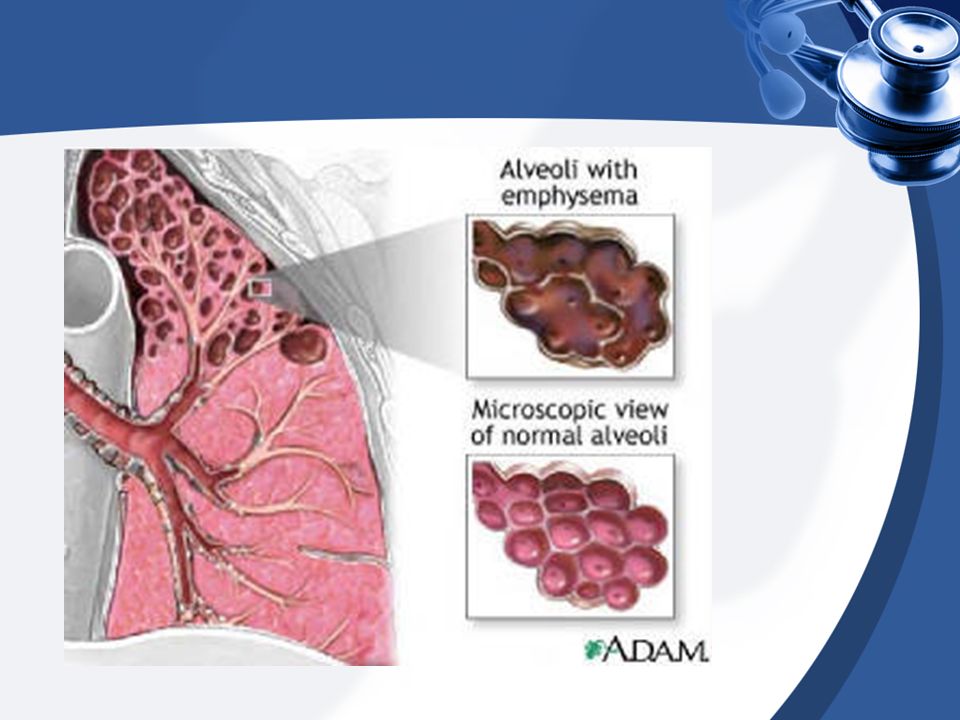

36. Collapsed & Expanded Lungs Compliance –Measure of elastic recoil –Decreased compliance results in stiff lungs- difficult to inflate (ARDS, pulmonary edema, pulmonary fibrosis) –Increased compliance results in limp, over- stretched lungs; air cannot be expelled completely (emphysema, COPD)

38. X-Ray showing hyperinflated lungs in a patient with COPD

39. Collapsed & Expanded Lungs Surface Tension –Each alveolus is lined with a thin layer of water molecules –Remember water is a polar molecule; the positive end of one molecule is attracted to the negative end of another molecule –This attraction between molecules causes the alveoli to shrink or collapse So why don’t the alveoli all collapse??

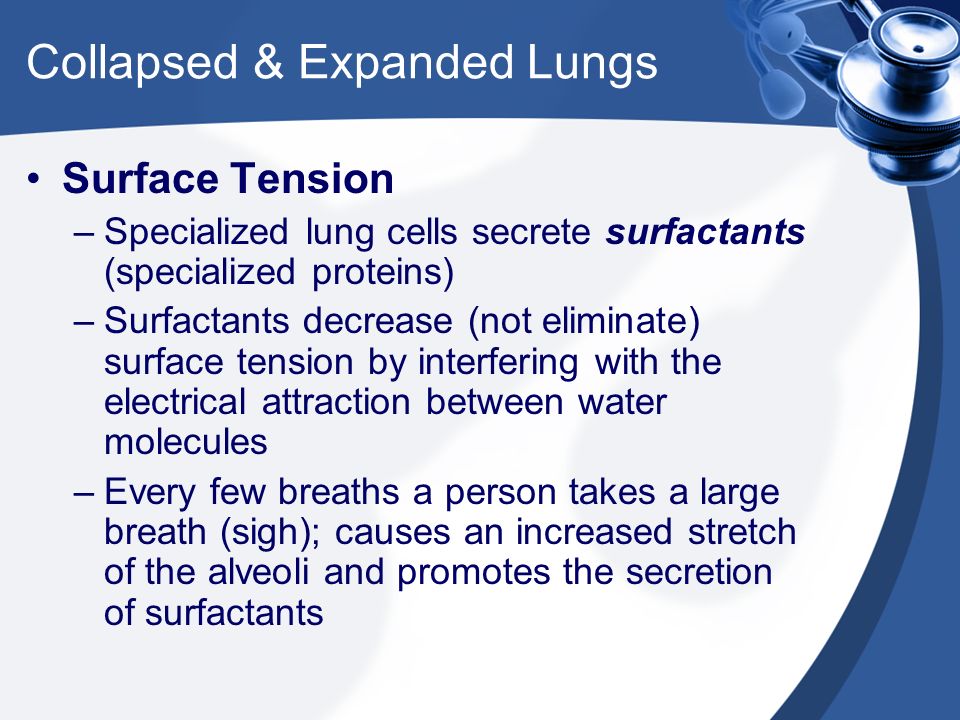

40. Collapsed & Expanded Lungs Surface Tension –Specialized lung cells secrete surfactants (specialized proteins) –Surfactants decrease (not eliminate) surface tension by interfering with the electrical attraction between water molecules –Every few breaths a person takes a large breath (sigh); causes an increased stretch of the alveoli and promotes the secretion of surfactants

41. “Pond skater” insect walking on water

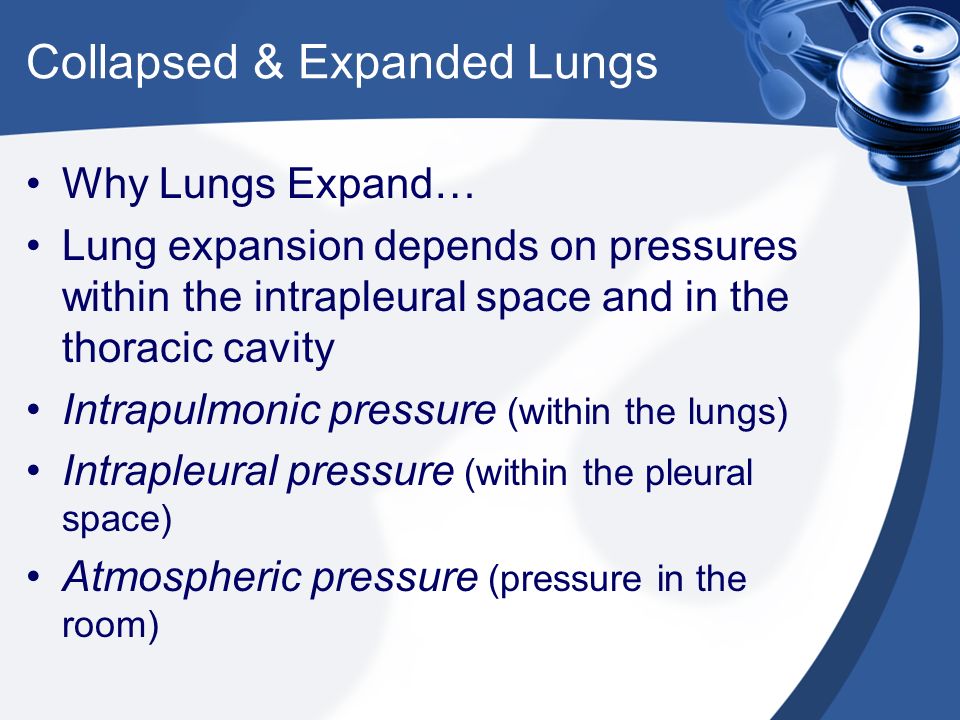

43. Collapsed & Expanded Lungs Why Lungs Expand… Lung expansion depends on pressures within the intrapleural space and in the thoracic cavity Intrapulmonic pressure (within the lungs) Intrapleural pressure (within the pleural space) Atmospheric pressure (pressure in the room)

45. Collapsed & Expanded Lungs Lungs remain expanded because the intrapleural pressure is negative –Pressure within the lung (intrapulmonic) and outside of the chest (atmospheric) is greater than the pressure in the pleural space

46. Visceral and Parietal separate and cause the lung to collapse

47. Collapsed & Expanded Lungs Pneumothorax –Surgical, trauma, spontaneous Hemothorax Hemopneumothorax

48. A, Normal relation of lung to chest wall. B, Pneumothorax caused by a perforating injury of lung.

50. Typical chest tube placement

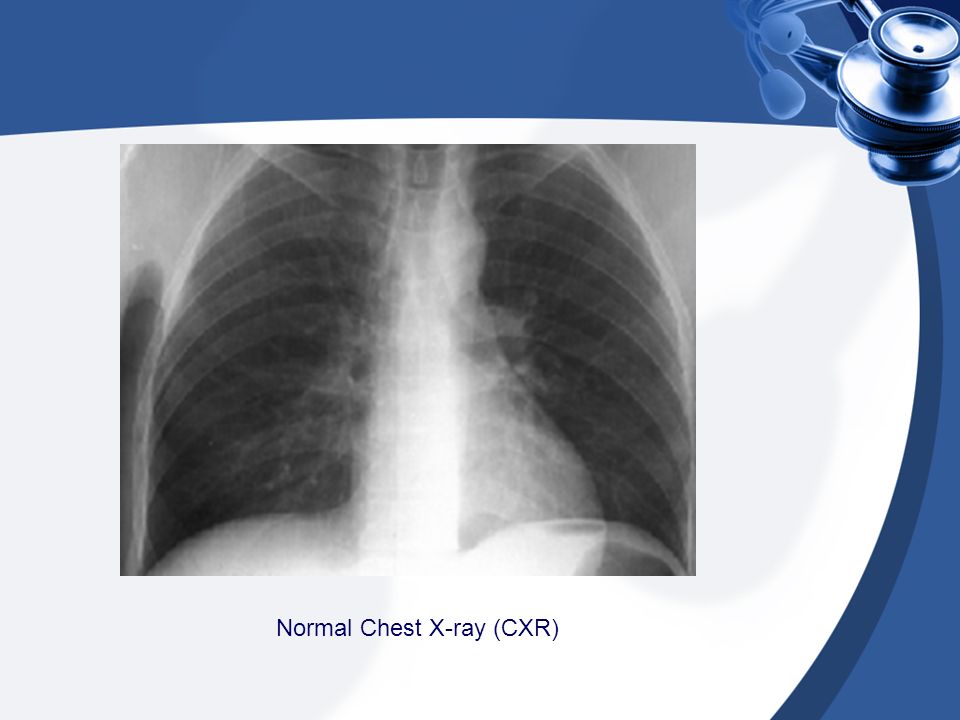

51. Normal chest X-ray Normal Chest X-ray (CXR)

52. Pneumothorax White arrow indicates collapsed lung

53. Hemothorax Blood in the pleural space

54. Respiratory Function Includes three steps: Ventilation (or, breathing) Exchange of oxygen or carbon dioxide Transport of oxygen and carbon dioxide by the blood

55. Ventilation (Breathing) Movement of air into and out of the lungs Two phases –Inhalation (inspiration) –Exhalation (expiration) Respiratory cycle is one inhalation and one exhalation

56. Ventilation (Breathing) Air flows in response to changes in pressure Inspiration –Ribs move upward and outward…increase volume of thoracic cavity/ lungs…decreases pressure in thoracic cavity…air rushes in Expiration –Ribs/diaphragm relax…volume decreases and pressure increases…air is pushed out

57. Ventilation (Breathing) The relationship between pressure and volume is the basis for Boyle’s law Inhalation –Associated with an increase in thoracic volume Expiration –Associated with a decrease in thoracic volume

58. Boyle’s law

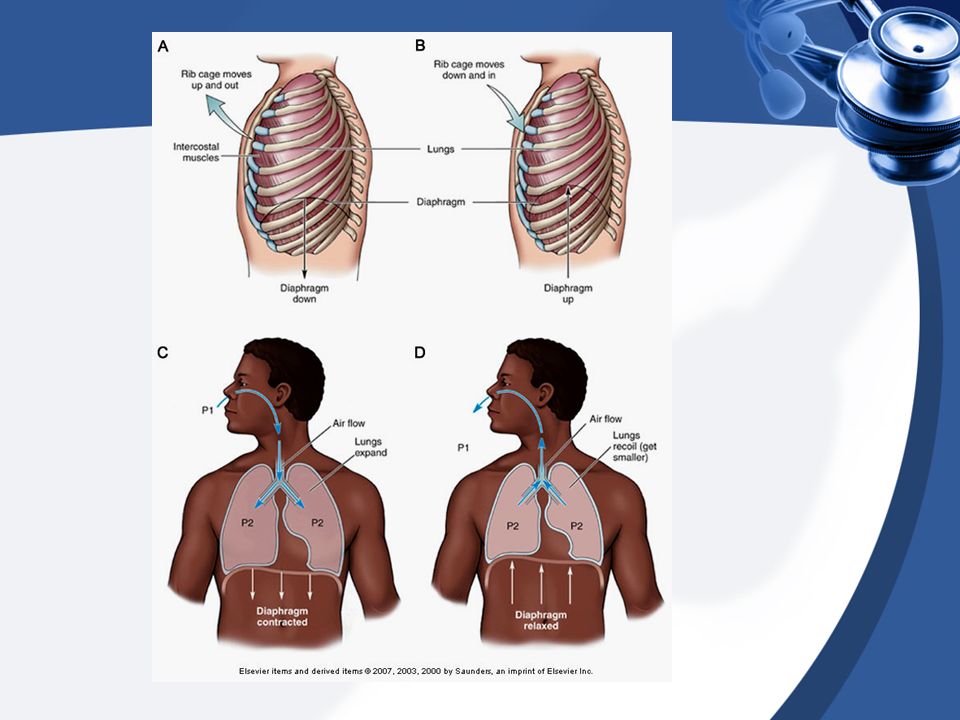

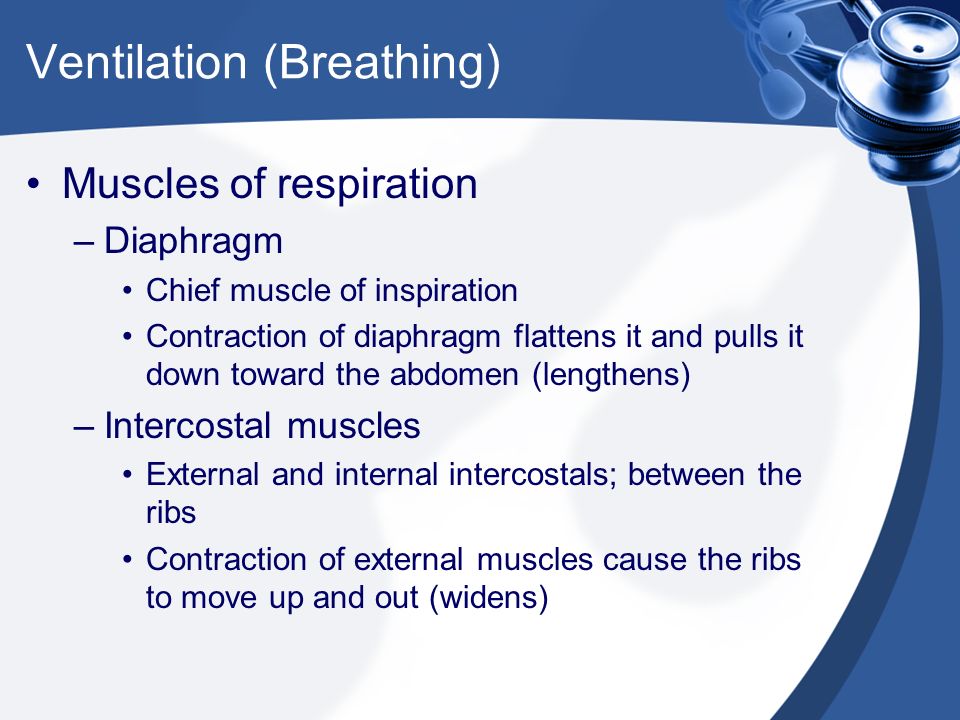

59. Ventilation (Breathing) Muscles of respiration –Diaphragm Chief muscle of inspiration Contraction of diaphragm flattens it and pulls it down toward the abdomen (lengthens) –Intercostal muscles External and internal intercostals; between the ribs Contraction of external muscles cause the ribs to move up and out (widens)

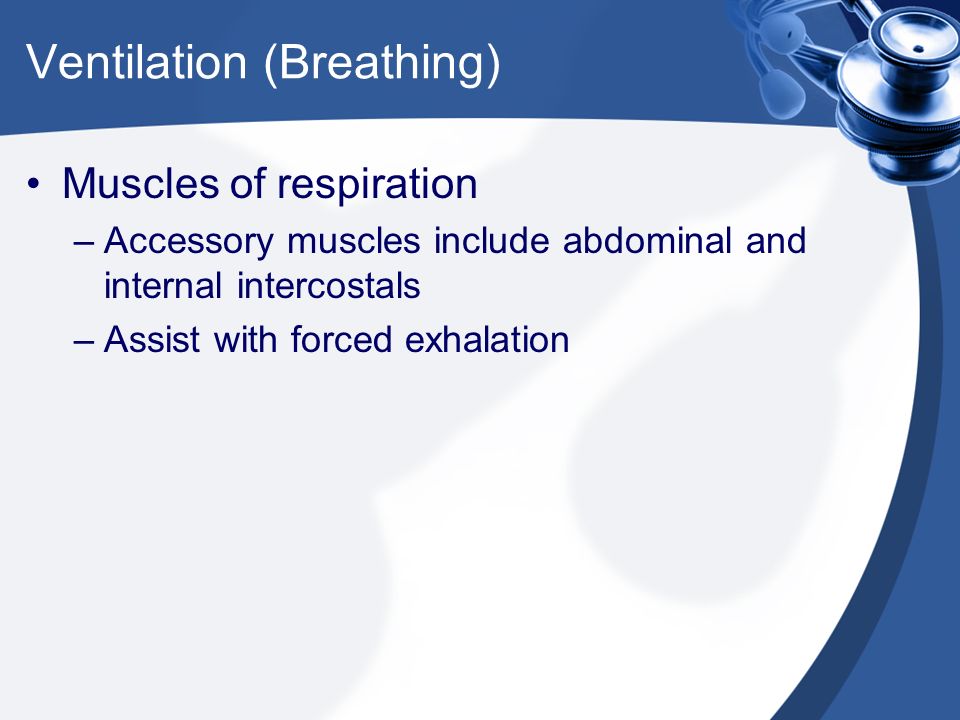

60. Ventilation (Breathing) Muscles of respiration –Accessory muscles include abdominal and internal intercostals –Assist with forced exhalation

62. Ventilation (Breathing) Inhalation is an active process; it requires ATP to fuel the muscles as they contract Exhalation is a passive process; it occurs when the muscles relax, so there is no ATP used During exercise or with some lung diseases (COPD), exhalation becomes an active process because accessory muscles must be used

63. Innervation Phrenic nerve and intercostal nerves cause the skeletal muscles of respiration to contract Phrenic nerve exits the spinal cord at the level of C4

64. Gas Exchange Exchange of oxygen and carbon dioxide occurs in the lungs and at the cellular level Lungs (alveoli) –Large surface area (millions of alveoli in each lung) –Thin walls of alveoli and pulmonary capillaries –Closeness of alveoli and pulmonary capillaries (ensures high rate of diffusion)

65. Diffusion of Gases The amount of each gas creates a pressure, called a partial pressure –Room air contains 78% Nitrogen (not used by the body), 21% oxygen (PO 2 ) 0.04% carbon dioxide (PCO 2 ) Higher pressure, diffusion occurs more easily; gases move from high pressure to low pressure

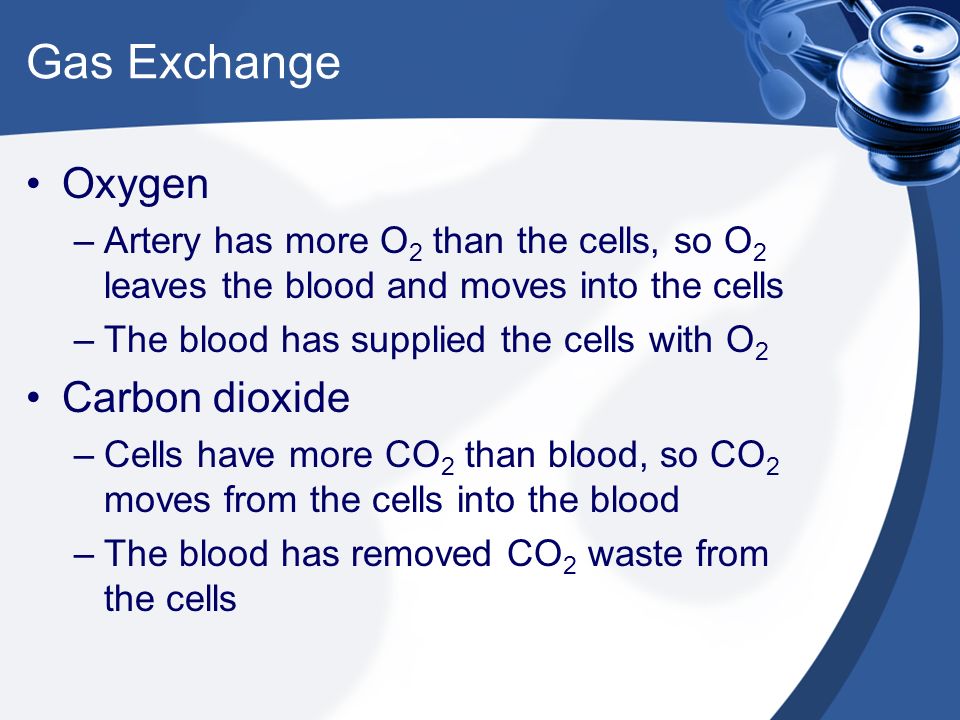

66. Gas Exchange Oxygen –Artery has more O 2 than the cells, so O 2 leaves the blood and moves into the cells –The blood has supplied the cells with O 2 Carbon dioxide –Cells have more CO 2 than blood, so CO 2 moves from the cells into the blood –The blood has removed CO 2 waste from the cells

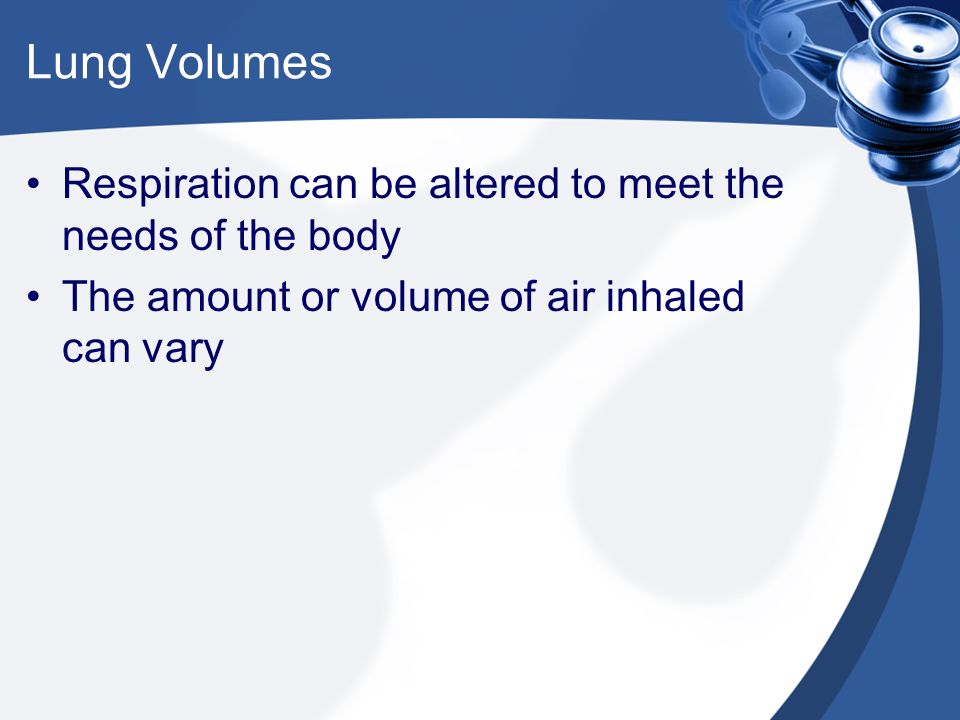

68. Lung Volumes Respiration can be altered to meet the needs of the body The amount or volume of air inhaled can vary

69. Lung Volumes Tidal volume –Amount of air moved in and out with each breath Inspiratory reserve volume –Additional amount of air able to be inhaled Expiratory reserve volume –Additional amount of air able to be exhaled Residual volume –Amount of air left in lungs after forced exhalation

71. Lung Capacities Pulmonary capacity refers to combinations of lung volumes Vital capacity –Tidal volume, inspiratory & expiratory reserves –Used to measure pulmonary function Total lung capacity –Vital capacity plus residual volume

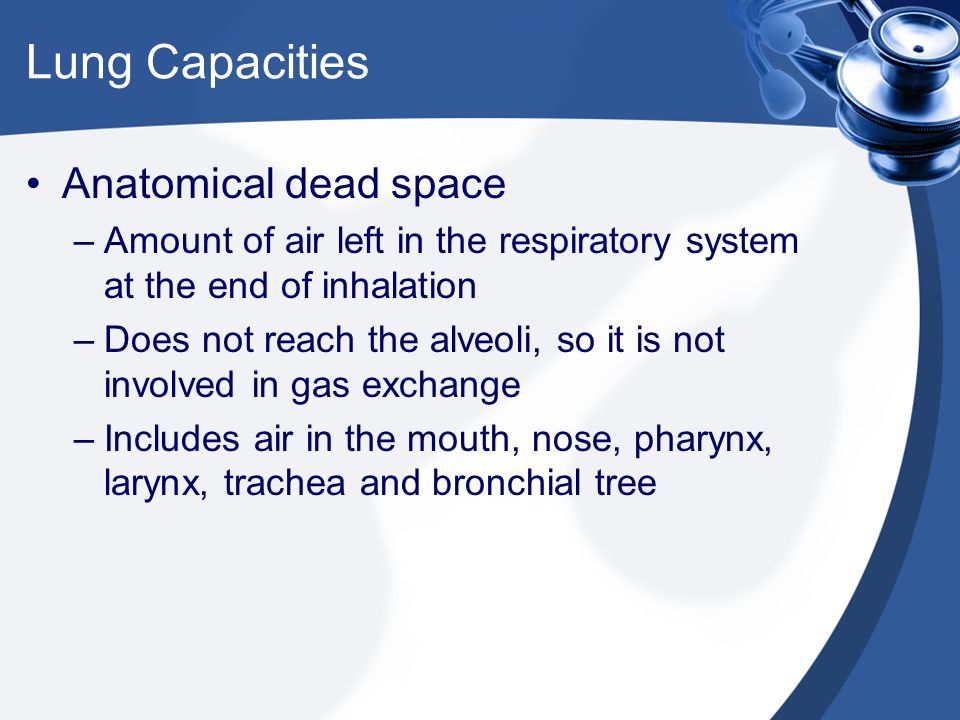

72. Lung Capacities Anatomical dead space –Amount of air left in the respiratory system at the end of inhalation –Does not reach the alveoli, so it is not involved in gas exchange –Includes air in the mouth, nose, pharynx, larynx, trachea and bronchial tree

73. Control of Breathing Normal respiration –Rhythmic –Involuntary –Can voluntarily alter rate and depth –Normal rate? 12 to 20 breaths per minute for adults 20 to 40 breaths per minute for infants and children

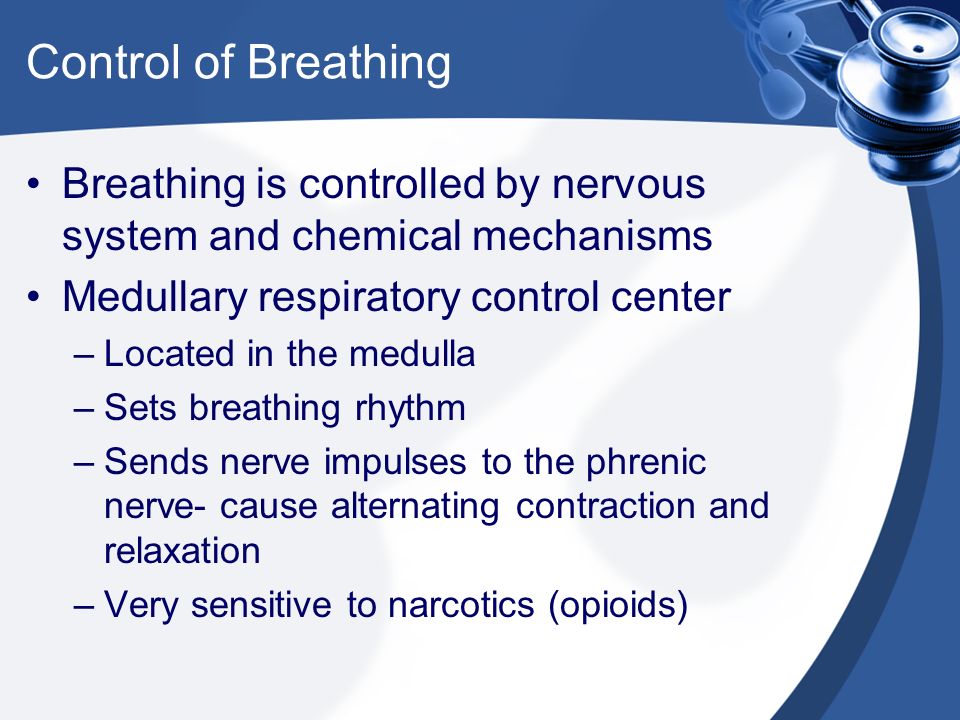

74. Control of Breathing Breathing is controlled by nervous system and chemical mechanisms Medullary respiratory control center –Located in the medulla –Sets breathing rhythm –Sends nerve impulses to the phrenic nerve- cause alternating contraction and relaxation –Very sensitive to narcotics (opioids)

76. Control of Breathing Other centers located in the pons help modify and control breathing patterns Pneumotaxic center Apneustic center

77. Control of Breathing Chemoreceptors in the body respond to different chemicals that affect respiration Central chemoreceptors –Located within the central nervous system –Respond to altered levels of CO 2 and H + Peripheral chemoreceptors –Located outside of the central nervous system –Respond to altered levels of H + and O 2

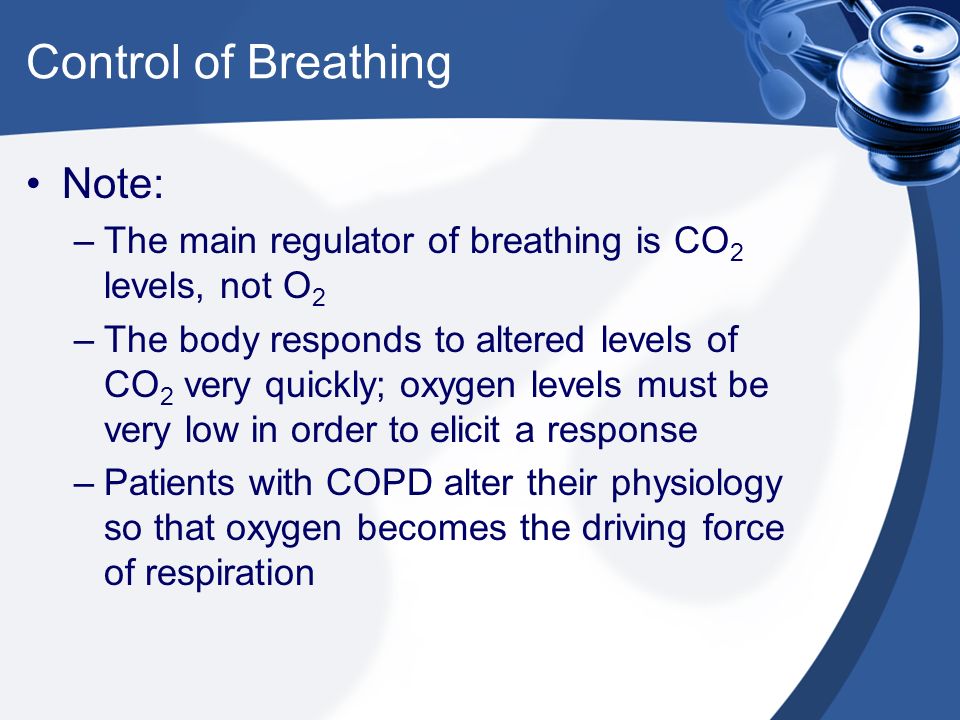

78. Control of Breathing Note: –The main regulator of breathing is CO 2 levels, not O 2 –The body responds to altered levels of CO 2 very quickly; oxygen levels must be very low in order to elicit a response –Patients with COPD alter their physiology so that oxygen becomes the driving force of respiration

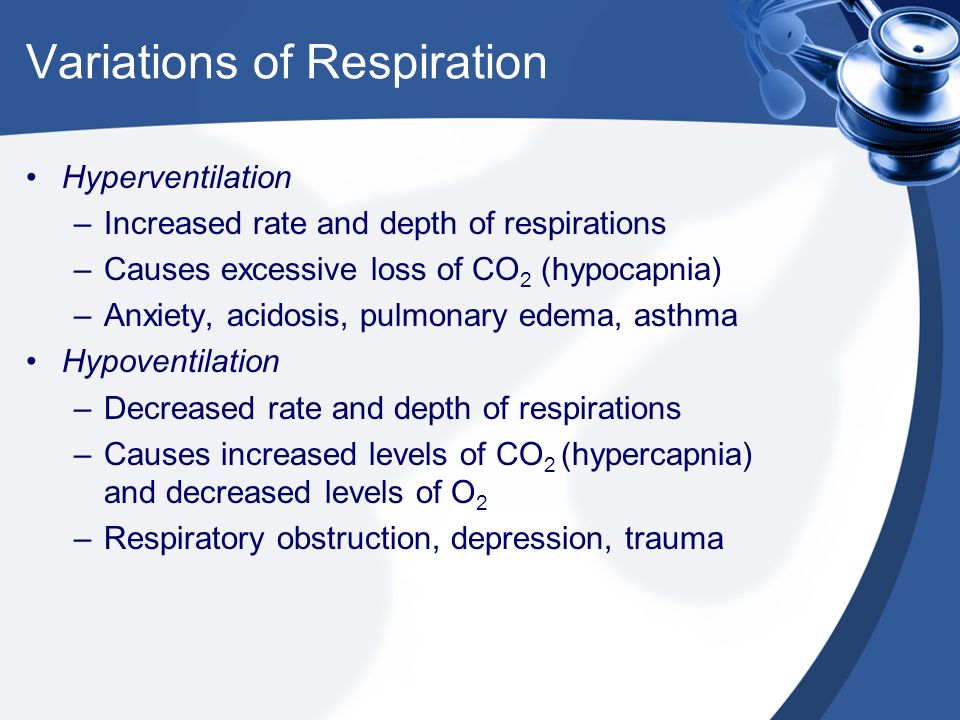

79. Variations of Respiration Hyperventilation –Increased rate and depth of respirations –Causes excessive loss of CO 2 (hypocapnia) –Anxiety, acidosis, pulmonary edema, asthma Hypoventilation –Decreased rate and depth of respirations –Causes increased levels of CO 2 (hypercapnia) and decreased levels of O 2 –Respiratory obstruction, depression, trauma

80. Variations of Respiration Dyspnea Tachypnea Eupnea Orthopnea Hypopnea Cheyne-Stokes Kussmaul breathing

82. Respiratory Abnormalities

85. Pulmonary Edema

86. Pneumonia
