1 Respiratory System

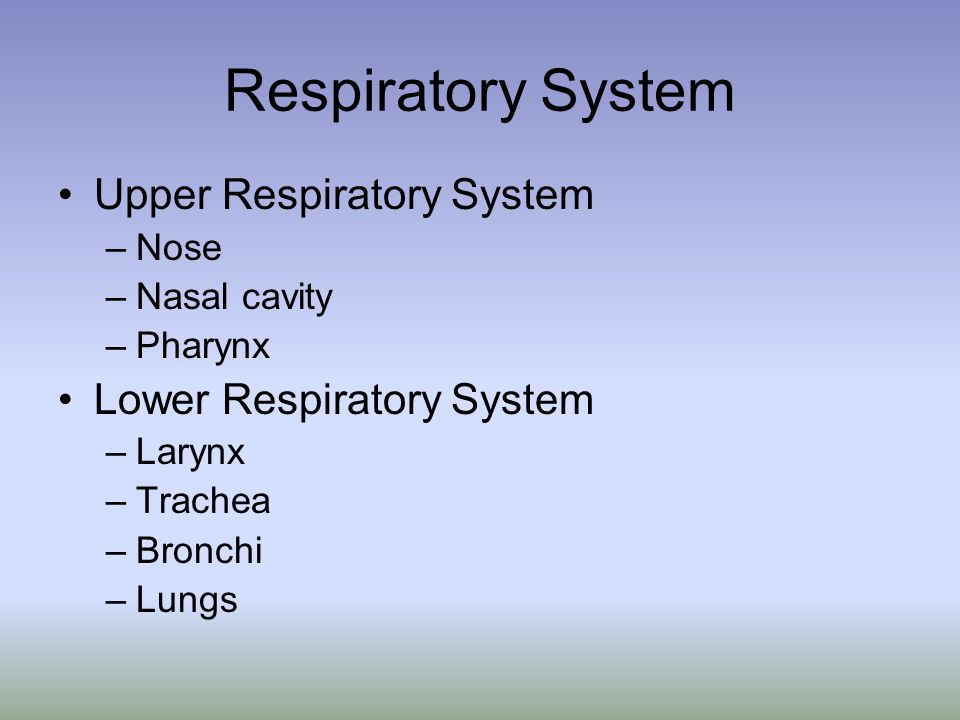

3 Upper Respiratory System –Nose –Nasal cavity –Pharynx Lower Respiratory System –Larynx –Trachea –Bronchi –Lungs

4 Respiratory Tract Conducting portion –Nasal cavity to smallest bronchioles of lung –Getting air to the exchange zone Respiratory portion –Alveoli –Gas exchange

5 Phases of Respiration 1. Pulmonary ventilation –Moving air in and out of lungs 2. External respiration –Gas exchange between blood and air (alveoli) –O2 in, CO2 out 3. Transport of respiratory gases –Blood, RBC 4. Internal respiration –Gas exchange between blood and cells –O2 into cells, removal of CO2

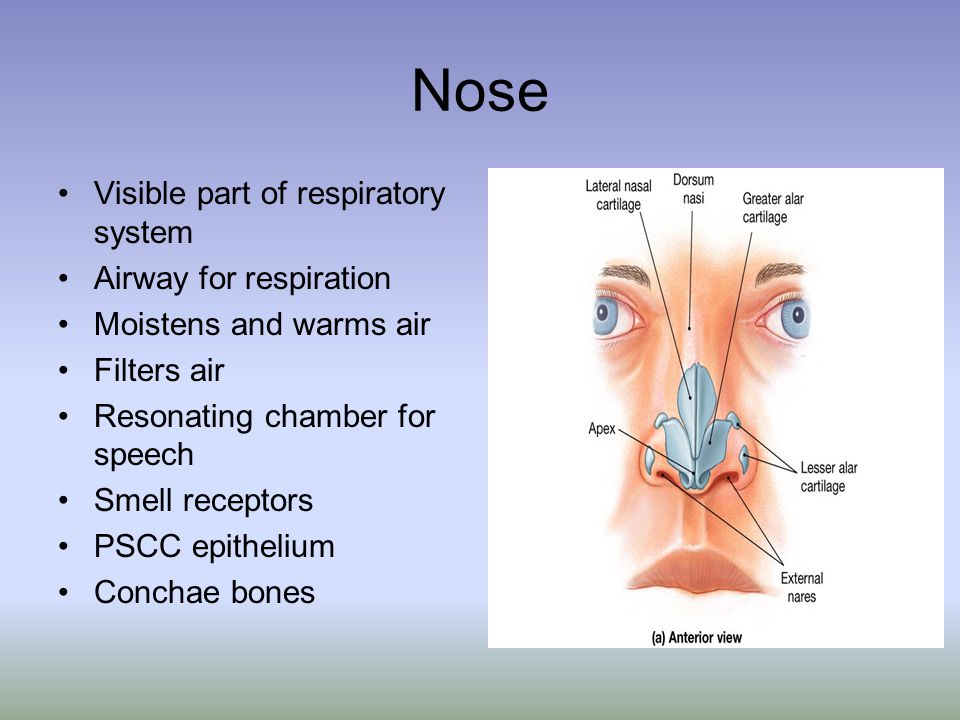

6 Nose Visible part of respiratory system Airway for respiration Moistens and warms air Filters air Resonating chamber for speech Smell receptors PSCC epithelium Conchae bones

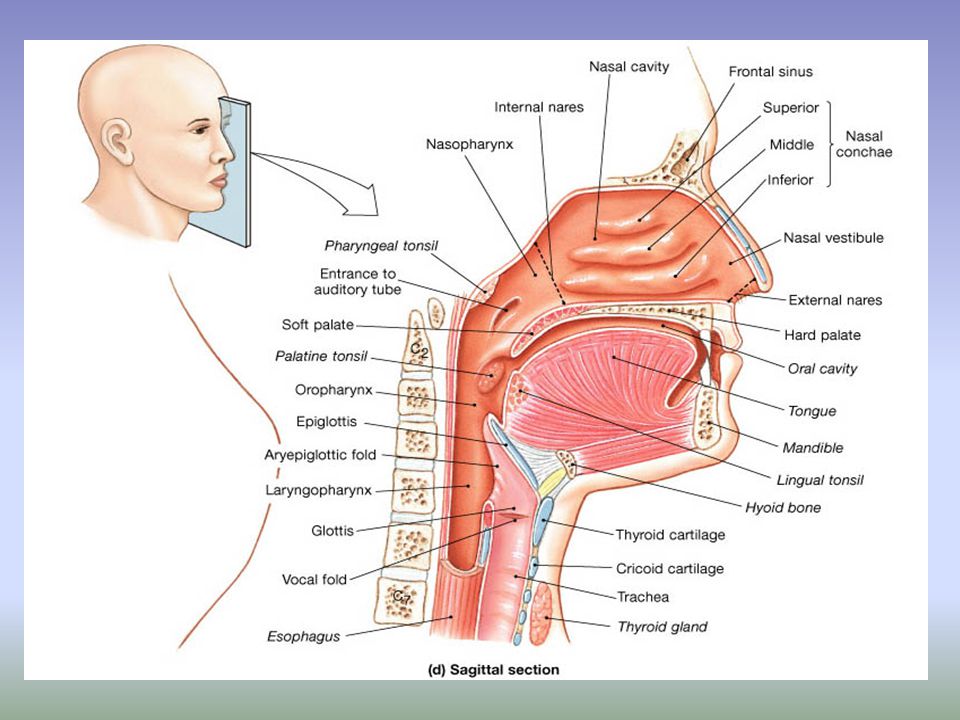

7 Pharynx (Throat) Food and air passage way Three divisions –NASOPHARYNX: air only. Back of nasal cavity. PSCC epithelium –OROPHARYNX: food and air. Back of mouth. Stratified squamous epithelium. –LARYNGOPHARYNX: air and food. Distal region of the pharynx. Extends to the larynx. Stratified squamous epithelium

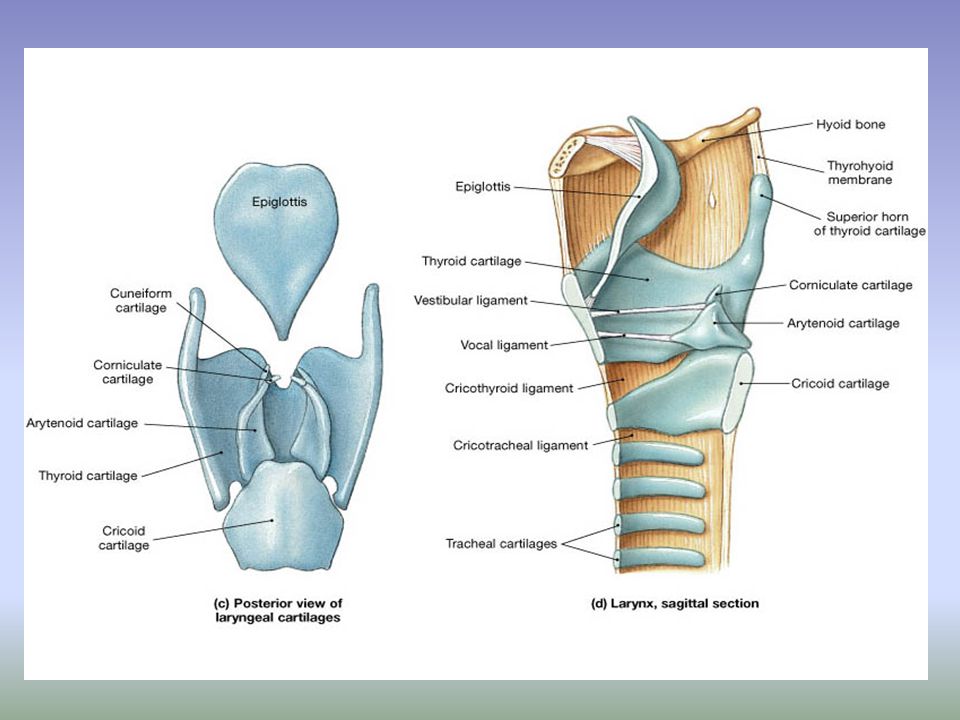

10 Larynx From the pharynx air passes through an opening called the GLOTTIS The larynx protects the glottis The larynx is composed of several cartilages –Thyroid cartilage (Hyaline) – laryngeal prominence –Cricoid cartilage (Hyaline) –Epiglottis (Elastic) –Arytenoid cartilage (Hyaline) –Corniculate cartilage (Hyaline) –Cuneiform cartilage (Hyaline)

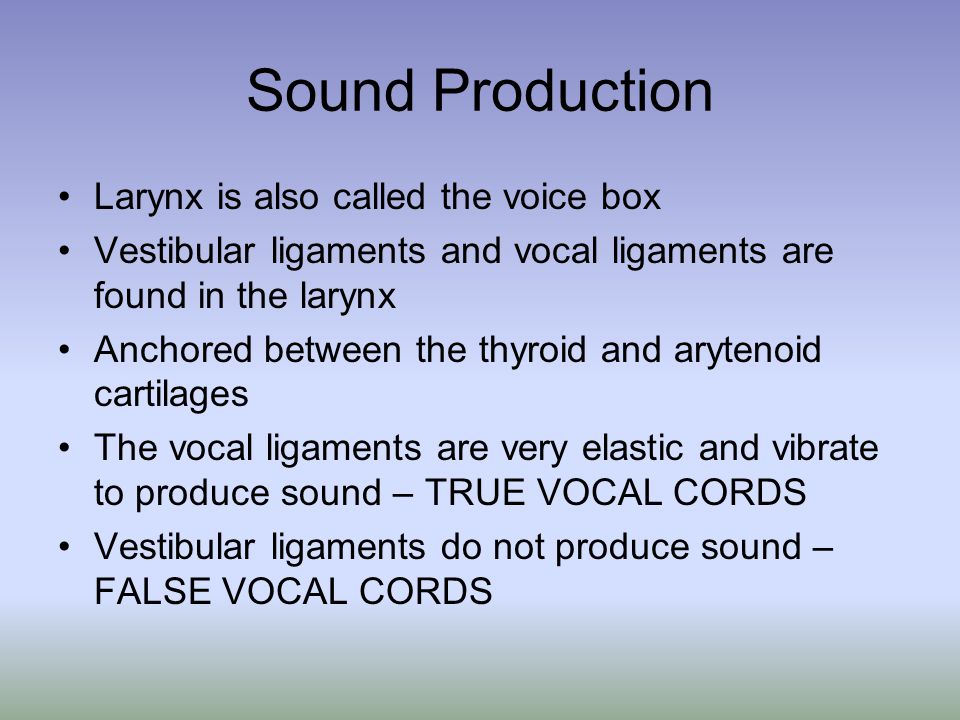

13 Sound Production Larynx is also called the voice box Vestibular ligaments and vocal ligaments are found in the larynx Anchored between the thyroid and arytenoid cartilages The vocal ligaments are very elastic and vibrate to produce sound – TRUE VOCAL CORDS Vestibular ligaments do not produce sound – FALSE VOCAL CORDS

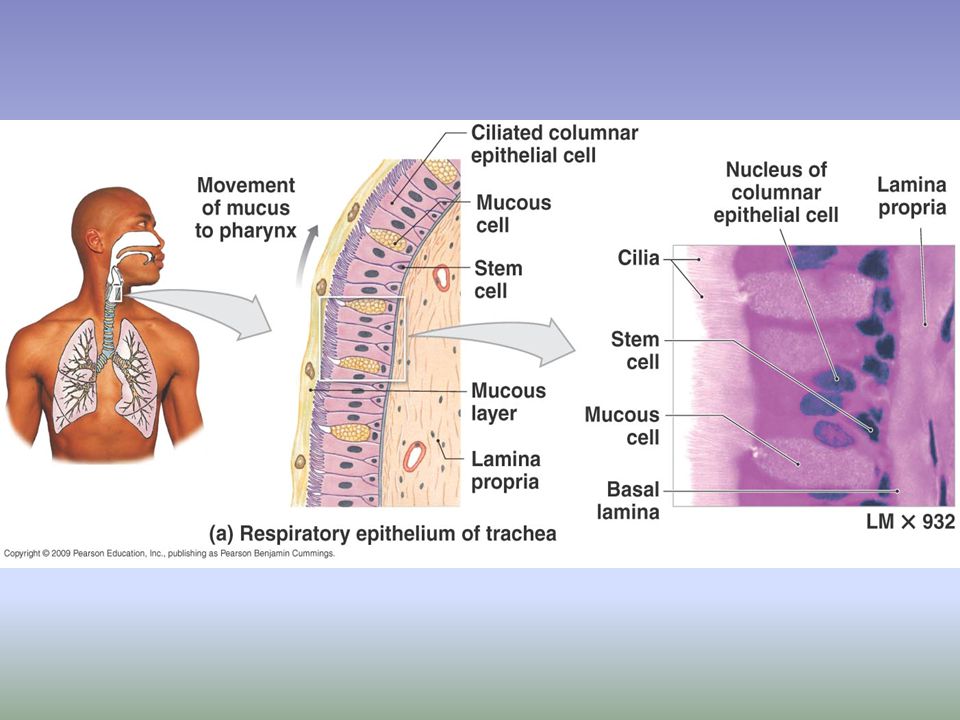

15 Trachea Windpipe Passage for air to the lungs About 1 inch in diameter, and 4.25 inches long Consists of 15-20 tracheal cartilages Tracheal cartilages are hyaline cartilage and are “C” shaped Respiratory epithelium is PSCC Trachea ends at the CARINA Divides into the right and left primary bronchi


17 Trachea

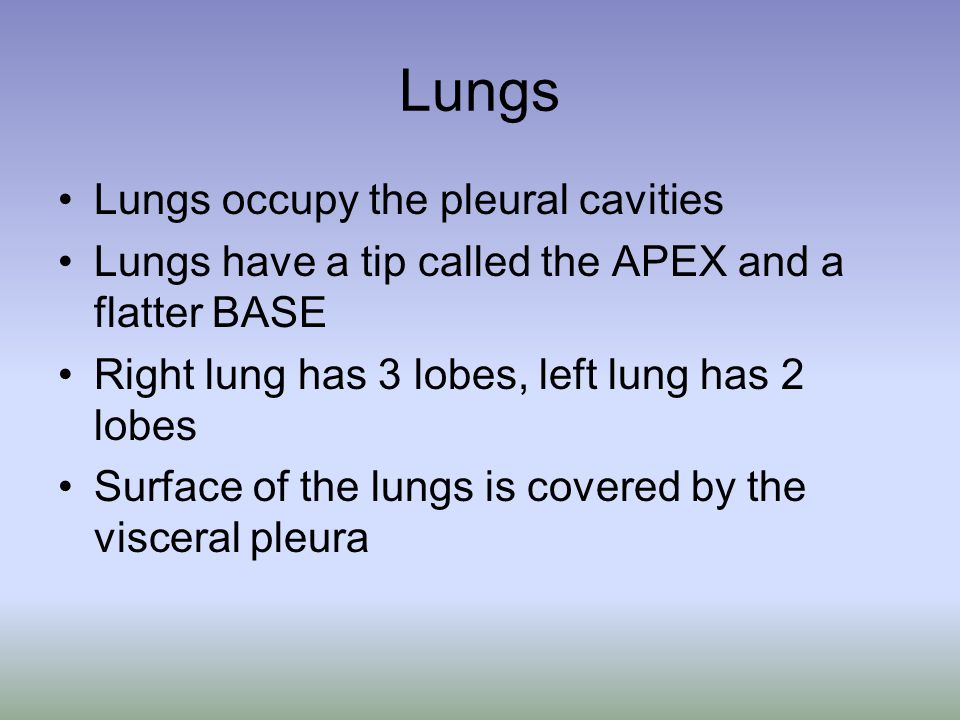

20 Lungs Lungs occupy the pleural cavities Lungs have a tip called the APEX and a flatter BASE Right lung has 3 lobes, left lung has 2 lobes Surface of the lungs is covered by the visceral pleura

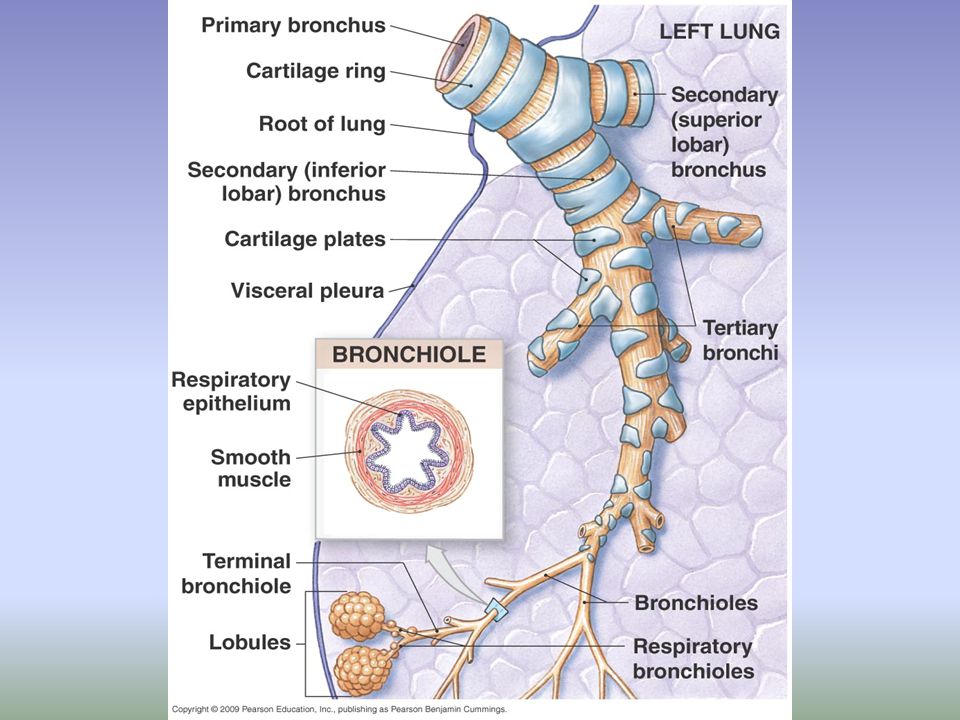

22 Bronchial Tree Primary bronchus Secondary bronchus – one for each lobe Tertiary bronchus Terminal bronchioles Respiratory bronchioles Alveolar ducts Alveolar sacs – gas exchange

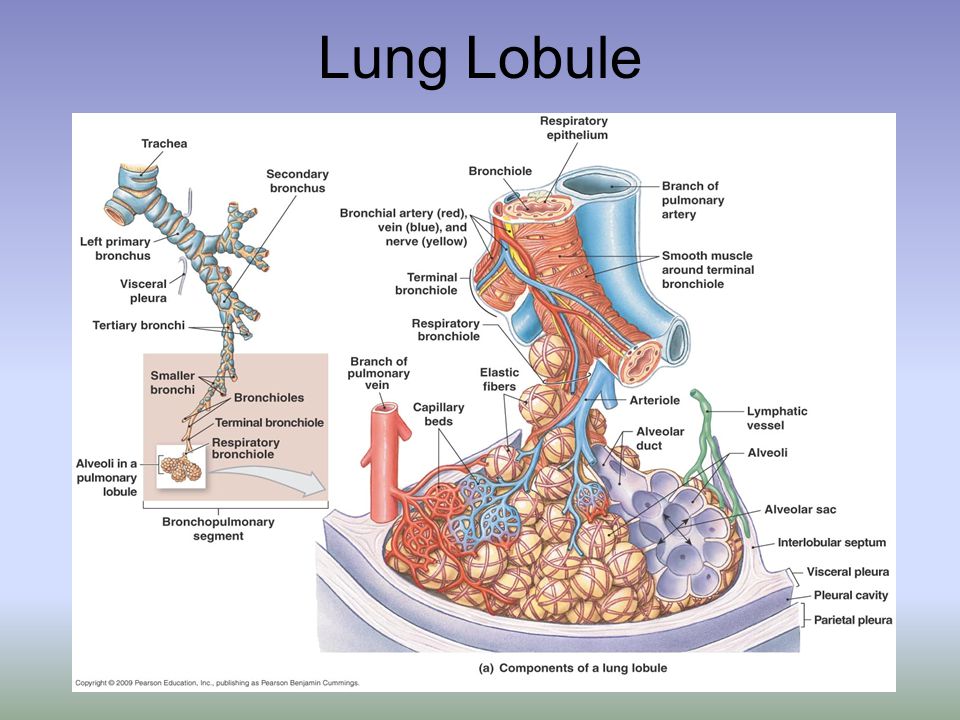

24 Lung Lobule

25 Changes in the bronchial tree As the bronchial passageways get smaller the cartilage rings are replaced by cartilage plates Terminal bronchioles lack cartilage, mostly smooth muscle Epithelium changes as well: –PSCC in the primary, secondary, tertiary bronchi –Ciliated simple columnar in the larger bronchioles –Ciliated simple cuboidal in the smaller bronchioles –Simple cuboidal in the terminal bronchioles

26 Respiratory Membrane Alveolar endothelium = simple squamous Pulmonary endothelium = simple squamous These endothelial membranes fuse to form the respiratory membrane Gases diffuse across this tiny space: oxygen in, carbon dioxide out

27 Lung histology

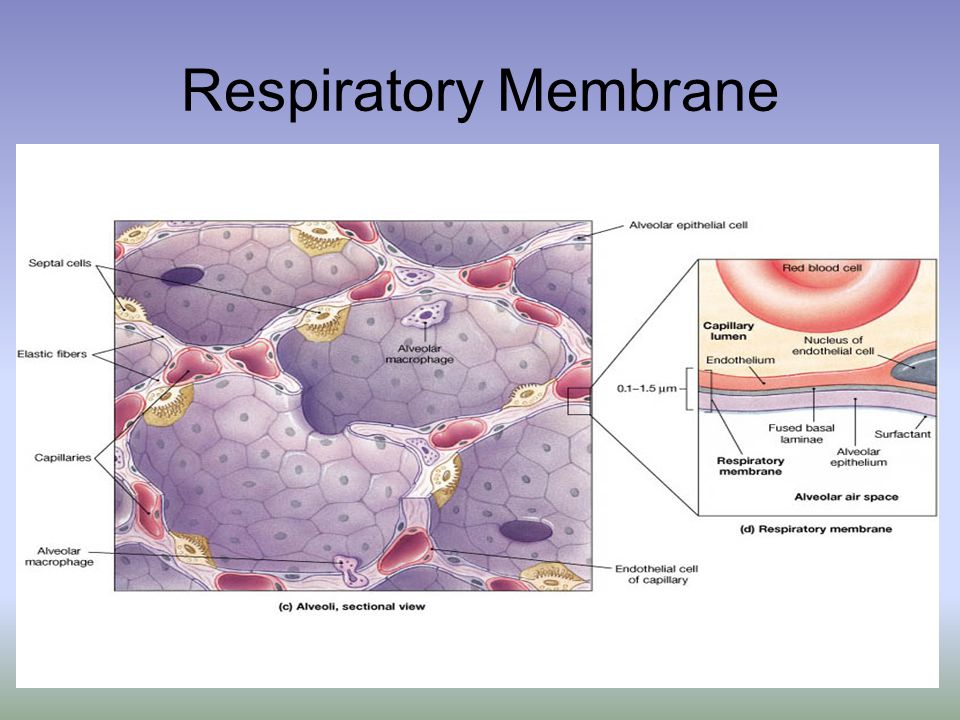

28 Respiratory Membrane

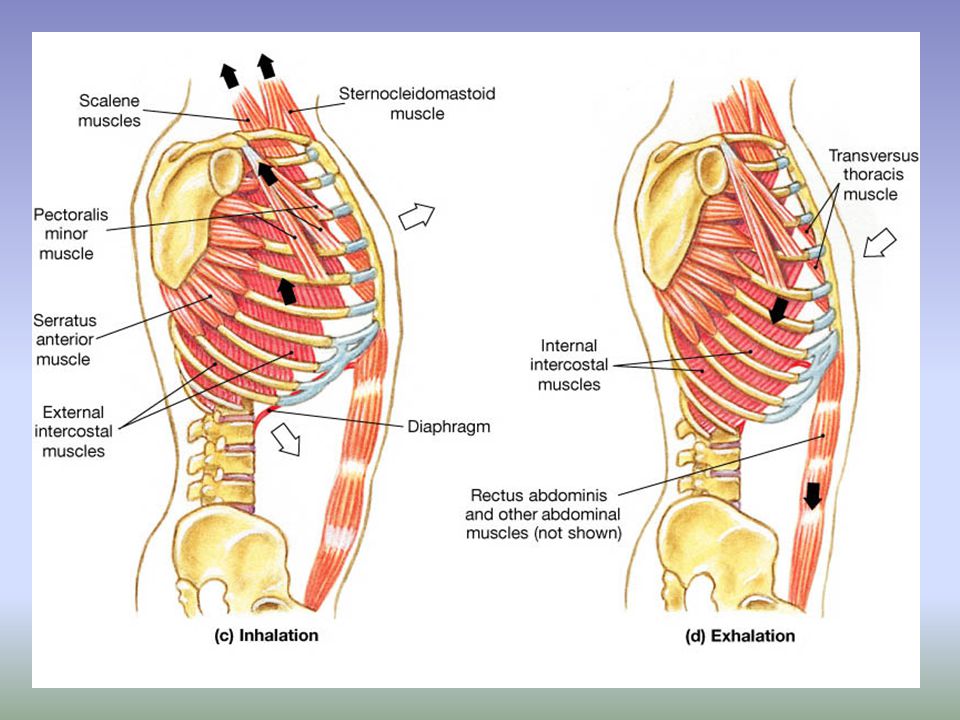

29 Respiratory Muscles Diaphragm –Increases the volume of thoracic cavity to draw air into lungs External intercostals –Assist in inspiration by elevating ribs Internal intercostals –Depress the ribs, reduce the width of the thoracic cavity and assist in expiration
