1. doc.: IEEE 802.15-08-0xxx-00-004e Submission March 14, 2008 Huawei, Telecom Italia Slide 1 Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title: [Telecom Applications Introduction] Date Submitted: [14 March, 2008] Source: [TA PTG of ZigBee Alliance] Company [Huawei Technologies Co., Ltd] [Telecom Italia] Address [No.3 Xinxi Road, Shangdi Information Industry Base, Haidian District, Beijing, P.R.China] Voice:[+86 10 82836430], FAX: [+86 10 82836920], E-Mail: [yongjunliu@huawei.com][betty.zhao@huawei.com][zhongyf@huawei.com] Abstract:[This document introduce the Telecom Application profile task group of ZigBee Alliance, also the telecom applications and requirements.] Purpose:[Response for CFA.] Notice:This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release:The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15.

2. doc.: IEEE 802.15-08-0xxx-00-004e Submission March 14, 2008 Huawei, Telecom Italia Slide 2 Telecom Applications Introduction Yongjun Liu, Betty Zhao, Yongfeng Zhong Huawei Technologies Co., Ltd. Telecom Italia

3. doc.: IEEE 802.15-08-0xxx-00-004e Submission March 14, 2008 Huawei, Telecom Italia Slide 3 Contents TA PTG of ZigBee Alliance introduction Telecom applications and characters -Information service -M-commerce -File sharing -Gaming and chat Conclusion

4. doc.: IEEE 802.15-08-0xxx-00-004e Submission March 14, 2008 Huawei, Telecom Italia Slide 4 TA PTG of ZigBee Alliance Introduction

5. doc.: IEEE 802.15-08-0xxx-00-004e Submission March 14, 2008 Huawei, Telecom Italia Slide 5 ZigBee Applications Telecom applications lie here!

6. doc.: IEEE 802.15-08-0xxx-00-004e Submission March 14, 2008 Huawei, Telecom Italia Slide 6 TA PTG Introduction TA PTG – Telecom Application Profile Task Group Scope: Telecom application profile Purpose: study telecom related applications in ZigBee, which use network operator infrastructures and communications terminals, such as cell or fixed phone connectivity 200620072008 Group formed Initial MRD MRD finished Initial application profile TRD finished Initial TRD Application profile approved MRD: Marketing Requirement Document TRD: Technical Requirement Document

7. doc.: IEEE 802.15-08-0xxx-00-004e Submission March 14, 2008 Huawei, Telecom Italia Slide 7 TA PTG Introduction (cont.) Companies involved in TA PTG

8. doc.: IEEE 802.15-08-0xxx-00-004e Submission March 14, 2008 Huawei, Telecom Italia Slide 8 Telecom Applications And Characters

9. doc.: IEEE 802.15-08-0xxx-00-004e Submission March 14, 2008 Huawei, Telecom Italia Slide 9 Information Service Public information service: shopping mall discount information, public news Customized information service: stock market, weather forecast Location based service: tour guide, zone billing Operator Network Operator Network 0101010 Characters: -Portability and Fast association: <1s re-association -Low latency: 1~2s is ok but shorter for single hop – MAC layer latency (<1s) -Broadcast and multicast -Security required -Localization feature

10. doc.: IEEE 802.15-08-0xxx-00-004e Submission March 14, 2008 Huawei, Telecom Italia Slide 10 M-commerce Mobile payment -Payment in the supermarket -Highway toll station -Parking lots Operator Network Operator Network Charging server Characters: -High security: e.g. public key mechanism. Most important requirement -Variable radio range: for different payment scenarios

11. doc.: IEEE 802.15-08-0xxx-00-004e Submission March 14, 2008 Huawei, Telecom Italia Slide 11 File Sharing Sharing data between two devices -File synchronization -Rings or small pictures sharing Characters: -Bulk transfer: tens of KB file transfer in a few seconds (bandwidth increase according to requirements) -Reliability -Peer to peer Address book synchronization Small picture sharing

12. doc.: IEEE 802.15-08-0xxx-00-004e Submission March 14, 2008 Huawei, Telecom Italia Slide 12 Gaming and Chat Ad Hoc gaming/chat Infrastructure-based gaming/chat Characters: -Peer to peer: especially for Ad Hoc mode -Low latency for control messages: <1s -Multicast: users may form a group for the same game or chat topic -Security for multicast Game/chat server

13. doc.: IEEE 802.15-08-0xxx-00-004e Submission March 14, 2008 Huawei, Telecom Italia Slide 13 Telecom Applications Requirements Lower latency: current GTS mechanism is not enough Portability and fast association: association and re-association method should be optimized Peer to peer: not support well in 15.4-2006 yet Broadcast & multicast: current broadcast capability is limited, multicast support is lacked Bulk transfer: the related issues should be considered Enhanced security: e.g. enhanced authentication, public key, multicast security Reliability: packets conflict should be decreased Controllable radio range: power control capability? Localization: it would be a companion feature for many scenarios Various services coexistence: mechanisms to be introduced to make the services peacefully coexist, i.e. one doesn’t impact others much, and flexibly accommodate different service types

14. doc.: IEEE 802.15-08-0xxx-00-004e Submission March 14, 2008 Huawei, Telecom Italia Slide 14 Conclusions TA PTG of ZigBee Alliance is introduced Some telecom applications are introduced Some telecom applications need the MAC layer to be enhanced and optimized

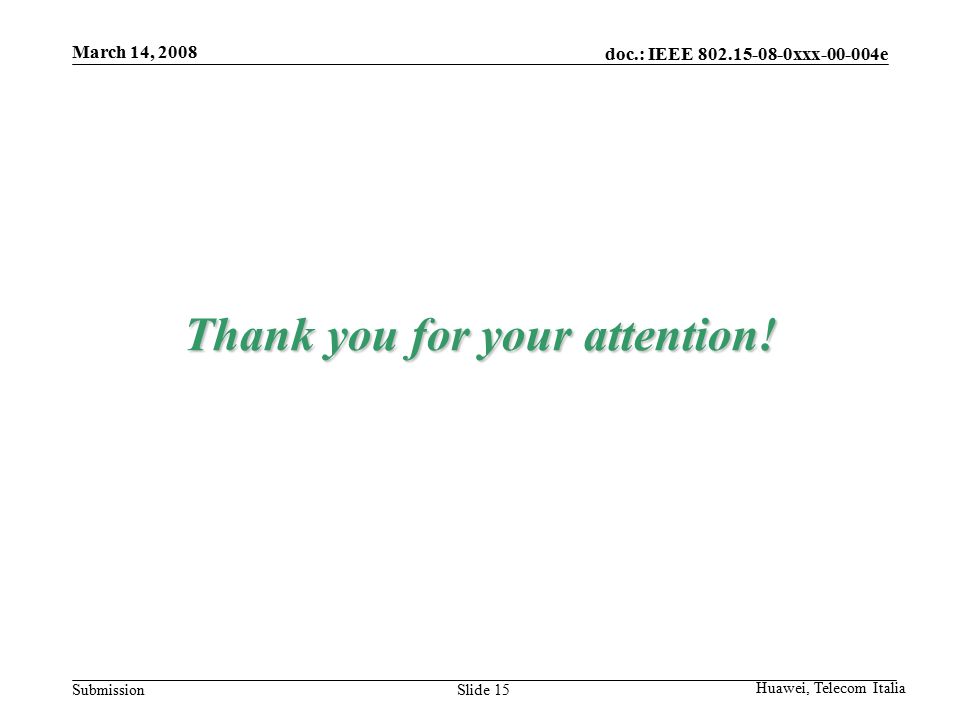

15. doc.: IEEE 802.15-08-0xxx-00-004e Submission March 14, 2008 Huawei, Telecom Italia Slide 15 Thank you for your attention!
