1. DAQ Status Graham

2. EMU / EB status EMU framework prototype is complete. Prototype read, process and send modules are complete. XML configuration mechanism is complete. Testing underway.

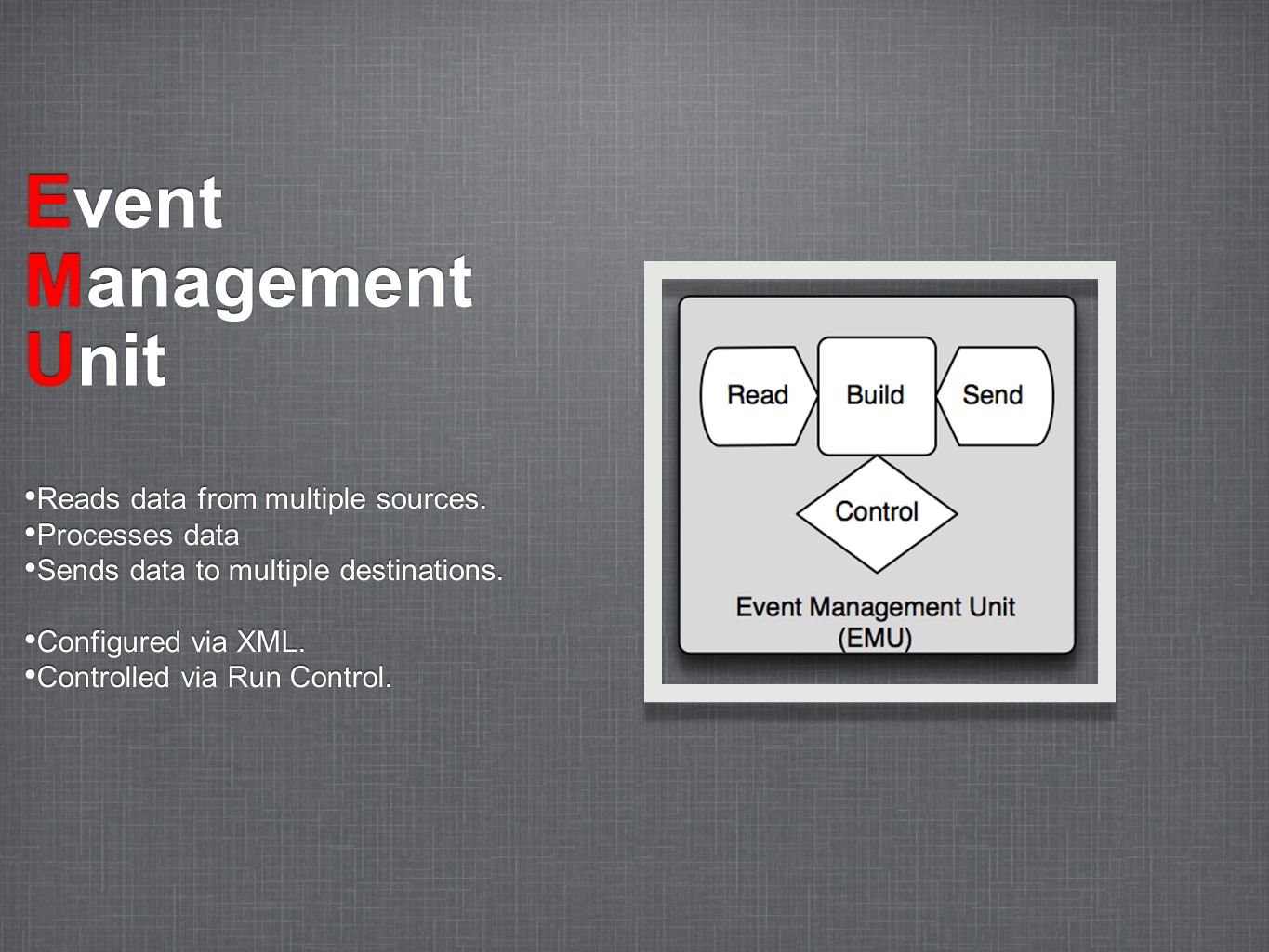

3. Event Management Unit Reads data from multiple sources. Processes data Sends data to multiple destinations. Configured via XML. Controlled via Run Control. Reads data from multiple sources. Processes data Sends data to multiple destinations. Configured via XML. Controlled via Run Control.

5. EMU to EMU EMU to EMU over network, bit-bucket on same machine as second emu.

6. Single EMU to EMU Slope is 27 M word/s = 109 M byte/s, offset 190 μs Note: linear plot, rate independent of block size. Slope is 27 M word/s = 109 M byte/s, offset 190 μs Note: linear plot, rate independent of block size.

7. Six ROCs to 2x2 EB matrix to bit-bucket

8. Results Each bit-bucket reports 240 records/s at input. Each ROC reports 480 records/s at output. Since there are two bit-buckets this is exactly what you would hope. Independent of block size the block size x rate equals bandwidth of gigabit link. Network loads on all links are equal (measure packets/s).

9. Nine ROCs to 3x2 matrix to bit-bucket

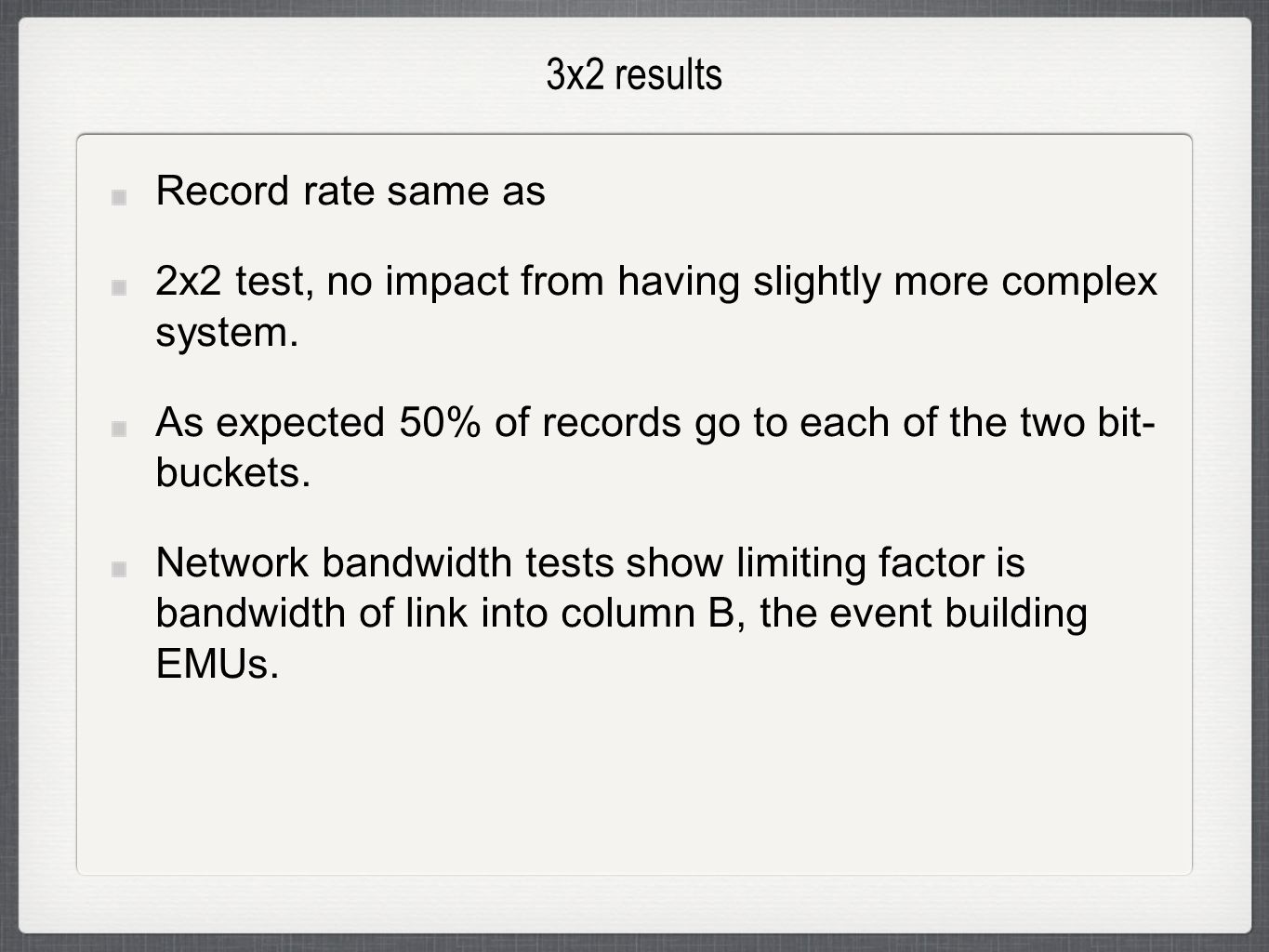

10. 3x2 results Record rate same as 2x2 test, no impact from having slightly more complex system. As expected 50% of records go to each of the two bit- buckets. Network bandwidth tests show limiting factor is bandwidth of link into column B, the event building EMUs.

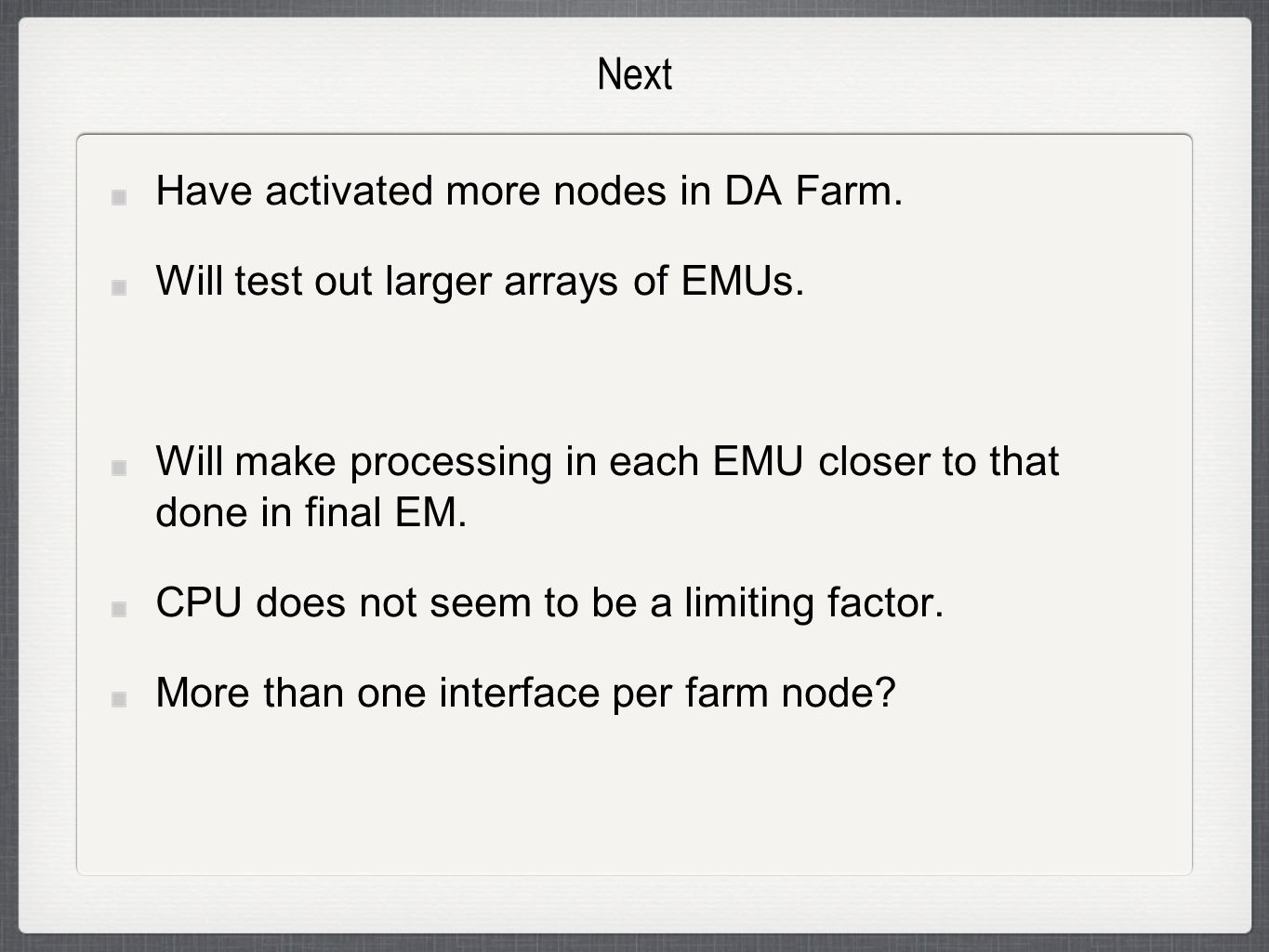

11. Next Have activated more nodes in DA Farm. Will test out larger arrays of EMUs. Will make processing in each EMU closer to that done in final EM. CPU does not seem to be a limiting factor. More than one interface per farm node?

12. CODA version 3 Recognized that DAQ group staffing should be 7 not 5. No funding. Identify projects to clarify priority. Get foot in door for when there is funding.

13. 6 GeV hardening plan Activity NameCalc Start DateCalc Finish DateExpect To Finish% Comp Release CODA 2.6 update for 6 GeV program31-Jul-0823-Oct-0880 Final cMsg (messaging system)31-Jul-0830-Jul-0970 Staged parallel event builder based on EMU31-Jul-0823-Oct-0890 Prototype CODA 3.x ROC software31-Jul-089-Oct-0831-Dec-0850 Prototype single crate ROC hardware31-Jul-089-Oct-0831-Dec-0850 Prototype parallel event recorder based on EMU24-Oct-0828-Jan-09 Useable version of CODA 3 ROC software10-Oct-0821-May-09 Final trigger interface31-Jul-081-Feb-1020 Prototype trigger supervision and distribution8-May-0929-Oct-10 Finalize experiment control, IPL Start 12331010 IPL 153202019-Sep-086-May-11 Integrate EMU with experiment control12-Sep-086-Nov-08 Test large array of EMU components under Experiment Control.7-Nov-0820-Nov-08 Test simulation of full DAQ system, scale of GLUEX.21-Nov-0829-Dec-08 Harden framework EMU core against common errors.30-Dec-0826-Feb-09 Final EMU core27-Feb-0912-Mar-09 Harden EMU based event builder30-Dec-0828-Jan-09 Harden EMU based event recorder30-Dec-0828-Jan-09 Final EMU EB and ER29-Jan-0911-Feb-09 Convert ROC OS to embedded Linux31-Jul-0812-Mar-0920 Integrate ROC with Experiment Control.22-May-0920-Jul-09 Finish trigger supervisor and trigger distribution.31-Jul-0818-Mar-11 Develop user interfaces for control and monitoring31-Jul-0818-Mar-11
