June 19, 2002 A Software Skeleton for the Full Front-End Crate Test at BNL Goal: to provide a working data acquisition (DAQ) system for the coming full FE crate test In this talk, I will describe the overall system setup cover various software components and report their status and/or what we intend to do Kin Yip
June 19, 2002 Trigger Tower Board Read Out Card TTC Control PTG veto Data (through optical link) trigger Signal from a pulser (triggered by TTC) FE Crate memory PU Host 2 Host 1 “Host 2” — single board in the same crate as the Read Out Card — is a diskless node booted from “Host 1” through the network ~VME Calib. board FEB DAQ-1
June 19, 2002 Control Crate (Wiener VME with CERN extension) To control : Workstation Control Crate configure various boards in the FEC By using a PCI/VME bridge “Bit3”, the PCI bus on the workstation “maia” and the remote VMEbus in the Control Crate share memory and I/O Programmed IO (PIO) Dynamic Memory Access (DMA) We have upgraded the operating system and the software driver for Bit3 (now from SBS). We have tested : PIO : 3 MBytes per second DMA : 15-16 Mbytes per second the obvious way to go PTG (Pulse Trigger Generator, BNL-made) has been used to generate triggers in this new set of OS and Bit3 driver. Other electronic components including TTC (with TTCvx and TTCvi) and the SPAC will have to be integrated into this system.
June 19, 2002 Read-Out Crate [Wiener VME (9U/6U) ] Different from before, the CPU (VMIC) board is in the same crate as the electronic boards (2 Read-Out Cards) Similarly, there is also a PCI/VME bridge “Tundra-Universe” that we have used to allow the CPU board to communicate with the electronic boards through the VME backplane We have also upgraded the operating system and the software driver for this PCI/VME bridge. We have also tested : DMA : 15-16 Mbytes per second PIO : almost the same as above We will have to develop the software to configure and read from the two Read-Out Cards when they are available, presumably with the help from the board maker in a similar way that we have done with the ROD Demo Board

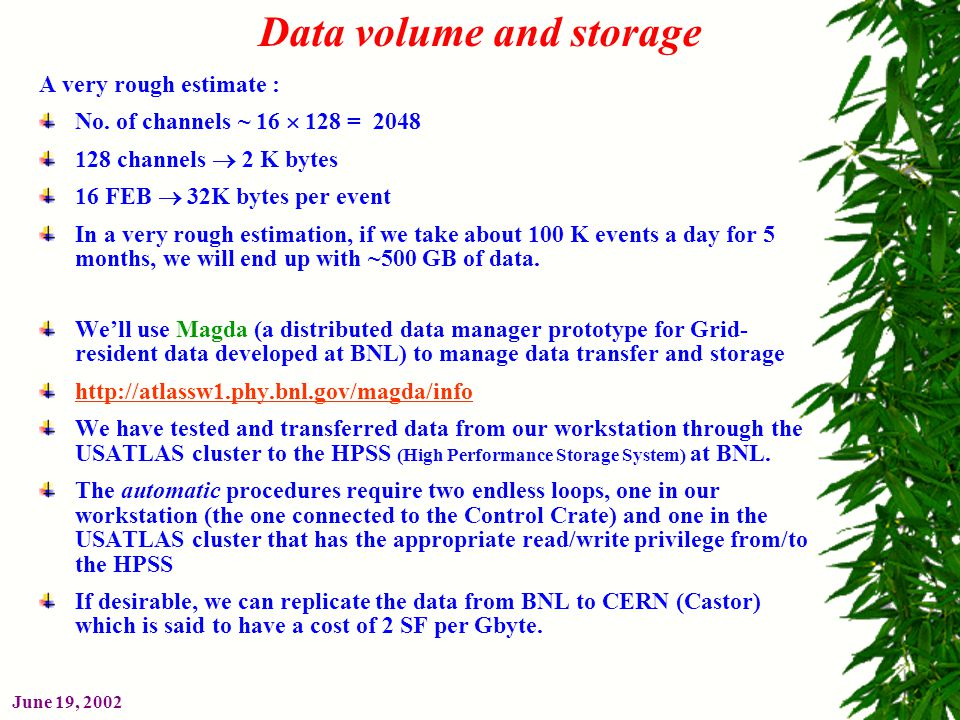

June 19, 2002 Data volume and storage A very rough estimate : No. of channels ~ 16 128 = 2048 128 channels 2 K bytes 16 FEB 32K bytes per event In a very rough estimation, if we take about 100 K events a day for 5 months, we will end up with ~500 GB of data. We’ll use Magda (a distributed data manager prototype for Grid- resident data developed at BNL) to manage data transfer and storage http://atlassw1.phy.bnl.gov/magda/info We have tested and transferred data from our workstation through the USATLAS cluster to the HPSS (High Performance Storage System) at BNL. The automatic procedures require two endless loops, one in our workstation (the one connected to the Control Crate) and one in the USATLAS cluster that has the appropriate read/write privilege from/to the HPSS If desirable, we can replicate the data from BNL to CERN (Castor) which is said to have a cost of 2 SF per Gbyte.
June 19, 2002 Event Monitoring in DAQ-1 Basically, the “Event Sampler” process/interface in DAQ-1 gets the data and pass the data to the “Monitoring Task” process/interface The “Monitoring Task” would unpack the data and analyze to produce, say, (Root) histogram and then use the “Histogram Provider” to publish the histograms The “User Histogram Task” would “receive” the histogram so that any user can examine
June 19, 2002 Data format will be essentially whatever the Read-Out Card maker provides Each run will start with a new file and the run no. is part of the filename We expect to have some configuration information in the header/trailer For Channel mapping, we want to put the mapping in the database and I have started with the one in Athena We have to take care of all the hardware components such as FeedThrough, preamplier, motherboard etc. Anaysis code in the framework of a simple C program will materialize at the debugging stage, as we need to check whether the data read out is correct, just like what happened to the ROD Demo exercise For the general users, we provide the I/O unpacking routine and 3 stage skeleton interface, namely, “initialization, execution and finalization” so that the users can develop their analysis code easily in this framework Data format, channel mapping and analysis
Runbook, Bookkeeping and DCS Through the Web and Database server, we will provide the “Runbook” from which users may search for the system configuration for each run. We will set up a simple report logging system for the “run shifters” to write down their concern or any special features or problems at certain run or time. We will probably use the OBK (Online BookKeeing) feature in the DAQ-1 as it has easy access to all the run information. The OBK experts have promised to provide an updated version which provides a Web-based interface. In any case, the information will be available through the Web server The DCS (Detector Control System) measurements taken from the FEC will be done asynchronously with respect to the rest of data acquisition We have sent a PC to CERN and the DCS software system is being set up We have to figure out what parameters we need to measure The DCS information will be transferred to the Database and Web servers so that it is readily available to all users
