The Moon. The effects of the Moon Phases of the moon Eclipses Tides.

Similar presentations


Presentation on theme: "The Moon. The effects of the Moon Phases of the moon Eclipses Tides."— Presentation transcript:

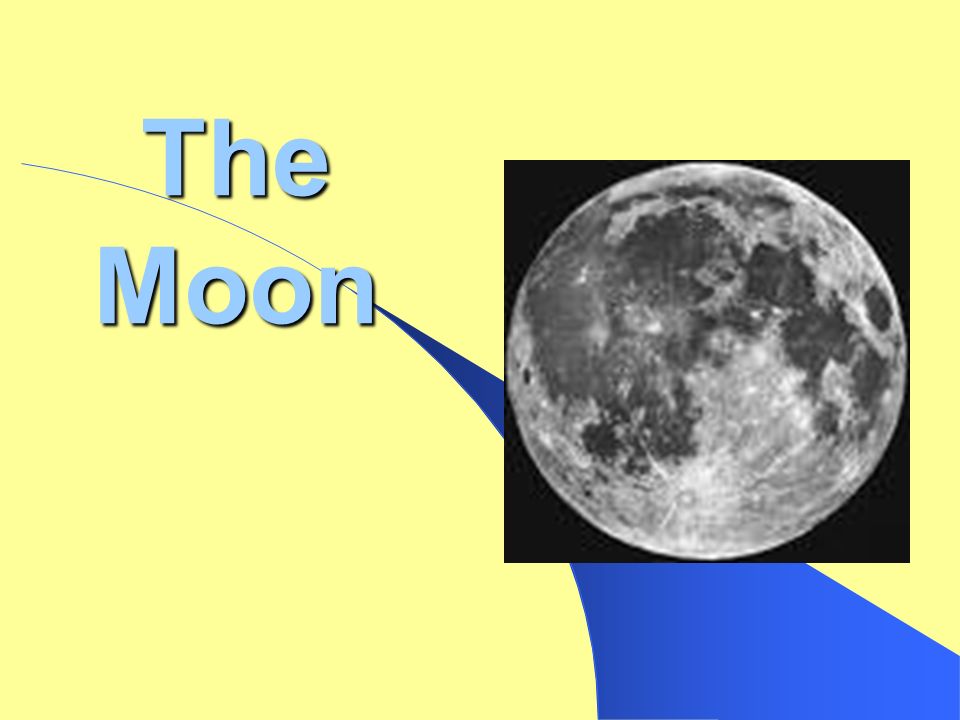

1 The Moon

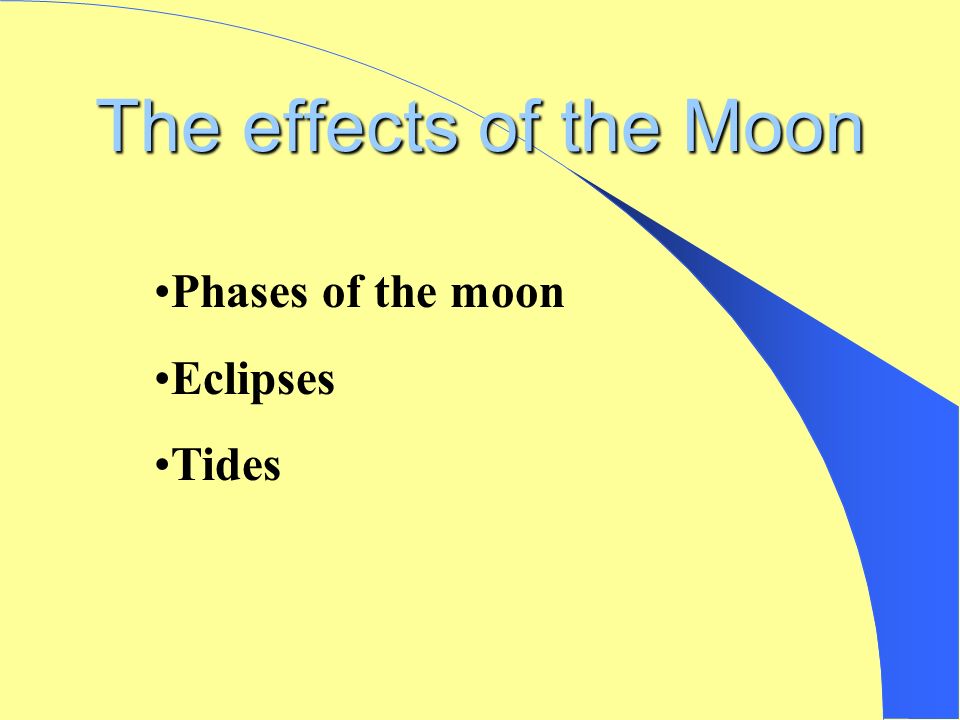

2 The effects of the Moon Phases of the moon Eclipses Tides

3 Why does the moon have phases? The changing relative positions of the moon, Earth, and sun cause the phases of the moon!

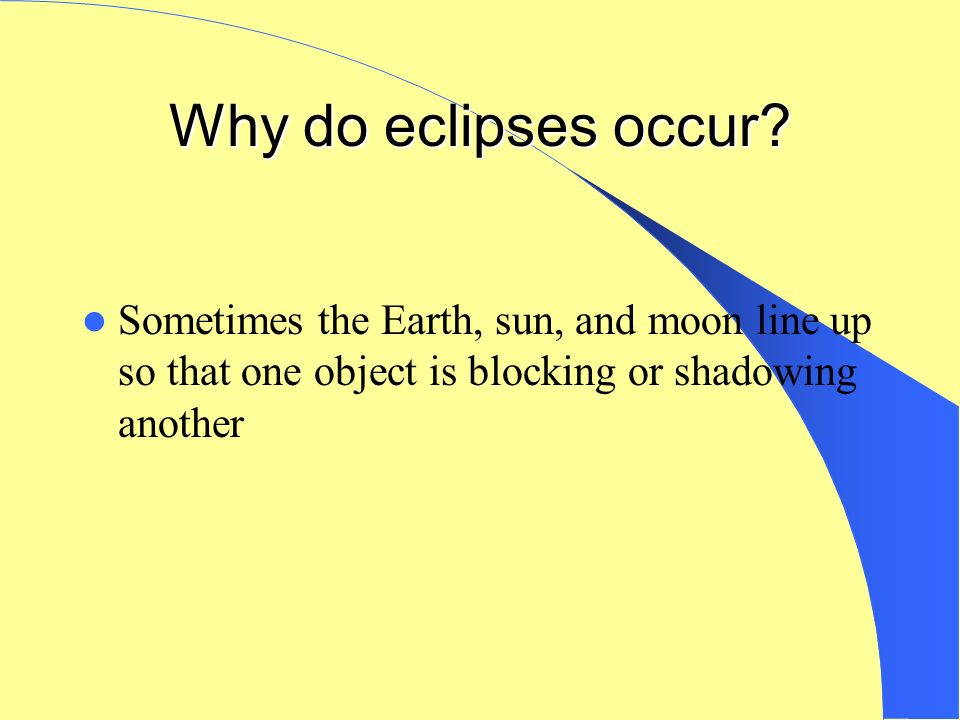

4 Why do eclipses occur? Sometimes the Earth, sun, and moon line up so that one object is blocking or shadowing another

5 Why does the Earth have tides? The sun and moon pull on the Earth’s water causing the tides to rise

6 Phases of the Moon

7 Tides Periodic rise and fall of large bodies of water caused by the gravitational attraction of the moon to the Earth.

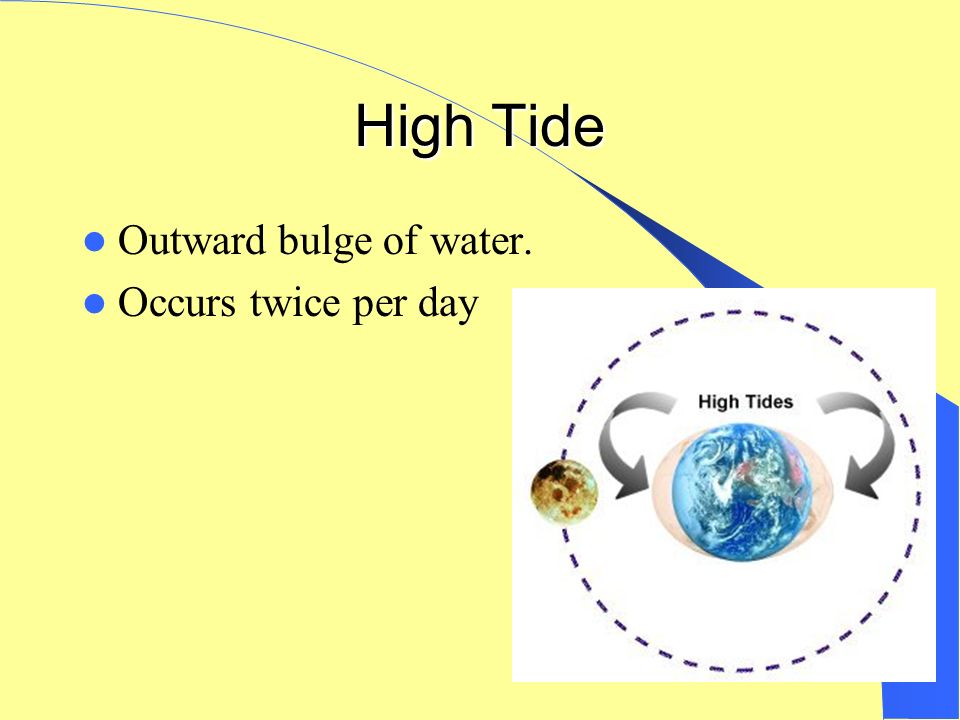

8 High Tide Outward bulge of water. Occurs twice per day

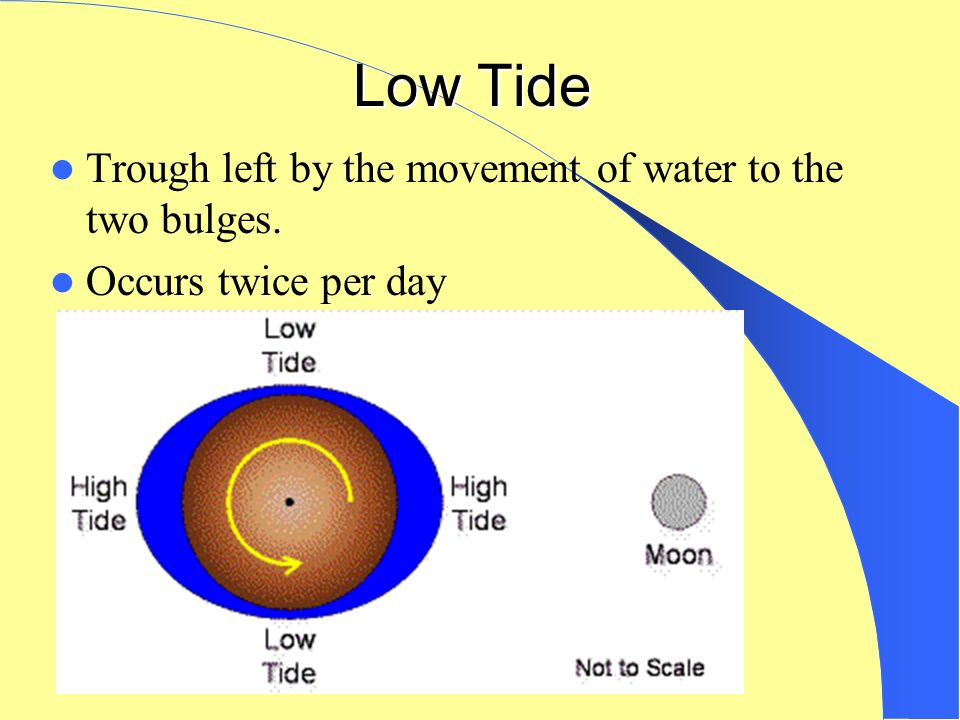

9 Low Tide Trough left by the movement of water to the two bulges. Occurs twice per day

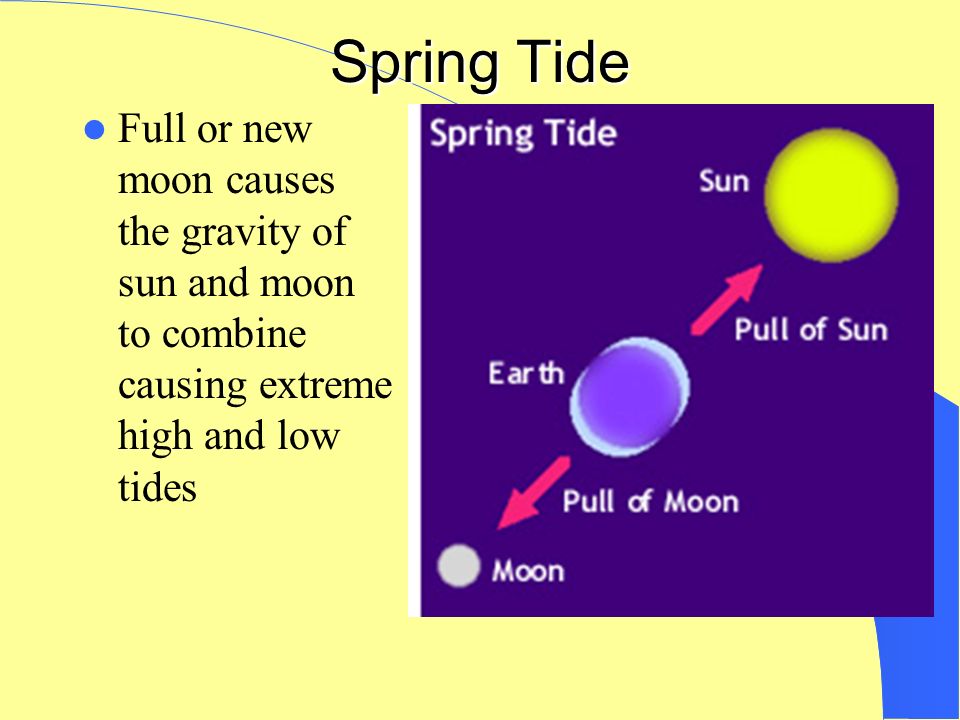

10 Spring Tide Full or new moon causes the gravity of sun and moon to combine causing extreme high and low tides

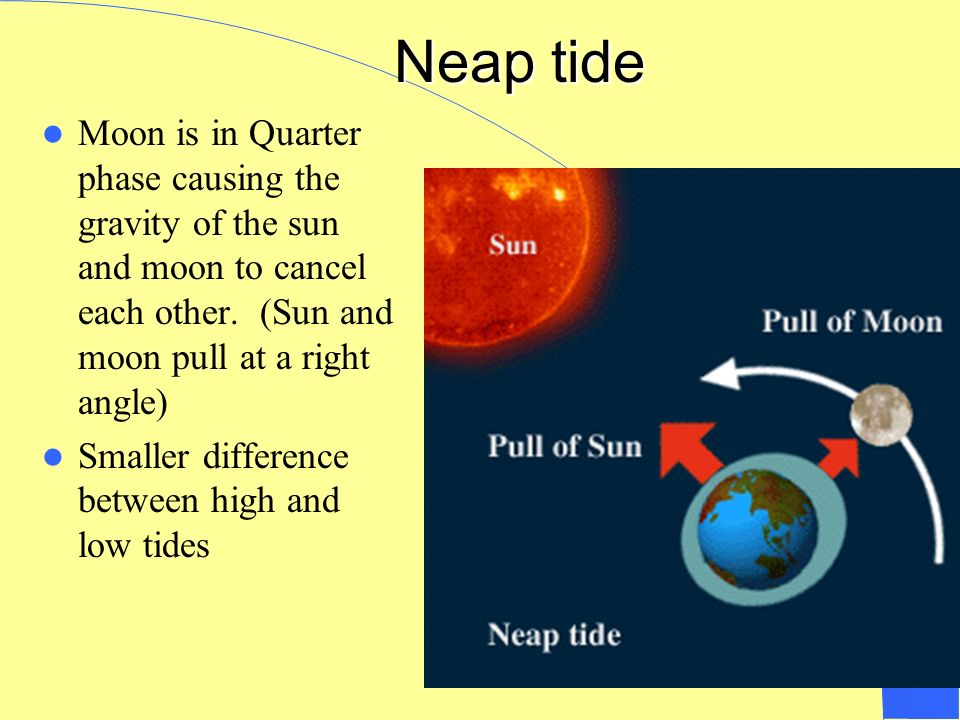

11 Neap tide Moon is in Quarter phase causing the gravity of the sun and moon to cancel each other. (Sun and moon pull at a right angle) Smaller difference between high and low tides

12 The tide cycle The Tide Cycle

13 The Moon’s Tilted Orbit The moon’s orbit is tilted by 5 degrees, so it is infrequent for the sun, moon, and earth to all line up. When these objects do align, eclipses occur.

14 Eclipse When the moon’s shadow hits Earth or Earth’s shadow hits the moon, an eclipse occurs

15 Types of Eclipses Solar eclipse – solar is Latin for sun Occurs when the moon passes directly between Earth and the sun, blocking sunlight from Earth Lunar eclipse - lunar is Latin for moon Occurs when Earth blocks sunlight from reaching the moon

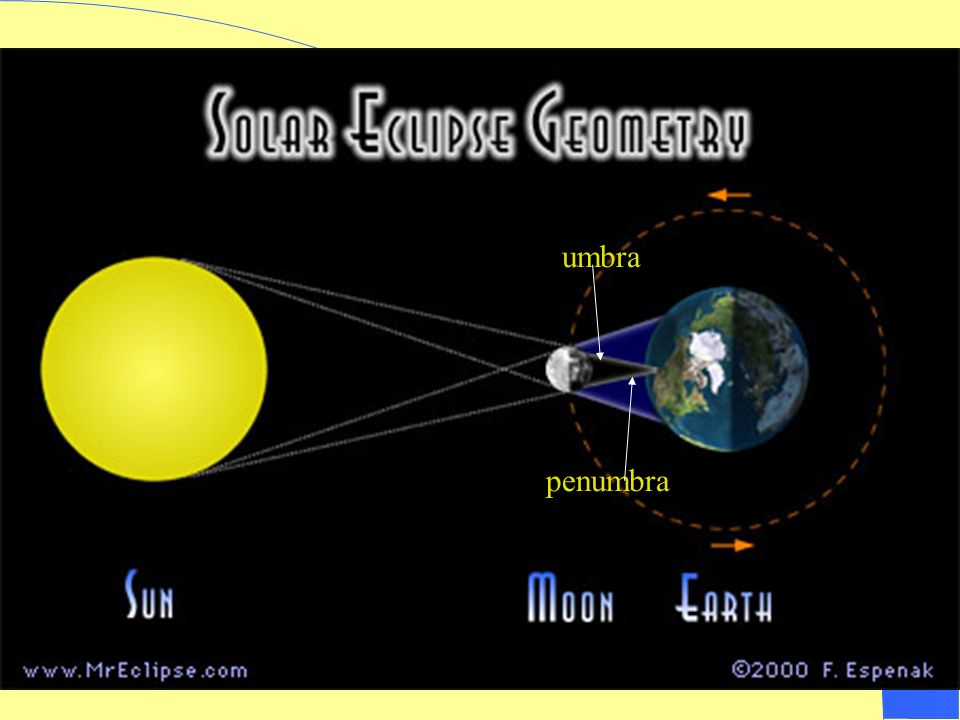

16 Solar Eclipse umbra penumbra

17 Total Solar Eclipse – Light from the sun is completely blocked by the moon; within the umbra – Umbra- the very darkest part of the moon’s shadow on Earth Partial Solar Eclipse – Part of the sun is visible from Earth within the penumbra – Penumbra- larger part of the moon’s shadow on Earth

18

19 Total Lunar Eclipse When the moon is in Earth’s umbra, a total lunar eclipse occurs. Can be seen anywhere on Earth that the moon is visible Partial Lunar Eclipse Occurs when the moon passes partly into the umbra of Earth’s shadow; can appear orange The edge of the umbra appears blurry, and you can watch it pass across the moon for two or three hours.
