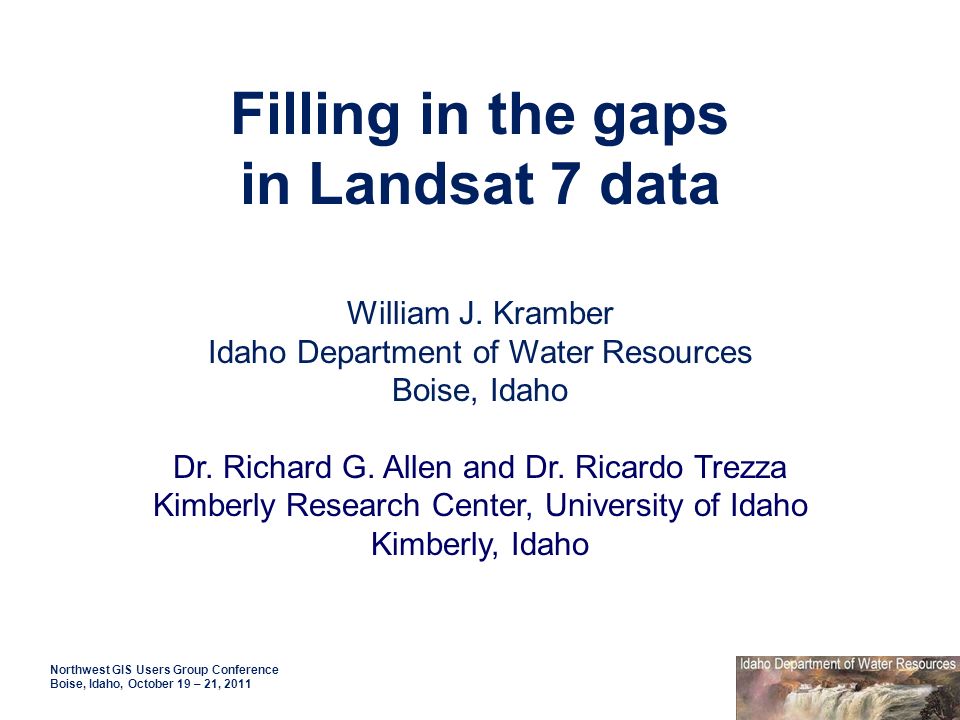

1 Filling in the gaps in Landsat 7 data Northwest GIS Users Group Conference Boise, Idaho, October 19 – 21, 2011 William J. Kramber Idaho Department of Water Resources Boise, Idaho Dr. Richard G. Allen and Dr. Ricardo Trezza Kimberly Research Center, University of Idaho Kimberly, Idaho

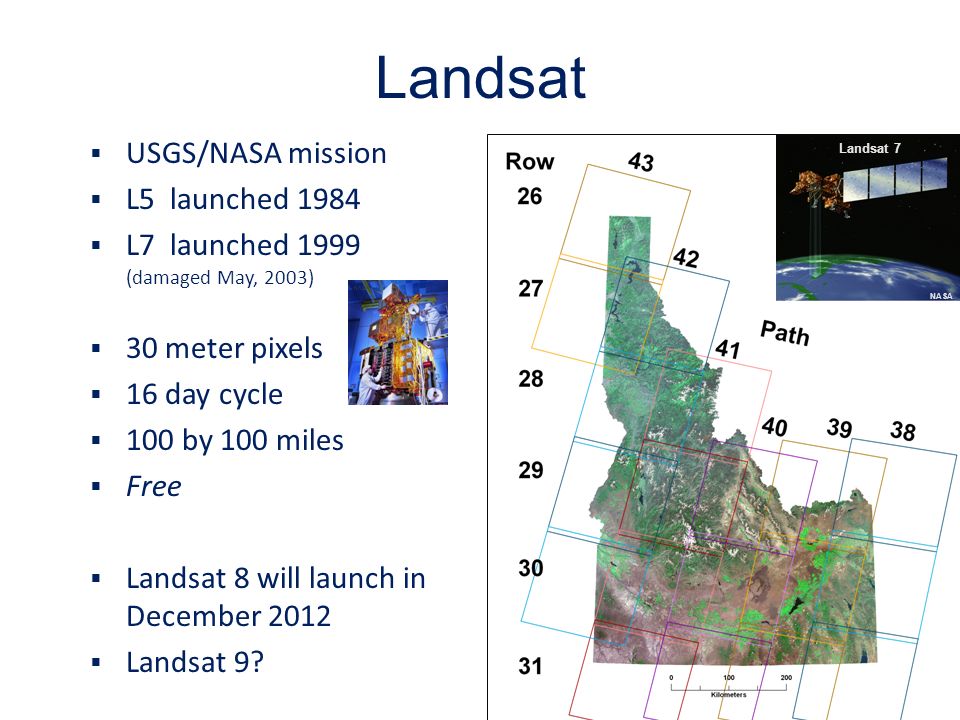

2 Landsat  USGS/NASA mission  L5 launched 1984  L7 launched 1999 (damaged May, 2003)  30 meter pixels  16 day cycle  100 by 100 miles  Free  Landsat 8 will launch in December 2012  Landsat 9? NASA Landsat 7

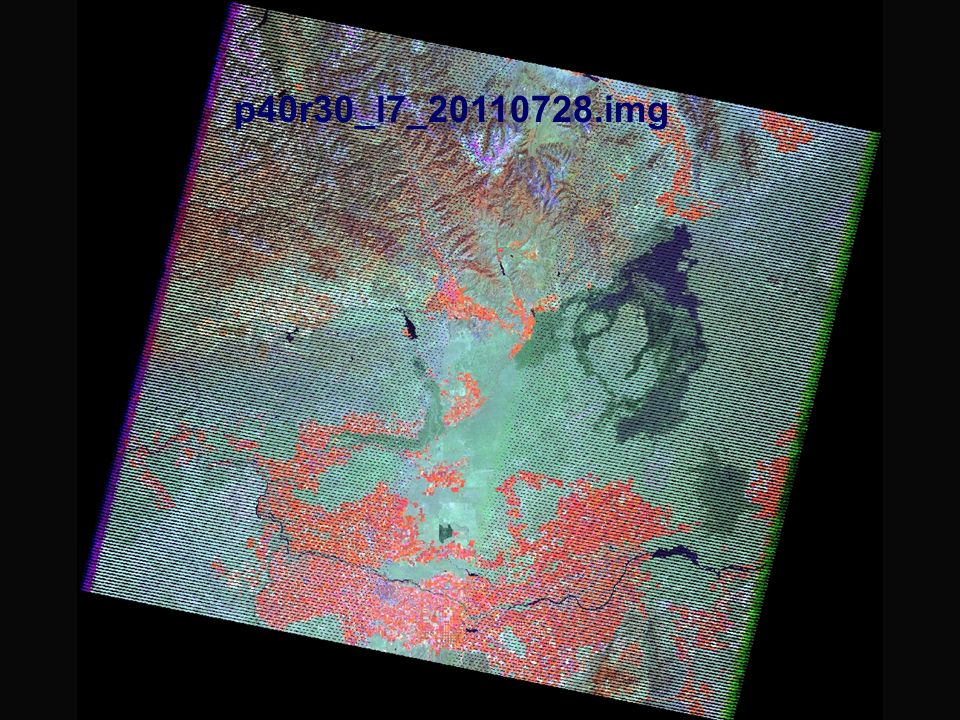

3 p40r30_l7_20110728.img

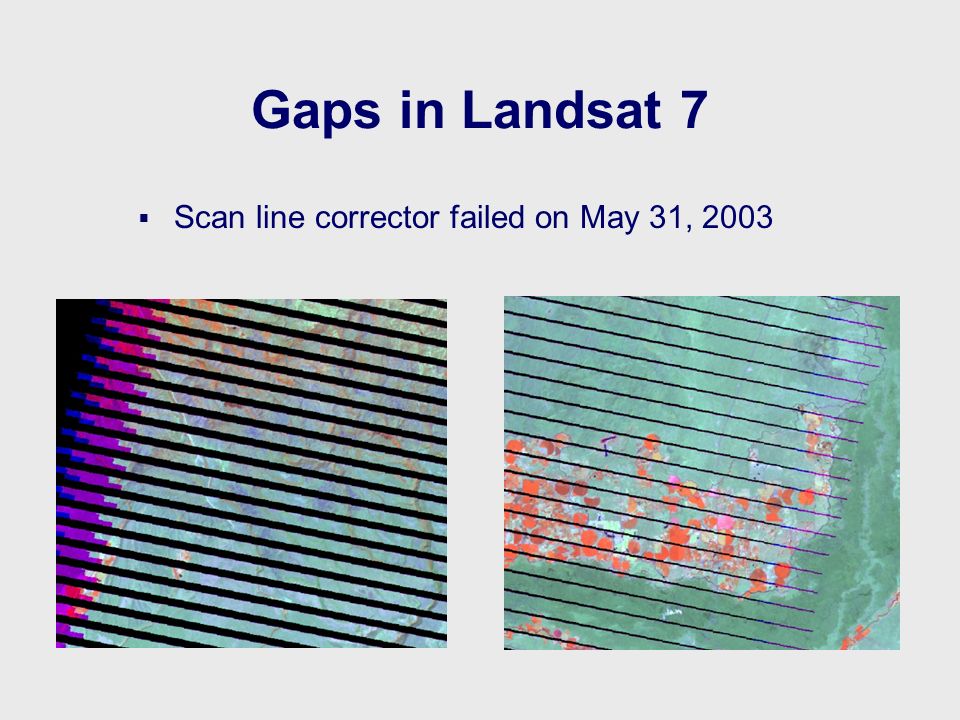

4 Gaps in Landsat 7   Scan line corrector failed on May 31, 2003

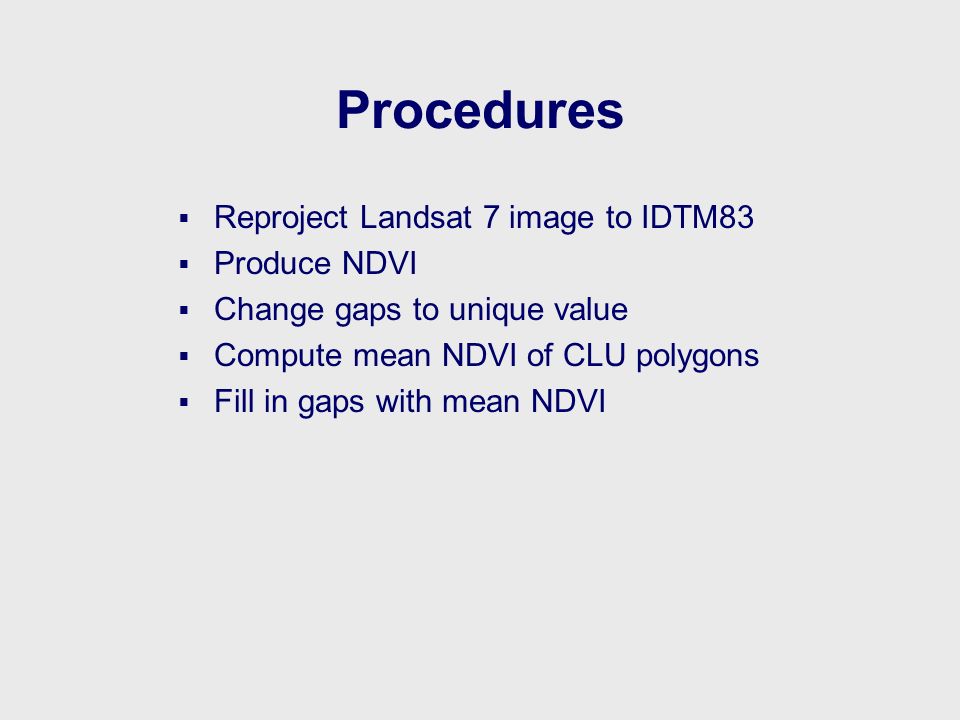

5 Procedures   Reproject Landsat 7 image to IDTM83   Produce NDVI   Change gaps to unique value   Compute mean NDVI of CLU polygons   Fill in gaps with mean NDVI

6 Produce NDVI Normalized Difference Vegetation Index   ArcInfo tool developed by Eric Rafn   Converts Landsat bands 3 and 4 to reflectance   Outputs NDVI image   (IR – Red) / (IR + Red)   sensitive to vegetation density

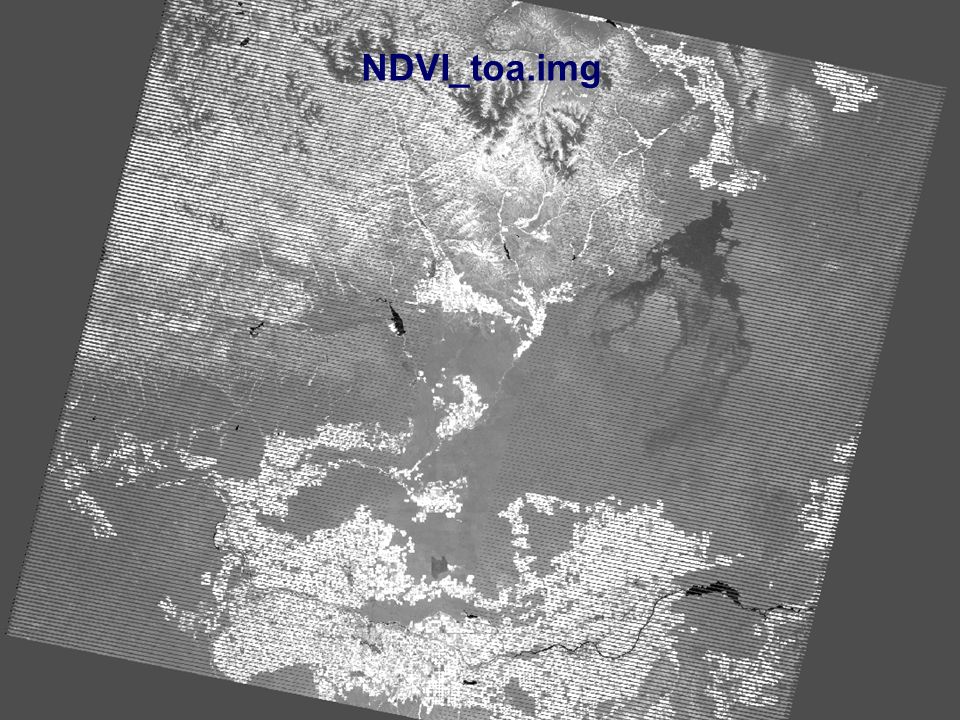

7 NDVI_toa.img

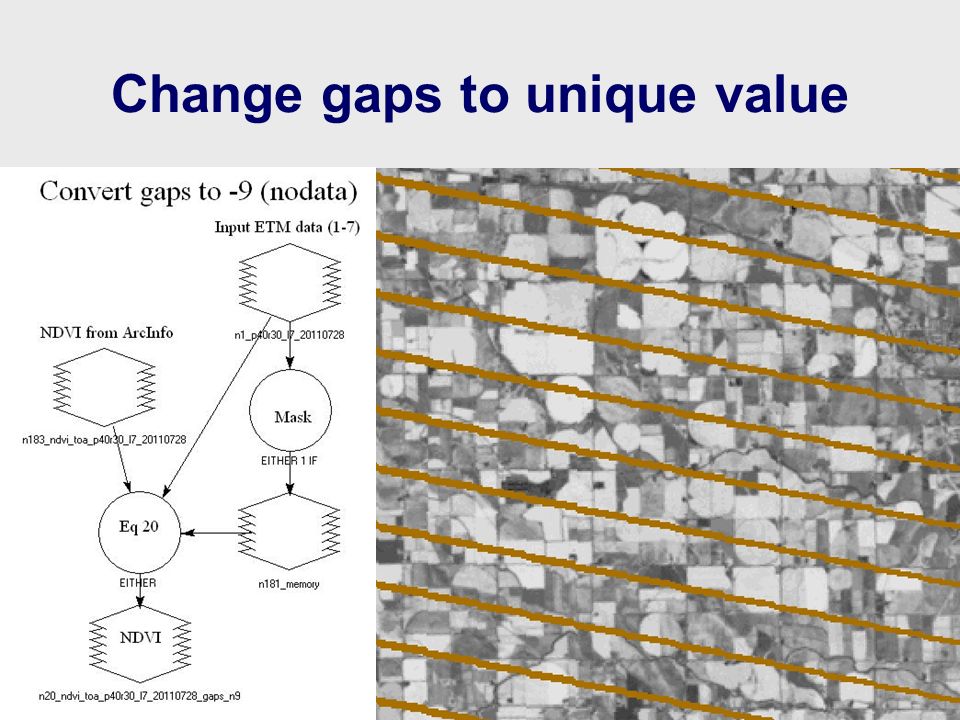

8 Change gaps to unique value

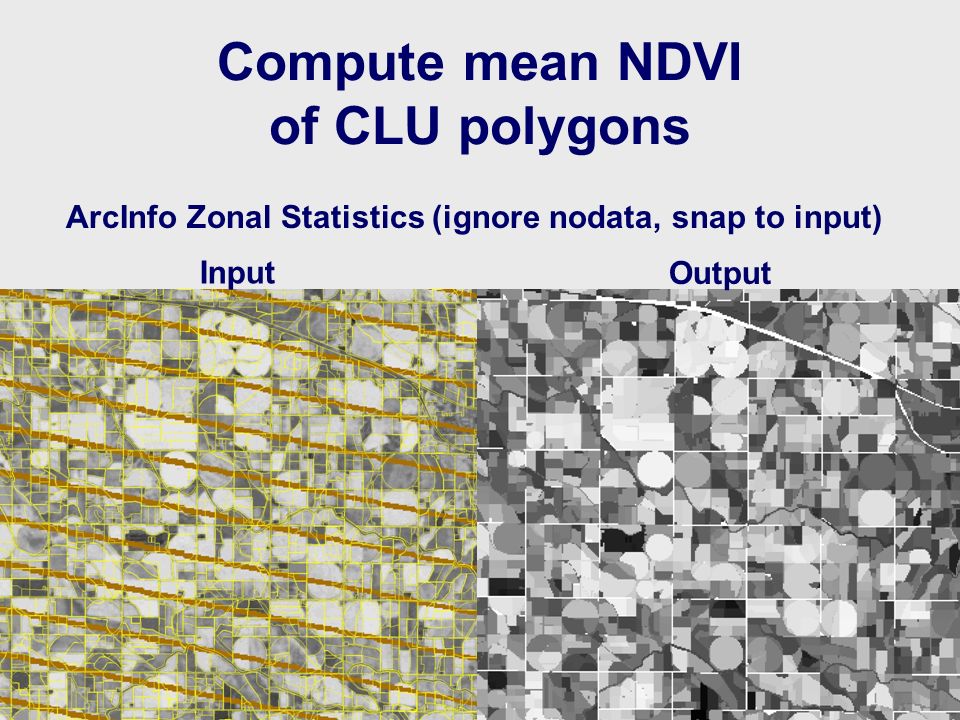

9 Compute mean NDVI of CLU polygons ArcInfo Zonal Statistics (ignore nodata, snap to input) Input Output

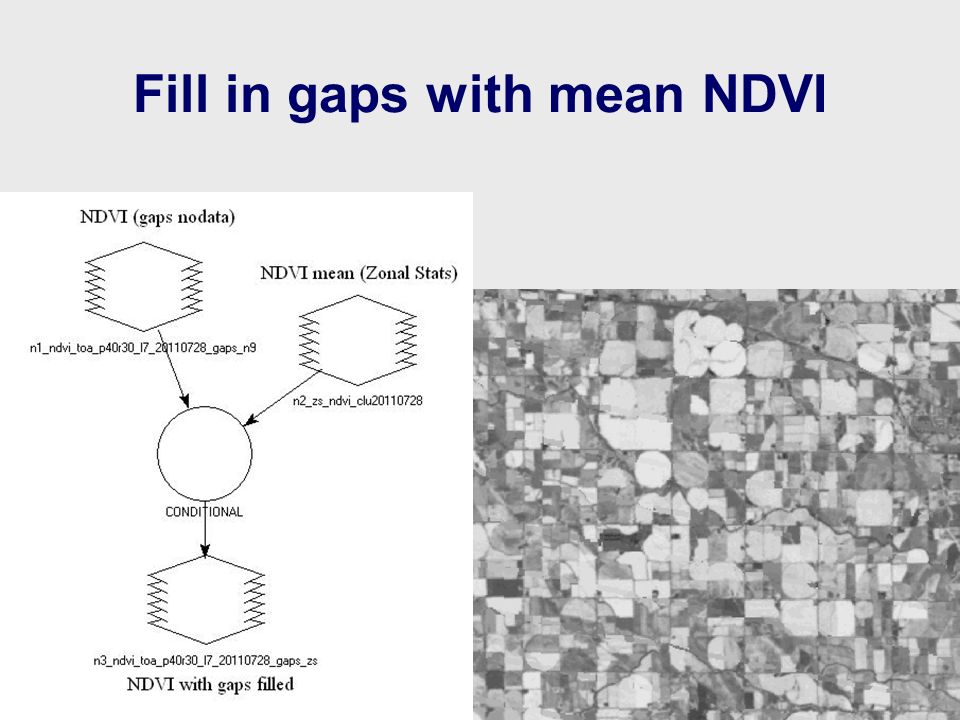

10 Fill in gaps with mean NDVI

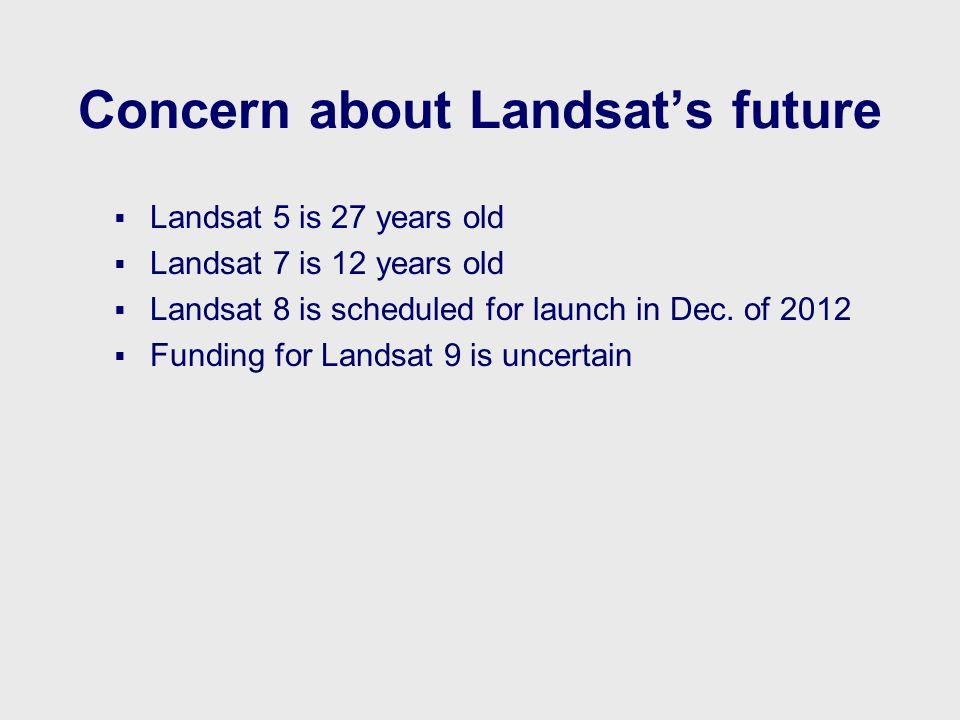

11 Concern about Landsat’s future   Landsat 5 is 27 years old   Landsat 7 is 12 years old   Landsat 8 is scheduled for launch in Dec. of 2012   Funding for Landsat 9 is uncertain

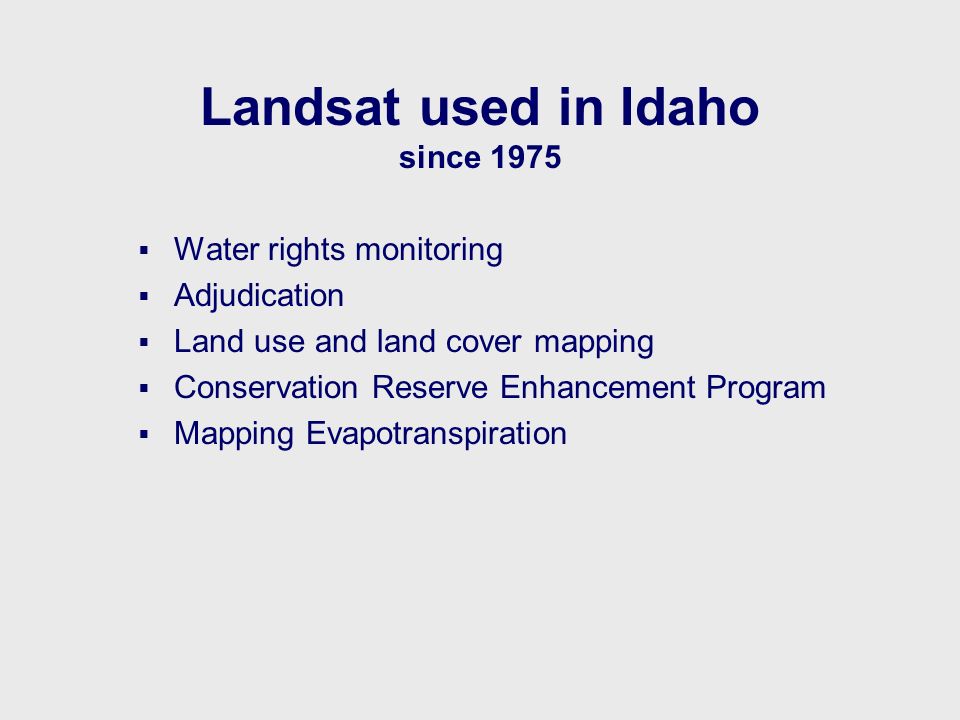

12 Landsat used in Idaho since 1975   Water rights monitoring   Adjudication   Land use and land cover mapping   Conservation Reserve Enhancement Program   Mapping Evapotranspiration

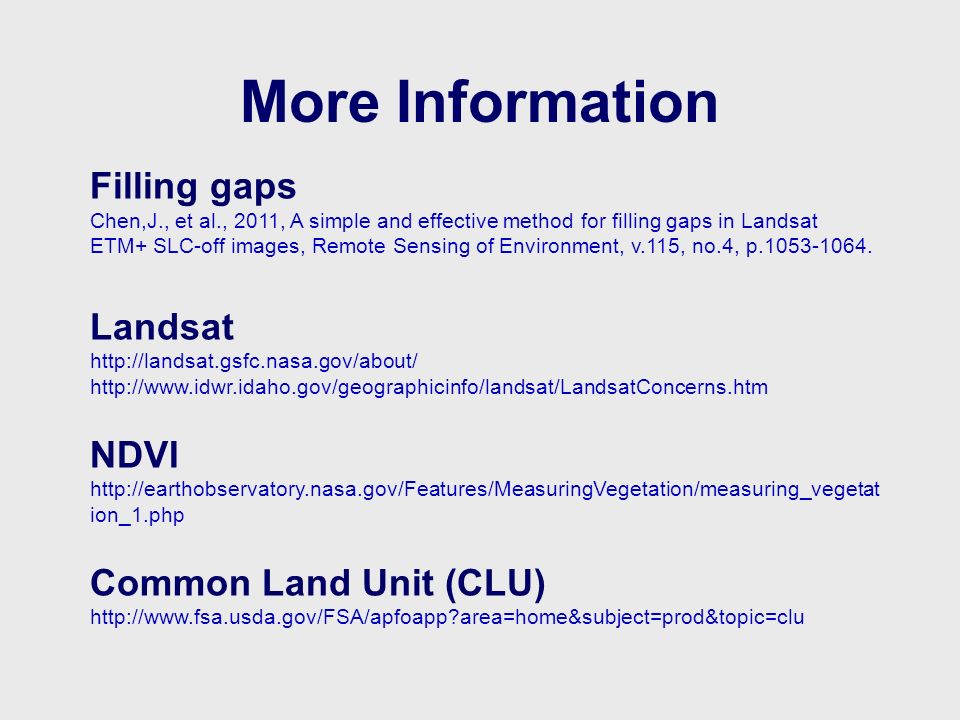

13 More Information Filling gaps Chen,J., et al., 2011, A simple and effective method for filling gaps in Landsat ETM+ SLC-off images, Remote Sensing of Environment, v.115, no.4, p.1053-1064. Landsat http://landsat.gsfc.nasa.gov/about/ http://www.idwr.idaho.gov/geographicinfo/landsat/LandsatConcerns.htm NDVI http://earthobservatory.nasa.gov/Features/MeasuringVegetation/measuring_vegetat ion_1.php Common Land Unit (CLU) http://www.fsa.usda.gov/FSA/apfoapp?area=home&subject=prod&topic=clu

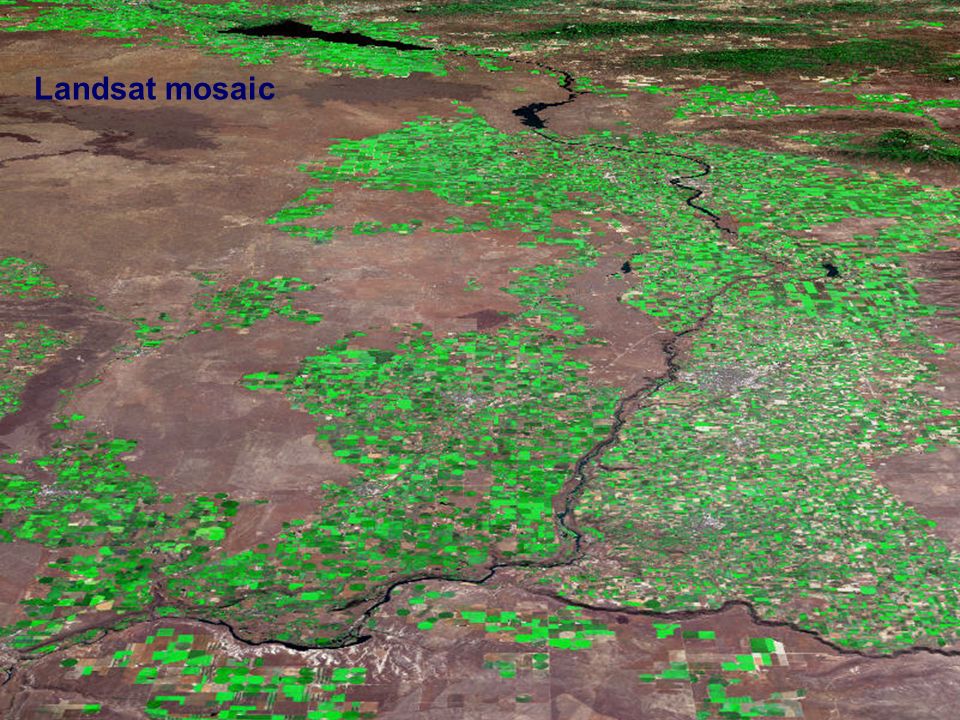

14 Landsat mosaic
