1
湖南航天磁电集团 Hunan Aerospace Magnet&Magneto Co.,Ltd. Website:www.spacemagnets.com Email:business@spacemagnets.com Tel:86-731-88148596 Fax:86-731-88149960
2

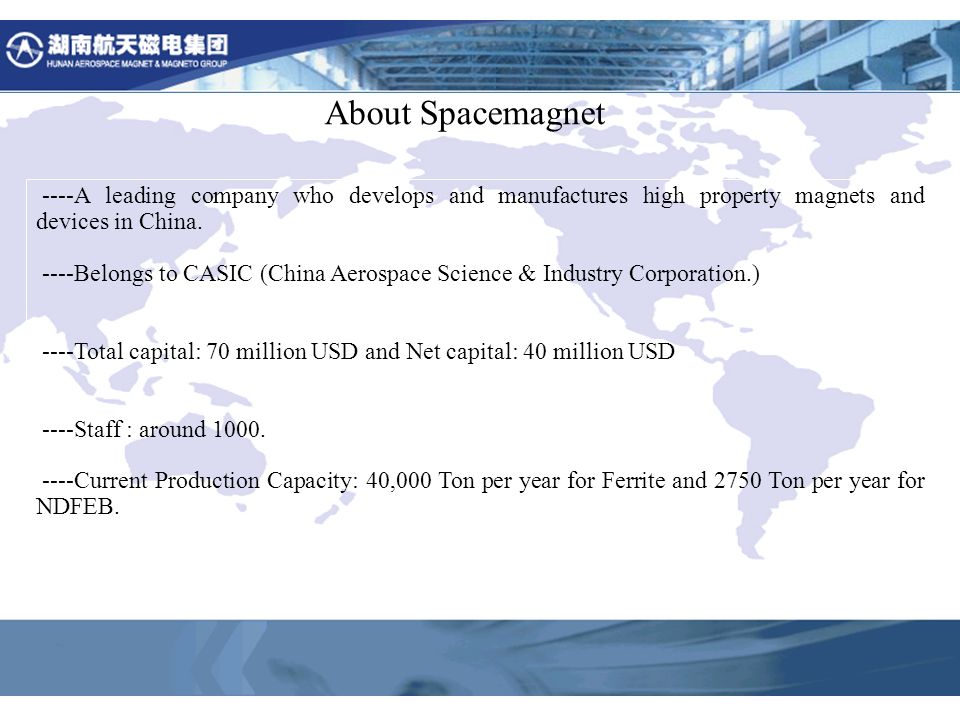

----A leading company who develops and manufactures high property magnets and devices in China. ----Belongs to CASIC (China Aerospace Science & Industry Corporation.) ----Total capital: 70 million USD and Net capital: 40 million USD ----Staff : around 1000. ----Current Production Capacity: 40,000 Ton per year for Ferrite and 2750 Ton per year for NDFEB. About Spacemagnet
3

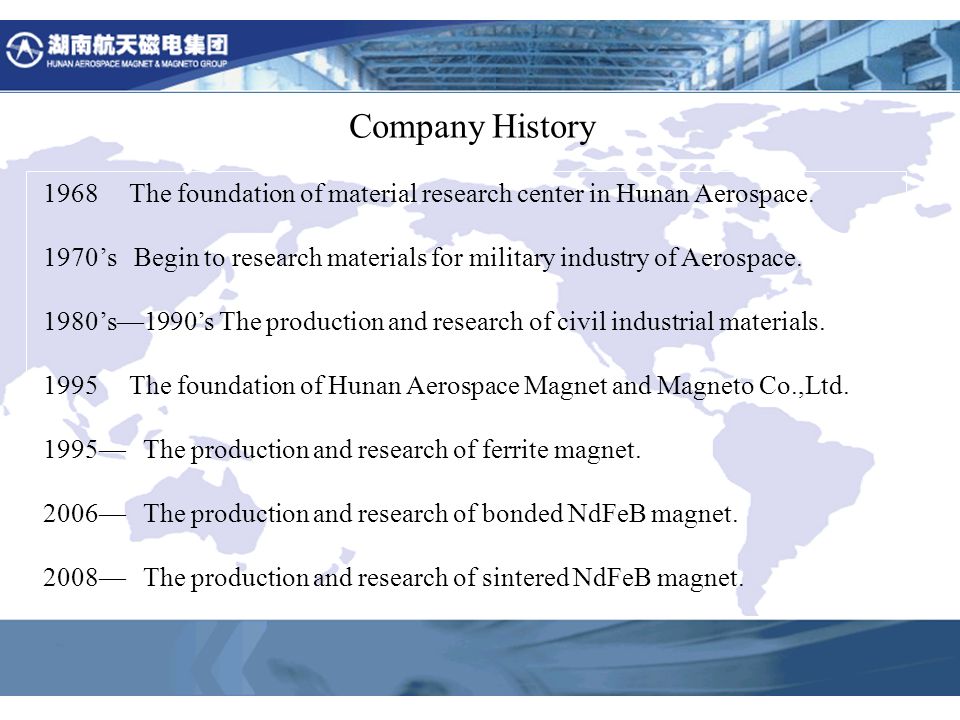

1968 The foundation of material research center in Hunan Aerospace. 1970’s Begin to research materials for military industry of Aerospace. 1980’s—1990’s The production and research of civil industrial materials. 1995 The foundation of Hunan Aerospace Magnet and Magneto Co.,Ltd. 1995— The production and research of ferrite magnet. 2006— The production and research of bonded NdFeB magnet. 2008— The production and research of sintered NdFeB magnet. Company History
4

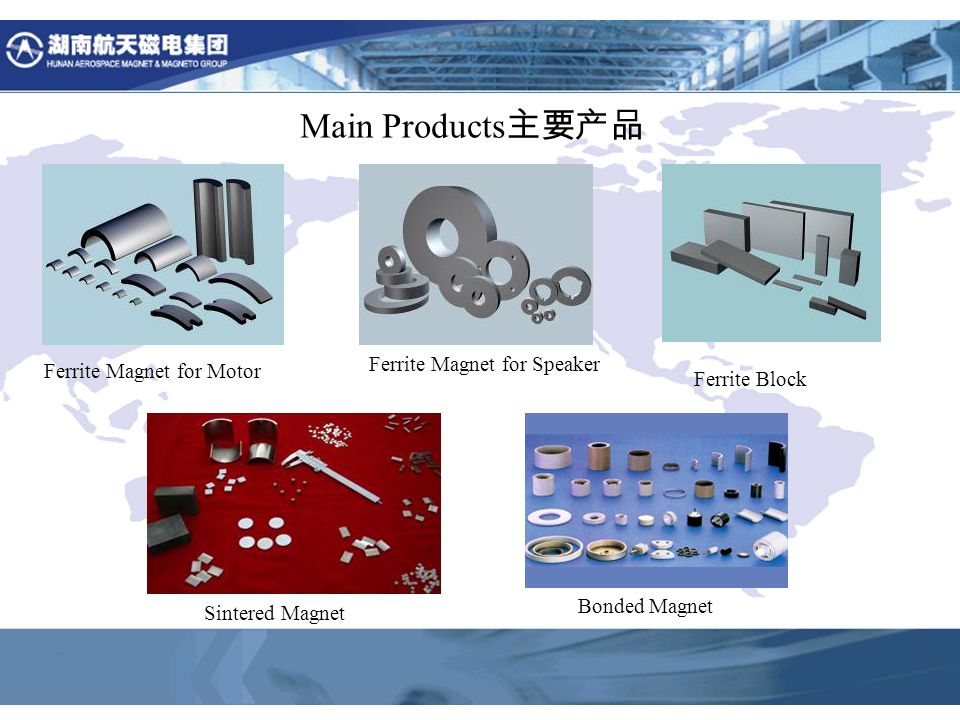

Main Products 主要产品 Ferrite Magnet for Motor Ferrite Magnet for Speaker Ferrite Block Sintered Magnet Bonded Magnet
5
LUCAS TVS Spacemagnets Serve The World
6

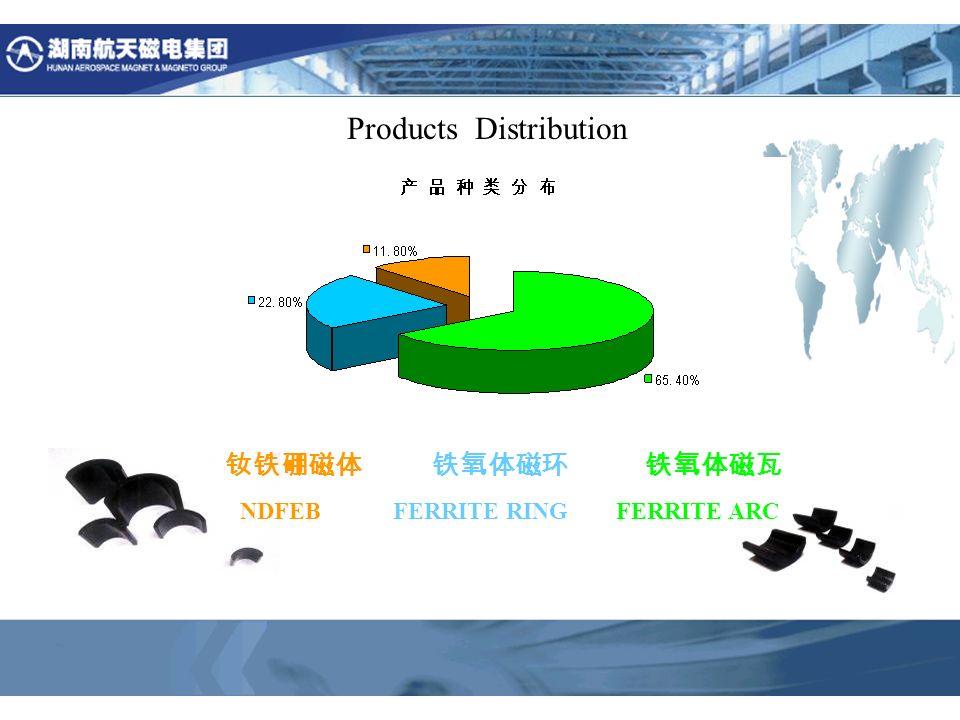

Products Distribution NDFEB FERRITE RING FERRITE ARC 钕铁硼磁体 铁氧体磁环 铁氧体磁瓦
7

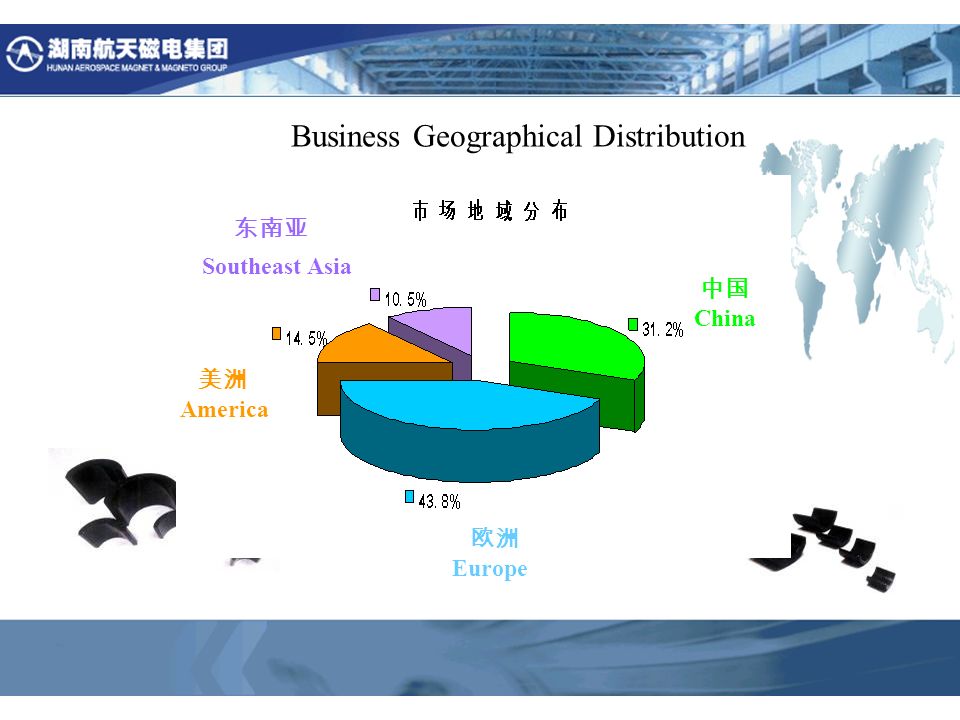

Business Geographical Distribution 美洲 America 东南亚 Southeast Asia 中国 China 欧洲 Europe
9

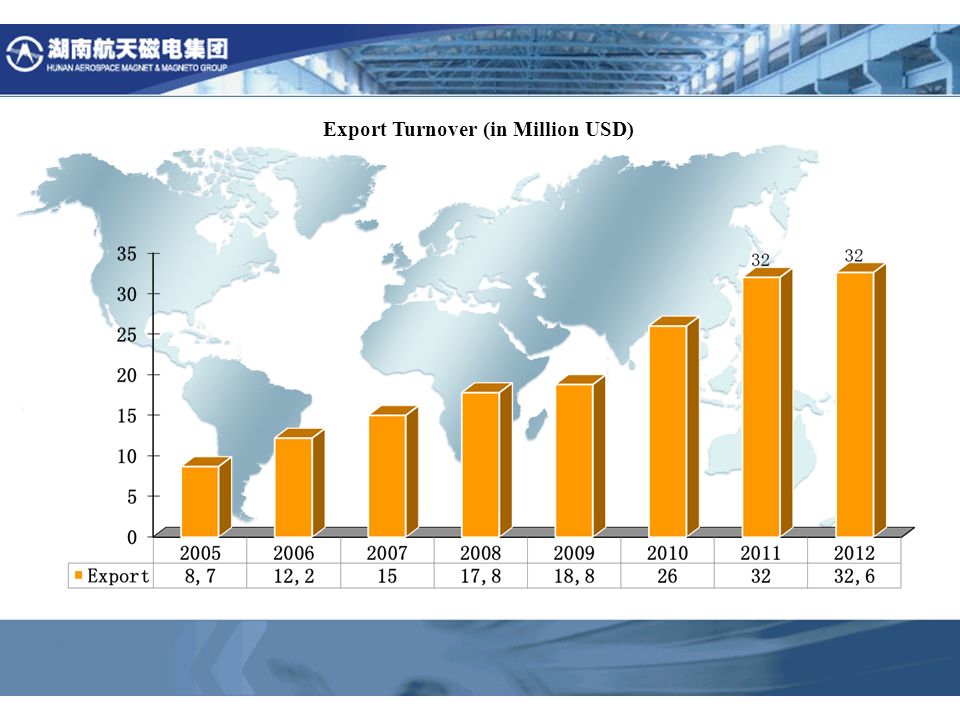

Export Turnover (in Million USD)
10
Quality Policy Quality is the life of Spacemagnets. Based on preventing,controlling and improving,we aspire to supply our customers with satisfied products &services and perfect the brand of Spacemagnets. 。
11
Company Certification ISO/TS16949:2002 Certificate (2006) ISO9001 Certificate (2001) Factory Safety Assessment of China Aerospace (2000) QS9000 Certificate (2003) ISO14000:2004 Certificate (2006) ISO/TS16949:2009 Certificate (2009)
13
SPACEMAGNETS ADVANTAGE 1.Parts with High Magnetic Properties 2. Parts with Good Consistency 3. Over 10 Years of Experience as Automotive Customer Supplier 4. Continuously Introducing New Equipment to Improve Processing Capability and Production Capacity.
14

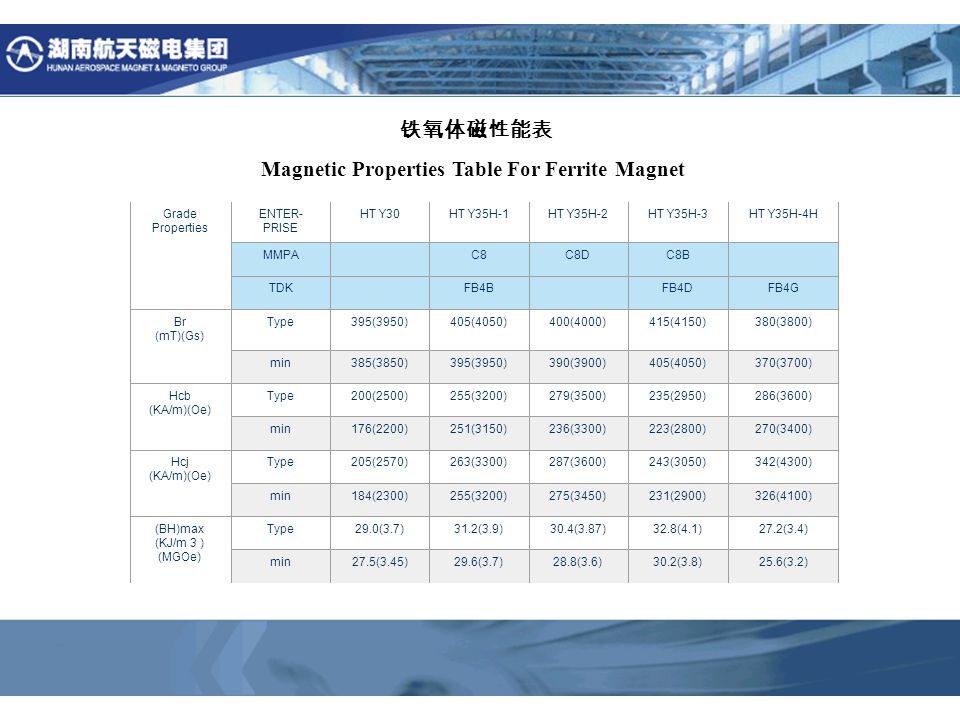

Grade Properties ENTER- PRISE HT Y30HT Y35H-1HT Y35H-2HT Y35H-3HT Y35H-4H MMPA C8C8DC8B TDK FB4B FB4DFB4G Br (mT)(Gs) Type395(3950)405(4050)400(4000)415(4150)380(3800) min385(3850)395(3950)390(3900)405(4050)370(3700) Hcb (KA/m)(Oe) Type200(2500)255(3200)279(3500)235(2950)286(3600) min176(2200)251(3150)236(3300)223(2800)270(3400) Hcj (KA/m)(Oe) Type205(2570)263(3300)287(3600)243(3050)342(4300) min184(2300)255(3200)275(3450)231(2900)326(4100) (BH)max (KJ/m 3 ) (MGOe) Type29.0(3.7)31.2(3.9)30.4(3.87)32.8(4.1)27.2(3.4) min27.5(3.45)29.6(3.7)28.8(3.6)30.2(3.8)25.6(3.2) 铁氧体磁性能表 Magnetic Properties Table For Ferrite Magnet
15

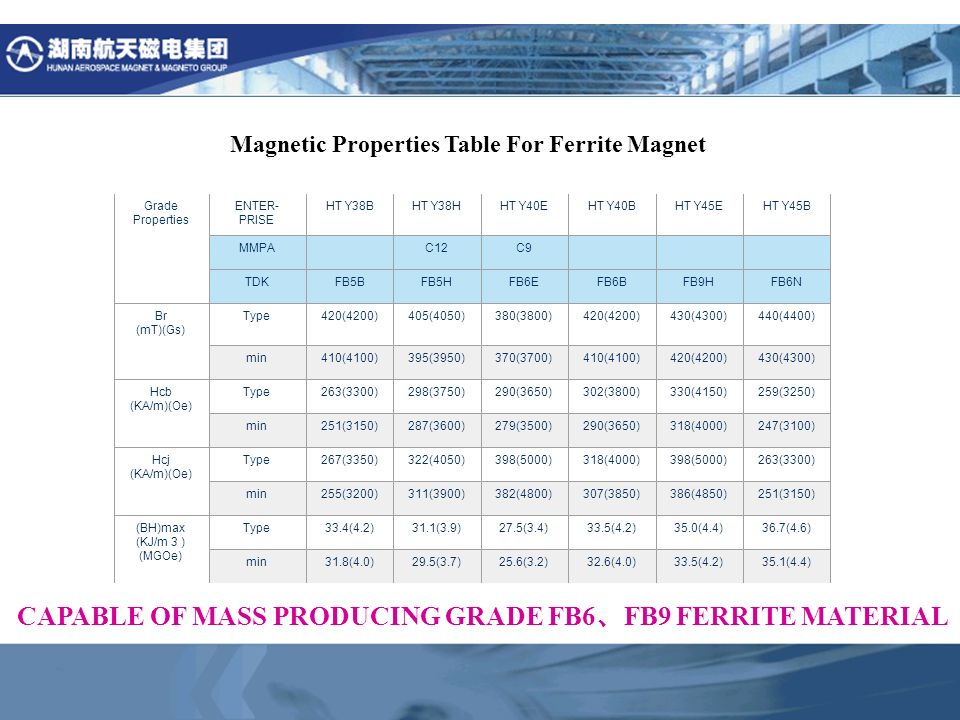

Grade Properties ENTER- PRISE HT Y38BHT Y38HHT Y40EHT Y40BHT Y45EHT Y45B MMPA C12C9 TDKFB5BFB5HFB6EFB6BFB9HFB6N Br (mT)(Gs) Type420(4200)405(4050)380(3800)420(4200)430(4300)440(4400) min410(4100)395(3950)370(3700)410(4100)420(4200)430(4300) Hcb (KA/m)(Oe) Type263(3300)298(3750)290(3650)302(3800)330(4150)259(3250) min251(3150)287(3600)279(3500)290(3650)318(4000)247(3100) Hcj (KA/m)(Oe) Type267(3350)322(4050)398(5000)318(4000)398(5000)263(3300) min255(3200)311(3900)382(4800)307(3850)386(4850)251(3150) (BH)max (KJ/m 3 ) (MGOe) Type33.4(4.2)31.1(3.9)27.5(3.4)33.5(4.2)35.0(4.4)36.7(4.6) min31.8(4.0)29.5(3.7)25.6(3.2)32.6(4.0)33.5(4.2)35.1(4.4) CAPABLE OF MASS PRODUCING GRADE FB6 、 FB9 FERRITE MATERIAL
16

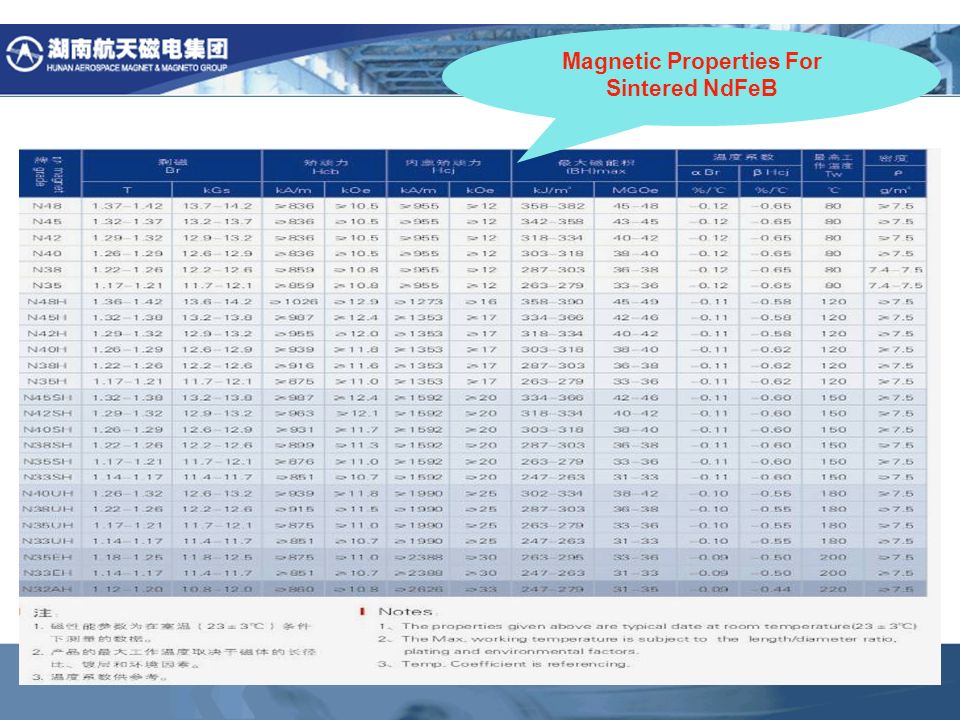

Magnetic Properties For Sintered NdFeB
17

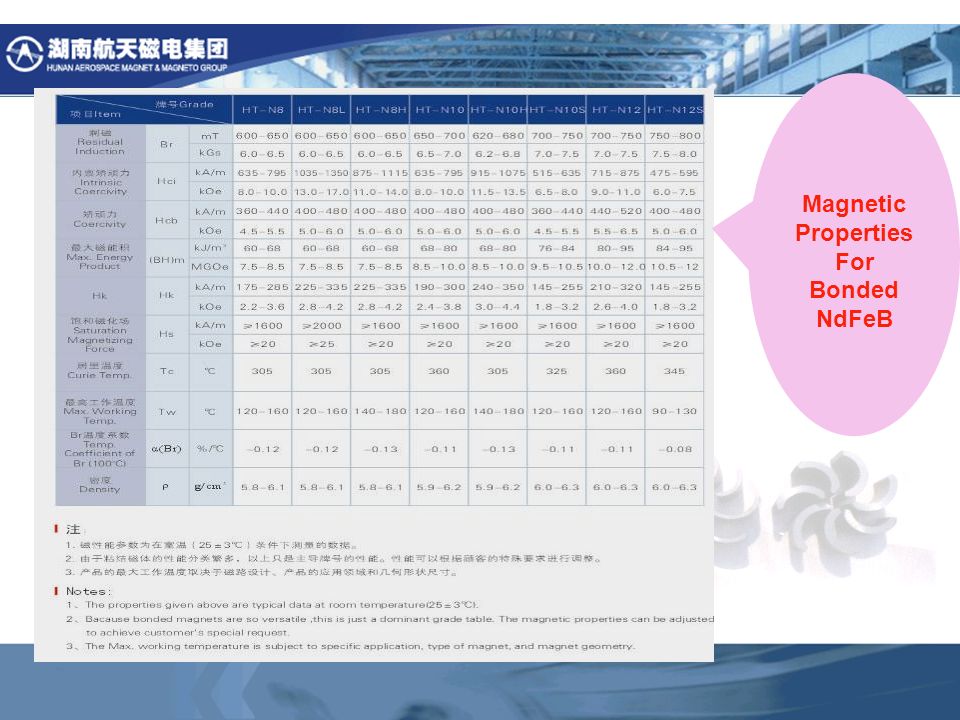

Magnetic Properties For Bonded NdFeB
18
Working with automotive customers ----Year 2002, started to supply magnets to Faurecia in France. ----Year 2004, started to supply magnets to Valeo in France, Germany. ----Year 2004, started to supply magnets to TI AUTOMOTIVE in USA, China. ----Year 2005, started to supply magnets to Nidec in Spain, Poland, Germany, USA and China. ----Year 2005, started to supply magnets to DAEWOO in Korea. ----Year 2008, started to supply magnet-stator assembly to Delphi in USA.
19
Auto Consuming in Arc Magnet Sales
20
Company Milestone: ----Invest 100 million USD in a new location (around 210,000m 2 ) to develop magnet business, including: 1) Increase 6 automatic production lines for Ferrite Magnet to reach a total capacity of 40,000 Ton per year. 2) Increase the capacity of our Bonded NdFeB to 250 Ton per year. 3) Increase the capacity of our Sintered NdFeB to 5,000 Ton per year.
21

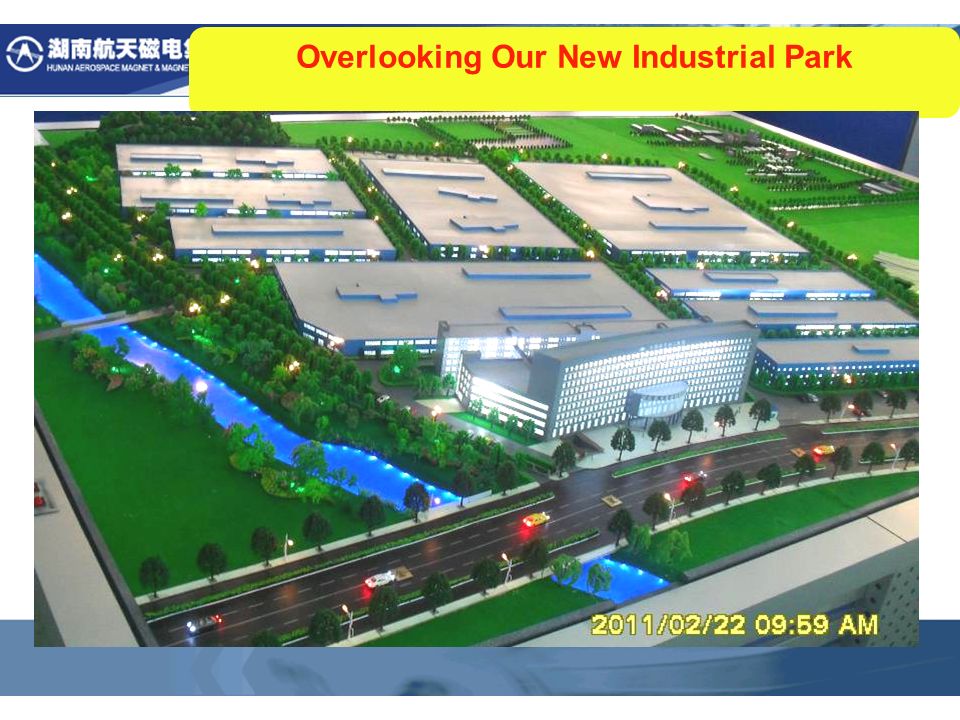

Overlooking Our New Industrial Park
22

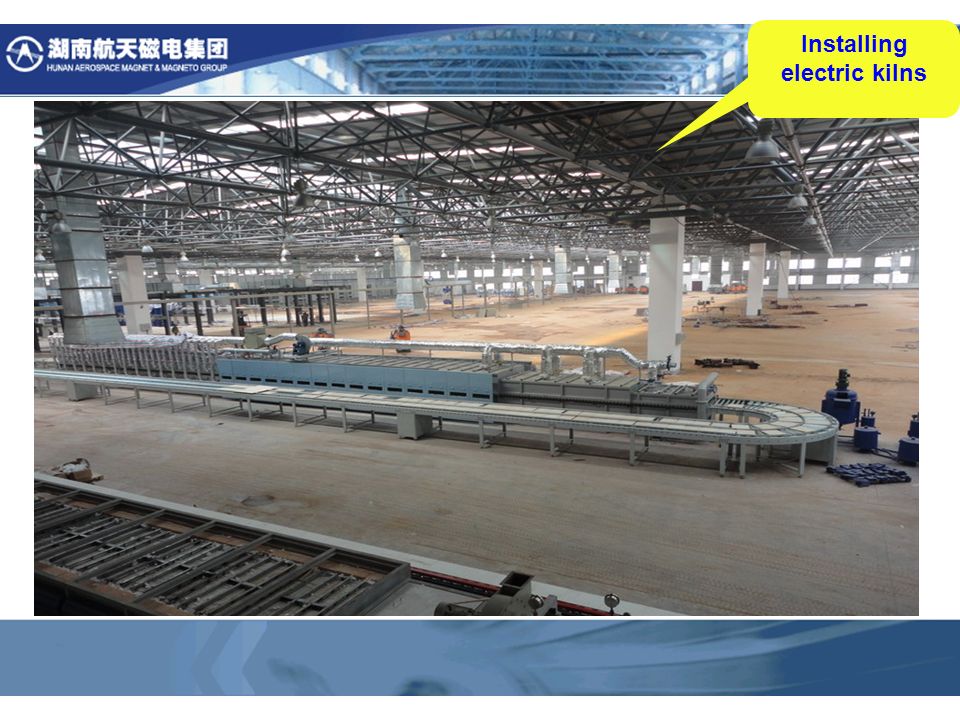

Installing electric kilns
23

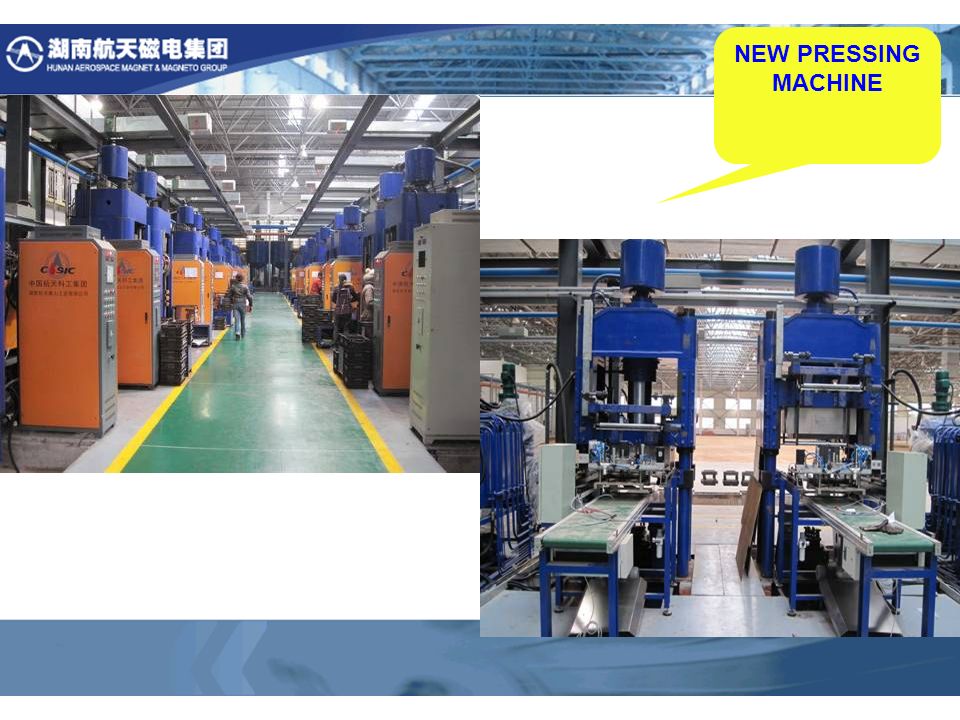

NEW PRESSING MACHINE
24
ELECTRIC KILN
25

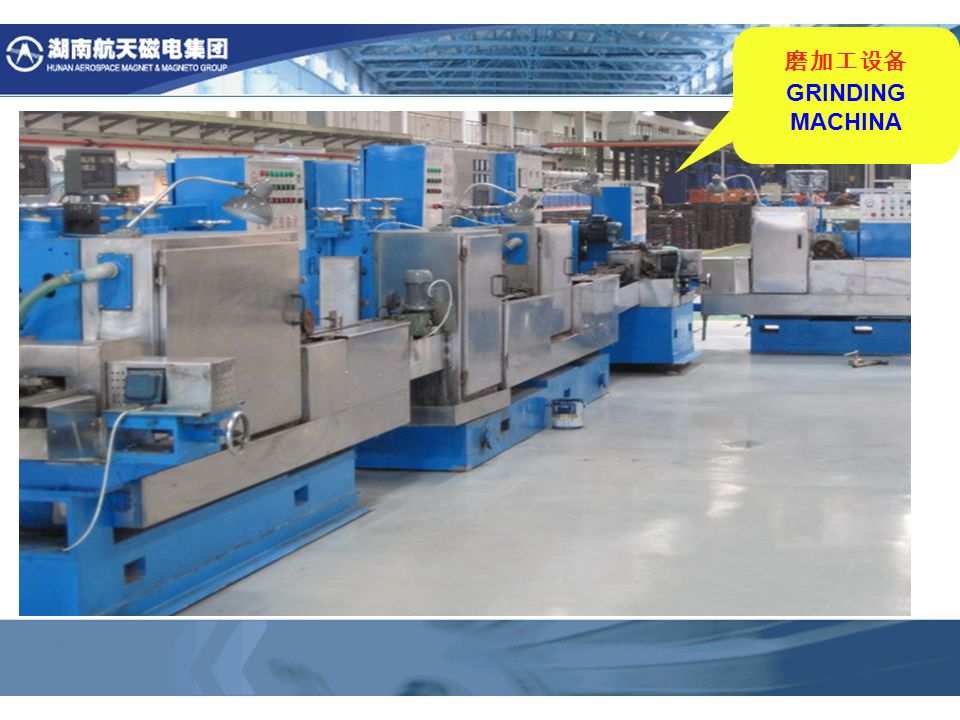

磨加工设备 GRINDING MACHINA
26

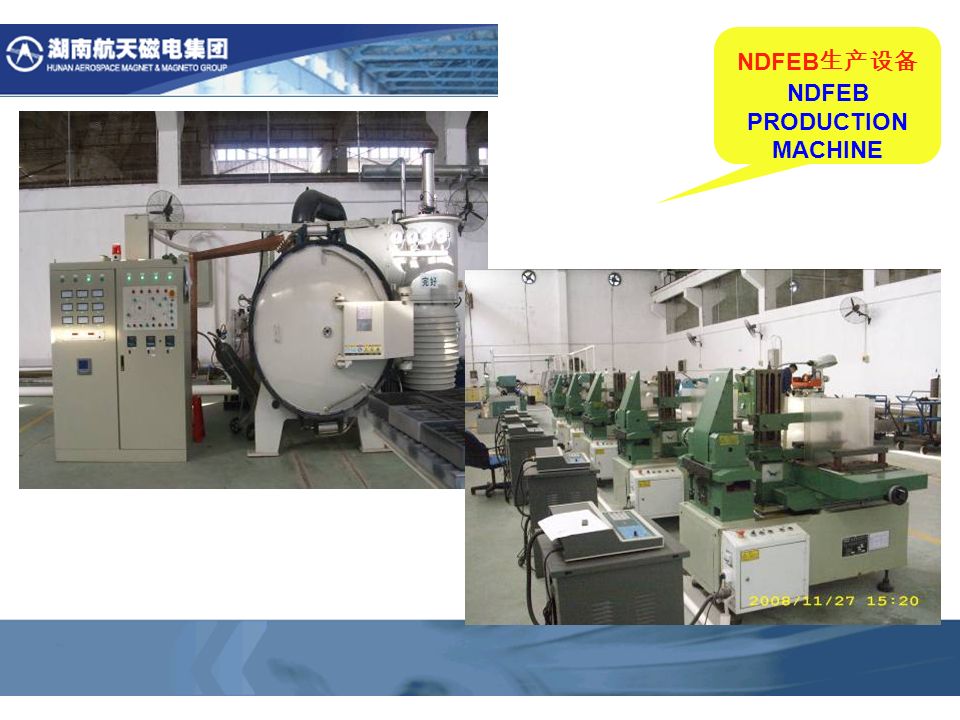

NDFEB 生产设备 NDFEB PRODUCTION MACHINE
29
NDFEB 生产场地 NDFEB Production Site
30

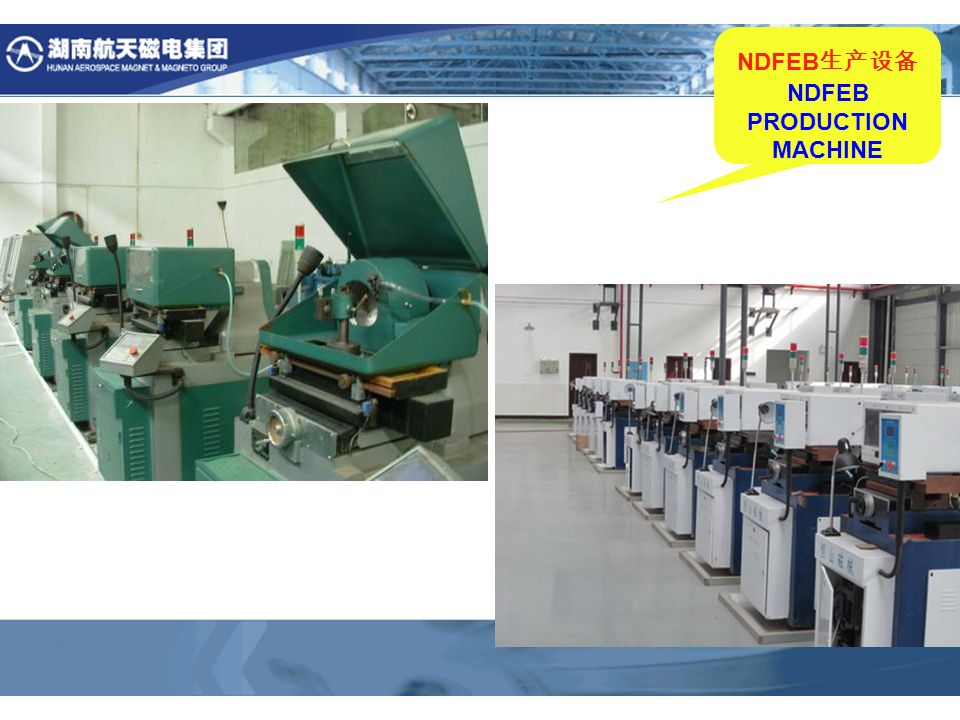

NDFEB 生产设备 NDFEB PRODUCTION MACHINE
31
Spacemagnets Serve the World 谢 谢! Thank you!
