1. Eurostat Macro integration

2. Presented by Piet Verbiest Statistics Netherlands

4. Macro integration Reconciliation of inconsistent statistical data on a high level of aggregation Balancing is reconciling inconsistent statistical information from independent sources brought together in an ‘accounting’ framework consisting of well-defined variables, accounting identities on combinations of variables and other less strict relations between the sets of variables.

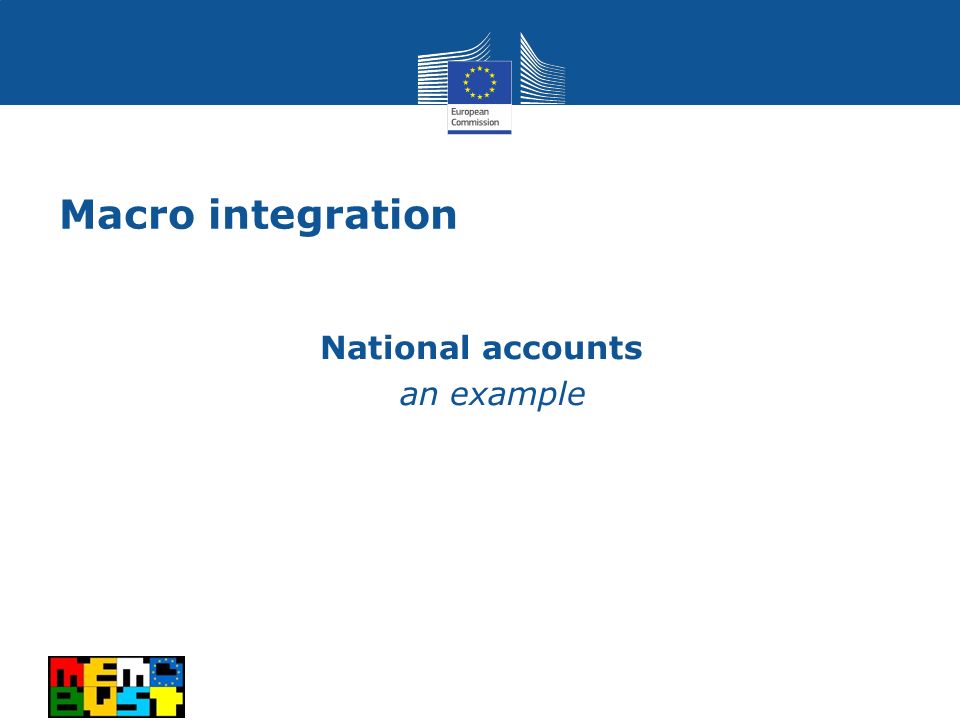

5. Macro integration National accounts an example

6. National accounts Comprehensive overview of all economic transactions in a country Quarterly and annual report of a country Key indicators  Gross domestic product (GDP): economic growth;  Gross national income  Consumption of households, investment, foreign trade  Government debt  Employment

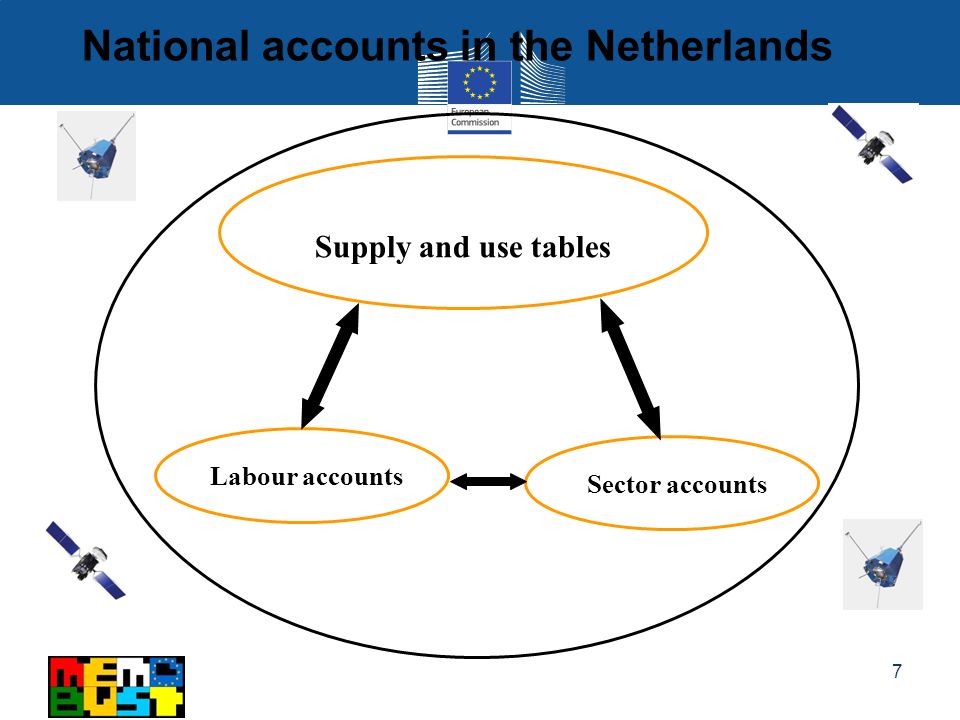

7. 7 Labour accounts National accounts in the Netherlands Supply and use tables Sector accounts

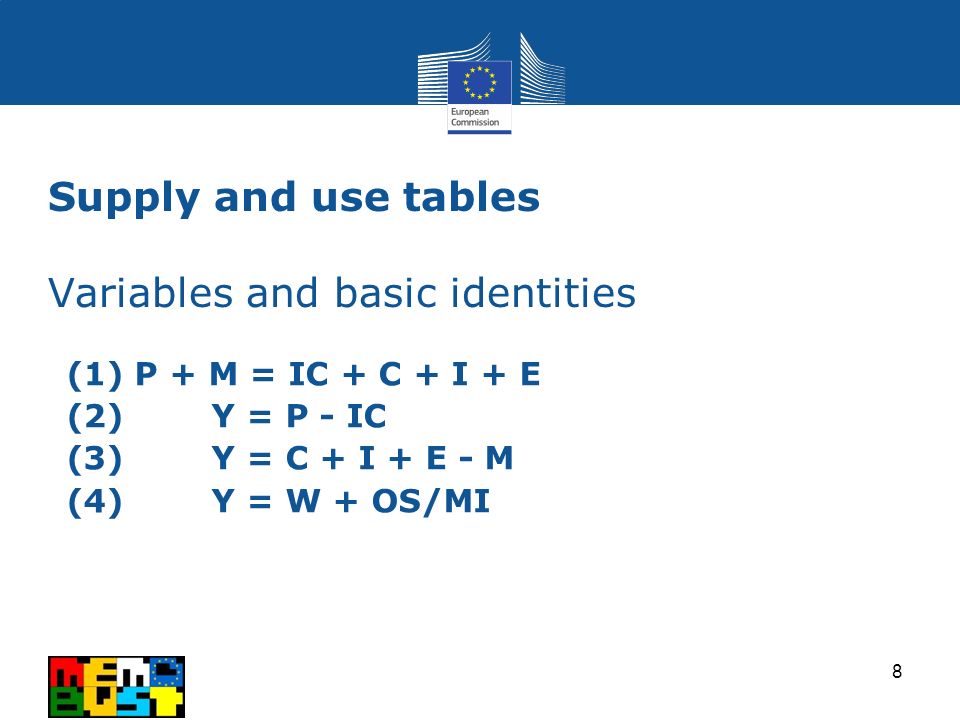

8. Supply and use tables Variables and basic identities identities (1) P + M = IC + C + I + E (2) Y = P - IC (3) Y = C + I + E - M (4) Y = W + OS/MI 8

9. What we want: 9

10. What we get: 10

11. Macro integration / balancing 11 5 355 475 355

12. Macro integration / balancing 12 20 225 495225

13. Macro integration / balancing 13 20 295275 295 50 465 275

14. 14 SUPPLYUSE Output of industries Import Total Input of industries Cons Export Invest. Total Commodities Y Total PM IC+YCEI Value added = PIC+Y = GDP

15. 15 SUPPLY USE Output of industries ImportTotal Input of industries Cons. Export Invest. total Commodities Y TotalPMIC+YECI P - IC = Y = GDP  P–IC = Y =C+I+E-M PMICCIE++++=

16. 16  Commodities: 500  Industries: 150  Final expenditure: 20  Simultaneous: cup and cop

17. 17

18. Eurostat Macro integration

19. Presented by Jacco Daalmans j.daalmans@cbs.nl

20. Mathematical models 2+9=10 5=7 15/2=7 22=17 1=0 3+7=10 6=6 22=17+5 Mathematical Models 12+3+10=25

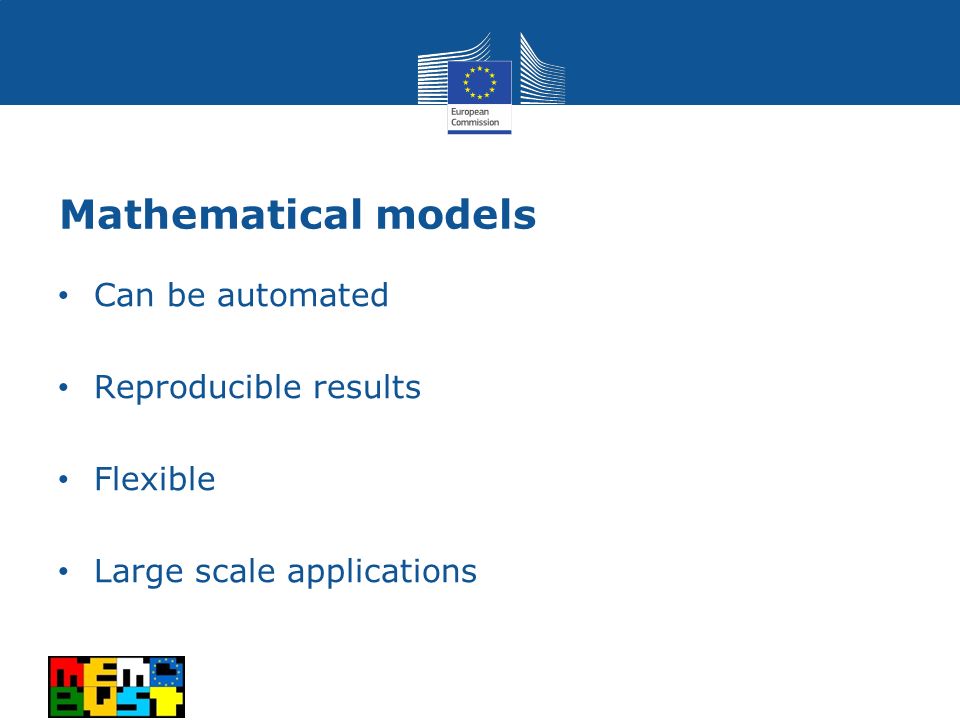

21. Mathematical models Can be automated Reproducible results Flexible Large scale applications

22. BUT: Small discrepancies, without known cause

23. Example 1: Whisky Imports = Consumption Given: Imports = 5, Consumption=0 Model outcome could be: Imports= 2.5 Consumption = 2.5 NOT DESIRABLE!

24. Example 2: Remaining discrepancies Production (P) = 930 Imports (M) = 275 Interm. Cons. (IC)= 450 Cons. Invest. Export (CIE)= 740 P+ M = IC + CIE 1205 ≠ 1190 P – IC = CIE – M 480 ≠ 465

25. Example 2: Remaining discrepancies Production (P) = 930 928 Imports (M) = 275 272 Interm. Cons. (IC)= 450 455 Cons. Invest. Export (CIE)= 740 745 P+ M = IC + CIE 1205 ≠ 1190 1200=1200 P – IC = CIE – M 480 ≠ 465 473=473

26. Different models

27. STONE’s Method Broad applicability Achieves consistency by solving a minimum adjustment problem

28. STONE’s Method Searches for a result with minimum deviation from the input. Mathematical: Translation to a least squares optimization problem Consistency rules translate to constraints of the model.

29. STONE’s Method Linear constraints, like: Total is the sum of components: Manufacturing = Food + Textiles + Clothing; Commodity balances; Total use = Total supply; Definitions: Value added = Output – Intermediate consumption

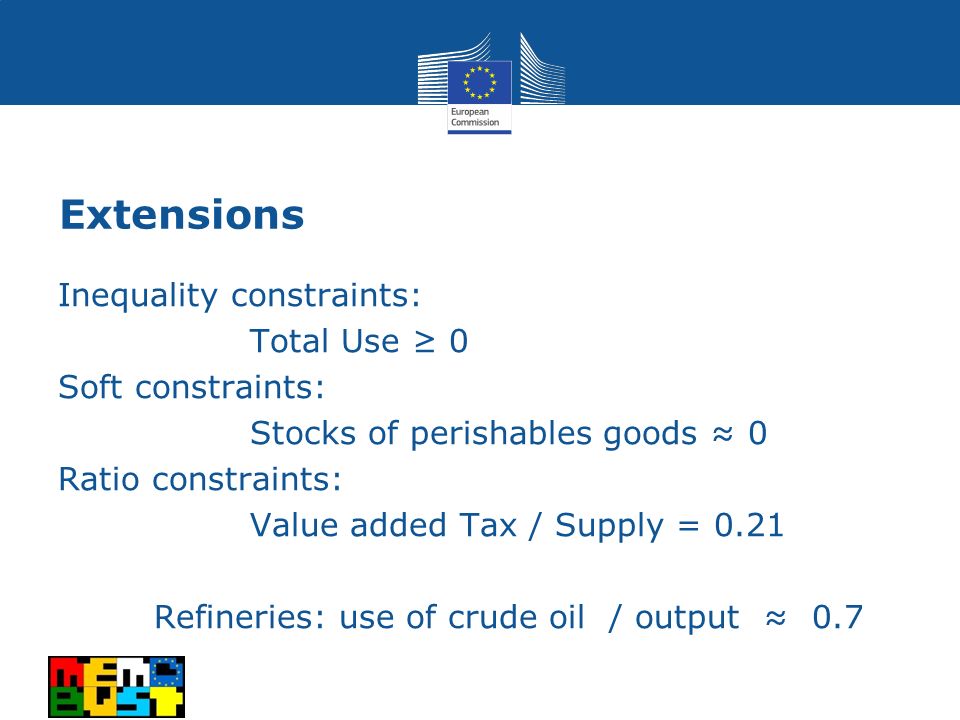

30. Extensions Inequality constraints: Total Use ≥ 0 Soft constraints: Stocks of perishables goods ≈ 0 Ratio constraints: Value added Tax / Supply = 0.21 Refineries: use of crude oil / output ≈ 0.7

31. A man with a watch knows what time it is A man with two watches is never sure (Segal’s Law)

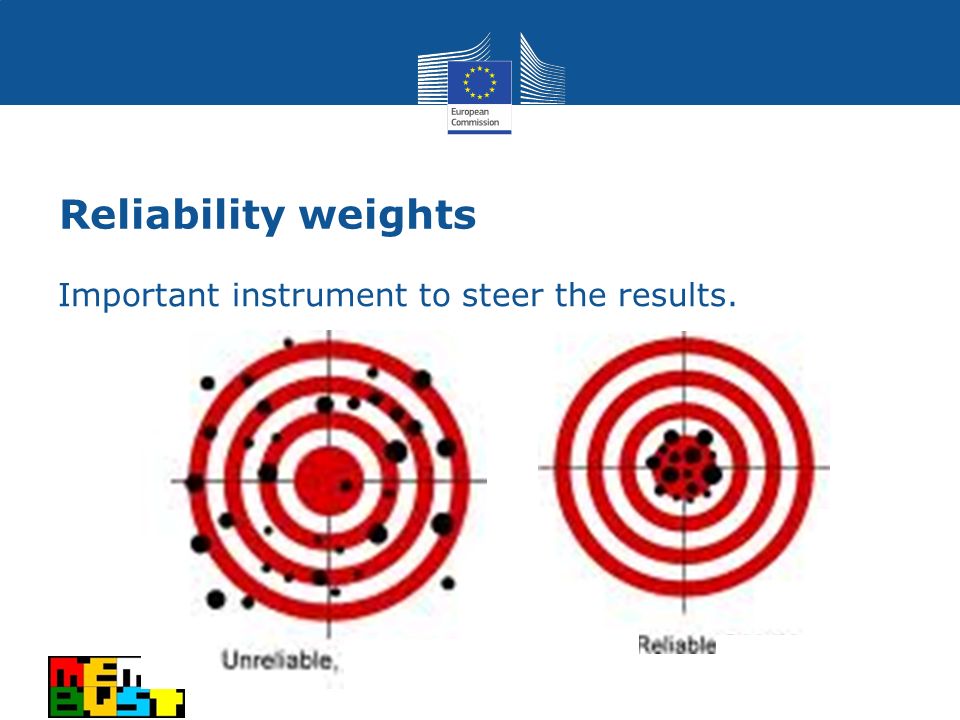

32. Reliability weights Important instrument to steer the results.

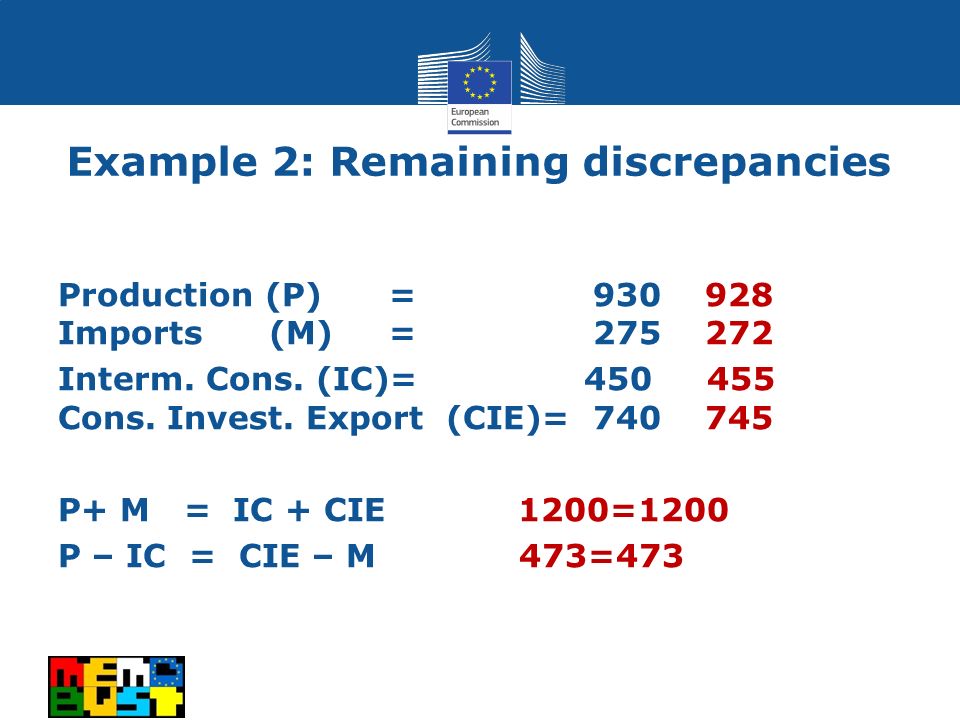

33. Example 2: Remaining discrepancies Production (P) = 930 928 Imports (M) = 275 272 Interm. Cons. (IC)= 450 455 Cons. Invest. Export (CIE)= 740 745 P+ M = IC + CIE 1200=1200 P – IC = CIE – M 473=473

34. Example 2: Remaining discrepancies Production (P) = 930 928 930 Imports (M) = 275 272 270 Interm. Cons. (IC)= 450 455 450 Cons. Invest. Export (CIE)= 740 745 750 P+ M = IC + CIE 1200=1200 1200=1200 P – IC = CIE – M 473=473 480= 480 green = p and IC more reliable

35. Conclusions Mathematical methods powerful instrument Elaborate modelling constructions possible But should be used properly!
