1 Citrix MetaFrame XP for Windows

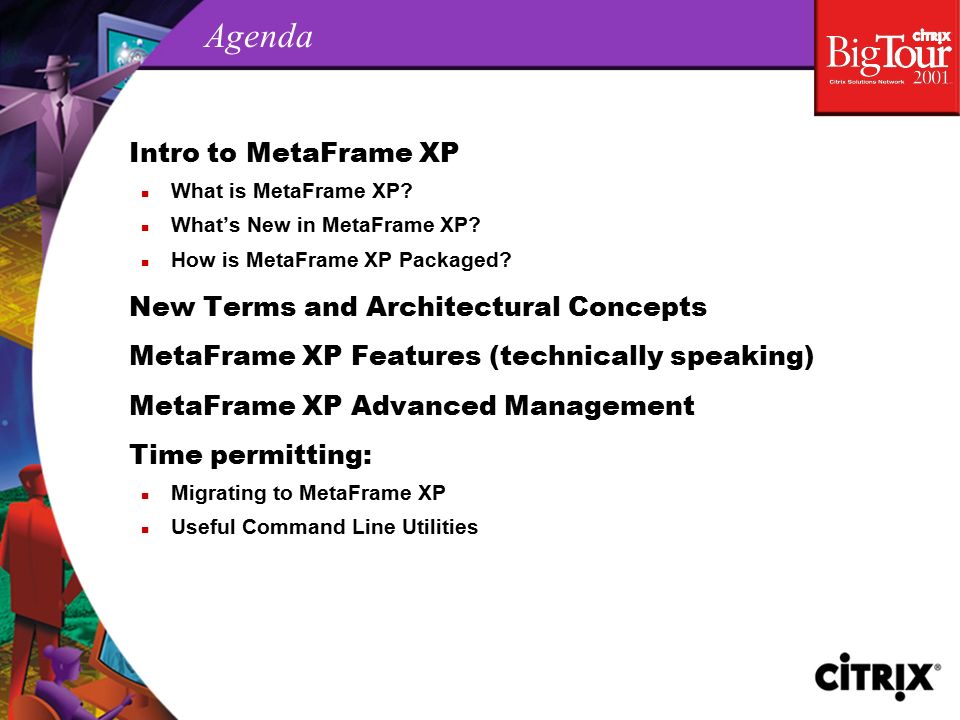

2 Agenda Intro to MetaFrame XP n What is MetaFrame XP? n What’s New in MetaFrame XP? n How is MetaFrame XP Packaged? New Terms and Architectural Concepts MetaFrame XP Features (technically speaking) MetaFrame XP Advanced Management Time permitting: n Migrating to MetaFrame XP n Useful Command Line Utilities

3 Intro to MetaFrame XP

4 What is MetaFrame XP? n The next generation of Citrix’s MetaFrame application serving software. n The product of a ground up reassessment by our engineers coupled with your input on what enterprise class server-based computing should be. n Built to eliminate current and future obstacles to speed, performance and control while maintaining backward compatibility for ease of migration. n Everything you have seen in MetaFrame 1.8/FR1 and MORE.

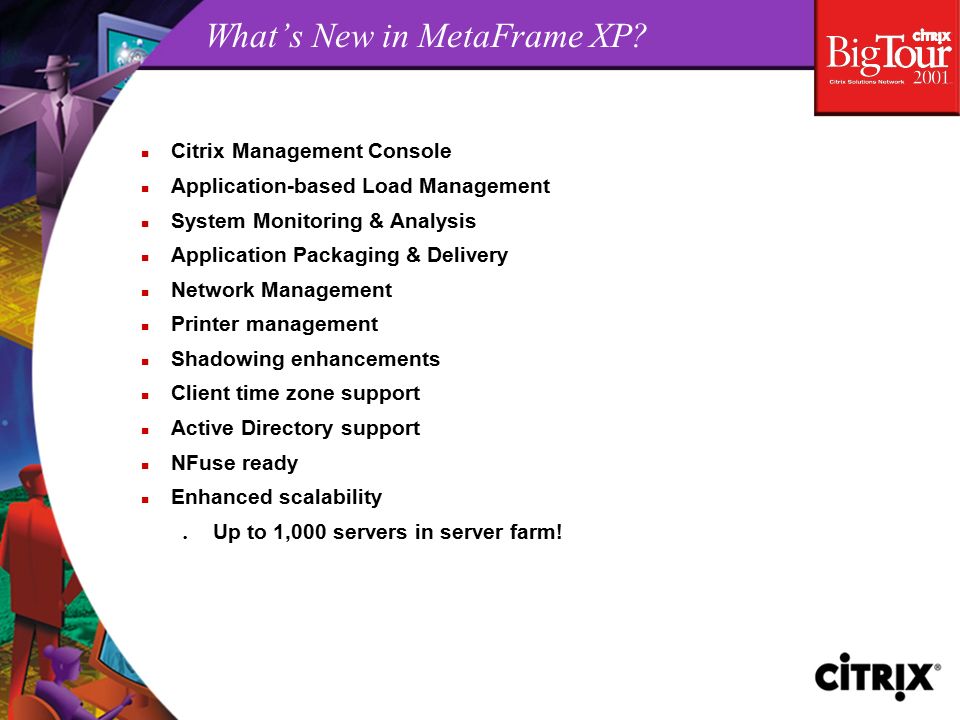

5 What’s New in MetaFrame XP? n Citrix Management Console n Application-based Load Management n System Monitoring & Analysis n Application Packaging & Delivery n Network Management n Printer management n Shadowing enhancements n Client time zone support n Active Directory support n NFuse ready n Enhanced scalability l Up to 1,000 servers in server farm!

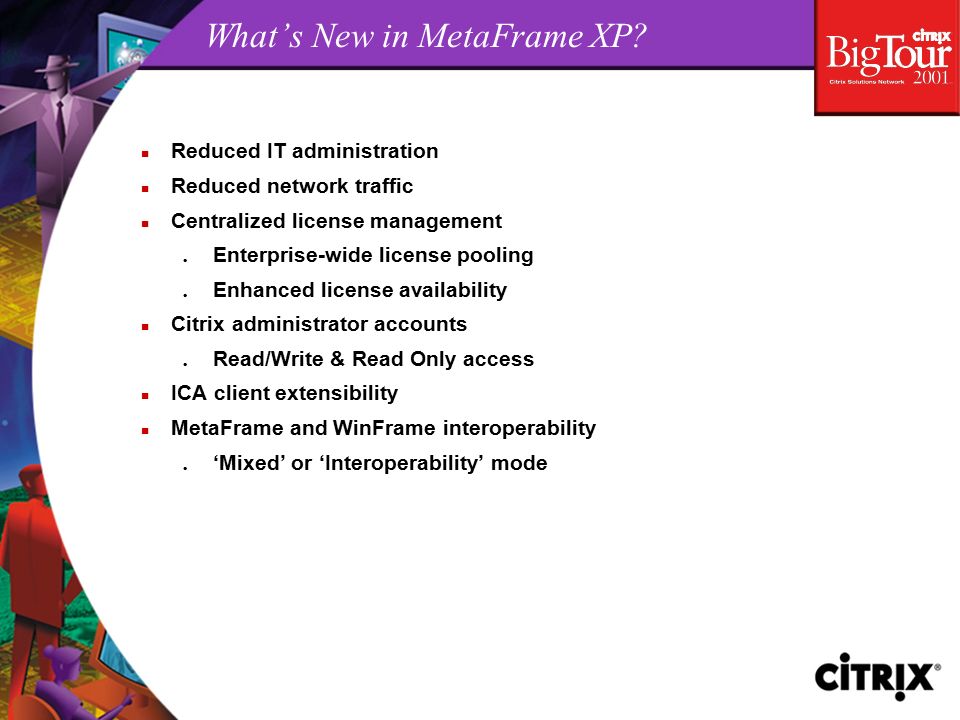

6 What’s New in MetaFrame XP? n Reduced IT administration n Reduced network traffic n Centralized license management l Enterprise-wide license pooling l Enhanced license availability n Citrix administrator accounts l Read/Write & Read Only access n ICA client extensibility n MetaFrame and WinFrame interoperability l ‘Mixed’ or ‘Interoperability’ mode

7 How is it Packaged? n The enterprise application serving infrastructure for Net- based Windows 2000 environments requiring extensive scalability, rapid application delivery and robust management—enabling unparalleled command and control n The advanced application serving platform for Windows 2000 servers and beyond designed for growing organizations that need to maximize application availability and manageability across the Net—all from a single point n The rapid application serving system designed for to extend the reach of Windows 2000 Server to any device, any departmental workgroup connection—wired, wireless, Web

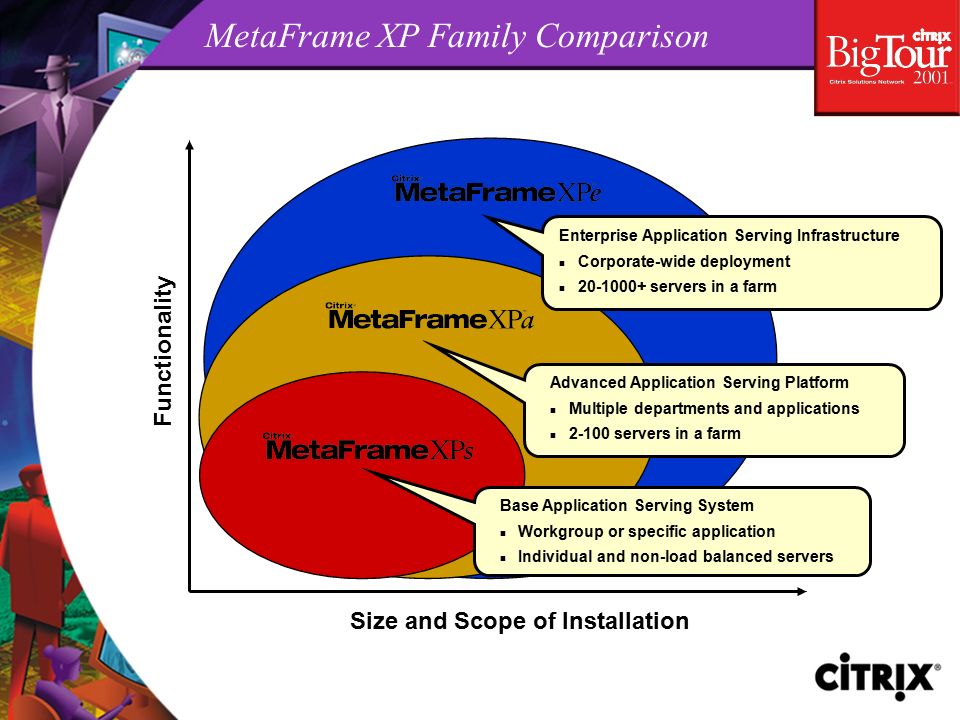

8 MetaFrame XP Family Comparison Functionality Size and Scope of Installation Base Application Serving System Workgroup or specific application Individual and non-load balanced servers Advanced Application Serving Platform Multiple departments and applications 2-100 servers in a farm Enterprise Application Serving Infrastructure Corporate-wide deployment 20-1000+ servers in a farm

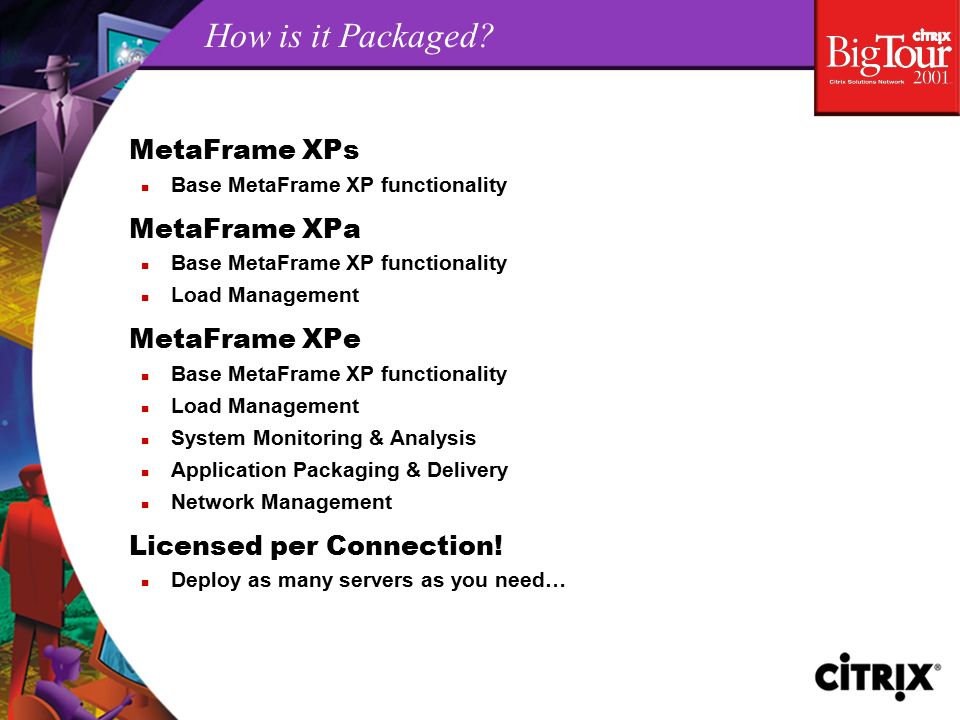

9 How is it Packaged? MetaFrame XPs n Base MetaFrame XP functionality MetaFrame XPa n Base MetaFrame XP functionality n Load Management MetaFrame XPe n Base MetaFrame XP functionality n Load Management n System Monitoring & Analysis n Application Packaging & Delivery n Network Management Licensed per Connection! n Deploy as many servers as you need…

10 New Terms and Architectural Concepts

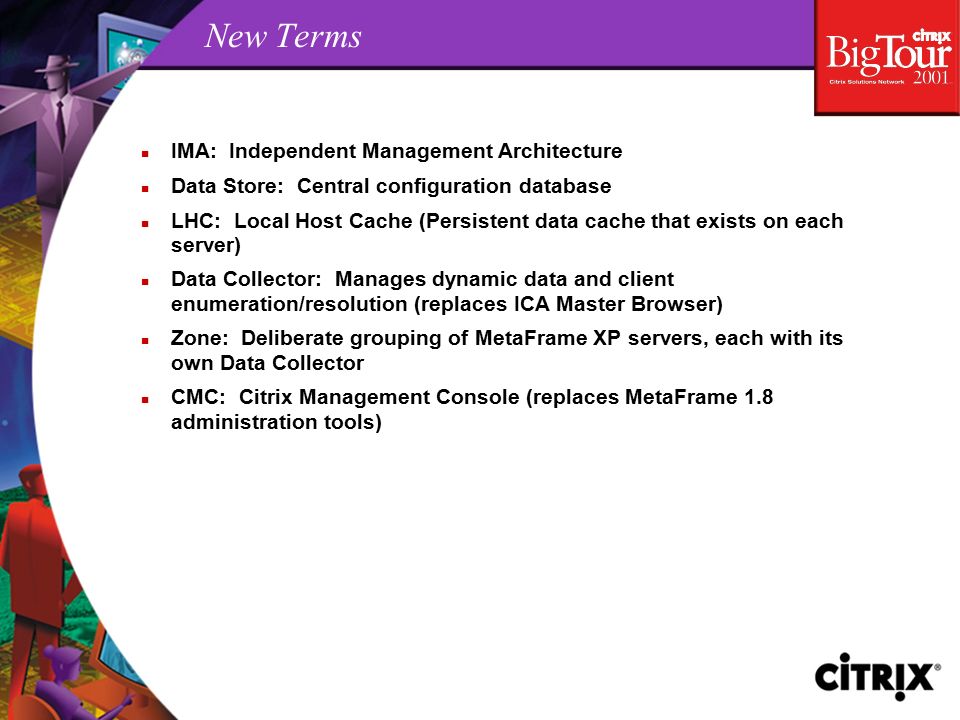

11 New Terms n IMA: Independent Management Architecture n Data Store: Central configuration database n LHC: Local Host Cache (Persistent data cache that exists on each server) n Data Collector: Manages dynamic data and client enumeration/resolution (replaces ICA Master Browser) n Zone: Deliberate grouping of MetaFrame XP servers, each with its own Data Collector n CMC: Citrix Management Console (replaces MetaFrame 1.8 administration tools)

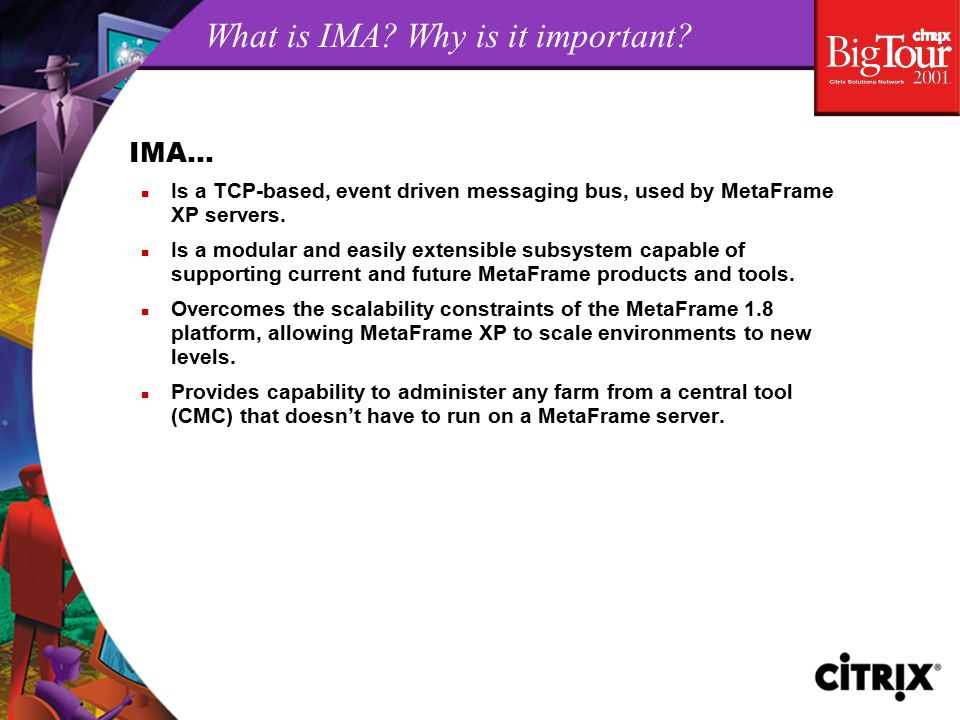

12 What is IMA? Why is it important? IMA… n Is a TCP-based, event driven messaging bus, used by MetaFrame XP servers. n Is a modular and easily extensible subsystem capable of supporting current and future MetaFrame products and tools. n Overcomes the scalability constraints of the MetaFrame 1.8 platform, allowing MetaFrame XP to scale environments to new levels. n Provides capability to administer any farm from a central tool (CMC) that doesn’t have to run on a MetaFrame server.

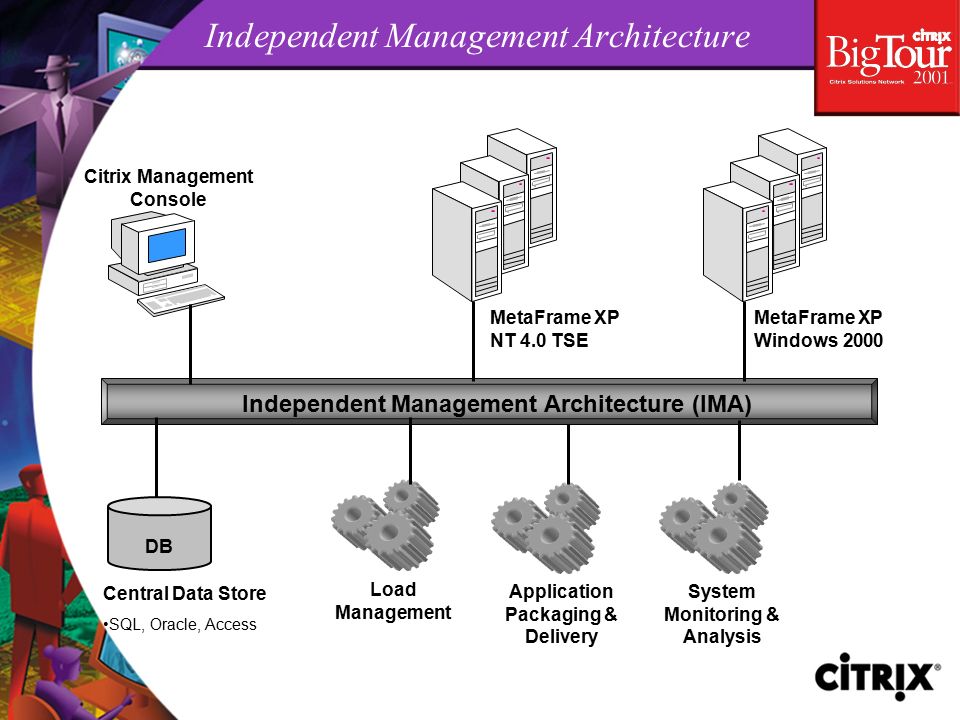

13 MetaFrame XP NT 4.0 TSE MetaFrame XP Windows 2000 Central Data Store SQL, Oracle, Access Load Management Application Packaging & Delivery System Monitoring & Analysis Independent Management Architecture (IMA) Citrix Management Console DB Independent Management Architecture

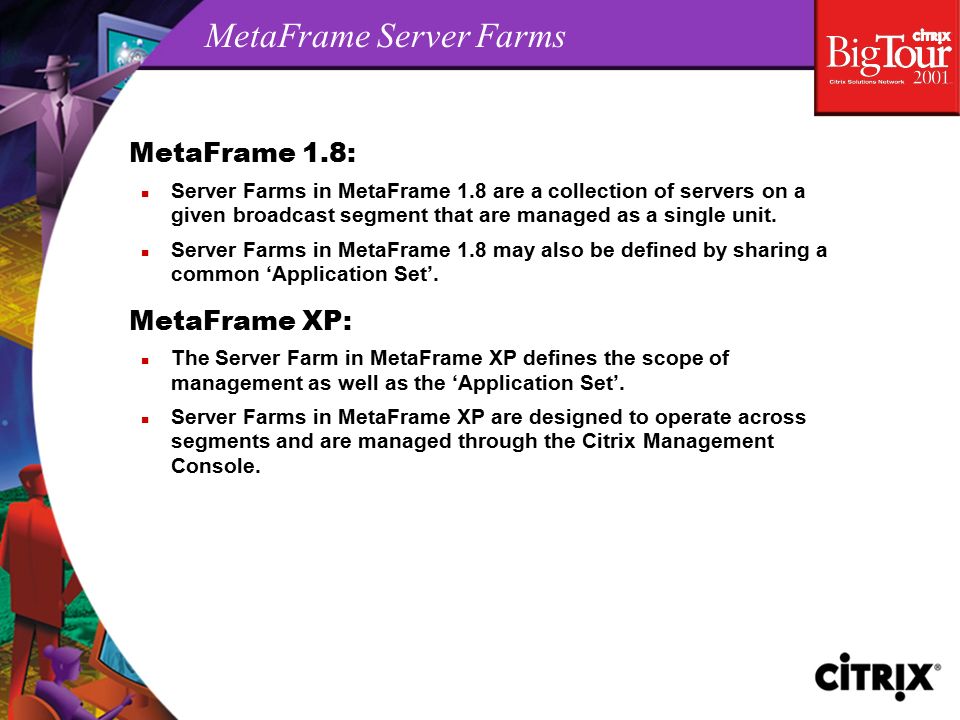

14 MetaFrame Server Farms MetaFrame 1.8: n Server Farms in MetaFrame 1.8 are a collection of servers on a given broadcast segment that are managed as a single unit. n Server Farms in MetaFrame 1.8 may also be defined by sharing a common ‘Application Set’. MetaFrame XP: n The Server Farm in MetaFrame XP defines the scope of management as well as the ‘Application Set’. n Server Farms in MetaFrame XP are designed to operate across segments and are managed through the Citrix Management Console.

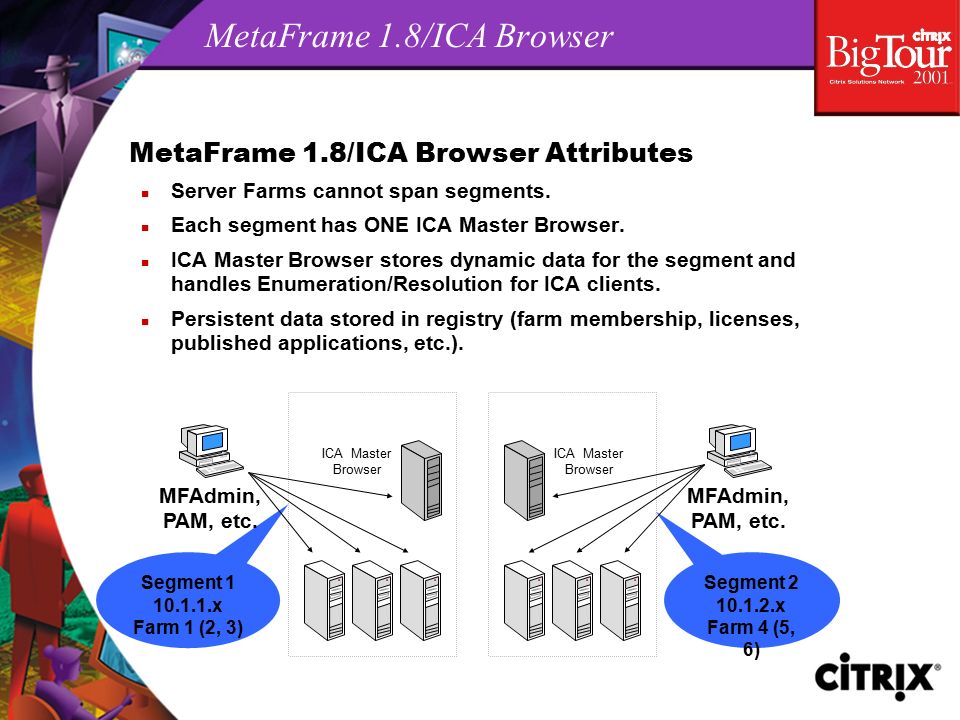

15 MetaFrame 1.8/ICA Browser MetaFrame 1.8/ICA Browser Attributes n Server Farms cannot span segments. n Each segment has ONE ICA Master Browser. n ICA Master Browser stores dynamic data for the segment and handles Enumeration/Resolution for ICA clients. n Persistent data stored in registry (farm membership, licenses, published applications, etc.). Segment 1 10.1.1.x Farm 1 (2, 3) Segment 2 10.1.2.x Farm 4 (5, 6) MFAdmin, PAM, etc. ICA Master Browser ICA Master Browser MFAdmin, PAM, etc.

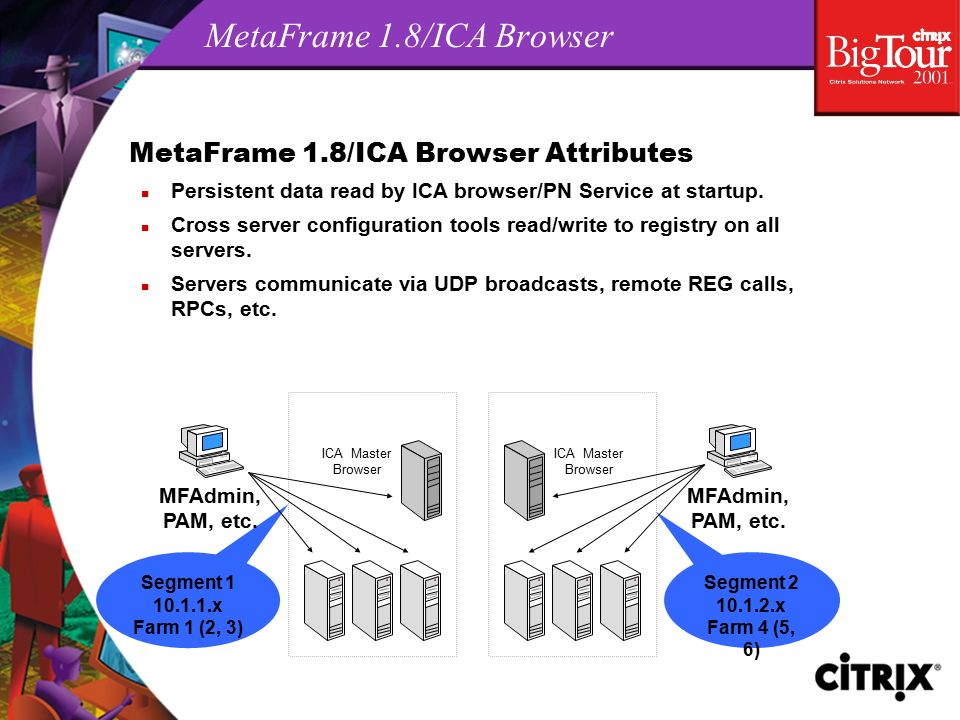

16 MetaFrame 1.8/ICA Browser MetaFrame 1.8/ICA Browser Attributes n Persistent data read by ICA browser/PN Service at startup. n Cross server configuration tools read/write to registry on all servers. n Servers communicate via UDP broadcasts, remote REG calls, RPCs, etc. Segment 1 10.1.1.x Farm 1 (2, 3) Segment 2 10.1.2.x Farm 4 (5, 6) MFAdmin, PAM, etc. ICA Master Browser ICA Master Browser MFAdmin, PAM, etc.

17 MetaFrame XP/IMA MetaFrame XP/IMA Attributes n Server farms can span segments, can contain multiple zones. n Each zone has ONE Data Collector. n Data Collectors store dynamic data and handle Enumeration/Resolution for ICA clients. n Persistent farm data stored in shared, persistent Data Store. Zone 1 Zone 2 CMC DS LHC DC Server Farm

18 MetaFrame XP/IMA MetaFrame XP/IMA Attributes n Persistent data read from DS at startup, cached in Local Host Cache. n Management tool communicates via IMA to Data Store and member servers. n Servers communicate via IMA (TCP). Zone 1 Zone 2 CMC DS LHC DC Server Farm

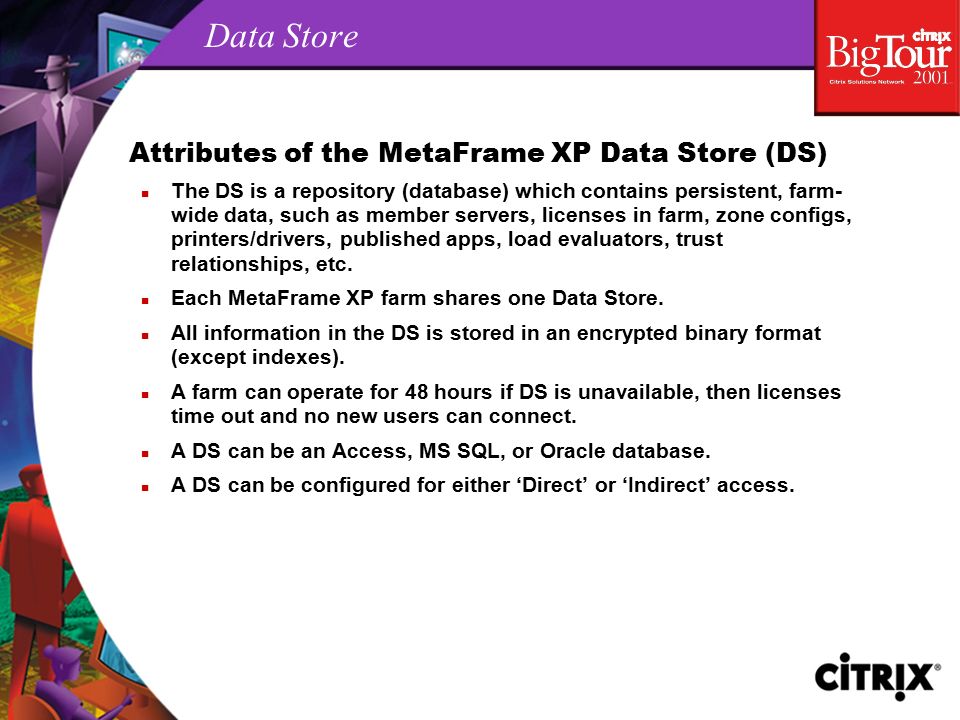

19 Data Store Attributes of the MetaFrame XP Data Store (DS) n The DS is a repository (database) which contains persistent, farm- wide data, such as member servers, licenses in farm, zone configs, printers/drivers, published apps, load evaluators, trust relationships, etc. n Each MetaFrame XP farm shares one Data Store. n All information in the DS is stored in an encrypted binary format (except indexes). n A farm can operate for 48 hours if DS is unavailable, then licenses time out and no new users can connect. n A DS can be an Access, MS SQL, or Oracle database. n A DS can be configured for either ‘Direct’ or ‘Indirect’ access.

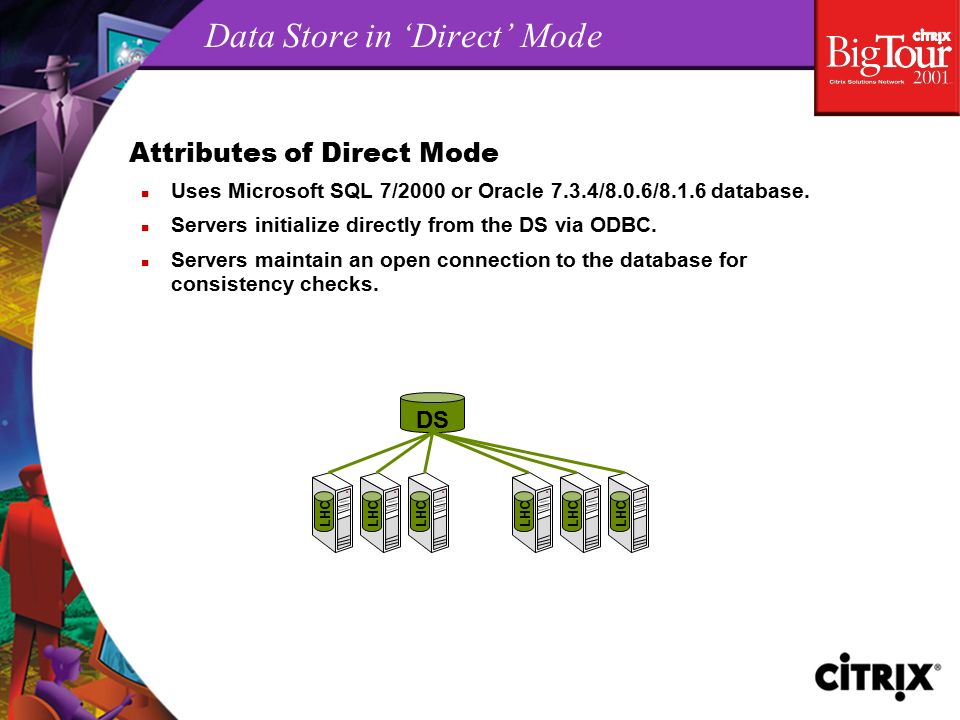

20 Data Store in ‘Direct’ Mode Attributes of Direct Mode n Uses Microsoft SQL 7/2000 or Oracle 7.3.4/8.0.6/8.1.6 database. n Servers initialize directly from the DS via ODBC. n Servers maintain an open connection to the database for consistency checks. DS LHC

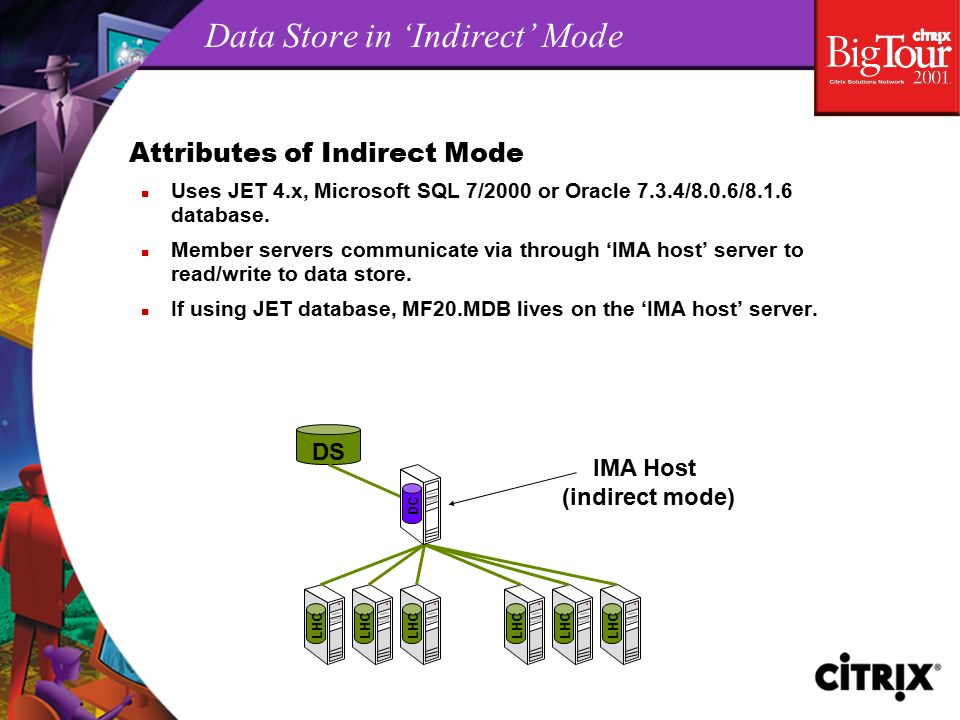

21 Data Store in ‘Indirect’ Mode Attributes of Indirect Mode n Uses JET 4.x, Microsoft SQL 7/2000 or Oracle 7.3.4/8.0.6/8.1.6 database. n Member servers communicate via through ‘IMA host’ server to read/write to data store. n If using JET database, MF20.MDB lives on the ‘IMA host’ server. DS LHC IMA Host (indirect mode) DC

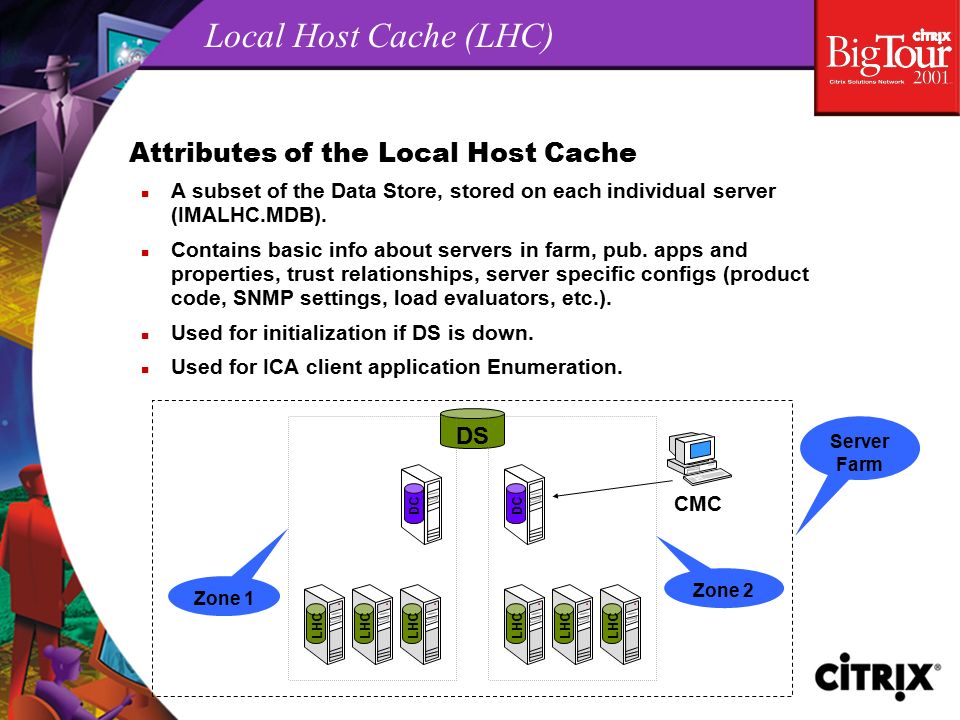

22 Local Host Cache (LHC) Attributes of the Local Host Cache n A subset of the Data Store, stored on each individual server (IMALHC.MDB). n Contains basic info about servers in farm, pub. apps and properties, trust relationships, server specific configs (product code, SNMP settings, load evaluators, etc.). n Used for initialization if DS is down. n Used for ICA client application Enumeration. Zone 1 Zone 2 CMC DS LHC DC Server Farm

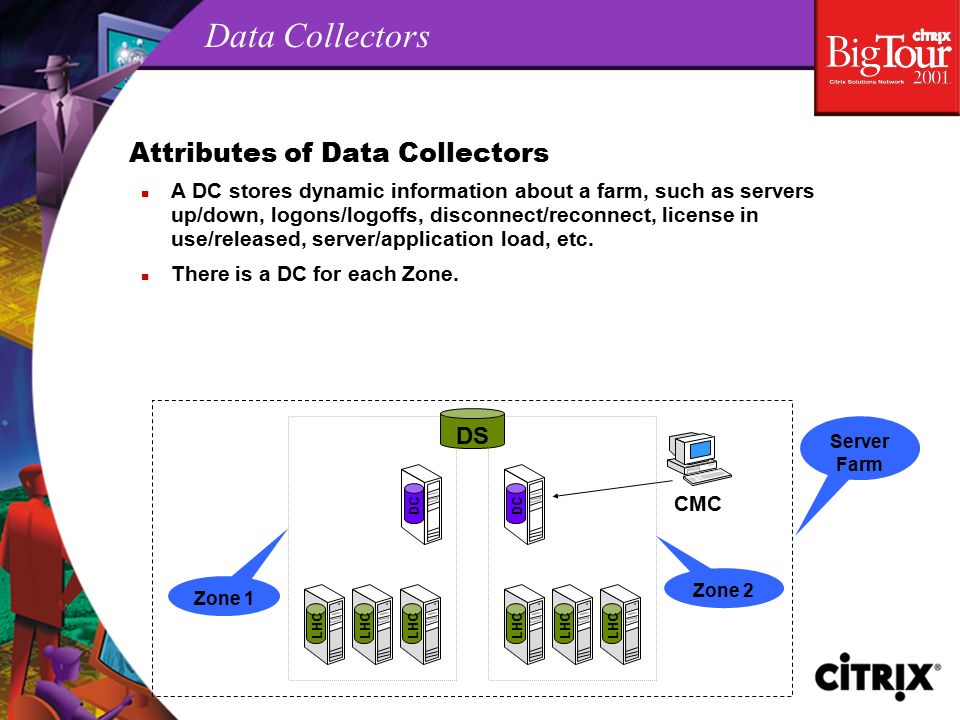

23 Data Collectors Attributes of Data Collectors n A DC stores dynamic information about a farm, such as servers up/down, logons/logoffs, disconnect/reconnect, license in use/released, server/application load, etc. n There is a DC for each Zone. Zone 1 Zone 2 CMC DS LHC DC Server Farm

24 Data Collectors Attributes of Data Collectors n DC’s handle all ICA client Resolution activity, should handle all Enumeration activity. ANY DC can Resolve ANY app for ANY client (DC’s are peers in a multi-zone implementation). n DC’s distribute most persistent data changes to member servers for LHC update. Zone 1 Zone 2 CMC DS LHC DC Server Farm

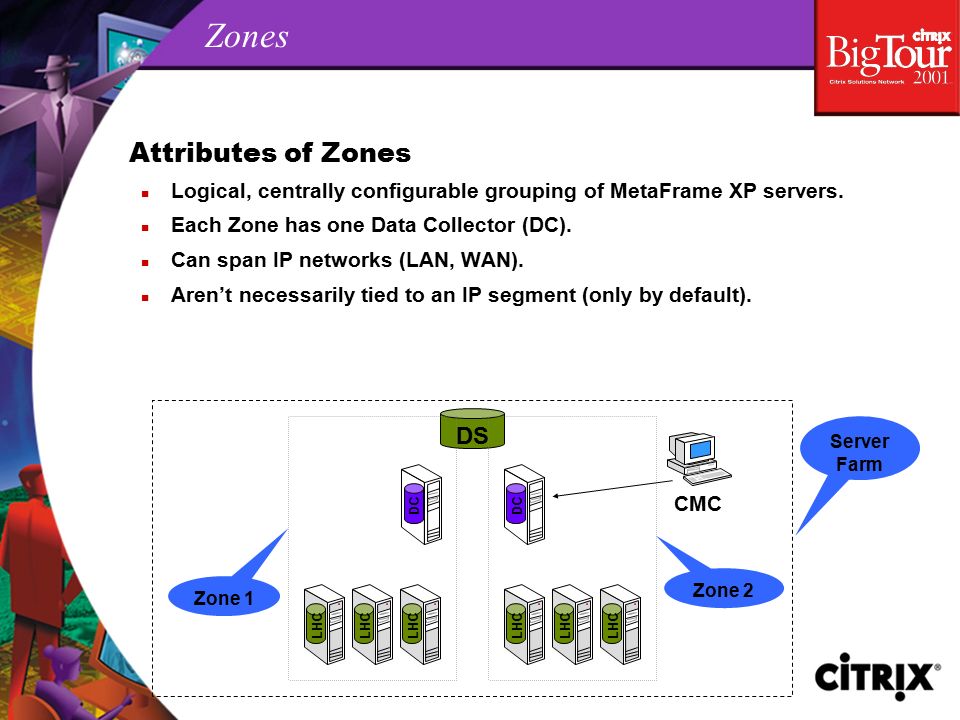

25 Zones Attributes of Zones n Logical, centrally configurable grouping of MetaFrame XP servers. n Each Zone has one Data Collector (DC). n Can span IP networks (LAN, WAN). n Aren’t necessarily tied to an IP segment (only by default). Zone 1 Zone 2 CMC DS LHC DC Server Farm

26 Zones Attributes of Zones n Are useful for partitioning/controlling persistent data update traffic and for distributing ICA client Enumeration/Resolution traffic. n A Zone can contain up to 256 hosts without a registry modification. n In most cases, fewer zones are better! Zone 1 Zone 2 CMC DS LHC DC Server Farm

27 Citrix Management Console (CMC) Attributes of the CMC n Central management tool where 98% of farm configuration/maintenance occurs. n Extensible framework that allows different tools to ‘snap in’. n Doesn’t need to run on a MetaFrame server. Zone 1 Zone 2 CMC DS LHC DC Server Farm

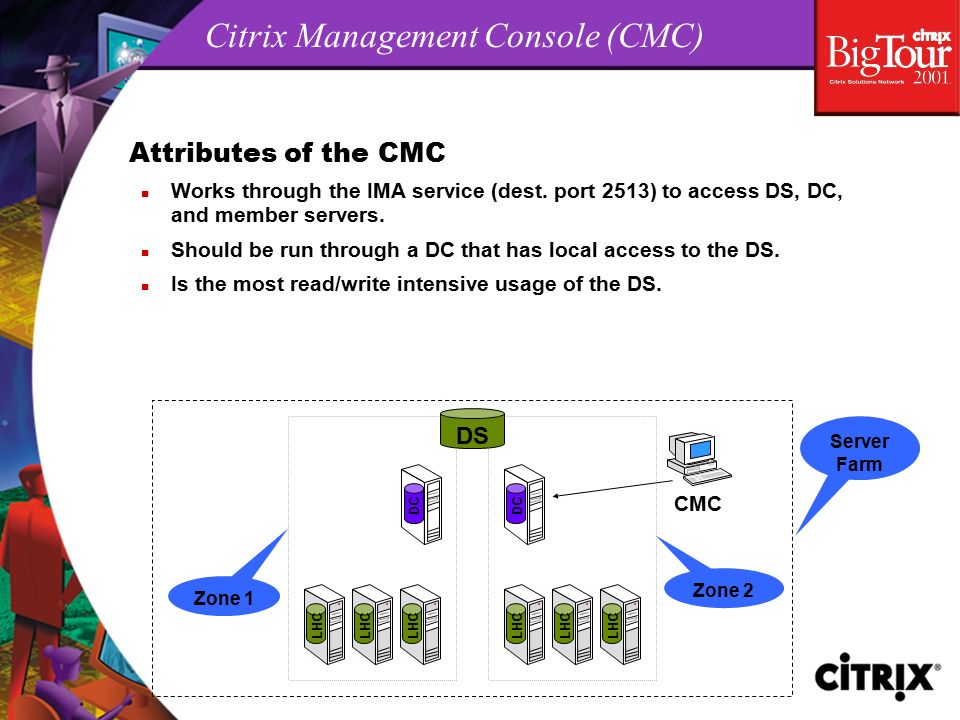

28 Citrix Management Console (CMC) Attributes of the CMC n Works through the IMA service (dest. port 2513) to access DS, DC, and member servers. n Should be run through a DC that has local access to the DS. n Is the most read/write intensive usage of the DS. Zone 1 Zone 2 CMC DS LHC DC Server Farm

29 Demonstration: CMC in Action

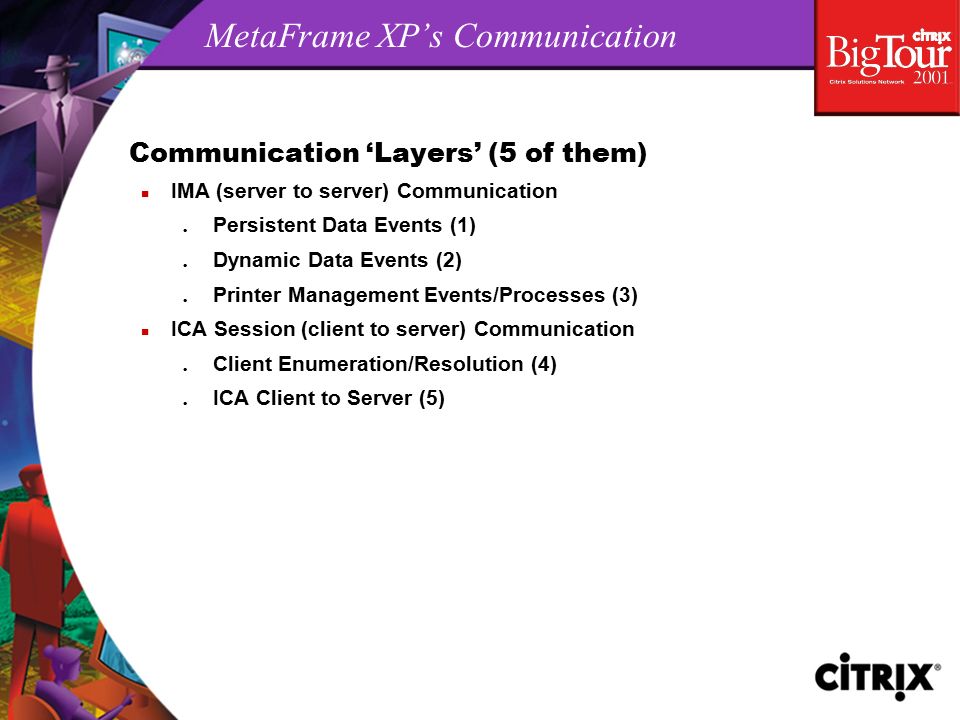

30 MetaFrame XP’s Communication Communication ‘Layers’ (5 of them) n IMA (server to server) Communication l Persistent Data Events (1) l Dynamic Data Events (2) l Printer Management Events/Processes (3) n ICA Session (client to server) Communication l Client Enumeration/Resolution (4) l ICA Client to Server (5)

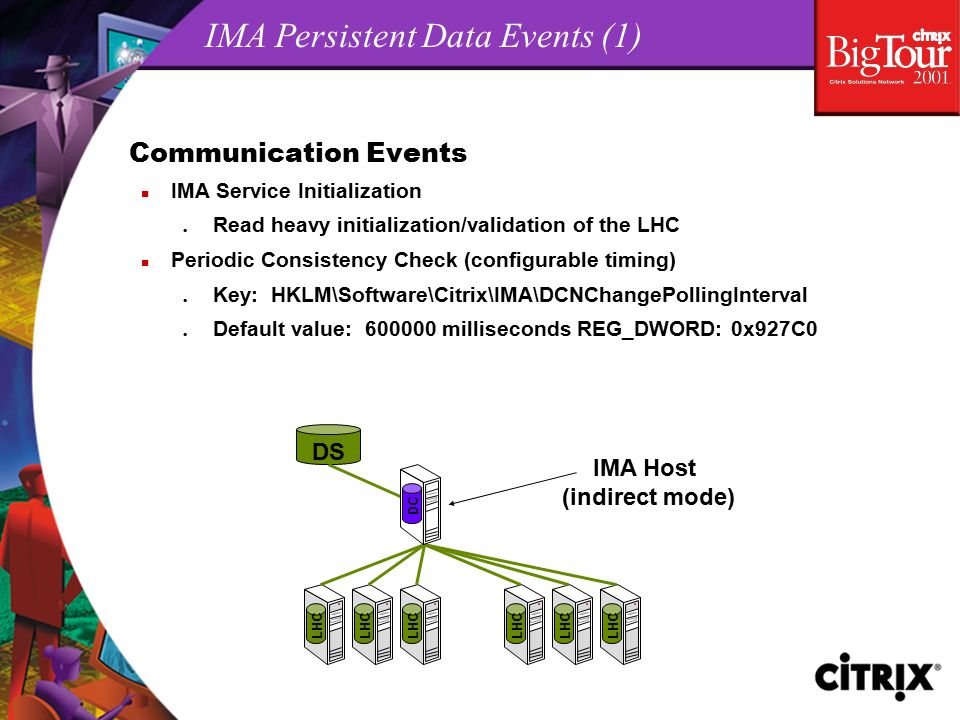

31 IMA Persistent Data Events (1) Communication Events n IMA Service Initialization l Read heavy initialization/validation of the LHC n Periodic Consistency Check (configurable timing) l Key: HKLM\Software\Citrix\IMA\DCNChangePollingInterval l Default value: 600000 milliseconds REG_DWORD: 0x927C0 DS LHC IMA Host (indirect mode) DC

32 IMA Persistent Data Events (1) Communication Events n Farm modification through CMC l Modifications happen through a 2-phase process: l 1: CMC commits the change to the DS. l 2: CMC/IMA packages and distributes changes 10k, it distributes a change notification and servers perform consistency check on LHC. l If member servers are unavailable, they receive the change during the periodic LHC consistency check. CMC DS LHC DC

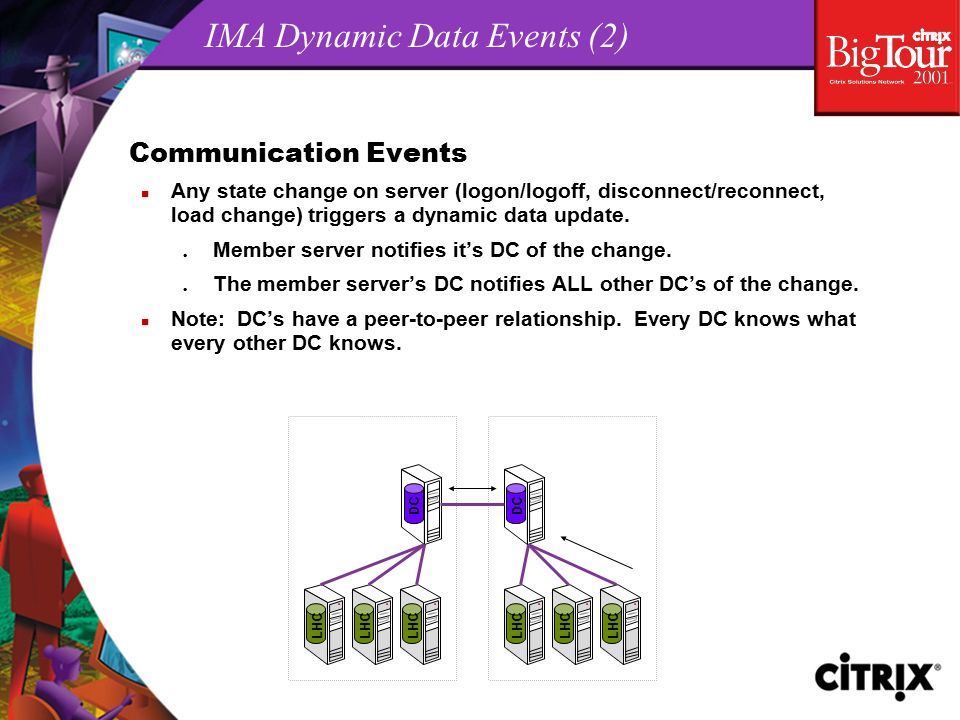

33 IMA Dynamic Data Events (2) Communication Events n Any state change on server (logon/logoff, disconnect/reconnect, load change) triggers a dynamic data update. l Member server notifies it’s DC of the change. l The member server’s DC notifies ALL other DC’s of the change. n Note: DC’s have a peer-to-peer relationship. Every DC knows what every other DC knows. LHC DC

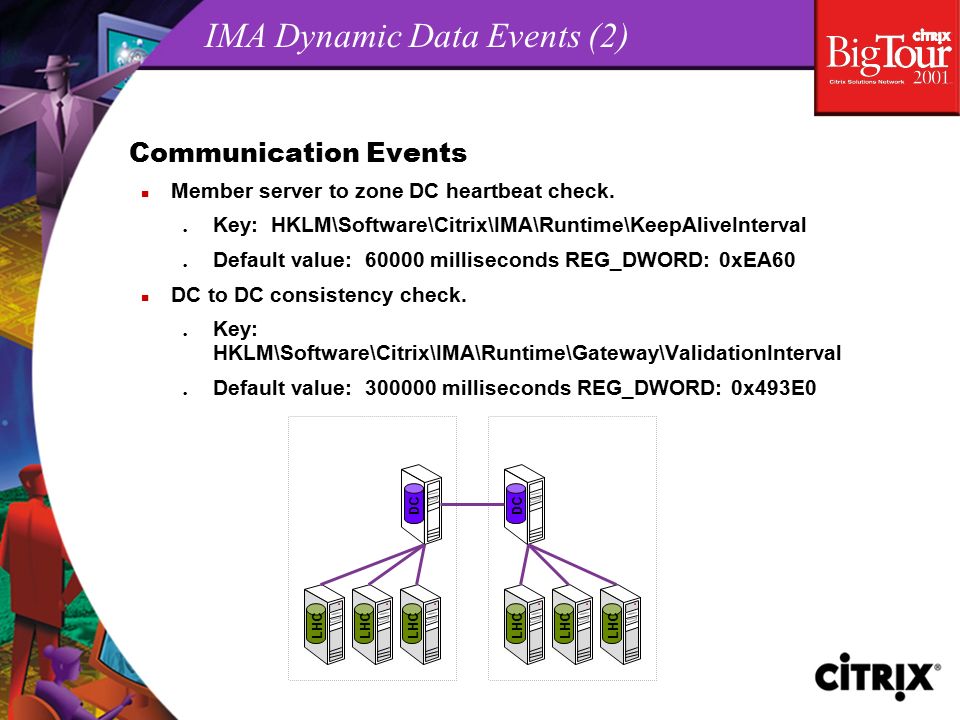

34 IMA Dynamic Data Events (2) Communication Events n Member server to zone DC heartbeat check. l Key: HKLM\Software\Citrix\IMA\Runtime\KeepAliveInterval l Default value: 60000 milliseconds REG_DWORD: 0xEA60 n DC to DC consistency check. l Key: HKLM\Software\Citrix\IMA\Runtime\Gateway\ValidationInterval l Default value: 300000 milliseconds REG_DWORD: 0x493E0 LHC DC

35 IMA Printer Management Events (3) Communication Events n Printer Management has a relatively substantial impact upon IMA traffic.

36 ICA Session Communication (4) Client Enumeration/Resolution n Client to MetaFrame XP: Client asking, server answering ‘what apps can I run?’ and ‘where do I go for this app?’ l Enumeration (what apps…): Client to MetaFrame XP server, TCP80 (default with TCP+HTTP server location), or UDP1604 (with TCP/IP server location), enumerated from LHC on MetaFrame server. l Resolution (where do I go…): Client to MetaFrame XP DC, TCP80 (default with TCP+HTTP server location), or UDP1604 (with TCP/IP server location). LHC DC

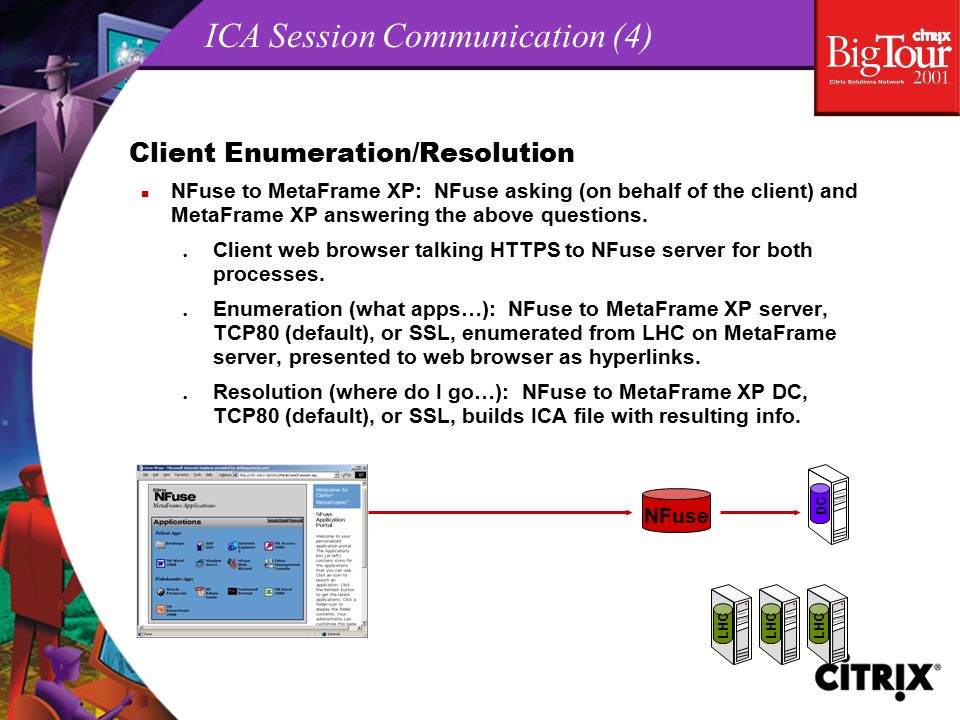

37 ICA Session Communication (4) Client Enumeration/Resolution n NFuse to MetaFrame XP: NFuse asking (on behalf of the client) and MetaFrame XP answering the above questions. l Client web browser talking HTTPS to NFuse server for both processes. l Enumeration (what apps…): NFuse to MetaFrame XP server, TCP80 (default), or SSL, enumerated from LHC on MetaFrame server, presented to web browser as hyperlinks. l Resolution (where do I go…): NFuse to MetaFrame XP DC, TCP80 (default), or SSL, builds ICA file with resulting info. LHC DC NFuse

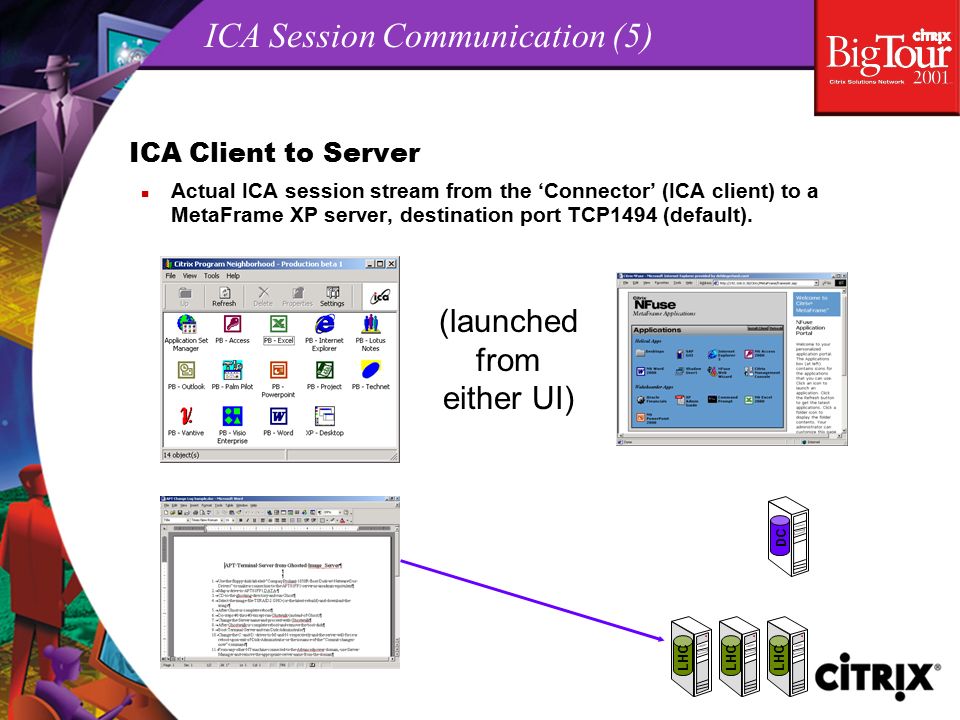

38 ICA Session Communication (5) ICA Client to Server n Actual ICA session stream from the ‘Connector’ (ICA client) to a MetaFrame XP server, destination port TCP1494 (default). LHC DC (launched from either UI)

39 IMA In Depth

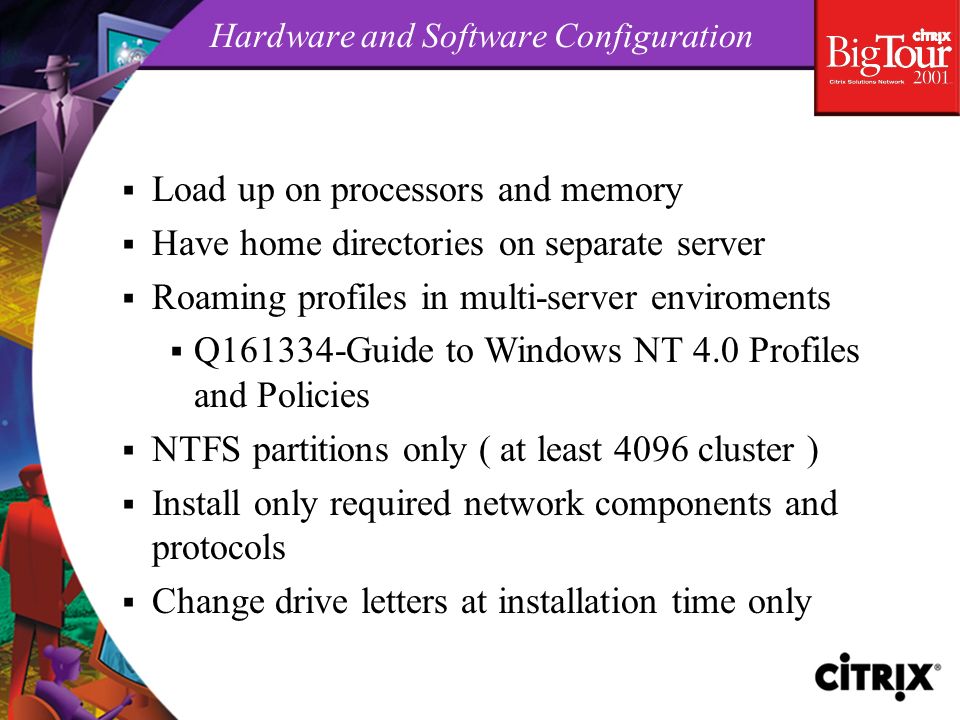

40  Load up on processors and memory  Have home directories on separate server  Roaming profiles in multi-server enviroments  Q161334-Guide to Windows NT 4.0 Profiles and Policies  NTFS partitions only ( at least 4096 cluster )  Install only required network components and protocols  Change drive letters at installation time only Hardware and Software Configuration

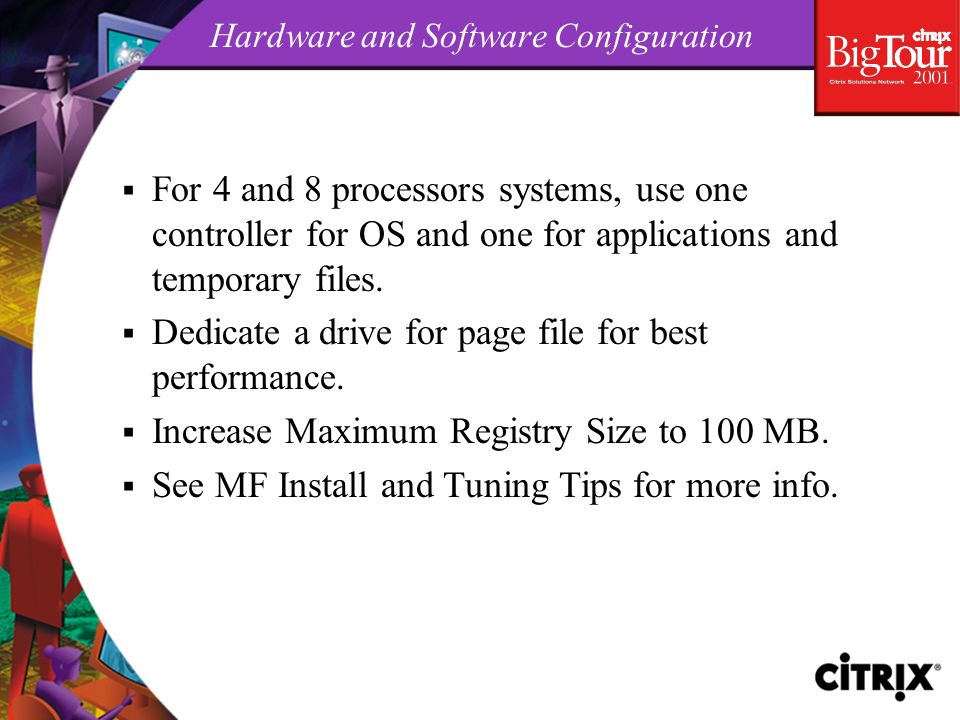

41  For 4 and 8 processors systems, use one controller for OS and one for applications and temporary files.  Dedicate a drive for page file for best performance.  Increase Maximum Registry Size to 100 MB.  See MF Install and Tuning Tips for more info. Hardware and Software Configuration

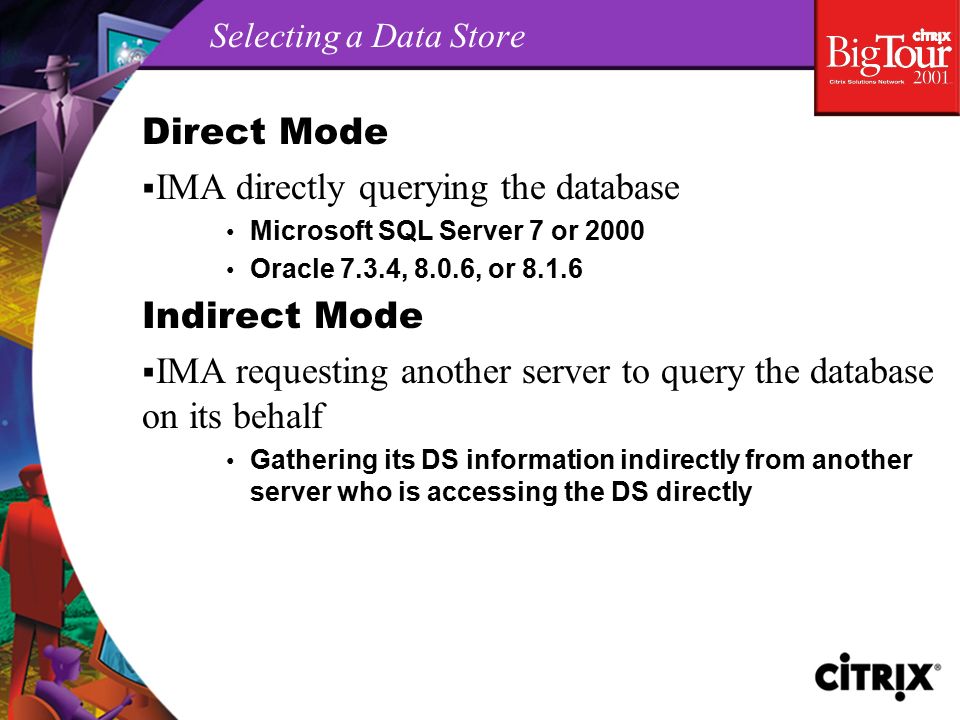

42 Direct Mode  IMA directly querying the database Microsoft SQL Server 7 or 2000 Oracle 7.3.4, 8.0.6, or 8.1.6 Indirect Mode  IMA requesting another server to query the database on its behalf Gathering its DS information indirectly from another server who is accessing the DS directly Selecting a Data Store

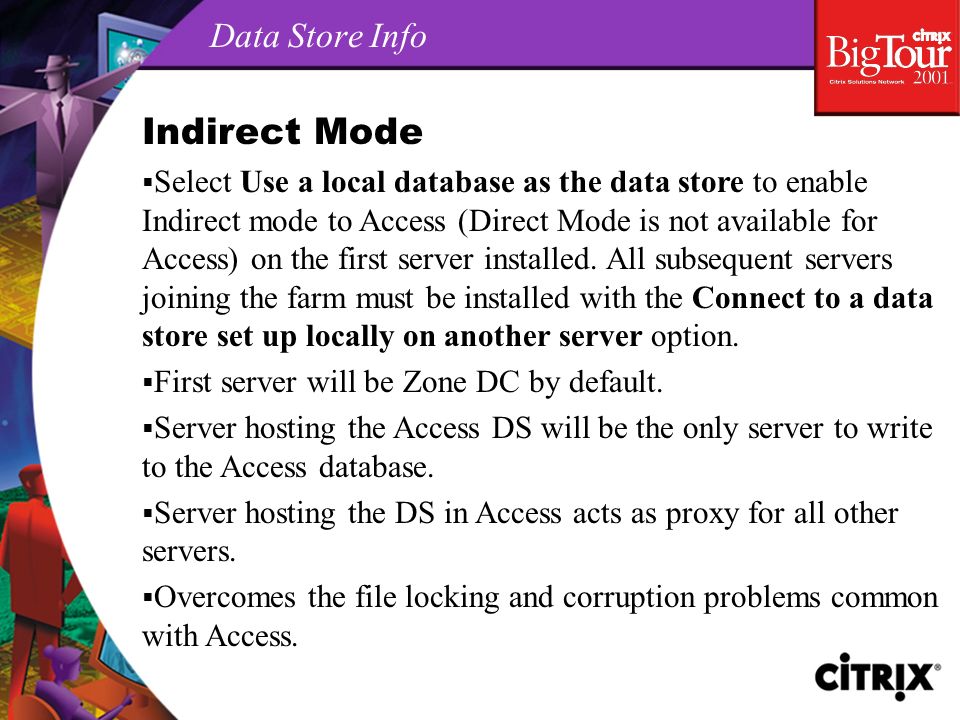

43 Indirect Mode  Select Use a local database as the data store to enable Indirect mode to Access (Direct Mode is not available for Access) on the first server installed. All subsequent servers joining the farm must be installed with the Connect to a data store set up locally on another server option.  First server will be Zone DC by default.  Server hosting the Access DS will be the only server to write to the Access database.  Server hosting the DS in Access acts as proxy for all other servers.  Overcomes the file locking and corruption problems common with Access. Data Store Info

44 Using Access  Approximately 20 MB of disk space should be available for every 100 servers in the farm.  32 MB of additional RAM is recommended if the MetaFrame XP server will also host connections.  Need MDAC 2.5 SP 1 installed on TSE. Stop TS Licensing Service before Installing MDAC. Reboot.  %ProgramFiles%\Citrix\Independent Management Architecture\MF20.MDB ( System must have read/write access)  The default user name/password is citrix/citrix. To change the password on the database, use the dsmaint config /pwd:newpassword command with the IMA service running. Data Store Info

45 Using Access  Each time the IMA service is stopped gracefully, the existing mf20.mdb file is backed up, compacted, and copied as mf20.unk. Each time the IMA service starts successfully, it deletes any existing instance of mf20.bak and then renames the mf20.unk file to mf20.bak. This file is used when the dsmaint recover command is executed.  If the server runs out of disk space on the drive where the mf20.mdb file is stored, the automatic backup stops functioning. Always ensure there is enough disk space to hold 3 times the size of the mf20.mdb.  Perform backup of DS with DSMAINT BACKUP Data Store Info

46 Using SQL  Approximately 20 MB of disk space for every 100 servers in the farm. The disk space used may increase if there are a large number of published applications in the farm.  The temp database should be set to Auto Grow on a partition with at least 1 GB of free space (4 GB is recommended if it is a large farm with multiple print drivers).  Verify that enough disk space exists on the server to support growth of both the temp database and the farm database.  Use MDAC 2.5 SP1 on TSE. Do not use MDAC 2.6 with SQL 2000. Known bug. Data Store Info

47 Using SQL  When using Microsoft SQL Server in a replicated environment, be sure to use the same user account on each Microsoft SQL Server for the DS.  Each MetaFrame XP farm requires a dedicated database. However, multiple databases may be running on a single Microsoft SQL Server.  The MetaFrame XP farm should not be installed in a database that is shared with any other client-server applications.  Databases should have the Truncate log on Checkpoint option set to keep log space controlled.  Ensure DS is backed up whenever a change is made via CMC. Data Store Info

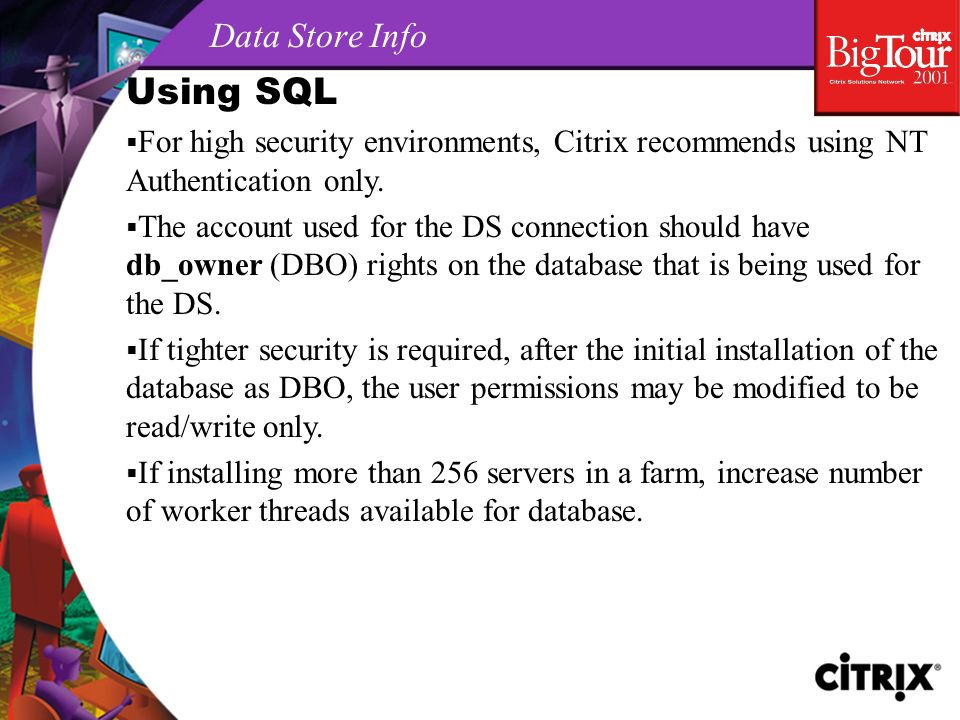

48 Using SQL  For high security environments, Citrix recommends using NT Authentication only.  The account used for the DS connection should have db_owner (DBO) rights on the database that is being used for the DS.  If tighter security is required, after the initial installation of the database as DBO, the user permissions may be modified to be read/write only.  If installing more than 256 servers in a farm, increase number of worker threads available for database. Data Store Info

49 Using Oracle  Approximately 20 MB of disk space for every 100 servers in the farm. The space used may increase if there are a large number of published applications in the farm.  The Oracle Client (version 8.1.55 or 8.1.6) must be installed on the terminal server prior to the installation of MetaFrame XP. The 8.1.5 and 8.1.7 clients are not supported with MetaFrame XP.  The server should be rebooted after installation of the Oracle Client, or the MetaFrame XP installation fails to connect to the DS. Data Store Info

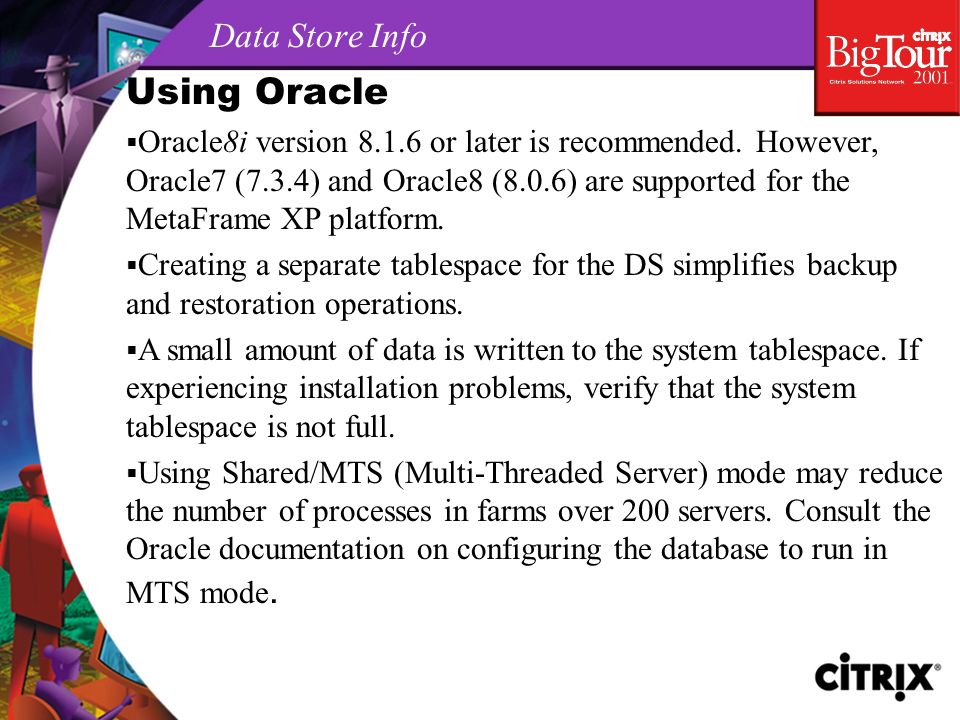

50 Using Oracle  Oracle8i version 8.1.6 or later is recommended. However, Oracle7 (7.3.4) and Oracle8 (8.0.6) are supported for the MetaFrame XP platform.  Creating a separate tablespace for the DS simplifies backup and restoration operations.  A small amount of data is written to the system tablespace. If experiencing installation problems, verify that the system tablespace is not full.  Using Shared/MTS (Multi-Threaded Server) mode may reduce the number of processes in farms over 200 servers. Consult the Oracle documentation on configuring the database to run in MTS mode. Data Store Info

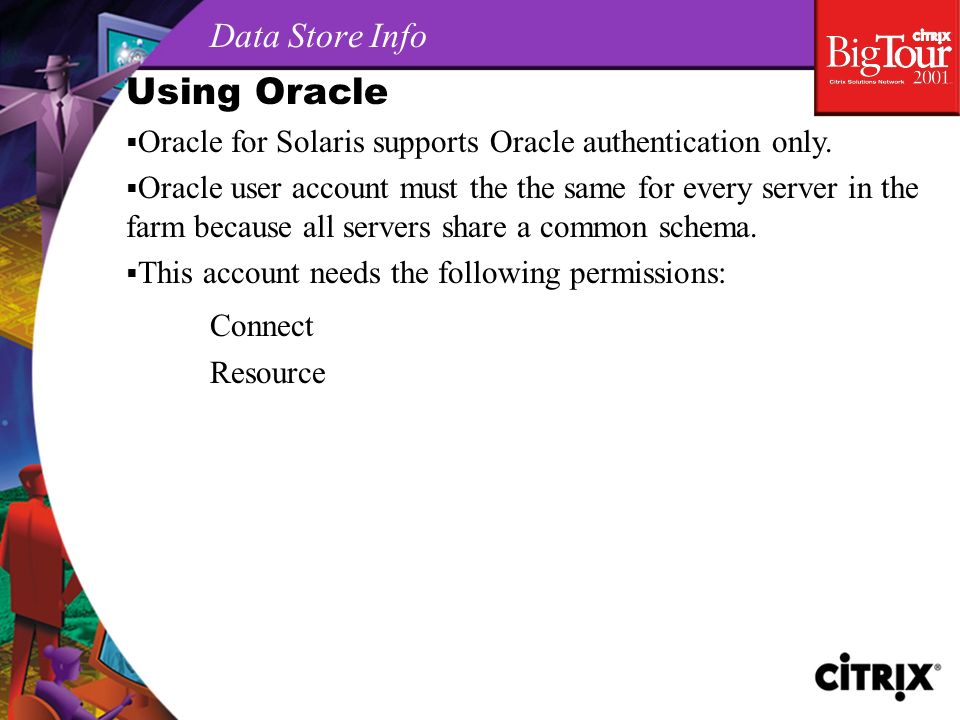

51 Using Oracle  Oracle for Solaris supports Oracle authentication only.  Oracle user account must the the same for every server in the farm because all servers share a common schema.  This account needs the following permissions: Connect Resource Data Store Info

52  May be necessary when the following occurs:  Delays in using CMC  Increased IMA service start times due high CPU utilization on server hosting DS.  Cut maximum users to one half to two thirds of full load to improve performance. Dedicating a server for Indirect Mode

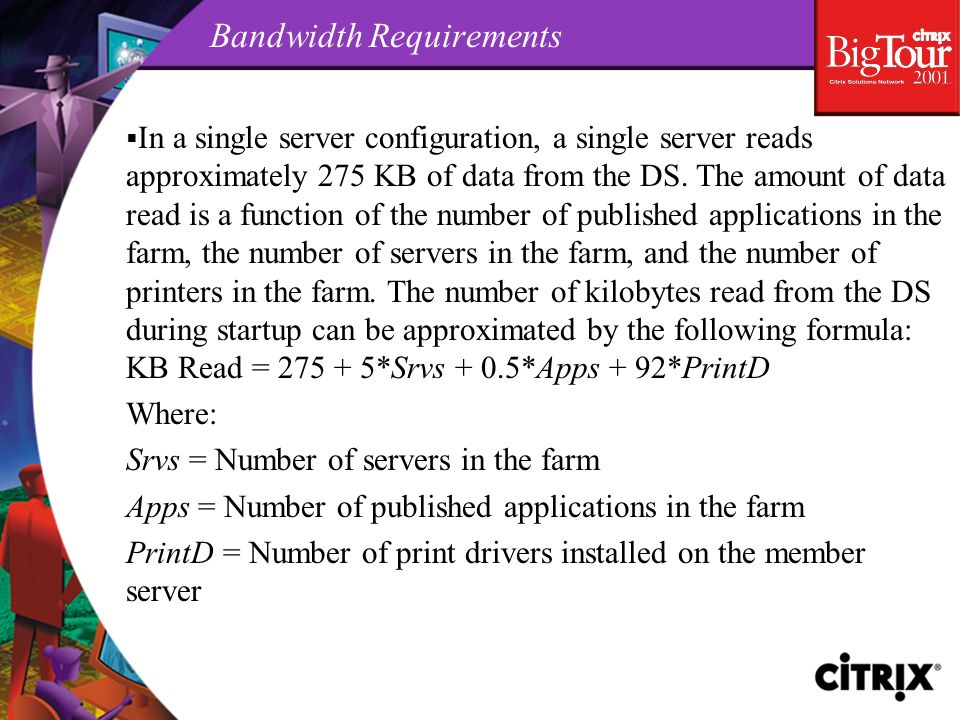

53  In a single server configuration, a single server reads approximately 275 KB of data from the DS. The amount of data read is a function of the number of published applications in the farm, the number of servers in the farm, and the number of printers in the farm. The number of kilobytes read from the DS during startup can be approximated by the following formula: KB Read = 275 + 5*Srvs + 0.5*Apps + 92*PrintD Where: Srvs = Number of servers in the farm Apps = Number of published applications in the farm PrintD = Number of print drivers installed on the member server Bandwidth Requirements

54  High Latency WAN Concerns  Without use of replicated databases, may create situations where DS is locked for extensive periods of time when performing maintenance  A high latency situation reads should not adversely affect any local connections, but the remote site may experience slow performance.  Replicated Databases  Speed up performance if there is enough MetaFrame servers to justify the cost  Database replication will consume bandwidth but is controlled through the database chosen, not MetaFrame Data Store Info

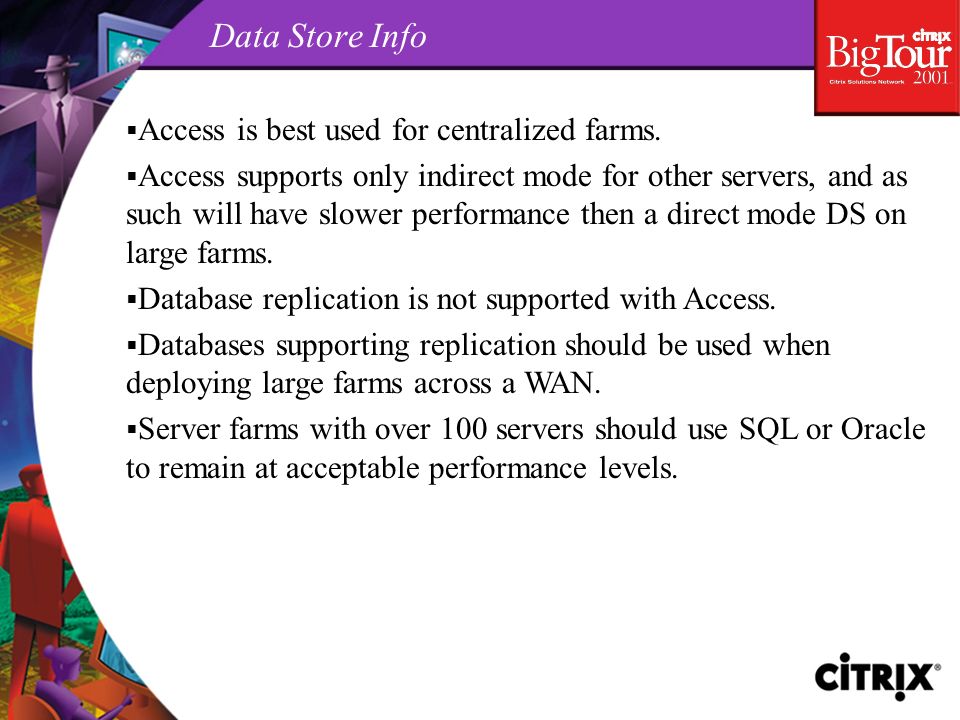

55  Access is best used for centralized farms.  Access supports only indirect mode for other servers, and as such will have slower performance then a direct mode DS on large farms.  Database replication is not supported with Access.  Databases supporting replication should be used when deploying large farms across a WAN.  Server farms with over 100 servers should use SQL or Oracle to remain at acceptable performance levels. Data Store Info

56  Farms using excessive printer drivers and scheduled replication should use SQL or Oracle.  Farms that cycle boot large groups of servers simultaneously should use SQL or Oracle in direct mode to minimize the IMA service start time.  Both Microsoft SQL Server and Oracle are very similar in performance. In the Citrix Test eLabs both database servers performed similarly with large farms. The choice between the two should be based on feature sets of the databases, in-house expertise, management tools, and licensing costs rather than performance numbers  Use Microsoft Clustering Services with SQL or Oracle Parallel Server with Oracle for fault tolerance. Data Store Info

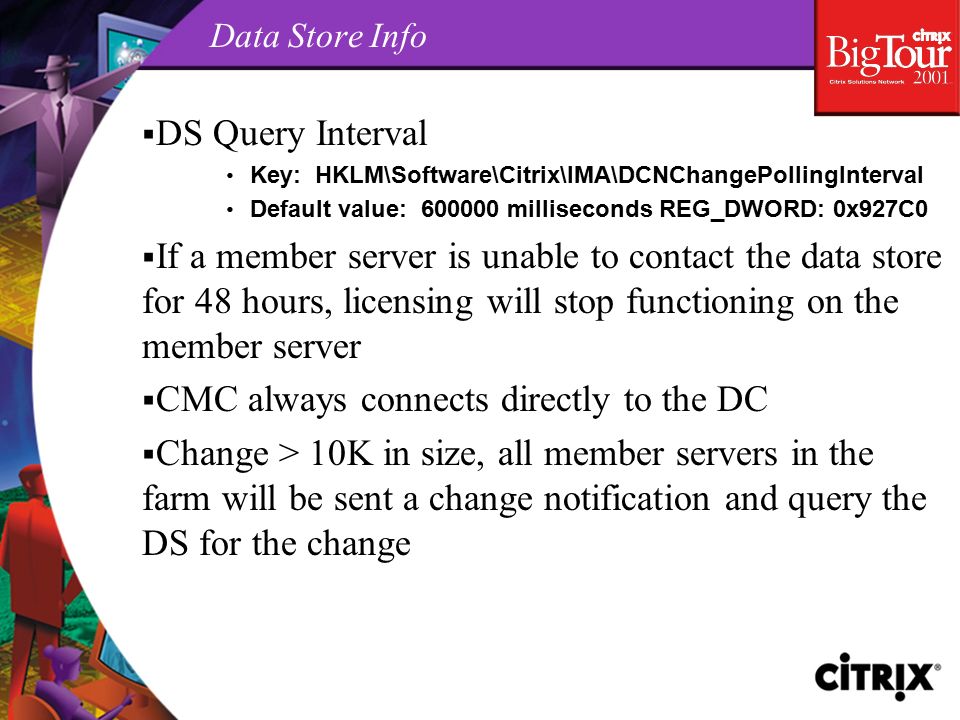

57  DS Query Interval Key: HKLM\Software\Citrix\IMA\DCNChangePollingInterval Default value: 600000 milliseconds REG_DWORD: 0x927C0  If a member server is unable to contact the data store for 48 hours, licensing will stop functioning on the member server  CMC always connects directly to the DC  Change > 10K in size, all member servers in the farm will be sent a change notification and query the DS for the change Data Store Info

58  Server 1 writes information to the DS  Server 1 sends change notification to its zone DC  Zone DC distributes change notification to all member servers in its zone  Other zone DC’s receive notification and distribute it to all member servers within their respective zones  All member servers receive the notification and update their LHC as requested Data Distribution with Data Collectors

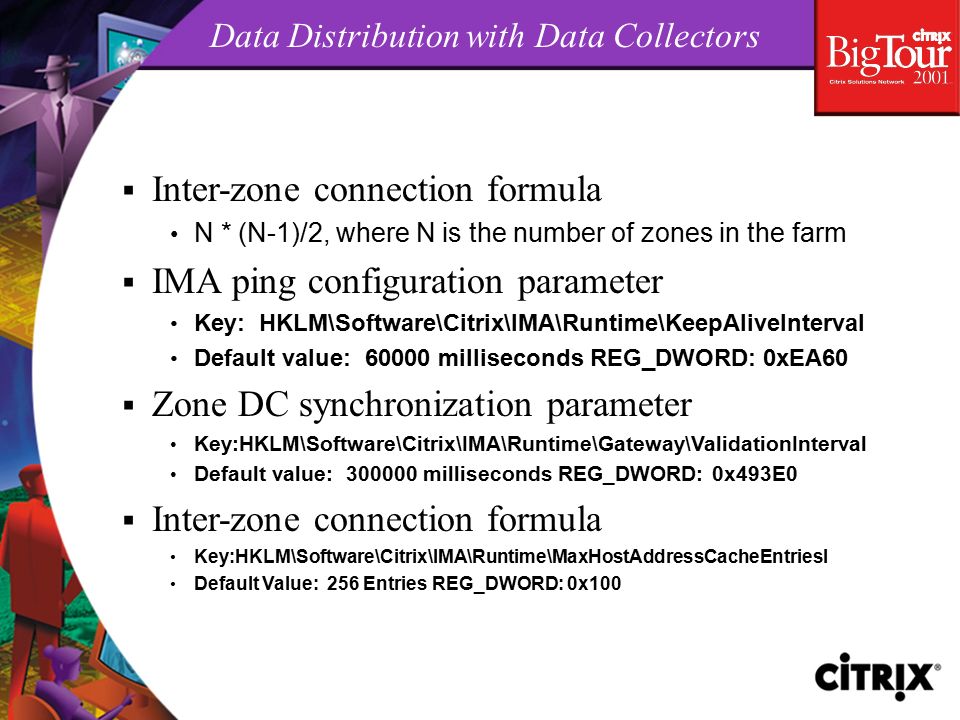

59  Inter-zone connection formula N * (N-1)/2, where N is the number of zones in the farm  IMA ping configuration parameter Key: HKLM\Software\Citrix\IMA\Runtime\KeepAliveInterval Default value: 60000 milliseconds REG_DWORD: 0xEA60  Zone DC synchronization parameter Key:HKLM\Software\Citrix\IMA\Runtime\Gateway\ValidationInterval Default value: 300000 milliseconds REG_DWORD: 0x493E0  Inter-zone connection formula Key:HKLM\Software\Citrix\IMA\Runtime\MaxHostAddressCacheEntriesl Default Value: 256 Entries REG_DWORD: 0x100 Data Distribution with Data Collectors

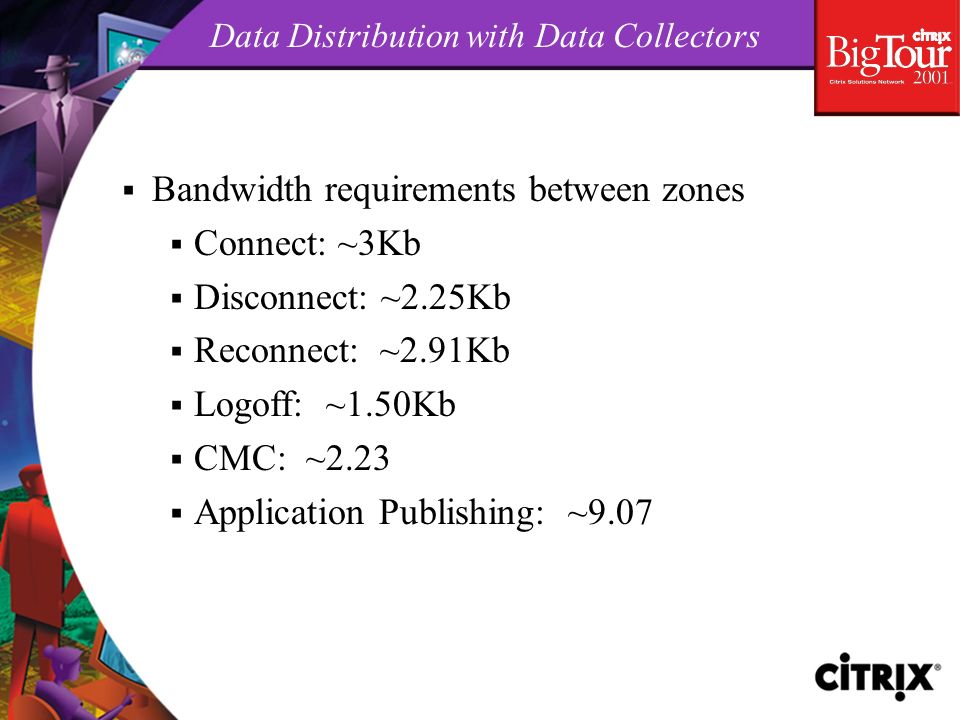

60  Bandwidth requirements between zones  Connect: ~3Kb  Disconnect: ~2.25Kb  Reconnect: ~2.91Kb  Logoff: ~1.50Kb  CMC: ~2.23  Application Publishing: ~9.07 Data Distribution with Data Collectors

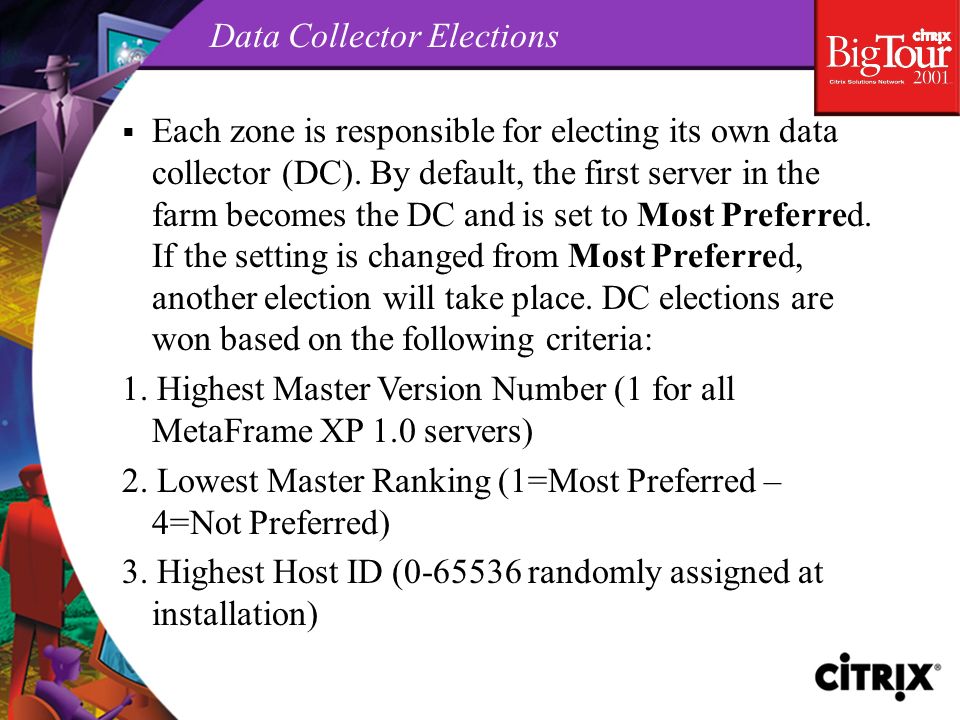

61  Each zone is responsible for electing its own data collector (DC). By default, the first server in the farm becomes the DC and is set to Most Preferred. If the setting is changed from Most Preferred, another election will take place. DC elections are won based on the following criteria: 1. Highest Master Version Number (1 for all MetaFrame XP 1.0 servers) 2. Lowest Master Ranking (1=Most Preferred – 4=Not Preferred) 3. Highest Host ID (0-65536 randomly assigned at installation) Data Collector Elections

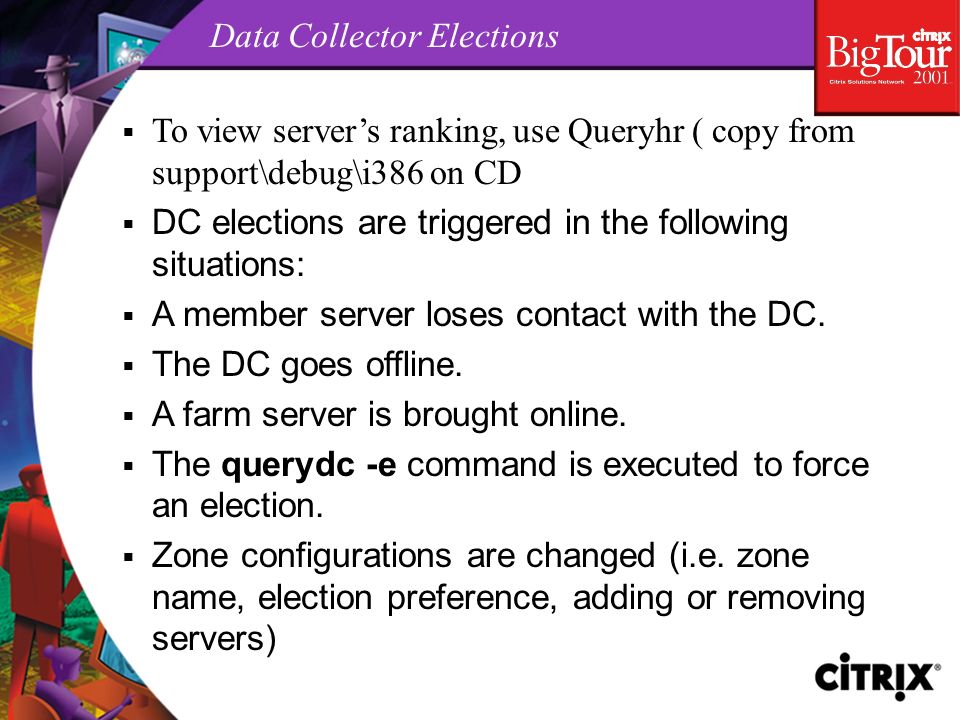

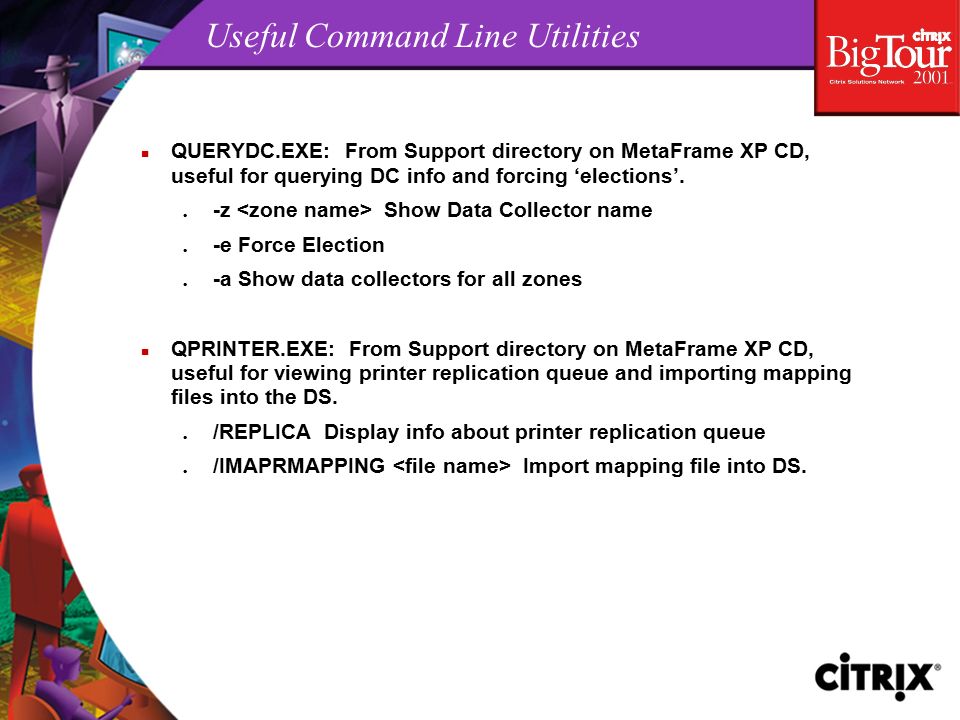

62  To view server’s ranking, use Queryhr ( copy from support\debug\i386 on CD  DC elections are triggered in the following situations:  A member server loses contact with the DC.  The DC goes offline.  A farm server is brought online.  The querydc -e command is executed to force an election.  Zone configurations are changed (i.e. zone name, election preference, adding or removing servers) Data Collector Elections

63  When a new DC is elected, all servers in the zone send a complete update to the new DC. The following formula can be used to approximate the amount of data in bytes sent by all servers in the zone to the new zone DC:  Bytes = (11000 + (1000 * Con) + (600 * Discon) + (350 * Apps)) * (Srvs - 1)  Where:  Con = Average number of connected sessions per server  Discon = Average number of disconnected sessions per server  Apps = Number of published applications in the farm  Srvs = Number of servers in the zone Data Collector Elections

64 Local Host Cache Attributes of the Local Host Cache n A subset of the Data Store, stored on each individual server (IMALHC.MDB). n Contains basic info about servers in farm, pub. apps and properties, trust relationships, server specific configs (product code, SNMP settings, load evaluators, etc.). n Used for initialization if DS is down. n Used for ICA client application Enumeration.

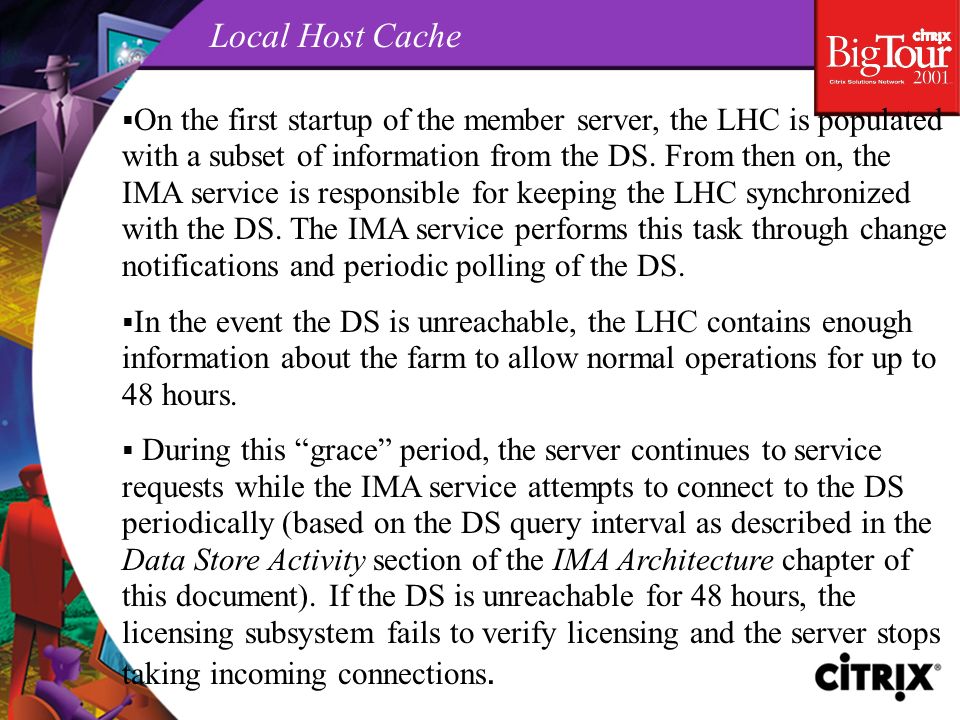

65 Local Host Cache  On the first startup of the member server, the LHC is populated with a subset of information from the DS. From then on, the IMA service is responsible for keeping the LHC synchronized with the DS. The IMA service performs this task through change notifications and periodic polling of the DS.  In the event the DS is unreachable, the LHC contains enough information about the farm to allow normal operations for up to 48 hours.  During this “grace” period, the server continues to service requests while the IMA service attempts to connect to the DS periodically (based on the DS query interval as described in the Data Store Activity section of the IMA Architecture chapter of this document). If the DS is unreachable for 48 hours, the licensing subsystem fails to verify licensing and the server stops taking incoming connections.

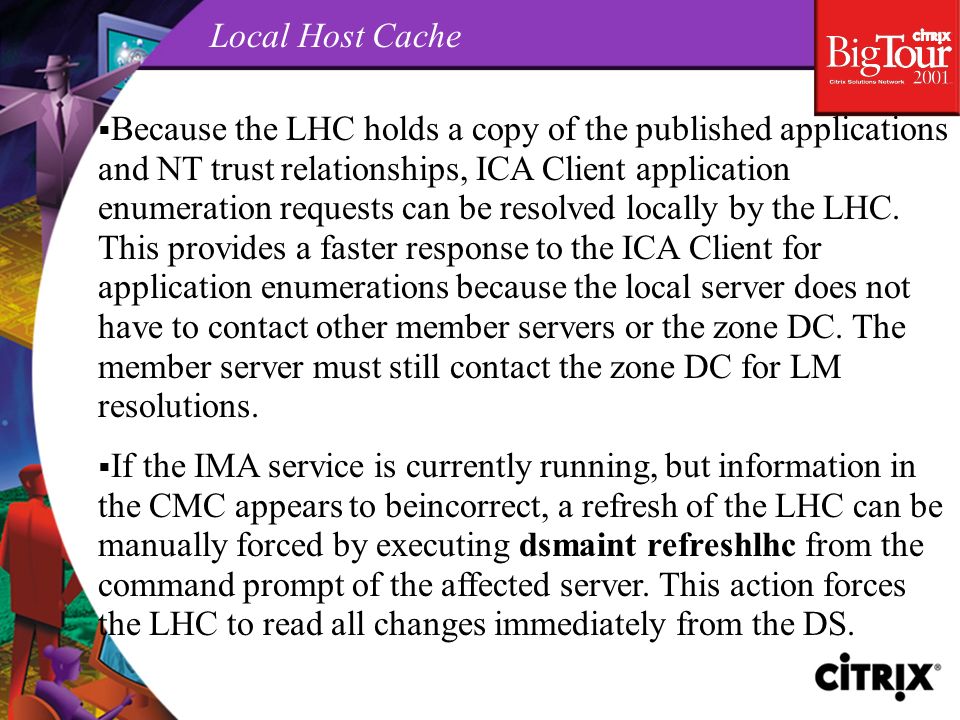

66 Local Host Cache  Because the LHC holds a copy of the published applications and NT trust relationships, ICA Client application enumeration requests can be resolved locally by the LHC. This provides a faster response to the ICA Client for application enumerations because the local server does not have to contact other member servers or the zone DC. The member server must still contact the zone DC for LM resolutions.  If the IMA service is currently running, but information in the CMC appears to beincorrect, a refresh of the LHC can be manually forced by executing dsmaint refreshlhc from the command prompt of the affected server. This action forces the LHC to read all changes immediately from the DS.

67 Local Host Cache . If the IMA service does not start, it may be caused by a corrupt LHC. 1. Verify the DS is available before continuing because this procedure causes the LHC to be reloaded directly from the DS. 2. Stop the IMA service on the MetaFrame server. 3. Launch the ODBC Data Source Administrator. On Windows 2000, choose Control Panel | Administrative Tools | Data Sources (ODBC). On TSE choose Control Panel | ODBC Data Sources. 4. Select the File DSN tab.

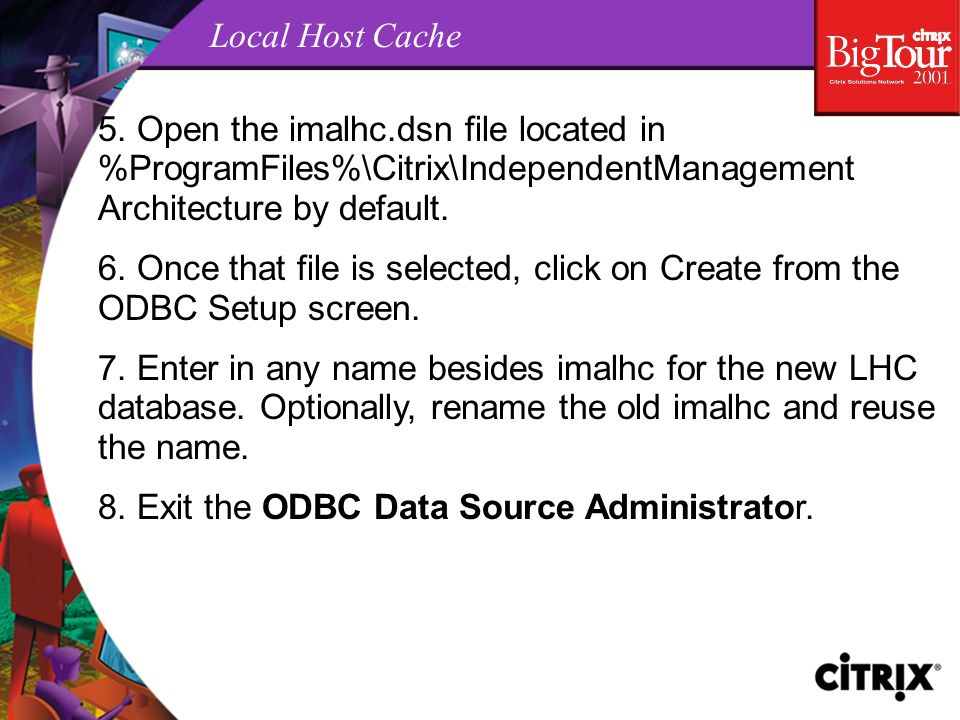

68 Local Host Cache 5. Open the imalhc.dsn file located in %ProgramFiles%\Citrix\IndependentManagement Architecture by default. 6. Once that file is selected, click on Create from the ODBC Setup screen. 7. Enter in any name besides imalhc for the new LHC database. Optionally, rename the old imalhc and reuse the name. 8. Exit the ODBC Data Source Administrator.

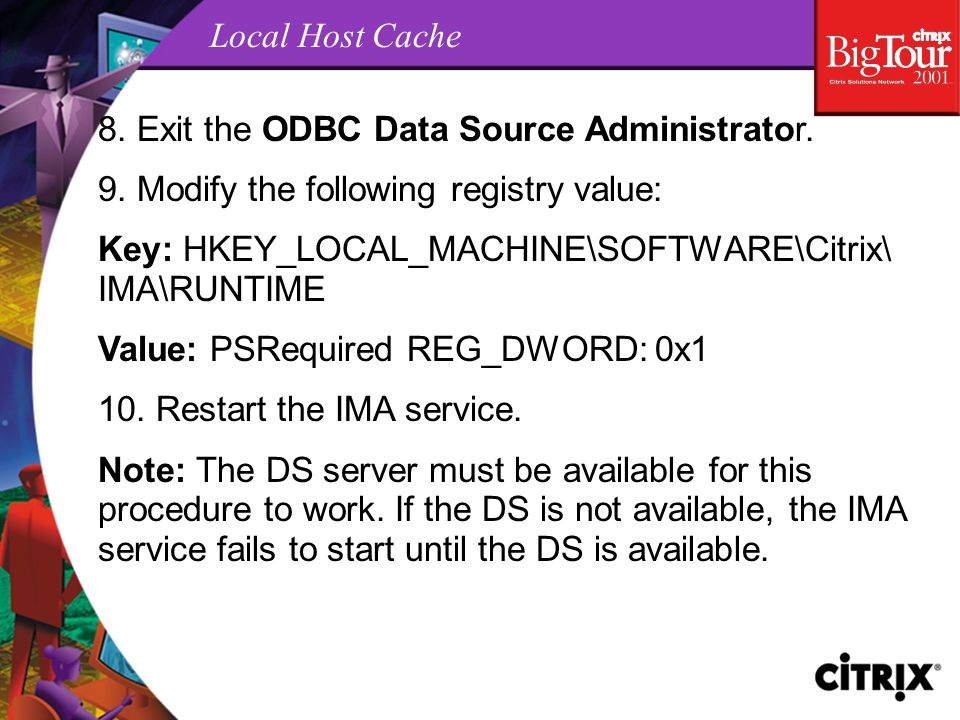

69 Local Host Cache 8. Exit the ODBC Data Source Administrator. 9. Modify the following registry value: Key: HKEY_LOCAL_MACHINE\SOFTWARE\Citrix\ IMA\RUNTIME Value: PSRequired REG_DWORD: 0x1 10. Restart the IMA service. Note: The DS server must be available for this procedure to work. If the DS is not available, the IMA service fails to start until the DS is available.

70 Security Considerations

71 IMA Security  Always install on NTFS partitions  Make sure the LHC is secure %SystemDrive%\Program Files\Citrix\Independent Management Architecture Give access to “System” and “Administrators” group with Full Control only  Run the CMC from the console only  Run the CMC as a published application if wanting to run on a separate machine  Make sure encryption is used for traffic between DS and MetaFrame servers  Run the MFCfg.exe utility and remove the “Everyone” group from each of the listeners

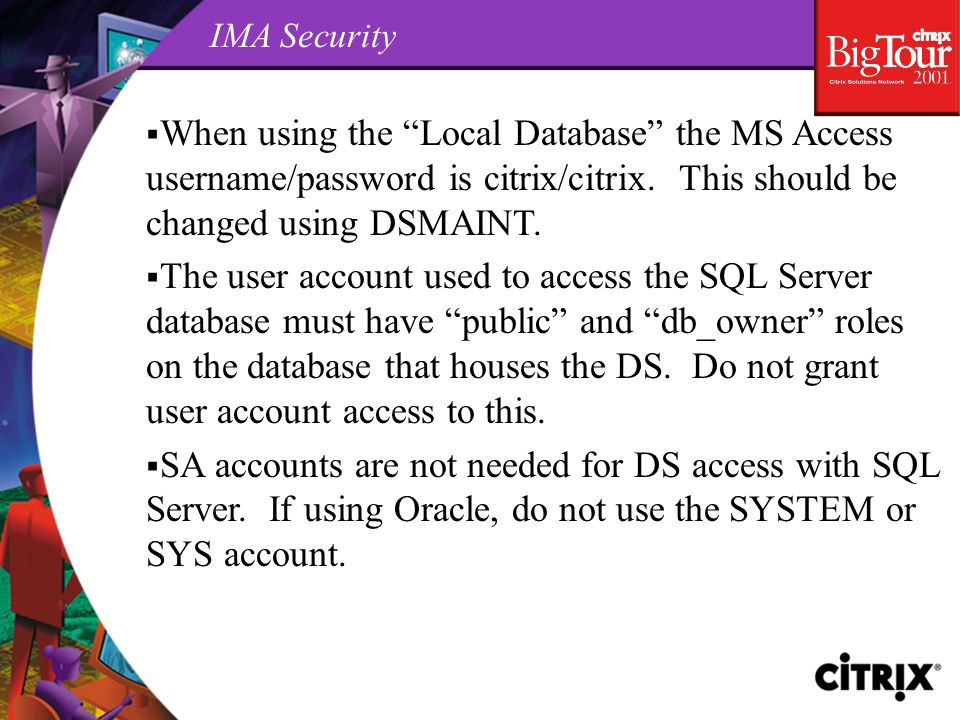

72 IMA Security  When using the “Local Database” the MS Access username/password is citrix/citrix. This should be changed using DSMAINT.  The user account used to access the SQL Server database must have “public” and “db_owner” roles on the database that houses the DS. Do not grant user account access to this.  SA accounts are not needed for DS access with SQL Server. If using Oracle, do not use the SYSTEM or SYS account.

73 IMA Security  A domain user group should be used to administer MetaFrame servers:  In the accounts domain, create a global group called “MFAdmins”  Add domain users who will have administrative privileges to the MFAdmins global group  Add the MFAdmins global group to each MetaFrame server’s local administrators group  Whenever a new user account needs to be configured for MetaFrame admin privileges, add the new account to the MFAdmins global group  Active Directory  Single AD use a Domain Local Group  Farms that span a forest, use a universal group

74 Optimizations

75 Disk Subsystem  Disk Caching  Lazy writes occur when data is cached instead of immediately written to disk. If data is being sent across the network or the server has a caching controller card, disabling lazy writes improves performance. Network and local lazy writes can be disabled by modifying the following registry settings: Key: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\ Services\Lanman Server\Parameters Value: IRPStackSize REG_DWORD: 0x6 Key: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\ Service\Lanman WorkStation\Parameters Value: UtilizeNtCaching REG_DWORD: 0x0

76 Disk Subsystem  I/O Locks The registry setting IoPageLockLimit specifies the limit of the number of bytes that can be locked for I/O operations. Since RAM is being sacrificed for increased disk performance, the optimal setting for this value should be determined through pilot tests. Changing this setting from the default can speed up file system activity. Use the table below as a guide for changing the registry setting. Server RAM (MB) IoPageLockLimit (Decimal) IoPageLockLimit (Hex) 64-128 4096 1000 2568192 2000 512 16384 4000 1024+ 65536 10000

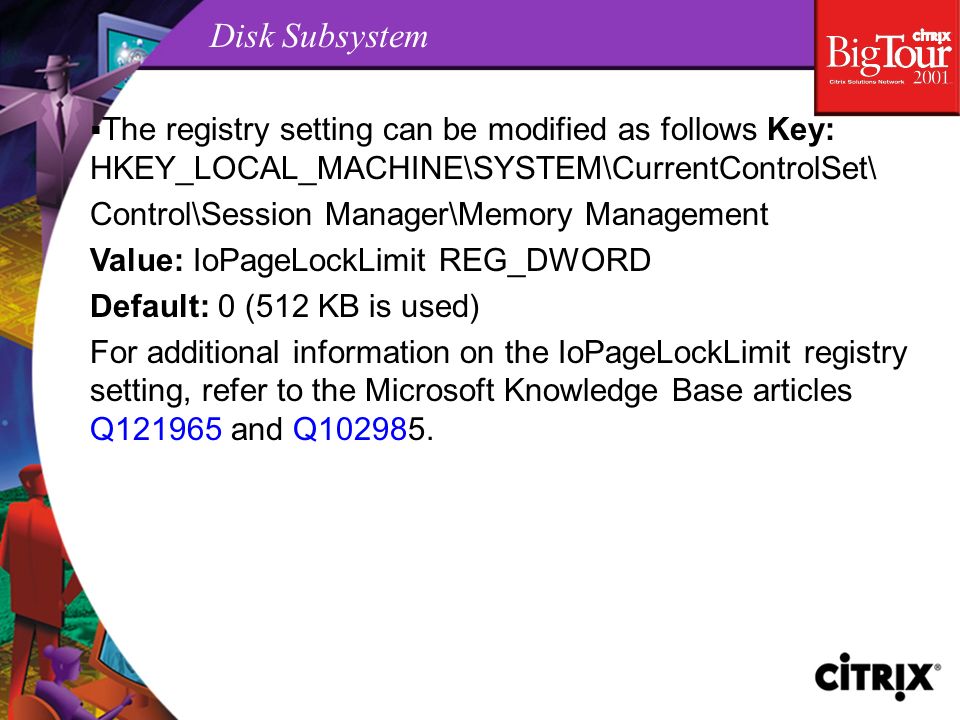

77 Disk Subsystem  The registry setting can be modified as follows Key: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\ Control\Session Manager\Memory Management Value: IoPageLockLimit REG_DWORD Default: 0 (512 KB is used) For additional information on the IoPageLockLimit registry setting, refer to the Microsoft Knowledge Base articles Q121965 and Q102985.

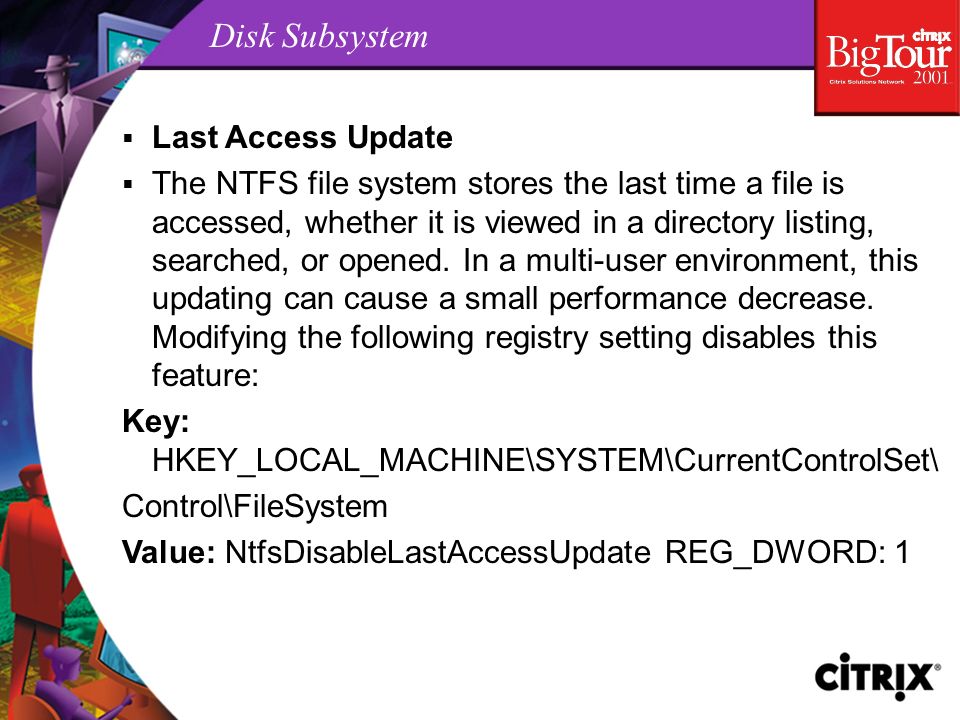

78  Last Access Update  The NTFS file system stores the last time a file is accessed, whether it is viewed in a directory listing, searched, or opened. In a multi-user environment, this updating can cause a small performance decrease. Modifying the following registry setting disables this feature: Key: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\ Control\FileSystem Value: NtfsDisableLastAccessUpdate REG_DWORD: 1 Disk Subsystem

79  The paging file should be placed on its own disk controller or on a partition that is separate from the OS, application, and user data files. If the paging file must share a partition or disk, place it on the partition or disk with the least amount of activity.  Always set the paging file initial size to be the same as the maximum size to prevent disk fragmentation of the paging file. The optimal size of a paging file is best determined by monitoring the server under a peak load. Set the paging file to be 3-5 times the physical RAM, and then stress the server while observing the size of the paging file. To conserve resources, the paging file should then be set to a value slightly larger than the maximum utilized while under stress. Memory Subsystem

80  Single-server scalability may be improved by manually adjusting the page table entries (PTE) in the registry. The NT kernel uses PTE values to allocate physical RAM between two pools of memory. By manually setting the maximum space allocated to the System PTE, the remaining space may be used to increase the number of users supported on the server. Determining the optimal configuration for PTE values is a complex task. For detailed information see the Microsoft Knowledge Base article Q247904. A Kernel Tuning Assistant for Windows 2000 servers is also available from Microsoft. Memory Subsystem

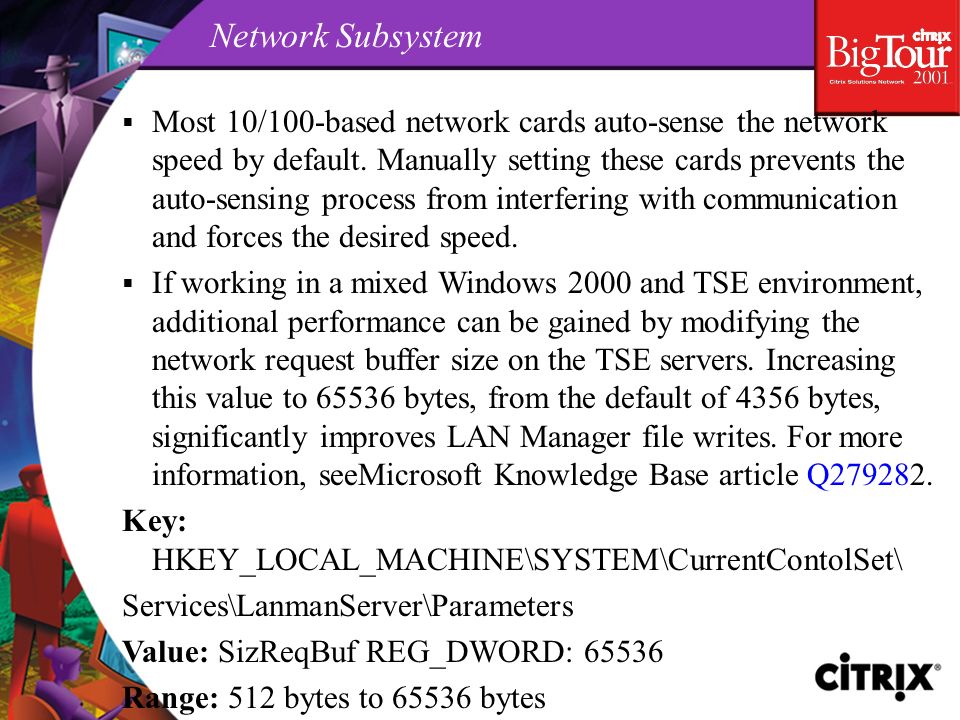

81  Most 10/100-based network cards auto-sense the network speed by default. Manually setting these cards prevents the auto-sensing process from interfering with communication and forces the desired speed.  If working in a mixed Windows 2000 and TSE environment, additional performance can be gained by modifying the network request buffer size on the TSE servers. Increasing this value to 65536 bytes, from the default of 4356 bytes, significantly improves LAN Manager file writes. For more information, seeMicrosoft Knowledge Base article Q279282. Key: HKEY_LOCAL_MACHINE\SYSTEM\CurrentContolSet\ Services\LanmanServer\Parameters Value: SizReqBuf REG_DWORD: 65536 Range: 512 bytes to 65536 bytes Network Subsystem

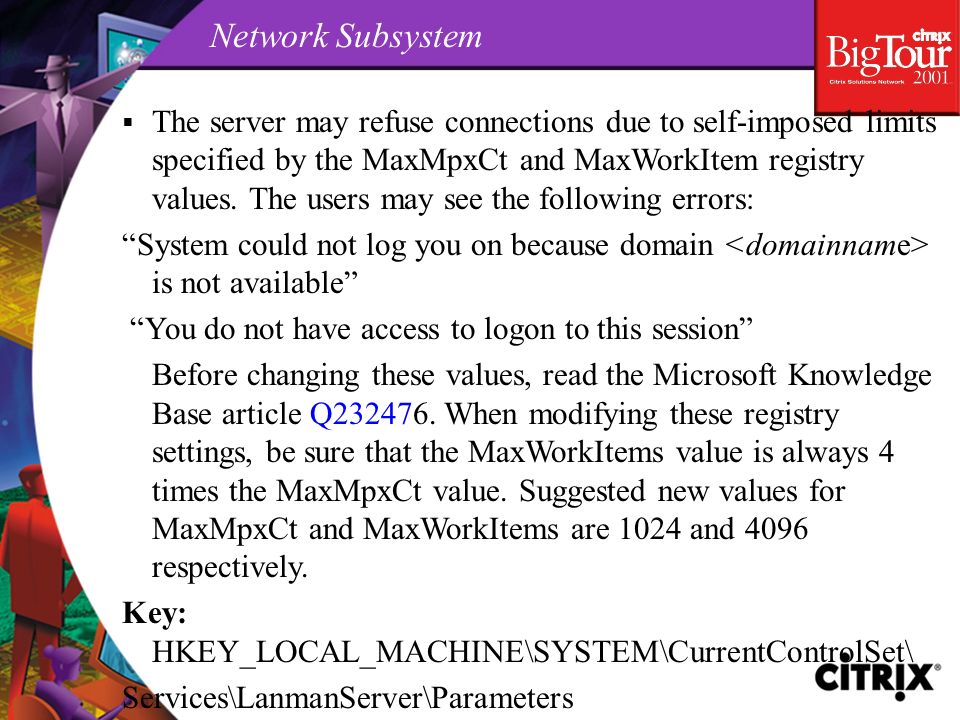

82  The server may refuse connections due to self-imposed limits specified by the MaxMpxCt and MaxWorkItem registry values. The users may see the following errors: “System could not log you on because domain is not available” “You do not have access to logon to this session” Before changing these values, read the Microsoft Knowledge Base article Q232476. When modifying these registry settings, be sure that the MaxWorkItems value is always 4 times the MaxMpxCt value. Suggested new values for MaxMpxCt and MaxWorkItems are 1024 and 4096 respectively. Key: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\ Services\LanmanServer\Parameters Value: MaxWorkItems REG_DWORD: 4096 Value: MaxMpxCt REG_DWORD: 1024 Network Subsystem

83 Key: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\ Services\LanmanServer\Parameters Value: MaxWorkItems REG_DWORD: 4096 Value: MaxMpxCt REG_DWORD: 1024  To ensure that a host server is quickly aware of dropped sessions, the two TCP registry settings listed below can be modified with the following moderately aggressive values: Key: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\ Services\Tcpip\Parameters Value: KeepAliveTime REG_DWORD: 0000ea60 Value: KeepAliveInterval REG_DWORD: 000003e8 Caution: Aggressive parameters may cause TCP/IP- based communications to time out prematurely. These parameters should be adjusted as necessary to prevent this behavior. For more information, see CTX708444: How to Set TCP Keep Alives so TCP/IP Users Go To Disconnected State in the Citrix Knowledge Base. Network Subsystem

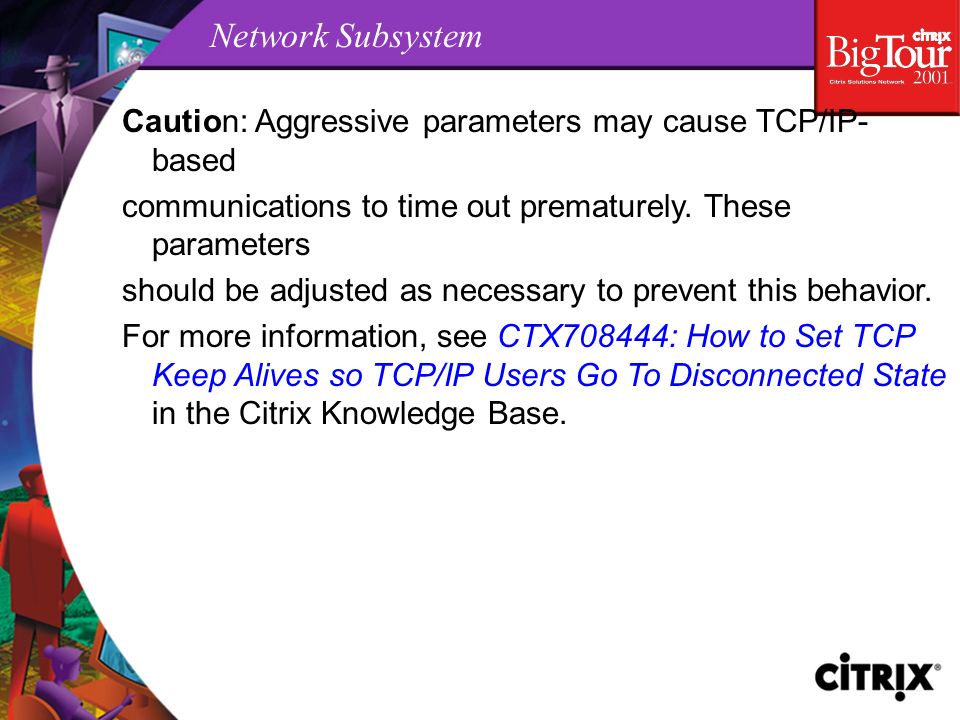

84 Caution: Aggressive parameters may cause TCP/IP- based communications to time out prematurely. These parameters should be adjusted as necessary to prevent this behavior. For more information, see CTX708444: How to Set TCP Keep Alives so TCP/IP Users Go To Disconnected State in the Citrix Knowledge Base. Network Subsystem

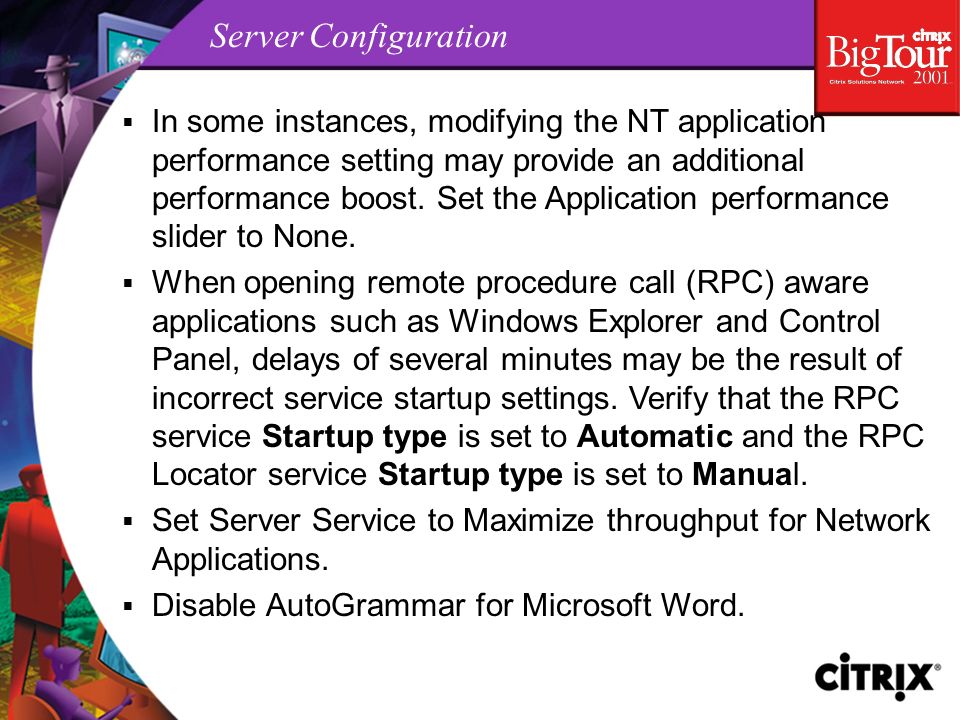

85  In some instances, modifying the NT application performance setting may provide an additional performance boost. Set the Application performance slider to None.  When opening remote procedure call (RPC) aware applications such as Windows Explorer and Control Panel, delays of several minutes may be the result of incorrect service startup settings. Verify that the RPC service Startup type is set to Automatic and the RPC Locator service Startup type is set to Manual.  Set Server Service to Maximize throughput for Network Applications.  Disable AutoGrammar for Microsoft Word. Server Configuration

86 MetaFrame XP Features Revealed

87 MetaFrame XP Management Centralized Administration Single Point Command and Control n All administration, configuration, monitoring and control of the Citrix Server Farm is managed centrally. Independent Management Architecture n IMA-compliant servers and management products share a common and extensible management infrastructure. Unified Management Console n The Citrix Management Console communicates across a single Management Scope of the server farm using the IMA protocol. Central Data Store n Configuration information for the Server Farm is stored centrally in the Citrix Data Store.

88 Citrix Management Console

89 Centralized License Management Description: Licenses are installed into the Central Data Store and managed centrally from the Citrix Management Console. Benefit: Administrators can easily manage all of the licenses for the Citrix Server Farm from a single point.

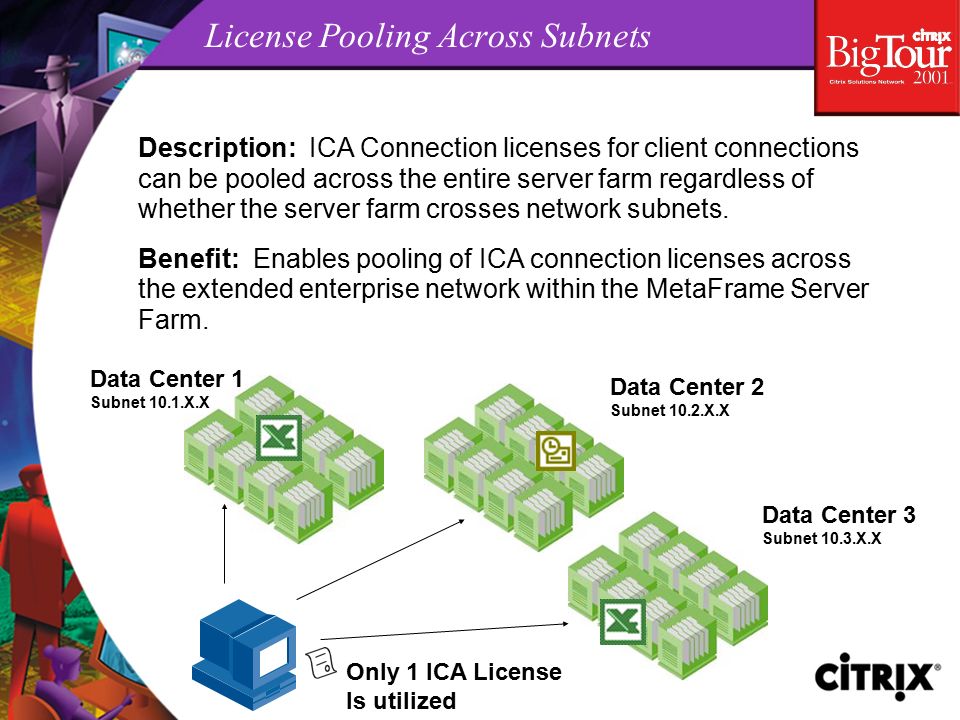

90 License Pooling Across Subnets Description: ICA Connection licenses for client connections can be pooled across the entire server farm regardless of whether the server farm crosses network subnets. Benefit: Enables pooling of ICA connection licenses across the extended enterprise network within the MetaFrame Server Farm. Data Center 1 Subnet 10.1.X.X Data Center 2 Subnet 10.2.X.X Data Center 3 Subnet 10.3.X.X Only 1 ICA License Is utilized

91 License Fail Over and Redundancy Description: MetaFrame XP allows licenses to be available for fail over and redundancy. In the case of a server failure the server and connection license are still available. Benefit: Administrators have the ability to bring up “warm” backup servers in the event of a server failure without the need to re-install and re-activate their server licenses.

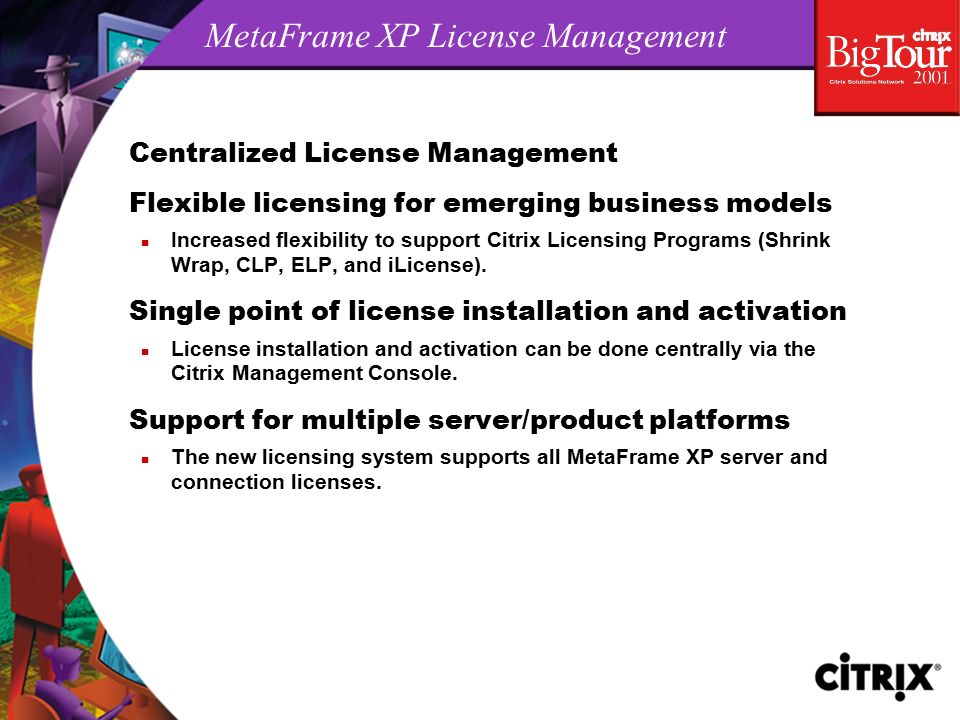

92 MetaFrame XP License Management Centralized License Management Flexible licensing for emerging business models n Increased flexibility to support Citrix Licensing Programs (Shrink Wrap, CLP, ELP, and iLicense). Single point of license installation and activation n License installation and activation can be done centrally via the Citrix Management Console. Support for multiple server/product platforms n The new licensing system supports all MetaFrame XP server and connection licenses.

93 Active Directory Support Application Publishing n Enables application publishing to users and groups in Active Directory. Account Authority Access n Utilizes native Active Directory Interfaces to access the Active Directory. User Principal Names n Allows users to logon to the MetaFrame XP server using User Principal Names: i.e. user@domain.com. NFuse and Program Neighborhood n Enables users to utilize their Active Directory accounts to access MetaFrame XP applications via NFuse and Program Neighborhood.

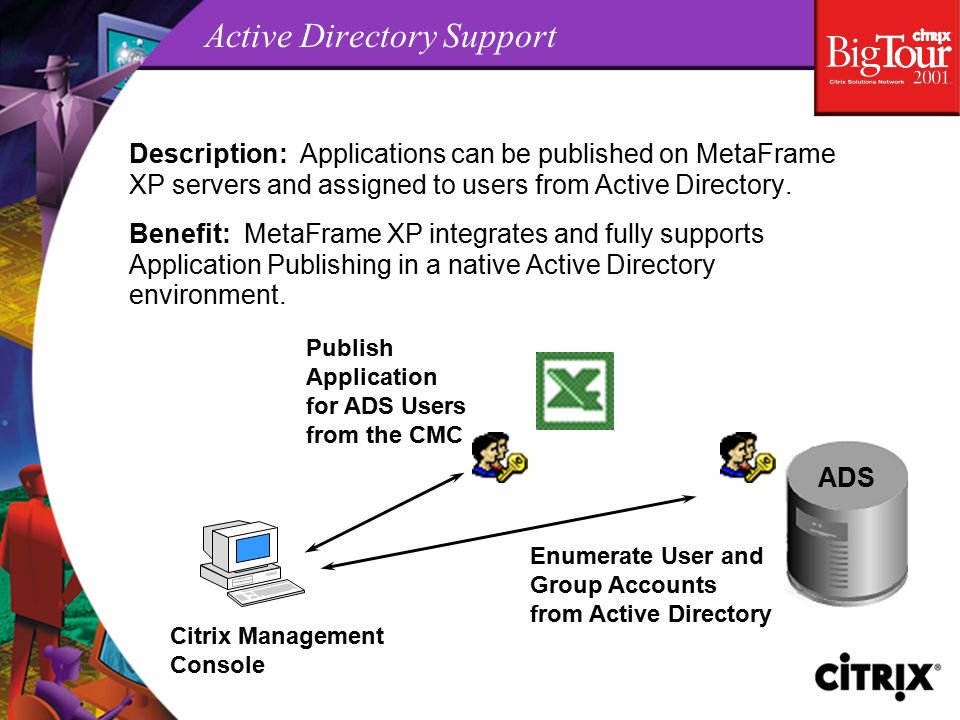

94 Active Directory Support ADS Citrix Management Console Enumerate User and Group Accounts from Active Directory Publish Application for ADS Users from the CMC Description: Applications can be published on MetaFrame XP servers and assigned to users from Active Directory. Benefit: MetaFrame XP integrates and fully supports Application Publishing in a native Active Directory environment.

95 Printer Management n Printer Driver Replication n Printer Mapping n Network Printer Auto-Creation n Printer Compatibility n Printer Bandwidth Control n Terminal Printer Auto-Creation n Client Printer Creation Logging

96 Printer Management Printer Mapping n Ability to create mappings for Windows 9X client printers on the MetaFrame XP server and automatically distribute to the server farm. Printer Bandwidth Control n Allows the administrator to specify the amount of bandwidth that can be used by printing over the client connection. n Setting used for all users over all connections for a given MetaFrame XP server. Terminal Printer Auto-Creation n Ability for the administrator to setup auto-creation of printers for ICA DOS and WinCE Terminal Devices. Client Printer Creation Logging n Logs all information about auto-creation of client printers, allowing the administrator to proactively detect printer issues and resolve them with the required information.

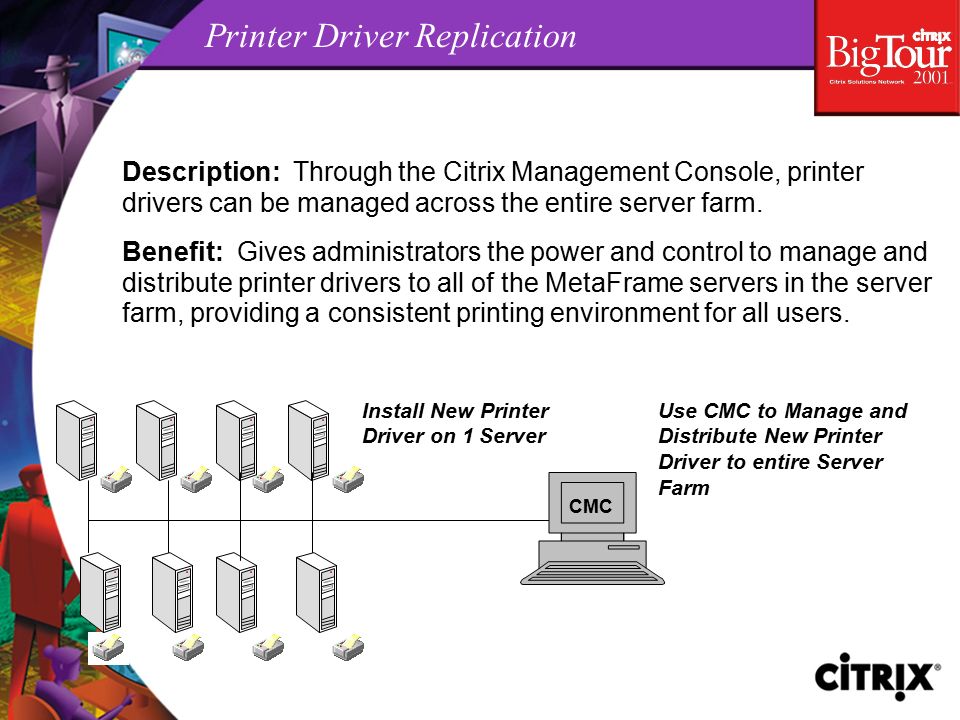

97 Printer Driver Replication CMC Install New Printer Driver on 1 Server Use CMC to Manage and Distribute New Printer Driver to entire Server Farm Description: Through the Citrix Management Console, printer drivers can be managed across the entire server farm. Benefit: Gives administrators the power and control to manage and distribute printer drivers to all of the MetaFrame servers in the server farm, providing a consistent printing environment for all users.

98 Printer Driver Mapping Description: Printer drivers on different platforms often have differing names which can interfere with client printer creation. Printer driver mapping enables administrators to control differing printer drivers. Benefit: Allows the administrator to specify mappings of printer driver names from one platform to another (ie. Windows 95 to Windows 2000)

99 Printer Compatibility Restricted XYZ Printer ABC Printer ICA Client ICA Connection Printer is on the restricted list Printer Creation is Disabled Description: Printer compatibility allows the administrator to specify client printers that can be used in the MetaFrame environment or specify printers that can never be used. Benefit: Gives administrators the power to determine and control the types of client printers that can be utilized on the MetaFrame XP servers enabling them to ensure a consistent and stable computing environment.

100 Printer Bandwidth Control Description: Bandwidth limits can be specified for printing from an ICA Client. Benefit: Allows the administrator to control and specify the amount of bandwidth that can be used for printing in the MetaFrame XP server farm.

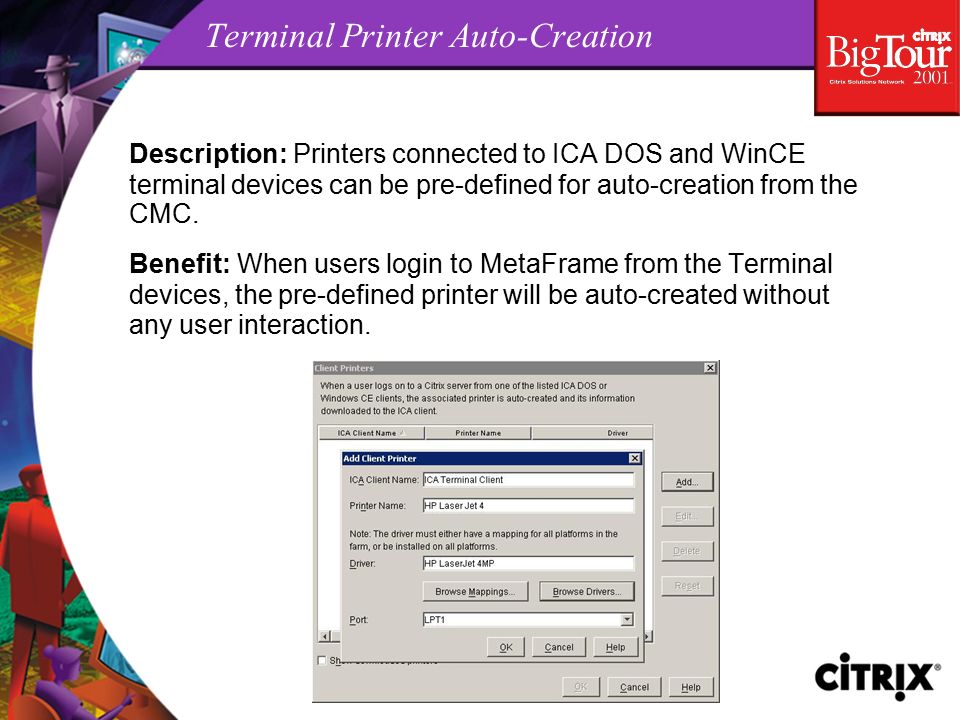

101 Terminal Printer Auto-Creation Description: Printers connected to ICA DOS and WinCE terminal devices can be pre-defined for auto-creation from the CMC. Benefit: When users login to MetaFrame from the Terminal devices, the pre-defined printer will be auto-created without any user interaction.

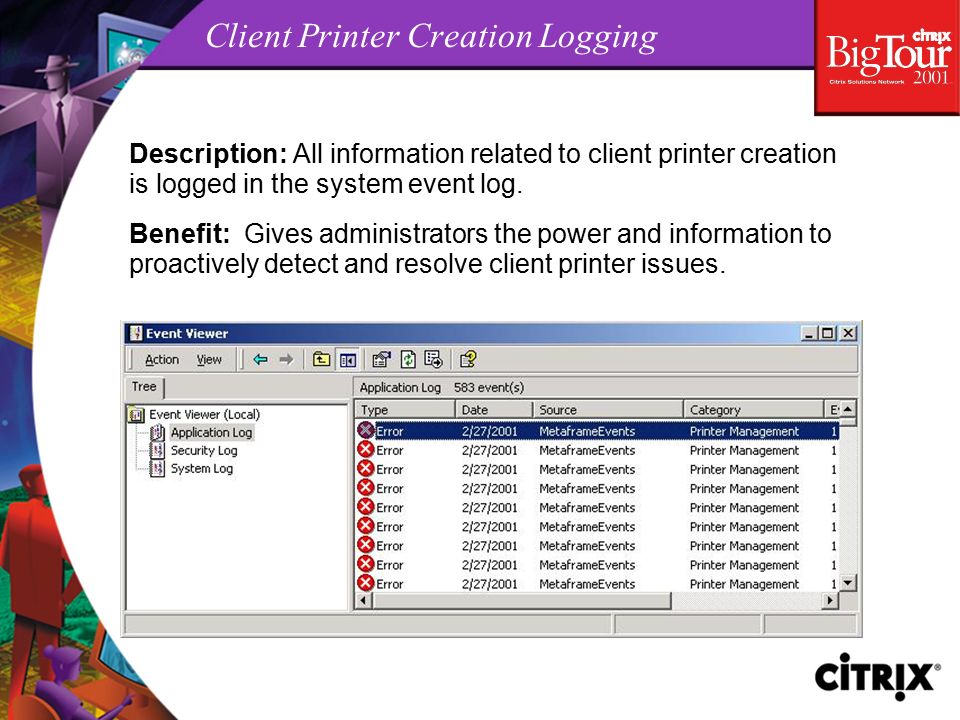

102 Client Printer Creation Logging Description: All information related to client printer creation is logged in the system event log. Benefit: Gives administrators the power and information to proactively detect and resolve client printer issues.

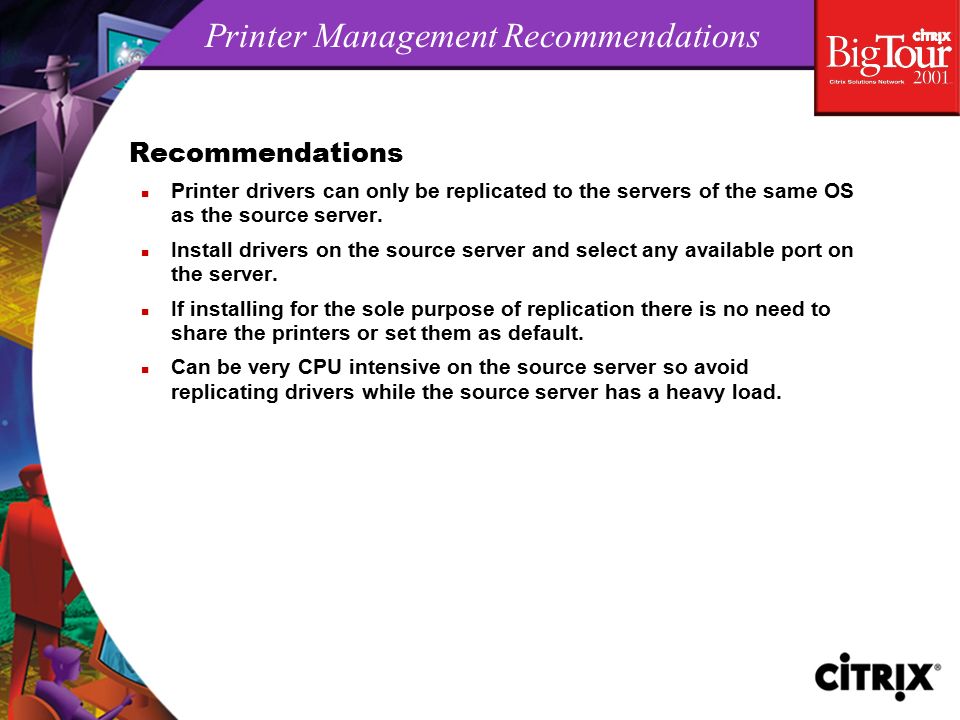

103 Printer Management Recommendations Recommendations n Printer drivers can only be replicated to the servers of the same OS as the source server. n Install drivers on the source server and select any available port on the server. n If installing for the sole purpose of replication there is no need to share the printers or set them as default. n Can be very CPU intensive on the source server so avoid replicating drivers while the source server has a heavy load.

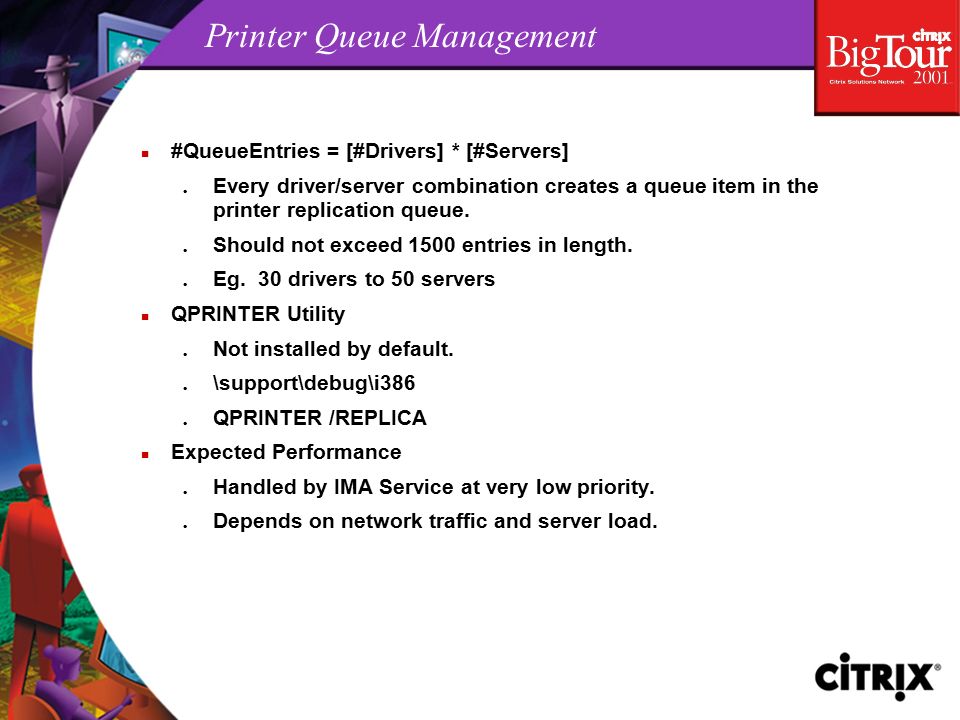

104 Printer Queue Management n #QueueEntries = [#Drivers] * [#Servers] l Every driver/server combination creates a queue item in the printer replication queue. l Should not exceed 1500 entries in length. l Eg. 30 drivers to 50 servers n QPRINTER Utility l Not installed by default. l \support\debug\i386 l QPRINTER /REPLICA n Expected Performance l Handled by IMA Service at very low priority. l Depends on network traffic and server load.

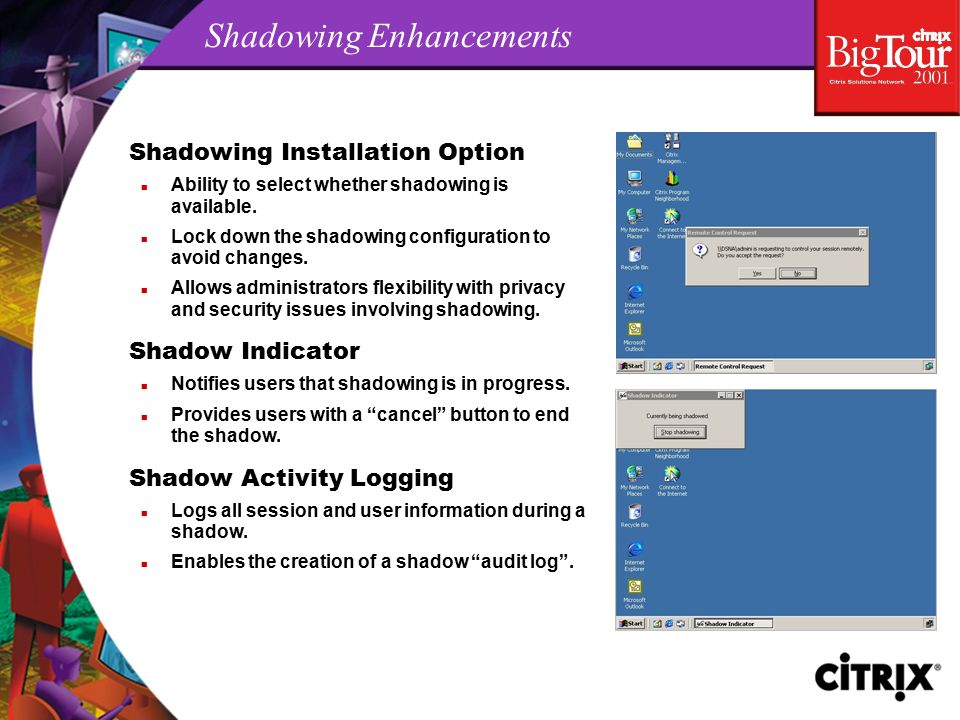

105 Shadowing Enhancements Shadowing Installation Option n Ability to select whether shadowing is available. n Lock down the shadowing configuration to avoid changes. n Allows administrators flexibility with privacy and security issues involving shadowing. Shadow Indicator n Notifies users that shadowing is in progress. n Provides users with a “cancel” button to end the shadow. Shadow Activity Logging n Logs all session and user information during a shadow. n Enables the creation of a shadow “audit log”.

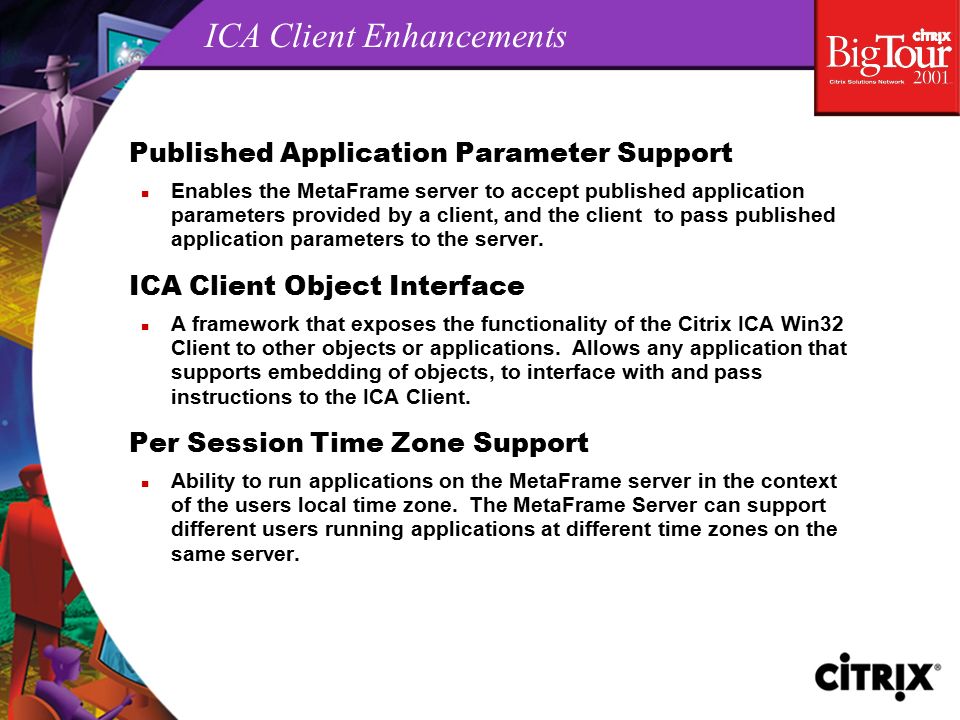

106 ICA Client Enhancements Published Application Parameter Support n Enables the MetaFrame server to accept published application parameters provided by a client, and the client to pass published application parameters to the server. ICA Client Object Interface n A framework that exposes the functionality of the Citrix ICA Win32 Client to other objects or applications. Allows any application that supports embedding of objects, to interface with and pass instructions to the ICA Client. Per Session Time Zone Support n Ability to run applications on the MetaFrame server in the context of the users local time zone. The MetaFrame Server can support different users running applications at different time zones on the same server.

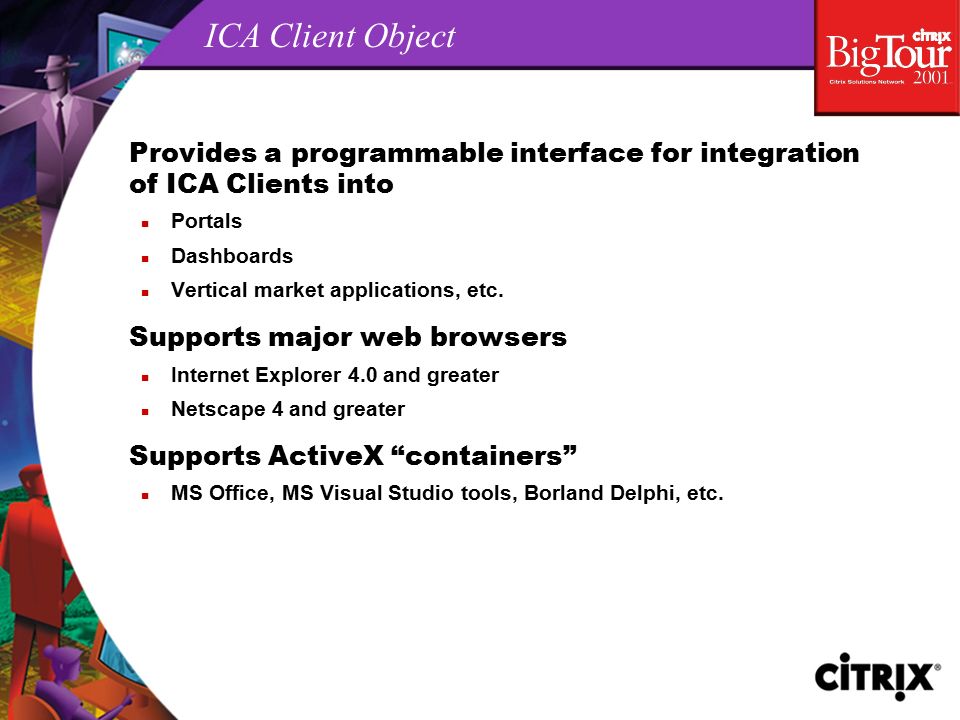

107 ICA Client Object Provides a programmable interface for integration of ICA Clients into n Portals n Dashboards n Vertical market applications, etc. Supports major web browsers n Internet Explorer 4.0 and greater n Netscape 4 and greater Supports ActiveX “containers” n MS Office, MS Visual Studio tools, Borland Delphi, etc.

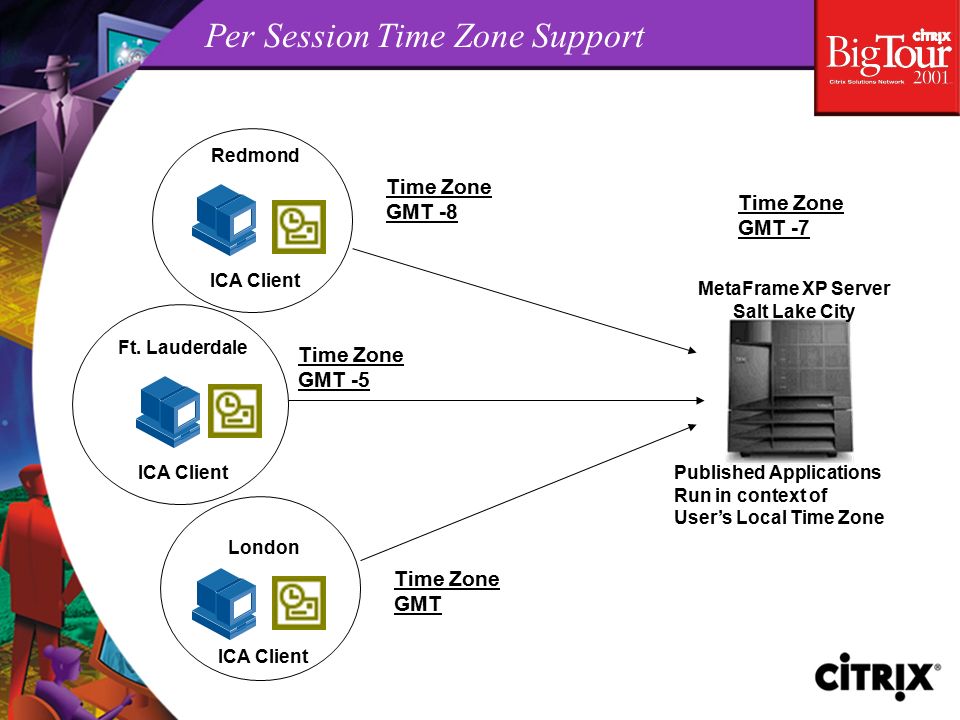

108 Per Session Time Zone Support Redmond ICA Client Ft. Lauderdale London MetaFrame XP Server Salt Lake City Published Applications Run in context of User’s Local Time Zone Time Zone GMT -8 Time Zone GMT -5 Time Zone GMT GMT -7

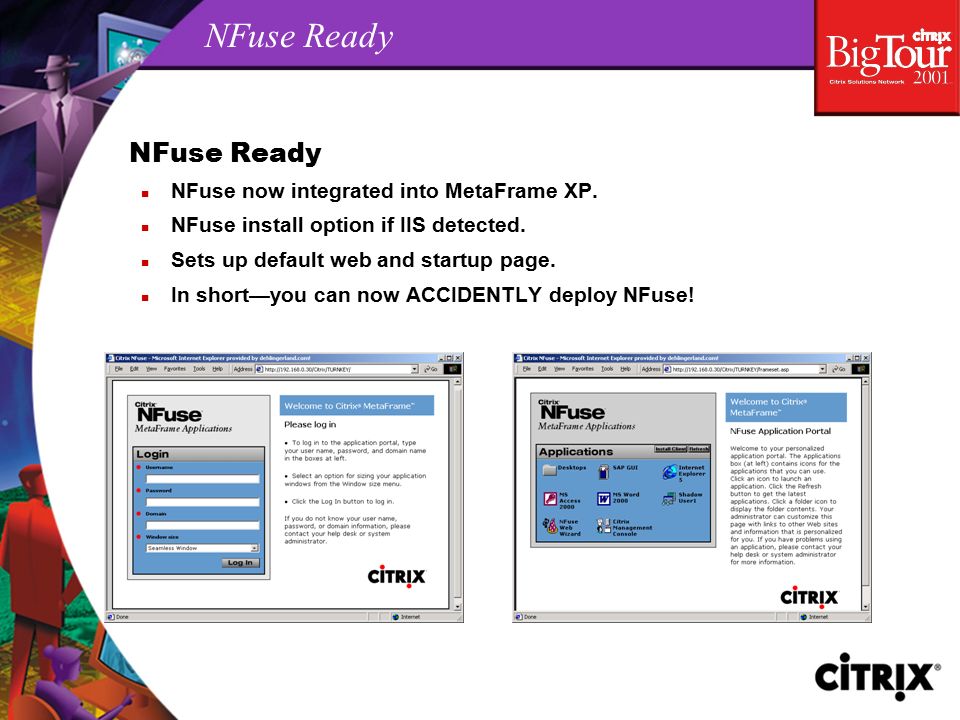

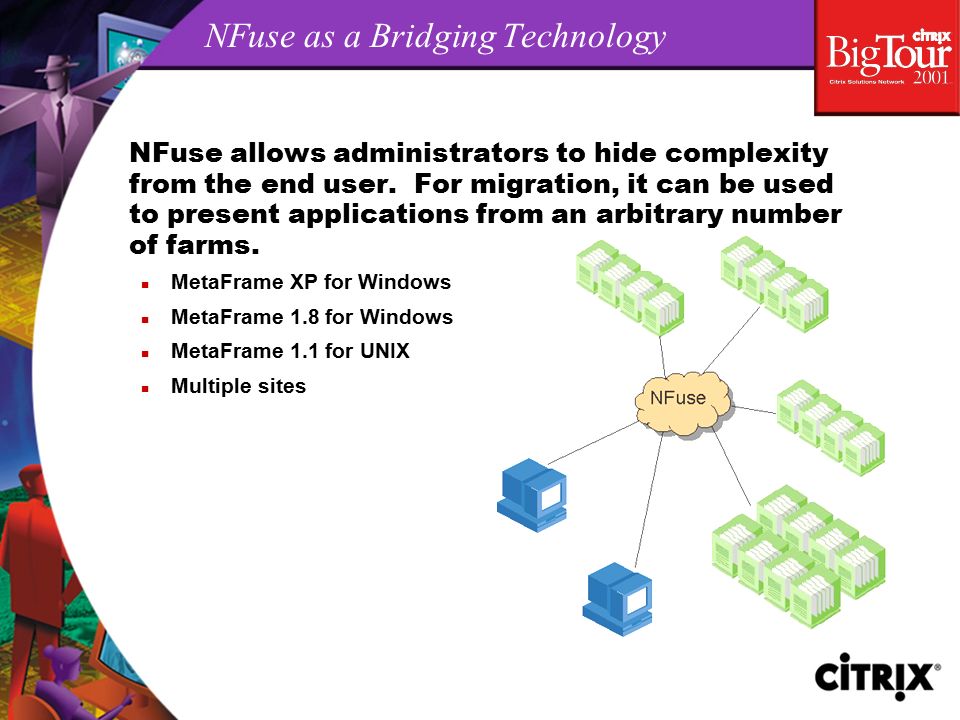

109 NFuse Ready n NFuse now integrated into MetaFrame XP. n NFuse install option if IIS detected. n Sets up default web and startup page. n In short—you can now ACCIDENTLY deploy NFuse!

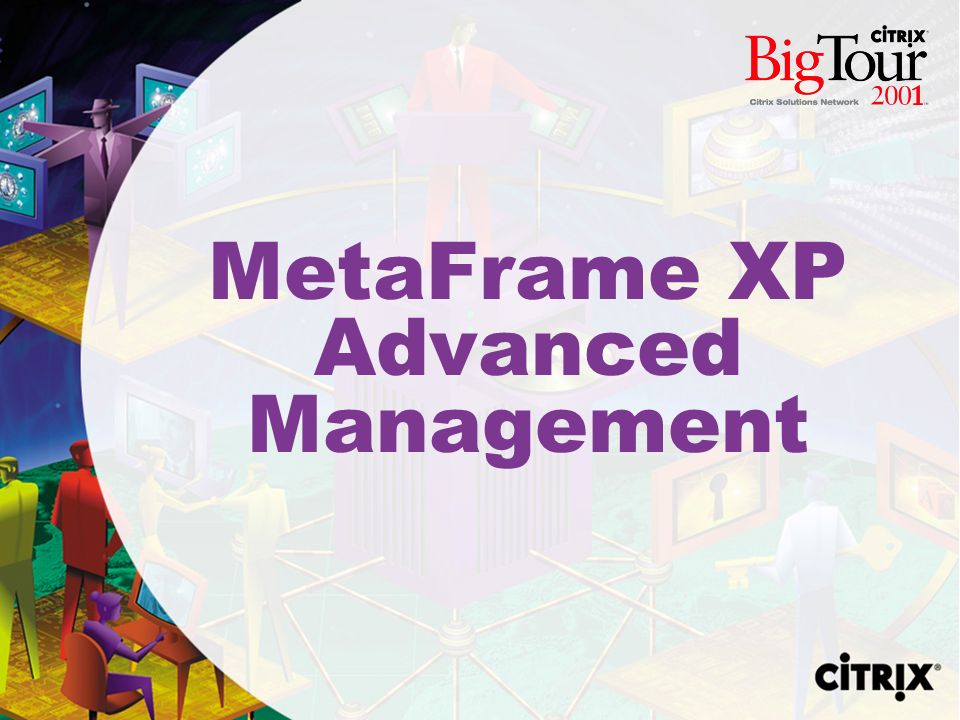

110 MetaFrame XP Advanced Management

111 Load Management

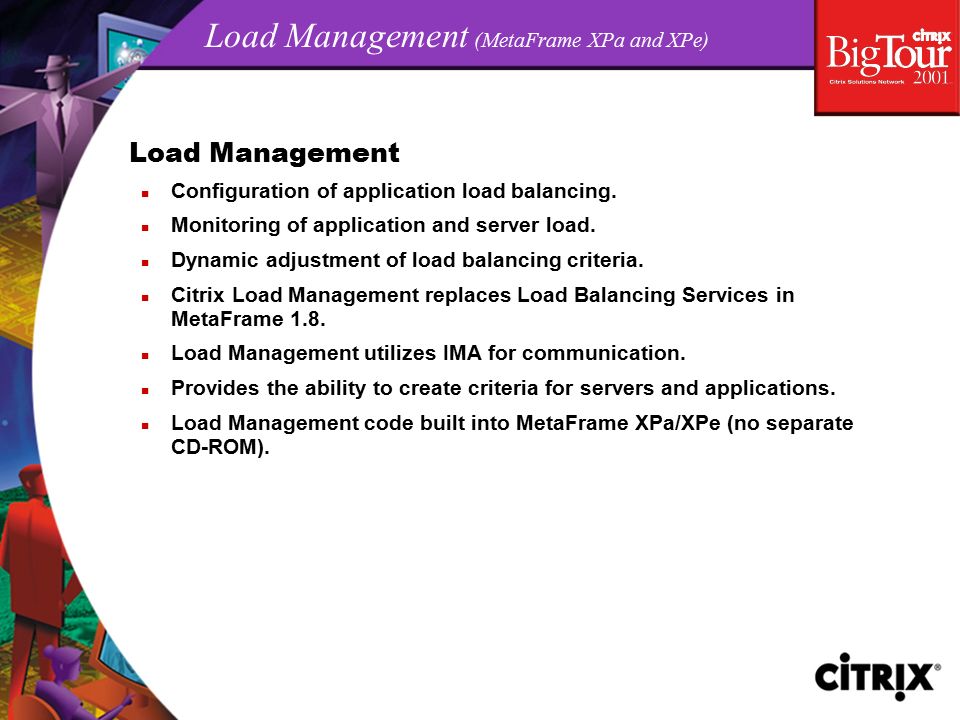

112 Load Management (MetaFrame XPa and XPe) Load Management n Configuration of application load balancing. n Monitoring of application and server load. n Dynamic adjustment of load balancing criteria. n Citrix Load Management replaces Load Balancing Services in MetaFrame 1.8. n Load Management utilizes IMA for communication. n Provides the ability to create criteria for servers and applications. n Load Management code built into MetaFrame XPa/XPe (no separate CD-ROM).

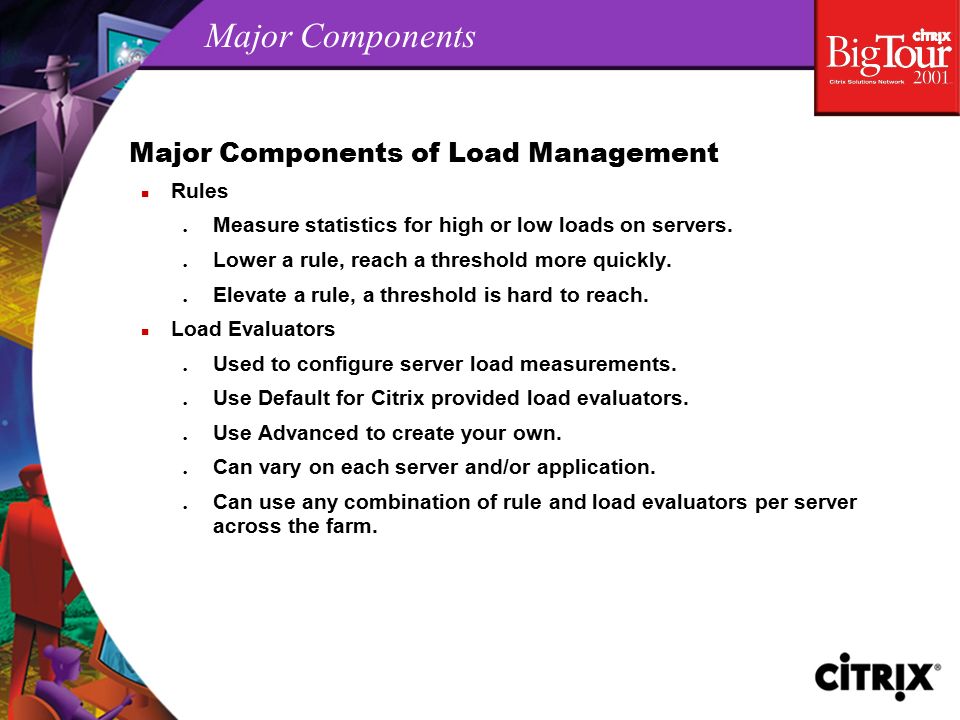

113 Major Components Major Components of Load Management n Rules l Measure statistics for high or low loads on servers. l Lower a rule, reach a threshold more quickly. l Elevate a rule, a threshold is hard to reach. n Load Evaluators l Used to configure server load measurements. l Use Default for Citrix provided load evaluators. l Use Advanced to create your own. l Can vary on each server and/or application. l Can use any combination of rule and load evaluators per server across the farm.

114 Load Management Criteria CPU Utilization Memory Usage Page Swap Page Fault Server User Load New IP Range New New Scheduling New New Context Switches New New Disk Data I/O New New License Threshold New New Application User Load New New Disk Operations New

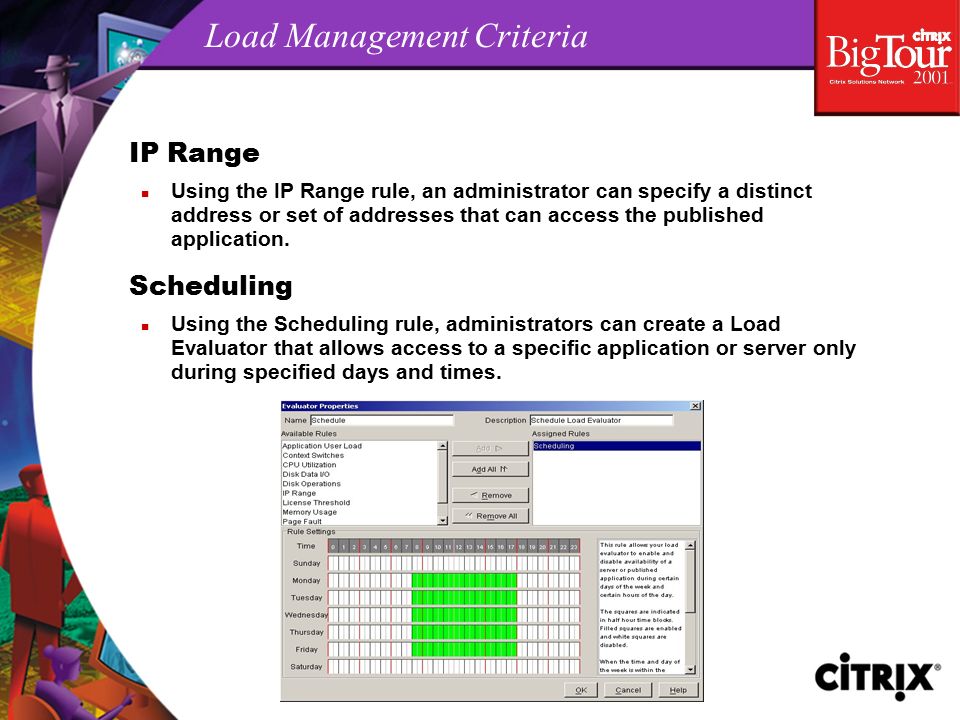

115 Load Management Criteria IP Range n Using the IP Range rule, an administrator can specify a distinct address or set of addresses that can access the published application. Scheduling n Using the Scheduling rule, administrators can create a Load Evaluator that allows access to a specific application or server only during specified days and times.

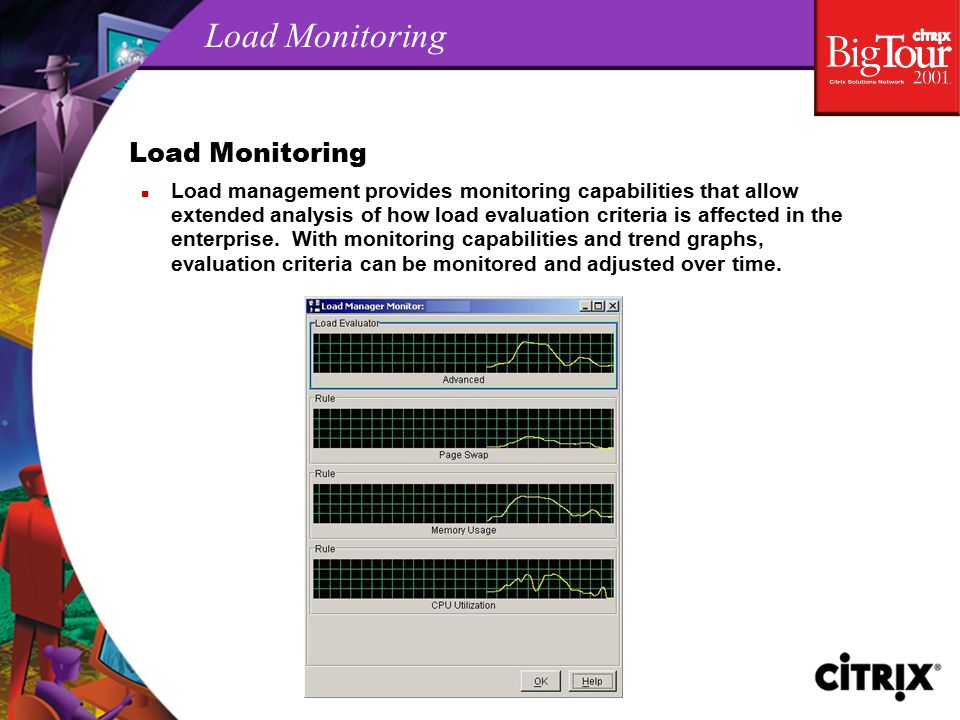

116 Load Monitoring n Load management provides monitoring capabilities that allow extended analysis of how load evaluation criteria is affected in the enterprise. With monitoring capabilities and trend graphs, evaluation criteria can be monitored and adjusted over time.

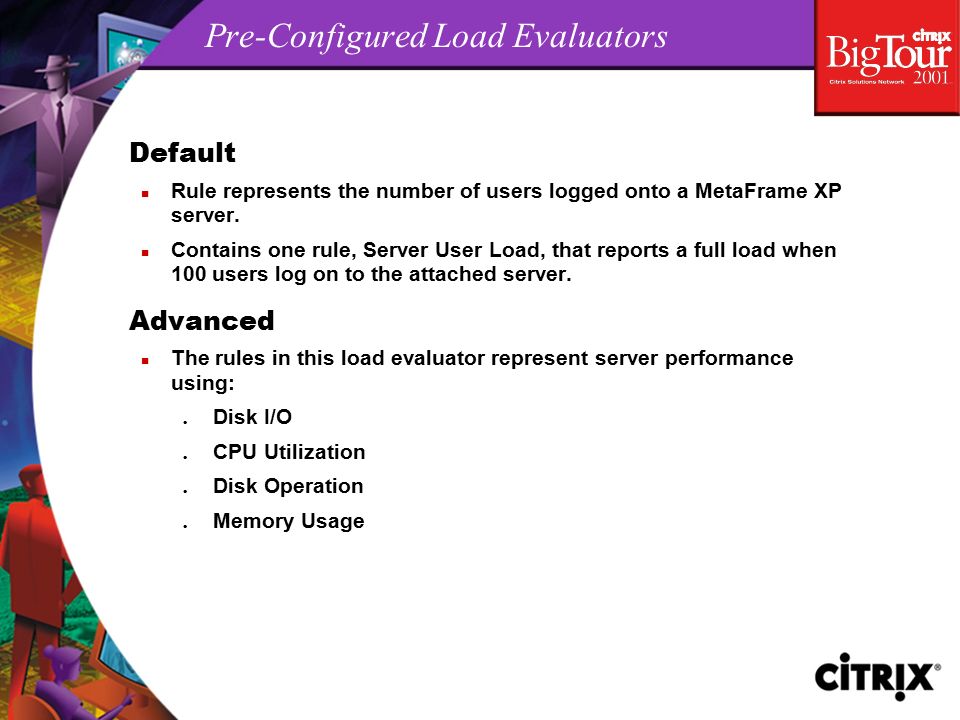

117 Pre-Configured Load Evaluators Default n Rule represents the number of users logged onto a MetaFrame XP server. n Contains one rule, Server User Load, that reports a full load when 100 users log on to the attached server. Advanced n The rules in this load evaluator represent server performance using: l Disk I/O l CPU Utilization l Disk Operation l Memory Usage

118 System Monitoring and Analysis

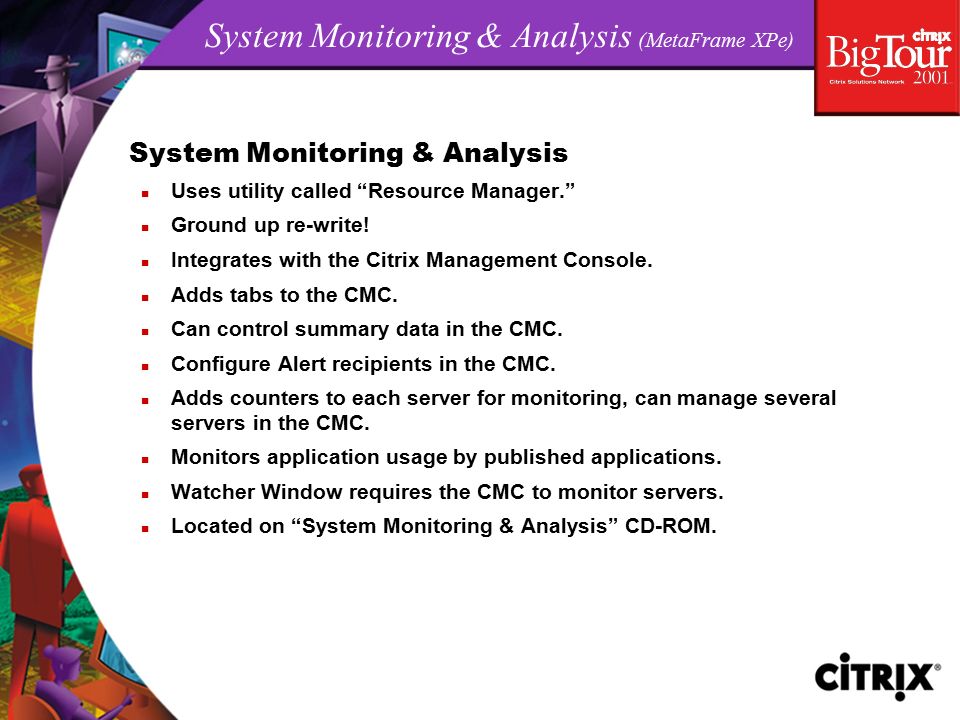

119 System Monitoring & Analysis (MetaFrame XPe) System Monitoring & Analysis n Uses utility called “Resource Manager.” n Ground up re-write! n Integrates with the Citrix Management Console. n Adds tabs to the CMC. n Can control summary data in the CMC. n Configure Alert recipients in the CMC. n Adds counters to each server for monitoring, can manage several servers in the CMC. n Monitors application usage by published applications. n Watcher Window requires the CMC to monitor servers. n Located on “System Monitoring & Analysis” CD-ROM.

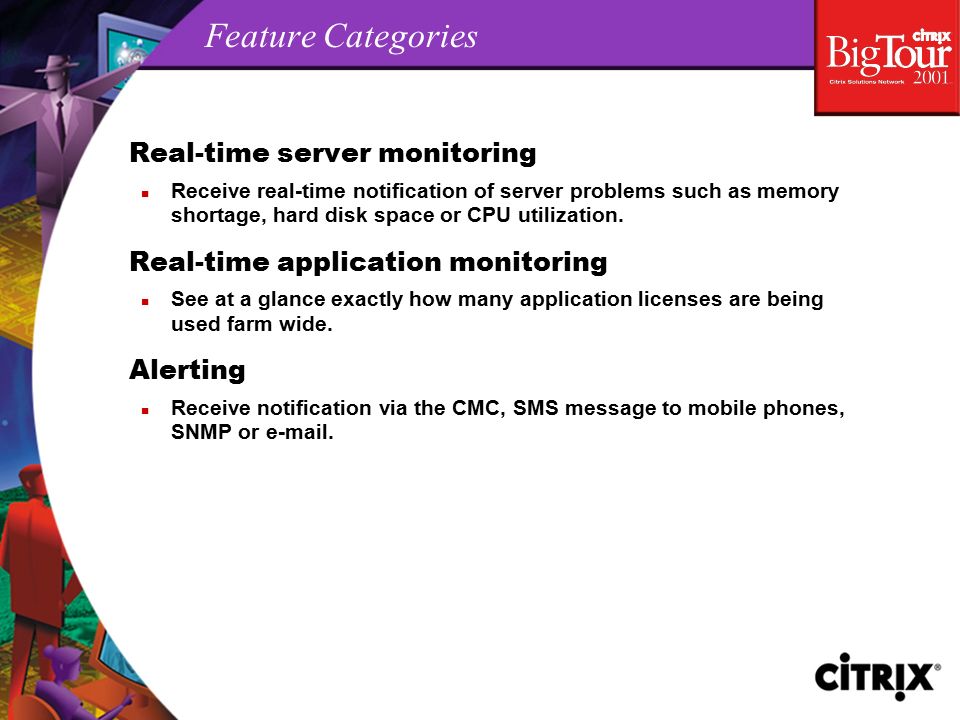

120 Feature Categories Real-time server monitoring n Receive real-time notification of server problems such as memory shortage, hard disk space or CPU utilization. Real-time application monitoring n See at a glance exactly how many application licenses are being used farm wide. Alerting n Receive notification via the CMC, SMS message to mobile phones, SNMP or e-mail.

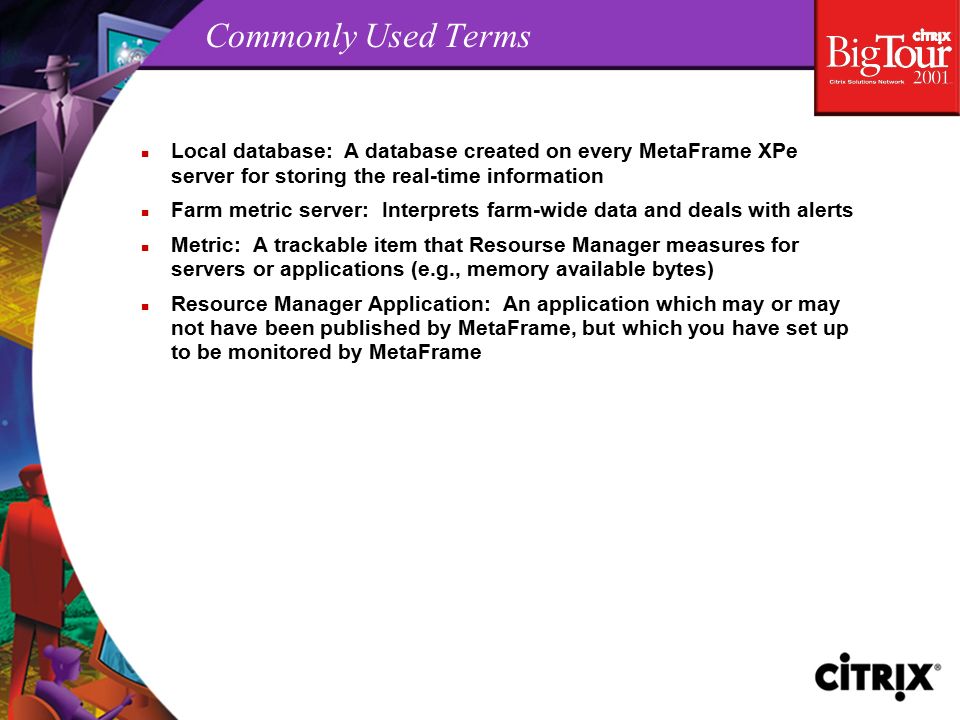

121 Commonly Used Terms n Local database: A database created on every MetaFrame XPe server for storing the real-time information n Farm metric server: Interprets farm-wide data and deals with alerts n Metric: A trackable item that Resourse Manager measures for servers or applications (e.g., memory available bytes) n Resource Manager Application: An application which may or may not have been published by MetaFrame, but which you have set up to be monitored by MetaFrame

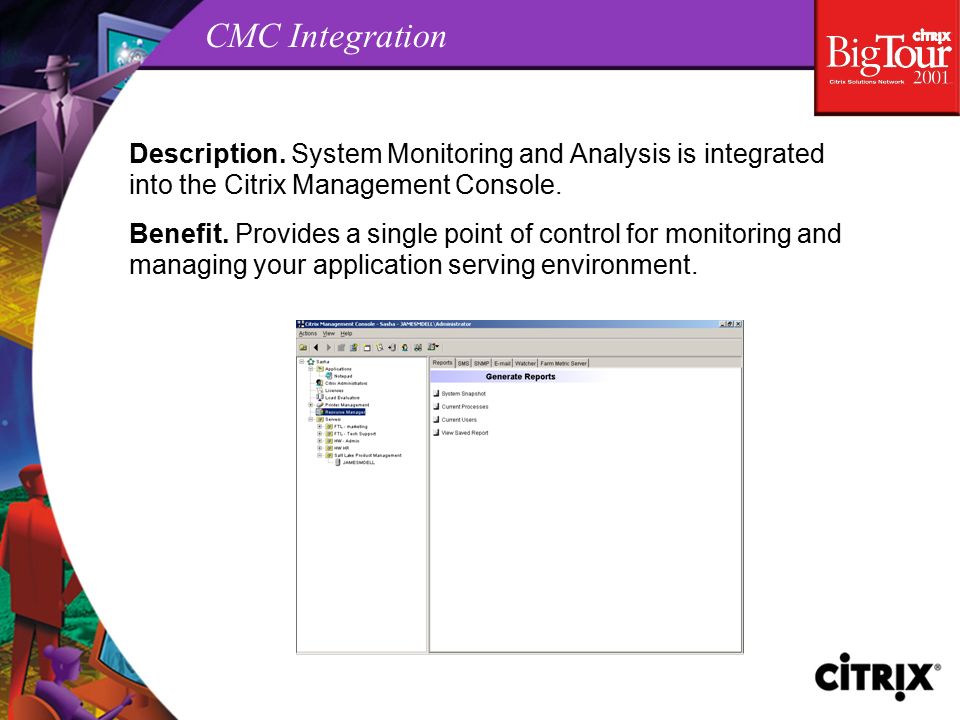

122 CMC Integration Description. System Monitoring and Analysis is integrated into the Citrix Management Console. Benefit. Provides a single point of control for monitoring and managing your application serving environment.

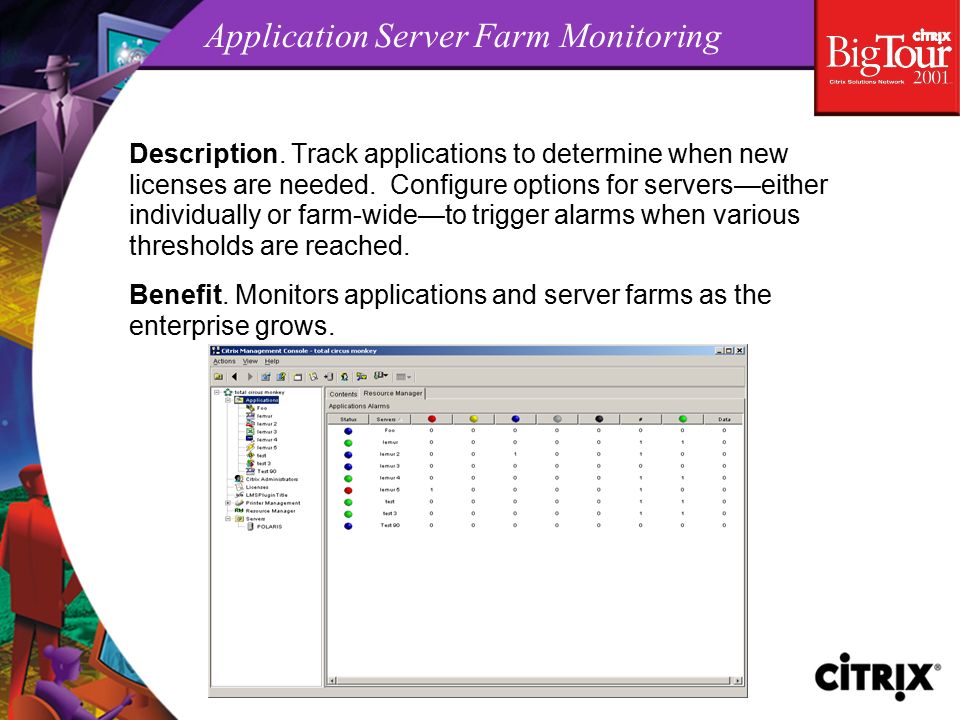

123 Application Server Farm Monitoring Description. Track applications to determine when new licenses are needed. Configure options for servers—either individually or farm-wide—to trigger alarms when various thresholds are reached. Benefit. Monitors applications and server farms as the enterprise grows.

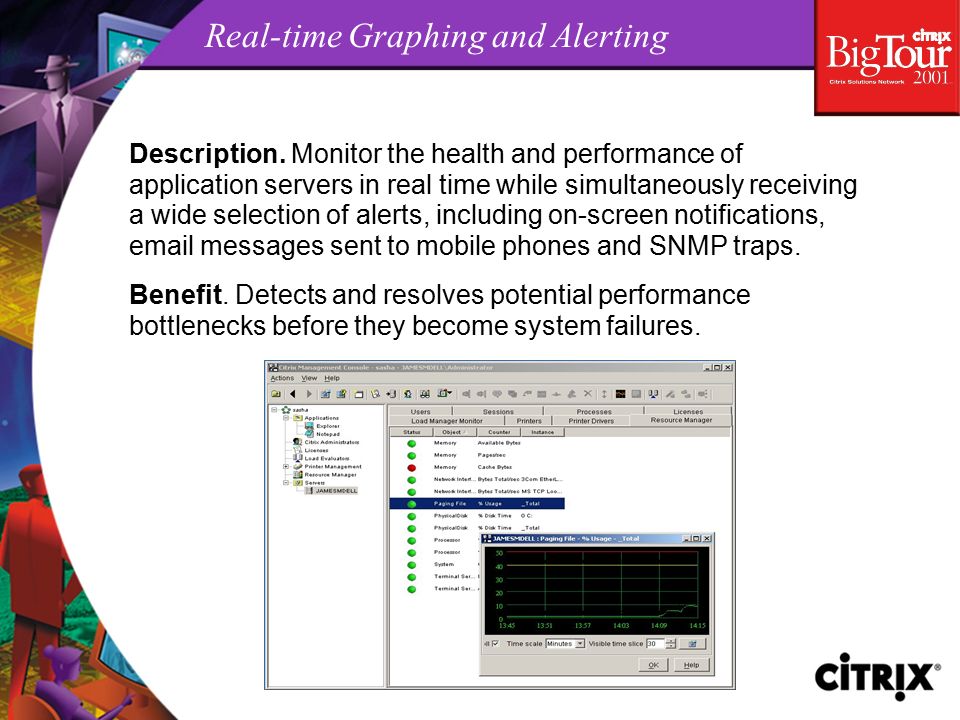

124 Real-time Graphing and Alerting Description. Monitor the health and performance of application servers in real time while simultaneously receiving a wide selection of alerts, including on-screen notifications, email messages sent to mobile phones and SNMP traps. Benefit. Detects and resolves potential performance bottlenecks before they become system failures.

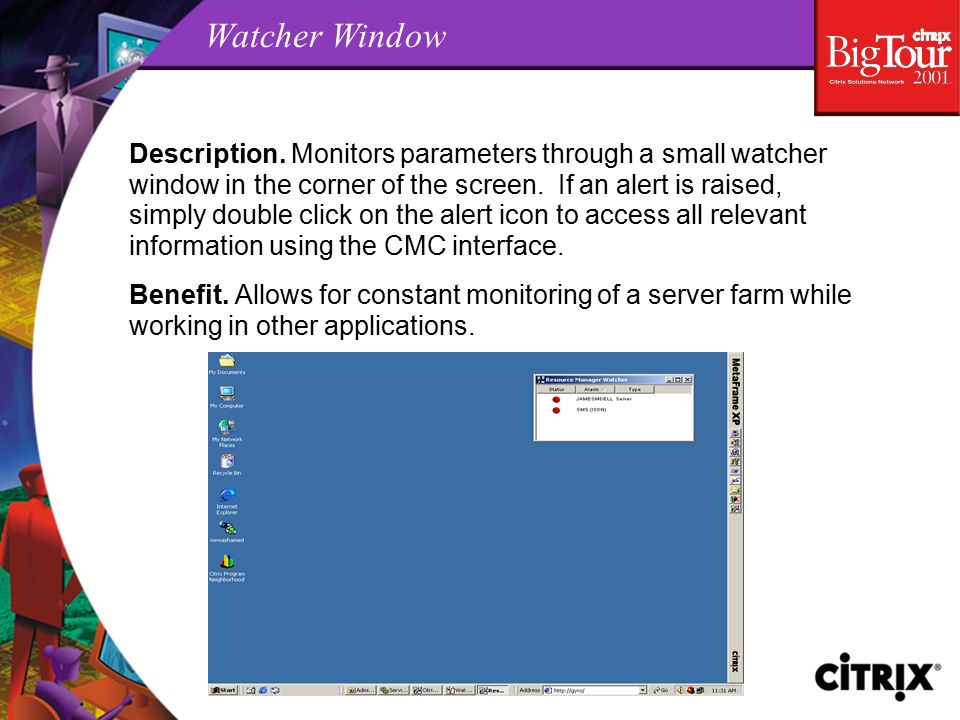

125 Watcher Window Description. Monitors parameters through a small watcher window in the corner of the screen. If an alert is raised, simply double click on the alert icon to access all relevant information using the CMC interface. Benefit. Allows for constant monitoring of a server farm while working in other applications.

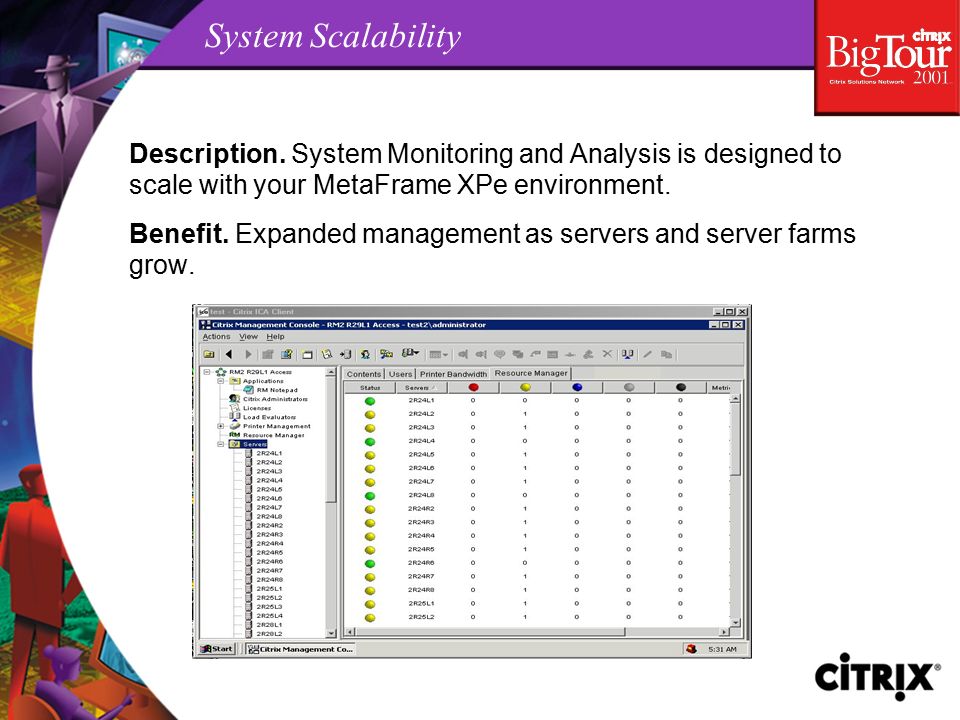

126 System Scalability Description. System Monitoring and Analysis is designed to scale with your MetaFrame XPe environment. Benefit. Expanded management as servers and server farms grow.

127 Intuitive User Interface Description. Click on an application in the CMC to bring up a menu of functions, including snooze, sleep, real-time graph, properties and alarm options. Add and remove alarms with a few clicks of the mouse. Benefit. Allows easy and quick set up of alarms and monitors performance by application.

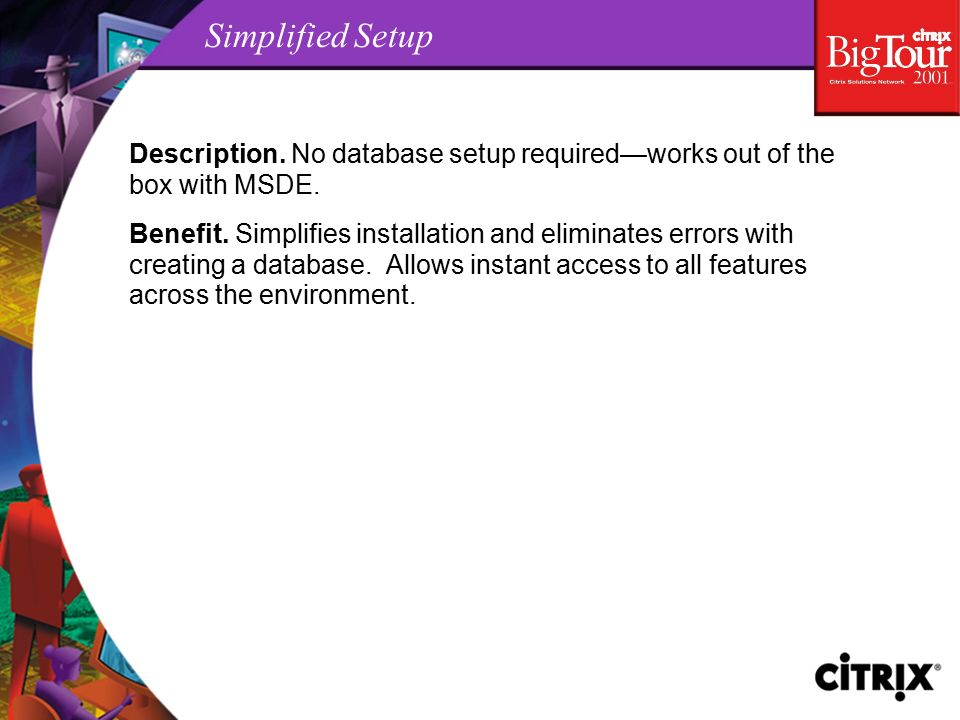

128 Simplified Setup Description. No database setup required—works out of the box with MSDE. Benefit. Simplifies installation and eliminates errors with creating a database. Allows instant access to all features across the environment.

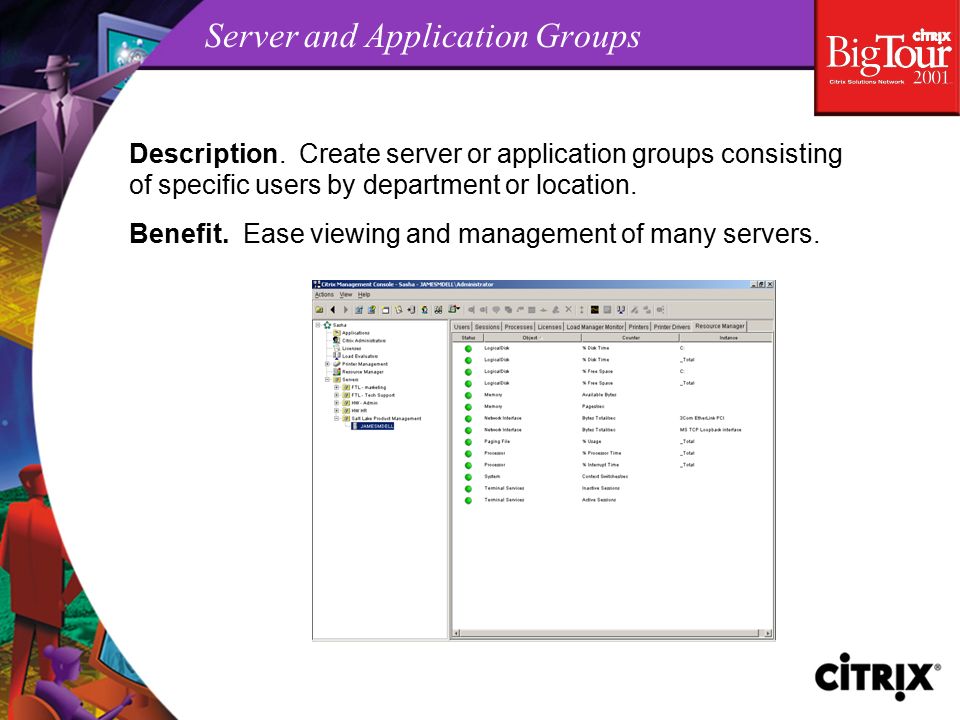

129 Server and Application Groups Description. Create server or application groups consisting of specific users by department or location. Benefit. Ease viewing and management of many servers.

130 Server Reboot Support Feature Description. All managed servers can be scheduled to reboot at specific times. Benefit. Eliminate the tedious, time-consuming task of manual reboots.

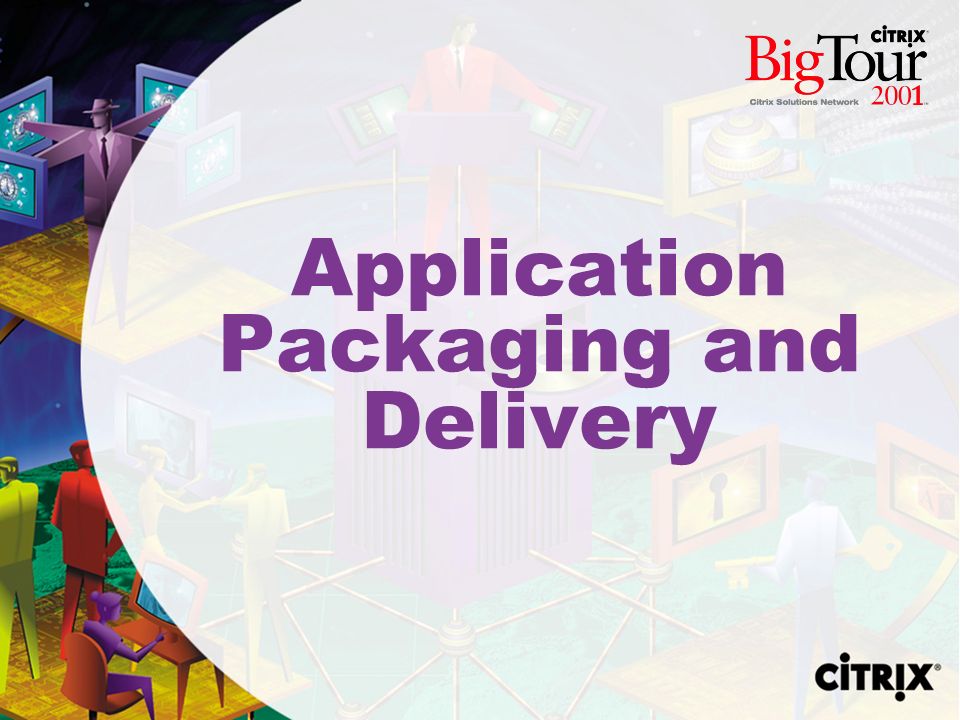

131 Application Packaging and Delivery

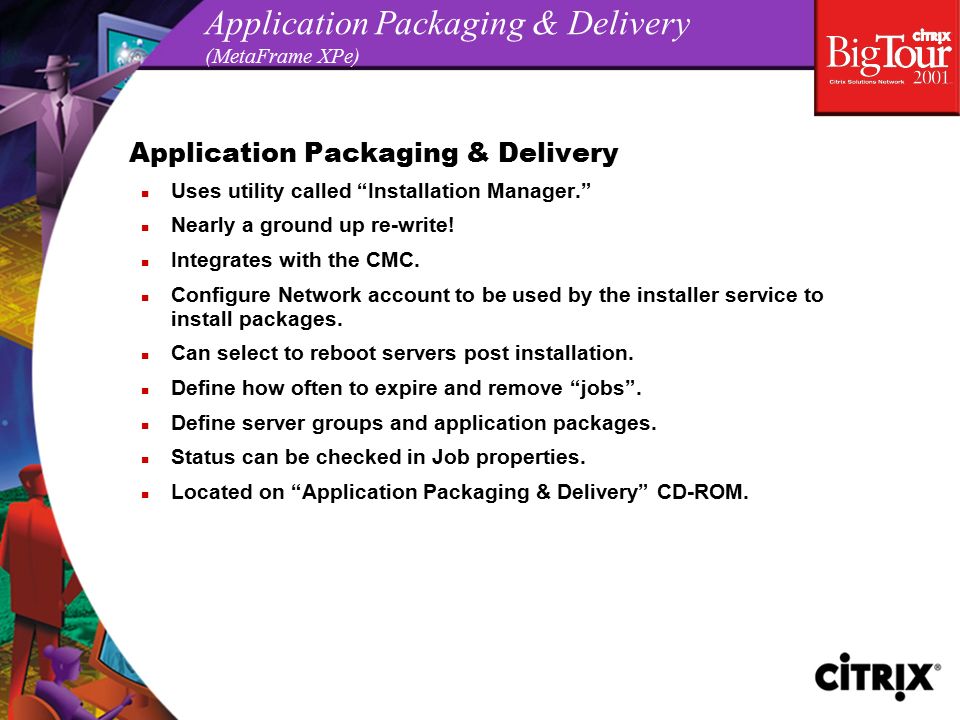

132 Application Packaging & Delivery (MetaFrame XPe) Application Packaging & Delivery n Uses utility called “Installation Manager.” n Nearly a ground up re-write! n Integrates with the CMC. n Configure Network account to be used by the installer service to install packages. n Can select to reboot servers post installation. n Define how often to expire and remove “jobs”. n Define server groups and application packages. n Status can be checked in Job properties. n Located on “Application Packaging & Delivery” CD-ROM.

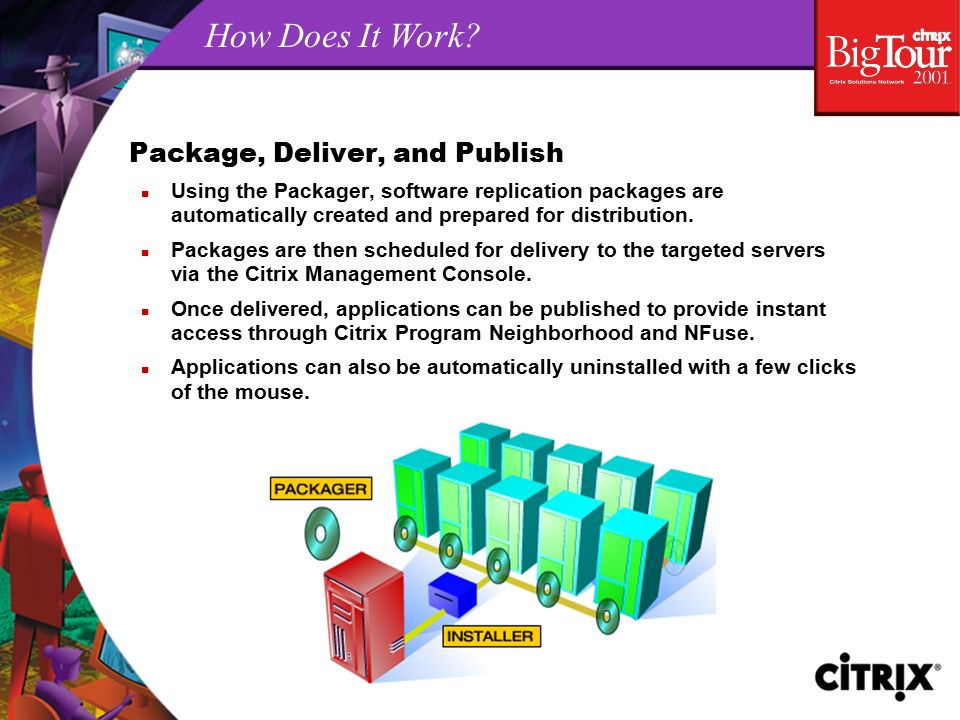

133 How Does It Work? Package, Deliver, and Publish n Using the Packager, software replication packages are automatically created and prepared for distribution. n Packages are then scheduled for delivery to the targeted servers via the Citrix Management Console. n Once delivered, applications can be published to provide instant access through Citrix Program Neighborhood and NFuse. n Applications can also be automatically uninstalled with a few clicks of the mouse.

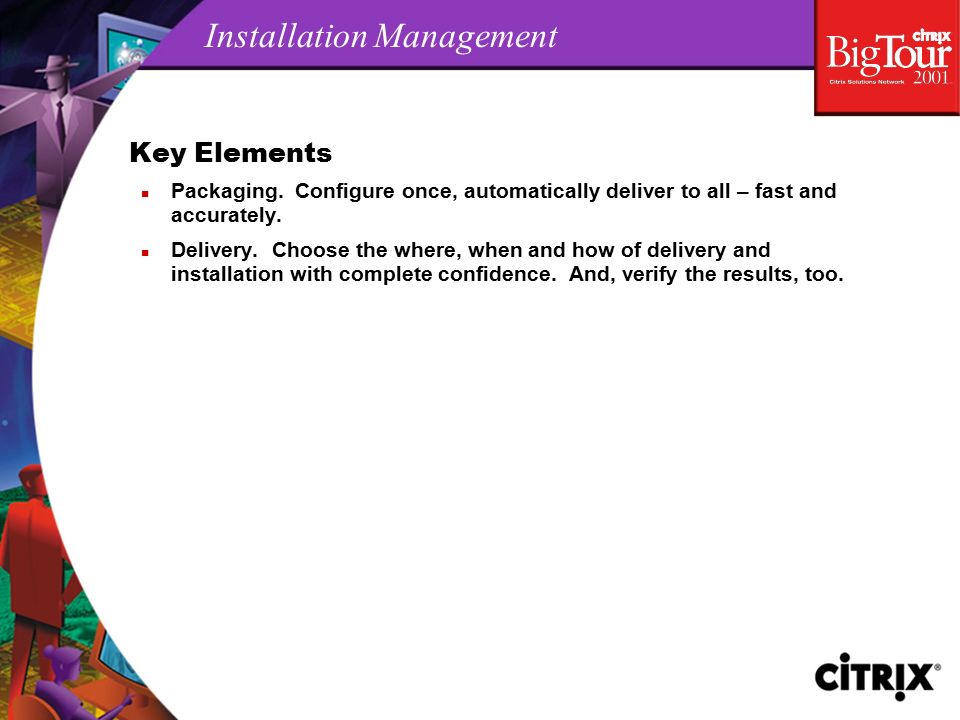

134 Installation Management Key Elements n Packaging. Configure once, automatically deliver to all – fast and accurately. n Delivery. Choose the where, when and how of delivery and installation with complete confidence. And, verify the results, too.

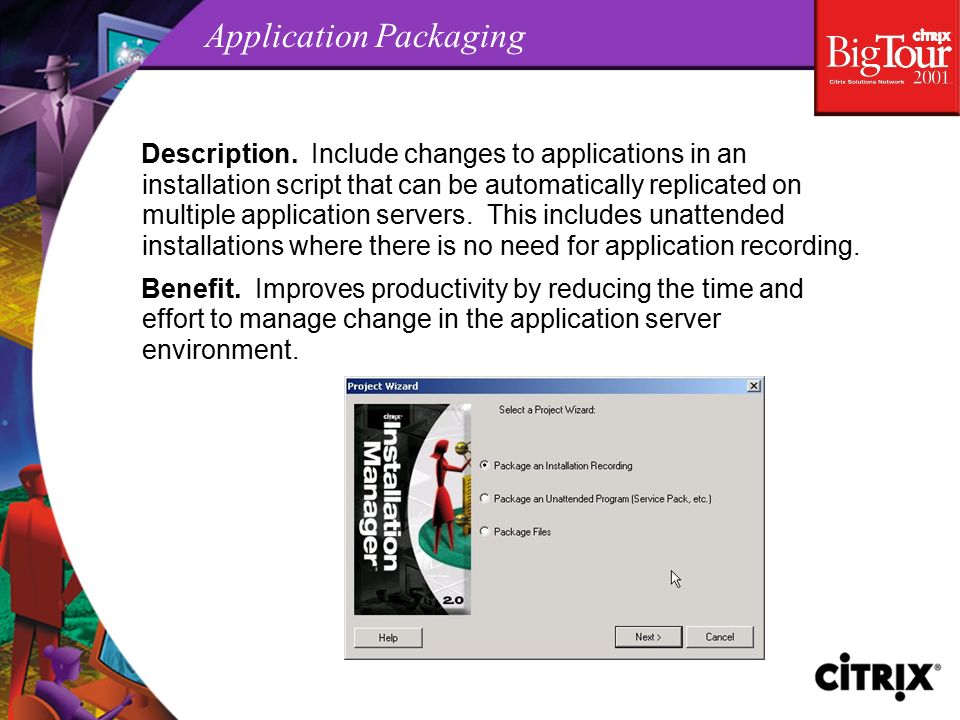

135 Application Packaging Description. Include changes to applications in an installation script that can be automatically replicated on multiple application servers. This includes unattended installations where there is no need for application recording. Benefit. Improves productivity by reducing the time and effort to manage change in the application server environment.

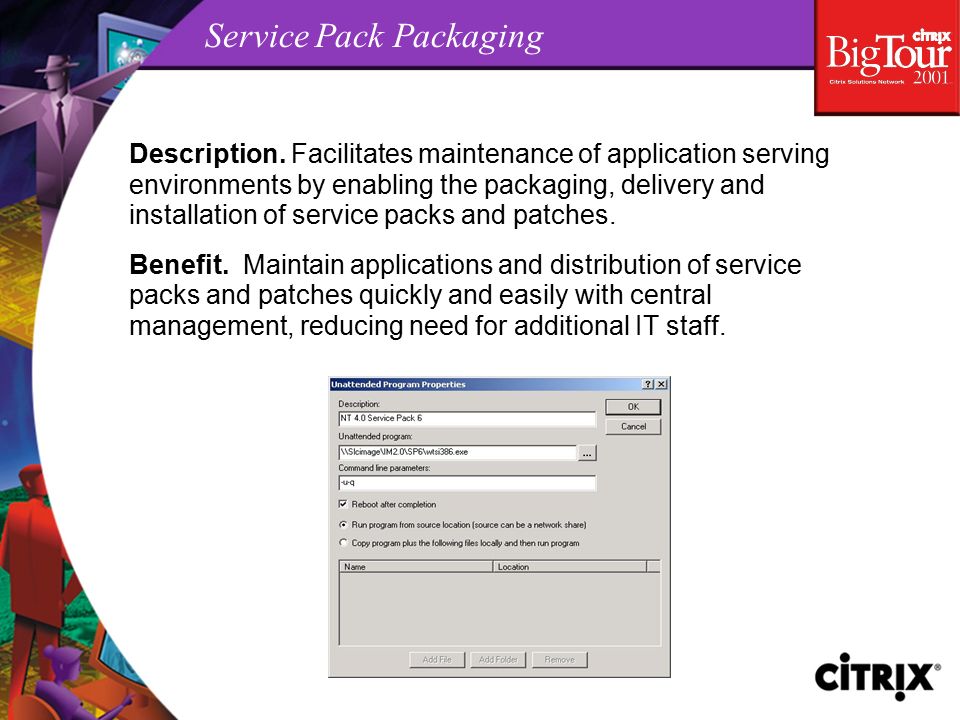

136 Service Pack Packaging Description. Facilitates maintenance of application serving environments by enabling the packaging, delivery and installation of service packs and patches. Benefit. Maintain applications and distribution of service packs and patches quickly and easily with central management, reducing need for additional IT staff.

137 File Packaging Description. Packages individual files or groups of files for distribution. Benefit. Enables administrators to distribute company templates and documents associated with a particular application. They can also use this feature to distribute a system profile to be used by everyone accessing the application.

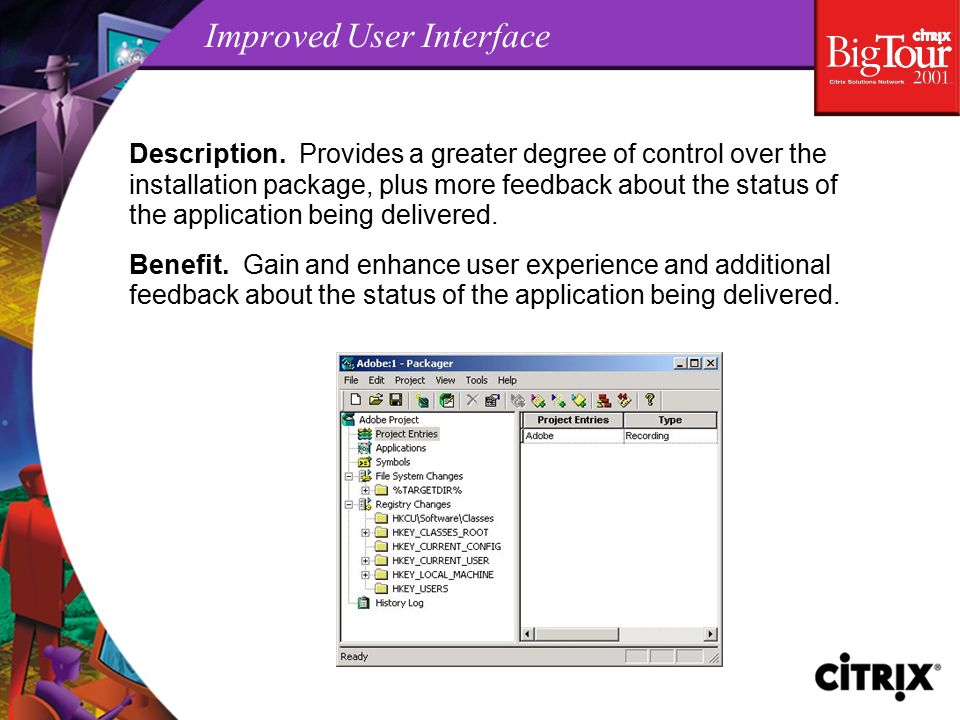

138 Improved User Interface Description. Provides a greater degree of control over the installation package, plus more feedback about the status of the application being delivered. Benefit. Gain and enhance user experience and additional feedback about the status of the application being delivered.

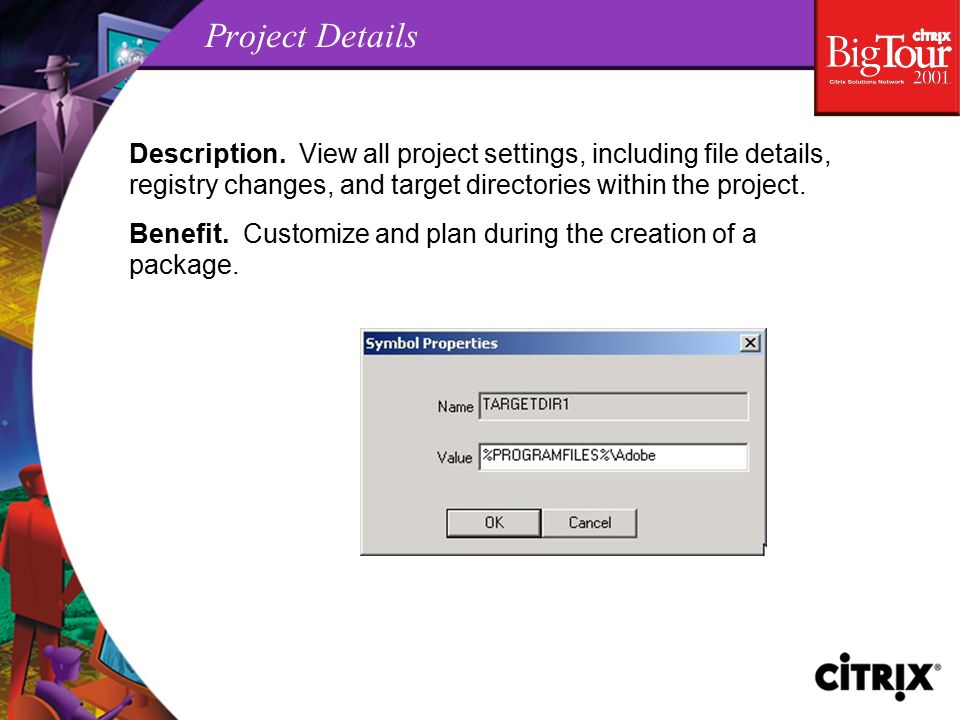

139 Project Details Description. View all project settings, including file details, registry changes, and target directories within the project. Benefit. Customize and plan during the creation of a package.

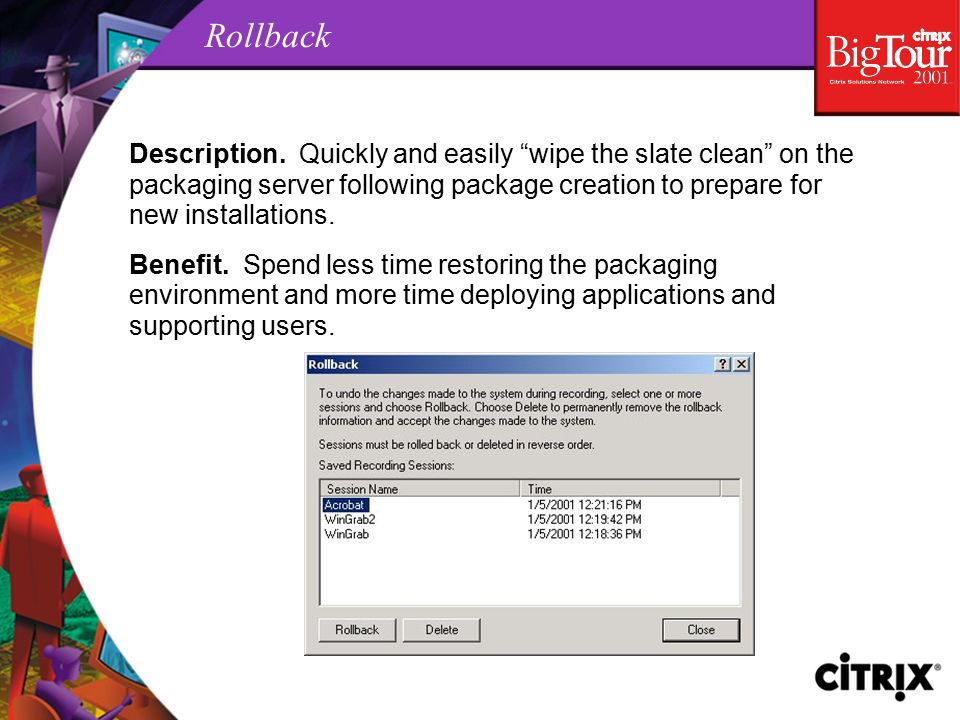

140 Rollback Description. Quickly and easily “wipe the slate clean” on the packaging server following package creation to prepare for new installations. Benefit. Spend less time restoring the packaging environment and more time deploying applications and supporting users.

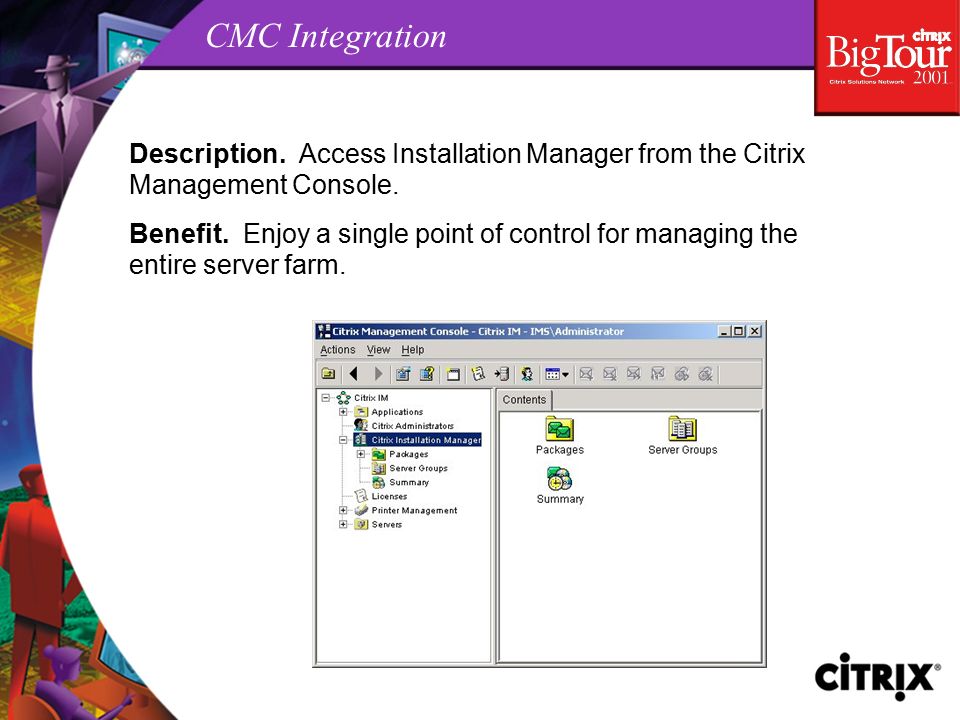

141 CMC Integration Description. Access Installation Manager from the Citrix Management Console. Benefit. Enjoy a single point of control for managing the entire server farm.

142 Package Delivery Description. Deliver a package of applications, files and/or service packs to multiple servers from a central point in minutes instead of days or weeks. Benefit. Save time and improve productivity by ensuring rapid time-to-value for new or updated applications.

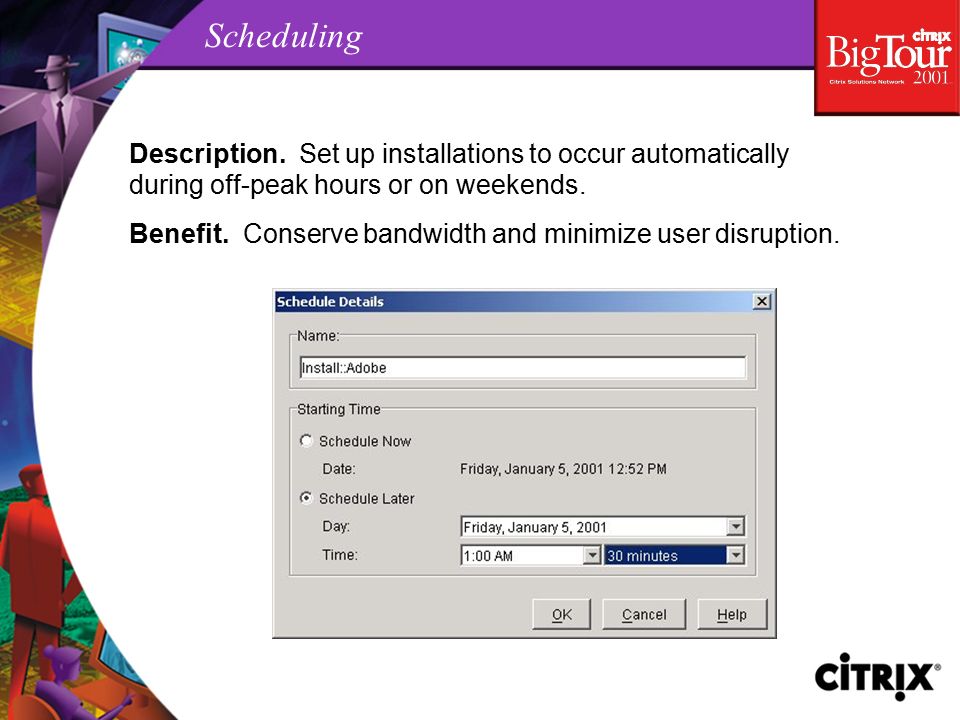

143 Scheduling Description. Set up installations to occur automatically during off-peak hours or on weekends. Benefit. Conserve bandwidth and minimize user disruption.

144 Server Groups Description. Create server groups based on different categories, such as operating system, geographic location, department or other user-defined criteria. Benefit. Precisely target application delivery to the desired servers.

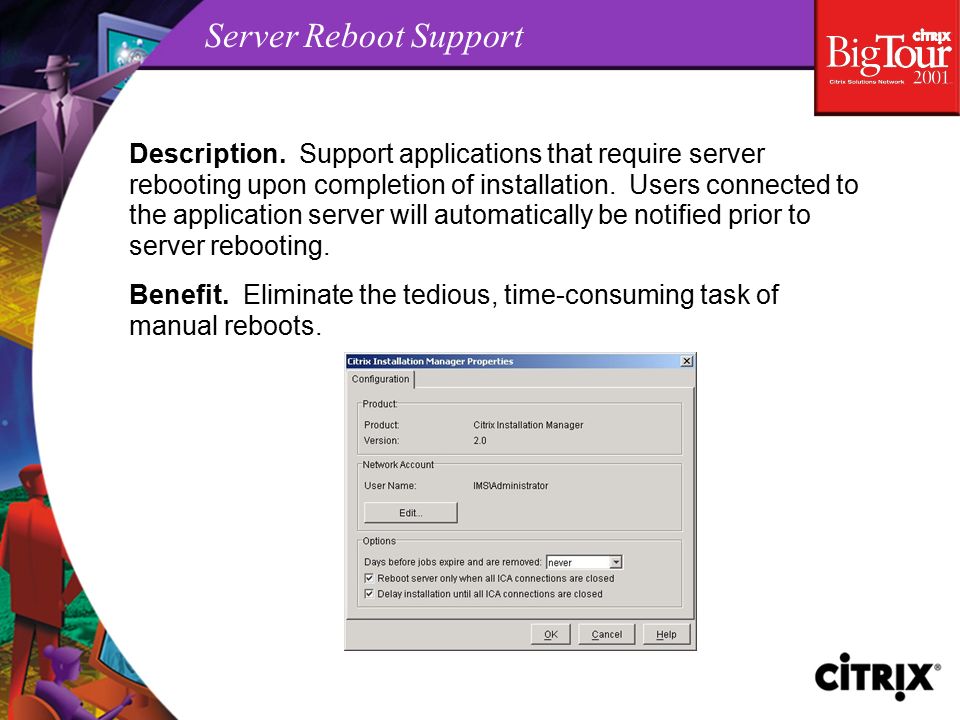

145 Server Reboot Support Description. Support applications that require server rebooting upon completion of installation. Users connected to the application server will automatically be notified prior to server rebooting. Benefit. Eliminate the tedious, time-consuming task of manual reboots.

146 MSI Support Description. Deploy any application that provides a Microsoft Installer Package (MSI) without the need for repackaging. Benefit. Enjoy all the benefits of this common, industry standard such as, self-healing, install on demand and DLL resolution.

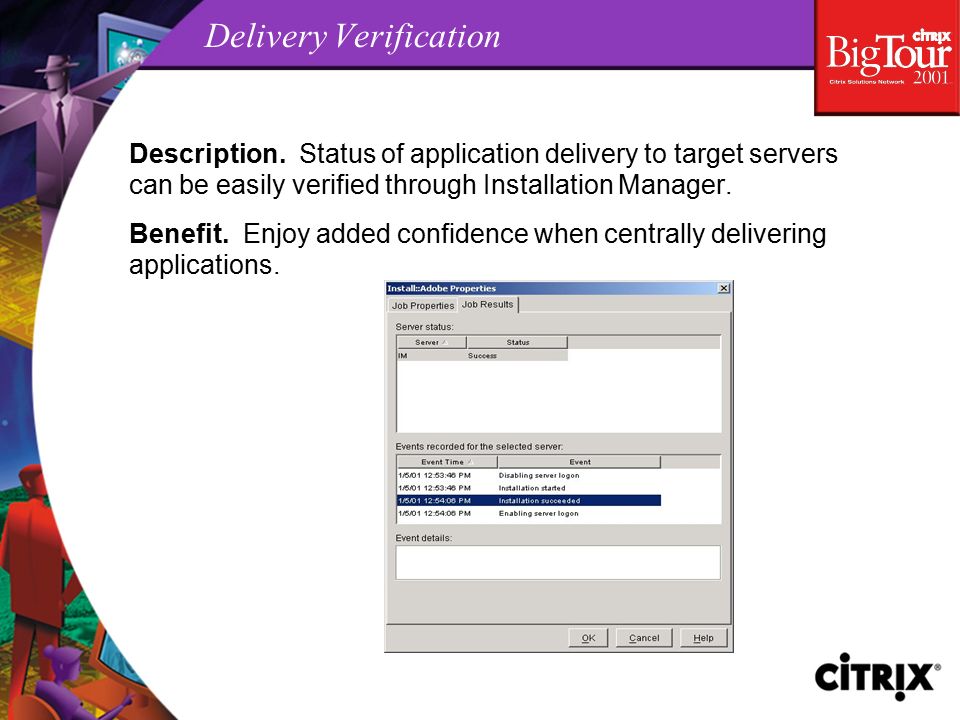

147 Delivery Verification Description. Status of application delivery to target servers can be easily verified through Installation Manager. Benefit. Enjoy added confidence when centrally delivering applications.

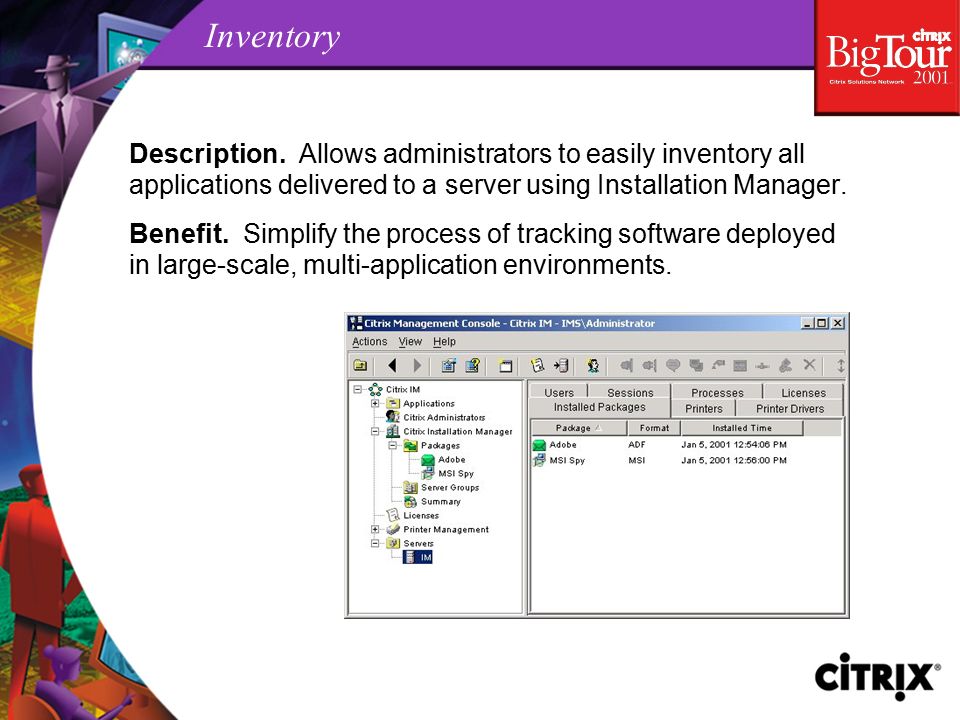

148 Inventory Description. Allows administrators to easily inventory all applications delivered to a server using Installation Manager. Benefit. Simplify the process of tracking software deployed in large-scale, multi-application environments.

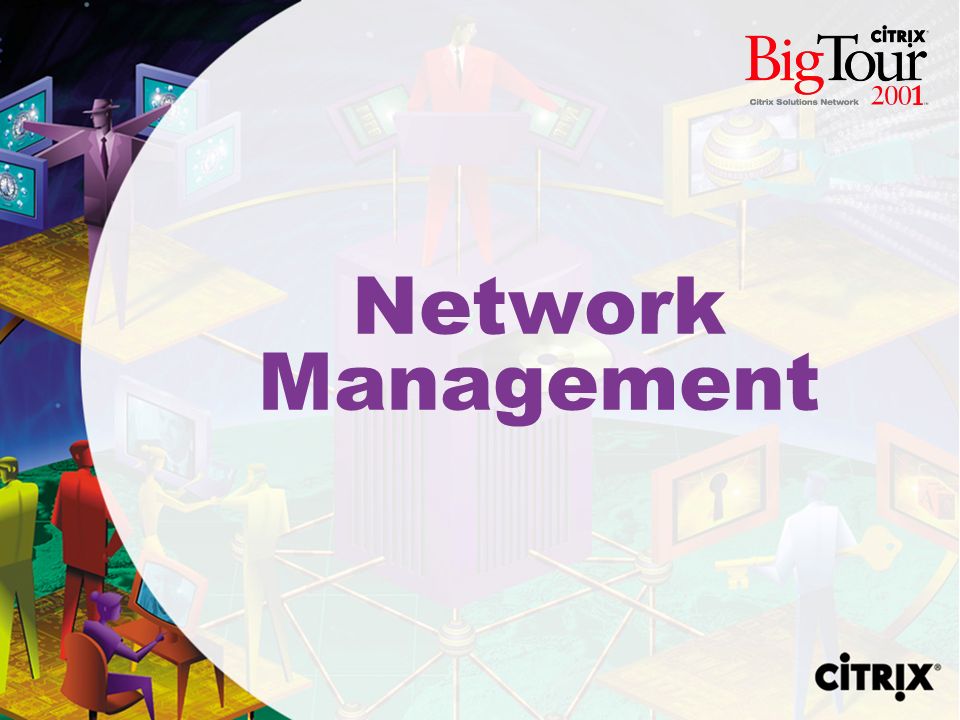

149 Network Management

150 Network Management (MetaFrame XPe) Network Management n Network Management is an SNMP agent that runs on your MetaFrame XP servers. n It can be managed with any SNMP management service or utility. n SNMP agent automatically installed with MetaFrame XPe. n Console plug-ins are available for: l Tivoli NetView (v. 5.1.2 and above) l HP OpenView (v6.0 only) n Plug-ins are located on “Network Management” CD-ROM.

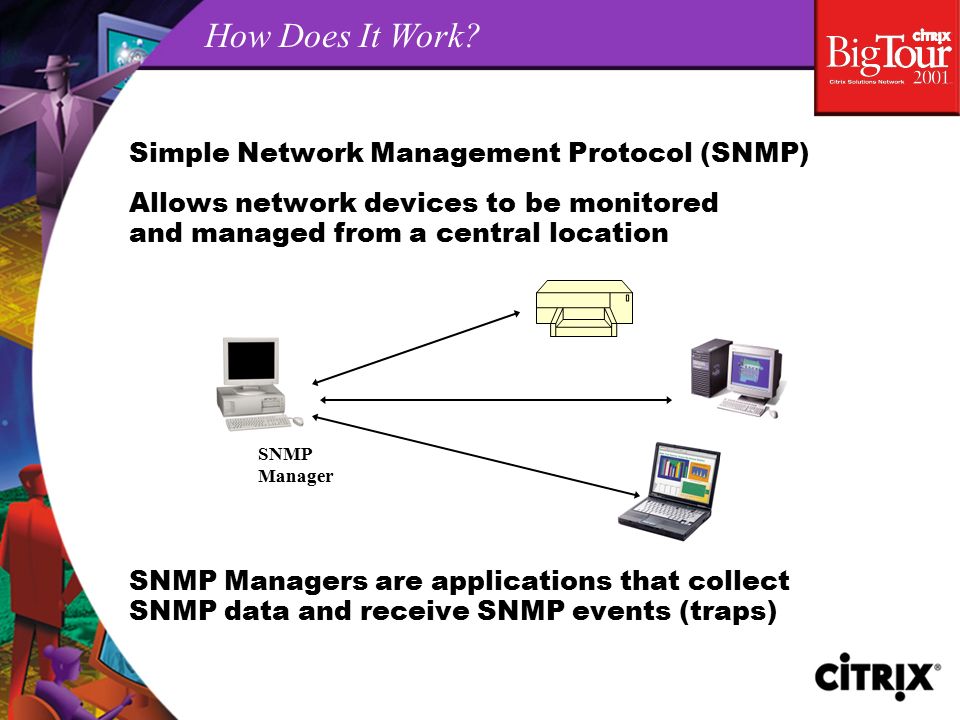

151 How Does It Work? Simple Network Management Protocol (SNMP) Allows network devices to be monitored and managed from a central location SNMP Managers are applications that collect SNMP data and receive SNMP events (traps) SNMP Manager

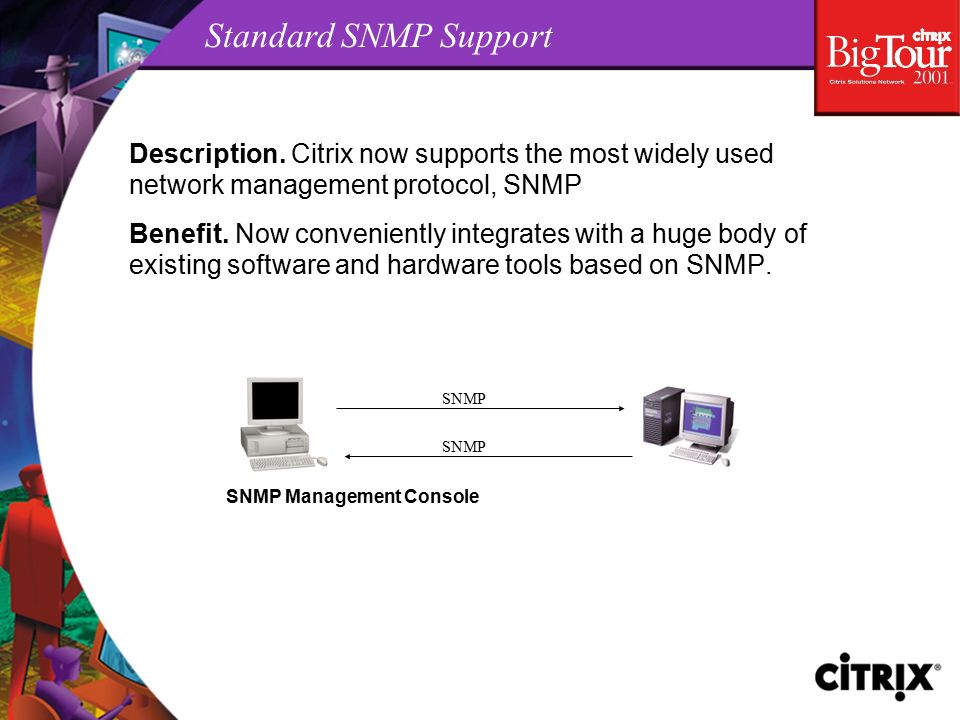

152 Standard SNMP Support Description. Citrix now supports the most widely used network management protocol, SNMP Benefit. Now conveniently integrates with a huge body of existing software and hardware tools based on SNMP. SNMP Management Console SNMP

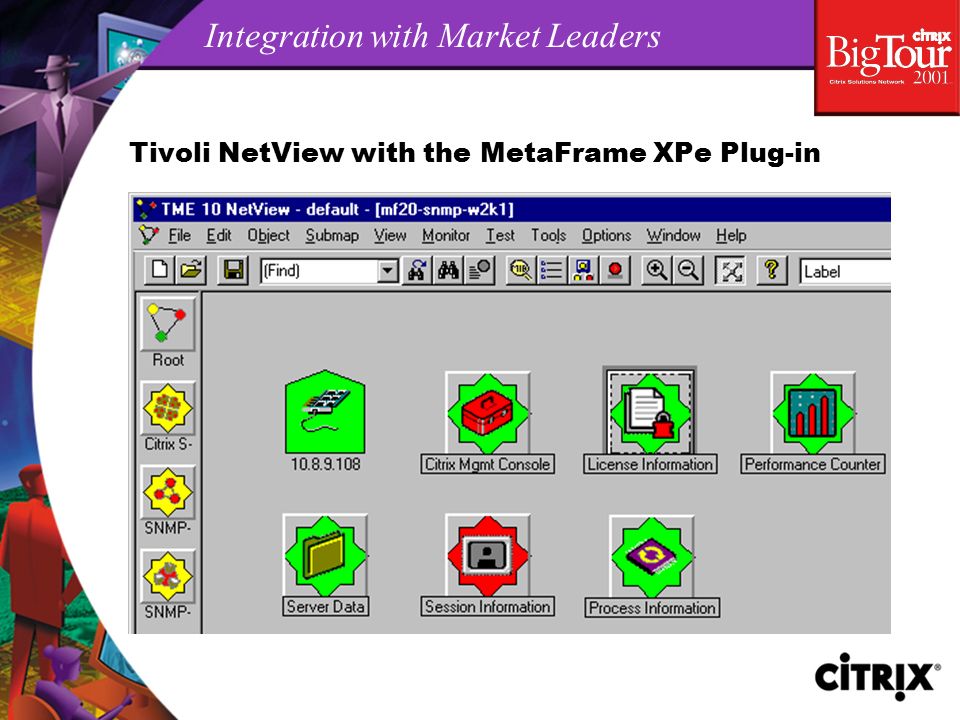

153 Integration with Market Leaders Tivoli NetView with the MetaFrame XPe Plug-in

154 Monitor & Control MetaFrame Servers Description. Discovers, monitors and controls MetaFrame XPe servers in single or multiple farms. Benefit. Conveniently monitor and control common MetaFrame session and user status information across multiple farms from a single console.

155 Monitor & Control MetaFrame Servers Disconnect session, send message, logoff user, and reboot server

156 Migrating to MetaFrame XP

157 Why Migrate to MetaFrame XP? n Increased farm scalability and stability n Easier to manage with CMC n Integrated advanced management capabilities n Simplified license management and activation n Printer management n Enhanced NFuse integration n Active Directory User Principal Name support n Client time zone support n Less server-to-server network traffic n MetaFrame 1.8 and Feature Release 1 enhancements integrated and available to more clients

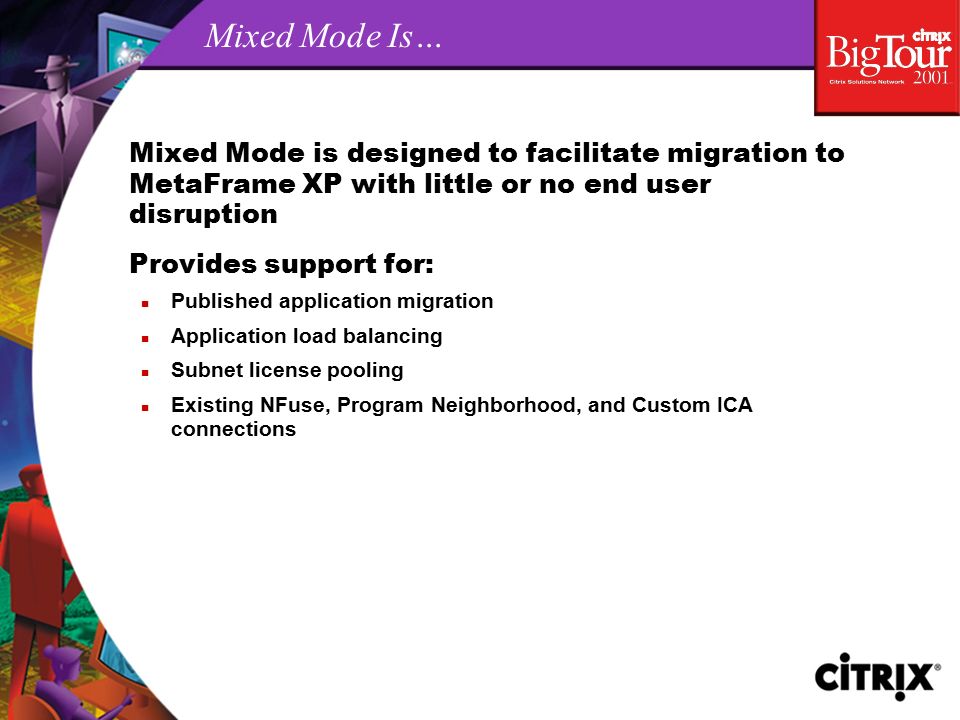

158 Mixed Mode Is… Mixed Mode is designed to facilitate migration to MetaFrame XP with little or no end user disruption Provides support for: n Published application migration n Application load balancing n Subnet license pooling n Existing NFuse, Program Neighborhood, and Custom ICA connections

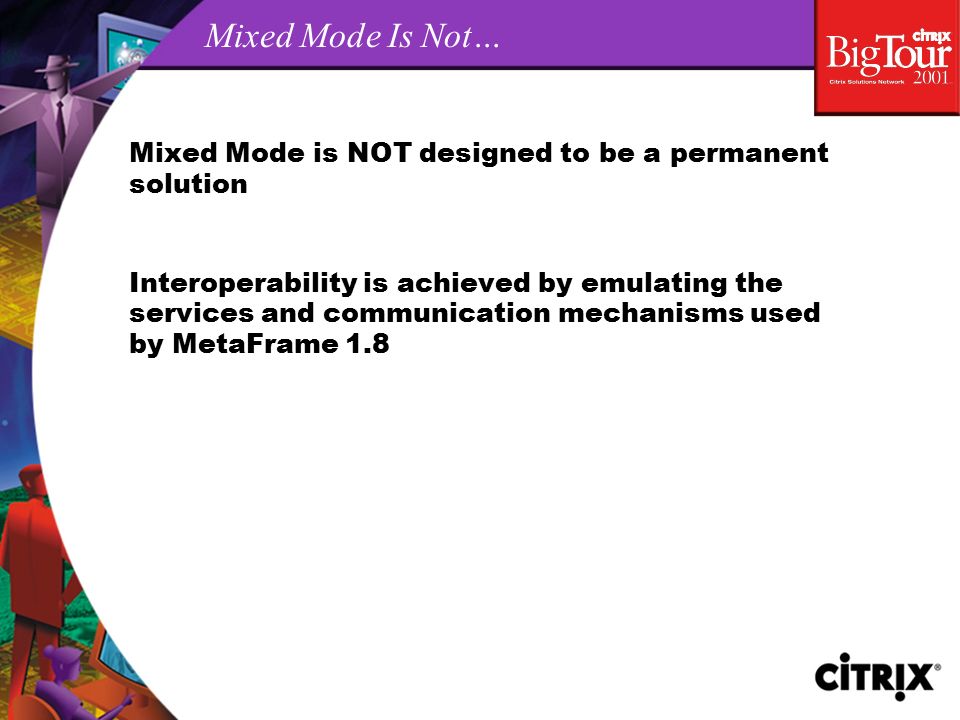

159 Mixed Mode Is Not… Mixed Mode is NOT designed to be a permanent solution Interoperability is achieved by emulating the services and communication mechanisms used by MetaFrame 1.8

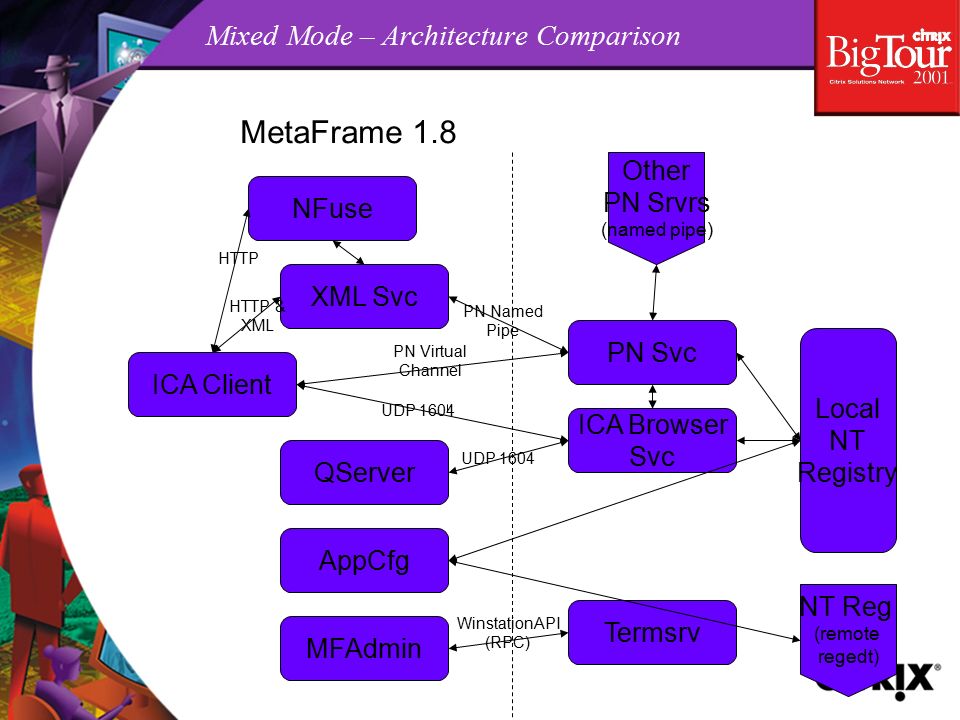

160 Termsrv Mixed Mode – Architecture Comparison MetaFrame 1.8 Local NT Registry ICA Browser Svc PN Svc Other PN Srvrs (named pipe) NFuse XML Svc ICA Client HTTP HTTP & XML PN Virtual Channel PN Named Pipe MFAdmin AppCfg QServer NT Reg (remote regedt) WinstationAPI (RPC) UDP 1604

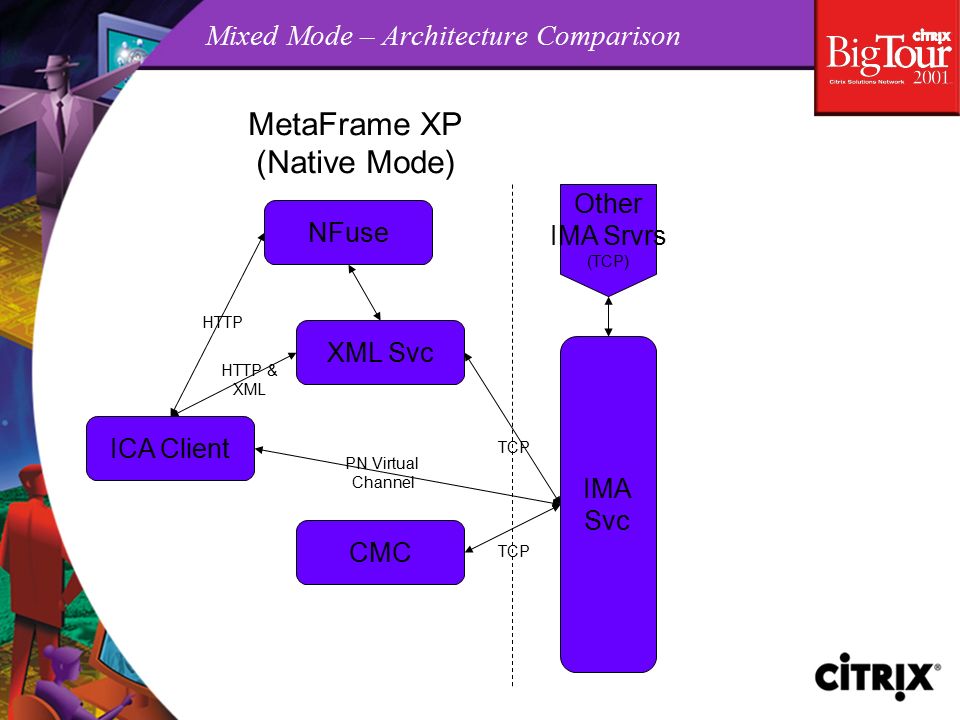

161 Mixed Mode – Architecture Comparison MetaFrame XP (Native Mode) IMA Svc Other IMA Srvrs (TCP) NFuse XML Svc ICA Client HTTP HTTP & XML CMC TCP PN Virtual Channel

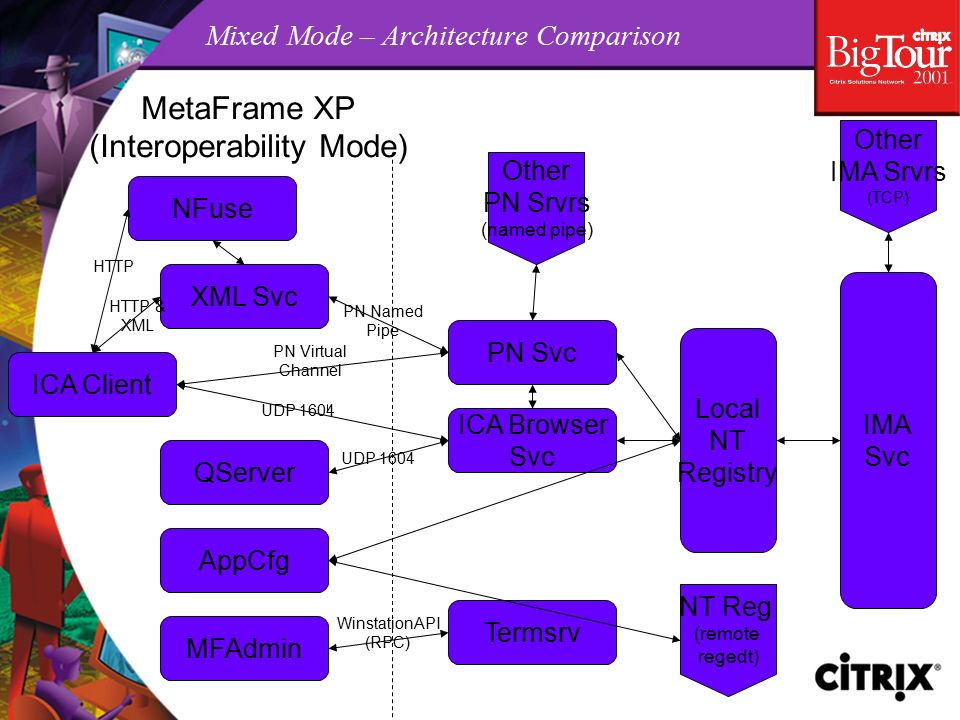

162 Termsrv Mixed Mode – Architecture Comparison MetaFrame XP (Interoperability Mode) IMA Svc Local NT Registry Other IMA Srvrs (TCP) ICA Browser Svc PN Svc Other PN Srvrs (named pipe) NFuse XML Svc ICA Client HTTP HTTP & XML PN Virtual Channel PN Named Pipe MFAdmin AppCfg QServer NT Reg (remote regedt) WinstationAPI (RPC) UDP 1604

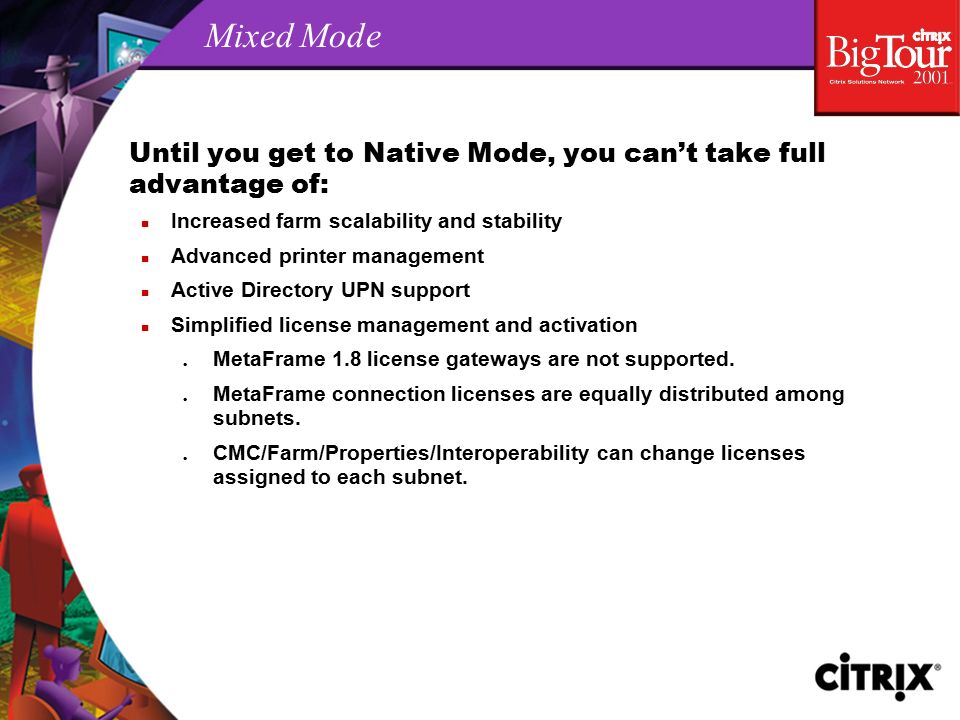

163 Mixed Mode Until you get to Native Mode, you can’t take full advantage of: n Increased farm scalability and stability n Advanced printer management n Active Directory UPN support n Simplified license management and activation l MetaFrame 1.8 license gateways are not supported. l MetaFrame connection licenses are equally distributed among subnets. l CMC/Farm/Properties/Interoperability can change licenses assigned to each subnet.

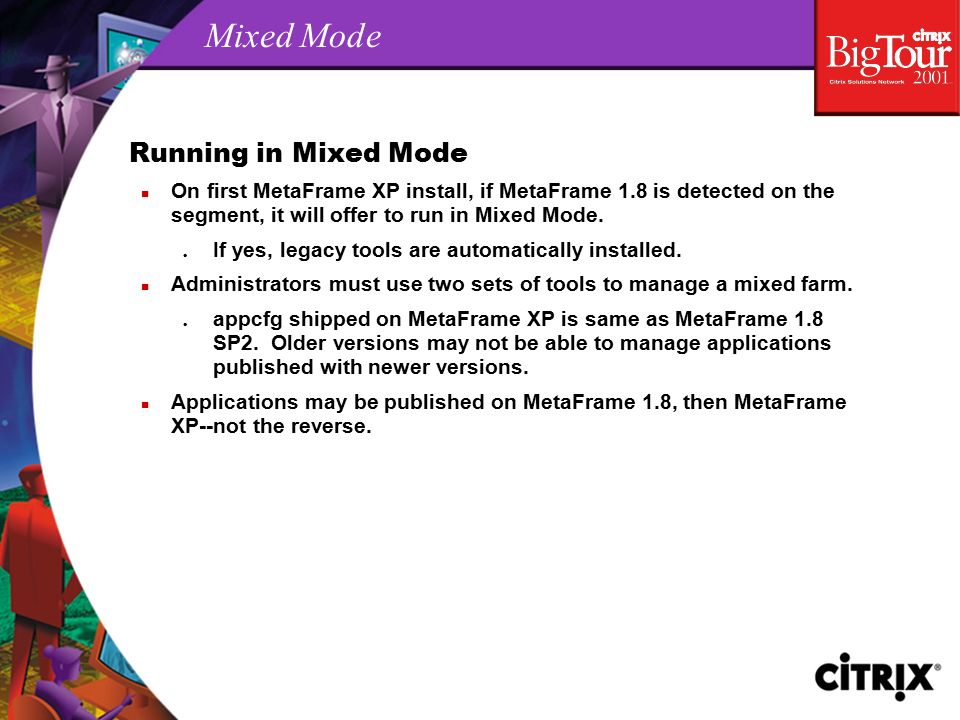

164 Mixed Mode Running in Mixed Mode n On first MetaFrame XP install, if MetaFrame 1.8 is detected on the segment, it will offer to run in Mixed Mode. l If yes, legacy tools are automatically installed. n Administrators must use two sets of tools to manage a mixed farm. l appcfg shipped on MetaFrame XP is same as MetaFrame 1.8 SP2. Older versions may not be able to manage applications published with newer versions. n Applications may be published on MetaFrame 1.8, then MetaFrame XP--not the reverse.

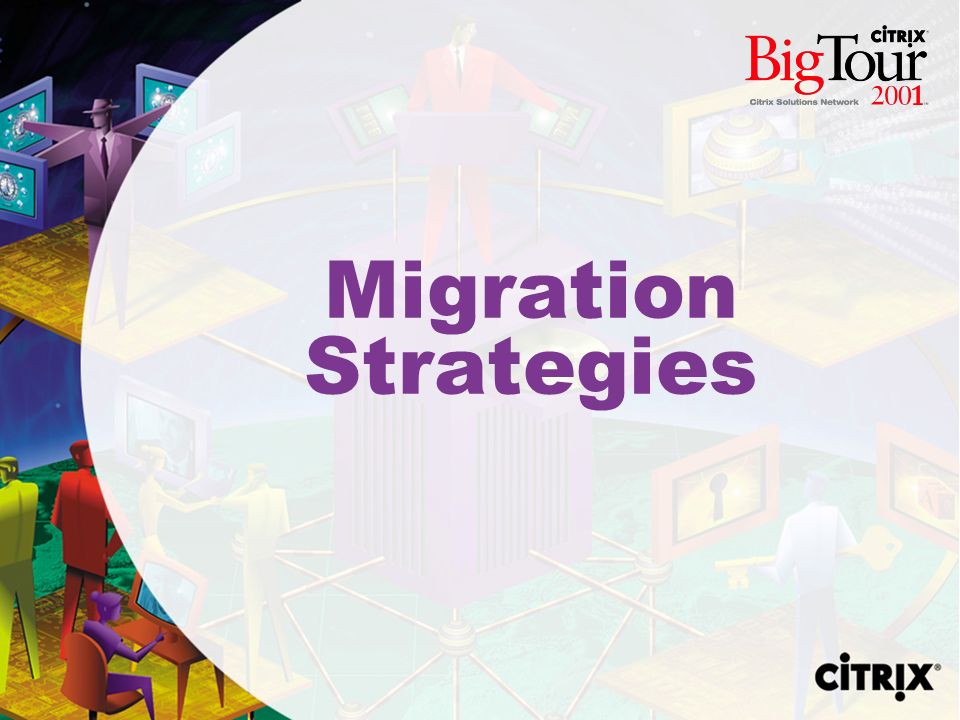

165 Migration Strategies

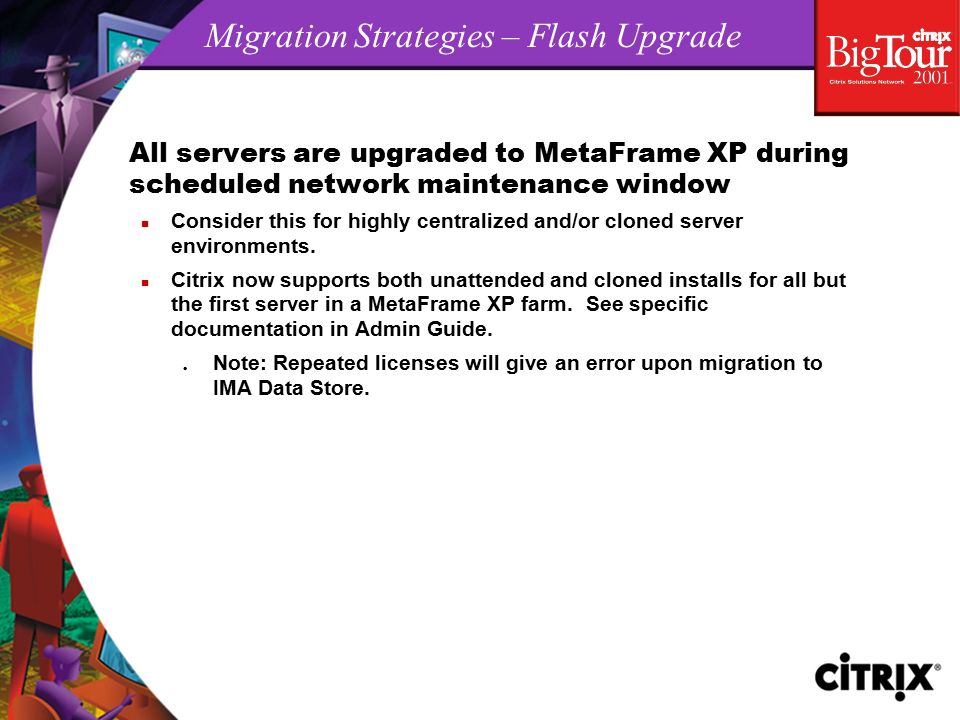

166 Migration Strategies – Flash Upgrade All servers are upgraded to MetaFrame XP during scheduled network maintenance window n Consider this for highly centralized and/or cloned server environments. n Citrix now supports both unattended and cloned installs for all but the first server in a MetaFrame XP farm. See specific documentation in Admin Guide. l Note: Repeated licenses will give an error upon migration to IMA Data Store.

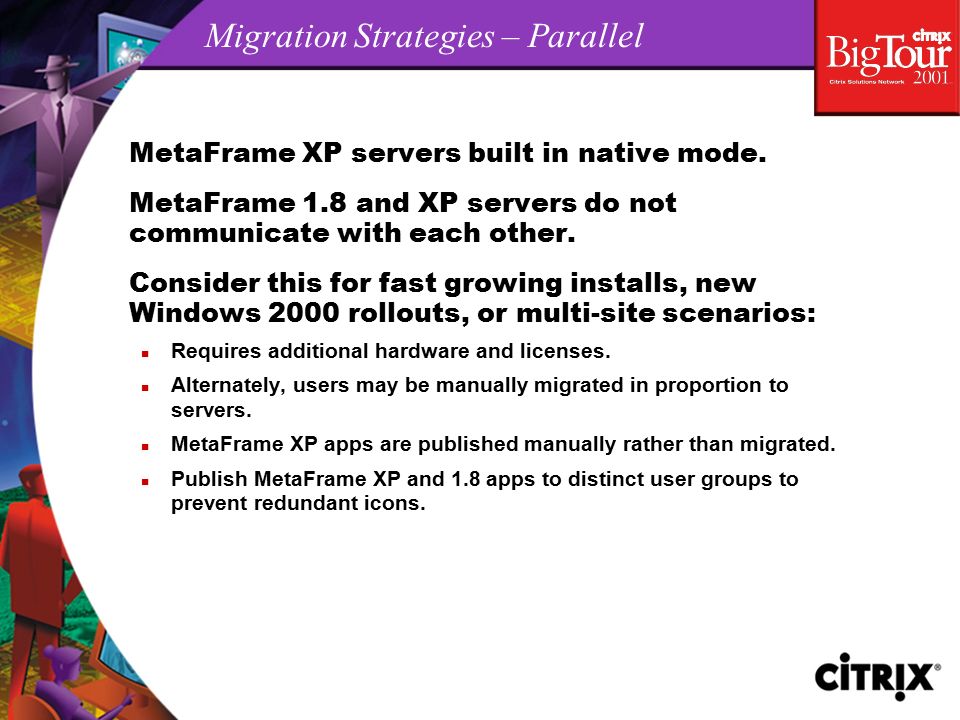

167 Migration Strategies – Parallel MetaFrame XP servers built in native mode. MetaFrame 1.8 and XP servers do not communicate with each other. Consider this for fast growing installs, new Windows 2000 rollouts, or multi-site scenarios: n Requires additional hardware and licenses. n Alternately, users may be manually migrated in proportion to servers. n MetaFrame XP apps are published manually rather than migrated. n Publish MetaFrame XP and 1.8 apps to distinct user groups to prevent redundant icons.

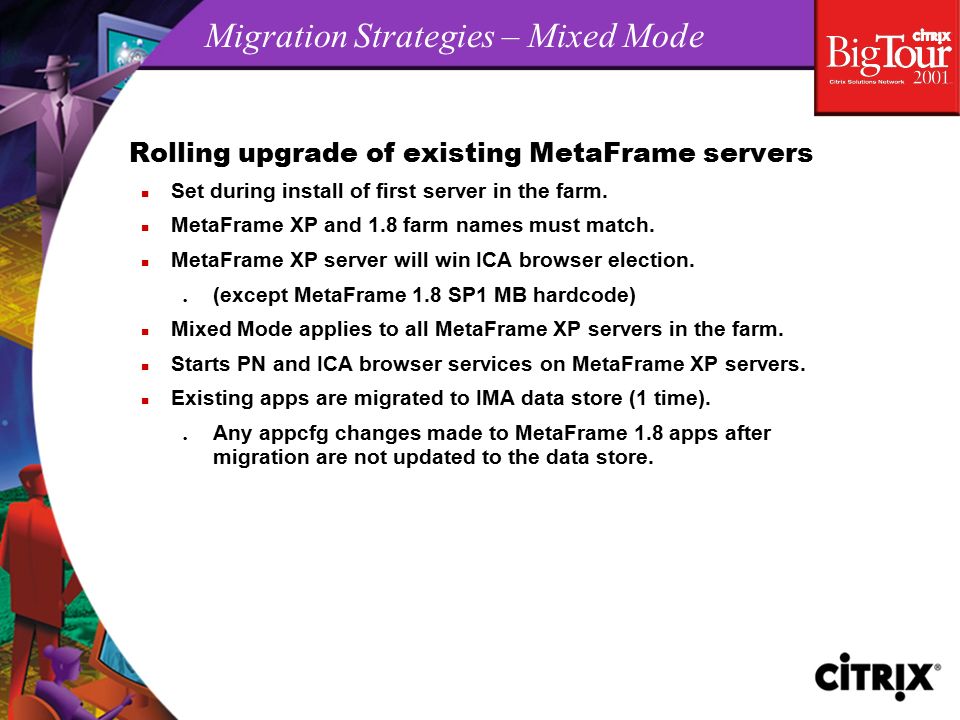

168 Migration Strategies – Mixed Mode Rolling upgrade of existing MetaFrame servers n Set during install of first server in the farm. n MetaFrame XP and 1.8 farm names must match. n MetaFrame XP server will win ICA browser election. l (except MetaFrame 1.8 SP1 MB hardcode) n Mixed Mode applies to all MetaFrame XP servers in the farm. n Starts PN and ICA browser services on MetaFrame XP servers. n Existing apps are migrated to IMA data store (1 time). l Any appcfg changes made to MetaFrame 1.8 apps after migration are not updated to the data store.

169 NFuse as a Bridging Technology NFuse allows administrators to hide complexity from the end user. For migration, it can be used to present applications from an arbitrary number of farms. n MetaFrame XP for Windows n MetaFrame 1.8 for Windows n MetaFrame 1.1 for UNIX n Multiple sites

170 Migration Scenarios

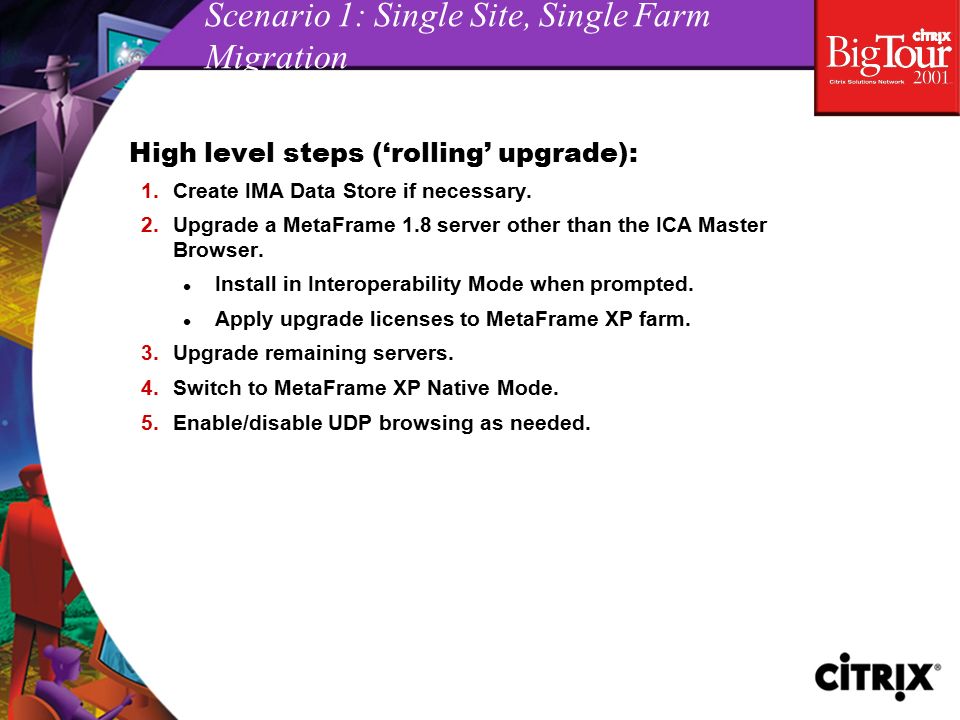

171 Scenario 1: Single Site, Single Farm Migration High level steps (‘rolling’ upgrade): 1.Create IMA Data Store if necessary. 2.Upgrade a MetaFrame 1.8 server other than the ICA Master Browser. l Install in Interoperability Mode when prompted. l Apply upgrade licenses to MetaFrame XP farm. 3.Upgrade remaining servers. 4.Switch to MetaFrame XP Native Mode. 5.Enable/disable UDP browsing as needed.

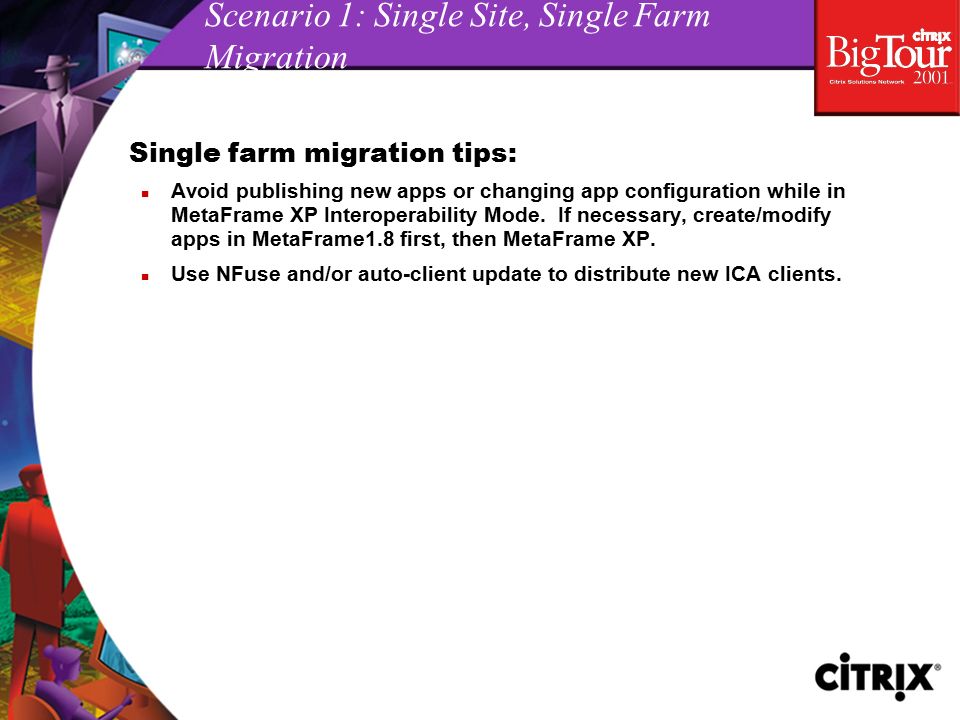

172 Scenario 1: Single Site, Single Farm Migration Single farm migration tips: n Avoid publishing new apps or changing app configuration while in MetaFrame XP Interoperability Mode. If necessary, create/modify apps in MetaFrame1.8 first, then MetaFrame XP. n Use NFuse and/or auto-client update to distribute new ICA clients.

173 Scenario 2: Multi-Farm Consolidation High level steps: n Ensure IMA server-to-server communication (default TCP 2512). n Upgrade first farm (including switch to Native Mode) or build new Enterprise MetaFrame XP farm (in Native Mode). n Perform upgrades of other MetaFrame 1.8 servers (one farm at a time) joining them to the ‘Master’ MetaFrame XP farm. n Some manual cleanup of duplicate app names may be necessary.

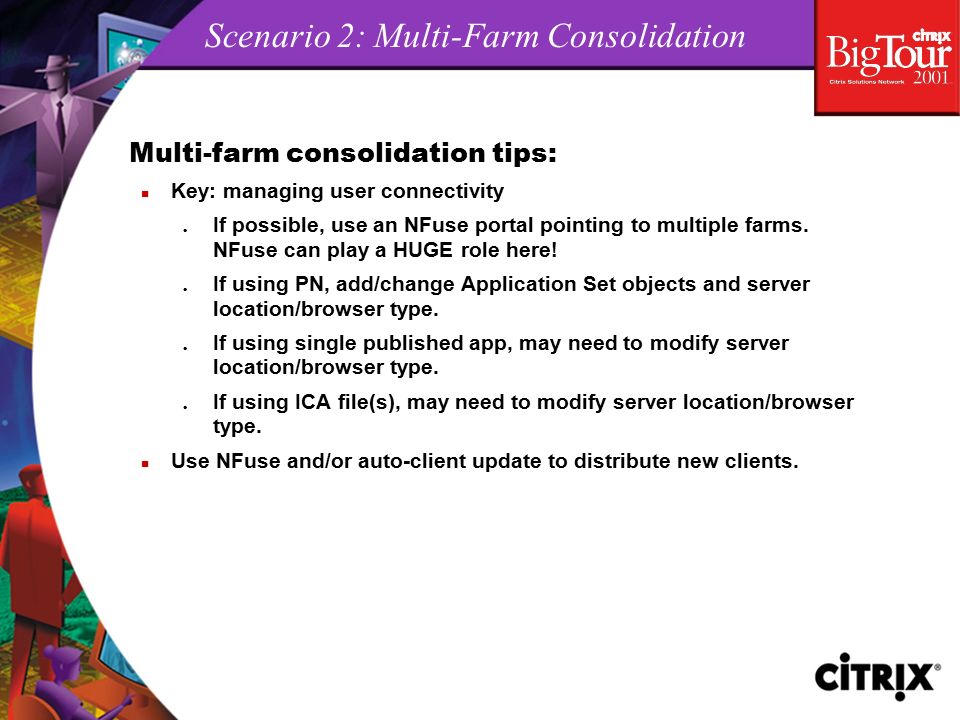

174 Scenario 2: Multi-Farm Consolidation Multi-farm consolidation tips: n Key: managing user connectivity l If possible, use an NFuse portal pointing to multiple farms. NFuse can play a HUGE role here! l If using PN, add/change Application Set objects and server location/browser type. l If using single published app, may need to modify server location/browser type. l If using ICA file(s), may need to modify server location/browser type. n Use NFuse and/or auto-client update to distribute new clients.

175 Useful Command Line Utilities

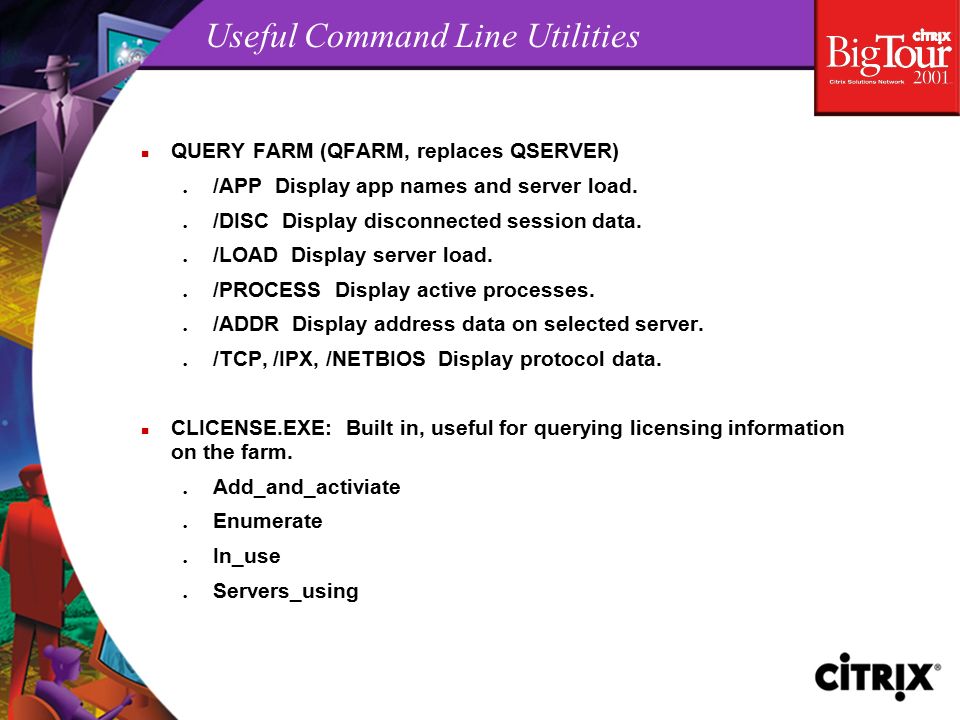

176 n QUERY FARM (QFARM, replaces QSERVER) l /APP Display app names and server load. l /DISC Display disconnected session data. l /LOAD Display server load. l /PROCESS Display active processes. l /ADDR Display address data on selected server. l /TCP, /IPX, /NETBIOS Display protocol data. n CLICENSE.EXE: Built in, useful for querying licensing information on the farm. l Add_and_activiate l Enumerate l In_use l Servers_using

177 Useful Command Line Utilities n QUERYHR.EXE: From Support directory on MetaFrame XP CD, useful for querying zone/DC info on the farm. l -z Show all the available zones l -h Show all the hosts in a specified zone l -l Show the Local Host Record l -n Show the specified Host Record given a host name l -I Show the specified Host Record given a host ID l -N Show the farm name l -d Delete an IMA Host Entry

178 Useful Command Line Utilities n QUERYDS.EXE: From Support directory on MetaFrame XP CD, useful in determining what servers are currently alive in a server farm. n Usage: l Queryds /table: [/query: ] n Table names: l SubscriptionTable l ServiceTable l PN_Table l Conn_Sessions l Disc_Sessions

179 Useful Command Line Utilities n QUERYDC.EXE: From Support directory on MetaFrame XP CD, useful for querying DC info and forcing ‘elections’. l -z Show Data Collector name l -e Force Election l -a Show data collectors for all zones n QPRINTER.EXE: From Support directory on MetaFrame XP CD, useful for viewing printer replication queue and importing mapping files into the DS. l /REPLICA Display info about printer replication queue l /IMAPRMAPPING Import mapping file into DS.

180


Download ppt "Citrix MetaFrame XP for Windows. Agenda Intro to MetaFrame XP n What is MetaFrame XP? n What’s New in MetaFrame XP? n How is MetaFrame XP Packaged? New."

Similar presentations


Ads by Google
