1. Human Computer Interaction An Introduction

2. Human-Computer Interaction "Human-computer interaction (HCI) is the study of the interaction between people, computers and tasks. It is principally concerned with understanding how people and computers can interactively carry out tasks, and how such interactive systems are designed." Peter Johnson (1992) "... even the hugest telescope has to have an eye-piece no larger than the human eye." Ludwig Wittgenstein

3. HCI – What is it all about? users tasks software/hardware environment ?

4. Pandora's Box? linguistics comp. science sociology psychology ergonomics ? philosophy art

5. What is the problem? Have you ever bumped into a door because you pulled instead of pushed? Have you ever switched the wrong lights on or off? Have you ever made a mistake in programming your video recorder? Have you ever taken hours to figure out to do exactly what you want with a certain computer program? Have you ever left a web page because you could not find what you were looking for? The frustrations of everyday life

6. What is a 'User Interface'? It is the interface between the user and the computer...... but it is more than just simple input and output. We must consider COGNITIVE ASPECTS of human...... and of course, everybody is different... We must accept cognitive diversity, even though it makes the user interface design process more difficult!!

7. The interpretation of information from the outside world that is received through the senses. Perception of objects and events and interpretation of them. The wrong interpretation could be costly, inefficient, unpleasant, dangerous, and even fatal… Example? Cognition

8. Goals of interaction design Develop usable products  Usability means easy to learn, effective to use and provide an enjoyable experience Involve users in the design process

9. What to design? Need to take into account  Who the users are  What activities are being carried out  Where the interaction is taking place Need to optimize the interactions users have with a product  Such that they match the users activities and needs

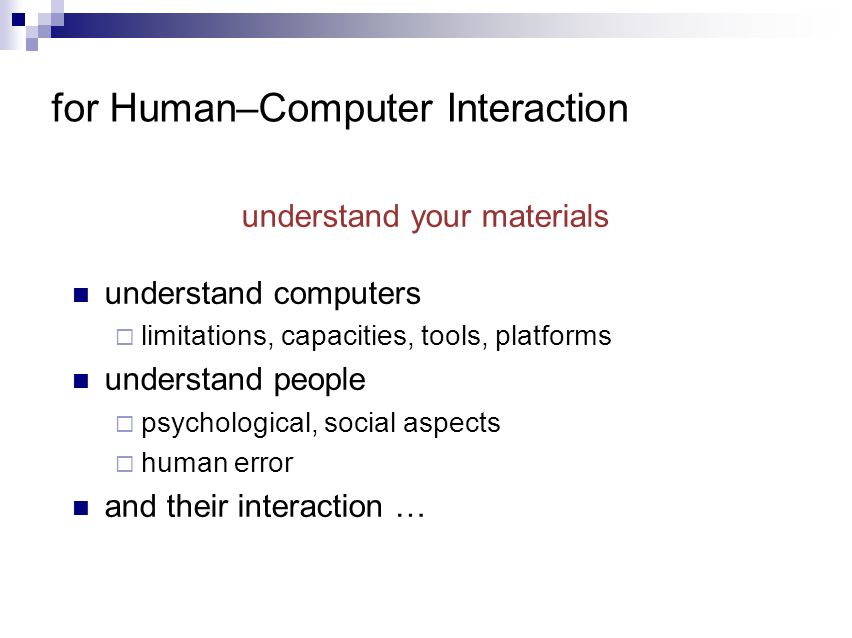

10. for Human–Computer Interaction understand your materials understand computers  limitations, capacities, tools, platforms understand people  psychological, social aspects  human error and their interaction …

11. To err is human accident reports..  aircrash, industrial accident, hospital mistake  enquiry … blames … ‘human error’ but …  concrete lintel breaks because too much weight  blame ‘lintel error’ ? … no – design error we know how concrete behaves under stress human ‘error’ is normal  we know how users behave under stress  so design for it! treat the user at least as well as physical materials!

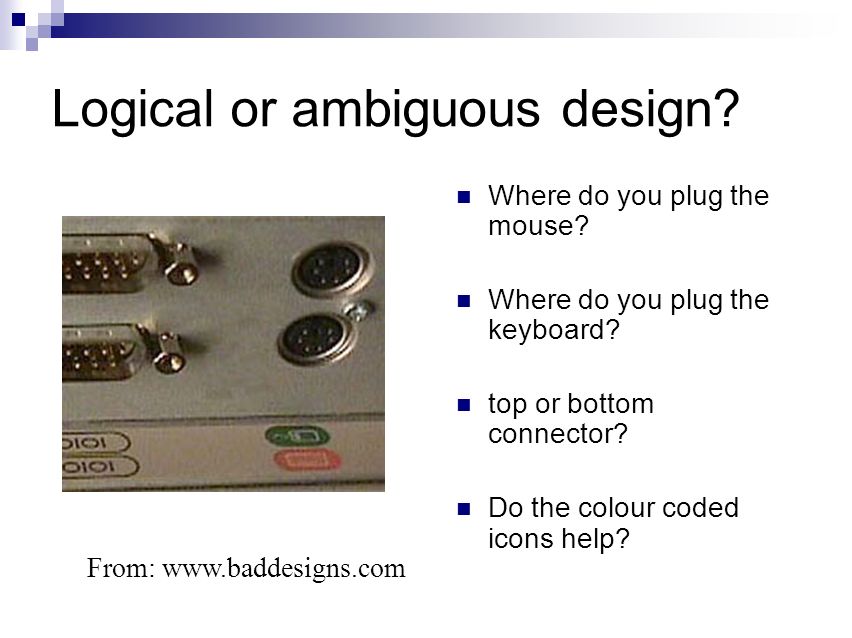

12. Logical or ambiguous design? Where do you plug the mouse? Where do you plug the keyboard? top or bottom connector? Do the colour coded icons help? From: www.baddesigns.com

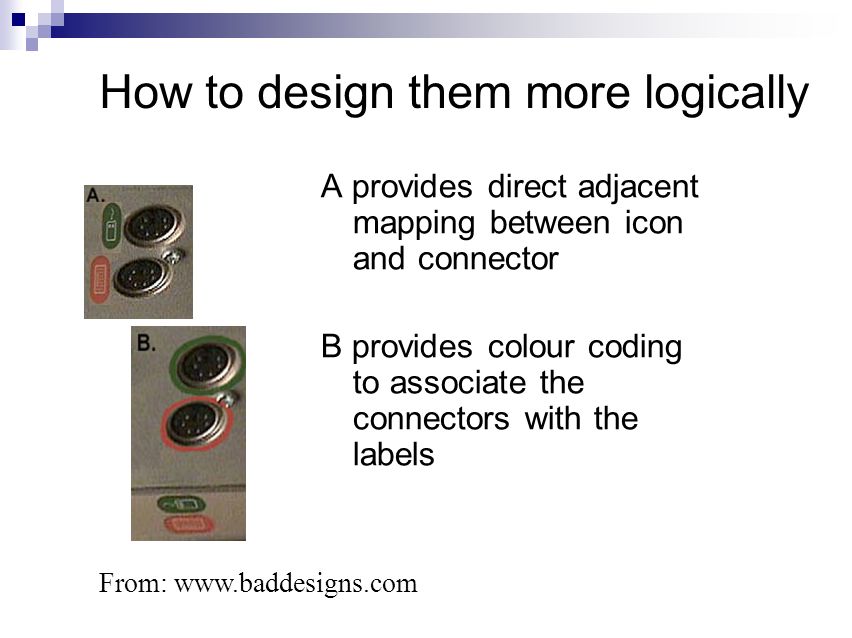

13. How to design them more logically A provides direct adjacent mapping between icon and connector B provides colour coding to associate the connectors with the labels From: www.baddesigns.com

14. Task 2: (10 min) Design a stove top with four rings and four controls, one for each ring. You are not allowed to use any labelling to i ndicate which knob applies to which ring.

15. ABCD Which controls go with which rings (burners)?

16. Why is this a better design?

17. Discuss:

19. Mapping – The relationship between two things. e.g. Turn steering wheel right, car turns right Why is this a poor mapping of control buttons?

20. Task: Group work (15 min) Design an interface for a small programme that converts between currencies. Draw a design for the input / output screen. The system can accept input by using a mouse, other pointing device or touch screen NOT by using a keyboard. The programme must be able convert between BP, US dollars, Au Dollars, euros and Yen. Note: You don’t have to actually carry out the calculations (just pretend) www.baddesigns.com

21. Your task Look at the following slide show of HCI devices. Form groups: Design a new interface for a common device: ensure you have adhered to some of the laws in the quiz below Produce a quick slide show to present your work and reasoning to the class www.baddesigns.com http://www.asktog.com/columns/022DesignedToGiveFitts.ht ml
