1. Confidential Prepared by: System Sales PM Version: 1.0 Eco-Focused and Efficient 1U Server

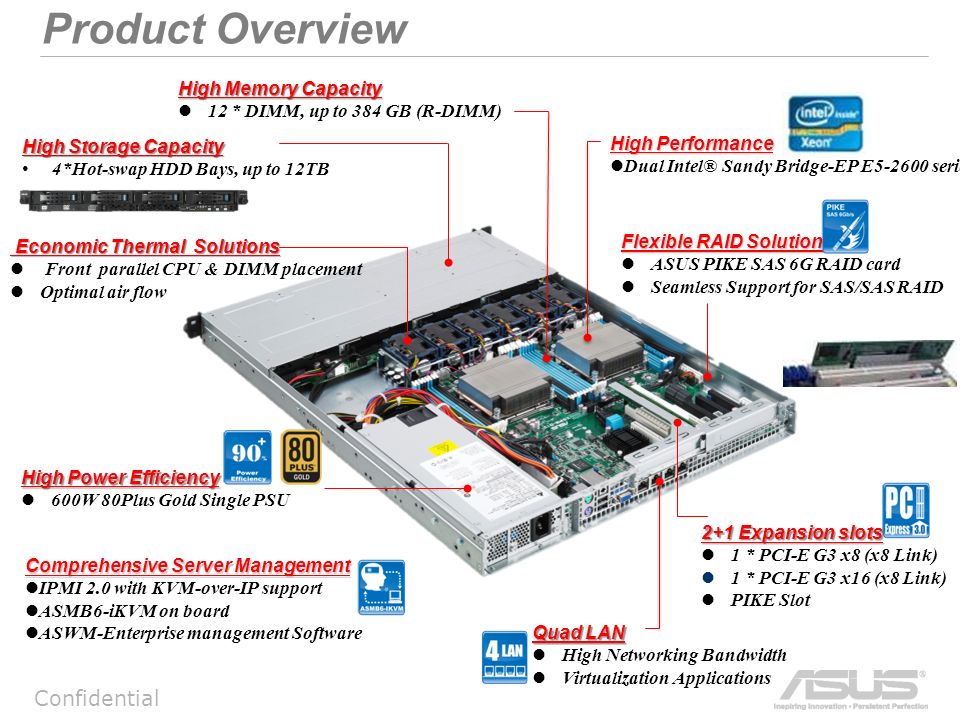

2. Confidential 2+1 Expansion slots 1 * PCI-E G3 x8 (x8 Link) 1 * PCI-E G3 x16 (x8 Link) PIKE Slot High Storage Capacity 4*Hot-swap HDD Bays, up to 12TB Economic Thermal Solutions Economic Thermal Solutions Front parallel CPU & DIMM placement Optimal air flow Comprehensive Server Management IPMI 2.0 with KVM-over-IP support ASMB6-iKVM on board ASWM-Enterprise management Software High Memory Capacity 12 * DIMM, up to 384 GB (R-DIMM) High Performance Dual Intel® Sandy Bridge-EP E5-2600 series High Power Efficiency 600W 80Plus Gold Single PSU Quad LAN High Networking Bandwidth Virtualization Applications Flexible RAID Solution ASUS PIKE SAS 6G RAID card Seamless Support for SAS/SAS RAID Product Overview

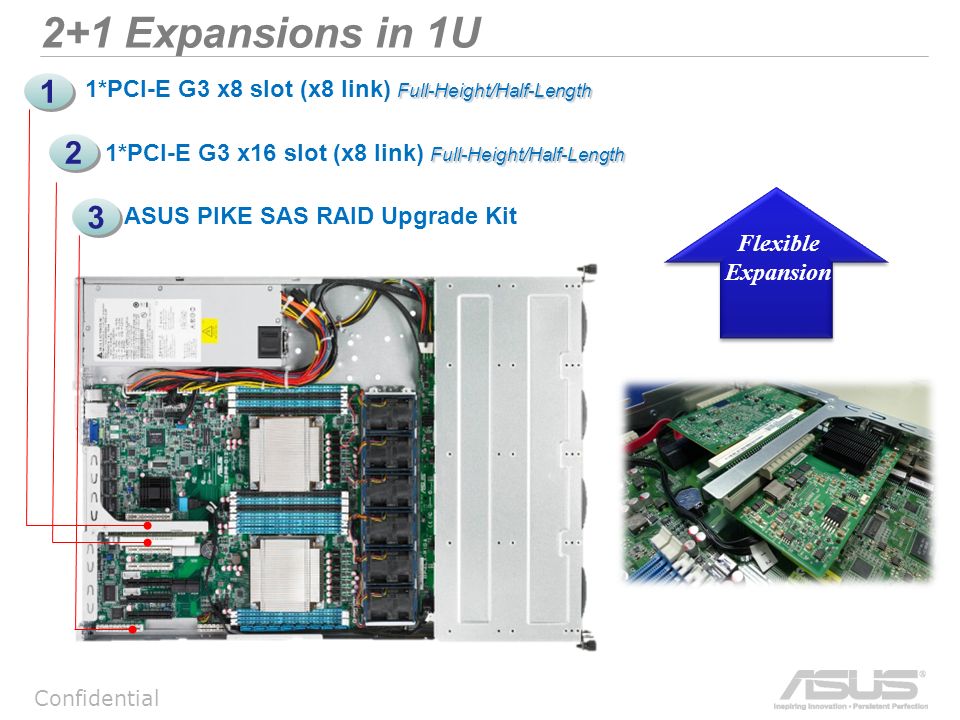

3. Confidential Flexible Expansion 2+1 Expansions in 1U Full-Height/Half-Length 1*PCI-E G3 x8 slot (x8 link) Full-Height/Half-Length Full-Height/Half-Length 1*PCI-E G3 x16 slot (x8 link) Full-Height/Half-Length ASUS PIKE SAS RAID Upgrade Kit 1 1 3 3 2 2

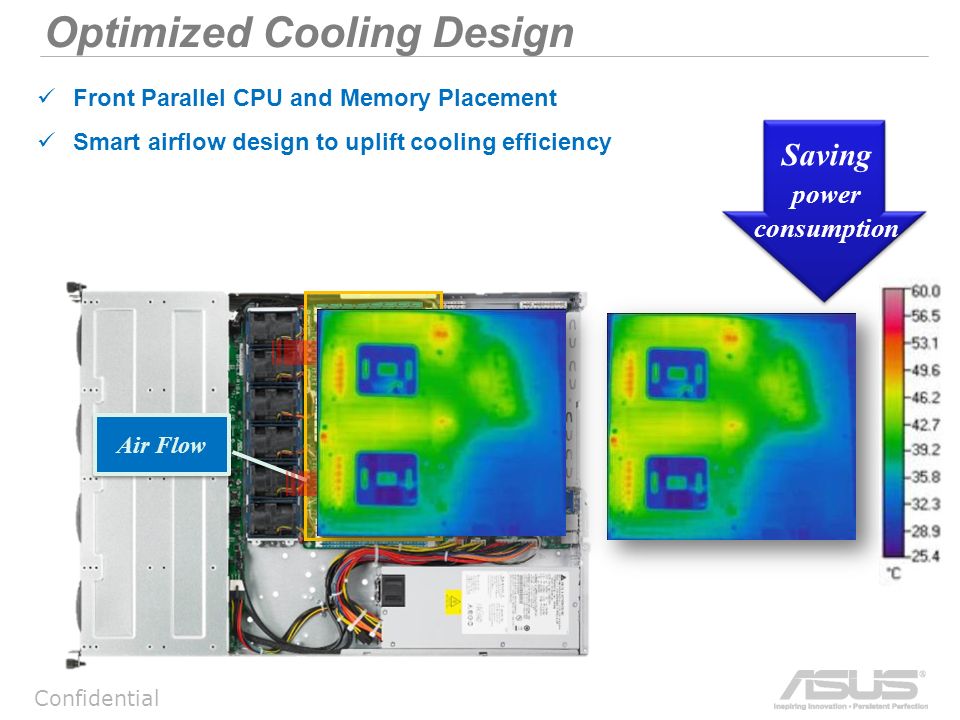

4. Confidential Optimized Cooling Design Front Parallel CPU and Memory Placement Smart airflow design to uplift cooling efficiency Air Flow Saving power consumption

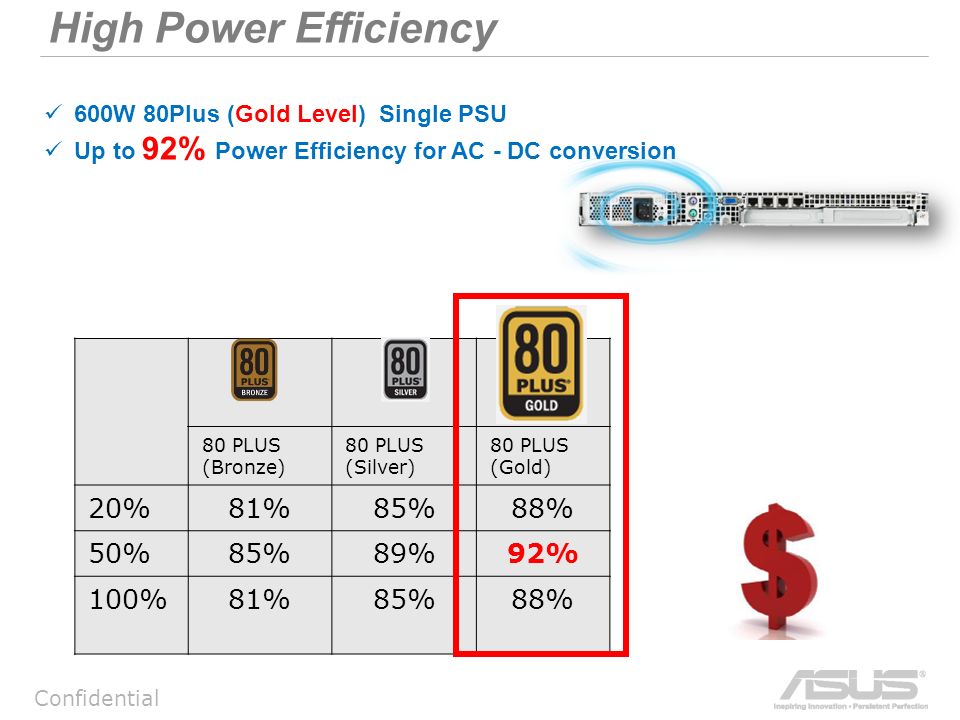

5. Confidential 80 PLUS (Bronze) 80 PLUS (Silver) 80 PLUS (Gold) 20%81%85%88% 50%85%89%92% 100%81%85%88% 600W 80Plus (Gold Level) Single PSU Up to 92% Power Efficiency for AC - DC conversion High Power Efficiency

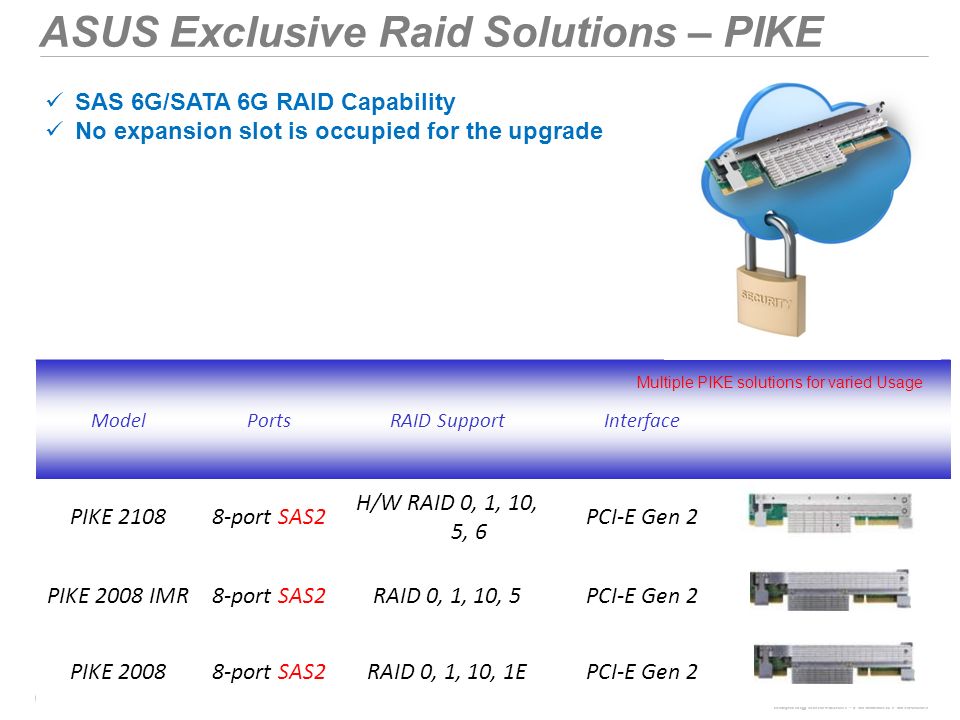

6. Confidential ModelPortsRAID SupportInterface PIKE 21088-port SAS2 H/W RAID 0, 1, 10, 5, 6 PCI-E Gen 2 PIKE 2008 IMR8-port SAS2RAID 0, 1, 10, 5PCI-E Gen 2 PIKE 20088-port SAS2RAID 0, 1, 10, 1EPCI-E Gen 2 SAS 6G/SATA 6G RAID Capability No expansion slot is occupied for the upgrade Multiple PIKE solutions for varied Usage ASUS Exclusive Raid Solutions – PIKE

7. Confidential Quad LAN with 1G Strengthen networking capacity for optimal virtualization deployment Load-balance & Fault-tolerance Flexible management in data flow Testing set-up suggested in VMware certificate guide Advance Networking Capacity 1 3 4 2 Public Network Private Network Management Control Mass Data Transit 1 3 2 4 V2 V1 V5 V4 V3 V6 V7 V8 1 32 4

8. Confidential SATA DOM Ready Flexible SATA interface Capability Up-to-date 10G Ethernet Support ASUS 10G LAN Card and most market available 10G LAN Card Optional Resource Application ASUS PEB-10G Dual port 10GBase-Tvadapter (RJ45)

9. Confidential Not For Release Reference

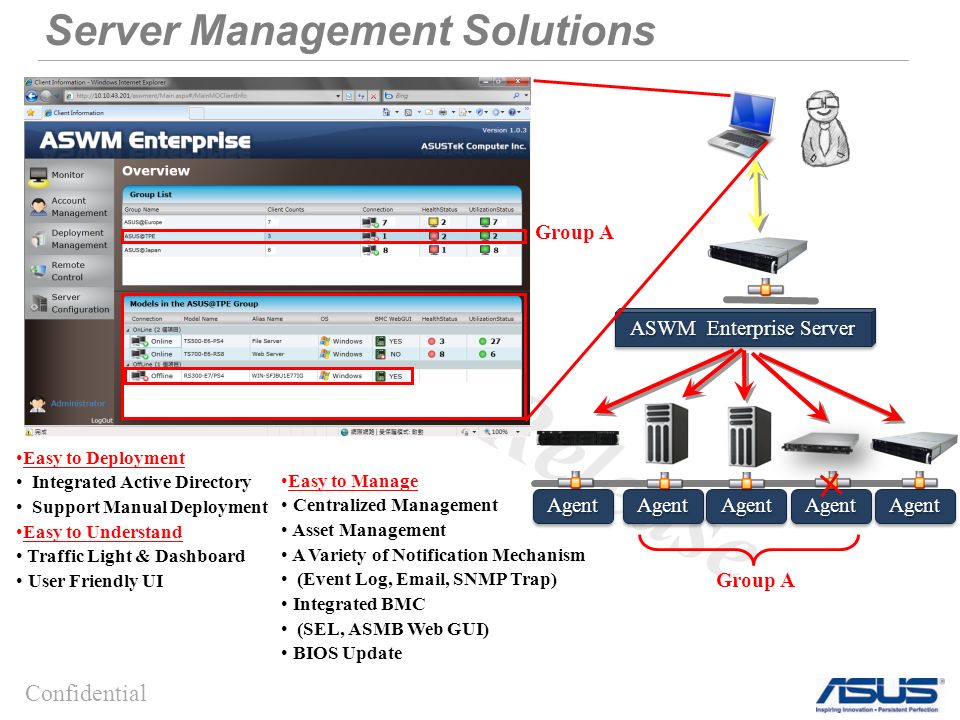

10. Confidential Not For Release Easy to Manage Centralized Management Asset Management A Variety of Notification Mechanism (Event Log, Email, SNMP Trap) Integrated BMC (SEL, ASMB Web GUI) BIOS Update AgentAgentAgentAgentAgentAgentAgentAgentAgentAgent ASWM Enterprise Server Easy to Deployment Integrated Active Directory Support Manual Deployment Easy to Understand Traffic Light & Dashboard User Friendly UI Group A Server Management Solutions

11. Confidential Not For Release Onboard BMC:ASMB6-IKVM(1/5) Remote Server Local Device LAN / INTERNET ASUS JAVA-based Web Browser Onboard BMC Onboard BMC Onboard BMC

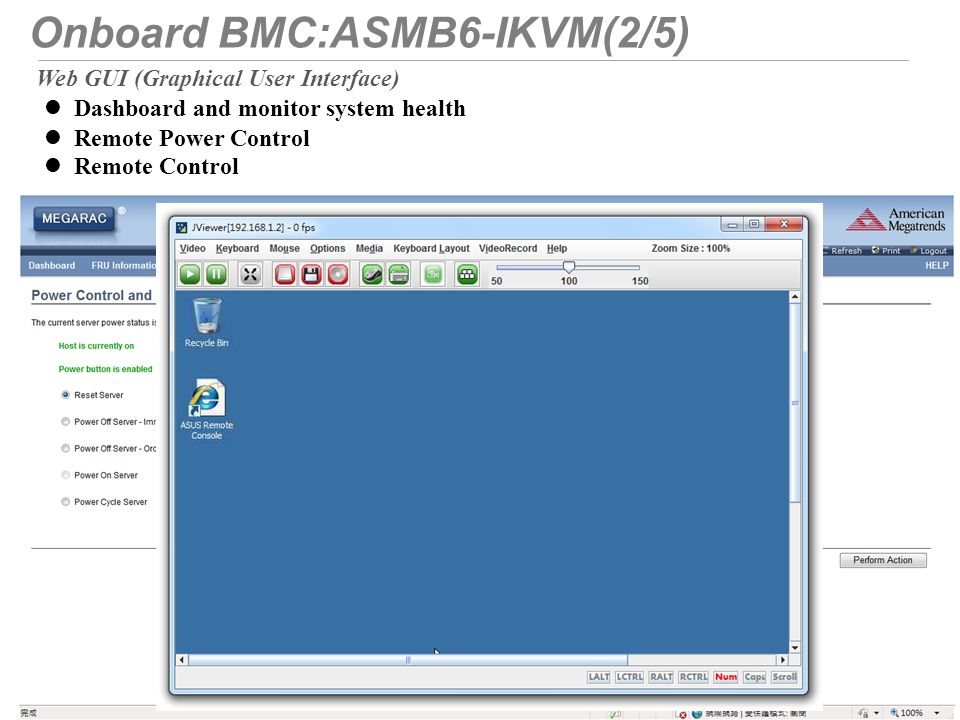

12. Confidential Not For Release Onboard BMC:ASMB6-IKVM(2/5) Dashboard and monitor system health Remote Power Control Remote Control Web GUI (Graphical User Interface)

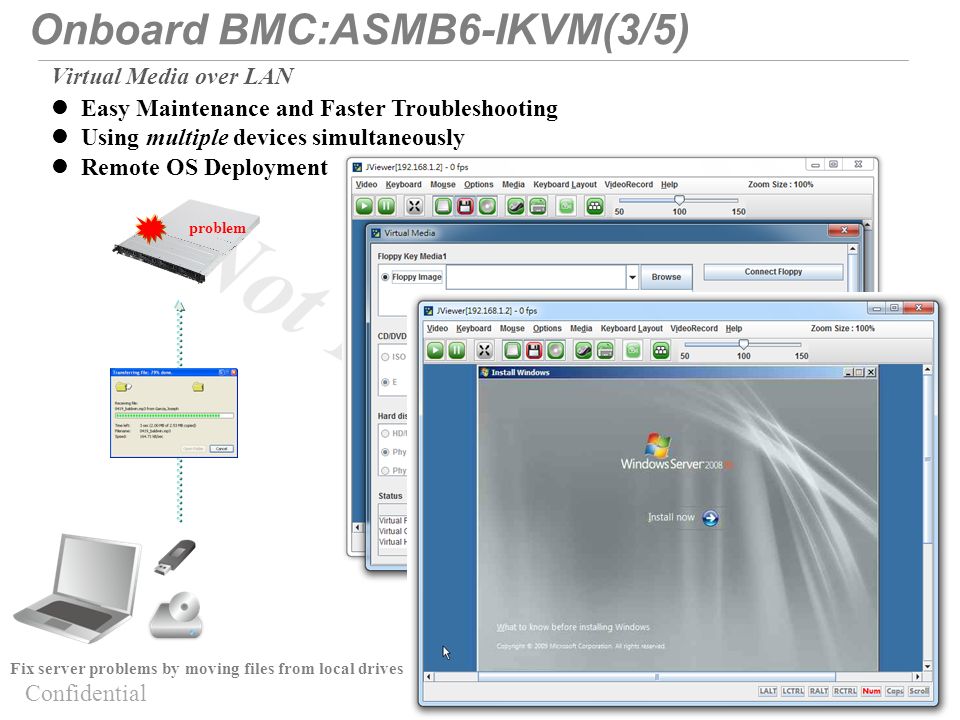

13. Confidential Not For Release Virtual Media over LAN Easy Maintenance and Faster Troubleshooting Onboard BMC:ASMB6-IKVM(3/5) problem Fix server problems by moving files from local drives Using multiple devices simultaneously Remote OS Deployment

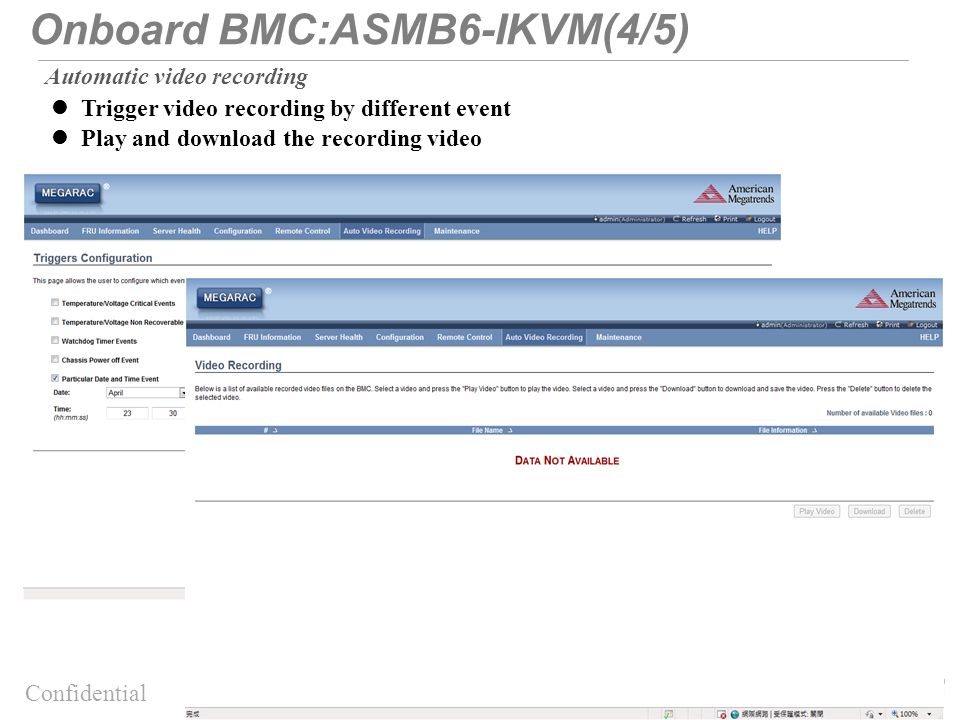

14. Confidential Not For Release Automatic video recording Trigger video recording by different event Onboard BMC:ASMB6-IKVM(4/5) Play and download the recording video

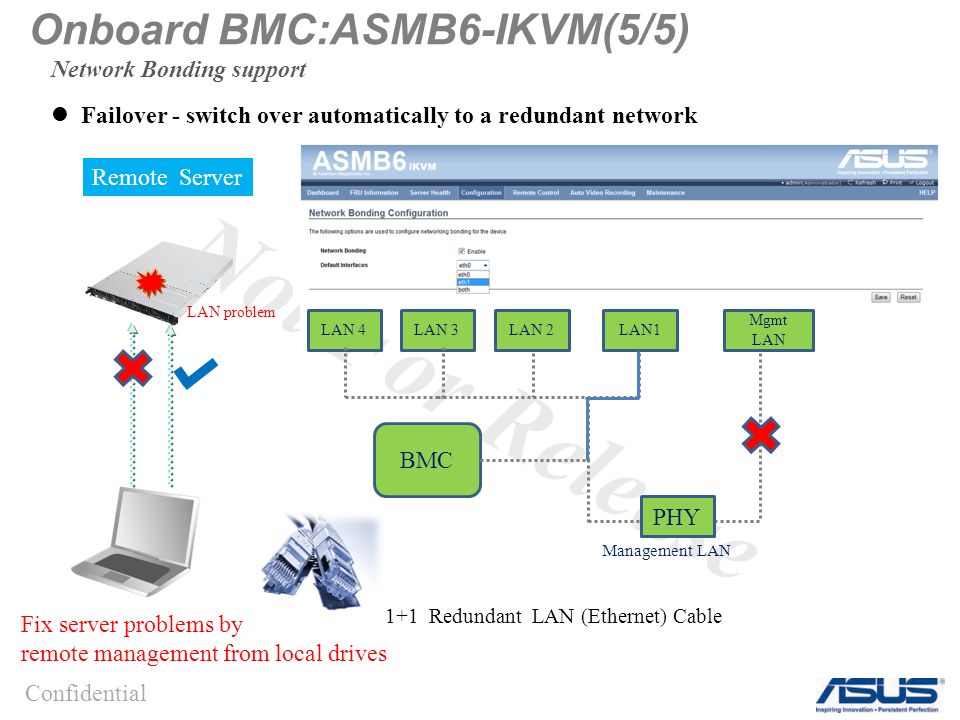

15. Confidential Not For Release Onboard BMC:ASMB6-IKVM(5/5) Network Bonding support Failover - switch over automatically to a redundant network LAN problem Remote Server Fix server problems by remote management from local drives 1+1 Redundant LAN (Ethernet) Cable BMC PHY Management LAN LAN 2LAN1 Mgmt LAN LAN 3LAN 4

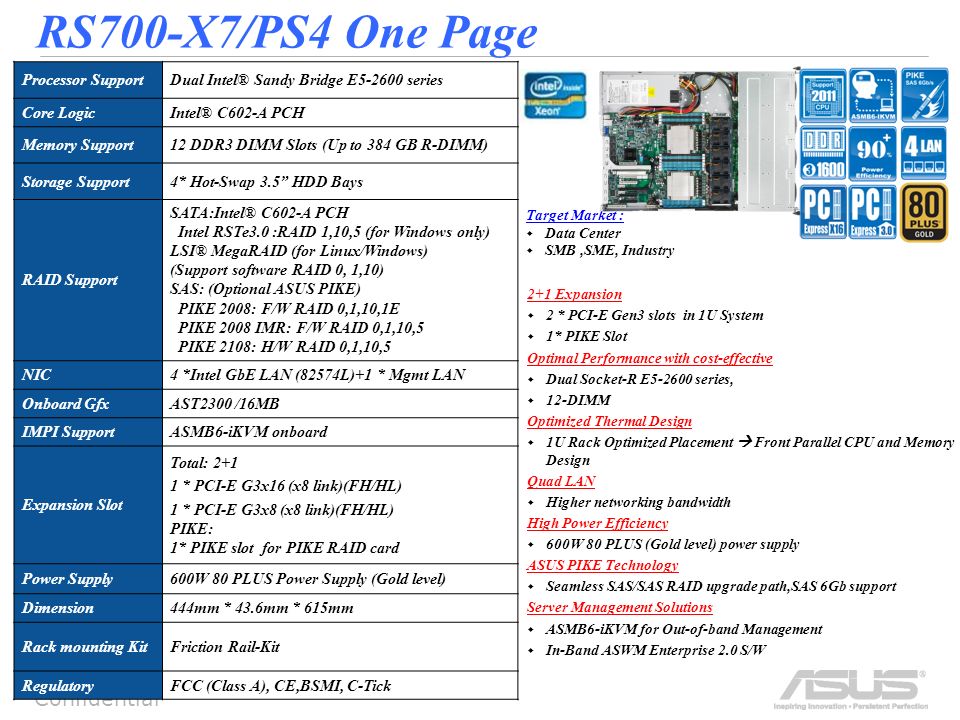

16. Confidential RS700-X7/PS4 One Page 2+1 Expansion  2 * PCI-E Gen3 slots in 1U System  1* PIKE Slot Optimal Performance with cost-effective  Dual Socket-R E5-2600 series,  12-DIMM Optimized Thermal Design  1U Rack Optimized Placement  Front Parallel CPU and Memory Design Quad LAN  Higher networking bandwidth High Power Efficiency  600W 80 PLUS (Gold level) power supply ASUS PIKE Technology  Seamless SAS/SAS RAID upgrade path,SAS 6Gb support Server Management Solutions  ASMB6-iKVM for Out-of-band Management  In-Band ASWM Enterprise 2.0 S/W Processor SupportDual Intel® Sandy Bridge E5-2600 series Core LogicIntel® C602-A PCH Memory Support12 DDR3 DIMM Slots (Up to 384 GB R-DIMM) Storage Support4* Hot-Swap 3.5” HDD Bays RAID Support SATA:Intel® C602-A PCH Intel RSTe3.0 :RAID 1,10,5 (for Windows only) LSI® MegaRAID (for Linux/Windows) (Support software RAID 0, 1,10) SAS: (Optional ASUS PIKE) PIKE 2008: F/W RAID 0,1,10,1E PIKE 2008 IMR: F/W RAID 0,1,10,5 PIKE 2108: H/W RAID 0,1,10,5 NIC4 *Intel GbE LAN (82574L)+1 * Mgmt LAN Onboard GfxAST2300 /16MB IMPI SupportASMB6-iKVM onboard Expansion Slot Total: 2+1 1 * PCI-E G3x16 (x8 link)(FH/HL) 1 * PCI-E G3x8 (x8 link)(FH/HL) PIKE: 1* PIKE slot for PIKE RAID card Power Supply600W 80 PLUS Power Supply (Gold level) Dimension444mm * 43.6mm * 615mm Rack mounting KitFriction Rail-Kit RegulatoryFCC (Class A), CE,BSMI, C-Tick Target Market :  Data Center  SMB,SME, Industry
