1. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 1 Janusz Dobrowolski StateSoft Inc, JanuszDobrowolski@StateSoft.org Prof. Bogdan Korel Illinois Institute of Technology korel@iit.edu MDA -Model Driven Architecture for 3G/NGN Automatic Generation and Validation or Platforms and Services StateSoft

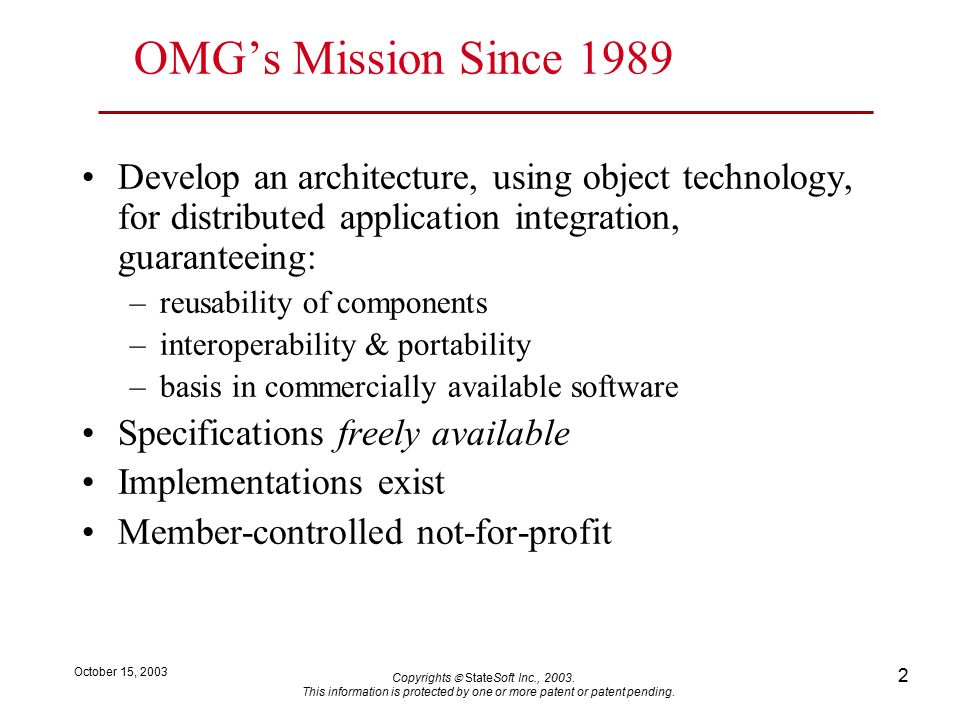

2. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 2 OMG’s Mission Since 1989 Develop an architecture, using object technology, for distributed application integration, guaranteeing: –reusability of components –interoperability & portability –basis in commercially available software Specifications freely available Implementations exist Member-controlled not-for-profit

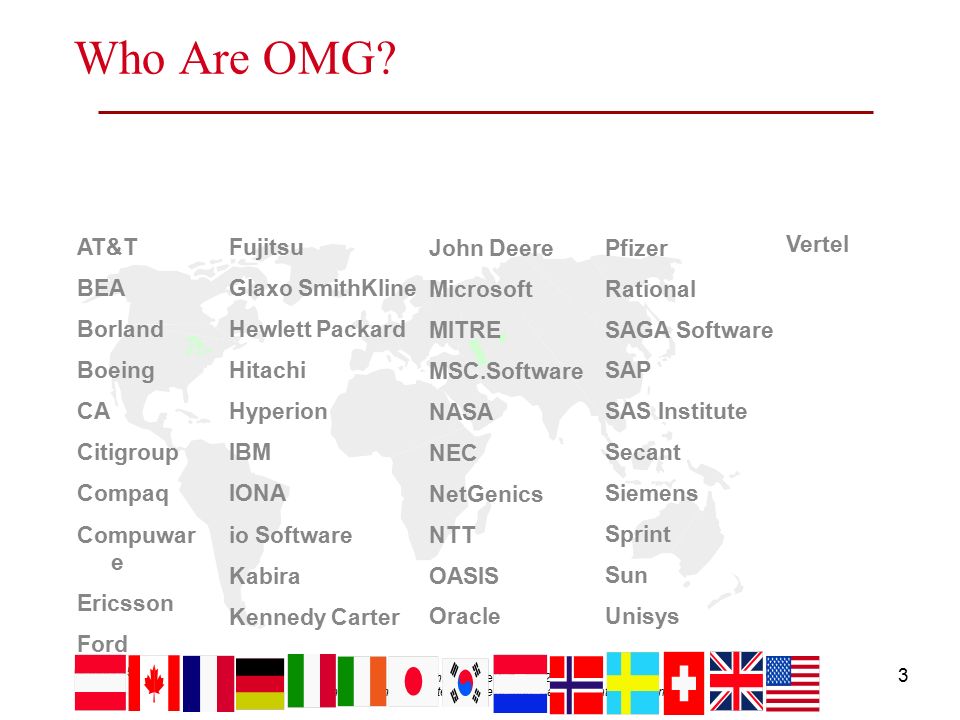

3. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 3 Who Are OMG? AT&T BEA Borland Boeing CA Citigroup Compaq Compuwar e Ericsson Ford Fujitsu Glaxo SmithKline Hewlett Packard Hitachi Hyperion IBM IONA io Software Kabira Kennedy Carter John Deere Microsoft MITRE MSC.Software NASA NEC NetGenics NTT OASIS Oracle Pfizer Rational SAGA Software SAP SAS Institute Secant Siemens Sprint Sun Unisys Vertel

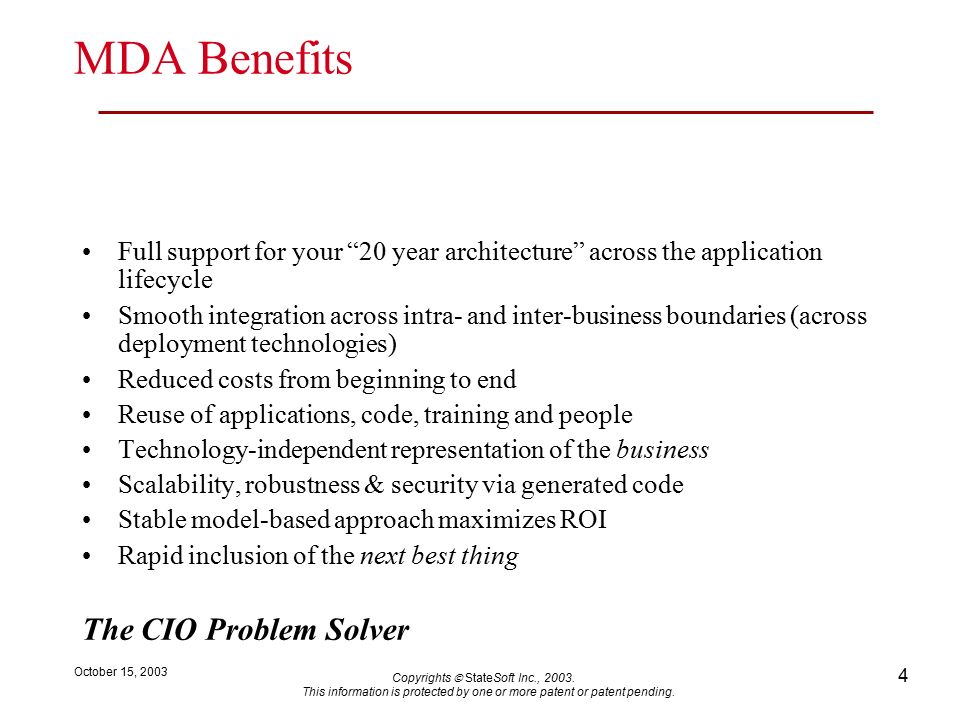

4. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 4 MDA Benefits Full support for your “20 year architecture” across the application lifecycle Smooth integration across intra- and inter-business boundaries (across deployment technologies) Reduced costs from beginning to end Reuse of applications, code, training and people Technology-independent representation of the business Scalability, robustness & security via generated code Stable model-based approach maximizes ROI Rapid inclusion of the next best thing The CIO Problem Solver

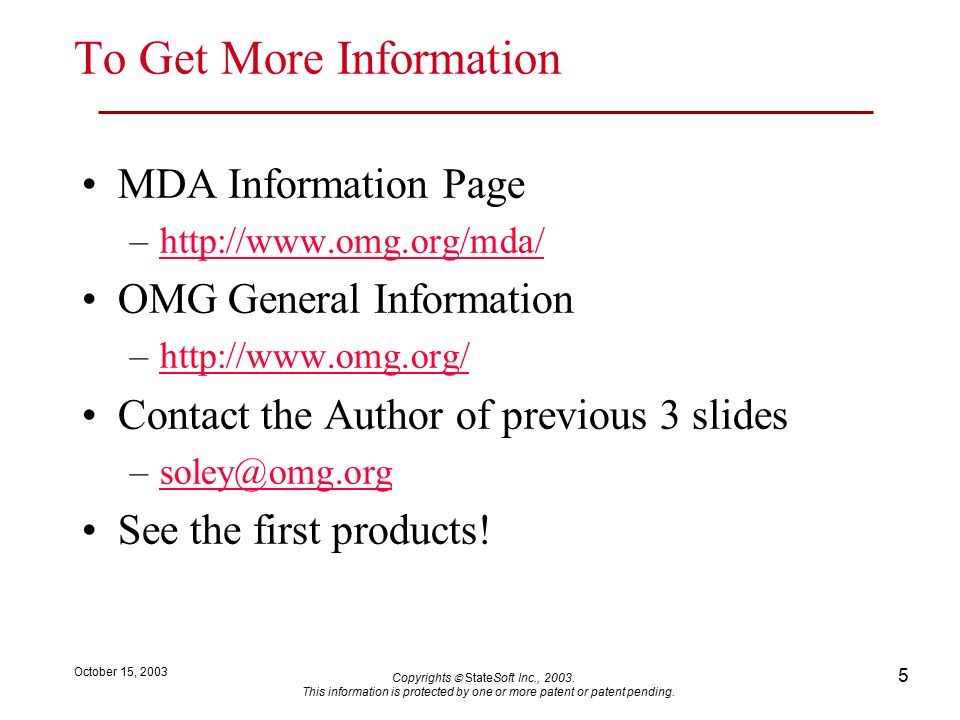

5. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 5 To Get More Information MDA Information Page –http://www.omg.org/mda/http://www.omg.org/mda/ OMG General Information –http://www.omg.org/http://www.omg.org/ Contact the Author of previous 3 slides –soley@omg.orgsoley@omg.org See the first products!

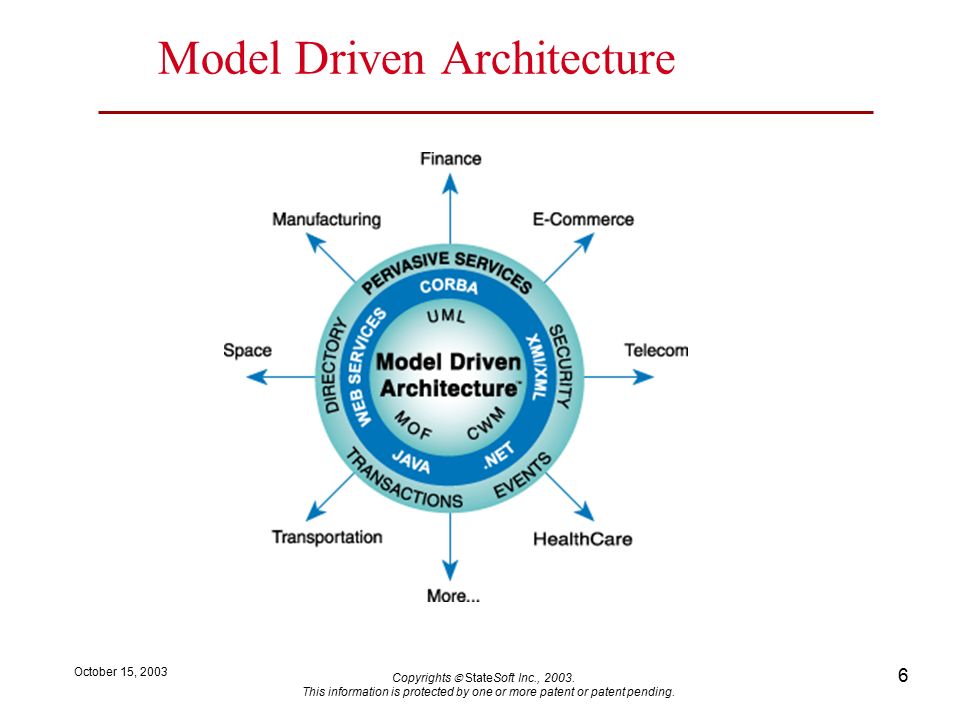

6. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 6 Model Driven Architecture

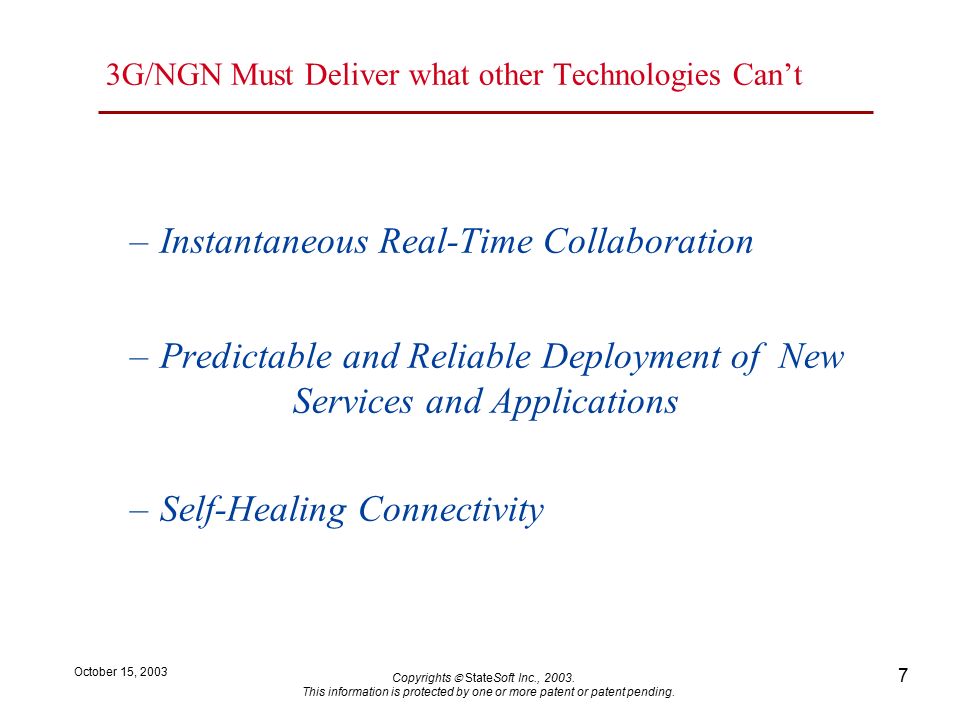

7. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 7 3G/NGN Must Deliver what other Technologies Can’t –Instantaneous Real-Time Collaboration –Predictable and Reliable Deployment of New Services and Applications –Self-Healing Connectivity

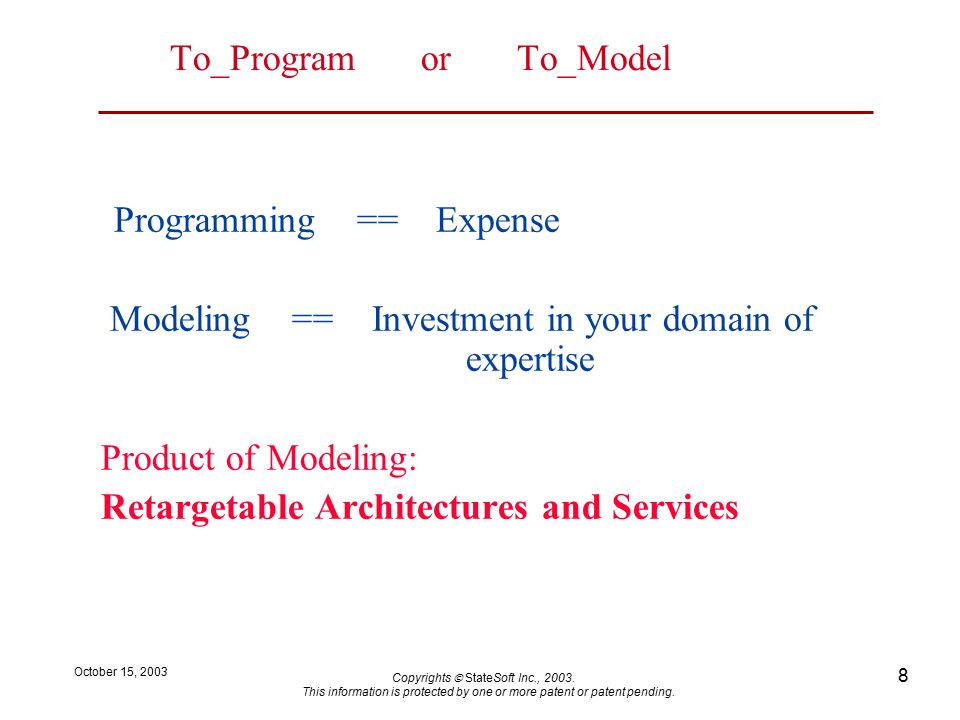

8. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 8 To_Program or To_Model Programming == Expense Modeling == Investment in your domain of expertise Product of Modeling: Retargetable Architectures and Services

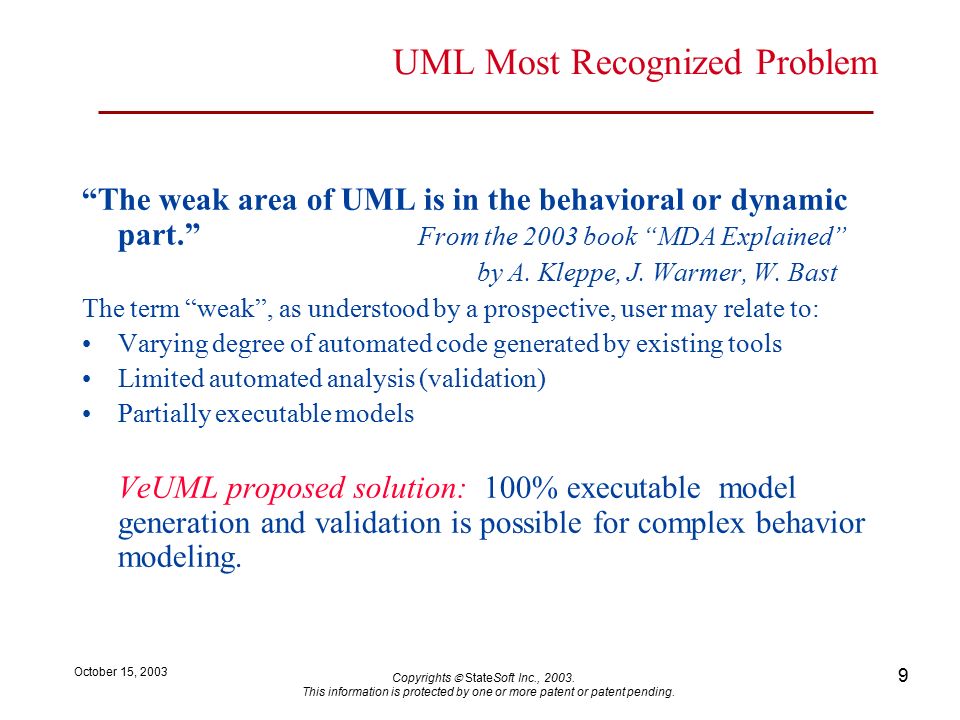

9. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 9 UML Most Recognized Problem “The weak area of UML is in the behavioral or dynamic part.” From the 2003 book “MDA Explained” by A. Kleppe, J. Warmer, W. Bast The term “weak”, as understood by a prospective, user may relate to: Varying degree of automated code generated by existing tools Limited automated analysis (validation) Partially executable models VeUML proposed solution: 100% executable model generation and validation is possible for complex behavior modeling.

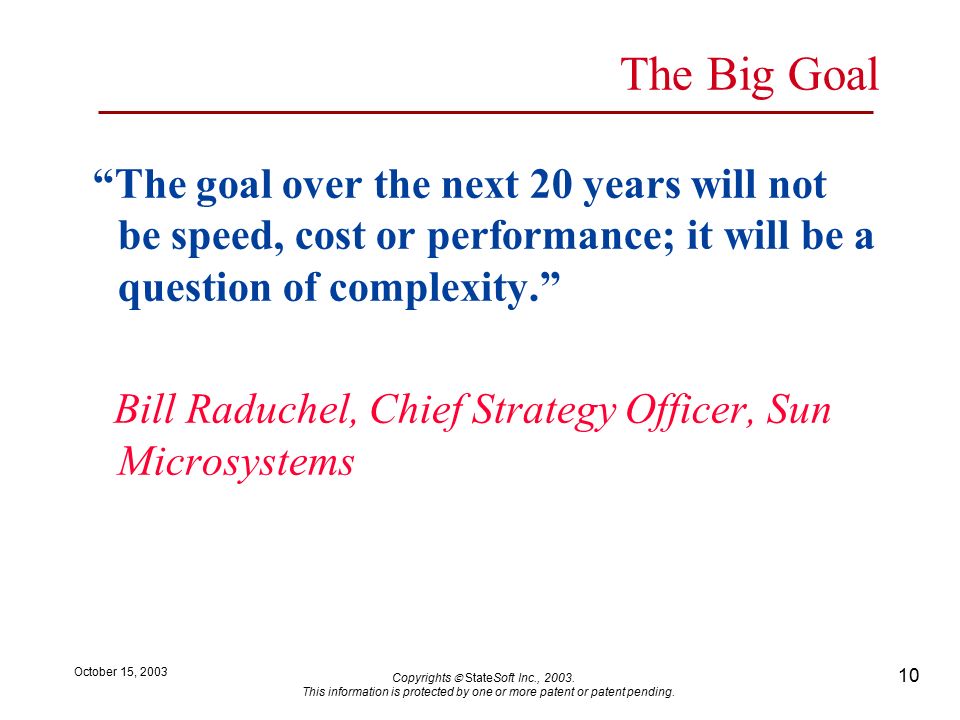

10. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 10 The Big Goal “The goal over the next 20 years will not be speed, cost or performance; it will be a question of complexity.” Bill Raduchel, Chief Strategy Officer, Sun Microsystems

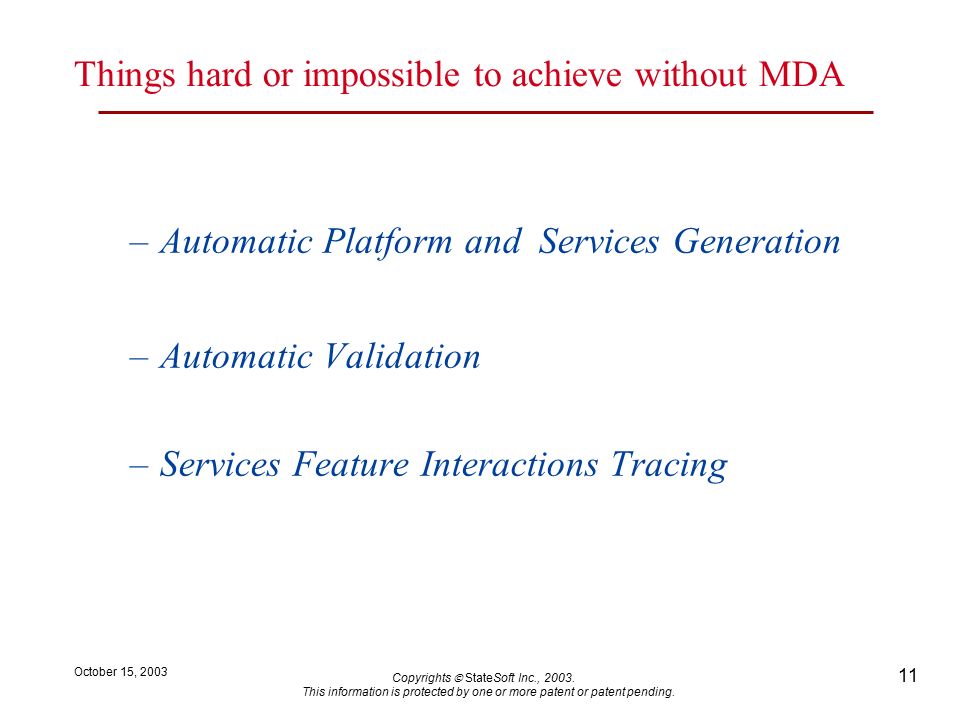

11. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 11 Things hard or impossible to achieve without MDA –Automatic Platform and Services Generation –Automatic Validation –Services Feature Interactions Tracing

12. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 12 Current Telco Systems Architectures: limited potential for Reuse, Automatic Validation and Features Interaction Traceability PIM Platform Independent Model PSM Platform Specific Model Presentation Applications Services Platform Protocols NOT MUCH HERE !!!

13. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 13 VeUML- Based 3G/NGN Systems Architectures optimized for Reuse and an Automatic Validation PIMPSMInheritance Concrete Presentation Concrete Applications Concrete Services Concrete Platform Concrete Protocol Abstract Presentation Abstract Applications Abstract Services Abstract Platform Abstract Protocol

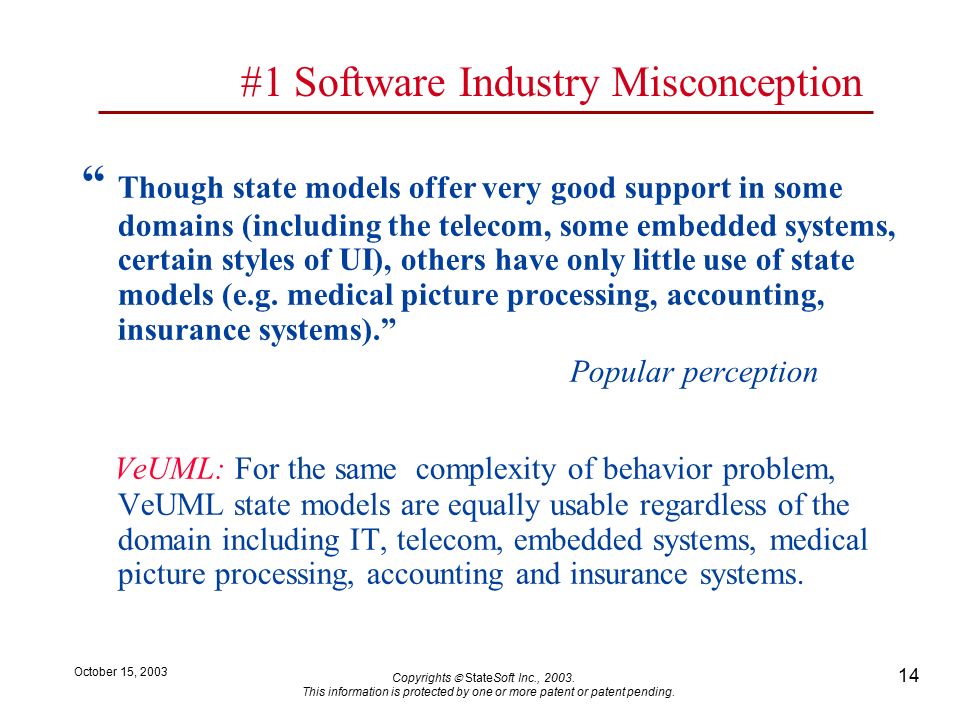

14. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 14 #1 Software Industry Misconception “ Though state models offer very good support in some domains (including the telecom, some embedded systems, certain styles of UI), others have only little use of state models (e.g. medical picture processing, accounting, insurance systems).” Popular perception VeUML: For the same complexity of behavior problem, VeUML state models are equally usable regardless of the domain including IT, telecom, embedded systems, medical picture processing, accounting and insurance systems.

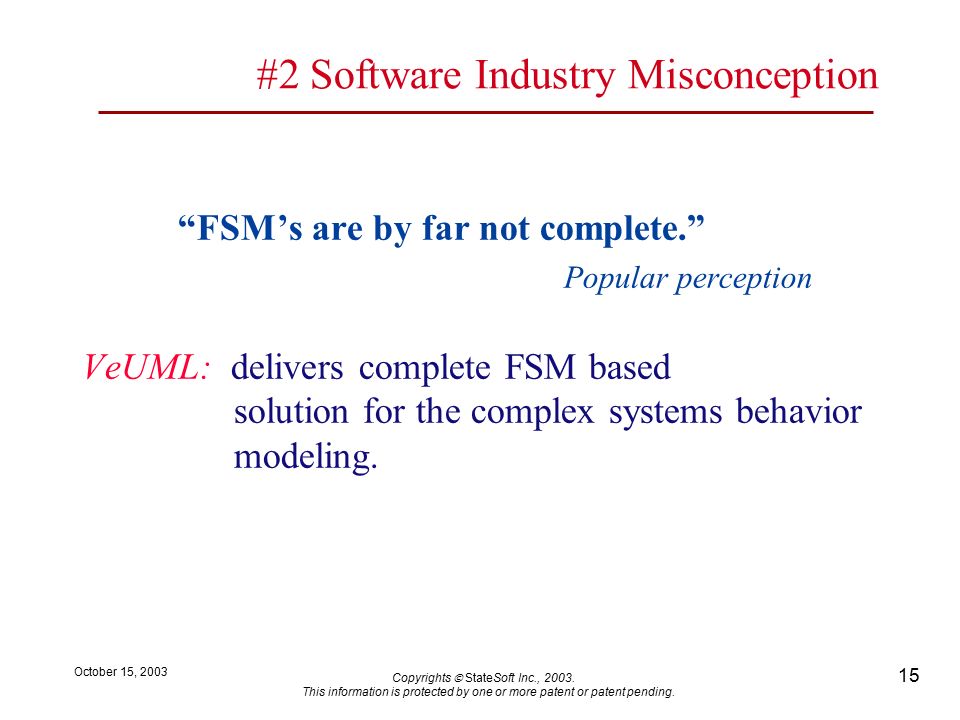

15. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 15 #2 Software Industry Misconception “FSM’s are by far not complete.” Popular perception VeUML: delivers complete FSM based solution for the complex systems behavior modeling.

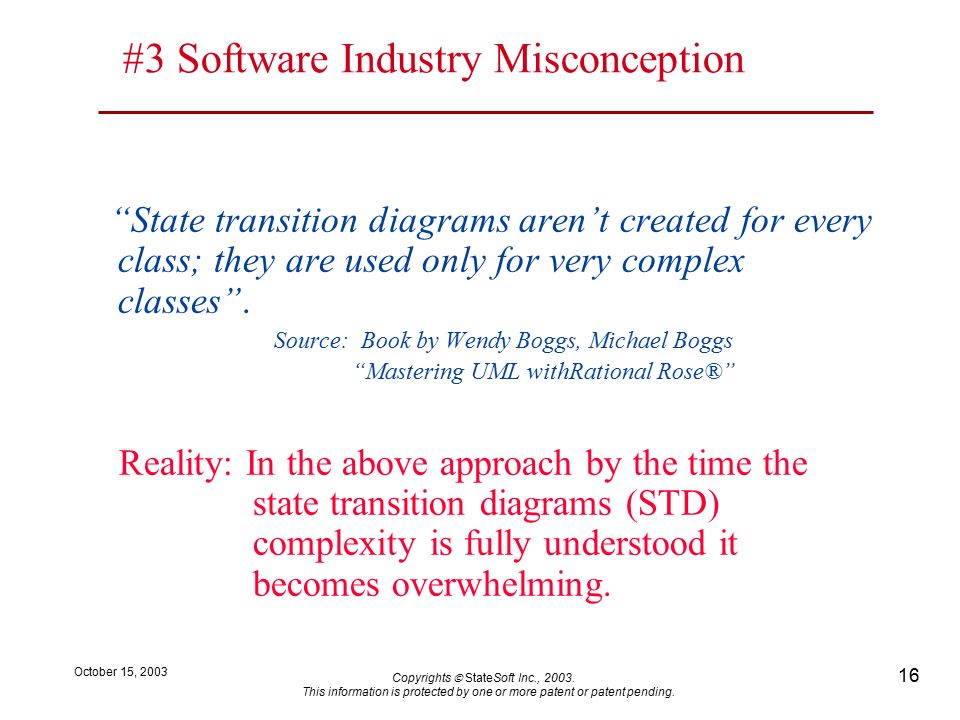

16. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 16 #3 Software Industry Misconception “State transition diagrams aren’t created for every class; they are used only for very complex classes”. Source: Book by Wendy Boggs, Michael Boggs “Mastering UML withRational Rose®” Reality: In the above approach by the time the state transition diagrams (STD) complexity is fully understood it becomes overwhelming.

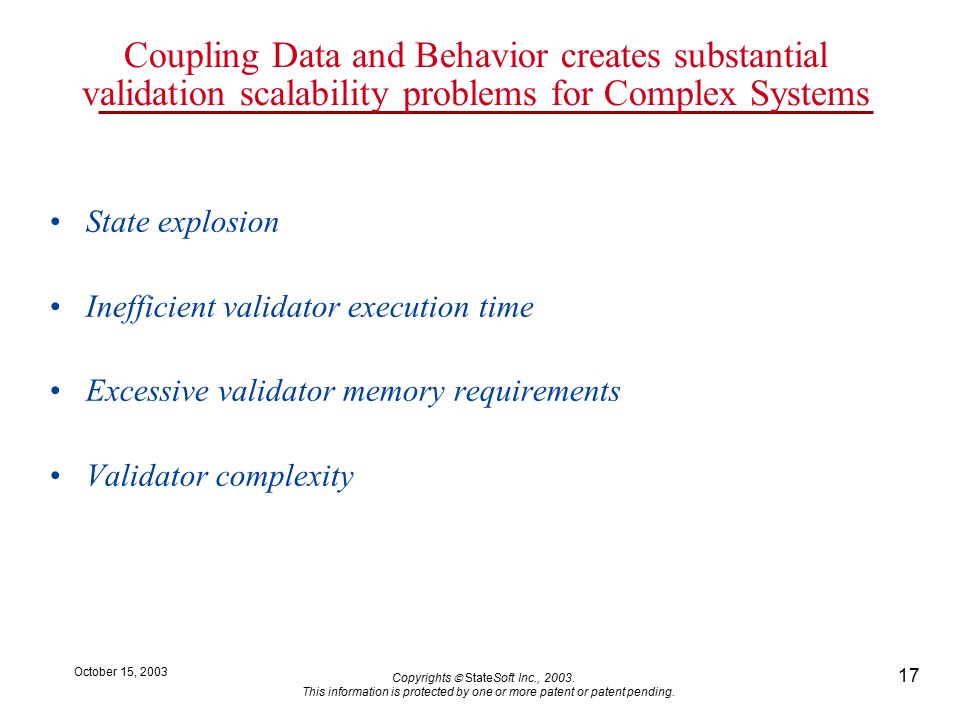

17. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 17 Coupling Data and Behavior creates substantial validation scalability problems for Complex Systems State explosion Inefficient validator execution time Excessive validator memory requirements Validator complexity

18. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 18 Proposed solution: VeUML Separation of Class Data from a Class Behavior: A viable and proven approach

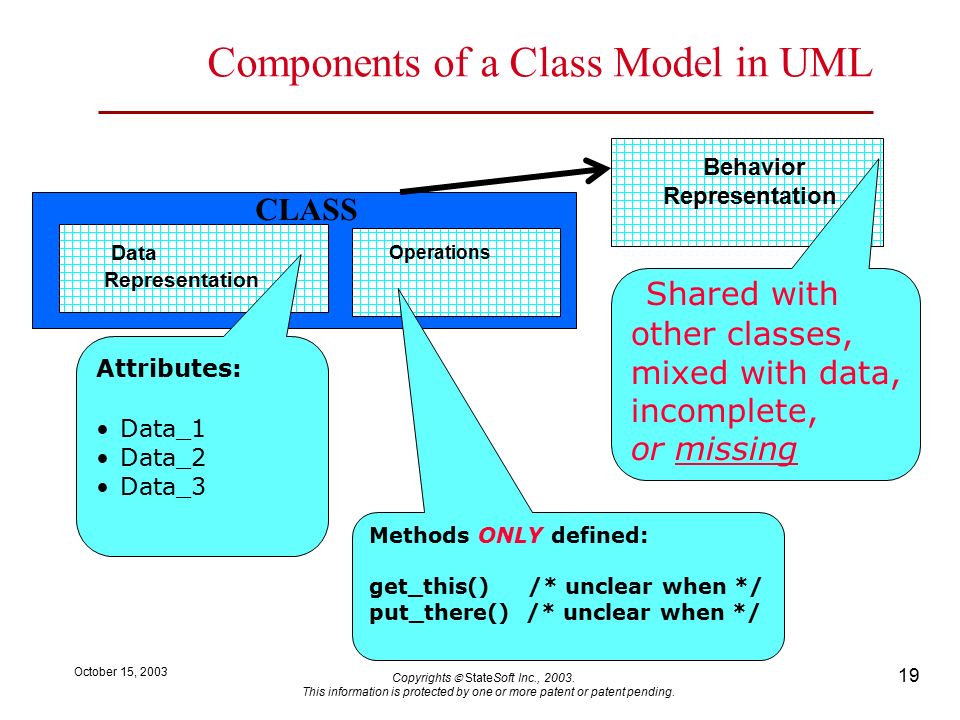

19. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 19 Components of a Class Model in UML Data Representation Behavior Representation Shared with other classes, mixed with data, incomplete, or missing Attributes: Data_1 Data_2 Data_3 CLASS Operations Methods ONLY defined: get_this() /* unclear when */ put_there() /* unclear when */

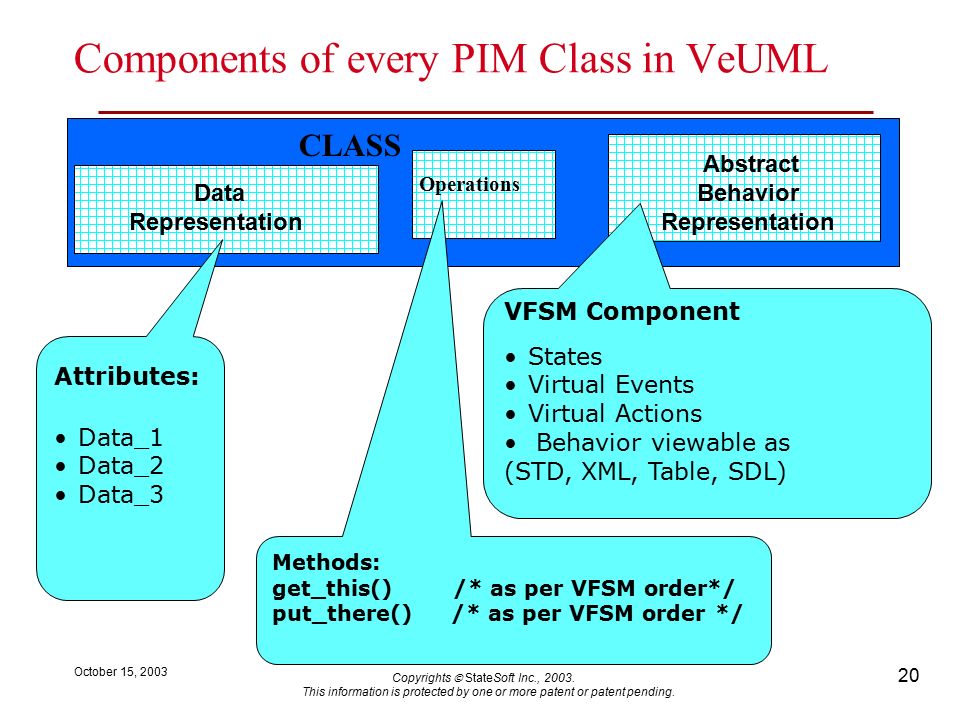

20. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 20 Components of every PIM Class in VeUML Data Representation Abstract Behavior Representation VFSM Component States Virtual Events Virtual Actions Behavior viewable as (STD, XML, Table, SDL) Attributes: Data_1 Data_2 Data_3 CLASS Methods: get_this() /* as per VFSM order*/ put_there() /* as per VFSM order */ Operations

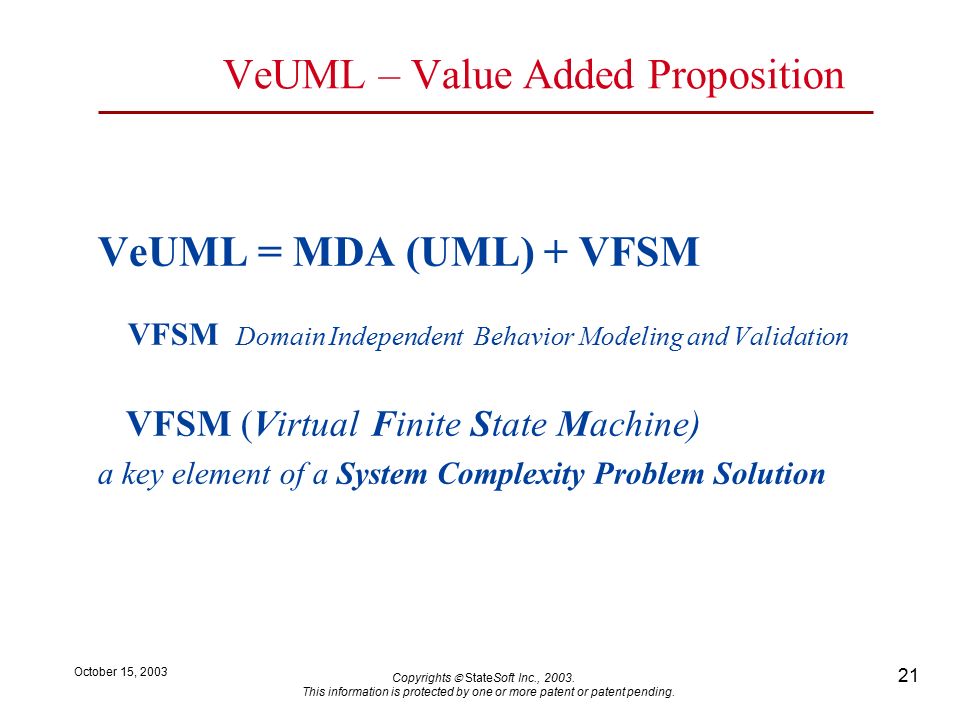

21. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 21 VeUML – Value Added Proposition VeUML = MDA (UML) + VFSM VFSM Domain Independent Behavior Modeling and Validation VFSM (Virtual Finite State Machine) a key element of a System Complexity Problem Solution

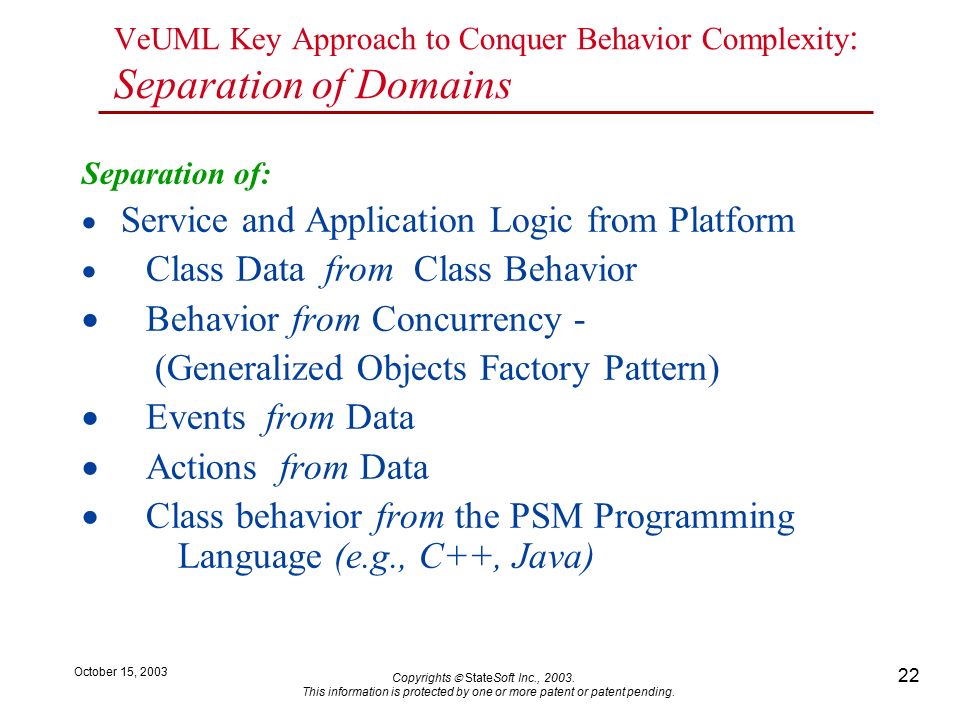

22. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 22 VeUML Key Approach to Conquer Behavior Complexity : Separation of Domains Separation of:  Service and Application Logic from Platform  Class Data from Class Behavior  Behavior from Concurrency - (Generalized Objects Factory Pattern)  Events from Data  Actions from Data  Class behavior from the PSM Programming Language (e.g., C++, Java)

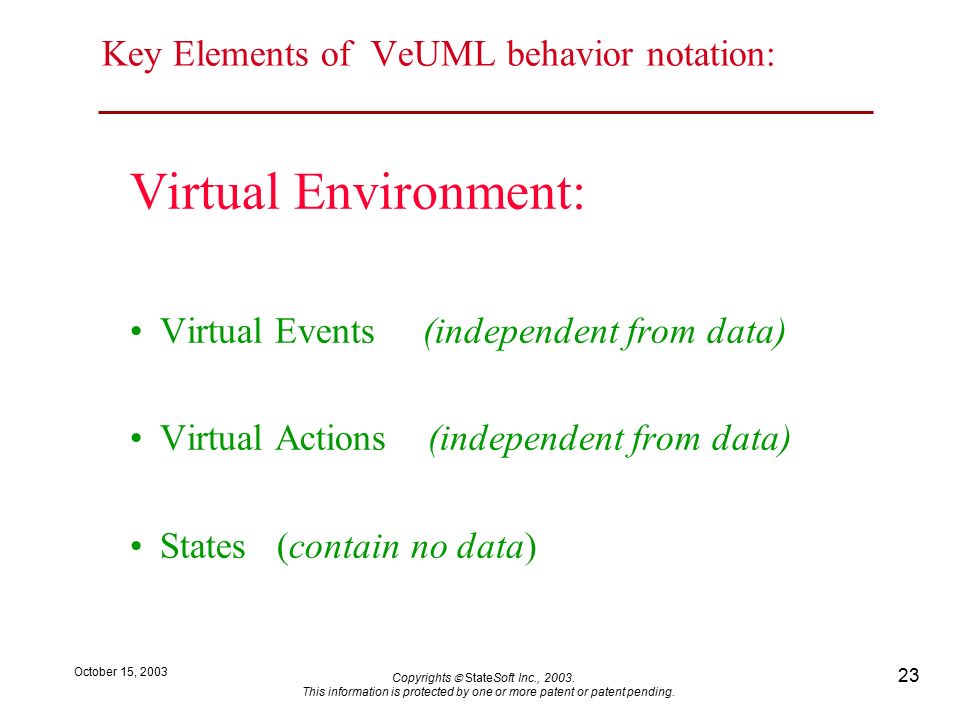

23. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 23 Key Elements of VeUML behavior notation: Virtual Environment: Virtual Events (independent from data) Virtual Actions (independent from data) States (contain no data)

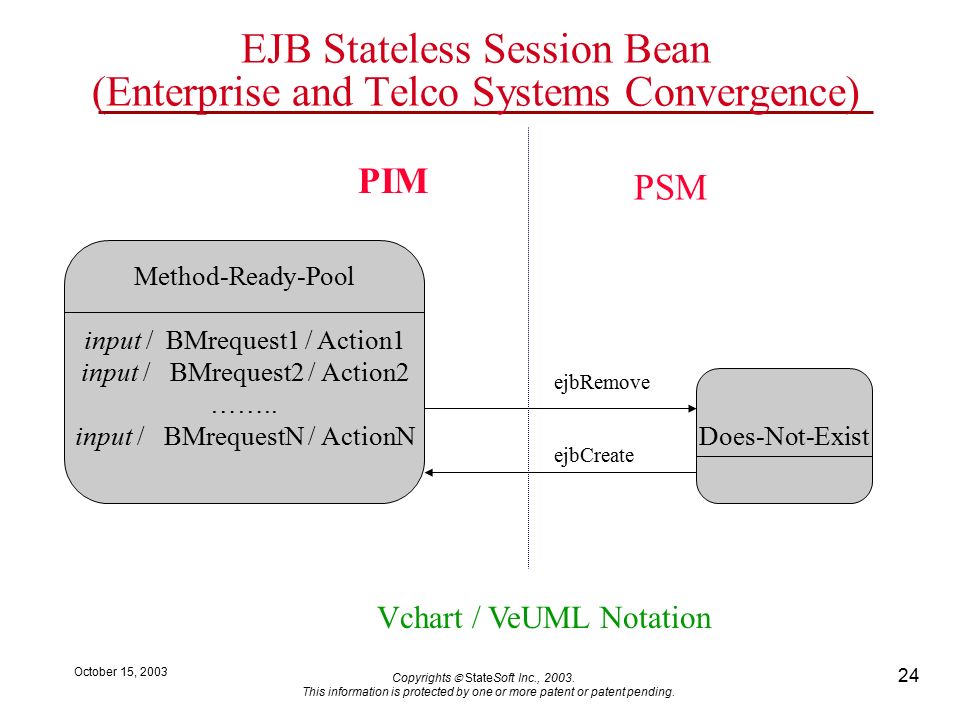

24. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 24 EJB Stateless Session Bean (Enterprise and Telco Systems Convergence) Vchart / VeUML Notation Does-Not-Exist Method-Ready-Pool input / BMrequest1 / Action1 input / BMrequest2 / Action2 …….. input / BMrequestN / ActionN PIM PSM ejbCreate ejbRemove

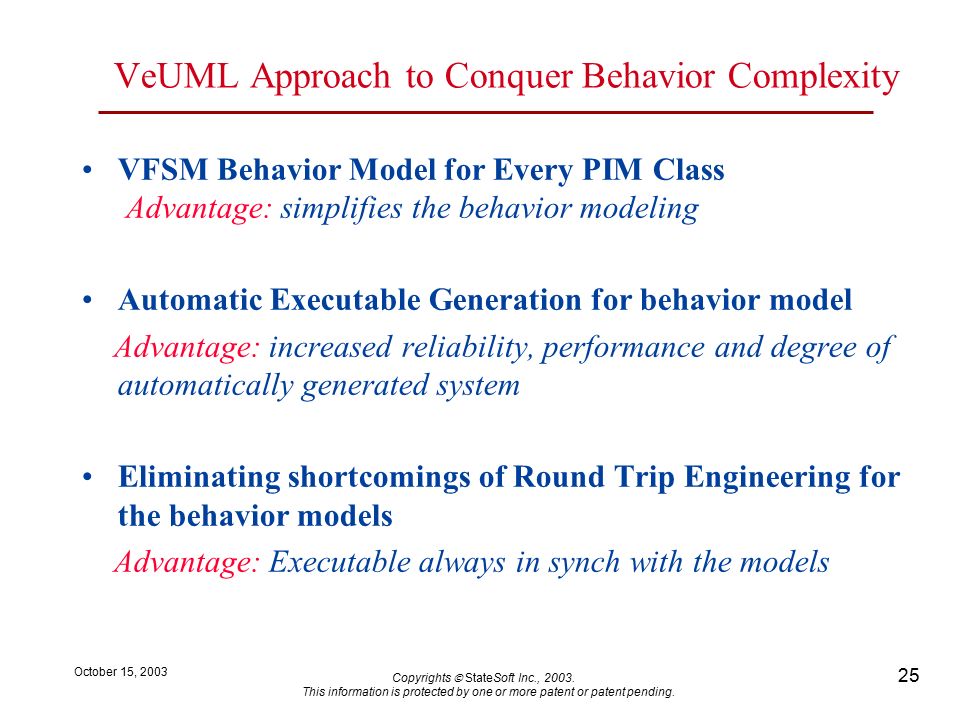

25. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 25 VeUML Approach to Conquer Behavior Complexity VFSM Behavior Model for Every PIM Class Advantage: simplifies the behavior modeling Automatic Executable Generation for behavior model Advantage: increased reliability, performance and degree of automatically generated system Eliminating shortcomings of Round Trip Engineering for the behavior models Advantage: Executable always in synch with the models

26. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 26 VeUML Approach to Conquer Behavior Complexity Automatic Model Validation Advantage: Increased reliability and early defect detection Reuse and Portability of Behavior Models Advantage: True productivity gains Behavior Models Tied to Formal Models Advantage: Reliable and deterministic executable generation and validation

27. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 27 VeUML remedy for Software Development Pain 1* Hybrid Moore/Mealy model enhanced by the use of Sets. ProblemVeUML Solution ComplexitySeparation of concerns – data from behavior; events from data, behavior from concurrency, actions from data etc.. CostAutomatic executable generation, automatic validation and simplified test. Resulted savings 45% (AT&T/Lucent Data) Portability to different platforms Service/Business Logic represents Interlingua - model and automatically generated executable are platform independent QualityLate defects reduction by 40% by exhaustive validation and early detection (AT&T/Lucent Data) PerformanceOptimized Predictable performance of VFSM executor

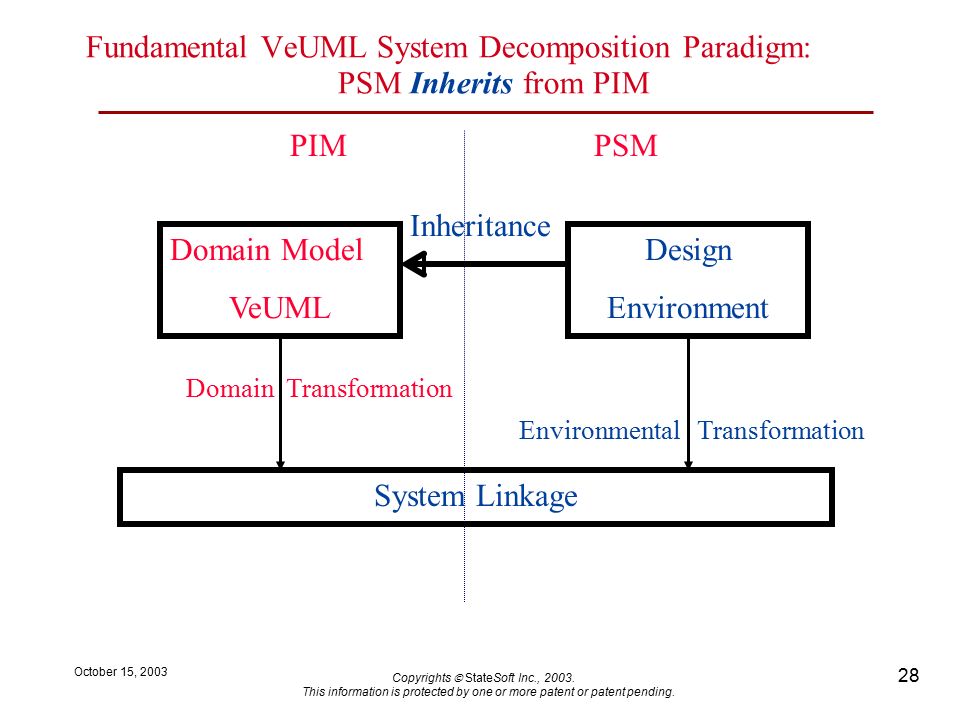

28. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 28 Fundamental VeUML System Decomposition Paradigm: PSM Inherits from PIM PIMPSM Domain Model VeUML System Linkage Domain Transformation Environmental Transformation Inheritance Design Environment

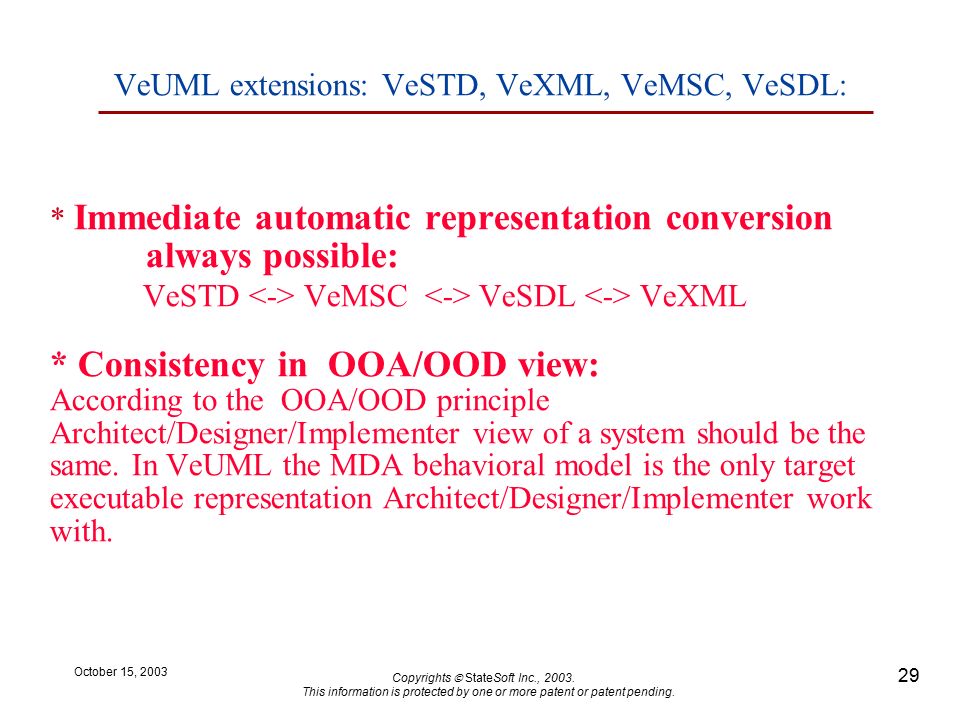

29. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 29 VeUML extensions: VeSTD, VeXML, VeMSC, VeSDL: * Immediate automatic representation conversion always possible: VeSTD VeMSC VeSDL VeXML * Consistency in OOA/OOD view: According to the OOA/OOD principle Architect/Designer/Implementer view of a system should be the same. In VeUML the MDA behavioral model is the only target executable representation Architect/Designer/Implementer work with.

30. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 30 VeSTD Example – Partial diagram Wait_to_brew entry / Turn_Boiler_Off, Turn_Indicator_Off; Turn_Warmer_Off; Close_Valve boilerEmpty / Turn_Boiler_Off; Turn_Indicator_On Empty_pot_removed startBrew & boilerNotEmpty & potEmpty / Close_valve; Turn_Boiler_On; Turn_Indicator_Off Brewing_pot_Empty warmerEmpty / Open_valve; Turn_Boiler_Off This Coffeemaker example is based in part on the book by Robert C. Martin, “Object-Oriented C++ Applications Using The Booch Method”, Prentice Hall, 1995.

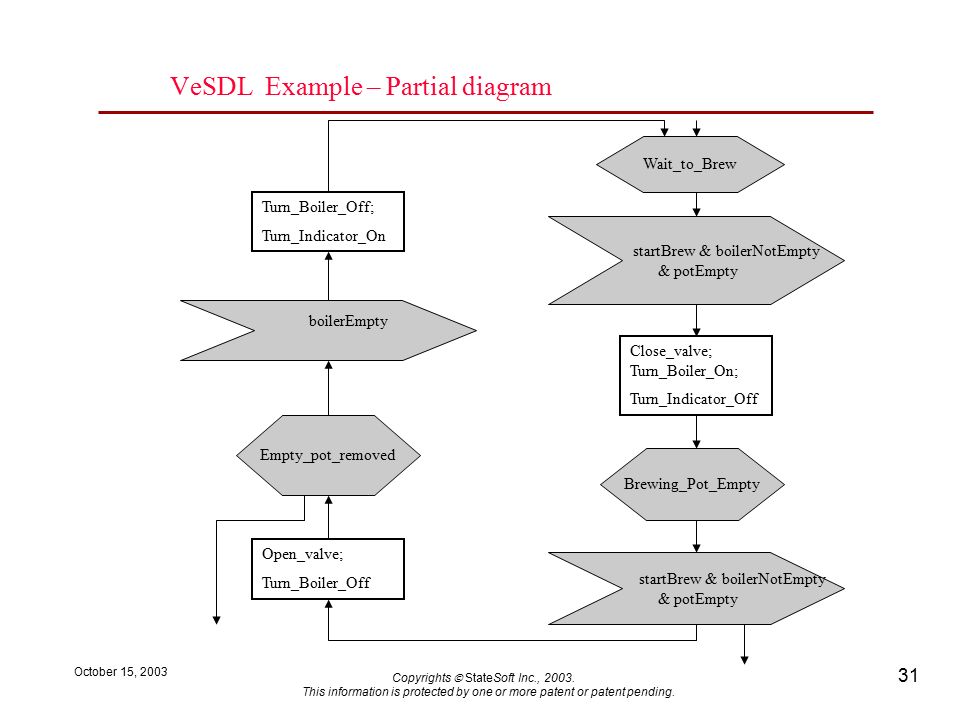

31. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 31 VeSDL Example – Partial diagram Wait_to_Brew Empty_pot_removed startBrew & boilerNotEmpty & potEmpty Brewing_Pot_Empty Close_valve; Turn_Boiler_On; Turn_Indicator_Off startBrew & boilerNotEmpty & potEmpty Open_valve; Turn_Boiler_Off boilerEmpty Turn_Boiler_Off; Turn_Indicator_On

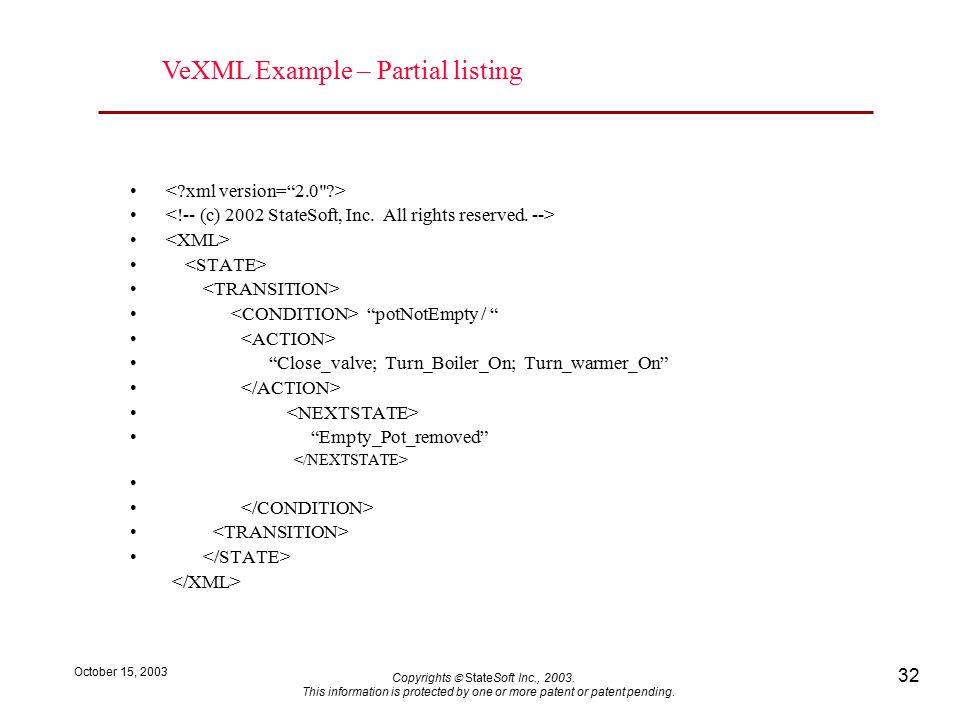

32. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 32 “potNotEmpty / “ “Close_valve; Turn_Boiler_On; Turn_warmer_On” “Empty_Pot_removed” VeXML Example – Partial listing

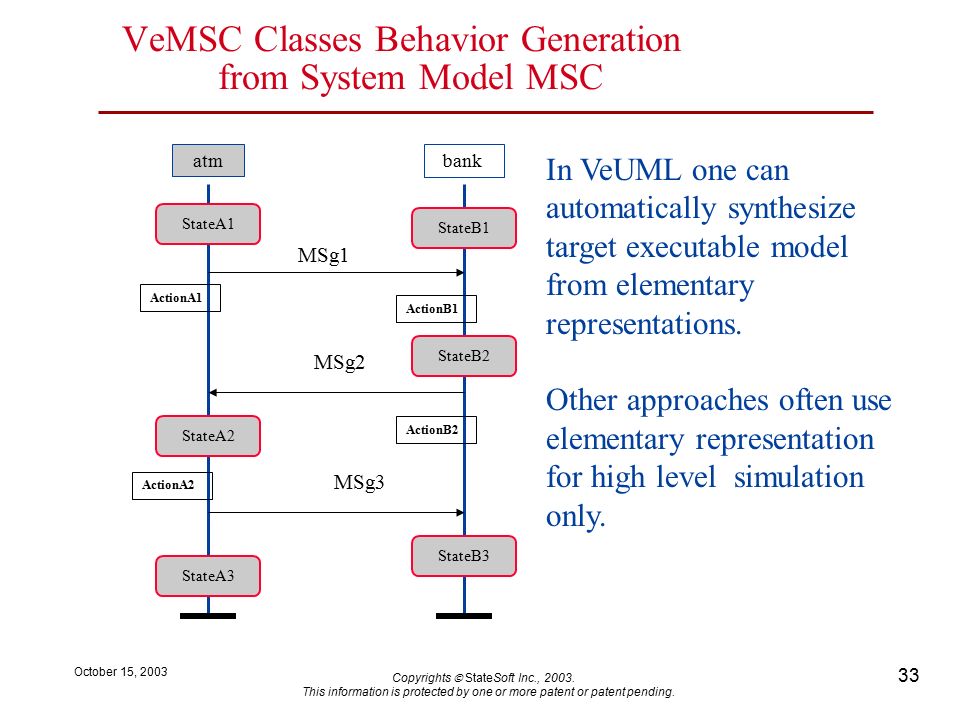

33. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 33 VeMSC Classes Behavior Generation from System Model MSC In VeUML one can automatically synthesize target executable model from elementary representations. Other approaches often use elementary representation for high level simulation only. atm bank StateB1 StateA2 StateA3 StateA1 StateB3 ActionA2 StateB2 ActionB1 MSg1 MSg3 MSg2 ActionA1 ActionB2

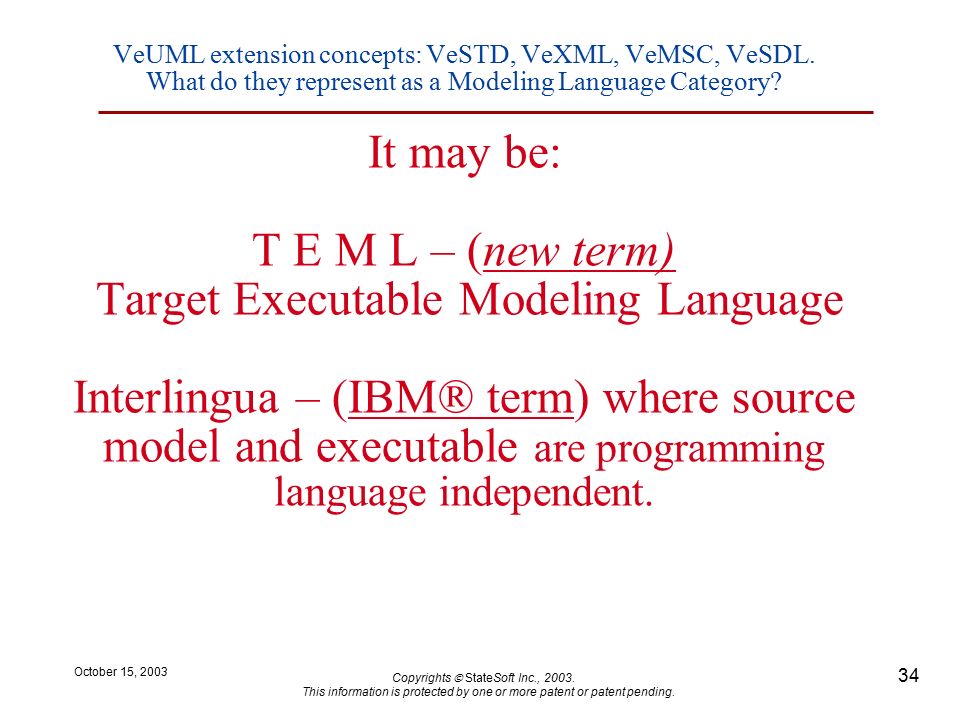

34. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 34 VeUML extension concepts: VeSTD, VeXML, VeMSC, VeSDL. What do they represent as a Modeling Language Category? It may be: T E M L – (new term) Target Executable Modeling Language Interlingua – (IBM® term) where source model and executable are programming language independent.

35. October 15, 2003 Copyrights  StateSoft Inc., 2003. This information is protected by one or more patent or patent pending. 35 Conclusions: Benefits of Separation of Domains in VeUML Behavior Modeling Automatic executable generation and validation for systems of substantially higher complexity Significant degree of reuse due to separation of domains Potential for Services Features Interaction
