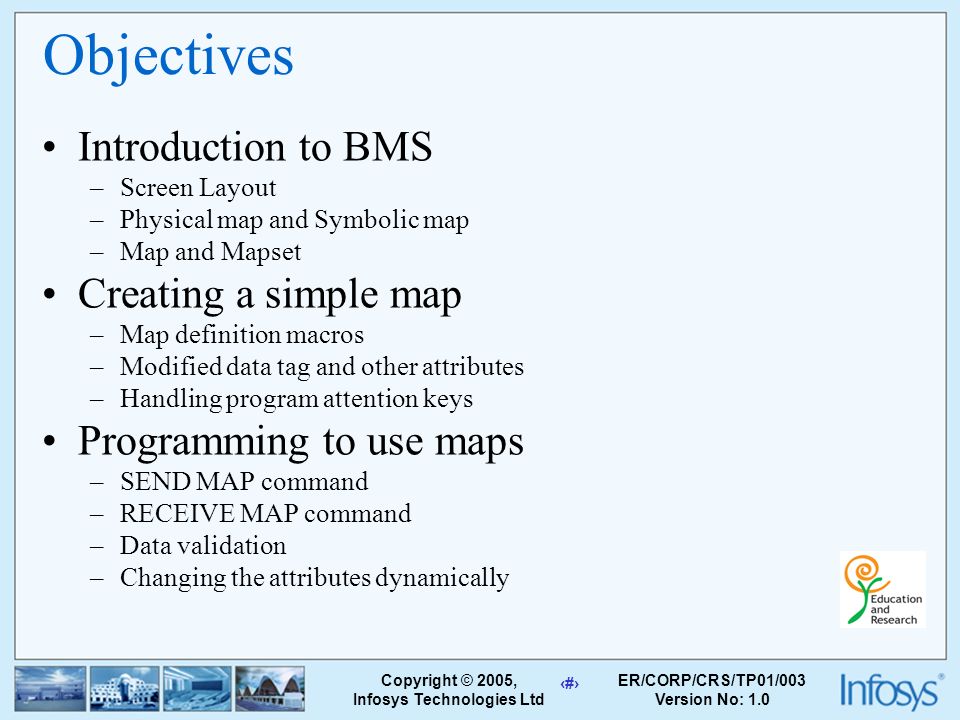

3. 2 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 Objectives Introduction to BMS –Screen Layout –Physical map and Symbolic map –Map and Mapset Creating a simple map –Map definition macros –Modified data tag and other attributes –Handling program attention keys Programming to use maps –SEND MAP command –RECEIVE MAP command –Data validation –Changing the attributes dynamically

4. 3 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 BMS – Basic Mapping Support An interface between CICS programs and the terminal devices In BMS, the design and format of the application can be separate from the logic BMS finds the device information from the terminal rather than the application program

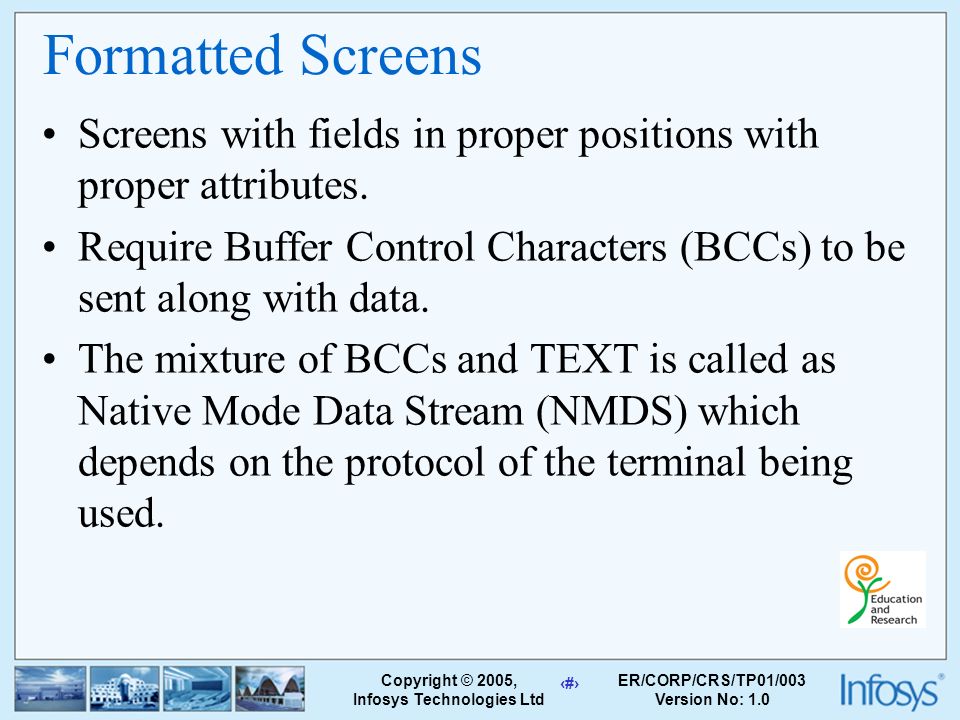

5. 4 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 Formatted Screens Screens with fields in proper positions with proper attributes. Require Buffer Control Characters (BCCs) to be sent along with data. The mixture of BCCs and TEXT is called as Native Mode Data Stream (NMDS) which depends on the protocol of the terminal being used.

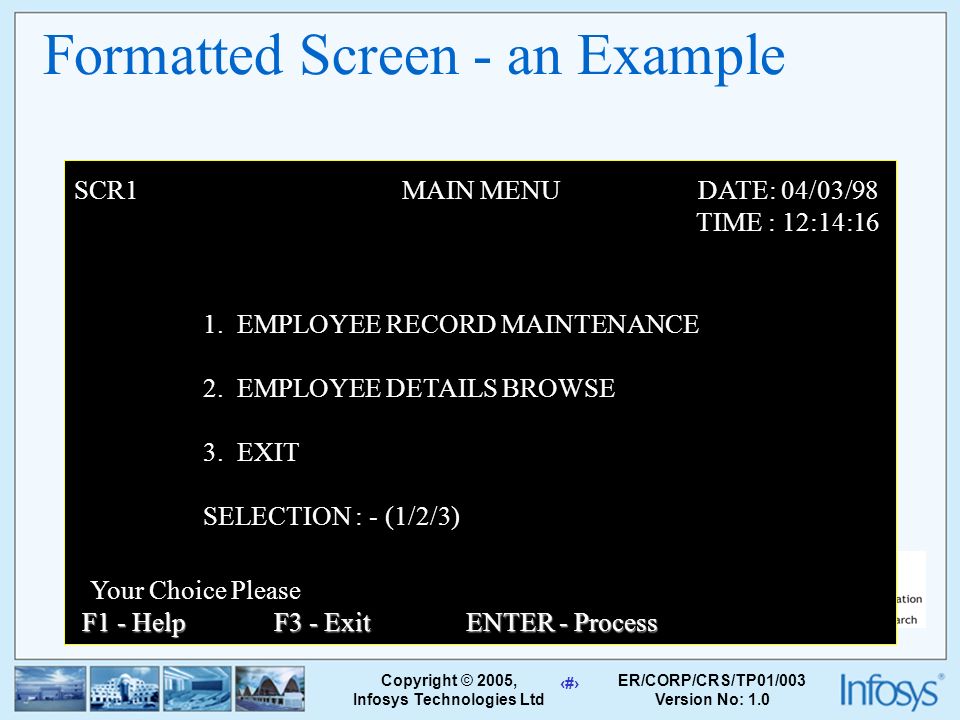

6. 5 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 SCR1 MAIN MENU DATE: 04/03/98 TIME : 12:14:16 1. EMPLOYEE RECORD MAINTENANCE 2. EMPLOYEE DETAILS BROWSE 3. EXIT SELECTION : - (1/2/3) Your Choice Please F1 - HelpF3 - ExitENTER - Process Formatted Screen - an Example

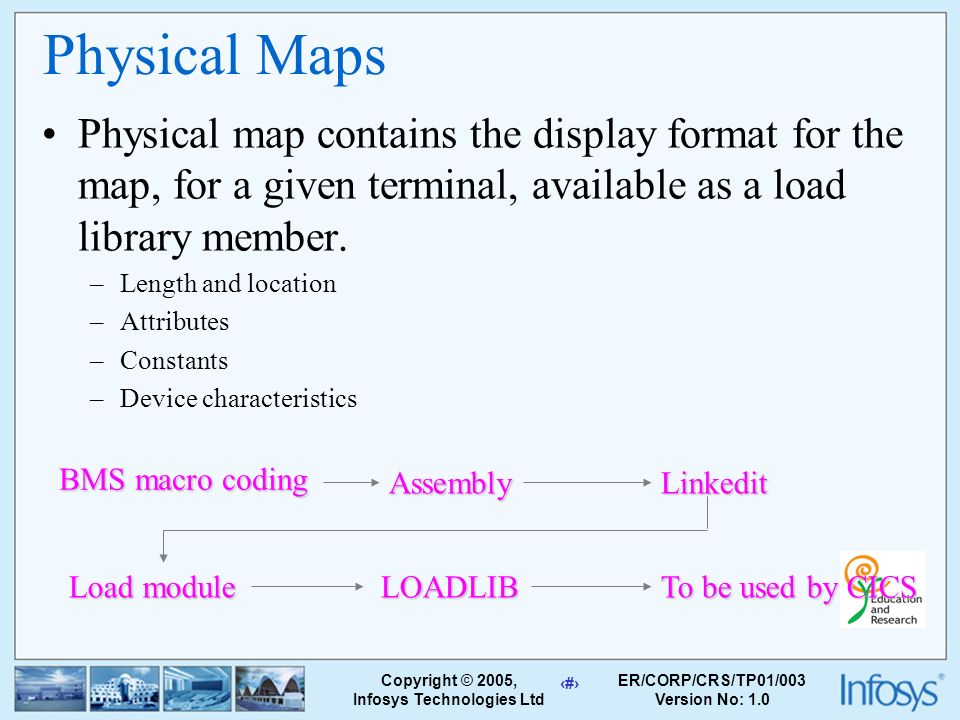

7. 6 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 Physical Maps Physical map contains the display format for the map, for a given terminal, available as a load library member. –Length and location –Attributes –Constants –Device characteristics BMS macro coding AssemblyLinkedit Load module LOADLIB To be used by CICS

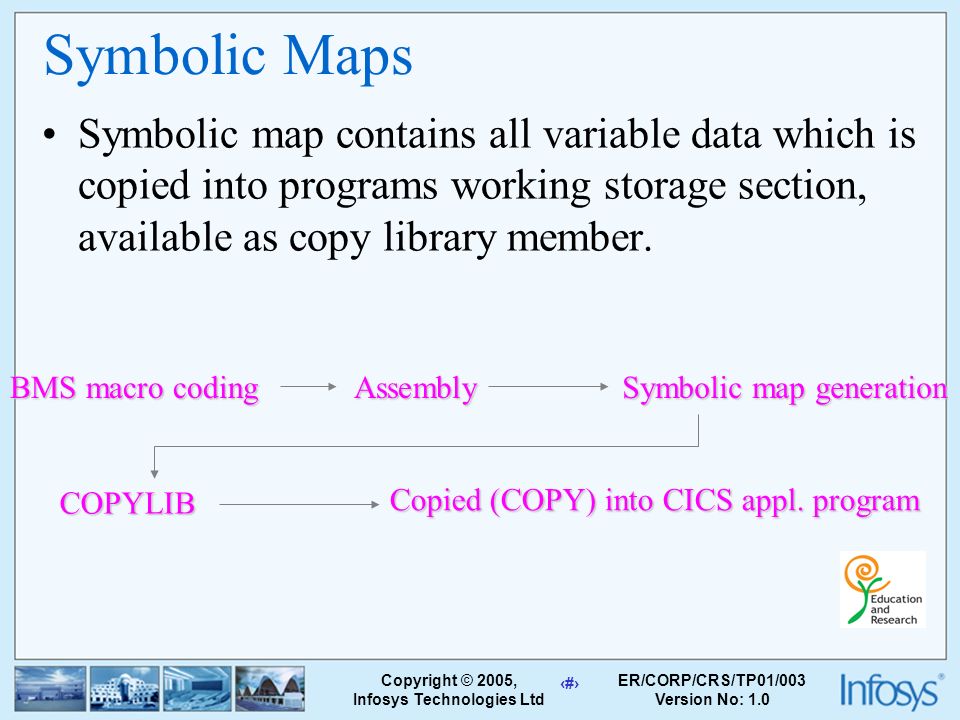

8. 7 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 Symbolic Maps Symbolic map contains all variable data which is copied into programs working storage section, available as copy library member. BMS macro coding Assembly Symbolic map generation COPYLIB Copied (COPY) into CICS appl. program

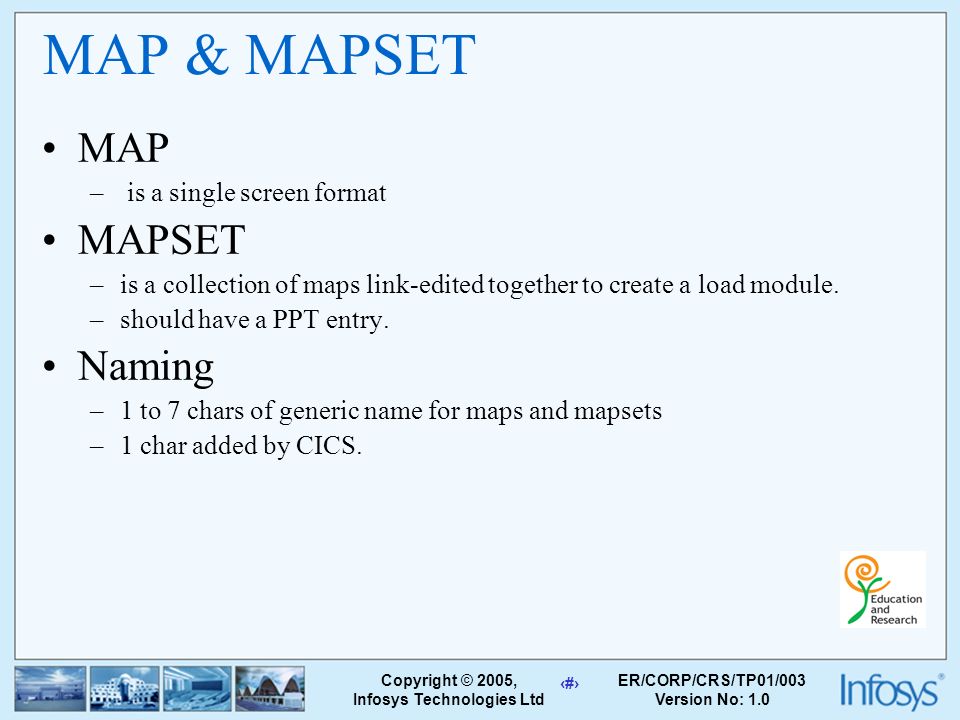

9. 8 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 MAP & MAPSET MAP – is a single screen format MAPSET –is a collection of maps link-edited together to create a load module. –should have a PPT entry. Naming –1 to 7 chars of generic name for maps and mapsets –1 char added by CICS.

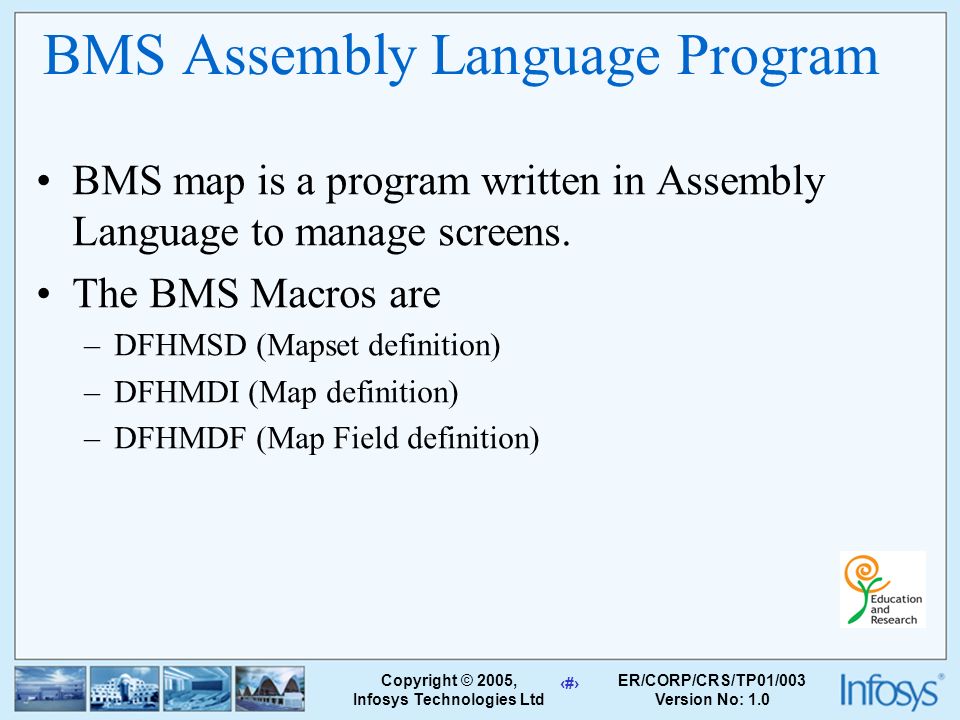

10. 9 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 BMS Assembly Language Program BMS map is a program written in Assembly Language to manage screens. The BMS Macros are –DFHMSD (Mapset definition) –DFHMDI (Map definition) –DFHMDF (Map Field definition)

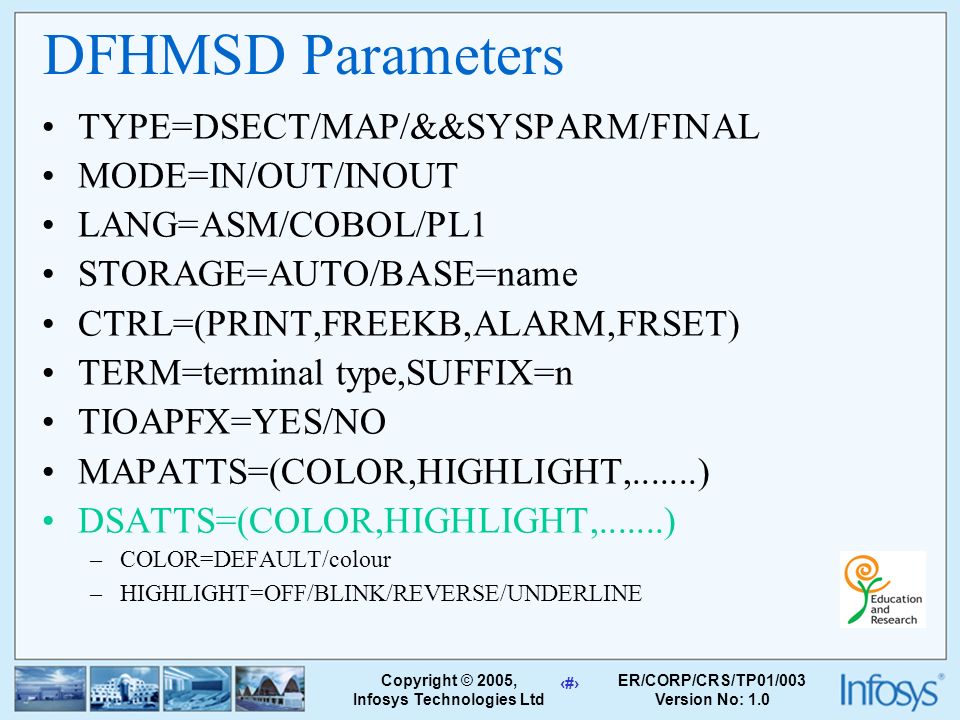

11. 10 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 DFHMSD Parameters TYPE=DSECT/MAP/&&SYSPARM/FINAL MODE=IN/OUT/INOUT LANG=ASM/COBOL/PL1 STORAGE=AUTO/BASE=name CTRL=(PRINT,FREEKB,ALARM,FRSET) TERM=terminal type,SUFFIX=n TIOAPFX=YES/NO MAPATTS=(COLOR,HIGHLIGHT,.......) DSATTS=(COLOR,HIGHLIGHT,.......) –COLOR=DEFAULT/colour –HIGHLIGHT=OFF/BLINK/REVERSE/UNDERLINE

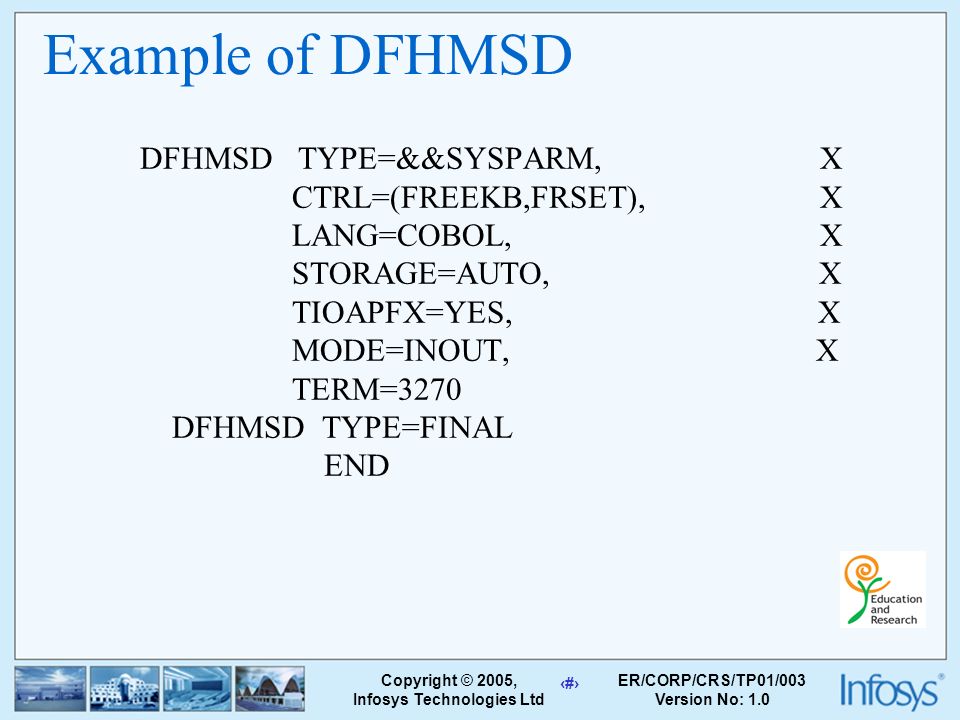

12. 11 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 Example of DFHMSD DFHMSD TYPE=&&SYSPARM, X CTRL=(FREEKB,FRSET), X LANG=COBOL, X STORAGE=AUTO, X TIOAPFX=YES, X MODE=INOUT, X TERM=3270 DFHMSD TYPE=FINAL END

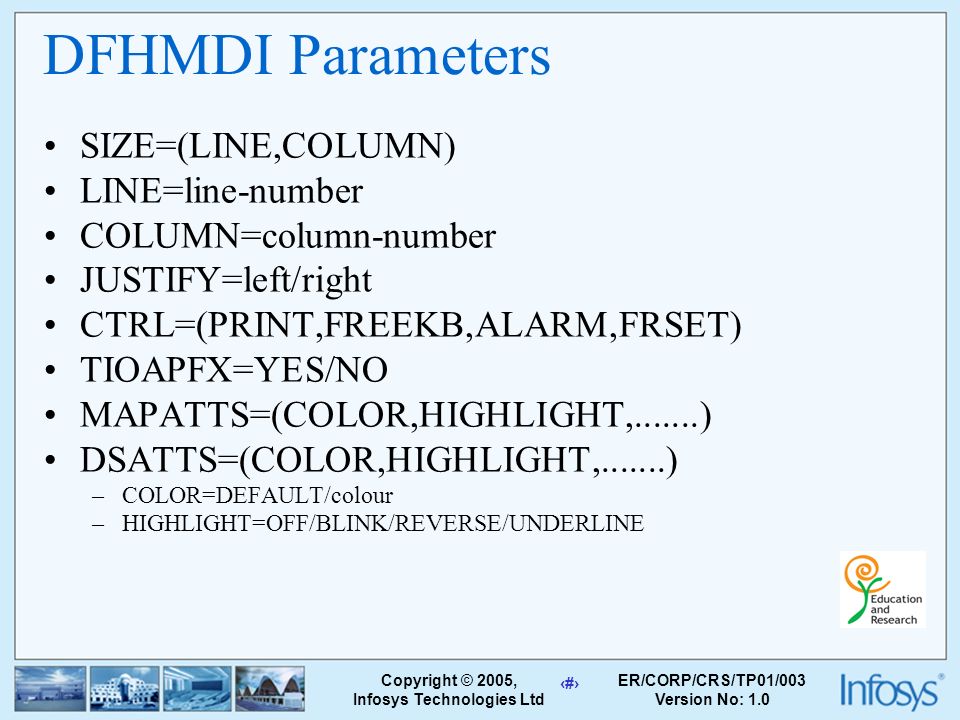

13. 12 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 DFHMDI Parameters SIZE=(LINE,COLUMN) LINE=line-number COLUMN=column-number JUSTIFY=left/right CTRL=(PRINT,FREEKB,ALARM,FRSET) TIOAPFX=YES/NO MAPATTS=(COLOR,HIGHLIGHT,.......) DSATTS=(COLOR,HIGHLIGHT,.......) –COLOR=DEFAULT/colour –HIGHLIGHT=OFF/BLINK/REVERSE/UNDERLINE

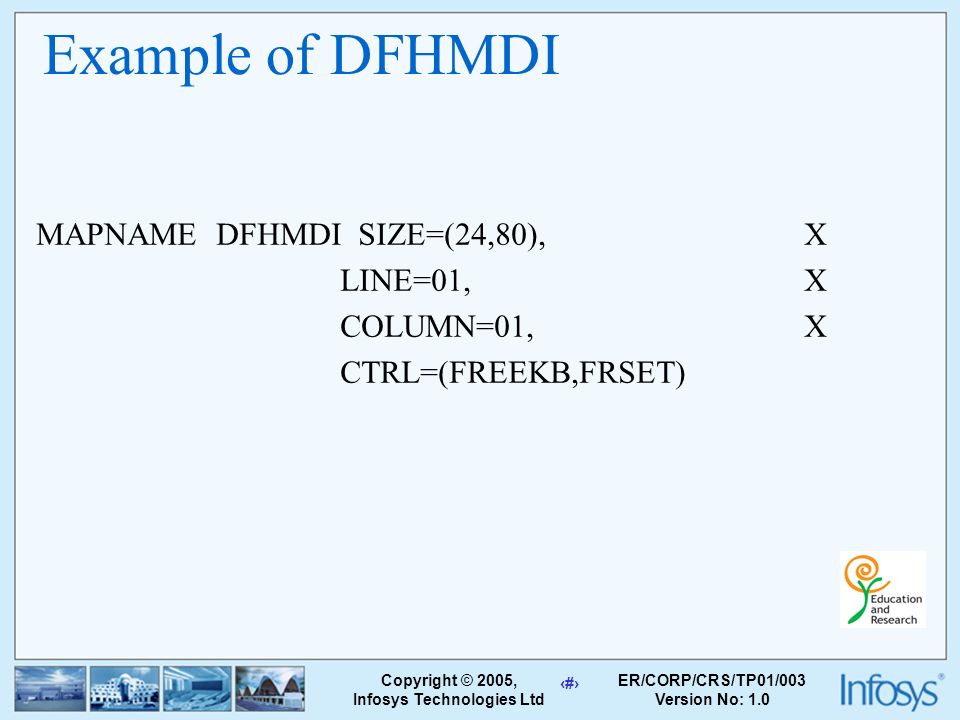

14. 13 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 Example of DFHMDI MAPNAME DFHMDI SIZE=(24,80),X LINE=01,X COLUMN=01,X CTRL=(FREEKB,FRSET)

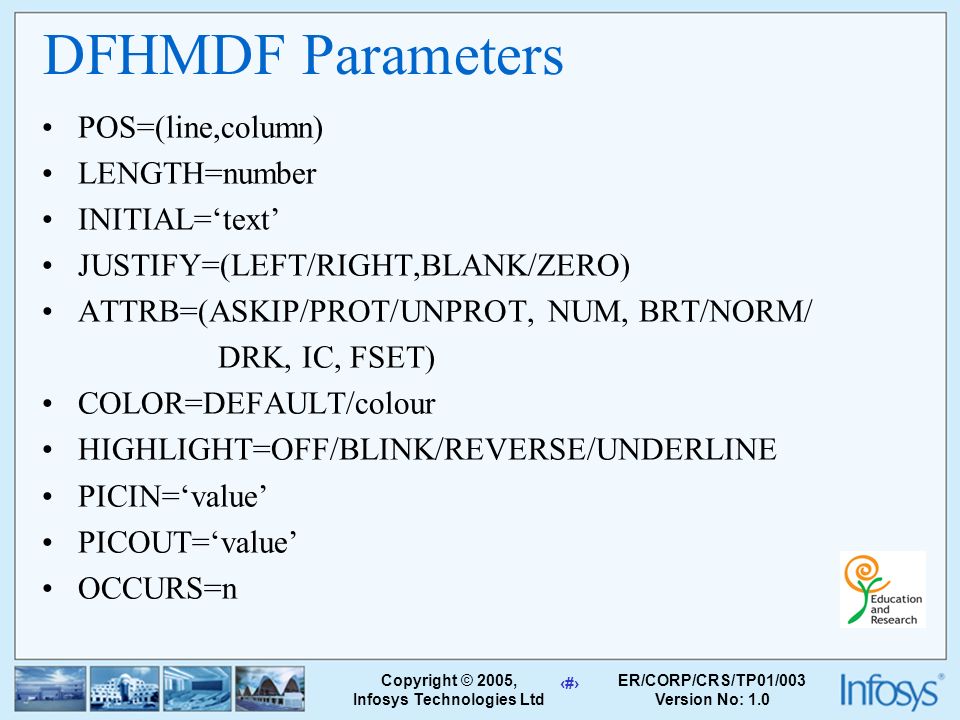

15. 14 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 DFHMDF Parameters POS=(line,column) LENGTH=number INITIAL=‘text’ JUSTIFY=(LEFT/RIGHT,BLANK/ZERO) ATTRB=(ASKIP/PROT/UNPROT, NUM, BRT/NORM/ DRK, IC, FSET) COLOR=DEFAULT/colour HIGHLIGHT=OFF/BLINK/REVERSE/UNDERLINE PICIN=‘value’ PICOUT=‘value’ OCCURS=n

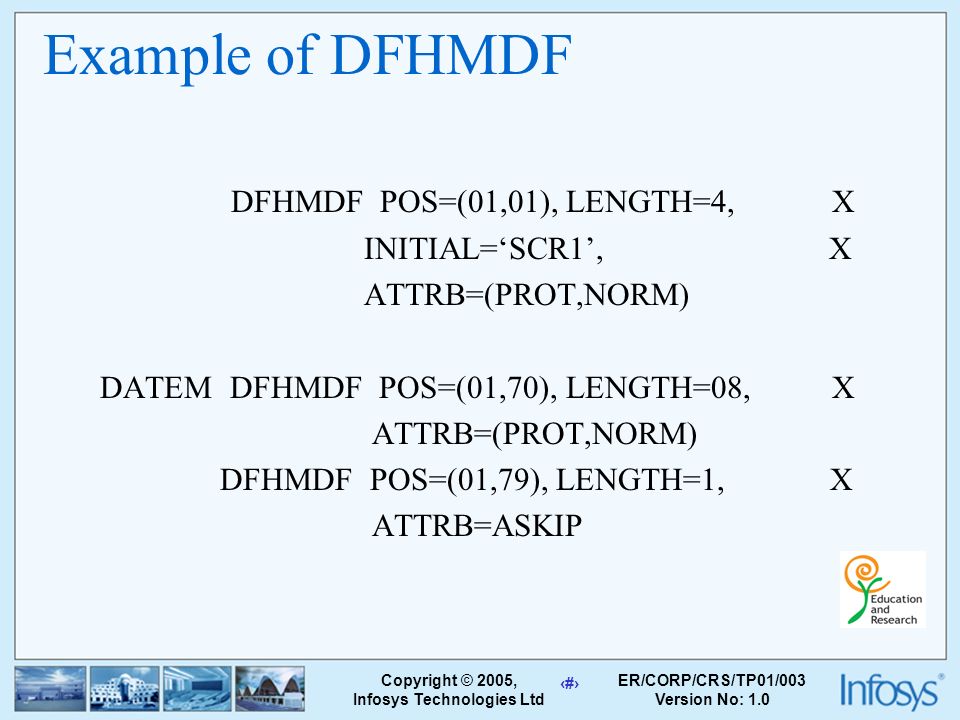

16. 15 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 Example of DFHMDF DFHMDF POS=(01,01), LENGTH=4, X INITIAL=‘SCR1’, X ATTRB=(PROT,NORM) DATEM DFHMDF POS=(01,70), LENGTH=08, X ATTRB=(PROT,NORM) DFHMDF POS=(01,79), LENGTH=1, X ATTRB=ASKIP

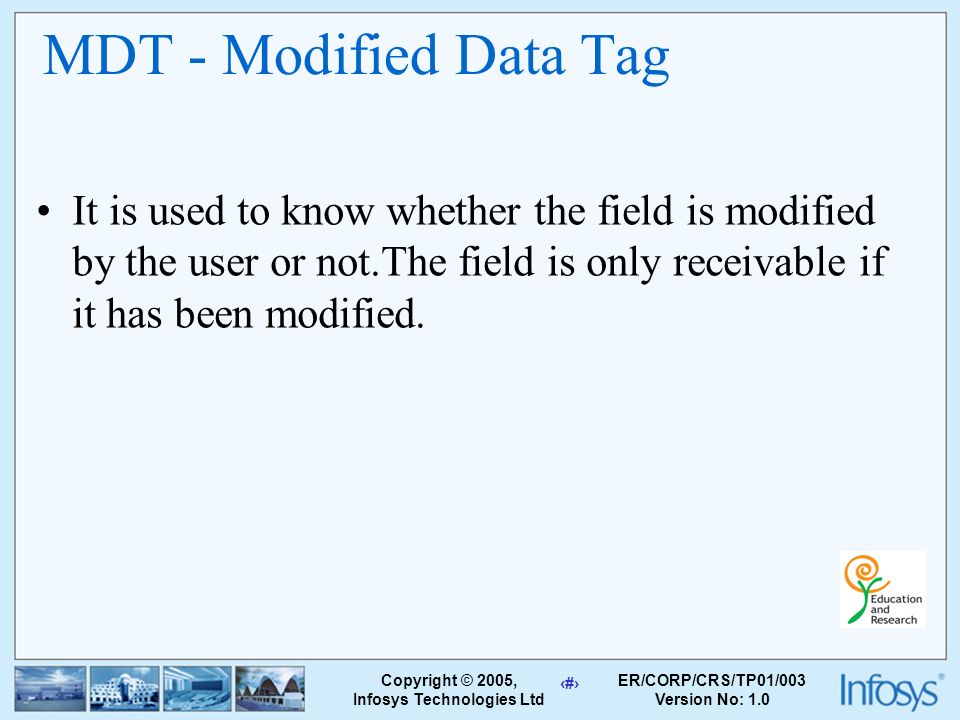

17. 16 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 MDT - Modified Data Tag It is used to know whether the field is modified by the user or not.The field is only receivable if it has been modified.

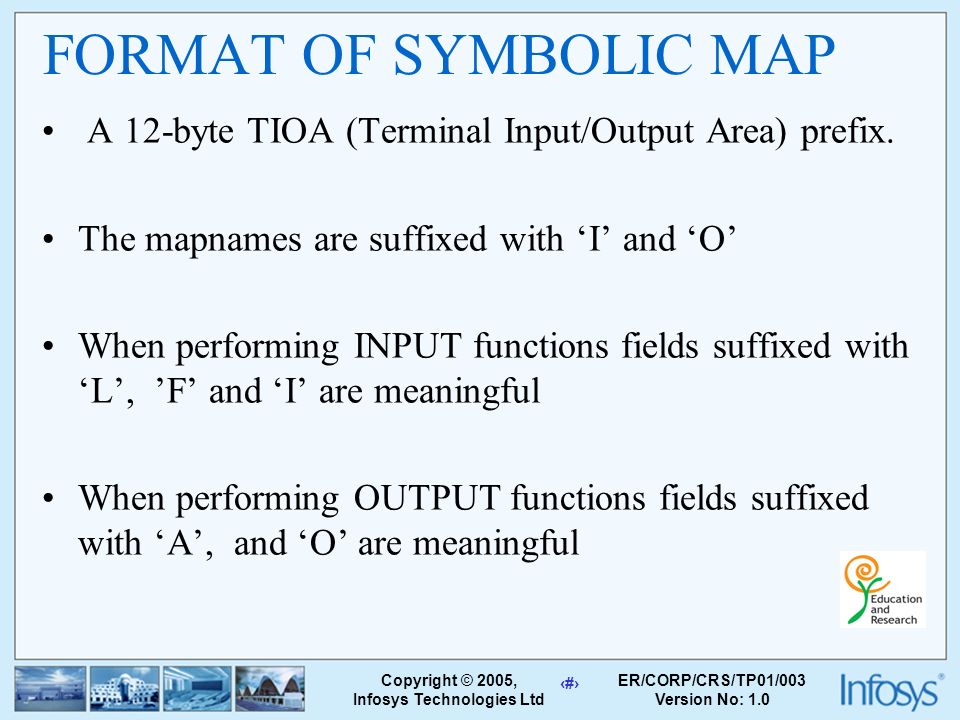

18. 17 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 FORMAT OF SYMBOLIC MAP A 12-byte TIOA (Terminal Input/Output Area) prefix. The mapnames are suffixed with ‘I’ and ‘O’ When performing INPUT functions fields suffixed with ‘L’, ’F’ and ‘I’ are meaningful When performing OUTPUT functions fields suffixed with ‘A’, and ‘O’ are meaningful

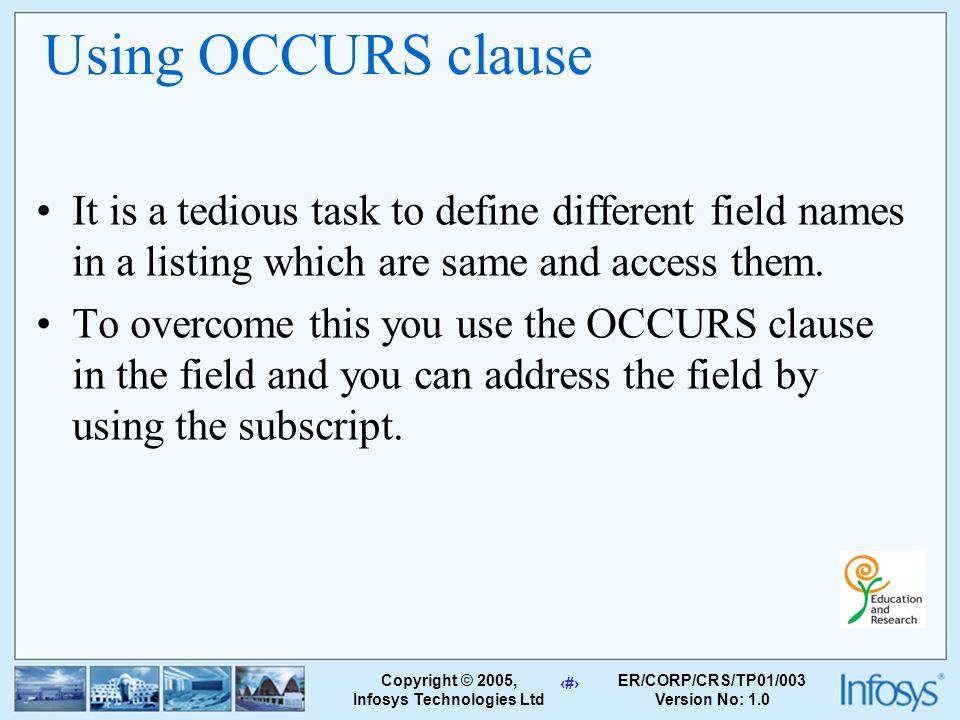

19. 18 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 Using OCCURS clause It is a tedious task to define different field names in a listing which are same and access them. To overcome this you use the OCCURS clause in the field and you can address the field by using the subscript.

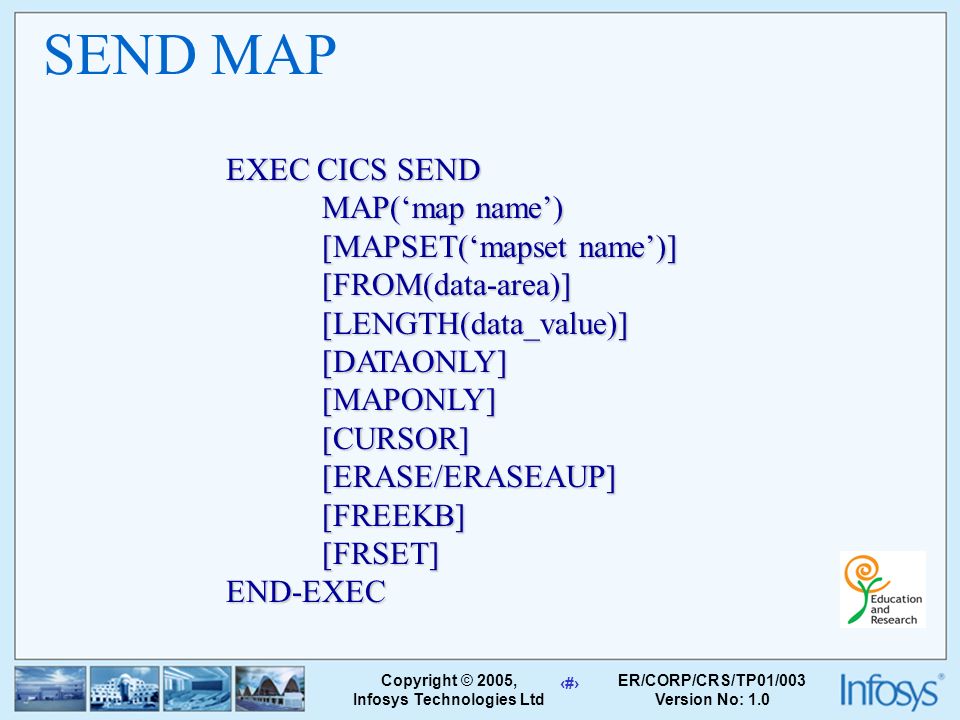

20. 19 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 EXEC CICS SEND MAP(‘map name’) MAP(‘map name’) [MAPSET(‘mapset name’)] [MAPSET(‘mapset name’)] [FROM(data-area)] [FROM(data-area)] [LENGTH(data_value)] [LENGTH(data_value)] [DATAONLY] [DATAONLY] [MAPONLY] [MAPONLY] [CURSOR] [CURSOR] [ERASE/ERASEAUP] [ERASE/ERASEAUP] [FREEKB] [FREEKB] [FRSET] [FRSET]END-EXEC SEND MAP

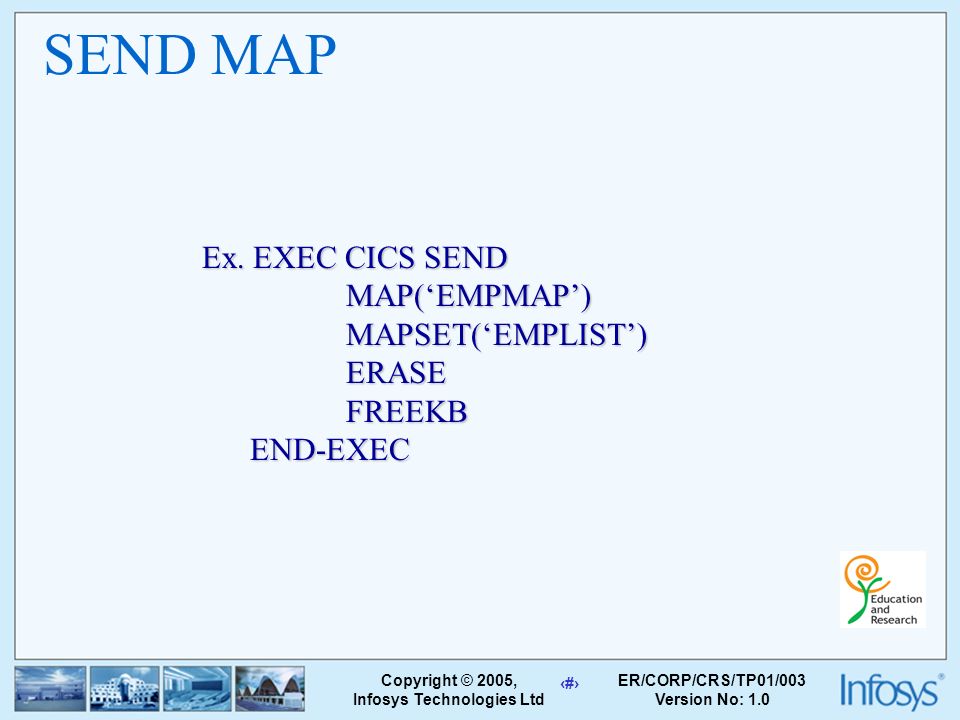

21. 20 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 Ex. EXEC CICS SEND MAP(‘EMPMAP’) MAP(‘EMPMAP’) MAPSET(‘EMPLIST’) MAPSET(‘EMPLIST’) ERASE ERASE FREEKB FREEKB END-EXEC END-EXEC SEND MAP

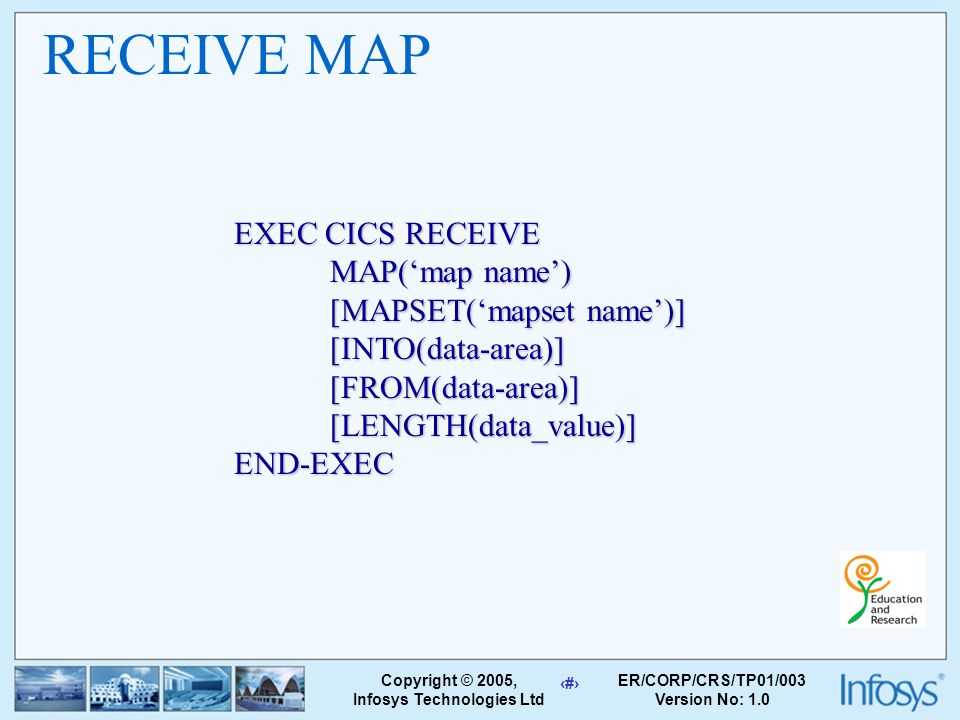

22. 21 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 EXEC CICS RECEIVE MAP(‘map name’) MAP(‘map name’) [MAPSET(‘mapset name’)] [MAPSET(‘mapset name’)] [INTO(data-area)] [INTO(data-area)] [FROM(data-area)] [FROM(data-area)] [LENGTH(data_value)] [LENGTH(data_value)]END-EXEC RECEIVE MAP

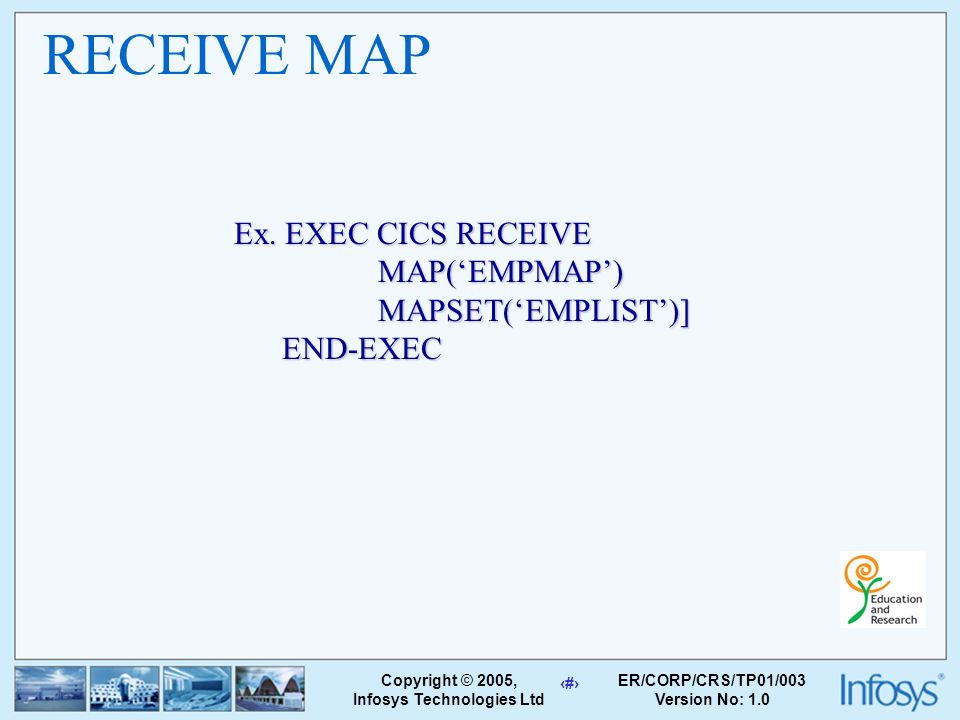

23. 22 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 Ex. EXEC CICS RECEIVE MAP(‘EMPMAP’) MAP(‘EMPMAP’) MAPSET(‘EMPLIST’)] MAPSET(‘EMPLIST’)] END-EXEC END-EXEC RECEIVE MAP

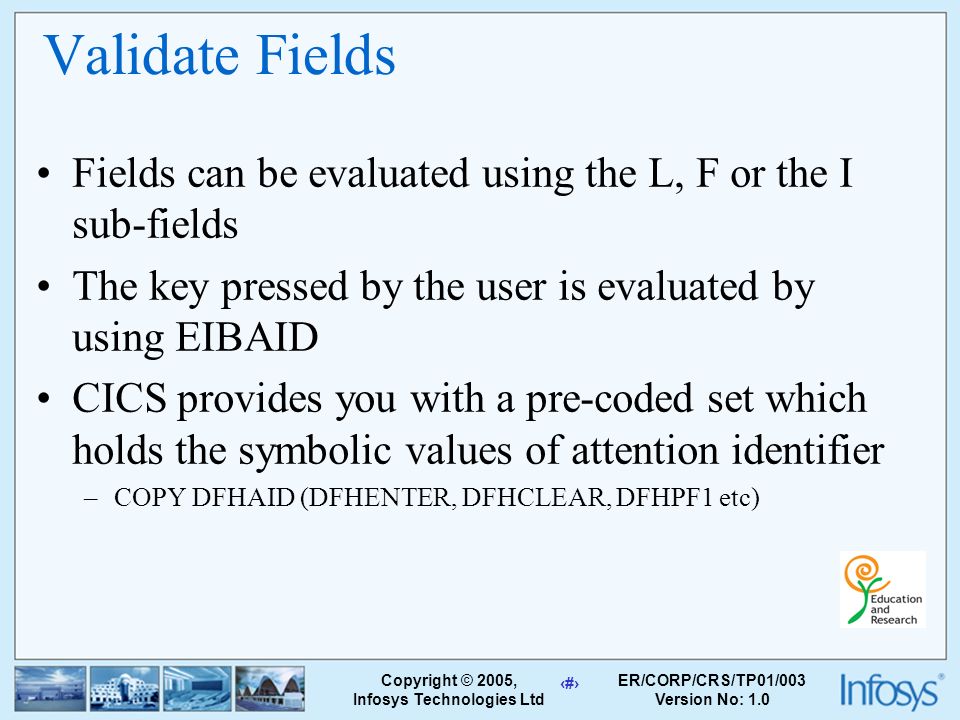

24. 23 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 Validate Fields Fields can be evaluated using the L, F or the I sub-fields The key pressed by the user is evaluated by using EIBAID CICS provides you with a pre-coded set which holds the symbolic values of attention identifier –COPY DFHAID (DFHENTER, DFHCLEAR, DFHPF1 etc)

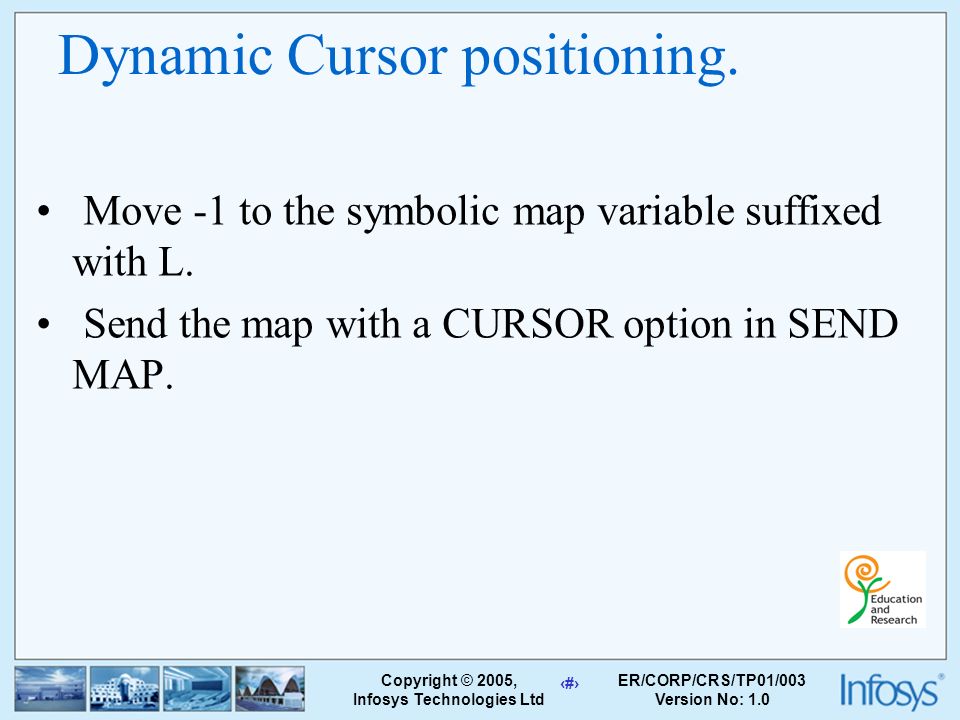

25. 24 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 Dynamic Cursor positioning. Move -1 to the symbolic map variable suffixed with L. Send the map with a CURSOR option in SEND MAP.

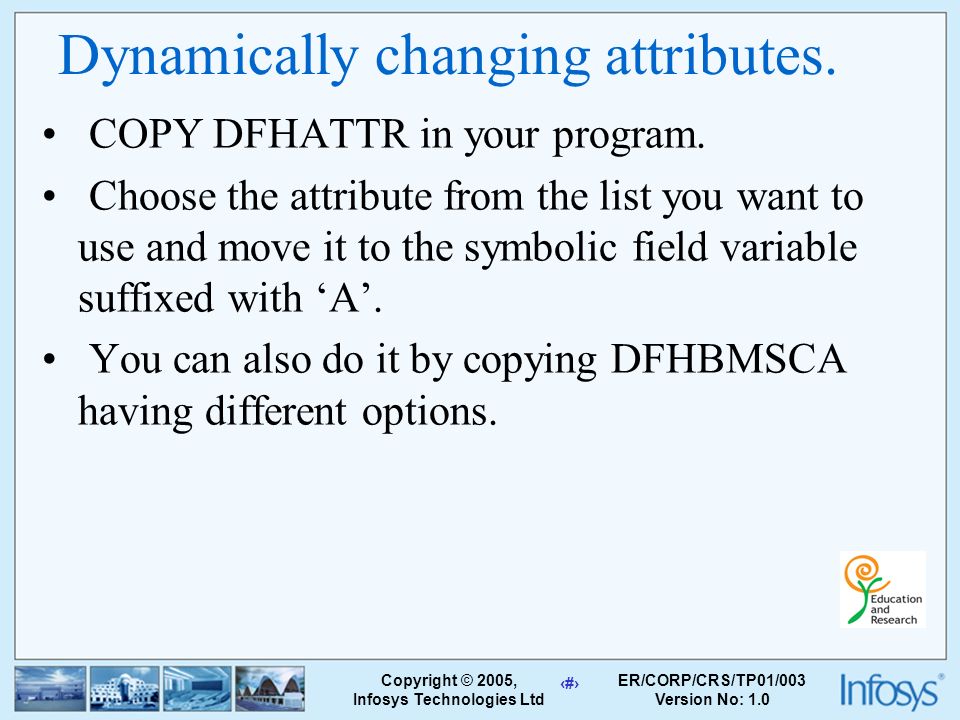

26. 25 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 Dynamically changing attributes. COPY DFHATTR in your program. Choose the attribute from the list you want to use and move it to the symbolic field variable suffixed with ‘A’. You can also do it by copying DFHBMSCA having different options.

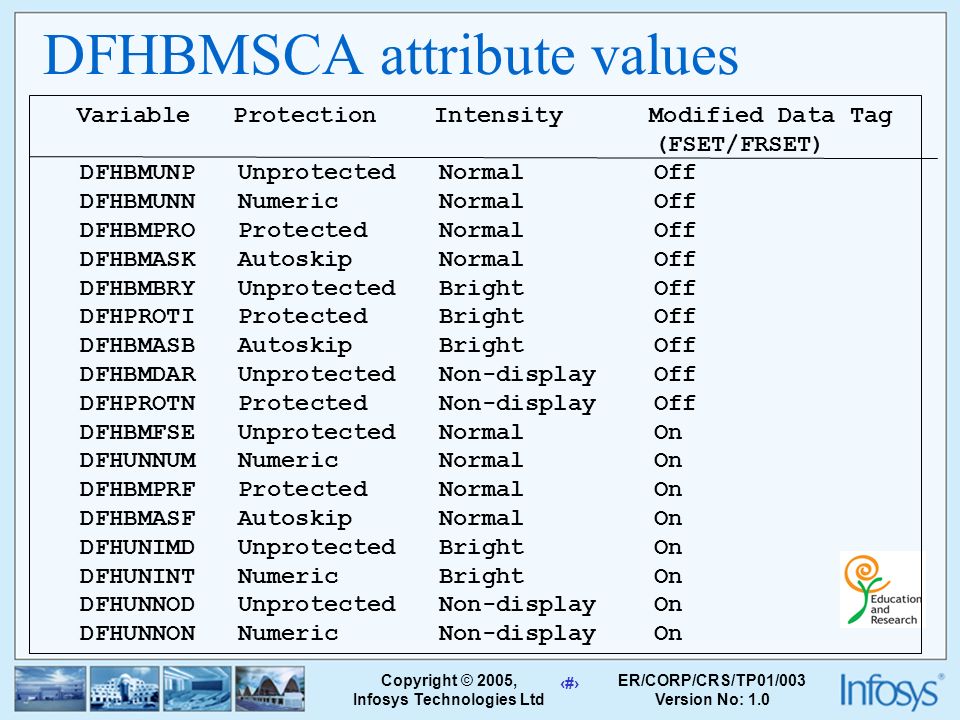

27. 26 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 DFHBMSCA attribute values Variable Protection Intensity Modified Data Tag (FSET/FRSET) DFHBMUNP Unprotected Normal Off DFHBMUNN Numeric Normal Off DFHBMPRO Protected Normal Off DFHBMASK Autoskip Normal Off DFHBMBRY Unprotected Bright Off DFHPROTI Protected Bright Off DFHBMASB Autoskip Bright Off DFHBMDAR Unprotected Non-display Off DFHPROTN Protected Non-display Off DFHBMFSE Unprotected Normal On DFHUNNUM Numeric Normal On DFHBMPRF Protected Normal On DFHBMASF Autoskip Normal On DFHUNIMD Unprotected Bright On DFHUNINT Numeric Bright On DFHUNNOD Unprotected Non-display On DFHUNNON Numeric Non-display On

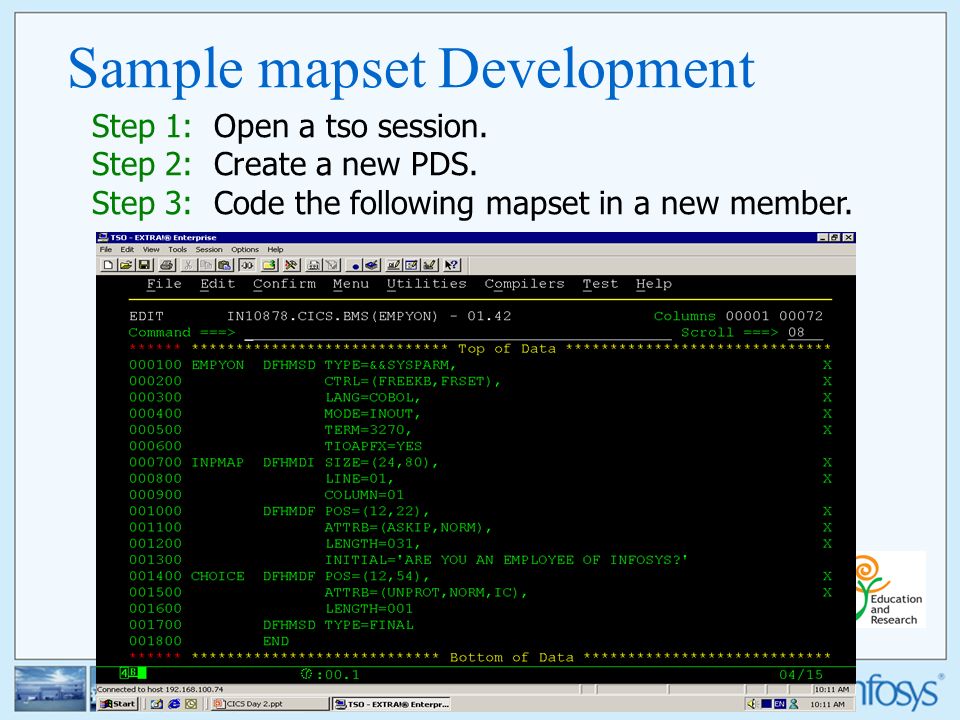

28. 27 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 Step 1: Open a tso session. Step 2: Create a new PDS. Step 3: Code the following mapset in a new member. Sample mapset Development

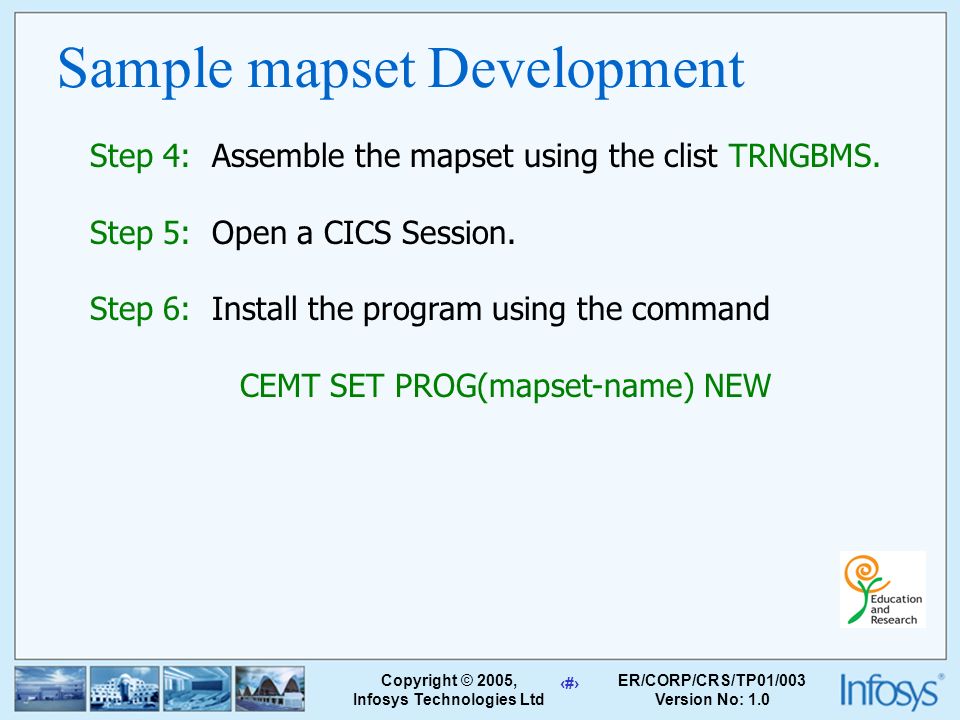

29. 28 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 Step 4: Assemble the mapset using the clist TRNGBMS. Step 5: Open a CICS Session. Step 6: Install the program using the command CEMT SET PROG(mapset-name) NEW Sample mapset Development

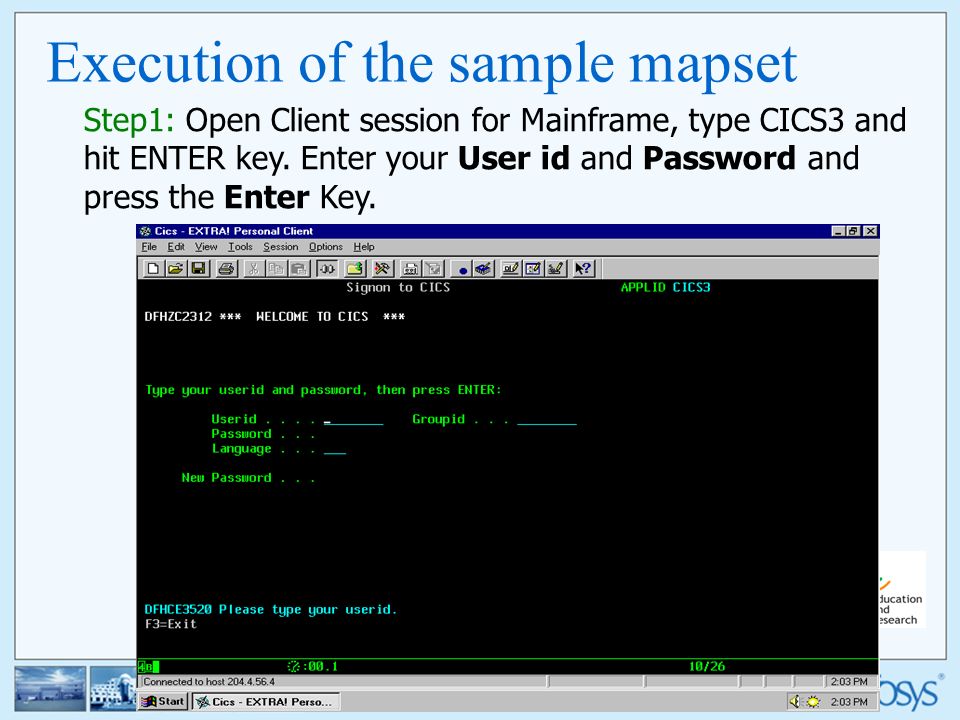

30. 29 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 Step1: Open Client session for Mainframe, type CICS3 and hit ENTER key. Enter your User id and Password and press the Enter Key. Execution of the sample mapset

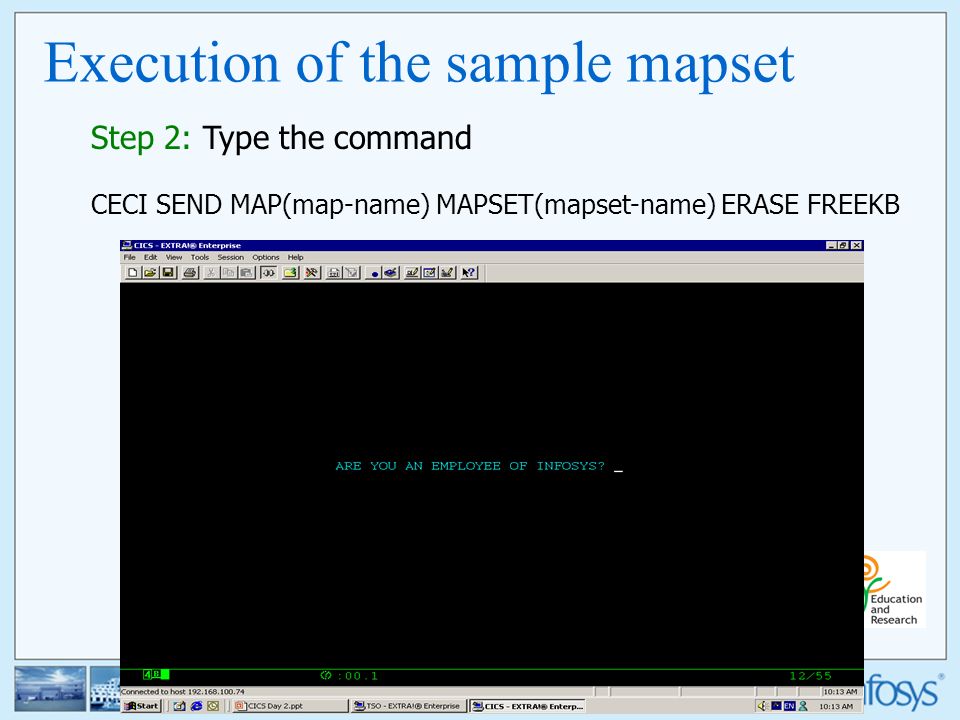

31. 30 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 Step 2: Type the command CECI SEND MAP(map-name) MAPSET(mapset-name) ERASE FREEKB Execution of the sample mapset

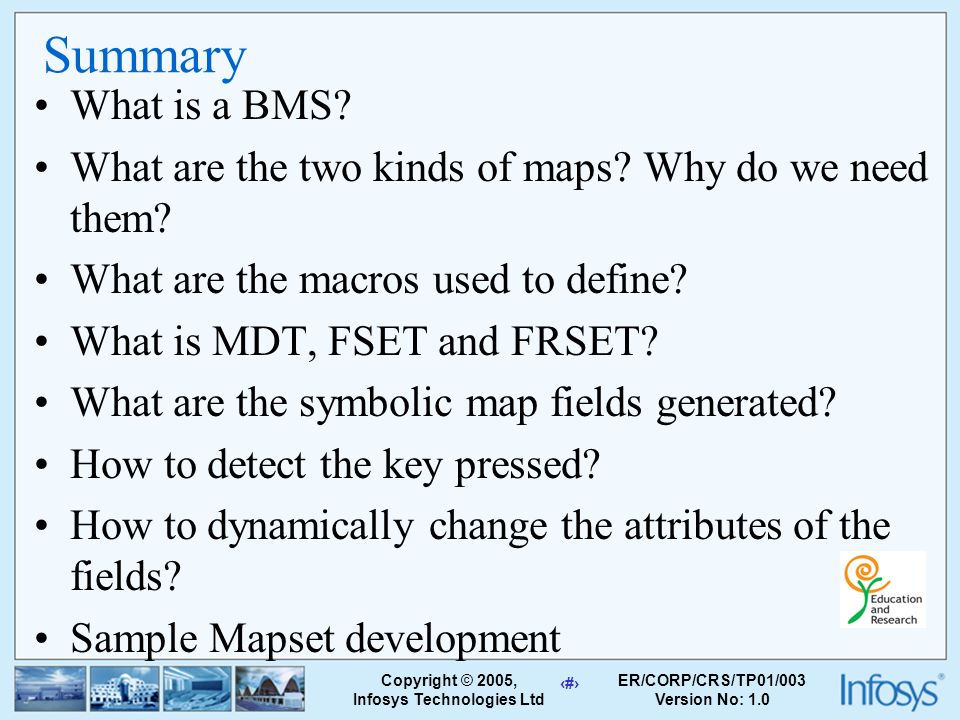

32. 31 Copyright © 2005, Infosys Technologies Ltd ER/CORP/CRS/TP01/003 Version No: 1.0 Summary What is a BMS? What are the two kinds of maps? Why do we need them? What are the macros used to define? What is MDT, FSET and FRSET? What are the symbolic map fields generated? How to detect the key pressed? How to dynamically change the attributes of the fields? Sample Mapset development
