1. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley Starting Out with C++ Early Objects Sixth Edition by Tony Gaddis, Judy Walters, and Godfrey Muganda Chapter 1: Introduction to Computers and Programming

2. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-2 Topics 1.1 Why Program? 1.2 Computer Systems: Hardware and Software 1.3 Programs and Programming Languages 1.4 What Is a Program Made of? 1.5 Input, Processing, and Output 1.6 The Programming Process 1.7 Procedural and Object-Oriented Programming

3. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-3 1.1 Why Program? Computer – programmable machine designed to follow instructions Program – instructions in computer memory to make it do something Programmer – person who writes instructions (programs) to make computer perform a task SO, without programmers, no programs; without programs, the computer cannot do anything

4. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-4 1.2 Computer Systems: Hardware and Software Main Hardware Component Categories 1.Central Processing Unit (CPU) 2.Main Memory 3.Secondary Memory / Storage 4.Input Devices 5.Output Devices

5. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-5 Main Hardware Component Categories Input Device Output Device Secondary Storage Devices Central Processing Unit Main Memory Stream of bytes

6. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-6 Central Processing Unit (CPU) Includes Control Unit –Retrieves and decodes program instructions –Coordinates computer operations Arithmetic & Logic Unit (ALU) –Performs mathematical operations Very simple – very little memory One simple instruction at a time

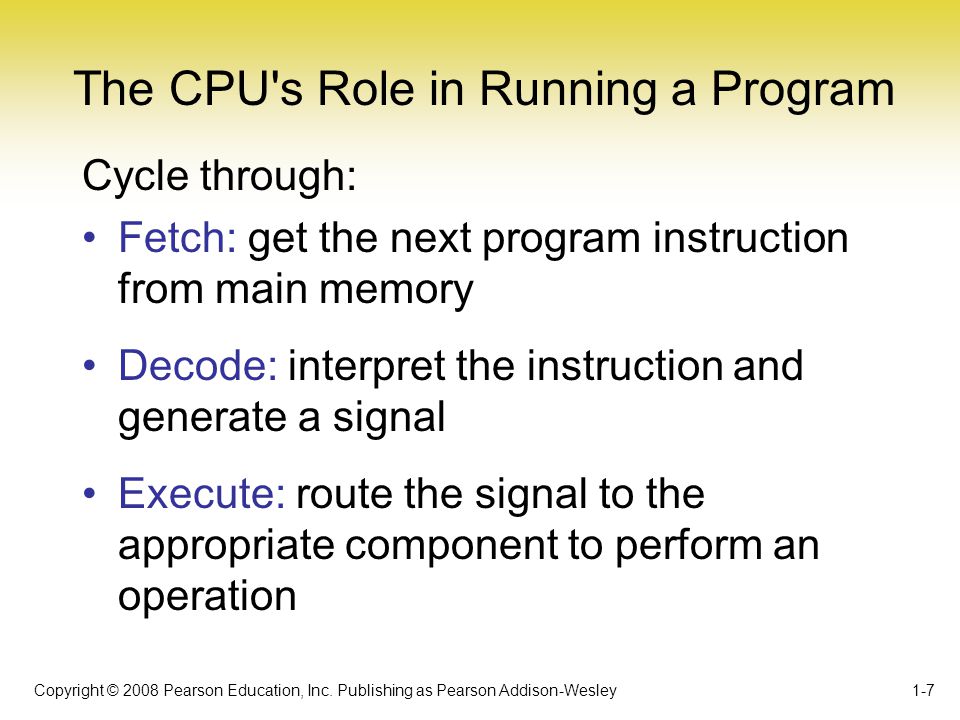

7. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-7 The CPU's Role in Running a Program Cycle through: Fetch: get the next program instruction from main memory Decode: interpret the instruction and generate a signal Execute: route the signal to the appropriate component to perform an operation

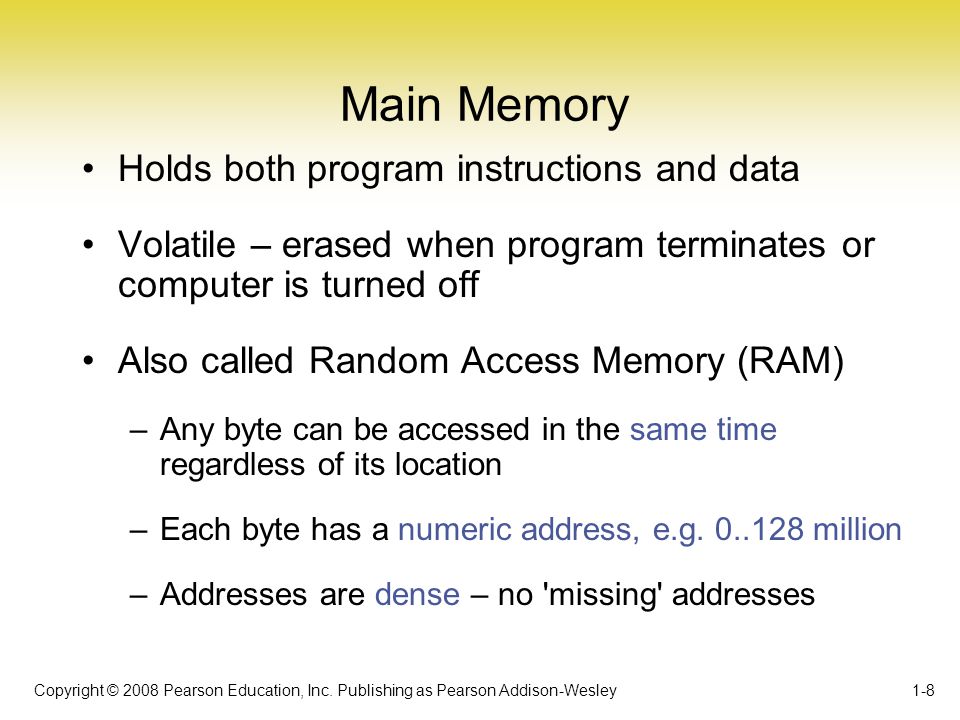

8. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-8 Main Memory Holds both program instructions and data Volatile – erased when program terminates or computer is turned off Also called Random Access Memory (RAM) –Any byte can be accessed in the same time regardless of its location –Each byte has a numeric address, e.g. 0..128 million –Addresses are dense – no 'missing' addresses

9. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-9 Main Memory Organization Bit –Smallest piece of memory –Stands for binary digit –Has values 0 (off) or 1 (on) Byte –Is 8 consecutive bits Word or int –Usually 4 consecutive bytes –Address is the 'first' byte 0 1 1 0 0 1 1 1 8 bits1 byte

10. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-10 Secondary Storage Non-volatile - data retained when program is not running or computer is turned off Comes in a variety of media –magnetic: floppy disk, zip disk, hard drive –optical: CD –flash: thumb or flash drive Cheaper than RAM Usually much larger access time

11. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-11 Input Devices Used to send information to the computer from outside Many devices can provide input –keyboard, mouse, microphone, scanner, digital camera, disk drive, CD drive, flash drive, network connection

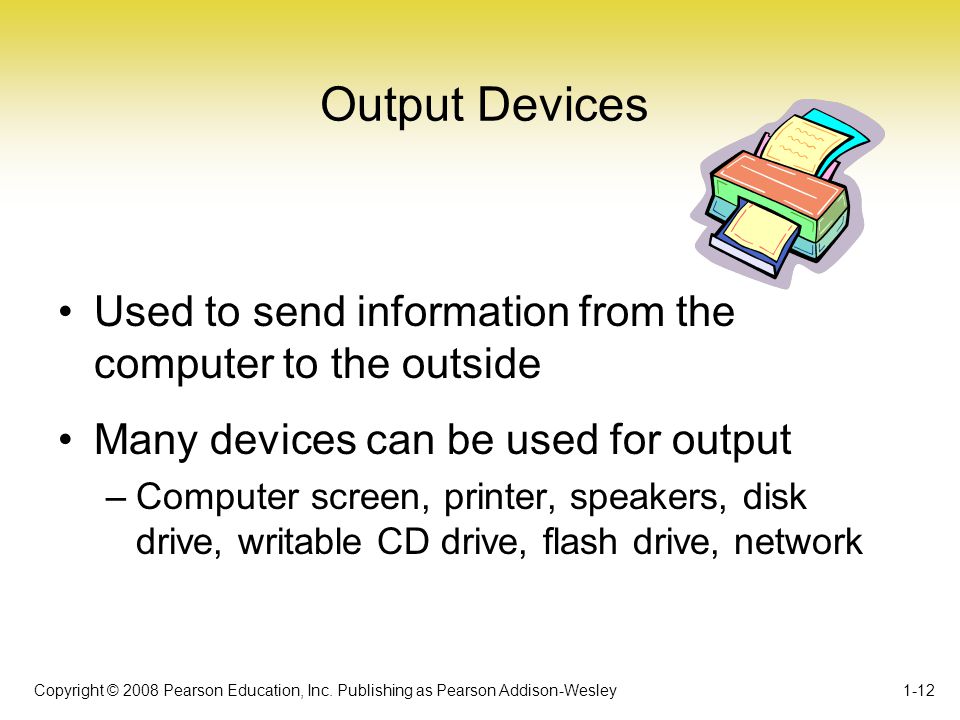

12. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-12 Output Devices Used to send information from the computer to the outside Many devices can be used for output –Computer screen, printer, speakers, disk drive, writable CD drive, flash drive, network

13. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-13 Software Programs That Run on a Computer Operating system software –programs that manage the compute hardware and the programs that run on them Ex: Windows versions, UNIX, Linux, Solaris Application software –programs that provide services to the user. Ex: word processing, games, programs to solve specific problems

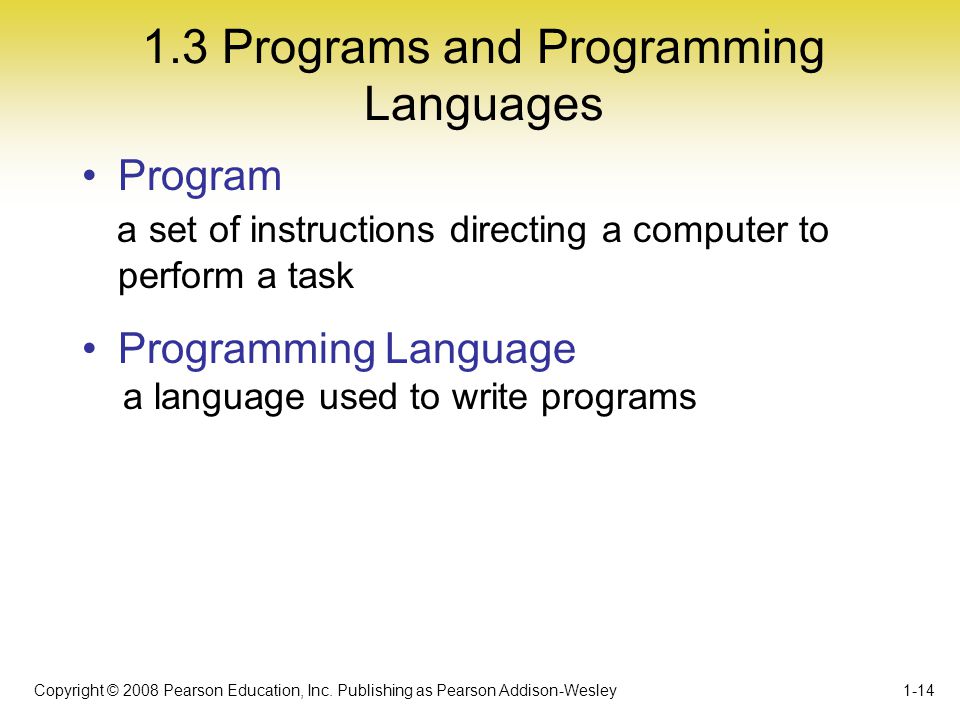

14. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-14 1.3 Programs and Programming Languages Program a set of instructions directing a computer to perform a task Programming Language a language used to write programs

15. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-15 Programs and Programming Languages Types of languages –Low-level: used for communication with computer hardware directly. Often written in binary machine code using 0 and 1. –High-level: closer to human language –High-level programs must be translated into low-level machine programs.

16. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-16 From a High-level Program to an Executable (low-level) File a)Create file containing the program with a text editor. b)Run preprocessor to convert source file directives to source code program statements. c)Run compiler to convert source program statements into machine instructions.

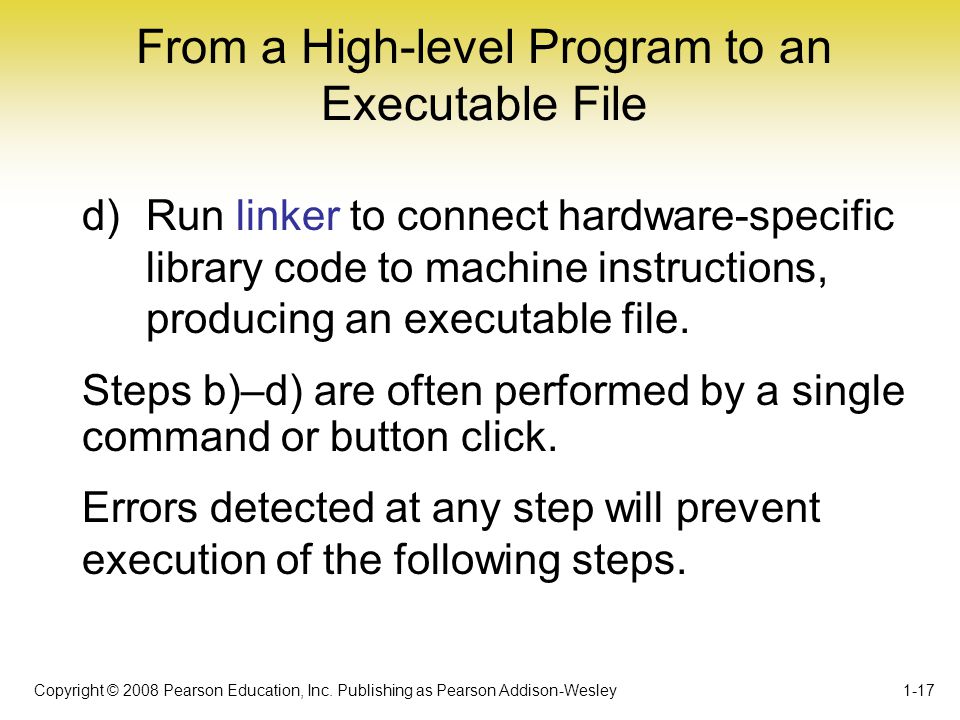

17. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-17 From a High-level Program to an Executable File d)Run linker to connect hardware-specific library code to machine instructions, producing an executable file. Steps b)–d) are often performed by a single command or button click. Errors detected at any step will prevent execution of the following steps.

18. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-18 From a High-level Program to an Executable File Object Code Linker Executable CodeSource Code Preprocessor Modified Source Code Compiler Library Code

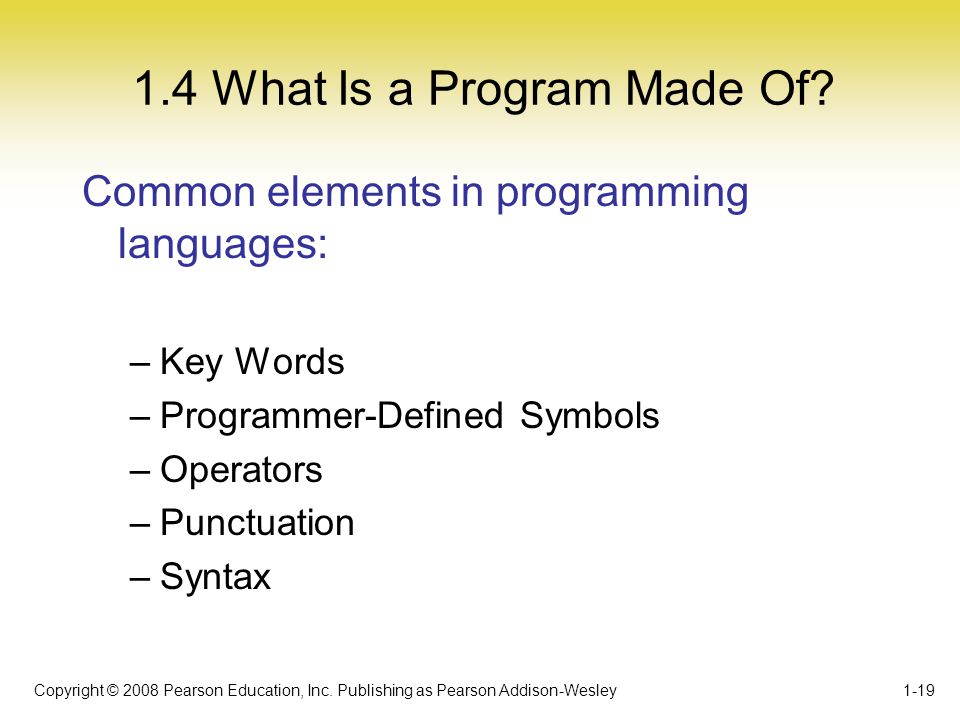

19. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-19 1.4 What Is a Program Made Of? Common elements in programming languages: –Key Words –Programmer-Defined Symbols –Operators –Punctuation –Syntax

20. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-20 Example Program #include using namespace std; int main() { string name; cout << "What is your name? "; cin >> name; cout << "Hello there, " << name; cout << "2+2= " << 2+2 << endl; return 0; }

21. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-21 Key Words Also known as reserved words Have a special meaning in C++ Can not be used for another purpose Written using lowercase letters Examples in program (shown in green) : using namespace std; int main()

22. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-22 Programmer-Defined Symbols Names made up by the programmer Not part of the C++ language Used to represent various things – variables (memory locations), functions, etc. Example in program (shown in green) : string name;

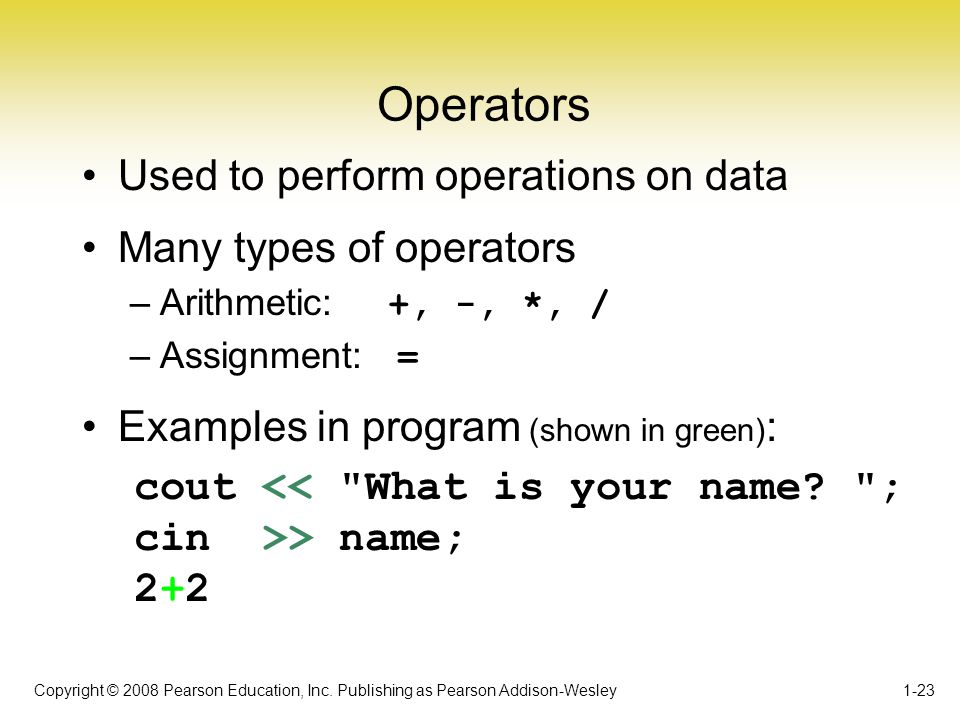

23. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-23 Operators Used to perform operations on data Many types of operators –Arithmetic: +, -, *, / –Assignment: = Examples in program (shown in green) : cout << "What is your name? "; cin >> name; 2+2

24. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-24 Punctuation Characters that mark the end of a statement, or that separate items in a list Example in program (shown in green) : string name ; cin >> name ;

25. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-25 Lines and Statements In a source file, –lines are adjacent characters before a carriage return. Empty lines improve the readability of a program. –statements are instructions to the computer to perform an action. Statements may contain keywords, operators, programmer-defined identifiers, and punctuation. A statement may fit on one line, or it may occupy multiple lines.

26. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-26 Variable A named location in the computer (in RAM) Holds a piece of data Must be defined with a type before it can be used: type variable_name ; Example definition: - string name;

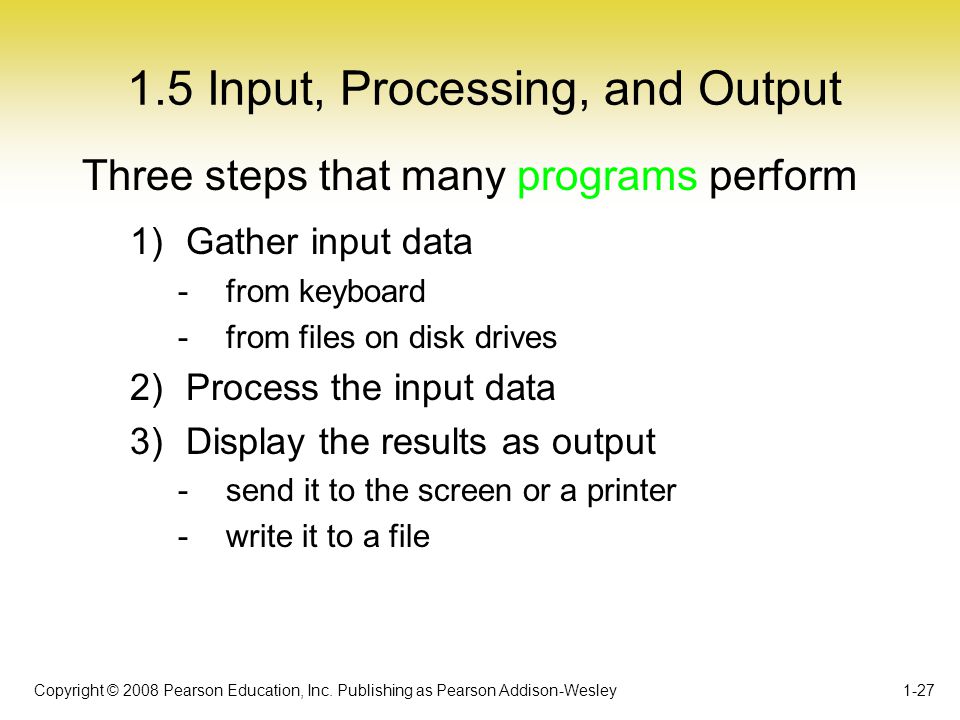

27. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-27 1.5 Input, Processing, and Output Three steps that many programs perform 1)Gather input data -from keyboard -from files on disk drives 2)Process the input data 3)Display the results as output -send it to the screen or a printer -write it to a file

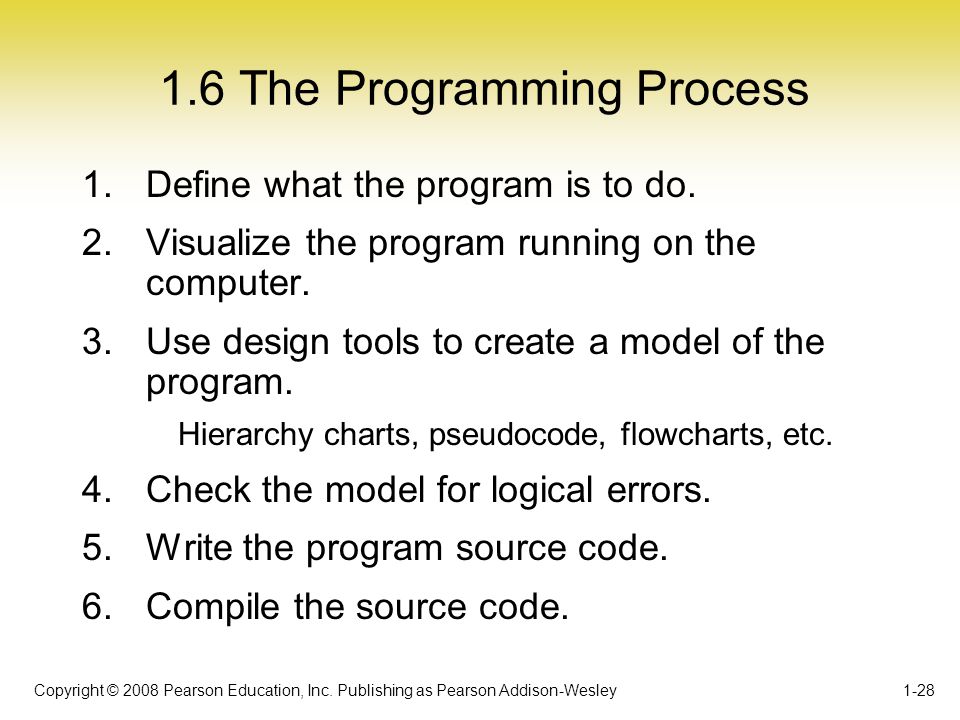

28. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-28 1.6 The Programming Process 1.Define what the program is to do. 2.Visualize the program running on the computer. 3.Use design tools to create a model of the program. Hierarchy charts, pseudocode, flowcharts, etc. 4.Check the model for logical errors. 5.Write the program source code. 6.Compile the source code.

29. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-29 The Programming Process 7. Correct any errors found during compilation. 8. Link the program to create an executable file. 9. Run the program using test data for input. 10. Correct any errors found while running the program. Repeat steps 4 - 10 as many times as necessary. 11. Validate the results of the program. Does the program do what was defined in step 1?

30. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley 1-30 1.7 Procedural and Object-Oriented Programming Procedural programming –Focus is on the process –Procedures/functions are written to process data Object-Oriented programming –Focus is on objects, which contain data and the means to manipulate the data –Messages are sent to objects to perform operations

31. Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley Chapter 1: Introduction to Computers and Programming Starting Out with C++ Early Objects Sixth Edition by Tony Gaddis, Judy Walters, and Godfrey Muganda
