1
3D Micromanufacturing Lab. [1] Water Bath
![3D Micromanufacturing Lab. [1] Water Bath](http://images.slideplayer.com/24/7378876/slides/slide_1.jpg "3D Micromanufacturing Lab. [1] Water Bath")
2

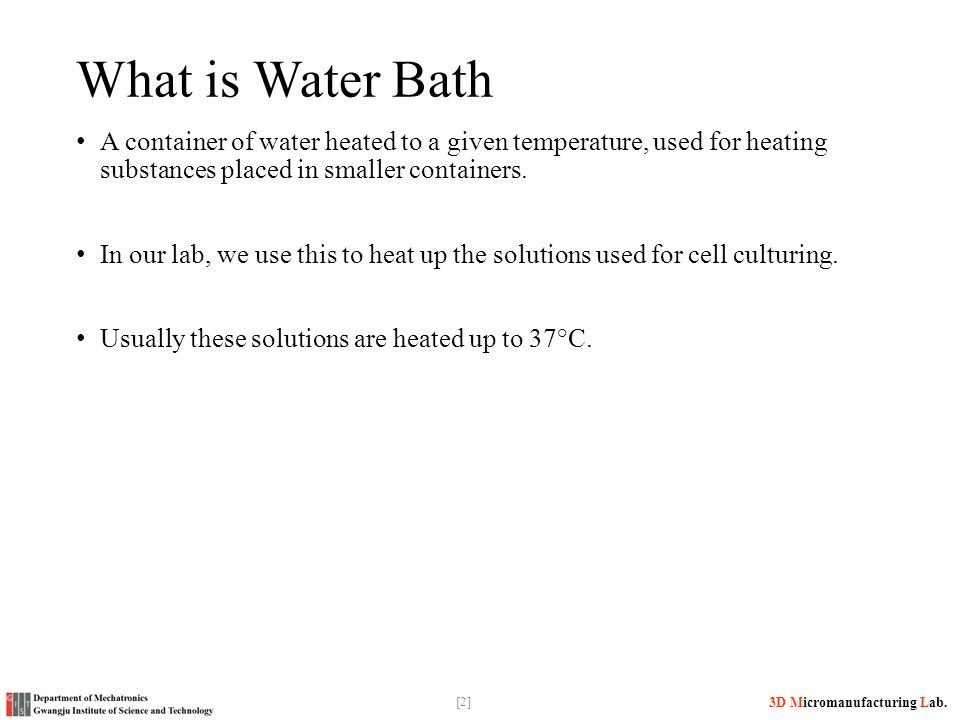

[2] 3D Micromanufacturing Lab. What is Water Bath A container of water heated to a given temperature, used for heating substances placed in smaller containers. In our lab, we use this to heat up the solutions used for cell culturing. Usually these solutions are heated up to 37°C.
![[2] 3D Micromanufacturing Lab.](http://images.slideplayer.com/24/7378876/slides/slide_2.jpg "What is Water Bath A container of water heated to a given temperature, used for heating substances placed in smaller containers. In our lab, we use this to heat up the solutions used for cell culturing. Usually these solutions are heated up to 37°C..")
3

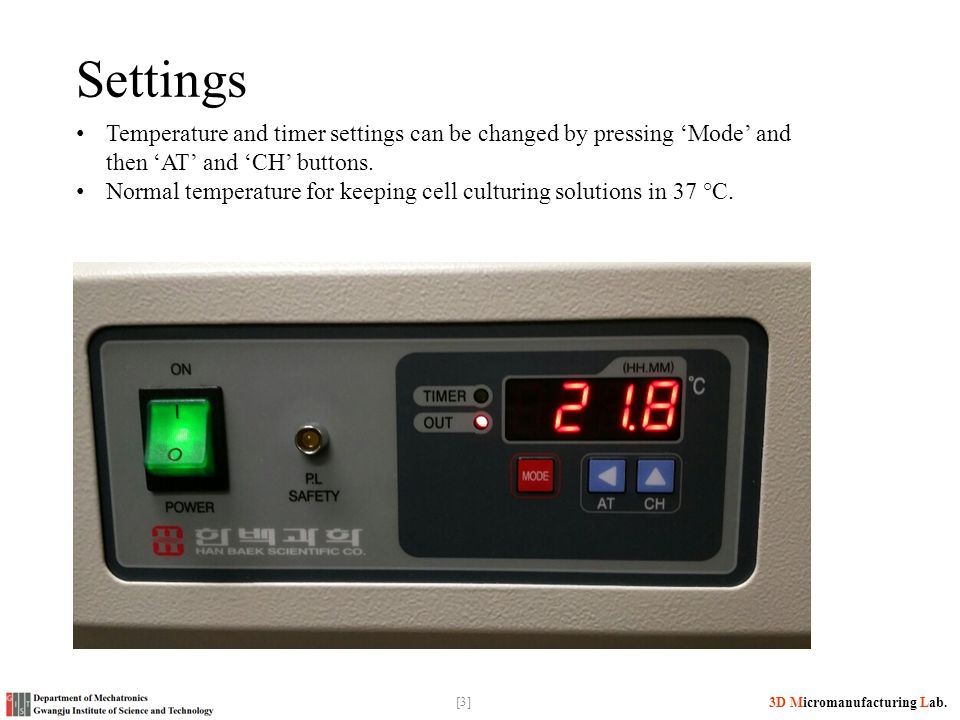

[3] 3D Micromanufacturing Lab. Settings Temperature and timer settings can be changed by pressing ‘Mode’ and then ‘AT’ and ‘CH’ buttons. Normal temperature for keeping cell culturing solutions in 37 °C.
![[3] 3D Micromanufacturing Lab.](http://images.slideplayer.com/24/7378876/slides/slide_3.jpg "Settings Temperature and timer settings can be changed by pressing ‘Mode’ and then ‘AT’ and ‘CH’ buttons. Normal temperature for keeping cell culturing solutions in 37 °C..")
4

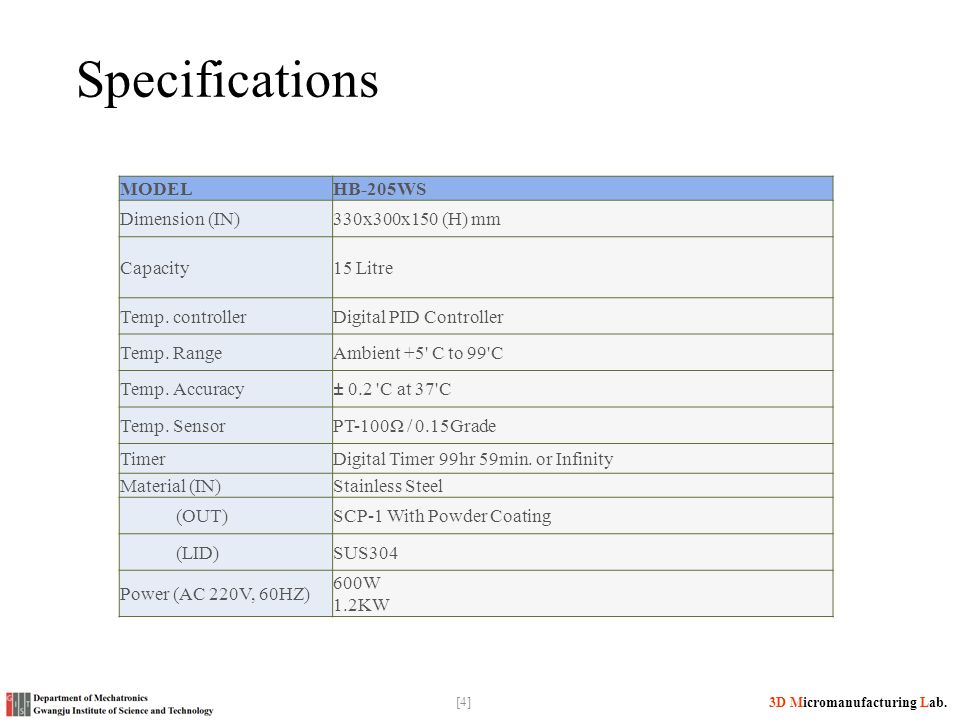

[4] 3D Micromanufacturing Lab. Specifications MODELHB-205WS Dimension (IN)330x300x150 (H) mm Capacity15 Litre Temp. controllerDigital PID Controller Temp. RangeAmbient +5' C to 99'C Temp. Accuracy± 0.2 'C at 37'C Temp. SensorPT-100Ω / 0.15Grade TimerDigital Timer 99hr 59min. or Infinity Material (IN)Stainless Steel (OUT)SCP-1 With Powder Coating (LID)SUS304 Power (AC 220V, 60HZ) 600W 1.2KW
![[4] 3D Micromanufacturing Lab.](http://images.slideplayer.com/24/7378876/slides/slide_4.jpg "Specifications MODELHB-205WS Dimension (IN)330x300x150 (H) mm Capacity15 Litre Temp. controllerDigital PID Controller Temp. RangeAmbient +5 C to 99 C Temp. Accuracy± 0.2 C at 37 C Temp. SensorPT-100Ω / 0.15Grade TimerDigital Timer 99hr 59min. or Infinity Material (IN)Stainless Steel (OUT)SCP-1 With Powder Coating (LID)SUS304 Power (AC 220V, 60HZ) 600W 1.2KW.")
