1. PR 50024 Phase II SCR 727 SCR 740 Web Services Jackie Ashbaugh Commercial Operations Data Integrity & Administration August 18, 2006

2. 2 Agenda Project Timeline Information SCR740 System Flow Diagram Review Project Assumptions SCR740 Data Request Screens Q & A Session

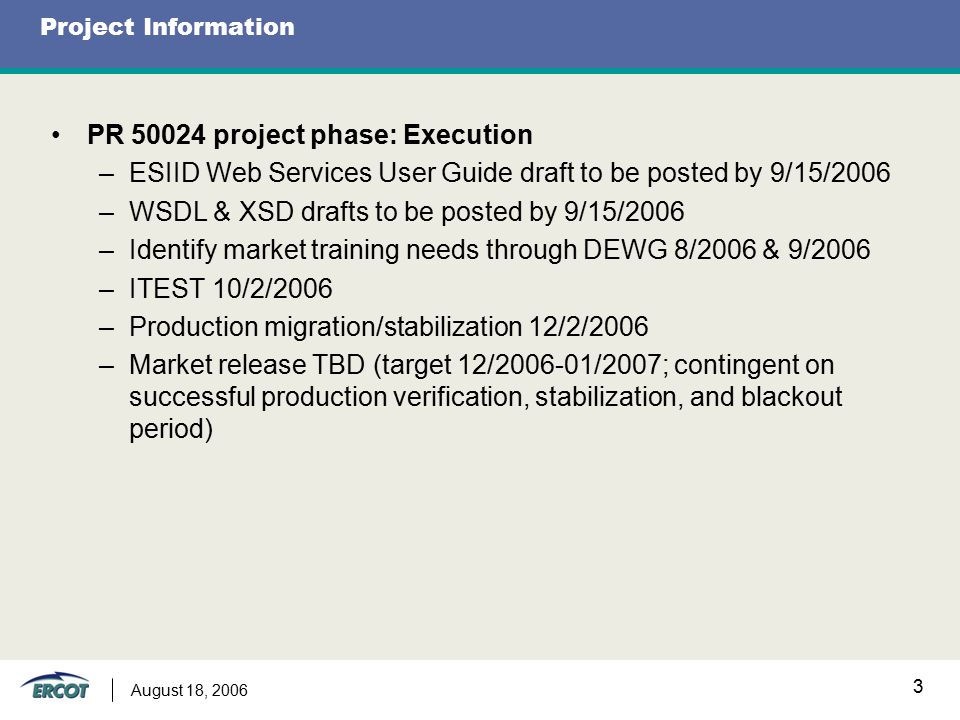

3. August 18, 2006 3 Project Information PR 50024 project phase: Execution –ESIID Web Services User Guide draft to be posted by 9/15/2006 –WSDL & XSD drafts to be posted by 9/15/2006 –Identify market training needs through DEWG 8/2006 & 9/2006 –ITEST 10/2/2006 –Production migration/stabilization 12/2/2006 –Market release TBD (target 12/2006-01/2007; contingent on successful production verification, stabilization, and blackout period)

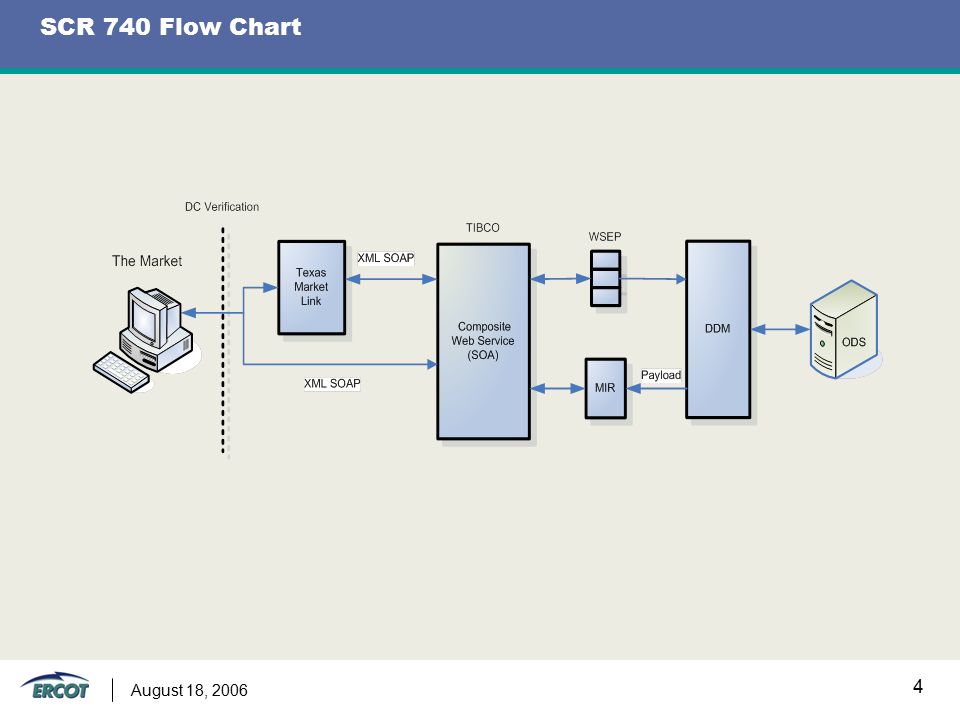

4. August 18, 2006 4 SCR 740 Flow Chart

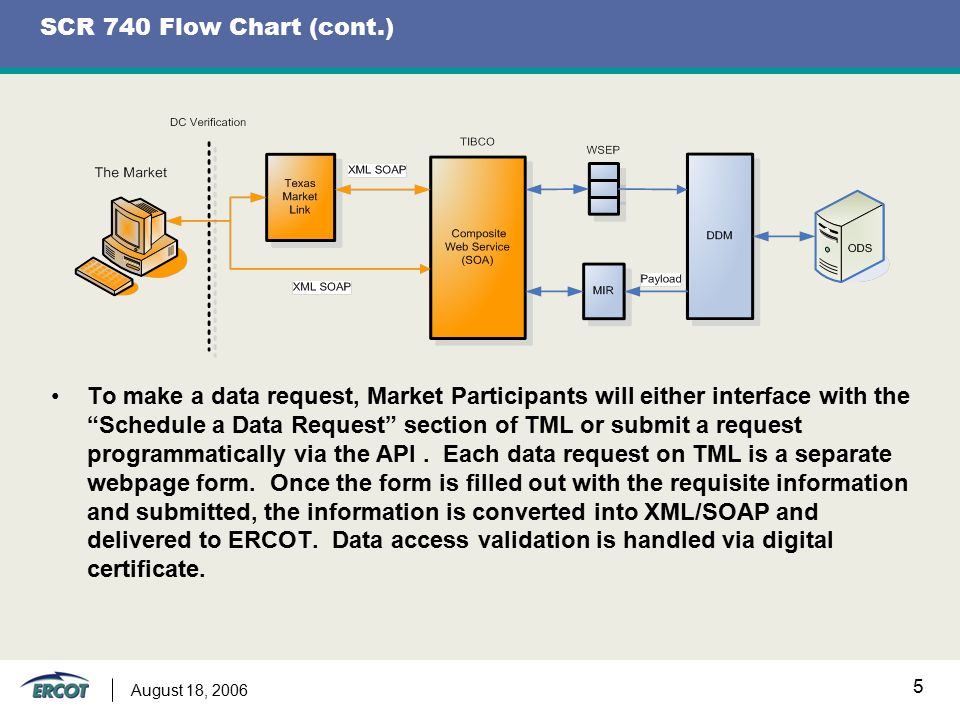

5. August 18, 2006 5 SCR 740 Flow Chart (cont.) To make a data request, Market Participants will either interface with the “Schedule a Data Request” section of TML or submit a request programmatically via the API. Each data request on TML is a separate webpage form. Once the form is filled out with the requisite information and submitted, the information is converted into XML/SOAP and delivered to ERCOT. Data access validation is handled via digital certificate.

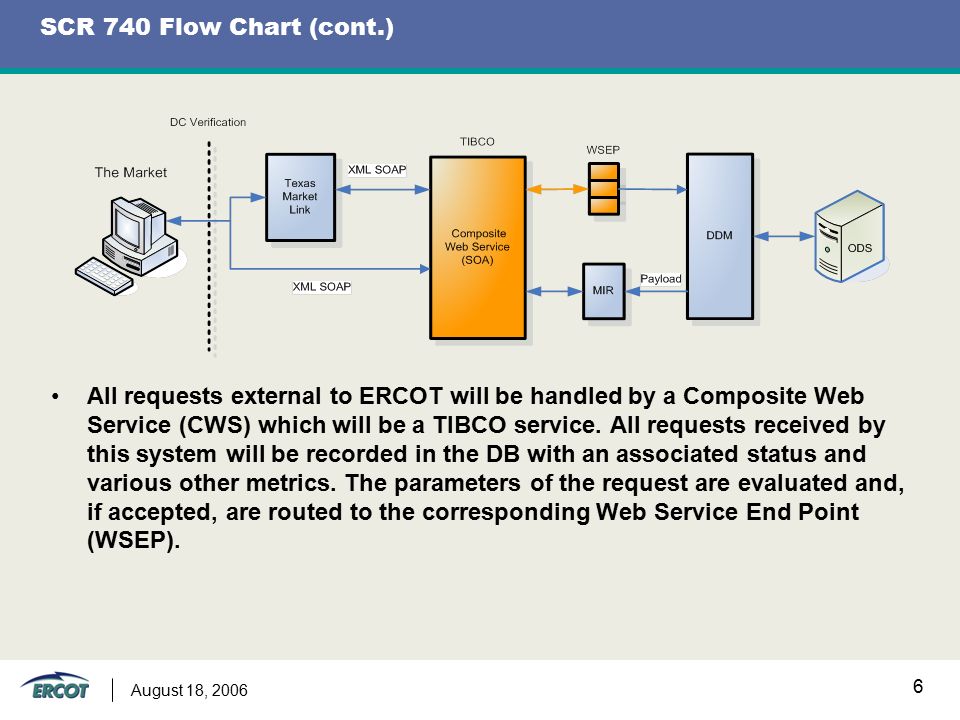

6. August 18, 2006 6 SCR 740 Flow Chart (cont.) All requests external to ERCOT will be handled by a Composite Web Service (CWS) which will be a TIBCO service. All requests received by this system will be recorded in the DB with an associated status and various other metrics. The parameters of the request are evaluated and, if accepted, are routed to the corresponding Web Service End Point (WSEP).

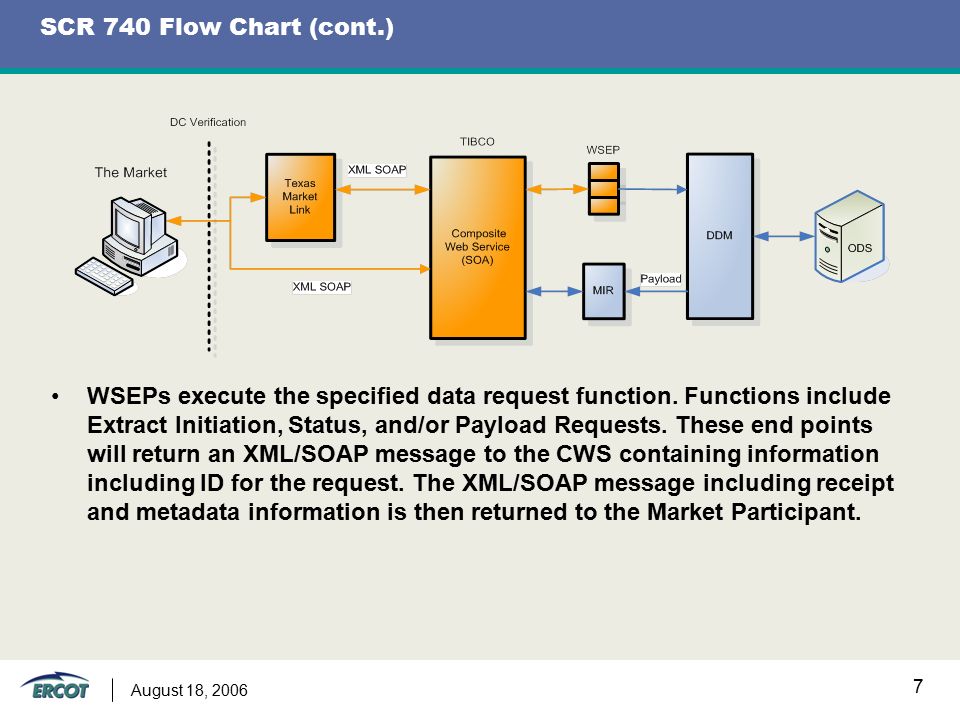

7. August 18, 2006 7 SCR 740 Flow Chart (cont.) WSEPs execute the specified data request function. Functions include Extract Initiation, Status, and/or Payload Requests. These end points will return an XML/SOAP message to the CWS containing information including ID for the request. The XML/SOAP message including receipt and metadata information is then returned to the Market Participant.

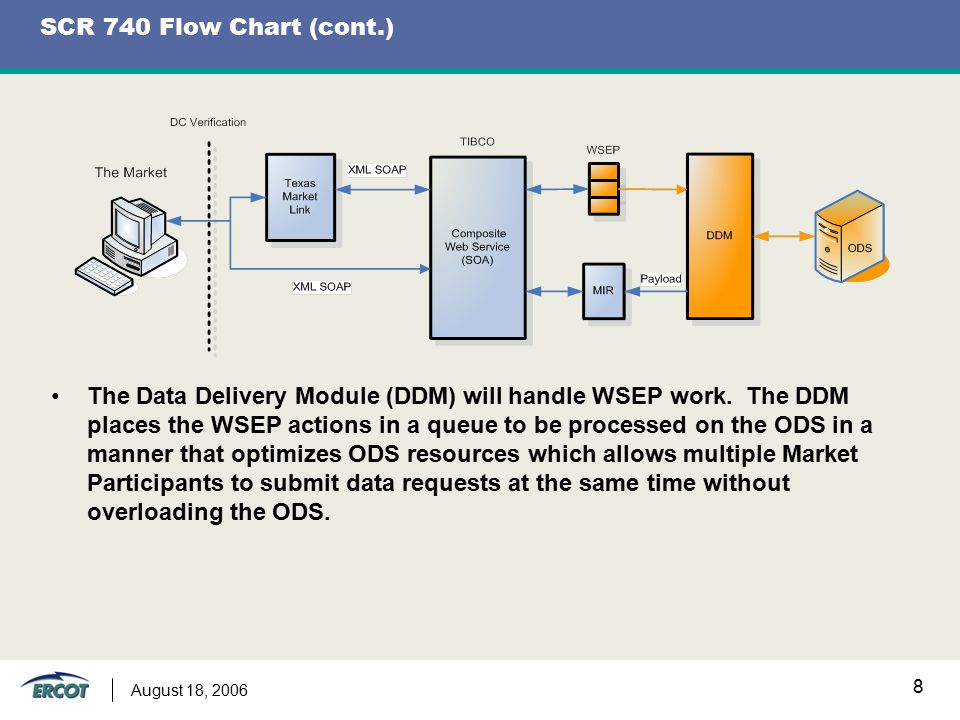

8. August 18, 2006 8 SCR 740 Flow Chart (cont.) The Data Delivery Module (DDM) will handle WSEP work. The DDM places the WSEP actions in a queue to be processed on the ODS in a manner that optimizes ODS resources which allows multiple Market Participants to submit data requests at the same time without overloading the ODS.

9. August 18, 2006 9 SCR 740 Flow Chart (cont.) The data is then pulled from the ODS by the DDM and converted into CSV or XML format. The DDM then zips the file and delivers it to the Market Information Repository (MIR). Once within MIR, the zipped files may be downloaded by the Market Participant via the TML interface.

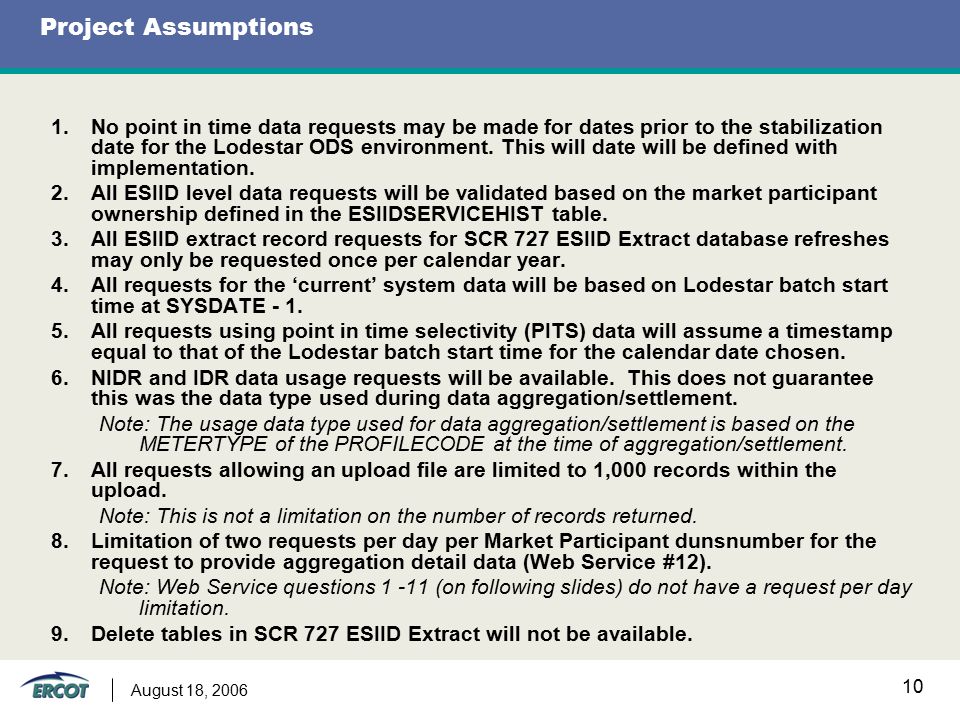

10. August 18, 2006 10 Project Assumptions 1.No point in time data requests may be made for dates prior to the stabilization date for the Lodestar ODS environment. This will date will be defined with implementation. 2.All ESIID level data requests will be validated based on the market participant ownership defined in the ESIIDSERVICEHIST table. 3.All ESIID extract record requests for SCR 727 ESIID Extract database refreshes may only be requested once per calendar year. 4.All requests for the ‘current’ system data will be based on Lodestar batch start time at SYSDATE - 1. 5.All requests using point in time selectivity (PITS) data will assume a timestamp equal to that of the Lodestar batch start time for the calendar date chosen. 6.NIDR and IDR data usage requests will be available. This does not guarantee this was the data type used during data aggregation/settlement. Note: The usage data type used for data aggregation/settlement is based on the METERTYPE of the PROFILECODE at the time of aggregation/settlement. 7.All requests allowing an upload file are limited to 1,000 records within the upload. Note: This is not a limitation on the number of records returned. 8.Limitation of two requests per day per Market Participant dunsnumber for the request to provide aggregation detail data (Web Service #12). Note: Web Service questions 1 -11 (on following slides) do not have a request per day limitation. 9.Delete tables in SCR 727 ESIID Extract will not be available.

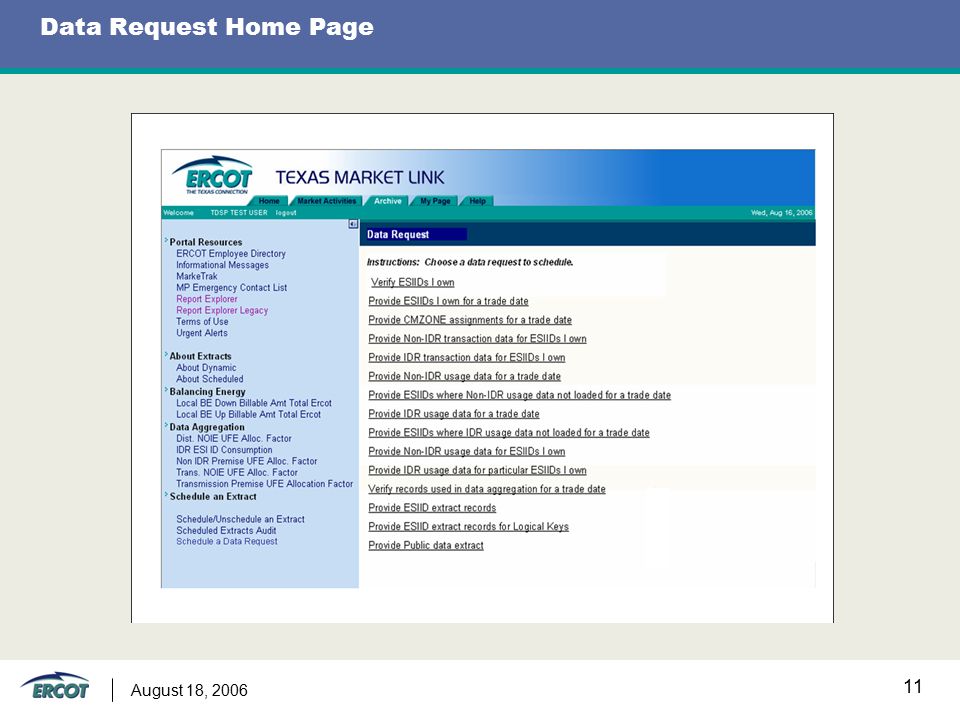

11. August 18, 2006 11 Data Request Home Page

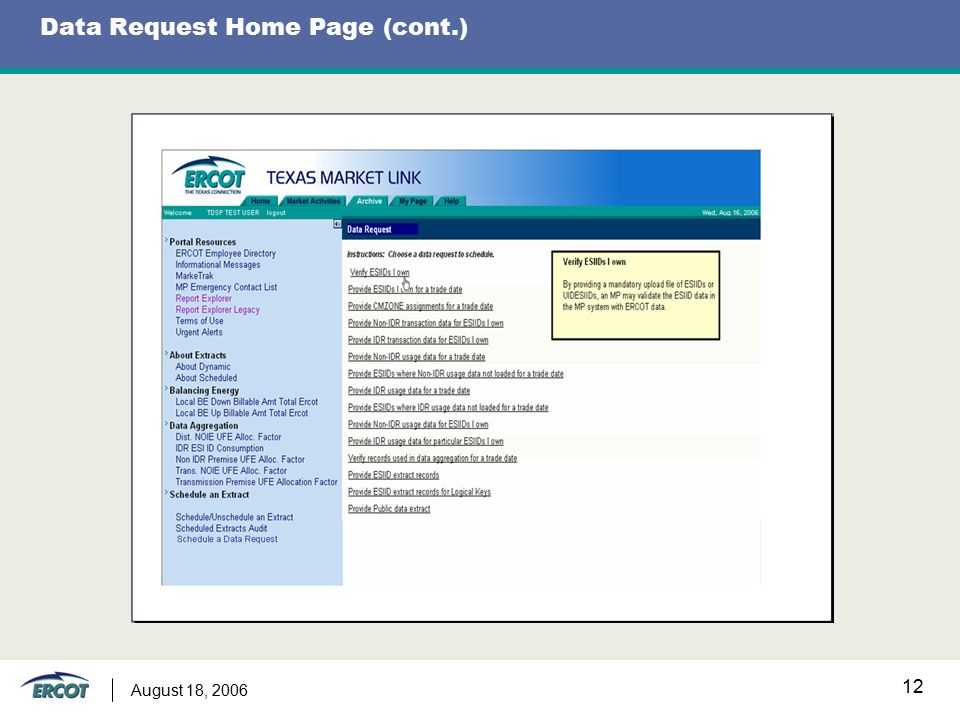

12. August 18, 2006 12 Data Request Home Page (cont.)

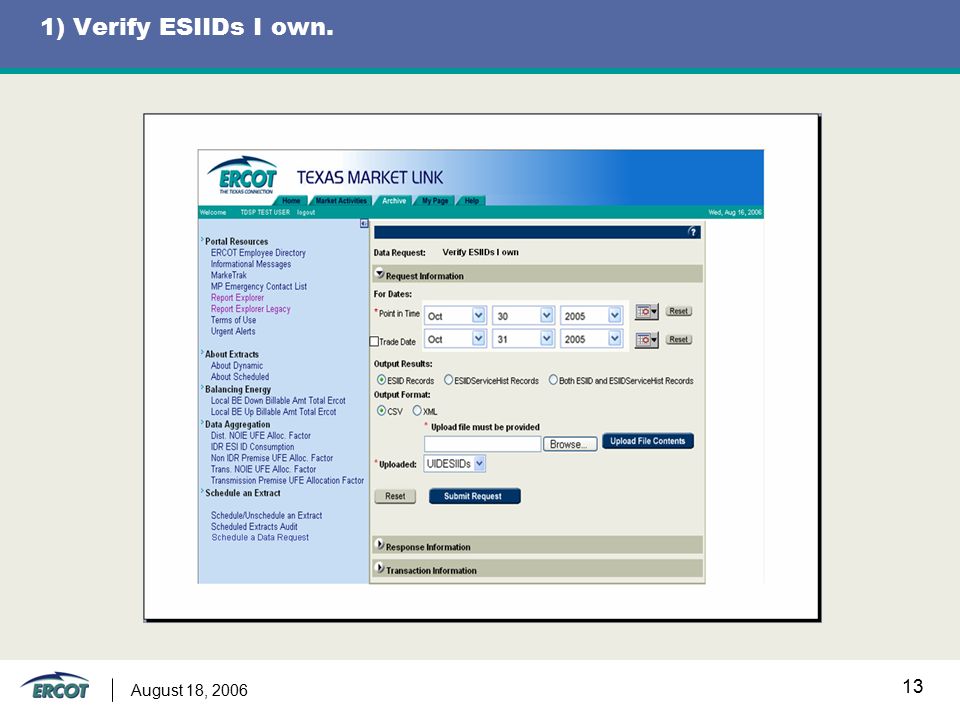

13. August 18, 2006 13 1) Verify ESIIDs I own.

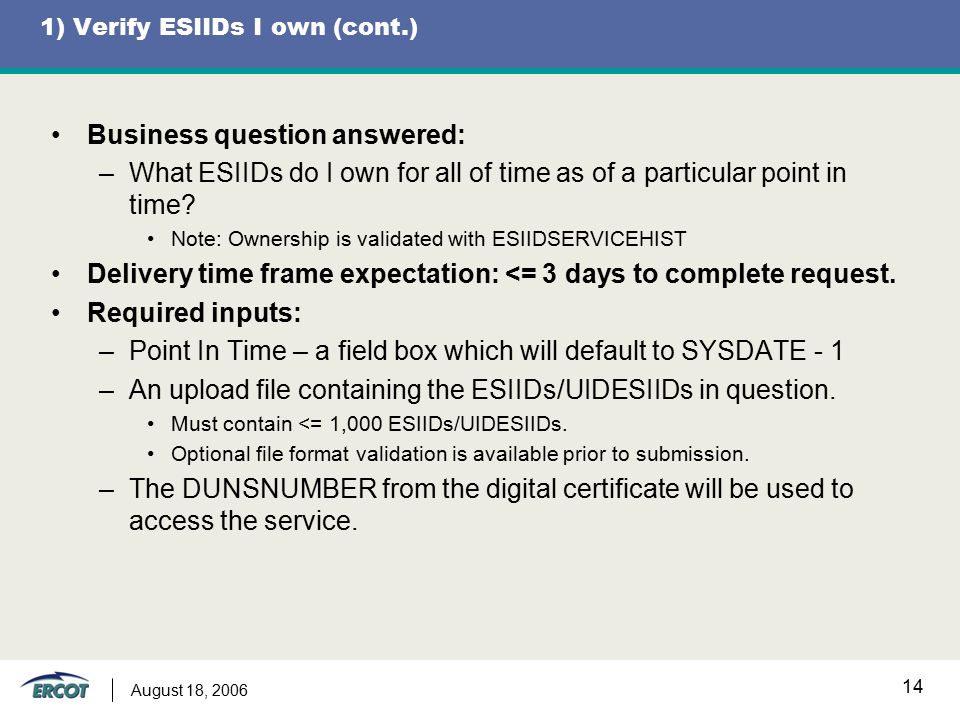

14. August 18, 2006 14 1) Verify ESIIDs I own (cont.) Business question answered: –What ESIIDs do I own for all of time as of a particular point in time? Note: Ownership is validated with ESIIDSERVICEHIST Delivery time frame expectation: <= 3 days to complete request. Required inputs: –Point In Time – a field box which will default to SYSDATE - 1 –An upload file containing the ESIIDs/UIDESIIDs in question. Must contain <= 1,000 ESIIDs/UIDESIIDs. Optional file format validation is available prior to submission. –The DUNSNUMBER from the digital certificate will be used to access the service.

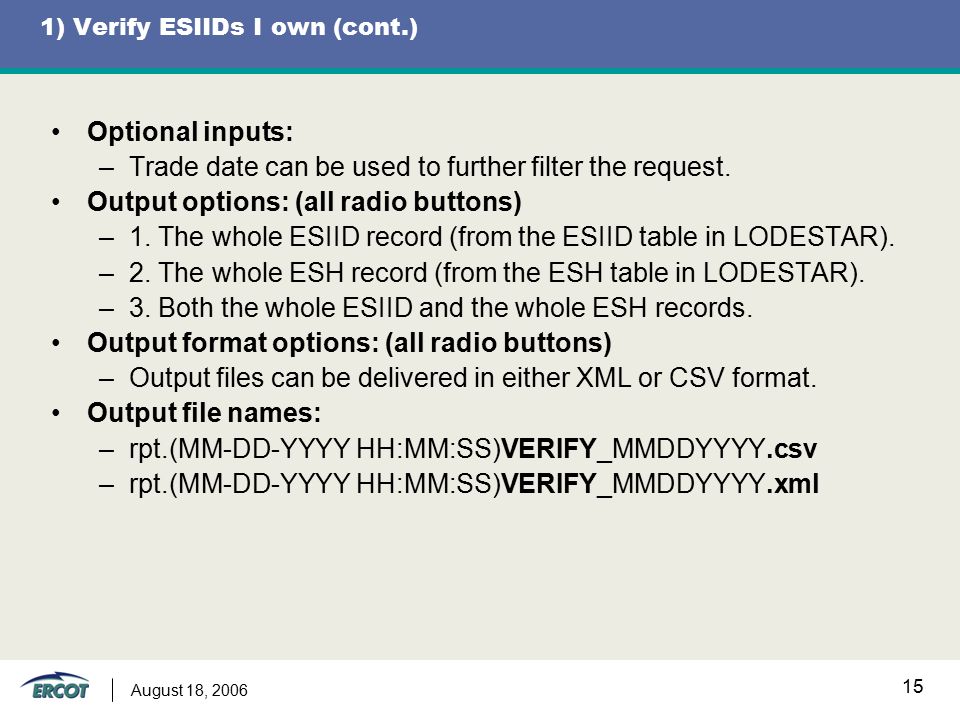

15. August 18, 2006 15 1) Verify ESIIDs I own (cont.) Optional inputs: –Trade date can be used to further filter the request. Output options: (all radio buttons) –1. The whole ESIID record (from the ESIID table in LODESTAR). –2. The whole ESH record (from the ESH table in LODESTAR). –3. Both the whole ESIID and the whole ESH records. Output format options: (all radio buttons) –Output files can be delivered in either XML or CSV format. Output file names: –rpt.(MM-DD-YYYY HH:MM:SS)VERIFY_MMDDYYYY.csv –rpt.(MM-DD-YYYY HH:MM:SS)VERIFY_MMDDYYYY.xml

16. August 18, 2006 16 Show Upload File Contents

17. August 18, 2006 17 Show XML SOAP

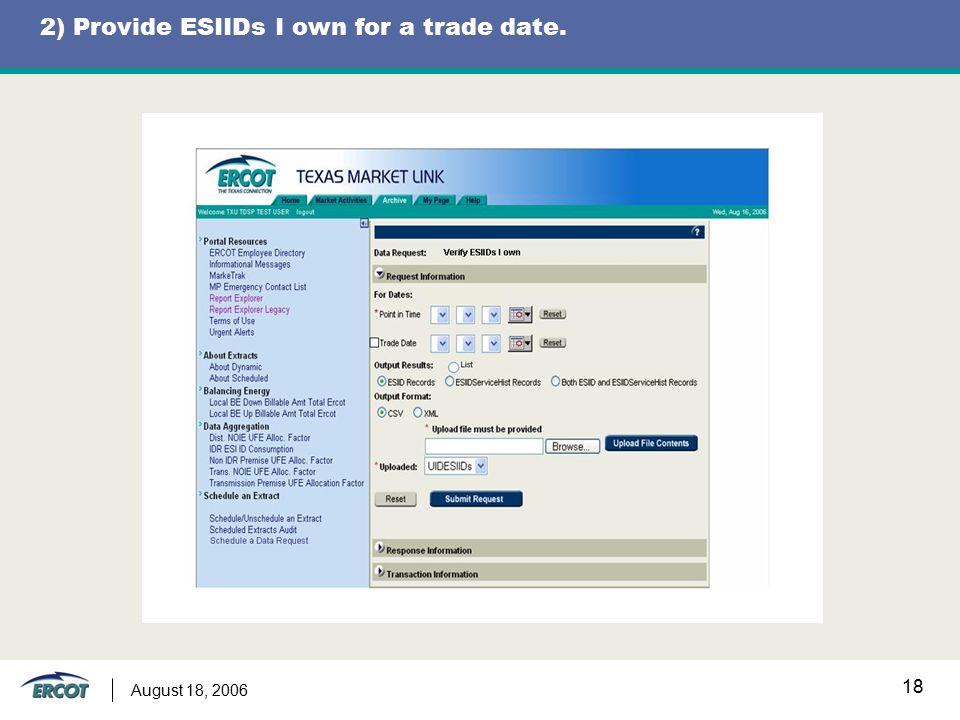

18. August 18, 2006 18 2) Provide ESIIDs I own for a trade date.

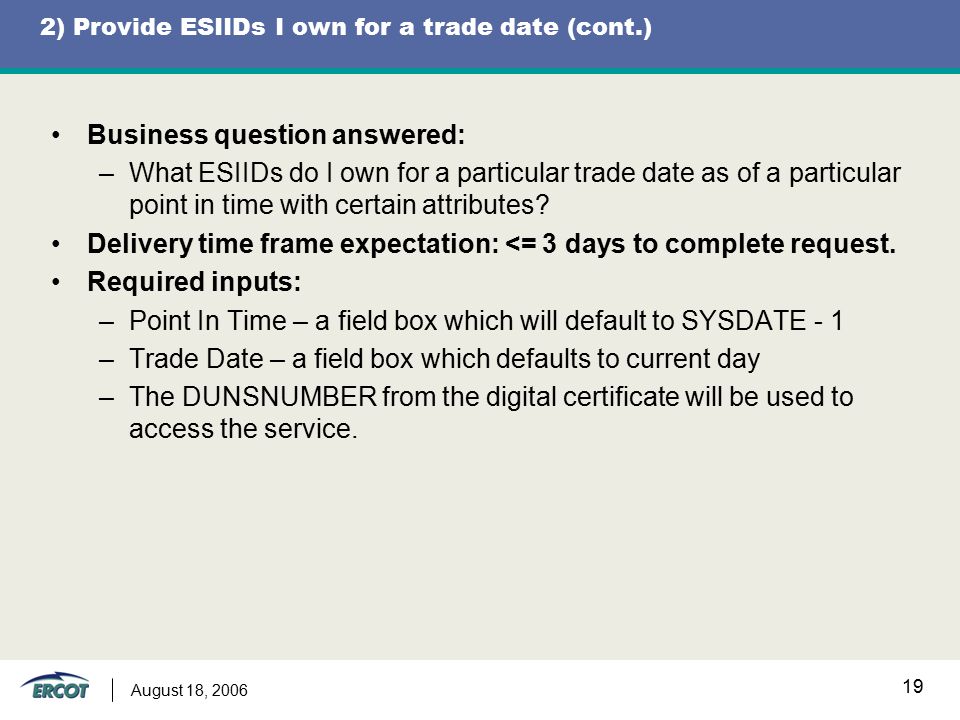

19. August 18, 2006 19 2) Provide ESIIDs I own for a trade date (cont.) Business question answered: –What ESIIDs do I own for a particular trade date as of a particular point in time with certain attributes? Delivery time frame expectation: <= 3 days to complete request. Required inputs: –Point In Time – a field box which will default to SYSDATE - 1 –Trade Date – a field box which defaults to current day –The DUNSNUMBER from the digital certificate will be used to access the service.

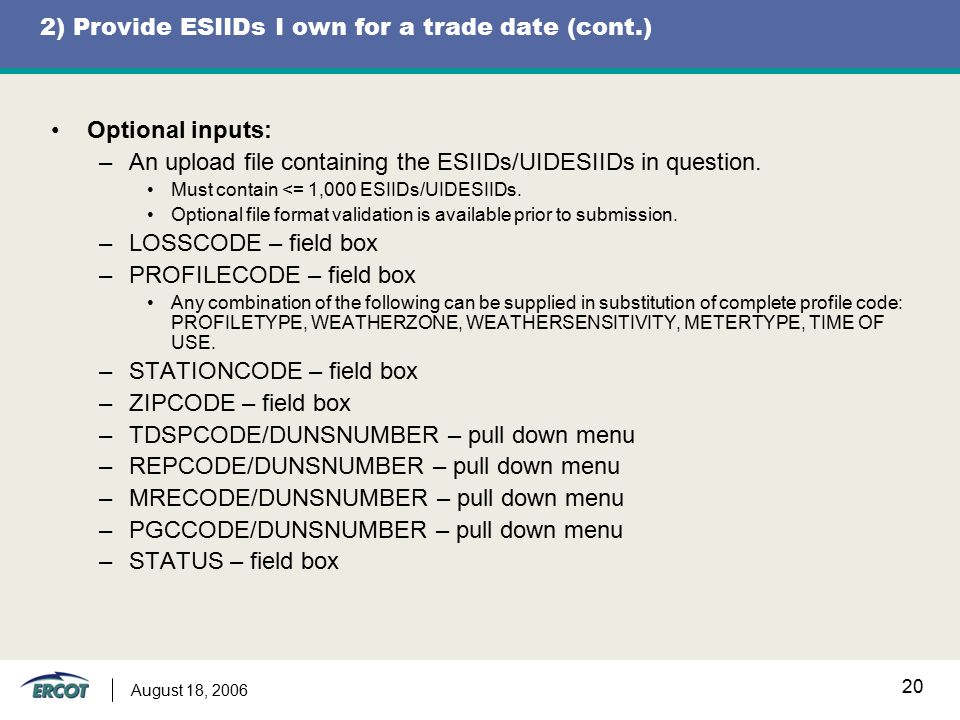

20. August 18, 2006 20 2) Provide ESIIDs I own for a trade date (cont.) Optional inputs: –An upload file containing the ESIIDs/UIDESIIDs in question. Must contain <= 1,000 ESIIDs/UIDESIIDs. Optional file format validation is available prior to submission. –LOSSCODE – field box –PROFILECODE – field box Any combination of the following can be supplied in substitution of complete profile code: PROFILETYPE, WEATHERZONE, WEATHERSENSITIVITY, METERTYPE, TIME OF USE. –STATIONCODE – field box –ZIPCODE – field box –TDSPCODE/DUNSNUMBER – pull down menu –REPCODE/DUNSNUMBER – pull down menu –MRECODE/DUNSNUMBER – pull down menu –PGCCODE/DUNSNUMBER – pull down menu –STATUS – field box

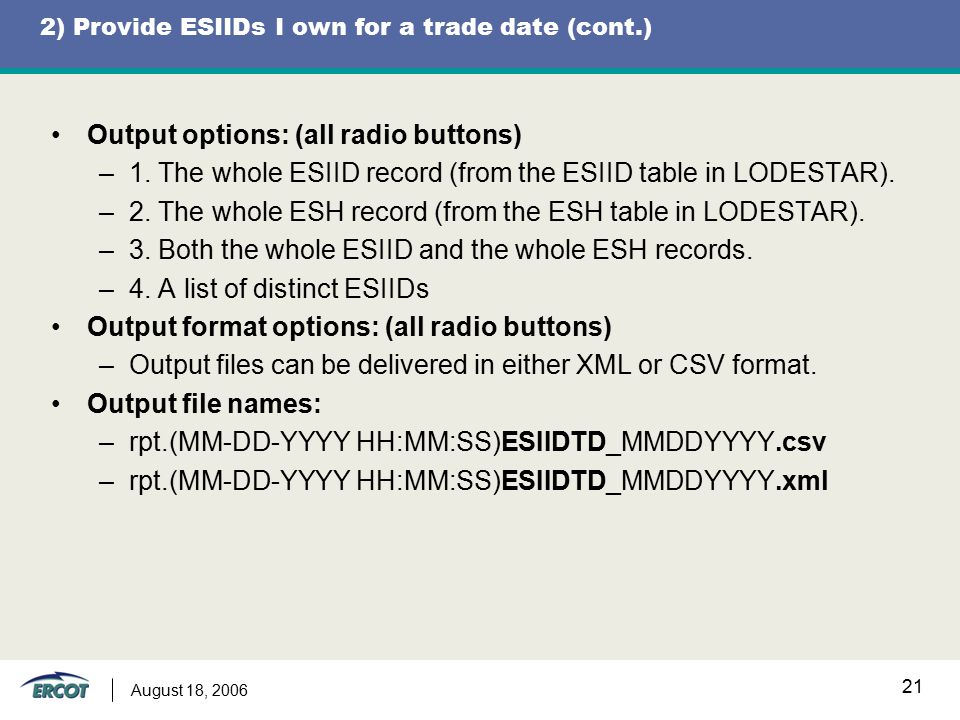

21. August 18, 2006 21 2) Provide ESIIDs I own for a trade date (cont.) Output options: (all radio buttons) –1. The whole ESIID record (from the ESIID table in LODESTAR). –2. The whole ESH record (from the ESH table in LODESTAR). –3. Both the whole ESIID and the whole ESH records. –4. A list of distinct ESIIDs Output format options: (all radio buttons) –Output files can be delivered in either XML or CSV format. Output file names: –rpt.(MM-DD-YYYY HH:MM:SS)ESIIDTD_MMDDYYYY.csv –rpt.(MM-DD-YYYY HH:MM:SS)ESIIDTD_MMDDYYYY.xml

22. August 18, 2006 22 3) Provide CMZONE assignments for a trade date.

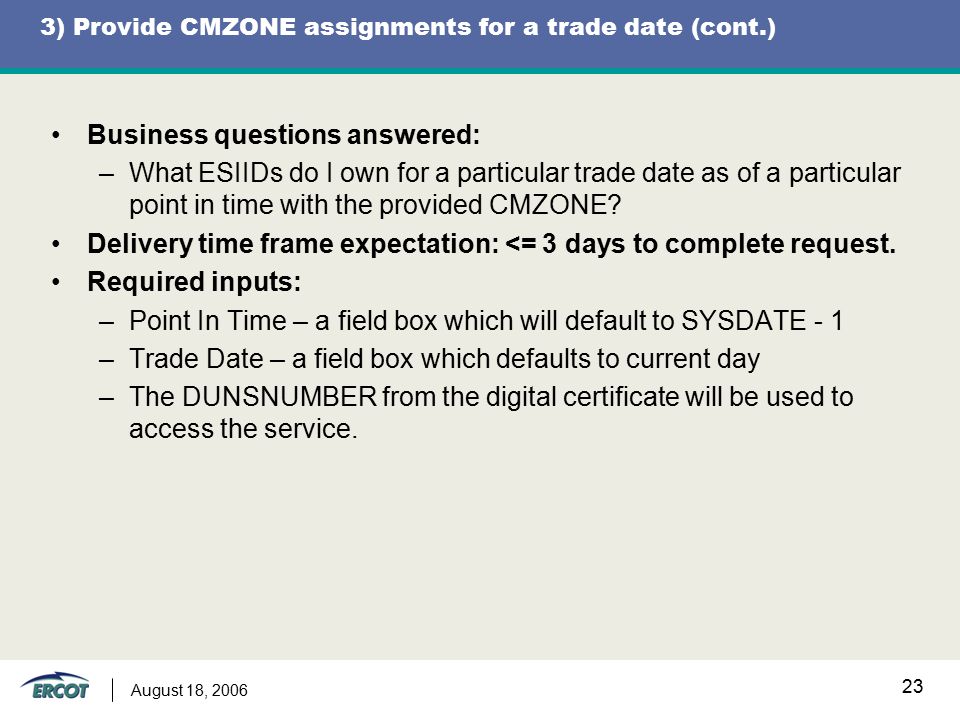

23. August 18, 2006 23 3) Provide CMZONE assignments for a trade date (cont.) Business questions answered: –What ESIIDs do I own for a particular trade date as of a particular point in time with the provided CMZONE? Delivery time frame expectation: <= 3 days to complete request. Required inputs: –Point In Time – a field box which will default to SYSDATE - 1 –Trade Date – a field box which defaults to current day –The DUNSNUMBER from the digital certificate will be used to access the service.

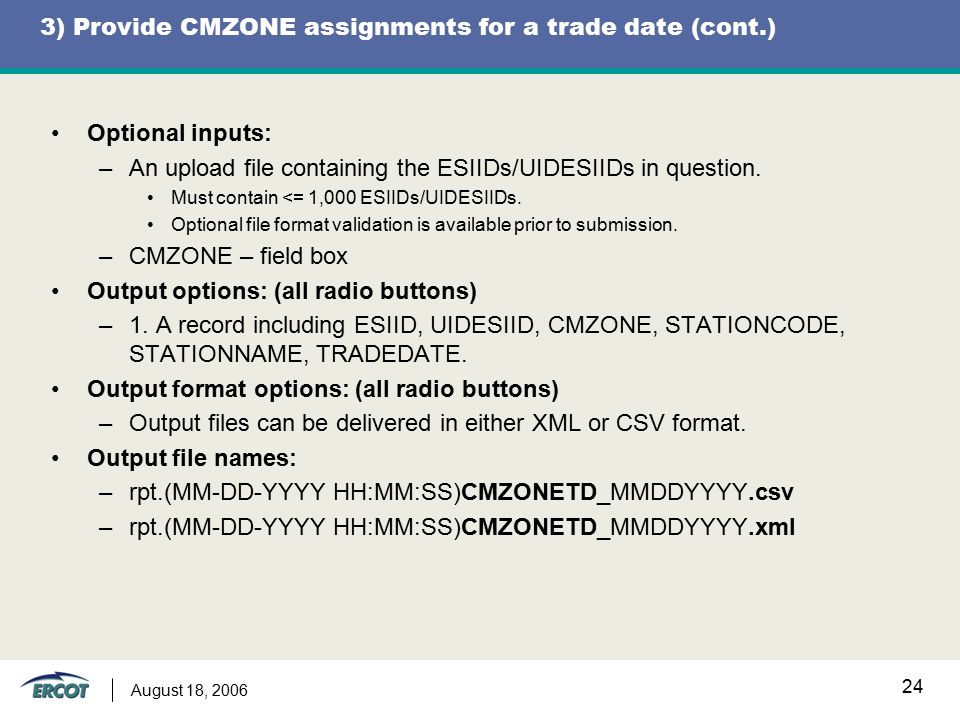

24. August 18, 2006 24 3) Provide CMZONE assignments for a trade date (cont.) Optional inputs: –An upload file containing the ESIIDs/UIDESIIDs in question. Must contain <= 1,000 ESIIDs/UIDESIIDs. Optional file format validation is available prior to submission. –CMZONE – field box Output options: (all radio buttons) –1. A record including ESIID, UIDESIID, CMZONE, STATIONCODE, STATIONNAME, TRADEDATE. Output format options: (all radio buttons) –Output files can be delivered in either XML or CSV format. Output file names: –rpt.(MM-DD-YYYY HH:MM:SS)CMZONETD_MMDDYYYY.csv –rpt.(MM-DD-YYYY HH:MM:SS)CMZONETD_MMDDYYYY.xml

25. August 18, 2006 25 4) Provide NIDR transaction data for ESIIDs I own.

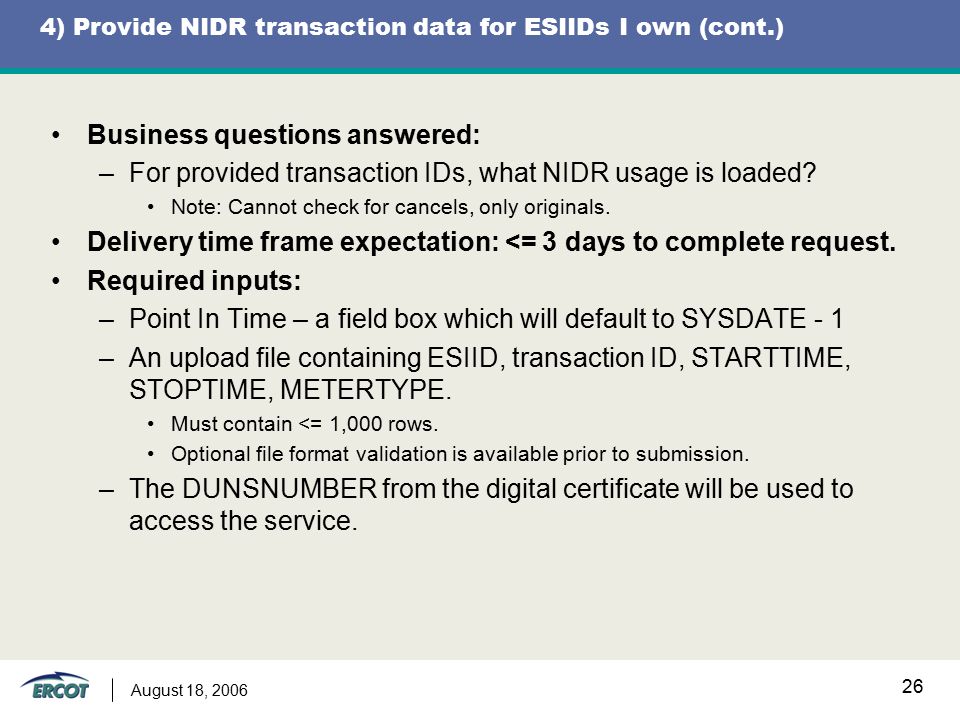

26. August 18, 2006 26 4) Provide NIDR transaction data for ESIIDs I own (cont.) Business questions answered: –For provided transaction IDs, what NIDR usage is loaded? Note: Cannot check for cancels, only originals. Delivery time frame expectation: <= 3 days to complete request. Required inputs: –Point In Time – a field box which will default to SYSDATE - 1 –An upload file containing ESIID, transaction ID, STARTTIME, STOPTIME, METERTYPE. Must contain <= 1,000 rows. Optional file format validation is available prior to submission. –The DUNSNUMBER from the digital certificate will be used to access the service.

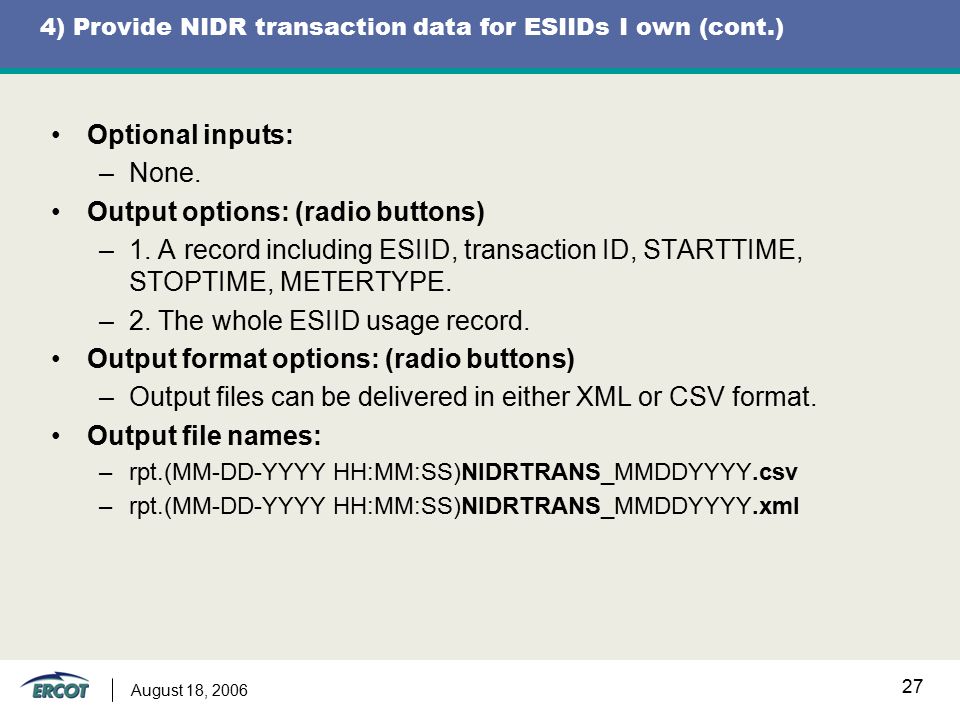

27. August 18, 2006 27 4) Provide NIDR transaction data for ESIIDs I own (cont.) Optional inputs: –None. Output options: (radio buttons) –1. A record including ESIID, transaction ID, STARTTIME, STOPTIME, METERTYPE. –2. The whole ESIID usage record. Output format options: (radio buttons) –Output files can be delivered in either XML or CSV format. Output file names: –rpt.(MM-DD-YYYY HH:MM:SS)NIDRTRANS_MMDDYYYY.csv –rpt.(MM-DD-YYYY HH:MM:SS)NIDRTRANS_MMDDYYYY.xml

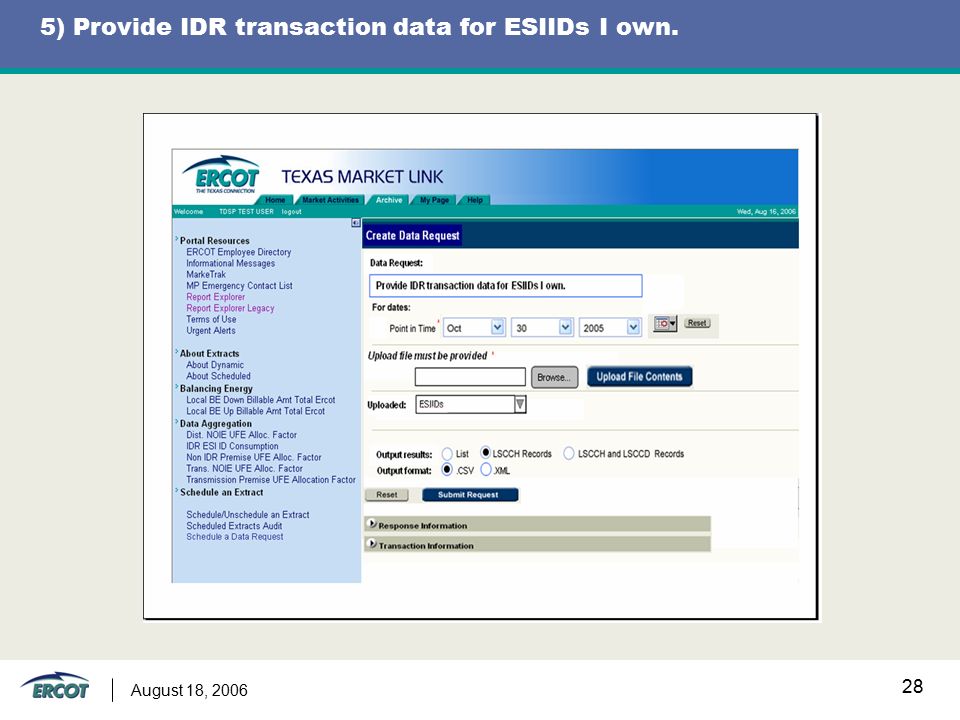

28. August 18, 2006 28 5) Provide IDR transaction data for ESIIDs I own.

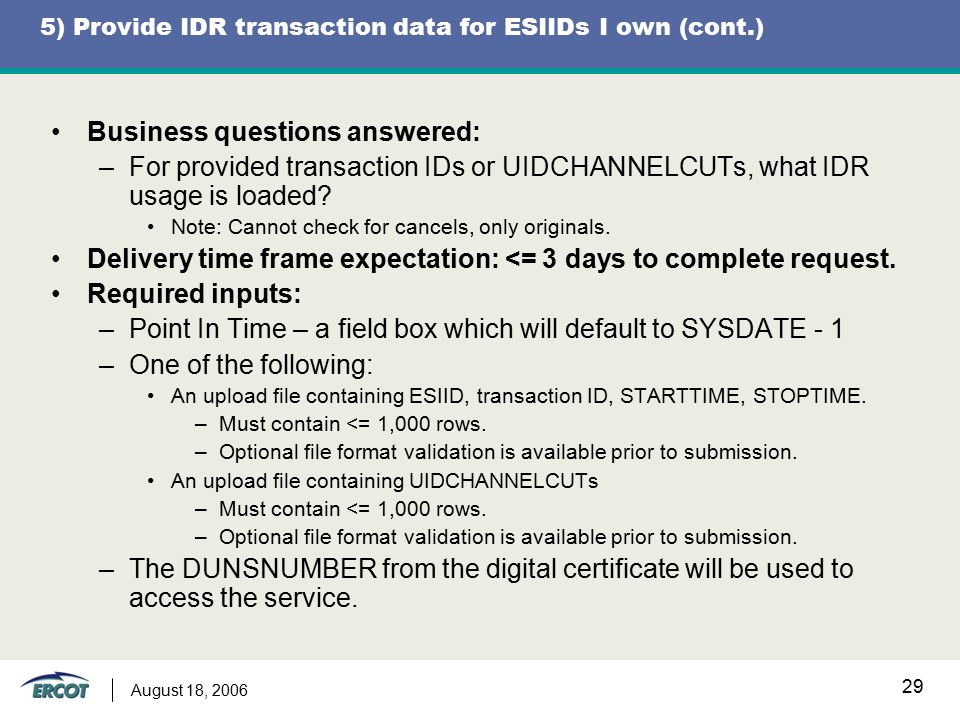

29. August 18, 2006 29 5) Provide IDR transaction data for ESIIDs I own (cont.) Business questions answered: –For provided transaction IDs or UIDCHANNELCUTs, what IDR usage is loaded? Note: Cannot check for cancels, only originals. Delivery time frame expectation: <= 3 days to complete request. Required inputs: –Point In Time – a field box which will default to SYSDATE - 1 –One of the following: An upload file containing ESIID, transaction ID, STARTTIME, STOPTIME. –Must contain <= 1,000 rows. –Optional file format validation is available prior to submission. An upload file containing UIDCHANNELCUTs –Must contain <= 1,000 rows. –Optional file format validation is available prior to submission. –The DUNSNUMBER from the digital certificate will be used to access the service.

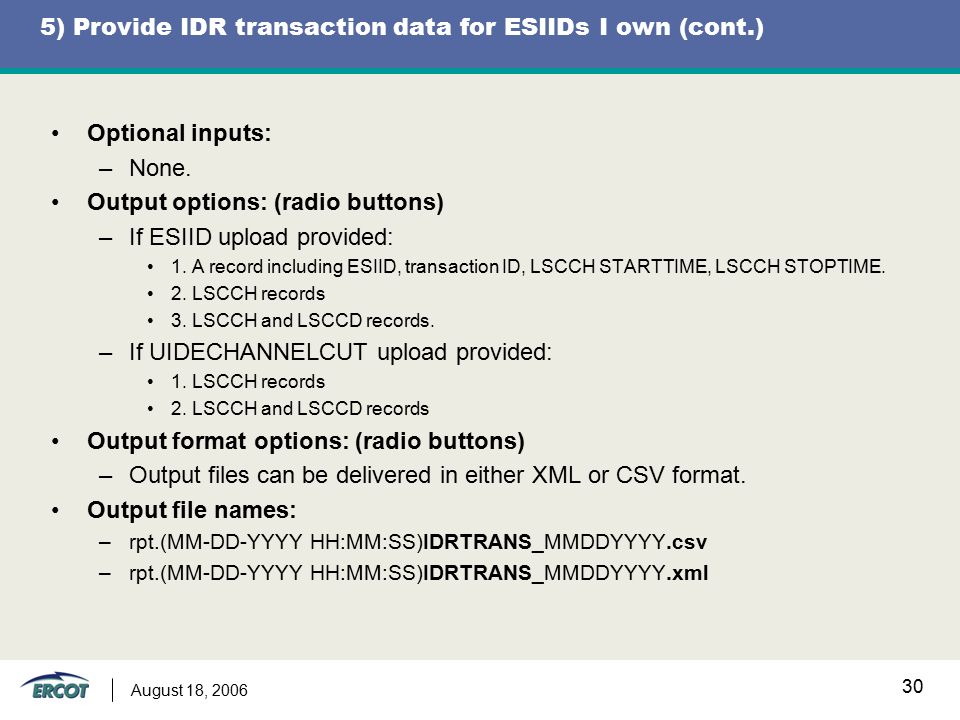

30. August 18, 2006 30 5) Provide IDR transaction data for ESIIDs I own (cont.) Optional inputs: –None. Output options: (radio buttons) –If ESIID upload provided: 1. A record including ESIID, transaction ID, LSCCH STARTTIME, LSCCH STOPTIME. 2. LSCCH records 3. LSCCH and LSCCD records. –If UIDECHANNELCUT upload provided: 1. LSCCH records 2. LSCCH and LSCCD records Output format options: (radio buttons) –Output files can be delivered in either XML or CSV format. Output file names: –rpt.(MM-DD-YYYY HH:MM:SS)IDRTRANS_MMDDYYYY.csv –rpt.(MM-DD-YYYY HH:MM:SS)IDRTRANS_MMDDYYYY.xml

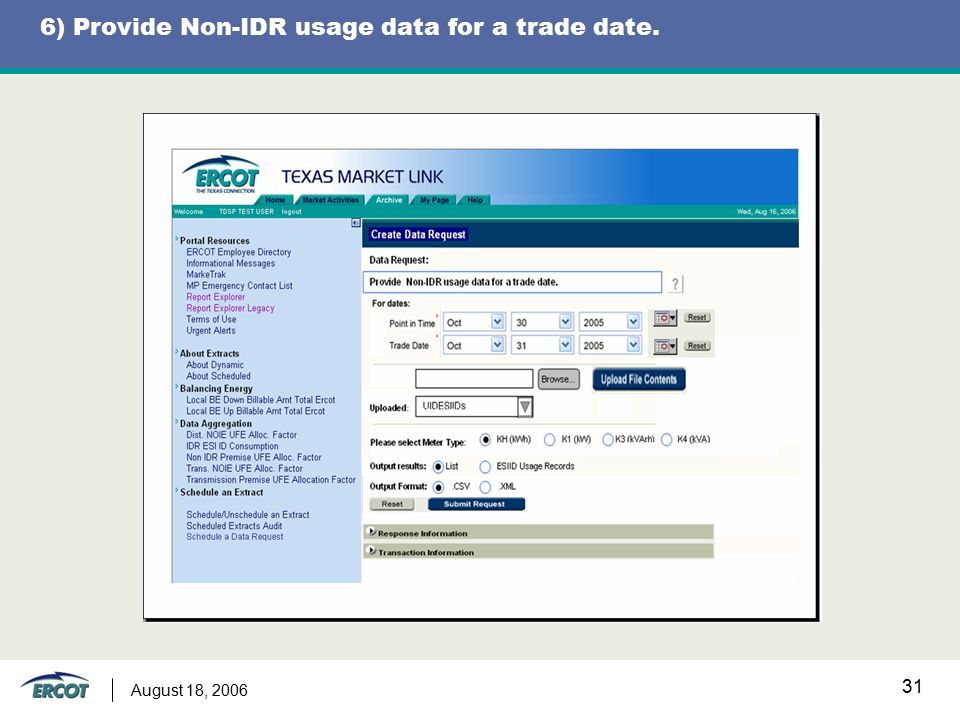

31. August 18, 2006 31 6) Provide Non-IDR usage data for a trade date.

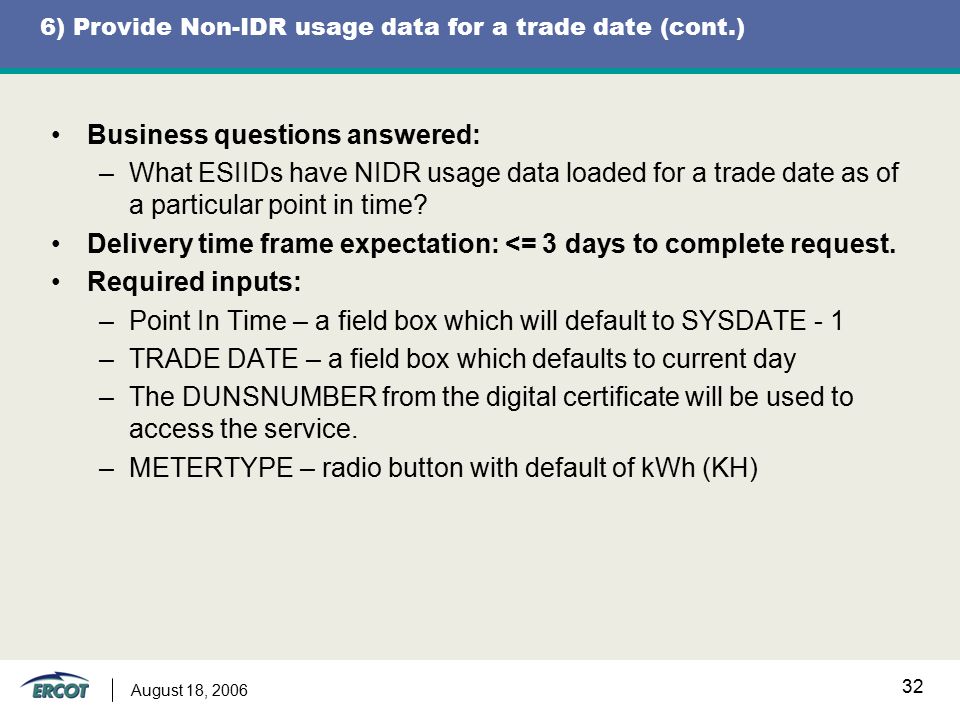

32. August 18, 2006 32 6) Provide Non-IDR usage data for a trade date (cont.) Business questions answered: –What ESIIDs have NIDR usage data loaded for a trade date as of a particular point in time? Delivery time frame expectation: <= 3 days to complete request. Required inputs: –Point In Time – a field box which will default to SYSDATE - 1 –TRADE DATE – a field box which defaults to current day –The DUNSNUMBER from the digital certificate will be used to access the service. –METERTYPE – radio button with default of kWh (KH)

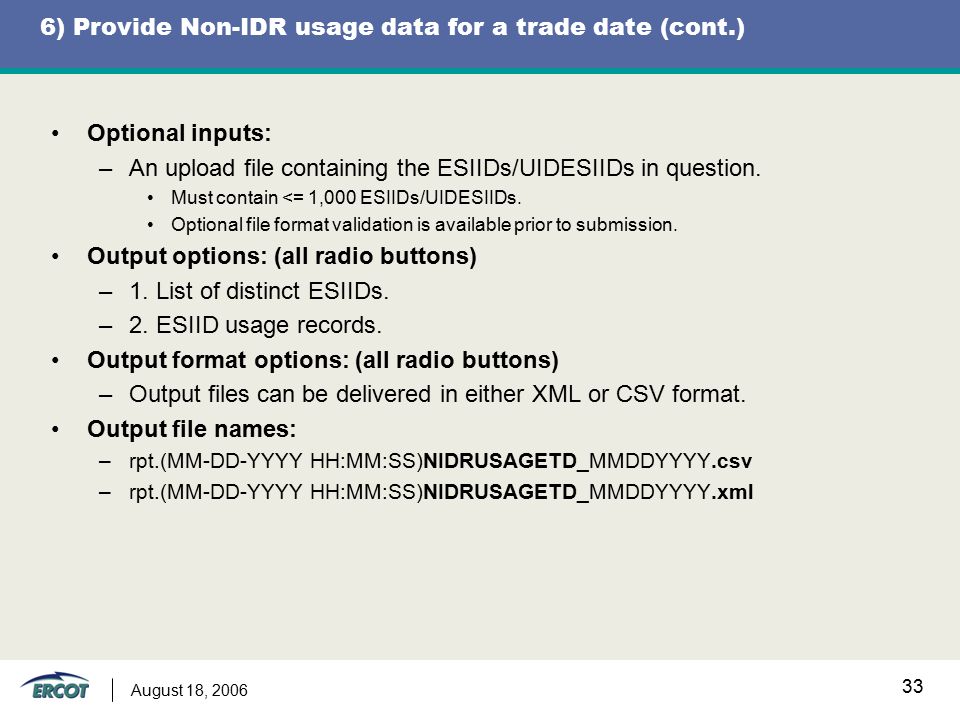

33. August 18, 2006 33 6) Provide Non-IDR usage data for a trade date (cont.) Optional inputs: –An upload file containing the ESIIDs/UIDESIIDs in question. Must contain <= 1,000 ESIIDs/UIDESIIDs. Optional file format validation is available prior to submission. Output options: (all radio buttons) –1. List of distinct ESIIDs. –2. ESIID usage records. Output format options: (all radio buttons) –Output files can be delivered in either XML or CSV format. Output file names: –rpt.(MM-DD-YYYY HH:MM:SS)NIDRUSAGETD_MMDDYYYY.csv –rpt.(MM-DD-YYYY HH:MM:SS)NIDRUSAGETD_MMDDYYYY.xml

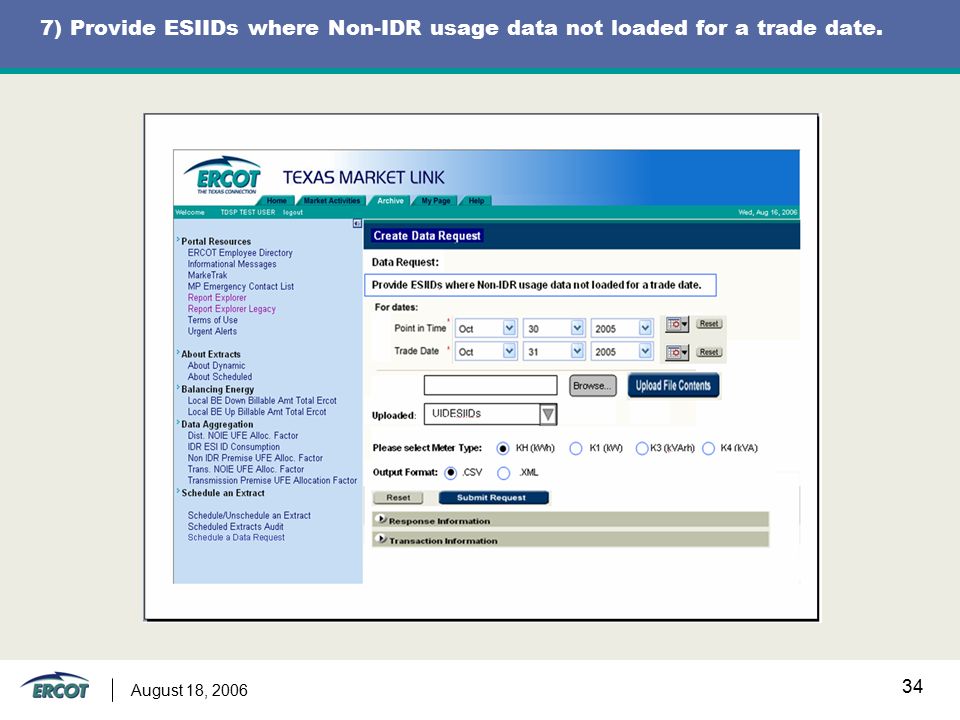

34. August 18, 2006 34 7) Provide ESIIDs where Non-IDR usage data not loaded for a trade date.

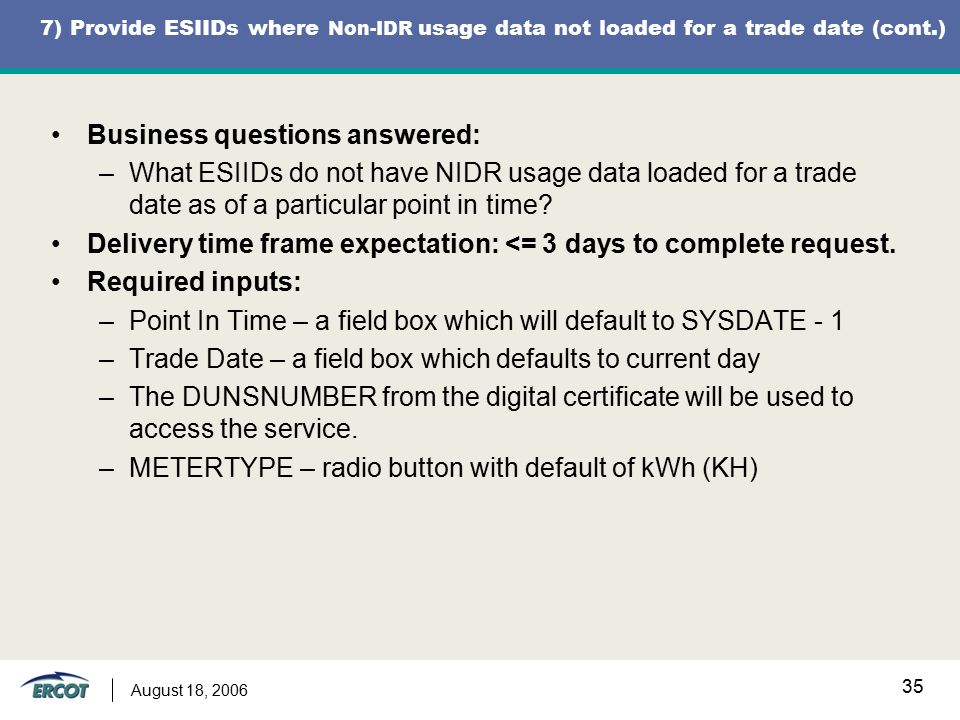

35. August 18, 2006 35 7) Provide ESIIDs where Non-IDR usage data not loaded for a trade date (cont.) Business questions answered: –What ESIIDs do not have NIDR usage data loaded for a trade date as of a particular point in time? Delivery time frame expectation: <= 3 days to complete request. Required inputs: –Point In Time – a field box which will default to SYSDATE - 1 –Trade Date – a field box which defaults to current day –The DUNSNUMBER from the digital certificate will be used to access the service. –METERTYPE – radio button with default of kWh (KH)

36. August 18, 2006 36 7) Provide ESIIDs where Non-IDR usage data not loaded for a trade date (cont.) Optional inputs: –An upload file containing the ESIIDs/UIDESIIDs in question. Must contain <= 1,000 ESIIDs/UIDESIIDs. Optional file format validation is available prior to submission. Output options: (radio buttons) –1. List of distinct ESIIDs. Output format options: (radio buttons) –Output files can be delivered in either XML or CSV format. Output file names: –rpt.(MM-DD-YYYY HH:MM:SS)NIDRNOLOAD_MMDDYYYY.csv –rpt.(MM-DD-YYYY HH:MM:SS)NIDRNOLOAD_MMDDYYYY.xml

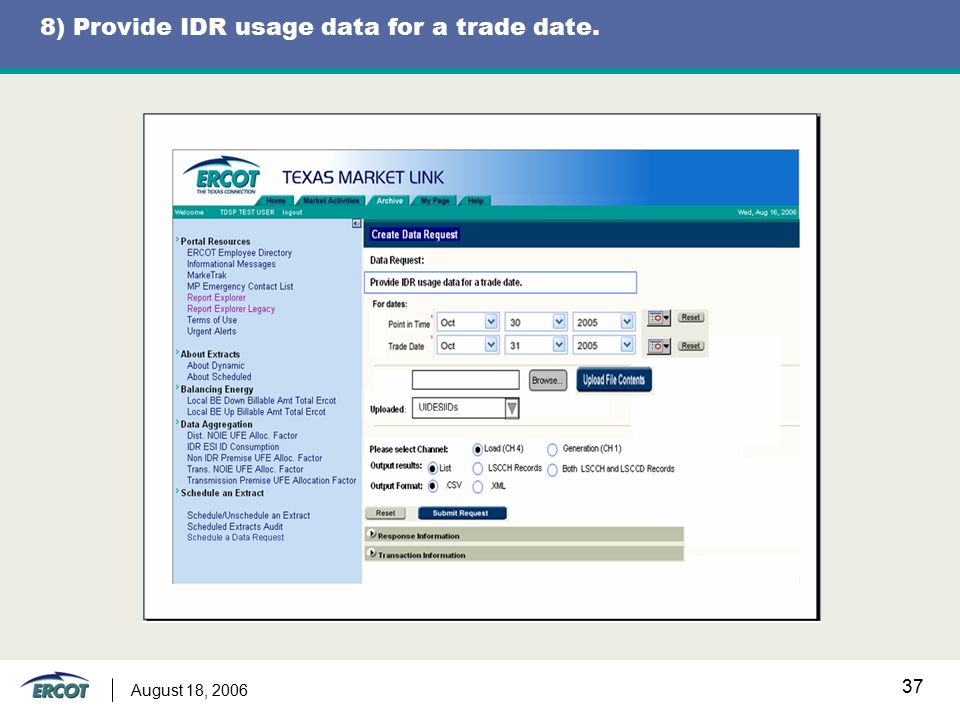

37. August 18, 2006 37 8) Provide IDR usage data for a trade date.

38. August 18, 2006 38 8) Provide IDR usage data for a trade date (cont.) Business questions answered: –What ESIIDs have IDR usage data loaded for a trade date as of a particular point in time? Delivery time frame expectation: <= 3 days to complete request. Required inputs: –Point In Time – a field box which will default to SYSDATE - 1 –Trade Date – a field box which defaults to current day –The DUNSNUMBER from the digital certificate will be used to access the service. –Generation or Load – radio button with default of Load.

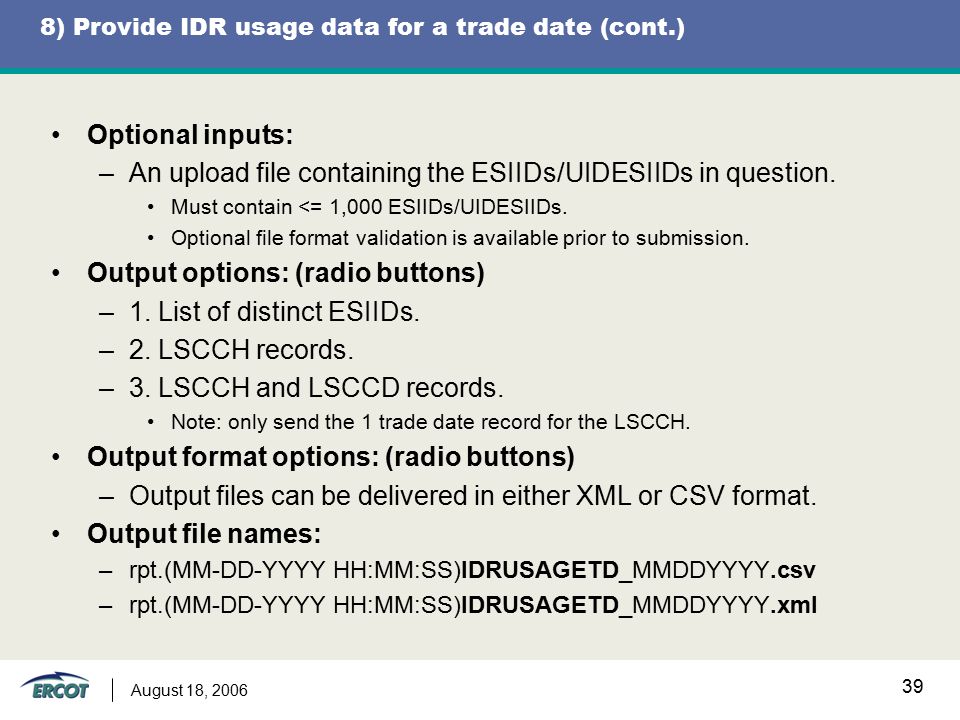

39. August 18, 2006 39 8) Provide IDR usage data for a trade date (cont.) Optional inputs: –An upload file containing the ESIIDs/UIDESIIDs in question. Must contain <= 1,000 ESIIDs/UIDESIIDs. Optional file format validation is available prior to submission. Output options: (radio buttons) –1. List of distinct ESIIDs. –2. LSCCH records. –3. LSCCH and LSCCD records. Note: only send the 1 trade date record for the LSCCH. Output format options: (radio buttons) –Output files can be delivered in either XML or CSV format. Output file names: –rpt.(MM-DD-YYYY HH:MM:SS)IDRUSAGETD_MMDDYYYY.csv –rpt.(MM-DD-YYYY HH:MM:SS)IDRUSAGETD_MMDDYYYY.xml

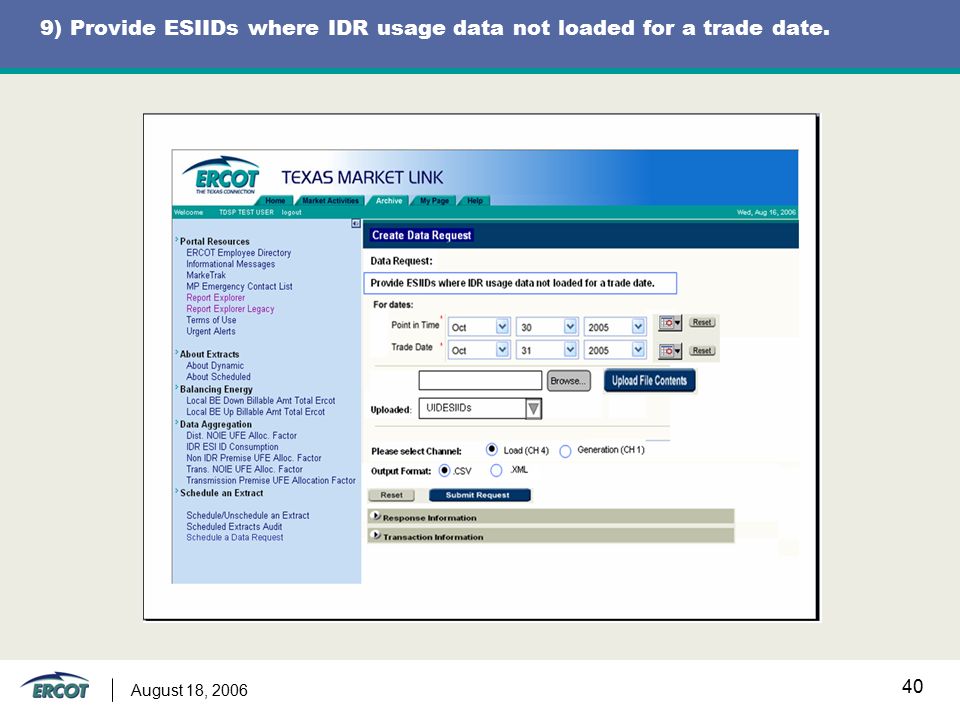

40. August 18, 2006 40 9) Provide ESIIDs where IDR usage data not loaded for a trade date.

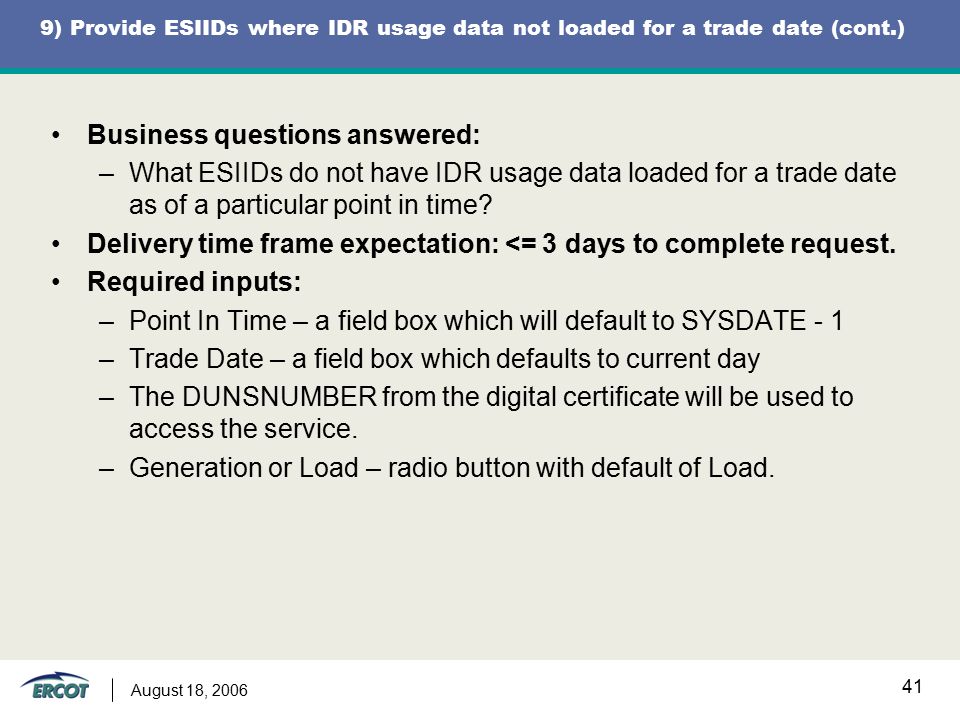

41. August 18, 2006 41 9) Provide ESIIDs where IDR usage data not loaded for a trade date (cont.) Business questions answered: –What ESIIDs do not have IDR usage data loaded for a trade date as of a particular point in time? Delivery time frame expectation: <= 3 days to complete request. Required inputs: –Point In Time – a field box which will default to SYSDATE - 1 –Trade Date – a field box which defaults to current day –The DUNSNUMBER from the digital certificate will be used to access the service. –Generation or Load – radio button with default of Load.

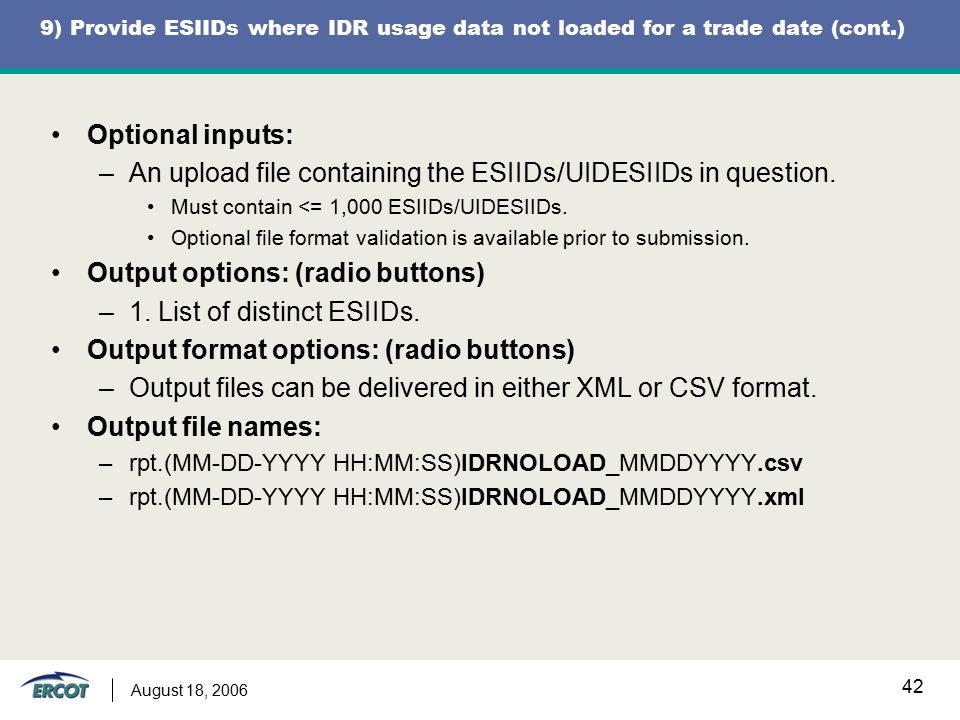

42. August 18, 2006 42 9) Provide ESIIDs where IDR usage data not loaded for a trade date (cont.) Optional inputs: –An upload file containing the ESIIDs/UIDESIIDs in question. Must contain <= 1,000 ESIIDs/UIDESIIDs. Optional file format validation is available prior to submission. Output options: (radio buttons) –1. List of distinct ESIIDs. Output format options: (radio buttons) –Output files can be delivered in either XML or CSV format. Output file names: –rpt.(MM-DD-YYYY HH:MM:SS)IDRNOLOAD_MMDDYYYY.csv –rpt.(MM-DD-YYYY HH:MM:SS)IDRNOLOAD_MMDDYYYY.xml

43. August 18, 2006 43 10) Provide NIDR usage data for ESIIDs I own.

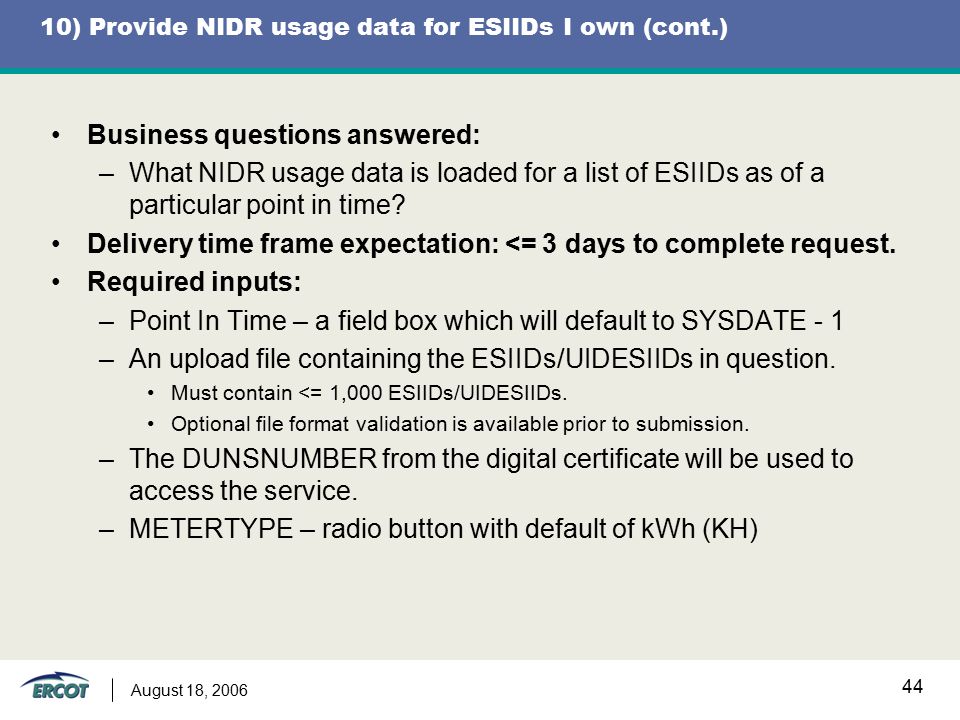

44. August 18, 2006 44 10) Provide NIDR usage data for ESIIDs I own (cont.) Business questions answered: –What NIDR usage data is loaded for a list of ESIIDs as of a particular point in time? Delivery time frame expectation: <= 3 days to complete request. Required inputs: –Point In Time – a field box which will default to SYSDATE - 1 –An upload file containing the ESIIDs/UIDESIIDs in question. Must contain <= 1,000 ESIIDs/UIDESIIDs. Optional file format validation is available prior to submission. –The DUNSNUMBER from the digital certificate will be used to access the service. –METERTYPE – radio button with default of kWh (KH)

45. August 18, 2006 45 10) Provide NIDR usage data for ESIIDs I own (cont.) Optional inputs: –None. Output options: (radio buttons) –1. ESIID usage records. Output format options: (radio buttons) –Output files can be delivered in either XML or CSV format. Output file names: –rpt.(MM-DD-YYYY HH:MM:SS)NIDRUSAGE_MMDDYYYY.csv –rpt.(MM-DD-YYYY HH:MM:SS)NIDRUSAGE_MMDDYYYY.xml

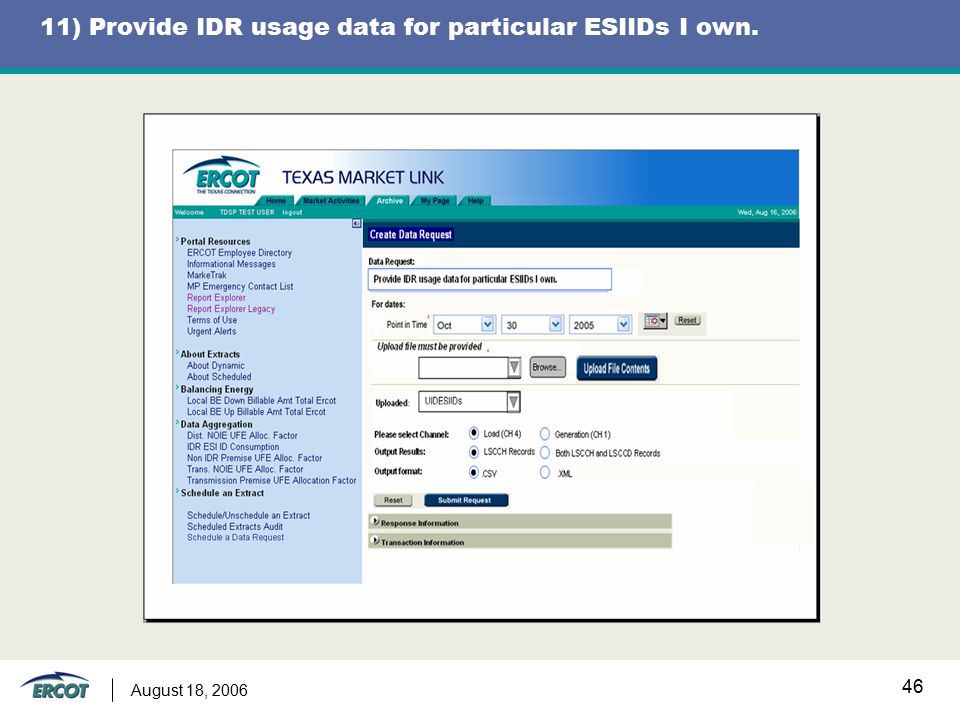

46. August 18, 2006 46 11) Provide IDR usage data for particular ESIIDs I own.

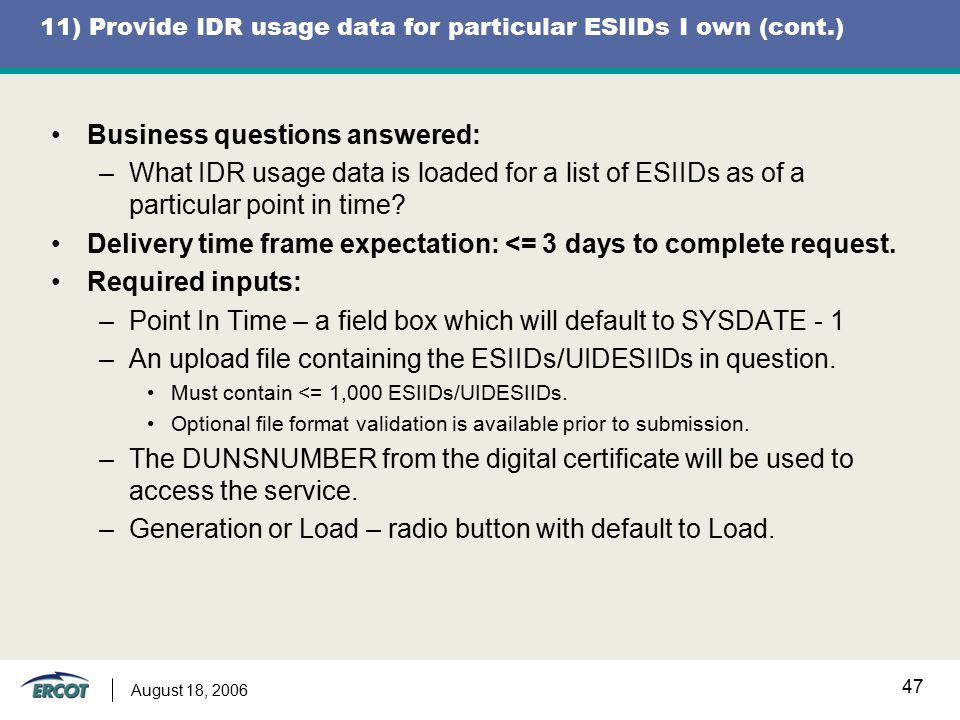

47. August 18, 2006 47 11) Provide IDR usage data for particular ESIIDs I own (cont.) Business questions answered: –What IDR usage data is loaded for a list of ESIIDs as of a particular point in time? Delivery time frame expectation: <= 3 days to complete request. Required inputs: –Point In Time – a field box which will default to SYSDATE - 1 –An upload file containing the ESIIDs/UIDESIIDs in question. Must contain <= 1,000 ESIIDs/UIDESIIDs. Optional file format validation is available prior to submission. –The DUNSNUMBER from the digital certificate will be used to access the service. –Generation or Load – radio button with default to Load.

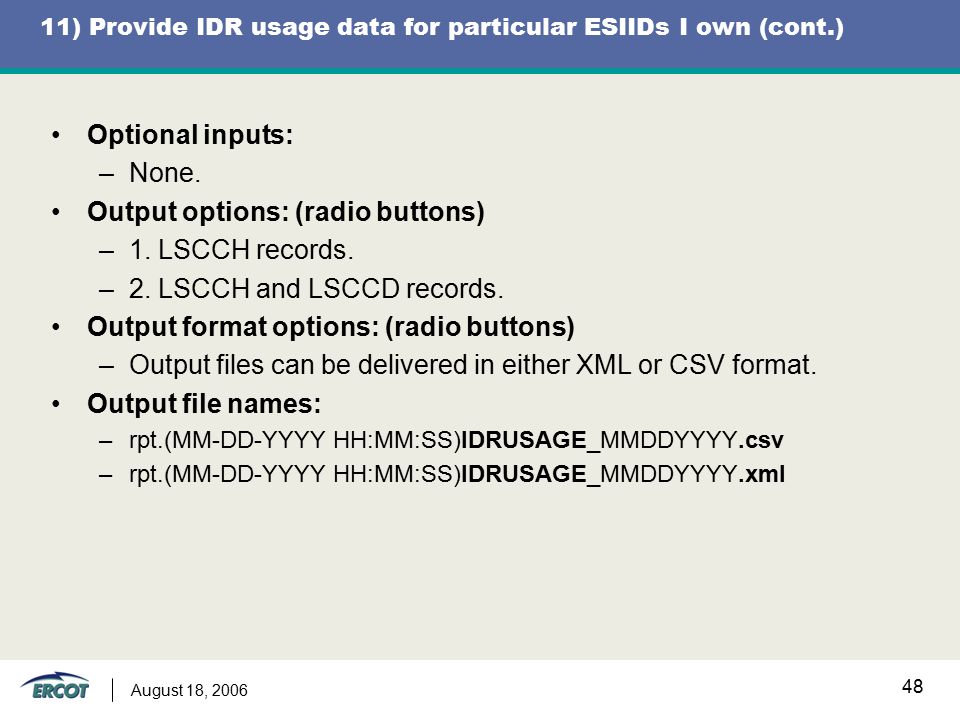

48. August 18, 2006 48 11) Provide IDR usage data for particular ESIIDs I own (cont.) Optional inputs: –None. Output options: (radio buttons) –1. LSCCH records. –2. LSCCH and LSCCD records. Output format options: (radio buttons) –Output files can be delivered in either XML or CSV format. Output file names: –rpt.(MM-DD-YYYY HH:MM:SS)IDRUSAGE_MMDDYYYY.csv –rpt.(MM-DD-YYYY HH:MM:SS)IDRUSAGE_MMDDYYYY.xml

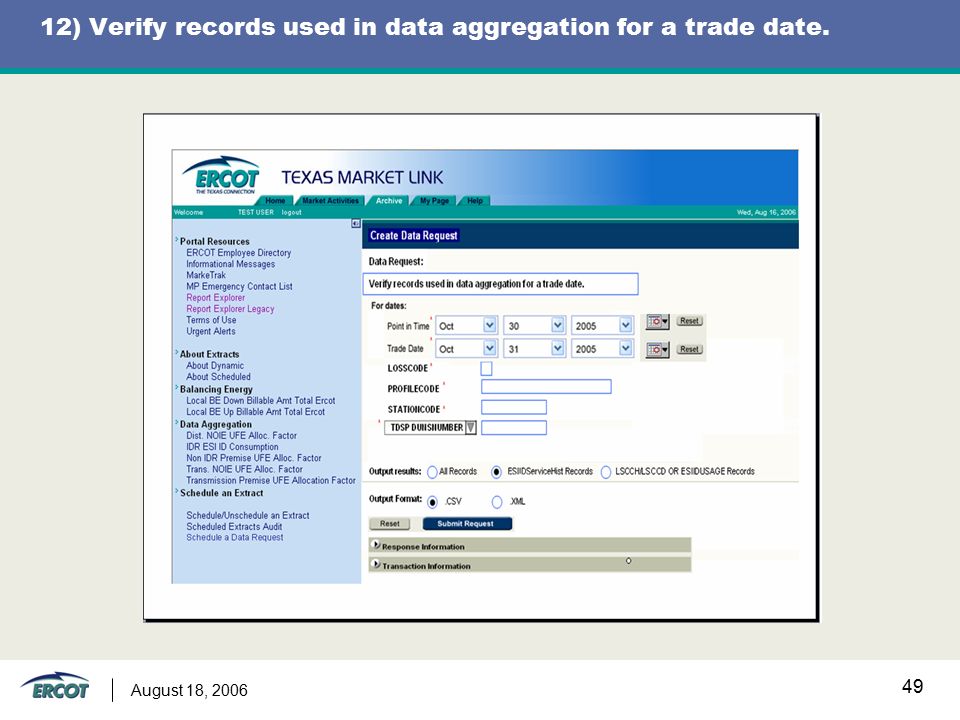

49. August 18, 2006 49 12) Verify records used in data aggregation for a trade date.

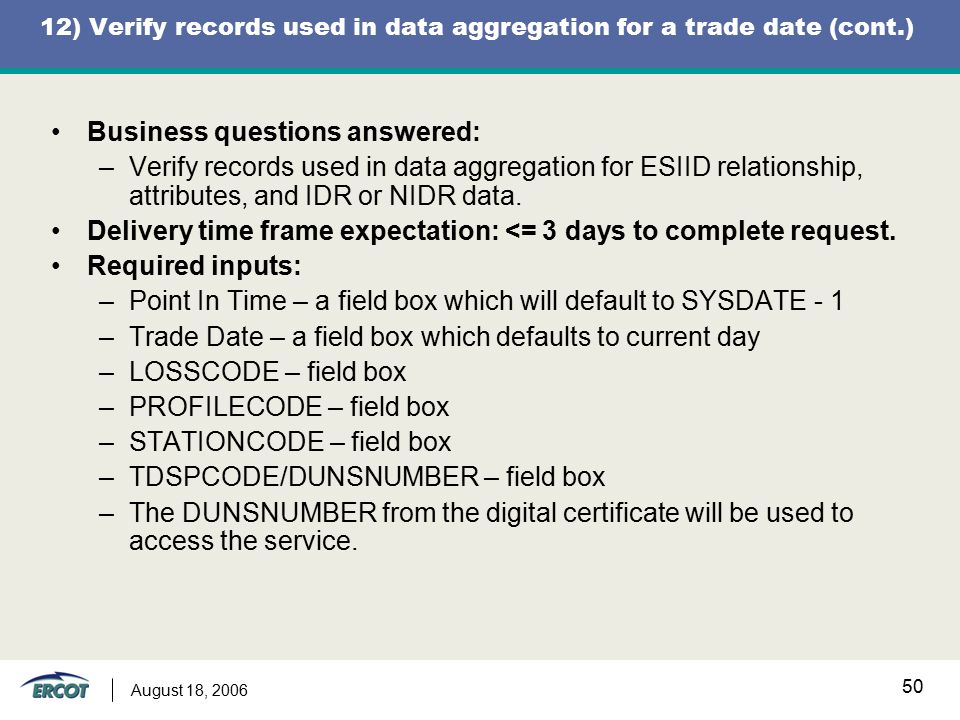

50. August 18, 2006 50 12) Verify records used in data aggregation for a trade date (cont.) Business questions answered: –Verify records used in data aggregation for ESIID relationship, attributes, and IDR or NIDR data. Delivery time frame expectation: <= 3 days to complete request. Required inputs: –Point In Time – a field box which will default to SYSDATE - 1 –Trade Date – a field box which defaults to current day –LOSSCODE – field box –PROFILECODE – field box –STATIONCODE – field box –TDSPCODE/DUNSNUMBER – field box –The DUNSNUMBER from the digital certificate will be used to access the service.

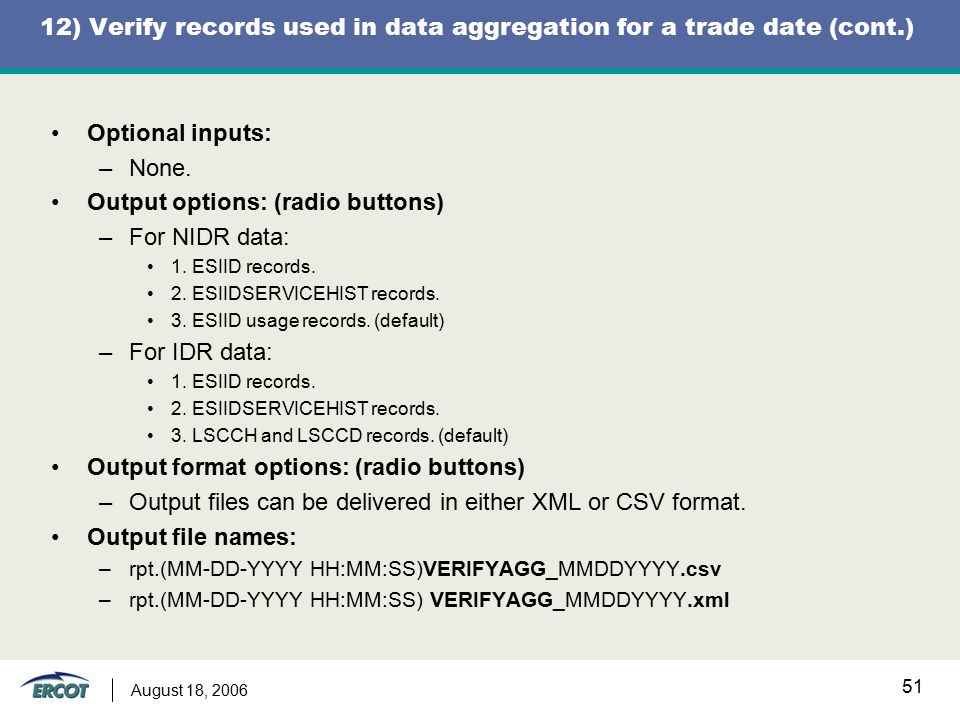

51. August 18, 2006 51 12) Verify records used in data aggregation for a trade date (cont.) Optional inputs: –None. Output options: (radio buttons) –For NIDR data: 1. ESIID records. 2. ESIIDSERVICEHIST records. 3. ESIID usage records. (default) –For IDR data: 1. ESIID records. 2. ESIIDSERVICEHIST records. 3. LSCCH and LSCCD records. (default) Output format options: (radio buttons) –Output files can be delivered in either XML or CSV format. Output file names: –rpt.(MM-DD-YYYY HH:MM:SS)VERIFYAGG_MMDDYYYY.csv –rpt.(MM-DD-YYYY HH:MM:SS) VERIFYAGG_MMDDYYYY.xml

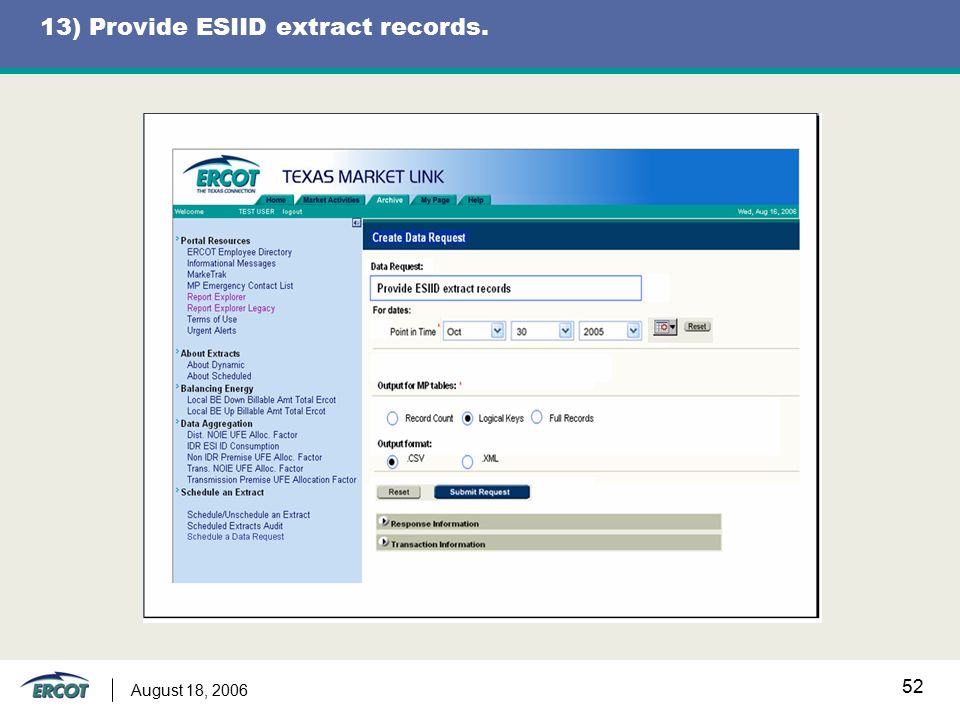

52. August 18, 2006 52 13) Provide ESIID extract records.

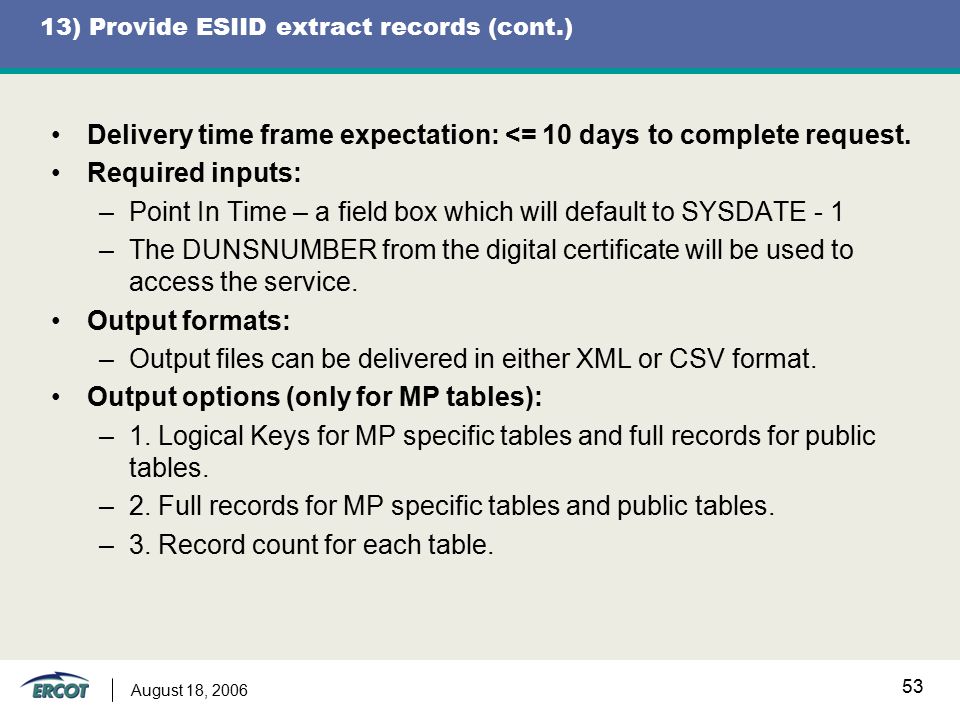

53. August 18, 2006 53 13) Provide ESIID extract records (cont.) Delivery time frame expectation: <= 10 days to complete request. Required inputs: –Point In Time – a field box which will default to SYSDATE - 1 –The DUNSNUMBER from the digital certificate will be used to access the service. Output formats: –Output files can be delivered in either XML or CSV format. Output options (only for MP tables): –1. Logical Keys for MP specific tables and full records for public tables. –2. Full records for MP specific tables and public tables. –3. Record count for each table.

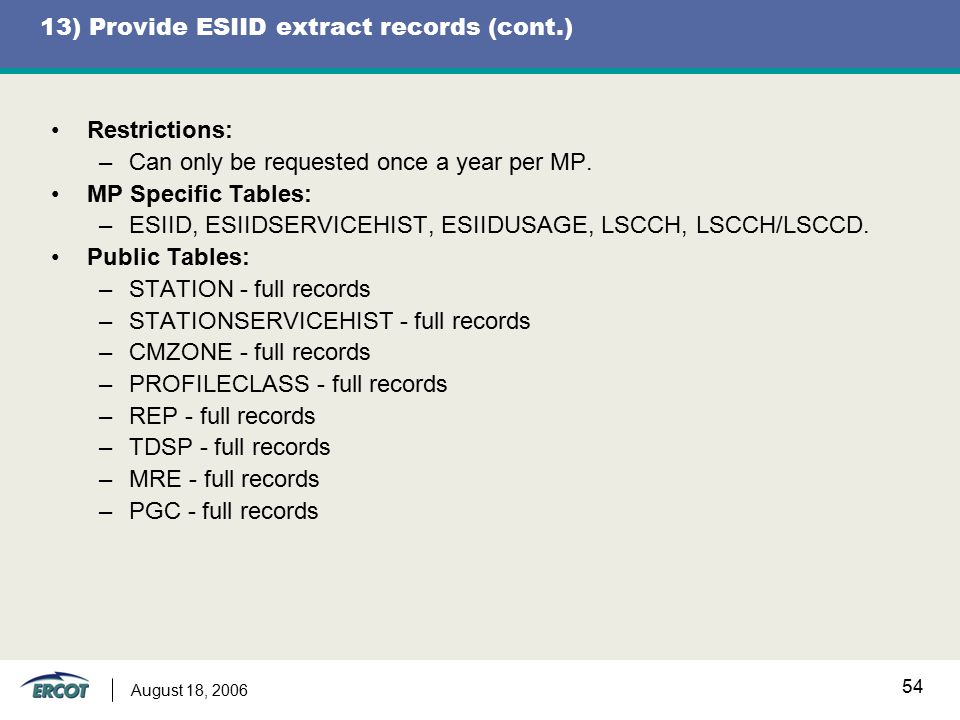

54. August 18, 2006 54 13) Provide ESIID extract records (cont.) Restrictions: –Can only be requested once a year per MP. MP Specific Tables: –ESIID, ESIIDSERVICEHIST, ESIIDUSAGE, LSCCH, LSCCH/LSCCD. Public Tables: –STATION - full records –STATIONSERVICEHIST - full records –CMZONE - full records –PROFILECLASS - full records –REP - full records –TDSP - full records –MRE - full records –PGC - full records

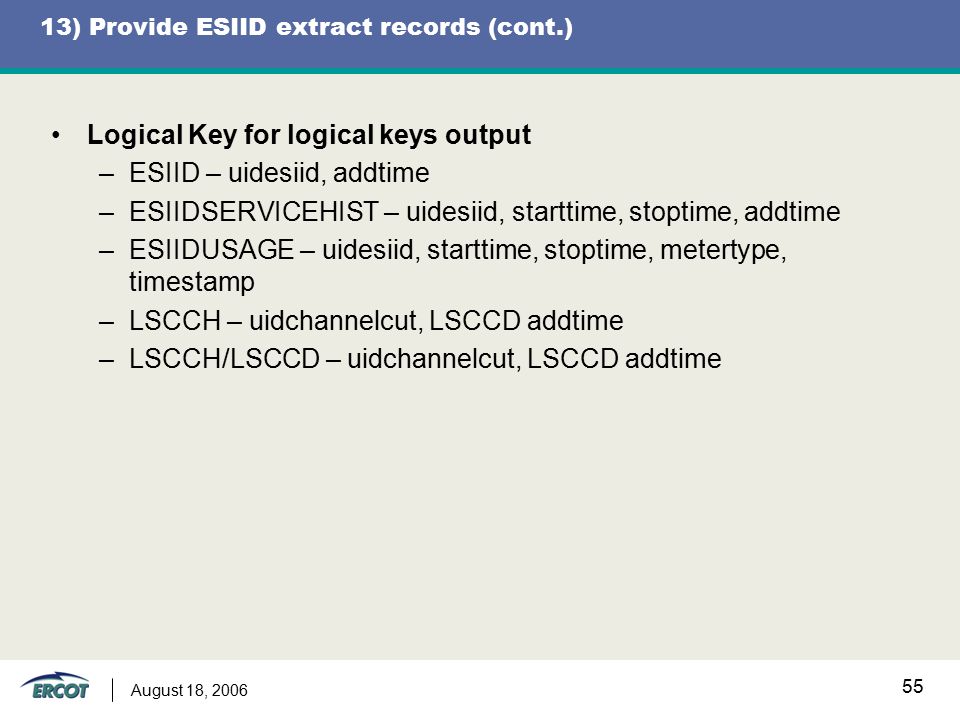

55. August 18, 2006 55 13) Provide ESIID extract records (cont.) Logical Key for logical keys output –ESIID – uidesiid, addtime –ESIIDSERVICEHIST – uidesiid, starttime, stoptime, addtime –ESIIDUSAGE – uidesiid, starttime, stoptime, metertype, timestamp –LSCCH – uidchannelcut, LSCCD addtime –LSCCH/LSCCD – uidchannelcut, LSCCD addtime

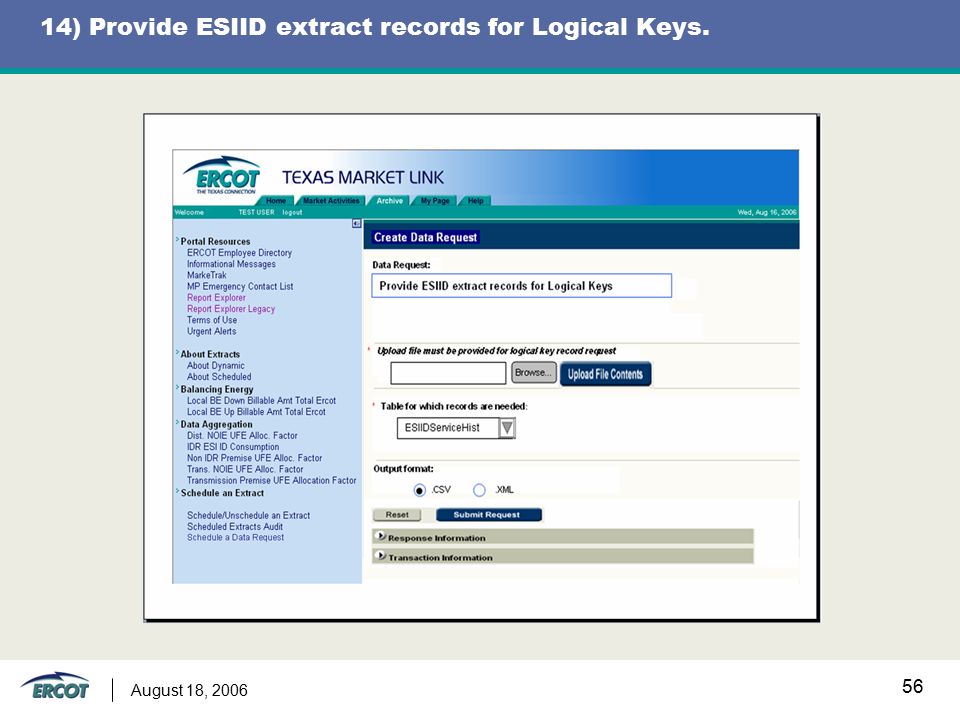

56. August 18, 2006 56 14) Provide ESIID extract records for Logical Keys.

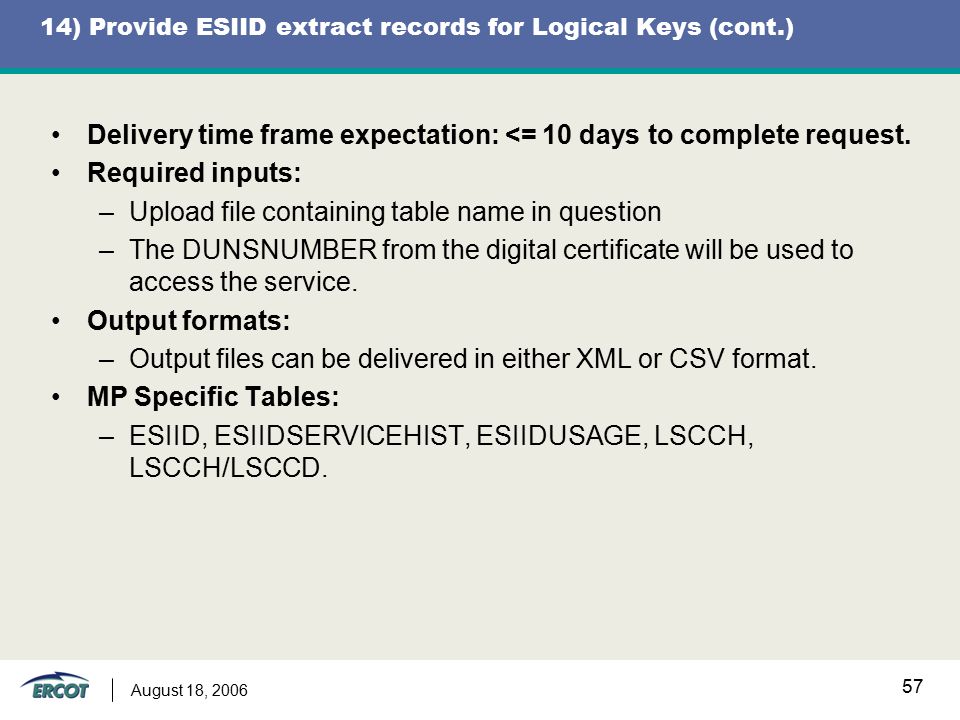

57. August 18, 2006 57 14) Provide ESIID extract records for Logical Keys (cont.) Delivery time frame expectation: <= 10 days to complete request. Required inputs: –Upload file containing table name in question –The DUNSNUMBER from the digital certificate will be used to access the service. Output formats: –Output files can be delivered in either XML or CSV format. MP Specific Tables: –ESIID, ESIIDSERVICEHIST, ESIIDUSAGE, LSCCH, LSCCH/LSCCD.

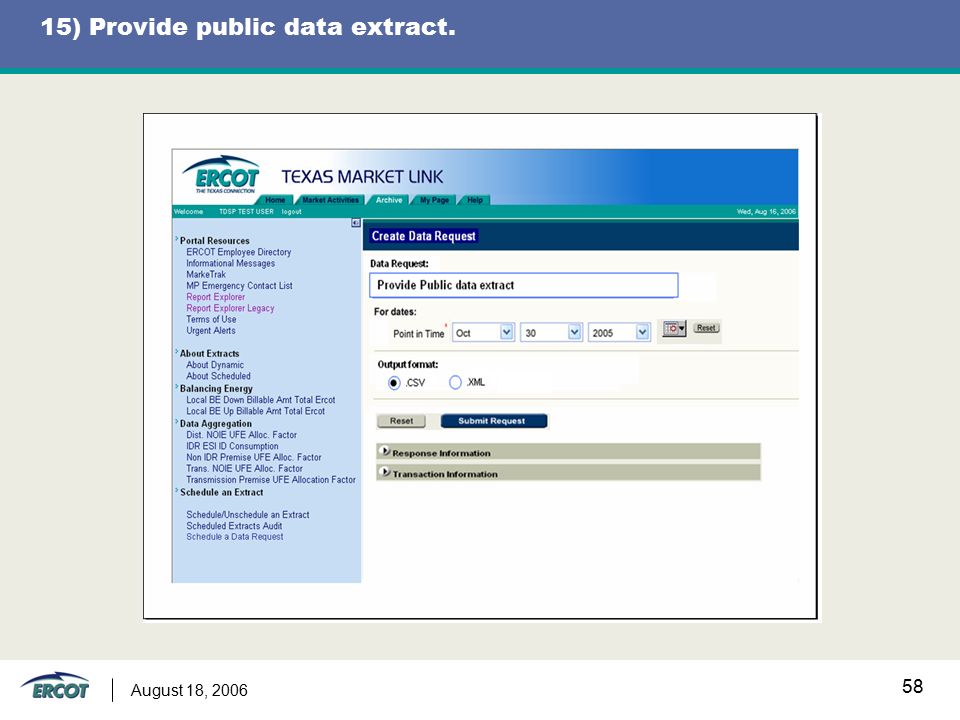

58. August 18, 2006 58 15) Provide public data extract.

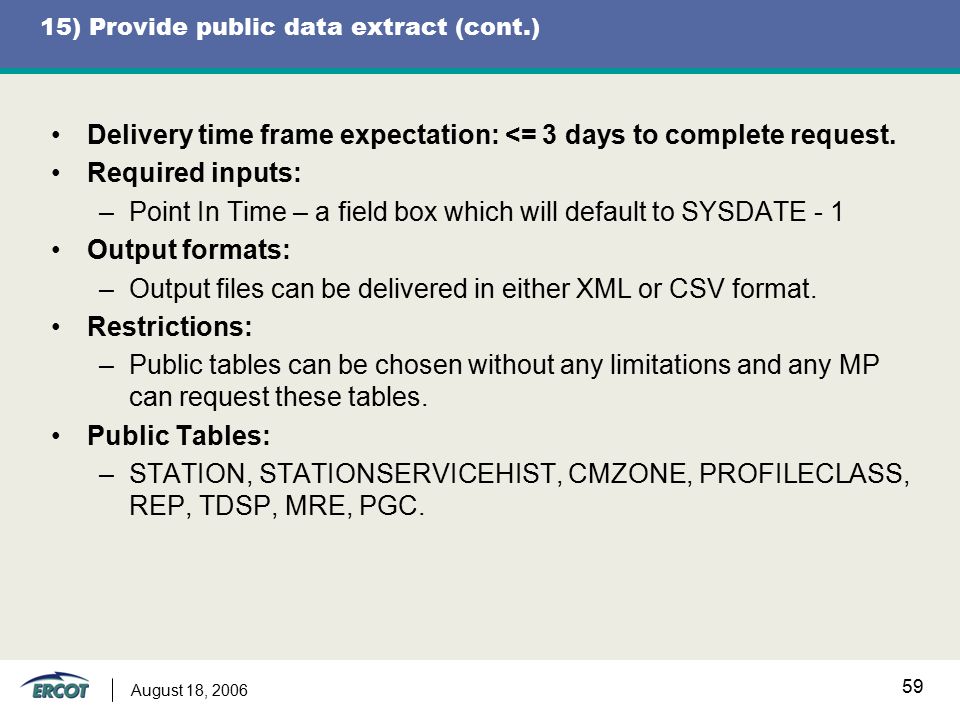

59. August 18, 2006 59 15) Provide public data extract (cont.) Delivery time frame expectation: <= 3 days to complete request. Required inputs: –Point In Time – a field box which will default to SYSDATE - 1 Output formats: –Output files can be delivered in either XML or CSV format. Restrictions: –Public tables can be chosen without any limitations and any MP can request these tables. Public Tables: –STATION, STATIONSERVICEHIST, CMZONE, PROFILECLASS, REP, TDSP, MRE, PGC.

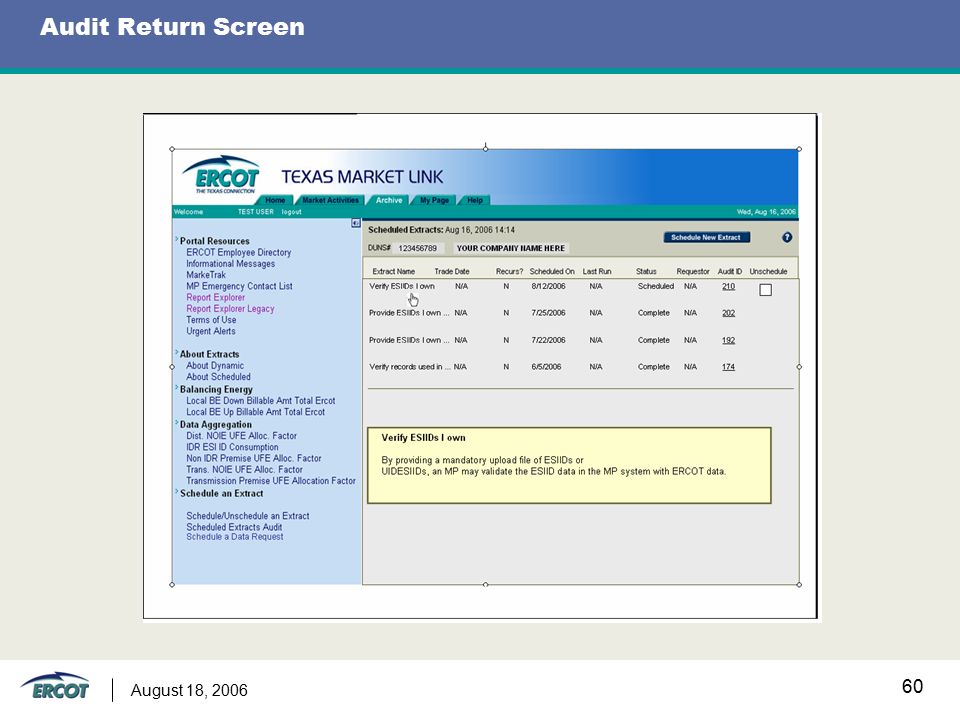

60. August 18, 2006 60 Audit Return Screen

61. August 18, 2006 61 Questions ? Email: jashbaugh@ercot.com
