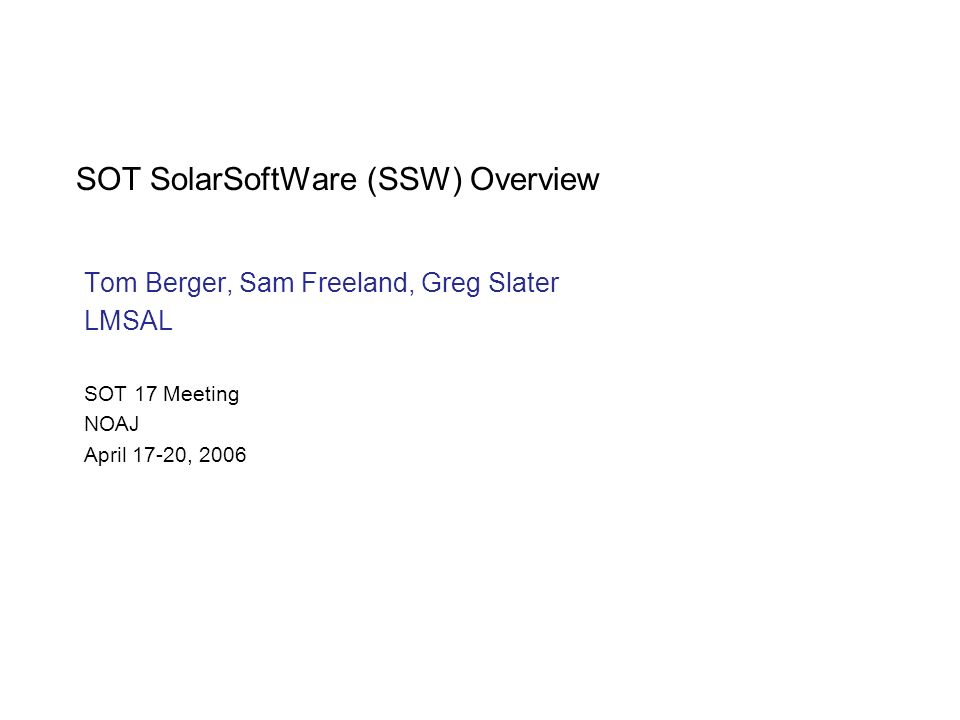

1. SOT SolarSoftWare (SSW) Overview Tom Berger, Sam Freeland, Greg Slater LMSAL SOT 17 Meeting NOAJ April 17-20, 2006

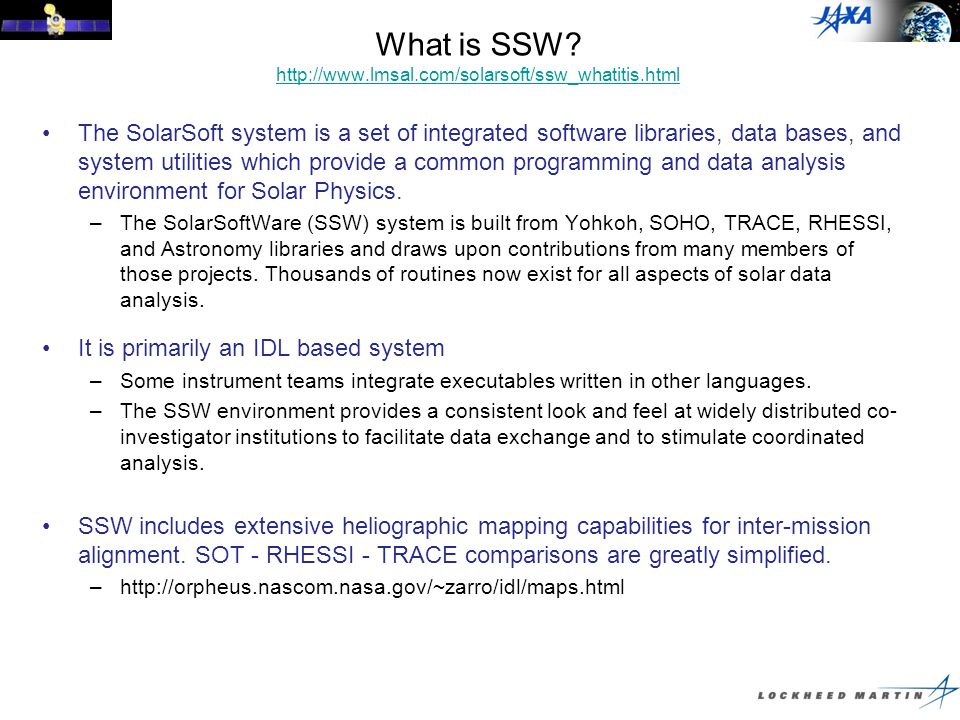

2. What is SSW? http://www.lmsal.com/solarsoft/ssw_whatitis.html http://www.lmsal.com/solarsoft/ssw_whatitis.html The SolarSoft system is a set of integrated software libraries, data bases, and system utilities which provide a common programming and data analysis environment for Solar Physics. –The SolarSoftWare (SSW) system is built from Yohkoh, SOHO, TRACE, RHESSI, and Astronomy libraries and draws upon contributions from many members of those projects. Thousands of routines now exist for all aspects of solar data analysis. It is primarily an IDL based system –Some instrument teams integrate executables written in other languages. –The SSW environment provides a consistent look and feel at widely distributed co- investigator institutions to facilitate data exchange and to stimulate coordinated analysis. SSW includes extensive heliographic mapping capabilities for inter-mission alignment. SOT - RHESSI - TRACE comparisons are greatly simplified. –http://orpheus.nascom.nasa.gov/~zarro/idl/maps.html

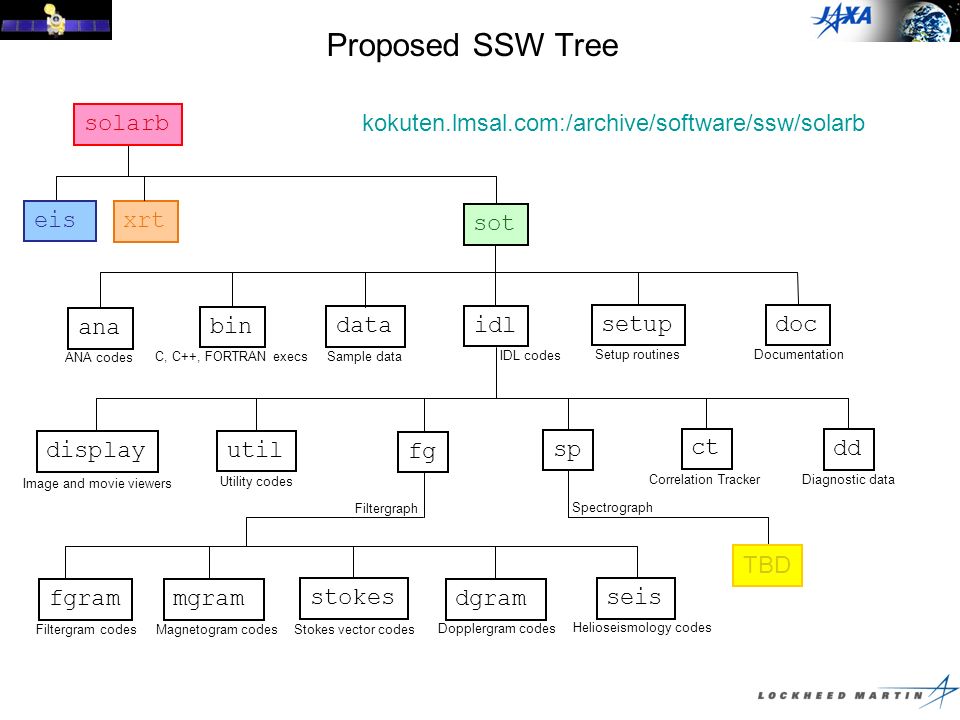

3. Proposed SSW Tree eis solarb xrt sot display util fg sp kokuten.lmsal.com:/archive/software/ssw/solarb ct dd fgrammgram stokes dgram bin idl data setup Image and movie viewers Utility codes Filtergraph Spectrograph Correlation Tracker Diagnostic data C, C++, FORTRAN execsSample data IDL codes Setup routines Filtergram codesMagnetogram codesStokes vector codes Dopplergram codes ana ANA codes doc Documentation seis Helioseismology codes TBD

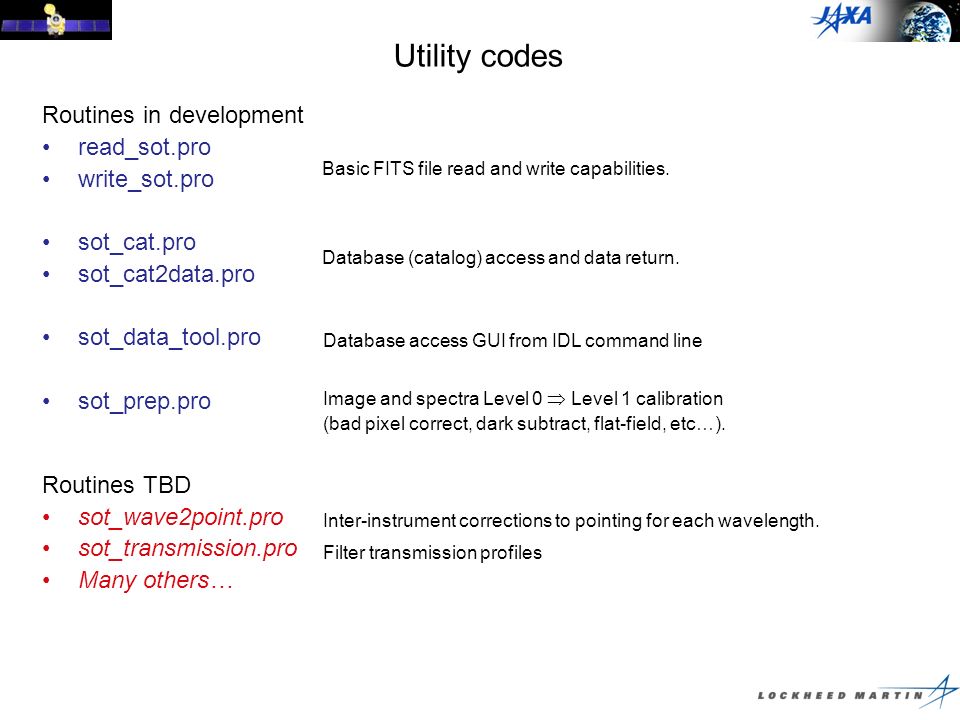

4. Routines in development read_sot.pro write_sot.pro sot_cat.pro sot_cat2data.pro sot_data_tool.pro sot_prep.pro Routines TBD sot_wave2point.pro sot_transmission.pro Many others… Utility codes Basic FITS file read and write capabilities. Database (catalog) access and data return. Image and spectra Level 0  Level 1 calibration (bad pixel correct, dark subtract, flat-field, etc…). Database access GUI from IDL command line Inter-instrument corrections to pointing for each wavelength. Filter transmission profiles

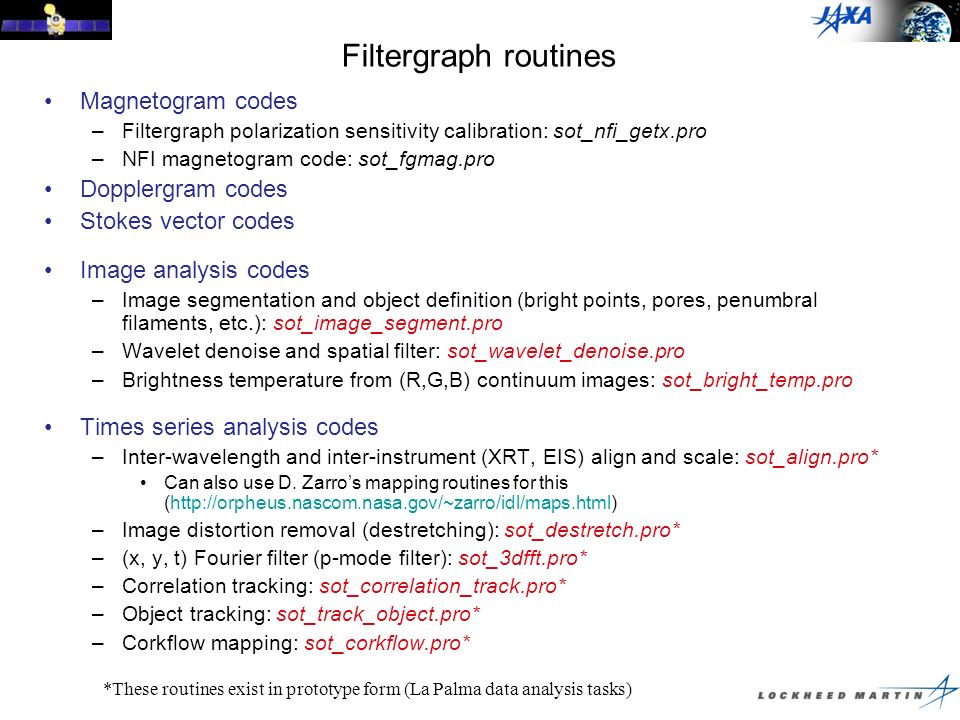

5. Filtergraph routines Magnetogram codes –Filtergraph polarization sensitivity calibration: sot_nfi_getx.pro –NFI magnetogram code: sot_fgmag.pro Dopplergram codes Stokes vector codes Image analysis codes –Image segmentation and object definition (bright points, pores, penumbral filaments, etc.): sot_image_segment.pro –Wavelet denoise and spatial filter: sot_wavelet_denoise.pro –Brightness temperature from (R,G,B) continuum images: sot_bright_temp.pro Times series analysis codes –Inter-wavelength and inter-instrument (XRT, EIS) align and scale: sot_align.pro* Can also use D. Zarro’s mapping routines for this (http://orpheus.nascom.nasa.gov/~zarro/idl/maps.html) –Image distortion removal (destretching): sot_destretch.pro* –(x, y, t) Fourier filter (p-mode filter): sot_3dfft.pro* –Correlation tracking: sot_correlation_track.pro* –Object tracking: sot_track_object.pro* –Corkflow mapping: sot_corkflow.pro* *These routines exist in prototype form (La Palma data analysis tasks)

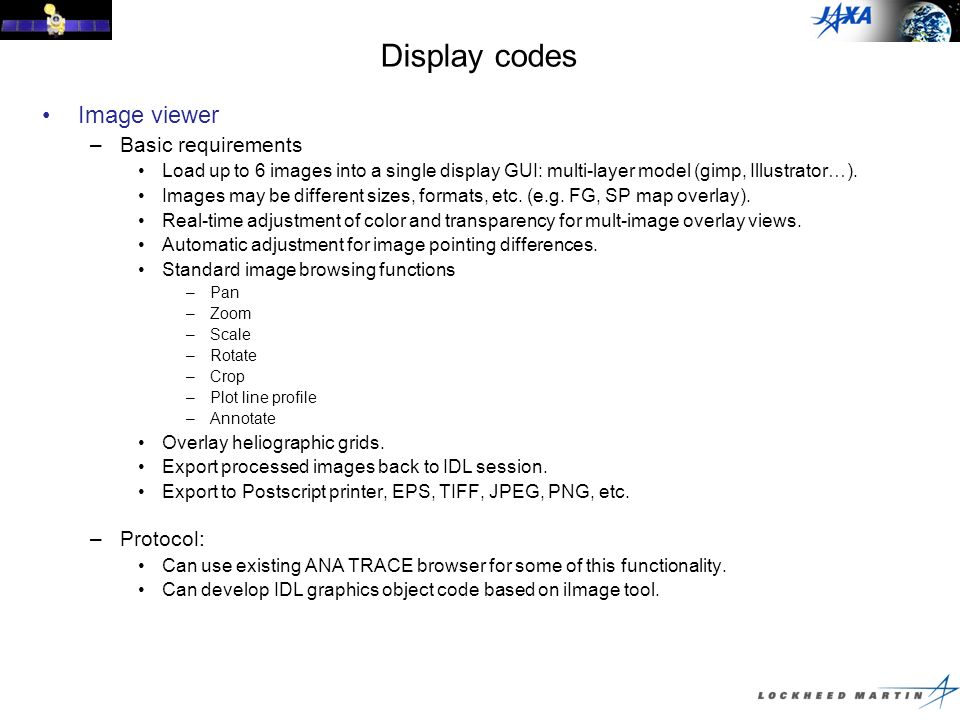

6. Display codes Image viewer –Basic requirements Load up to 6 images into a single display GUI: multi-layer model (gimp, Illustrator…). Images may be different sizes, formats, etc. (e.g. FG, SP map overlay). Real-time adjustment of color and transparency for mult-image overlay views. Automatic adjustment for image pointing differences. Standard image browsing functions –Pan –Zoom –Scale –Rotate –Crop –Plot line profile –Annotate Overlay heliographic grids. Export processed images back to IDL session. Export to Postscript printer, EPS, TIFF, JPEG, PNG, etc. –Protocol: Can use existing ANA TRACE browser for some of this functionality. Can develop IDL graphics object code based on iImage tool.

7. Image Viewer Example

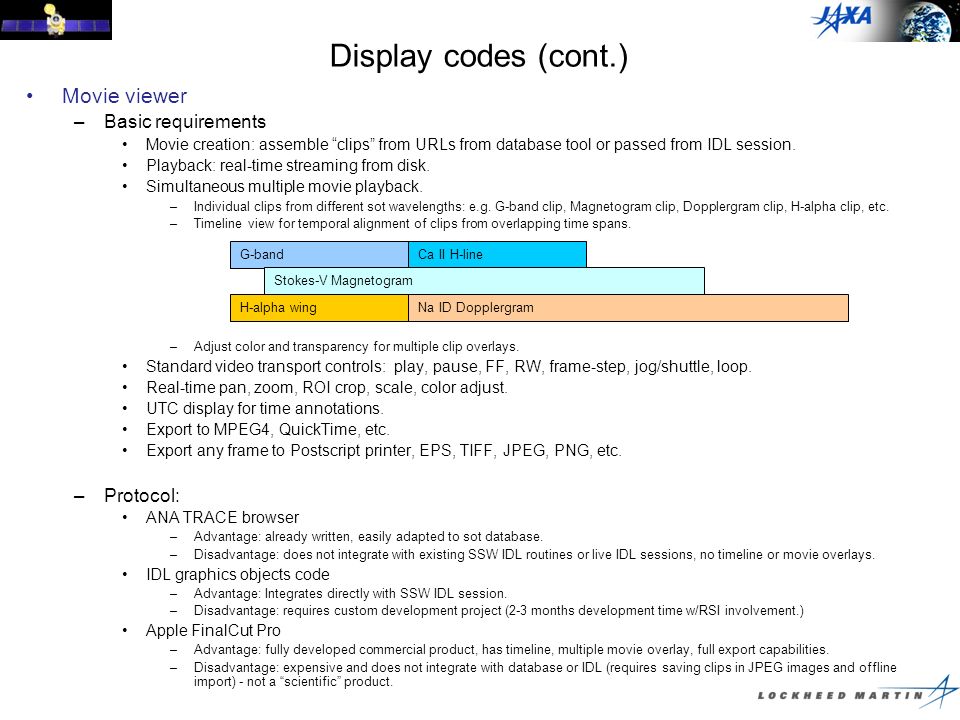

8. Display codes (cont.) Movie viewer –Basic requirements Movie creation: assemble “clips” from URLs from database tool or passed from IDL session. Playback: real-time streaming from disk. Simultaneous multiple movie playback. –Individual clips from different sot wavelengths: e.g. G-band clip, Magnetogram clip, Dopplergram clip, H-alpha clip, etc. –Timeline view for temporal alignment of clips from overlapping time spans. –Adjust color and transparency for multiple clip overlays. Standard video transport controls: play, pause, FF, RW, frame-step, jog/shuttle, loop. Real-time pan, zoom, ROI crop, scale, color adjust. UTC display for time annotations. Export to MPEG4, QuickTime, etc. Export any frame to Postscript printer, EPS, TIFF, JPEG, PNG, etc. –Protocol: ANA TRACE browser –Advantage: already written, easily adapted to sot database. –Disadvantage: does not integrate with existing SSW IDL routines or live IDL sessions, no timeline or movie overlays. IDL graphics objects code –Advantage: Integrates directly with SSW IDL session. –Disadvantage: requires custom development project (2-3 months development time w/RSI involvement.) Apple FinalCut Pro –Advantage: fully developed commercial product, has timeline, multiple movie overlay, full export capabilities. –Disadvantage: expensive and does not integrate with database or IDL (requires saving clips in JPEG images and offline import) - not a “scientific” product. G-bandCa II H-line H-alpha wing Stokes-V Magnetogram Na ID Dopplergram

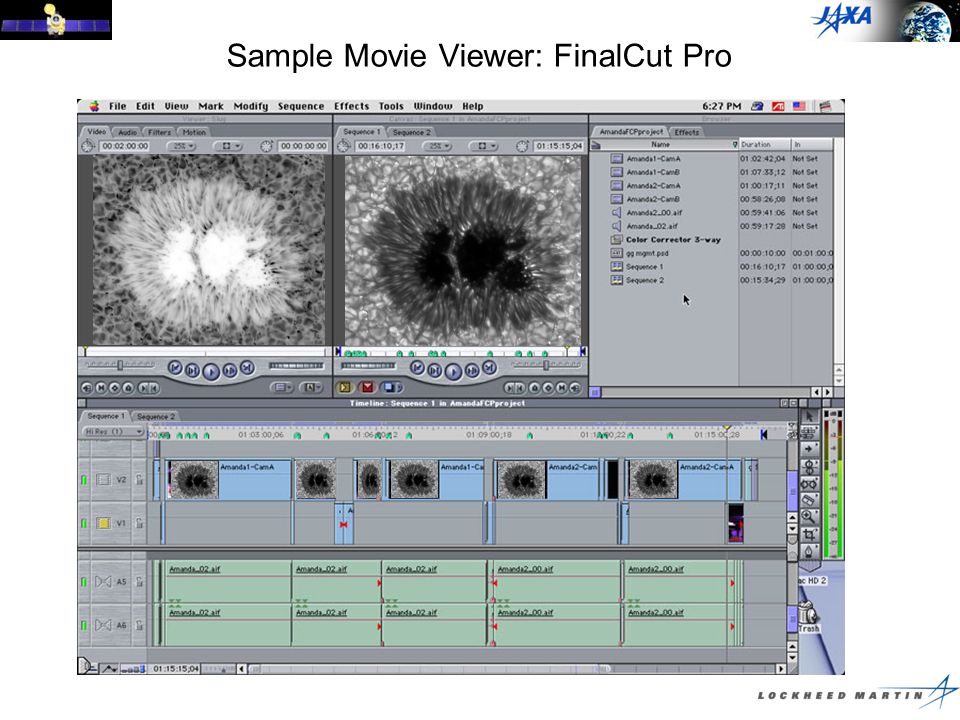

9. Sample Movie Viewer: FinalCut Pro

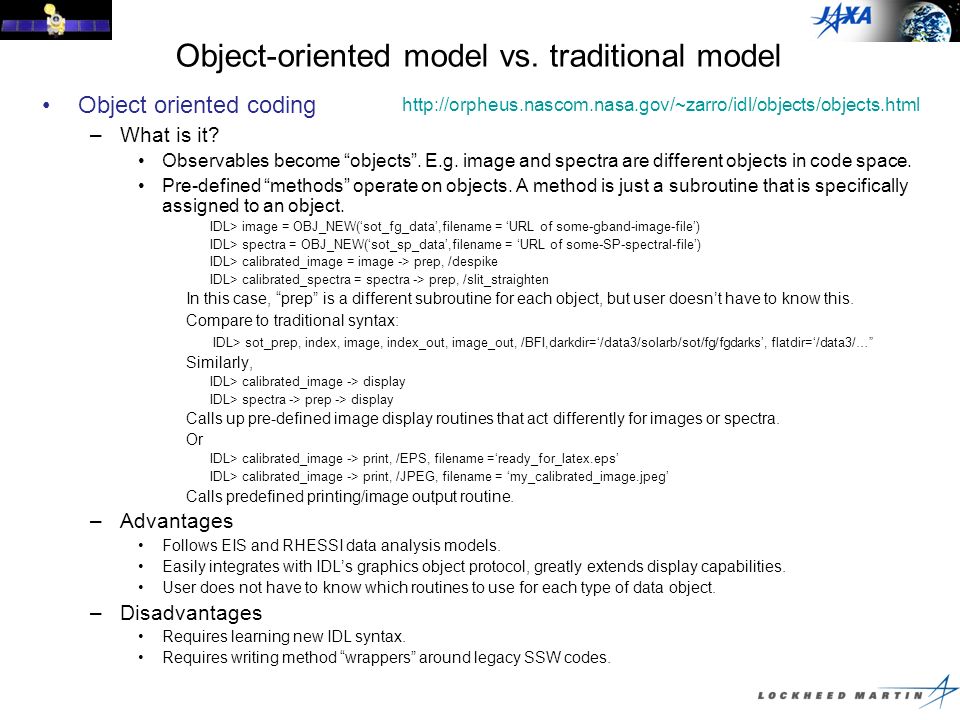

10. Object-oriented model vs. traditional model Object oriented coding –What is it? Observables become “objects”. E.g. image and spectra are different objects in code space. Pre-defined “methods” operate on objects. A method is just a subroutine that is specifically assigned to an object. IDL> image = OBJ_NEW(‘sot_fg_data’,filename = ‘URL of some-gband-image-file’) IDL> spectra = OBJ_NEW(‘sot_sp_data’,filename = ‘URL of some-SP-spectral-file’) IDL> calibrated_image = image -> prep, /despike IDL> calibrated_spectra = spectra -> prep, /slit_straighten In this case, “prep” is a different subroutine for each object, but user doesn’t have to know this. Compare to traditional syntax: IDL> sot_prep, index, image, index_out, image_out, /BFI,darkdir=‘/data3/solarb/sot/fg/fgdarks’, flatdir=‘/data3/…” Similarly, IDL> calibrated_image -> display IDL> spectra -> prep -> display Calls up pre-defined image display routines that act differently for images or spectra. Or IDL> calibrated_image -> print, /EPS, filename =‘ready_for_latex.eps’ IDL> calibrated_image -> print, /JPEG, filename = ‘my_calibrated_image.jpeg’ Calls predefined printing/image output routine. –Advantages Follows EIS and RHESSI data analysis models. Easily integrates with IDL’s graphics object protocol, greatly extends display capabilities. User does not have to know which routines to use for each type of data object. –Disadvantages Requires learning new IDL syntax. Requires writing method “wrappers” around legacy SSW codes. http://orpheus.nascom.nasa.gov/~zarro/idl/objects/objects.html
