1. Session # 2221 YACC no more Sriram Srinivasan (“Ram”) Integrating parsers, interpreters and compilers into your application

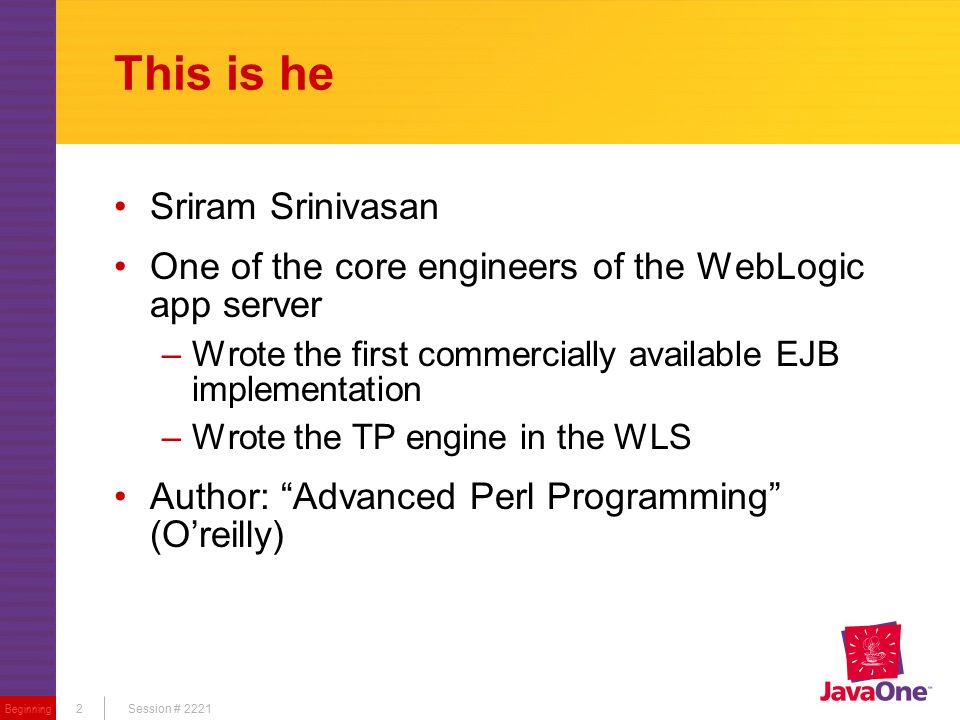

2. Session # 22212 This is he Sriram Srinivasan One of the core engineers of the WebLogic app server –Wrote the first commercially available EJB implementation –Wrote the TP engine in the WLS Author: “Advanced Perl Programming” (O’reilly) Beginning

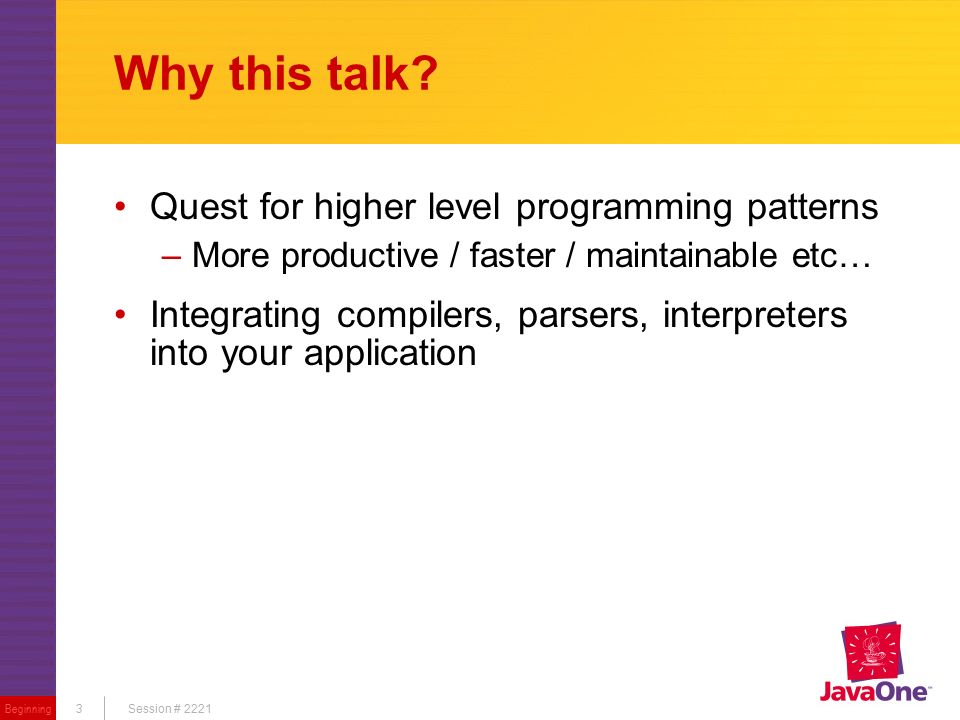

3. Session # 22213 Why this talk? Quest for higher level programming patterns –More productive / faster / maintainable etc… Integrating compilers, parsers, interpreters into your application Beginning

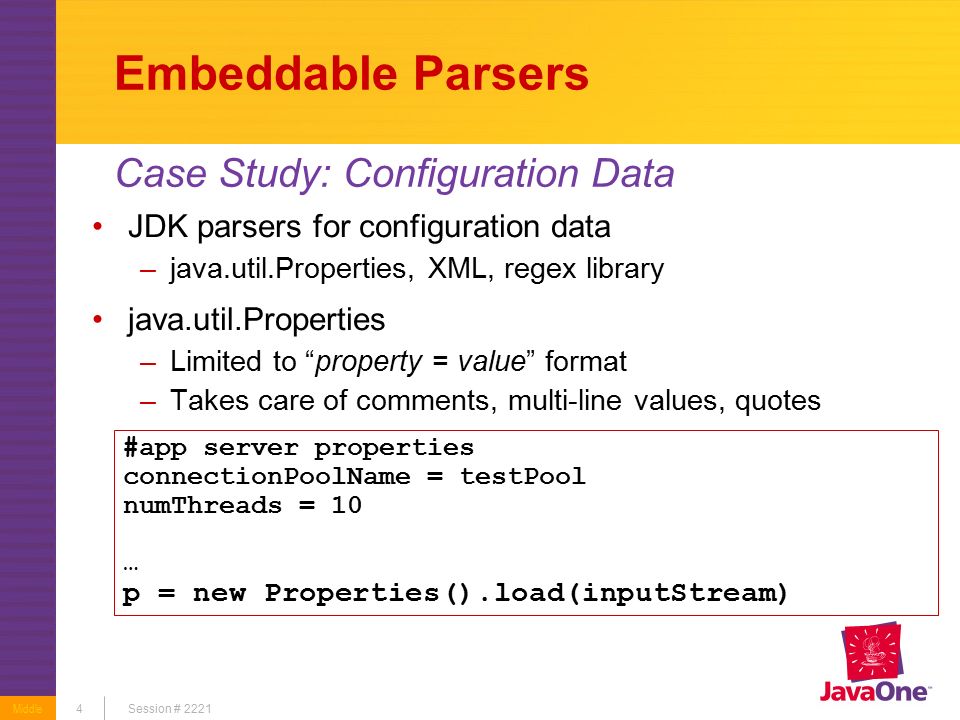

4. Session # 22214 Embeddable Parsers JDK parsers for configuration data –java.util.Properties, XML, regex library java.util.Properties –Limited to “property = value” format –Takes care of comments, multi-line values, quotes Case Study: Configuration Data #app server properties connectionPoolName = testPool numThreads = 10 … p = new Properties().load(inputStream) Middle

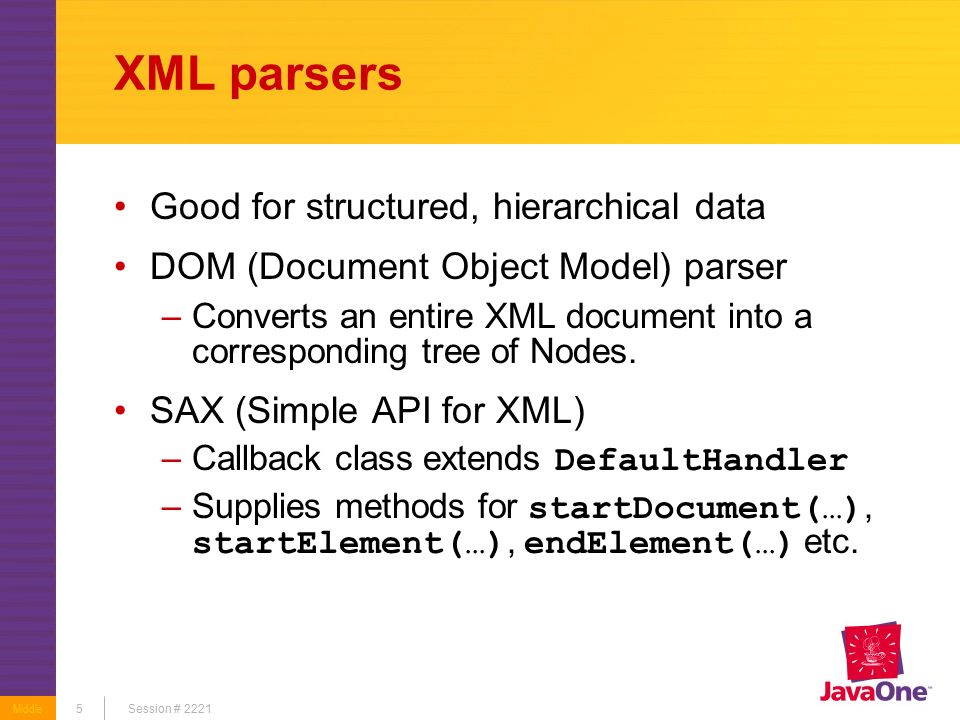

5. Session # 22215 XML parsers Good for structured, hierarchical data DOM (Document Object Model) parser –Converts an entire XML document into a corresponding tree of Nodes. SAX (Simple API for XML) –Callback class extends DefaultHandler –Supplies methods for startDocument(…), startElement(…), endElement(…) etc. Middle

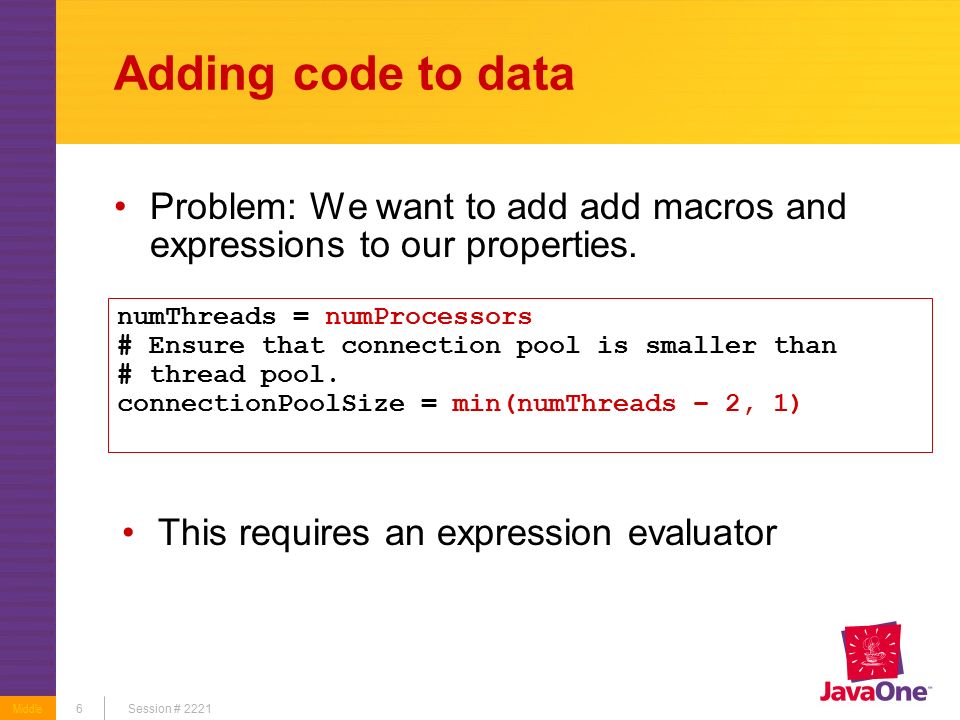

6. Session # 22216 Adding code to data Problem: We want to add add macros and expressions to our properties. numThreads = numProcessors # Ensure that connection pool is smaller than # thread pool. connectionPoolSize = min(numThreads – 2, 1) This requires an expression evaluator Middle

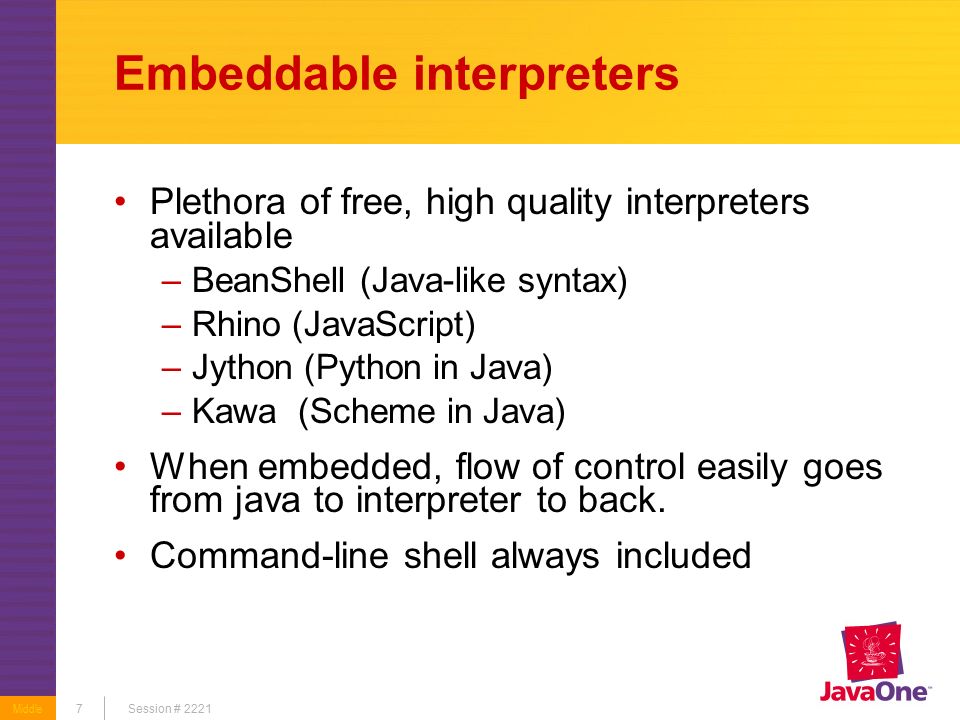

7. Session # 22217 Embeddable interpreters Plethora of free, high quality interpreters available –BeanShell (Java-like syntax) –Rhino (JavaScript) –Jython (Python in Java) –Kawa (Scheme in Java) When embedded, flow of control easily goes from java to interpreter to back. Command-line shell always included Middle

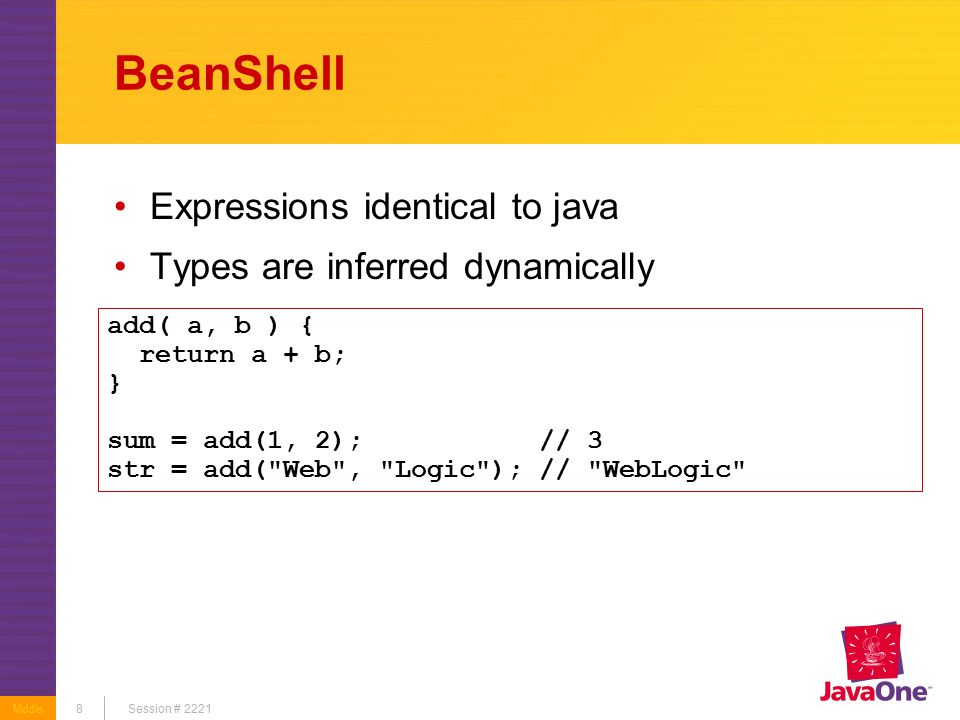

8. Session # 22218 BeanShell Expressions identical to java Types are inferred dynamically Middle add( a, b ) { return a + b; } sum = add(1, 2); // 3 str = add("Web", "Logic"); // "WebLogic"

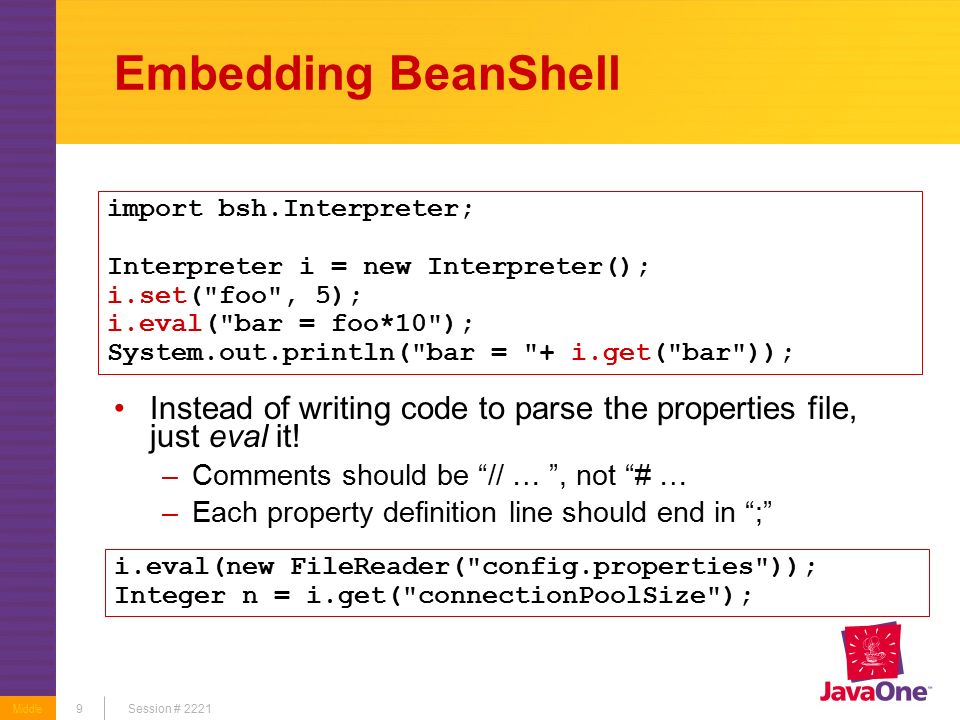

9. Session # 22219 Embedding BeanShell Middle import bsh.Interpreter; Interpreter i = new Interpreter(); i.set("foo", 5); i.eval("bar = foo*10"); System.out.println("bar = "+ i.get("bar")); i.eval(new FileReader("config.properties")); Integer n = i.get("connectionPoolSize"); Instead of writing code to parse the properties file, just eval it! –Comments should be “// … ”, not “# … –Each property definition line should end in “;”

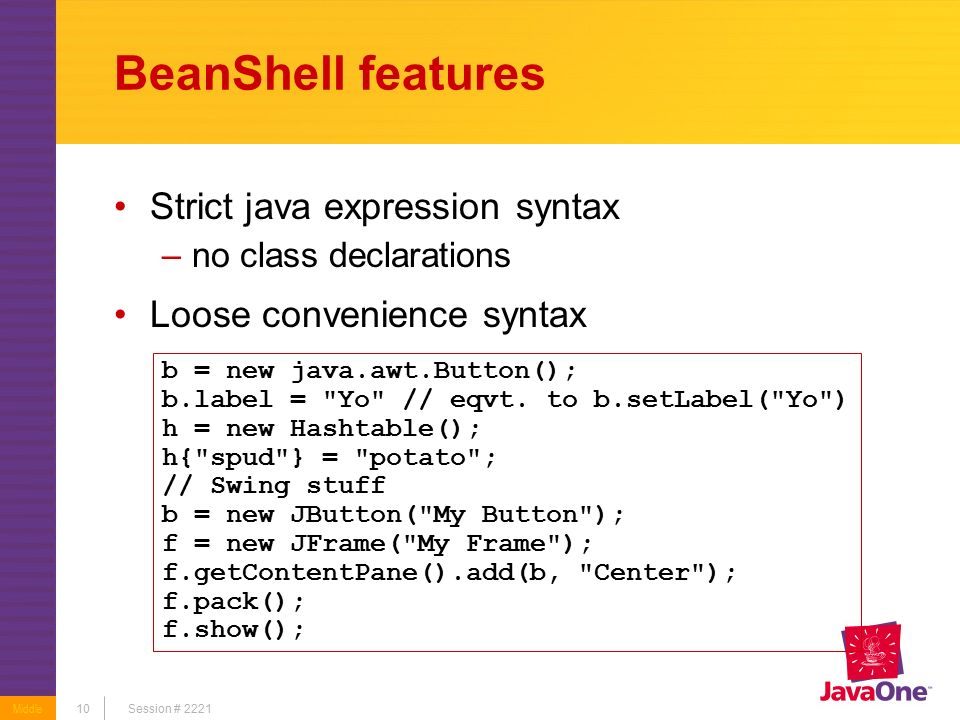

10. Session # 222110 Strict java expression syntax –no class declarations Loose convenience syntax BeanShell features Middle b = new java.awt.Button(); b.label = "Yo" // eqvt. to b.setLabel("Yo") h = new Hashtable(); h{"spud"} = "potato"; // Swing stuff b = new JButton("My Button"); f = new JFrame("My Frame"); f.getContentPane().add(b, "Center"); f.pack(); f.show();

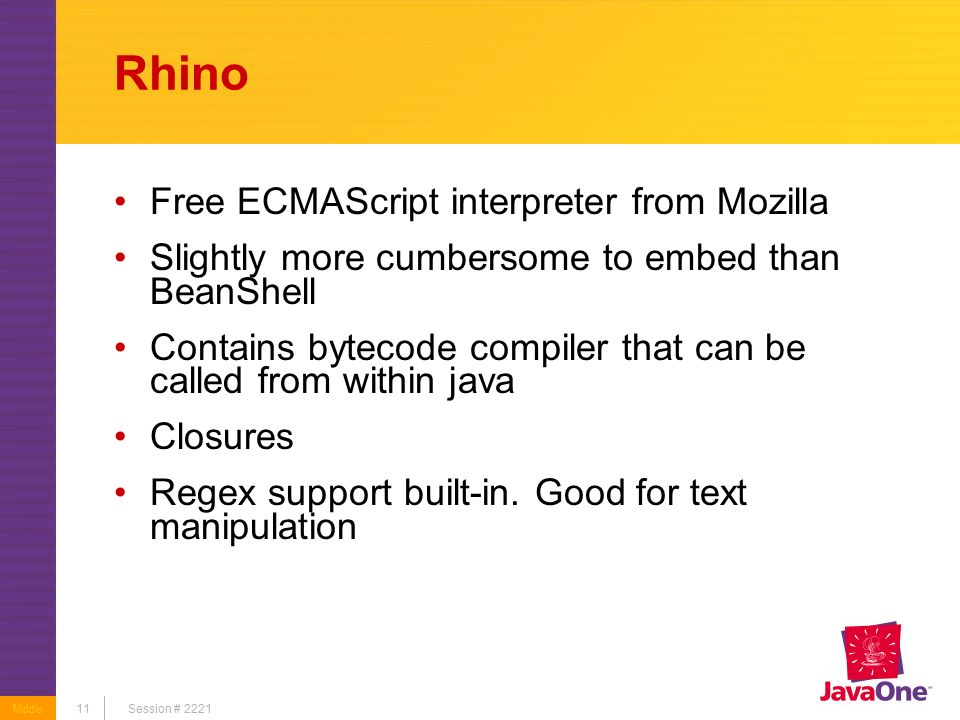

11. Session # 222111 Rhino Free ECMAScript interpreter from Mozilla Slightly more cumbersome to embed than BeanShell Contains bytecode compiler that can be called from within java Closures Regex support built-in. Good for text manipulation Middle

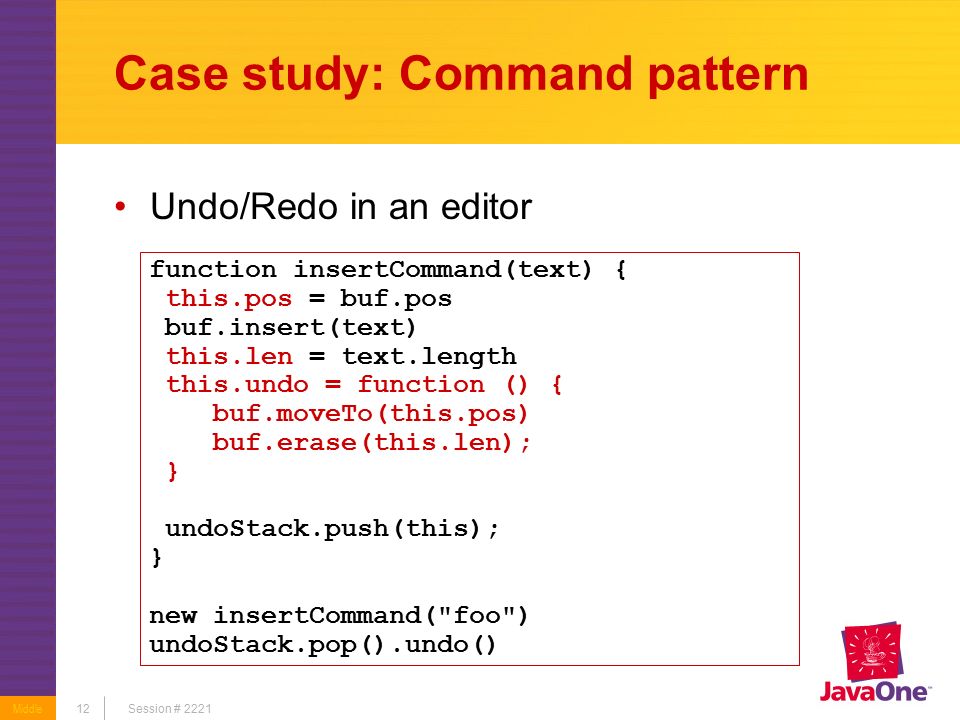

12. Session # 222112 Case study: Command pattern Middle function insertCommand(text) { this.pos = buf.pos buf.insert(text) this.len = text.length this.undo = function () { buf.moveTo(this.pos) buf.erase(this.len); } undoStack.push(this); } new insertCommand("foo") undoStack.pop().undo() Undo/Redo in an editor

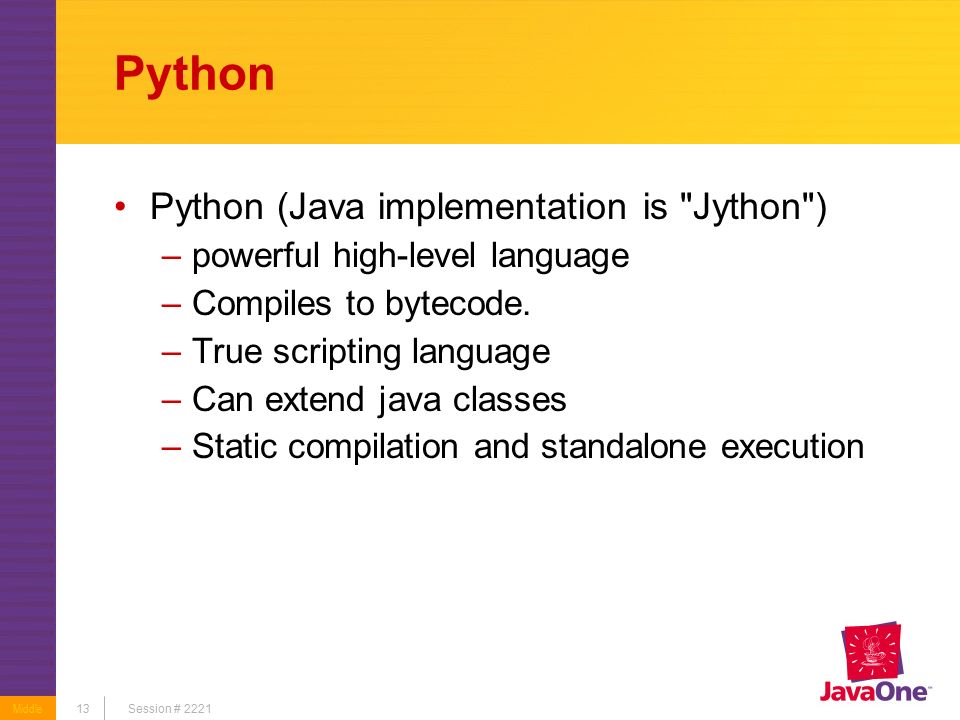

13. Session # 222113 Python Middle Python (Java implementation is "Jython") –powerful high-level language –Compiles to bytecode. –True scripting language –Can extend java classes –Static compilation and standalone execution

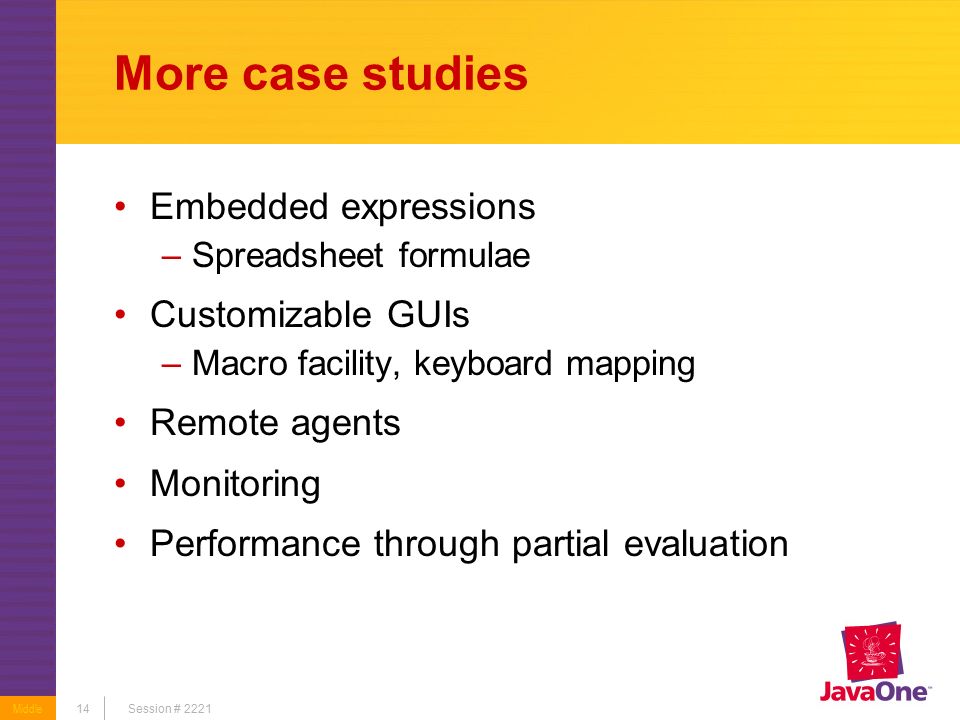

14. Session # 222114 More case studies Embedded expressions –Spreadsheet formulae Customizable GUIs –Macro facility, keyboard mapping Remote agents Monitoring Performance through partial evaluation Middle

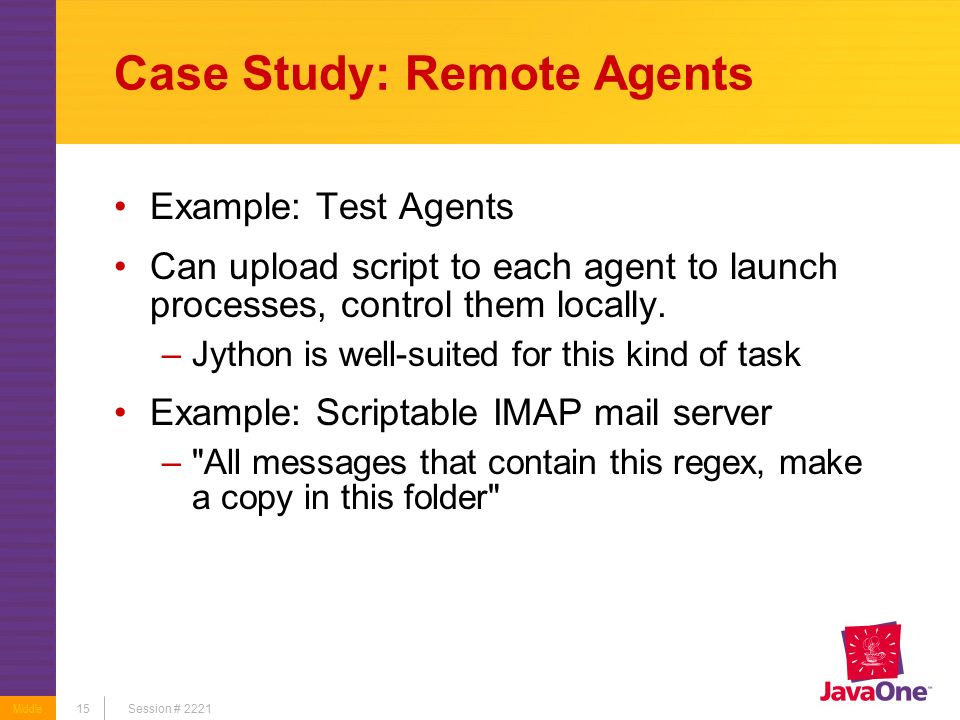

15. Session # 222115 Case Study: Remote Agents Example: Test Agents Can upload script to each agent to launch processes, control them locally. –Jython is well-suited for this kind of task Example: Scriptable IMAP mail server –"All messages that contain this regex, make a copy in this folder" Middle

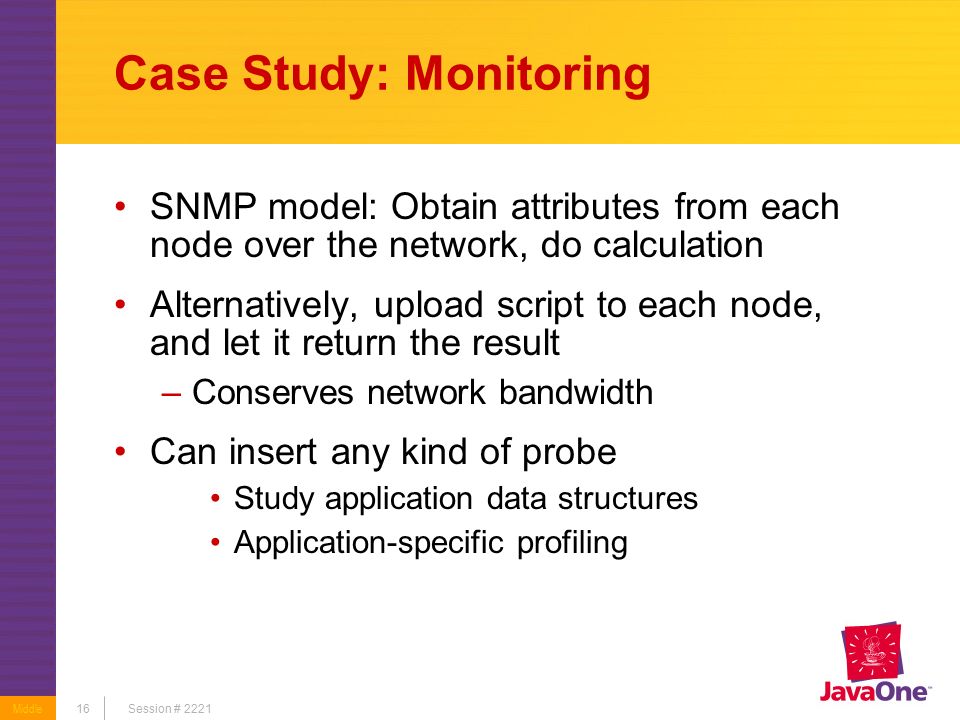

16. Session # 222116 Case Study: Monitoring SNMP model: Obtain attributes from each node over the network, do calculation Alternatively, upload script to each node, and let it return the result –Conserves network bandwidth Can insert any kind of probe Study application data structures Application-specific profiling Middle

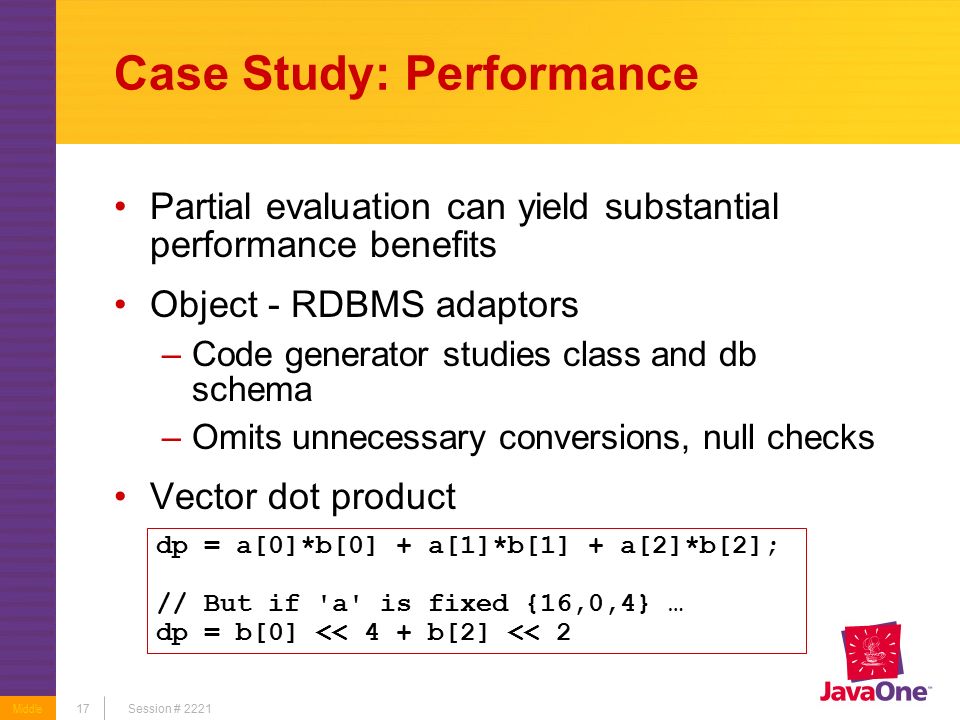

17. Session # 222117 Case Study: Performance Partial evaluation can yield substantial performance benefits Object - RDBMS adaptors –Code generator studies class and db schema –Omits unnecessary conversions, null checks Vector dot product Middle dp = a[0]*b[0] + a[1]*b[1] + a[2]*b[2]; // But if 'a' is fixed {16,0,4} … dp = b[0] << 4 + b[2] << 2

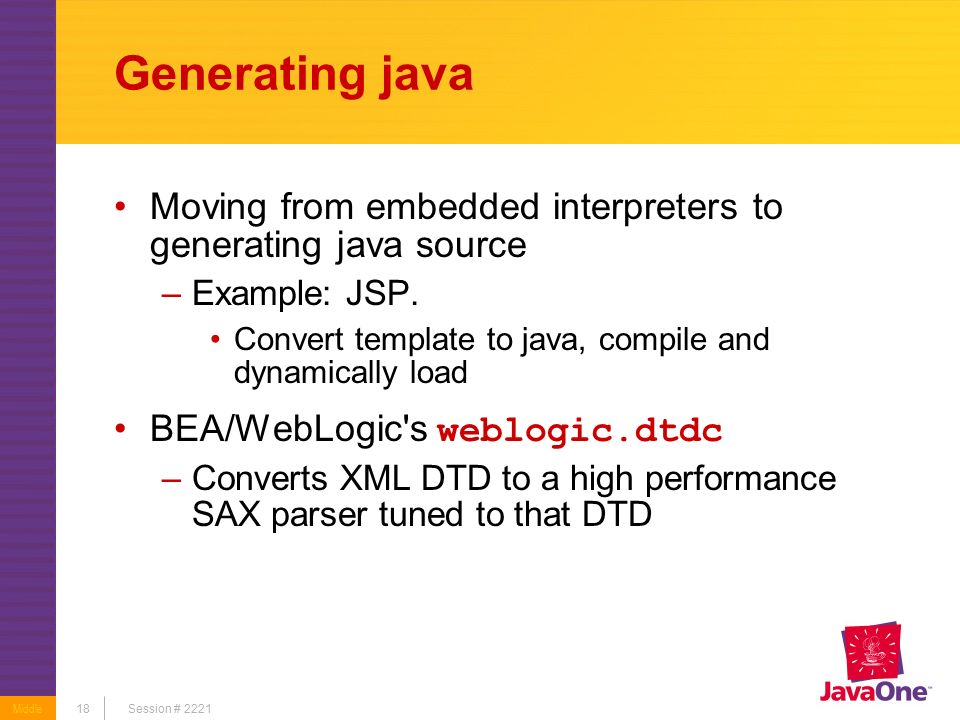

18. Session # 222118 Generating java Moving from embedded interpreters to generating java source –Example: JSP. Convert template to java, compile and dynamically load BEA/WebLogic's weblogic.dtdc –Converts XML DTD to a high performance SAX parser tuned to that DTD Middle

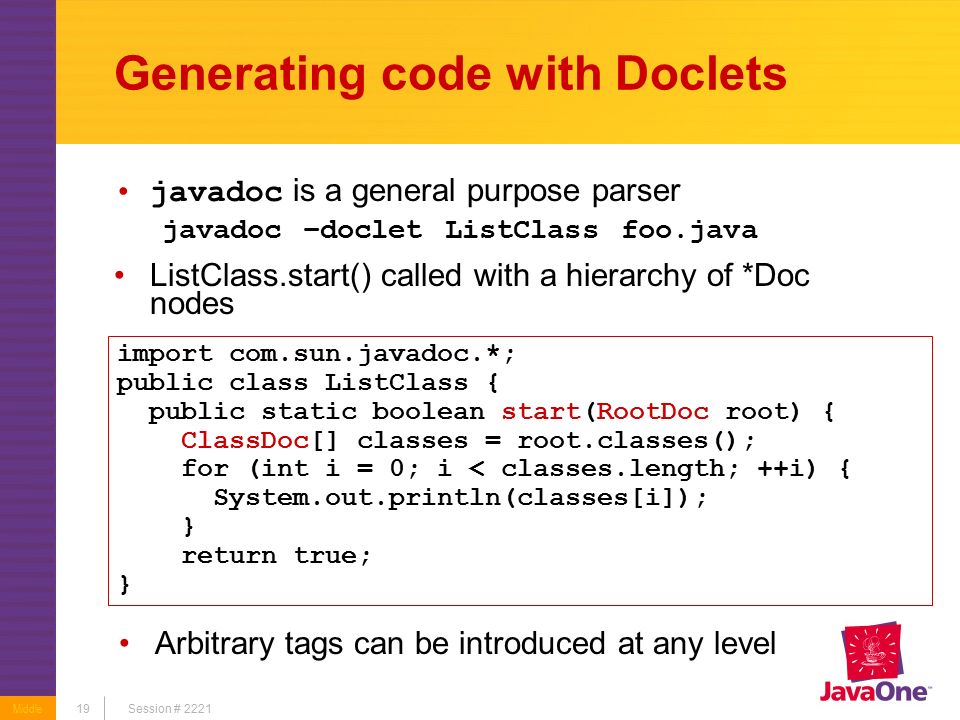

19. Session # 222119 Generating code with Doclets javadoc is a general purpose parser javadoc –doclet ListClass foo.java ListClass.start() called with a hierarchy of *Doc nodes import com.sun.javadoc.*; public class ListClass { public static boolean start(RootDoc root) { ClassDoc[] classes = root.classes(); for (int i = 0; i < classes.length; ++i) { System.out.println(classes[i]); } return true; } Arbitrary tags can be introduced at any level Middle

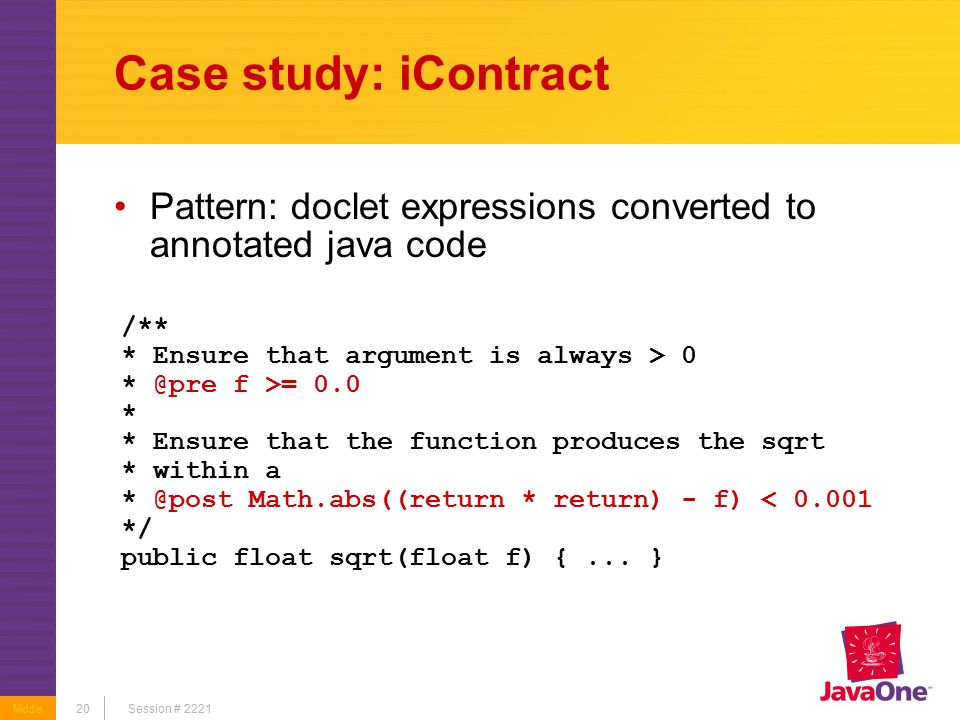

20. Session # 222120 Case study: iContract Pattern: doclet expressions converted to annotated java code /** * Ensure that argument is always > 0 * @pre f >= 0.0 * * Ensure that the function produces the sqrt * within a * @post Math.abs((return * return) - f) < 0.001 */ public float sqrt(float f) {... } Middle

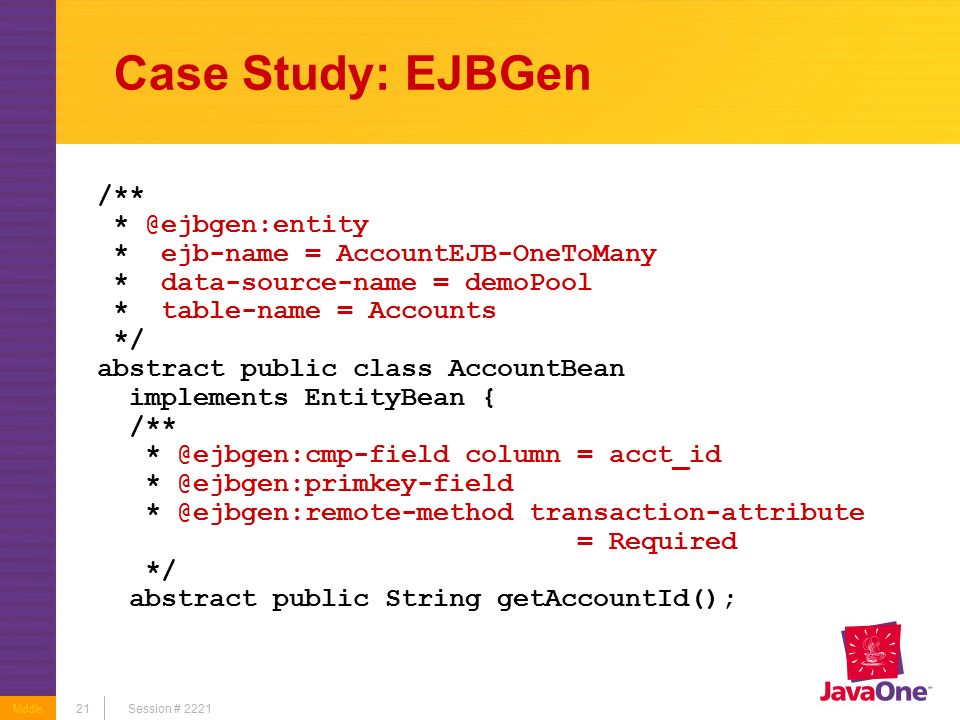

21. Session # 222121 Case Study: EJBGen /** * @ejbgen:entity * ejb-name = AccountEJB-OneToMany * data-source-name = demoPool * table-name = Accounts */ abstract public class AccountBean implements EntityBean { /** * @ejbgen:cmp-field column = acct_id * @ejbgen:primkey-field * @ejbgen:remote-method transaction-attribute = Required */ abstract public String getAccountId(); Middle

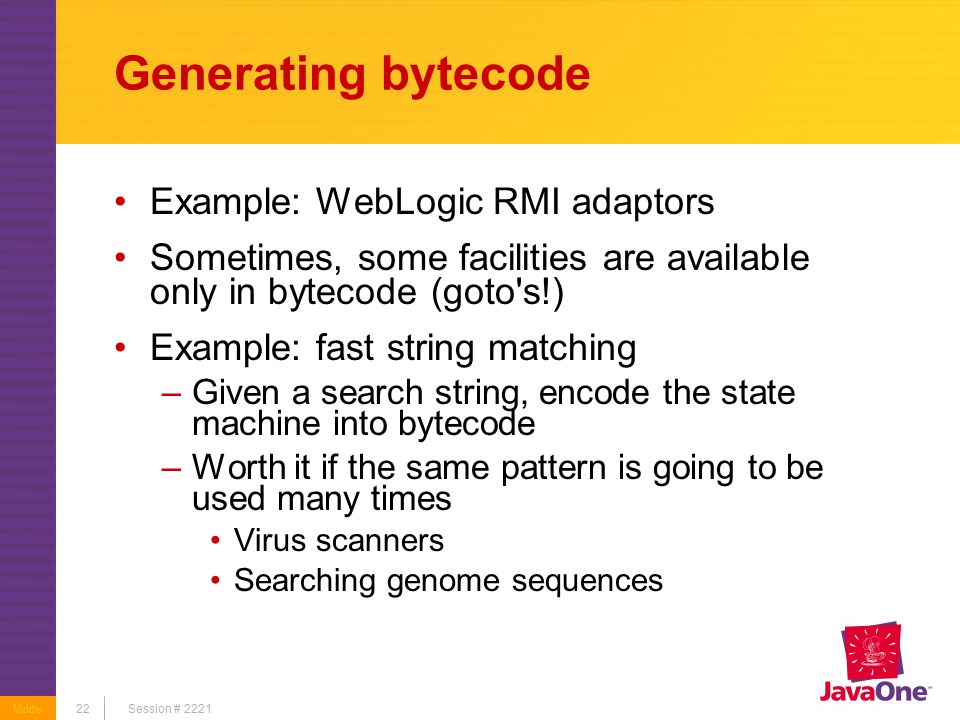

22. Session # 222122 Generating bytecode Example: WebLogic RMI adaptors Sometimes, some facilities are available only in bytecode (goto's!) Example: fast string matching –Given a search string, encode the state machine into bytecode –Worth it if the same pattern is going to be used many times Virus scanners Searching genome sequences Middle

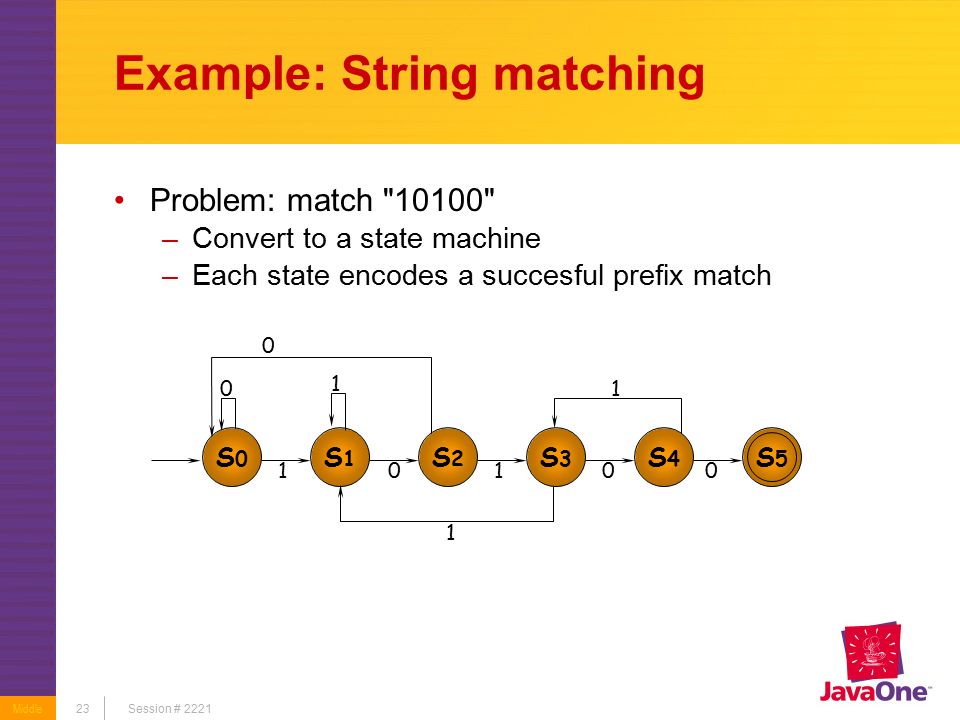

23. Session # 222123 Example: String matching Problem: match "10100" –Convert to a state machine –Each state encodes a succesful prefix match Middle S5S5 S0S0 S1S1 S3S3 S4S4 10100 0 1 S2S2 1 0 1

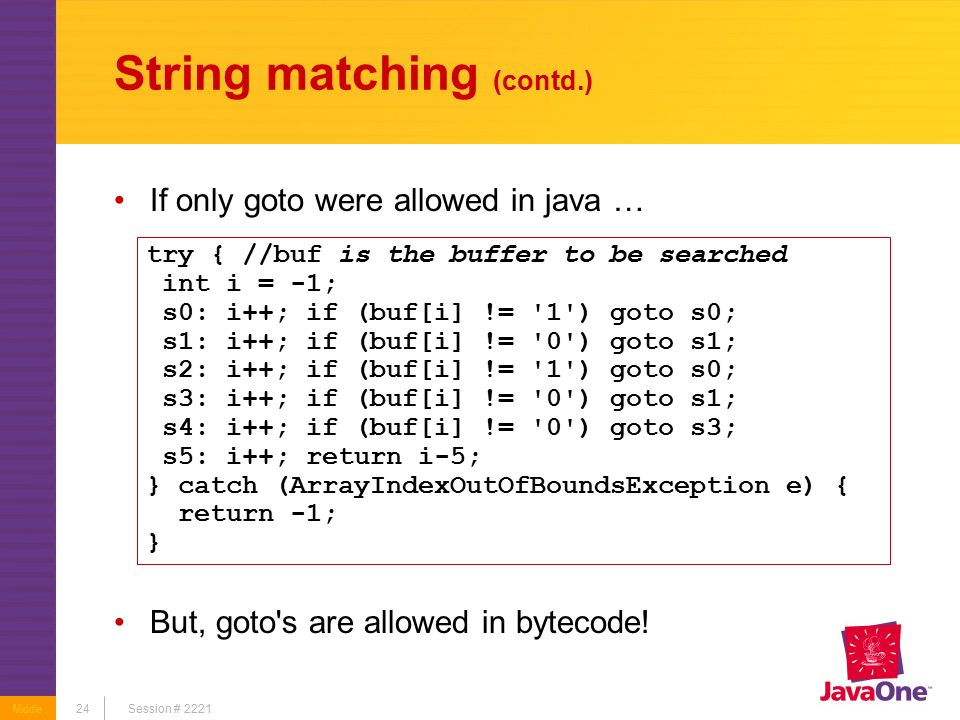

24. Session # 222124 String matching (contd.) If only goto were allowed in java … But, goto's are allowed in bytecode! Middle try { //buf is the buffer to be searched int i = -1; s0: i++; if (buf[i] != '1') goto s0; s1: i++; if (buf[i] != '0') goto s1; s2: i++; if (buf[i] != '1') goto s0; s3: i++; if (buf[i] != '0') goto s1; s4: i++; if (buf[i] != '0') goto s3; s5: i++; return i-5; } catch (ArrayIndexOutOfBoundsException e) { return -1; }

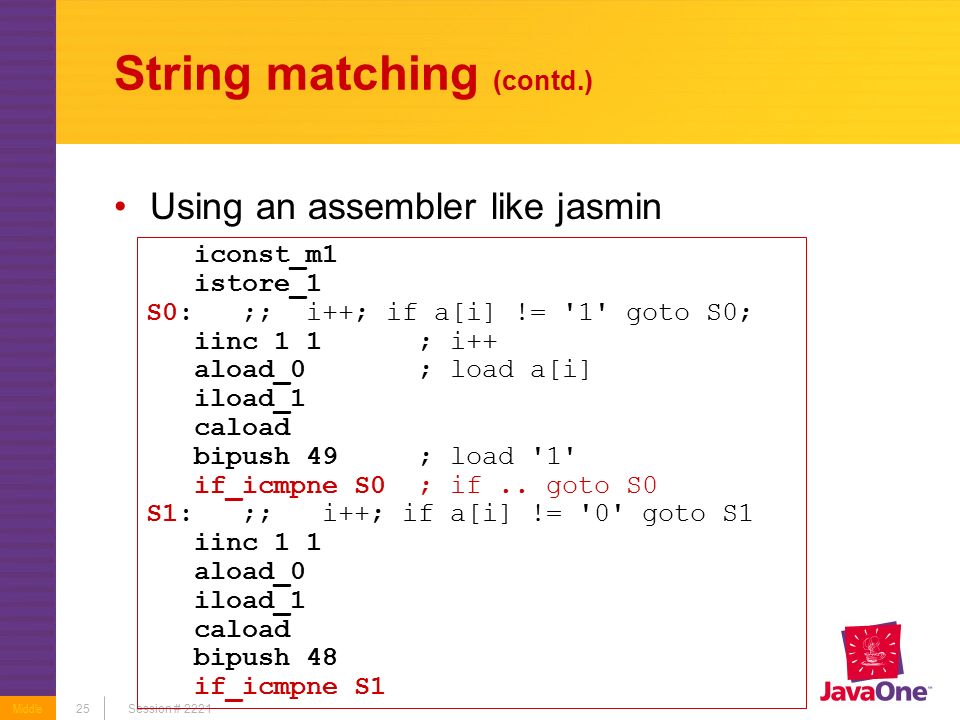

25. Session # 222125 String matching (contd.) Using an assembler like jasmin Middle iconst_m1 istore_1 S0: ;; i++; if a[i] != '1' goto S0; iinc 1 1 ; i++ aload_0 ; load a[i] iload_1 caload bipush 49 ; load '1' if_icmpne S0 ; if.. goto S0 S1: ;; i++; if a[i] != '0' goto S1 iinc 1 1 aload_0 iload_1 caload bipush 48 if_icmpne S1

26. Session # 222126 Custom languages Craft a language that fits the context you are working in –Avoid XML ugliness: SRML (Simple Rule Markup) –Instead of " if s.purchaseAmount > 100 … " Middle <simpleCondition className="ShoppingCart" objectVariable="s">

27. Session # 222127 Antlr Introduction Antlr: A recursive descent parser with configurable lookahead (LL(k) parser) Much, much simpler than lex/yacc –Yacc error messages are cryptic, tough for non-CS types to understand –Even generated code easy to understand Includes tree building and recognition –No such facility in yacc Lexer, parser and tree recognizer phase have similar syntax Middle

28. Session # 222128 Antlr Example: hierarchical property list –A list consists of name value pairs –Names are identifiers, values are numbers or lists Middle ( a 200 b (c 10 d 20) )

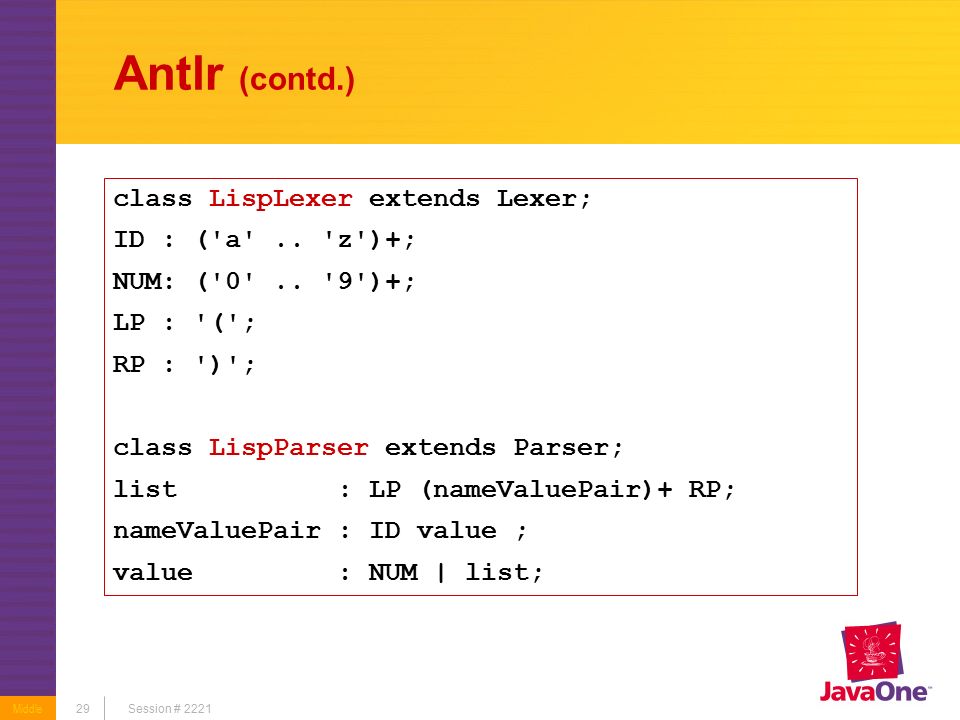

29. Session # 222129 Antlr (contd.) Middle class LispLexer extends Lexer; ID : ('a'.. 'z')+; NUM: ('0'.. '9')+; LP : '('; RP : ')'; class LispParser extends Parser; list : LP (nameValuePair)+ RP; nameValuePair : ID value ; value : NUM | list;

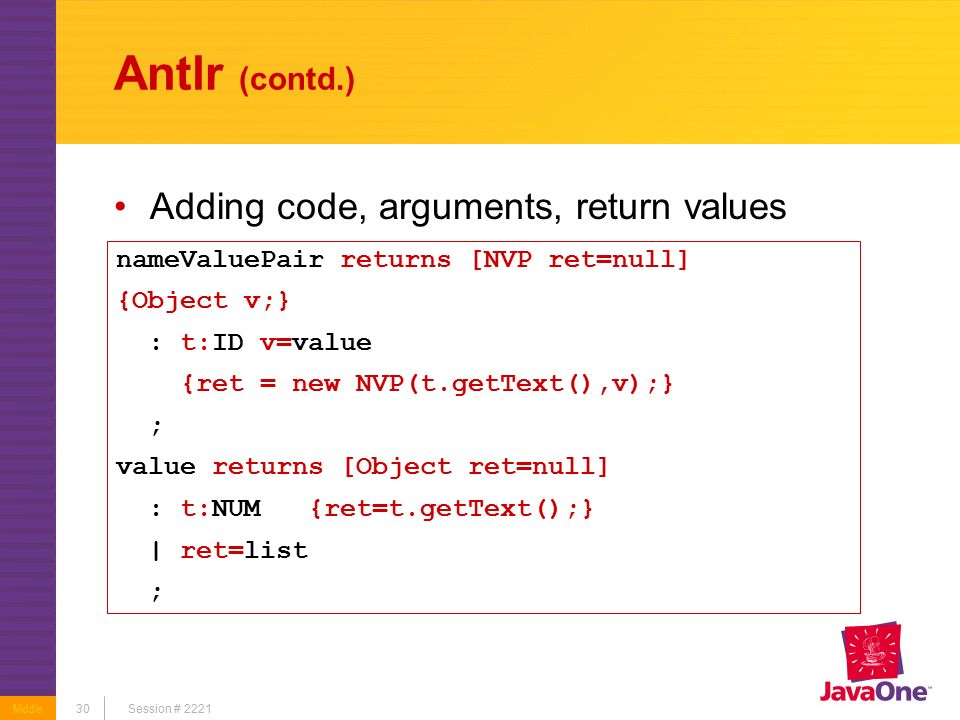

30. Session # 222130 Antlr (contd.) Middle nameValuePair returns [NVP ret=null] {Object v;} : t:ID v=value {ret = new NVP(t.getText(),v);} ; value returns [Object ret=null] : t:NUM {ret=t.getText();} | ret=list ; Adding code, arguments, return values

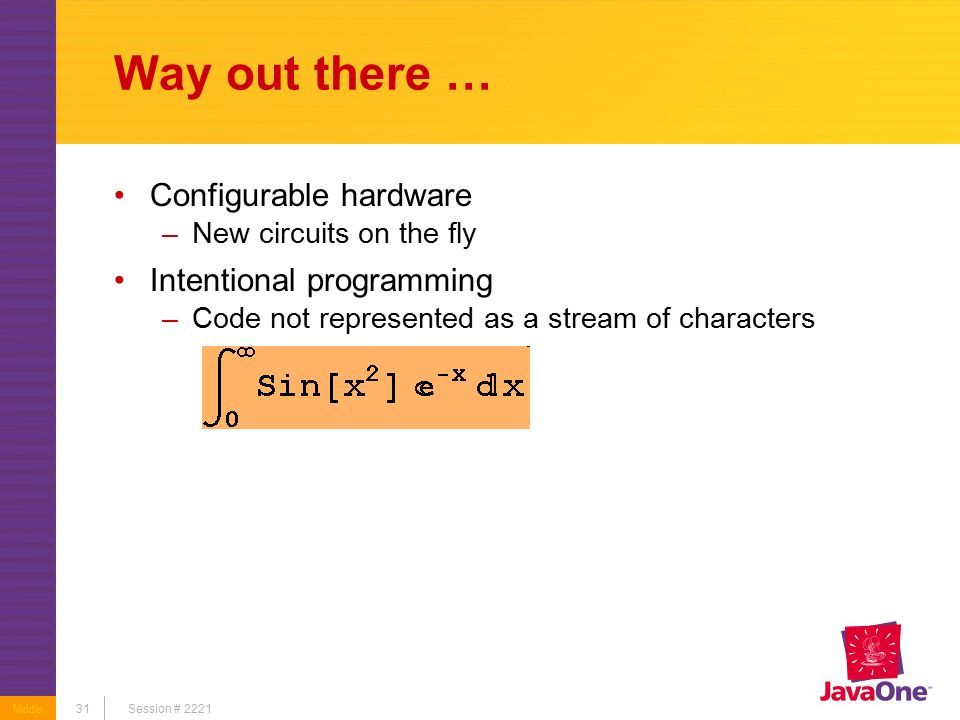

31. Session # 222131 Way out there … Middle Configurable hardware –New circuits on the fly Intentional programming –Code not represented as a stream of characters

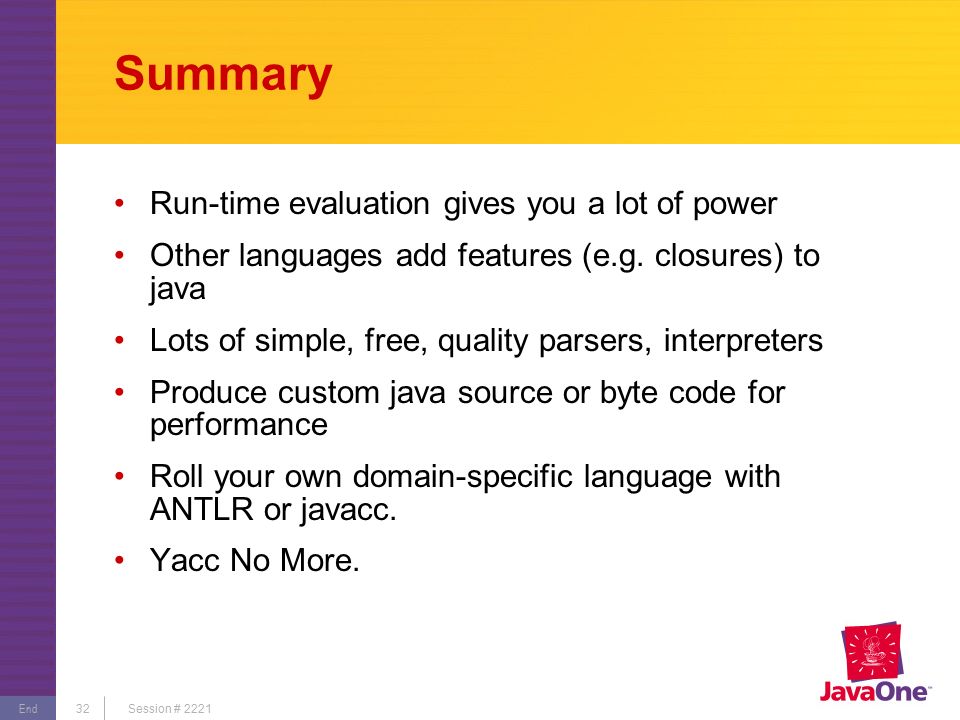

32. Session # 222132 Summary Run-time evaluation gives you a lot of power Other languages add features (e.g. closures) to java Lots of simple, free, quality parsers, interpreters Produce custom java source or byte code for performance Roll your own domain-specific language with ANTLR or javacc. Yacc No More. End

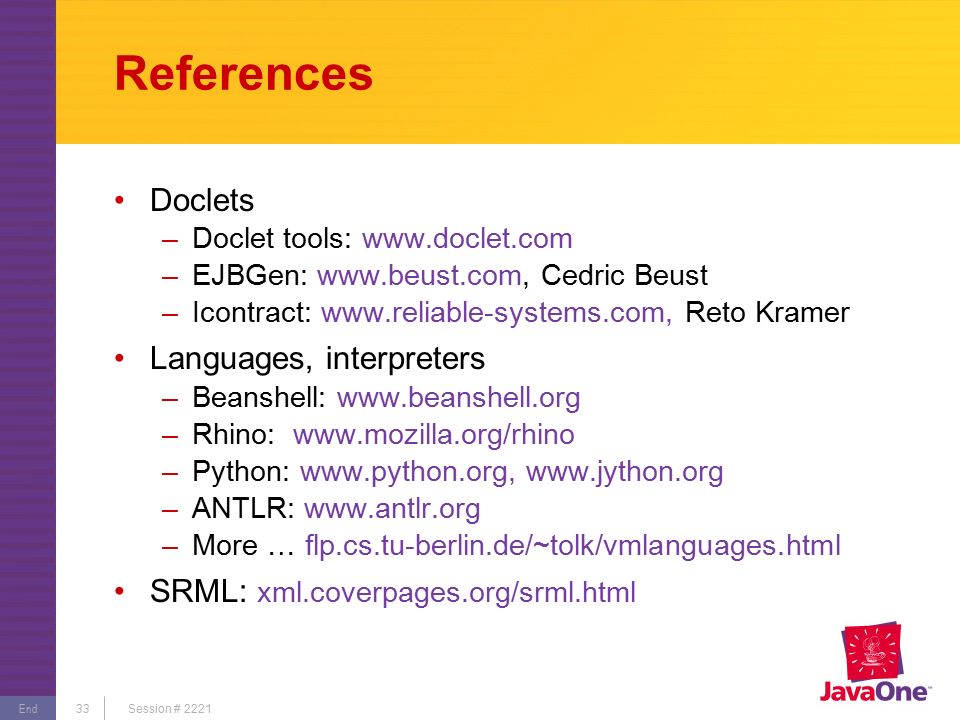

33. Session # 222133 References Doclets –Doclet tools: www.doclet.com –EJBGen: www.beust.com, Cedric Beust –Icontract: www.reliable-systems.com, Reto Kramer Languages, interpreters –Beanshell: www.beanshell.org –Rhino: www.mozilla.org/rhino –Python: www.python.org, www.jython.org –ANTLR: www.antlr.org –More … flp.cs.tu-berlin.de/~tolk/vmlanguages.html SRML: xml.coverpages.org/srml.html End

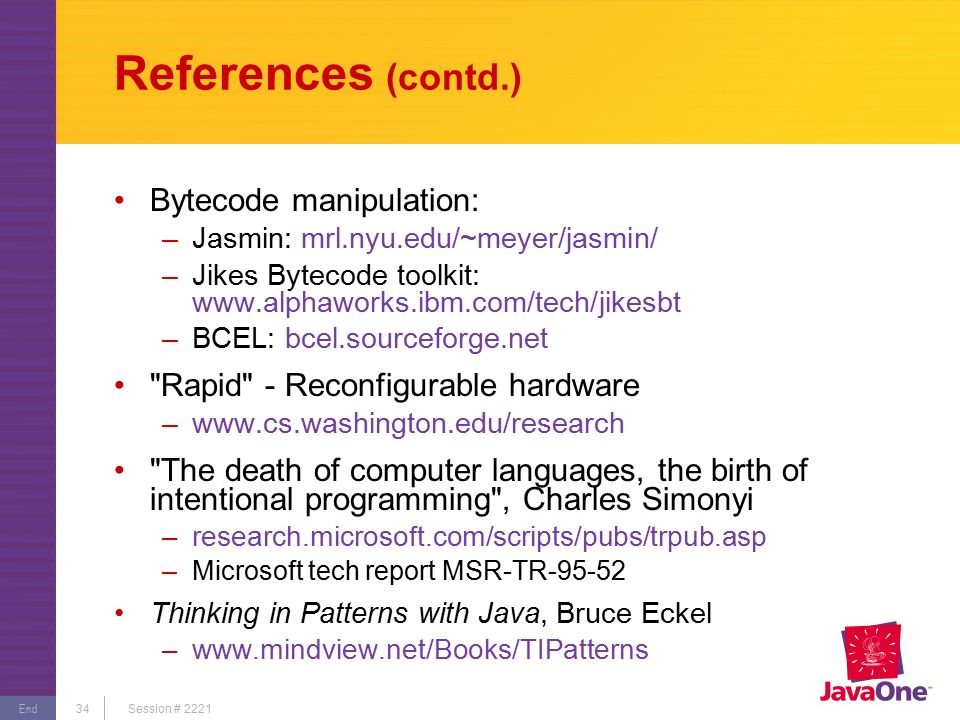

34. Session # 222134 References (contd.) Bytecode manipulation: –Jasmin: mrl.nyu.edu/~meyer/jasmin/ –Jikes Bytecode toolkit: www.alphaworks.ibm.com/tech/jikesbt –BCEL: bcel.sourceforge.net "Rapid" - Reconfigurable hardware –www.cs.washington.edu/research "The death of computer languages, the birth of intentional programming", Charles Simonyi –research.microsoft.com/scripts/pubs/trpub.asp –Microsoft tech report MSR-TR-95-52 Thinking in Patterns with Java, Bruce Eckel –www.mindview.net/Books/TIPatterns End
