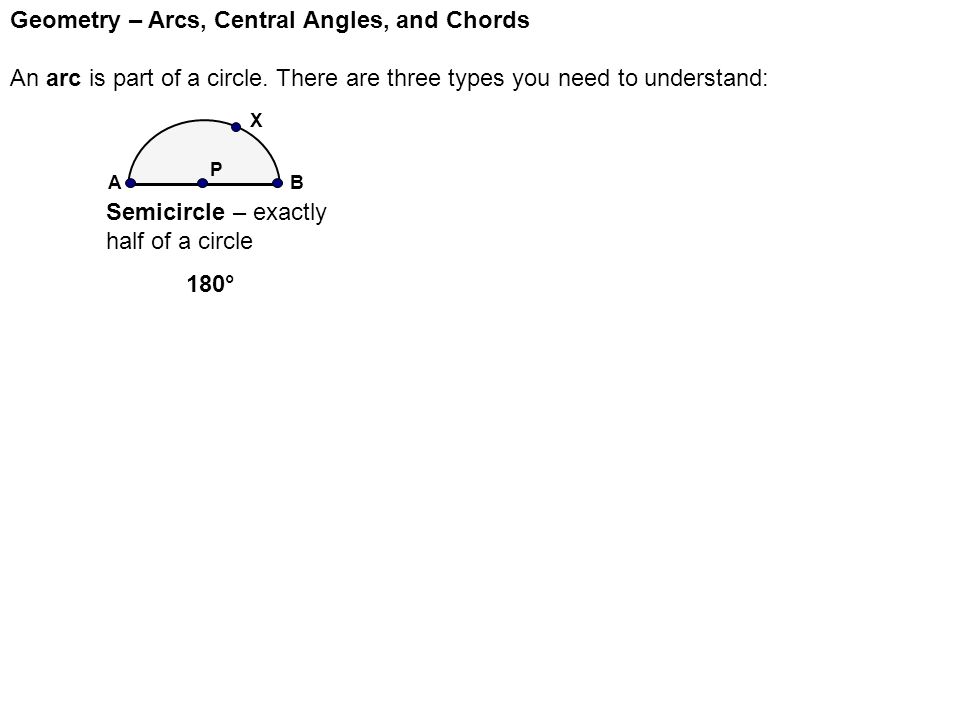

1. Geometry – Arcs, Central Angles, and Chords An arc is part of a circle. There are three types you need to understand: P Semicircle – exactly half of a circle 180° X BA

2. Geometry – Arcs, Central Angles, and Chords An arc is part of a circle. There are three types you need to understand: P P D C Minor arc – less than a semicircle ( < 180° ) Semicircle – exactly half of a circle 180° X BA

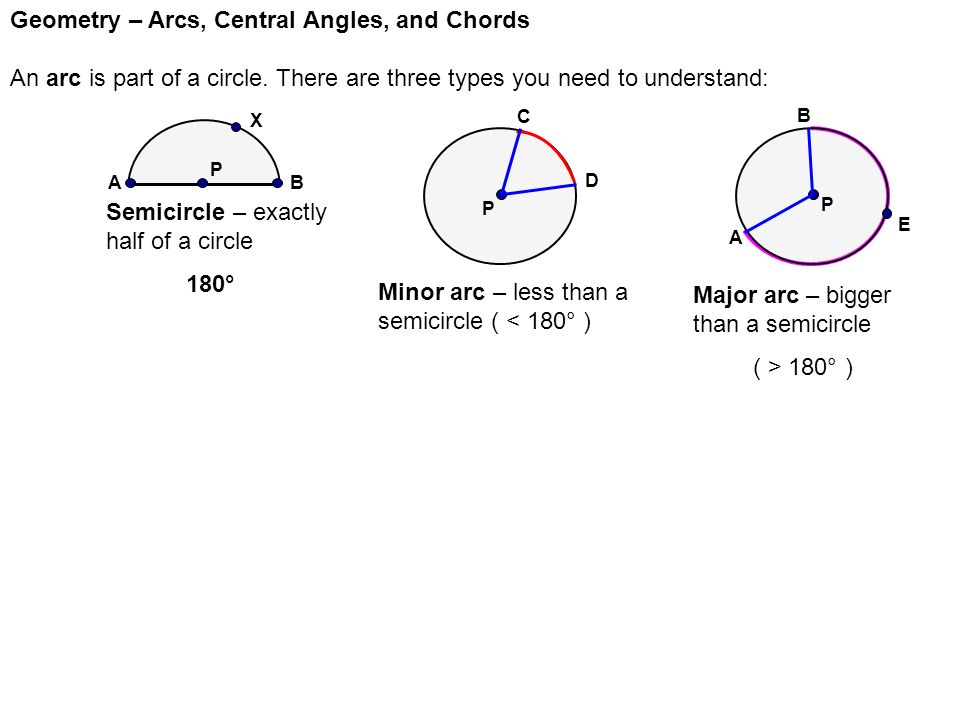

3. Geometry – Arcs, Central Angles, and Chords An arc is part of a circle. There are three types you need to understand: P P D C Minor arc – less than a semicircle ( < 180° ) Semicircle – exactly half of a circle 180° P Major arc – bigger than a semicircle ( > 180° ) X BA A B E

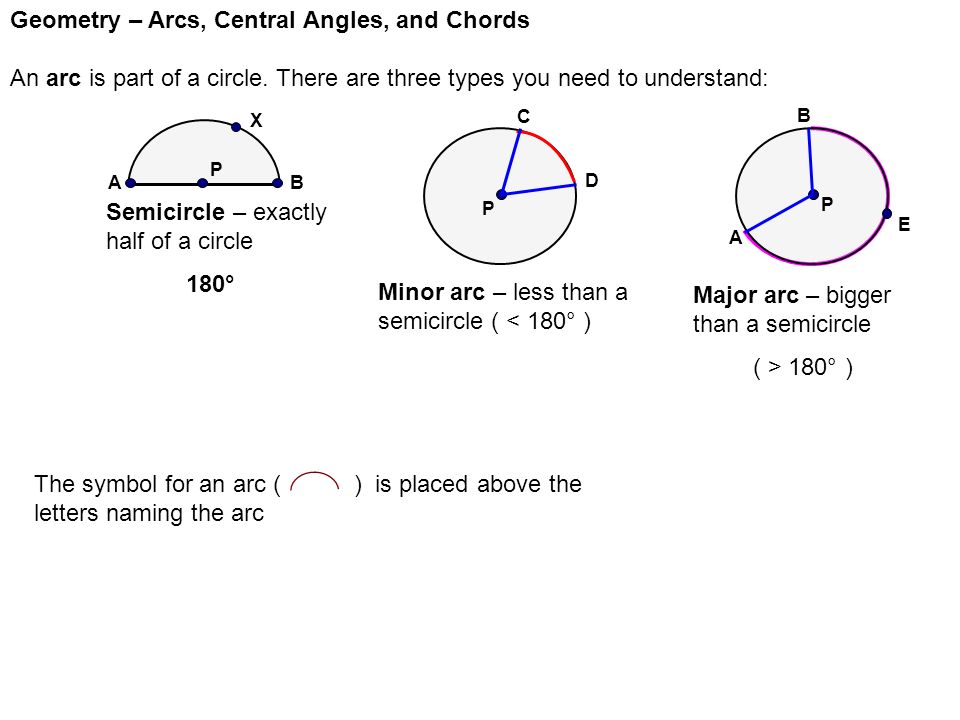

4. Geometry – Arcs, Central Angles, and Chords An arc is part of a circle. There are three types you need to understand: P P D C Minor arc – less than a semicircle ( < 180° ) Semicircle – exactly half of a circle 180° P Major arc – bigger than a semicircle ( > 180° ) X BA A B E The symbol for an arc ( ) is placed above the letters naming the arc

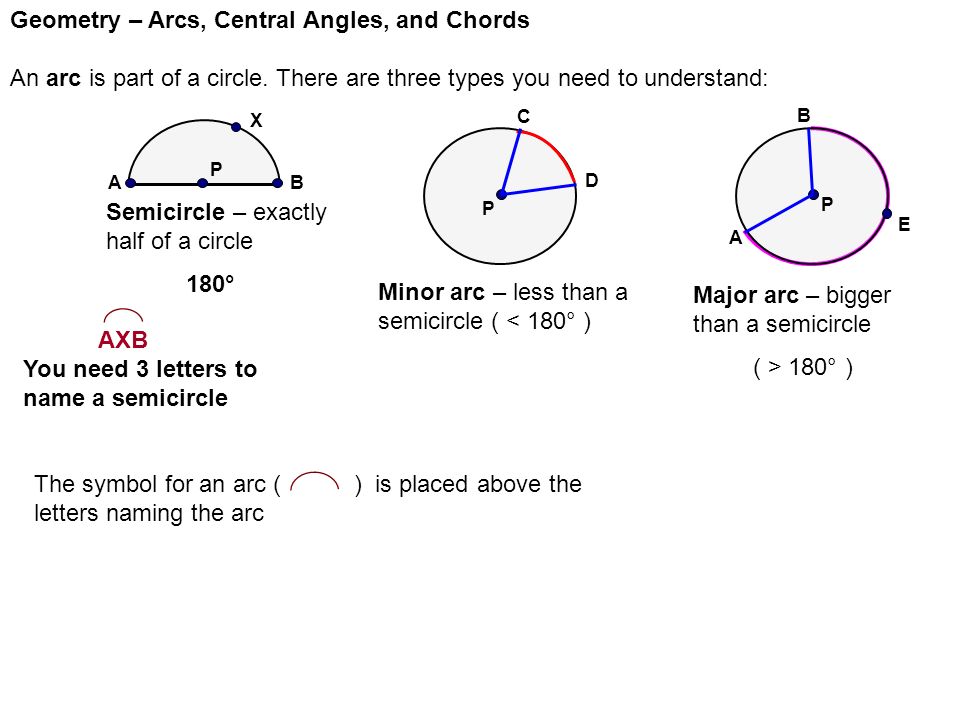

5. Geometry – Arcs, Central Angles, and Chords An arc is part of a circle. There are three types you need to understand: P P D C Minor arc – less than a semicircle ( < 180° ) Semicircle – exactly half of a circle 180° P Major arc – bigger than a semicircle ( > 180° ) X BA A B E The symbol for an arc ( ) is placed above the letters naming the arc AXB You need 3 letters to name a semicircle

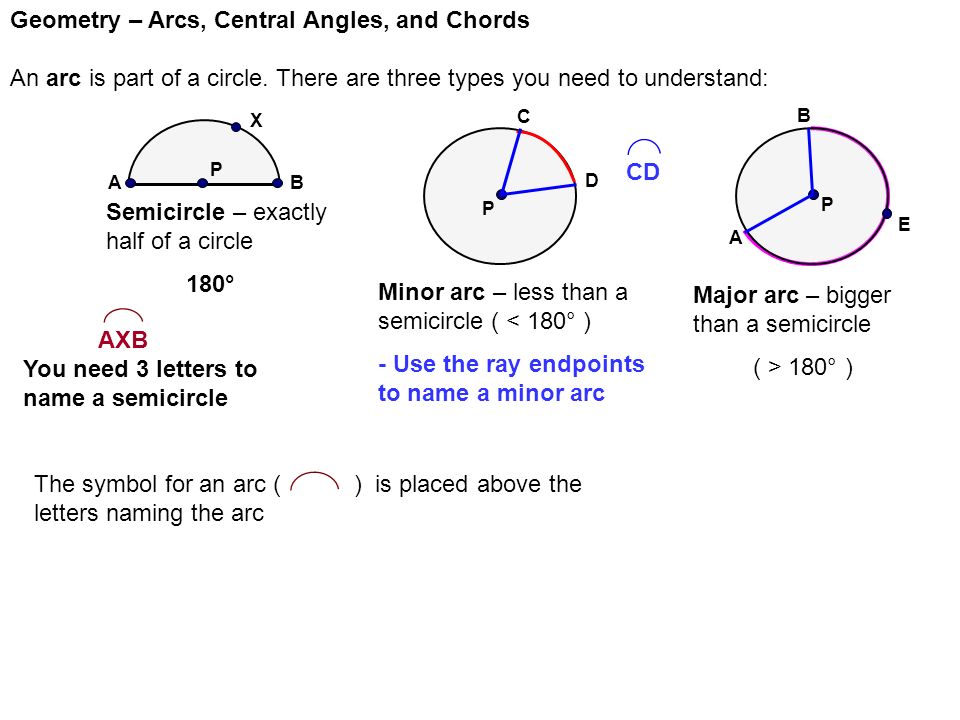

6. Geometry – Arcs, Central Angles, and Chords An arc is part of a circle. There are three types you need to understand: P P D C Minor arc – less than a semicircle ( < 180° ) - Use the ray endpoints to name a minor arc Semicircle – exactly half of a circle 180° P Major arc – bigger than a semicircle ( > 180° ) X BA A B E The symbol for an arc ( ) is placed above the letters naming the arc AXB You need 3 letters to name a semicircle CD

7. Geometry – Arcs, Central Angles, and Chords An arc is part of a circle. There are three types you need to understand: P P D C Minor arc – less than a semicircle ( < 180° ) - Use the ray endpoints to name a minor arc Semicircle – exactly half of a circle 180° P Major arc – bigger than a semicircle ( > 180° ) - Use the ray endpoints and a point in between to name a major arc X BA A B E The symbol for an arc ( ) is placed above the letters naming the arc AXB You need 3 letters to name a semicircle CD BEA

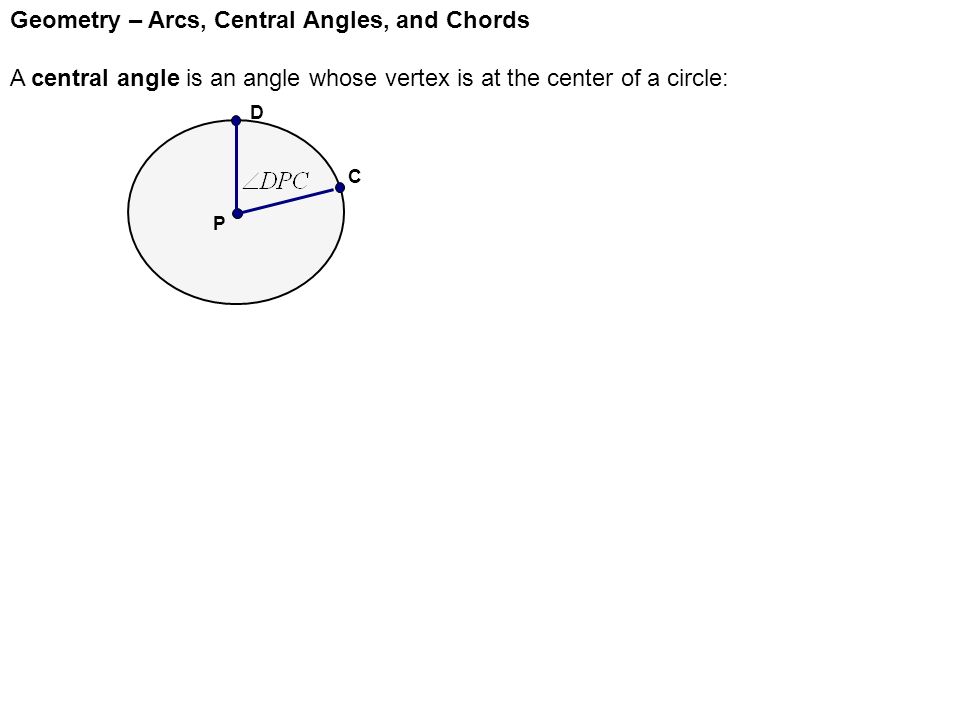

8. Geometry – Arcs, Central Angles, and Chords A central angle is an angle whose vertex is at the center of a circle: P D C

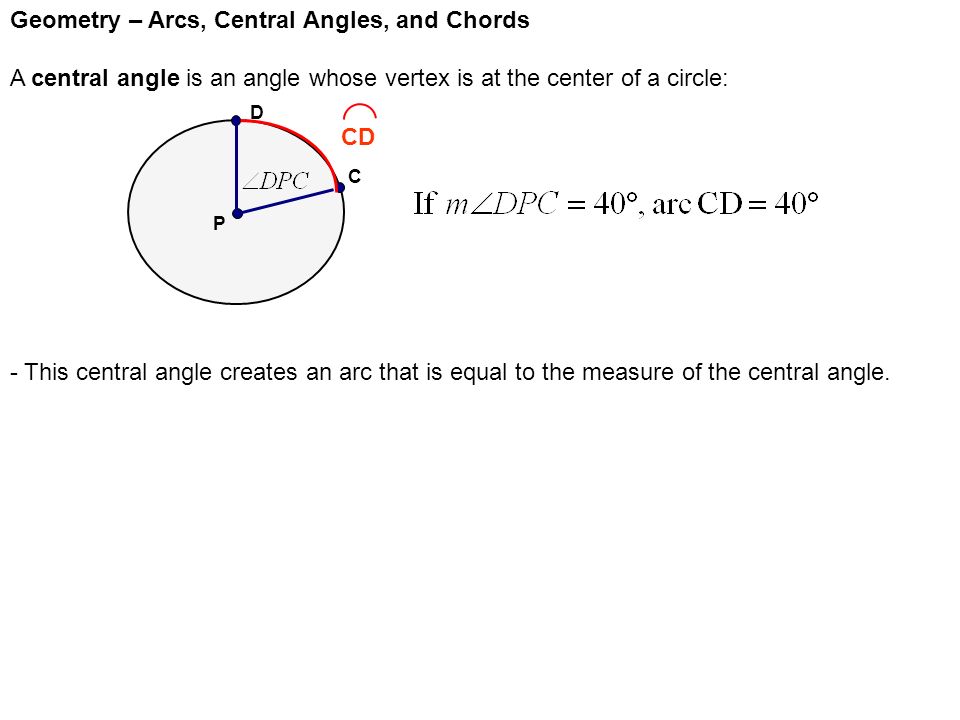

9. Geometry – Arcs, Central Angles, and Chords A central angle is an angle whose vertex is at the center of a circle: P D C - This central angle creates an arc that is equal to the measure of the central angle. CD

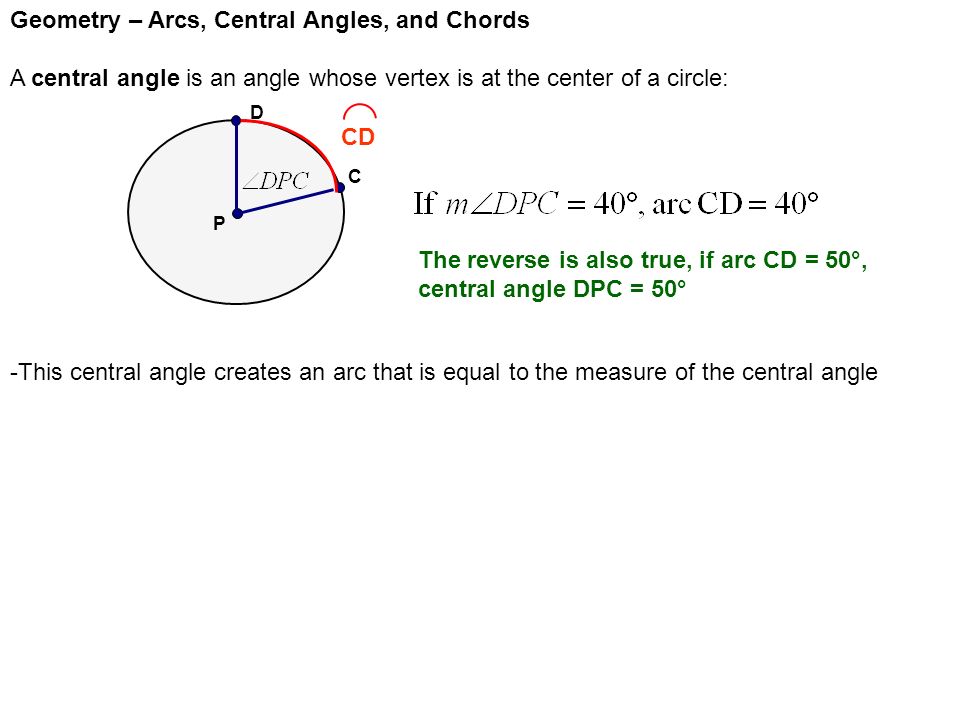

10. Geometry – Arcs, Central Angles, and Chords A central angle is an angle whose vertex is at the center of a circle: P D C -This central angle creates an arc that is equal to the measure of the central angle CD The reverse is also true, if arc CD = 50°, central angle DPC = 50°

11. Geometry – Arcs, Central Angles, and Chords P D C Chord DC separates circle P into two arcs, minor arc DC, and major arc DYC. Y

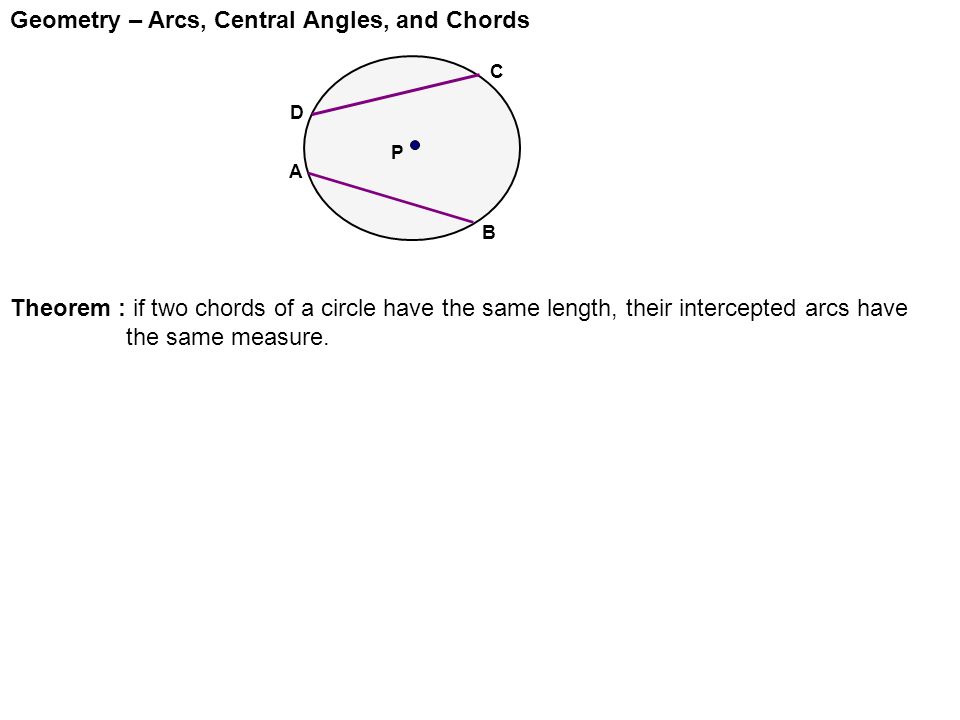

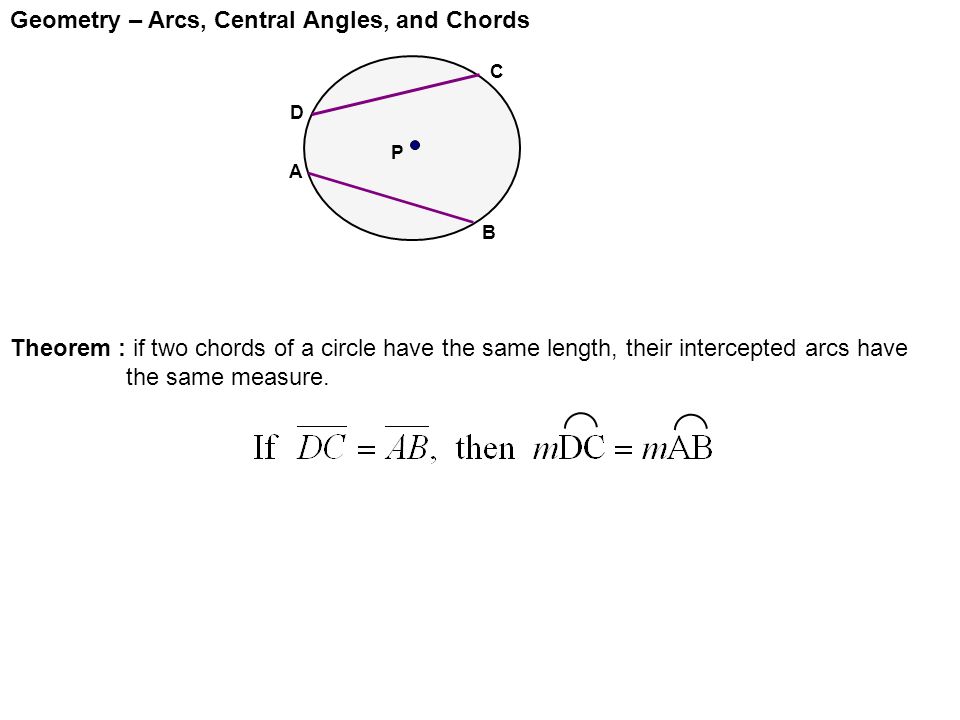

12. Geometry – Arcs, Central Angles, and Chords P D C Theorem : if two chords of a circle have the same length, their intercepted arcs have the same measure. A B

13. Geometry – Arcs, Central Angles, and Chords P D C Theorem : if two chords of a circle have the same length, their intercepted arcs have the same measure. A B

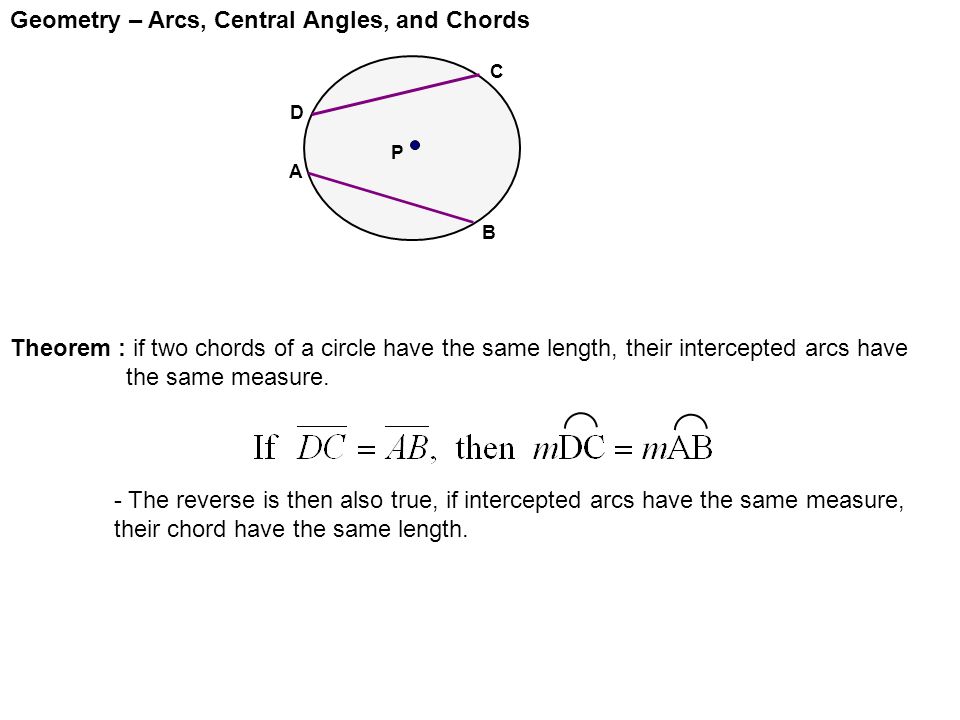

14. Geometry – Arcs, Central Angles, and Chords P D C Theorem : if two chords of a circle have the same length, their intercepted arcs have the same measure. A B - The reverse is then also true, if intercepted arcs have the same measure, their chord have the same length.

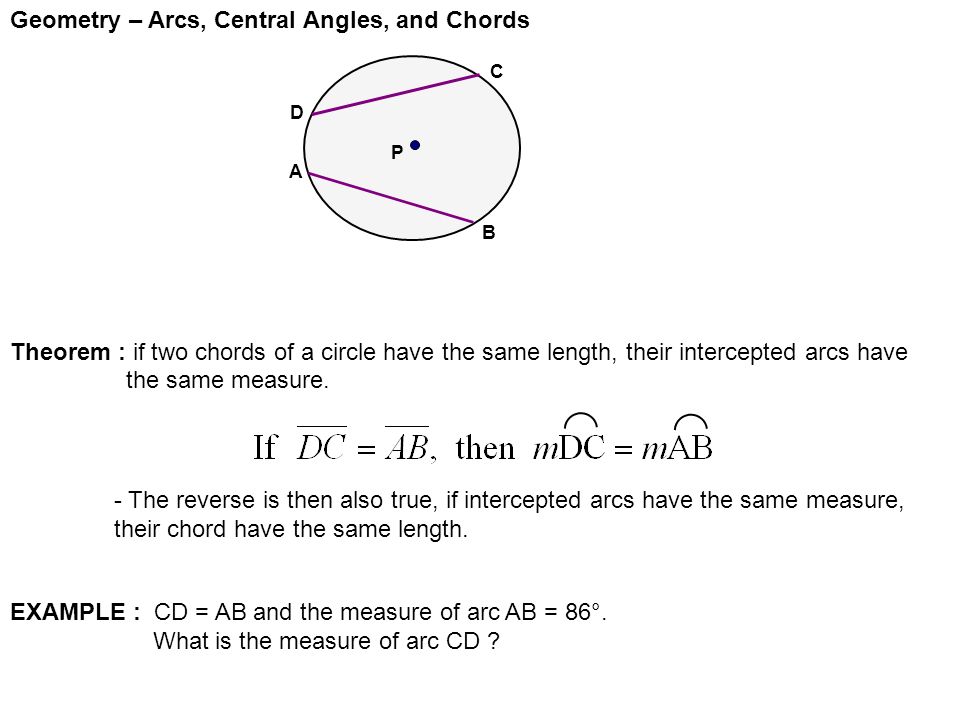

15. Geometry – Arcs, Central Angles, and Chords P D C Theorem : if two chords of a circle have the same length, their intercepted arcs have the same measure. A B - The reverse is then also true, if intercepted arcs have the same measure, their chord have the same length. EXAMPLE : CD = AB and the measure of arc AB = 86°. What is the measure of arc CD ?

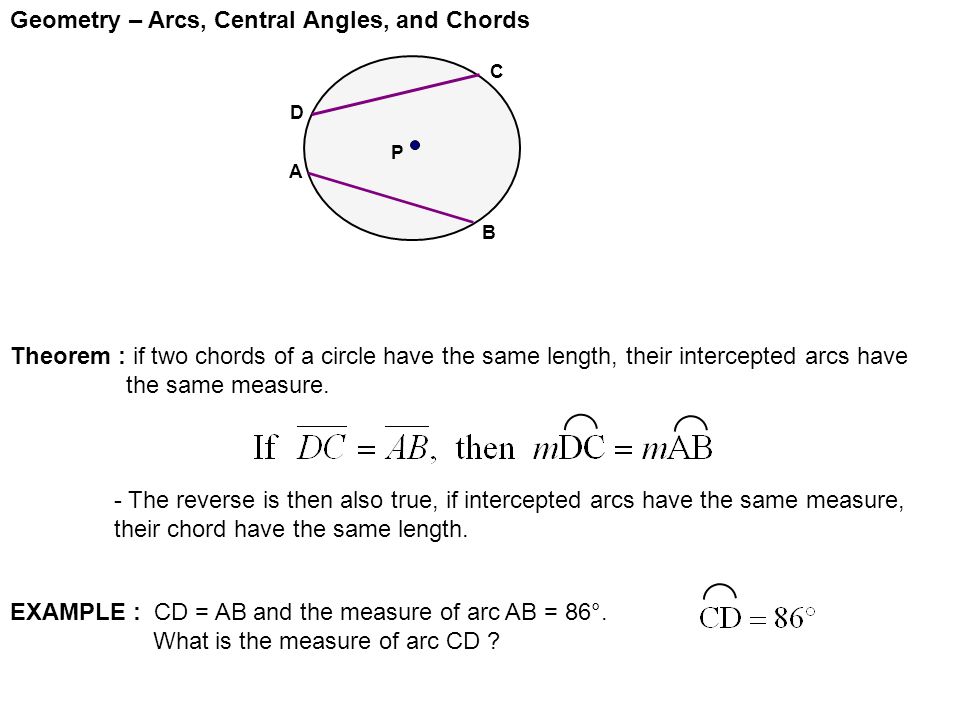

16. Geometry – Arcs, Central Angles, and Chords P D C Theorem : if two chords of a circle have the same length, their intercepted arcs have the same measure. A B - The reverse is then also true, if intercepted arcs have the same measure, their chord have the same length. EXAMPLE : CD = AB and the measure of arc AB = 86°. What is the measure of arc CD ?

17. Geometry – Arcs, Central Angles, and Chords P D C Theorem : chords that are equidistant from the center have equal measure A B X Y

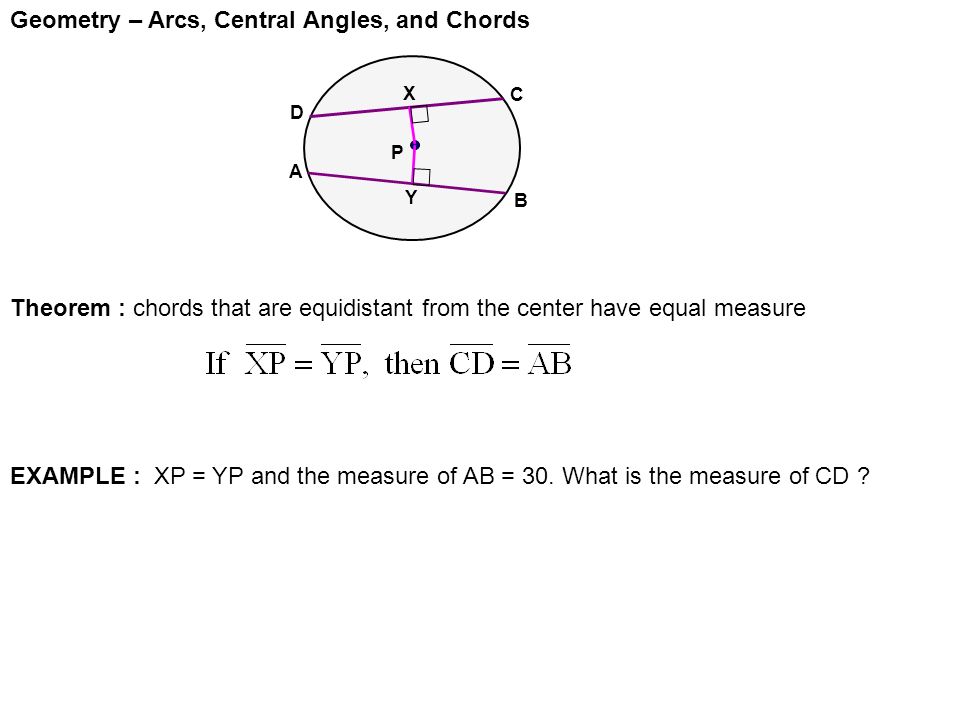

18. Geometry – Arcs, Central Angles, and Chords P D C Theorem : chords that are equidistant from the center have equal measure A B X Y EXAMPLE : XP = YP and the measure of AB = 30. What is the measure of CD ?

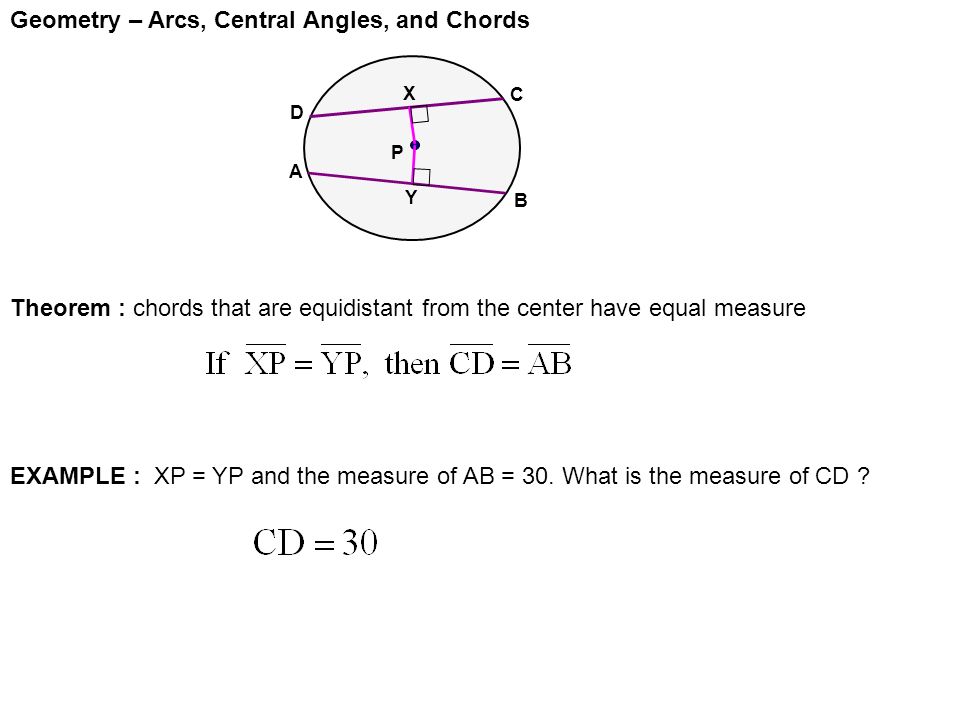

19. Geometry – Arcs, Central Angles, and Chords P D C Theorem : chords that are equidistant from the center have equal measure A B X Y EXAMPLE : XP = YP and the measure of AB = 30. What is the measure of CD ?

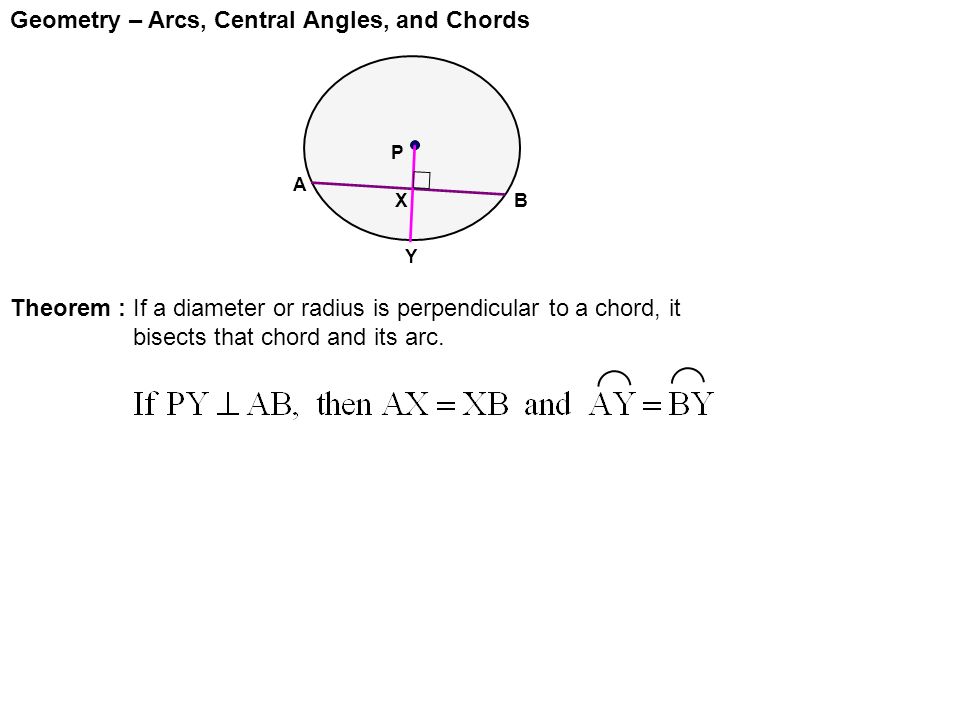

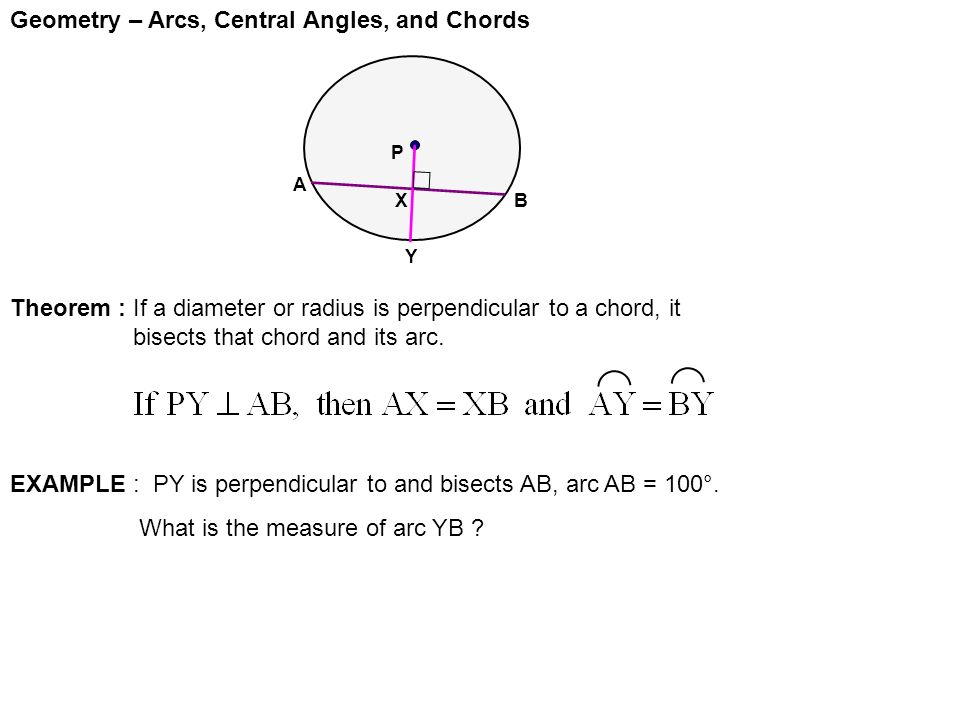

20. Geometry – Arcs, Central Angles, and Chords P Theorem : If a diameter or radius is perpendicular to a chord, it bisects that chord and its arc. A B Y X

21. Geometry – Arcs, Central Angles, and Chords P Theorem : If a diameter or radius is perpendicular to a chord, it bisects that chord and its arc. A B Y X EXAMPLE : PY is perpendicular to and bisects AB, arc AB = 100°. What is the measure of arc YB ?

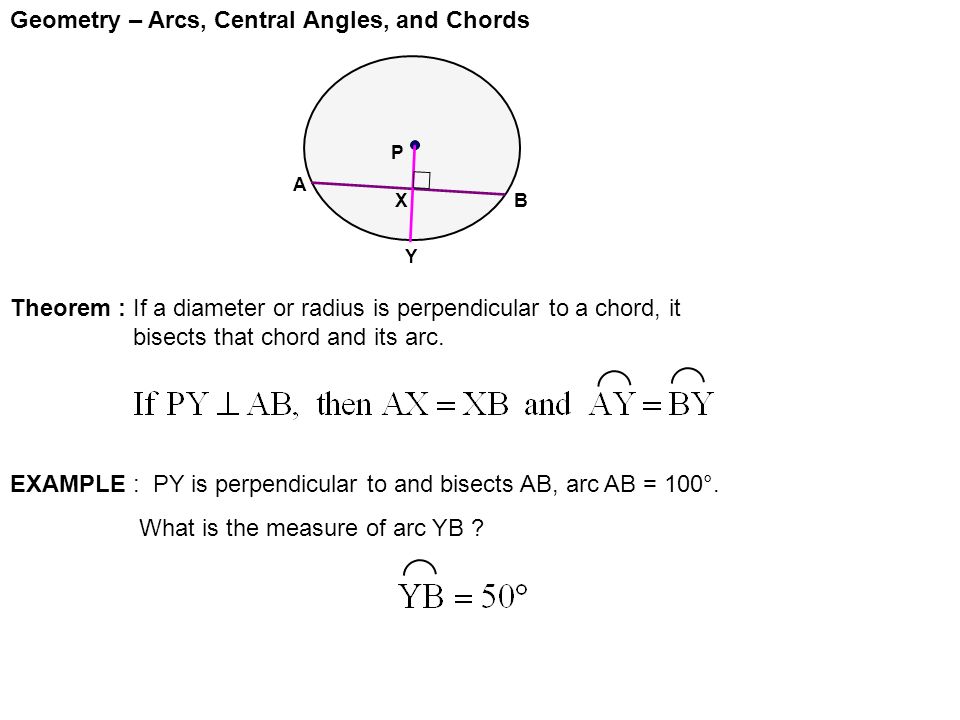

22. Geometry – Arcs, Central Angles, and Chords P Theorem : If a diameter or radius is perpendicular to a chord, it bisects that chord and its arc. A B Y X EXAMPLE : PY is perpendicular to and bisects AB, arc AB = 100°. What is the measure of arc YB ?
