1. Chapter 9 Kiara, Chelsea, Angus

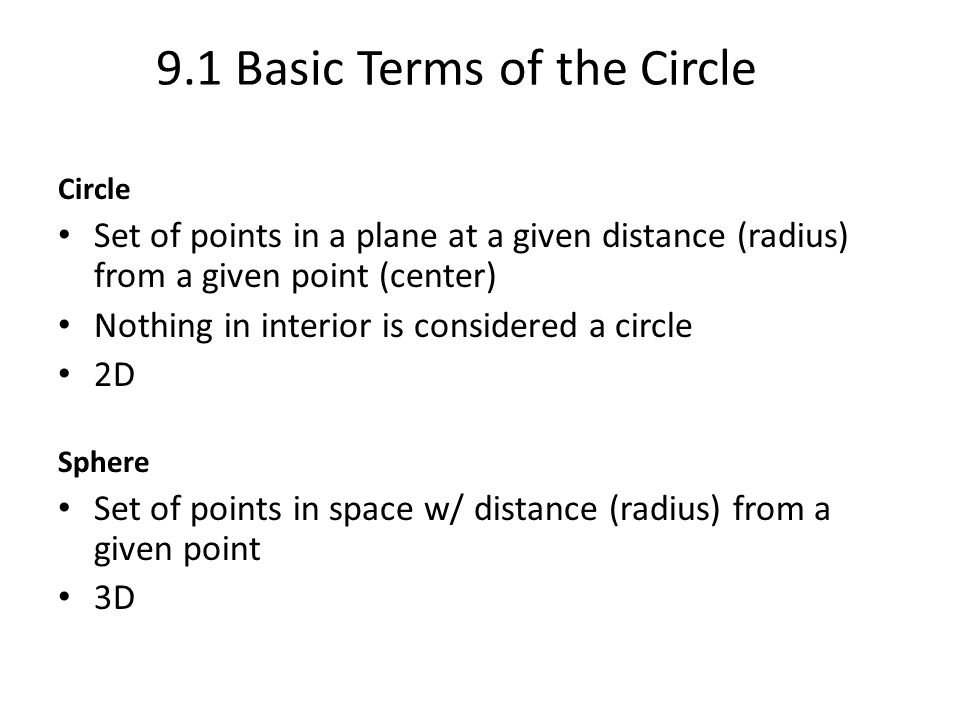

2. 9.1 Basic Terms of the Circle Circle Set of points in a plane at a given distance (radius) from a given point (center) Nothing in interior is considered a circle 2D Sphere Set of points in space w/ distance (radius) from a given point 3D

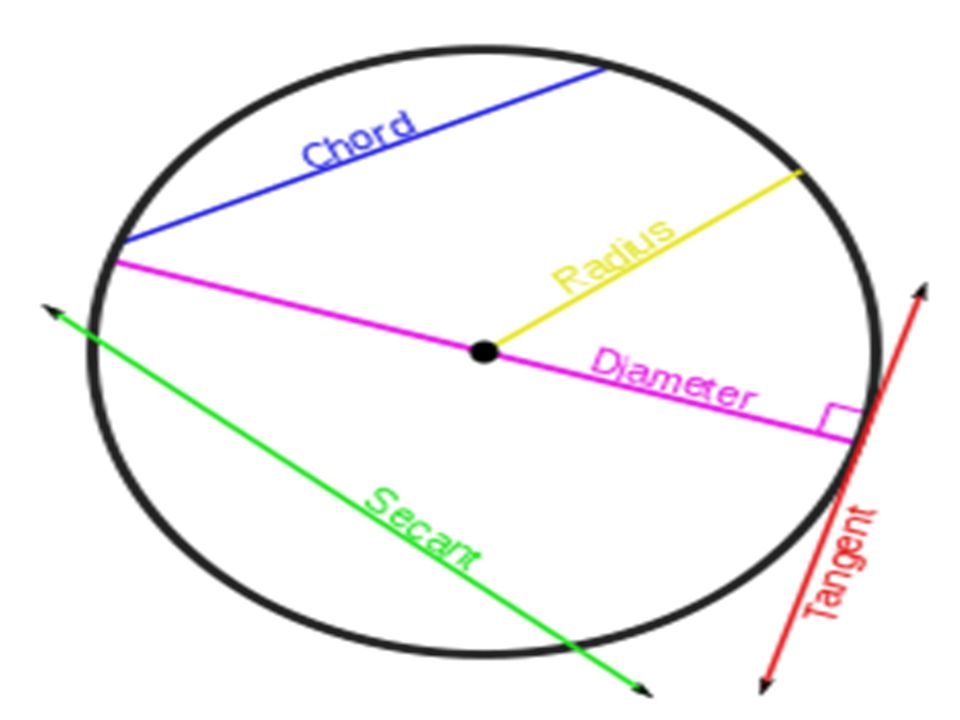

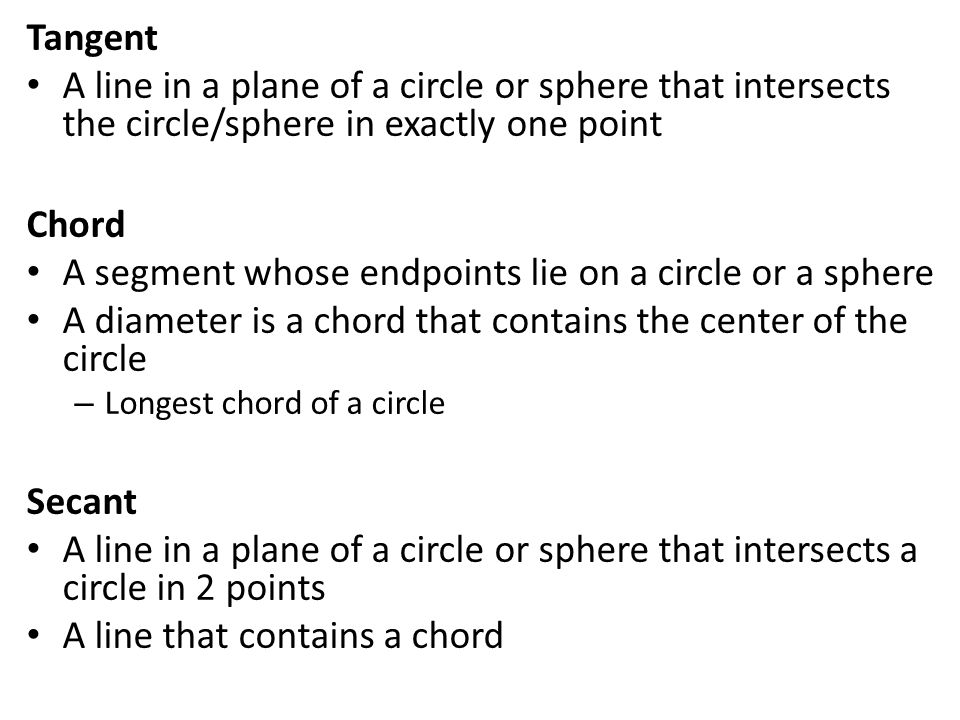

3. Tangent A line in a plane of a circle or sphere that intersects the circle/sphere in exactly one point Chord A segment whose endpoints lie on a circle or a sphere A diameter is a chord that contains the center of the circle – Longest chord of a circle Secant A line in a plane of a circle or sphere that intersects a circle in 2 points A line that contains a chord

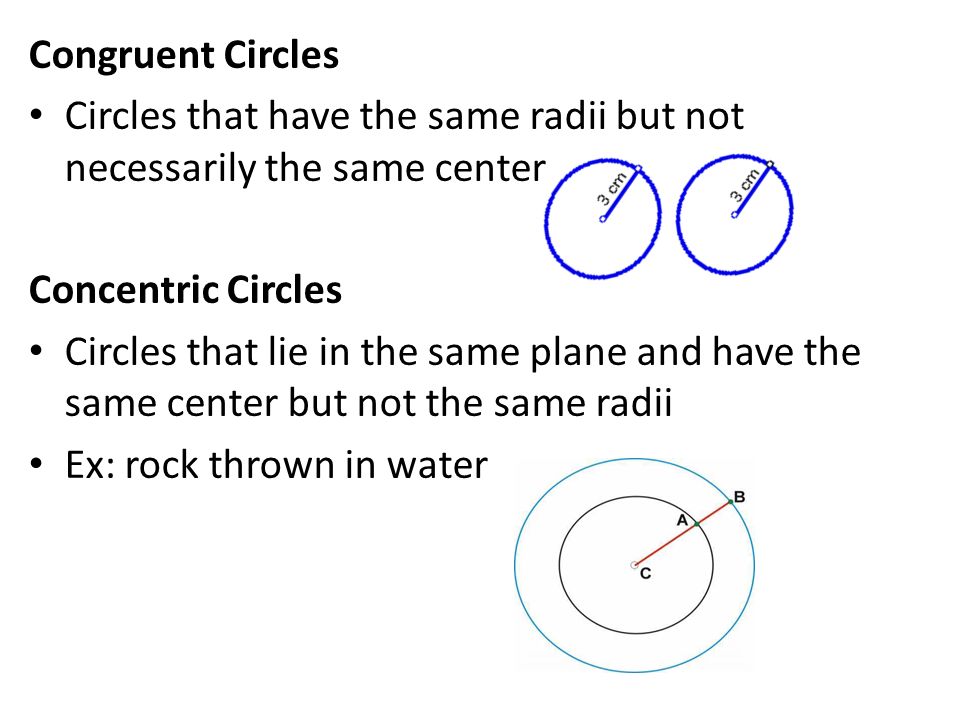

5. Congruent Circles Circles that have the same radii but not necessarily the same center Concentric Circles Circles that lie in the same plane and have the same center but not the same radii Ex: rock thrown in water

6. Polygons and Circles A polygon is inscribed in a circle or the circle is circumscribed about the polygon when each vertex of the polygon lies on the circle

7. When 2 circles do not touch Can construct 4 common tangents – 2 External Tangents – 2 Internal Tangents Internal line of center of circle When 2 circles touch externally Can construct 3 tangents – 2 external tangents – 1 internal tangent

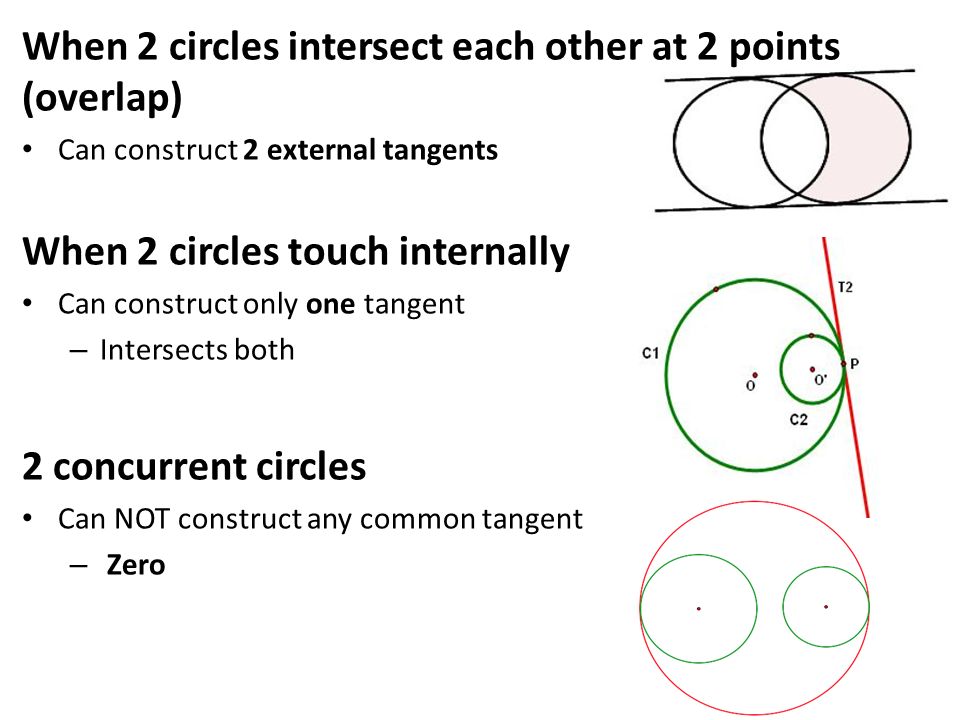

8. When 2 circles intersect each other at 2 points (overlap) Can construct 2 external tangents When 2 circles touch internally Can construct only one tangent – Intersects both 2 concurrent circles Can NOT construct any common tangent – Zero

9. 9.2 Tangents Tangent Perpendicular Theorem If a line is tangent to a circle, then the line is perpendicular to the radius drawn to the point of tangency Angle <ATO = 90

10. Corollary Tangents to a circle from a point outside the circle are congruent ≅ Prove by H-L and CPCTC C. Tangent Perpendicular Theorem If a line is perpendicular to the radius at its outer end point, then the line is tangent to the circle

11. Name each of the following: Two radii: BO, OD A secant : AB Two chords: AB, BD A diameter : BD A tangent: ED A point of tangency: D 14 7 B and D are the centers of the circles. Find the length of AC

12. 9-3 : Arcs and Central Angles Central Angle ● An angle with its vertex at the center of the circle Arc ● An unbroken part of the circle Minor Arc ● Points in the interior of central angle ● Named by endpoints Major Arc ● 2 points & remaining points of center circle ● Named by 3 points

13. ● If 2 points are the endpoints of a diameter then 2 arcs are called semicircles Measure of a Semicircle ● M = 180 Measure of a minor angle = The measure of its central angle Measure of a Major Arc ● 360 – measure of minor arc Semicircles

14. Adjacent Arcs ● Arcs that have exactly one point in common Arc Addition Postulate ● The measure of the arc formed by 2 adjacent arcs is the sum of the measures of these 2 arcs Congruent Arcs Arcs, in the same circle, or in congruent circles that have equal measures

15. Th. 9.3 In the same circle or in congruent circles, two minor arcs are congruent if and only if their central angles are ≅

16. Problems 9-3 mCB 6070??? M<1??56?? M<2???25x

17. 9.4 Arcs and Chords: Theorem 9.4 –In the Same Circle or in congruent circles congruent arcs have congruent chords – In the Same Circle or in congruent circles, congruent chords have congruent arcs Theorem 9.5 – A diameter that is perpendicular to a chord bisects the chord & its arc Theorem 9.6 – In the same circle or in congruent circles, chords equally distant from the center are congruent – In the same circle or in congruent circles, congruent chords are equally distant from the center

18. Practice Problems 9-4

19. 9.5 Circles – Inscribed Angles Inscribed angle : Angle with vertex on circle and sides which are chords of the circle. Intercepted Arc The points on the circle in the interior of an angle of the circle.

20. Theorem 9-7 The measure of the inscribed angle is half as much as the intercepted arc Corollary 1: If two inscribed angles intercept the same arc or congruent arcs, then the angles are congruent

21. Example … Find X : Since X is an inscribed arc, then the measure of the angle is ½ the measure of the arc So, x = 54 Try it! Find X:

22. Corollary 2: An angle inscribed in a semicircle is a right angle Corollary 3: The opposite angles of an inscribed quadrilateral are supplementary Corollary 4: The angle formed by a tangent and a chord equal 1/2 the measure of the intercepted arc

23. 9.6 Other Angles Angle Formed by 2 chords: Is the average of the 2 arcs M<X = (mBD + mCA) ÷ 2 Angle Formed by 2 secants Is the difference of the 2 arcs m<X = (mAB – mCD) ÷ 2

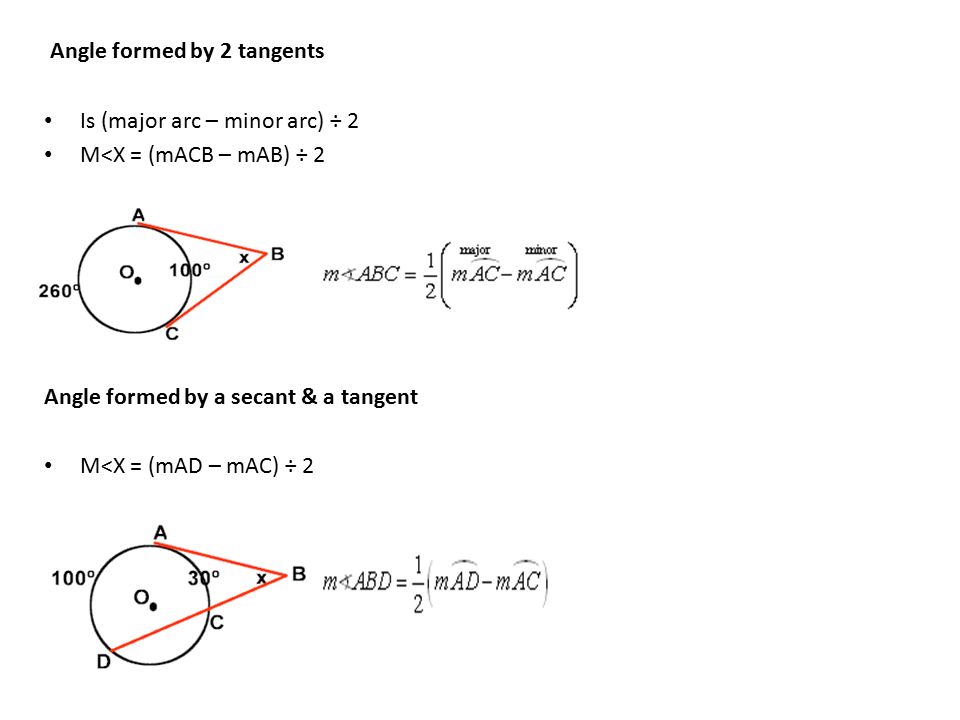

24. Angle formed by 2 tangents Is (major arc – minor arc) ÷ 2 M<X = (mACB – mAB) ÷ 2 A Angle formed by a secant & a tangent M<X = (mAD – mAC) ÷ 2

25. Example Problems… Find X:

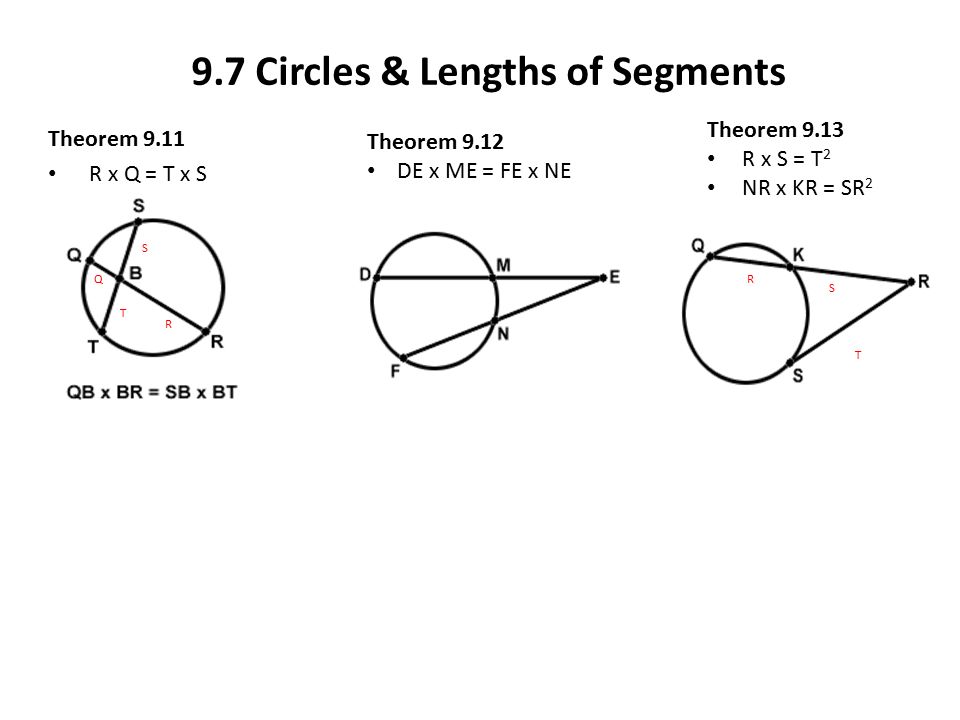

26. 9.7 Circles & Lengths of Segments Theorem 9.11 R x Q = T x S R S T Q Theorem 9.12 DE x ME = FE x NE Theorem 9.13 R x S = T 2 NR x KR = SR 2 R S T

27. Try it! Find X:
