2. and Objective: Find the measures of central angles and arcs.

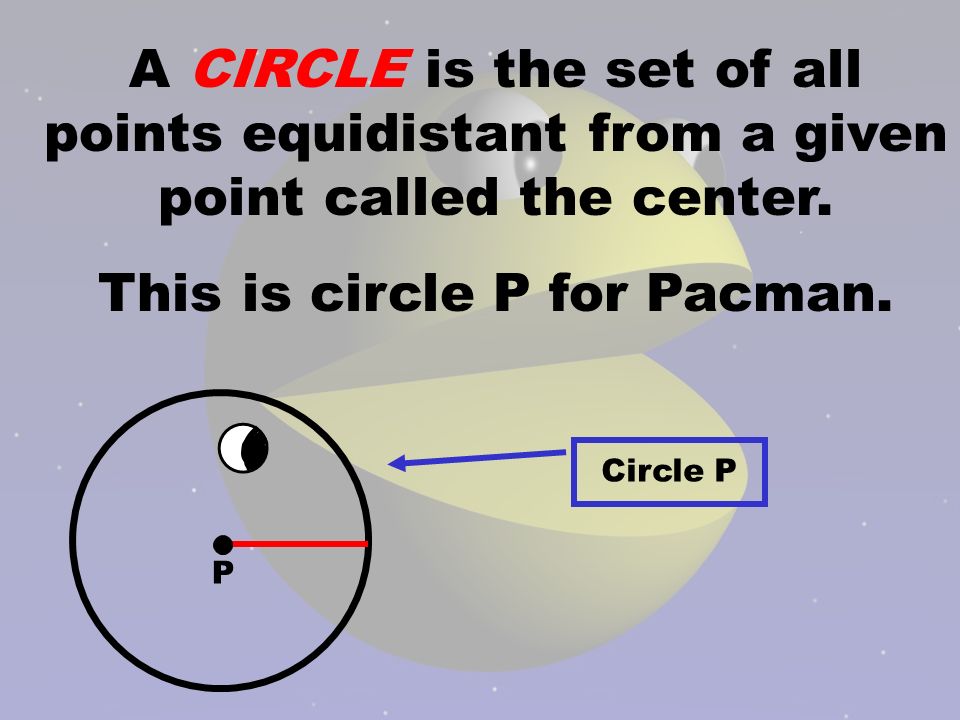

3. A CIRCLE is the set of all points equidistant from a given point called the center. This is circle P for Pacman. Circle P P

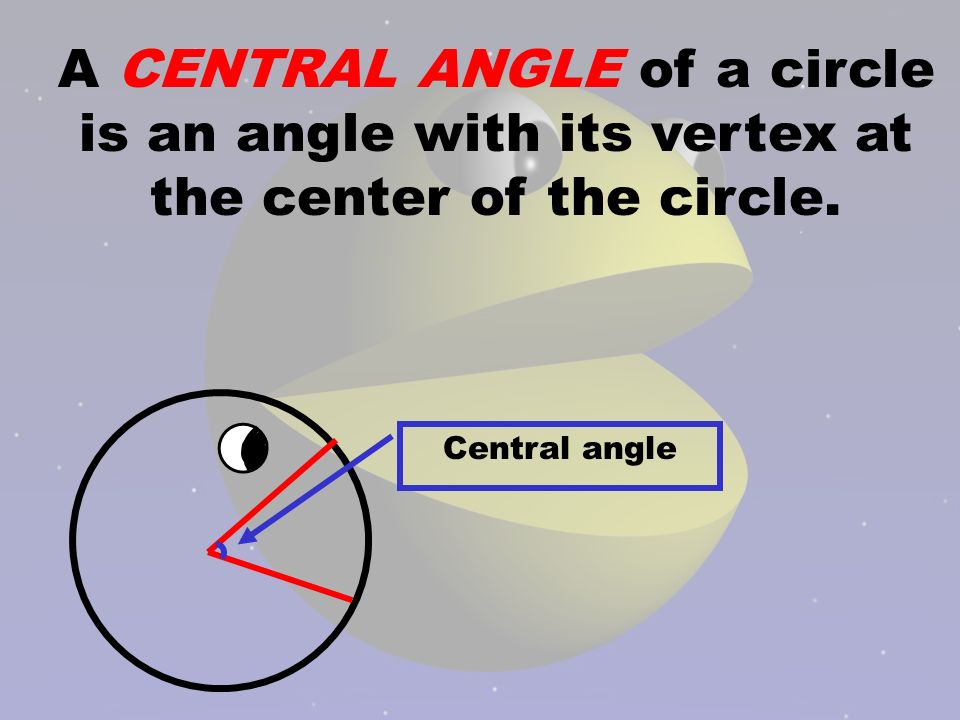

4. A CENTRAL ANGLE of a circle is an angle with its vertex at the center of the circle. Central angle

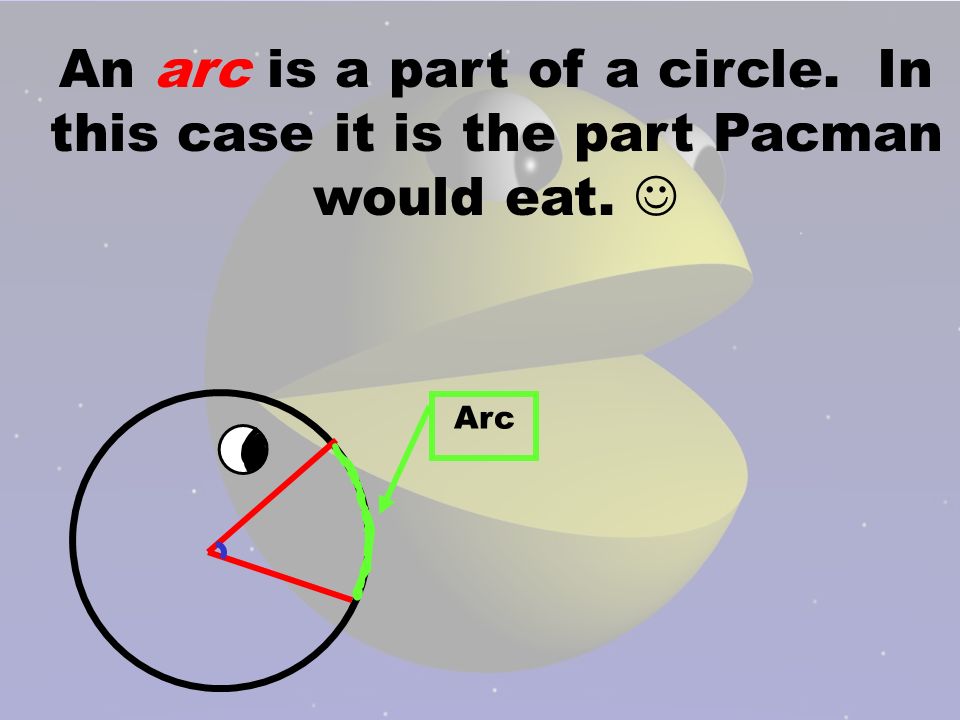

5. An arc is a part of a circle. In this case it is the part Pacman would eat. Arc

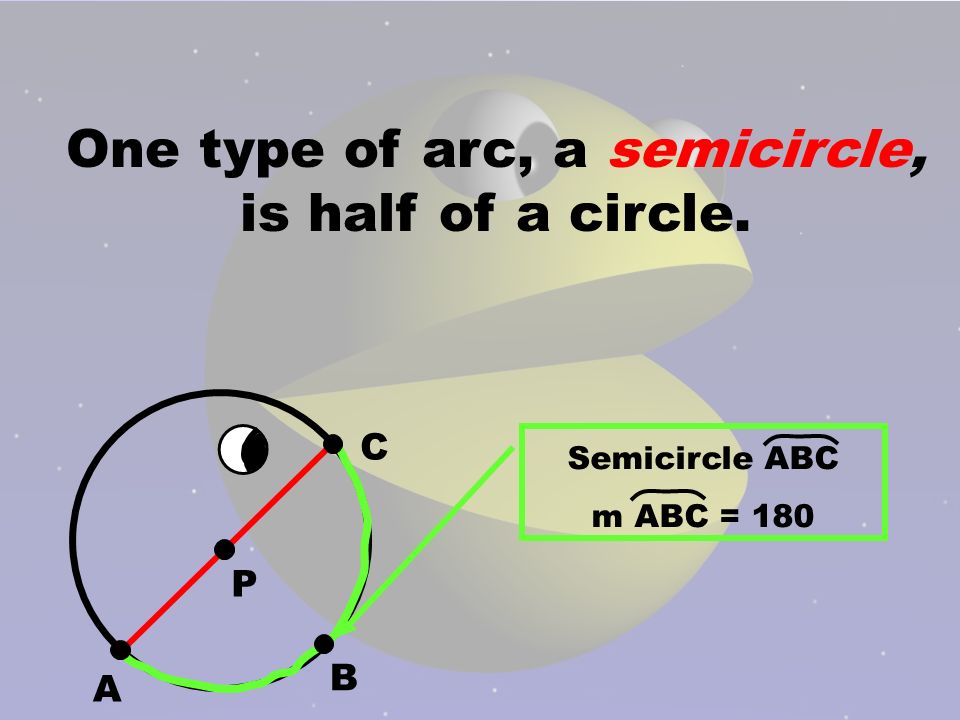

6. One type of arc, a semicircle, is half of a circle. P A C Semicircle ABC m ABC = 180 B

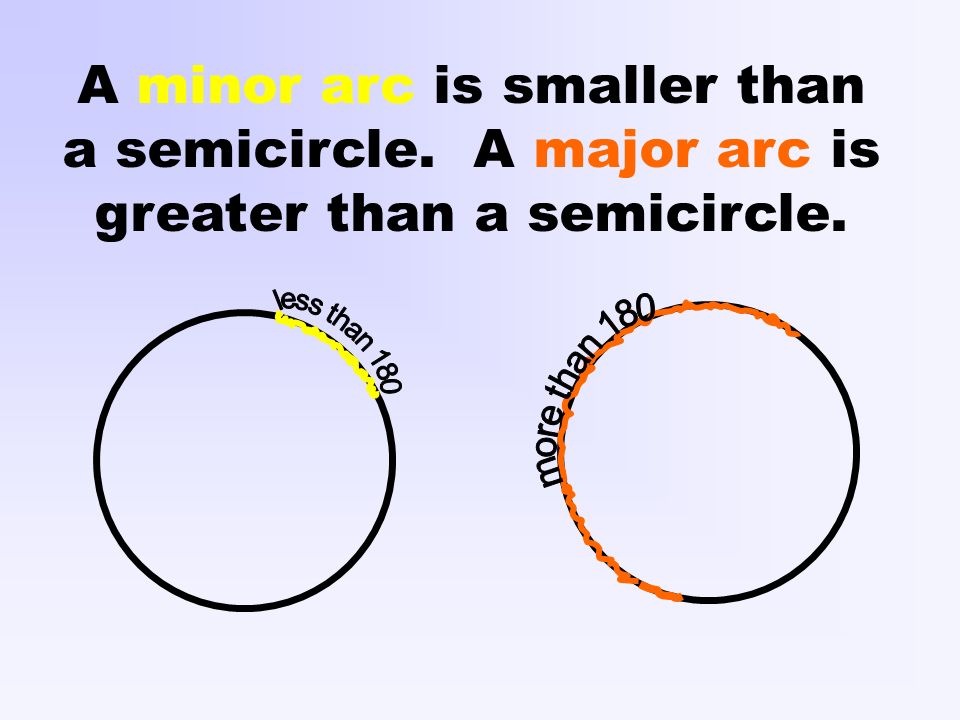

7. A minor arc is smaller than a semicircle. A major arc is greater than a semicircle.

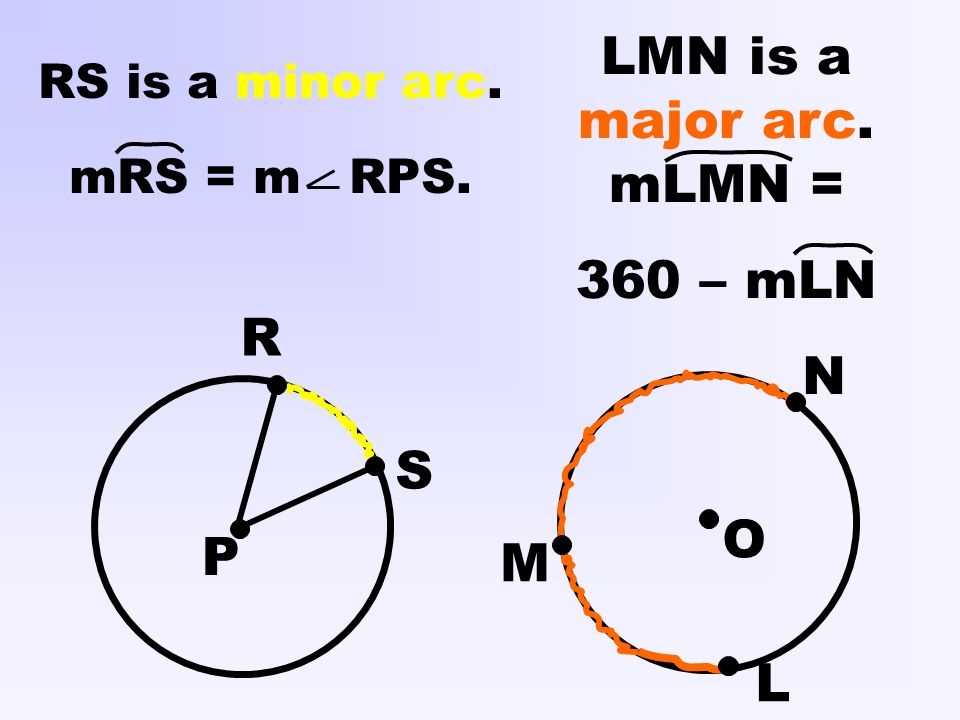

8. R S P L N M RS is a minor arc. mRS = m RPS. O LMN is a major arc. mLMN = 360 – mLN

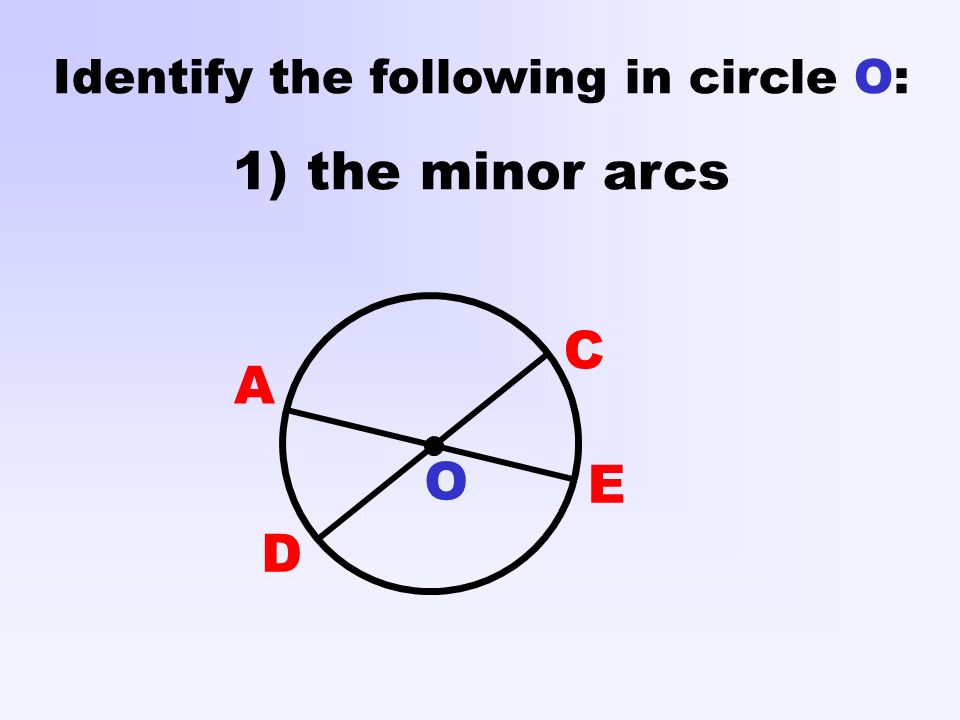

9. A C D Identify the following in circle O: 1) the minor arcs E O

10. A C D Identify the following in circle O: 2) the semicircles E O

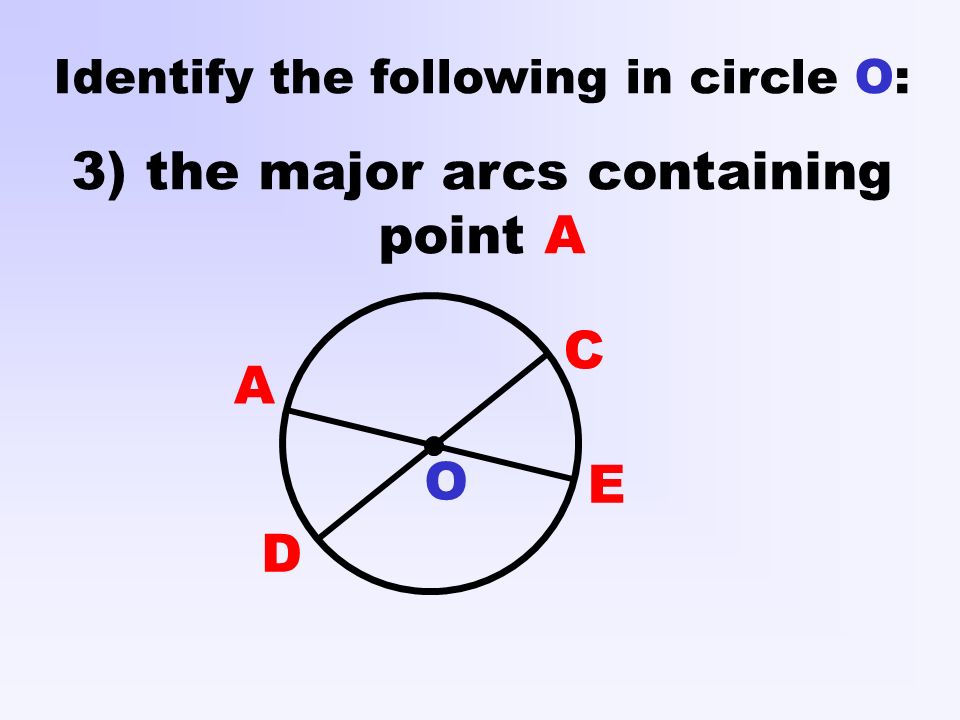

11. A C D Identify the following in circle O: 3) the major arcs containing point A E O

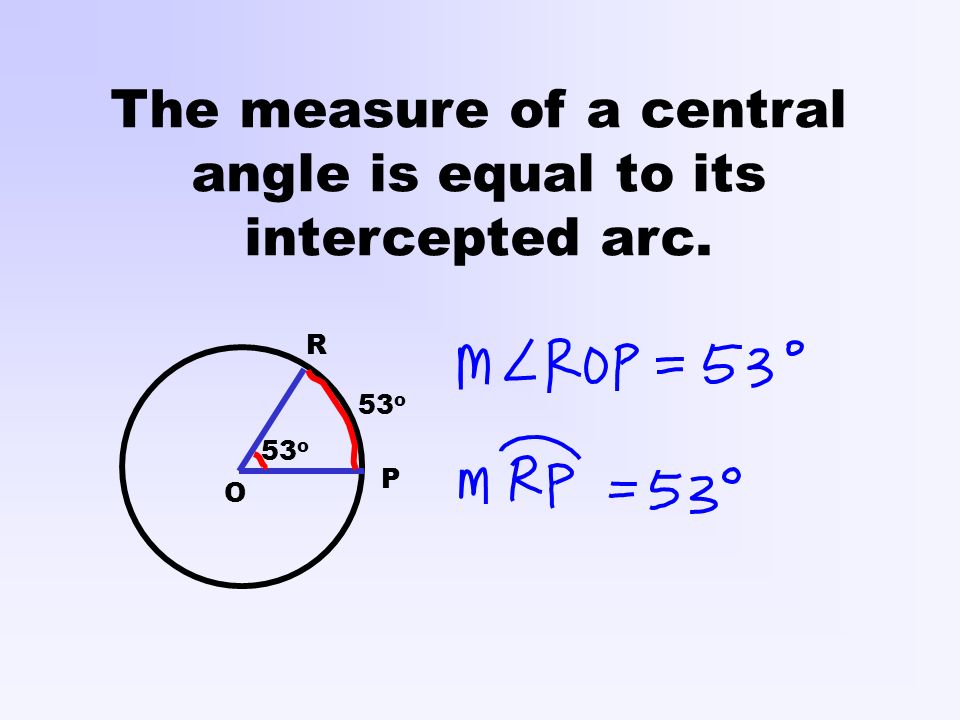

12. The measure of a central angle is equal to its intercepted arc. 53 o O P R

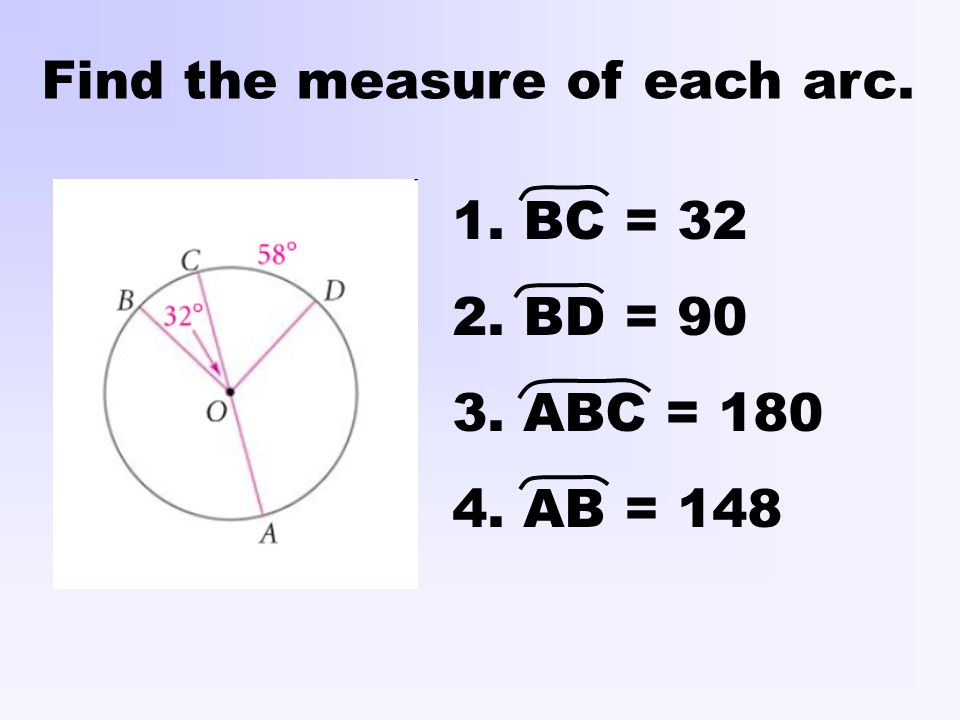

13. Find the measure of each arc. 1. BC = 32 2. BD = 90 3. ABC = 180 4. AB = 148

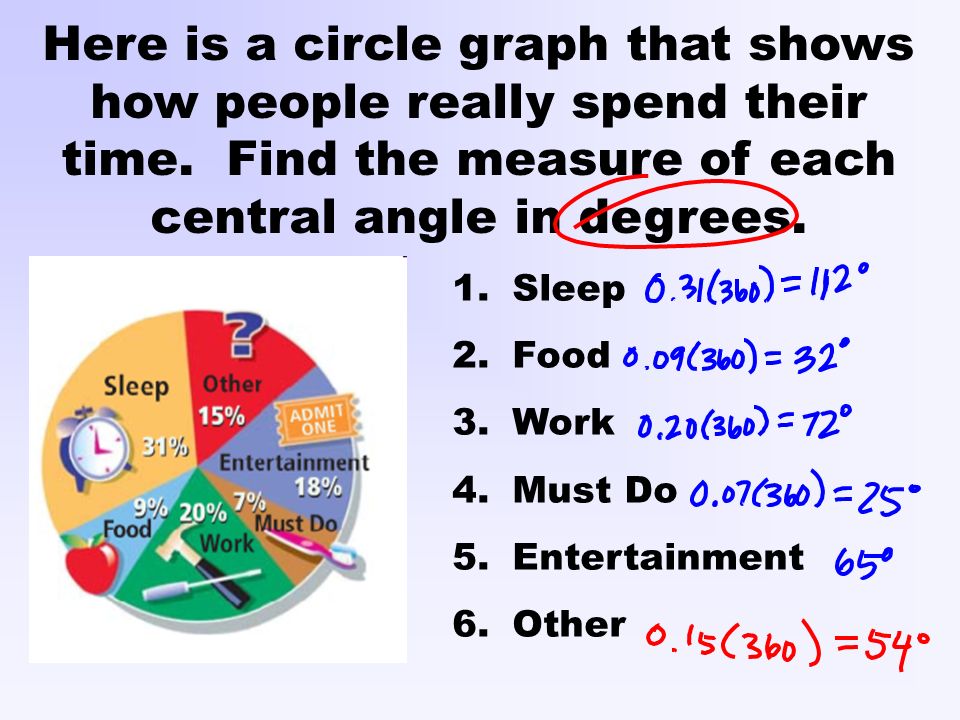

14. Here is a circle graph that shows how people really spend their time. Find the measure of each central angle in degrees. 1. Sleep 2. Food 3. Work 4. Must Do 5. Entertainment 6. Other

15. Homework: page 569 (1 – 26)
