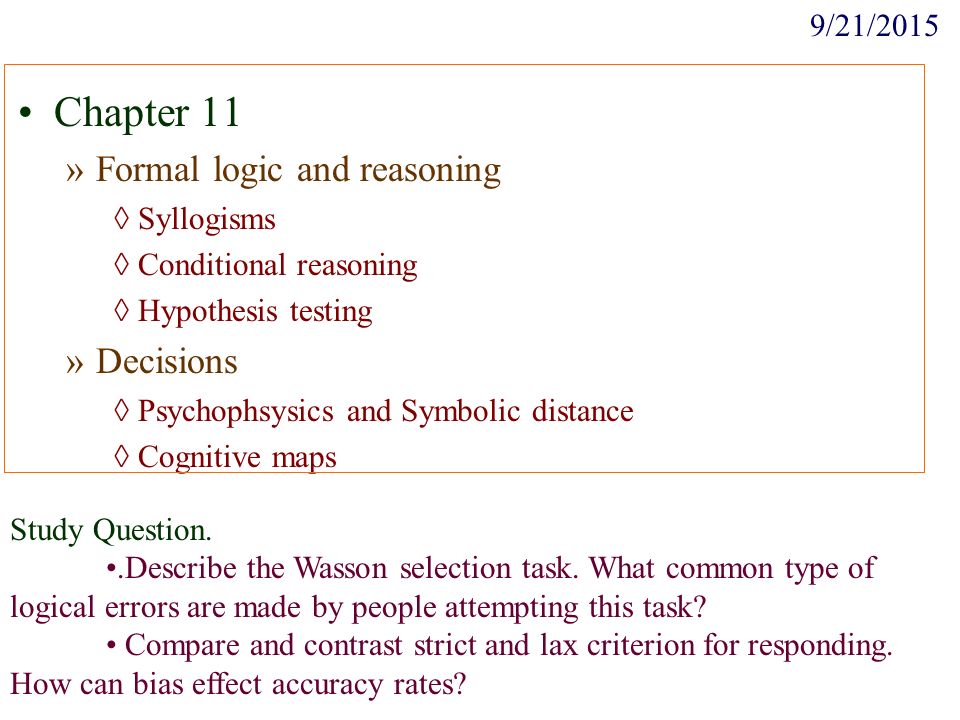

1. Chapter 11 »Formal logic and reasoning ◊Syllogisms ◊Conditional reasoning ◊Hypothesis testing »Decisions ◊Psychophsysics and Symbolic distance ◊Cognitive maps Study Question..Describe the Wasson selection task. What common type of logical errors are made by people attempting this task? Compare and contrast strict and lax criterion for responding. How can bias effect accuracy rates? 9/21/2015

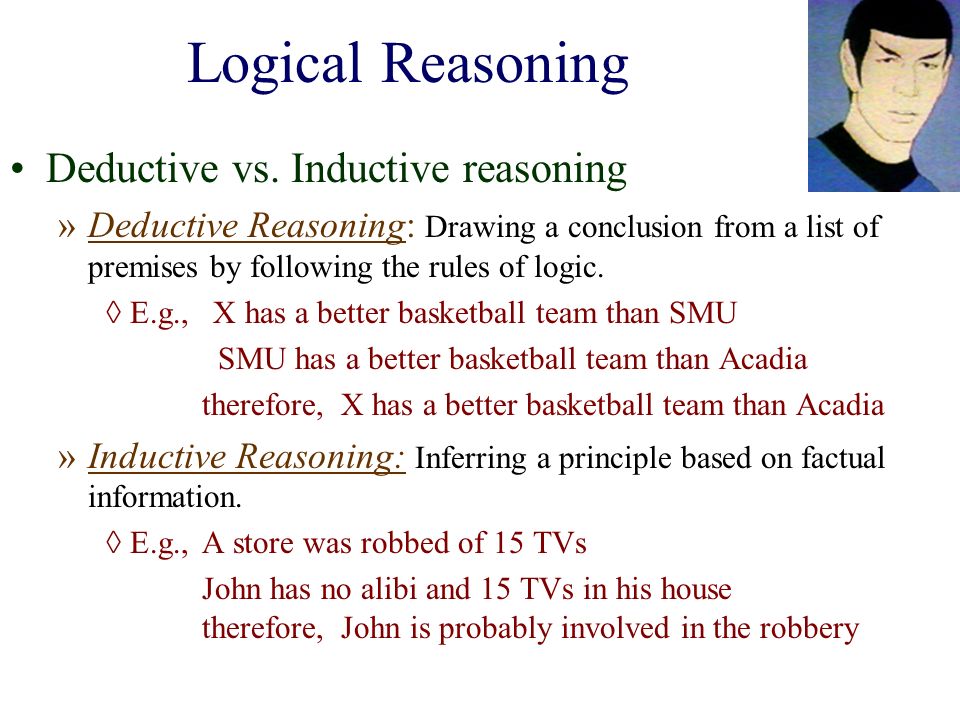

2. Logical Reasoning Deductive vs. Inductive reasoning »Deductive Reasoning: Drawing a conclusion from a list of premises by following the rules of logic. ◊E.g., X has a better basketball team than SMU SMU has a better basketball team than Acadia therefore, X has a better basketball team than Acadia »Inductive Reasoning: Inferring a principle based on factual information. ◊E.g.,A store was robbed of 15 TVs John has no alibi and 15 TVs in his house therefore, John is probably involved in the robbery

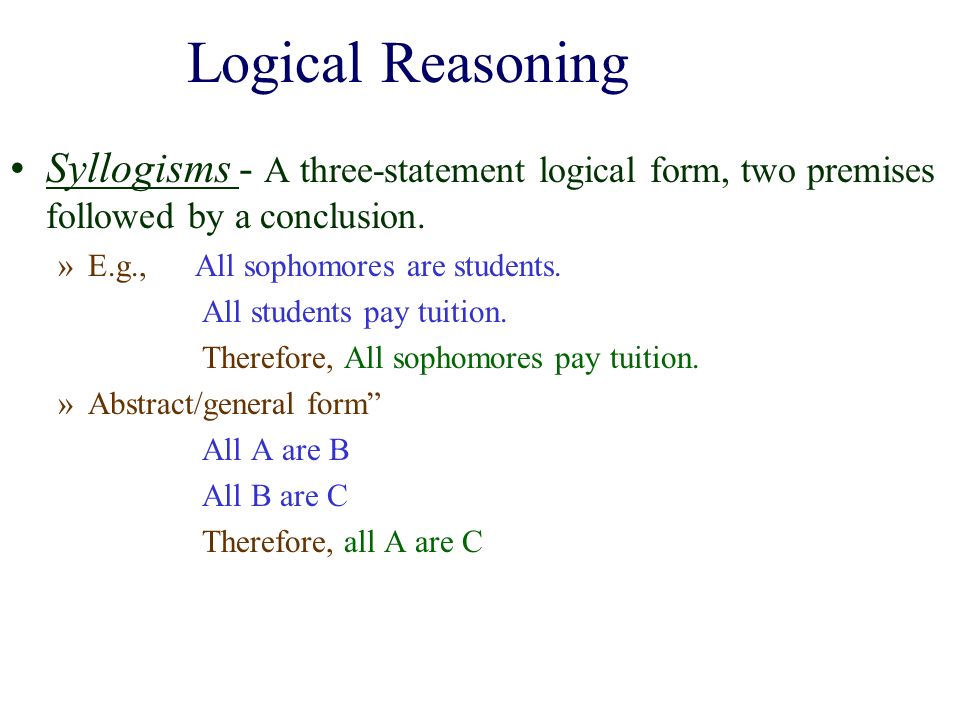

3. Logical Reasoning Syllogisms - A three-statement logical form, two premises followed by a conclusion. »E.g., All sophomores are students. All students pay tuition. Therefore, All sophomores pay tuition. »Abstract/general form” All A are B All B are C Therefore, all A are C

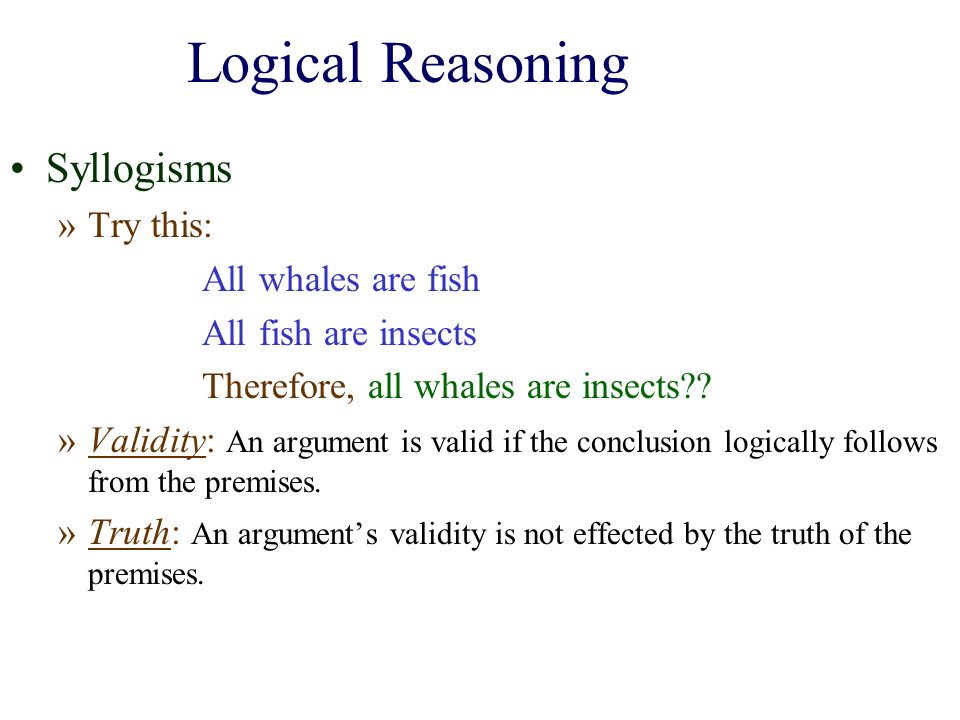

4. Logical Reasoning Syllogisms »Try this: All whales are fish All fish are insects Therefore, all whales are insects?? »Validity: An argument is valid if the conclusion logically follows from the premises. »Truth: An argument’s validity is not effected by the truth of the premises.

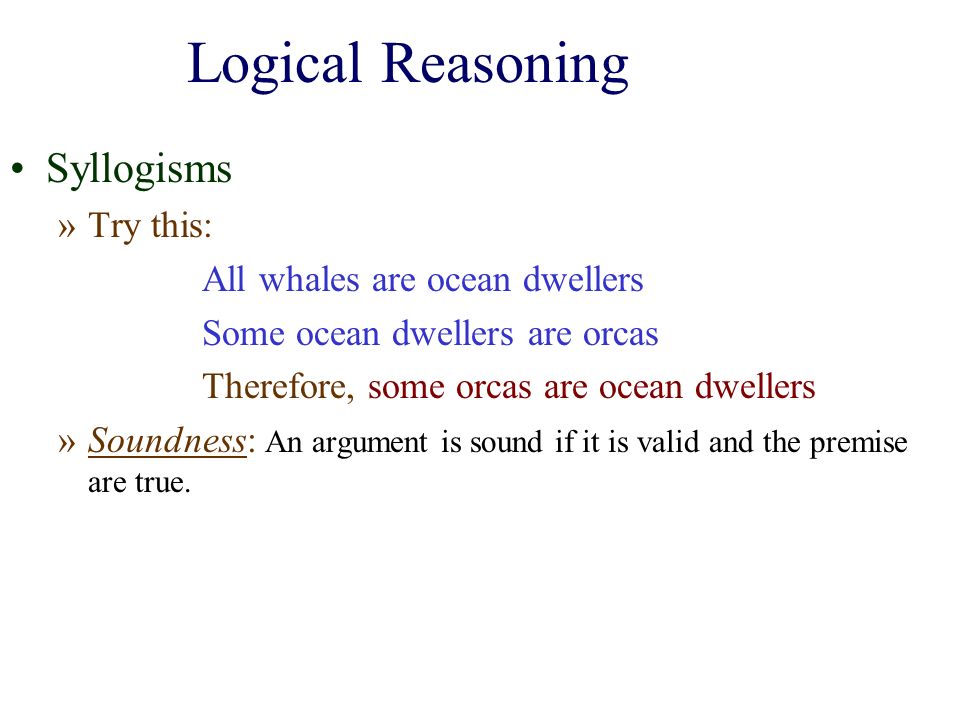

5. Logical Reasoning Syllogisms »Try this: All whales are ocean dwellers Some ocean dwellers are orcas Therefore, some orcas are ocean dwellers »Soundness: An argument is sound if it is valid and the premise are true.

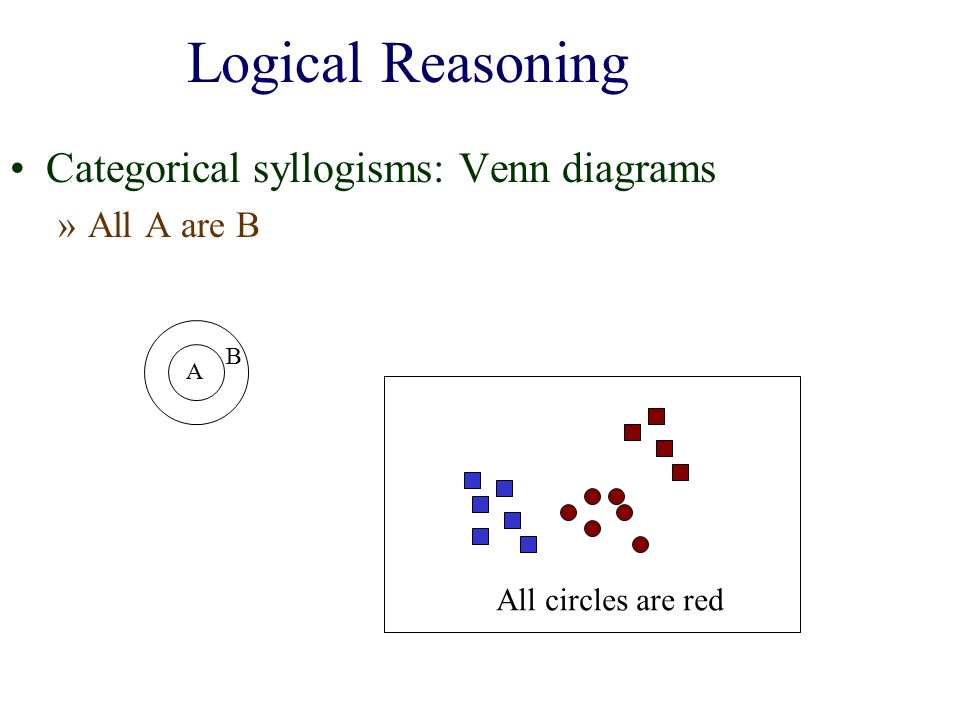

6. Logical Reasoning Categorical syllogisms: Venn diagrams »All A are B A B All circles are red

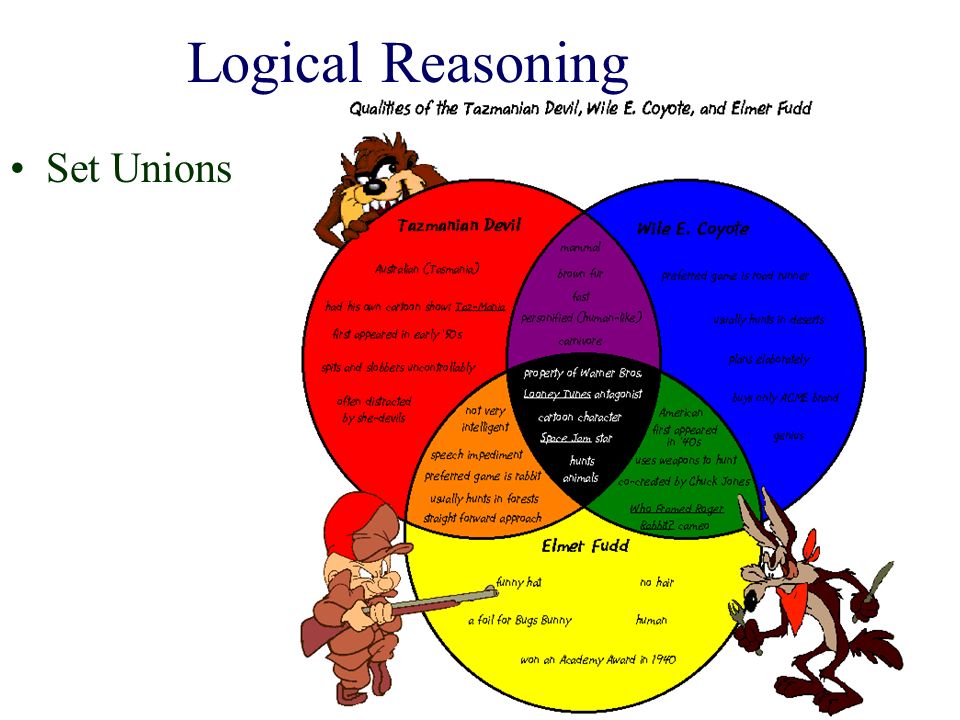

7. Logical Reasoning Set Unions

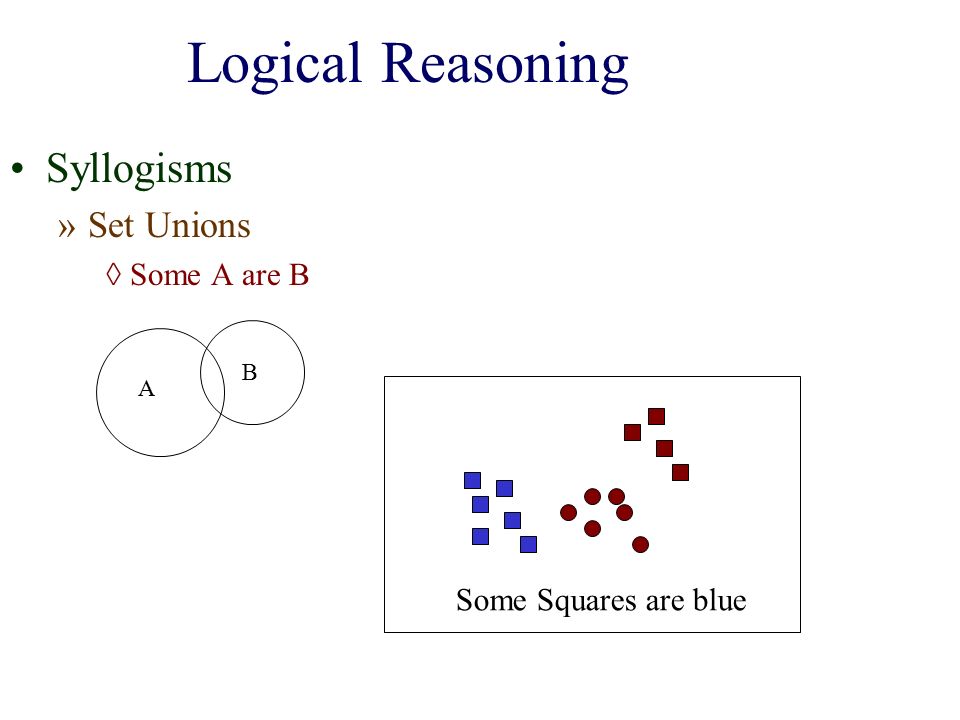

8. Logical Reasoning Syllogisms »Set Unions ◊Some A are B A B Some Squares are blue

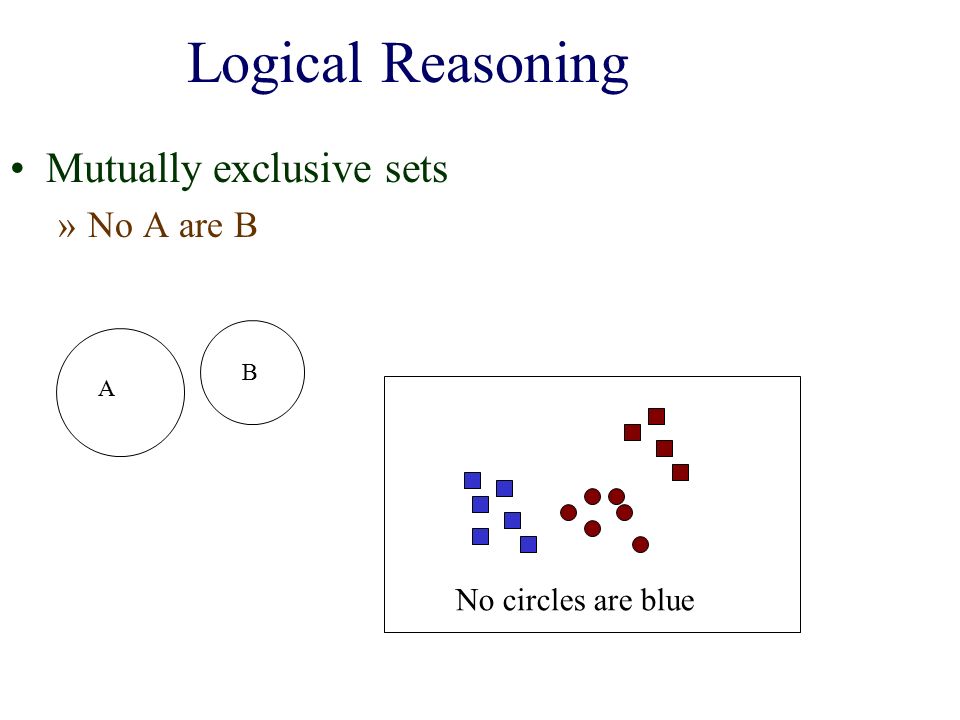

9. Logical Reasoning Mutually exclusive sets »No A are B A B No circles are blue

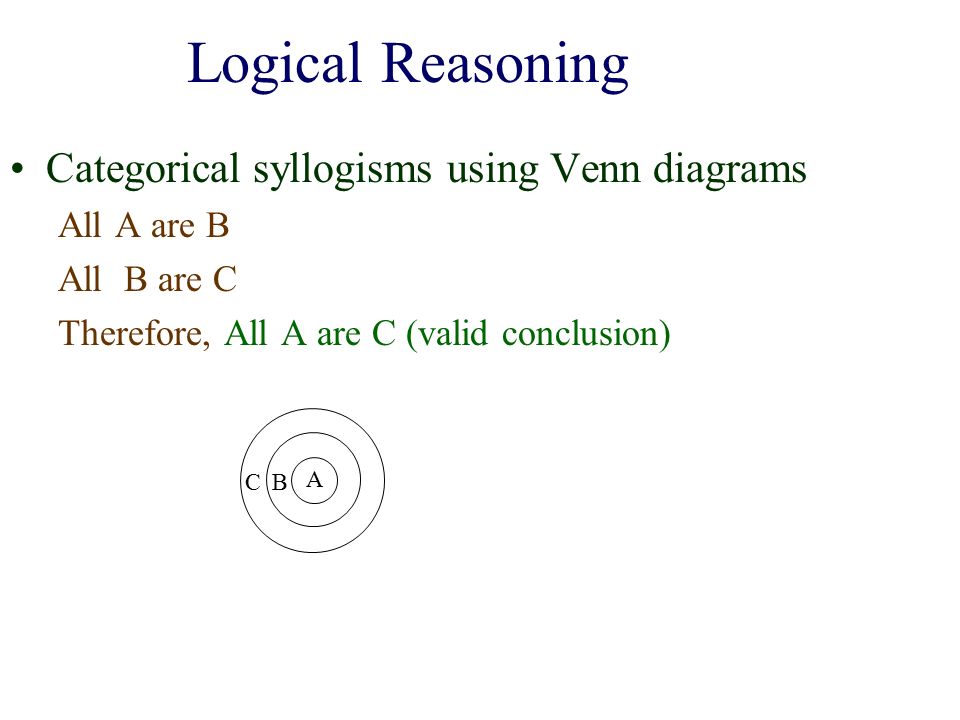

10. Logical Reasoning Categorical syllogisms using Venn diagrams All A are B All B are C Therefore, All A are C (valid conclusion) A BC

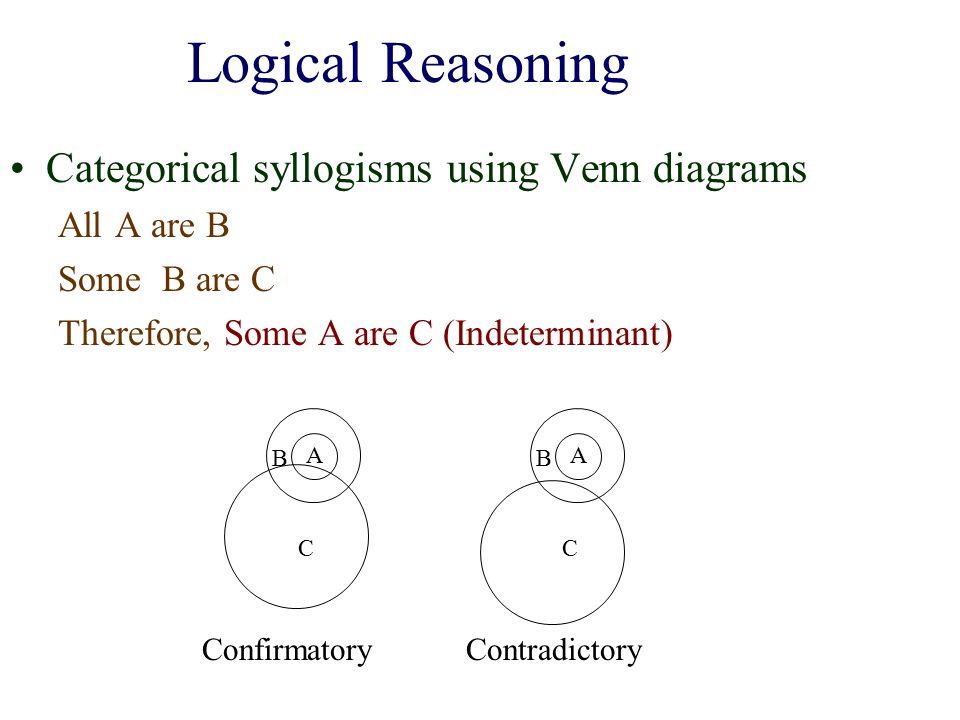

11. Logical Reasoning Categorical syllogisms using Venn diagrams All A are B Some B are C Therefore, Some A are C (Indeterminant) A B C Contradictory A B C Confirmatory

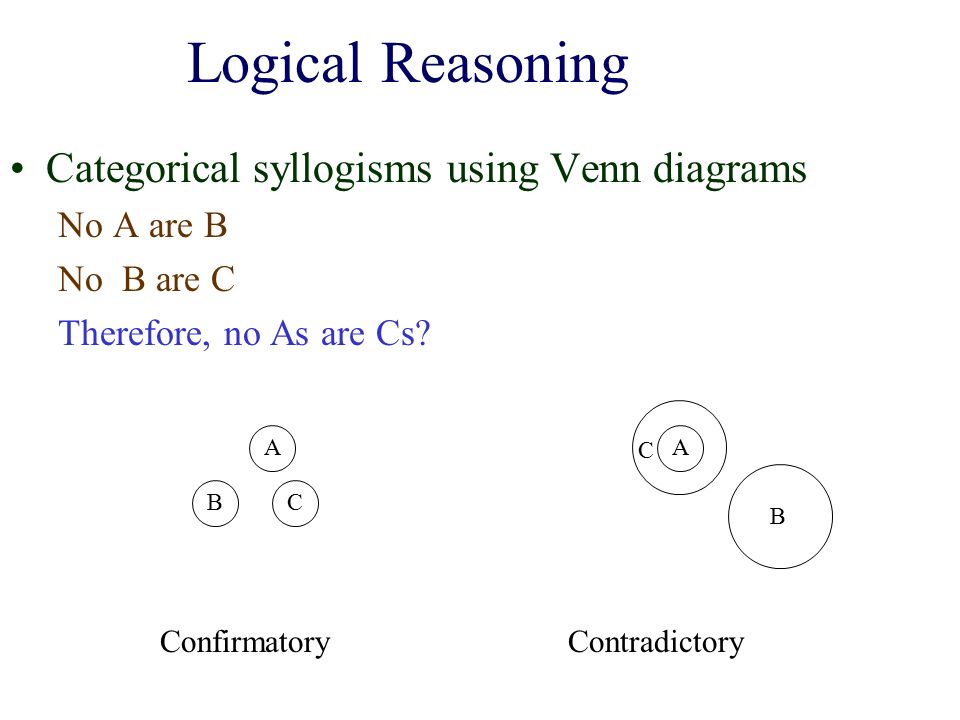

12. Logical Reasoning Categorical syllogisms using Venn diagrams No A are B No B are C Therefore, no As are Cs? A C B Contradictory A Confirmatory BC

13. Logical Reasoning Categorical syllogisms using Venn diagrams Some A are B Some B are C Therefore, Some As are Cs? A C B Contradictory A Confirmatory B C

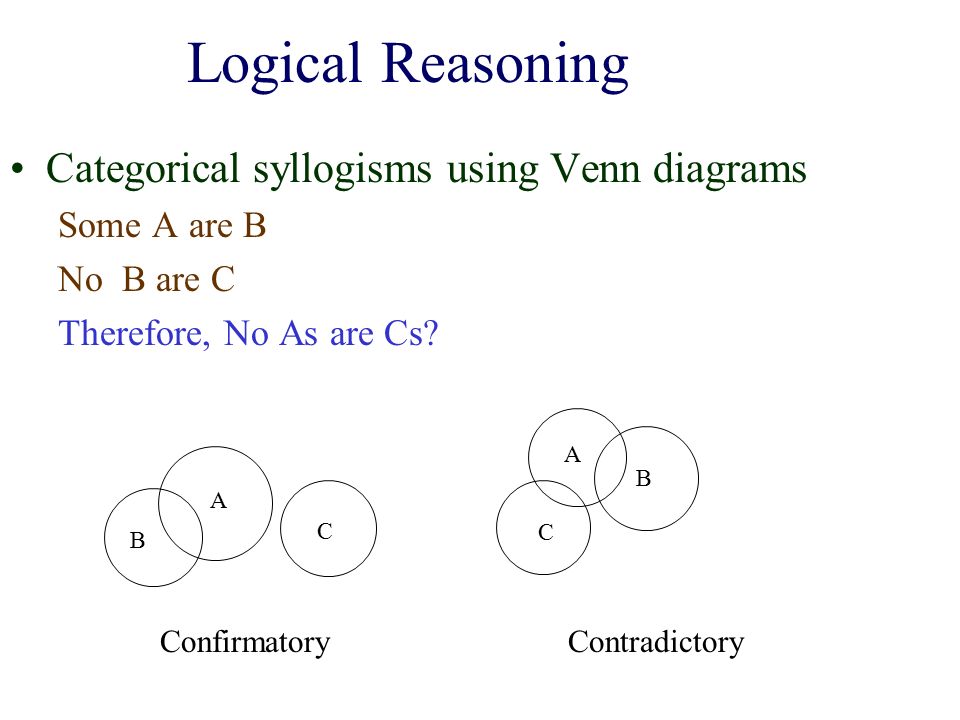

14. Logical Reasoning Categorical syllogisms using Venn diagrams Some A are B No B are C Therefore, No As are Cs? A C B Contradictory B Confirmatory C A

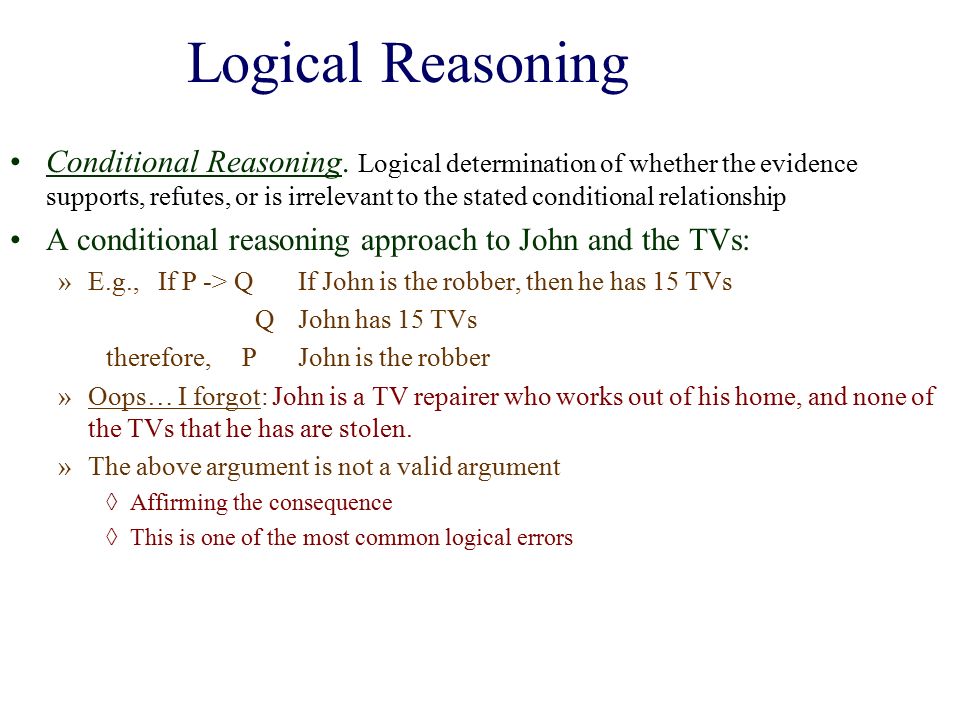

15. Logical Reasoning Conditional Reasoning. Logical determination of whether the evidence supports, refutes, or is irrelevant to the stated conditional relationship A conditional reasoning approach to John and the TVs: »E.g., If P -> QIf John is the robber, then he has 15 TVs QJohn has 15 TVs therefore, PJohn is the robber »Oops… I forgot: John is a TV repairer who works out of his home, and none of the TVs that he has are stolen. »The above argument is not a valid argument ◊Affirming the consequence ◊This is one of the most common logical errors

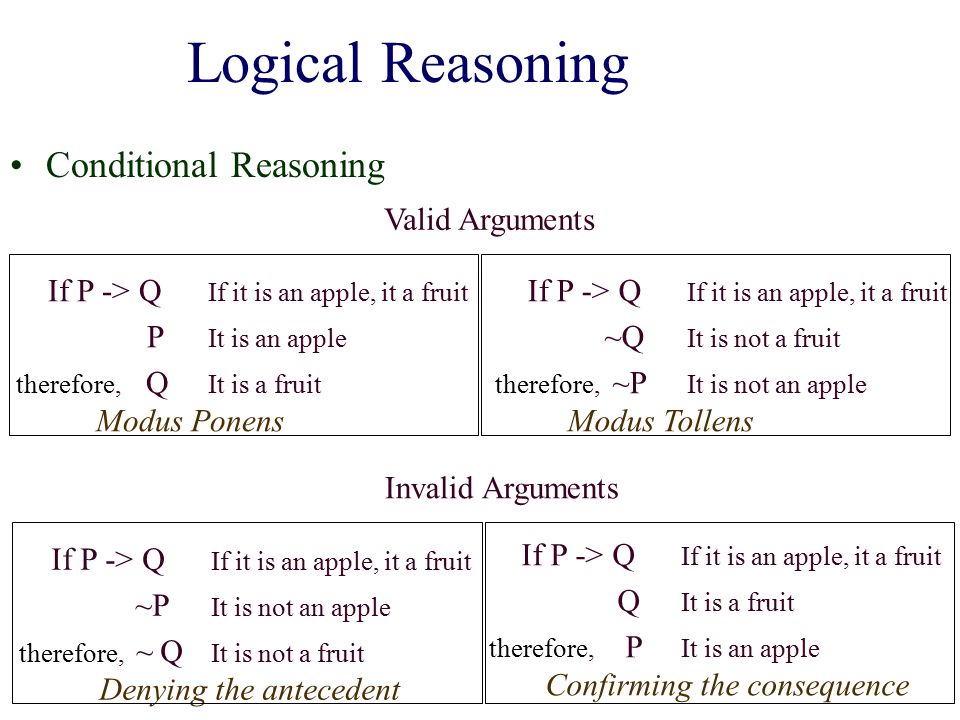

16. Logical Reasoning Conditional Reasoning If P -> Q If it is an apple, it a fruit ~Q It is not a fruit therefore, ~P It is not an apple Modus Tollens Valid Arguments If P -> Q If it is an apple, it a fruit P It is an apple therefore, Q It is a fruit Modus Ponens Invalid Arguments If P -> Q If it is an apple, it a fruit ~P It is not an apple therefore, ~ Q It is not a fruit Denying the antecedent If P -> Q If it is an apple, it a fruit Q It is a fruit therefore, P It is an apple Confirming the consequence

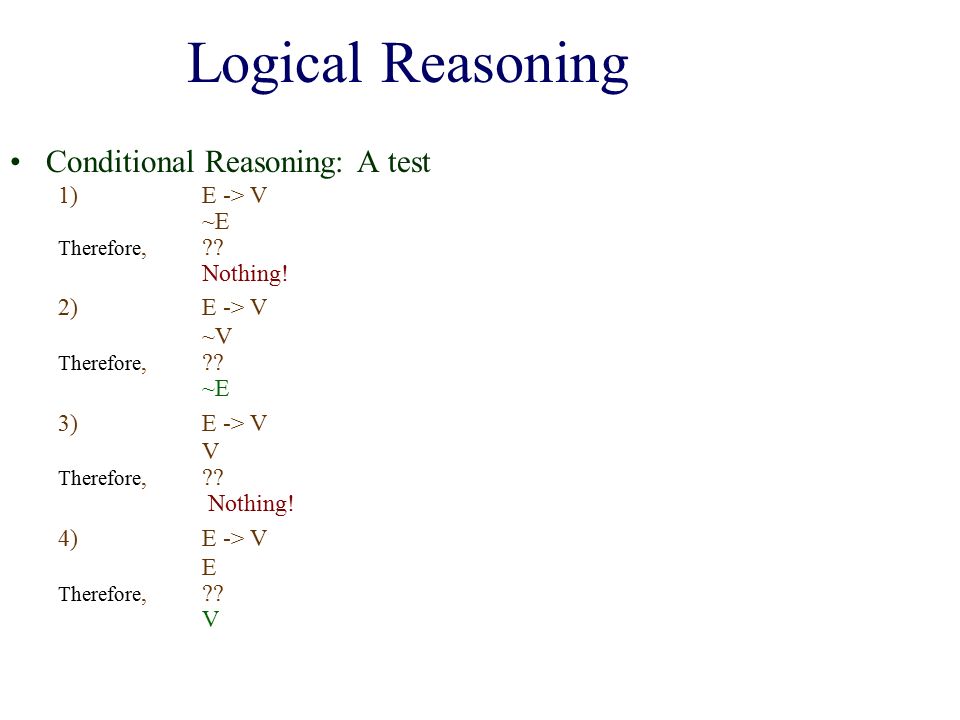

17. Logical Reasoning Conditional Reasoning: A test 1) E -> V ~E Therefore, ?? Nothing! 2)E -> V ~V Therefore, ?? ~E 3)E -> V V Therefore, ?? Nothing! 4)E -> V E Therefore, ?? V

18. Logical Reasoning The Wason selection task: another test »Each card has a letter on one side and a number on the other »What are the fewest cards you need to turn over to confirm or deny the following hypothesis: If it has a vowel on one side, there is an even number on the other side A B 1 2

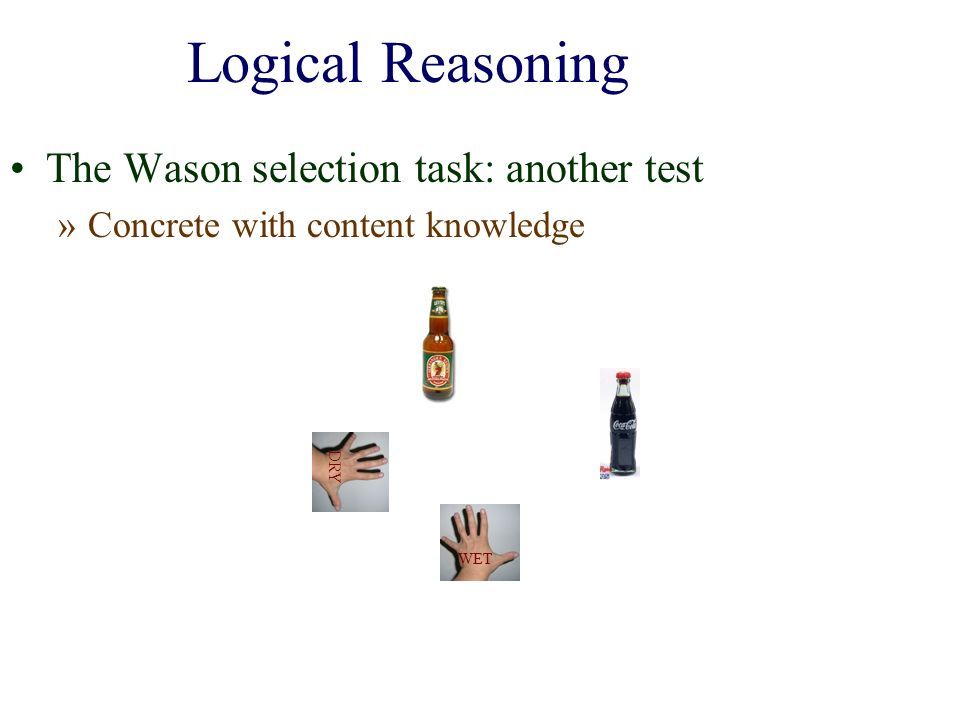

19. Logical Reasoning The Wason selection task: another test »Concrete with content knowledge DRY WET

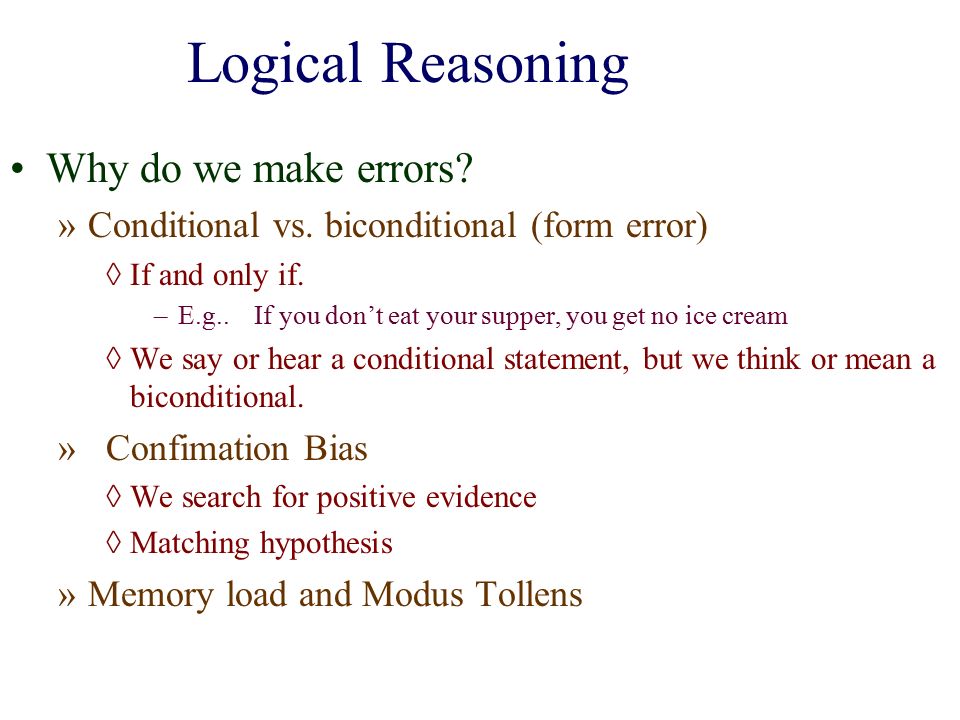

20. Logical Reasoning Why do we make errors? »Conditional vs. biconditional (form error) ◊If and only if. –E.g.. If you don’t eat your supper, you get no ice cream ◊We say or hear a conditional statement, but we think or mean a biconditional. »Confimation Bias ◊We search for positive evidence ◊Matching hypothesis »Memory load and Modus Tollens

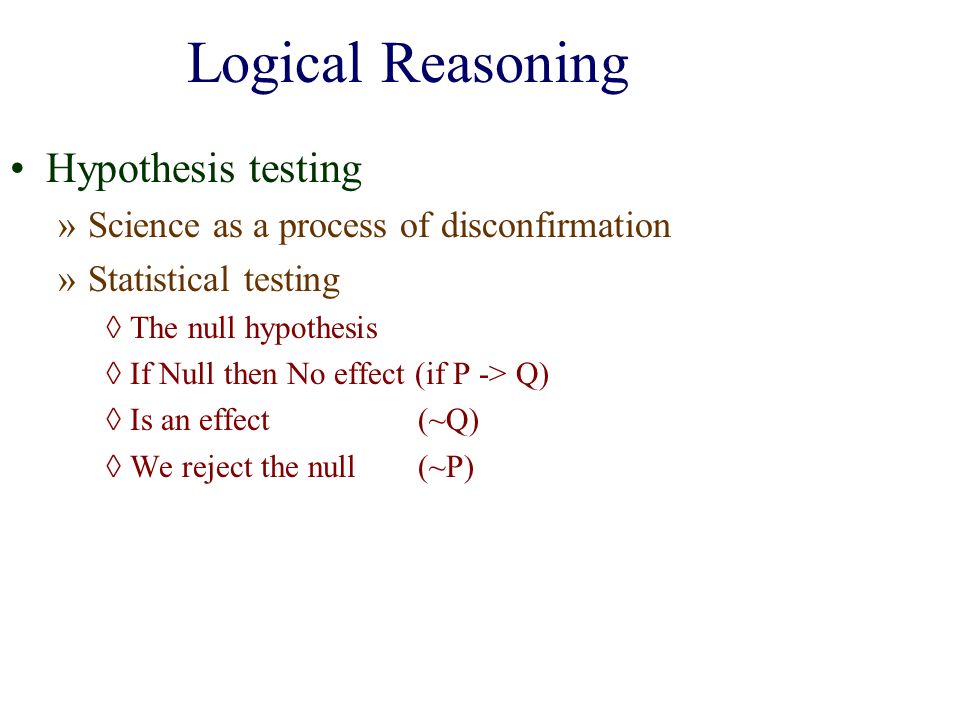

21. Logical Reasoning Hypothesis testing »Science as a process of disconfirmation »Statistical testing ◊The null hypothesis ◊If Null then No effect (if P -> Q) ◊Is an effect (~Q) ◊We reject the null (~P)

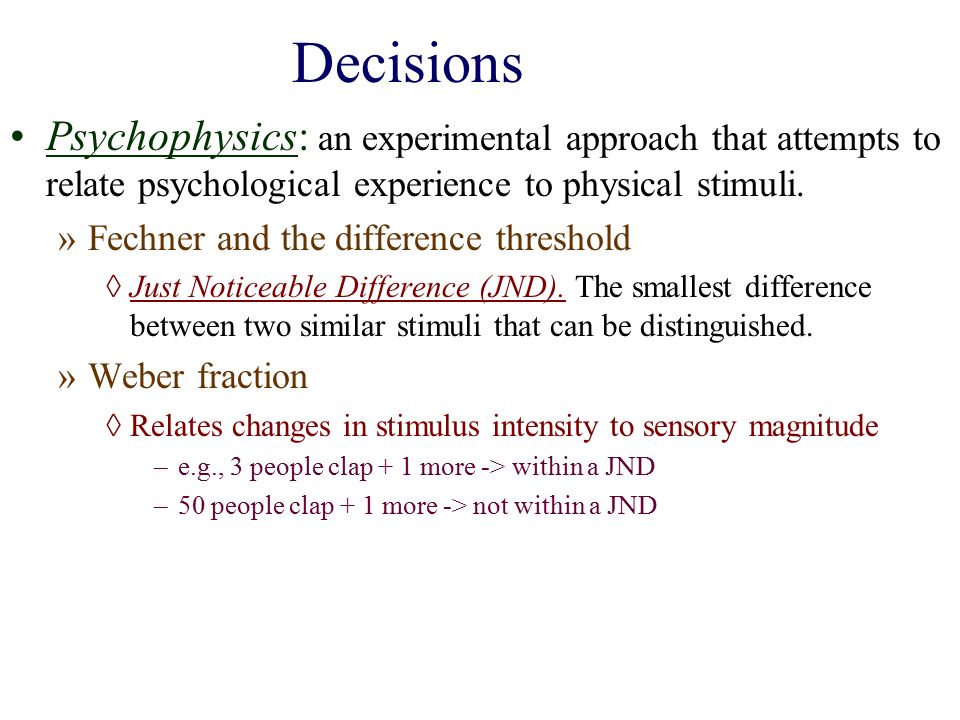

22. Decisions Psychophysics: an experimental approach that attempts to relate psychological experience to physical stimuli. »Fechner and the difference threshold ◊Just Noticeable Difference (JND). The smallest difference between two similar stimuli that can be distinguished. »Weber fraction ◊Relates changes in stimulus intensity to sensory magnitude –e.g., 3 people clap + 1 more -> within a JND –50 people clap + 1 more -> not within a JND

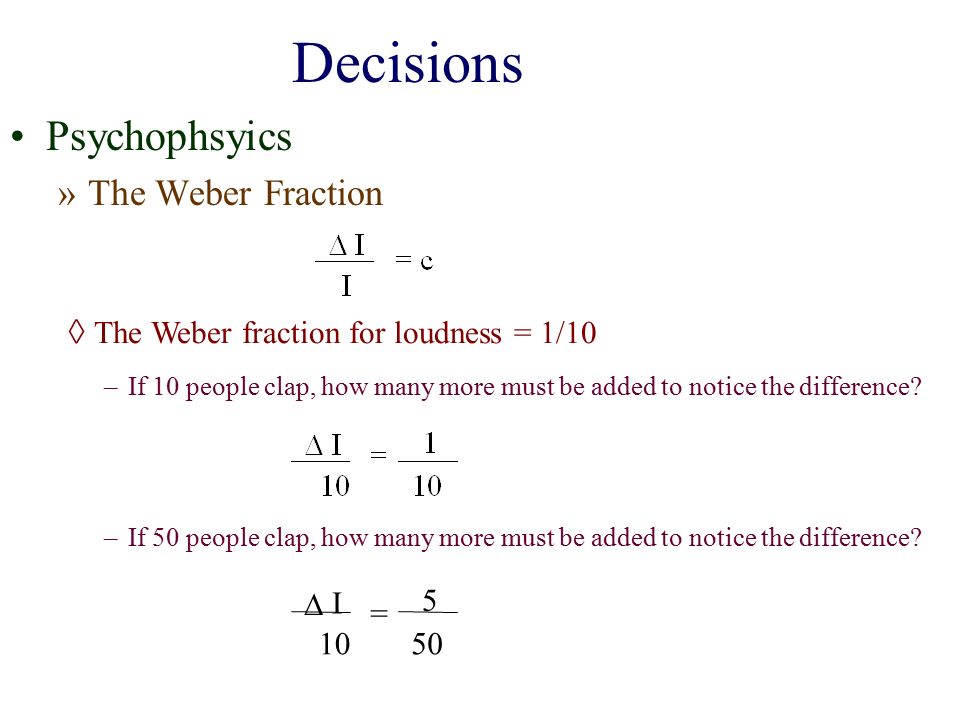

23. Decisions Psychophsyics »The Weber Fraction ◊ The Weber fraction for loudness = 1/10 –If 10 people clap, how many more must be added to notice the difference? –If 50 people clap, how many more must be added to notice the difference?  I 10 5 = 50

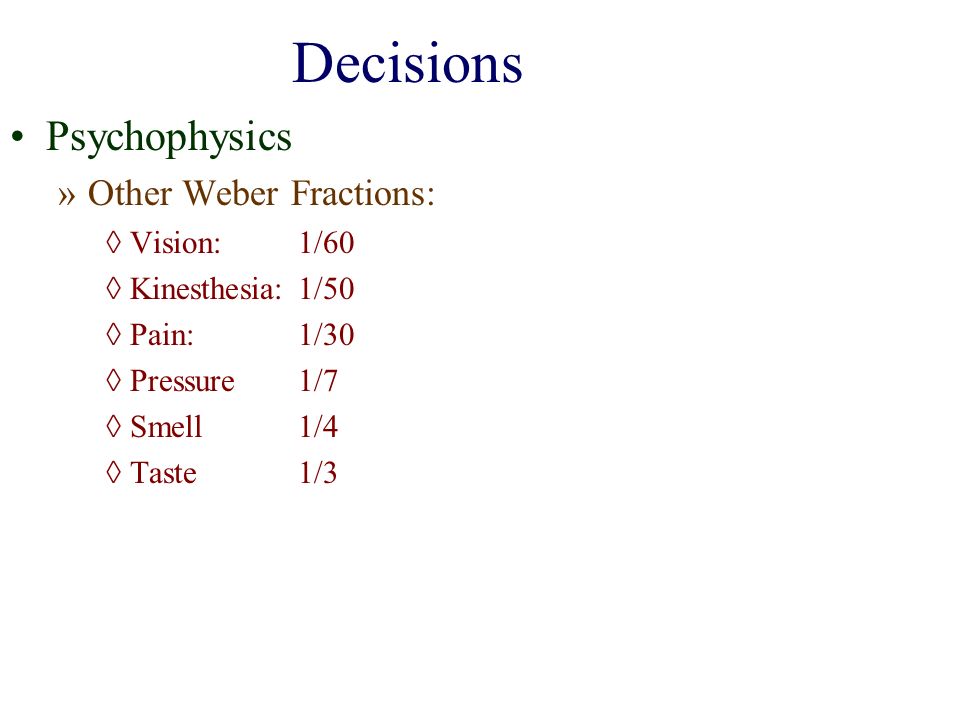

24. Decisions Psychophysics »Other Weber Fractions: ◊Vision:1/60 ◊Kinesthesia:1/50 ◊Pain:1/30 ◊Pressure1/7 ◊Smell1/4 ◊Taste1/3

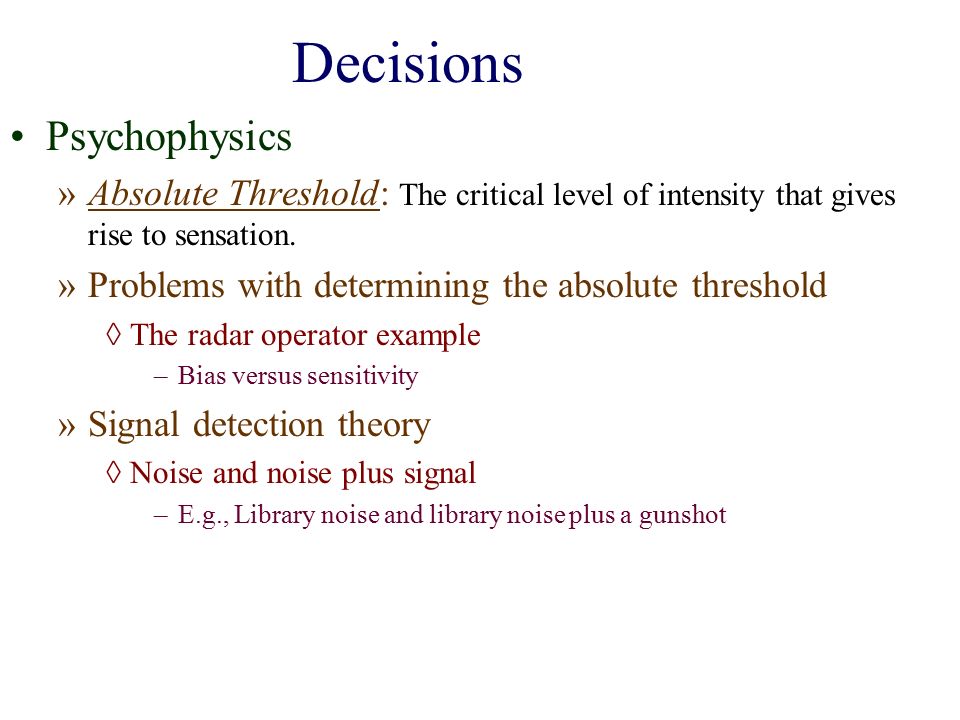

25. Decisions Psychophysics »Absolute Threshold: The critical level of intensity that gives rise to sensation. »Problems with determining the absolute threshold ◊The radar operator example –Bias versus sensitivity »Signal detection theory ◊Noise and noise plus signal –E.g., Library noise and library noise plus a gunshot

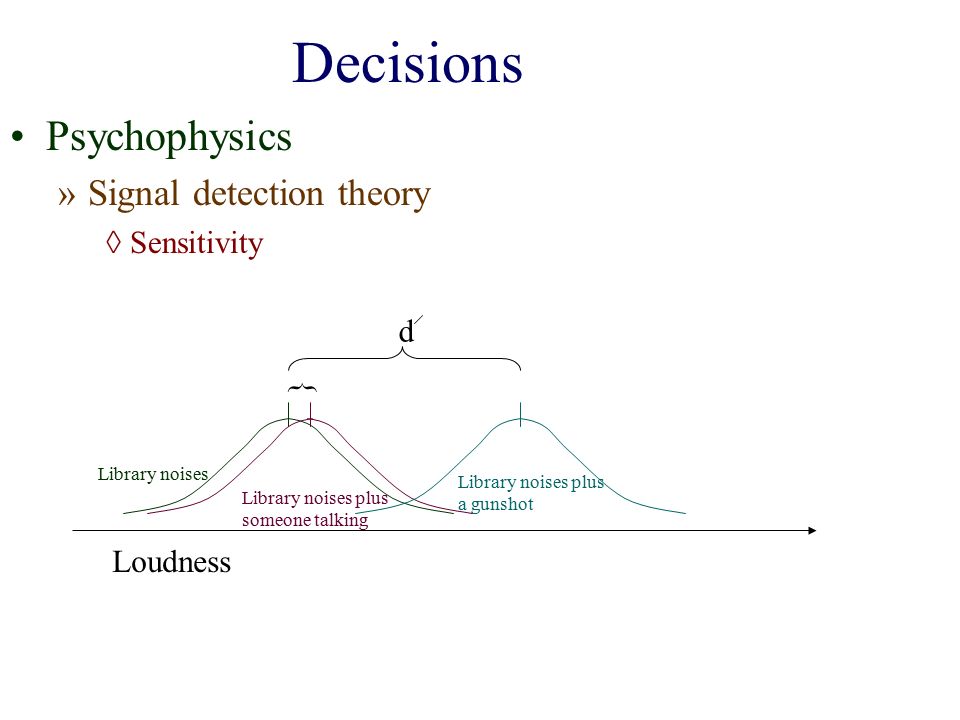

26. Decisions Psychophysics »Signal detection theory ◊Sensitivity Loudness Library noises Library noises plus someone talking Library noises plus a gunshot } d

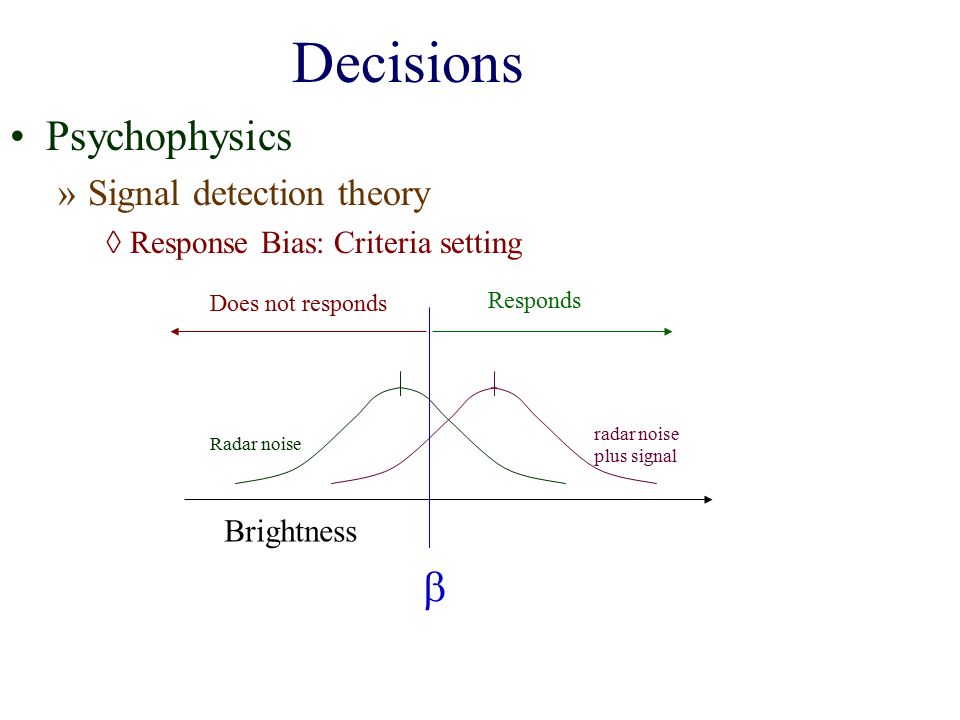

27. Decisions Psychophysics »Signal detection theory ◊Response Bias: Criteria setting Brightness Radar noise radar noise plus signal Responds Does not responds 

28. Correct rejection rate = 50 % Miss rate = 15 % False Alarm rate = 50 % Hit rate = 85 % Decisions Psychophysics »Signal detection theory ◊Response Bias: Lax criterion Brightness Radar noise radar noise plus signal Responds Does not responds 

29. Decisions Psychophysics »Signal detection theory ◊Response Bias: Lax criterion Actual Events Noise Signal+noise Receiver Operator Chooses Noise Signal Correct rejection Miss False Alarm 50% Hits 85% 0.5 1.0 0.5 1.0 0 False Alarm Rate Hit Rate d 

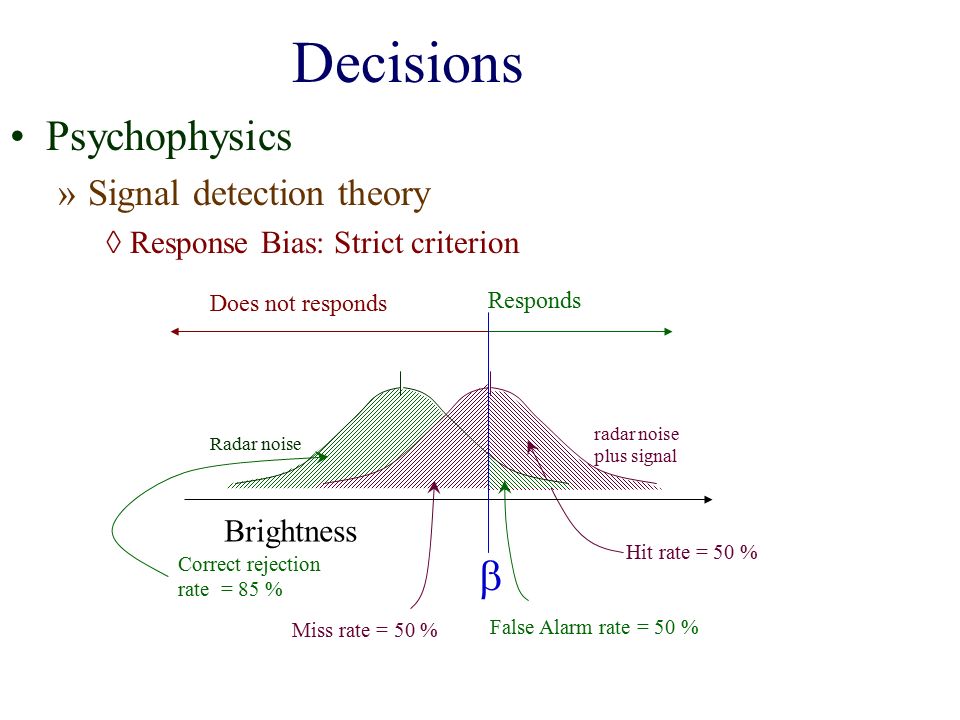

30. Correct rejection rate = 85 % Miss rate = 50 % Hit rate = 50 % False Alarm rate = 50 % Decisions Psychophysics »Signal detection theory ◊Response Bias: Strict criterion Brightness Radar noise radar noise plus signal Responds Does not responds 

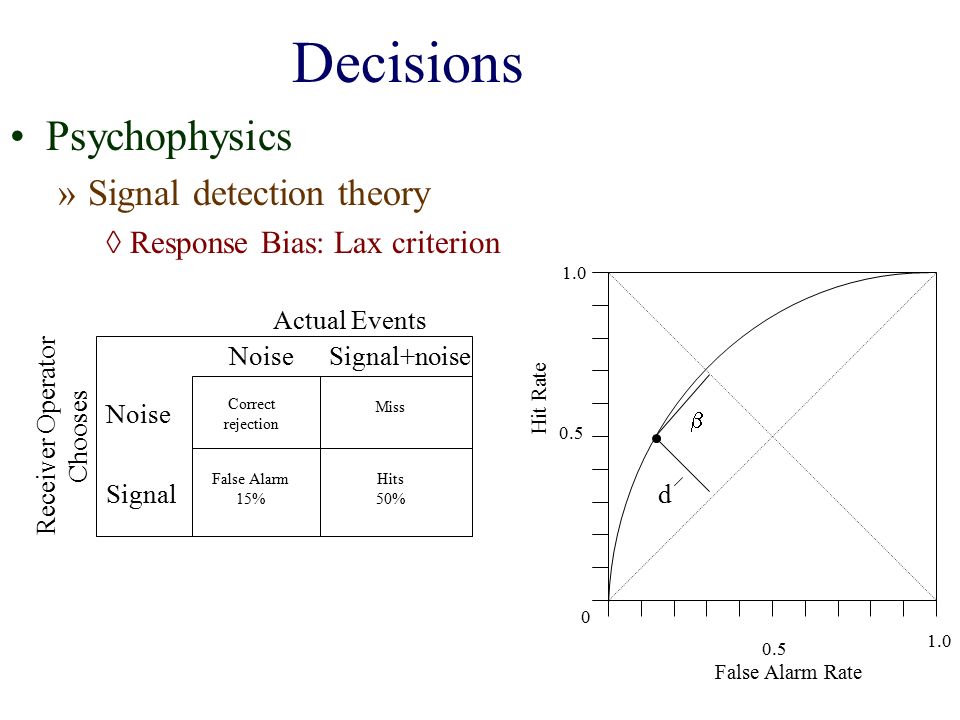

31. Decisions Psychophysics »Signal detection theory ◊Response Bias: Lax criterion Actual Events Noise Signal+noise Receiver Operator Chooses Noise Signal Correct rejection Miss False Alarm 15% Hits 50% False Alarm Rate 0.5 1.0 0.5 1.0 0 Hit Rate d 

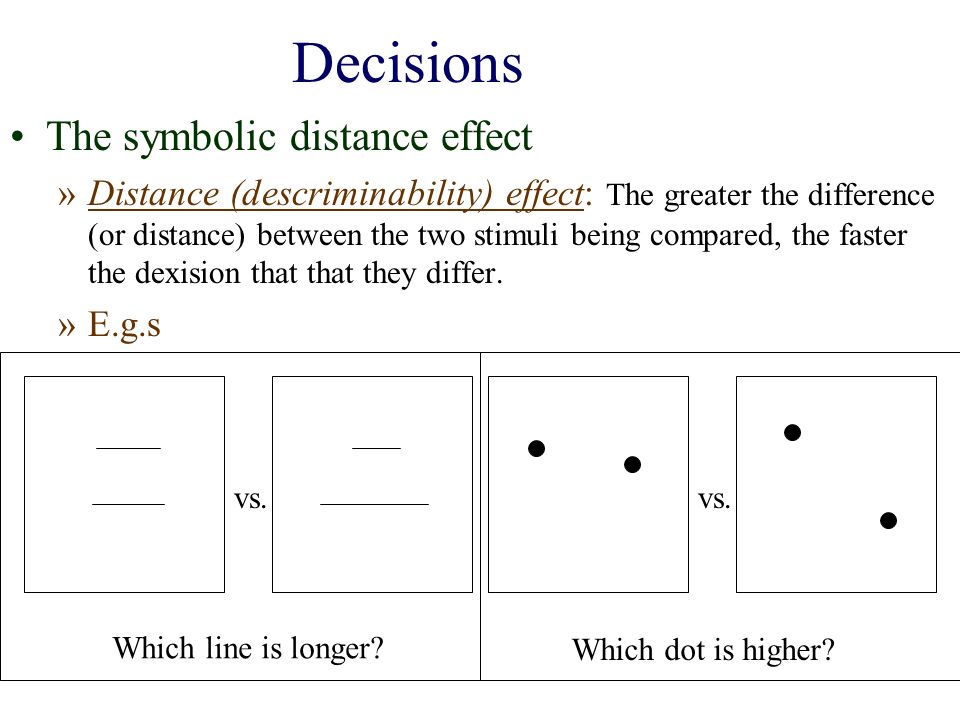

32. Decisions The symbolic distance effect »Distance (descriminability) effect: The greater the difference (or distance) between the two stimuli being compared, the faster the dexision that that they differ. »E.g.s Which line is longer? vs. Which dot is higher? vs.

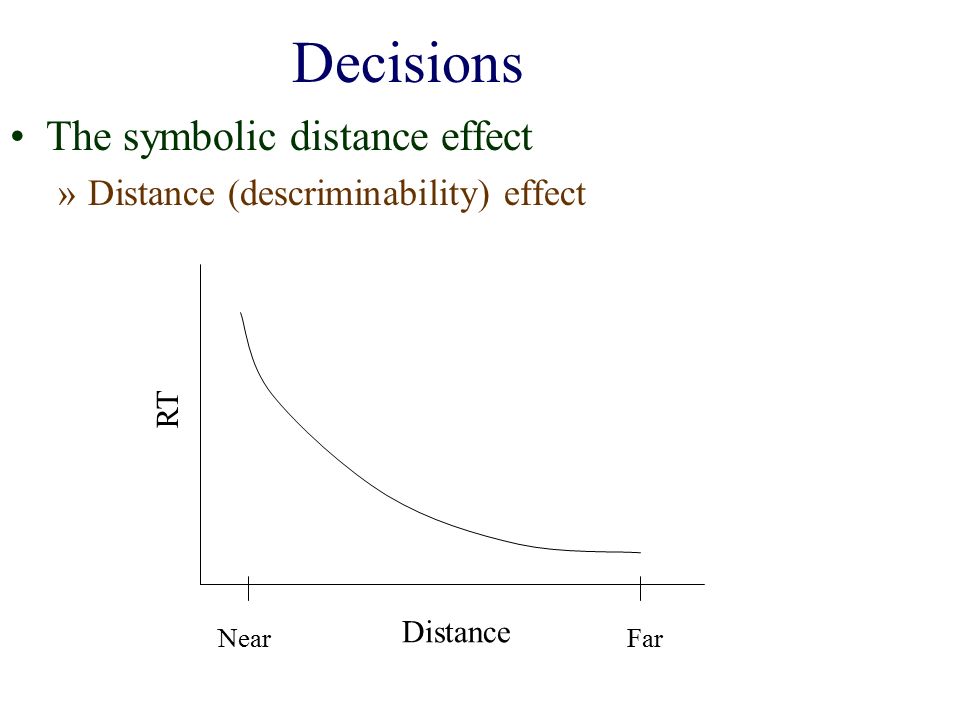

33. Decisions The symbolic distance effect »Distance (descriminability) effect Distance NearFar RT

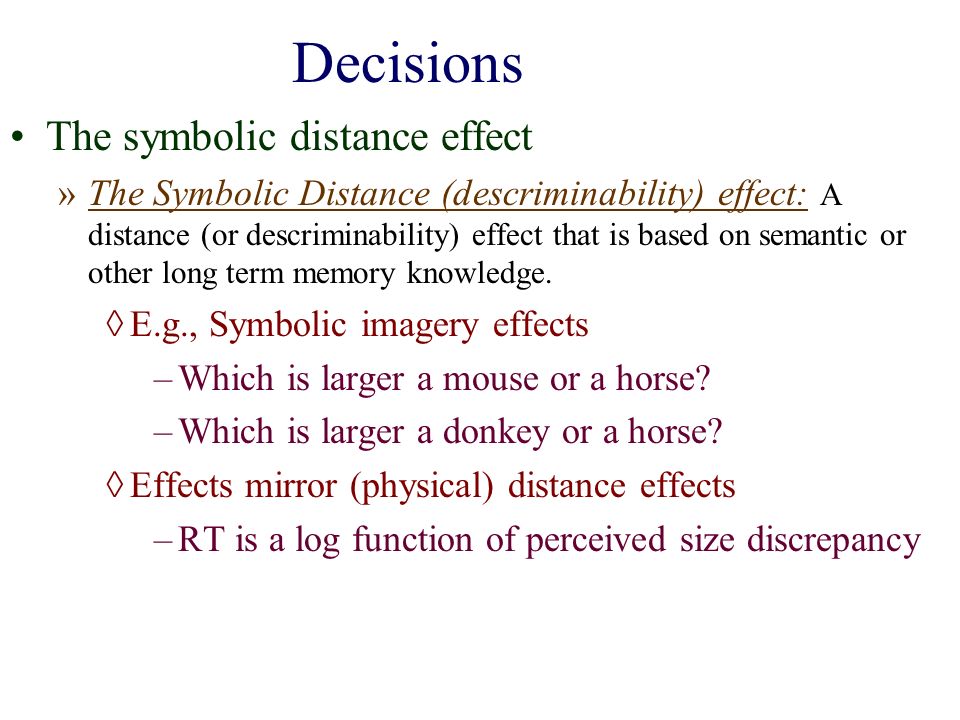

34. Decisions The symbolic distance effect »The Symbolic Distance (descriminability) effect: A distance (or descriminability) effect that is based on semantic or other long term memory knowledge. ◊E.g., Symbolic imagery effects –Which is larger a mouse or a horse? –Which is larger a donkey or a horse? ◊Effects mirror (physical) distance effects –RT is a log function of perceived size discrepancy

35. Decisions The symbolic distance effect »The semantic congruency effect. Decisions are faster when the dimension being judged matches or is congruent with the implied semantic dimension Which balloon is higher? Which balloon is lower? vs. Which yo-yo is higher? Which yo-yo is lower? vs.

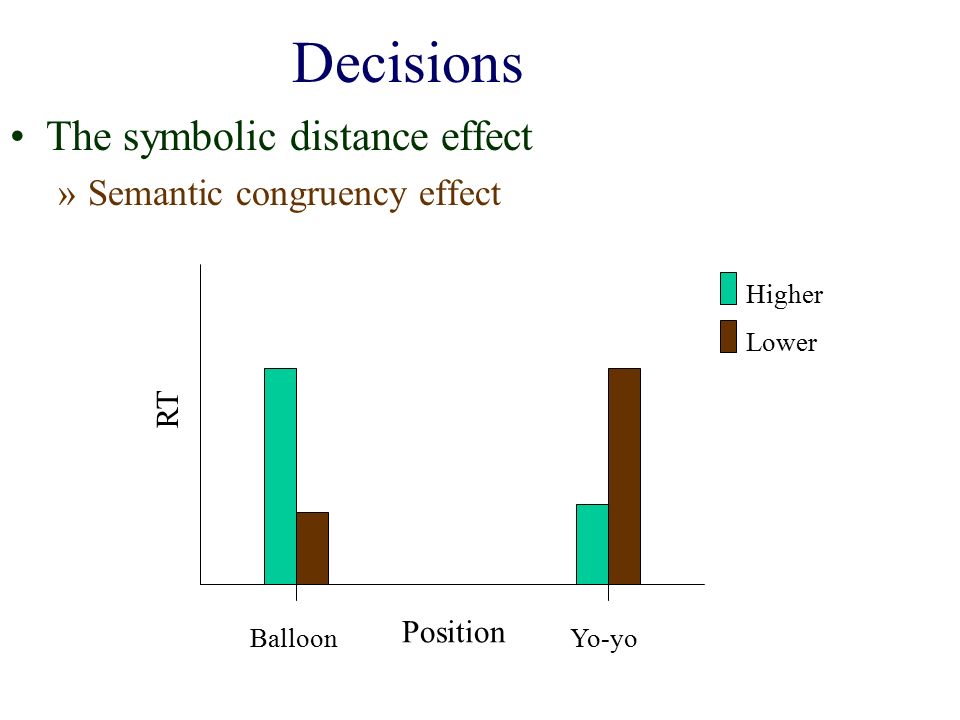

36. Decisions The symbolic distance effect »Semantic congruency effect Position BalloonYo-yo RT Higher Lower

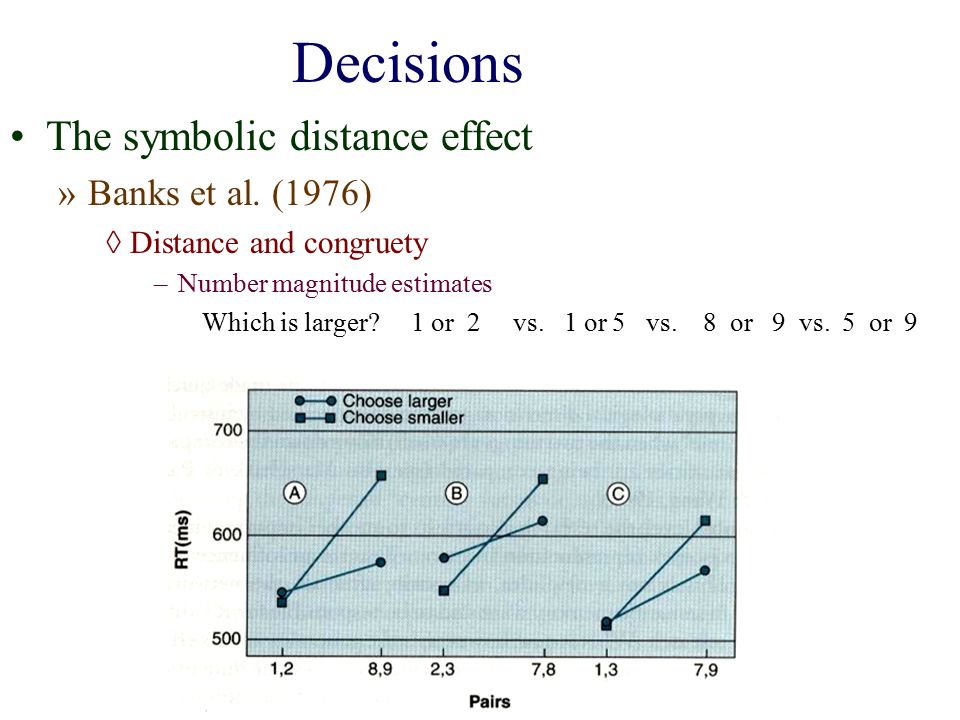

37. Decisions The symbolic distance effect »Banks et al. (1976) ◊Distance and congruety –Number magnitude estimates Which is larger? 1 or 2 vs. 1 or 5 vs. 8 or 9 vs. 5 or 9

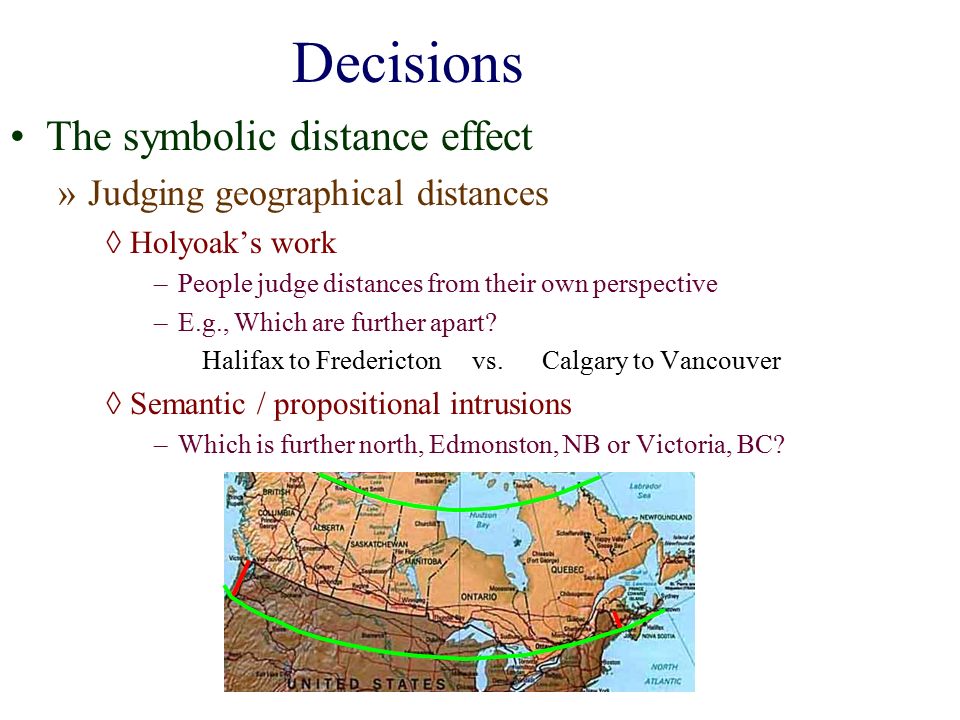

38. Decisions The symbolic distance effect »Judging geographical distances ◊Holyoak’s work –People judge distances from their own perspective –E.g., Which are further apart? Halifax to Fredericton vs. Calgary to Vancouver ◊Semantic / propositional intrusions –Which is further north, Edmonston, NB or Victoria, BC?

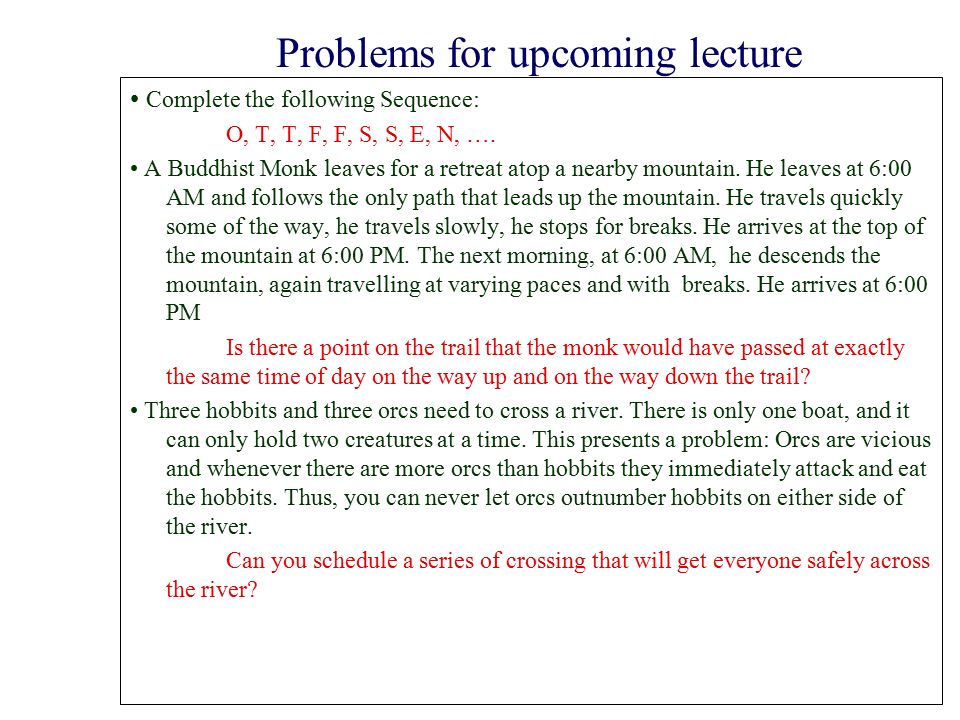

39. Problems for upcoming lecture Complete the following Sequence: O, T, T, F, F, S, S, E, N, …. A Buddhist Monk leaves for a retreat atop a nearby mountain. He leaves at 6:00 AM and follows the only path that leads up the mountain. He travels quickly some of the way, he travels slowly, he stops for breaks. He arrives at the top of the mountain at 6:00 PM. The next morning, at 6:00 AM, he descends the mountain, again travelling at varying paces and with breaks. He arrives at 6:00 PM Is there a point on the trail that the monk would have passed at exactly the same time of day on the way up and on the way down the trail? Three hobbits and three orcs need to cross a river. There is only one boat, and it can only hold two creatures at a time. This presents a problem: Orcs are vicious and whenever there are more orcs than hobbits they immediately attack and eat the hobbits. Thus, you can never let orcs outnumber hobbits on either side of the river. Can you schedule a series of crossing that will get everyone safely across the river?

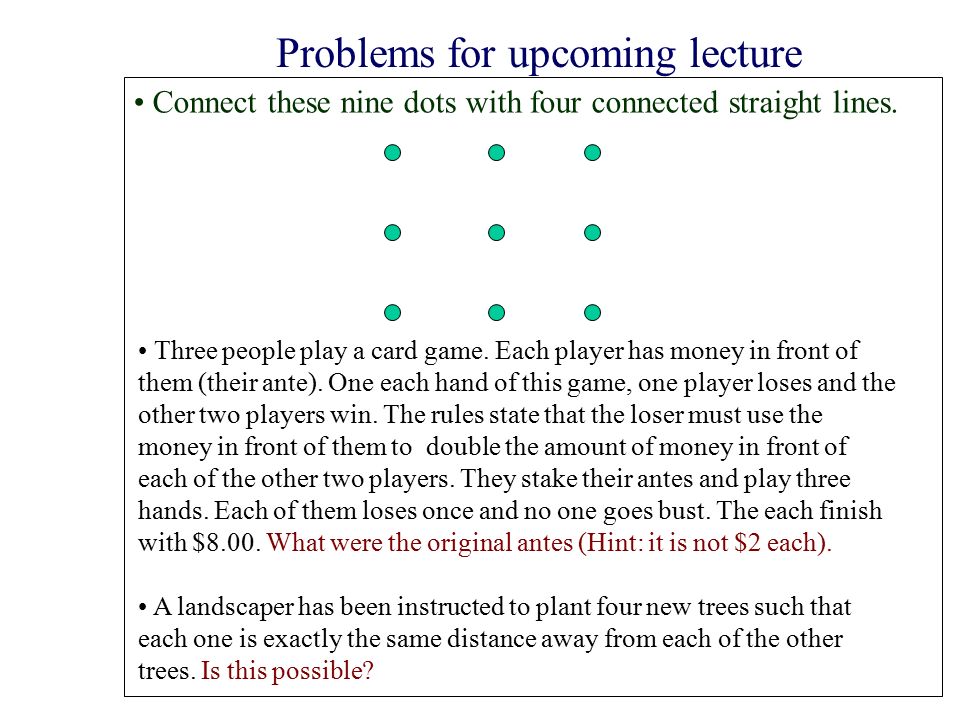

40. Problems for upcoming lecture Connect these nine dots with four connected straight lines. Three people play a card game. Each player has money in front of them (their ante). One each hand of this game, one player loses and the other two players win. The rules state that the loser must use the money in front of them to double the amount of money in front of each of the other two players. They stake their antes and play three hands. Each of them loses once and no one goes bust. The each finish with $8.00. What were the original antes (Hint: it is not $2 each). A landscaper has been instructed to plant four new trees such that each one is exactly the same distance away from each of the other trees. Is this possible?
