2. Latitude-Longitude System –
most commonly used coordinate system for the Earth, based on observations of the sun and other stars

3. point’s position measured as an angle north or south of the equator
point’s position measured as an angle north or south of the equator. 0° is Equator and 90° is the poles
Latitude -
* lines of latitude known as parallels

4. distance east or west of the prime meridian from 0° to 180°
Longitude –
distance east or west of the prime meridian from 0° to 180°
* lines of longitude known as meridians

5. Rises in the East and sets in the West
In what direction does the sun rise and in what direction does the sun set?
Rises in the East and sets in the West
So if you are looking down at the Earth (at the North Pole) from space, in what direction does the Earth rotate (clockwise or counterclockwise)?
From West to East or Counterclockwise when looking down on the North Pole

6. Takes one day or 24 hours to rotate 360°
Rotation Rate = 15°/hour
How many times does 15° go into 360°?
Takes one day or 24 hours to rotate 360°

7. - 0° Longitude equals Prime Meridian = Greenwich Mean Time
We Can determine time anywhere else in the world by knowing the longitude and time where you are.
- 0° Longitude equals Prime Meridian = Greenwich Mean Time
- 15° one way or another from the Prime Meridian = 1 hour ahead or behind
- We are about 75° West Longitude
- Greenwich Mean Time (GMT) is also known as Zulu Time

8. Solar Noon – the time when the sun is highest in the
sky at any given location
Clock Time – based on the time at 0° Longitude
and the distance in degrees longitude
from the Prime Meridian for any given
location on Earth
- Clock Noon does not always represent solar noon, quite close
- Noon sun is never directly overhead for all locations on Earth
- In NYS the sun is always in the Southern Half of the Sky

9. Guatemala City, Guatemala 14° 37’N 90° 31’W
Kingston, Jamaica 17° 59’N 76° 49’W
Manila, Philippines 14° 35’N 120° 57’E
Tananarive, Madagascar 18° 50’S 47° 33’E
Singapore, Singapore 1° 14’N 103° 55’E
What time is it at these locations around the world if it is 9AM here?
Which of these cities is located on the same line of longitude as we are?
Why is it warmer there year round?

10. OBLATE SPHEROID Actual Shape of Earth =
- Flattened at the poles and bulging at the equator
Equatorial Circumference = 40,076 km
Polar Circumference = 40,008 km
Equatorial Diameter = 12,757 km
Polar Diameter = 12,714 km

11. Plane of Horizon – apparent line that separates Earth from sky in all visible directions Celestial Object – something in the sky or space Celestial Altitude – altitude of an object in the sky above the horizon measures as an angle Celestial Sphere – imaginary sphere covering an observer Zenith – point directly above observer on celestial sphere

12. Photographs Taken From Space Observations of the Altitude of Polaris
Evidence of Earth’s Nearly Spherical Shape
Ships and Eclipses
Photographs Taken From Space
Observations of the Altitude of Polaris
***When viewed from space or scaled down to a model, the Earth appears to be a perfect sphere, since the bulge is almost negligible

13. Changing ground distances between lines of latitude
Evidence of Earth’s Oblate Spheroid Shape
Changing ground distances between lines of latitude
Weight (gravity) difference at equator and poles

14. Relief = changes in elevation ex. Mountain, valleys, hills, canyons
Compared to the diameter of the Earth, even the highest mountain is quite small, thus relative to the overall size of the Earth it is actually quite smooth

15. Erotasthenes Info

17. Earth’s “Spheres”
Lithosphere
Hydrosphere
Atmosphere

18. Lithosphere Continuous outer solid rock layer of Earth
CRUST/ Part of the Mantle
More dense than hydrosphere, thus below
Varies in thickness from 70 to 150 km
Oxygen and silicon most common elements (see ESRT)
Back

19. Hydrosphere
Thin layer of water that covers majority of Earth’s surface
Approx. 71% of surface covered with water
3.5 to 4 km thick, thin compared to other spheres
All bodies of water
Hydrogen and oxygen most abundant
Back

20. Atmosphere Shell of gases surrounding Earth
Separated into layers each having distinct characteristics
Several hundred km thick
Least dense of three spheres
See ESRT
Back

21. Field – region of space with a measurable quantity at every point
Ex. Gravity, temp., pressure, elevation

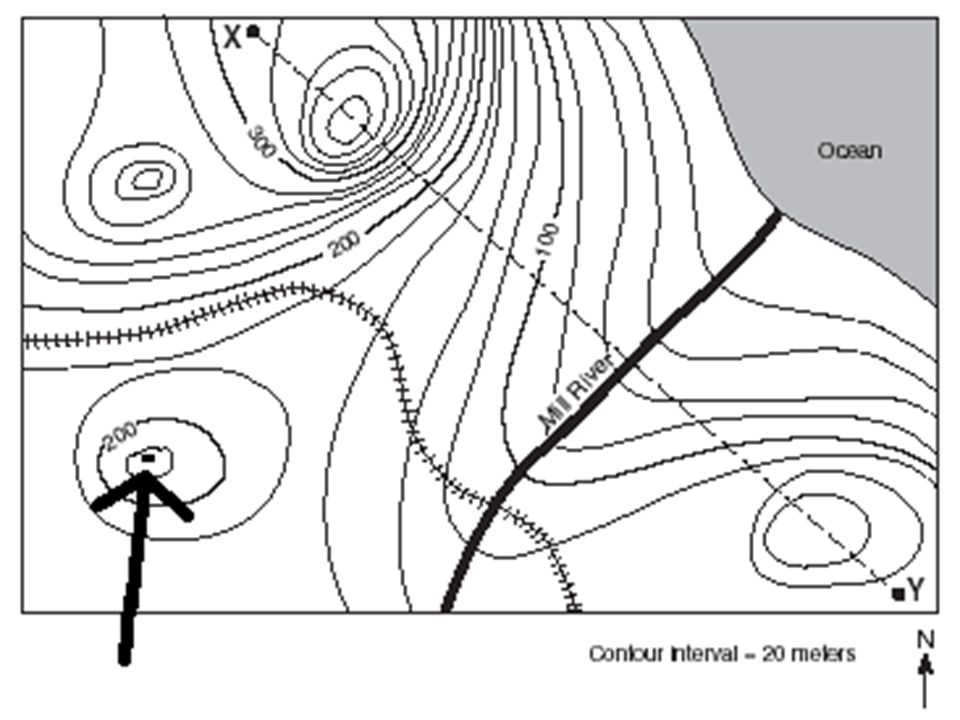

Isolines – lines that connect points of equal field value
Types of Isolines
Contour - elevation
Isotherm - temperature
Isobar - pressure

22. Scalar Field – a field that has magnitude only, no direction
Ex. Elevation, temperature, pressure
Vector Field – a field that shows values for magnitude and direction
Ex. Wind, magnetic fields

23. The picture to the right is an example of a field map
The picture to the right is an example of a field map. In this example, the numbers on the map represent the concentration of gasoline found at that location. So the map simply shows how much of something (in this case gasoline) is found at many locations.
Back

24. The image on the left is an example of a gasoline field map with the 40 isoline drawn in.
Notice that the line connects points that all have the same value. In this example, the circle connects all of the points with a value of 40. That means that every point on that line has a value of exactly 40

25. This map has all of the isolines drawn in, at an interval of 10 (each line is 10 units apart) is shown to the right:

31. D.O.Q 10/11/12 Do Now: Questions: 1. Copy down daily observations
Be prepared for a quiz
Sunrise = 7:13 AM
Sunset = 6:27 PM
Hours of Daylight =
Moon Phase = Waning Crescent, 19%
Questions: 1.
