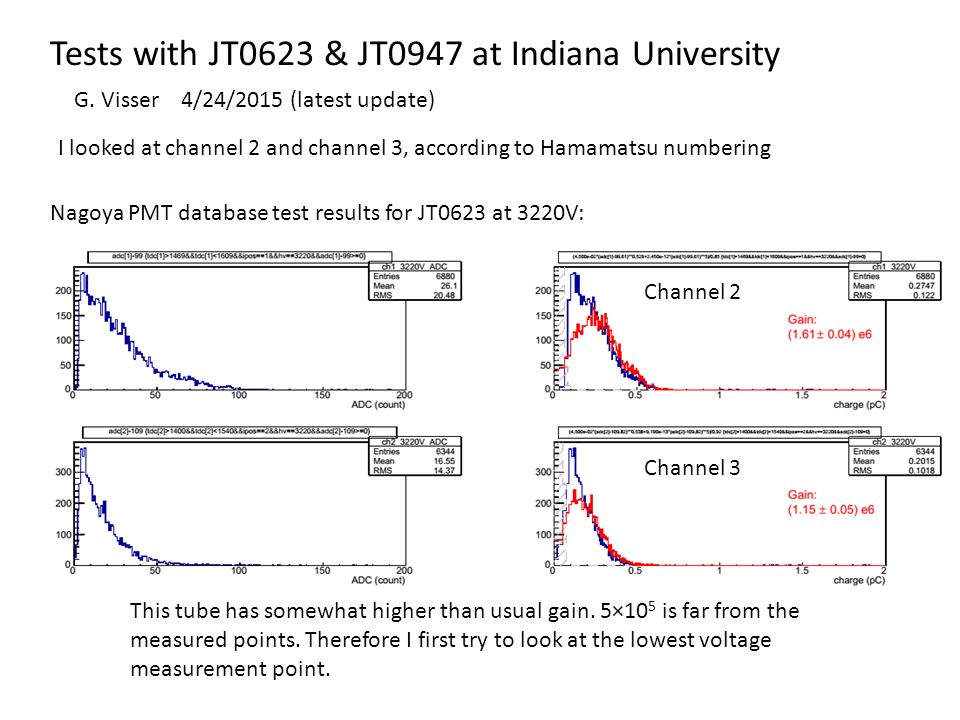

1. Tests with JT0623 & JT0947 at Indiana University Nagoya PMT database test results for JT0623 at 3220V: This tube has somewhat higher than usual gain. 5×10 5 is far from the measured points. Therefore I first try to look at the lowest voltage measurement point. G. Visser 4/24/2015 (latest update) I looked at channel 2 and channel 3, according to Hamamatsu numbering Channel 2 Channel 3

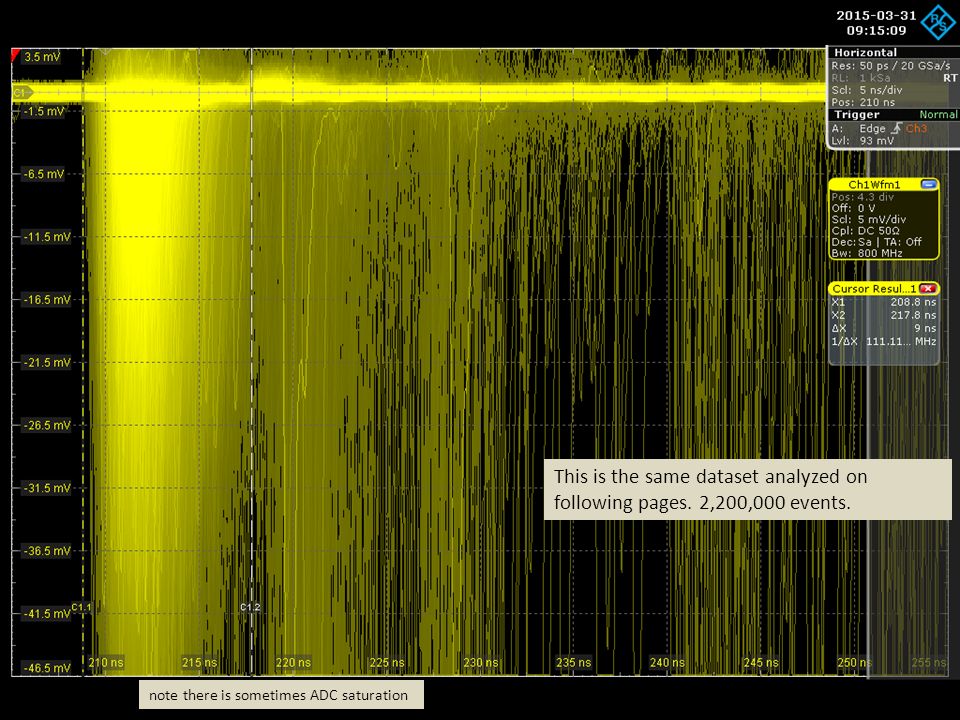

2. This is the same dataset analyzed on following pages. 2,200,000 events. note there is sometimes ADC saturation

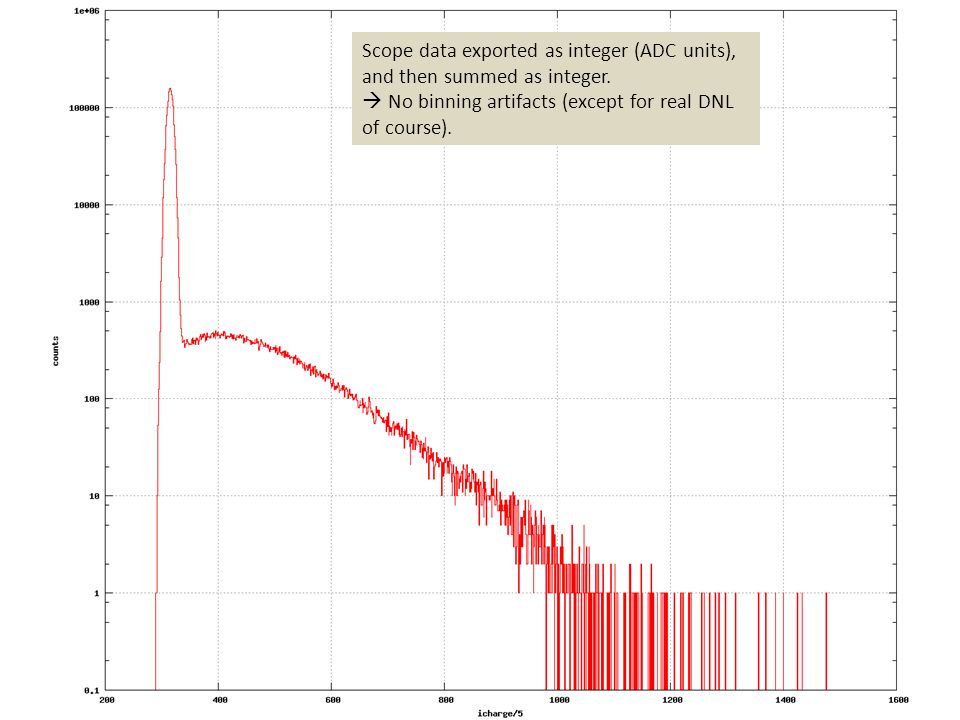

3. Scope data exported as integer (ADC units), and then summed as integer.  No binning artifacts (except for real DNL of course).

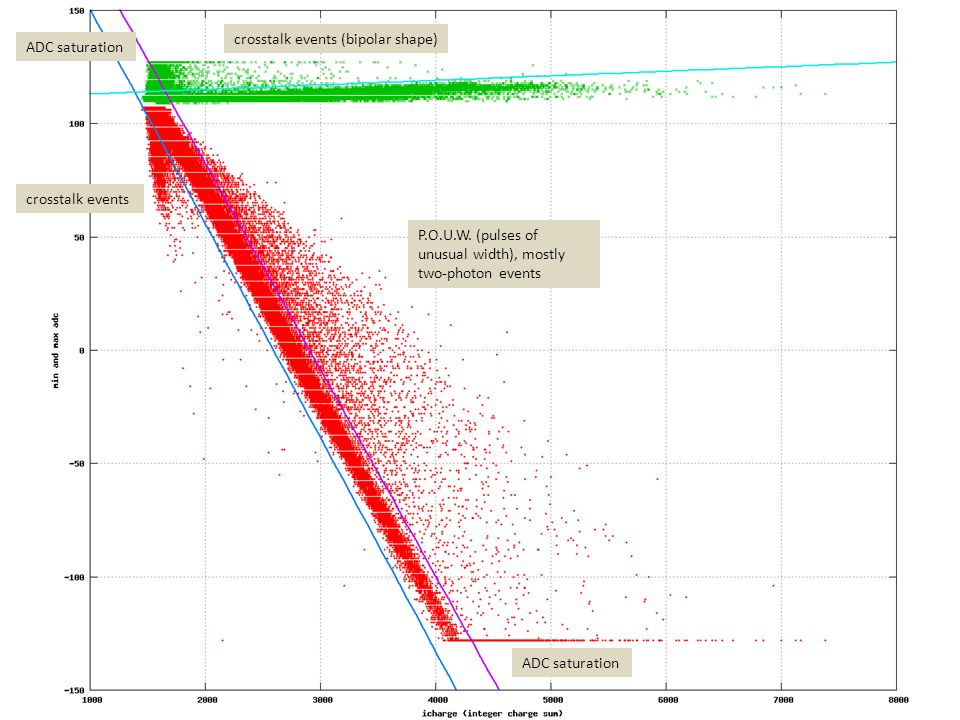

4. crosstalk events P.O.U.W. (pulses of unusual width), mostly two-photon events ADC saturation crosstalk events (bipolar shape)

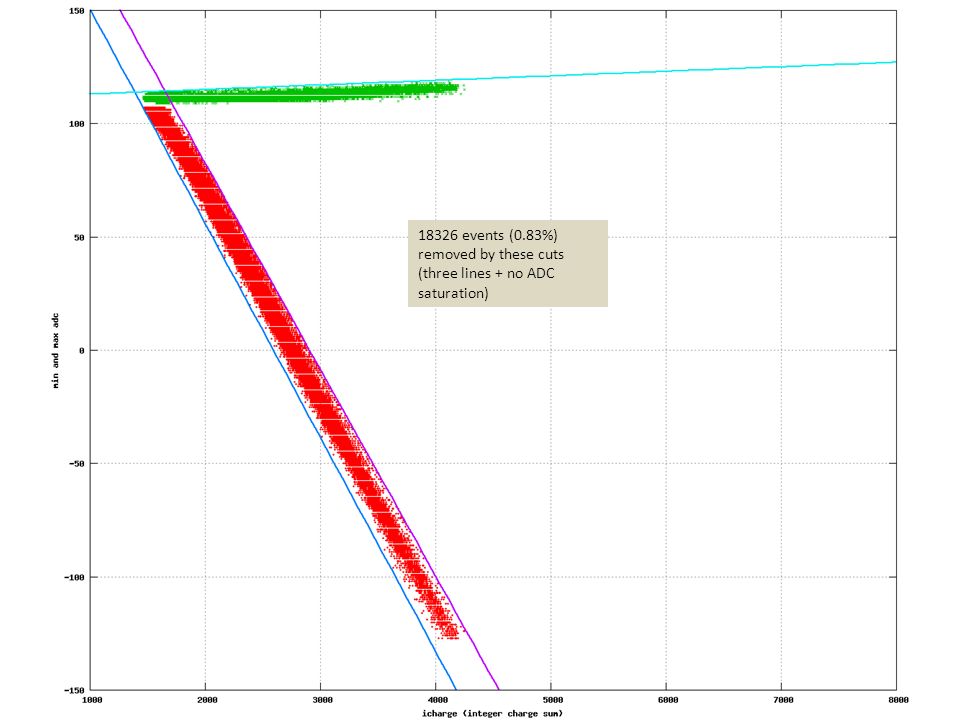

5. 18326 events (0.83%) removed by these cuts (three lines + no ADC saturation)

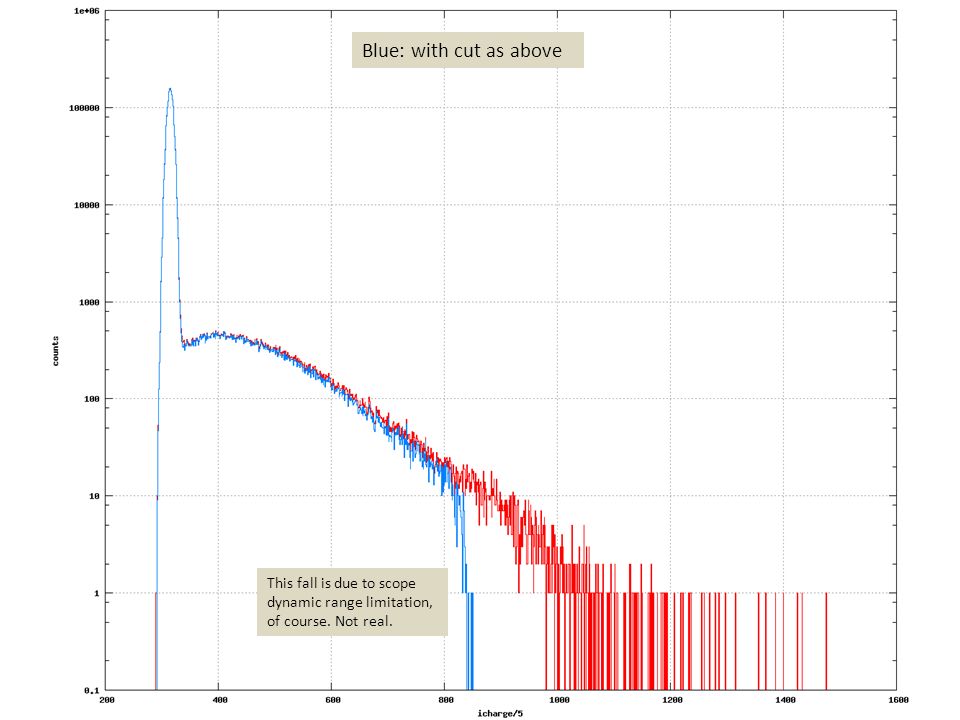

6. Blue: with cut as above This fall is due to scope dynamic range limitation, of course. Not real.

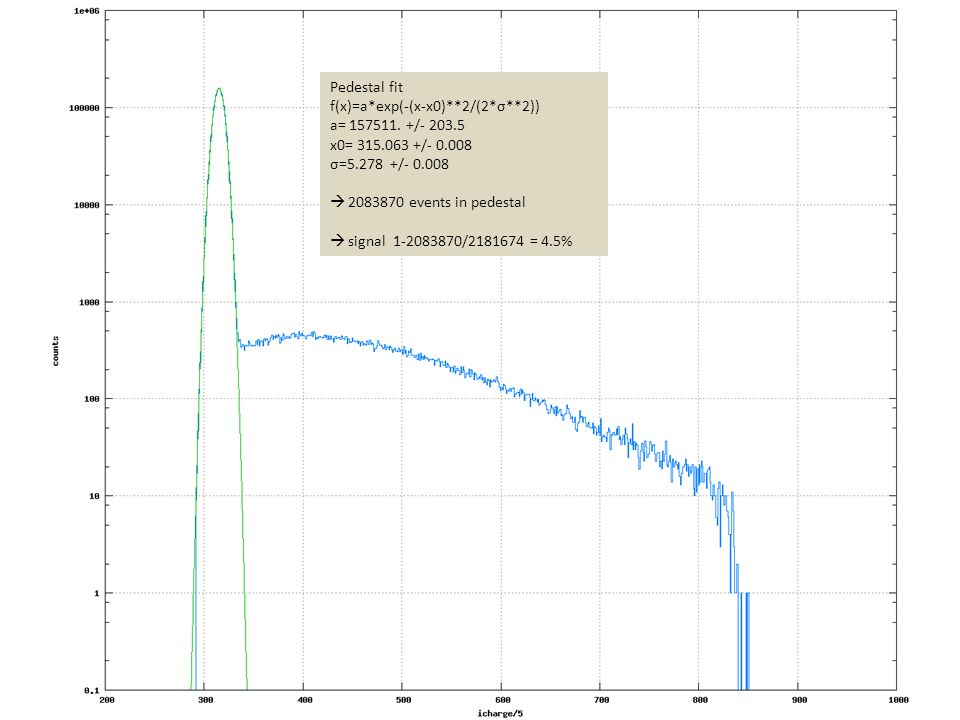

7. Pedestal fit f(x)=a*exp(-(x-x0)**2/(2*σ**2)) a= 157511. +/- 203.5 x0= 315.063 +/- 0.008 σ=5.278 +/- 0.008  2083870 events in pedestal  signal 1-2083870/2181674 = 4.5%

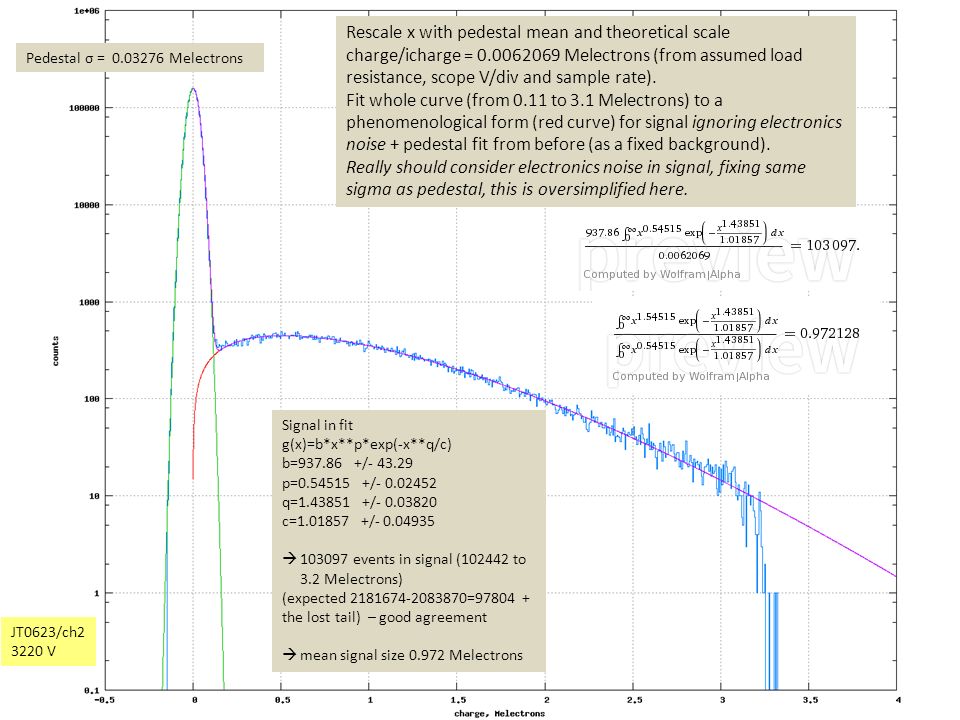

8. Rescale x with pedestal mean and theoretical scale charge/icharge = 0.0062069 Melectrons (from assumed load resistance, scope V/div and sample rate). Fit whole curve (from 0.11 to 3.1 Melectrons) to a phenomenological form (red curve) for signal ignoring electronics noise + pedestal fit from before (as a fixed background). Really should consider electronics noise in signal, fixing same sigma as pedestal, this is oversimplified here. Signal in fit g(x)=b*x**p*exp(-x**q/c) b=937.86 +/- 43.29 p=0.54515 +/- 0.02452 q=1.43851 +/- 0.03820 c=1.01857 +/- 0.04935  103097 events in signal (102442 to 3.2 Melectrons) (expected 2181674-2083870=97804 + the lost tail) – good agreement  mean signal size 0.972 Melectrons JT0623/ch2 3220 V Pedestal σ = 0.03276 Melectrons

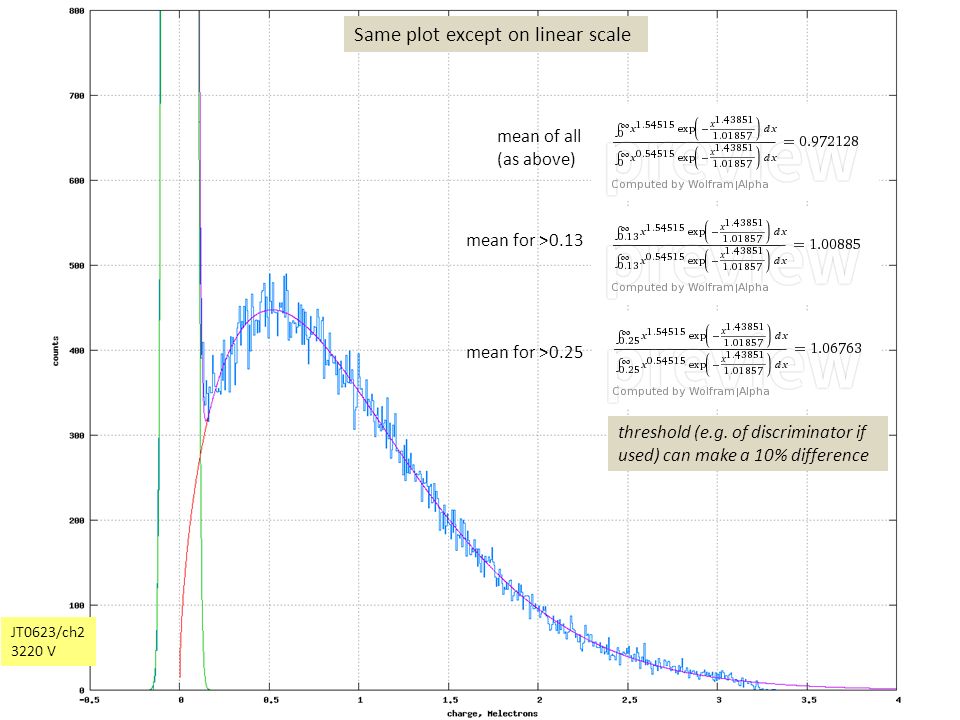

9. Same plot except on linear scale mean of all (as above) mean for >0.13 mean for >0.25 threshold (e.g. of discriminator if used) can make a 10% difference JT0623/ch2 3220 V

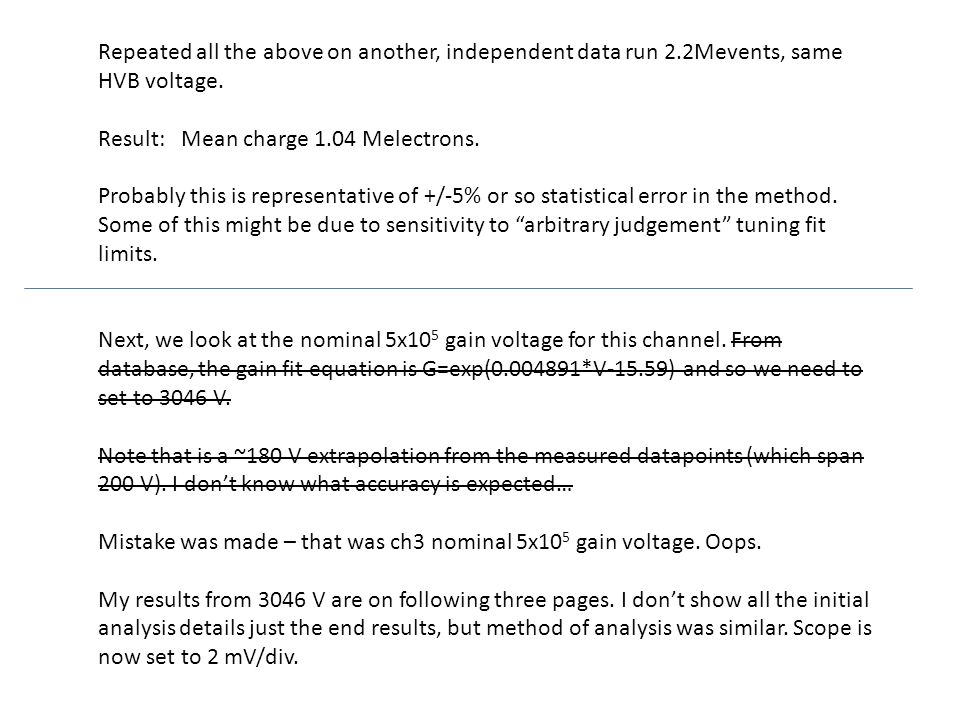

10. Repeated all the above on another, independent data run 2.2Mevents, same HVB voltage. Result: Mean charge 1.04 Melectrons. Probably this is representative of +/-5% or so statistical error in the method. Some of this might be due to sensitivity to “arbitrary judgement” tuning fit limits. Next, we look at the nominal 5x10 5 gain voltage for this channel. From database, the gain fit equation is G=exp(0.004891*V-15.59) and so we need to set to 3046 V. Note that is a ~180 V extrapolation from the measured datapoints (which span 200 V). I don’t know what accuracy is expected… Mistake was made – that was ch3 nominal 5x10 5 gain voltage. Oops. My results from 3046 V are on following three pages. I don’t show all the initial analysis details just the end results, but method of analysis was similar. Scope is now set to 2 mV/div.

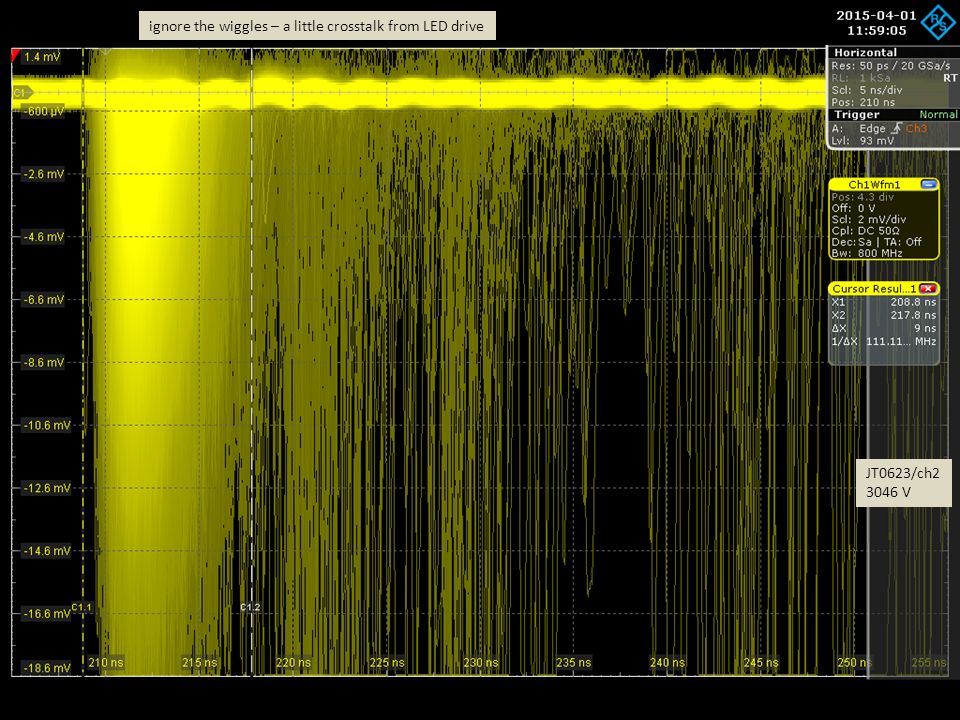

11. JT0623/ch2 3046 V ignore the wiggles – a little crosstalk from LED drive

12. Charge histogram method as before. Fit pedestal first, then fit whole curve (from 0.08 to 1.22 Melectrons) to a phenomenological form (red curve) for signal ignoring electronics noise + the fixed pedestal fit. Signal in fit g(x)=b*x**p*exp(-x**q/c) b= 2612.97 +/- 359.6 p= 0.73315 +/- 0.04844 q= 1.29602 +/- 0.04679 c= 0.20943 +/- 0.005052  89585.9 events in signal (89291.1 to 1.27 Melectrons) [We expected 2200000 -11574(cut) - 2103340(pedestal fit) = 85086 events in signal. Good.]  mean signal size 0.353 Melectrons JT0623/ch2 3046 V Pedestal σ = 0.024164 Melectrons

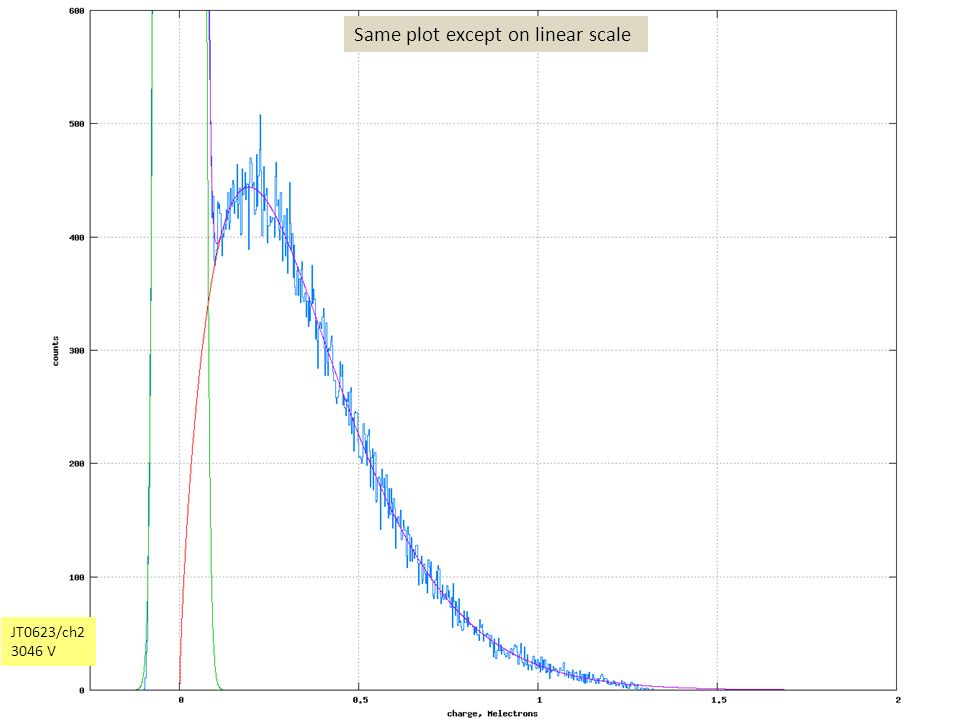

13. Same plot except on linear scale JT0623/ch2 3046 V

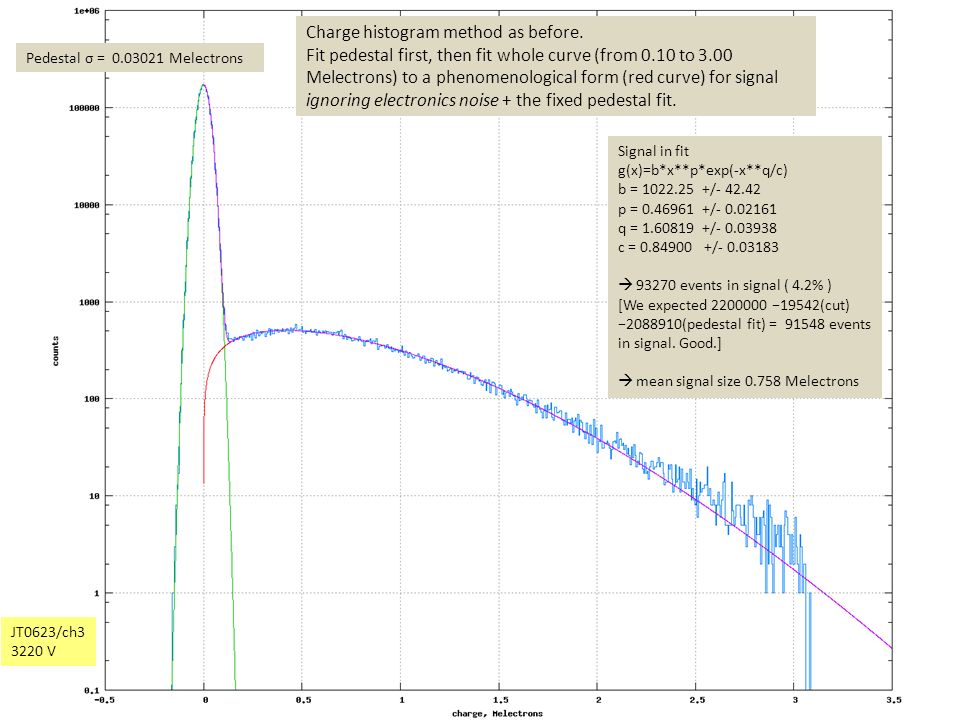

14. JT0623/ch3 3220 V Pedestal σ = 0.03021 Melectrons Charge histogram method as before. Fit pedestal first, then fit whole curve (from 0.10 to 3.00 Melectrons) to a phenomenological form (red curve) for signal ignoring electronics noise + the fixed pedestal fit. Signal in fit g(x)=b*x**p*exp(-x**q/c) b = 1022.25 +/- 42.42 p = 0.46961 +/- 0.02161 q = 1.60819 +/- 0.03938 c = 0.84900 +/- 0.03183  93270 events in signal ( 4.2% ) [We expected 2200000 −19542(cut) −2088910(pedestal fit) = 91548 events in signal. Good.]  mean signal size 0.758 Melectrons

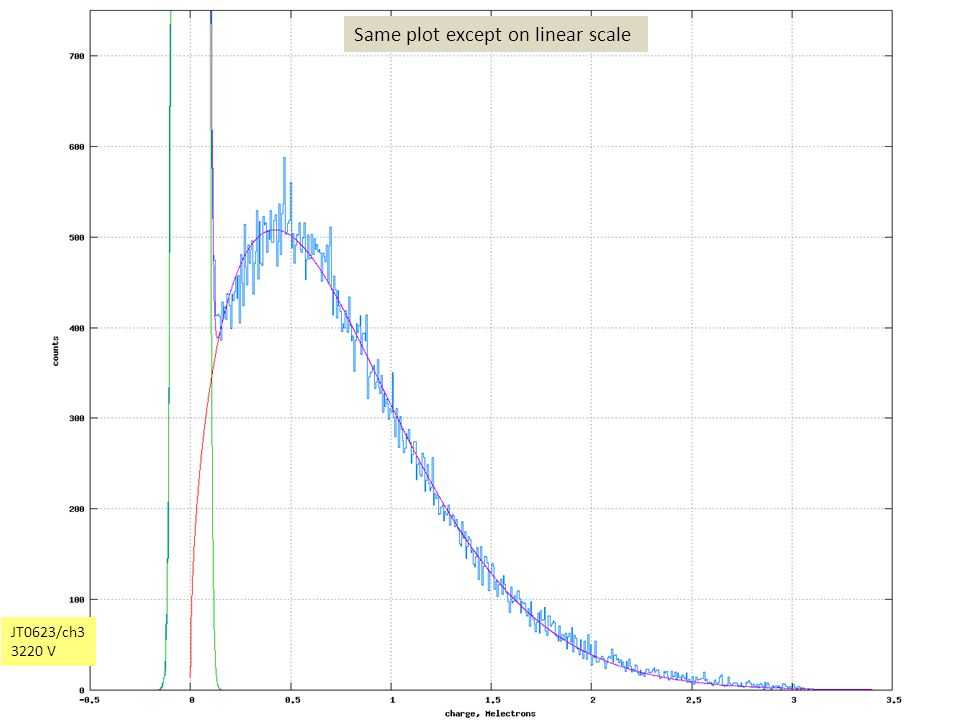

15. Same plot except on linear scale JT0623/ch3 3220 V

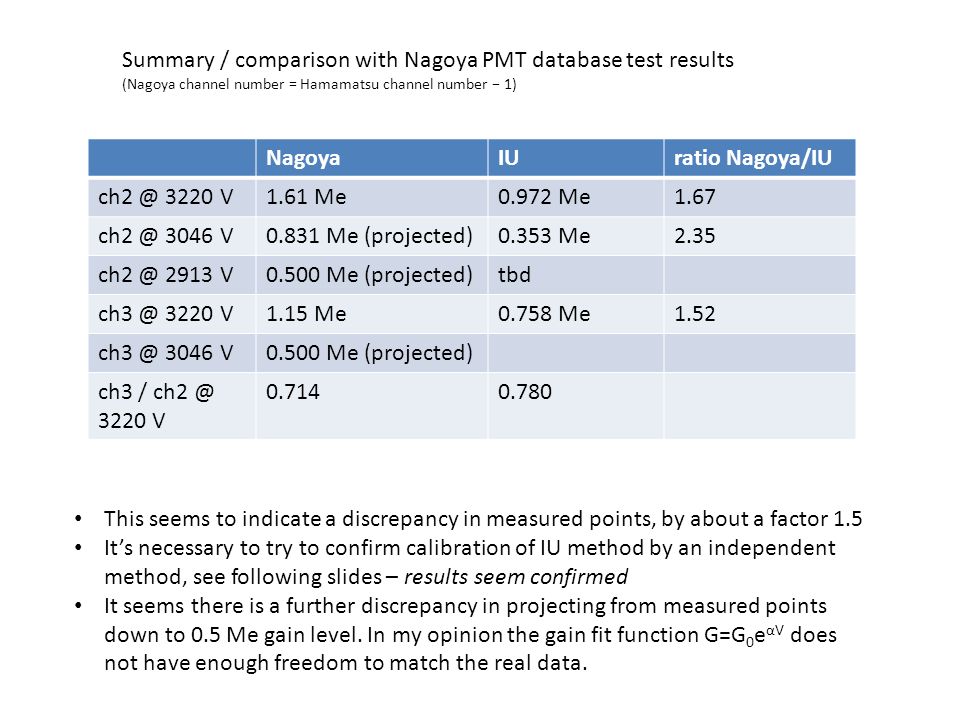

16. Summary / comparison with Nagoya PMT database test results (Nagoya channel number = Hamamatsu channel number − 1) NagoyaIUratio Nagoya/IU ch2 @ 3220 V1.61 Me0.972 Me1.67 ch2 @ 3046 V0.831 Me (projected)0.353 Me2.35 ch2 @ 2913 V0.500 Me (projected)tbd ch3 @ 3220 V1.15 Me0.758 Me1.52 ch3 @ 3046 V0.500 Me (projected) ch3 / ch2 @ 3220 V 0.7140.780 This seems to indicate a discrepancy in measured points, by about a factor 1.5 It’s necessary to try to confirm calibration of IU method by an independent method, see following slides – results seem confirmed It seems there is a further discrepancy in projecting from measured points down to 0.5 Me gain level. In my opinion the gain fit function G=G 0 e αV does not have enough freedom to match the real data.

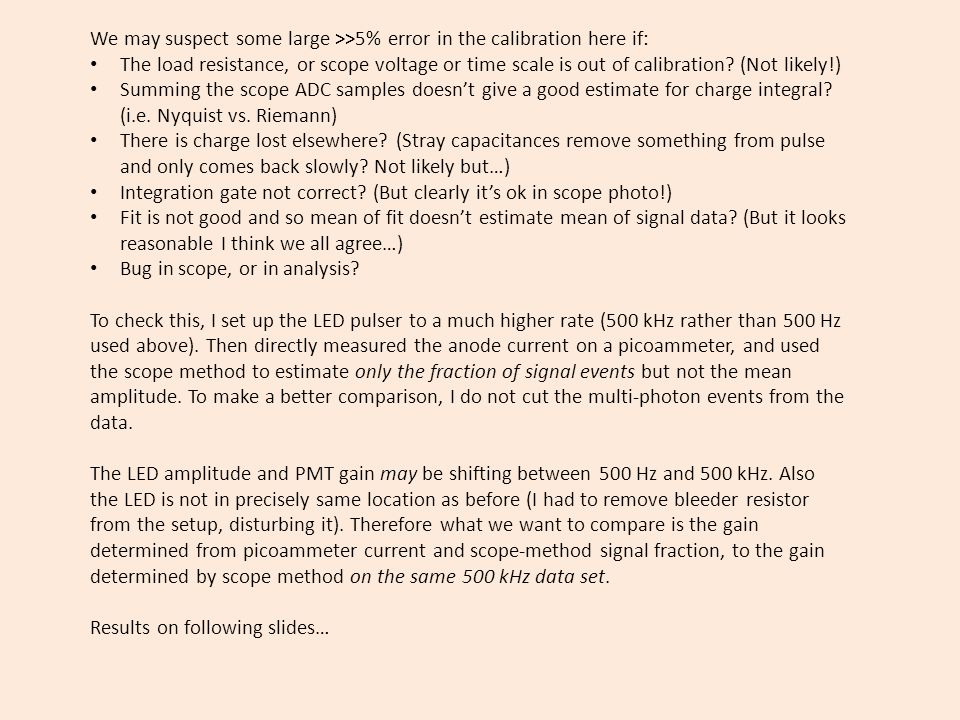

17. We may suspect some large >>5% error in the calibration here if: The load resistance, or scope voltage or time scale is out of calibration? (Not likely!) Summing the scope ADC samples doesn’t give a good estimate for charge integral? (i.e. Nyquist vs. Riemann) There is charge lost elsewhere? (Stray capacitances remove something from pulse and only comes back slowly? Not likely but…) Integration gate not correct? (But clearly it’s ok in scope photo!) Fit is not good and so mean of fit doesn’t estimate mean of signal data? (But it looks reasonable I think we all agree…) Bug in scope, or in analysis? To check this, I set up the LED pulser to a much higher rate (500 kHz rather than 500 Hz used above). Then directly measured the anode current on a picoammeter, and used the scope method to estimate only the fraction of signal events but not the mean amplitude. To make a better comparison, I do not cut the multi-photon events from the data. The LED amplitude and PMT gain may be shifting between 500 Hz and 500 kHz. Also the LED is not in precisely same location as before (I had to remove bleeder resistor from the setup, disturbing it). Therefore what we want to compare is the gain determined from picoammeter current and scope-method signal fraction, to the gain determined by scope method on the same 500 kHz data set. Results on following slides…

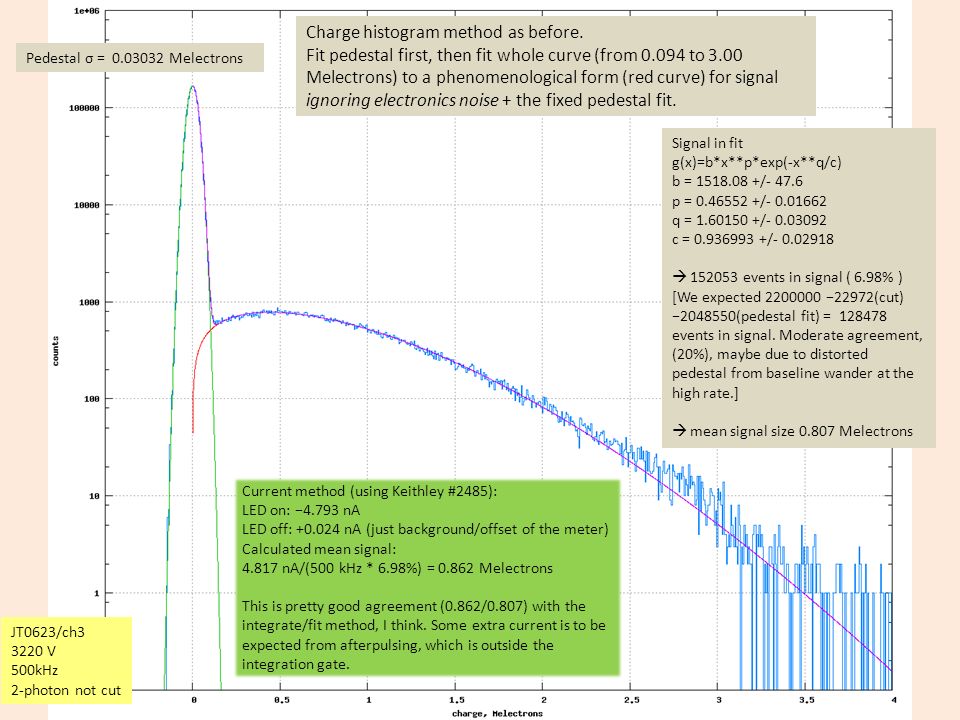

18. JT0623/ch3 3220 V 500kHz 2-photon not cut Pedestal σ = 0.03032 Melectrons Charge histogram method as before. Fit pedestal first, then fit whole curve (from 0.094 to 3.00 Melectrons) to a phenomenological form (red curve) for signal ignoring electronics noise + the fixed pedestal fit. Signal in fit g(x)=b*x**p*exp(-x**q/c) b = 1518.08 +/- 47.6 p = 0.46552 +/- 0.01662 q = 1.60150 +/- 0.03092 c = 0.936993 +/- 0.02918  152053 events in signal ( 6.98% ) [We expected 2200000 −22972(cut) −2048550(pedestal fit) = 128478 events in signal. Moderate agreement, (20%), maybe due to distorted pedestal from baseline wander at the high rate.]  mean signal size 0.807 Melectrons Current method (using Keithley #2485): LED on: −4.793 nA LED off: +0.024 nA (just background/offset of the meter) Calculated mean signal: 4.817 nA/(500 kHz * 6.98%) = 0.862 Melectrons This is pretty good agreement (0.862/0.807) with the integrate/fit method, I think. Some extra current is to be expected from afterpulsing, which is outside the integration gate.

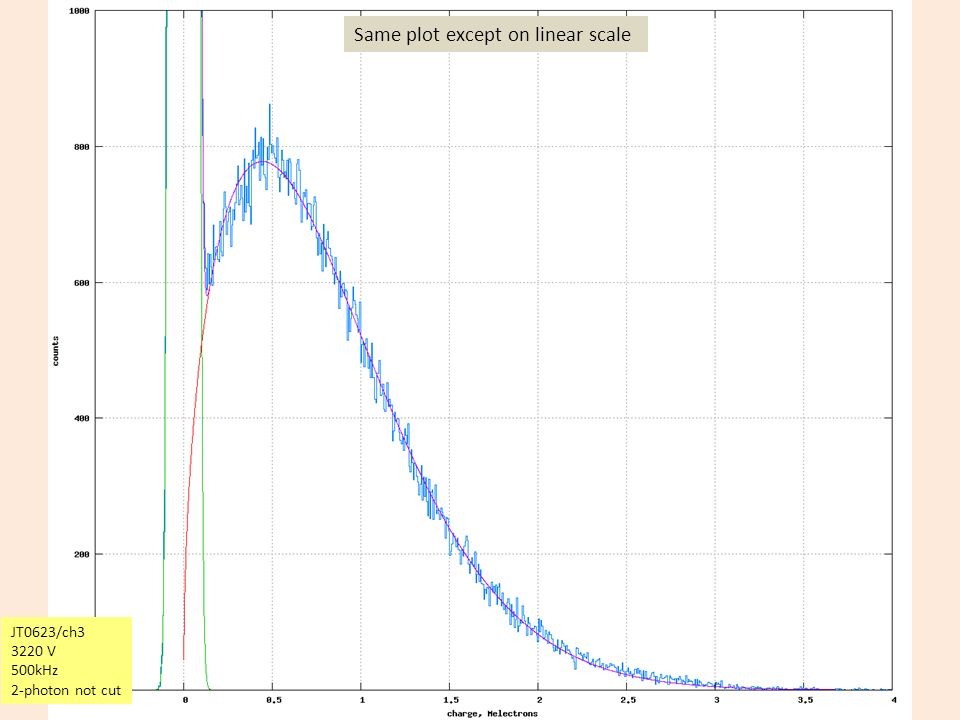

19. Same plot except on linear scale JT0623/ch3 3220 V 500kHz 2-photon not cut

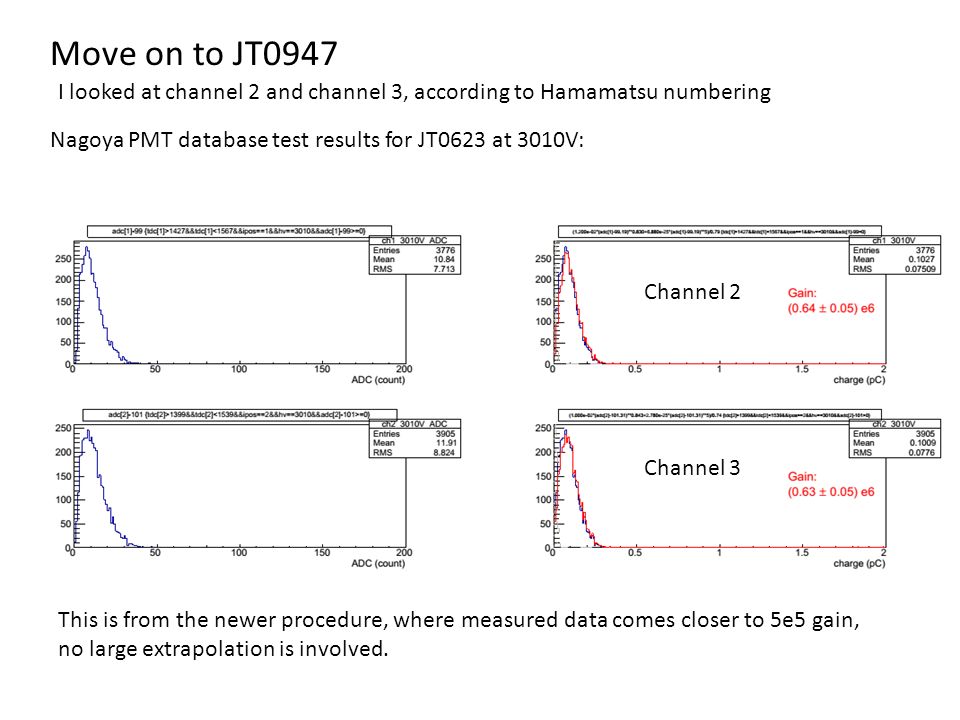

20. Move on to JT0947 Nagoya PMT database test results for JT0623 at 3010V: I looked at channel 2 and channel 3, according to Hamamatsu numbering Channel 2 Channel 3 This is from the newer procedure, where measured data comes closer to 5e5 gain, no large extrapolation is involved.

21. JT0947/ch3 3010 V Pedestal σ = 0.02332 Melectrons Charge histogram method as before. Fit pedestal first, then fit whole curve (from 0.072 to 0.70 Melectrons) to a phenomenological form (red curve) for signal ignoring electronics noise + the fixed pedestal fit. Signal in fit g(x)=b*x**p*exp(-x**q/c) b = 12372.9 +/- 2999 p = 0.94528 +/- 0.07329 q = 1.24050 +/- 0.04934 c = 0.0901407 +/- 0.00088  137640 events in signal ( 6.3% ) [We expected 2200000 −12612(cut) −2062040(pedestal fit) = 125348 events in signal. Good.]  mean signal size 0.197 Melectrons

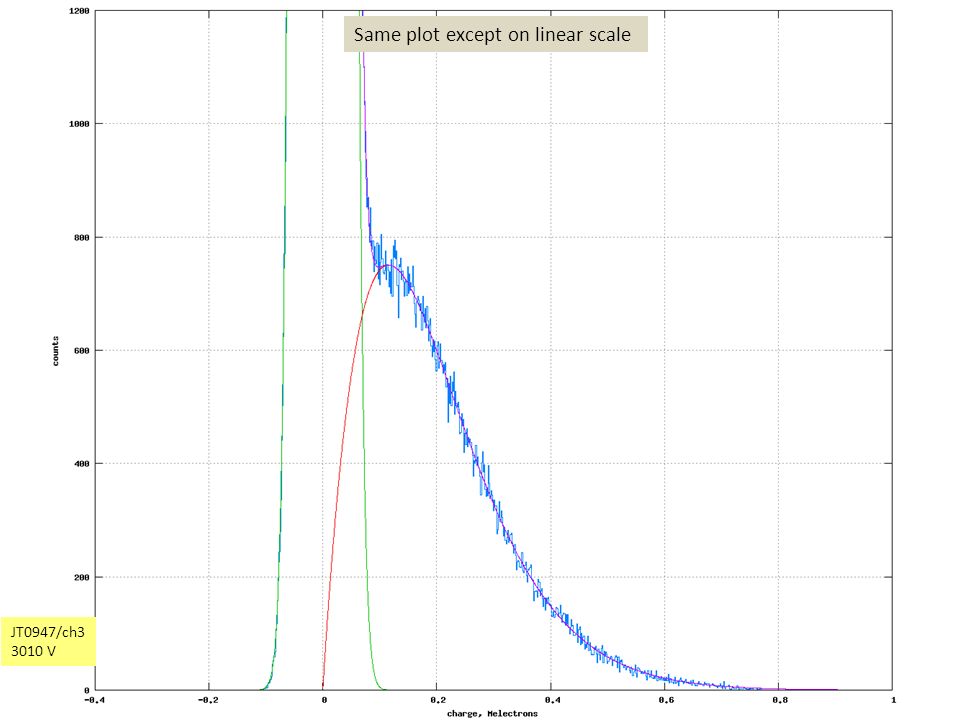

22. Same plot except on linear scale JT0947/ch3 3010 V

23. JT0947/ch3 3210 V Pedestal σ = 0.02805 Melectrons Charge histogram method as before. Fit pedestal first, then fit whole curve (from 0.11 to 2.36 Melectrons) to a phenomenological form (red curve) for signal ignoring electronics noise + the fixed pedestal fit. Signal in fit g(x)=b*x**p*exp(-x**q/c) b = 1220.41 +/- 44.58 p = 0.36669 +/- 0.01891 q = 1.70531 +/- 0.03849 c = 0.78737 +/- 0.02436  139034 events in signal ( 6.3% ) [We expected 2200000 −22086(cut) −2042780(pedestal fit) = 135134 events in signal. Good.]  mean signal size 0.664 Melectrons

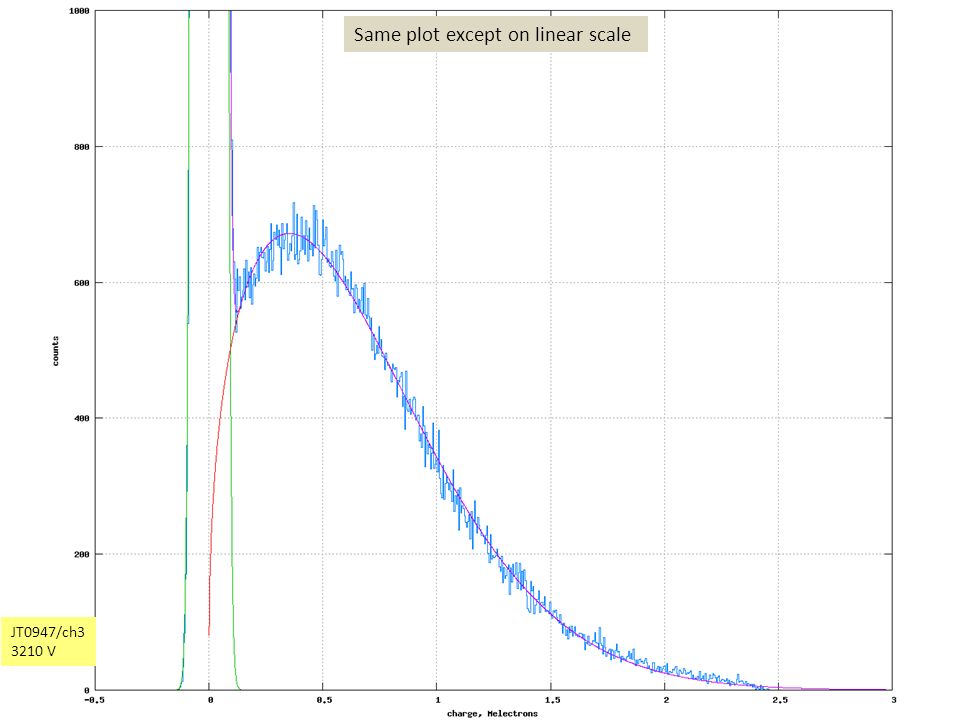

24. Same plot except on linear scale JT0947/ch3 3210 V

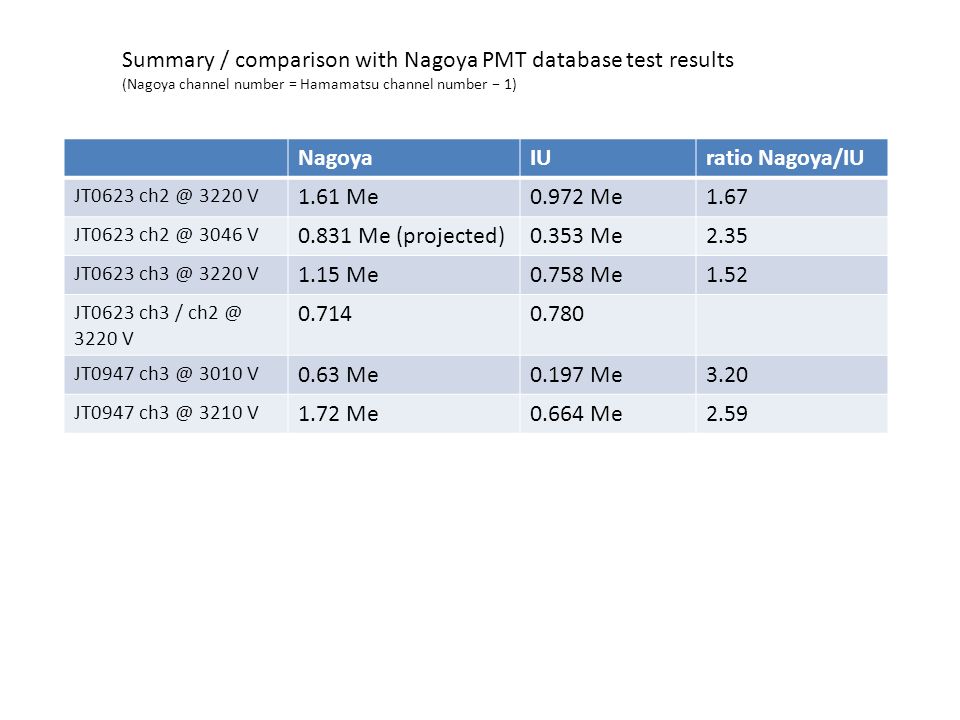

25. Summary / comparison with Nagoya PMT database test results (Nagoya channel number = Hamamatsu channel number − 1) NagoyaIUratio Nagoya/IU JT0623 ch2 @ 3220 V 1.61 Me0.972 Me1.67 JT0623 ch2 @ 3046 V 0.831 Me (projected)0.353 Me2.35 JT0623 ch3 @ 3220 V 1.15 Me0.758 Me1.52 JT0623 ch3 / ch2 @ 3220 V 0.7140.780 JT0947 ch3 @ 3010 V 0.63 Me0.197 Me3.20 JT0947 ch3 @ 3210 V 1.72 Me0.664 Me2.59
