1. A+ Guide to Managing and Maintaining Your PC Fifth Edition Chapter 1 Introducing Hardware

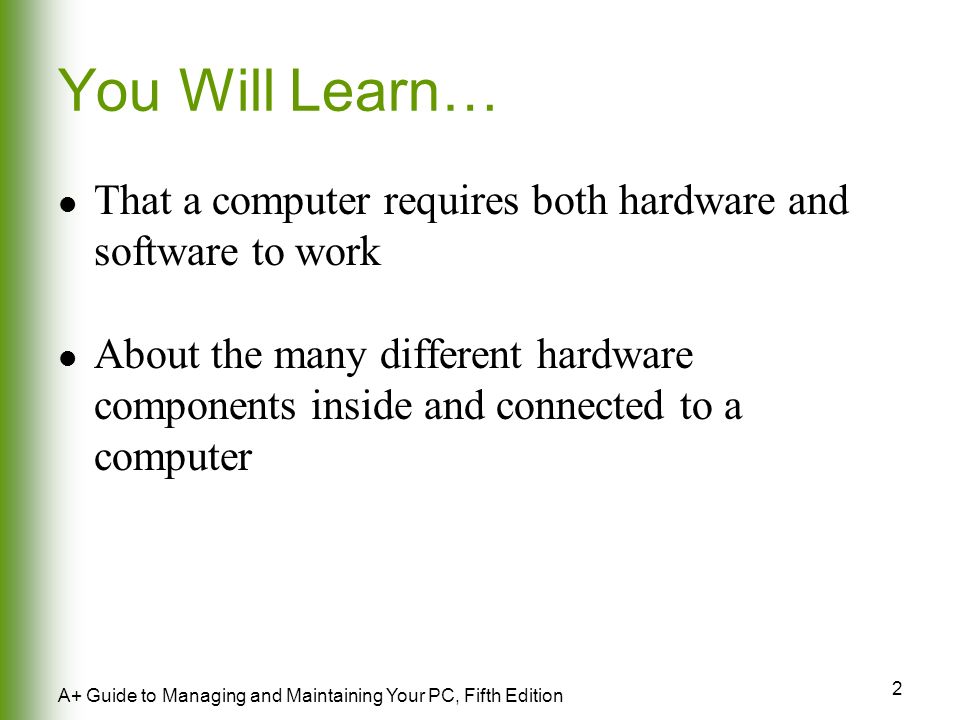

2. 2 A+ Guide to Managing and Maintaining Your PC, Fifth Edition You Will Learn… That a computer requires both hardware and software to work About the many different hardware components inside and connected to a computer

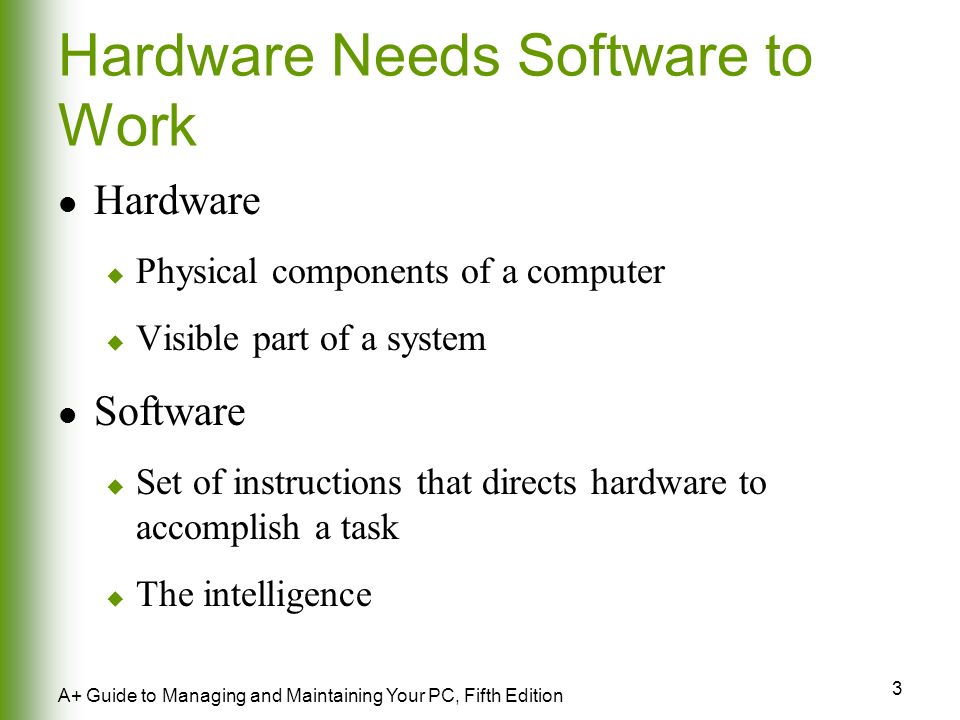

3. 3 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Hardware Needs Software to Work Hardware  Physical components of a computer  Visible part of a system Software  Set of instructions that directs hardware to accomplish a task  The intelligence

4. 4 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Functions of a Computer

5. 5 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Binary Communication Between Hardware and Software

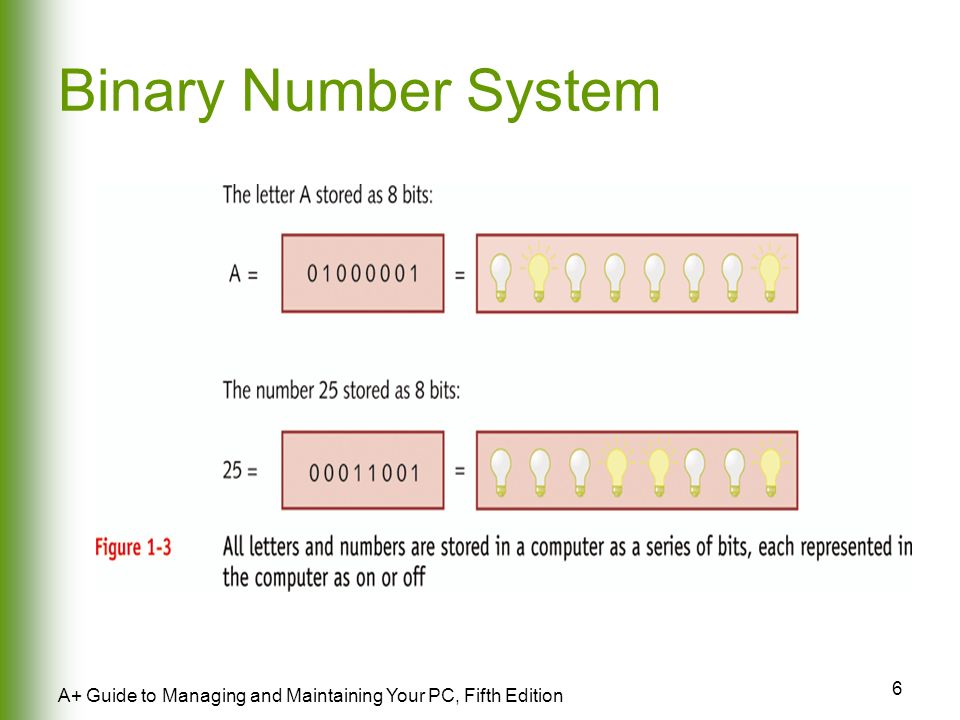

6. 6 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Binary Number System

7. 7 A+ Guide to Managing and Maintaining Your PC, Fifth Edition PC Hardware Components Outside computer case: input/output devices Inside the case: processing and storage  CPU – most important component Requirements of a hardware device  Method for CPU to communicate with it  Software to instruct and control it  Electricity to power it

8. 8 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Hardware Used for Input and Output Connects to computer case by ports (eg, serial, parallel, USB, game, keyboard, mouse) Popular input devices:  Keyboard  Mouse Popular output devices:  Monitor  Printer

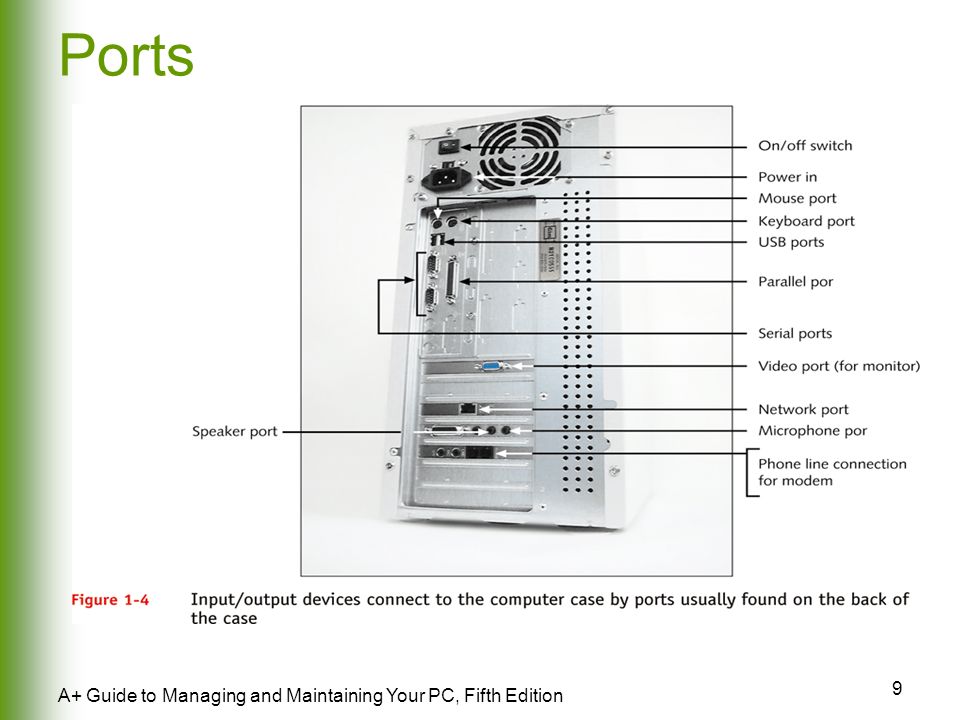

9. 9 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Ports

10. 10 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Input Devices

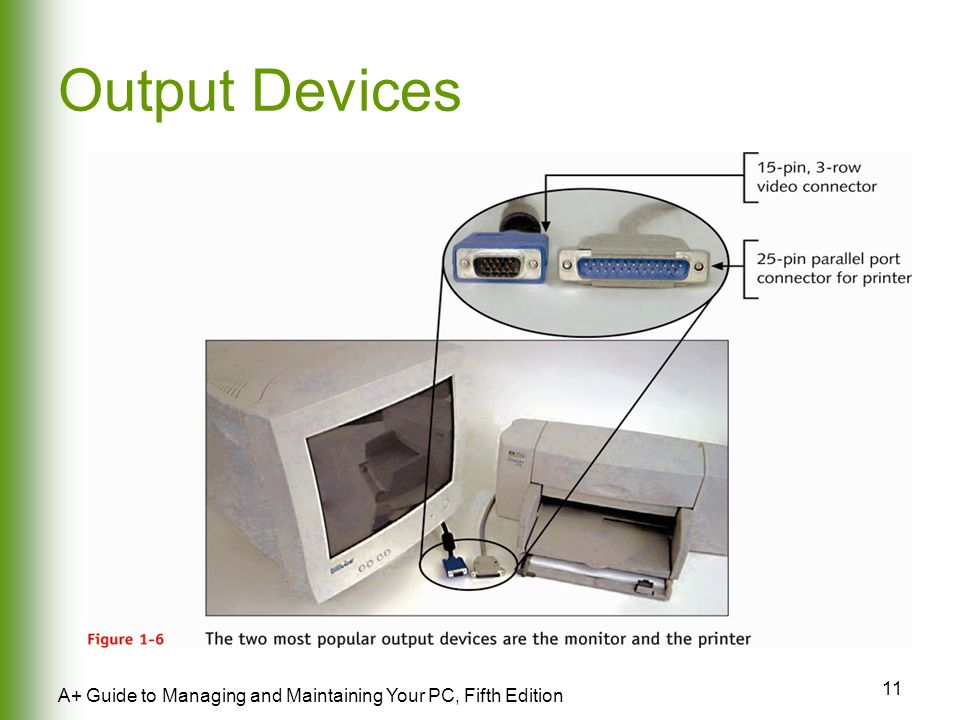

11. 11 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Output Devices

12. 12 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Hardware Inside the Case

13. 13 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Motherboard Components Processing  CPU (most important)  Chip set Temporary storage  RAM  Cache memory Electrical system  Power supply connections Communication with other devices  Traces  Expansion slots  System clock Programming/setup data  Flash ROM  CMOS setup chip

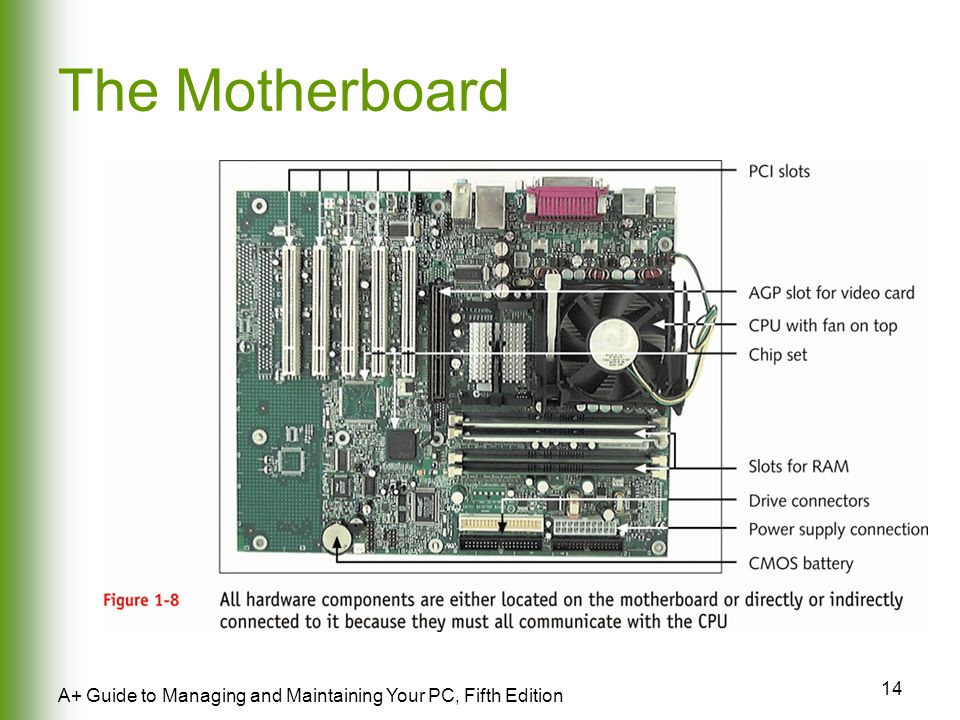

14. 14 A+ Guide to Managing and Maintaining Your PC, Fifth Edition The Motherboard

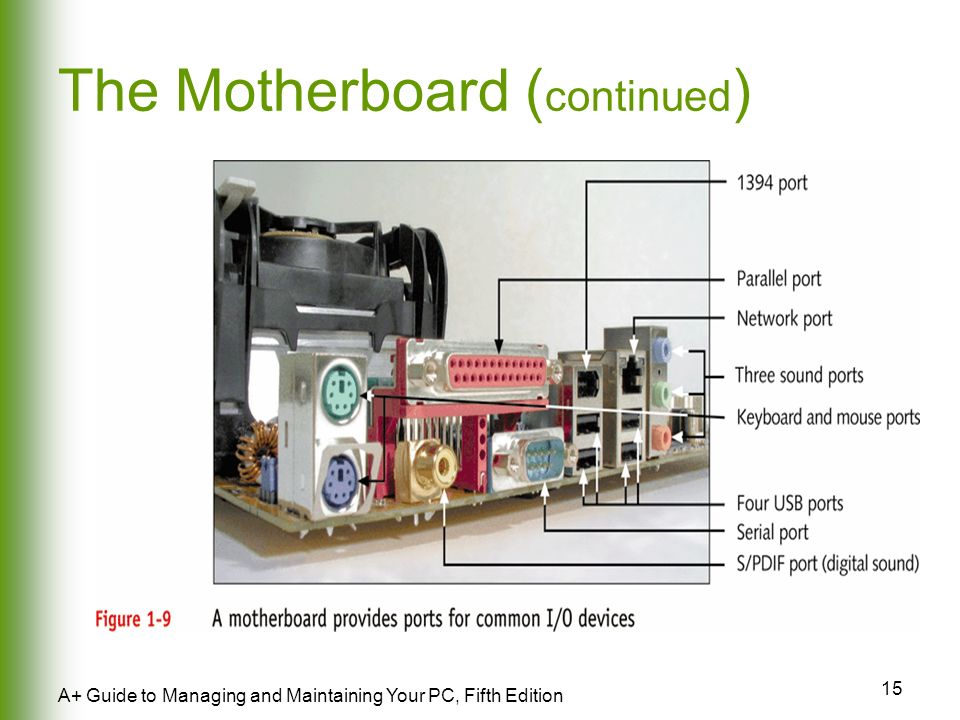

15. 15 A+ Guide to Managing and Maintaining Your PC, Fifth Edition The Motherboard ( continued )

16. 16 A+ Guide to Managing and Maintaining Your PC, Fifth Edition The CPU

17. 17 A+ Guide to Managing and Maintaining Your PC, Fifth Edition The Chip Set Controls most activities on the motherboard Includes several device controllers  USB controller  Memory controller  IDE controller

18. 18 A+ Guide to Managing and Maintaining Your PC, Fifth Edition The Chip Set ( continued )

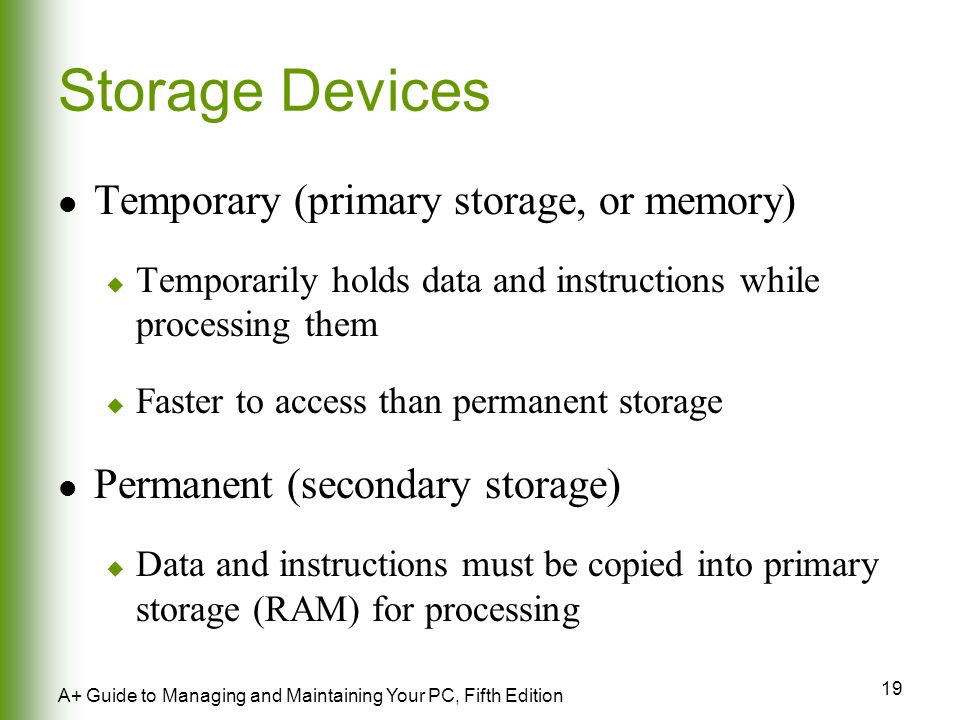

19. 19 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Storage Devices Temporary (primary storage, or memory)  Temporarily holds data and instructions while processing them  Faster to access than permanent storage Permanent (secondary storage)  Data and instructions must be copied into primary storage (RAM) for processing

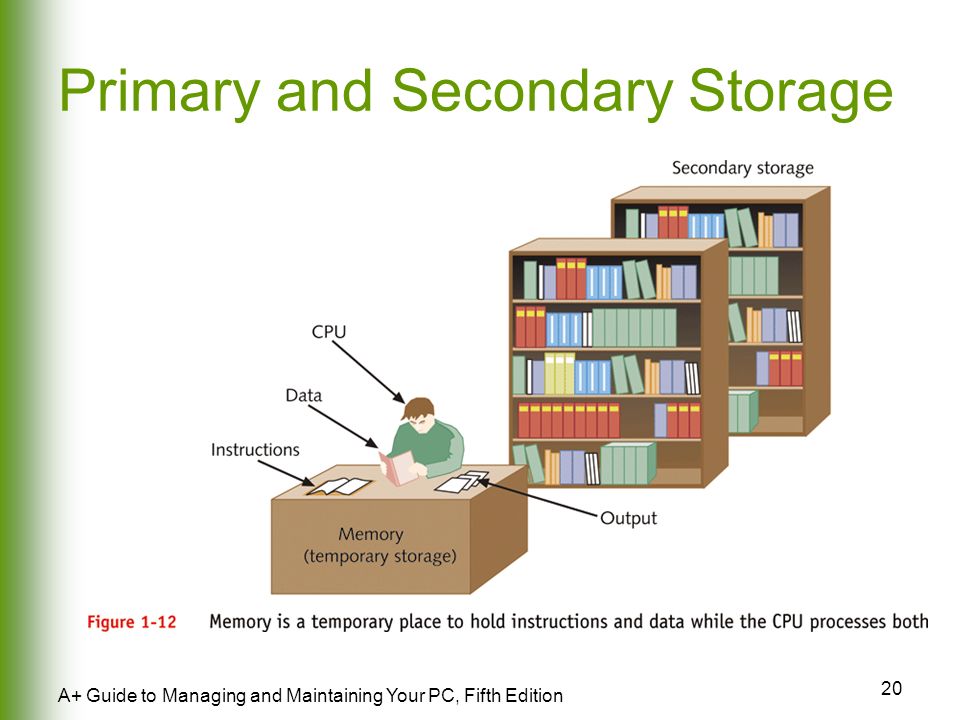

20. 20 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Primary and Secondary Storage

21. 21 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Primary Storage Devices Memory, or RAM, located on motherboard and other circuit boards  Volatile versus nonvolatile (or ROM) memory Types of boards that hold memory chips  SIMMs  DIMMs  RIMMs

22. 22 A+ Guide to Managing and Maintaining Your PC, Fifth Edition RAM Chips

23. 23 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Types of RAM Modules

24. 24 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Secondary Storage Devices Hard drives CD-ROM drives DVD drives Zip drives Floppy drives

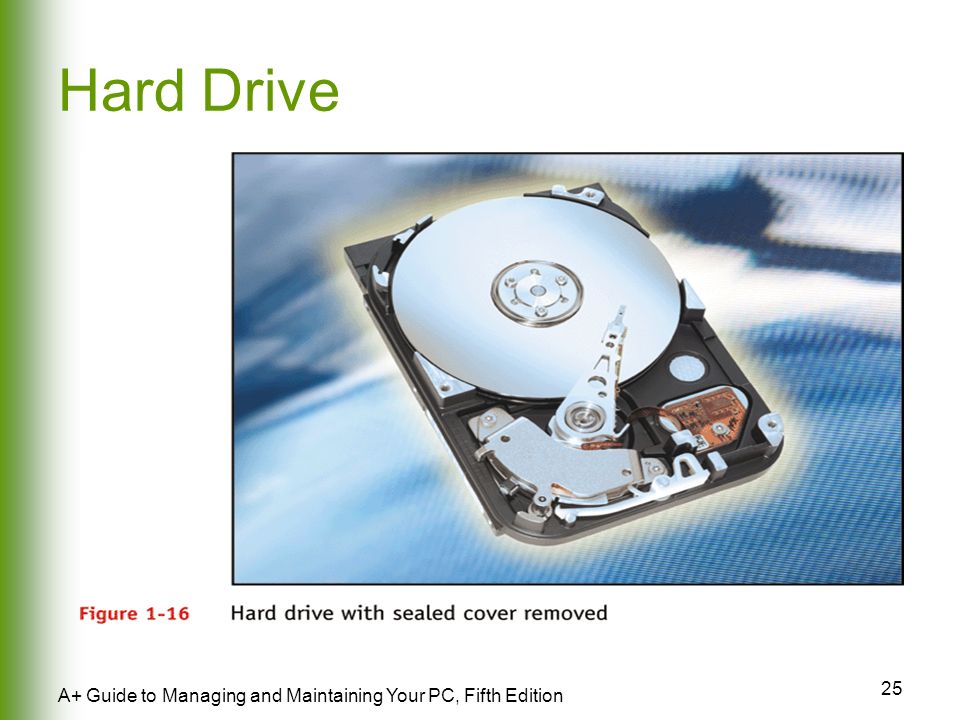

25. 25 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Hard Drive

26. 26 A+ Guide to Managing and Maintaining Your PC, Fifth Edition EIDE Technology Used by most hard drives, CD-ROM drives, and DVD drives Can accommodate up to four EIDE devices on one system

27. 27 A+ Guide to Managing and Maintaining Your PC, Fifth Edition IDE Connectors on a Motherboard

28. 28 A+ Guide to Managing and Maintaining Your PC, Fifth Edition IDE Connectors on a Motherboard ( continued )

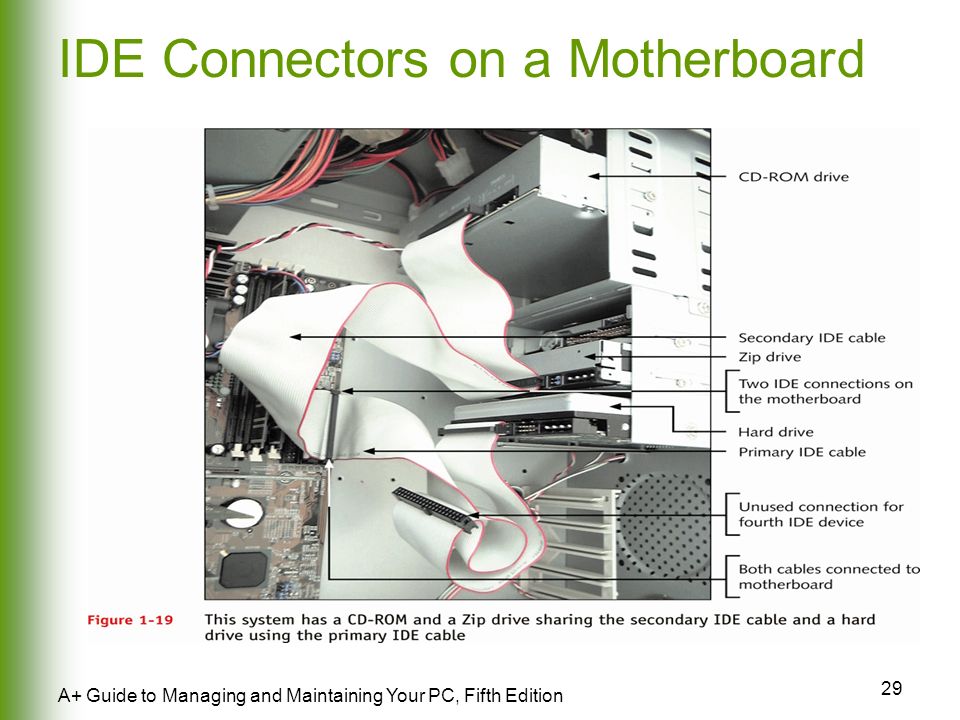

29. 29 A+ Guide to Managing and Maintaining Your PC, Fifth Edition IDE Connectors on a Motherboard

30. 30 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Hard Drive’s Power Supply

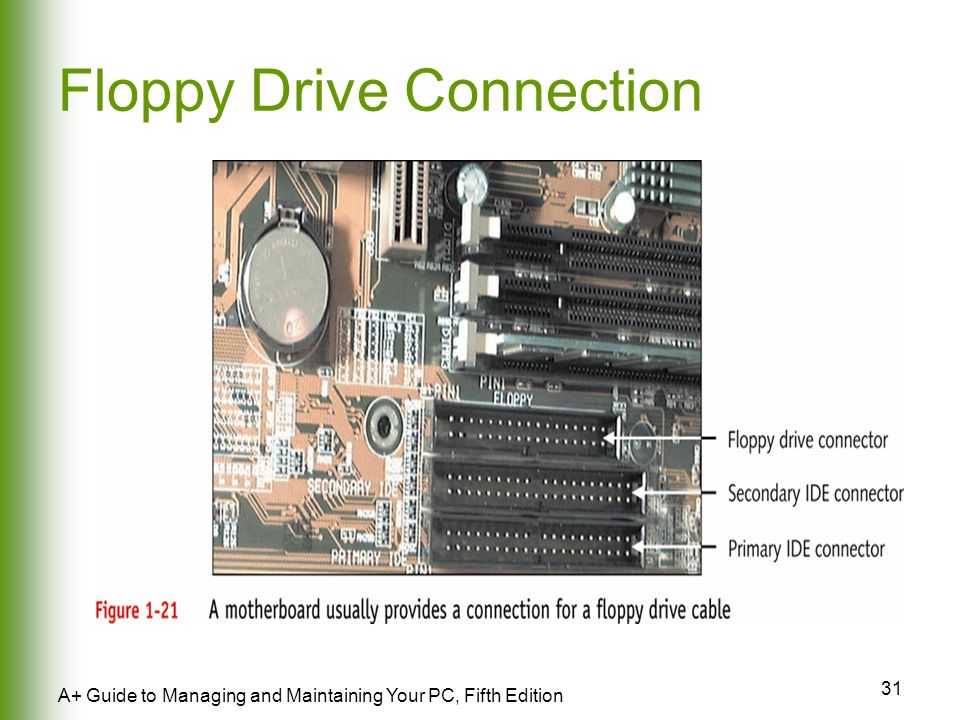

31. 31 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Floppy Drive Connection

32. 32 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Floppy Drive Connection ( continued )

33. 33 A+ Guide to Managing and Maintaining Your PC, Fifth Edition CD-ROM Drive Connection

34. 34 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Motherboard Components Used for Communication Among Devices The data bus  System of pathways used for communication and the protocol and methods used for transmission

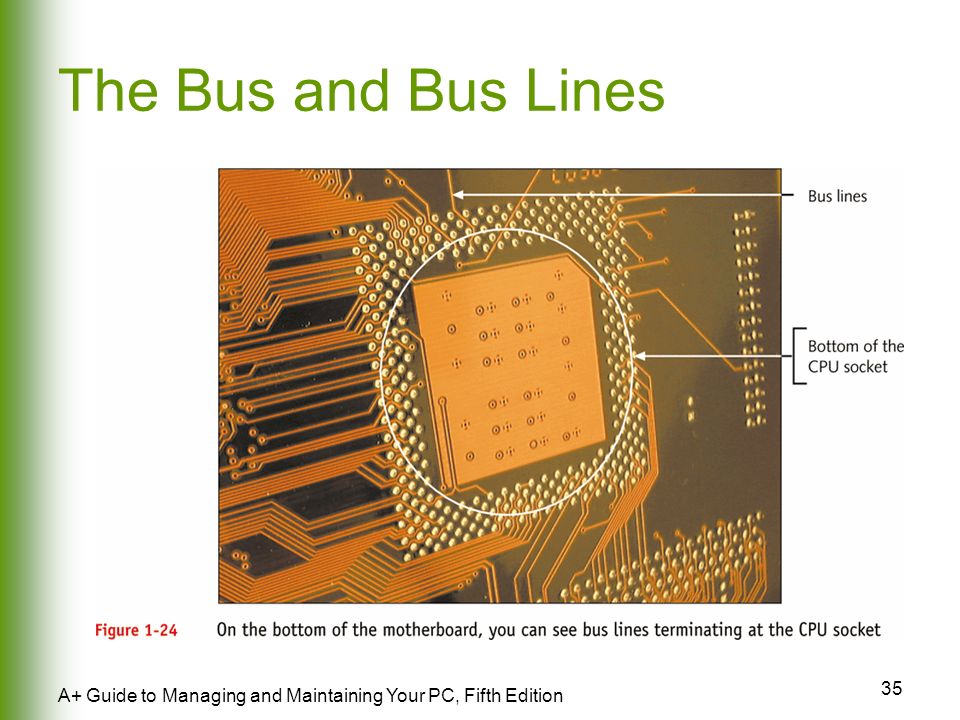

35. 35 A+ Guide to Managing and Maintaining Your PC, Fifth Edition The Bus and Bus Lines

36. 36 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Data Bus

37. 37 A+ Guide to Managing and Maintaining Your PC, Fifth Edition System Clock

38. 38 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Clock Speed Of motherboard  Measured in megahertz (MHz) Of CPU  Measured in gigahertz (GHz)

39. 39 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Expansion Slots

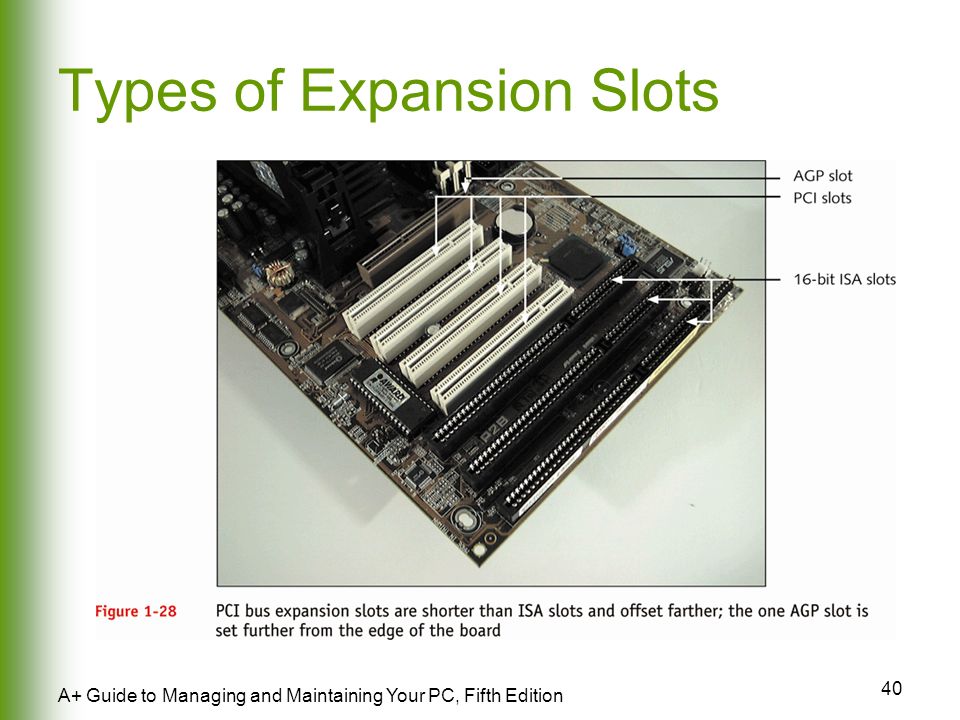

40. 40 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Types of Expansion Slots

41. 41 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Interface (Expansion) Cards

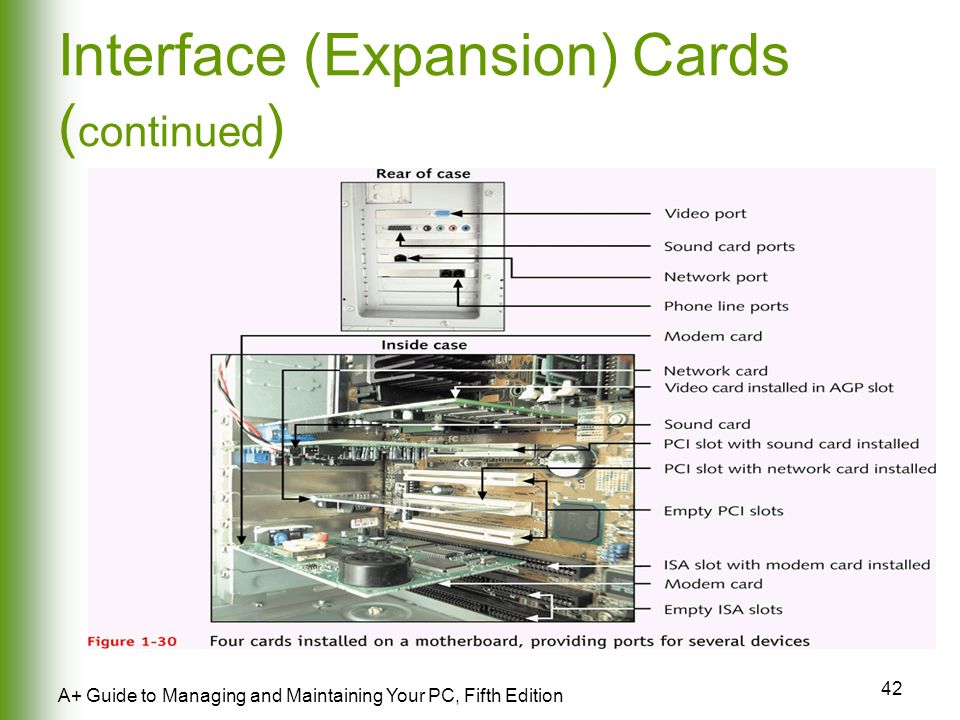

42. 42 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Interface (Expansion) Cards ( continued )

43. 43 A+ Guide to Managing and Maintaining Your PC, Fifth Edition The Electrical System Power supply  Most important component of computer’s electrical system  Converts/reduces electricity to voltage the computer can handle  Runs a fan directly from electrical output voltage to cool inside of computer case

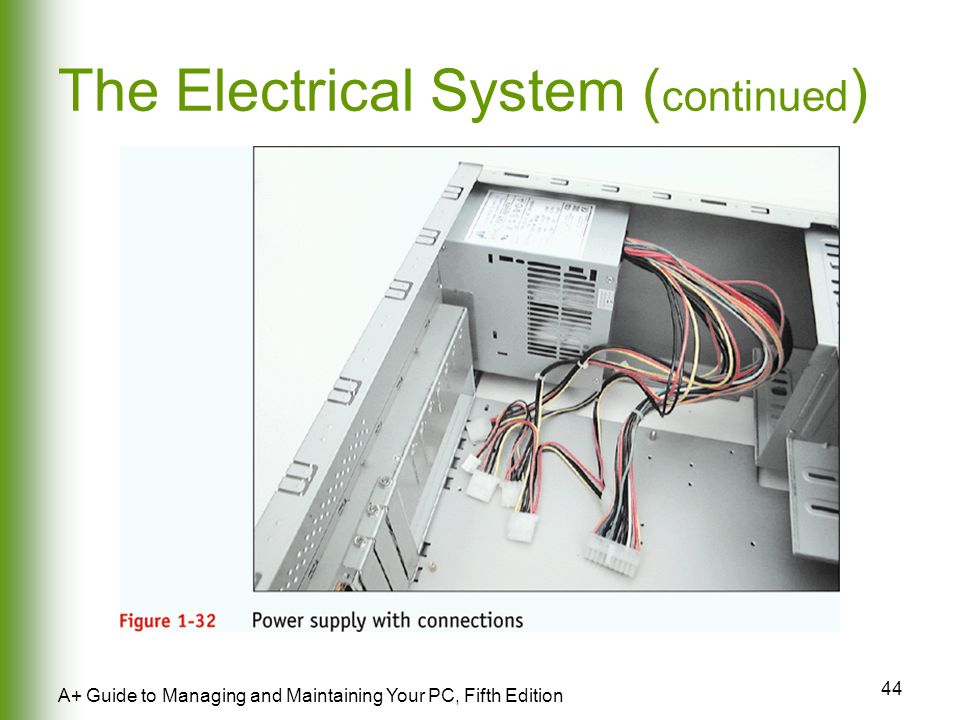

44. 44 A+ Guide to Managing and Maintaining Your PC, Fifth Edition The Electrical System ( continued )

45. 45 A+ Guide to Managing and Maintaining Your PC, Fifth Edition The Electrical System ( continued )

46. 46 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Instructions Stored on the Motherboard ROM BIOS (most are flash ROM)  System BIOS  Startup BIOS  CMOS setup Motherboard BIOS supports ACPI, APM, and Plug and Play technologies

47. 47 A+ Guide to Managing and Maintaining Your PC, Fifth Edition ROM BIOS Chip

48. 48 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Motherboard Configuration Settings CMOS chip  Stores setup (configuration) information  Powered by a battery on motherboard when power is off Setup information can also be set by jumpers and DIP switches

49. 49 A+ Guide to Managing and Maintaining Your PC, Fifth Edition CMOS Configuration Chip

50. 50 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Setting Jumpers

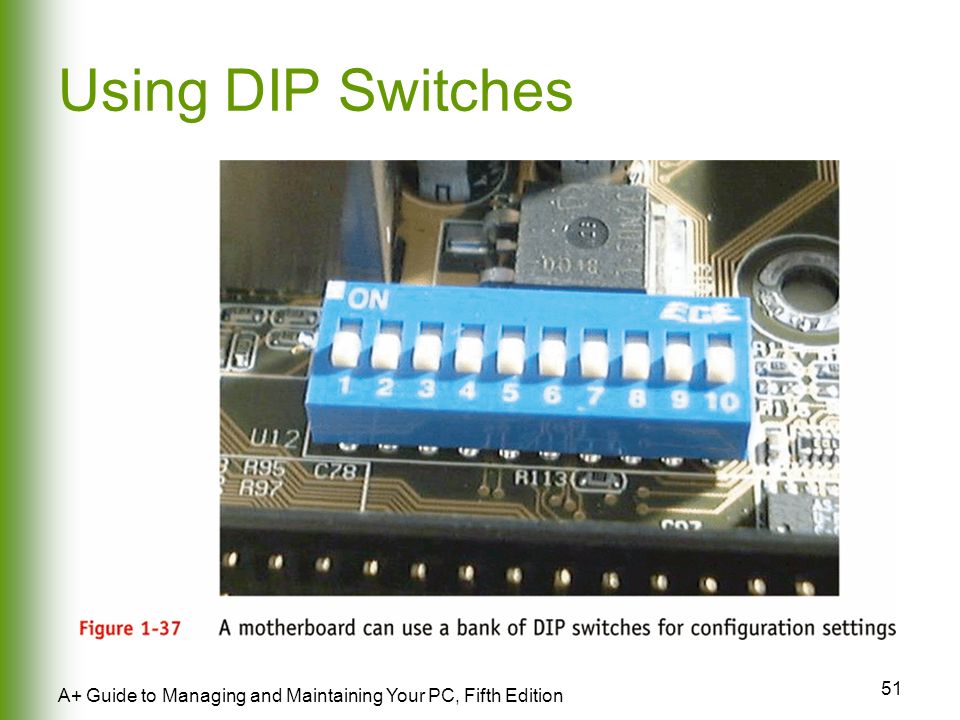

51. 51 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Using DIP Switches

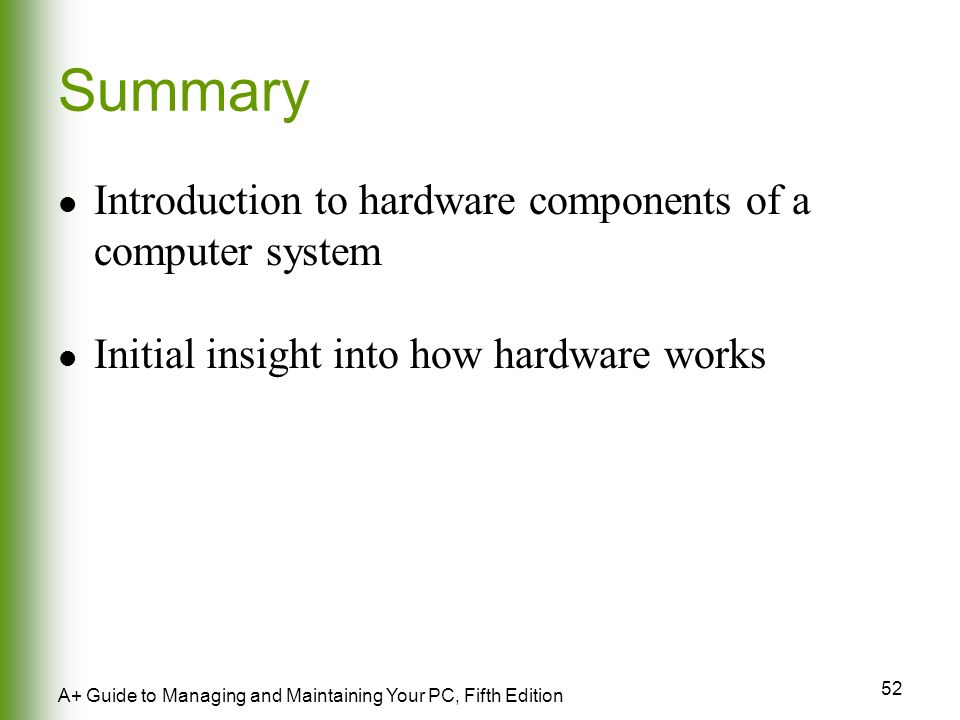

52. 52 A+ Guide to Managing and Maintaining Your PC, Fifth Edition Summary Introduction to hardware components of a computer system Initial insight into how hardware works
