1
Development of a Sensor Database System for Communication Robots Hideyuki KAWASHIMA Graduate School of Keio University Yokohama, JAPAN
2

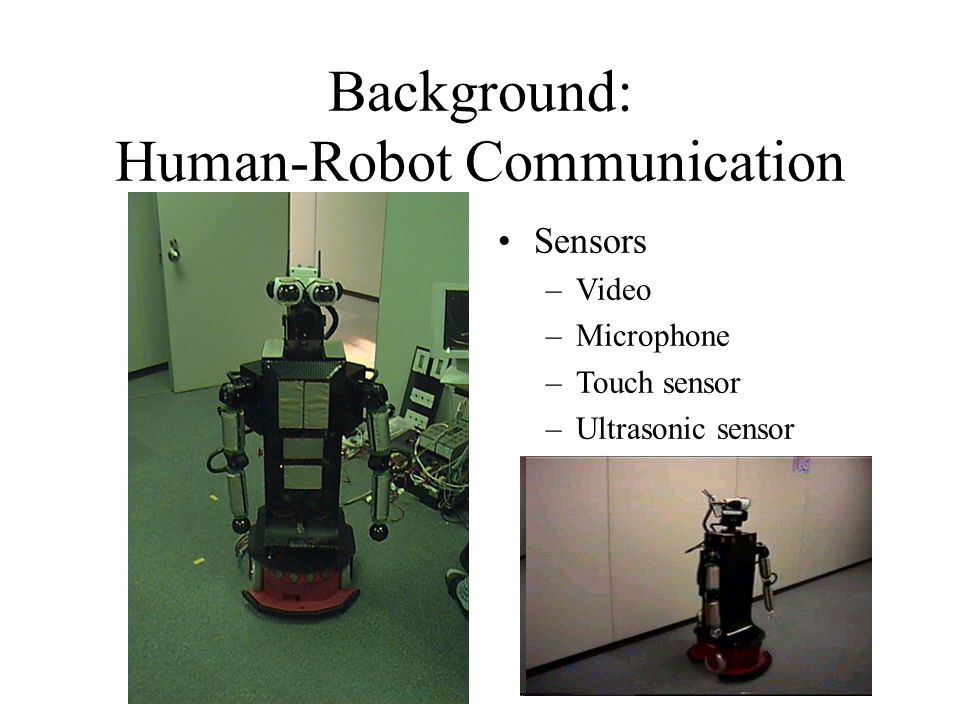

Background: Human-Robot Communication Sensors –Video –Microphone –Touch sensor –Ultrasonic sensor
3

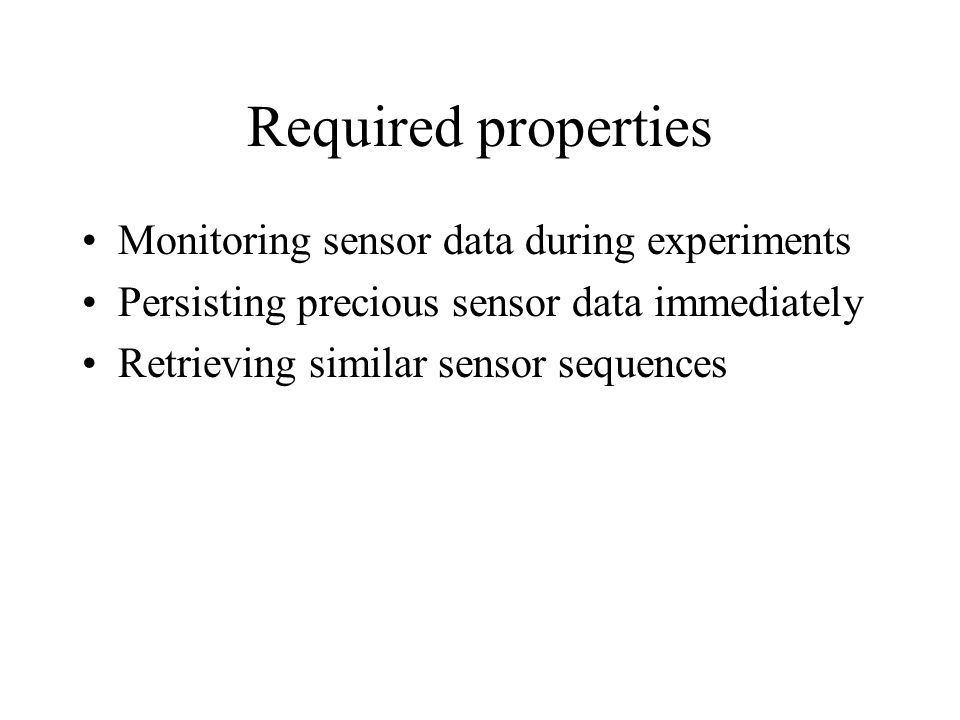

Required properties Monitoring sensor data during experiments Persisting precious sensor data immediately Retrieving similar sensor sequences
4

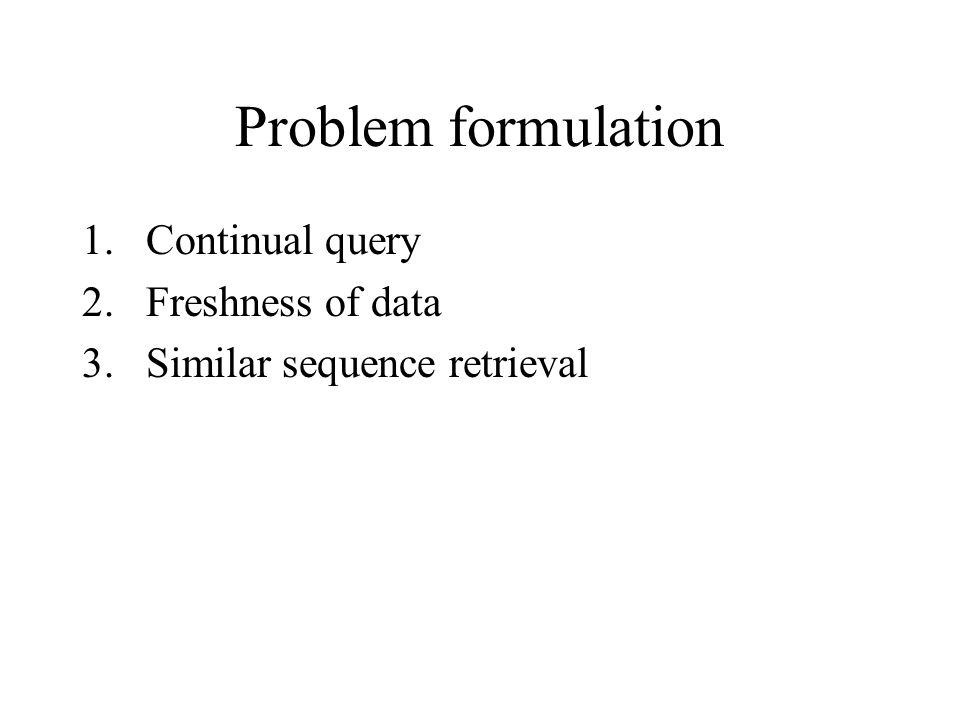

Problem formulation 1.Continual query 2.Freshness of data 3.Similar sequence retrieval
5

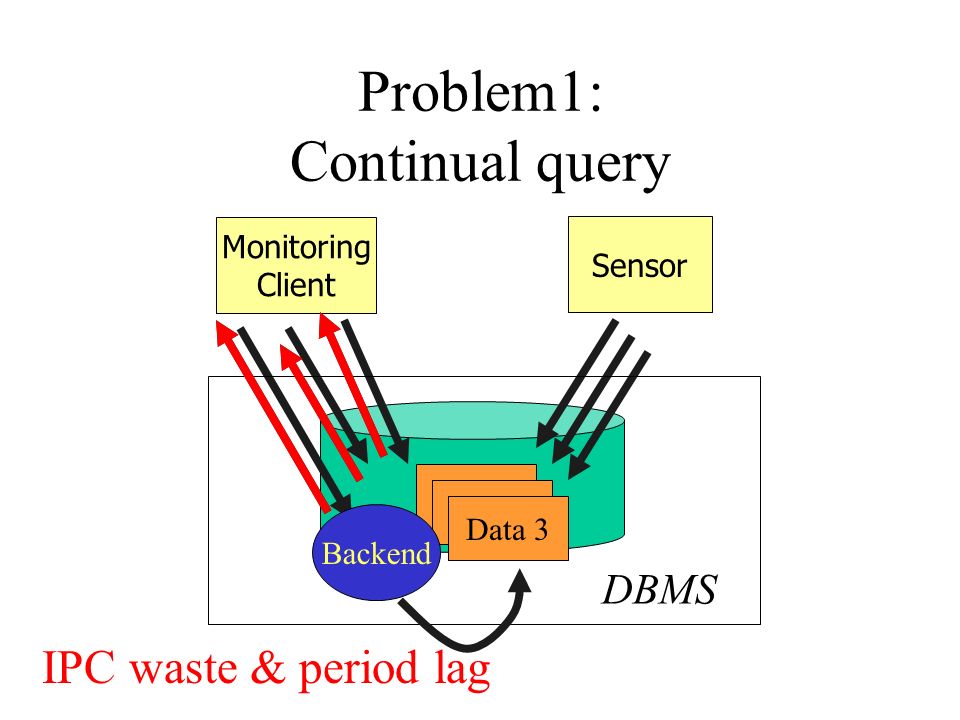

Problem1: Continual query DB Monitoring Client Sensor Data 1 Data 2 Data 3 DBMS IPC waste & period lag Backend
6

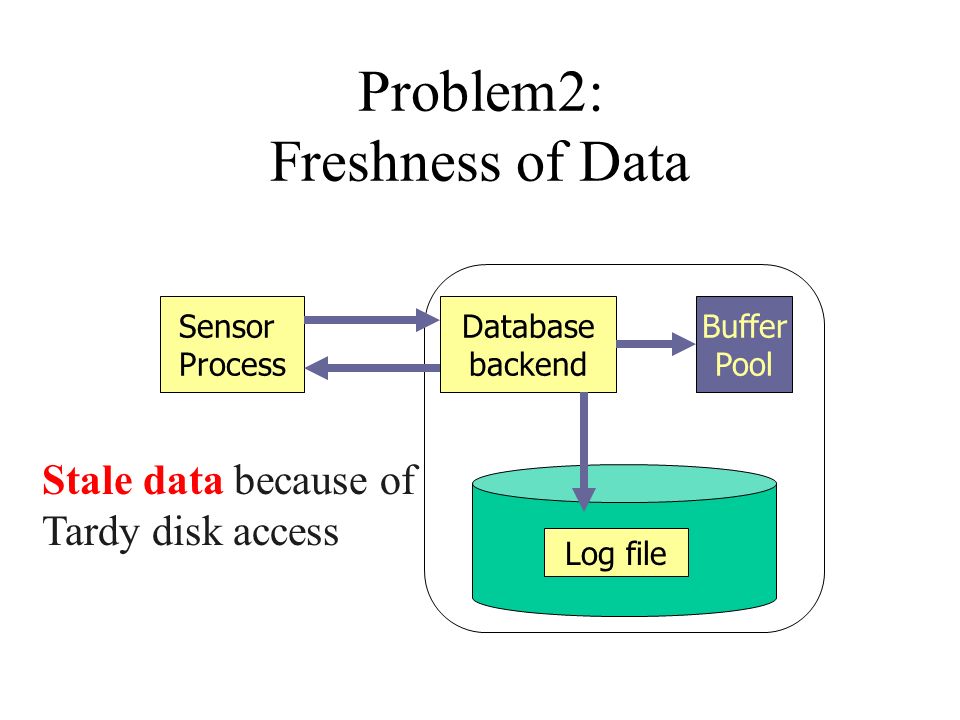

Problem2: Freshness of Data Log file Database backend Buffer Pool Sensor Process Stale data because of Tardy disk access
7

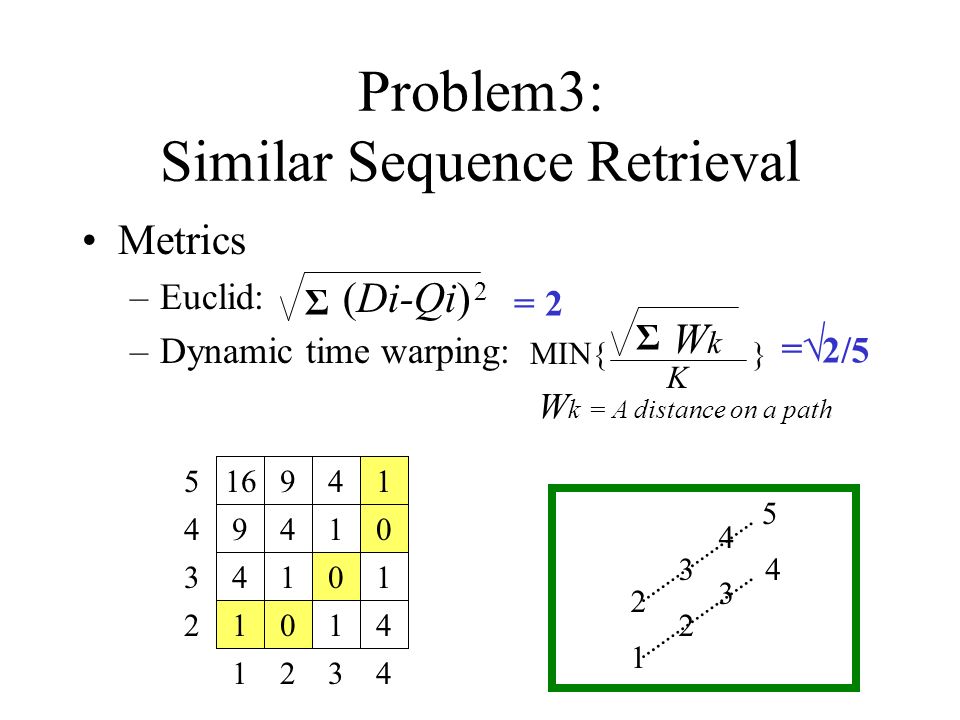

Problem3: Similar Sequence Retrieval Metrics –Euclid: –Dynamic time warping: MIN{ } WkWk Σ K 1234 4 3 2 5 W k = A distance on a path 9 4 1 4 1 0 1 0 1 0 1 4 16941 2 1 5 4 2 3 3 4 (Di-Qi) Σ 2 = 2 = 2/5 √
8

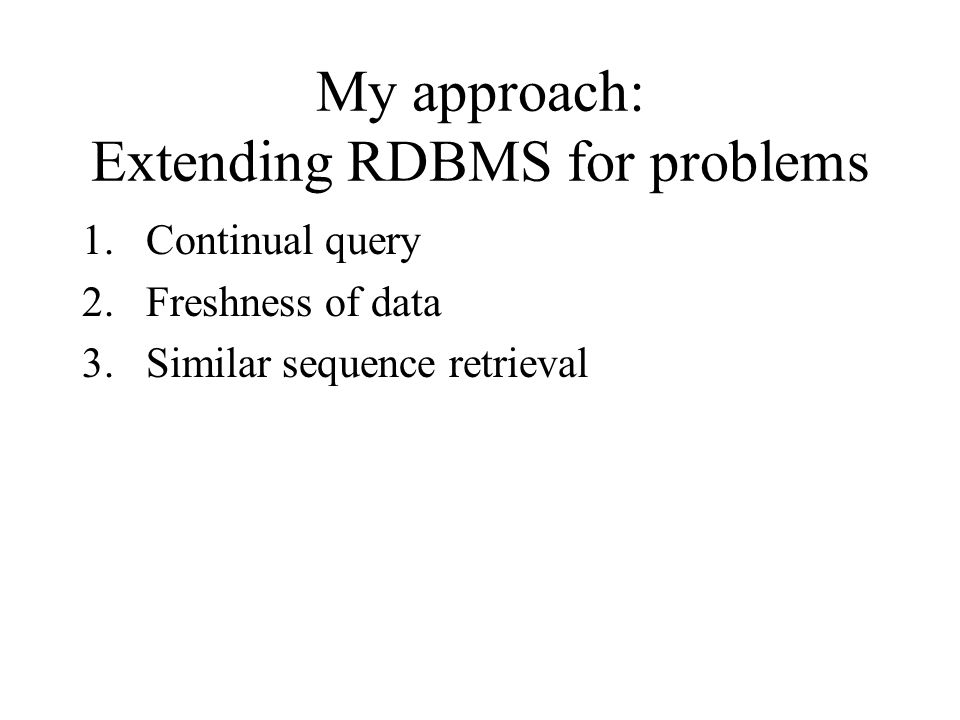

My approach: Extending RDBMS for problems 1.Continual query 2.Freshness of data 3.Similar sequence retrieval
9

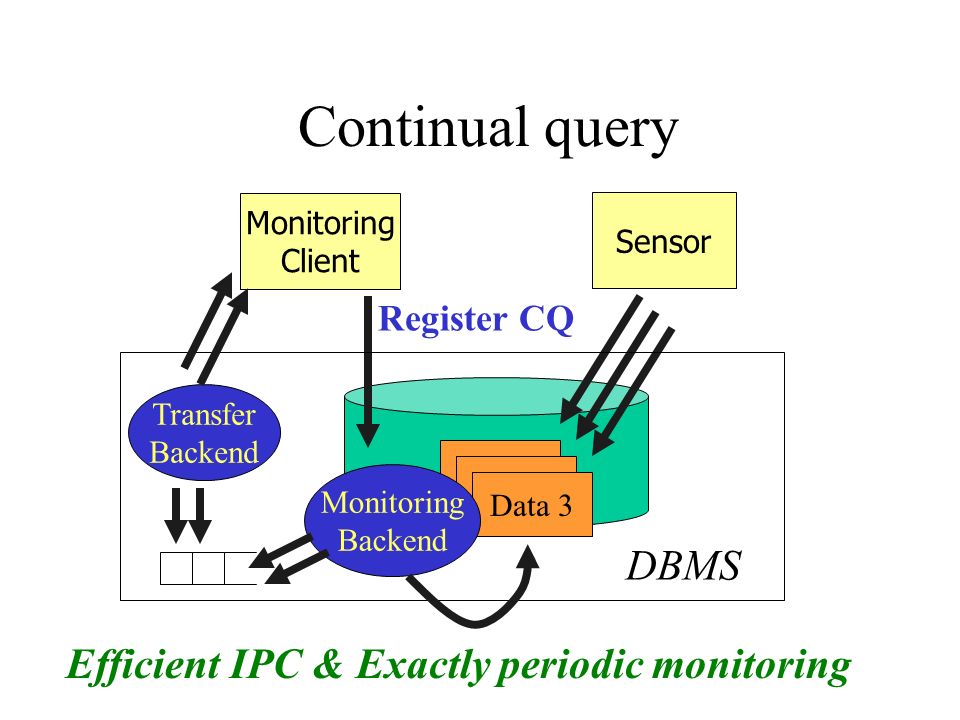

Continual query DB Monitoring Client Sensor Data 1 Data 2 Data 3 DBMS Monitoring Backend Register CQ Transfer Backend Efficient IPC & Exactly periodic monitoring
10

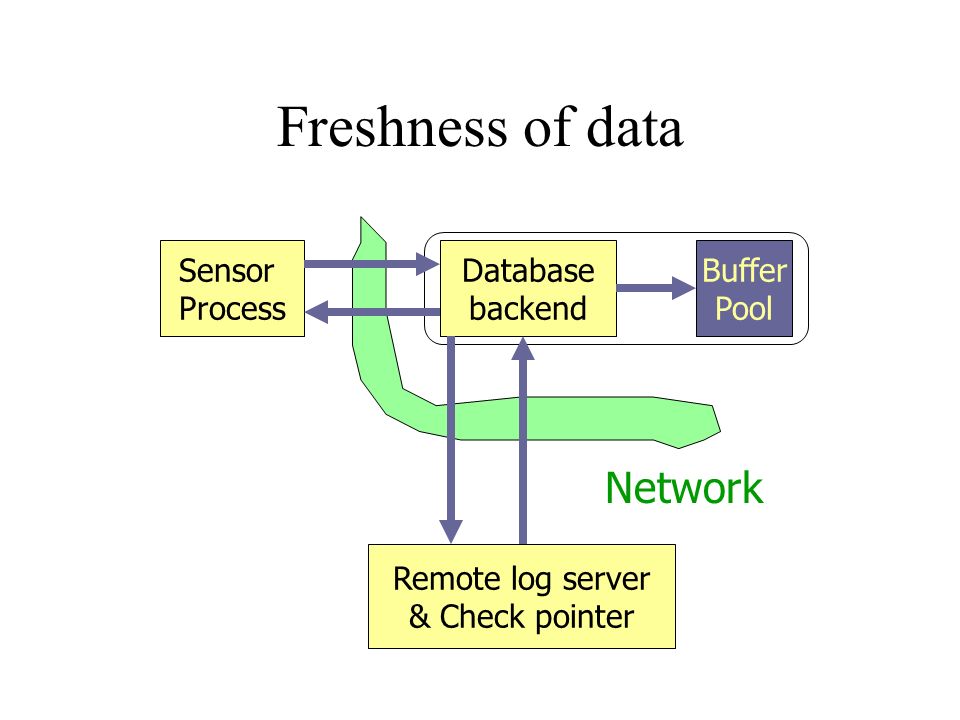

Freshness of data Database backend Buffer Pool Sensor Process Remote log server & Check pointer Network
11

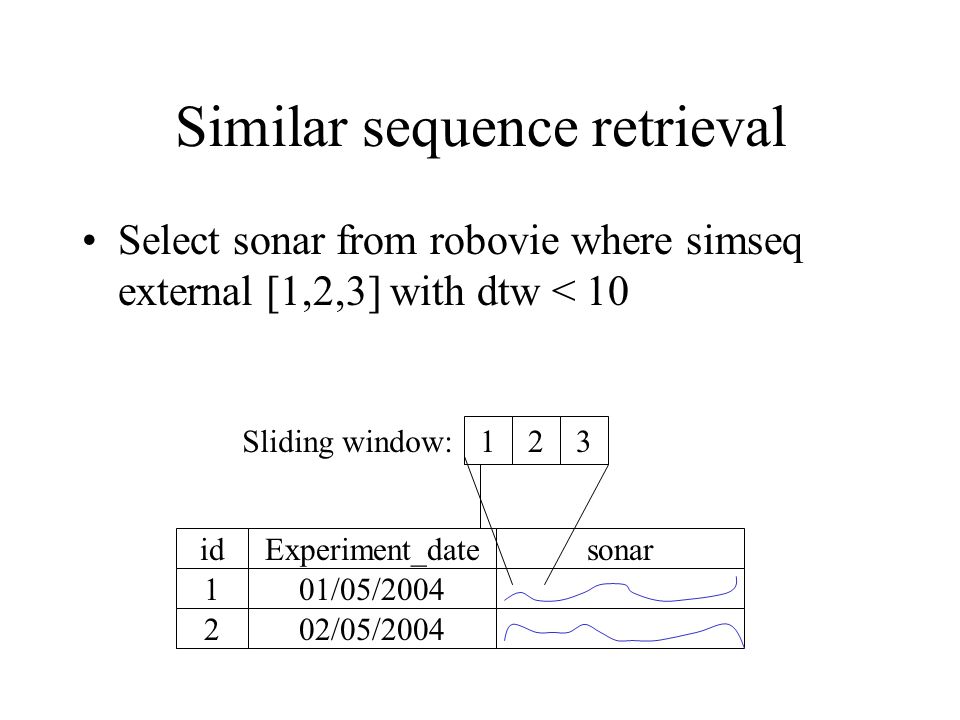

Similar sequence retrieval Select sonar from robovie where simseq external [1,2,3] with dtw < 10 id 1 2 Experiment_date 01/05/2004 02/05/2004 sonar 123 Sliding window:
![Similar sequence retrieval Select sonar from robovie where simseq external [1,2,3] with dtw < 10 id 1 2 Experiment_date 01/05/ /05/2004 sonar 123 Sliding window:](http://images.slideplayer.com/24/7188456/slides/slide_11.jpg "Similar sequence retrieval Select sonar from robovie where simseq external [1,2,3] with dtw < 10 id 1 2 Experiment_date 01/05/ /05/2004 sonar 123 Sliding window:")
12

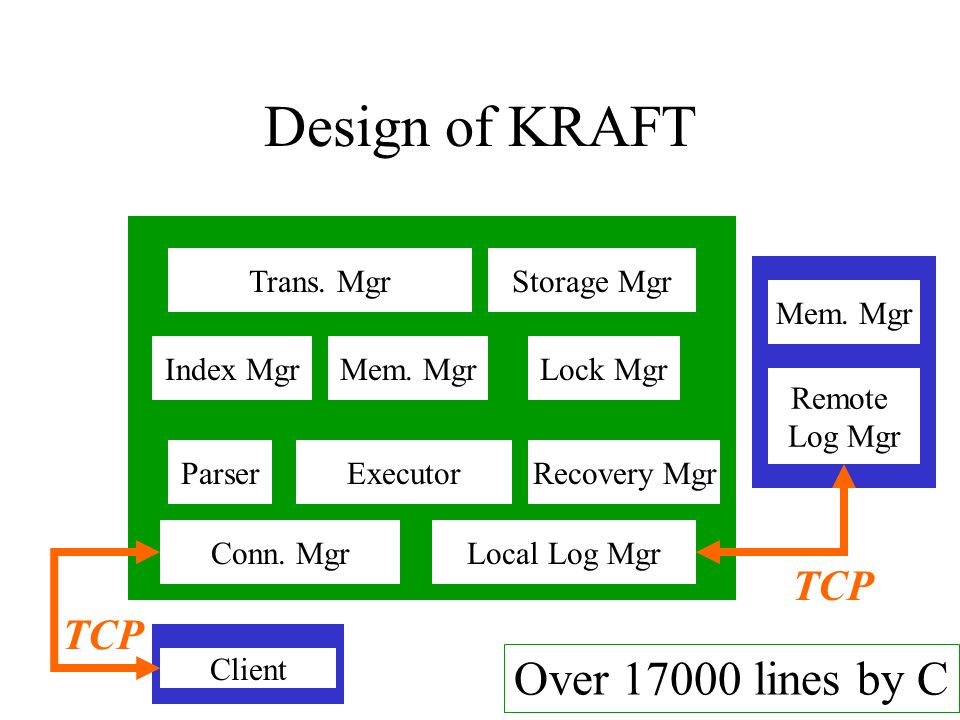

Design of KRAFT Trans. Mgr Mem. MgrIndex Mgr Storage Mgr ParserExecutorRecovery Mgr Lock Mgr Local Log MgrConn. Mgr Remote Log Mgr Mem. Mgr Client TCP Over 17000 lines by C
13

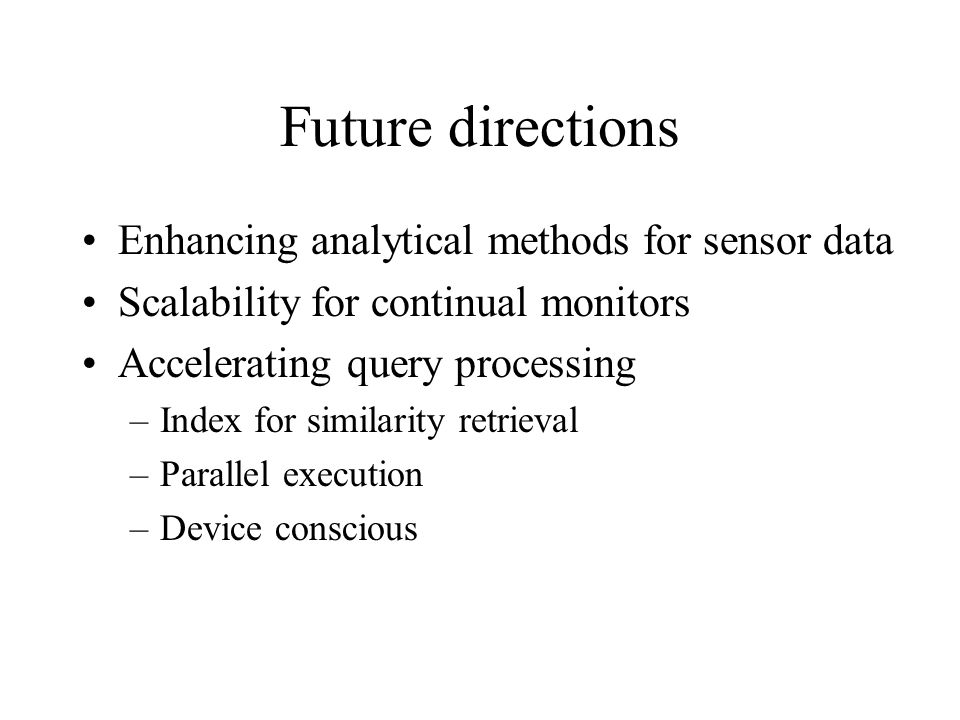

Future directions Enhancing analytical methods for sensor data Scalability for continual monitors Accelerating query processing –Index for similarity retrieval –Parallel execution –Device conscious
14

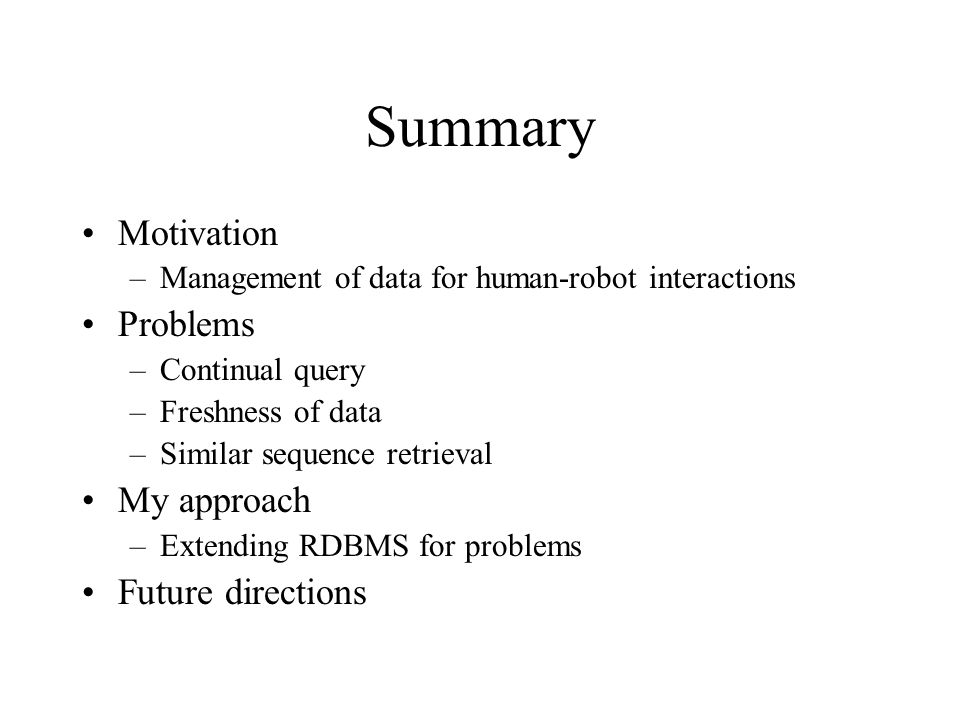

Summary Motivation –Management of data for human-robot interactions Problems –Continual query –Freshness of data –Similar sequence retrieval My approach –Extending RDBMS for problems Future directions
