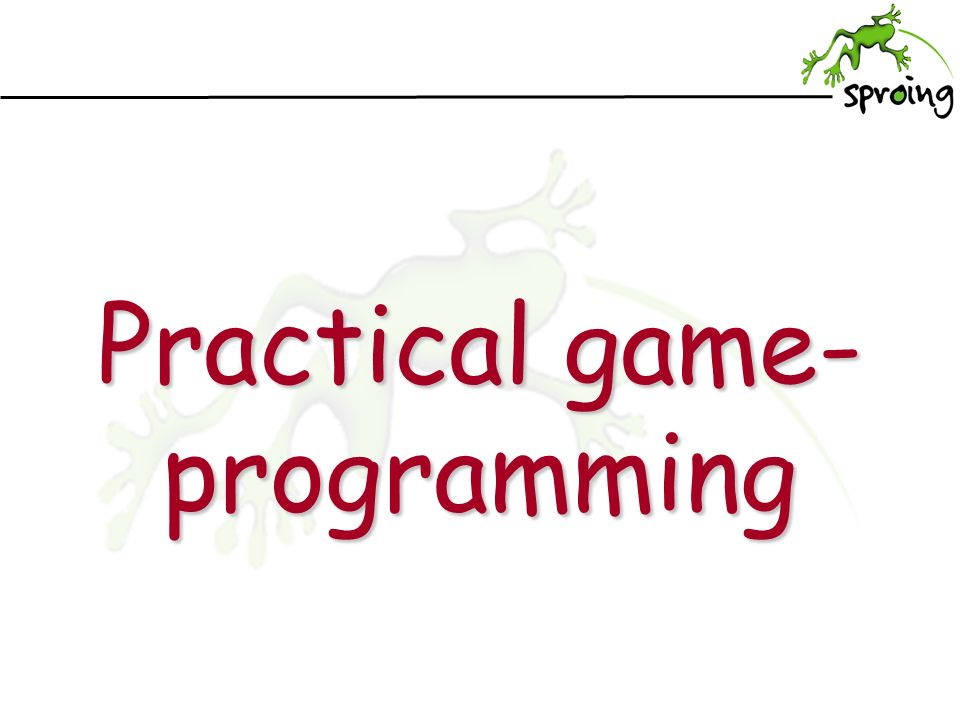

1. Practical game- programming

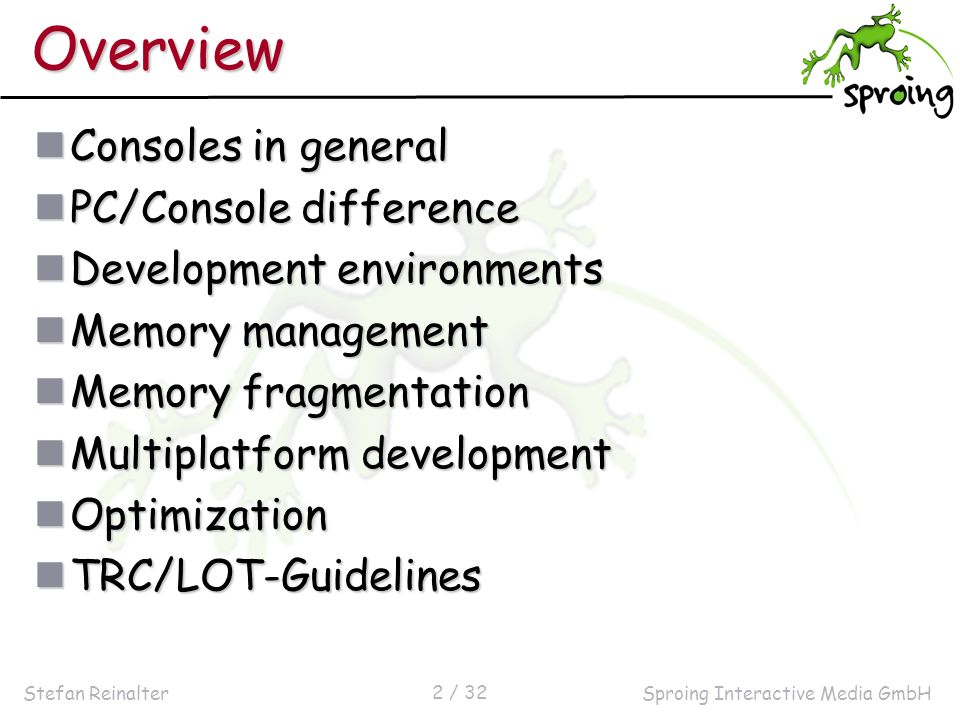

2. Stefan ReinalterSproing Interactive Media GmbH 2 / 32 Overview Consoles in general Consoles in general PC/Console difference PC/Console difference Development environments Development environments Memory management Memory management Memory fragmentation Memory fragmentation Multiplatform development Multiplatform development Optimization Optimization TRC/LOT-Guidelines TRC/LOT-Guidelines

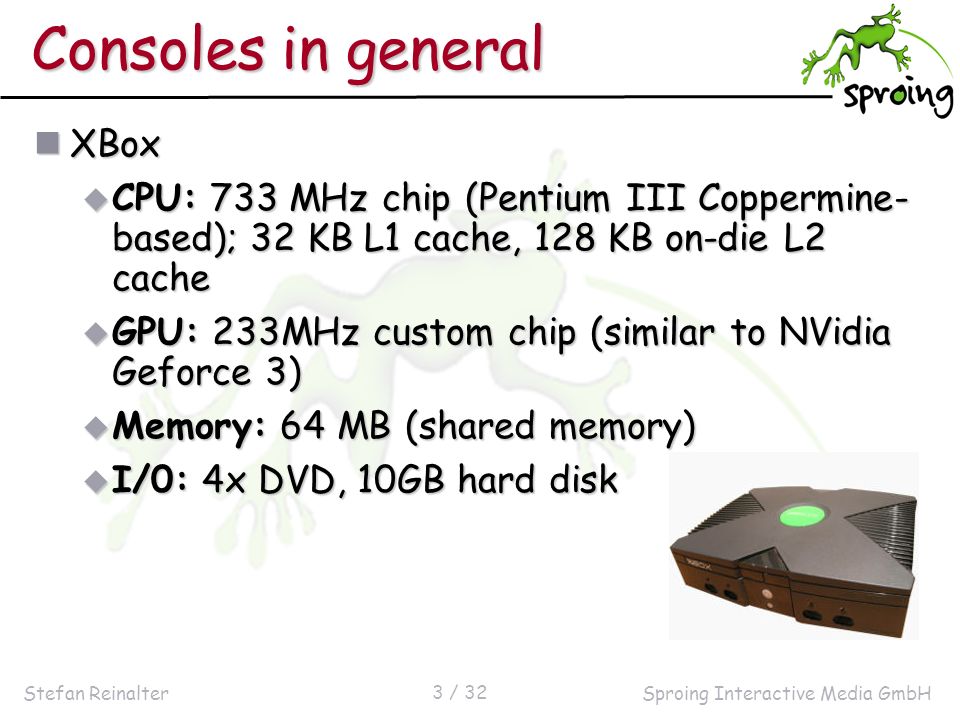

3. Stefan ReinalterSproing Interactive Media GmbH 3 / 32 Consoles in general XBox XBox  CPU: 733 MHz chip (Pentium III Coppermine- based); 32 KB L1 cache, 128 KB on-die L2 cache  GPU: 233MHz custom chip (similar to NVidia Geforce 3)  Memory: 64 MB (shared memory)  I/0: 4x DVD, 10GB hard disk

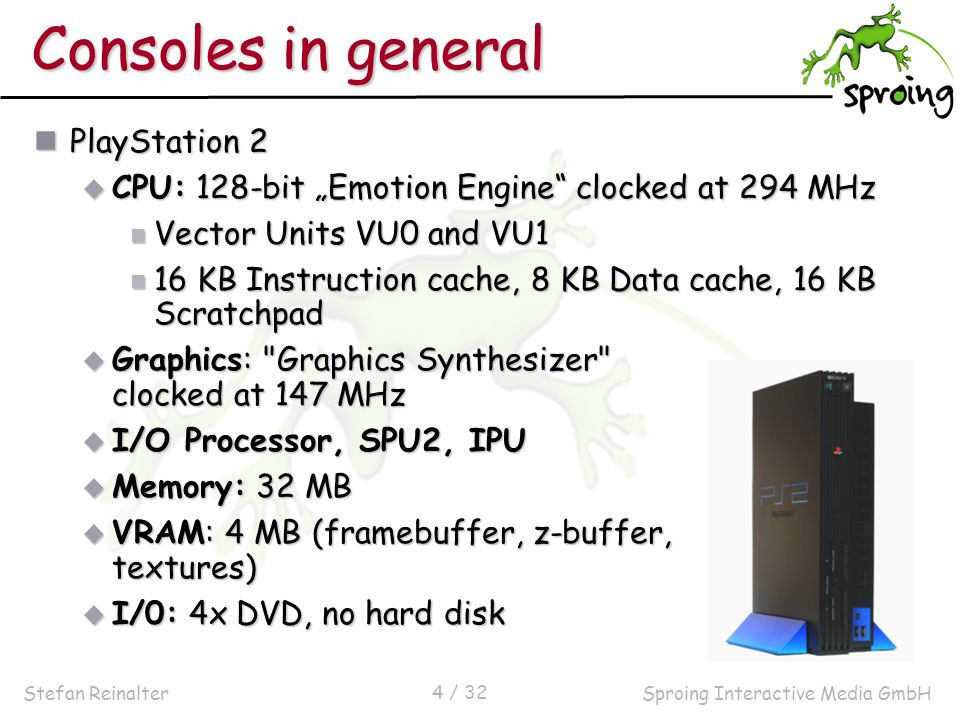

4. Stefan ReinalterSproing Interactive Media GmbH 4 / 32 Consoles in general PlayStation 2 PlayStation 2  CPU: 128-bit „Emotion Engine“ clocked at 294 MHz Vector Units VU0 and VU1 Vector Units VU0 and VU1 16 KB Instruction cache, 8 KB Data cache, 16 KB Scratchpad 16 KB Instruction cache, 8 KB Data cache, 16 KB Scratchpad  Graphics: "Graphics Synthesizer" clocked at 147 MHz  I/O Processor, SPU2, IPU  Memory: 32 MB  VRAM: 4 MB (framebuffer, z-buffer, textures)  I/0: 4x DVD, no hard disk

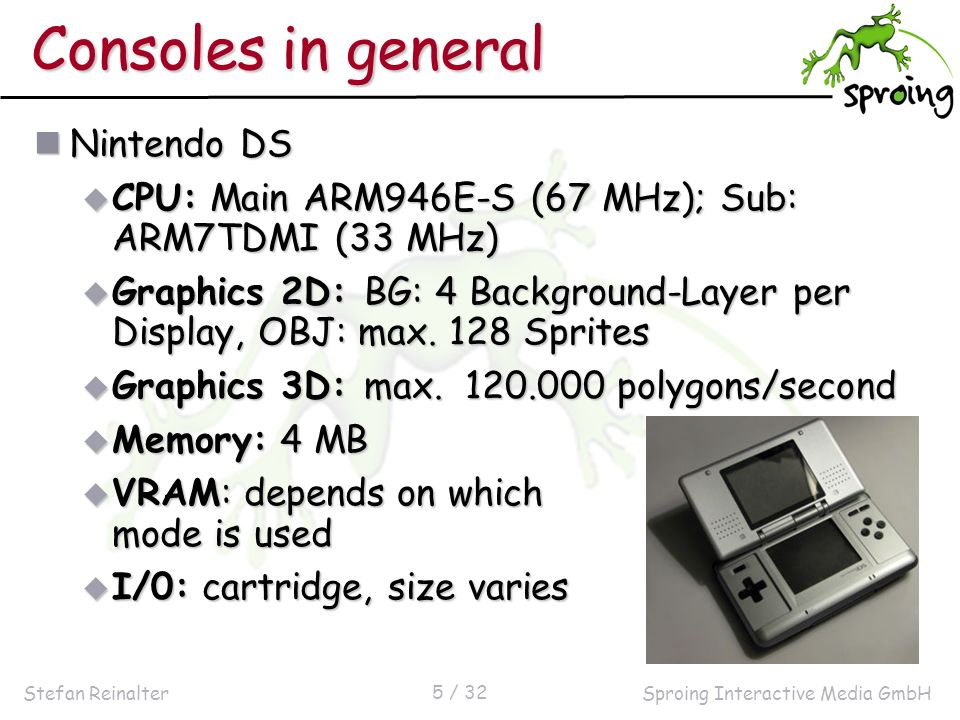

5. Stefan ReinalterSproing Interactive Media GmbH 5 / 32 Consoles in general Nintendo DS Nintendo DS  CPU: Main ARM946E-S (67 MHz); Sub: ARM7TDMI (33 MHz)  Graphics 2D: BG: 4 Background-Layer per Display, OBJ: max. 128 Sprites  Graphics 3D: max. 120.000 polygons/second  Memory: 4 MB  VRAM: depends on which mode is used  I/0: cartridge, size varies

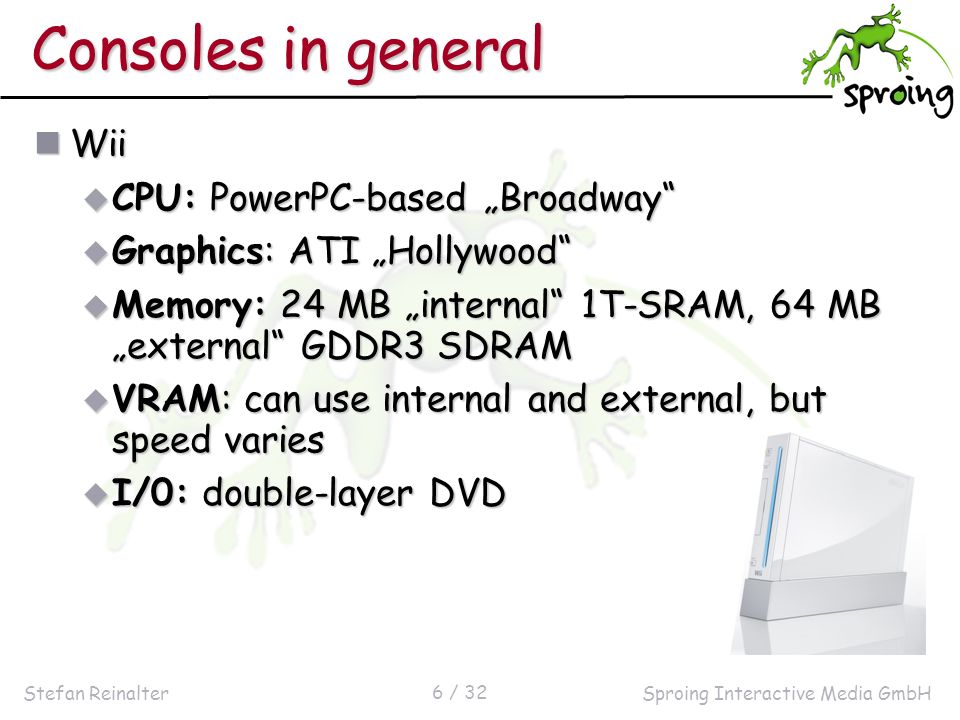

6. Stefan ReinalterSproing Interactive Media GmbH 6 / 32 Consoles in general Wii Wii  CPU: PowerPC-based „Broadway“  Graphics: ATI „Hollywood“  Memory: 24 MB „internal“ 1T-SRAM, 64 MB „external“ GDDR3 SDRAM  VRAM: can use internal and external, but speed varies  I/0: double-layer DVD

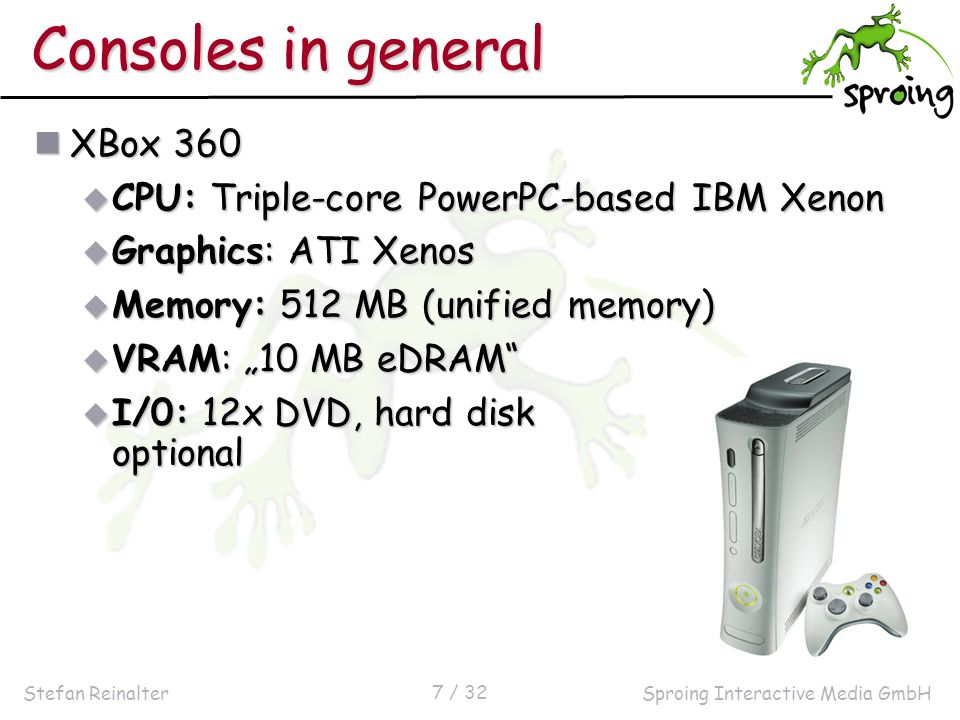

7. Stefan ReinalterSproing Interactive Media GmbH 7 / 32 Consoles in general XBox 360 XBox 360  CPU: Triple-core PowerPC-based IBM Xenon  Graphics: ATI Xenos  Memory: 512 MB (unified memory)  VRAM: „10 MB eDRAM“  I/0: 12x DVD, hard disk optional

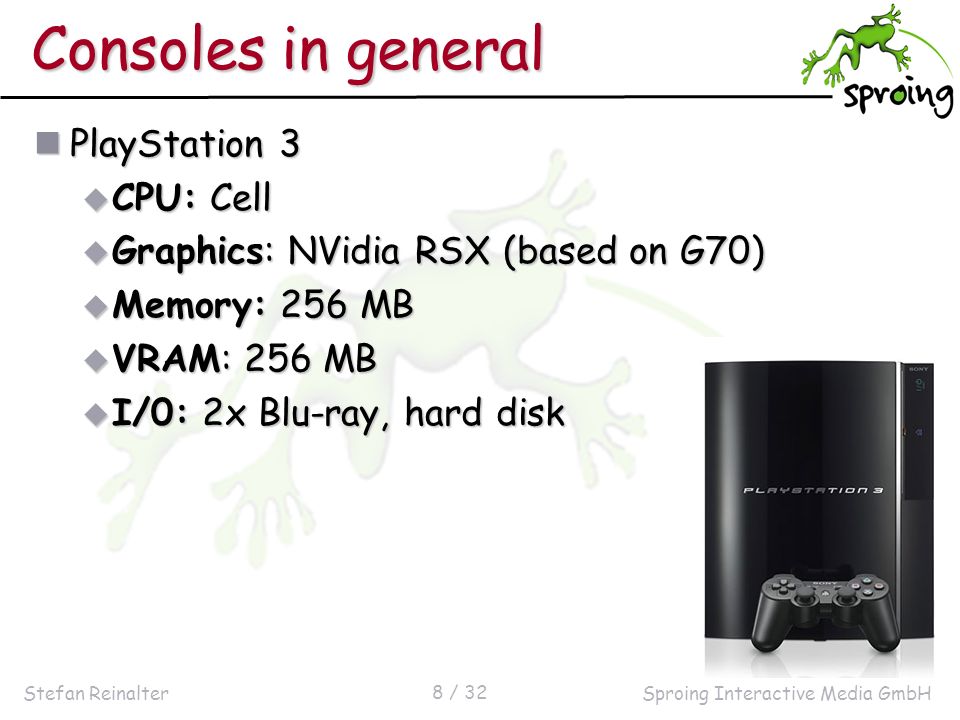

8. Stefan ReinalterSproing Interactive Media GmbH 8 / 32 Consoles in general PlayStation 3 PlayStation 3  CPU: Cell  Graphics: NVidia RSX (based on G70)  Memory: 256 MB  VRAM: 256 MB  I/0: 2x Blu-ray, hard disk

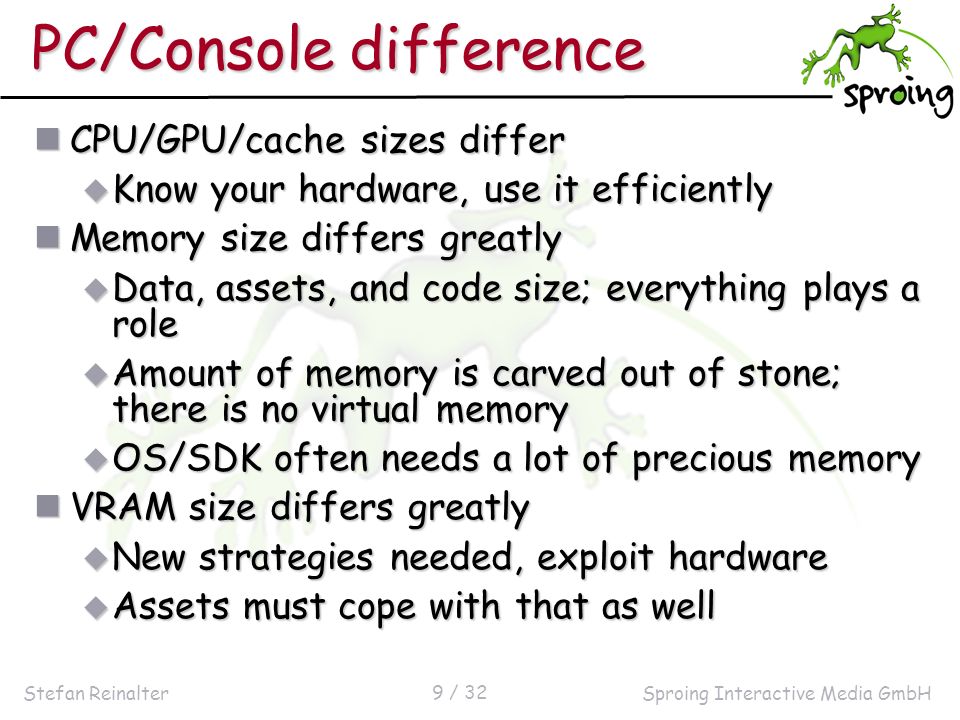

9. Stefan ReinalterSproing Interactive Media GmbH 9 / 32 PC/Console difference CPU/GPU/cache sizes differ CPU/GPU/cache sizes differ  Know your hardware, use it efficiently Memory size differs greatly Memory size differs greatly  Data, assets, and code size; everything plays a role  Amount of memory is carved out of stone; there is no virtual memory  OS/SDK often needs a lot of precious memory VRAM size differs greatly VRAM size differs greatly  New strategies needed, exploit hardware  Assets must cope with that as well

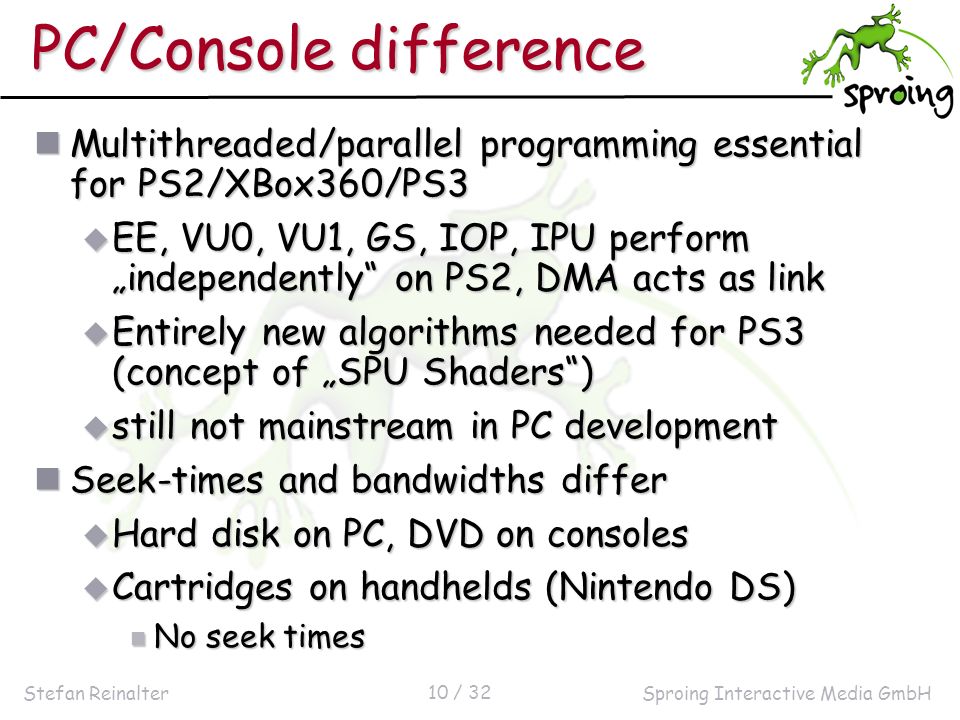

10. Stefan ReinalterSproing Interactive Media GmbH 10 / 32 PC/Console difference Multithreaded/parallel programming essential for PS2/XBox360/PS3 Multithreaded/parallel programming essential for PS2/XBox360/PS3  EE, VU0, VU1, GS, IOP, IPU perform „independently“ on PS2, DMA acts as link  Entirely new algorithms needed for PS3 (concept of „SPU Shaders“)  still not mainstream in PC development Seek-times and bandwidths differ Seek-times and bandwidths differ  Hard disk on PC, DVD on consoles  Cartridges on handhelds (Nintendo DS) No seek times No seek times

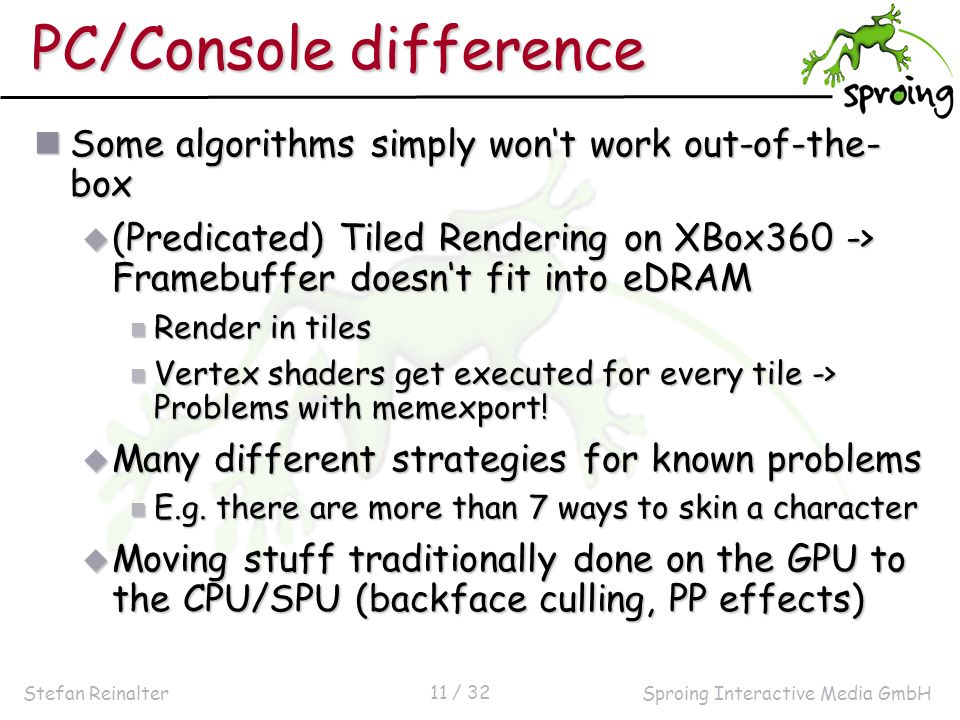

11. Stefan ReinalterSproing Interactive Media GmbH 11 / 32 PC/Console difference Some algorithms simply won‘t work out-of-the- box Some algorithms simply won‘t work out-of-the- box  (Predicated) Tiled Rendering on XBox360 -> Framebuffer doesn‘t fit into eDRAM Render in tiles Render in tiles Vertex shaders get executed for every tile -> Problems with memexport! Vertex shaders get executed for every tile -> Problems with memexport!  Many different strategies for known problems E.g. there are more than 7 ways to skin a character E.g. there are more than 7 ways to skin a character  Moving stuff traditionally done on the GPU to the CPU/SPU (backface culling, PP effects)

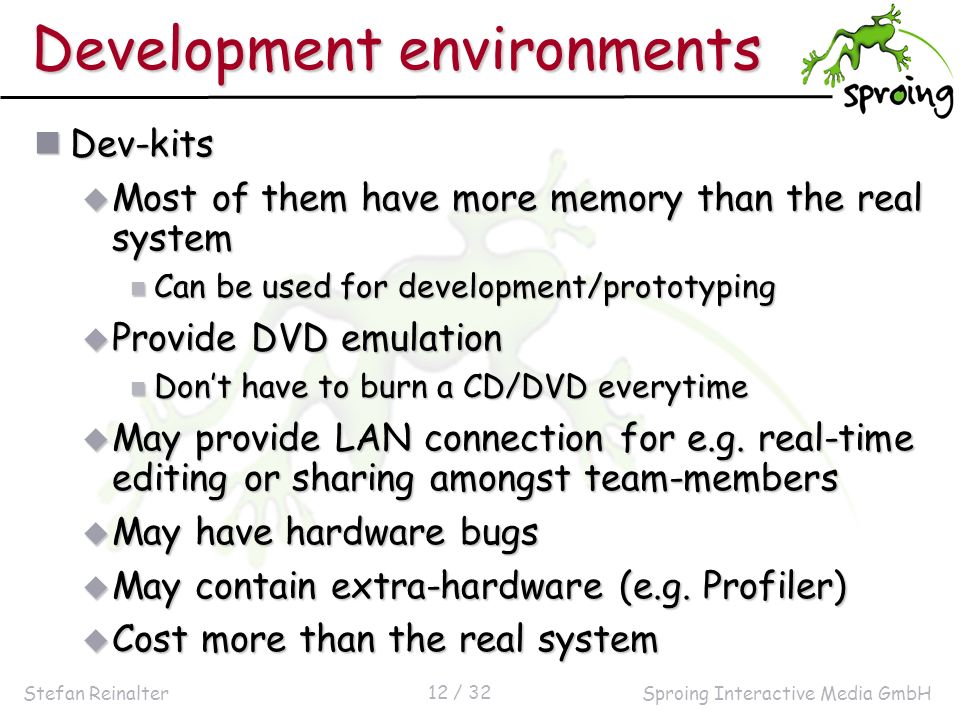

12. Stefan ReinalterSproing Interactive Media GmbH 12 / 32 Development environments Dev-kits Dev-kits  Most of them have more memory than the real system Can be used for development/prototyping Can be used for development/prototyping  Provide DVD emulation Don’t have to burn a CD/DVD everytime Don’t have to burn a CD/DVD everytime  May provide LAN connection for e.g. real-time editing or sharing amongst team-members  May have hardware bugs  May contain extra-hardware (e.g. Profiler)  Cost more than the real system

13. Stefan ReinalterSproing Interactive Media GmbH 13 / 32 Development environments Different compilers Different compilers  Mostly a specific GCC is used on consoles  First revisions may not at all be bug-free Helps to understand assembly code to see what the compiler does Helps to understand assembly code to see what the compiler does Different compiler feature-sets Different compiler feature-sets  May not compile hardcore C++ features at all  May have problems with some features, e.g. templates  Work with different warning-levels, complaining about different things

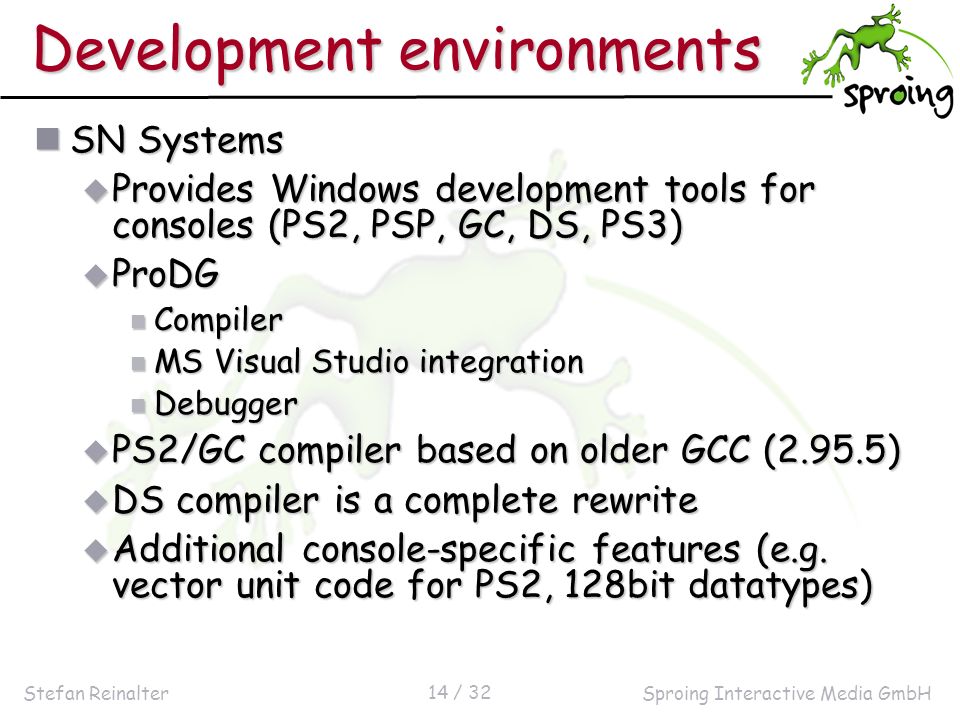

14. Stefan ReinalterSproing Interactive Media GmbH 14 / 32 Development environments SN Systems SN Systems  Provides Windows development tools for consoles (PS2, PSP, GC, DS, PS3)  ProDG Compiler Compiler MS Visual Studio integration MS Visual Studio integration Debugger Debugger  PS2/GC compiler based on older GCC (2.95.5)  DS compiler is a complete rewrite  Additional console-specific features (e.g. vector unit code for PS2, 128bit datatypes)

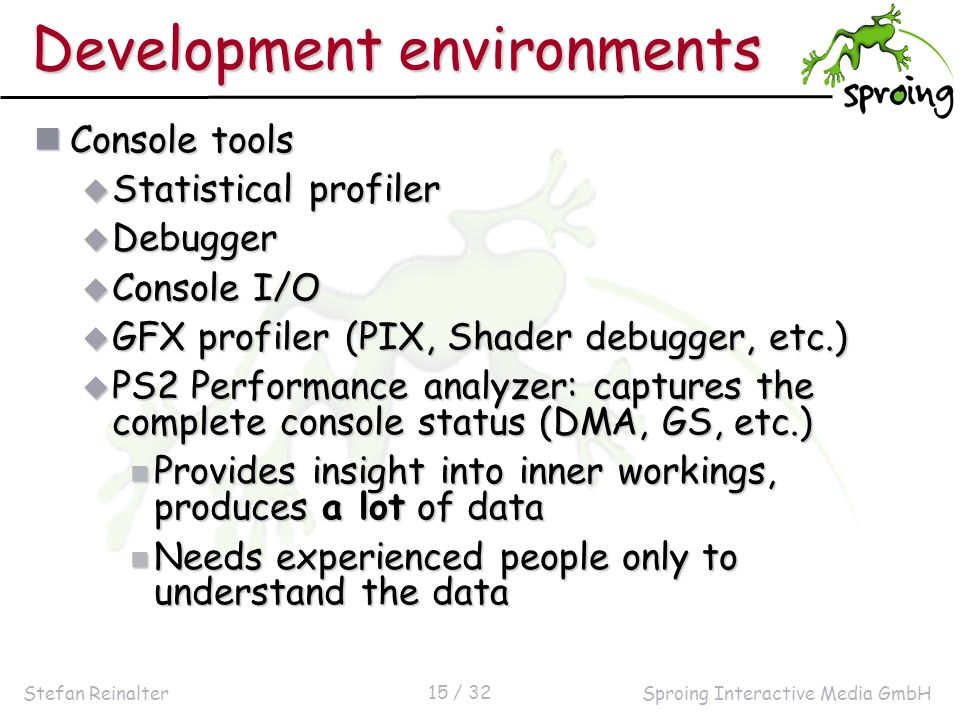

15. Stefan ReinalterSproing Interactive Media GmbH 15 / 32 Development environments Console tools Console tools  Statistical profiler  Debugger  Console I/O  GFX profiler (PIX, Shader debugger, etc.)  PS2 Performance analyzer: captures the complete console status (DMA, GS, etc.) Provides insight into inner workings, produces a lot of data Provides insight into inner workings, produces a lot of data Needs experienced people only to understand the data Needs experienced people only to understand the data

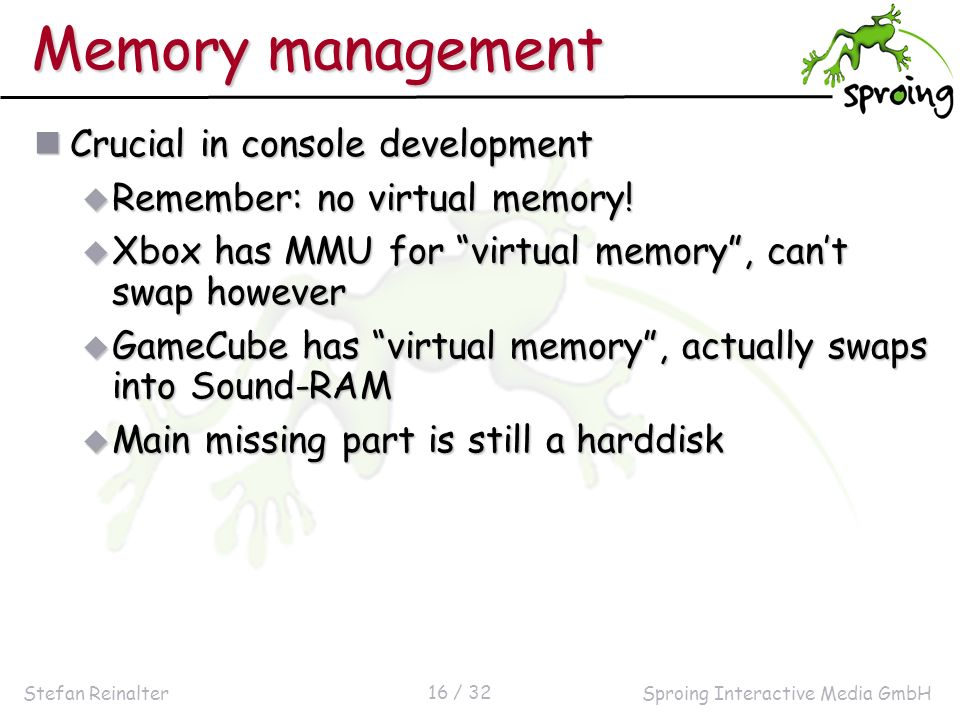

16. Stefan ReinalterSproing Interactive Media GmbH 16 / 32 Memory management Crucial in console development Crucial in console development  Remember: no virtual memory!  Xbox has MMU for “virtual memory”, can’t swap however  GameCube has “virtual memory”, actually swaps into Sound-RAM  Main missing part is still a harddisk

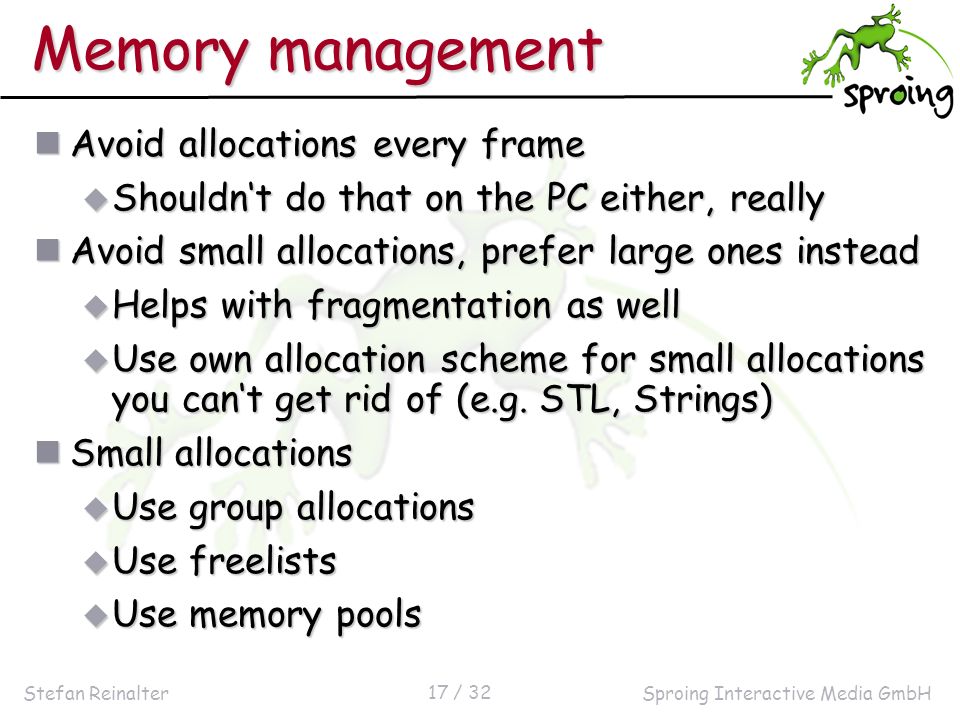

17. Stefan ReinalterSproing Interactive Media GmbH 17 / 32 Memory management Avoid allocations every frame Avoid allocations every frame  Shouldn‘t do that on the PC either, really Avoid small allocations, prefer large ones instead Avoid small allocations, prefer large ones instead  Helps with fragmentation as well  Use own allocation scheme for small allocations you can‘t get rid of (e.g. STL, Strings) Small allocations Small allocations  Use group allocations  Use freelists  Use memory pools

18. Stefan ReinalterSproing Interactive Media GmbH 18 / 32 Memory management STL usage STL usage  Choose the right tool for the job  Try to reserve memory in advance, e.g. myVector.reserve(1000);  Is/can be used on consoles, although some people/studios roll their own containers Don‘t do this before profiling! Don‘t do this before profiling!  Use hash tables if possible

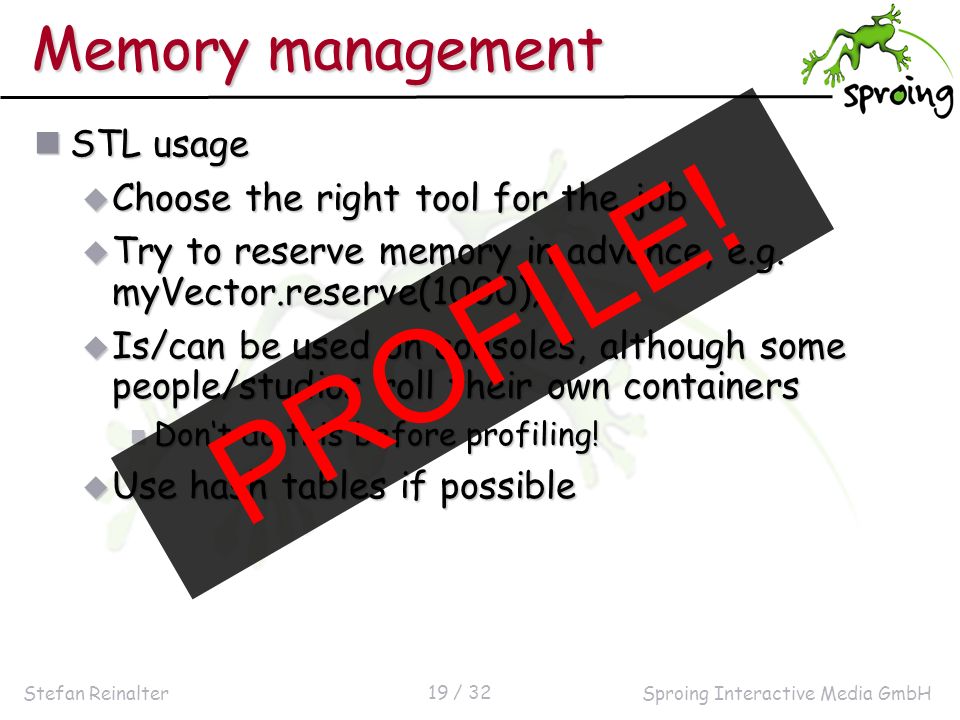

19. Stefan ReinalterSproing Interactive Media GmbH 19 / 32 Memory management STL usage STL usage  Choose the right tool for the job  Try to reserve memory in advance, e.g. myVector.reserve(1000);  Is/can be used on consoles, although some people/studios roll their own containers Don‘t do this before profiling! Don‘t do this before profiling!  Use hash tables if possible PROFILE!

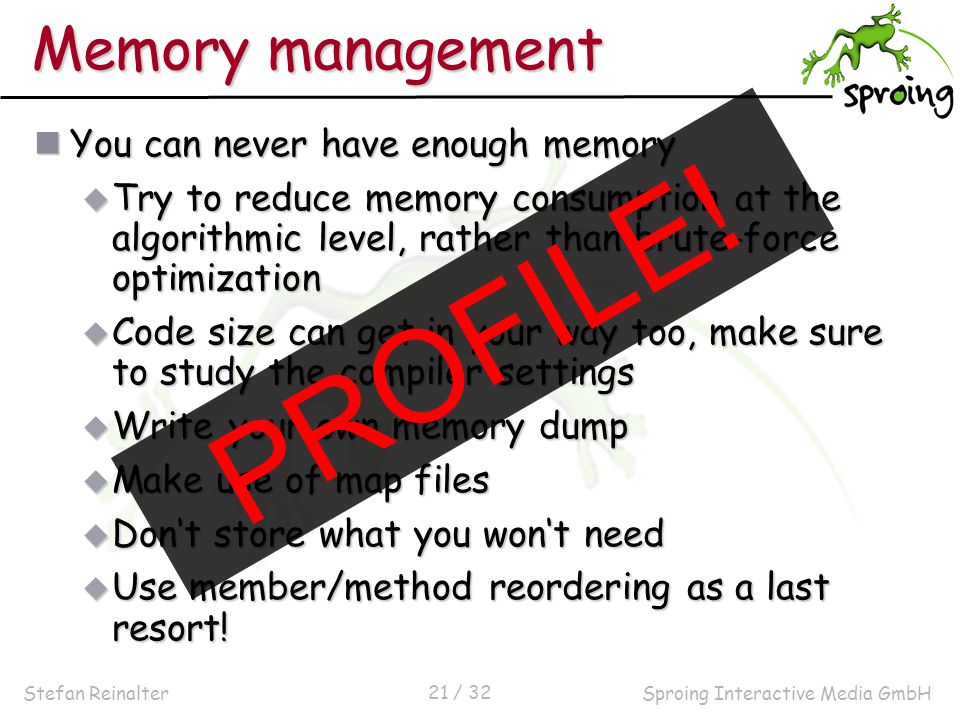

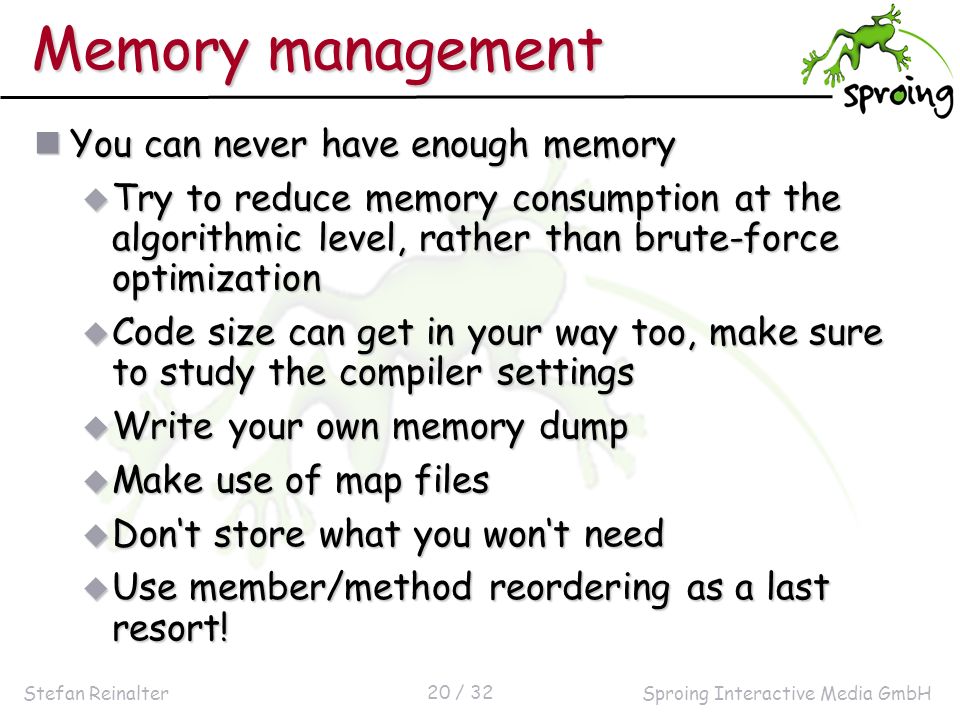

20. Stefan ReinalterSproing Interactive Media GmbH 20 / 32 Memory management You can never have enough memory You can never have enough memory  Try to reduce memory consumption at the algorithmic level, rather than brute-force optimization  Code size can get in your way too, make sure to study the compiler settings  Write your own memory dump  Make use of map files  Don‘t store what you won‘t need  Use member/method reordering as a last resort!

21. Stefan ReinalterSproing Interactive Media GmbH 21 / 32 Memory management You can never have enough memory You can never have enough memory  Try to reduce memory consumption at the algorithmic level, rather than brute-force optimization  Code size can get in your way too, make sure to study the compiler settings  Write your own memory dump  Make use of map files  Don‘t store what you won‘t need  Use member/method reordering as a last resort! PROFILE!

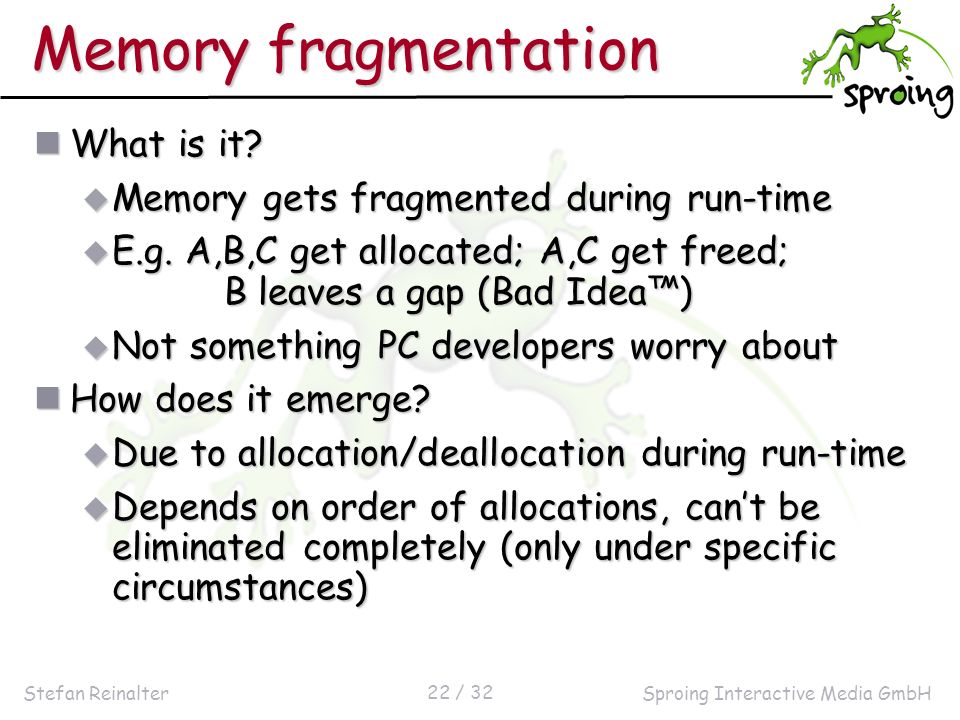

22. Stefan ReinalterSproing Interactive Media GmbH 22 / 32 Memory fragmentation What is it? What is it?  Memory gets fragmented during run-time  E.g. A,B,C get allocated; A,C get freed; B leaves a gap (Bad Idea™)  Not something PC developers worry about How does it emerge? How does it emerge?  Due to allocation/deallocation during run-time  Depends on order of allocations, can’t be eliminated completely (only under specific circumstances)

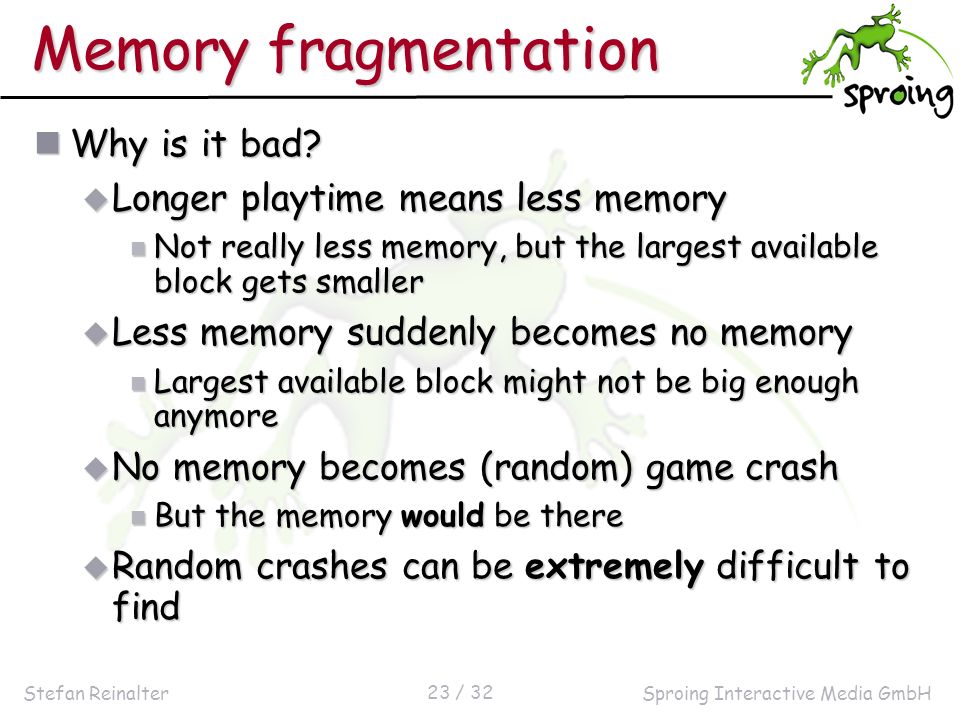

23. Stefan ReinalterSproing Interactive Media GmbH 23 / 32 Memory fragmentation Why is it bad? Why is it bad?  Longer playtime means less memory Not really less memory, but the largest available block gets smaller Not really less memory, but the largest available block gets smaller  Less memory suddenly becomes no memory Largest available block might not be big enough anymore Largest available block might not be big enough anymore  No memory becomes (random) game crash But the memory would be there But the memory would be there  Random crashes can be extremely difficult to find

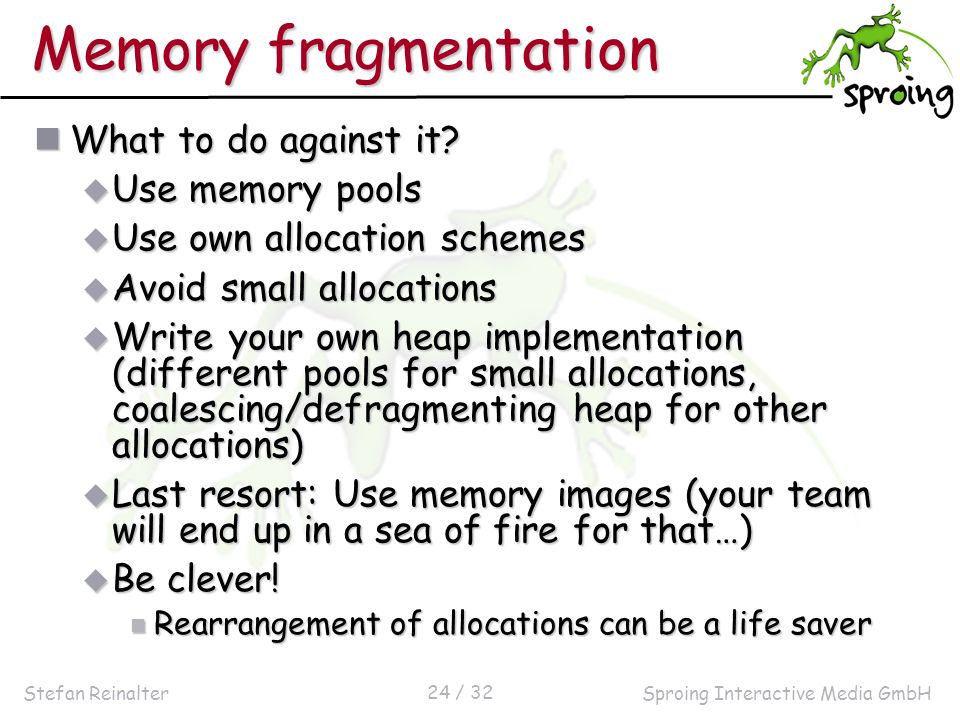

24. Stefan ReinalterSproing Interactive Media GmbH 24 / 32 Memory fragmentation What to do against it? What to do against it?  Use memory pools  Use own allocation schemes  Avoid small allocations  Write your own heap implementation (different pools for small allocations, coalescing/defragmenting heap for other allocations)  Last resort: Use memory images (your team will end up in a sea of fire for that…)  Be clever! Rearrangement of allocations can be a life saver Rearrangement of allocations can be a life saver

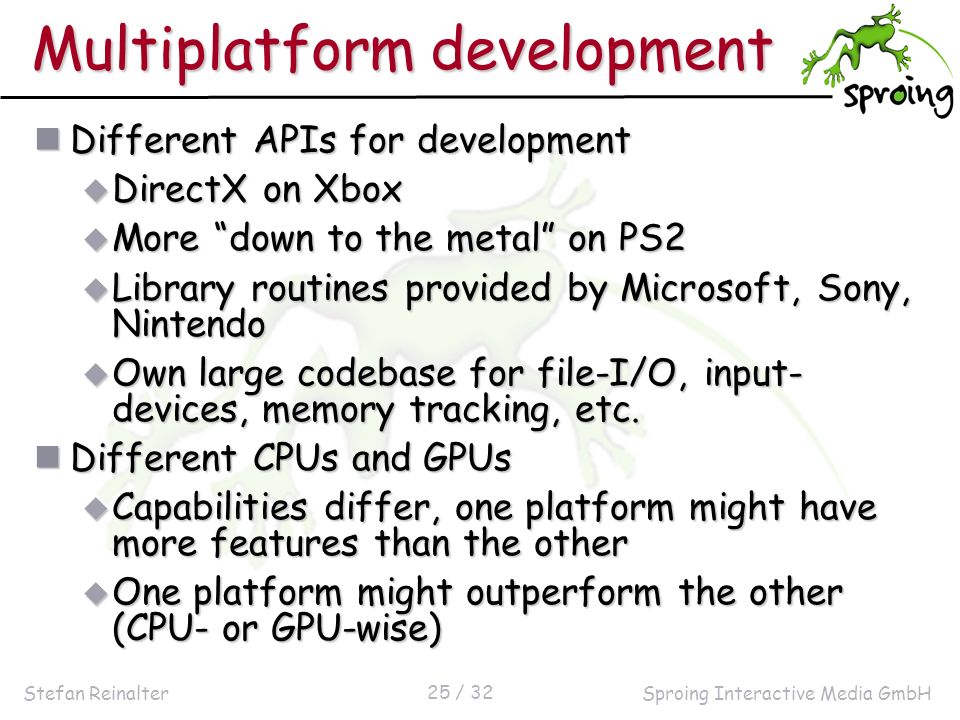

25. Stefan ReinalterSproing Interactive Media GmbH 25 / 32 Multiplatform development Different APIs for development Different APIs for development  DirectX on Xbox  More “down to the metal” on PS2  Library routines provided by Microsoft, Sony, Nintendo  Own large codebase for file-I/O, input- devices, memory tracking, etc. Different CPUs and GPUs Different CPUs and GPUs  Capabilities differ, one platform might have more features than the other  One platform might outperform the other (CPU- or GPU-wise)

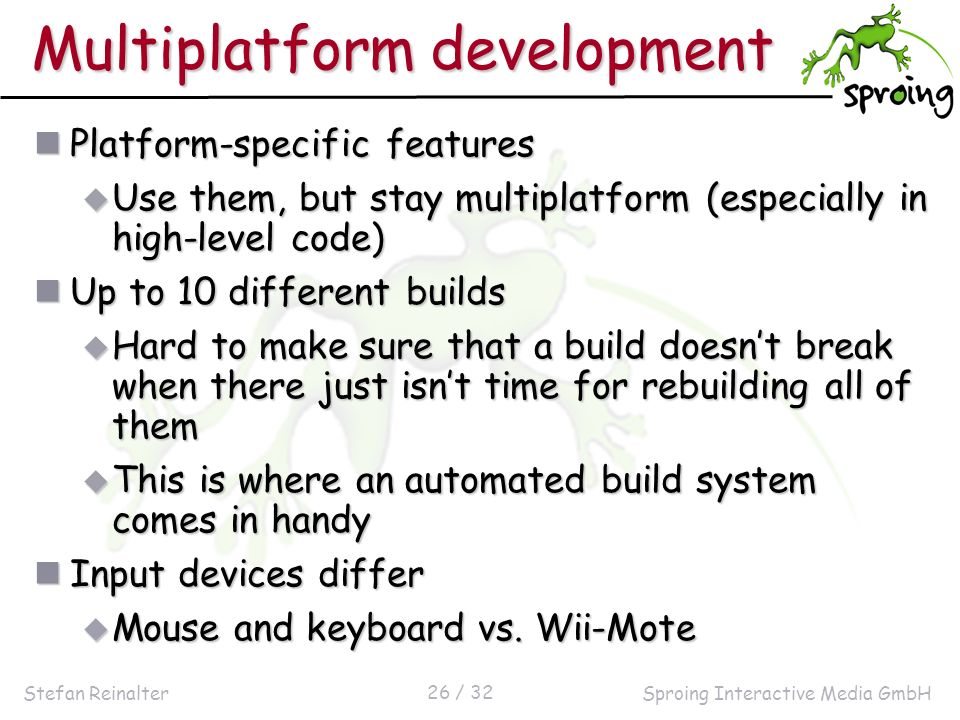

26. Stefan ReinalterSproing Interactive Media GmbH 26 / 32 Multiplatform development Platform-specific features Platform-specific features  Use them, but stay multiplatform (especially in high-level code) Up to 10 different builds Up to 10 different builds  Hard to make sure that a build doesn’t break when there just isn’t time for rebuilding all of them  This is where an automated build system comes in handy Input devices differ Input devices differ  Mouse and keyboard vs. Wii-Mote

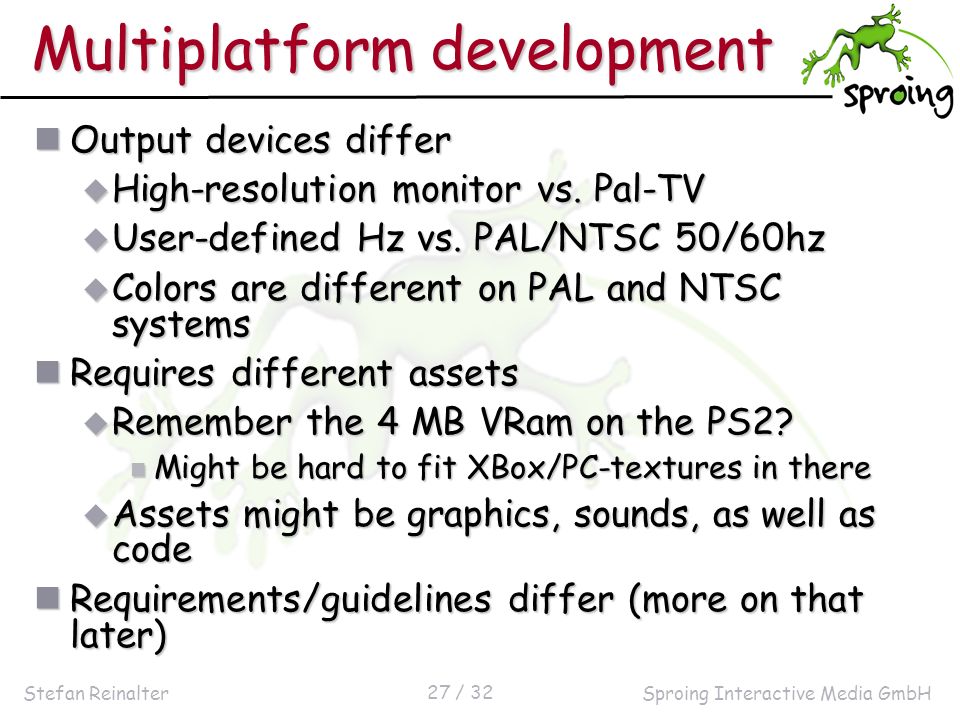

27. Stefan ReinalterSproing Interactive Media GmbH 27 / 32 Multiplatform development Output devices differ Output devices differ  High-resolution monitor vs. Pal-TV  User-defined Hz vs. PAL/NTSC 50/60hz  Colors are different on PAL and NTSC systems Requires different assets Requires different assets  Remember the 4 MB VRam on the PS2? Might be hard to fit XBox/PC-textures in there Might be hard to fit XBox/PC-textures in there  Assets might be graphics, sounds, as well as code Requirements/guidelines differ (more on that later) Requirements/guidelines differ (more on that later)

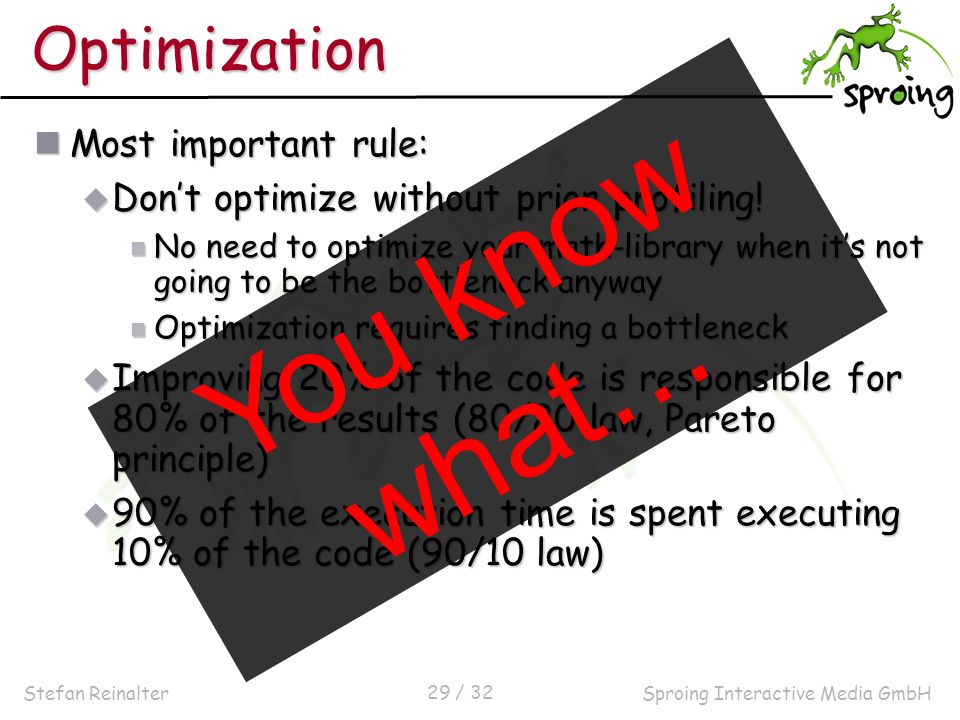

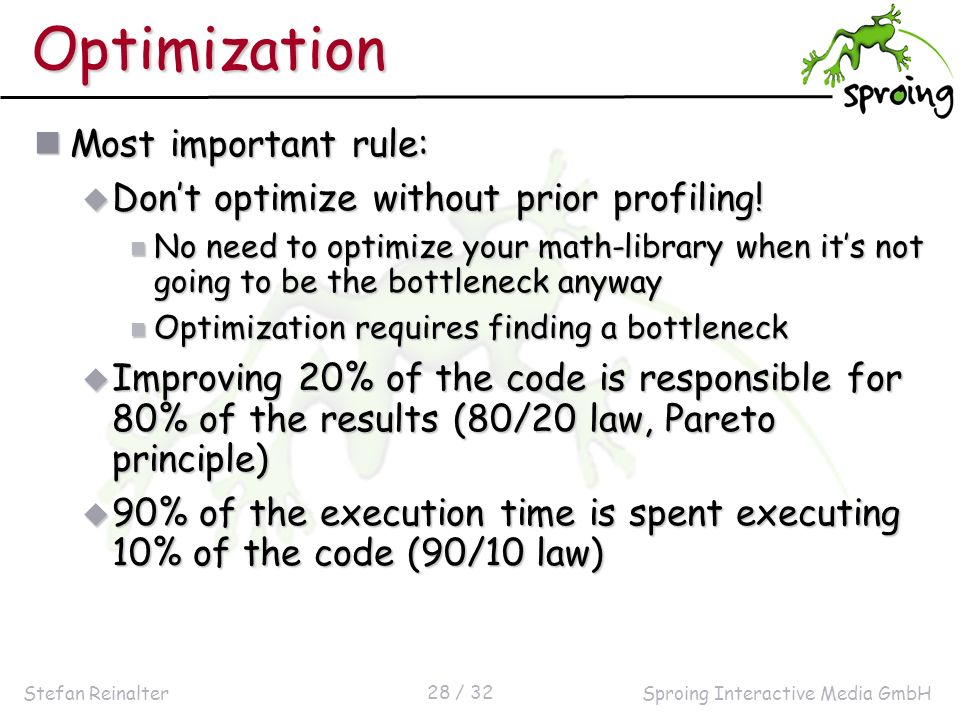

28. Stefan ReinalterSproing Interactive Media GmbH 28 / 32 Optimization Most important rule: Most important rule:  Don’t optimize without prior profiling! No need to optimize your math-library when it’s not going to be the bottleneck anyway No need to optimize your math-library when it’s not going to be the bottleneck anyway Optimization requires finding a bottleneck Optimization requires finding a bottleneck  Improving 20% of the code is responsible for 80% of the results (80/20 law, Pareto principle)  90% of the execution time is spent executing 10% of the code (90/10 law)

29. Stefan ReinalterSproing Interactive Media GmbH 29 / 32 Optimization Most important rule: Most important rule:  Don’t optimize without prior profiling! No need to optimize your math-library when it’s not going to be the bottleneck anyway No need to optimize your math-library when it’s not going to be the bottleneck anyway Optimization requires finding a bottleneck Optimization requires finding a bottleneck  Improving 20% of the code is responsible for 80% of the results (80/20 law, Pareto principle)  90% of the execution time is spent executing 10% of the code (90/10 law) You know what…

30. Stefan ReinalterSproing Interactive Media GmbH 30 / 32 Optimization Only optimize when really necessary Only optimize when really necessary  Try to optimize at the algorithmic level first O(n) will almost always outperform O(n^x) O(n) will almost always outperform O(n^x)  Try to help the compiler when he can‘t optimize (e.g. because of aliasing)  Use assembly language and know your hardware! Changes will get tedious (Assembly -> High-level language -> Assembly) Changes will get tedious (Assembly -> High-level language -> Assembly) But a tremendous speed-up is possible But a tremendous speed-up is possible

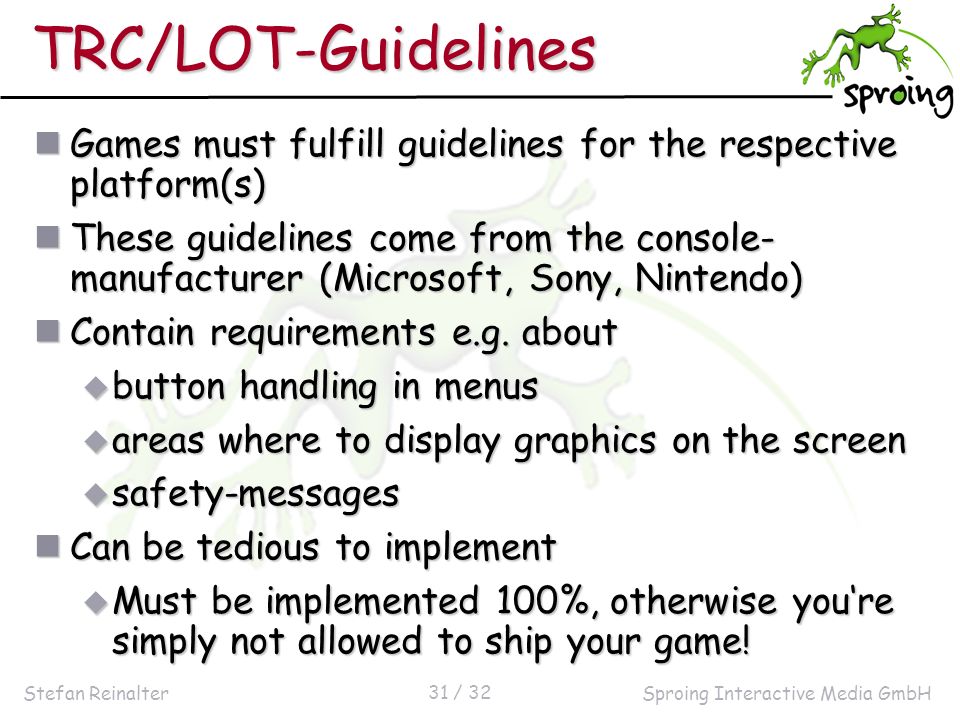

31. Stefan ReinalterSproing Interactive Media GmbH 31 / 32 TRC/LOT-Guidelines Games must fulfill guidelines for the respective platform(s) Games must fulfill guidelines for the respective platform(s) These guidelines come from the console- manufacturer (Microsoft, Sony, Nintendo) These guidelines come from the console- manufacturer (Microsoft, Sony, Nintendo) Contain requirements e.g. about Contain requirements e.g. about  button handling in menus  areas where to display graphics on the screen  safety-messages Can be tedious to implement Can be tedious to implement  Must be implemented 100%, otherwise you‘re simply not allowed to ship your game!

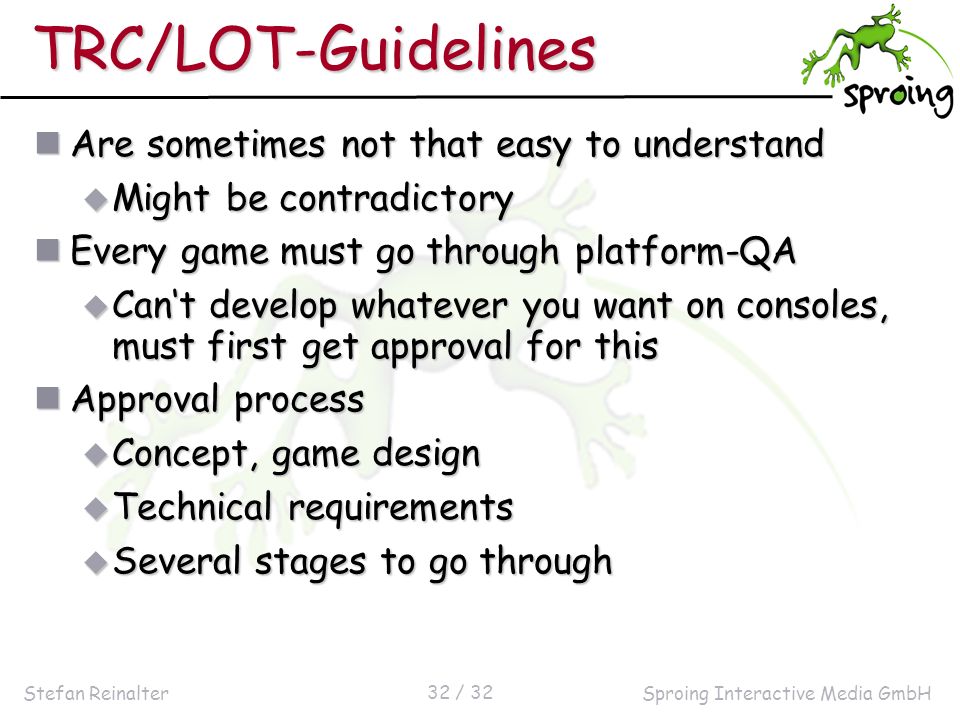

32. Stefan ReinalterSproing Interactive Media GmbH 32 / 32 TRC/LOT-Guidelines Are sometimes not that easy to understand Are sometimes not that easy to understand  Might be contradictory Every game must go through platform-QA Every game must go through platform-QA  Can‘t develop whatever you want on consoles, must first get approval for this Approval process Approval process  Concept, game design  Technical requirements  Several stages to go through

33. Questions ?
