1. R&D ON STRIPLINES FOR THE CLIC DR KICKERS C. Belver-Aguilar (IFIC) Acknowledgements: A. Faus-Golfe (IFIC), F. Toral (CIEMAT), M. Barnes (CERN) ICFA Beam Dynamics Mini Workshop on Low Emittance Rings 2011 3-5 October 2011 Heraklion, Greece

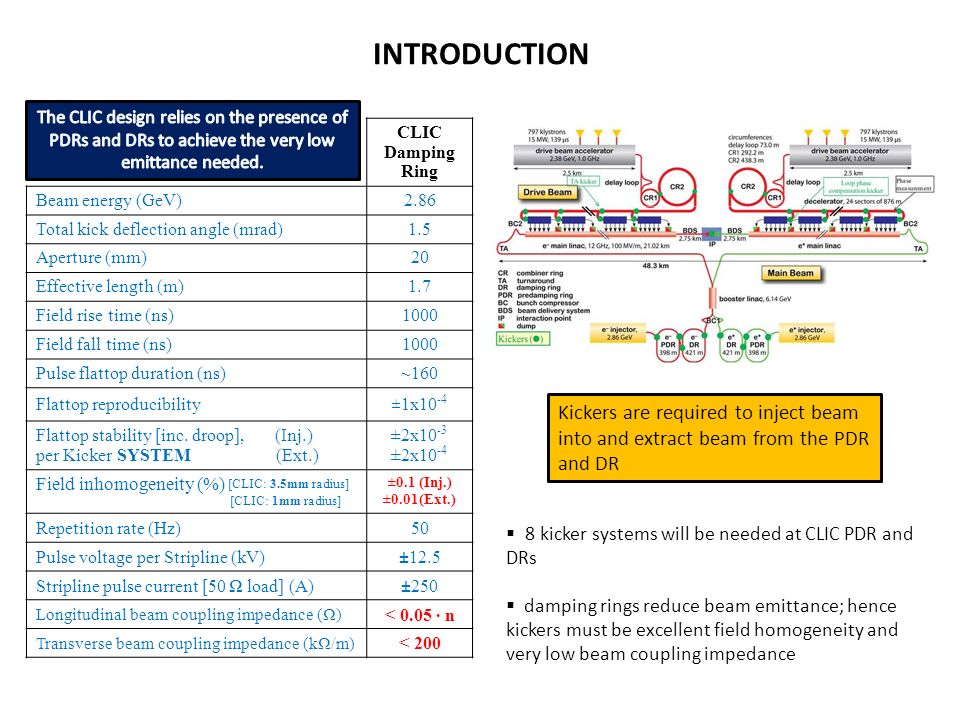

2. CLIC Damping Ring Beam energy (GeV)2.86 Total kick deflection angle (mrad)1.5 Aperture (mm)20 Effective length (m)1.7 Field rise time (ns)1000 Field fall time (ns)1000 Pulse flattop duration (ns)~160 Flattop reproducibility ± 1x10 -4 Flattop stability [inc. droop], (Inj.) per Kicker SYSTEM (Ext.) ±2x10 -3 ± 2x10 -4 Field inhomogeneity (%) [CLIC: 3.5mm radius] [CLIC: 1mm radius] ±0.1 (Inj.) ±0.01(Ext.) Repetition rate (Hz)50 Pulse voltage per Stripline (kV)±12.5 Stripline pulse current [50 Ω load] (A)±250 Longitudinal beam coupling impedance (Ω) < 0.05 ∙ n Transverse beam coupling impedance (kΩ/m) < 200 INTRODUCTION Kickers are required to inject beam into and extract beam from the PDR and DR  8 kicker systems will be needed at CLIC PDR and DRs  damping rings reduce beam emittance; hence kickers must be excellent field homogeneity and very low beam coupling impedance

3. STRIPLINE KICKER OPERATION Lorentz force over the charged particles of the beam: for a TEM mode 2 modes of kicker operation: odd and even mode

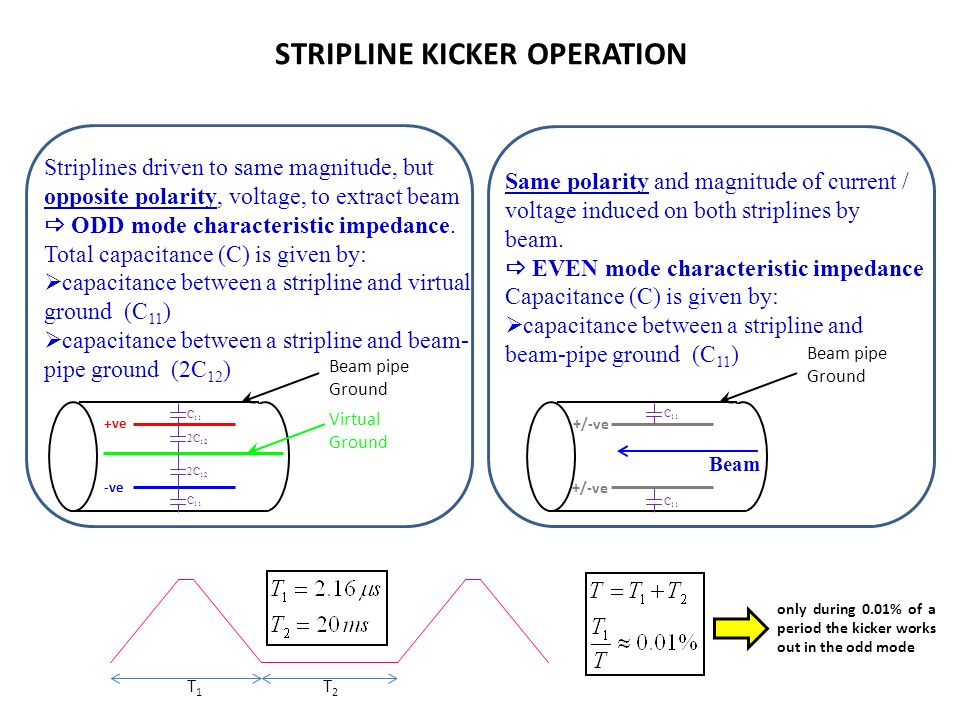

4. STRIPLINE KICKER OPERATION Virtual Ground +ve -ve Beam pipe Ground Striplines driven to same magnitude, but opposite polarity, voltage, to extract beam  ODD mode characteristic impedance. Total capacitance (C) is given by:  capacitance between a stripline and virtual ground (C 11 )  capacitance between a stripline and beam- pipe ground (2C 12 ) +/-ve Beam pipe Ground Beam Same polarity and magnitude of current / voltage induced on both striplines by beam.  EVEN mode characteristic impedance Capacitance (C) is given by:  capacitance between a stripline and beam-pipe ground (C 11 ) C 11 2C 12 C 11 T1T1 T2T2 only during 0.01% of a period the kicker works out in the odd mode

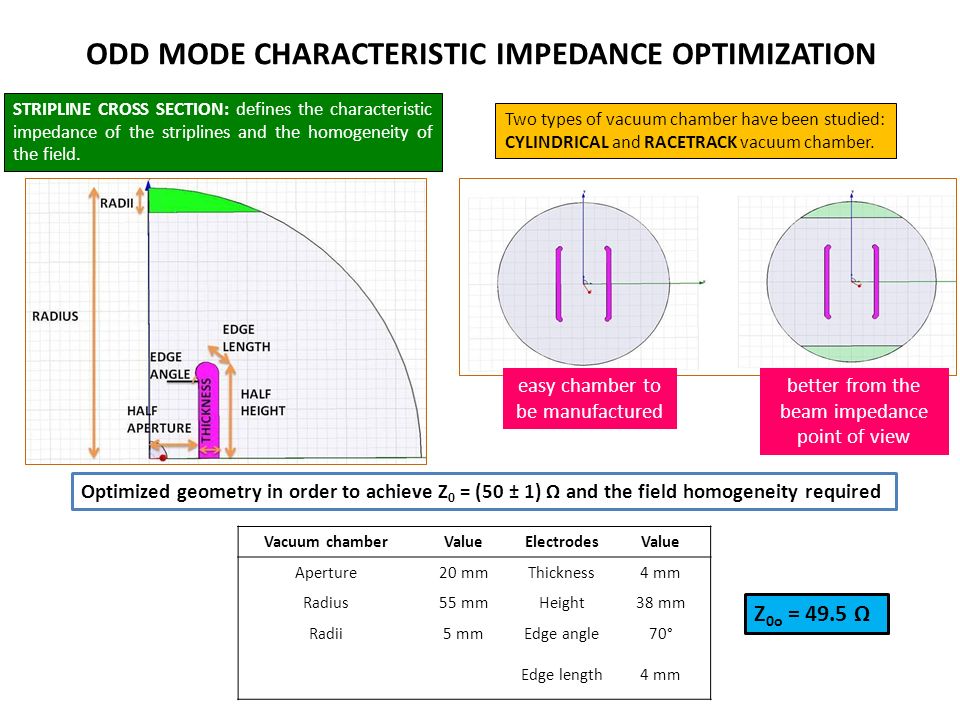

5. ODD MODE CHARACTERISTIC IMPEDANCE OPTIMIZATION STRIPLINE CROSS SECTION: defines the characteristic impedance of the striplines and the homogeneity of the field. Two types of vacuum chamber have been studied: CYLINDRICAL and RACETRACK vacuum chamber. easy chamber to be manufactured better from the beam impedance point of view Optimized geometry in order to achieve Z 0 = (50 ± 1) Ω and the field homogeneity required Vacuum chamberValueElectrodesValue Aperture20 mmThickness4 mm Radius55 mmHeight38 mm Radii5 mmEdge angle70° Edge length4 mm Z 0o = 49.5 Ω

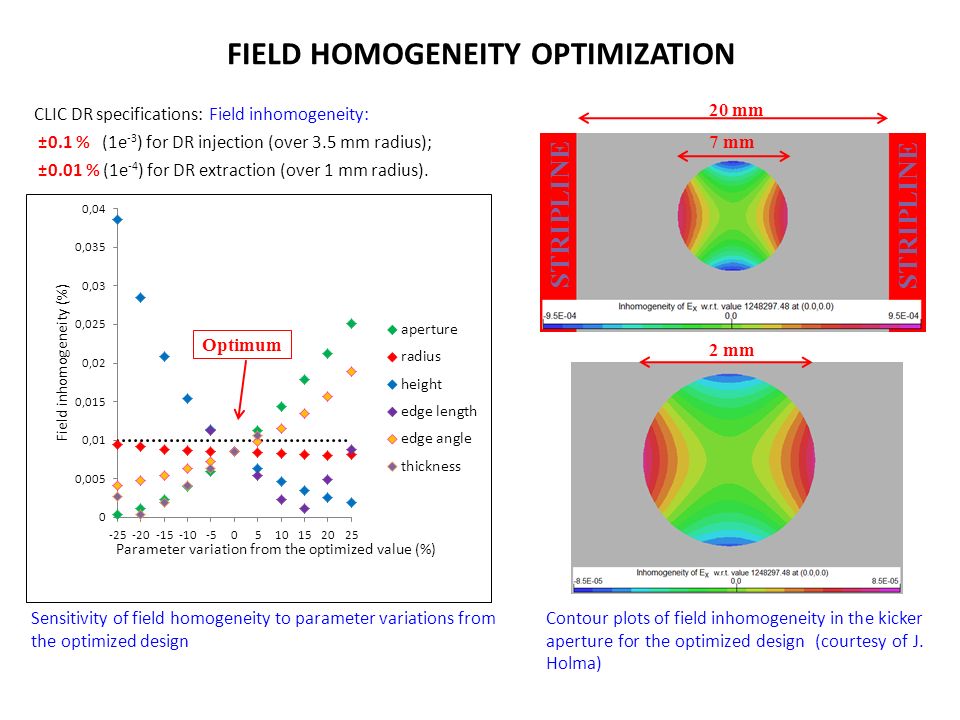

6. FIELD HOMOGENEITY OPTIMIZATION CLIC DR specifications: Field inhomogeneity: ±0.1 % (1e -3 ) for DR injection (over 3.5 mm radius); ±0.01 % (1e -4 ) for DR extraction (over 1 mm radius). Sensitivity of field homogeneity to parameter variations from the optimized design 2 mm 7 mm 20 mm STRIPLINE Contour plots of field inhomogeneity in the kicker aperture for the optimized design (courtesy of J. Holma)

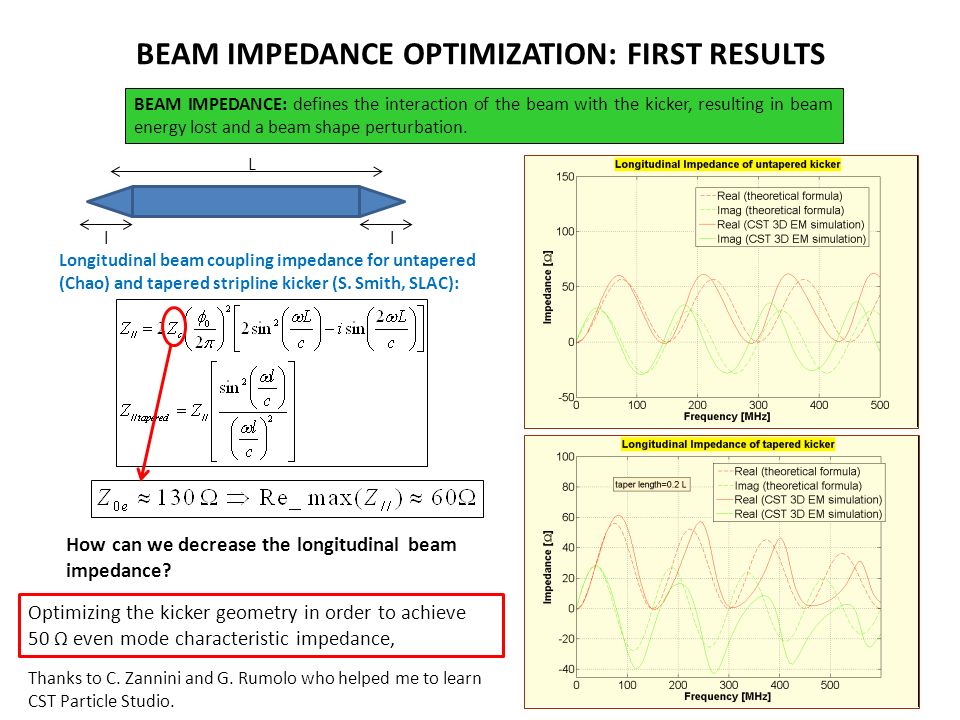

7. BEAM IMPEDANCE OPTIMIZATION: FIRST RESULTS BEAM IMPEDANCE: defines the interaction of the beam with the kicker, resulting in beam energy lost and a beam shape perturbation. Longitudinal beam coupling impedance for untapered (Chao) and tapered stripline kicker (S. Smith, SLAC): How can we decrease the longitudinal beam impedance? Optimizing the kicker geometry in order to achieve 50 Ω even mode characteristic impedance, L ll Thanks to C. Zannini and G. Rumolo who helped me to learn CST Particle Studio.

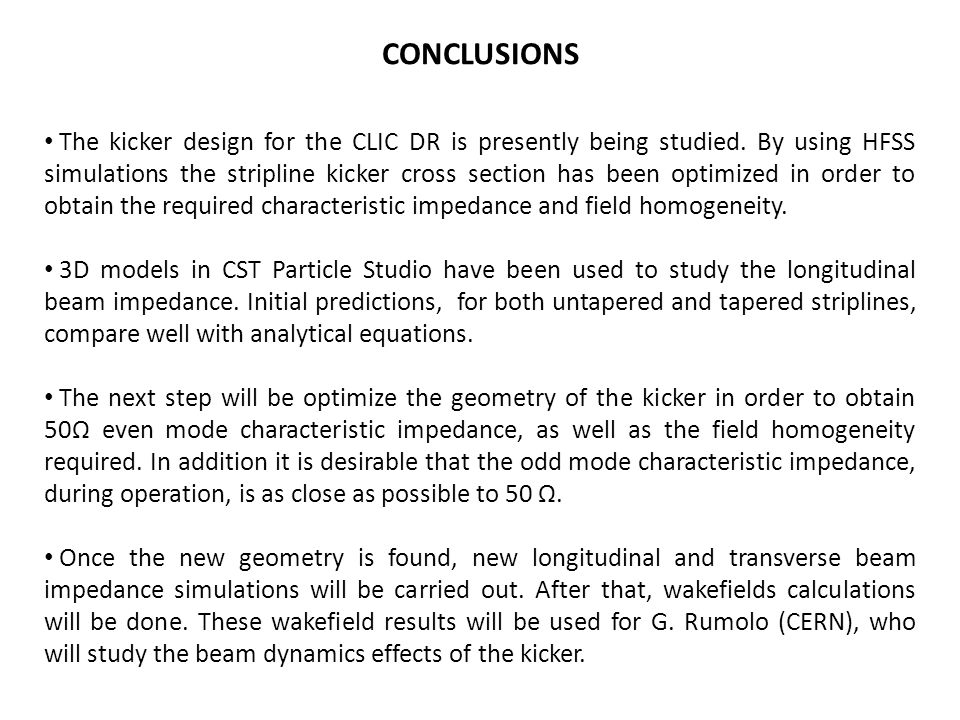

8. CONCLUSIONS The kicker design for the CLIC DR is presently being studied. By using HFSS simulations the stripline kicker cross section has been optimized in order to obtain the required characteristic impedance and field homogeneity. 3D models in CST Particle Studio have been used to study the longitudinal beam impedance. Initial predictions, for both untapered and tapered striplines, compare well with analytical equations. The next step will be optimize the geometry of the kicker in order to obtain 50Ω even mode characteristic impedance, as well as the field homogeneity required. In addition it is desirable that the odd mode characteristic impedance, during operation, is as close as possible to 50 Ω. Once the new geometry is found, new longitudinal and transverse beam impedance simulations will be carried out. After that, wakefields calculations will be done. These wakefield results will be used for G. Rumolo (CERN), who will study the beam dynamics effects of the kicker.

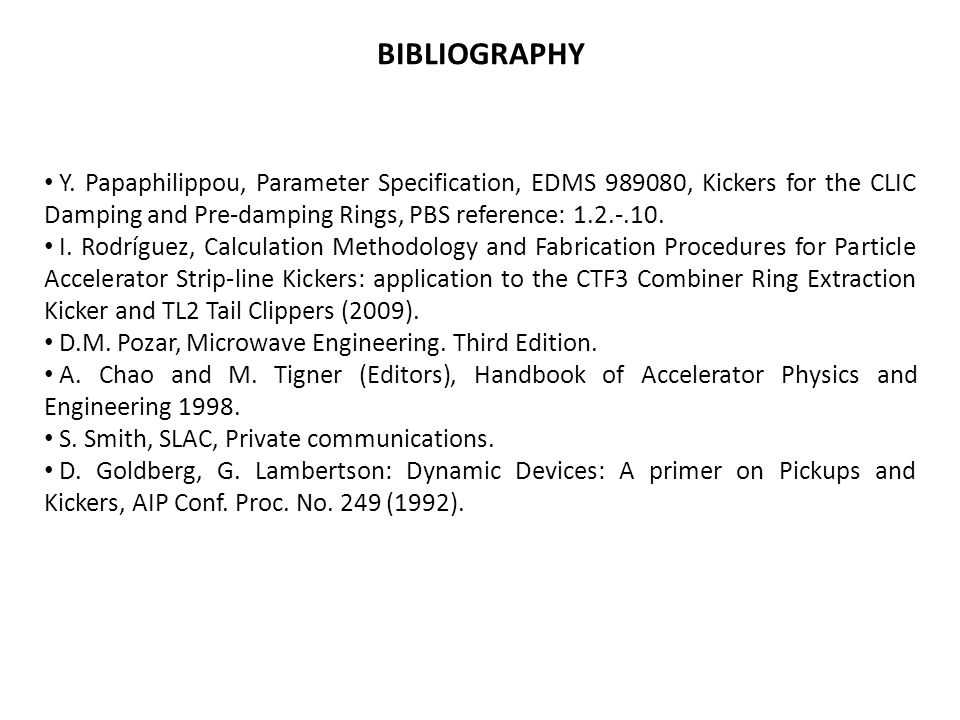

9. BIBLIOGRAPHY Y. Papaphilippou, Parameter Specification, EDMS 989080, Kickers for the CLIC Damping and Pre-damping Rings, PBS reference: 1.2.-.10. I. Rodríguez, Calculation Methodology and Fabrication Procedures for Particle Accelerator Strip-line Kickers: application to the CTF3 Combiner Ring Extraction Kicker and TL2 Tail Clippers (2009). D.M. Pozar, Microwave Engineering. Third Edition. A. Chao and M. Tigner (Editors), Handbook of Accelerator Physics and Engineering 1998. S. Smith, SLAC, Private communications. D. Goldberg, G. Lambertson: Dynamic Devices: A primer on Pickups and Kickers, AIP Conf. Proc. No. 249 (1992).
