2. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 2 What is Shop Floor Control? Definition: Shop Floor Control (SFC) is the process by which decisions directly affecting the flow of material through the factory are made. Functions: WIP Tracking Throughput Tracking Status Monitoring Work Forecasting Capacity Feedback Quality Control Material Flow Control

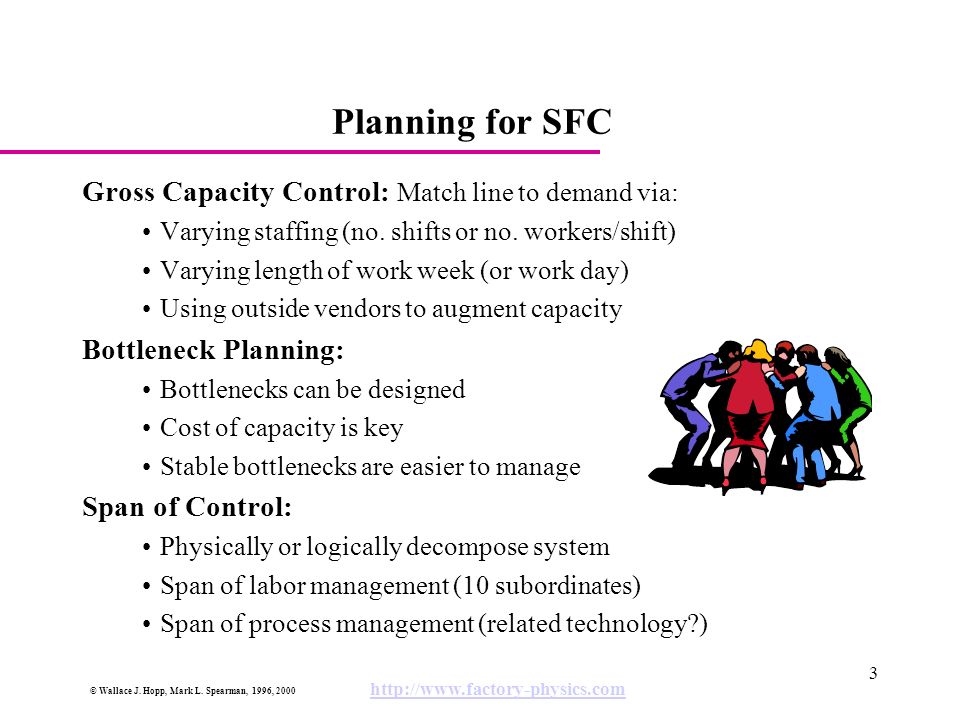

3. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 3 Planning for SFC Gross Capacity Control: Match line to demand via: Varying staffing (no. shifts or no. workers/shift) Varying length of work week (or work day) Using outside vendors to augment capacity Bottleneck Planning: Bottlenecks can be designed Cost of capacity is key Stable bottlenecks are easier to manage Span of Control: Physically or logically decompose system Span of labor management (10 subordinates) Span of process management (related technology?)

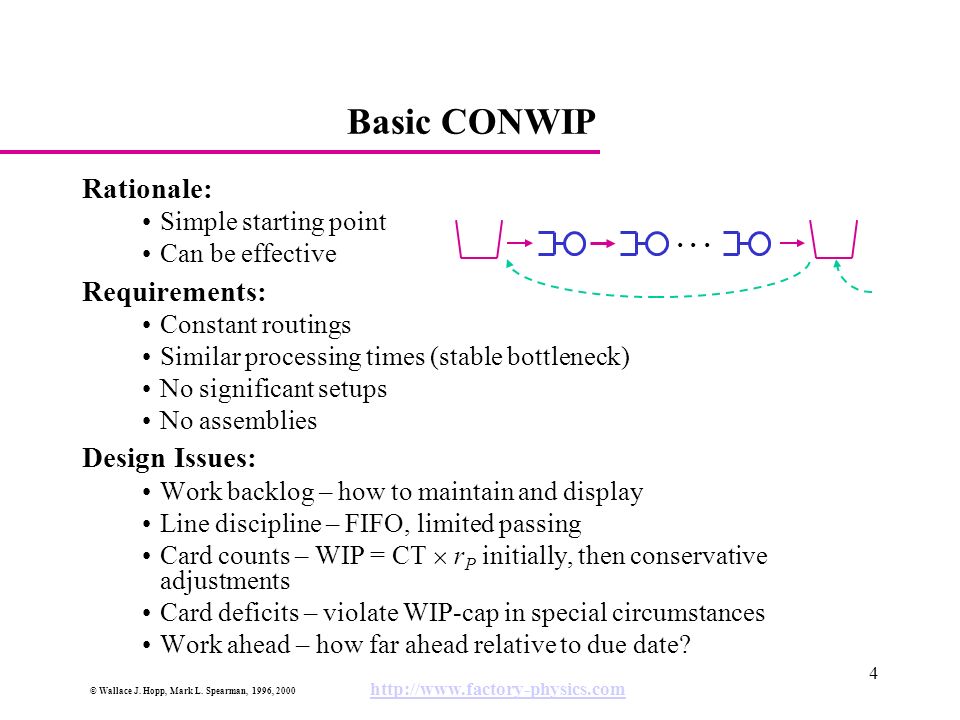

4. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 4 Basic CONWIP Rationale: Simple starting point Can be effective Requirements: Constant routings Similar processing times (stable bottleneck) No significant setups No assemblies Design Issues: Work backlog – how to maintain and display Line discipline – FIFO, limited passing Card counts – WIP = CT  r P initially, then conservative adjustments Card deficits – violate WIP-cap in special circumstances Work ahead – how far ahead relative to due date?...

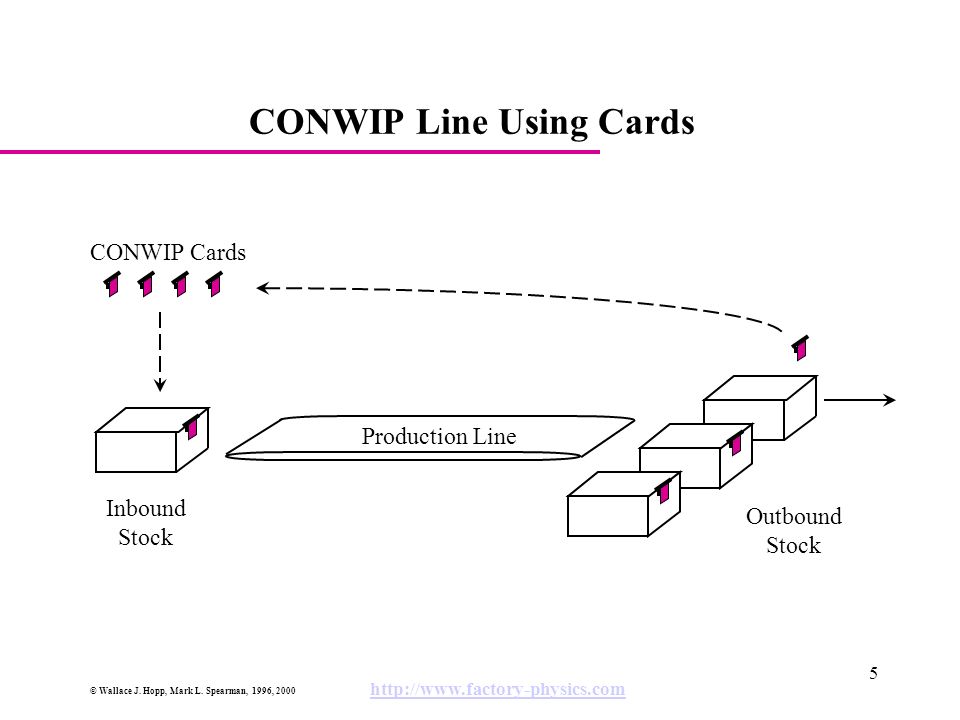

5. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 5 CONWIP Line Using Cards Production Line Inbound Stock Outbound Stock CONWIP Cards

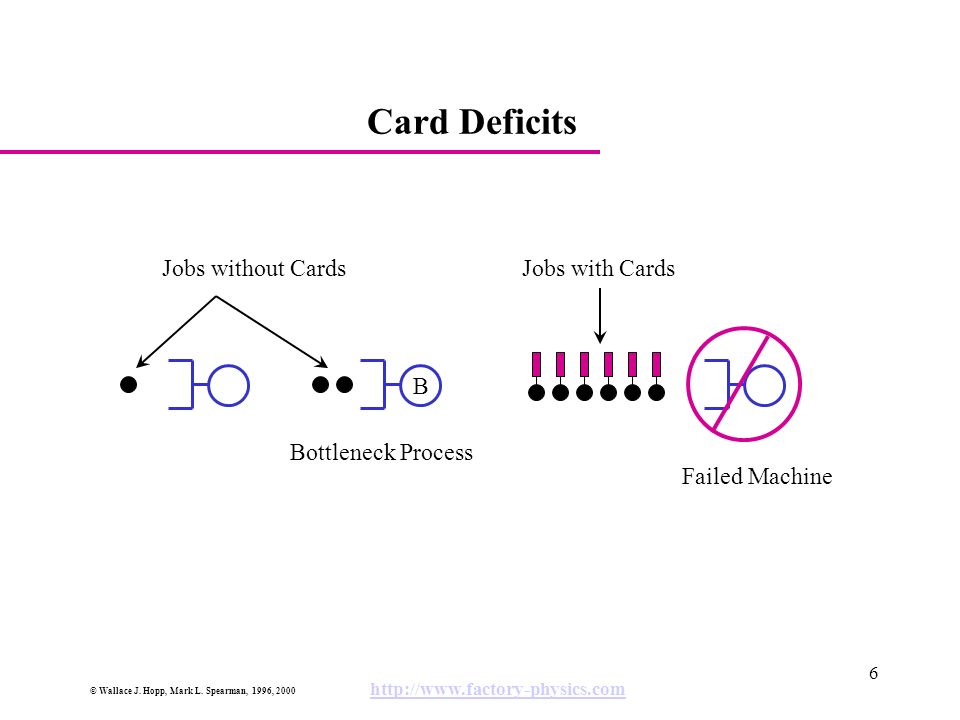

6. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 6 Card Deficits B Bottleneck Process Jobs with CardsJobs without Cards Failed Machine

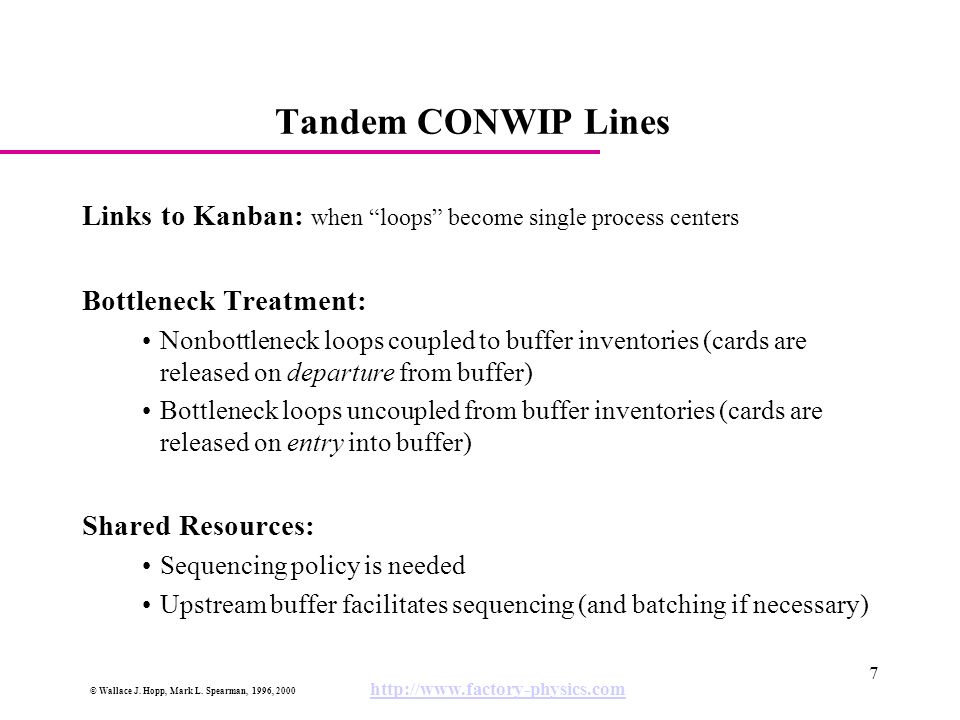

7. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 7 Tandem CONWIP Lines Links to Kanban: when “loops” become single process centers Bottleneck Treatment: Nonbottleneck loops coupled to buffer inventories (cards are released on departure from buffer) Bottleneck loops uncoupled from buffer inventories (cards are released on entry into buffer) Shared Resources: Sequencing policy is needed Upstream buffer facilitates sequencing (and batching if necessary)

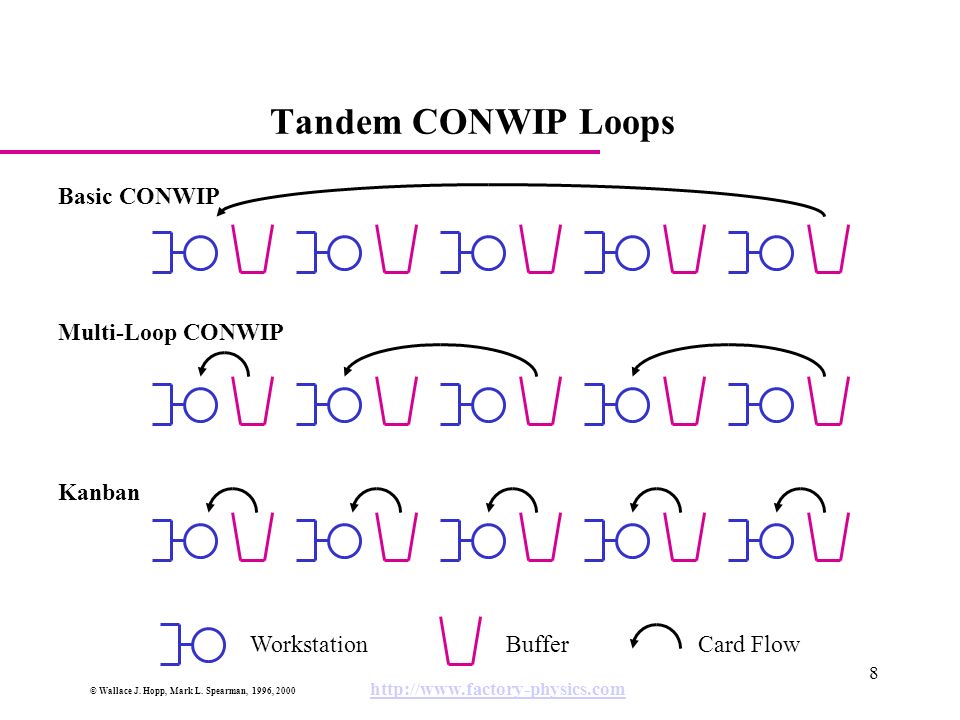

8. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 8 Tandem CONWIP Loops Basic CONWIP Kanban Multi-Loop CONWIP WorkstationBufferCard Flow

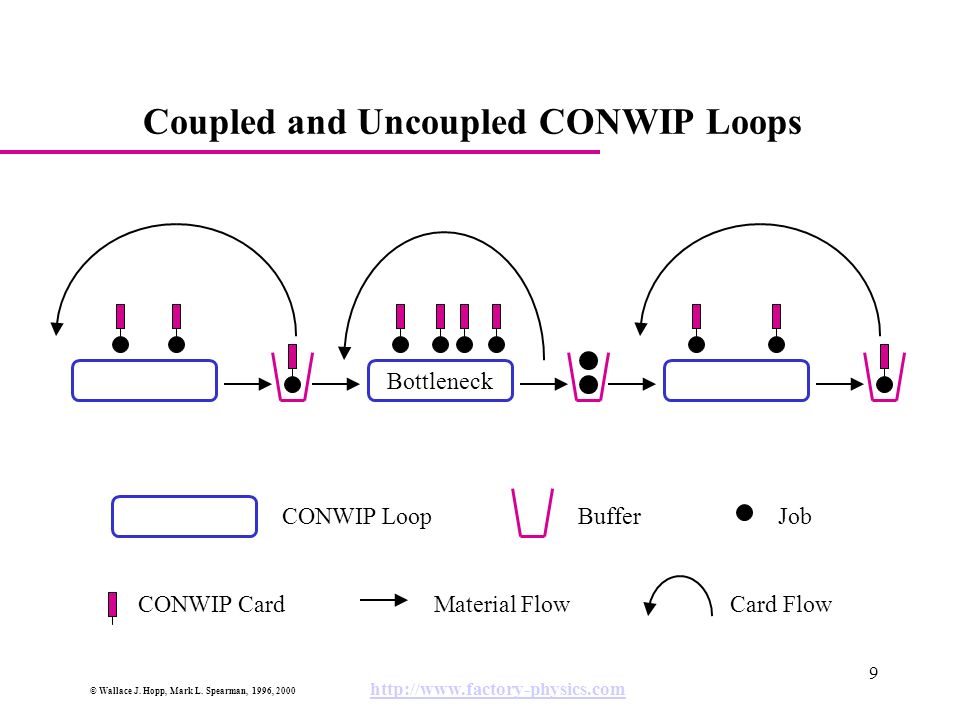

9. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 9 Coupled and Uncoupled CONWIP Loops Bottleneck Buffer Card FlowMaterial FlowCONWIP Card JobCONWIP Loop

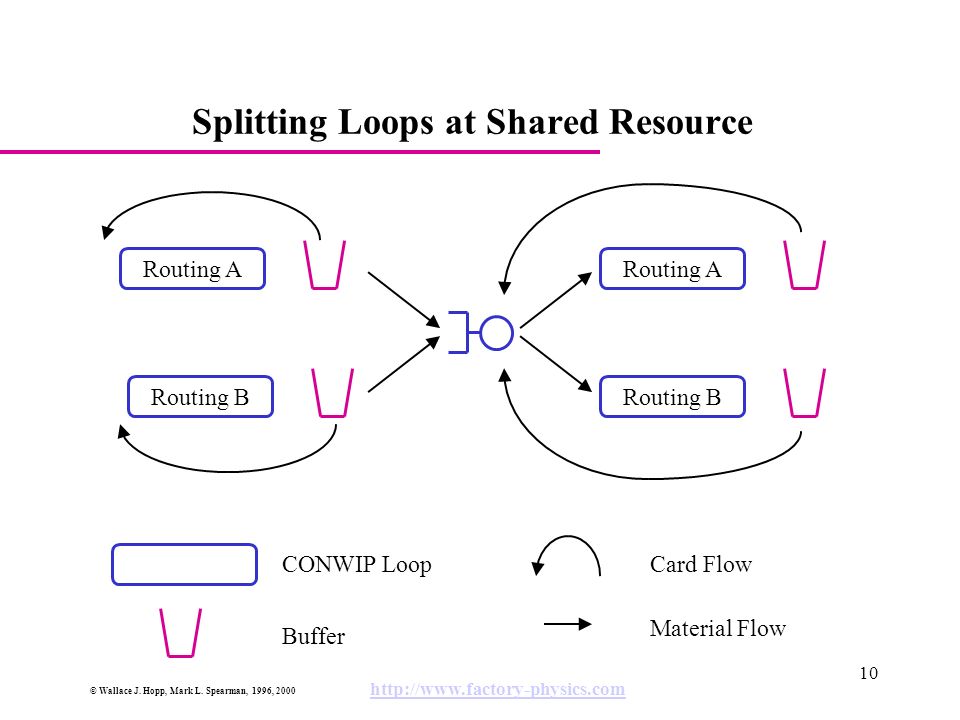

10. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 10 Splitting Loops at Shared Resource Routing A Routing B Buffer Card Flow Material Flow CONWIP Loop

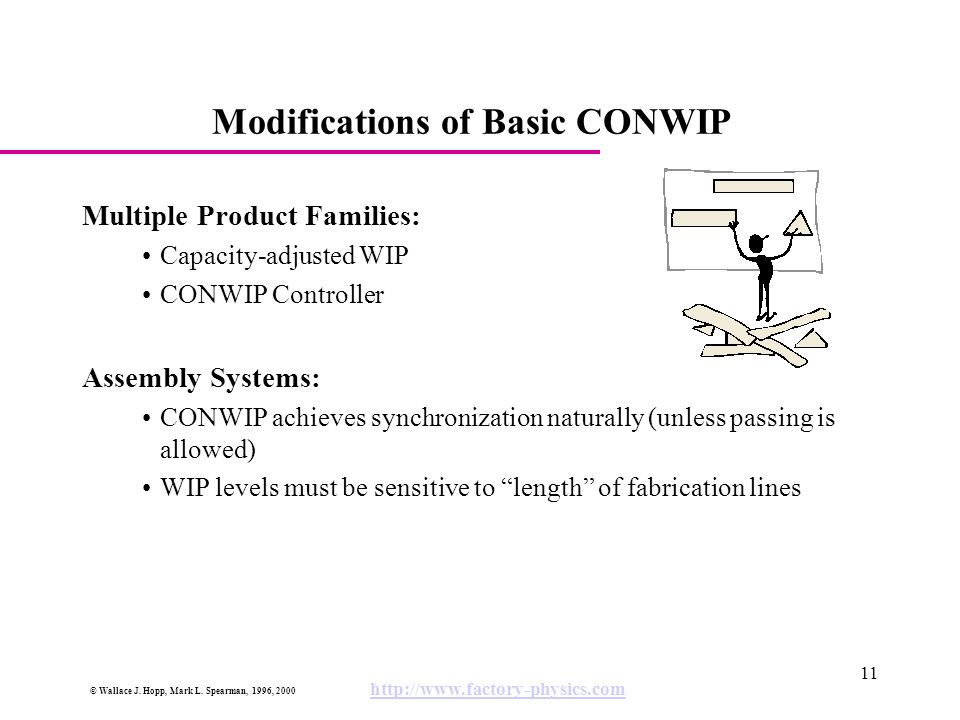

11. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 11 Modifications of Basic CONWIP Multiple Product Families: Capacity-adjusted WIP CONWIP Controller Assembly Systems: CONWIP achieves synchronization naturally (unless passing is allowed) WIP levels must be sensitive to “length” of fabrication lines

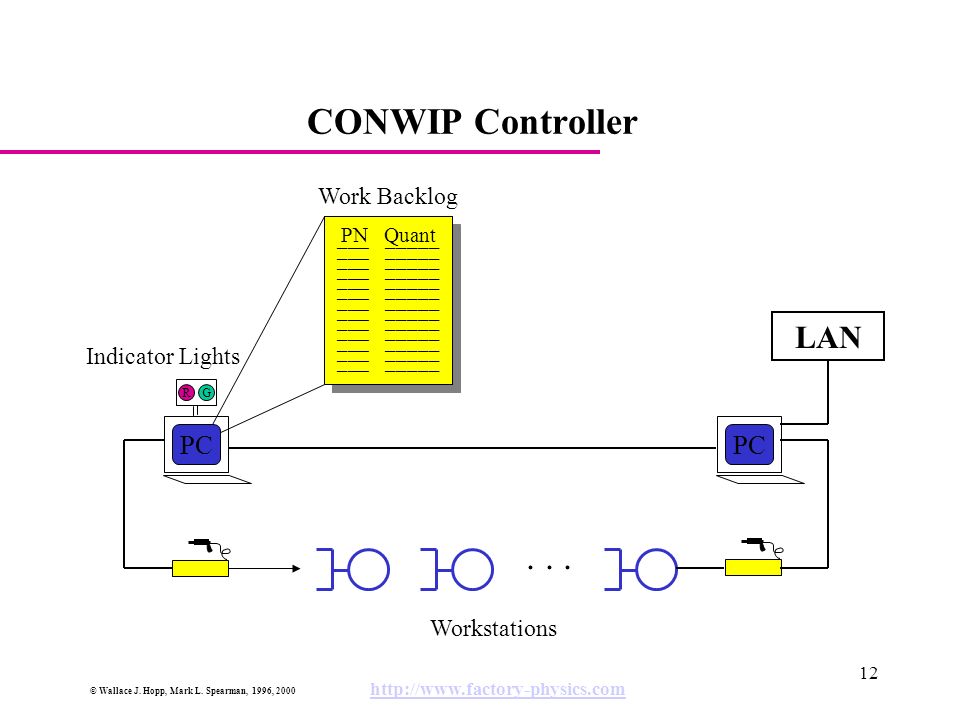

12. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 12 CONWIP Controller PC RG PN Quant –— ––––– Indicator Lights Work Backlog LAN... Workstations

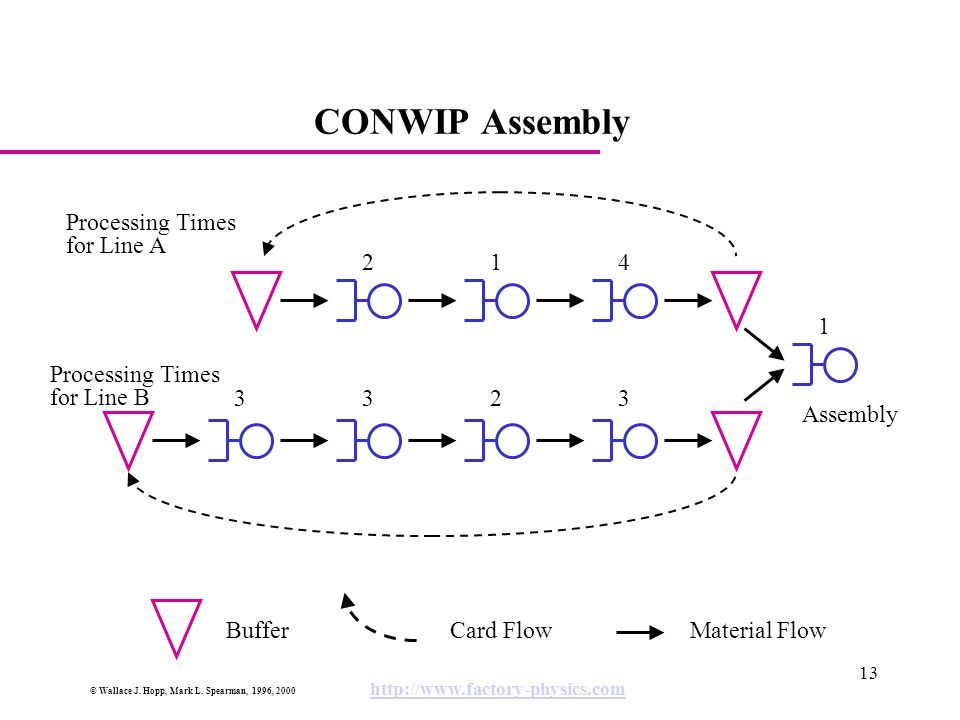

13. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 13 CONWIP Assembly Processing Times for Line B Processing Times for Line A Assembly 1 3233 24 1 Material FlowCard FlowBuffer

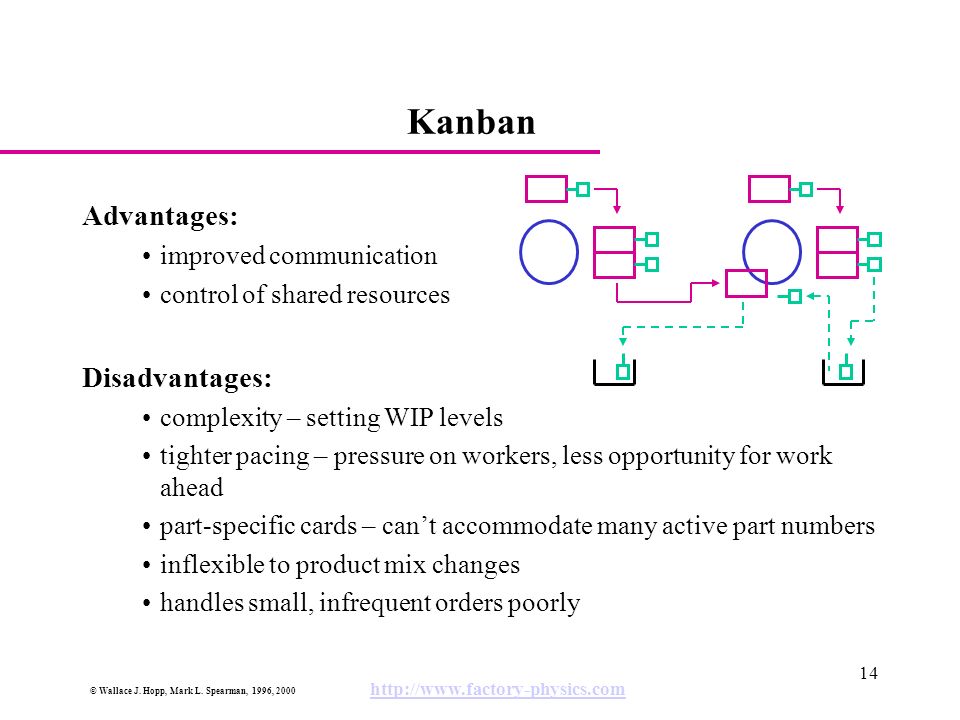

14. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 14 Kanban Advantages: improved communication control of shared resources Disadvantages: complexity – setting WIP levels tighter pacing – pressure on workers, less opportunity for work ahead part-specific cards – can’t accommodate many active part numbers inflexible to product mix changes handles small, infrequent orders poorly

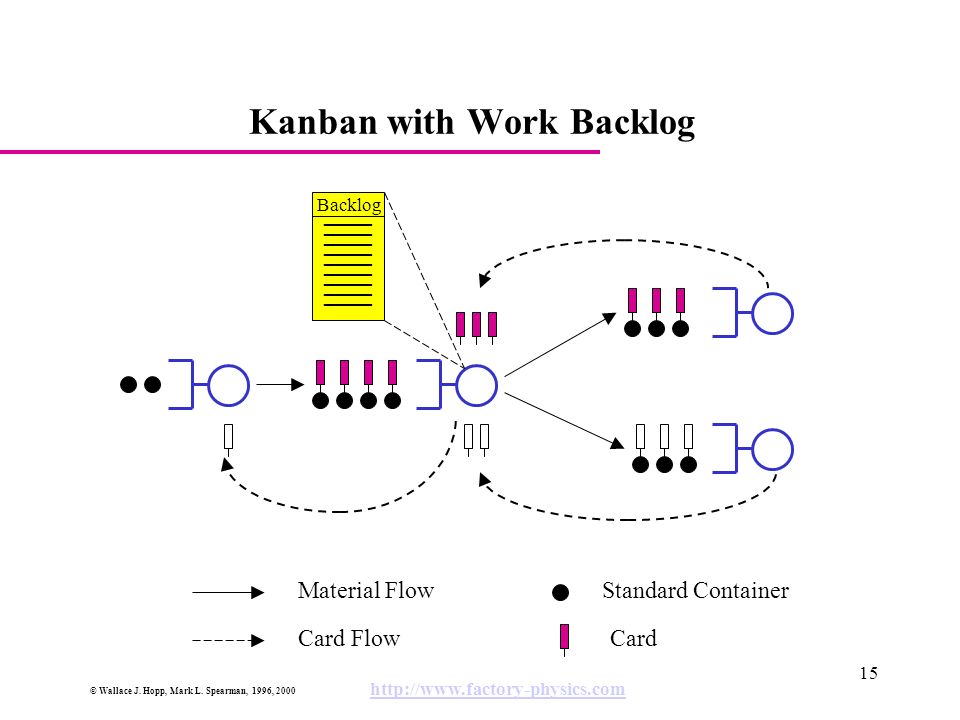

15. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 15 Kanban with Work Backlog —— Backlog Material FlowStandard Container CardCard Flow

16. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 16 Pull From the Bottleneck Problems with CONWIP/Kanban: Bottleneck starvation due to downstream failures Premature releases due to CONWIP requirements PFB Remedies: PFB ignores WIP downstream of bottleneck PFB launches orders when bottleneck can accommodate them PFB Problem: Floating bottlenecks

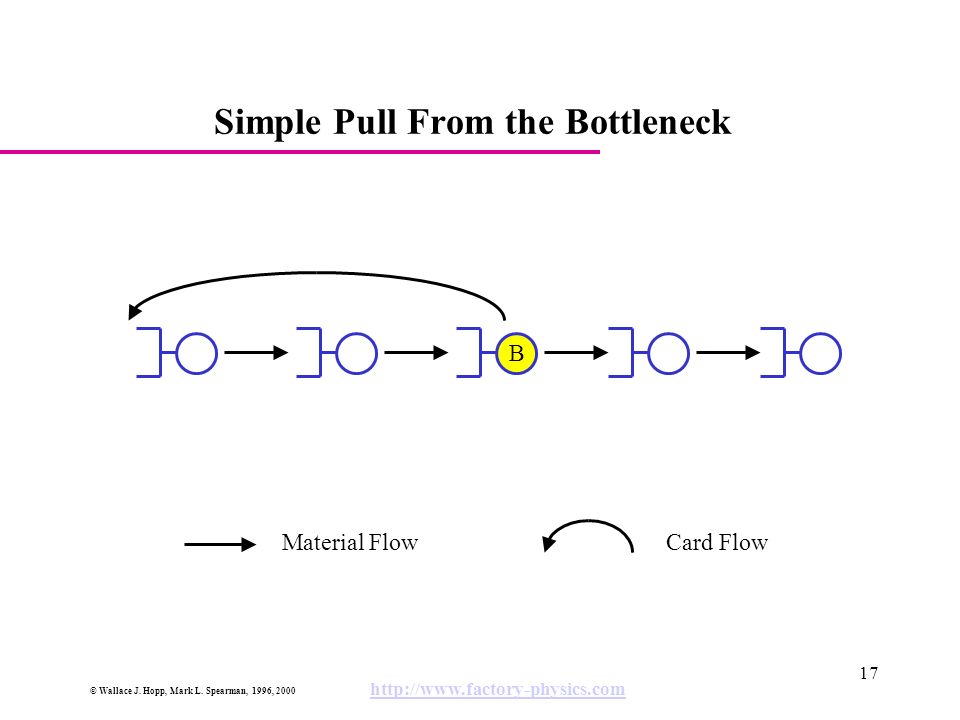

17. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 17 Simple Pull From the Bottleneck B Material FlowCard Flow

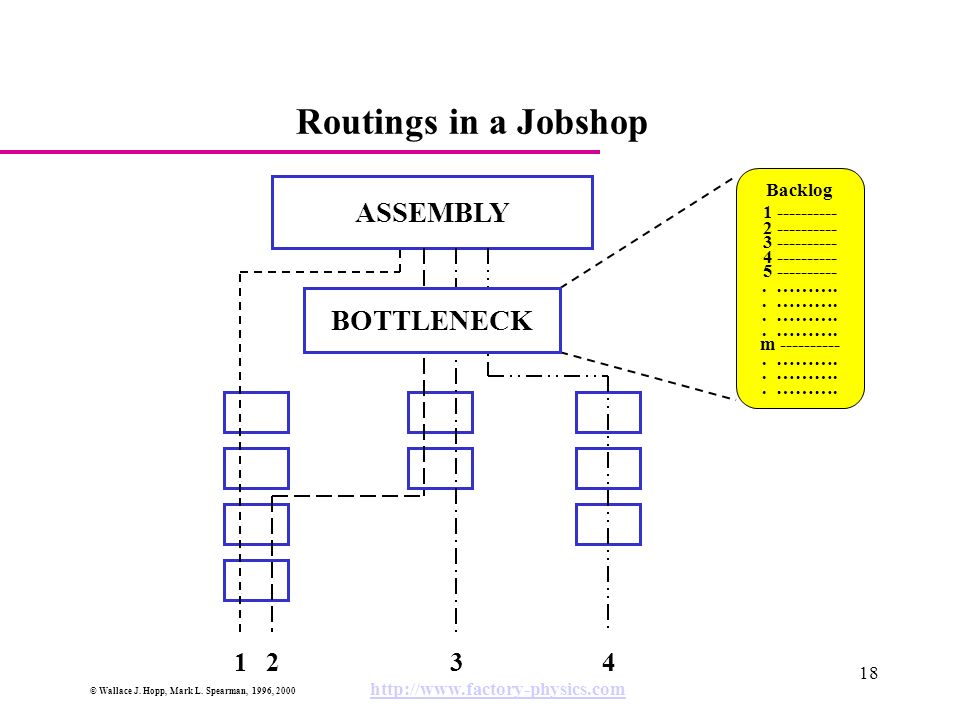

18. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 18 Routings in a Jobshop ASSEMBLY 1234 Backlog 1 ---------- 2 ---------- 3 ---------- 4 ---------- 5 ----------. ………. m ----------. ………. BOTTLENECK

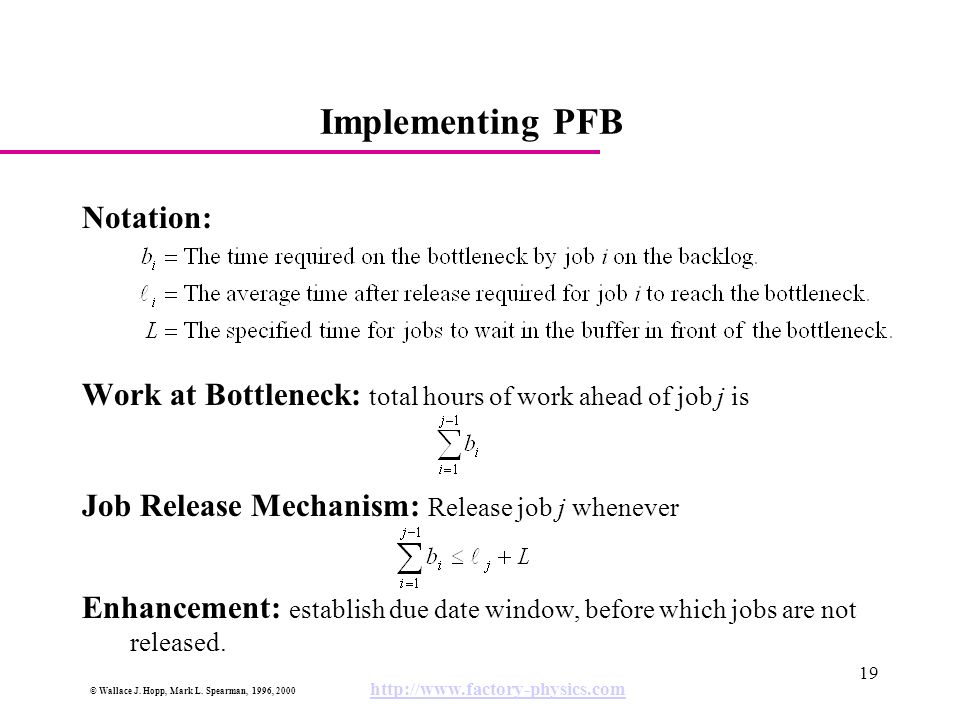

19. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 19 Implementing PFB Notation: Work at Bottleneck: total hours of work ahead of job j is Job Release Mechanism: Release job j whenever Enhancement: establish due date window, before which jobs are not released.

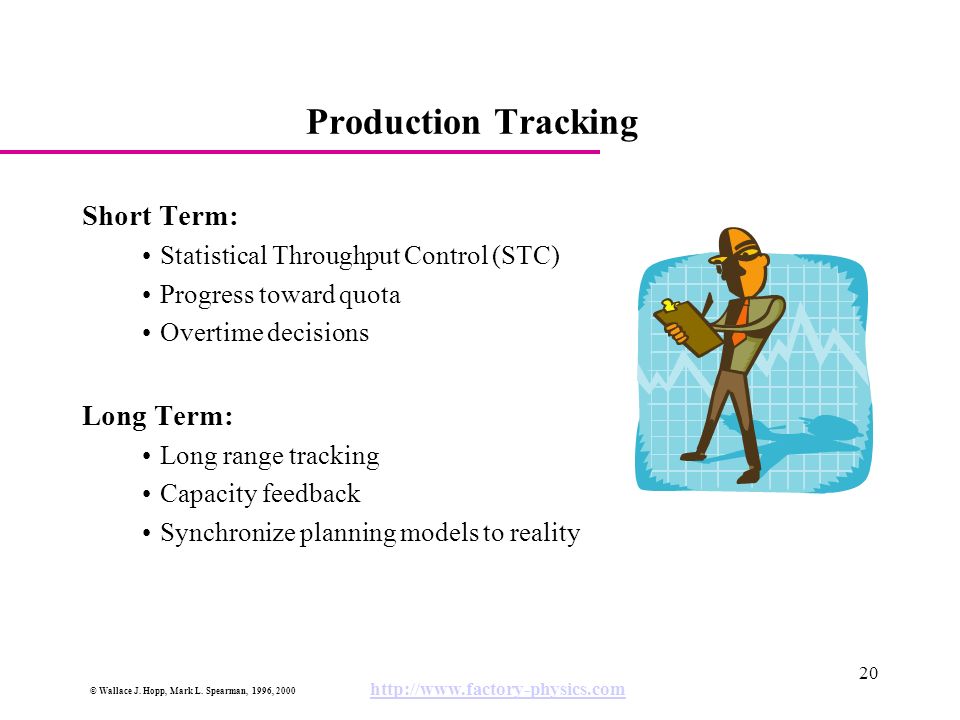

20. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 20 Production Tracking Short Term: Statistical Throughput Control (STC) Progress toward quota Overtime decisions Long Term: Long range tracking Capacity feedback Synchronize planning models to reality

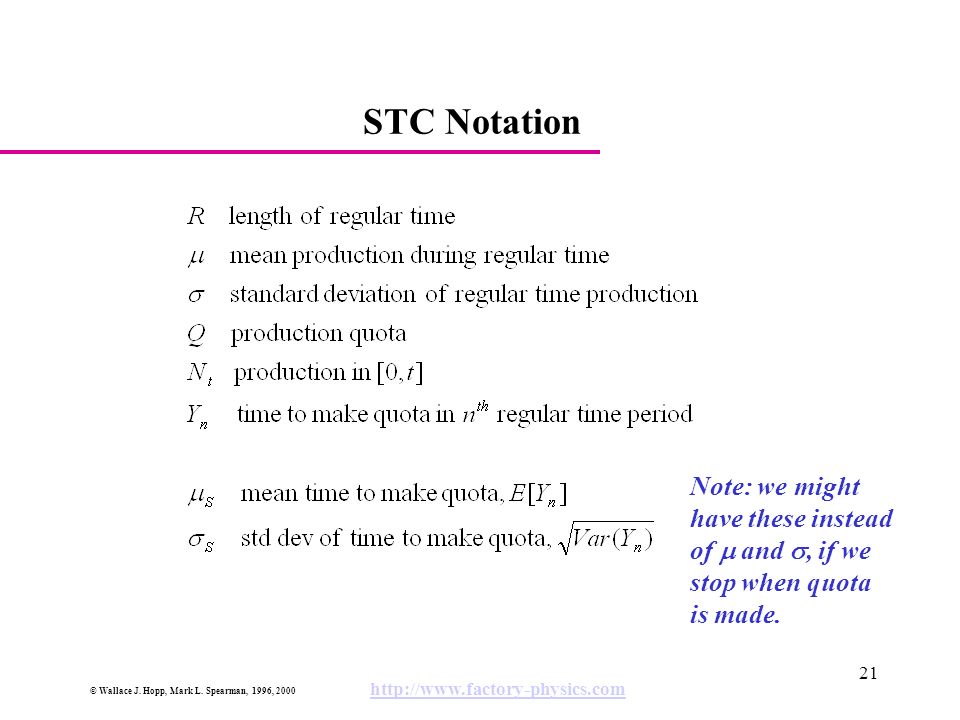

21. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 21 STC Notation Note: we might have these instead of  and , if we stop when quota is made.

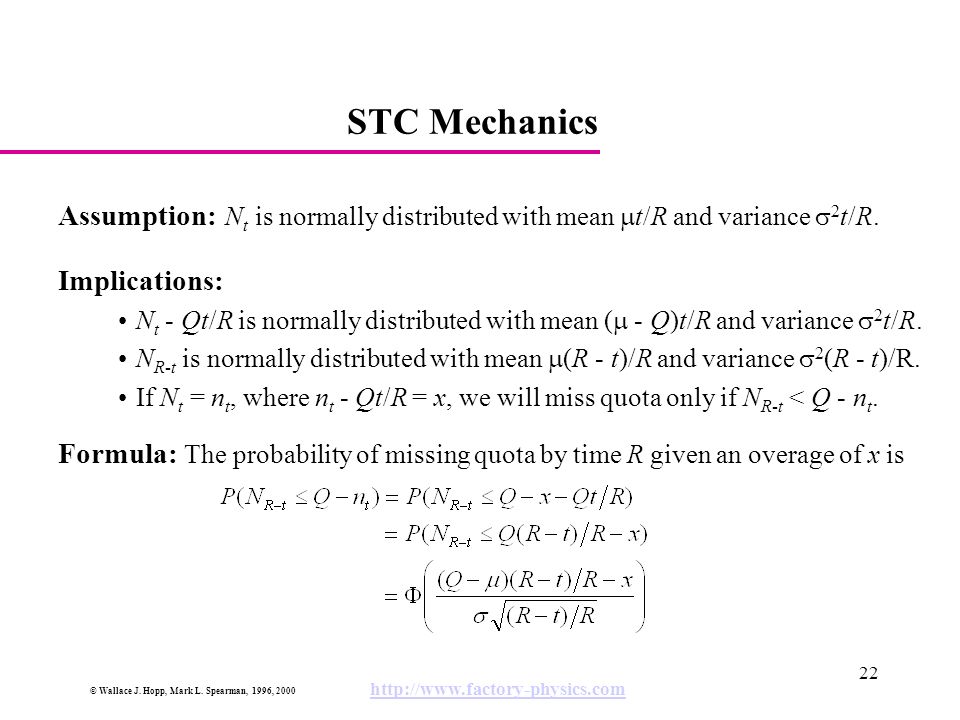

22. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 22 STC Mechanics Assumption: N t is normally distributed with mean  t/R and variance  2 t/R. Implications: N t - Qt/R is normally distributed with mean (  - Q)t/R and variance  2 t/R. N R-t is normally distributed with mean  (R - t)/R and variance  2 (R - t)/R. If N t = n t, where n t - Qt/R = x, we will miss quota only if N R-t < Q - n t. Formula: The probability of missing quota by time R given an overage of x is

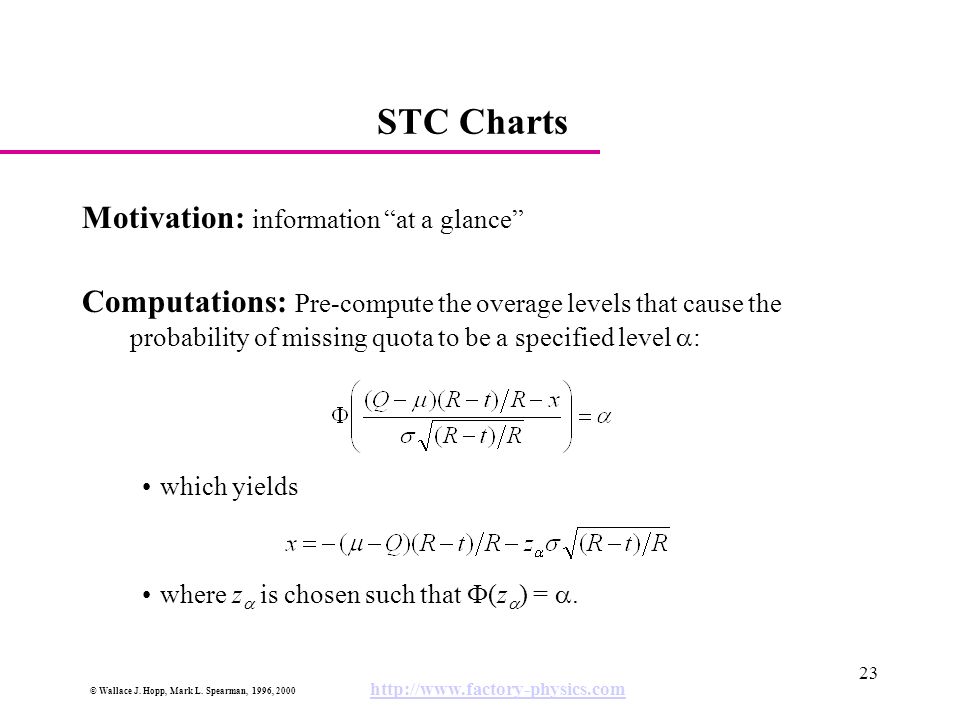

23. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 23 STC Charts Motivation: information “at a glance” Computations: Pre-compute the overage levels that cause the probability of missing quota to be a specified level  : which yields where z  is chosen such that  (z  ) = .

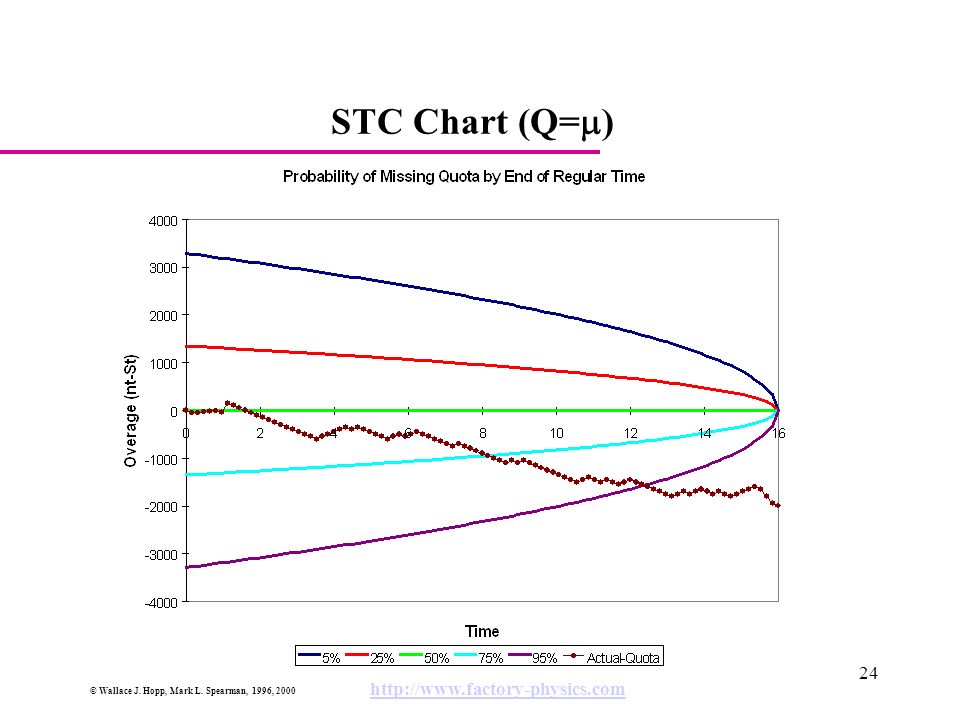

24. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 24 STC Chart (Q=  )

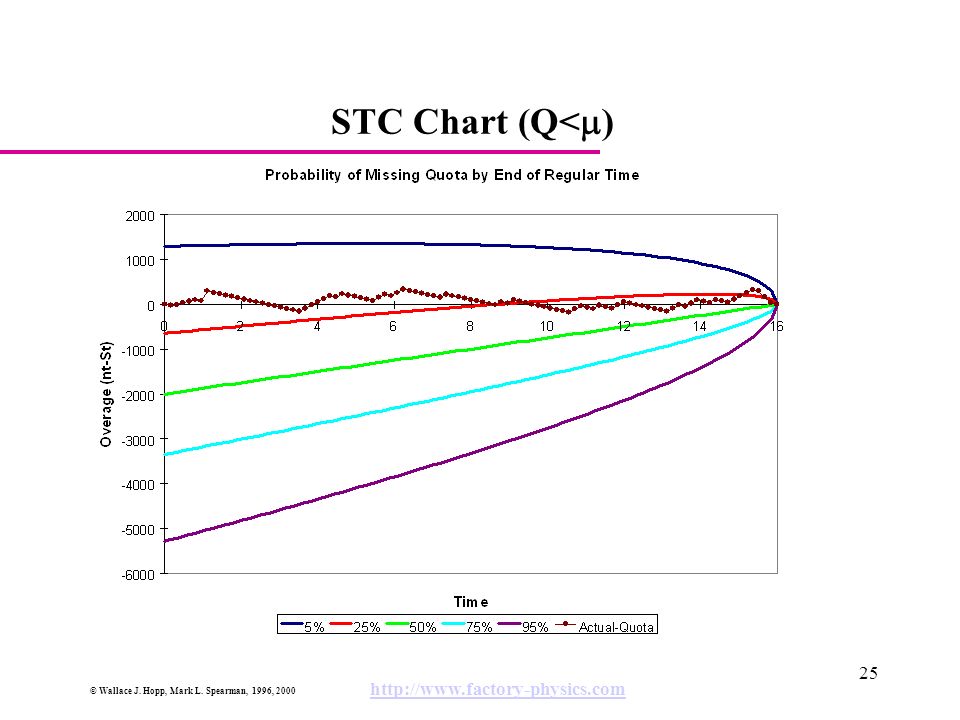

25. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 25 STC Chart (Q<  )

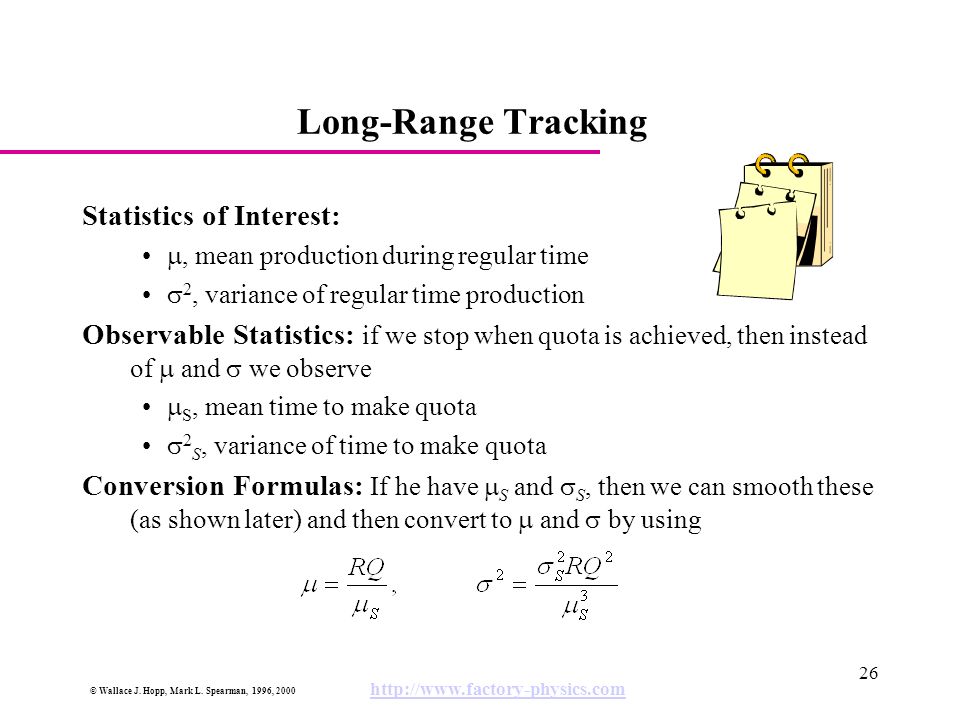

26. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 26 Long-Range Tracking Statistics of Interest: , mean production during regular time  2, variance of regular time production Observable Statistics: if we stop when quota is achieved, then instead of  and  we observe  S, mean time to make quota  2 S, variance of time to make quota Conversion Formulas: If he have  S and  S, then we can smooth these (as shown later) and then convert to  and  by using

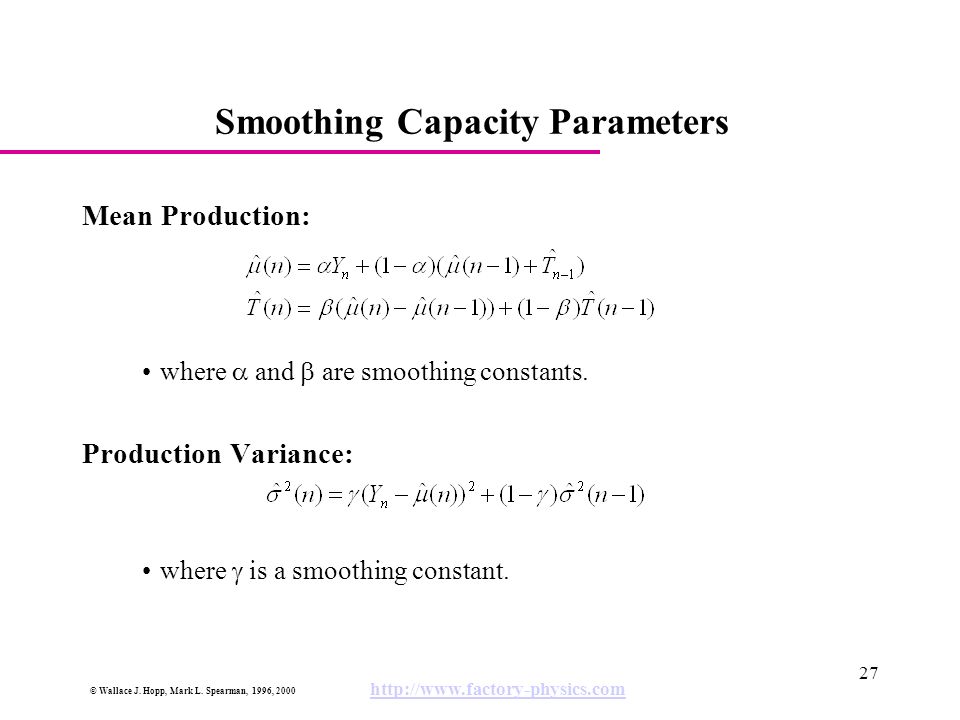

27. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 27 Smoothing Capacity Parameters Mean Production: where  and  are smoothing constants. Production Variance: where  is a smoothing constant.

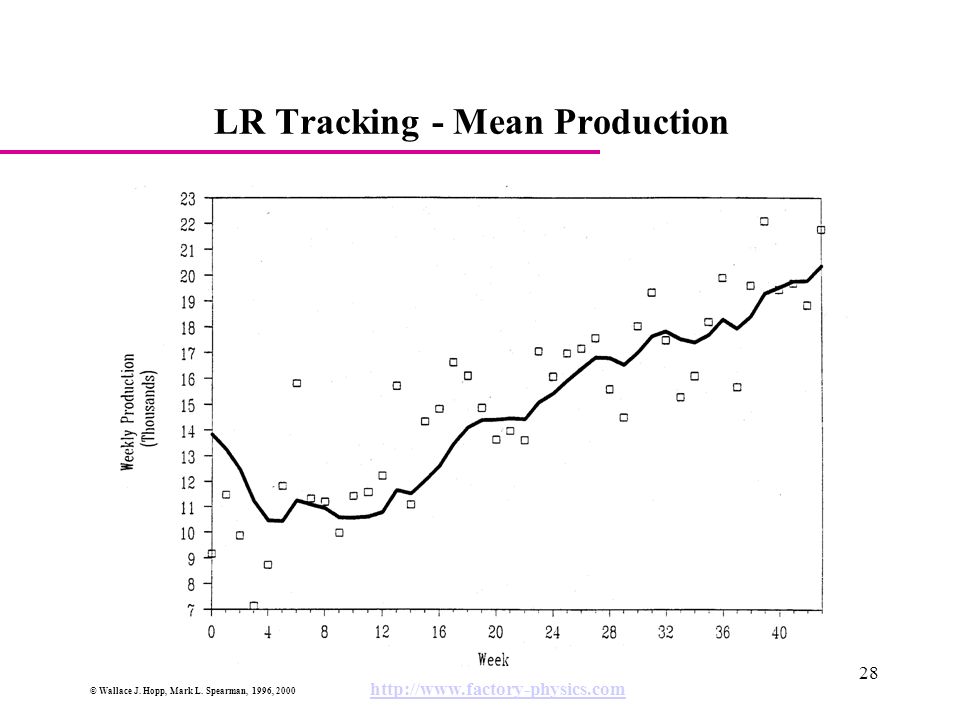

28. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 28 LR Tracking - Mean Production

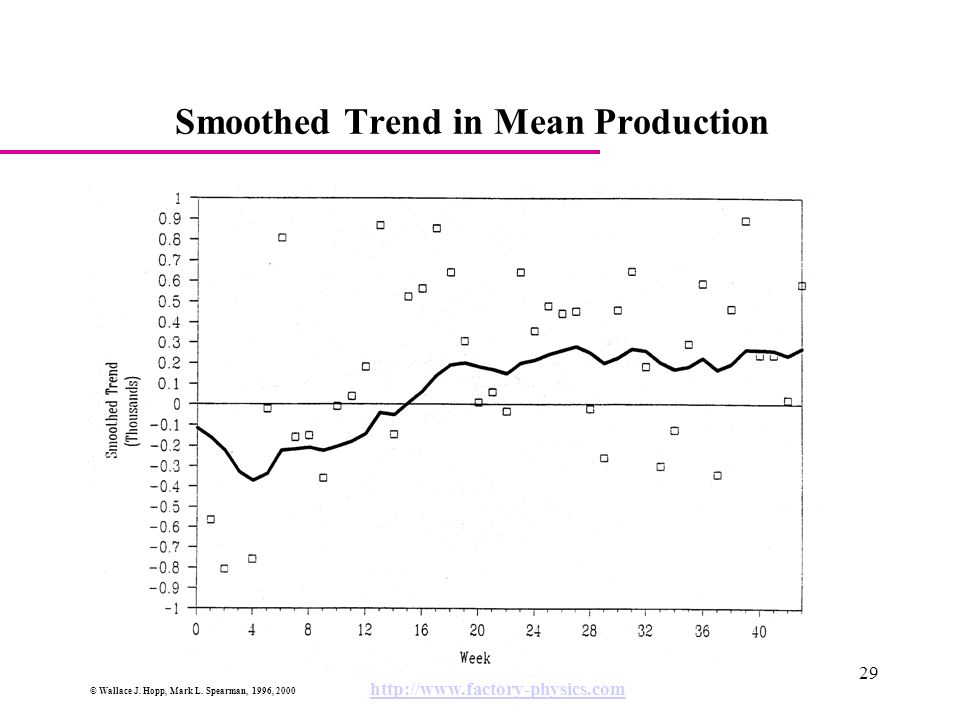

29. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 29 Smoothed Trend in Mean Production

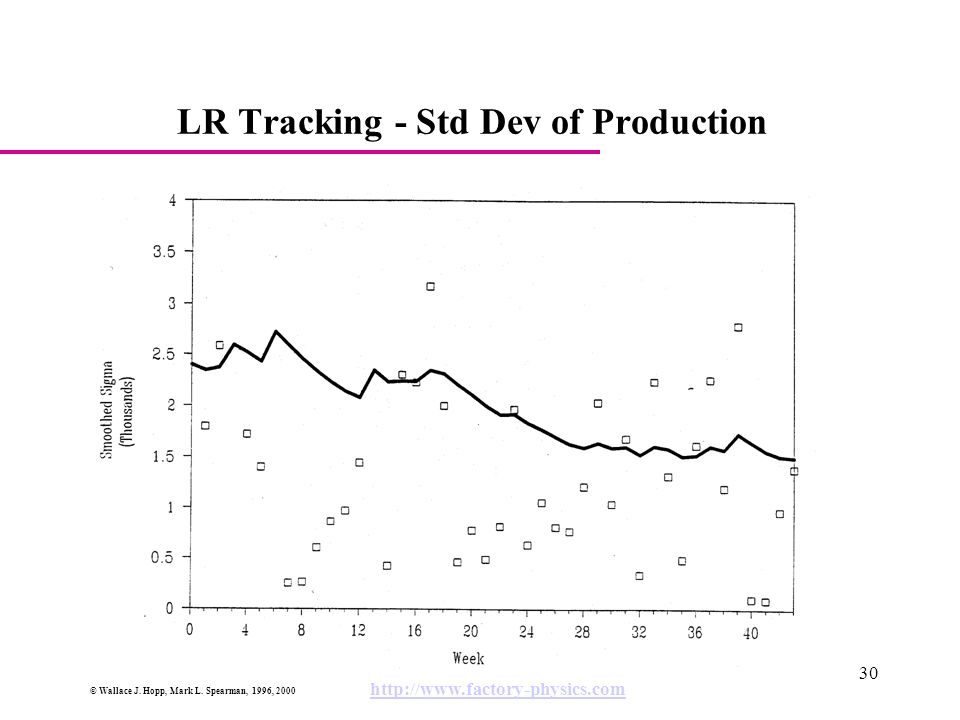

30. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 30 LR Tracking - Std Dev of Production

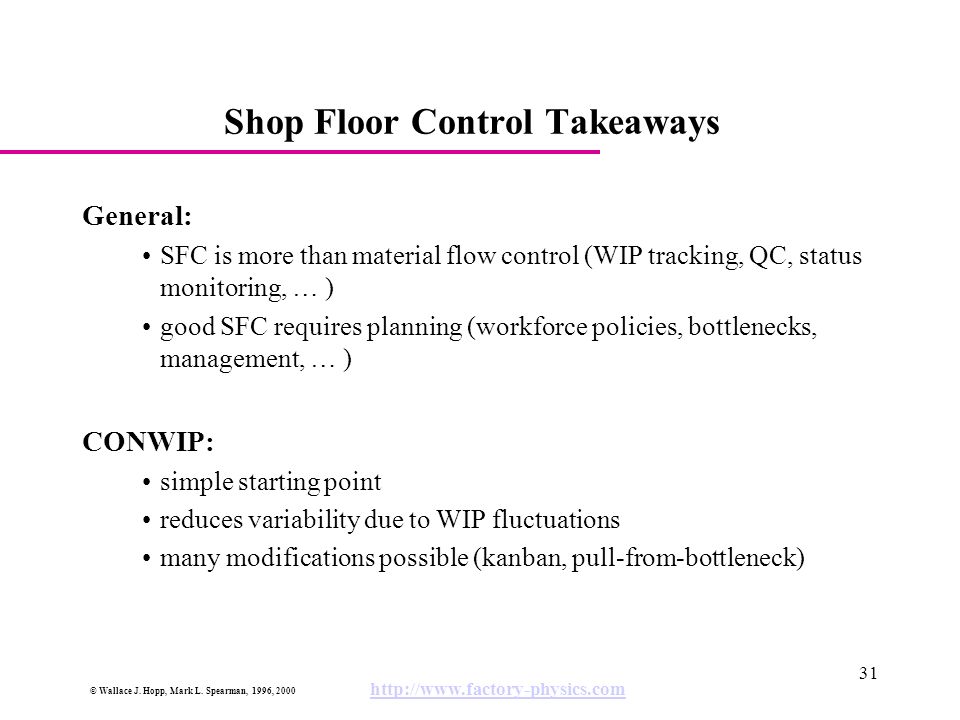

31. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 31 Shop Floor Control Takeaways General: SFC is more than material flow control (WIP tracking, QC, status monitoring, … ) good SFC requires planning (workforce policies, bottlenecks, management, … ) CONWIP: simple starting point reduces variability due to WIP fluctuations many modifications possible (kanban, pull-from-bottleneck)

32. © Wallace J. Hopp, Mark L. Spearman, 1996, 2000 http://www.factory-physics.com 32 Shop Floor Control Takeaways (cont.) Statistical Throughput Control (STC); tool for OT planning/prediction intuitive graphical display Long Range Tracking: feedback for other planning/control modules exponential smoothing approach
