1. Advanced Internet Connectivity in the Americas: AmericasPATH (AMPATH) Florida International University South Florida GigaPOP November 3, 2000 San Antonio, Texas

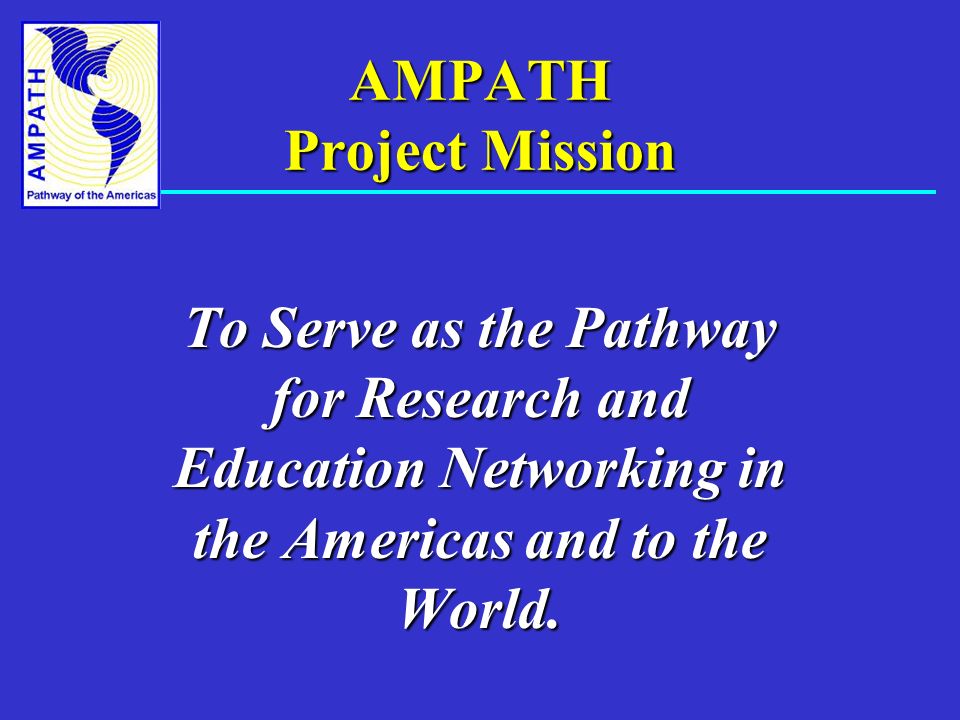

2. AMPATH Project Mission To Serve as the Pathway for Research and Education Networking in the Americas and to the World.

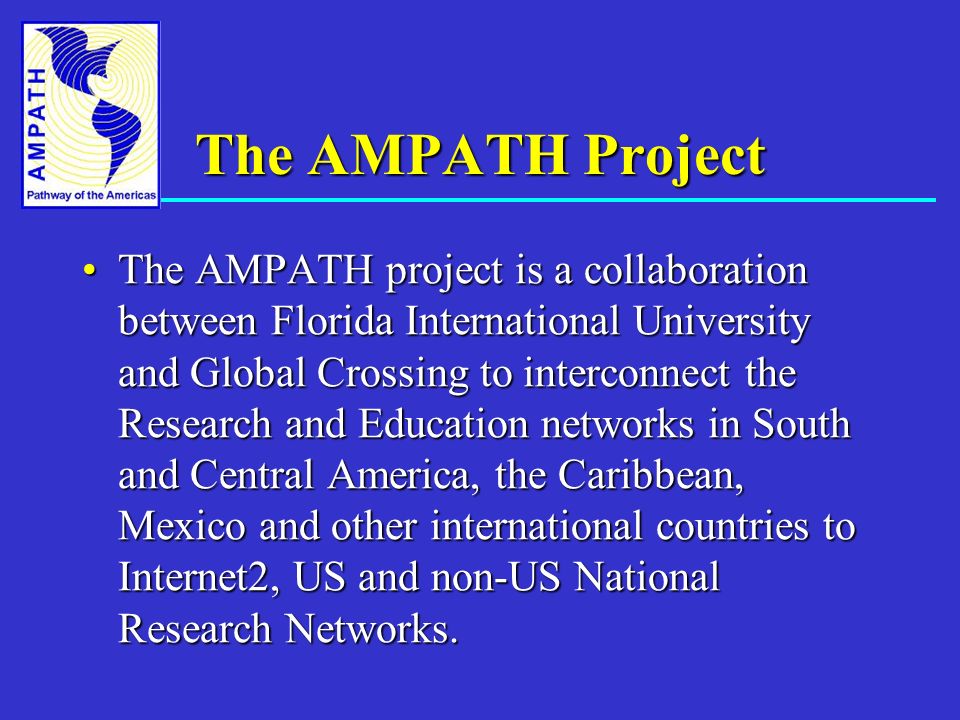

3. The AMPATH Project The AMPATH project is a collaboration between Florida International University and Global Crossing to interconnect the Research and Education networks in South and Central America, the Caribbean, Mexico and other international countries to Internet2, US and non-US National Research Networks.The AMPATH project is a collaboration between Florida International University and Global Crossing to interconnect the Research and Education networks in South and Central America, the Caribbean, Mexico and other international countries to Internet2, US and non-US National Research Networks.

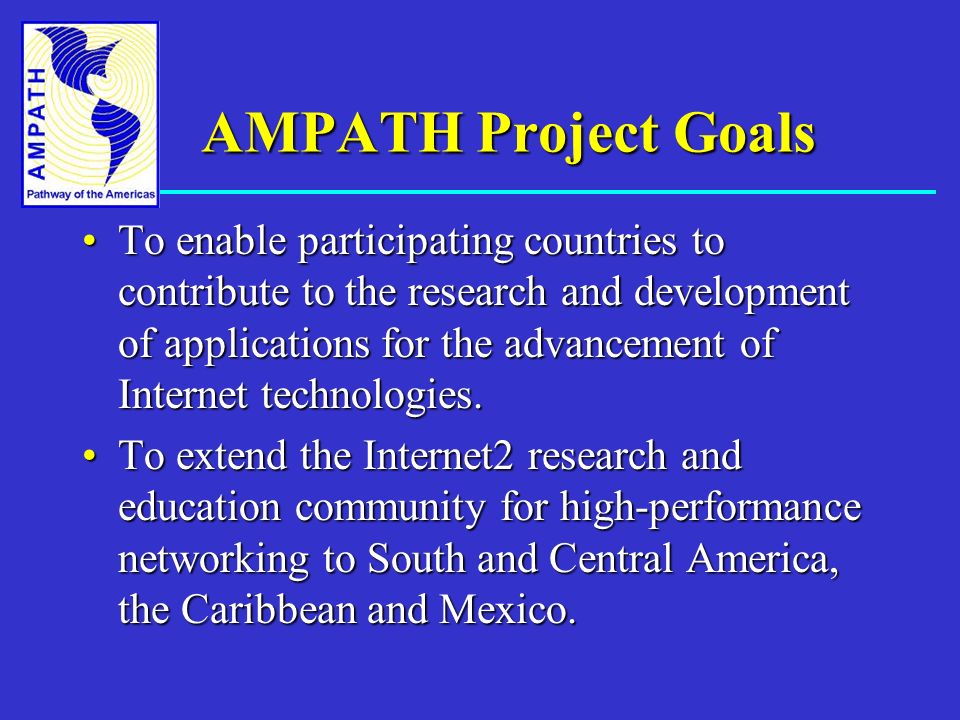

4. AMPATH Project Goals To enable participating countries to contribute to the research and development of applications for the advancement of Internet technologies.To enable participating countries to contribute to the research and development of applications for the advancement of Internet technologies. To extend the Internet2 research and education community for high-performance networking to South and Central America, the Caribbean and Mexico.To extend the Internet2 research and education community for high-performance networking to South and Central America, the Caribbean and Mexico.

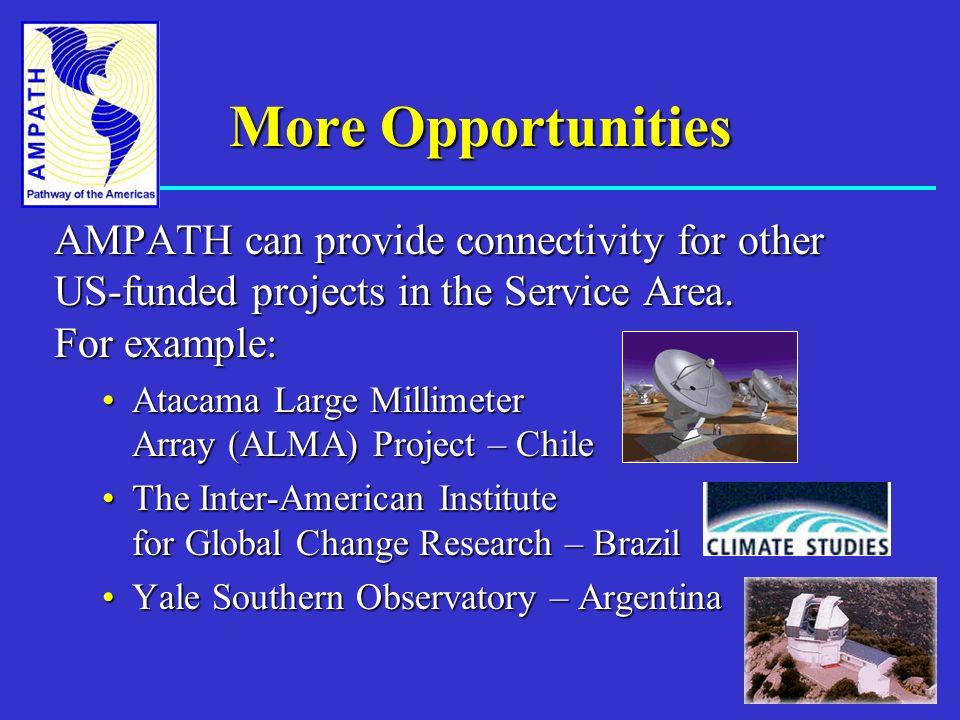

5. More Opportunities AMPATH can provide connectivity for other US-funded projects in the Service Area. For example: Atacama Large Millimeter Array (ALMA) Project – ChileAtacama Large Millimeter Array (ALMA) Project – Chile The Inter-American Institute for Global Change Research – BrazilThe Inter-American Institute for Global Change Research – Brazil Yale Southern Observatory – ArgentinaYale Southern Observatory – Argentina

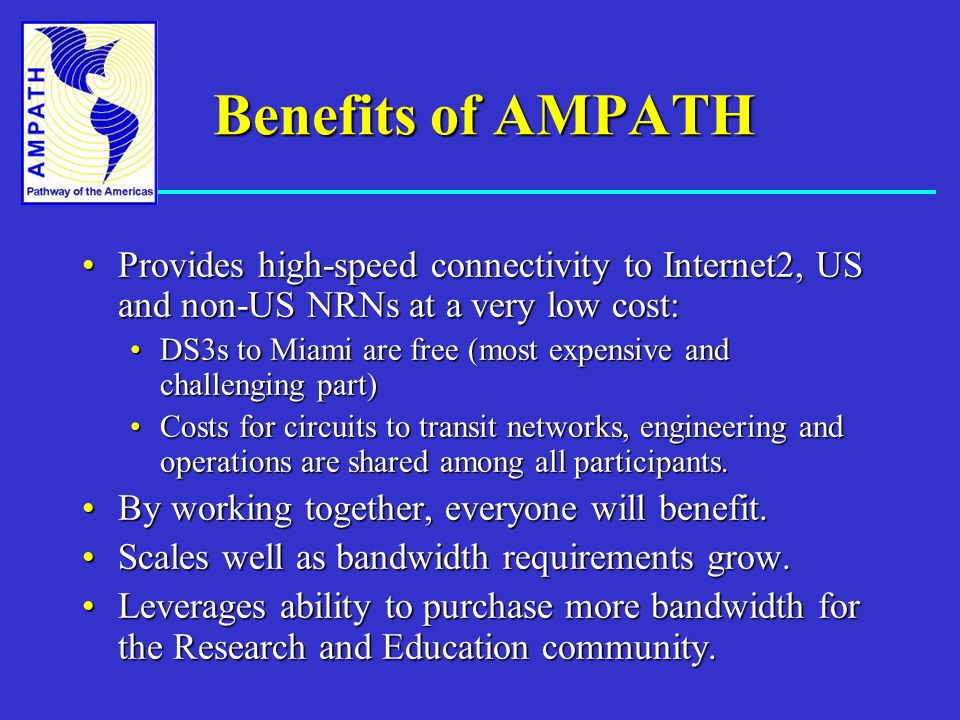

6. Benefits of AMPATH Provides high-speed connectivity to Internet2, US and non-US NRNs at a very low cost:Provides high-speed connectivity to Internet2, US and non-US NRNs at a very low cost: DS3s to Miami are free (most expensive and challenging part)DS3s to Miami are free (most expensive and challenging part) Costs for circuits to transit networks, engineering and operations are shared among all participants.Costs for circuits to transit networks, engineering and operations are shared among all participants. By working together, everyone will benefit.By working together, everyone will benefit. Scales well as bandwidth requirements grow.Scales well as bandwidth requirements grow. Leverages ability to purchase more bandwidth for the Research and Education community.Leverages ability to purchase more bandwidth for the Research and Education community.

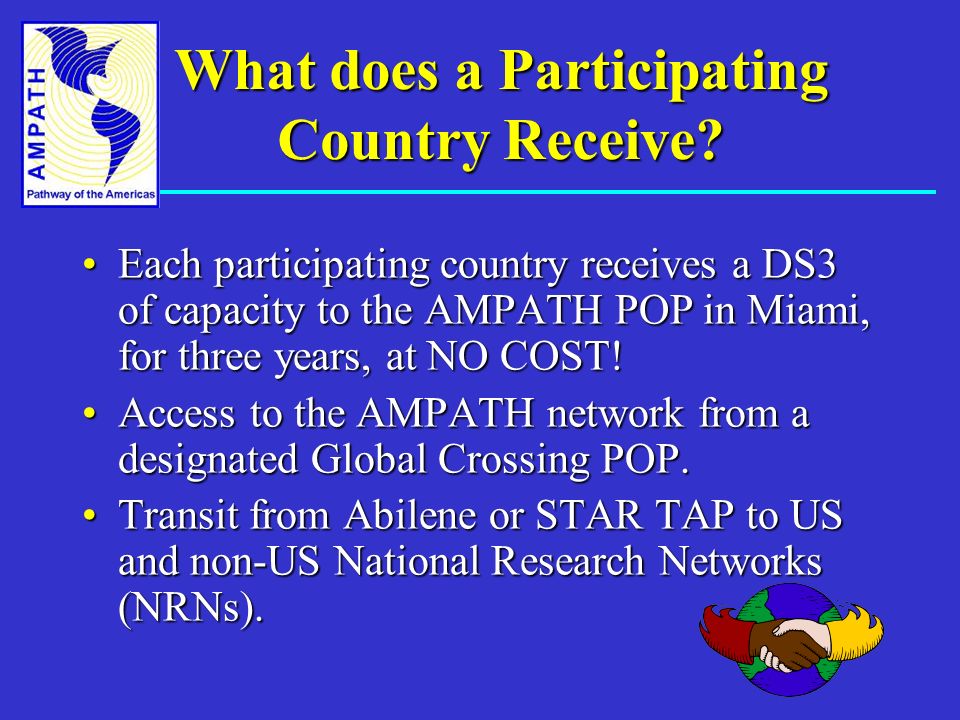

7. What does a Participating Country Receive? Each participating country receives a DS3 of capacity to the AMPATH POP in Miami, for three years, at NO COST!Each participating country receives a DS3 of capacity to the AMPATH POP in Miami, for three years, at NO COST! Access to the AMPATH network from a designated Global Crossing POP.Access to the AMPATH network from a designated Global Crossing POP. Transit from Abilene or STAR TAP to US and non-US National Research Networks (NRNs).Transit from Abilene or STAR TAP to US and non-US National Research Networks (NRNs).

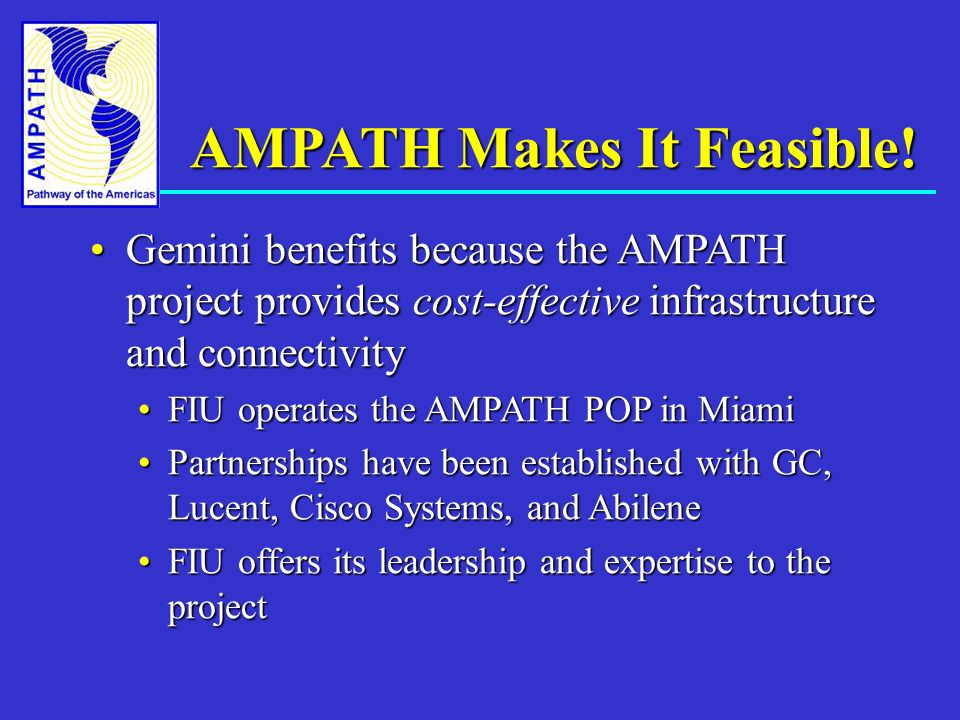

8. AMPATH Makes It Feasible! Gemini benefits because the AMPATH project provides cost-effective infrastructure and connectivityGemini benefits because the AMPATH project provides cost-effective infrastructure and connectivity FIU operates the AMPATH POP in MiamiFIU operates the AMPATH POP in Miami Partnerships have been established with GC, Lucent, Cisco Systems, and AbilenePartnerships have been established with GC, Lucent, Cisco Systems, and Abilene FIU offers its leadership and expertise to the projectFIU offers its leadership and expertise to the project

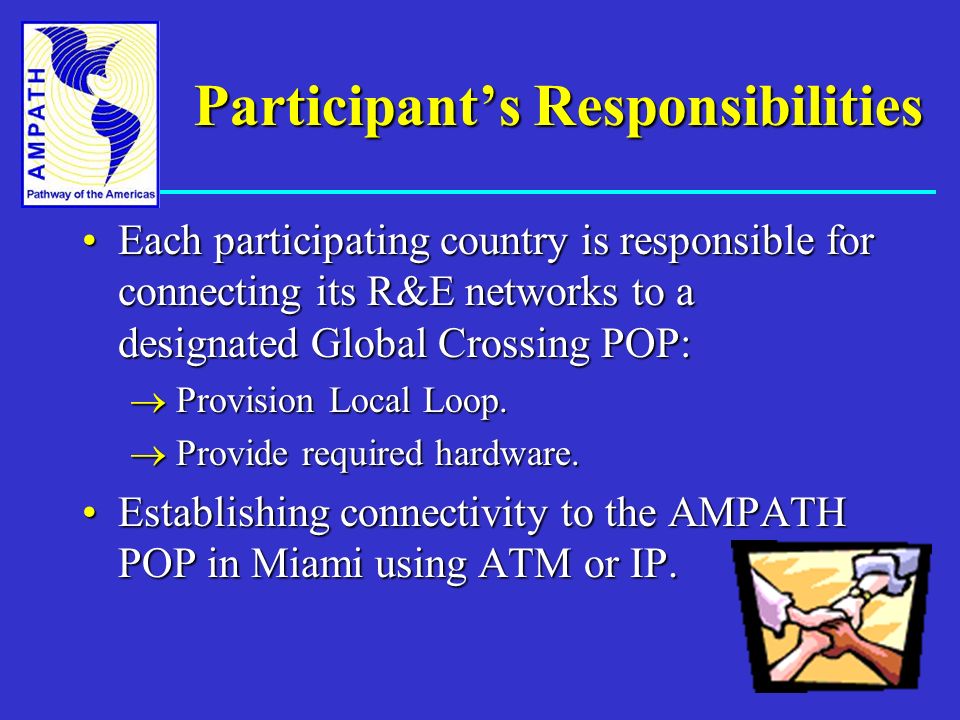

9. Participant’s Responsibilities Each participating country is responsible for connecting its R&E networks to a designated Global Crossing POP:Each participating country is responsible for connecting its R&E networks to a designated Global Crossing POP:  Provision Local Loop.  Provide required hardware. Establishing connectivity to the AMPATH POP in Miami using ATM or IP.Establishing connectivity to the AMPATH POP in Miami using ATM or IP.

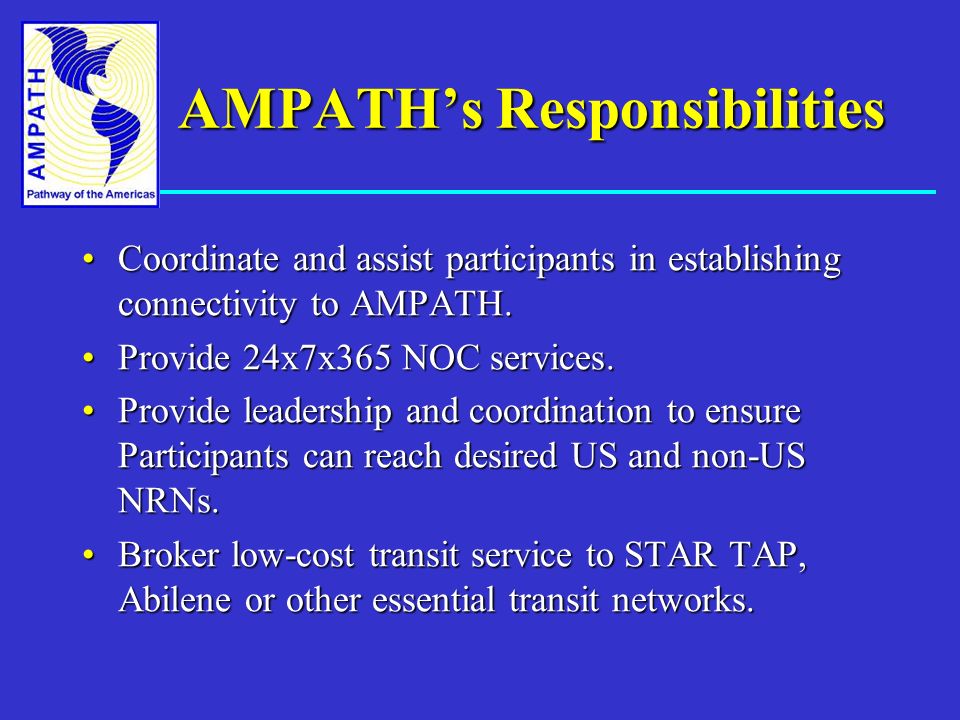

10. AMPATH’s Responsibilities Coordinate and assist participants in establishing connectivity to AMPATH.Coordinate and assist participants in establishing connectivity to AMPATH. Provide 24x7x365 NOC services.Provide 24x7x365 NOC services. Provide leadership and coordination to ensure Participants can reach desired US and non-US NRNs.Provide leadership and coordination to ensure Participants can reach desired US and non-US NRNs. Broker low-cost transit service to STAR TAP, Abilene or other essential transit networks.Broker low-cost transit service to STAR TAP, Abilene or other essential transit networks.

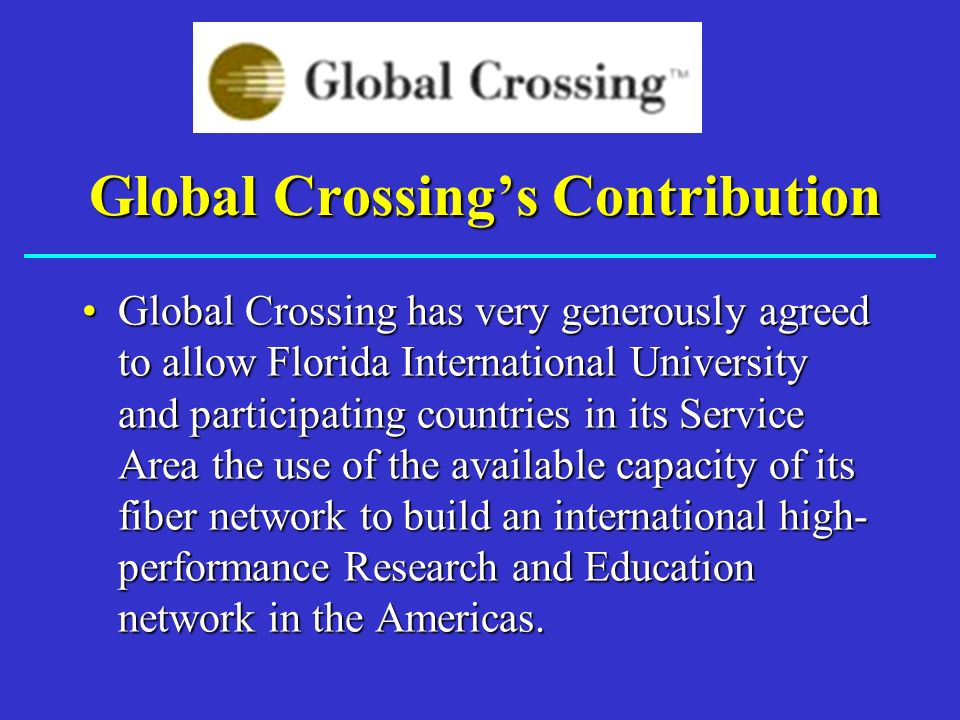

11. Global Crossing’s Contribution Global Crossing has very generously agreed to allow Florida International University and participating countries in its Service Area the use of the available capacity of its fiber network to build an international high- performance Research and Education network in the Americas.Global Crossing has very generously agreed to allow Florida International University and participating countries in its Service Area the use of the available capacity of its fiber network to build an international high- performance Research and Education network in the Americas.

12. READY FOR SERVICE DATES LIST PRICE DS-3 Lease 1 yr. PriceLease 3 yr. PriceLease 5 yr. Price Brazil1,200,000$2,916,000$4,200,000$ Santiago1,200,000$2,916,000$4,200,000$ Buenos Aires1,200,000$2,916,000$4,200,000$ Lima1,200,000$2,916,000$4,200,000$ Cali1,200,000$2,916,000$4,200,000$ Caracas1,200,000$2,916,000$4,200,000$ St. Croix500,004$ 1,215,010$ 1,750,014$ Mexico City1,440,000$3,499,200$5,040,000$ Panama1,000,080$2,430,194$3,500,280$ 7/15/00 10/15/00 4/15/01

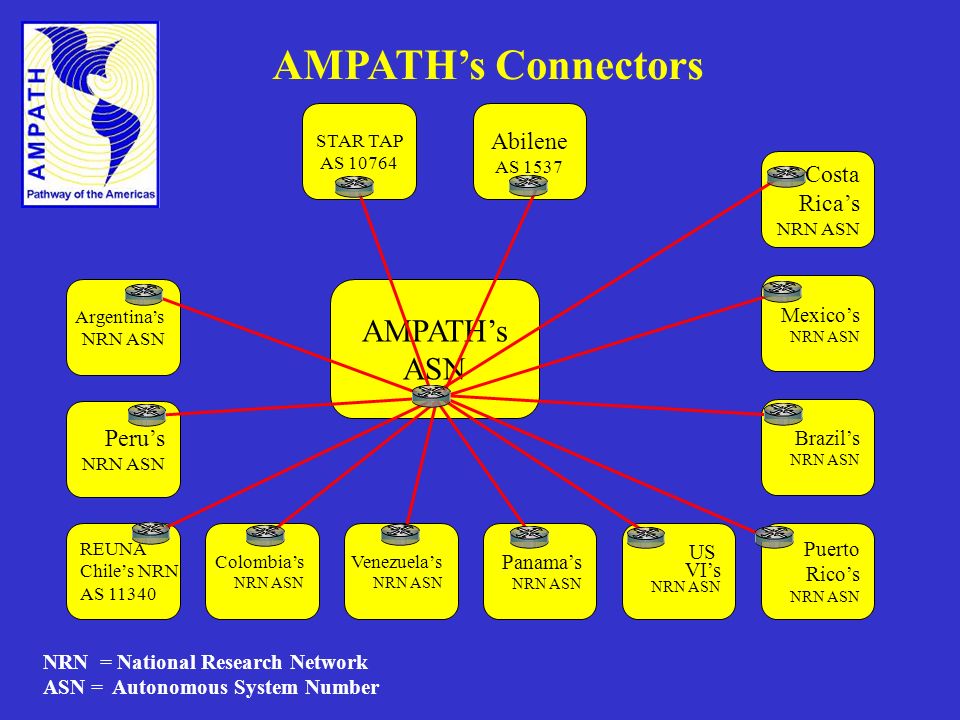

13. STAR TAP AS 10764 Abilene AS 1537 Costa Rica’s NRN ASN Brazil’s NRN ASN Mexico’s NRN ASN US VI’s NRN ASN Panama’s NRN ASN Venezuela’s NRN ASN Colombia’s NRN ASN REUNA Chile’s NRN AS 11340 Peru’s NRN ASN Argentina’s NRN ASN Puerto Rico’s NRN ASN AMPATH’s ASN AMPATH’s Connectors NRN = National Research Network ASN = Autonomous System Number

14. Miami … … … ADM GC POP X GC MAC/PAC/SAC … … ADM IP Router Lucent CBX-500 ATM Switch OC12 Cisco GSR 12012 Router Abilene OC3 DS3 STAR TAP AMPATH Network National Research Network (NRN) or Regional Research Network (RRN) Provider in country X University Network in country X ATM SDN

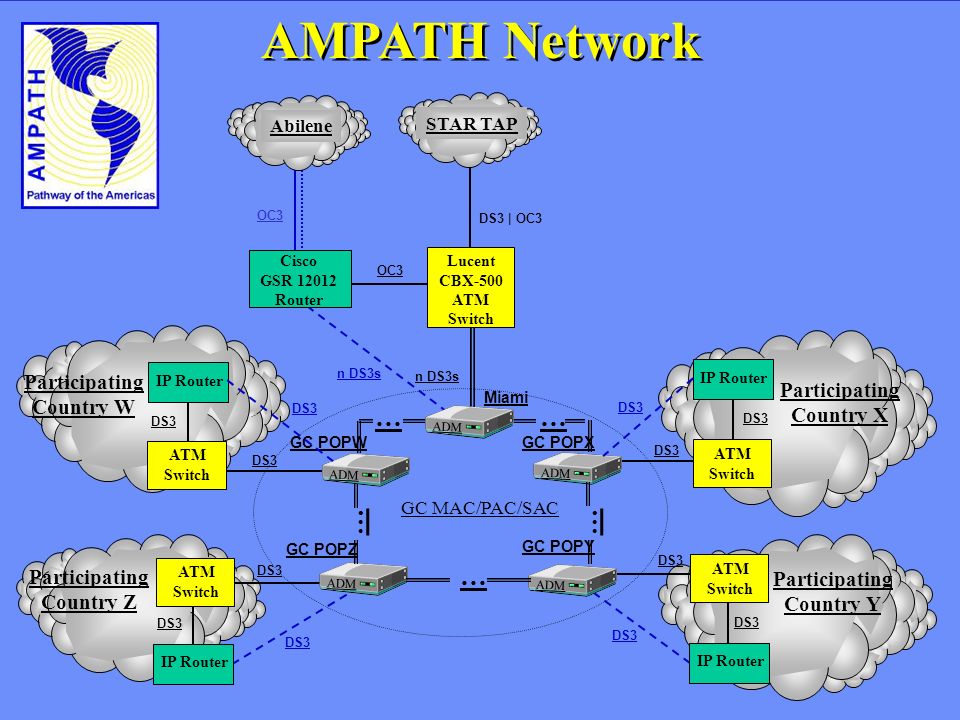

15. Participating Country W Miami … … … ADM GC POPW n DS3s GC MAC/PAC/SAC Participating Country Y DS3 … … ADM Participating Country X DS3 GC POPY GC POPX GC POPZ IP Router ATM Switch DS3 ATM Switch IP Router DS3 Participating Country Z ATM Switch IP Router DS3 ATM Switch IP Router DS3 Lucent CBX-500 ATM Switch OC3 Cisco GSR 12012 Router Abilene OC3 DS3 | OC3 n DS3s DS3 STAR TAP AMPATH Network

16. Capacity Examples International Private Line (IPL): International Private Line (IPL): DS-3(45 Mbps) DS-3(45 Mbps) STM-1(155 Mbps) STM-1(155 Mbps) STM-4(622 Mbps) STM-4(622 Mbps) STM-16(2.5 Gbps) STM-16(2.5 Gbps) STM-64(10 Gbps/Wavelength) STM-64(10 Gbps/Wavelength) Lease Collocation/Telehousing IP Transit (From selected locations) IRU – Indefeasible Right of Usage (15 years)

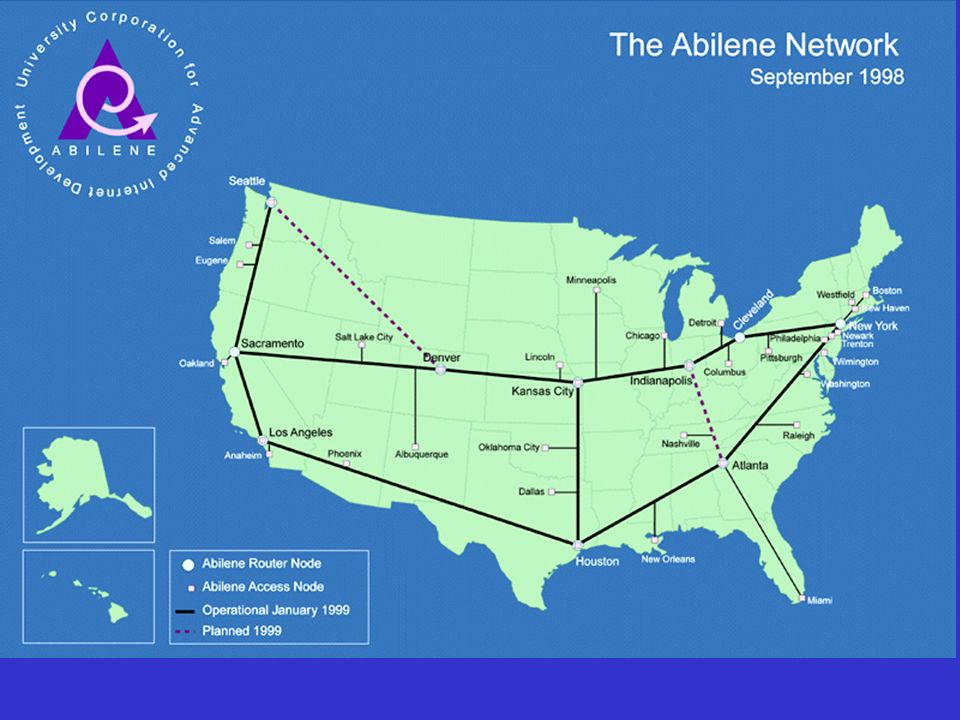

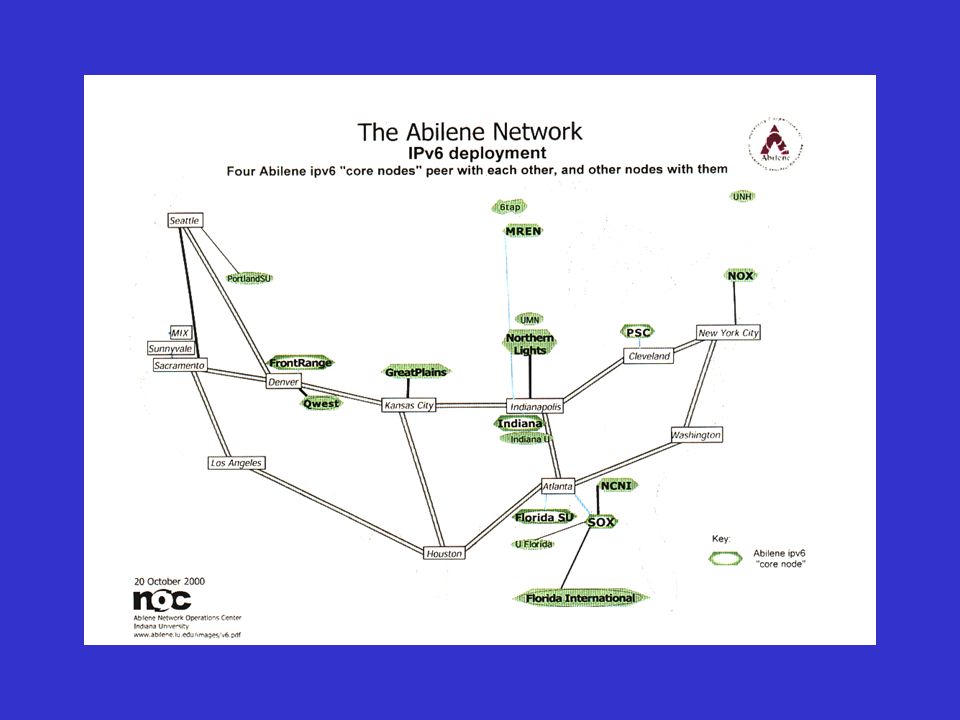

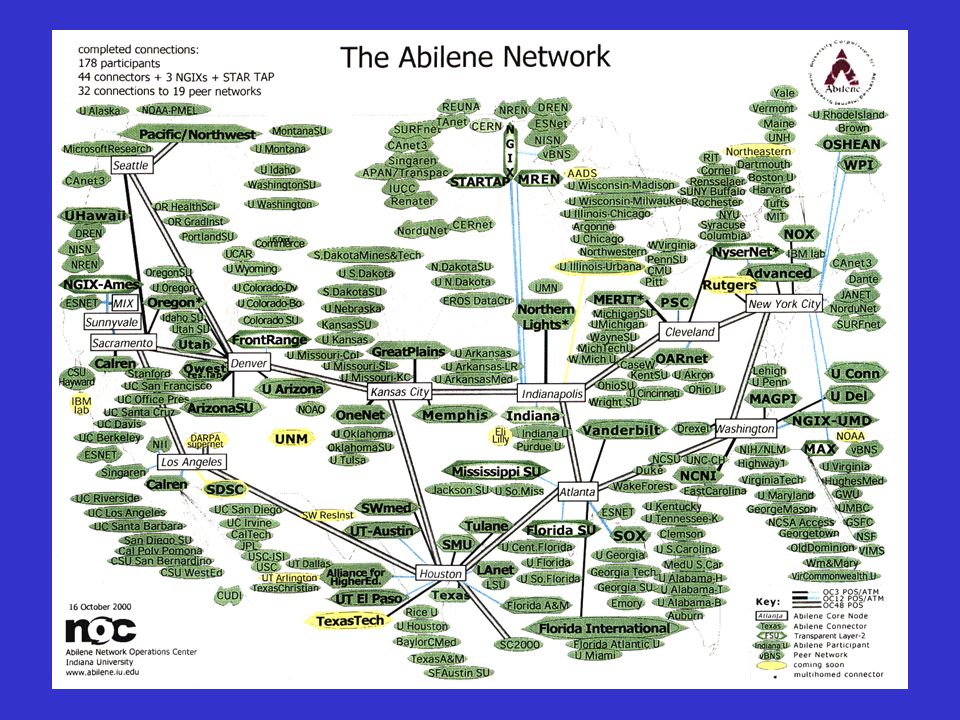

25. FIU: Gigapop for SE Florida & Latin America FIU

26. March 8, 2000 Meeting in Miami FIU and Global Crossing announced the AMPATH project to representatives from Argentina, Brazil, Chile, Columbia, Costa Rica, Puerto Rico, Venezuela, and US Virgin Islands.FIU and Global Crossing announced the AMPATH project to representatives from Argentina, Brazil, Chile, Columbia, Costa Rica, Puerto Rico, Venezuela, and US Virgin Islands. Participating in the meeting and supporting the AMPATH project were UCAID, STAR TAP and Canarie.Participating in the meeting and supporting the AMPATH project were UCAID, STAR TAP and Canarie.

27. Global Crossing /AMPATH Partners September 1, 2000 ArgentinaBrazilChileColumbiaMexicoPanamaPeru US Virgin Islands Venezuela Puerto Rico

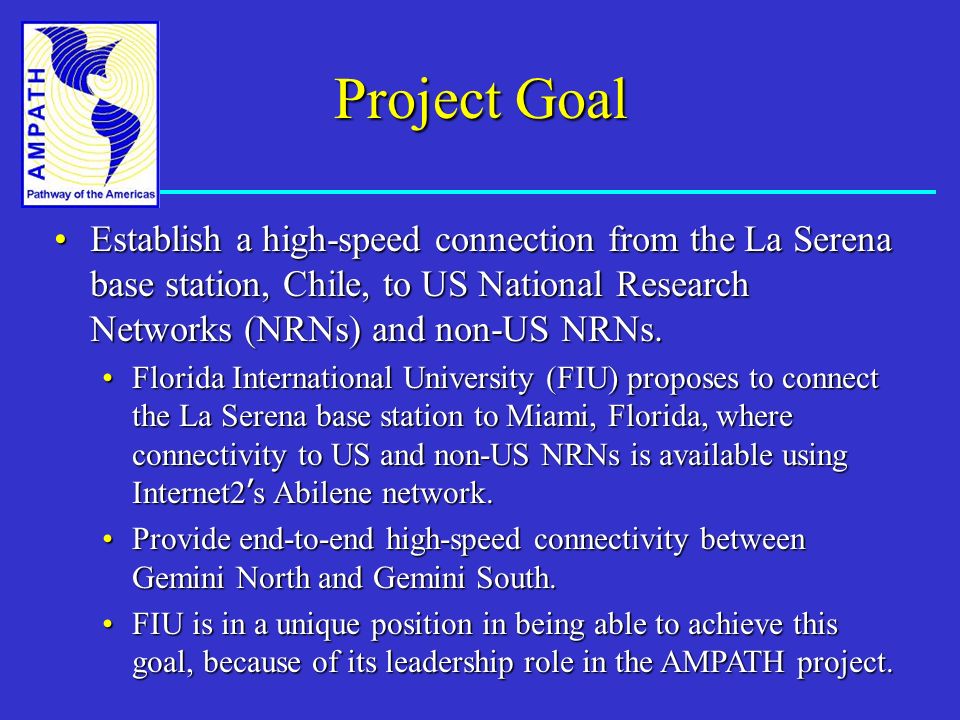

29. Establish a high-speed connection from the La Serena base station, Chile, to US National Research Networks (NRNs) and non-US NRNs.Establish a high-speed connection from the La Serena base station, Chile, to US National Research Networks (NRNs) and non-US NRNs. Florida International University (FIU) proposes to connect the La Serena base station to Miami, Florida, where connectivity to US and non-US NRNs is available using Internet2 ’ s Abilene network.Florida International University (FIU) proposes to connect the La Serena base station to Miami, Florida, where connectivity to US and non-US NRNs is available using Internet2 ’ s Abilene network. Provide end-to-end high-speed connectivity between Gemini North and Gemini South.Provide end-to-end high-speed connectivity between Gemini North and Gemini South. FIU is in a unique position in being able to achieve this goal, because of its leadership role in the AMPATH project.FIU is in a unique position in being able to achieve this goal, because of its leadership role in the AMPATH project. Project Goal

30. Gemini South La Serena GC’s POP in Santiago GC’s POP in Santiago DS3 GC’s Terrestrial and Submarine Network GC’s Terrestrial and Submarine Network DS3 AMPATH POP Miami AMPATH POP Miami DS3 Gemini Connections to AMPATH Internet2 (Abilene) STAR TAP Chicago STAR TAP Chicago Island of Hawaii Gemini North U of Hawaii, Oahu Island of Hawaii Gemini North U of Hawaii, Oahu

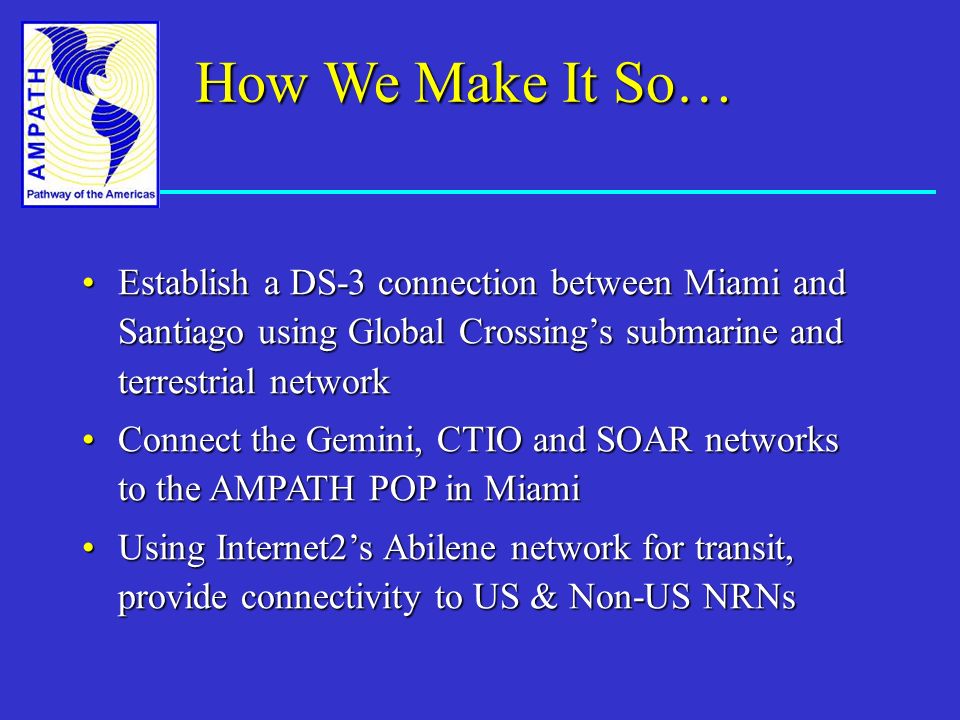

31. How We Make It So… Establish a DS-3 connection between Miami and Santiago using Global Crossing’s submarine and terrestrial networkEstablish a DS-3 connection between Miami and Santiago using Global Crossing’s submarine and terrestrial network Connect the Gemini, CTIO and SOAR networks to the AMPATH POP in MiamiConnect the Gemini, CTIO and SOAR networks to the AMPATH POP in Miami Using Internet2’s Abilene network for transit, provide connectivity to US & Non-US NRNsUsing Internet2’s Abilene network for transit, provide connectivity to US & Non-US NRNs

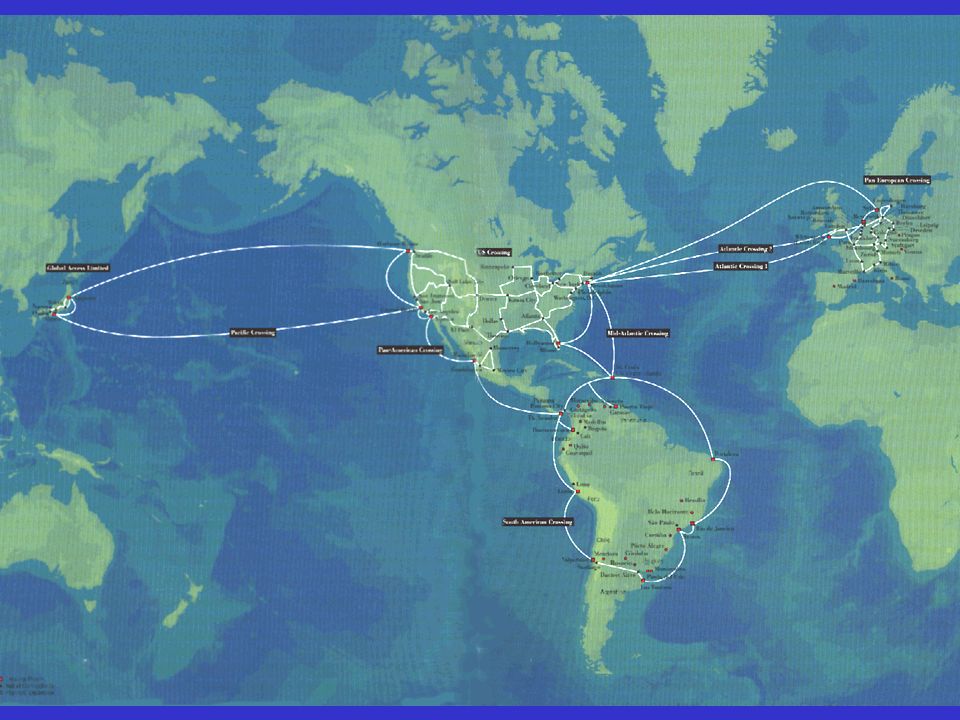

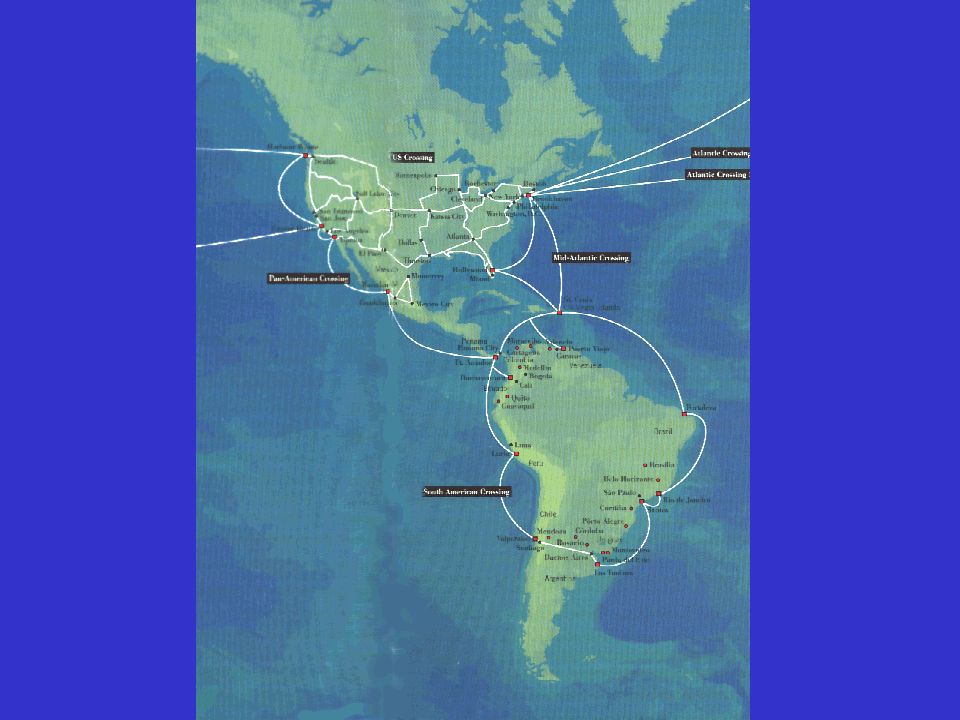

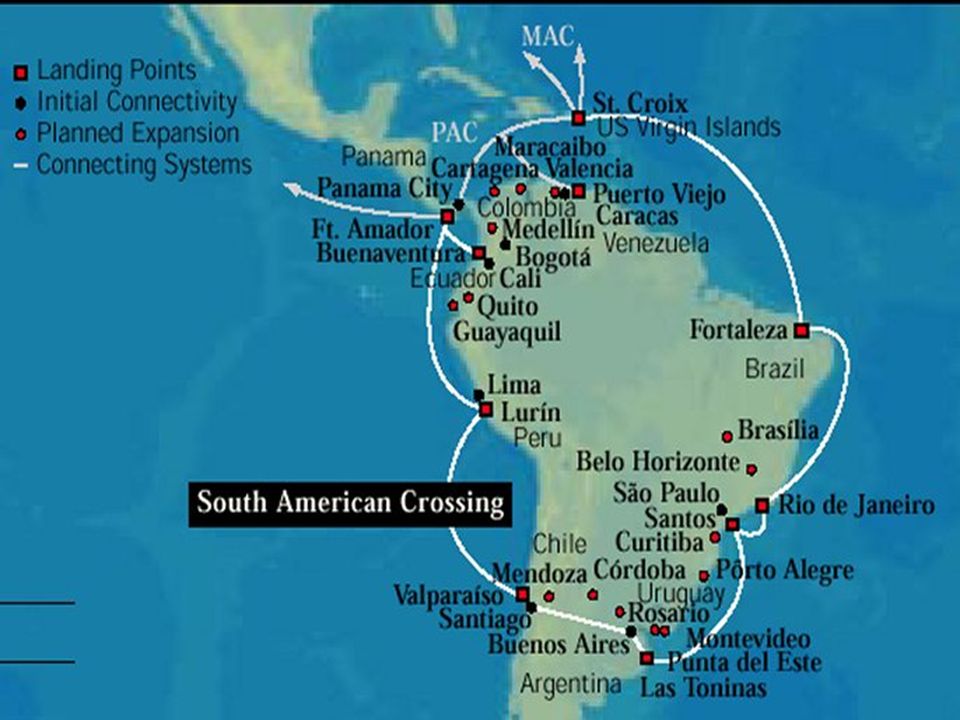

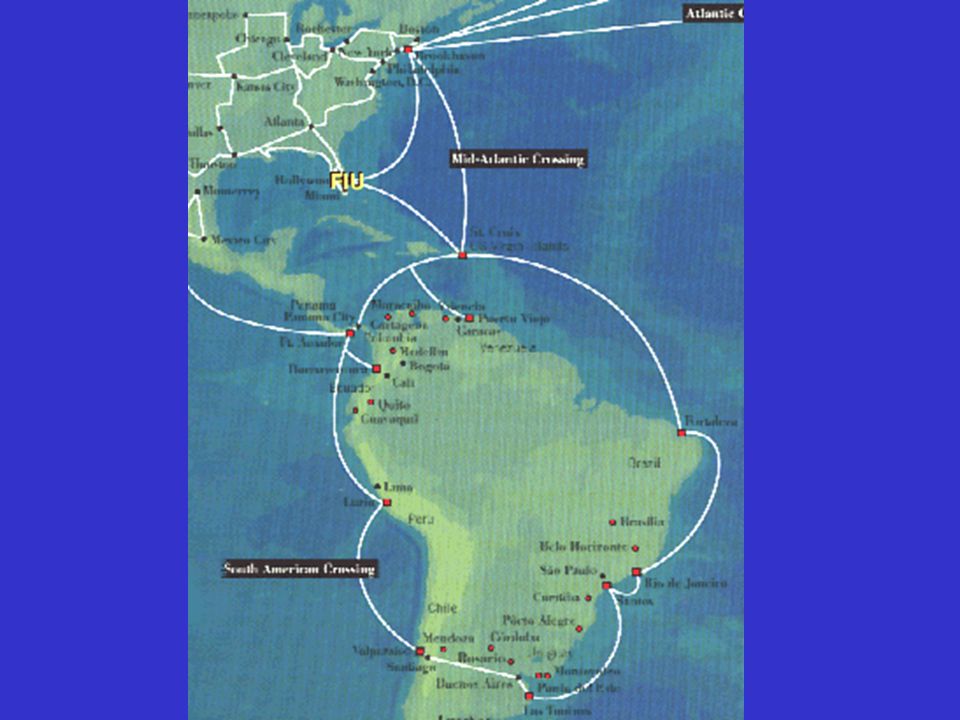

32. SAC PAC MAC AC-1 PEC US Crossing PC-1 GAL EAC AC-2 PEC

33. NAP of the Americas LLC

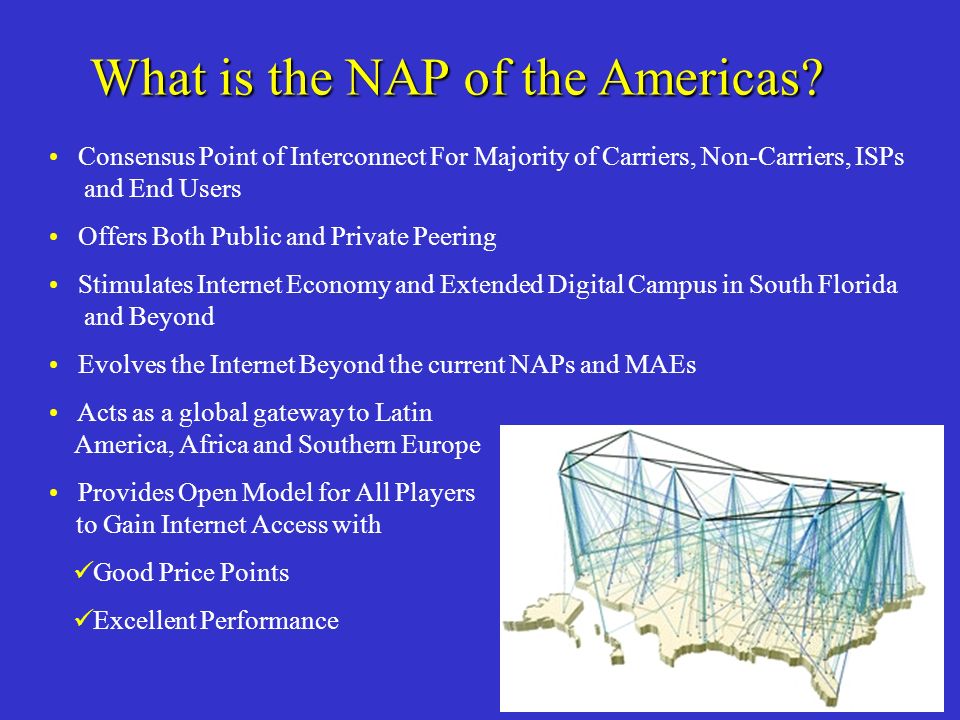

34. What is the NAP of the Americas? Consensus Point of Interconnect For Majority of Carriers, Non-Carriers, ISPs and End Users Offers Both Public and Private Peering Stimulates Internet Economy and Extended Digital Campus in South Florida and Beyond Evolves the Internet Beyond the current NAPs and MAEs Acts as a global gateway to Latin America, Africa and Southern Europe Provides Open Model for All Players to Gain Internet Access with Good Price Points Excellent Performance

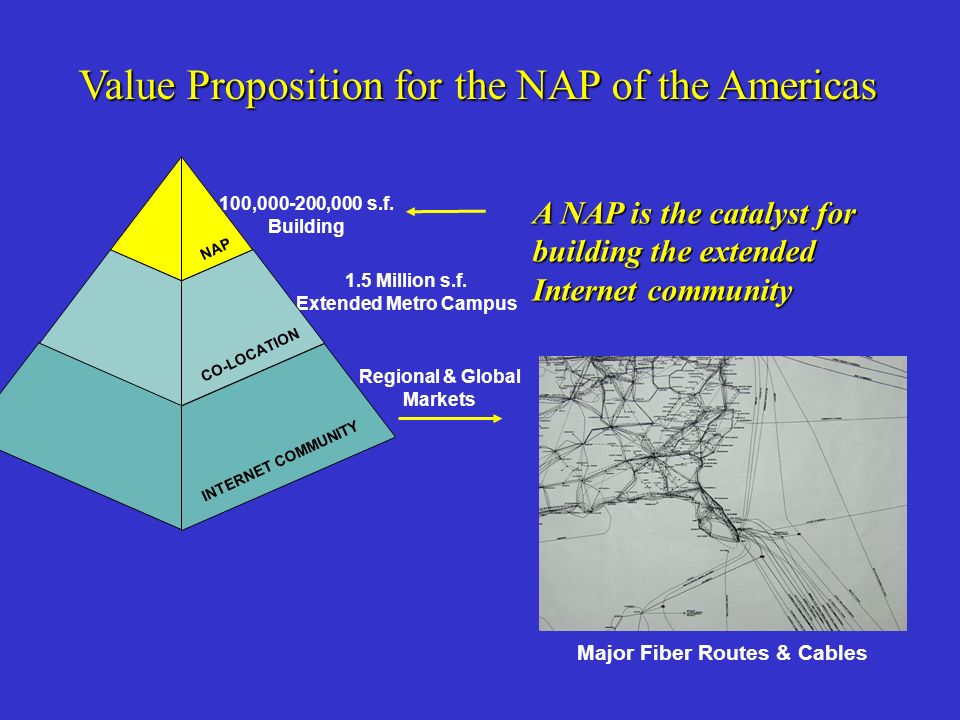

35. Value Proposition for the NAP of the Americas A NAP is the catalyst for building the extended Internet community 100,000-200,000 s.f. Building 1.5 Million s.f. Extended Metro Campus Regional & Global Markets NAP CO-LOCATION INTERNET COMMUNITY Major Fiber Routes & Cables

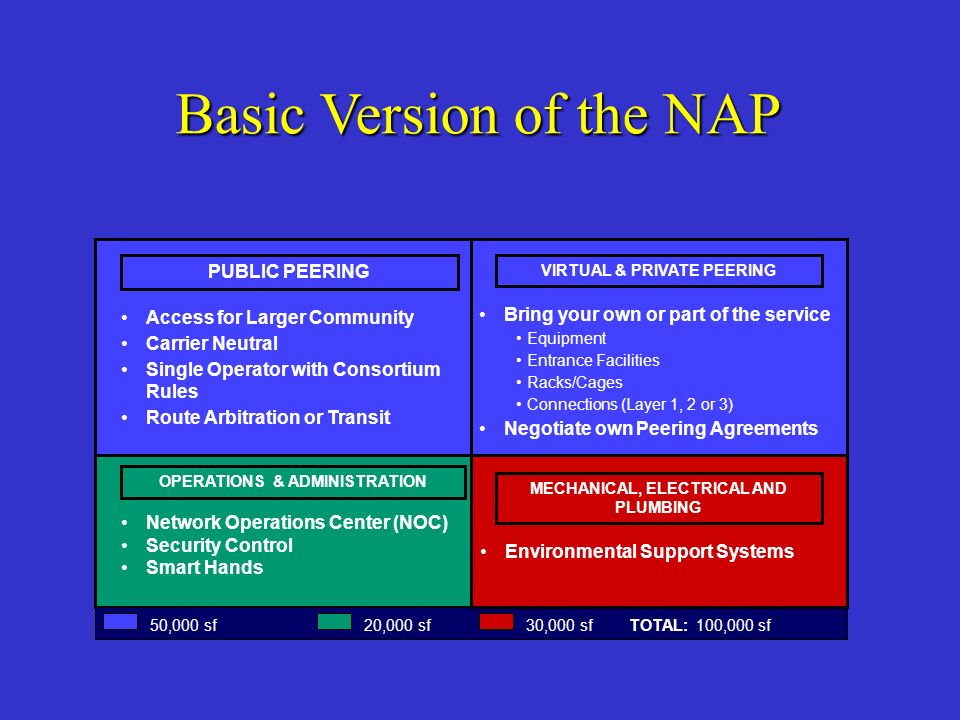

36. Basic Version of the NAP OPERATIONS & ADMINISTRATION Network Operations Center (NOC) Security Control Smart Hands VIRTUAL & PRIVATE PEERING Bring your own or part of the service Equipment Entrance Facilities Racks/Cages Connections (Layer 1, 2 or 3) Negotiate own Peering Agreements 50,000 sf 20,000 sf 30,000 sf TOTAL: 100,000 sf PUBLIC PEERING Access for Larger Community Carrier Neutral Single Operator with Consortium Rules Route Arbitration or Transit MECHANICAL, ELECTRICAL AND PLUMBING Environmental Support Systems

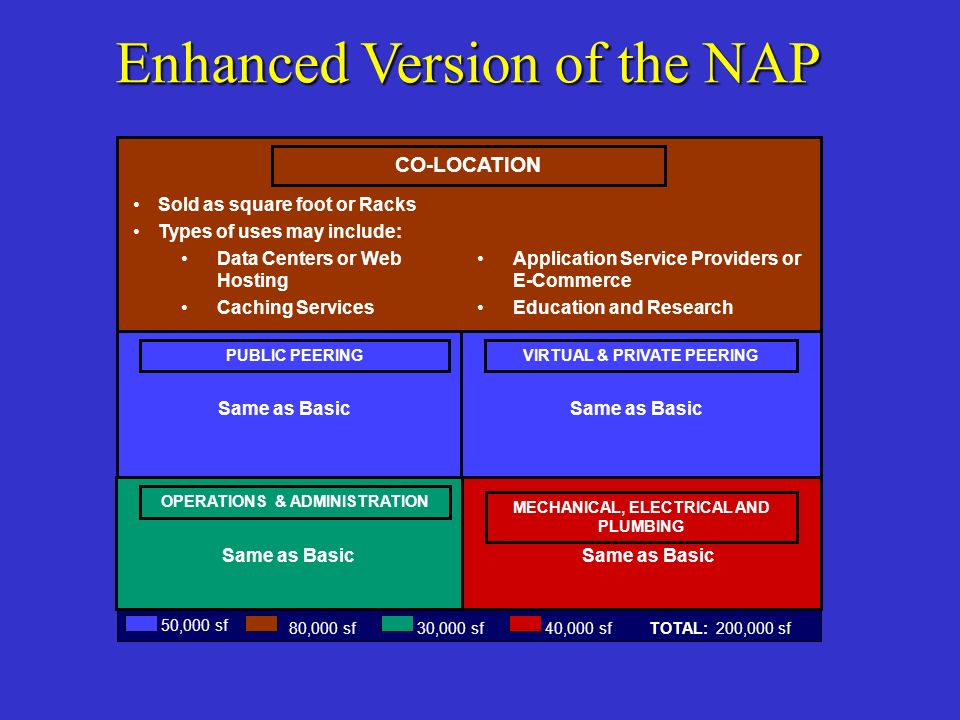

37. Enhanced Version of the NAP 50,000 sf 30,000 sf 40,000 sf TOTAL: 200,000 sf 80,000 sf OPERATIONS & ADMINISTRATION MECHANICAL, ELECTRICAL AND PLUMBING Same as Basic VIRTUAL & PRIVATE PEERING Same as Basic PUBLIC PEERING Same as Basic CO-LOCATION Sold as square foot or Racks Types of uses may include: Data Centers or Web Hosting Caching Services Application Service Providers or E-Commerce Education and Research

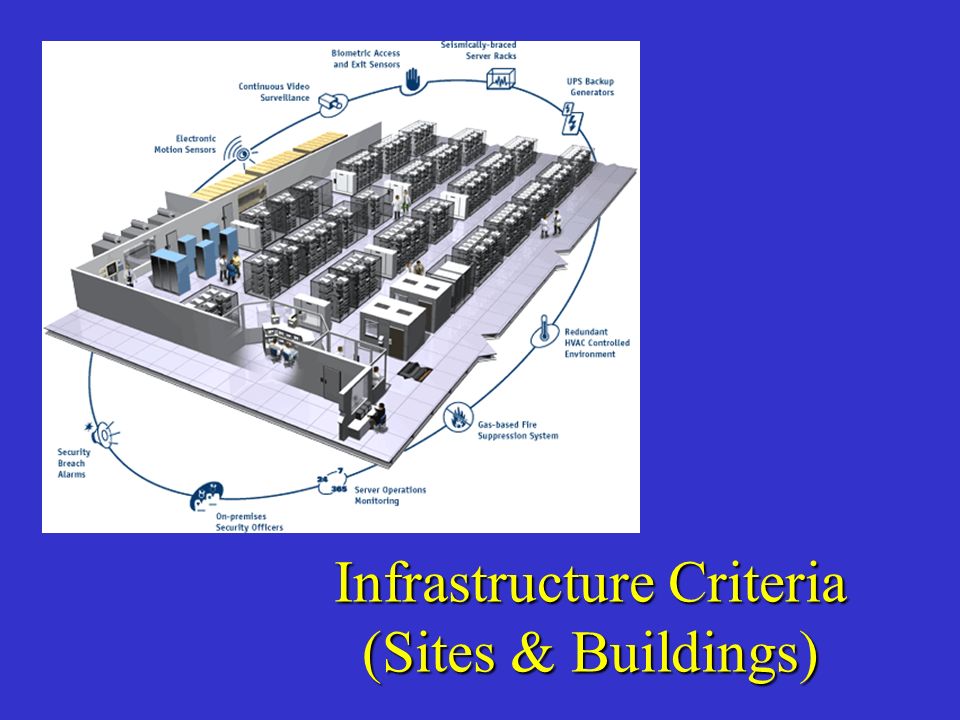

38. Infrastructure Criteria (Sites & Buildings)

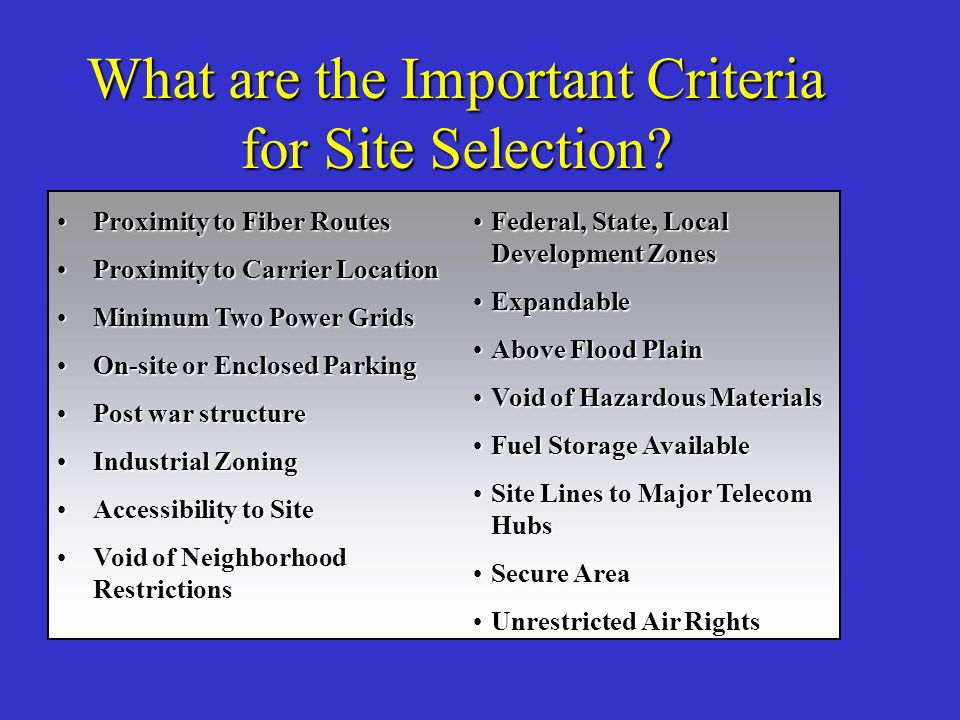

39. What are the Important Criteria for Site Selection? Proximity to Fiber RoutesProximity to Fiber Routes Proximity to Carrier LocationProximity to Carrier Location Minimum Two Power GridsMinimum Two Power Grids On-site or Enclosed ParkingOn-site or Enclosed Parking Post war structurePost war structure Industrial ZoningIndustrial Zoning Accessibility to SiteAccessibility to Site Void of Neighborhood RestrictionsVoid of Neighborhood Restrictions Federal, State, Local Development ZonesFederal, State, Local Development Zones ExpandableExpandable Above Flood PlainAbove Flood Plain Void of Hazardous MaterialsVoid of Hazardous Materials Fuel Storage AvailableFuel Storage Available Site Lines to Major Telecom HubsSite Lines to Major Telecom Hubs Secure AreaSecure Area Unrestricted Air RightsUnrestricted Air Rights

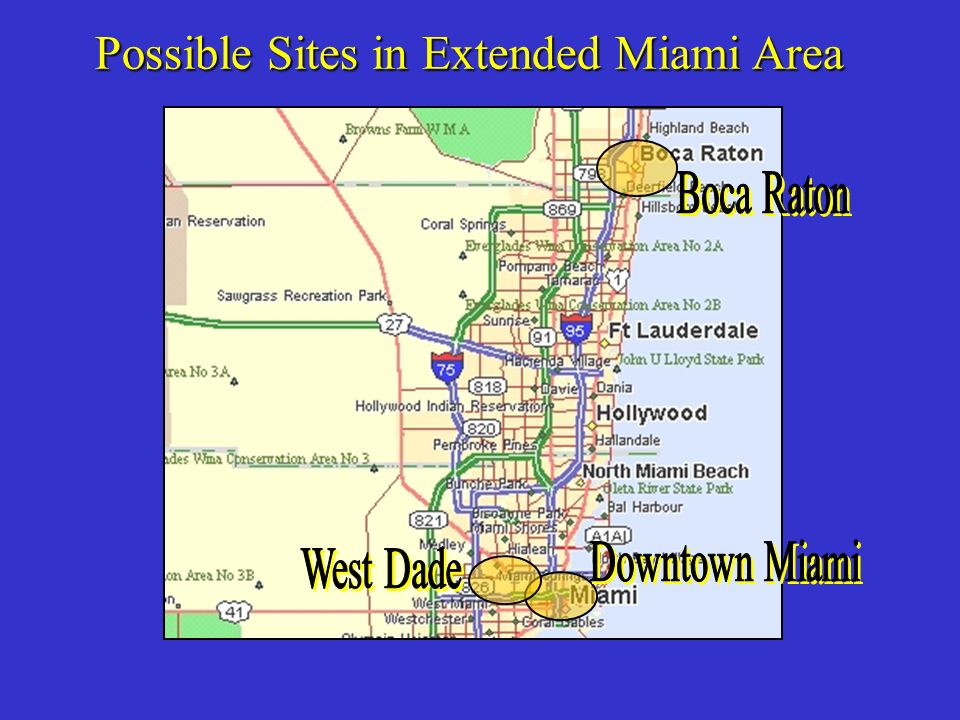

40. Possible Sites in Extended Miami Area

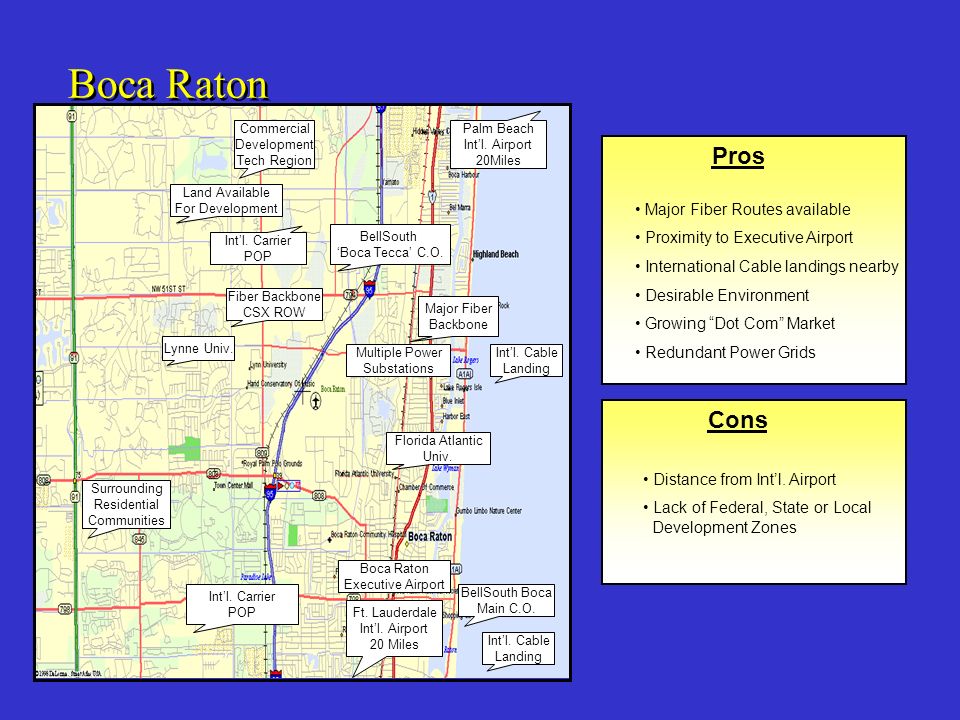

41. Distance from Int’l. Airport Lack of Federal, State or Local Development Zones Boca Raton Major Fiber Routes available Proximity to Executive Airport International Cable landings nearby Desirable Environment Growing “Dot Com” Market Redundant Power Grids Pros Cons Palm Beach Int’l. Airport 20Miles Commercial Development Tech Region Land Available For Development BellSouth ‘Boca Tecca’ C.O. Major Fiber Backbone Int’l. Carrier POP Fiber Backbone CSX ROW Lynne Univ. Florida Atlantic Univ. Int’l. Cable Landing Int’l. Carrier POP Boca Raton Executive Airport BellSouth Boca Main C.O. Int’l. Cable Landing Ft. Lauderdale Int’l. Airport 20 Miles Multiple Power Substations Surrounding Residential Communities

42. Pros International Airport nearby Land available for development Desirable environment Cons Limited Major Fiber Routes Limited “Dot Com” presence No Federal, State, or Local Development Zones Far from International Cabling Landing West Dade Limited “Dot Comm” Presence Miami Int’l. Airport BellSouth Palmetto CO Major Fiber Backbone - FEC Florida Int’l. Univ. Land Available for Development Multiple Power Substations

43. Pros Major Fiber Routes nearby Carrier POPs nearby International Cable Landing nearby Federal, State and Local Development Zones Available Multiple Power Grids available Cons Distance from International Airport Limited Dot Com presence Downtown Miami International Cable Landing Major Fiber Backbones on Railroad BellSouth Grande C.O. Multiple Carrier POPs International Cable Landing Federal/State/Local Development Zones MIA 7 Miles Away University of Miami Miami-Dade Community College

44. NAP Policy Public Peering AreaPrivate Peering Area Co-location AreaVirtual Private Peering Area Open Mode Carrier Neutral Bring Your Own Equipment & Facilities Flexible but Secure Peering Negotiated by Individual Parties Virtual Circuits to NAP for Peering Same as Private Peering Minus Equipment Co-location Secure Caged or Open Racks Sold By Square Foot or Rack Wholesale Space NAP Access Charges Building Entry Cross Connect Port/Speed Type Space & Power Operations Charges NAP Access Charges Building Entry Cross Connect Port/Speed Type Space & Power Operations Charges Transit from Carriers Route Arbitration Favors Least Cost Routes - controls prices User Fees based on Usage ($/Terrabit)

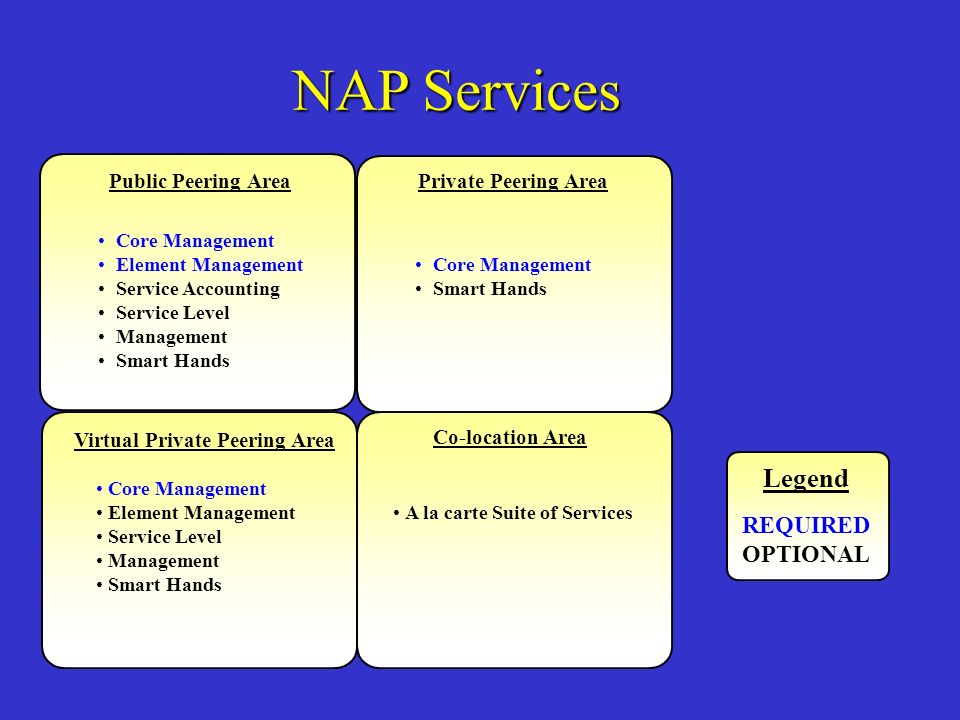

45. NAP Services Public Peering AreaPrivate Peering Area Co-location Area Virtual Private Peering Area Core Management Element Management Service Accounting Service Level Management Smart Hands Core Management Smart Hands Core Management Element Management Service Level Management Smart Hands A la carte Suite of Services REQUIRED OPTIONAL Legend

46. Advantages Less ExpensiveLess Expensive Less ComplexLess Complex Virtual LAN SecurityVirtual LAN Security Higher Port DensityHigher Port Density Greater Participant ControlGreater Participant Control ScalabilityScalability Core Management Options for the NAP Advantages More Management VisibilityMore Management Visibility OC-192 TodayOC-192 Today Better StatisticsBetter Statistics Ability to Implement FirewallAbility to Implement Firewall Layer 2 Technology ATM Ethernet Layer 3 Technology IP

47. Building It Together

48. NEXT GENERATION NETWORK

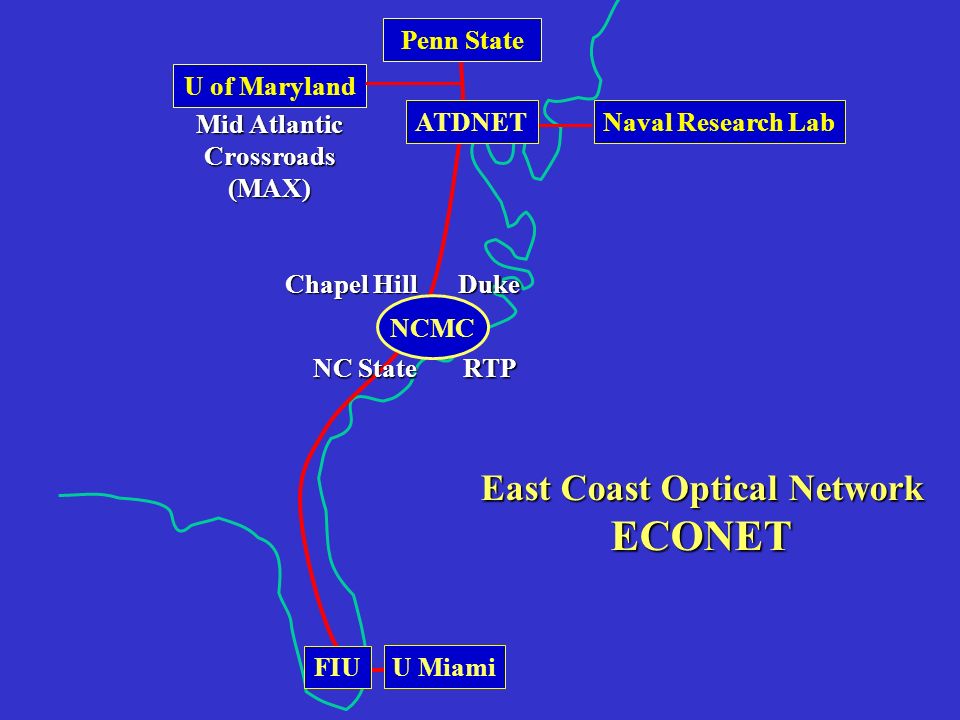

49. East Coast Optical Network ECONET U of Maryland Penn State Mid Atlantic Crossroads (MAX) Naval Research Lab RTP Duke Chapel Hill NC State U Miami ATDNET NCMC FIU

50. Partnership

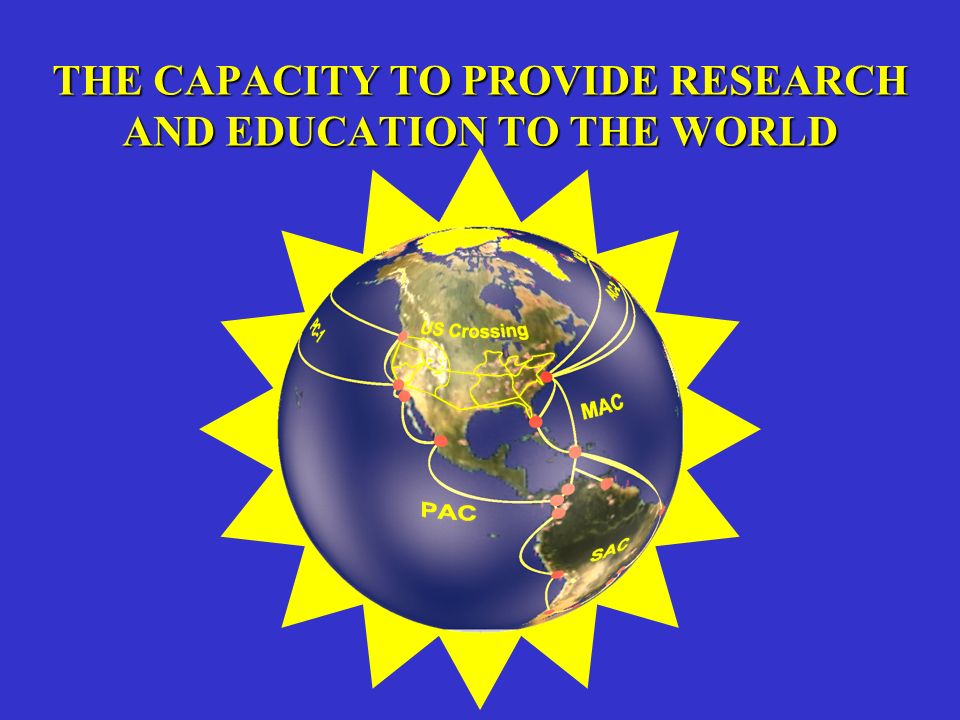

51. THE CAPACITY TO PROVIDE RESEARCH AND EDUCATION TO THE WORLD
