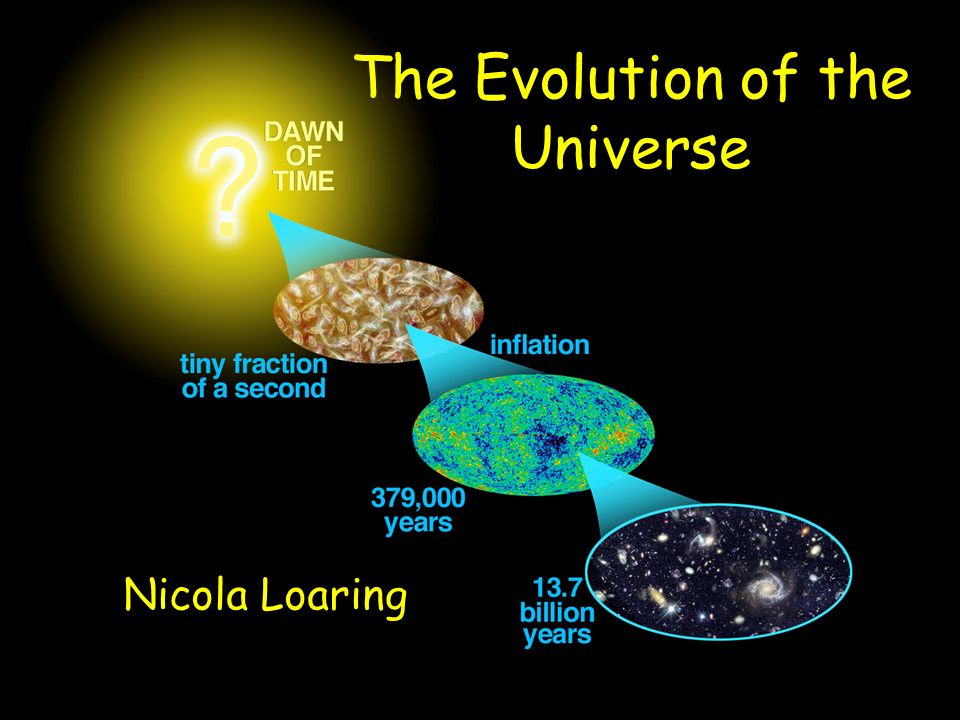

1. The Evolution of the Universe Nicola Loaring

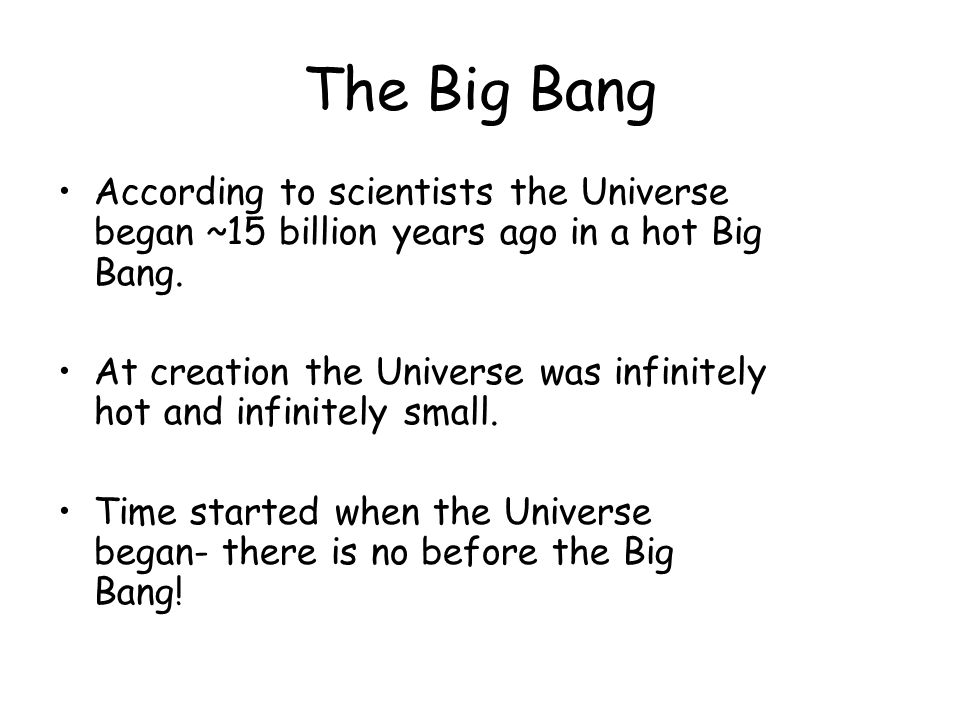

2. The Big Bang According to scientists the Universe began ~15 billion years ago in a hot Big Bang. At creation the Universe was infinitely hot and infinitely small. Time started when the Universe began- there is no before the Big Bang!

3. 10 -34 seconds : Matter forms Scores of different building block particles - quarks, leptons, photons, and neutrinos flood the universe (the size of a melon). 10 -6 seconds : Protons and Neutrons form Quarks combine to form protons and neutrons. Each is made of 3 quarks 3 minutes : Nuclei form Protons and neutrons combine to form the atomic nuclei of the lightest elements hydrogen, helium and lithium. ~ 700,000 years : Atoms form The temperature has fallen to a few 1000K, electrons and protons can hold together to begin forming hydrogen atoms. The early Universe

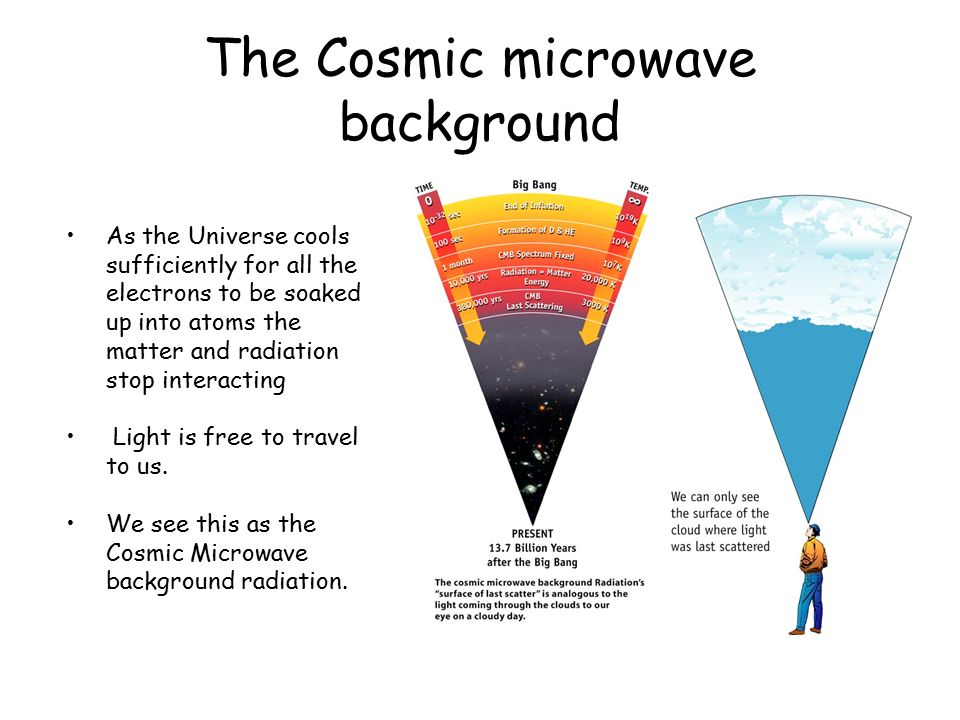

4. As the Universe cools sufficiently for all the electrons to be soaked up into atoms the matter and radiation stop interacting Light is free to travel to us. We see this as the Cosmic Microwave background radiation. The Cosmic microwave background

5. The cosmic microwave background The earth is bathed in CMB at a temperature of 2.73K Very smooth in all directions, temperature variations of only 1 part in 10 5 -tiny temperature fluctuations WMAP probe currently measuring the CMB

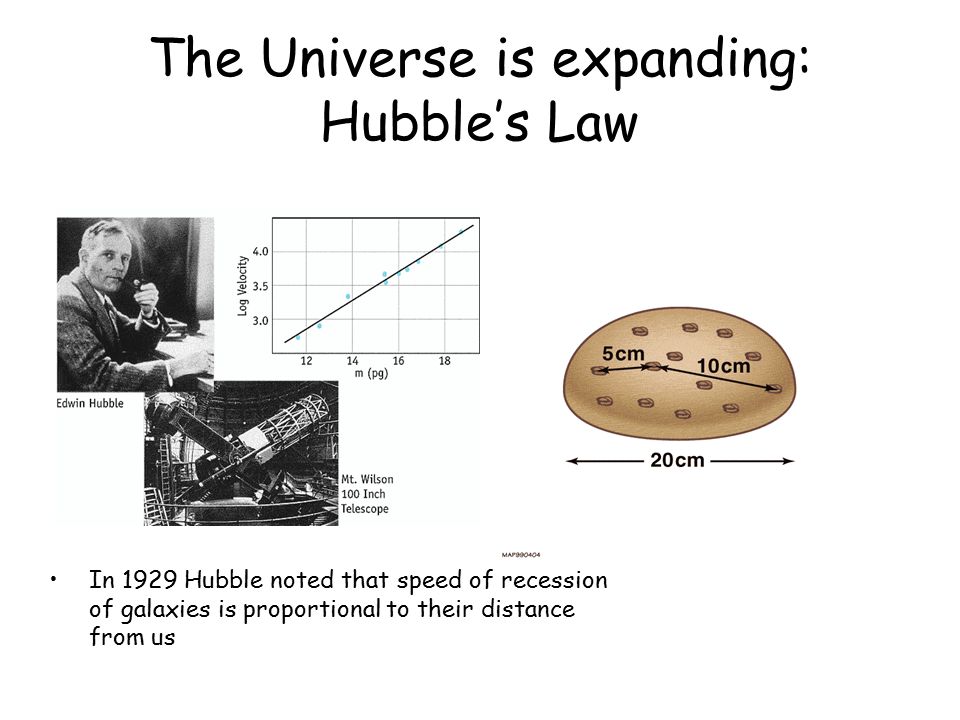

6. The Universe is expanding: Hubble’s Law In 1929 Hubble noted that speed of recession of galaxies is proportional to their distance from us

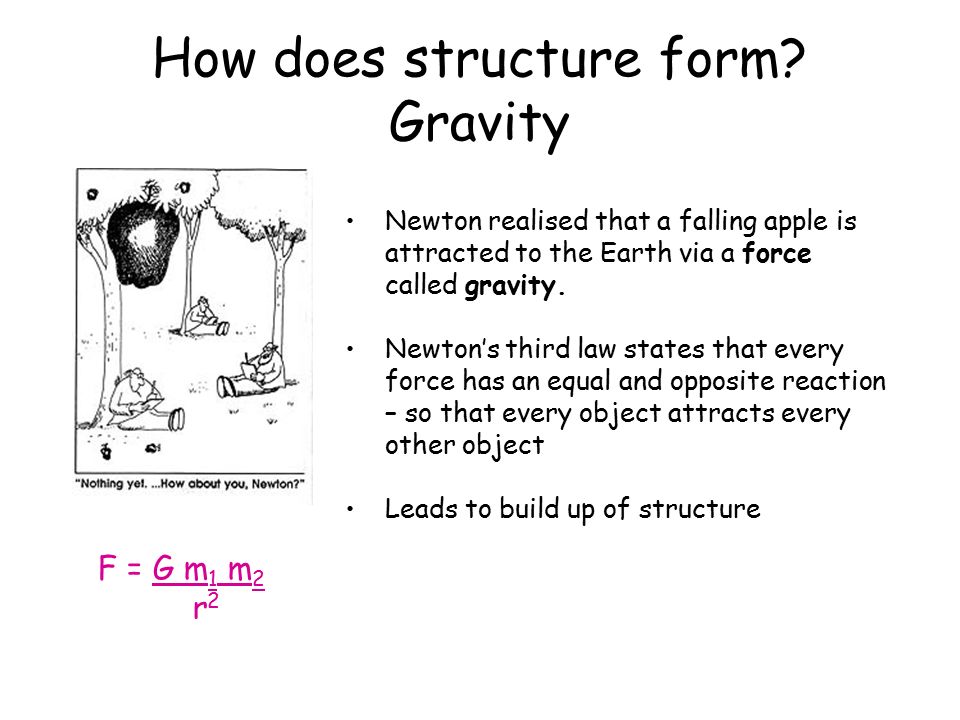

7. Newton realised that a falling apple is attracted to the Earth via a force called gravity. Newton’s third law states that every force has an equal and opposite reaction – so that every object attracts every other object Leads to build up of structure How does structure form? Gravity F = G m 1 m 2 r 2

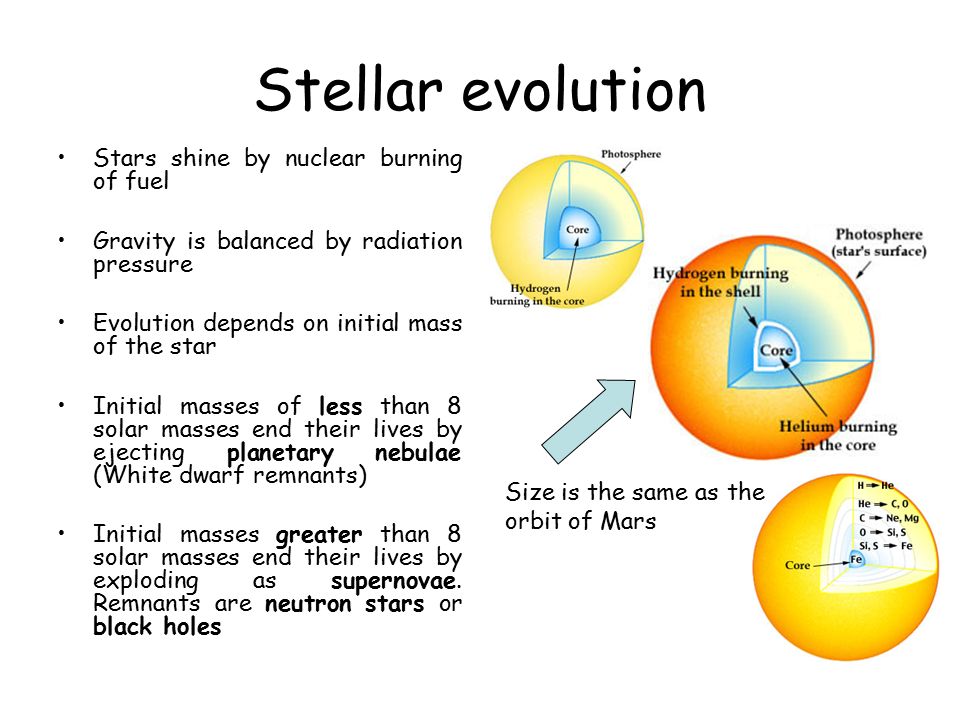

8. Stellar evolution Stars shine by nuclear burning of fuel Gravity is balanced by radiation pressure Evolution depends on initial mass of the star Initial masses of less than 8 solar masses end their lives by ejecting planetary nebulae (White dwarf remnants) Initial masses greater than 8 solar masses end their lives by exploding as supernovae. Remnants are neutron stars or black holes Size is the same as the orbit of Mars

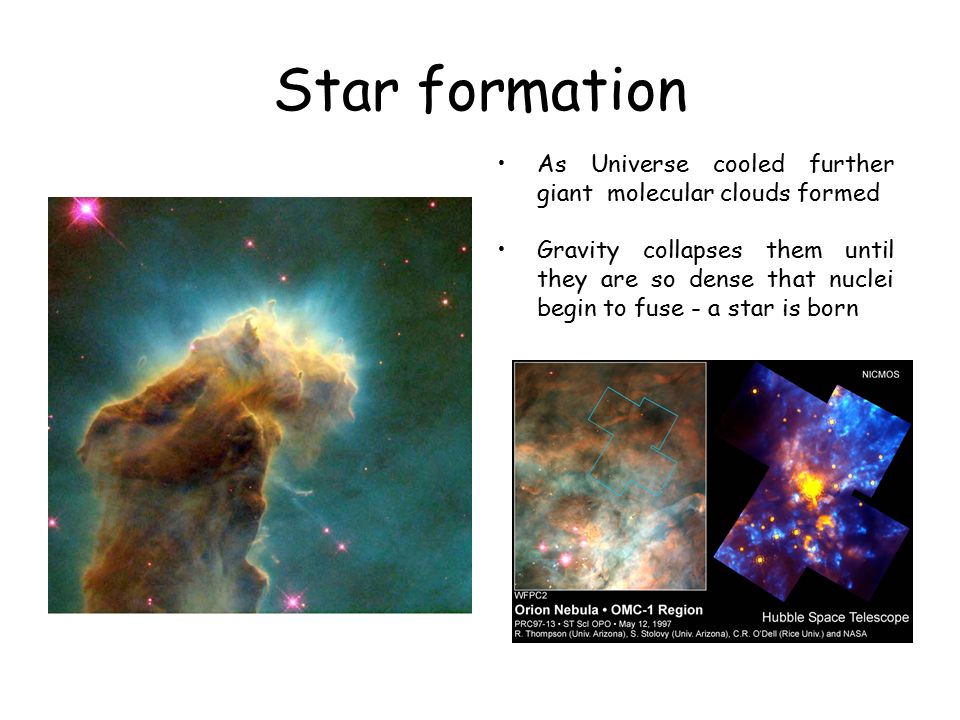

9. Star formation As Universe cooled further giant molecular clouds formed Gravity collapses them until they are so dense that nuclei begin to fuse - a star is born

10. Supernovae Needed to form very heavy elements Nuclei thrown into the galaxy and pick up elections forming heavy atoms which are used in next round of star formation All the atoms in your body except hydrogen were made in a supernova ~5 billion years ago or more

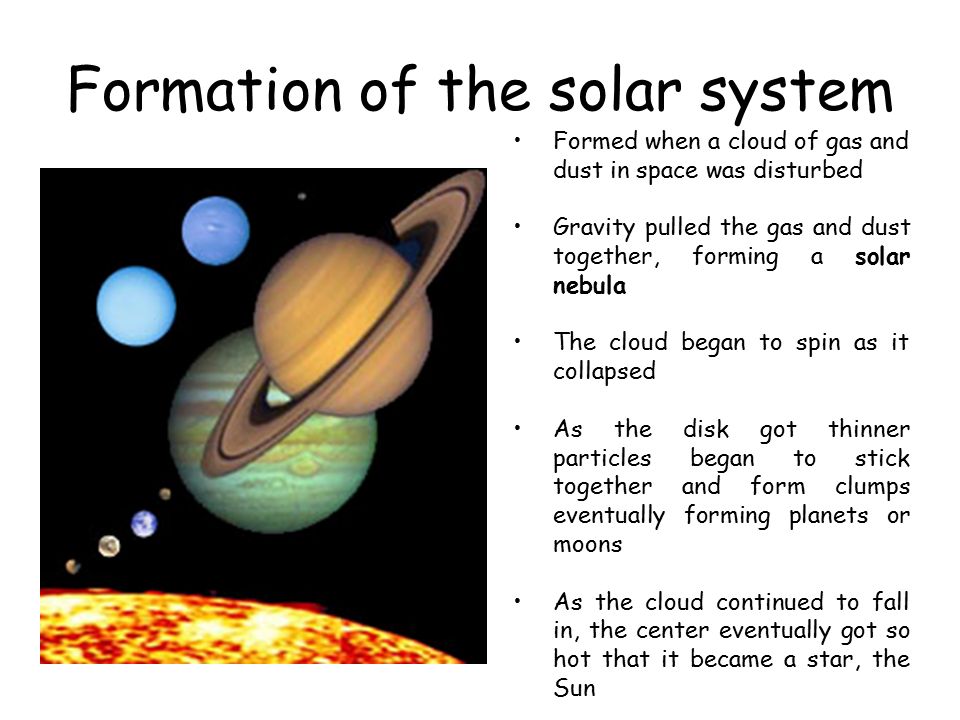

11. Formation of the solar system Formed when a cloud of gas and dust in space was disturbed Gravity pulled the gas and dust together, forming a solar nebula The cloud began to spin as it collapsed As the disk got thinner particles began to stick together and form clumps eventually forming planets or moons As the cloud continued to fall in, the center eventually got so hot that it became a star, the Sun

12. Galaxies 1pc =3x10 13 km = 3.2 light years = 206,000AU Have billions of stars Stars gather together by mutual gravitational attraction Gas and dust are intermixed with the stars 70% spiral, 30% elliptical Size ~9kpc M33 spiral galaxyM83 – Spiral galaxy M32 - Elliptical galaxy

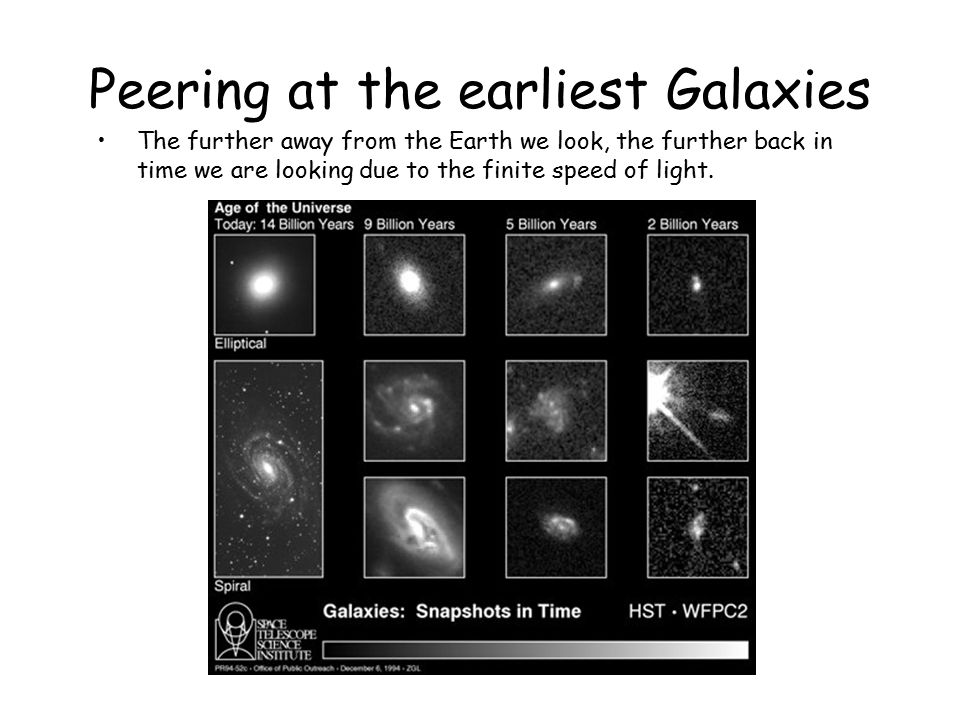

13. Peering at the earliest Galaxies The further away from the Earth we look, the further back in time we are looking due to the finite speed of light.

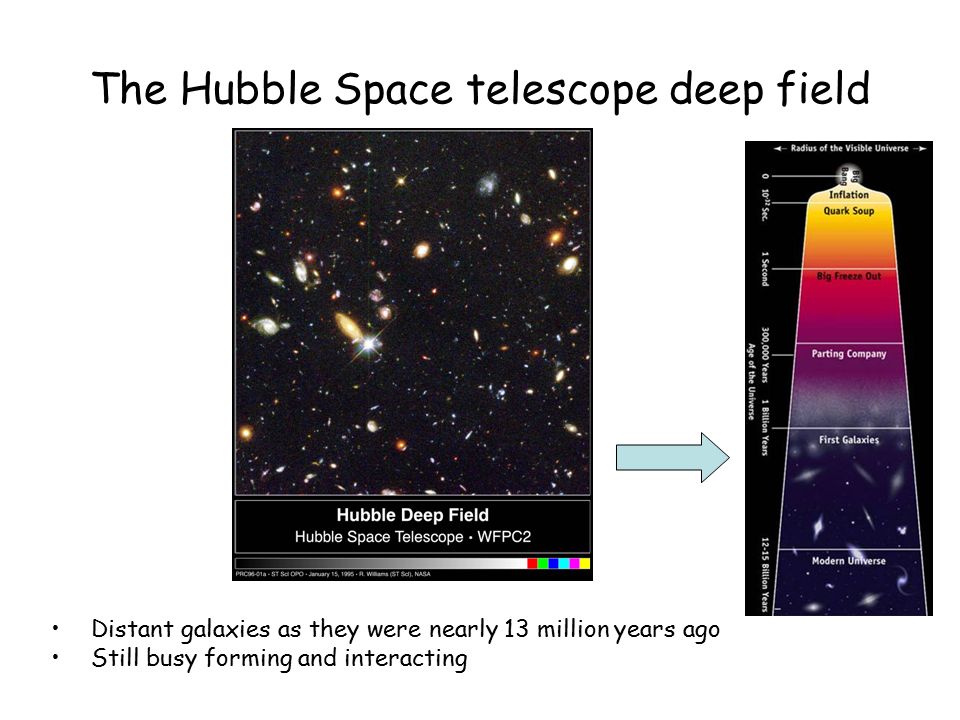

14. The Hubble Space telescope deep field Distant galaxies as they were nearly 13 million years ago Still busy forming and interacting

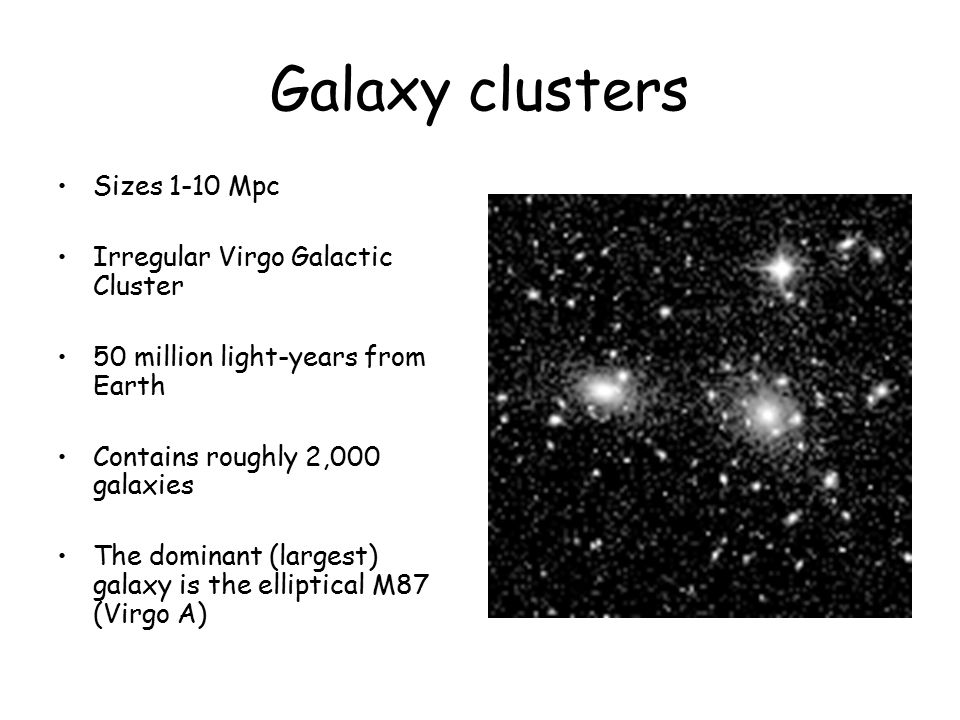

15. Galaxy clusters Sizes 1-10 Mpc Irregular Virgo Galactic Cluster 50 million light-years from Earth Contains roughly 2,000 galaxies The dominant (largest) galaxy is the elliptical M87 (Virgo A)

16. Super-structures From 2QZ

17. Simulations of structure formation Virgo consortium simulation

18. The matter density of the Universe and dark matter Evidence for dark matter on a range of scales: from galaxy rotation curves Gravitational lensing Most of the matter in the Universe is ‘dark’

19. The fate of the Universe Dark energy introduced by Einstein, anti-gravity energy to stop collapse Appears to dominate the total mass-energy content of the Universe Universe expansion is accelerating at the moment
