IS-IS Intermediate System-to-Intermediate System Rick Graziani Cabrillo College Fall 2009.

Similar presentations


Presentation on theme: "IS-IS Intermediate System-to-Intermediate System Rick Graziani Cabrillo College Fall 2009."— Presentation transcript:

1 IS-IS Intermediate System-to-Intermediate System Rick Graziani Cabrillo College graziani@cabrillo.edu Fall 2009

2 Rick Graziani graziani@cabrillo.edu2 Sources Sources used in creating this IS-IS presentation: –Cisco Online curriculum, CCNP 1 version 3.0 –IS-IS Network Design Solutions, Cisco Press Very Good Reference –CCNP Self-Study (BSCI), Cisco Press –Routing TCP/IP Volume I by Jeff Doyle

3 IS-IS versus OSPF “IS-IS is exactly the same as OSPF only completely different.”

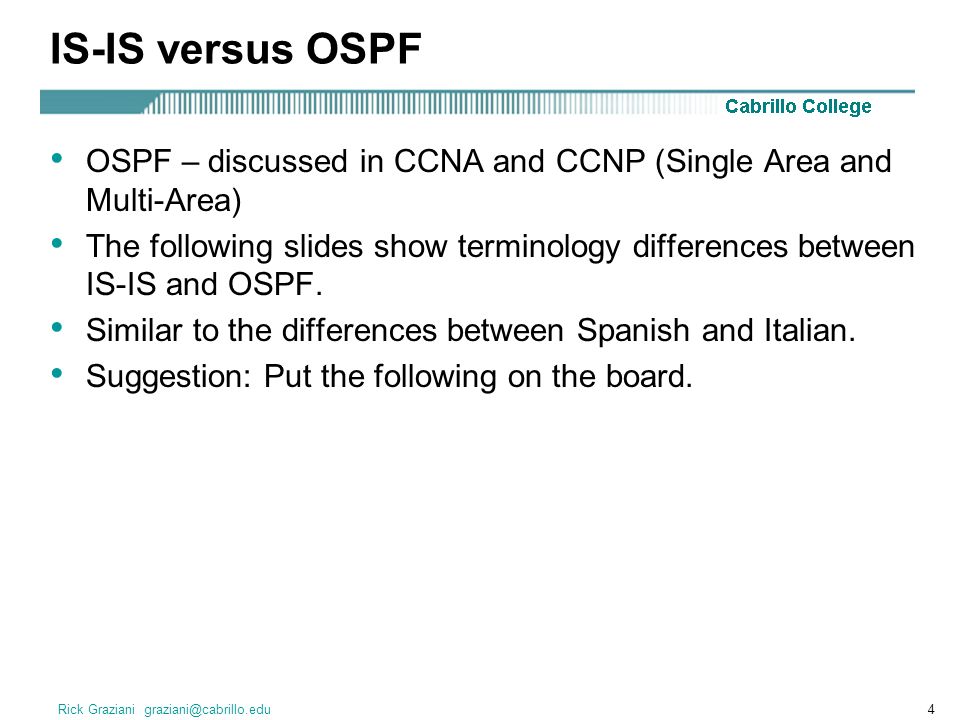

4 Rick Graziani graziani@cabrillo.edu4 IS-IS versus OSPF OSPF – discussed in CCNA and CCNP (Single Area and Multi-Area) The following slides show terminology differences between IS-IS and OSPF. Similar to the differences between Spanish and Italian. Suggestion: Put the following on the board.

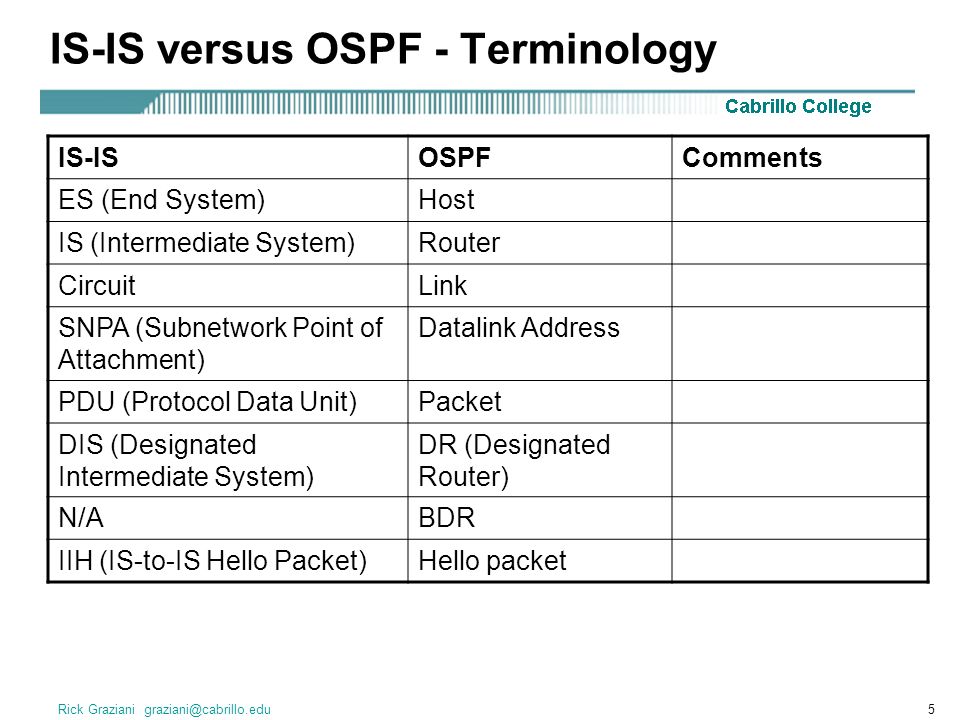

5 Rick Graziani graziani@cabrillo.edu5 IS-IS versus OSPF - Terminology IS-ISOSPFComments ES (End System)Host IS (Intermediate System)Router CircuitLink SNPA (Subnetwork Point of Attachment) Datalink Address PDU (Protocol Data Unit)Packet DIS (Designated Intermediate System) DR (Designated Router) N/ABDR IIH (IS-to-IS Hello Packet)Hello packet

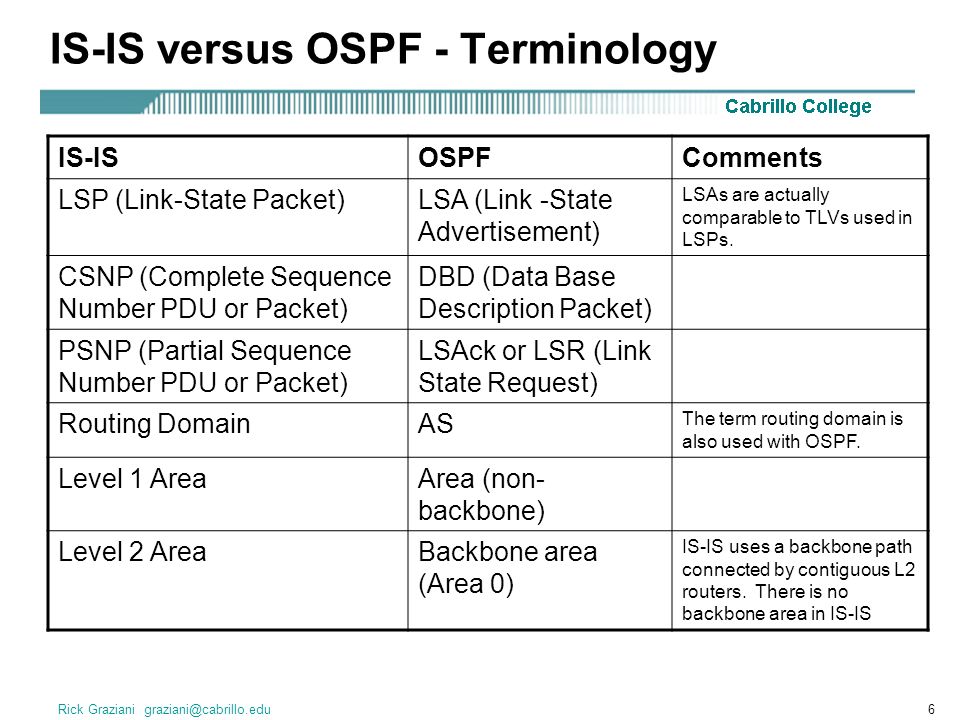

6 Rick Graziani graziani@cabrillo.edu6 IS-IS versus OSPF - Terminology IS-ISOSPFComments LSP (Link-State Packet)LSA (Link -State Advertisement) LSAs are actually comparable to TLVs used in LSPs. CSNP (Complete Sequence Number PDU or Packet) DBD (Data Base Description Packet) PSNP (Partial Sequence Number PDU or Packet) LSAck or LSR (Link State Request) Routing DomainAS The term routing domain is also used with OSPF. Level 1 AreaArea (non- backbone) Level 2 AreaBackbone area (Area 0) IS-IS uses a backbone path connected by contiguous L2 routers. There is no backbone area in IS-IS

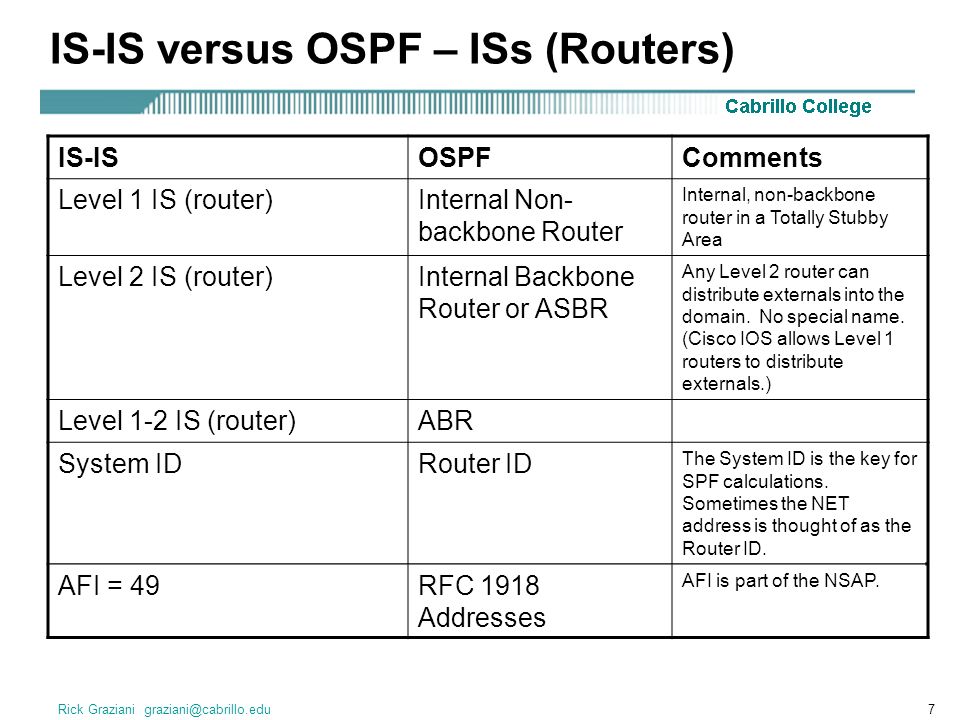

7 Rick Graziani graziani@cabrillo.edu7 IS-IS versus OSPF – ISs (Routers) IS-ISOSPFComments Level 1 IS (router)Internal Non- backbone Router Internal, non-backbone router in a Totally Stubby Area Level 2 IS (router)Internal Backbone Router or ASBR Any Level 2 router can distribute externals into the domain. No special name. (Cisco IOS allows Level 1 routers to distribute externals.) Level 1-2 IS (router)ABR System IDRouter ID The System ID is the key for SPF calculations. Sometimes the NET address is thought of as the Router ID. AFI = 49RFC 1918 Addresses AFI is part of the NSAP.

8 Rick Graziani graziani@cabrillo.edu8 IS-IS versus OSPF - Timers InterfaceIS-ISOSPF Point-to-PointHello – 10 sec Holdtime – 30 sec Hello – 10 sec Dead – 40 sec BroadcastHello – 10 sec Holdtime – 30 sec Hello – 10 sec Dead – 40 sec NBMAN/AHello – 30 sec Dead – 120 sec OtherIS-ISOSPF LS Aging1,200 sec or 20 min (counts down) 3,600 sec or 60 min (counts up) LS RefreshEvery 15 minEvery 30 min NBMAN/AHello – 30 sec Dead – 120 sec SPF Delay/Holdtime5.5 sec / 10 sec5 sec / 10 sec

9 History of IS-IS and OSPF Just like the MacIntosh versus Windows debate

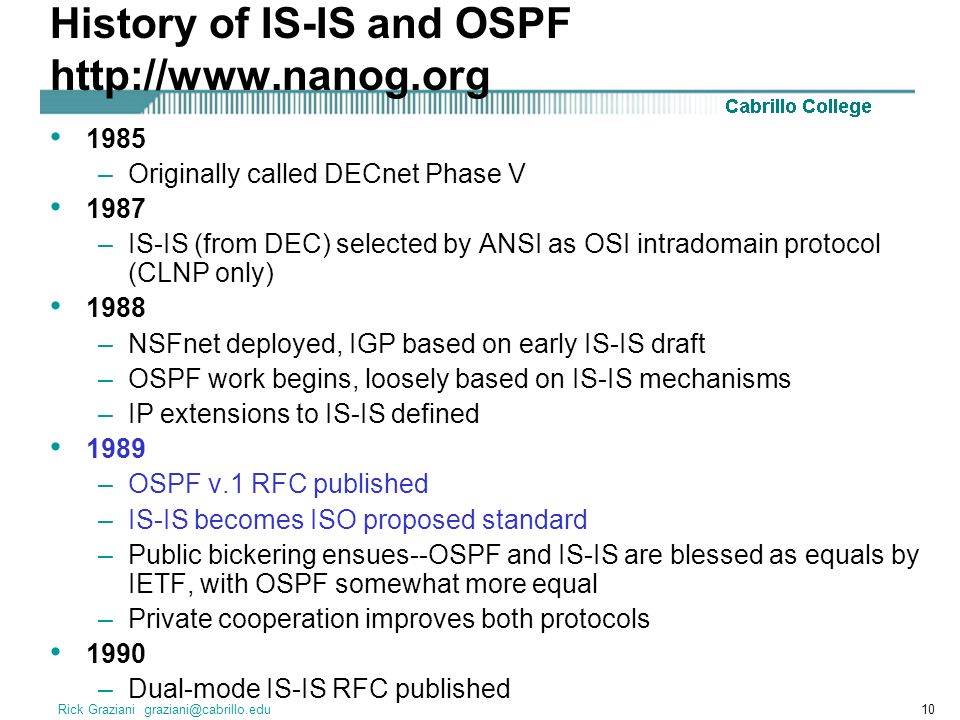

10 Rick Graziani graziani@cabrillo.edu10 History of IS-IS and OSPF http://www.nanog.org 1985 –Originally called DECnet Phase V 1987 –IS-IS (from DEC) selected by ANSI as OSI intradomain protocol (CLNP only) 1988 –NSFnet deployed, IGP based on early IS-IS draft –OSPF work begins, loosely based on IS-IS mechanisms –IP extensions to IS-IS defined 1989 –OSPF v.1 RFC published –IS-IS becomes ISO proposed standard –Public bickering ensues--OSPF and IS-IS are blessed as equals by IETF, with OSPF somewhat more equal –Private cooperation improves both protocols 1990 –Dual-mode IS-IS RFC published

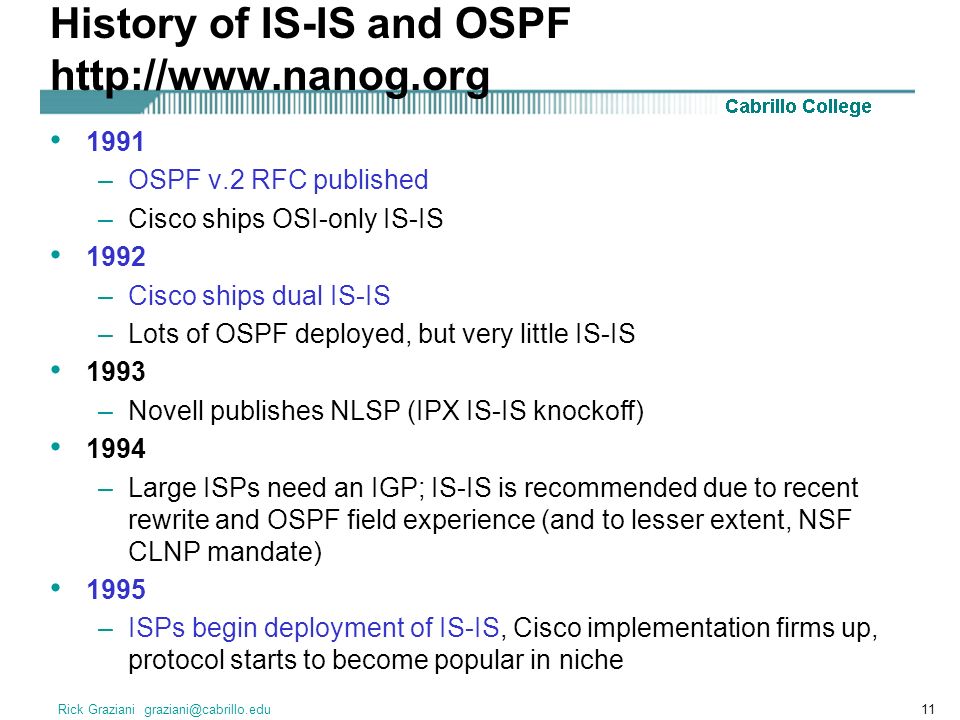

11 Rick Graziani graziani@cabrillo.edu11 History of IS-IS and OSPF http://www.nanog.org 1991 –OSPF v.2 RFC published –Cisco ships OSI-only IS-IS 1992 –Cisco ships dual IS-IS –Lots of OSPF deployed, but very little IS-IS 1993 –Novell publishes NLSP (IPX IS-IS knockoff) 1994 –Large ISPs need an IGP; IS-IS is recommended due to recent rewrite and OSPF field experience (and to lesser extent, NSF CLNP mandate) 1995 –ISPs begin deployment of IS-IS, Cisco implementation firms up, protocol starts to become popular in niche

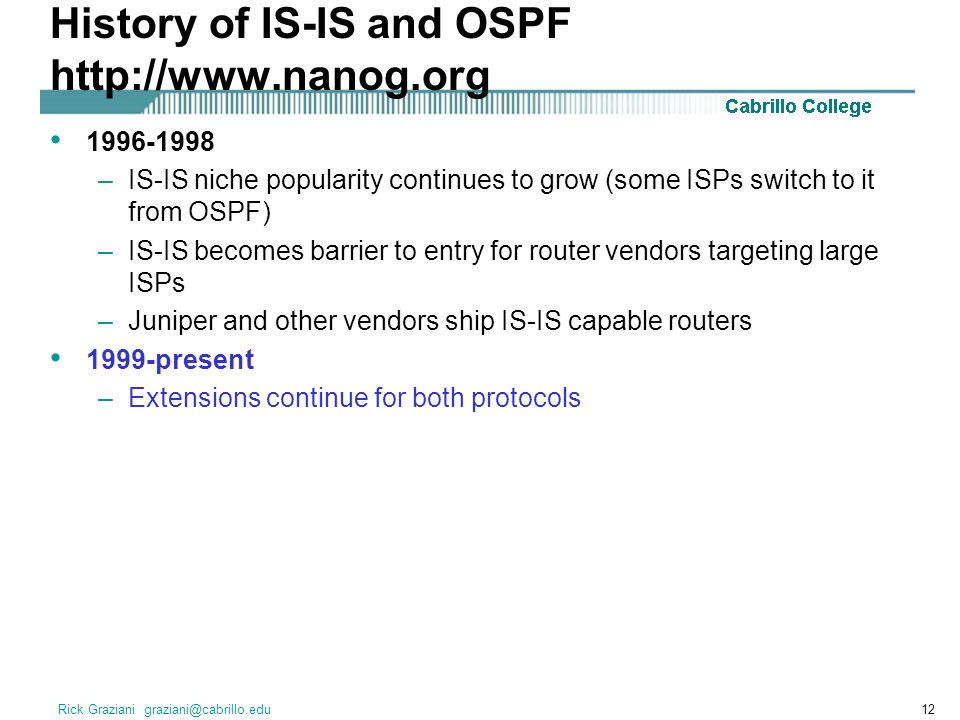

12 Rick Graziani graziani@cabrillo.edu12 History of IS-IS and OSPF http://www.nanog.org 1996-1998 –IS-IS niche popularity continues to grow (some ISPs switch to it from OSPF) –IS-IS becomes barrier to entry for router vendors targeting large ISPs –Juniper and other vendors ship IS-IS capable routers 1999-present –Extensions continue for both protocols

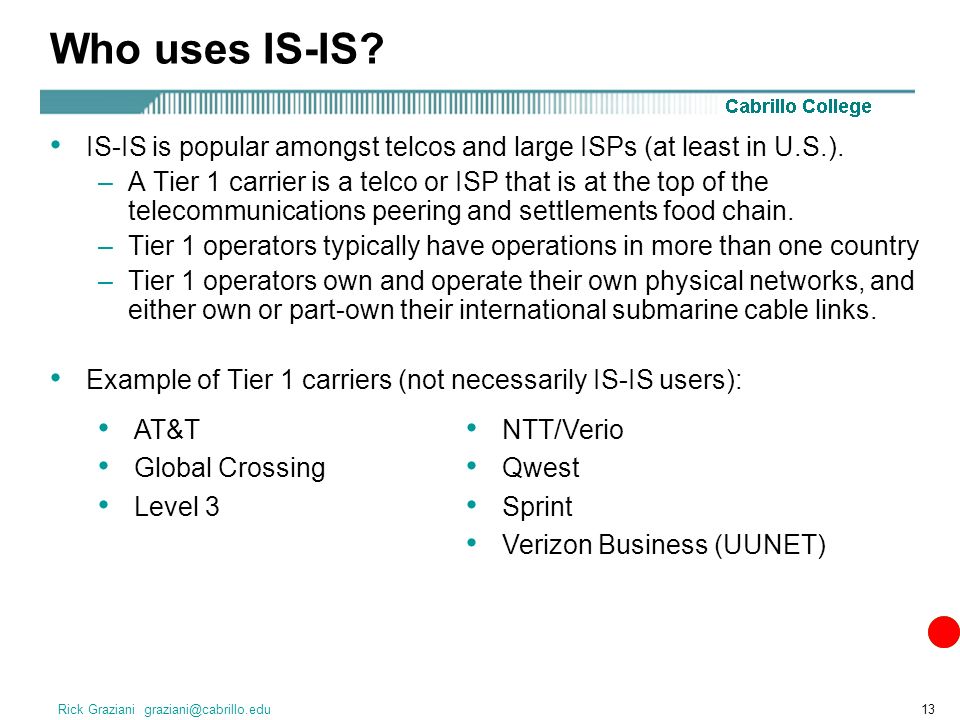

13 Rick Graziani graziani@cabrillo.edu13 Who uses IS-IS? IS-IS is popular amongst telcos and large ISPs (at least in U.S.). –A Tier 1 carrier is a telco or ISP that is at the top of the telecommunications peering and settlements food chain. –Tier 1 operators typically have operations in more than one country –Tier 1 operators own and operate their own physical networks, and either own or part-own their international submarine cable links. Example of Tier 1 carriers (not necessarily IS-IS users): AT&T Global Crossing Level 3 NTT/Verio Qwest Sprint Verizon Business (UUNET)

14 Introduction to IS-IS Protocol Routers Areas

15 Rick Graziani graziani@cabrillo.edu15 OSI: Two Network Services, Two Network Protocols CMNS (Connection Mode Network Service) – Requires establishment of a path between transport layer entites. –CONP (Connection-Oriented Network Protocol) – OSI network layer protocol that carries upper layer data over connection-oriented links. CLNS (Connectionless Network Service) – Performs datagram support, does not require circuit to be established –CLNP (Connectionless Network Protocol) – OSI network layer protocol that carries upper layer data over connectionless links. (Similar to IP)

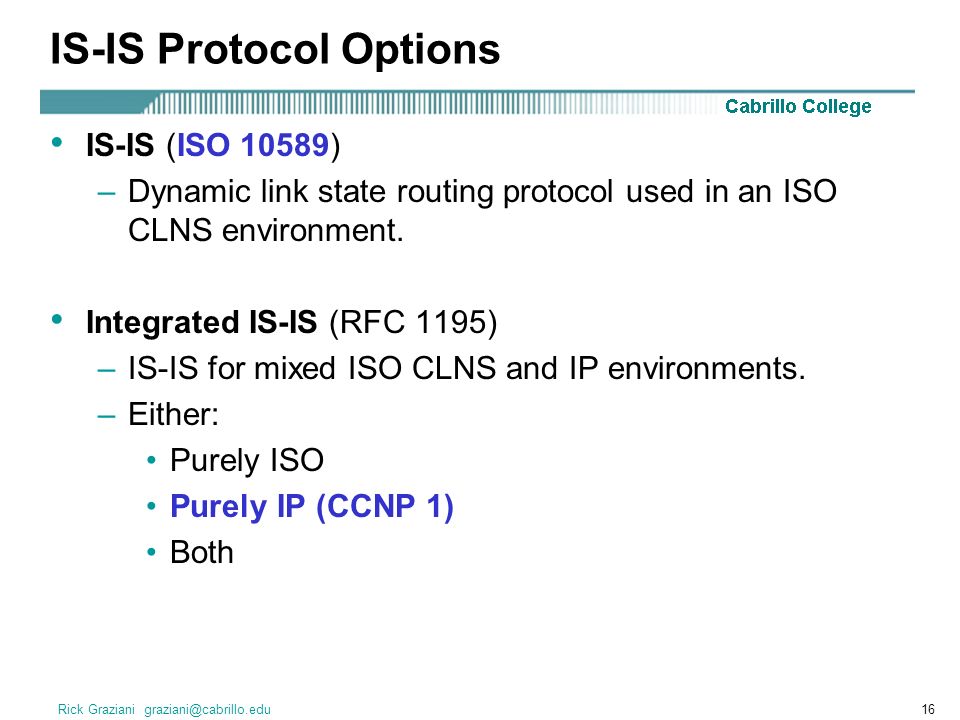

16 Rick Graziani graziani@cabrillo.edu16 IS-IS Protocol Options IS-IS (ISO 10589) –Dynamic link state routing protocol used in an ISO CLNS environment. Integrated IS-IS (RFC 1195) –IS-IS for mixed ISO CLNS and IP environments. –Either: Purely ISO Purely IP (CCNP 1) Both

17 Rick Graziani graziani@cabrillo.edu17 OSI Routing Protocols: ES-IS and IS-IS ES-IS Analogous to Address Resolution Protocol (ARP) in IP Not technically a routing protocol Sometimes referred to as Level 0 routing. ESs (hosts) discover nearest IS (router) by listening to IS Hello (ISH) packets ISs (routers) know which hosts are on their subnetwork by listening to ES Hello (ESH) packets. Not applicable for IP networks ISH ESH

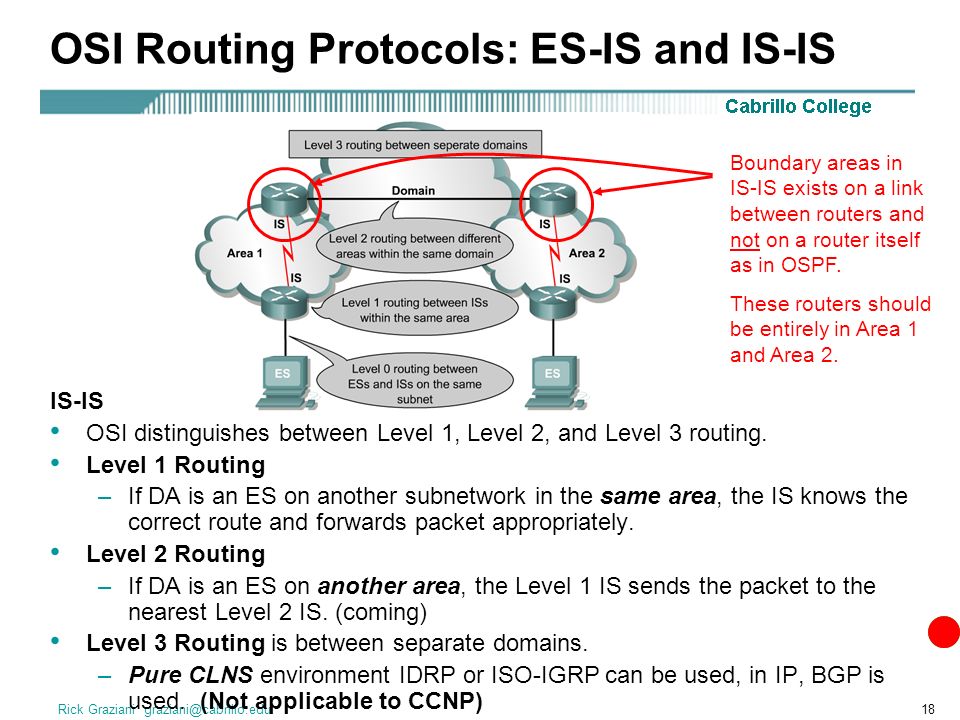

18 Rick Graziani graziani@cabrillo.edu18 OSI Routing Protocols: ES-IS and IS-IS IS-IS OSI distinguishes between Level 1, Level 2, and Level 3 routing. Level 1 Routing –If DA is an ES on another subnetwork in the same area, the IS knows the correct route and forwards packet appropriately. Level 2 Routing –If DA is an ES on another area, the Level 1 IS sends the packet to the nearest Level 2 IS. (coming) Level 3 Routing is between separate domains. –Pure CLNS environment IDRP or ISO-IGRP can be used, in IP, BGP is used. (Not applicable to CCNP) Boundary areas in IS-IS exists on a link between routers and not on a router itself as in OSPF. These routers should be entirely in Area 1 and Area 2.

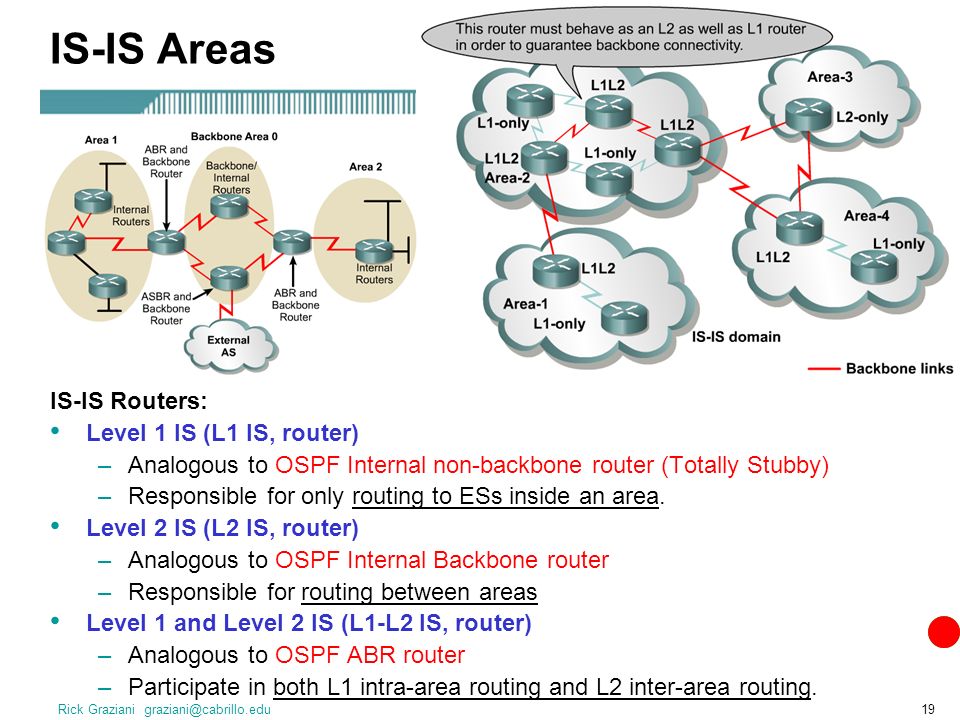

19 Rick Graziani graziani@cabrillo.edu19 IS-IS Areas IS-IS Routers: Level 1 IS (L1 IS, router) –Analogous to OSPF Internal non-backbone router (Totally Stubby) –Responsible for only routing to ESs inside an area. Level 2 IS (L2 IS, router) –Analogous to OSPF Internal Backbone router –Responsible for routing between areas Level 1 and Level 2 IS (L1-L2 IS, router) –Analogous to OSPF ABR router –Participate in both L1 intra-area routing and L2 inter-area routing.

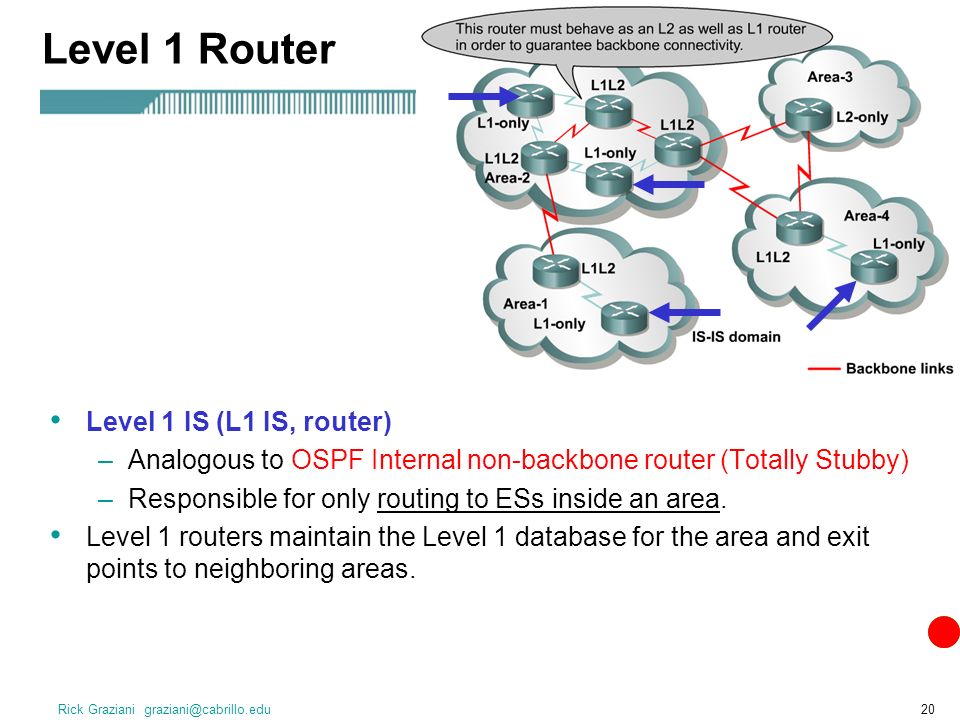

20 Rick Graziani graziani@cabrillo.edu20 Level 1 Router Level 1 IS (L1 IS, router) –Analogous to OSPF Internal non-backbone router (Totally Stubby) –Responsible for only routing to ESs inside an area. Level 1 routers maintain the Level 1 database for the area and exit points to neighboring areas.

21 Rick Graziani graziani@cabrillo.edu21 Level 2 Router Level 2 IS (L2 IS, router) –Analogous to OSPF Internal Backbone router –Responsible for routing between areas Also referred to as area routers. Interconnects the Level 1 areas Store separate database of only inter-area topology

22 Rick Graziani graziani@cabrillo.edu22 Level 1 – Level 2 Router Level 1 and Level 2 IS (L1-L2 IS, router) –Analogous to OSPF ABR router –Participate in both L1 intra-area routing and L2 inter-area routing. Maintain both Level 1 and Level 2 LSDB Support Level 1 function communicating with other Level 1 routers in their area –Inform other Level 1 routers that they are the exit point (default route) from the area. Support Level 2 function communicating with the rest of the backbone path.

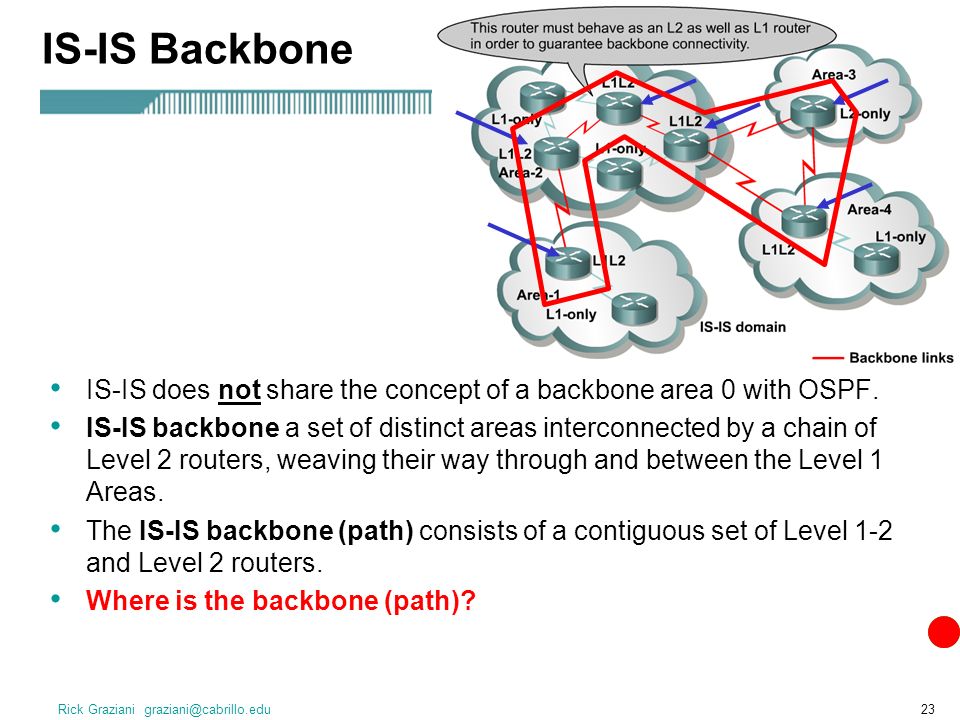

23 Rick Graziani graziani@cabrillo.edu23 IS-IS Backbone IS-IS does not share the concept of a backbone area 0 with OSPF. IS-IS backbone a set of distinct areas interconnected by a chain of Level 2 routers, weaving their way through and between the Level 1 Areas. The IS-IS backbone (path) consists of a contiguous set of Level 1-2 and Level 2 routers. Where is the backbone (path)?

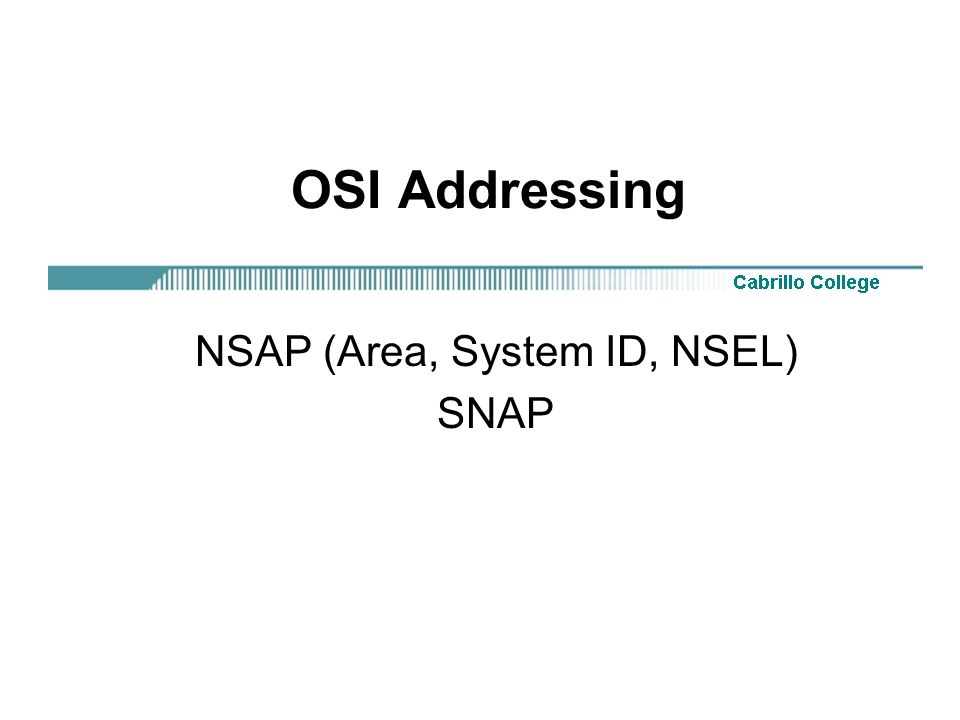

24 OSI Addressing NSAP (Area, System ID, NSEL) SNAP

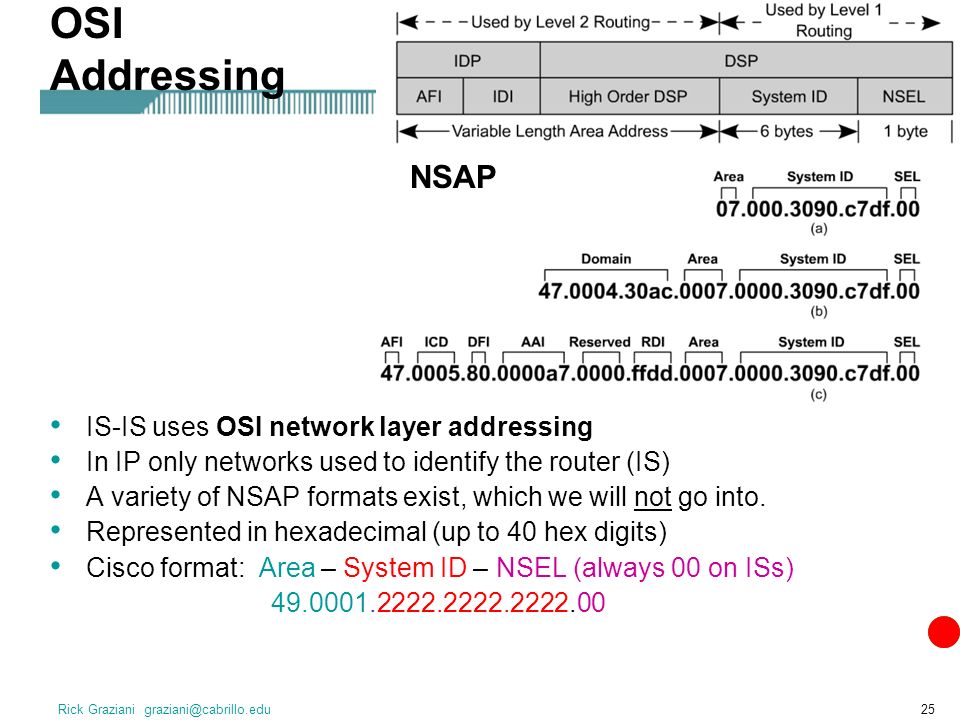

25 Rick Graziani graziani@cabrillo.edu25 OSI Addressing IS-IS uses OSI network layer addressing In IP only networks used to identify the router (IS) A variety of NSAP formats exist, which we will not go into. Represented in hexadecimal (up to 40 hex digits) Cisco format: Area – System ID – NSEL (always 00 on ISs) 49.0001.2222.2222.2222.00 NSAP

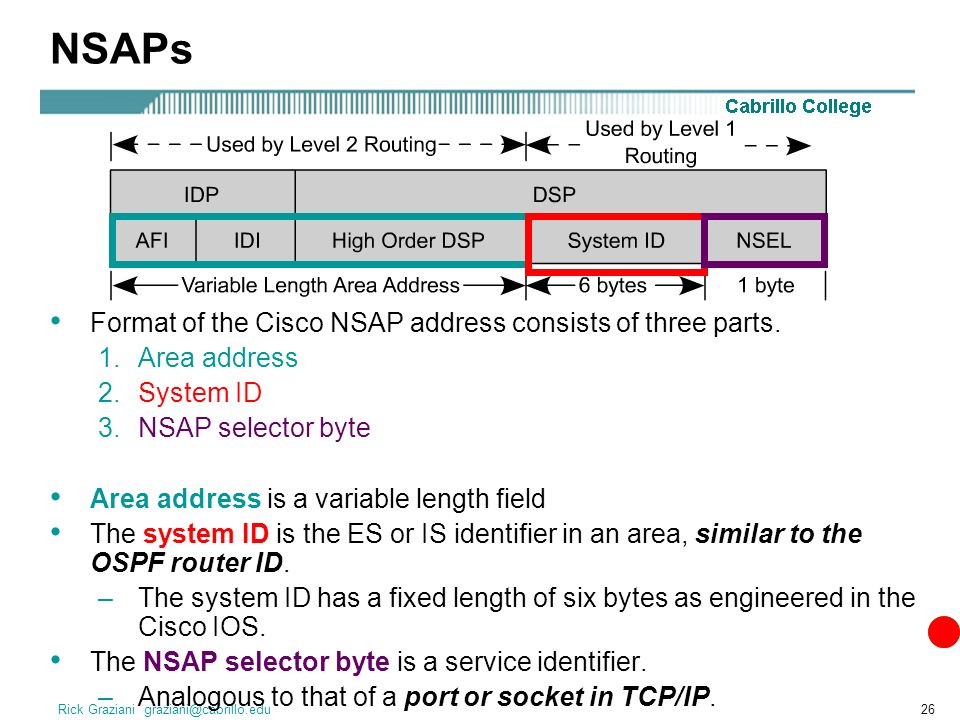

26 Rick Graziani graziani@cabrillo.edu26 NSAPs Format of the Cisco NSAP address consists of three parts. 1.Area address 2.System ID 3.NSAP selector byte Area address is a variable length field The system ID is the ES or IS identifier in an area, similar to the OSPF router ID. –The system ID has a fixed length of six bytes as engineered in the Cisco IOS. The NSAP selector byte is a service identifier. –Analogous to that of a port or socket in TCP/IP.

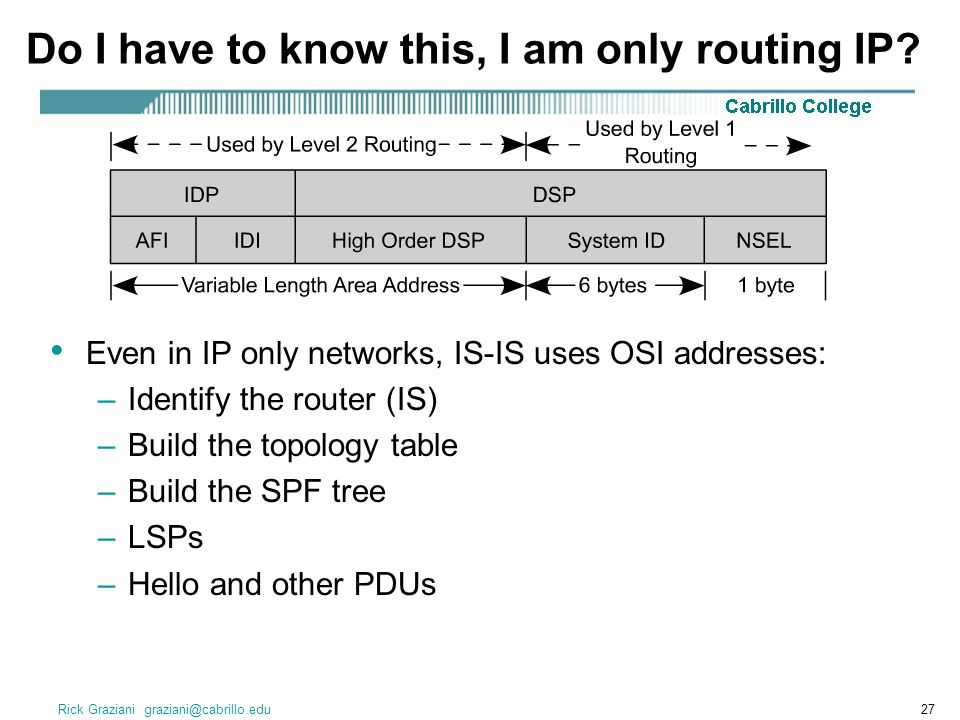

27 Rick Graziani graziani@cabrillo.edu27 Do I have to know this, I am only routing IP? Even in IP only networks, IS-IS uses OSI addresses: –Identify the router (IS) –Build the topology table –Build the SPF tree –LSPs –Hello and other PDUs

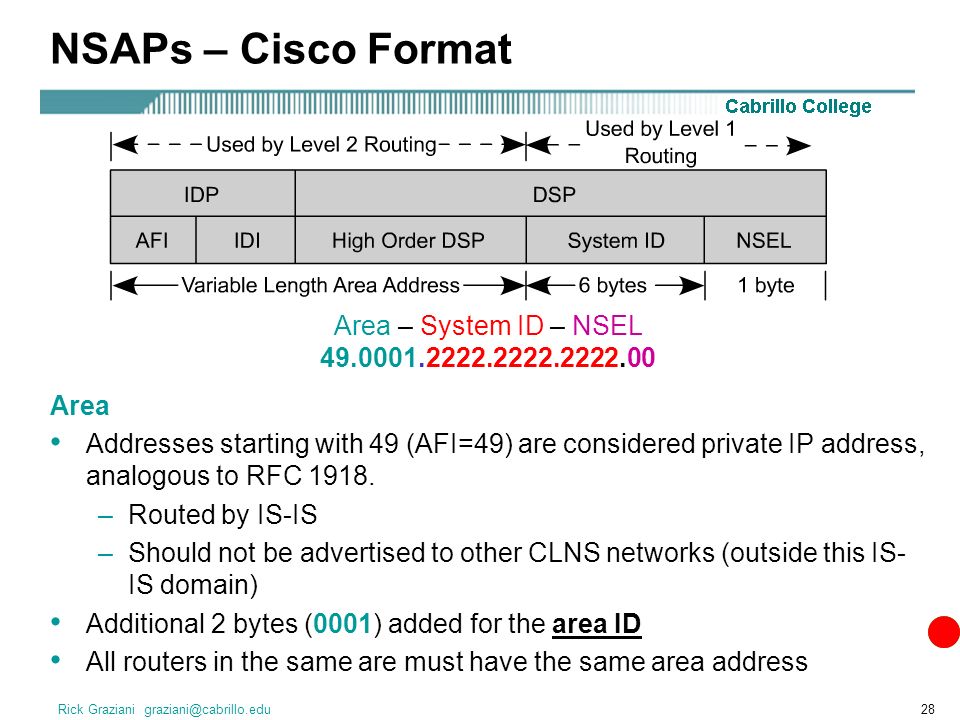

28 Rick Graziani graziani@cabrillo.edu28 NSAPs – Cisco Format Area Addresses starting with 49 (AFI=49) are considered private IP address, analogous to RFC 1918. –Routed by IS-IS –Should not be advertised to other CLNS networks (outside this IS- IS domain) Additional 2 bytes (0001) added for the area ID All routers in the same are must have the same area address Area – System ID – NSEL 49.0001.2222.2222.2222.00

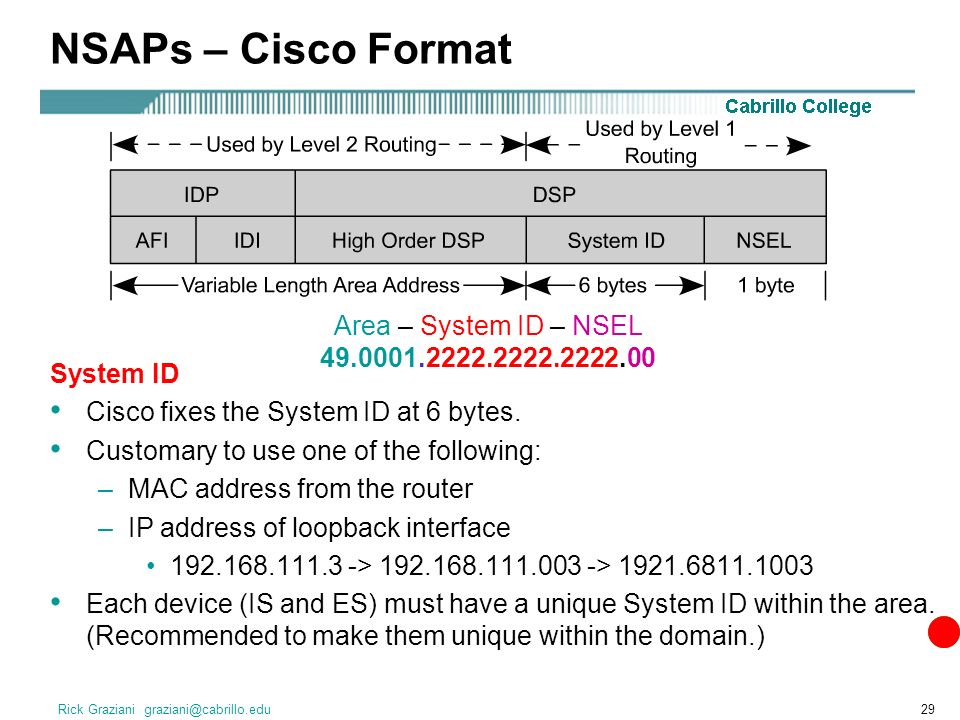

29 Rick Graziani graziani@cabrillo.edu29 NSAPs – Cisco Format System ID Cisco fixes the System ID at 6 bytes. Customary to use one of the following: –MAC address from the router –IP address of loopback interface 192.168.111.3 -> 192.168.111.003 -> 1921.6811.1003 Each device (IS and ES) must have a unique System ID within the area. (Recommended to make them unique within the domain.) Area – System ID – NSEL 49.0001.2222.2222.2222.00

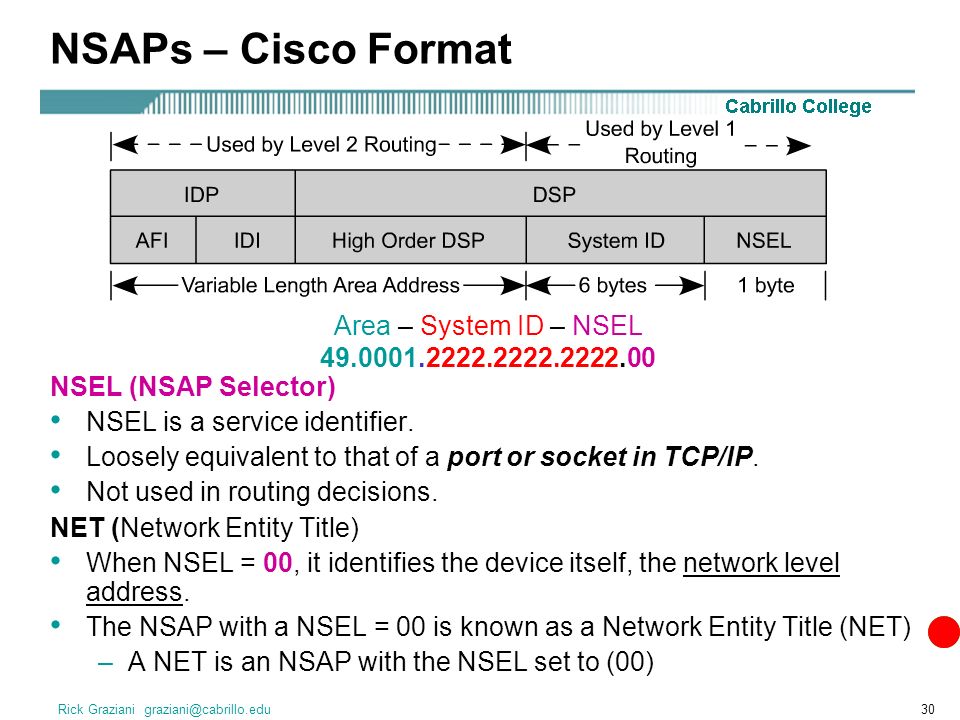

30 Rick Graziani graziani@cabrillo.edu30 NSAPs – Cisco Format NSEL (NSAP Selector) NSEL is a service identifier. Loosely equivalent to that of a port or socket in TCP/IP. Not used in routing decisions. NET (Network Entity Title) When NSEL = 00, it identifies the device itself, the network level address. The NSAP with a NSEL = 00 is known as a Network Entity Title (NET) –A NET is an NSAP with the NSEL set to (00) Area – System ID – NSEL 49.0001.2222.2222.2222.00

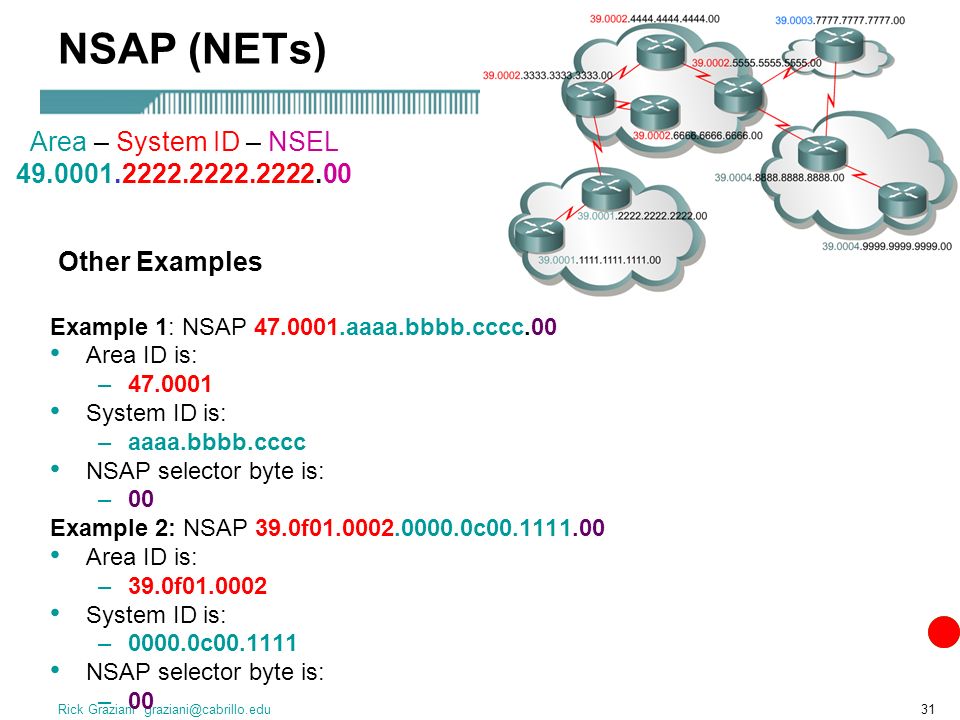

31 Rick Graziani graziani@cabrillo.edu31 NSAP (NETs) Example 1: NSAP 47.0001.aaaa.bbbb.cccc.00 Area ID is: –47.0001 System ID is: –aaaa.bbbb.cccc NSAP selector byte is: –00 Example 2: NSAP 39.0f01.0002.0000.0c00.1111.00 Area ID is: –39.0f01.0002 System ID is: –0000.0c00.1111 NSAP selector byte is: –00 Other Examples Area – System ID – NSEL 49.0001.2222.2222.2222.00

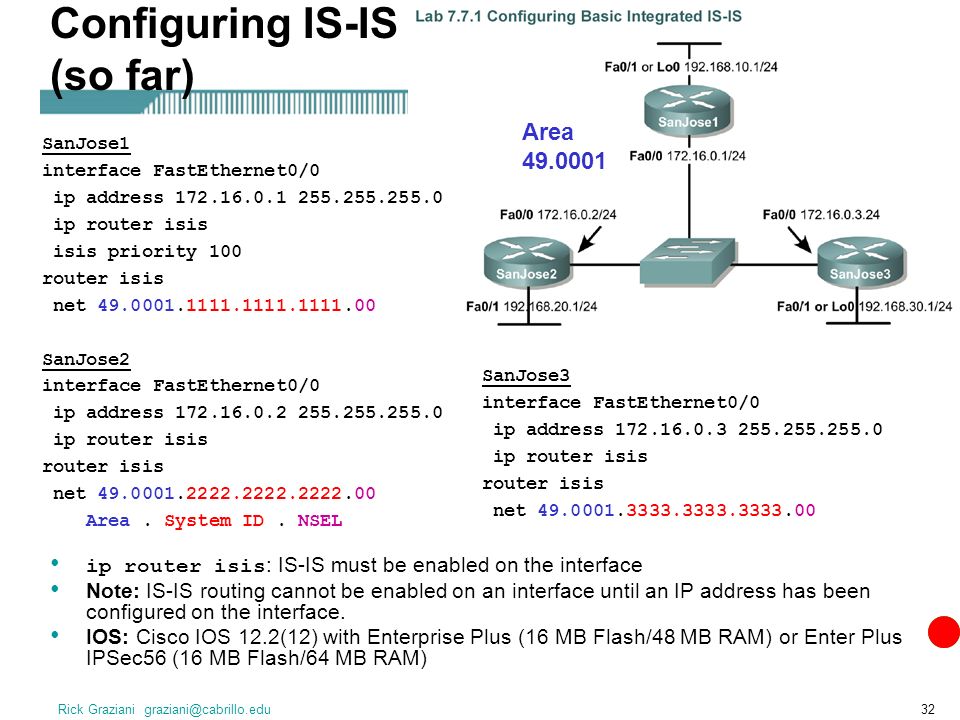

32 Rick Graziani graziani@cabrillo.edu32 Configuring IS-IS (so far) ip router isis : IS-IS must be enabled on the interface Note: IS-IS routing cannot be enabled on an interface until an IP address has been configured on the interface. IOS: Cisco IOS 12.2(12) with Enterprise Plus (16 MB Flash/48 MB RAM) or Enter Plus IPSec56 (16 MB Flash/64 MB RAM) SanJose1 interface FastEthernet0/0 ip address 172.16.0.1 255.255.255.0 ip router isis isis priority 100 router isis net 49.0001.1111.1111.1111.00 SanJose2 interface FastEthernet0/0 ip address 172.16.0.2 255.255.255.0 ip router isis router isis net 49.0001.2222.2222.2222.00 Area. System ID. NSEL SanJose3 interface FastEthernet0/0 ip address 172.16.0.3 255.255.255.0 ip router isis router isis net 49.0001.3333.3333.3333.00 Area 49.0001

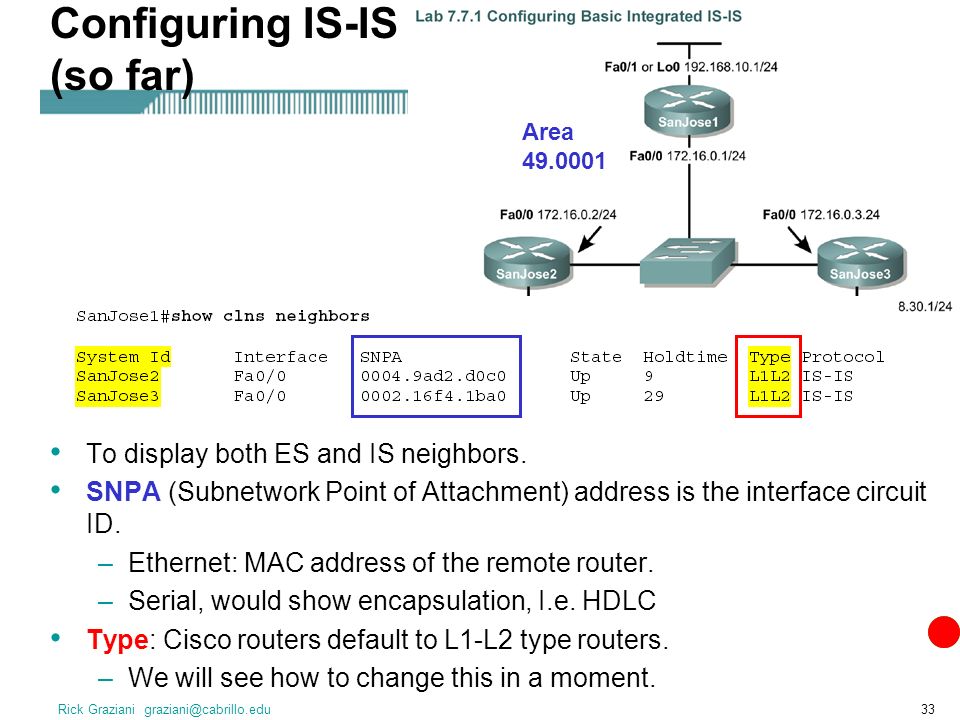

33 Rick Graziani graziani@cabrillo.edu33 Configuring IS-IS (so far) To display both ES and IS neighbors. SNPA (Subnetwork Point of Attachment) address is the interface circuit ID. –Ethernet: MAC address of the remote router. –Serial, would show encapsulation, I.e. HDLC Type: Cisco routers default to L1-L2 type routers. –We will see how to change this in a moment. Area 49.0001

34 IS-IS Adjacencies Are we half way yet?

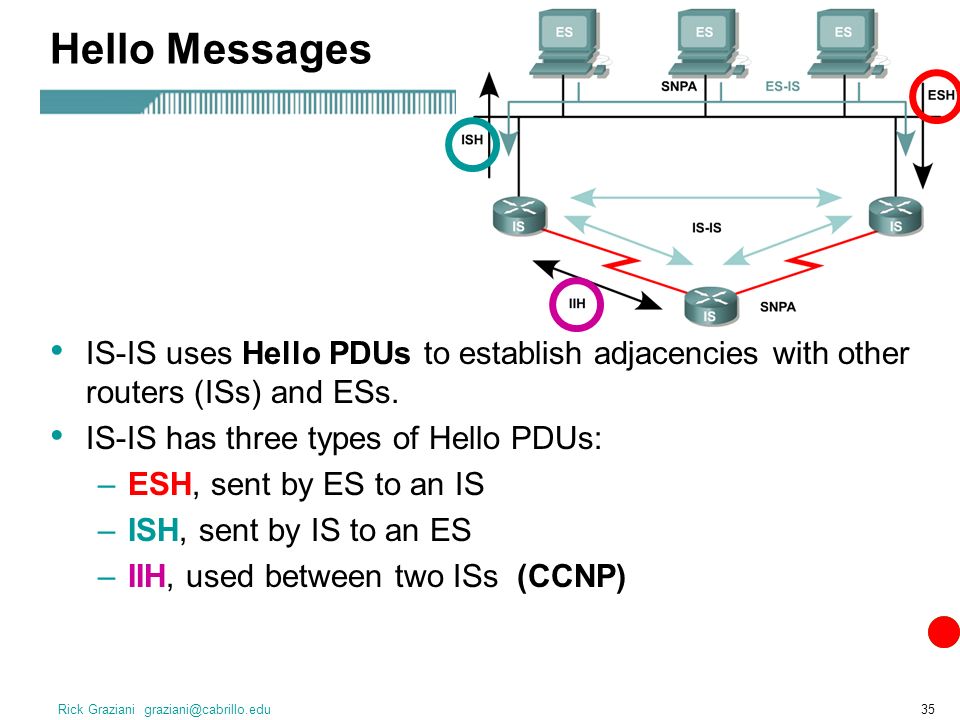

35 Rick Graziani graziani@cabrillo.edu35 Hello Messages IS-IS uses Hello PDUs to establish adjacencies with other routers (ISs) and ESs. IS-IS has three types of Hello PDUs: –ESH, sent by ES to an IS –ISH, sent by IS to an ES –IIH, used between two ISs (CCNP)

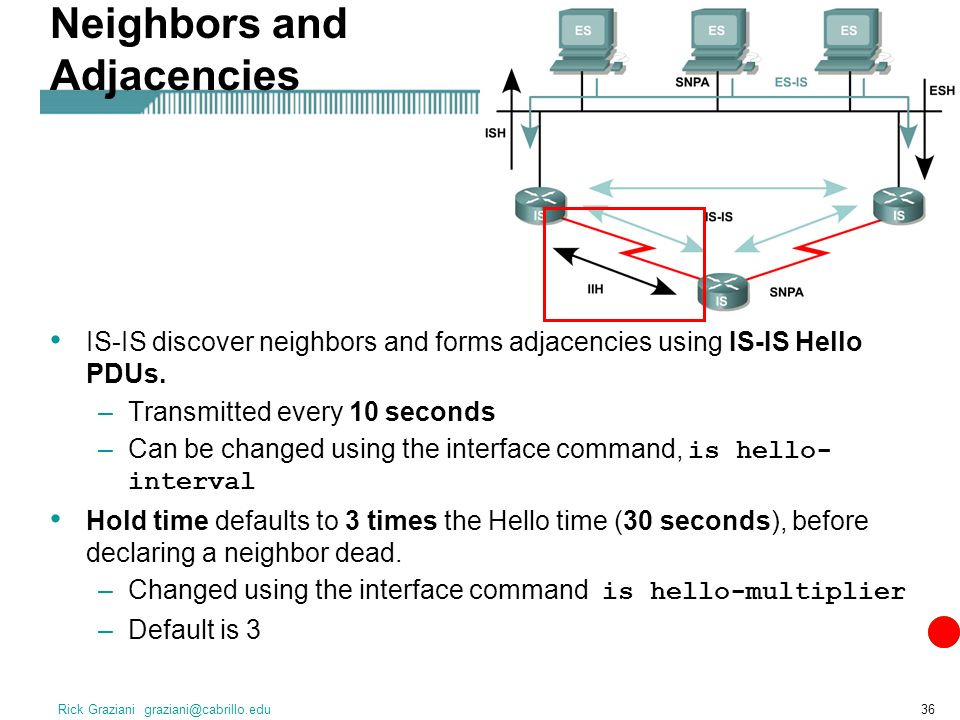

36 Rick Graziani graziani@cabrillo.edu36 Neighbors and Adjacencies IS-IS discover neighbors and forms adjacencies using IS-IS Hello PDUs. –Transmitted every 10 seconds –Can be changed using the interface command, is hello- interval Hold time defaults to 3 times the Hello time (30 seconds), before declaring a neighbor dead. –Changed using the interface command is hello-multiplier –Default is 3

37 Rick Graziani graziani@cabrillo.edu37 LAN Representation and Adjacencies Similar to the DR in OSPF… DIS (Designated IS) is elected to generate the LSP (Link State Packet, ie. LSA) representing the virtual router connecting all attached routers to a star-shaped topology LAN uses a virtual node called pseudonode. –Represents the LAN –Sent by the DIS DIS

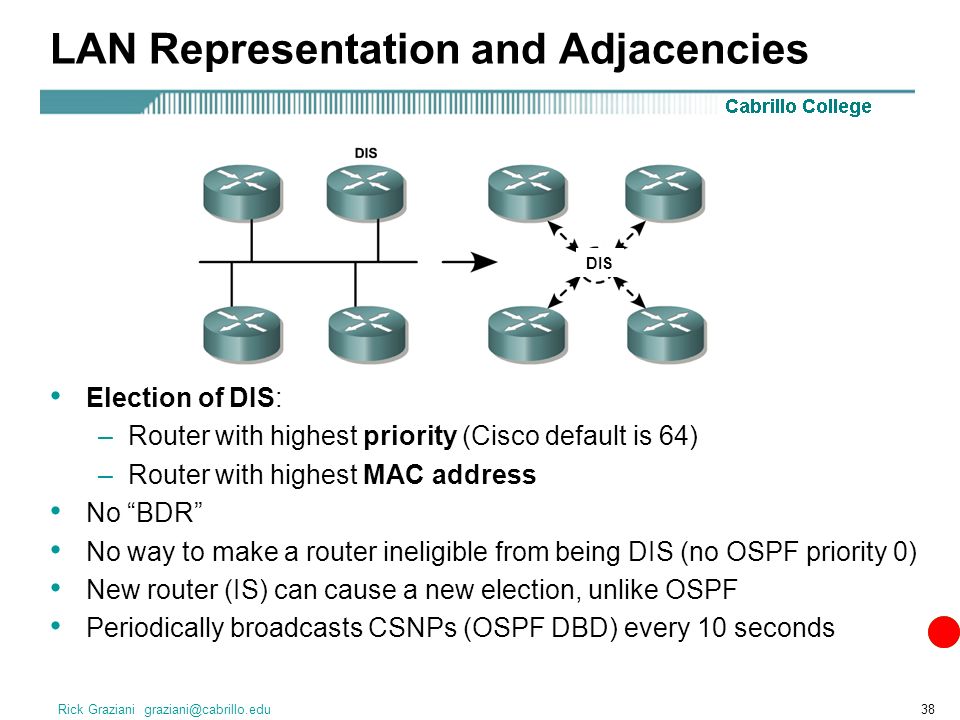

38 Rick Graziani graziani@cabrillo.edu38 LAN Representation and Adjacencies Election of DIS: –Router with highest priority (Cisco default is 64) –Router with highest MAC address No “BDR” No way to make a router ineligible from being DIS (no OSPF priority 0) New router (IS) can cause a new election, unlike OSPF Periodically broadcasts CSNPs (OSPF DBD) every 10 seconds DIS

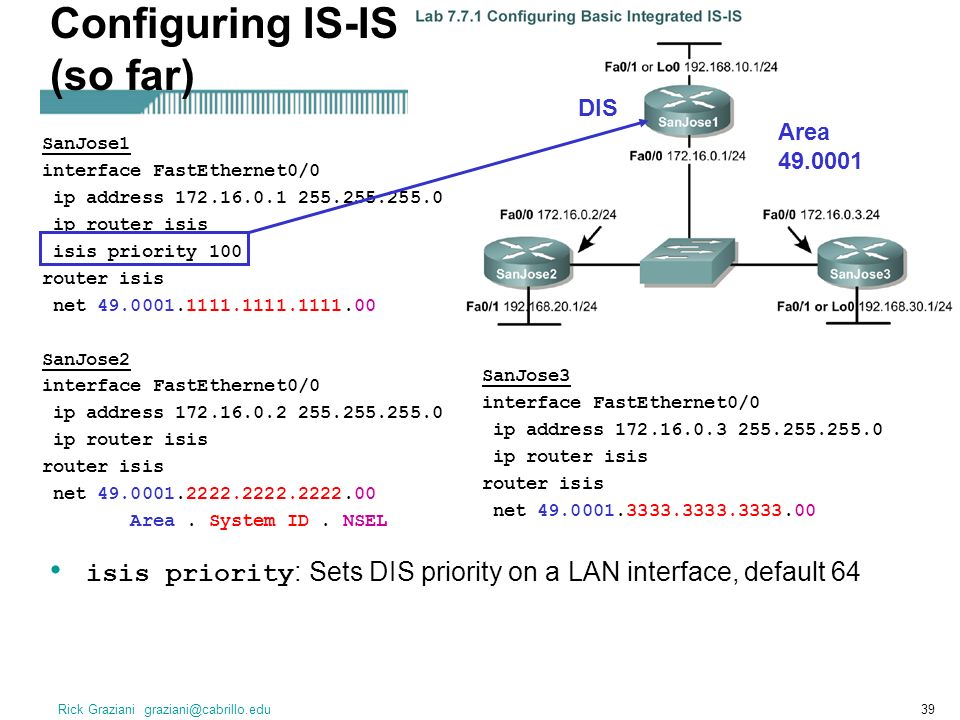

39 Rick Graziani graziani@cabrillo.edu39 Configuring IS-IS (so far) isis priority : Sets DIS priority on a LAN interface, default 64 SanJose1 interface FastEthernet0/0 ip address 172.16.0.1 255.255.255.0 ip router isis isis priority 100 router isis net 49.0001.1111.1111.1111.00 SanJose2 interface FastEthernet0/0 ip address 172.16.0.2 255.255.255.0 ip router isis router isis net 49.0001.2222.2222.2222.00 Area. System ID. NSEL SanJose3 interface FastEthernet0/0 ip address 172.16.0.3 255.255.255.0 ip router isis router isis net 49.0001.3333.3333.3333.00 Area 49.0001 DIS

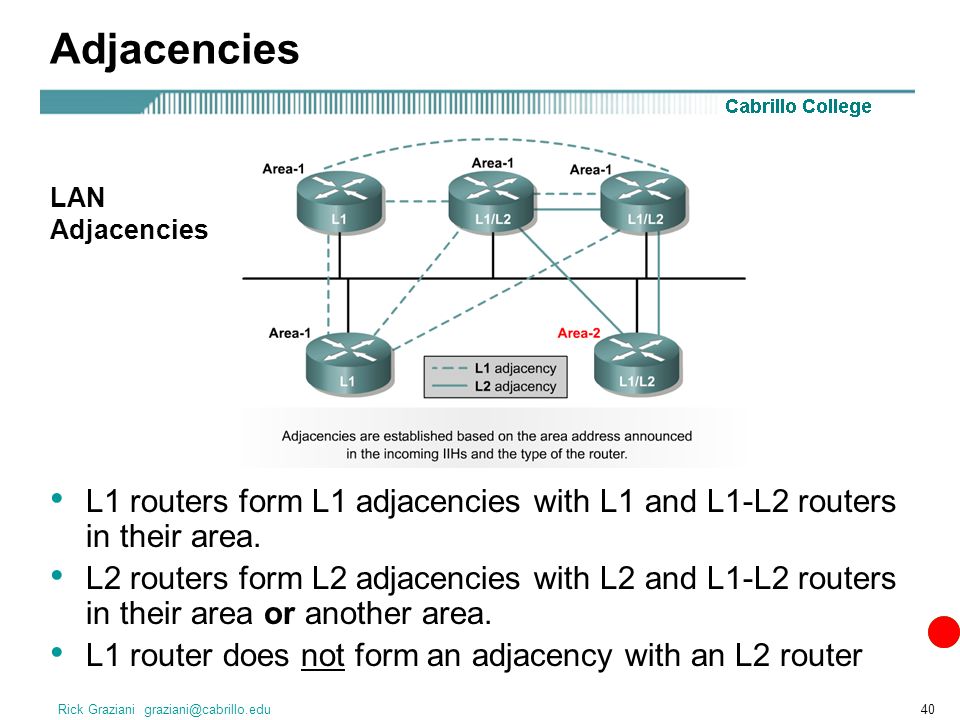

40 Rick Graziani graziani@cabrillo.edu40 Adjacencies L1 routers form L1 adjacencies with L1 and L1-L2 routers in their area. L2 routers form L2 adjacencies with L2 and L1-L2 routers in their area or another area. L1 router does not form an adjacency with an L2 router LAN Adjacencies

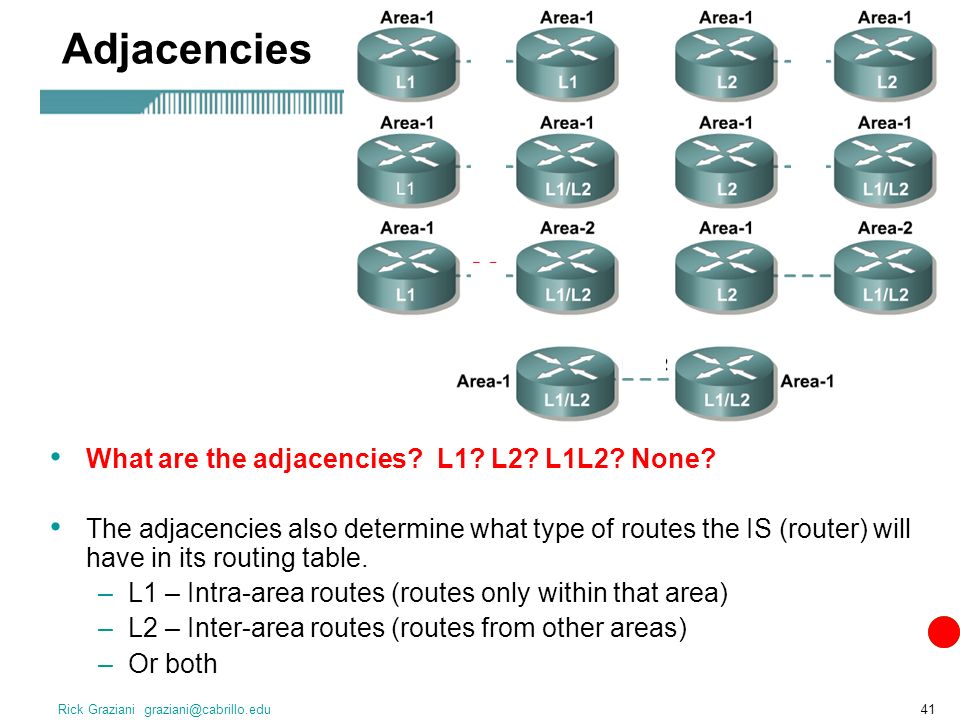

41 Rick Graziani graziani@cabrillo.edu41 Adjacencies What are the adjacencies? L1? L2? L1L2? None? The adjacencies also determine what type of routes the IS (router) will have in its routing table. –L1 – Intra-area routes (routes only within that area) –L2 – Inter-area routes (routes from other areas) –Or both

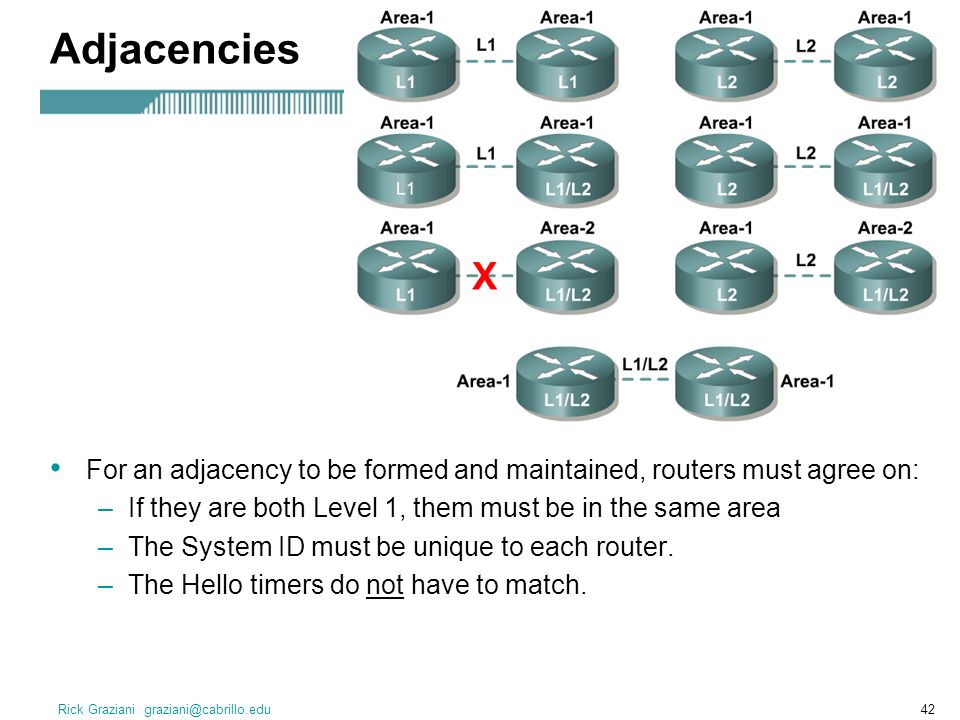

42 Rick Graziani graziani@cabrillo.edu42 Adjacencies For an adjacency to be formed and maintained, routers must agree on: –If they are both Level 1, them must be in the same area –The System ID must be unique to each router. –The Hello timers do not have to match.

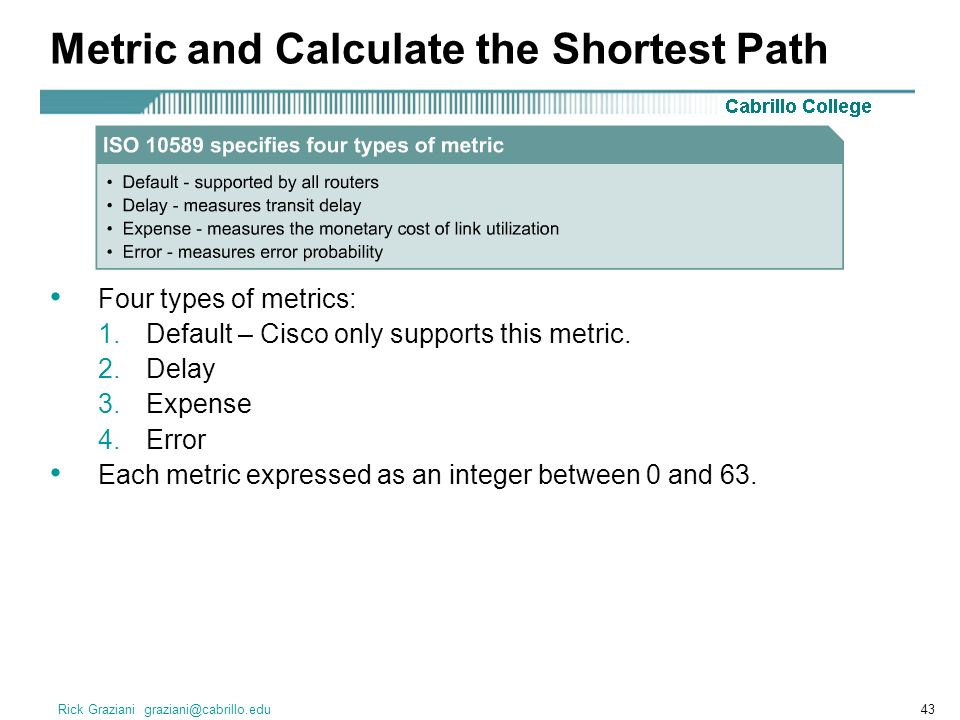

43 Rick Graziani graziani@cabrillo.edu43 Metric and Calculate the Shortest Path Four types of metrics: 1.Default – Cisco only supports this metric. 2.Delay 3.Expense 4.Error Each metric expressed as an integer between 0 and 63.

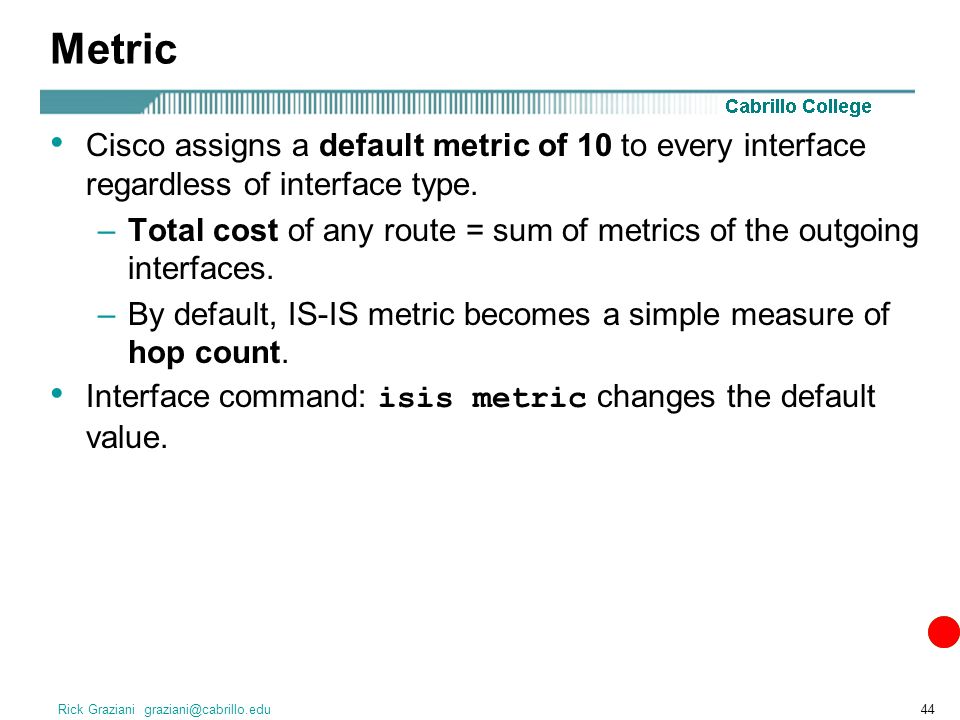

44 Rick Graziani graziani@cabrillo.edu44 Metric Cisco assigns a default metric of 10 to every interface regardless of interface type. –Total cost of any route = sum of metrics of the outgoing interfaces. –By default, IS-IS metric becomes a simple measure of hop count. Interface command: isis metric changes the default value.

45 Multi-Area IS-IS Example

46 Rick Graziani graziani@cabrillo.edu46 Levels is-type {level-1 | level-1-2 | level-2-only} L1L2 L1 L2 SanJose1 interface FastEthernet0/1 ip address 192.168.10.1 255.255.255.252 ip router isis interface FastEthernet0/0 ip address 172.16.0.1 255.255.255.0 ip router isis interface Serial0/0 ip address 10.0.0.2 255.255.255.252 ip router isis router isis net 49.0001.1111.1111.1111.00 is-type level-1-2 SanJose2 interface FastEthernet0/0 ip address 172.16.0.2 255.255.255.0 ip router isis interface FastEthernet0/1 ip address 192.168.20.1 255.255.255.0 ip router isis router isis net 49.0001.2222.2222.2222.00 is-type level-1 Phoenix interface Serial0/0 ip address 10.0.0.1 255.255.255.252 ip router isis interface FastEthernet0/1 ip address 192.168.30.1 255.255.255.0 ip router isis router isis net 49.0002.3333.3333.3333.00 is-type level-2-only Note: ip router isis command must be added not only to transit interfaces but also to interfaces connected to stub networks whose IP addresses should be advertised by IS-IS.

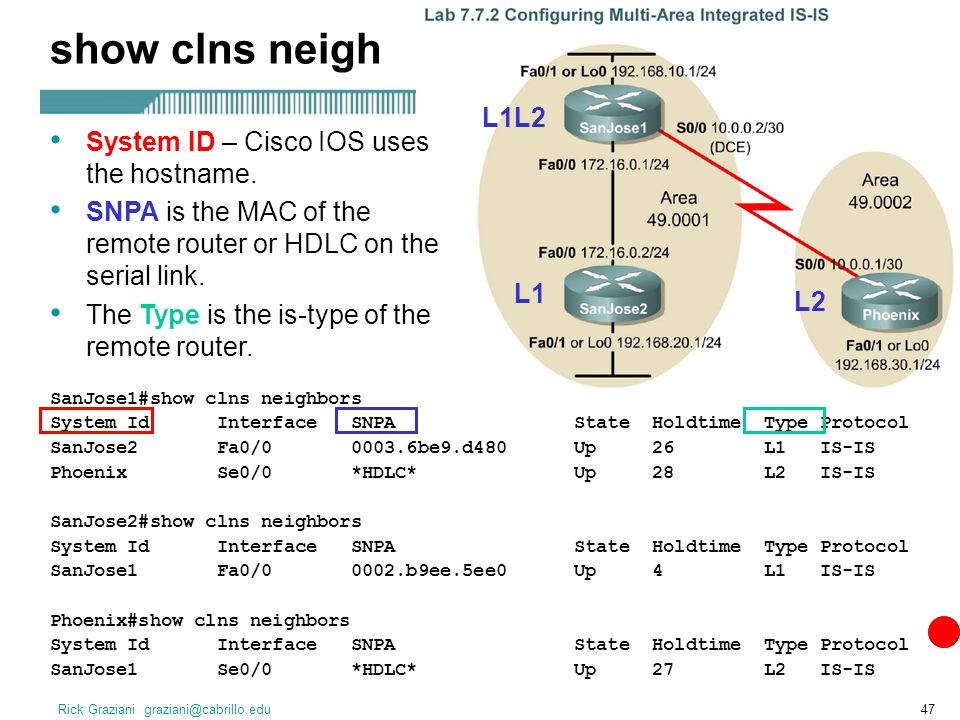

47 Rick Graziani graziani@cabrillo.edu47 show clns neigh L1L2 L1 L2 SanJose1#show clns neighbors System Id Interface SNPA State Holdtime Type Protocol SanJose2 Fa0/0 0003.6be9.d480 Up 26 L1 IS-IS Phoenix Se0/0 *HDLC* Up 28 L2 IS-IS SanJose2#show clns neighbors System Id Interface SNPA State Holdtime Type Protocol SanJose1 Fa0/0 0002.b9ee.5ee0 Up 4 L1 IS-IS Phoenix#show clns neighbors System Id Interface SNPA State Holdtime Type Protocol SanJose1 Se0/0 *HDLC* Up 27 L2 IS-IS System ID – Cisco IOS uses the hostname. SNPA is the MAC of the remote router or HDLC on the serial link. The Type is the is-type of the remote router.

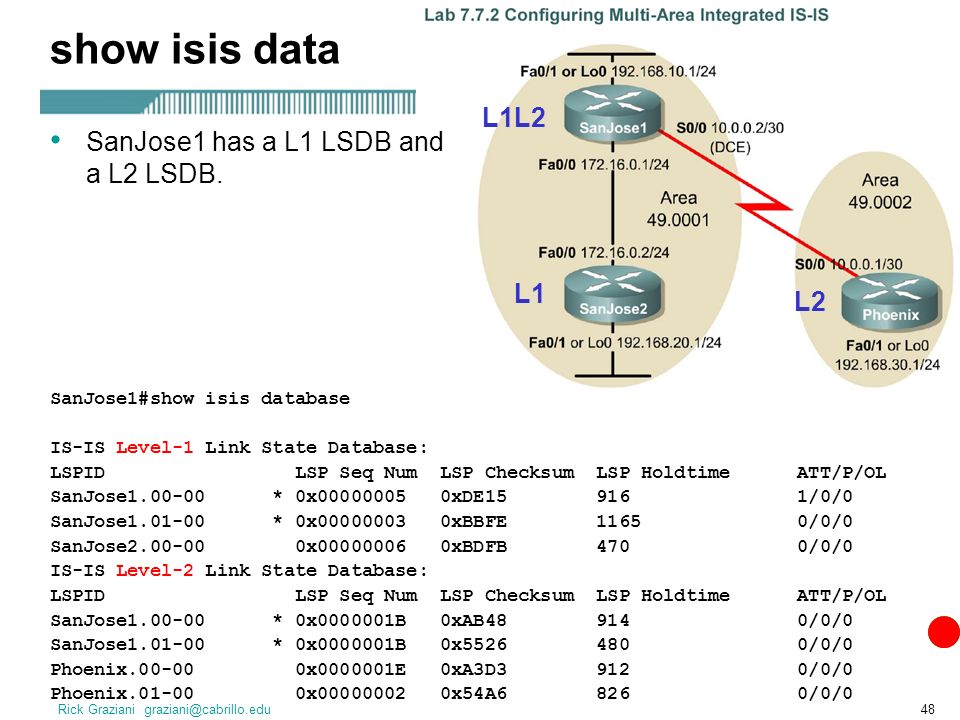

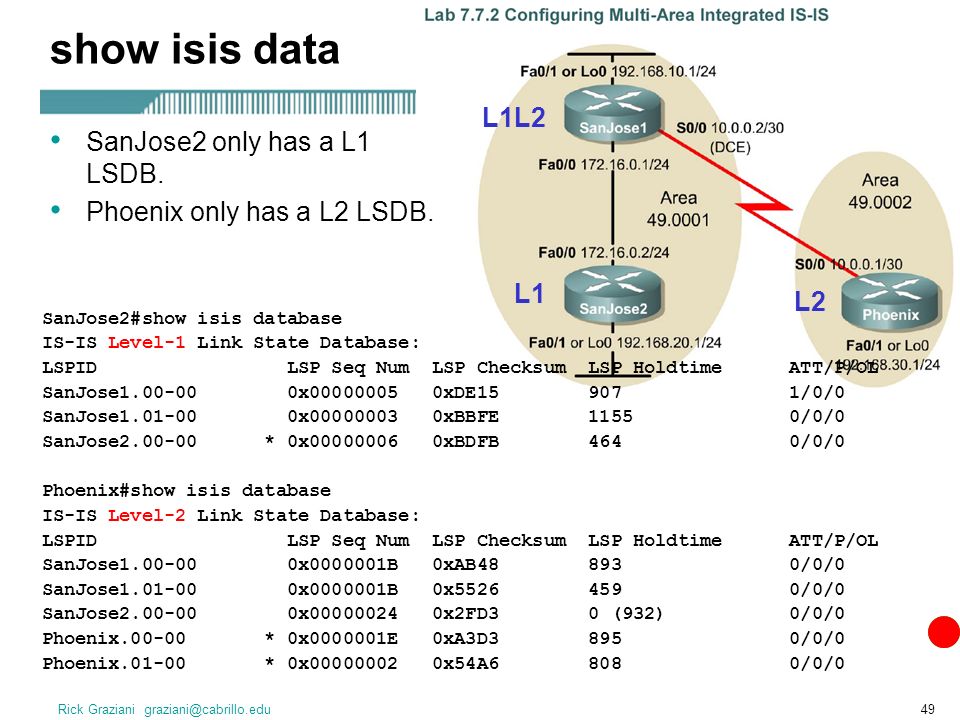

48 Rick Graziani graziani@cabrillo.edu48 show isis data L1L2 L1 L2 SanJose1#show isis database IS-IS Level-1 Link State Database: LSPID LSP Seq Num LSP Checksum LSP Holdtime ATT/P/OL SanJose1.00-00 * 0x00000005 0xDE15 916 1/0/0 SanJose1.01-00 * 0x00000003 0xBBFE 1165 0/0/0 SanJose2.00-00 0x00000006 0xBDFB 470 0/0/0 IS-IS Level-2 Link State Database: LSPID LSP Seq Num LSP Checksum LSP Holdtime ATT/P/OL SanJose1.00-00 * 0x0000001B 0xAB48 914 0/0/0 SanJose1.01-00 * 0x0000001B 0x5526 480 0/0/0 Phoenix.00-00 0x0000001E 0xA3D3 912 0/0/0 Phoenix.01-00 0x00000002 0x54A6 826 0/0/0 SanJose1 has a L1 LSDB and a L2 LSDB.

49 Rick Graziani graziani@cabrillo.edu49 show isis data L1L2 L1 L2 SanJose2#show isis database IS-IS Level-1 Link State Database: LSPID LSP Seq Num LSP Checksum LSP Holdtime ATT/P/OL SanJose1.00-00 0x00000005 0xDE15 907 1/0/0 SanJose1.01-00 0x00000003 0xBBFE 1155 0/0/0 SanJose2.00-00 * 0x00000006 0xBDFB 464 0/0/0 Phoenix#show isis database IS-IS Level-2 Link State Database: LSPID LSP Seq Num LSP Checksum LSP Holdtime ATT/P/OL SanJose1.00-00 0x0000001B 0xAB48 893 0/0/0 SanJose1.01-00 0x0000001B 0x5526 459 0/0/0 SanJose2.00-00 0x00000024 0x2FD3 0 (932) 0/0/0 Phoenix.00-00 * 0x0000001E 0xA3D3 895 0/0/0 Phoenix.01-00 * 0x00000002 0x54A6 808 0/0/0 SanJose2 only has a L1 LSDB. Phoenix only has a L2 LSDB.

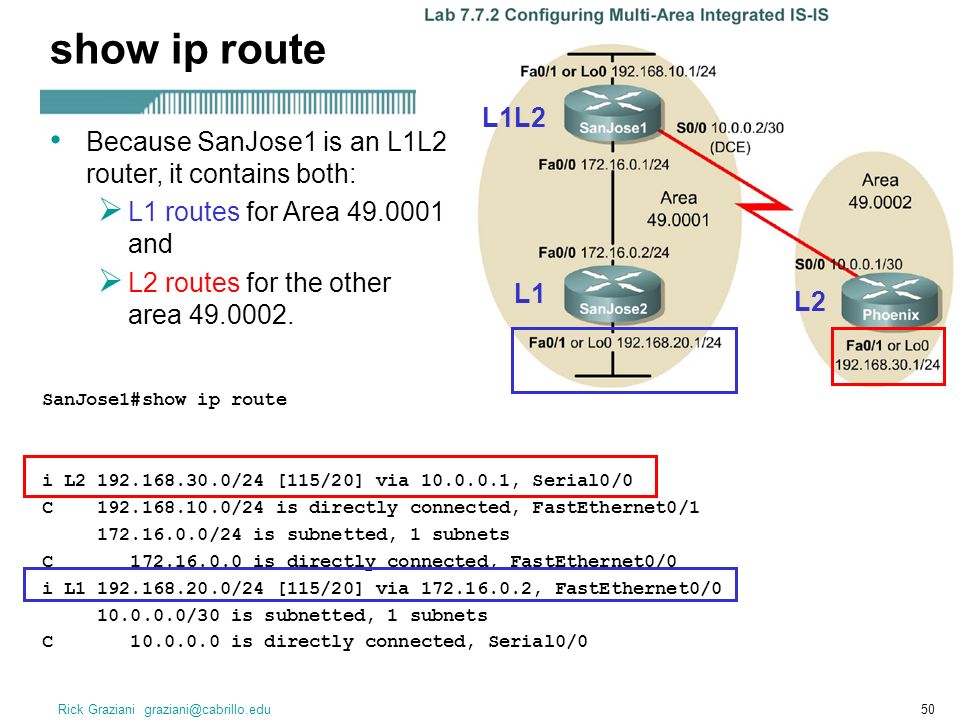

50 Rick Graziani graziani@cabrillo.edu50 show ip route L1L2 L1 L2 SanJose1#show ip route i L2 192.168.30.0/24 [115/20] via 10.0.0.1, Serial0/0 C 192.168.10.0/24 is directly connected, FastEthernet0/1 172.16.0.0/24 is subnetted, 1 subnets C 172.16.0.0 is directly connected, FastEthernet0/0 i L1 192.168.20.0/24 [115/20] via 172.16.0.2, FastEthernet0/0 10.0.0.0/30 is subnetted, 1 subnets C 10.0.0.0 is directly connected, Serial0/0 Because SanJose1 is an L1L2 router, it contains both:  L1 routes for Area 49.0001 and  L2 routes for the other area 49.0002.

51 Rick Graziani graziani@cabrillo.edu51 show ip route L1L2 L1 L2 SanJose2#show ip route i L1 192.168.10.0/24 [115/20] via 172.16.0.1, FastEthernet0/0 172.16.0.0/24 is subnetted, 1 subnets C 172.16.0.0 is directly connected, FastEthernet0/0 C 192.168.20.0/24 is directly connected, FastEthernet0/1 10.0.0.0/30 is subnetted, 1 subnets i L1 10.0.0.0 [115/20] via 172.16.0.1, FastEthernet0/0 i*L1 0.0.0.0/0 [115/10] via 172.16.0.1, FastEthernet0/0 Because SanJose2 is only an L1 router, it only contains:  L1 routes for Area 49.0001 and  The 0.0.0.0/0 default route sent by SanJose1.  L1-only routers, always learn a default route from a neighboring L1-L2router

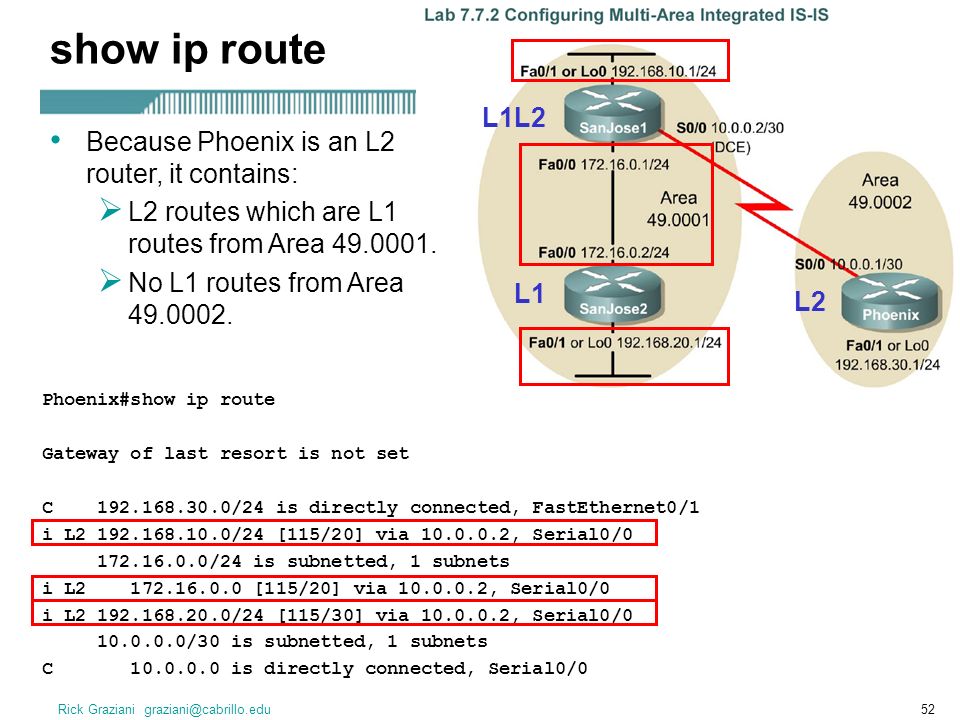

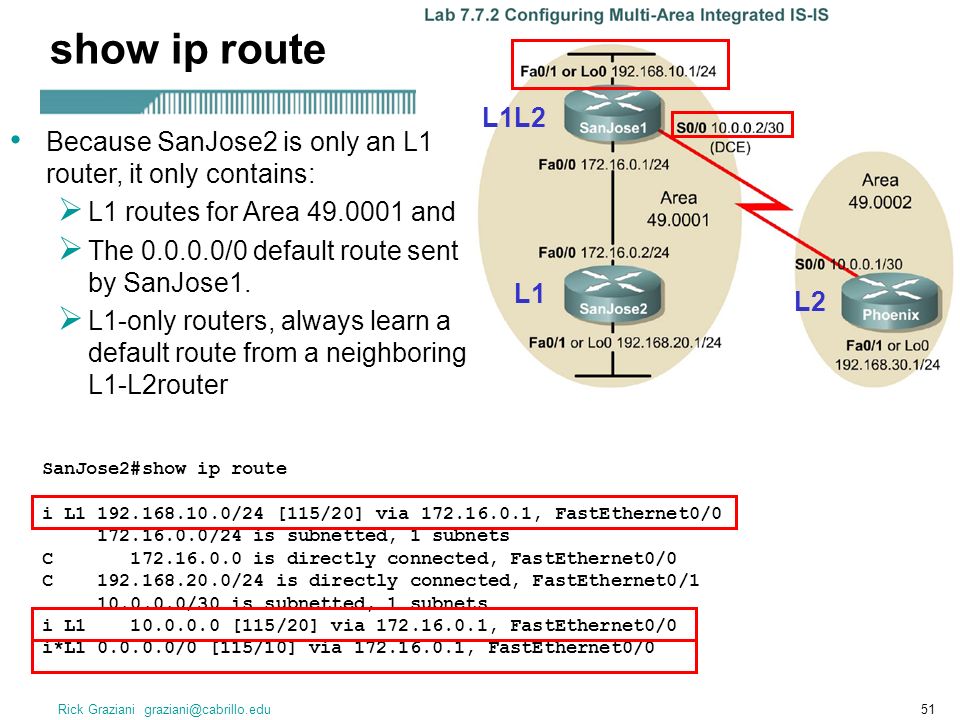

52 Rick Graziani graziani@cabrillo.edu52 show ip route L1L2 L1 L2 Phoenix#show ip route Gateway of last resort is not set C 192.168.30.0/24 is directly connected, FastEthernet0/1 i L2 192.168.10.0/24 [115/20] via 10.0.0.2, Serial0/0 172.16.0.0/24 is subnetted, 1 subnets i L2 172.16.0.0 [115/20] via 10.0.0.2, Serial0/0 i L2 192.168.20.0/24 [115/30] via 10.0.0.2, Serial0/0 10.0.0.0/30 is subnetted, 1 subnets C 10.0.0.0 is directly connected, Serial0/0 Because Phoenix is an L2 router, it contains:  L2 routes which are L1 routes from Area 49.0001.  No L1 routes from Area 49.0002.

53 Rick Graziani graziani@cabrillo.edu53 Some final notes… IS-IS encapsulate PDUs directly into the data-link frame. Uses an on-demand circuit to reduce Hello and LSP flooding across switched WAN links like ISDN. If no metric is specified for routes redistributed into IS-IS the default metric is 0. IS-IS router may have adjacencies with other routers on multipoint links. “i su” in the routing table code means the route is an IS-IS summary route. IS-IS provides support for multiple network layer protocols IS-IS forms adjacencies with all neighbors. By default, Cisco IS-IS routers are Level 1-2 routers.

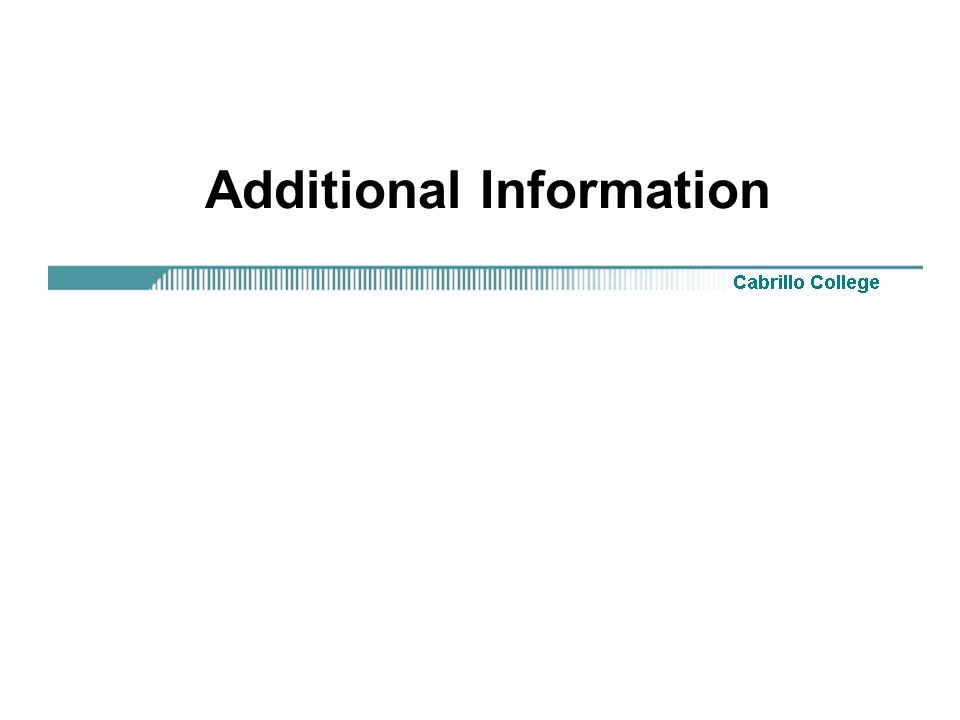

54 Additional Information

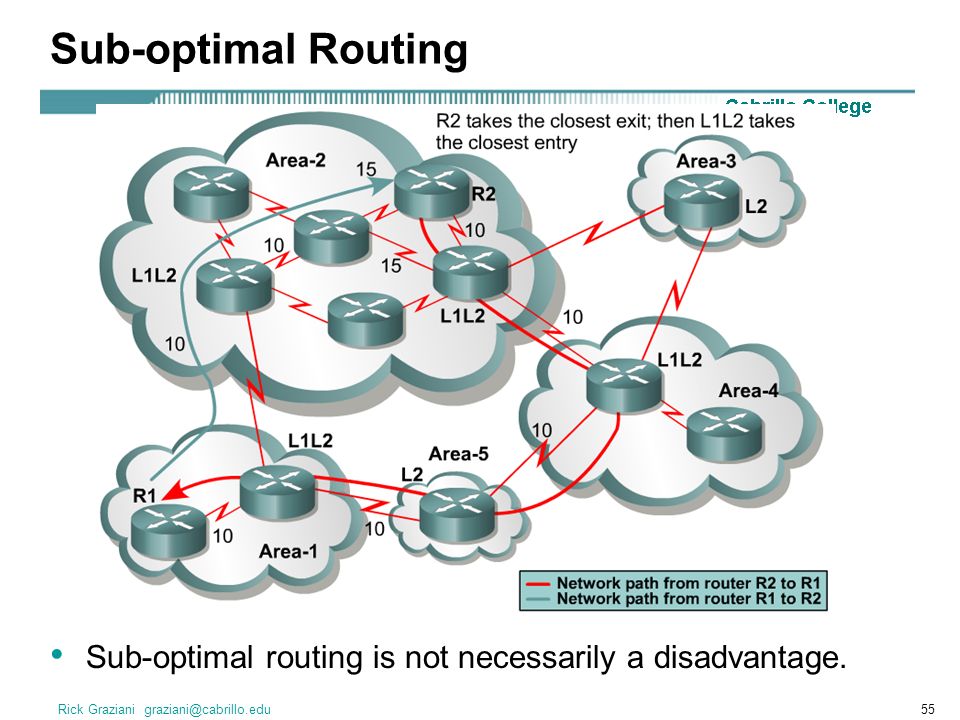

55 Rick Graziani graziani@cabrillo.edu55 Sub-optimal Routing Sub-optimal routing is not necessarily a disadvantage.

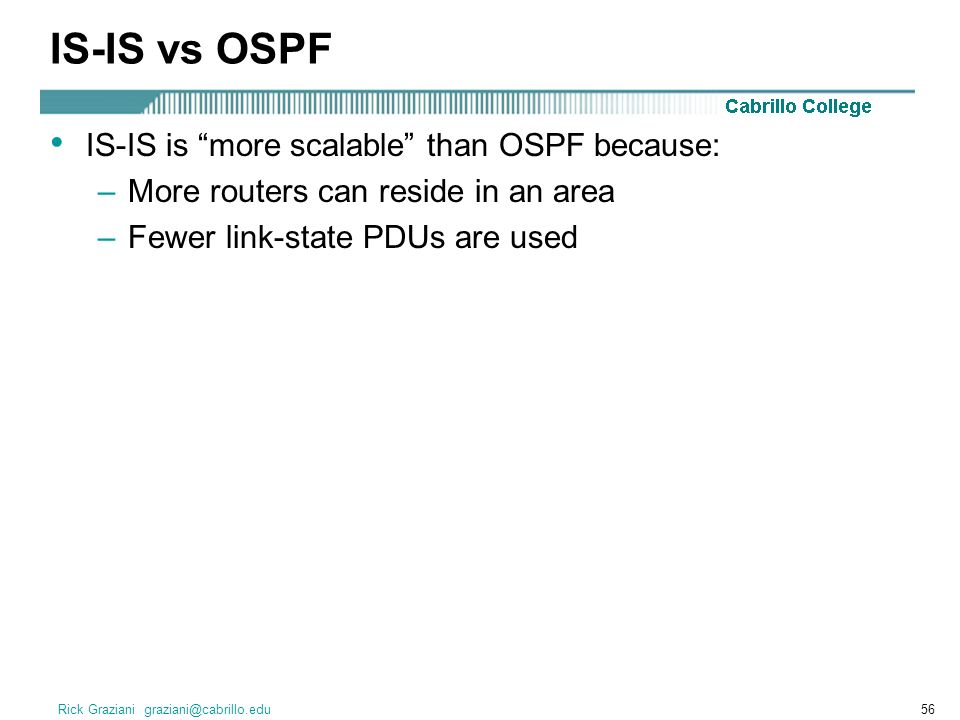

56 Rick Graziani graziani@cabrillo.edu56 IS-IS vs OSPF IS-IS is “more scalable” than OSPF because: –More routers can reside in an area –Fewer link-state PDUs are used

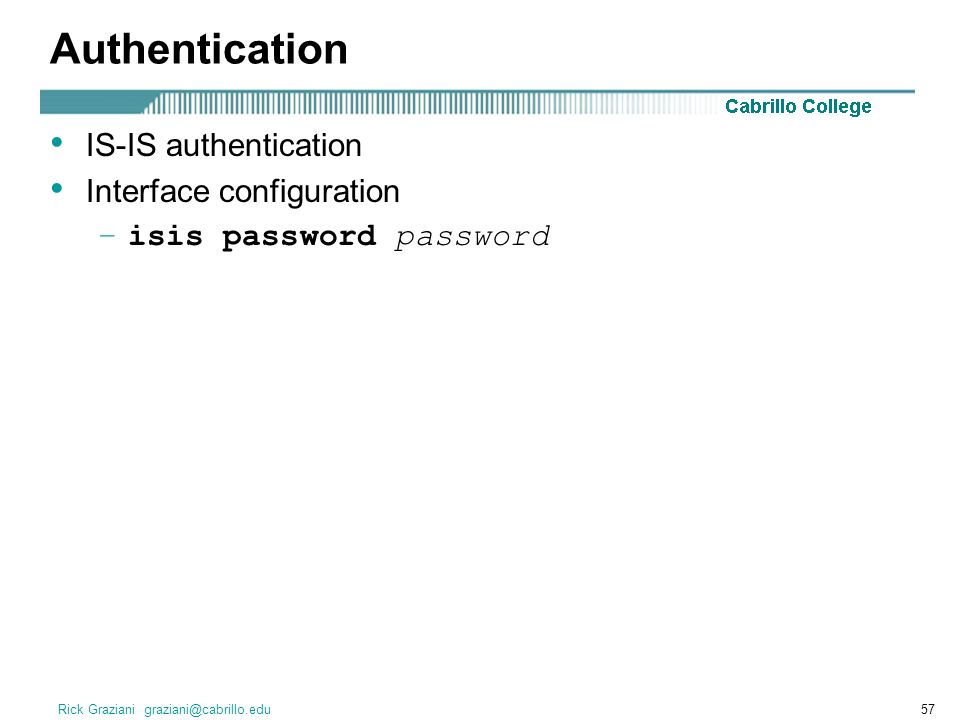

57 Rick Graziani graziani@cabrillo.edu57 Authentication IS-IS authentication Interface configuration –isis password password

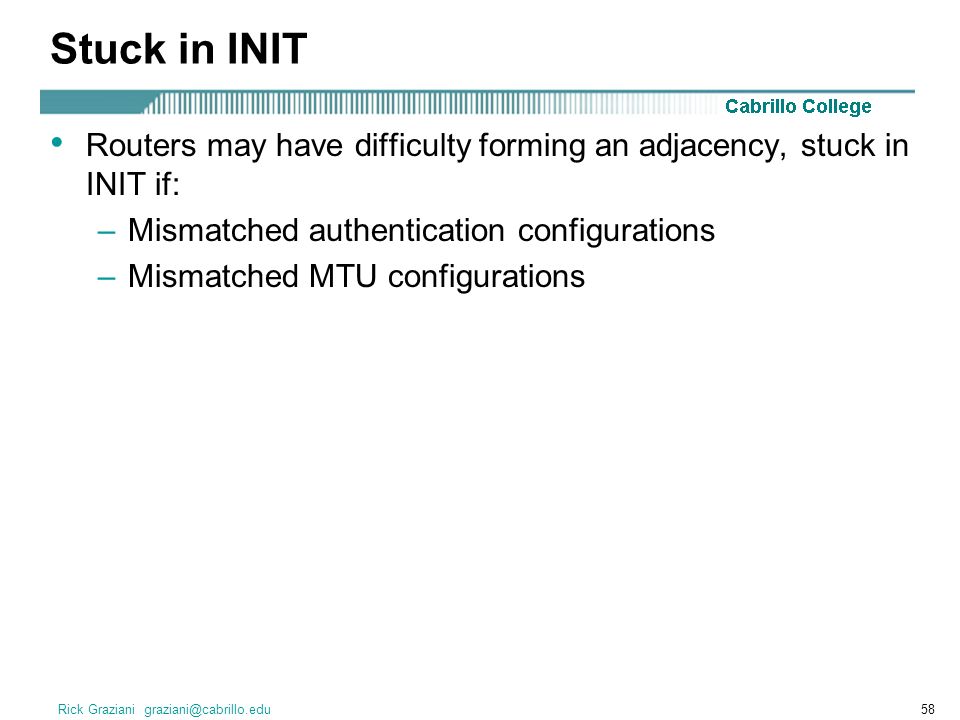

58 Rick Graziani graziani@cabrillo.edu58 Stuck in INIT Routers may have difficulty forming an adjacency, stuck in INIT if: –Mismatched authentication configurations –Mismatched MTU configurations

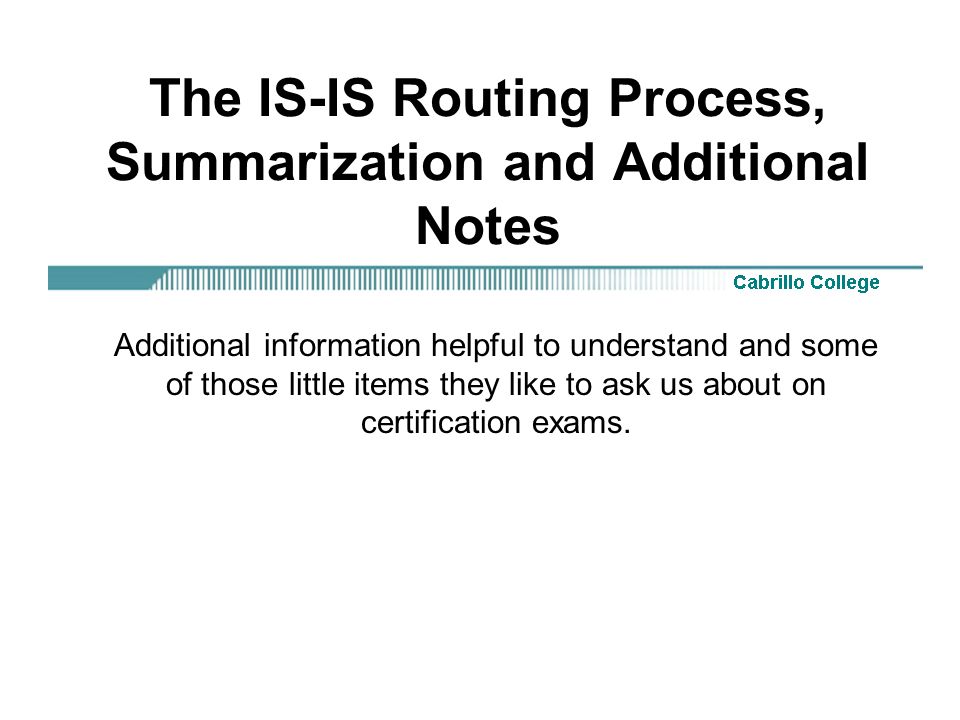

59 The IS-IS Routing Process, Summarization and Additional Notes Additional information helpful to understand and some of those little items they like to ask us about on certification exams.

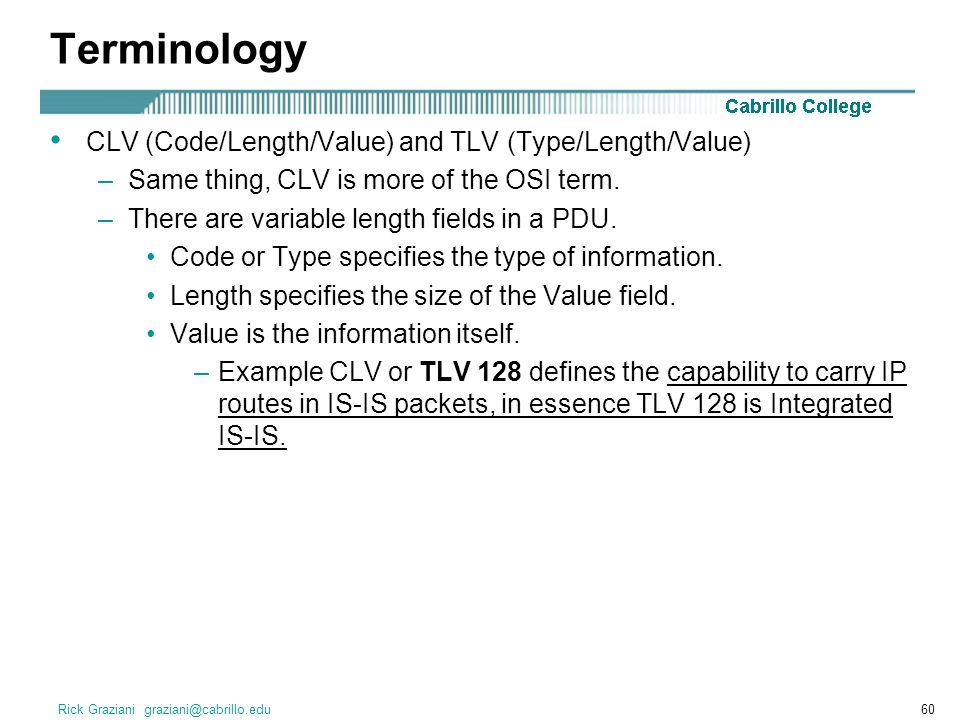

60 Rick Graziani graziani@cabrillo.edu60 Terminology CLV (Code/Length/Value) and TLV (Type/Length/Value) –Same thing, CLV is more of the OSI term. –There are variable length fields in a PDU. Code or Type specifies the type of information. Length specifies the size of the Value field. Value is the information itself. –Example CLV or TLV 128 defines the capability to carry IP routes in IS-IS packets, in essence TLV 128 is Integrated IS-IS.

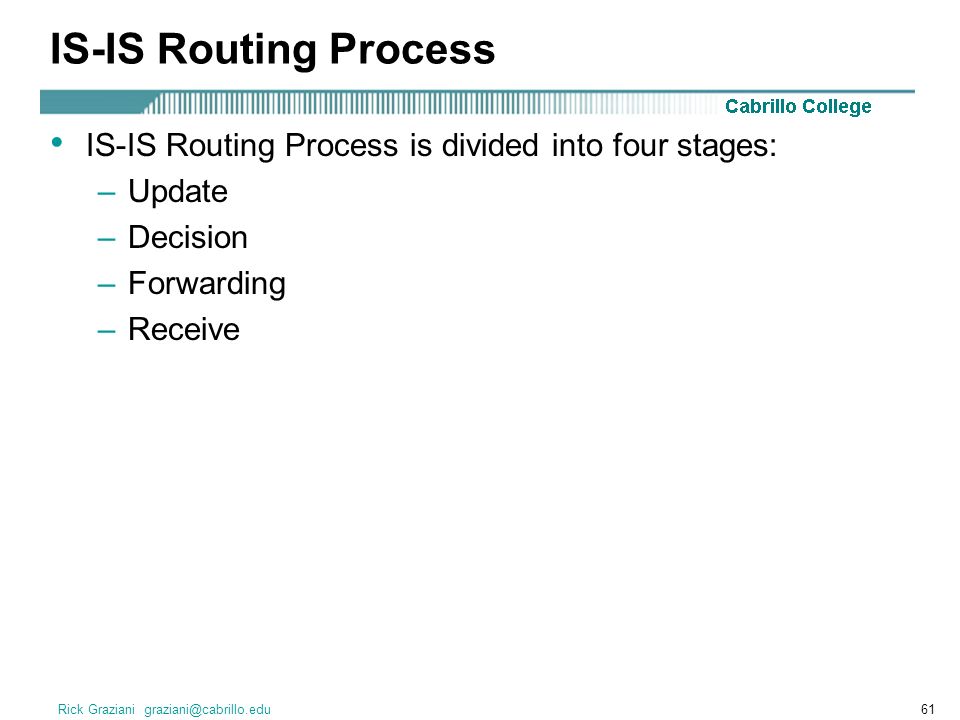

61 Rick Graziani graziani@cabrillo.edu61 IS-IS Routing Process IS-IS Routing Process is divided into four stages: –Update –Decision –Forwarding –Receive

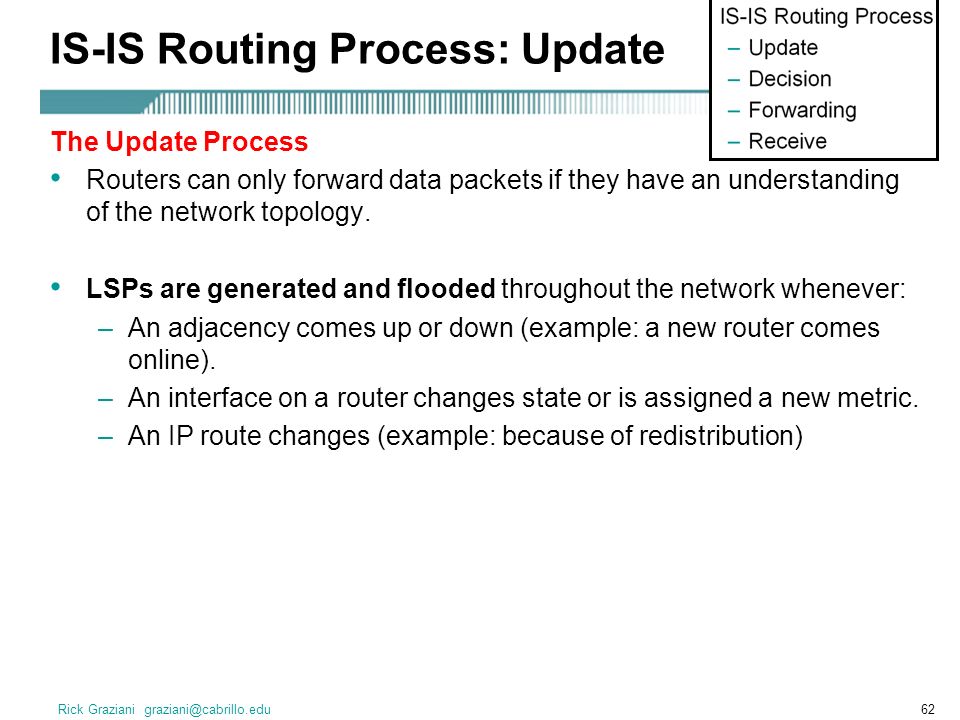

62 Rick Graziani graziani@cabrillo.edu62 IS-IS Routing Process: Update The Update Process Routers can only forward data packets if they have an understanding of the network topology. LSPs are generated and flooded throughout the network whenever: –An adjacency comes up or down (example: a new router comes online). –An interface on a router changes state or is assigned a new metric. –An IP route changes (example: because of redistribution)

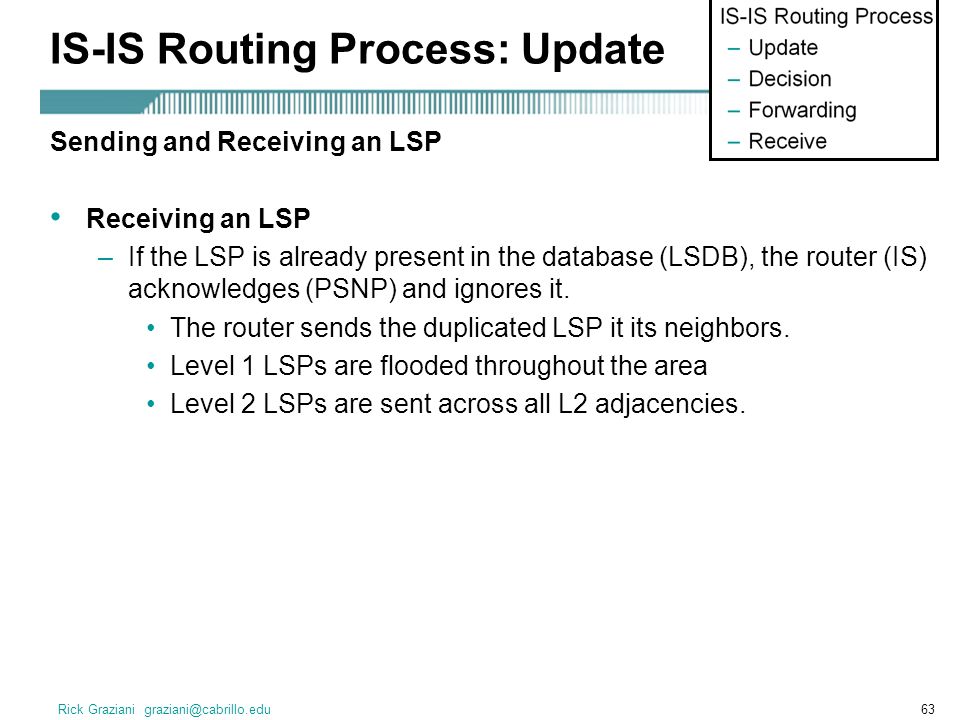

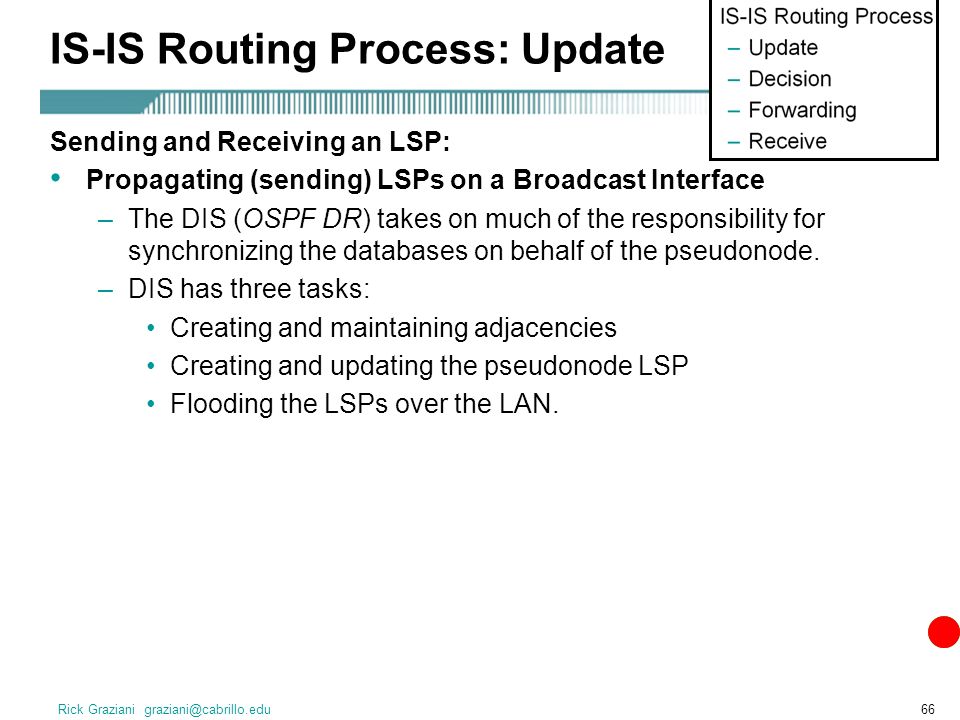

63 Rick Graziani graziani@cabrillo.edu63 IS-IS Routing Process: Update Sending and Receiving an LSP Receiving an LSP –If the LSP is already present in the database (LSDB), the router (IS) acknowledges (PSNP) and ignores it. The router sends the duplicated LSP it its neighbors. Level 1 LSPs are flooded throughout the area Level 2 LSPs are sent across all L2 adjacencies.

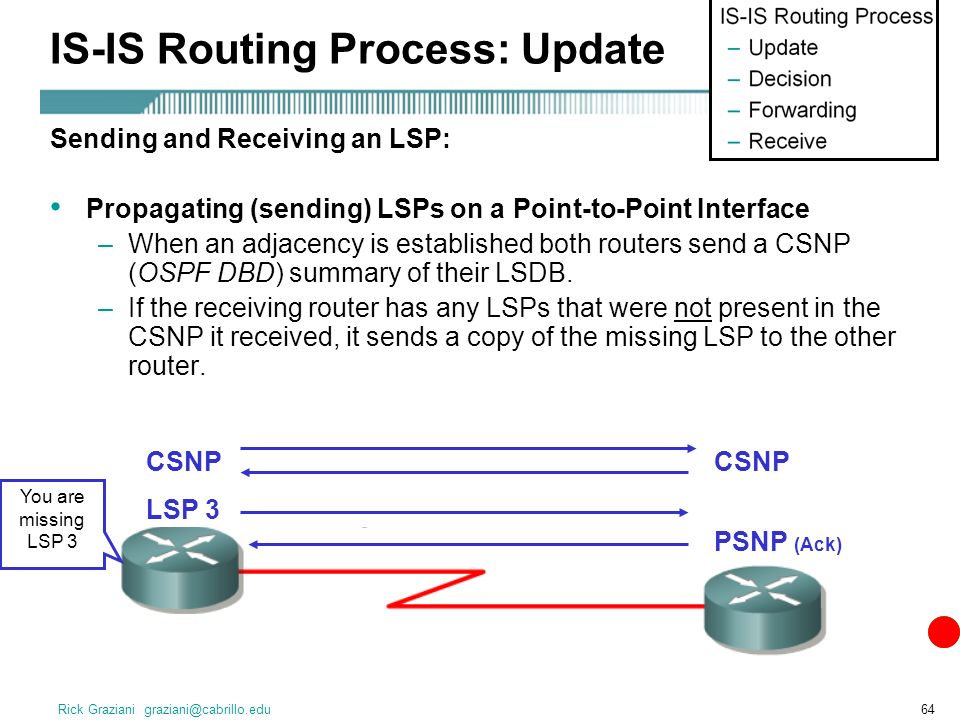

64 Rick Graziani graziani@cabrillo.edu64 IS-IS Routing Process: Update Sending and Receiving an LSP: Propagating (sending) LSPs on a Point-to-Point Interface –When an adjacency is established both routers send a CSNP (OSPF DBD) summary of their LSDB. –If the receiving router has any LSPs that were not present in the CSNP it received, it sends a copy of the missing LSP to the other router. CSNP You are missing LSP 3 LSP 3 PSNP (Ack)

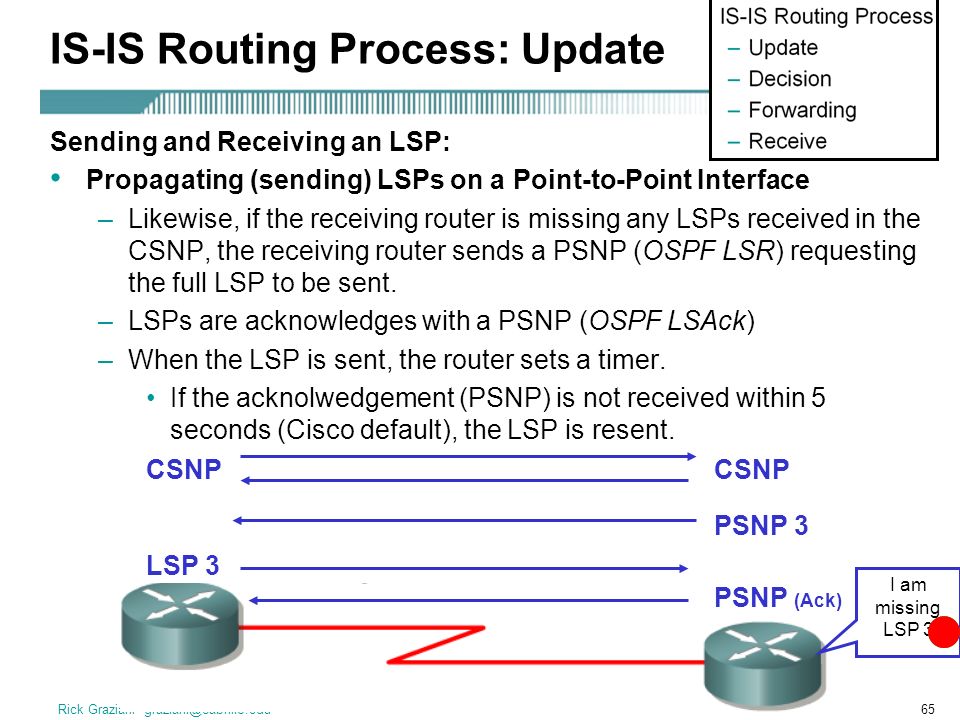

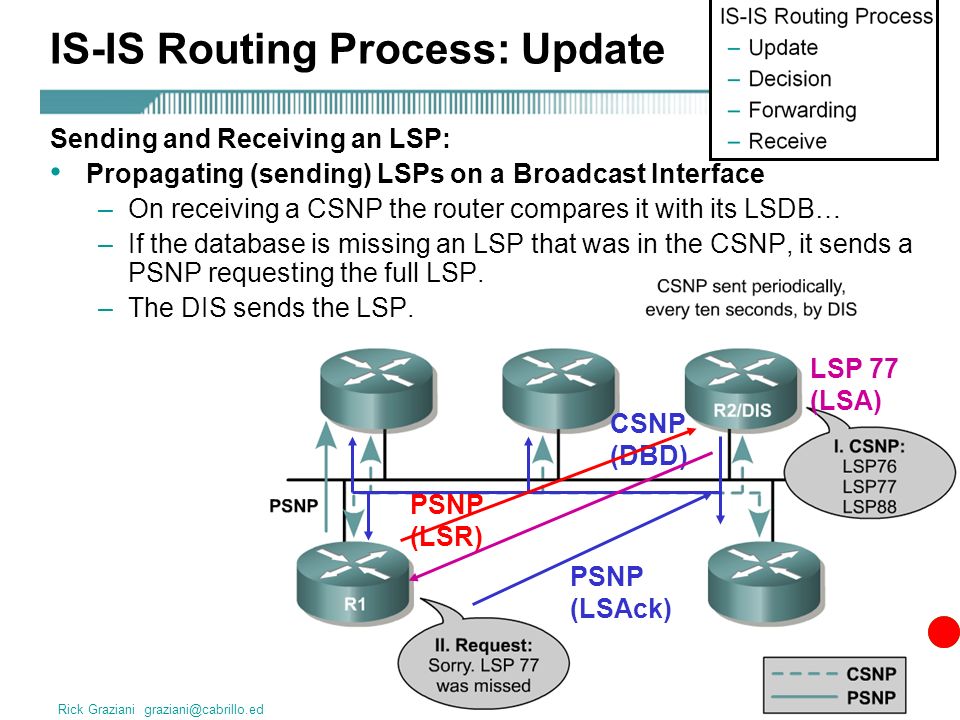

65 Rick Graziani graziani@cabrillo.edu65 IS-IS Routing Process: Update Sending and Receiving an LSP: Propagating (sending) LSPs on a Point-to-Point Interface –Likewise, if the receiving router is missing any LSPs received in the CSNP, the receiving router sends a PSNP (OSPF LSR) requesting the full LSP to be sent. –LSPs are acknowledges with a PSNP (OSPF LSAck) –When the LSP is sent, the router sets a timer. If the acknolwedgement (PSNP) is not received within 5 seconds (Cisco default), the LSP is resent. CSNP I am missing LSP 3 LSP 3 PSNP (Ack) PSNP 3

66 Rick Graziani graziani@cabrillo.edu66 IS-IS Routing Process: Update Sending and Receiving an LSP: Propagating (sending) LSPs on a Broadcast Interface –The DIS (OSPF DR) takes on much of the responsibility for synchronizing the databases on behalf of the pseudonode. –DIS has three tasks: Creating and maintaining adjacencies Creating and updating the pseudonode LSP Flooding the LSPs over the LAN.

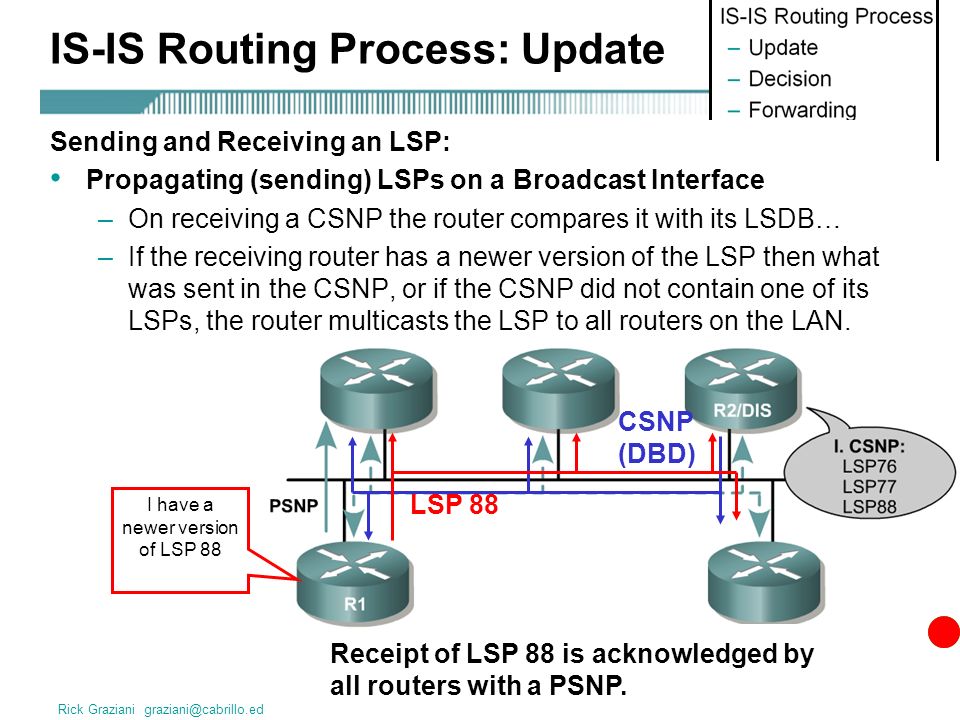

67 Rick Graziani graziani@cabrillo.edu67 IS-IS Routing Process: Update CSNP (DBD) LSP 88 Sending and Receiving an LSP: Propagating (sending) LSPs on a Broadcast Interface –On receiving a CSNP the router compares it with its LSDB… –If the receiving router has a newer version of the LSP then what was sent in the CSNP, or if the CSNP did not contain one of its LSPs, the router multicasts the LSP to all routers on the LAN. I have a newer version of LSP 88 Receipt of LSP 88 is acknowledged by all routers with a PSNP.

68 Rick Graziani graziani@cabrillo.edu68 IS-IS Routing Process: Update CSNP (DBD) PSNP (LSR) LSP 77 (LSA) PSNP (LSAck) Sending and Receiving an LSP: Propagating (sending) LSPs on a Broadcast Interface –On receiving a CSNP the router compares it with its LSDB… –If the database is missing an LSP that was in the CSNP, it sends a PSNP requesting the full LSP. –The DIS sends the LSP.

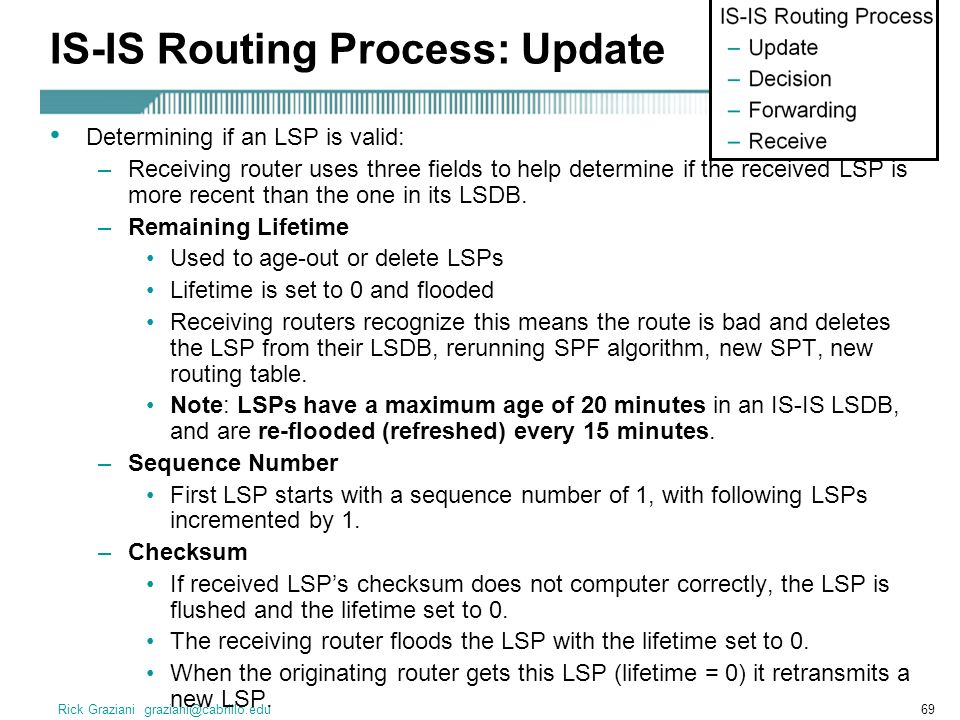

69 Rick Graziani graziani@cabrillo.edu69 IS-IS Routing Process: Update Determining if an LSP is valid: –Receiving router uses three fields to help determine if the received LSP is more recent than the one in its LSDB. –Remaining Lifetime Used to age-out or delete LSPs Lifetime is set to 0 and flooded Receiving routers recognize this means the route is bad and deletes the LSP from their LSDB, rerunning SPF algorithm, new SPT, new routing table. Note: LSPs have a maximum age of 20 minutes in an IS-IS LSDB, and are re-flooded (refreshed) every 15 minutes. –Sequence Number First LSP starts with a sequence number of 1, with following LSPs incremented by 1. –Checksum If received LSP’s checksum does not computer correctly, the LSP is flushed and the lifetime set to 0. The receiving router floods the LSP with the lifetime set to 0. When the originating router gets this LSP (lifetime = 0) it retransmits a new LSP.

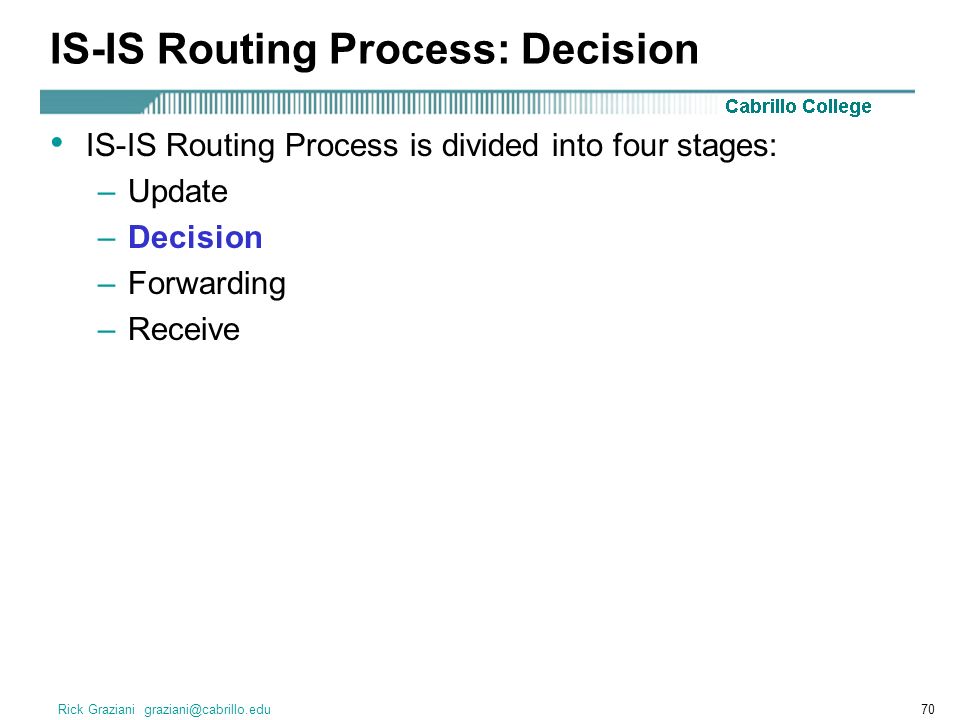

70 Rick Graziani graziani@cabrillo.edu70 IS-IS Routing Process: Decision IS-IS Routing Process is divided into four stages: –Update –Decision –Forwarding –Receive

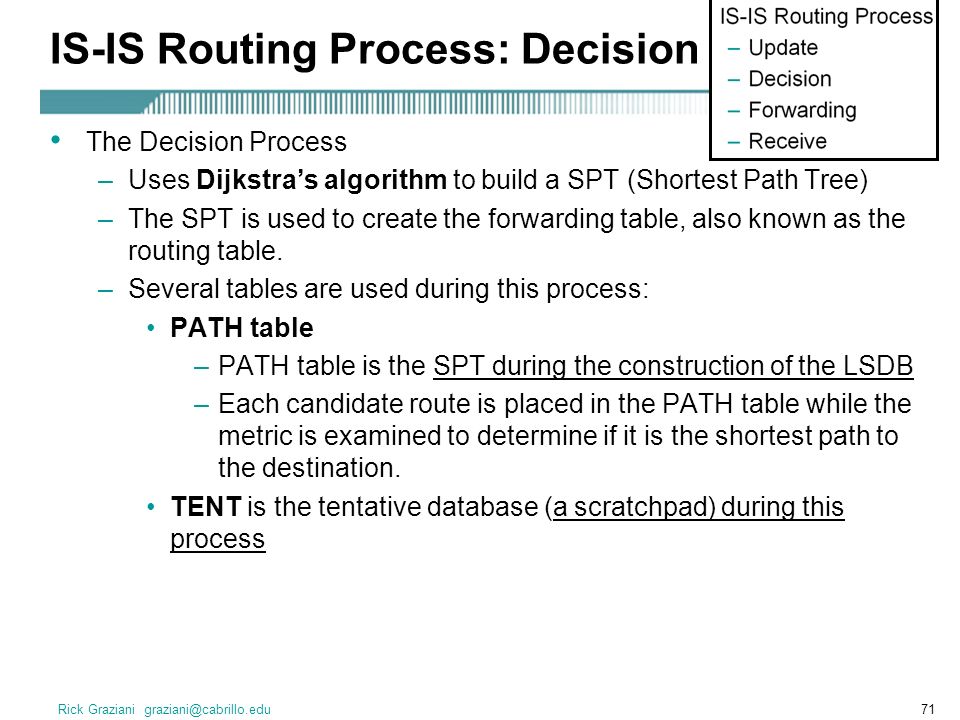

71 Rick Graziani graziani@cabrillo.edu71 IS-IS Routing Process: Decision The Decision Process –Uses Dijkstra’s algorithm to build a SPT (Shortest Path Tree) –The SPT is used to create the forwarding table, also known as the routing table. –Several tables are used during this process: PATH table –PATH table is the SPT during the construction of the LSDB –Each candidate route is placed in the PATH table while the metric is examined to determine if it is the shortest path to the destination. TENT is the tentative database (a scratchpad) during this process

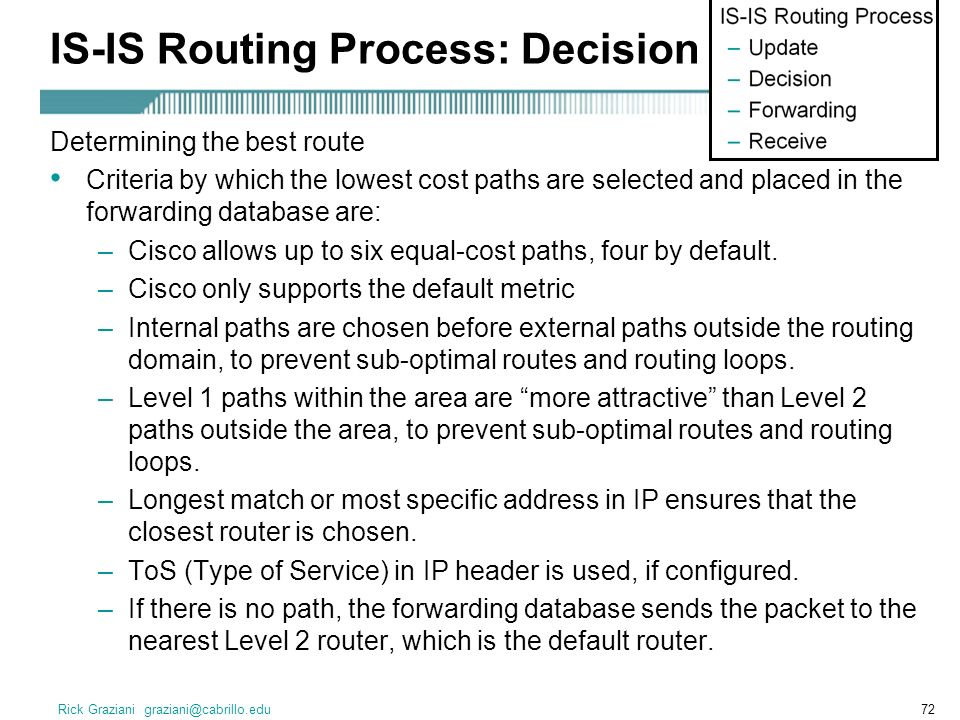

72 Rick Graziani graziani@cabrillo.edu72 IS-IS Routing Process: Decision Determining the best route Criteria by which the lowest cost paths are selected and placed in the forwarding database are: –Cisco allows up to six equal-cost paths, four by default. –Cisco only supports the default metric –Internal paths are chosen before external paths outside the routing domain, to prevent sub-optimal routes and routing loops. –Level 1 paths within the area are “more attractive” than Level 2 paths outside the area, to prevent sub-optimal routes and routing loops. –Longest match or most specific address in IP ensures that the closest router is chosen. –ToS (Type of Service) in IP header is used, if configured. –If there is no path, the forwarding database sends the packet to the nearest Level 2 router, which is the default router.

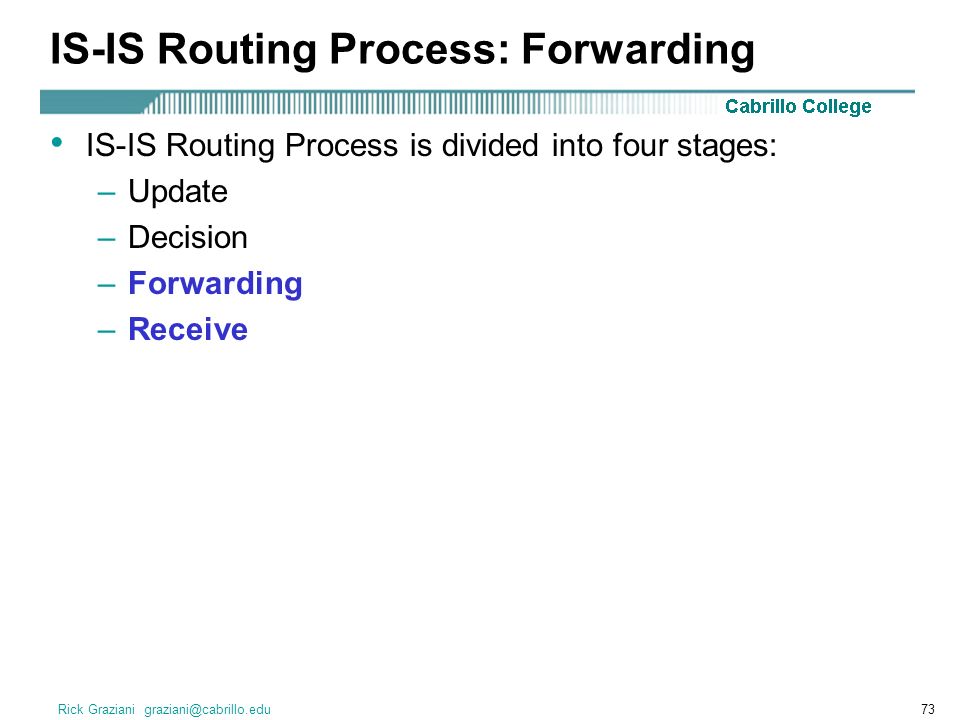

73 Rick Graziani graziani@cabrillo.edu73 IS-IS Routing Process: Forwarding IS-IS Routing Process is divided into four stages: –Update –Decision –Forwarding –Receive

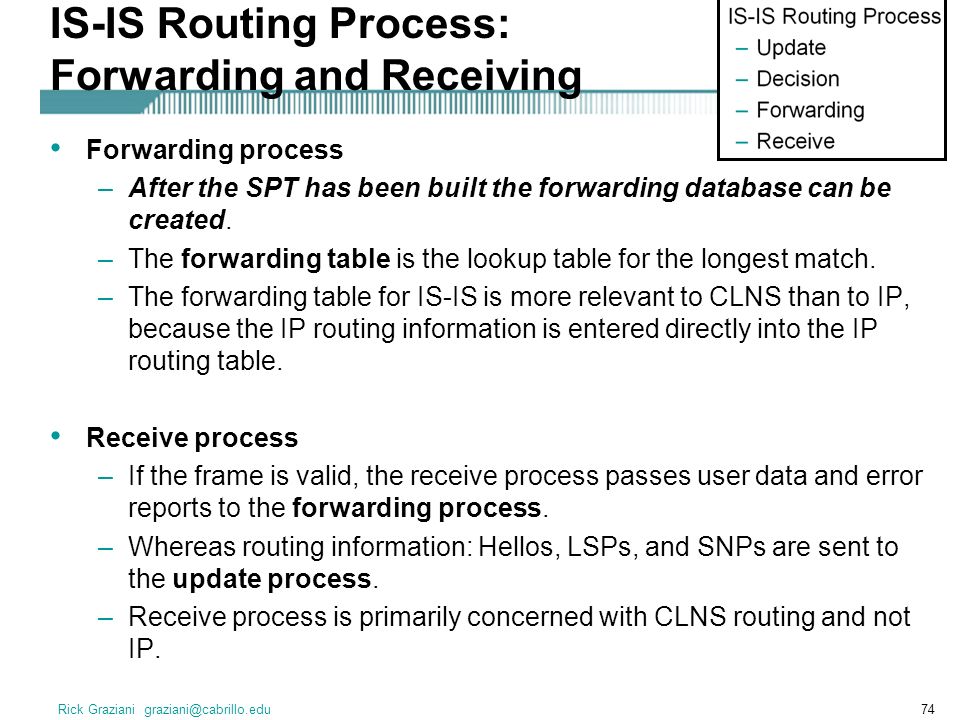

74 Rick Graziani graziani@cabrillo.edu74 IS-IS Routing Process: Forwarding and Receiving Forwarding process –After the SPT has been built the forwarding database can be created. –The forwarding table is the lookup table for the longest match. –The forwarding table for IS-IS is more relevant to CLNS than to IP, because the IP routing information is entered directly into the IP routing table. Receive process –If the frame is valid, the receive process passes user data and error reports to the forwarding process. –Whereas routing information: Hellos, LSPs, and SNPs are sent to the update process. –Receive process is primarily concerned with CLNS routing and not IP.

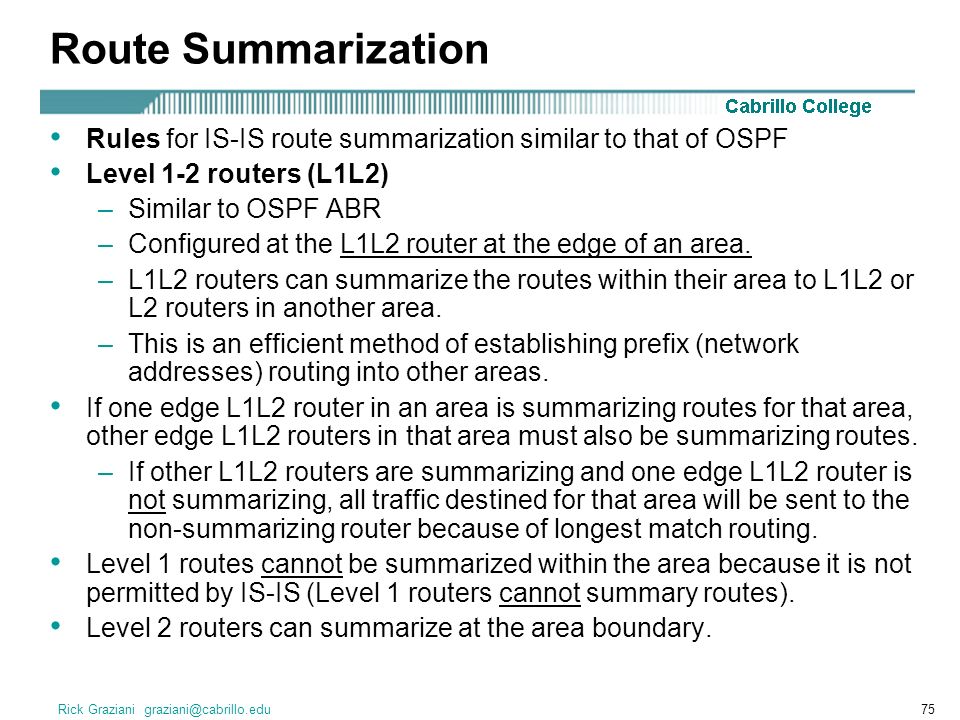

75 Rick Graziani graziani@cabrillo.edu75 Route Summarization Rules for IS-IS route summarization similar to that of OSPF Level 1-2 routers (L1L2) –Similar to OSPF ABR –Configured at the L1L2 router at the edge of an area. –L1L2 routers can summarize the routes within their area to L1L2 or L2 routers in another area. –This is an efficient method of establishing prefix (network addresses) routing into other areas. If one edge L1L2 router in an area is summarizing routes for that area, other edge L1L2 routers in that area must also be summarizing routes. –If other L1L2 routers are summarizing and one edge L1L2 router is not summarizing, all traffic destined for that area will be sent to the non-summarizing router because of longest match routing. Level 1 routes cannot be summarized within the area because it is not permitted by IS-IS (Level 1 routers cannot summary routes). Level 2 routers can summarize at the area boundary.

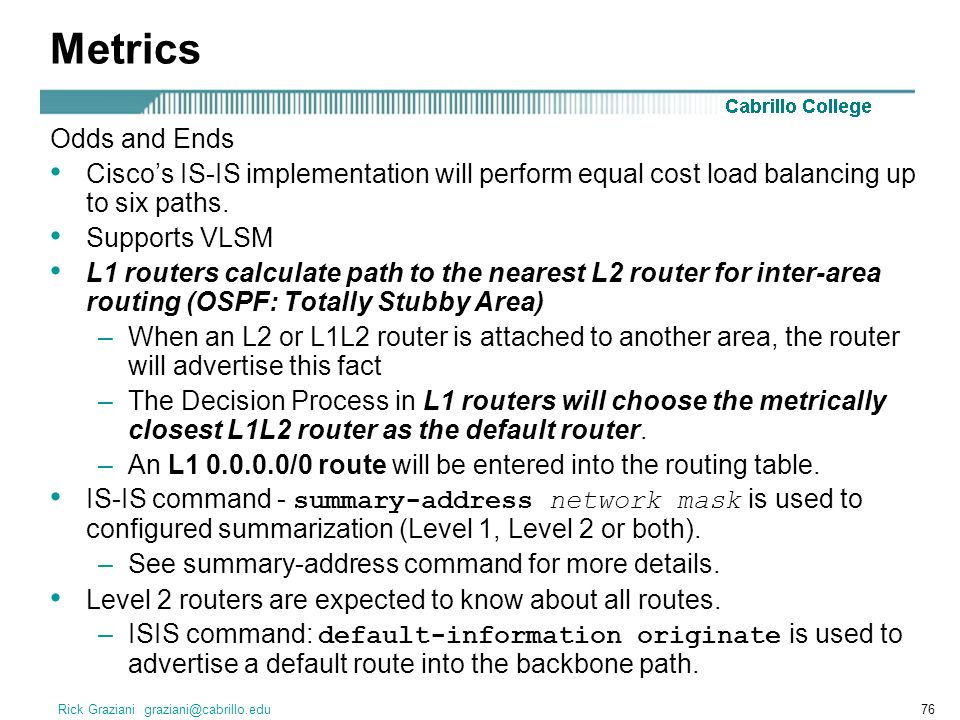

76 Rick Graziani graziani@cabrillo.edu76 Metrics Odds and Ends Cisco’s IS-IS implementation will perform equal cost load balancing up to six paths. Supports VLSM L1 routers calculate path to the nearest L2 router for inter-area routing (OSPF: Totally Stubby Area) –When an L2 or L1L2 router is attached to another area, the router will advertise this fact –The Decision Process in L1 routers will choose the metrically closest L1L2 router as the default router. –An L1 0.0.0.0/0 route will be entered into the routing table. IS-IS command - summary-address network mask is used to configured summarization (Level 1, Level 2 or both). –See summary-address command for more details. Level 2 routers are expected to know about all routes. –ISIS command: default-information originate is used to advertise a default route into the backbone path.

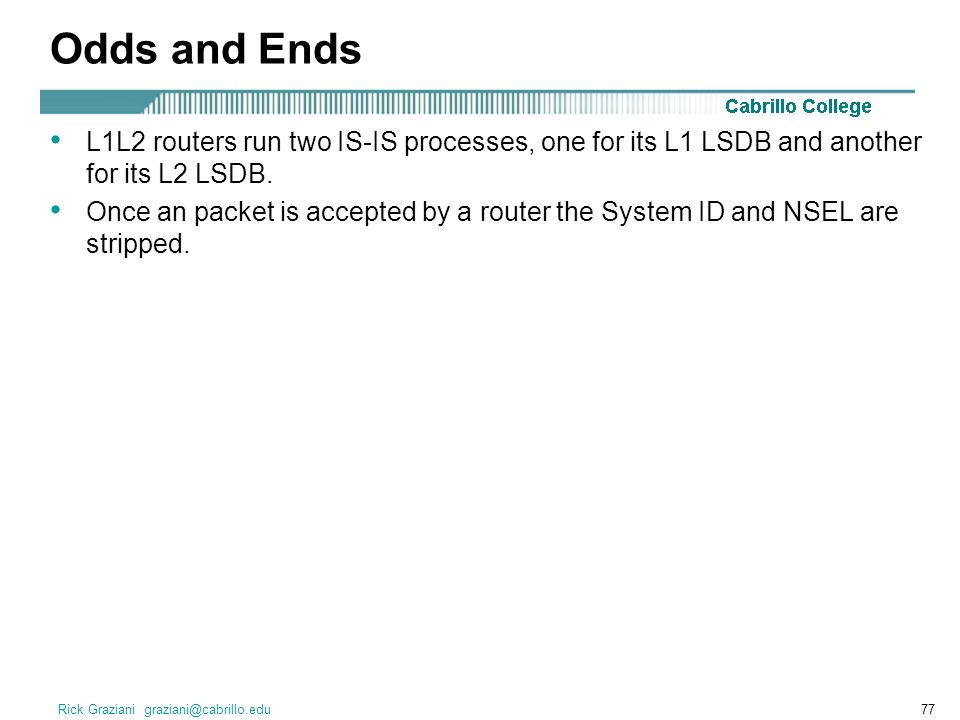

77 Rick Graziani graziani@cabrillo.edu77 Odds and Ends L1L2 routers run two IS-IS processes, one for its L1 LSDB and another for its L2 LSDB. Once an packet is accepted by a router the System ID and NSEL are stripped.

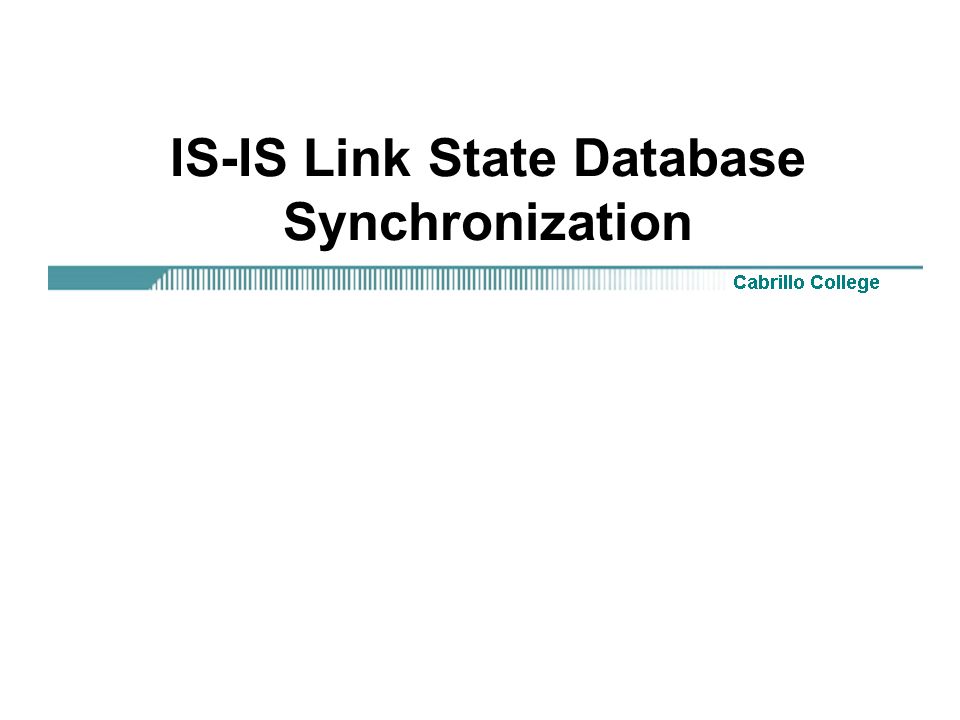

78 IS-IS Link State Database Synchronization

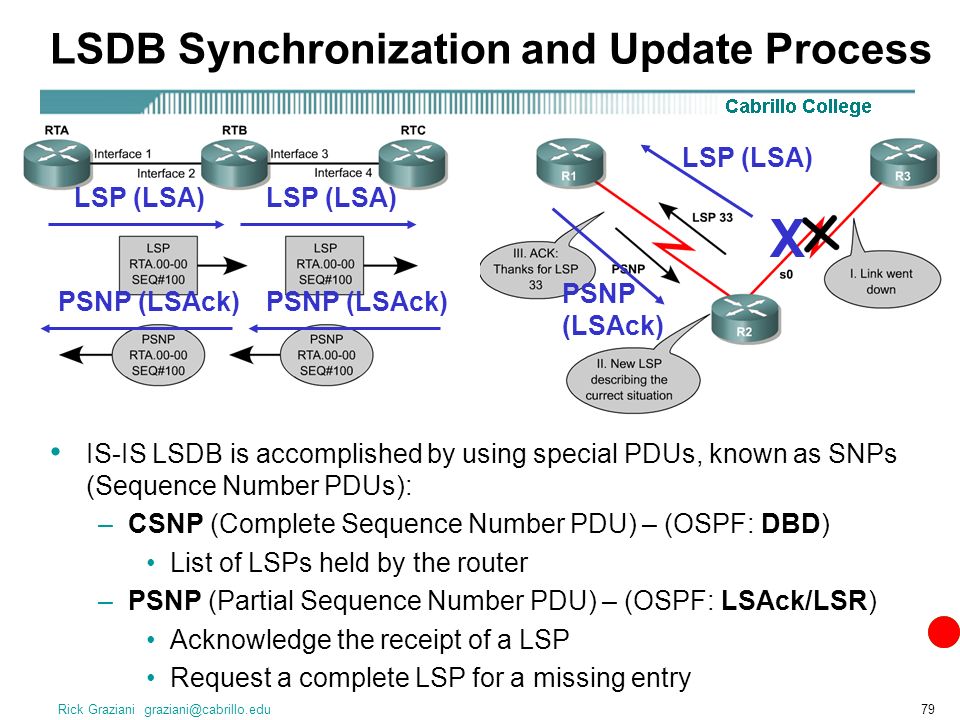

79 Rick Graziani graziani@cabrillo.edu79 LSDB Synchronization and Update Process IS-IS LSDB is accomplished by using special PDUs, known as SNPs (Sequence Number PDUs): –CSNP (Complete Sequence Number PDU) – (OSPF: DBD) List of LSPs held by the router –PSNP (Partial Sequence Number PDU) – (OSPF: LSAck/LSR) Acknowledge the receipt of a LSP Request a complete LSP for a missing entry X LSP (LSA) PSNP (LSAck) LSP (LSA) PSNP (LSAck)

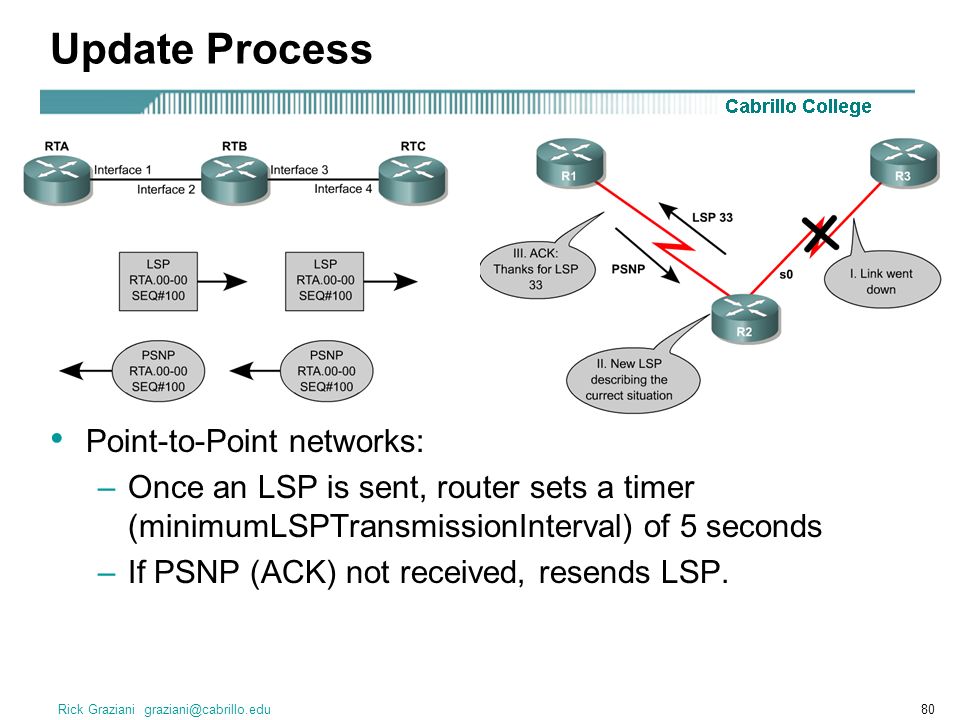

80 Rick Graziani graziani@cabrillo.edu80 Update Process Point-to-Point networks: –Once an LSP is sent, router sets a timer (minimumLSPTransmissionInterval) of 5 seconds –If PSNP (ACK) not received, resends LSP.

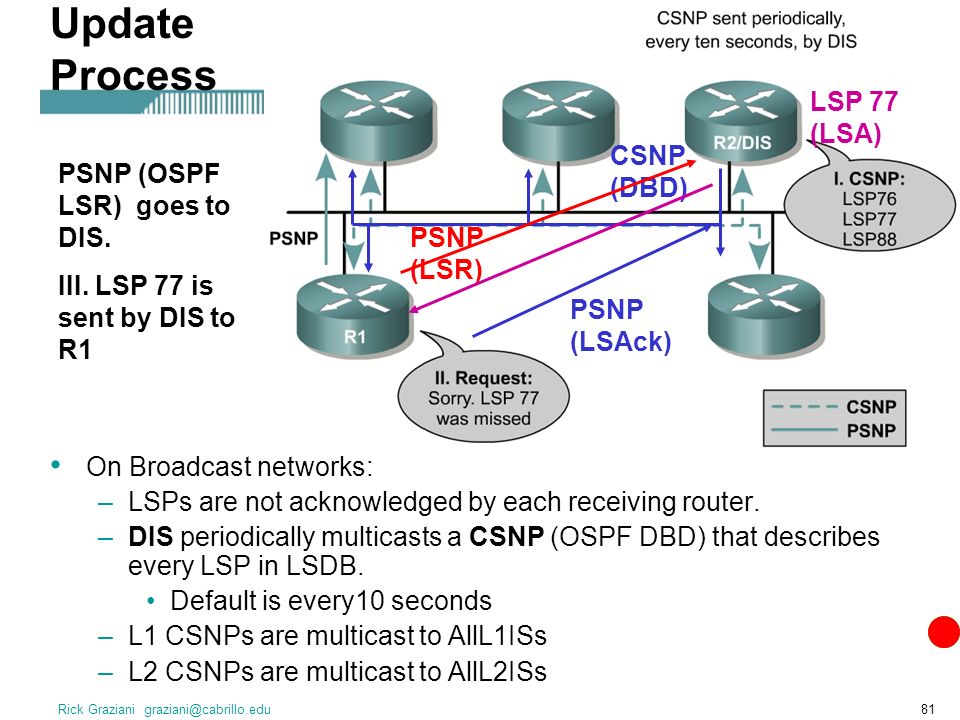

81 Rick Graziani graziani@cabrillo.edu81 Update Process On Broadcast networks: –LSPs are not acknowledged by each receiving router. –DIS periodically multicasts a CSNP (OSPF DBD) that describes every LSP in LSDB. Default is every10 seconds –L1 CSNPs are multicast to AllL1ISs –L2 CSNPs are multicast to AllL2ISs PSNP (OSPF LSR) goes to DIS. III. LSP 77 is sent by DIS to R1 CSNP (DBD) PSNP (LSR) LSP 77 (LSA) PSNP (LSAck)

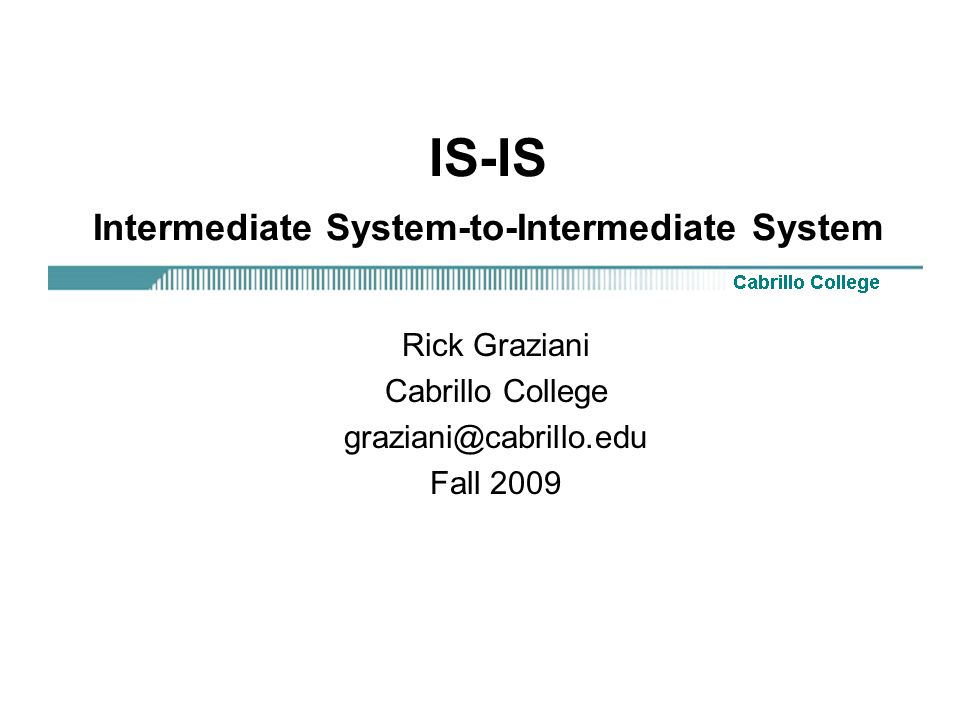

82 IS-IS Intermediate System-to-Intermediate System Rick Graziani Cabrillo College graziani@cabrillo.edu Fall 2009
